1. TEXTURE ANALYSIS OF
FOODS
MEHAK SAINI
L-2016-A-56-M
M.Sc (FT)
1

2. TEXTURE
Texture of food products is defined as all the
rheological, mechanical and structural attributes of
the product perceptible by means of mechanical,
tactile, visual as well as auditory receptors.
Texture is an important aspect of food quality,
sometimes even more important than flavor and color.
2

3. Textural characteristics are perceived in three
stages of ingestion representing initial,
masticatory and residual:
3
INITIAL : Hardness, brittleness and
viscosity
MASTICATORY: gumminess, chewiness,
adhesiveness, hardness, brittleness and
viscosity
RESIDUAL : rate of breakdown and
general mouthfeel

4. The tongue and palate evaluate feeling of meatiness
and grittiness in butter and sandy defect in ice cream
and sweetened condensed milk.
The pressure between the teeth and jaws determine
the hardness, chewiness and gumminess.
The fingertips and ball of the thumb help in
determining other textural attributes, notably
stickiness, elasticity/ sponginess and brittleness.
Creamy has a mouthfeel characteristic possessing the
textural property producing the sensation of the
presence of a miscible, thick, smooth liquid in the oral
cavity.
4

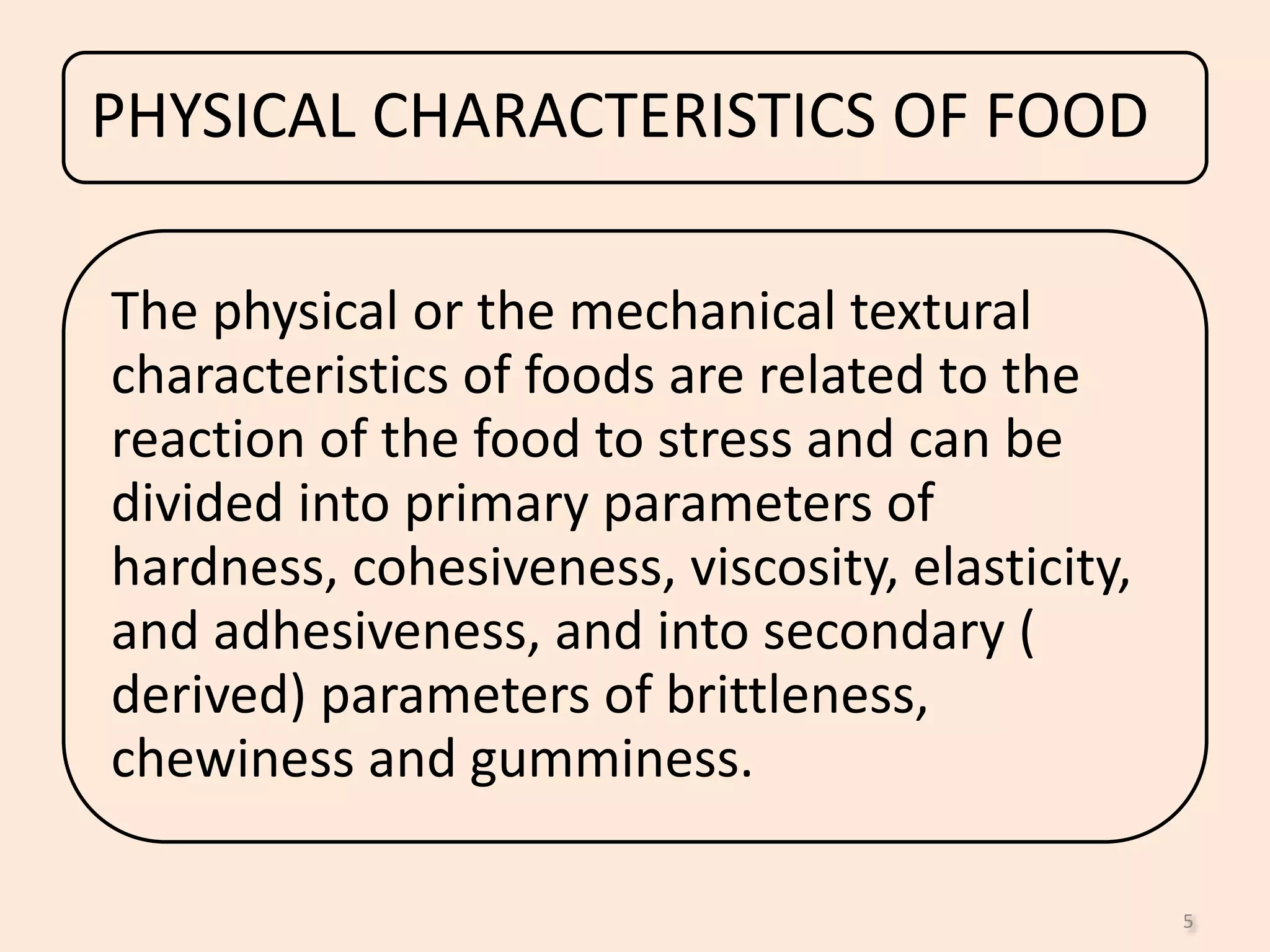

5. PHYSICAL CHARACTERISTICS OF FOOD
The physical or the mechanical textural
characteristics of foods are related to the
reaction of the food to stress and can be
divided into primary parameters of
hardness, cohesiveness, viscosity, elasticity,
and adhesiveness, and into secondary (
derived) parameters of brittleness,
chewiness and gumminess.
5

6. HARDNESS
• Force required to compress a substance between the molar teeth(
solid foods) or between the tongue and palate ( semi solid) to a given
deformation or penetration and desinated as soft, firm or hard
COHESIVENESS
• It is the extent to which a material can be deformed before it ruptures
and is dependent upon the strength of internal bonds.
TENDERNESS, CHEWINESS OR TOUGHNESS
• These characteristics are defined as the energy required to masticate
a solid food product to a state ready for swallowing and involves
compressing, shearing etc.
BRITTLENESS, CRUNCHINESS AND CRUMBLINESS
• These three characteristics are due to the high degree of hardness and
low degree of cohesiveness.
6

7. 7

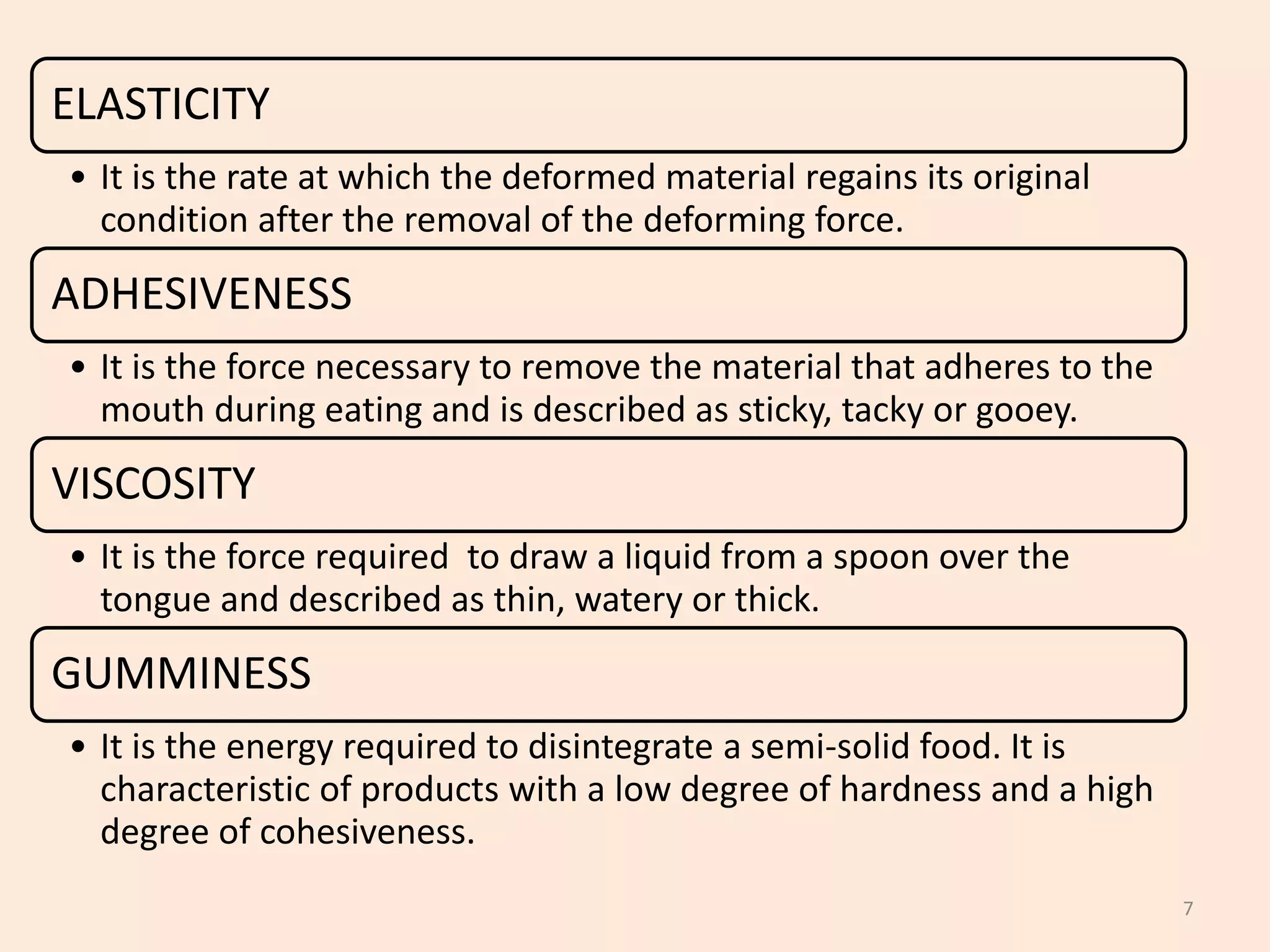

ELASTICITY
• It is the rate at which the deformed material regains its original
condition after the removal of the deforming force.
ADHESIVENESS
• It is the force necessary to remove the material that adheres to the
mouth during eating and is described as sticky, tacky or gooey.
VISCOSITY
• It is the force required to draw a liquid from a spoon over the
tongue and described as thin, watery or thick.
GUMMINESS
• It is the energy required to disintegrate a semi-solid food. It is
characteristic of products with a low degree of hardness and a high
degree of cohesiveness.

8. Characterization of food texture commonly falls into
two main groups:
• Sensory analysis
• Instrumental methods of analysis
Sensory evaluation of food texture by touch includes
the use of fingers, lips, tongue, palate and teeth.
Instrumental methods of assessing food texture :
• Can be carried out under more strictly defined and controlled
conditions
• Analysis gives consistent results, if analyzed in constant
conditions.
• More sensitive than subjective sensory equivalents.
8

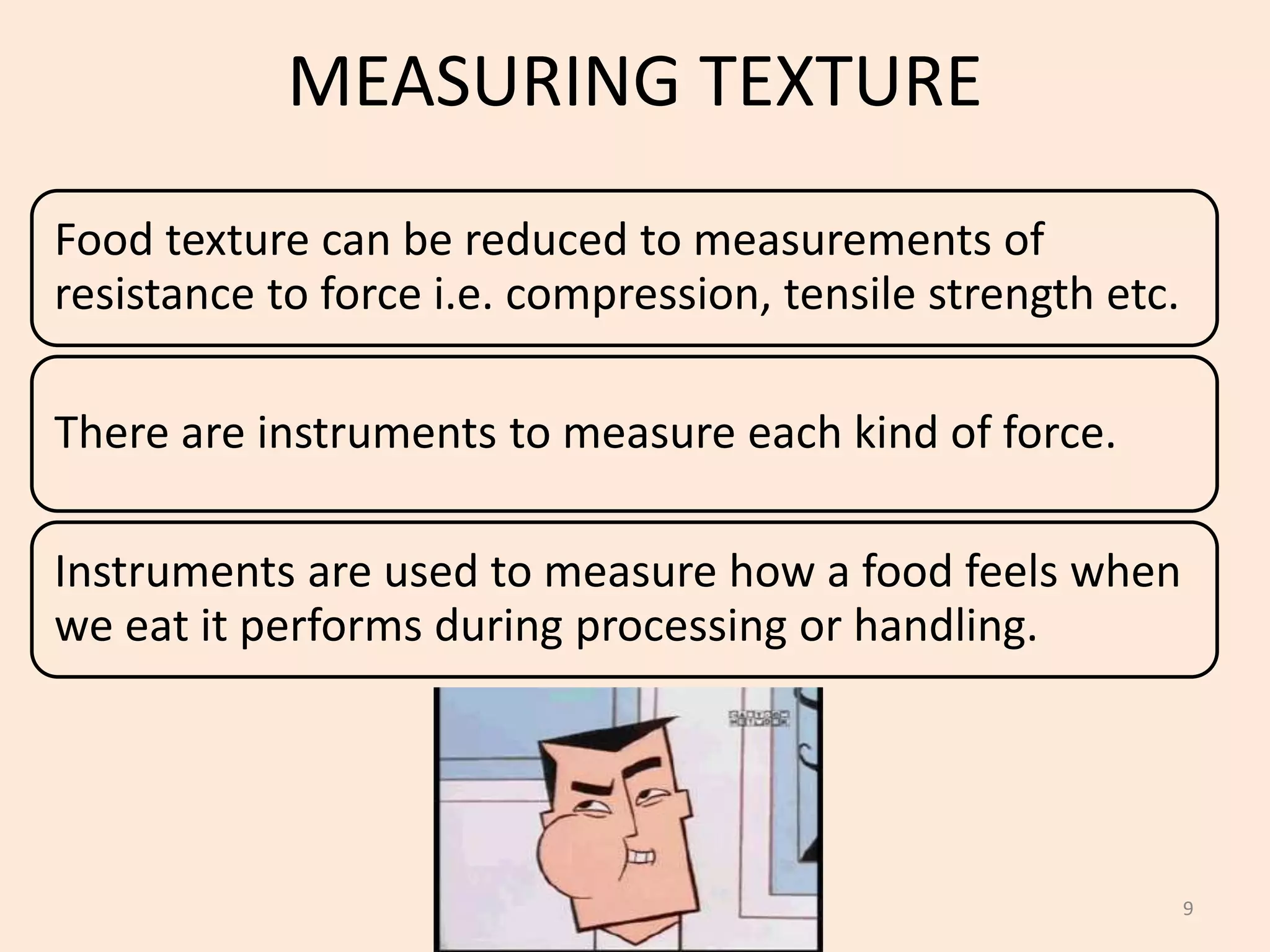

9. MEASURING TEXTURE
Food texture can be reduced to measurements of
resistance to force i.e. compression, tensile strength etc.
There are instruments to measure each kind of force.
Instruments are used to measure how a food feels when
we eat it performs during processing or handling.
9

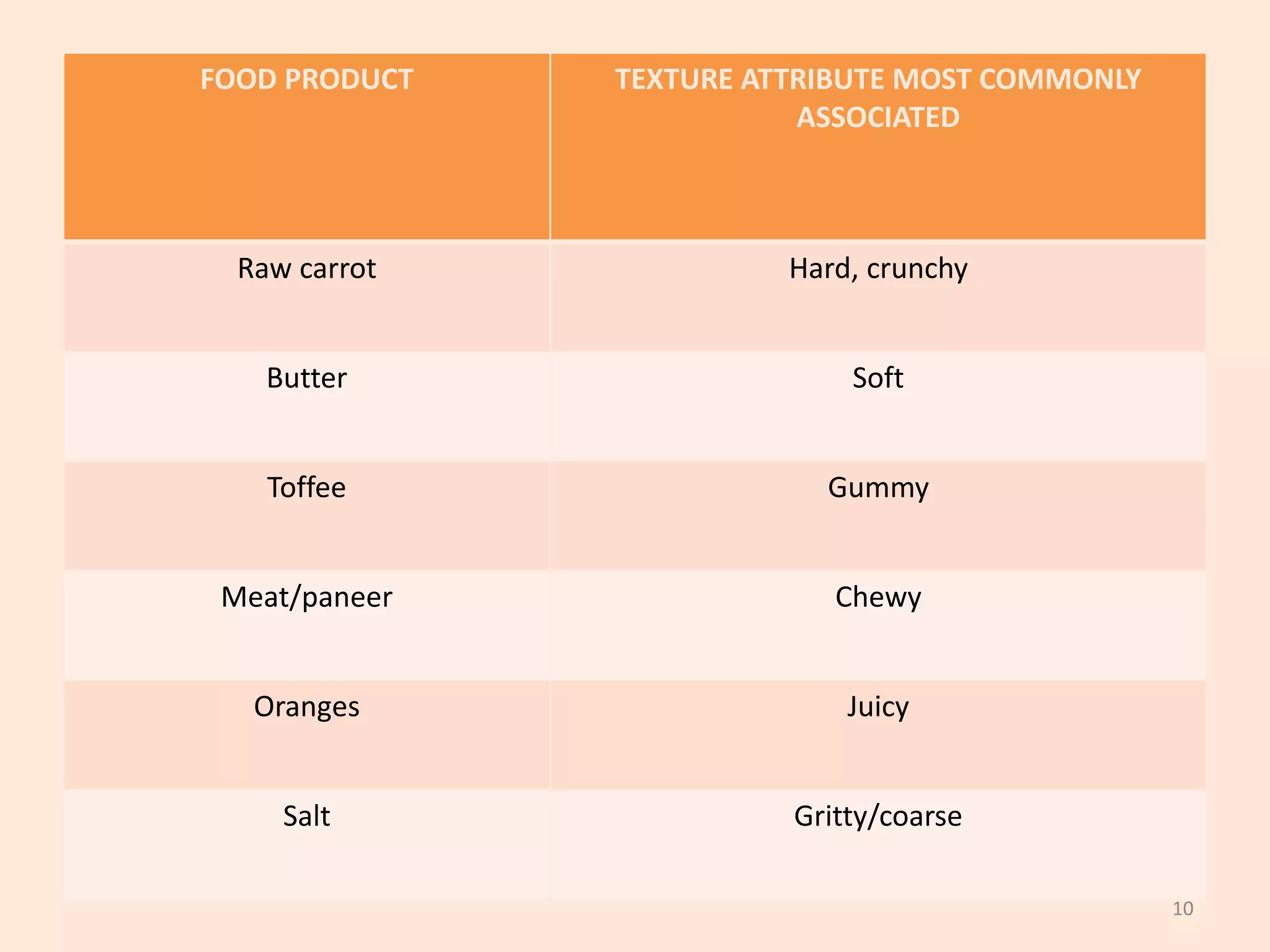

10. FOOD PRODUCT TEXTURE ATTRIBUTE MOST COMMONLY
ASSOCIATED
Raw carrot Hard, crunchy
Butter Soft
Toffee Gummy
Meat/paneer Chewy
Oranges Juicy
Salt Gritty/coarse
10

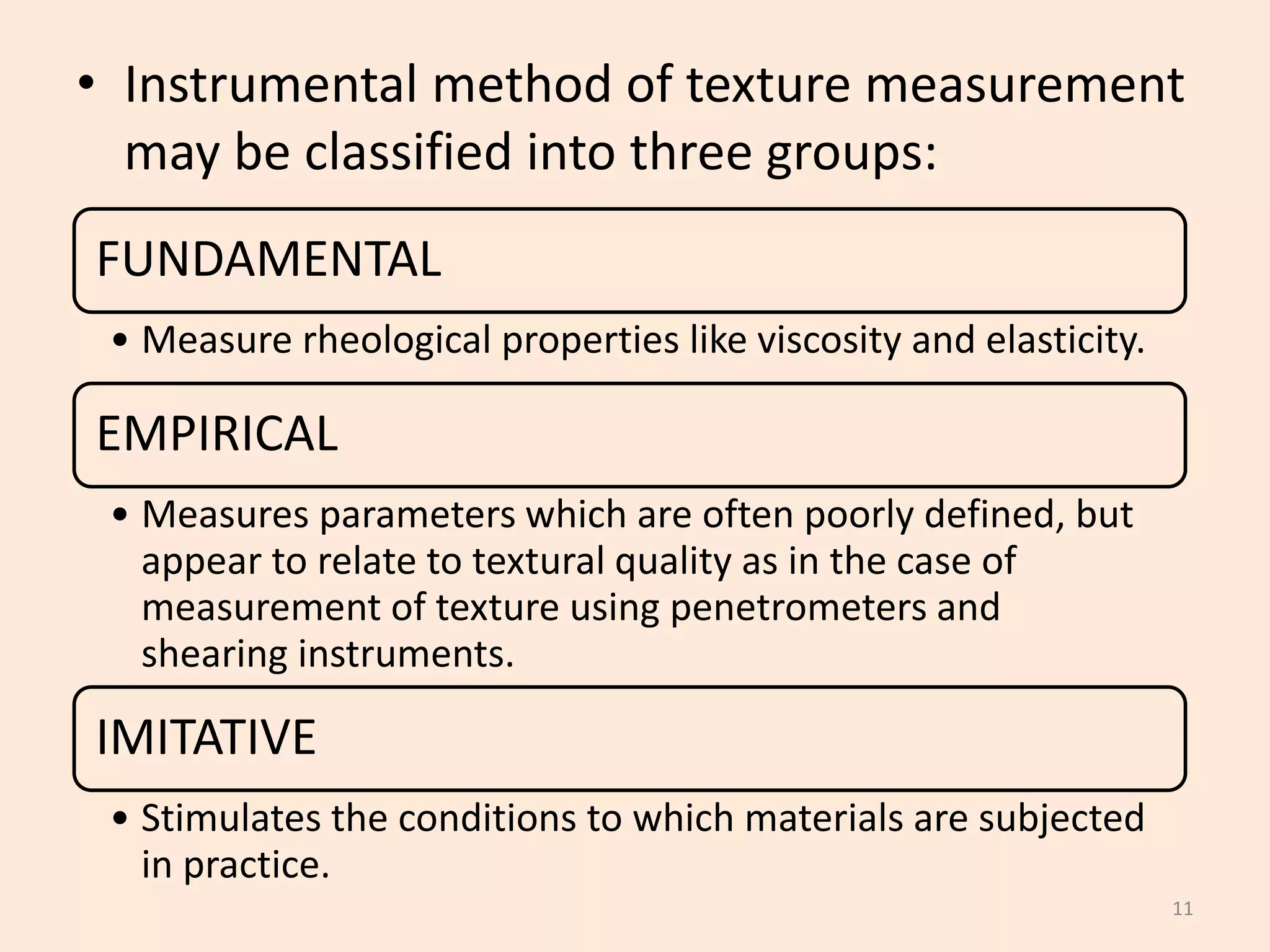

11. • Instrumental method of texture measurement
may be classified into three groups:
11
FUNDAMENTAL
• Measure rheological properties like viscosity and elasticity.
EMPIRICAL
• Measures parameters which are often poorly defined, but
appear to relate to textural quality as in the case of
measurement of texture using penetrometers and
shearing instruments.
IMITATIVE
• Stimulates the conditions to which materials are subjected
in practice.

12. 12
SUCCULOMETER
an instrument for measuring the moisture content of a fresh
or processed vegetable product (such as an ear of corn)
uses compression to squeeze juice out of food as a measure
of succulence.

13. 13
PENETROMETER
an instrument for determining the consistency or hardness of a substance by
measuring the depth or rate of penetration of a rod or needle driven into it by
a known force.
measure the force required to move a plunger a fixed distance through a food
material.

14. 14

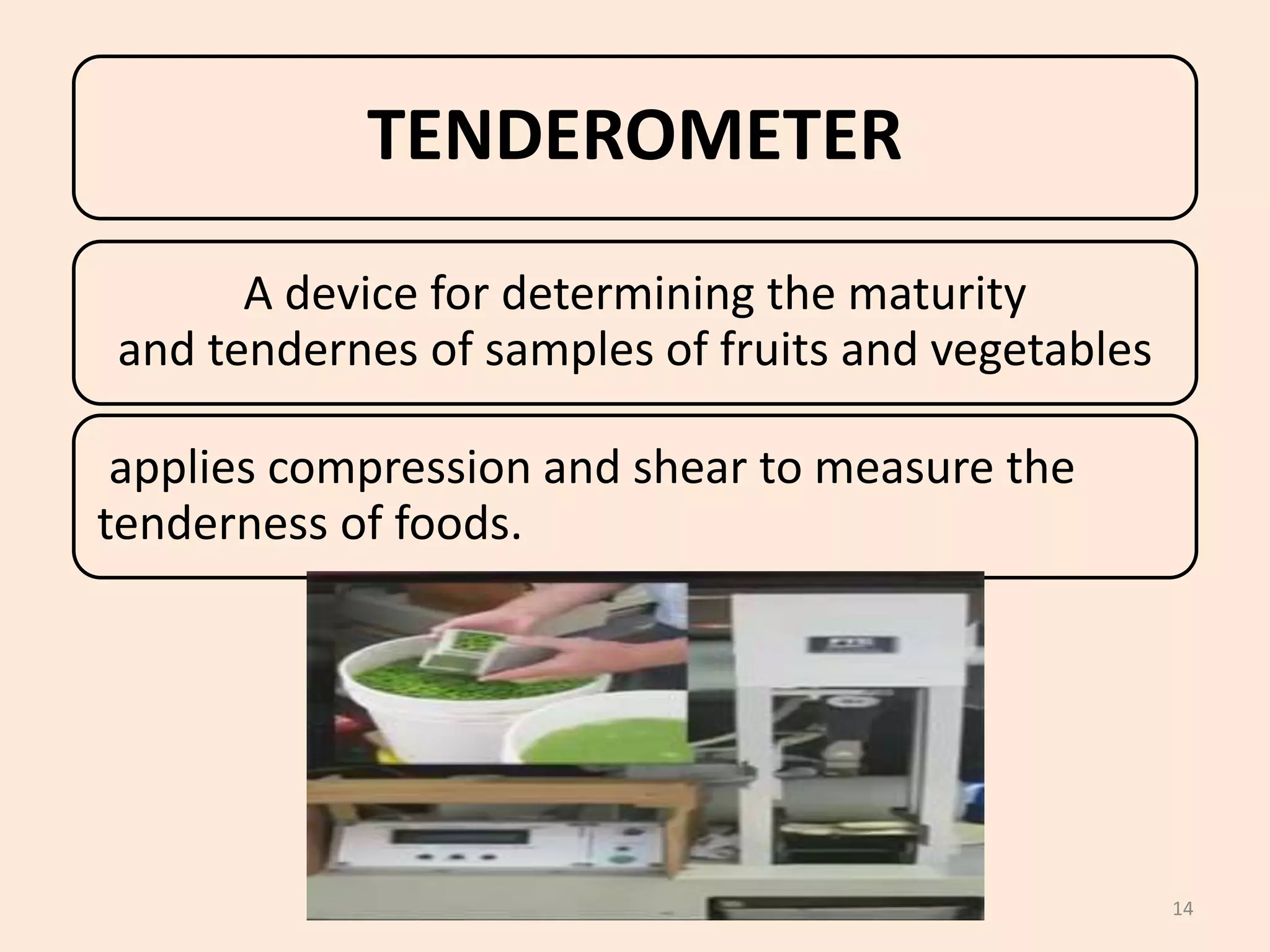

TENDEROMETER
A device for determining the maturity
and tendernes of samples of fruits and vegetables
applies compression and shear to measure the
tenderness of foods.

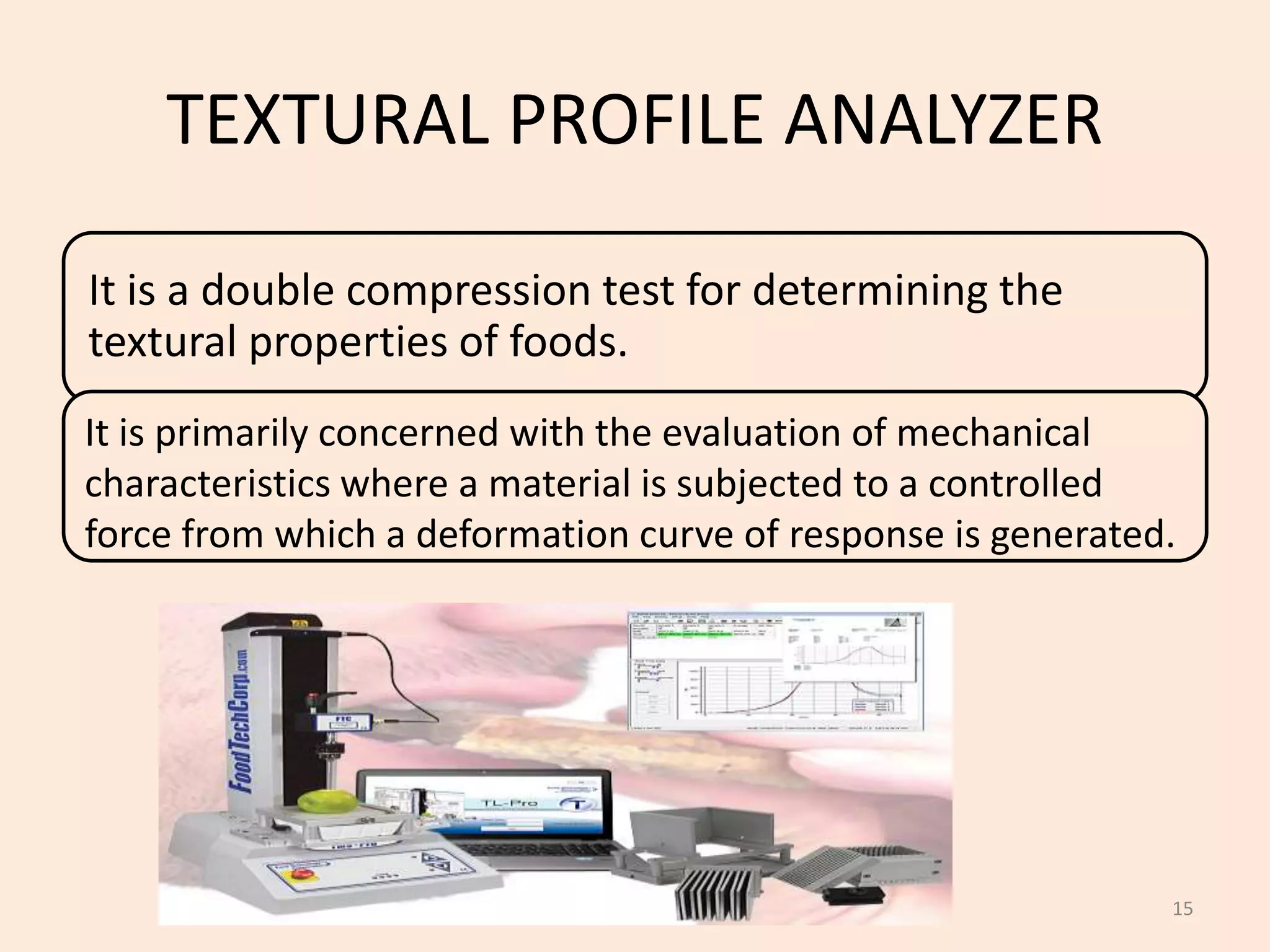

15. TEXTURAL PROFILE ANALYZER
15
It is a double compression test for determining the
textural properties of foods.
It is primarily concerned with the evaluation of mechanical
characteristics where a material is subjected to a controlled
force from which a deformation curve of response is generated.

16. 16

17. 17

18. 18

19. 19

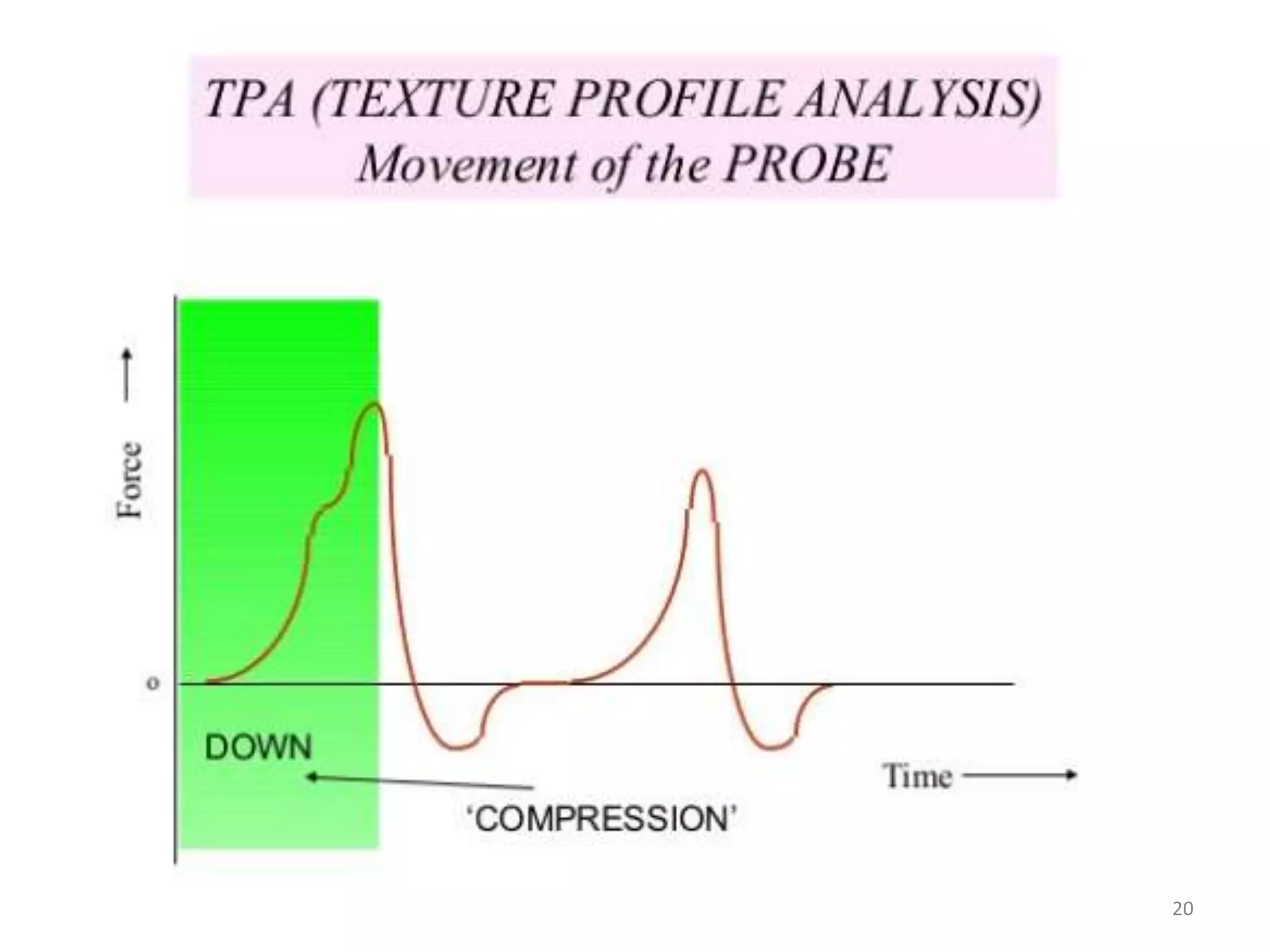

20. 20

21. 21

22. 22

23. 23

24. 24

25. 25
COHESIVENESS:
AREA B/ AREA A

26. 26

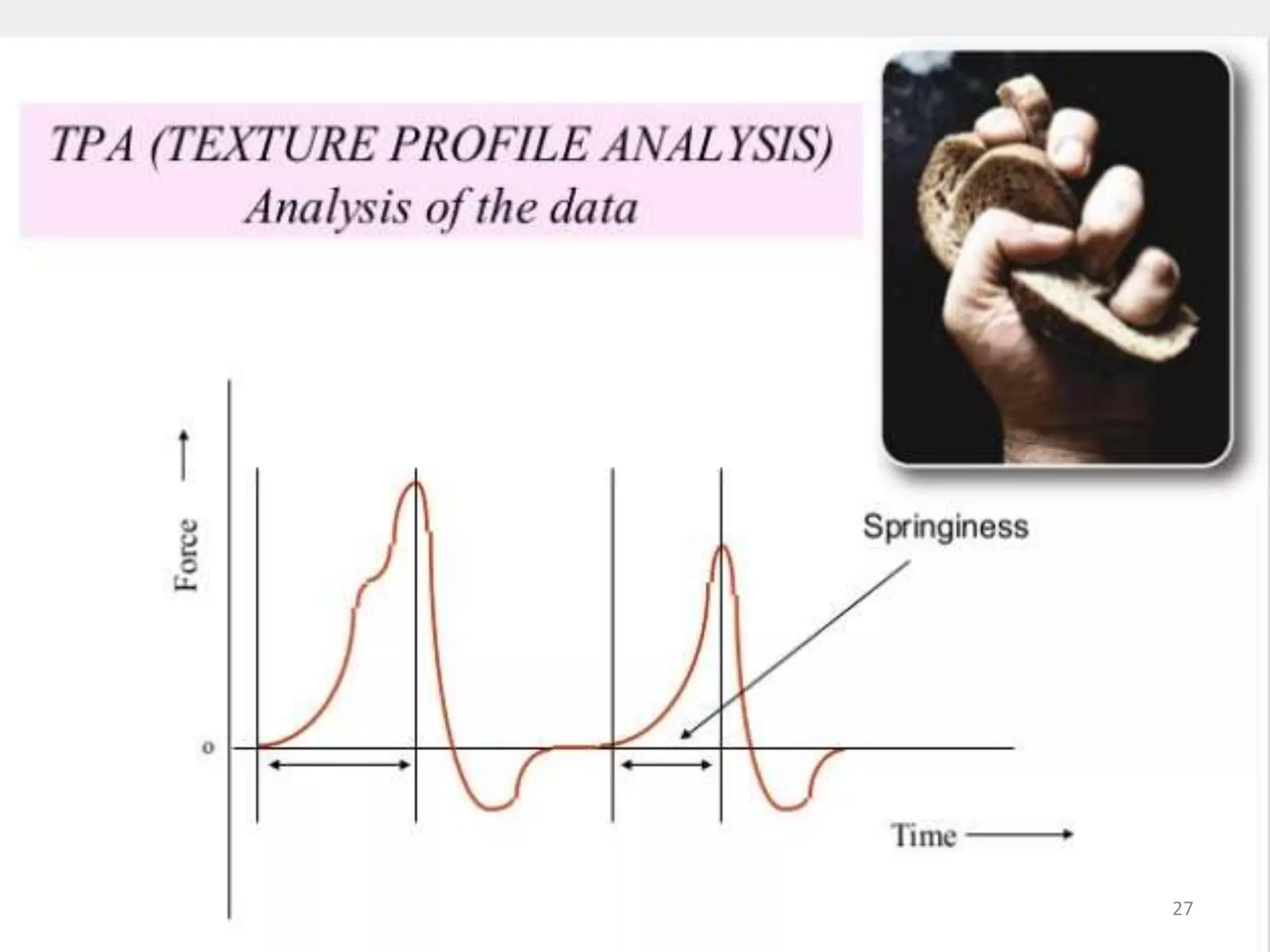

27. 27

28. 28

29. 29

30. 30

31. 31

32. 32

33. 33
