The document describes a radiator leakage tester that is ISO 9001 certified. It tests radiators at 138kPa for leaks up to 4.2cm by controlling temperature and pressure. The tester uses flexible fixtures to accommodate different radiator models and sizes. It constructs the instrument with stainless steel and pneumatic controls for loading radiators, imparting controlled air pressure, and displaying pressure holding time. It can test radiators ranging from 300mm to 1000mm.

1. FEC
R
World Class Testing Equipments
An ISO 9001 Certified Co.

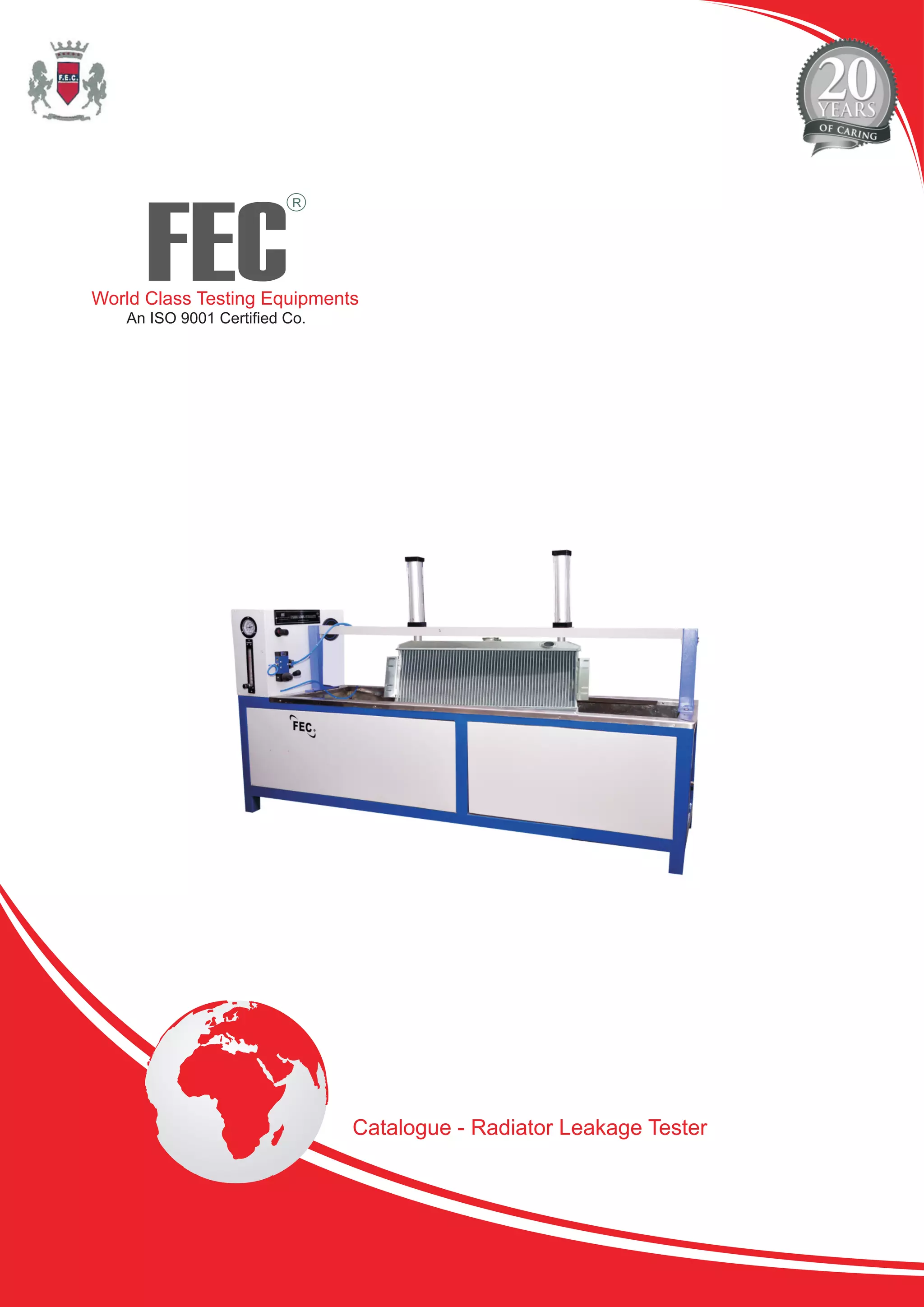

Catalogue - Radiator Leakage Tester

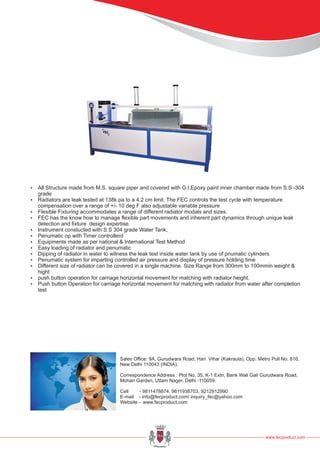

2. ?All Structure made from M.S. square piper and covered with G.I.Epoxy paint inner chamber made from S.S -304
grade
?Radiators are leak tested at 138k pa to a 4.2 cm limit. The FEC controls the test cycle with temperature
compensation over a range of +/- 10 deg F also adjustable variable pressure
?Flexible Fixturing accommodates a range of different radiator modals and sizes.
?FEC has the know how to manage flexible part movements and inherent part dynamics through unique leak
detection and fixture design expertise.
?Instrument constucted with S.S 304 grade Water Tank,
?Penumatic op with Timer controllerd
?Equipments made as per national & International Test Method
?Easy loading of radiator and penumatic
?Dipping of radiator in water to witness the leak test inside water tank by use of pnumatic cylinders.
?Penumatic system for imparting controlled air pressure and display of pressure holding time
?Different size of radiator can be covered in a single machine. Size Range from 300mm to 100mmin weight &
hight
?push button operation for carriage horizontal movement for matching with radiator height.
?Push button Operation for carriage horizontal movement for matching with radiator from water after completion
test
www.fecproduct.com
Sales Office: 9A, Gurudwara Road, Hari Vihar (Kakraula), Opp. Metro Poll No. 816,
New Delhi 110043 (INDIA).
Correspondence Address : Plot No. 35, K-1 Extn, Bank Wali Gali Gurudwara Road,
Mohan Garden, Uttam Nager, Delhi -110059.
Cell - 9811478874, 9811938703, 9212912990
E-mail - info@fecproduct.com/ inquiry_fec@yahoo.com
Website - www.fecproduct.com
