This document discusses different techniques for software testing, including static and dynamic techniques. It covers specification-based or black-box techniques like equivalence partitioning, boundary value analysis, decision tables, and state transition testing. Equivalence partitioning involves dividing inputs into equivalent partitions, while boundary value analysis focuses on testing values at the boundaries of partitions. Decision tables systematically test combinations of inputs. State transition testing models the different states a system can be in and the transitions between states.

1. Presented to
Dr. Ghazy Assassa
Benha University, Shoubra faculty of
engineering, Department of computer engineering,
Software Engineering course.
March 2013
By : Mohamed Mahmoud El-shenawy

2.  A test design technique basically helps us to select a
good set of tests from the total number of all possible
tests for a given system.
 There are two main categories:
1. Static technique
2. Dynamic technique
i. Specification-based (black-box, also known as
behavioral techniques)
ii. Structure-based (white-box or structural techniques)
iii. Experience- based

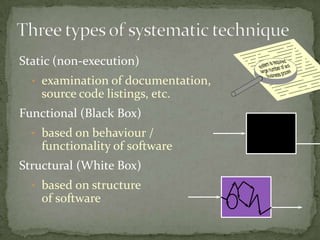

3. Static (non-execution)
• examination of documentation,
source code listings, etc.
Functional (Black Box)
• based on behaviour /
functionality of software
Structural (White Box)
• based on structure
of software

4. Static Dynamic
Structural
Behavioural
FunctionalNon-functional
Reviews
Walkthroughs
Desk-checking
Data
Flow
Symbolic
Execution
Definition
-Use
Statement
Branch/Decision
Branch Condition
Branch Condition
Combination
LCSAJ
Arcs
Equivalence
Partitioning
Boundary
Value Analysis
Cause-Effect Graphi
Random
Usability
Performance
Static AnalysisInspection
Control
Flow
etc.
etc.
etc.
etc.
etc
State Transition

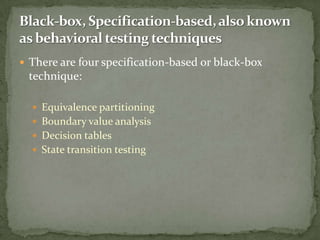

5.  There are four specification-based or black-box
technique:
 Equivalence partitioning
 Boundary value analysis
 Decision tables
 State transition testing

6.  divide (partition) the inputs, outputs, etc. into areas
which are the same (equivalent)
 assumption: if one value works, all will work
 one from each partition better than all from one
1 100 1010
valid invalidinvalid

7.  faults tend to lurk near boundaries
 good place to look for faults
 test values on both sides of boundaries
1 100 1010
valid invalidinvalid

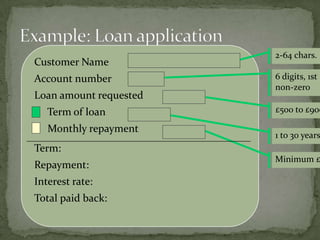

8. Customer Name
Account number
Loan amount requested
Term of loan
Monthly repayment
Term:
Repayment:
Interest rate:
Total paid back:
6 digits, 1st
non-zero
£500 to £900
1 to 30 years
Minimum £
2-64 chars.

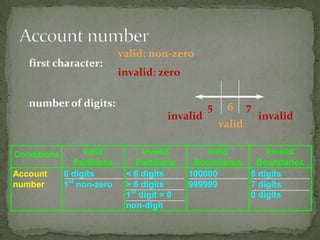

9. 5 6 7
invalid
valid
invalid
number of digits:
first character:
invalid: zero
valid: non-zero
Conditions Valid
Partitions
Invalid
Partitions
Valid
Boundaries
Invalid
Boundaries
Account
number
6 digits
1st
non-zero
< 6 digits
> 6 digits
1st
digit = 0
non-digit
100000
999999
5 digits
7 digits
0 digits

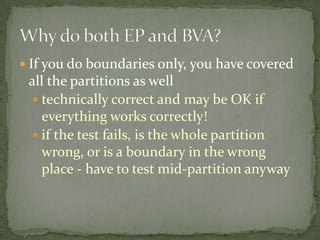

10.  If you do boundaries only, you have covered
all the partitions as well
 technically correct and may be OK if
everything works correctly!
 if the test fails, is the whole partition
wrong, or is a boundary in the wrong
place - have to test mid-partition anyway

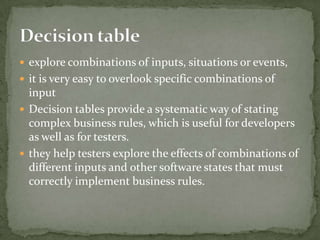

11.  explore combinations of inputs, situations or events,
 it is very easy to overlook specific combinations of
input
 Decision tables provide a systematic way of stating
complex business rules, which is useful for developers
as well as for testers.
 they help testers explore the effects of combinations of
different inputs and other software states that must
correctly implement business rules.

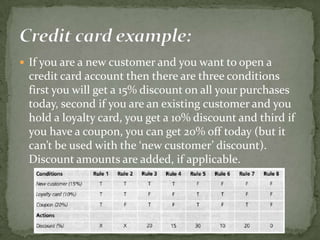

12.  If you are a new customer and you want to open a
credit card account then there are three conditions
first you will get a 15% discount on all your purchases
today, second if you are an existing customer and you
hold a loyalty card, you get a 10% discount and third if
you have a coupon, you can get 20% off today (but it
can’t be used with the ‘new customer’ discount).
Discount amounts are added, if applicable.

13.  A state transition model has four basic parts:
 The states that the software may occupy (open/closed or
funded/insufficient funds);
 The transitions from one state to another (not all
transitions are allowed);
 The events that cause a transition (closing a file or
withdrawing money);
 The actions that result from a transition (an error
message or being given your cash).

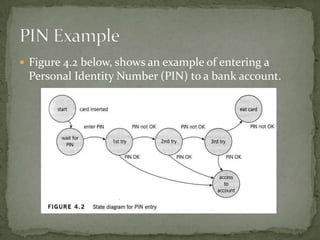

14.  Figure 4.2 below, shows an example of entering a
Personal Identity Number (PIN) to a bank account.
