2. 強化關鍵應用系統
災難復原能力
DISASTER RECOVERY FOR
MISSION CRITICAL
APPLICATIONS
李文哲
資深專業技術顧問/EMC Taiwan
© Copyright 2012 EMC Corporation. All rights reserved. 2

3. 應用系統災難備援的挑戰
 Ensuring Application Availability Given Massive Data
Growth And Budget Pressures
 Meeting Stricter Regulatory And Competitive
Requirements For Retention, Security And Protection
 And Doing So In Today’s Cloud World
– New Choices, New Benefits – But New Challenges Too
© Copyright 2012 EMC Corporation. All rights reserved. 3

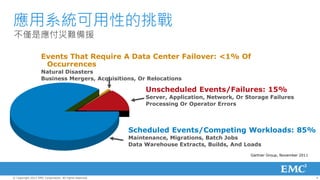

4. 應用系統可用性的挑戰
不僅是應付災難備援
Events That Require A Data Center Failover: <1% Of
Occurrences
Natural Disasters
Business Mergers, Acquisitions, Or Relocations
Unscheduled Events/Failures: 15%
Server, Application, Network, Or Storage Failures
Processing Or Operator Errors
Scheduled Events/Competing Workloads: 85%
Maintenance, Migrations, Batch Jobs
Data Warehouse Extracts, Builds, And Loads
Gartner Group, November 2011
© Copyright 2012 EMC Corporation. All rights reserved. 4

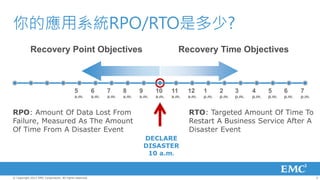

5. 你的應用系統RPO/RTO是多少?
Recovery Point Objectives Recovery Time Objectives
5 6 7 8 9 10 11 12 1 2 3 4 5 6 7
a.m. a.m. a.m. a.m. a.m. a.m. a.m. a.m. p.m. p.m. p.m. p.m. p.m. p.m. p.m.
RPO: Amount Of Data Lost From RTO: Targeted Amount Of Time To
Failure, Measured As The Amount Restart A Business Service After A
Of Time From A Disaster Event Disaster Event
DECLARE
DISASTER
10 a.m.
© Copyright 2012 EMC Corporation. All rights reserved. 5

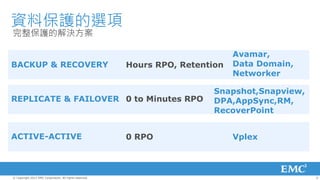

6. 資料保護的選項
完整保護的解決方案
Avamar,
BACKUP & RECOVERY Hours RPO, Retention Data Domain,
Networker
Snapshot,Snapview,
REPLICATE & FAILOVER 0 to Minutes RPO DPA,AppSync,RM,
RecoverPoint
ACTIVE-ACTIVE 0 RPO Vplex
© Copyright 2012 EMC Corporation. All rights reserved. 6

7. BACKUP &
RECOVERY
Hours RPO, Retention
© Copyright 2012 EMC Corporation. All rights reserved. 7

8. 去重複化改變所有的遊戲規則
Reduce:
• Backup Times By Up To 90%
• Data Stored By Up To 30x
• Data Moved By Up To 95%
• CPU Usage By Up To 80%
• Replication Bandwidth By Up To 99%
© Copyright 2012 EMC Corporation. All rights reserved. 8

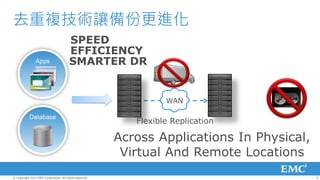

9. 去重複技術讓備份更進化
SPEED
EFFICIENCY
Apps SMARTER DR
WAN
Database
Flexible Replication
Across Applications In Physical,
Virtual And Remote Locations
© Copyright 2012 EMC Corporation. All rights reserved. 9

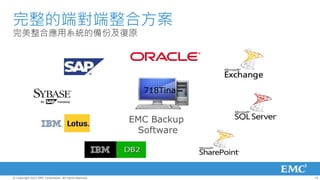

10. 完整的端對端整合方案
完美整合應用系統的備份及復原
718Tina
EMC Backup
Software
© Copyright 2012 EMC Corporation. All rights reserved. 10

11. REPLICATE
FAILOVER
 0 to Minutes RPO
© Copyright 2012 EMC Corporation. All rights reserved. 11

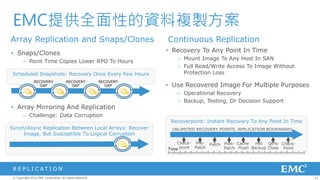

12. EMC提供全面性的資料複製方案
Array Replication and Snaps/Clones Continuous Replication
• Snaps/Clones • Recovery To Any Point In Time
– Mount Image To Any Host In SAN
– Point Time Copies Lower RPO To Hours
– Full Read/Write Access To Image Without
Scheduled Snapshots: Recovery Once Every Few Hours Protection Loss
RECOVERY RECOVERY RECOVERY
GAP GAP GAP • Use Recovered Image For Multiple Purposes
– Operational Recovery
– Backup, Testing, Or Decision Support
• Array Mirroring And Replication
– Challenge: Data Corruption
Recoverpoint: Instant Recovery To Any Point In Time
Synch/Async Replication Between Local Arrays: Recover UNLIMITED RECOVERY POINTS, APPLICATION BOOKMARKS
Image, But Susceptible To Logical Corruption
Check- Pre- Patch Post- Cache Hot Qtrly Check-
Time point Patch Patch Flush Backup Close Point
R E P L I C AT I O N
© Copyright 2012 EMC Corporation. All rights reserved. 12

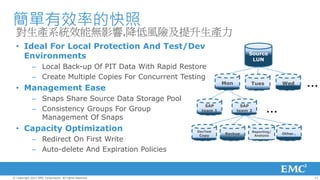

13. 簡單有效率的快照
對生產系統效能無影響,降低風險及提升生產力
• Ideal For Local Protection And Test/Dev
Environments Source
LUN
– Local Back-up Of PIT Data With Rapid Restore
– Create Multiple Copies For Concurrent Testing
• Management Ease
Mon Tues Wed …
– Snaps Share Source Data Storage Pool
– Consistency Groups For Group
SAP
team 1
SAP
team 2 …
Management Of Snaps
• Capacity Optimization DevTest
Backup
Reporting/
Other..
Copy Analysis
– Redirect On First Write
– Auto-delete And Expiration Policies
© Copyright 2012 EMC Corporation. All rights reserved. 13

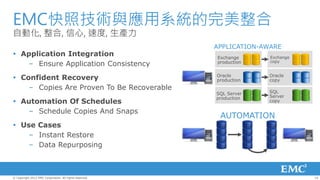

14. EMC快照技術與應用系統的完美整合
自動化, 整合, 信心, 速度, 生產力
APPLICATION-AWARE
 Application Integration Exchange Exchange
copy
– Ensure Application Consistency production
Oracle Oracle
 Confident Recovery production copy
– Copies Are Proven To Be Recoverable SQL
SQL Server
production Server
 Automation Of Schedules copy
– Schedule Copies And Snaps
AUTOMATION
 Use Cases
– Instant Restore
– Data Repurposing
© Copyright 2012 EMC Corporation. All rights reserved. 14

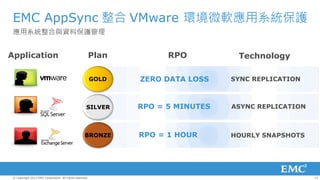

15. EMC AppSync 整合 VMware 環境微軟應用系統保護
應用系統整合與資料保護管理
Application Plan RPO Technology
GOLD ZERO DATA LOSS SYNC REPLICATION
SILVER RPO = 5 MINUTES ASYNC REPLICATION
BRONZE RPO = 1 HOUR HOURLY SNAPSHOTS
© Copyright 2012 EMC Corporation. All rights reserved. 15

16. EMC RecoverPoint 持續資料保護解決方案
連續的資料複製保護任何應用系統環境
ANY ANY ANY ANY
APPLICATION STORAGE LOCATION POINT IN TIME
YOUR CHOICE
© Copyright 2012 EMC Corporation. All rights reserved. 16

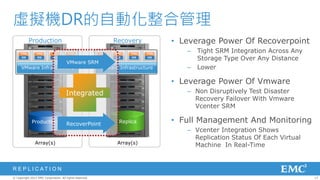

17. 虛擬機DR的自動化整合管理
Production Recovery • Leverage Power Of Recoverpoint
SAP SAP SAP SAP SAP SAP SAP SAP
– Tight SRM Integration Across Any
Storage Type Over Any Distance
VMware SRM
VMware Infrastructure VMware Infrastructure – Lower
• Leverage Power Of Vmware
Integrated – Non Disruptively Test Disaster
Recovery Failover With Vmware
Vcenter SRM
Production RecoverPoint Replica • Full Management And Monitoring
– Vcenter Integration Shows
Replication Status Of Each Virtual
Array(s) Array(s) Machine In Real-Time
R E P L I C AT I O N
© Copyright 2012 EMC Corporation. All rights reserved. 17

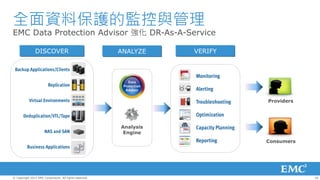

18. 全面資料保護的監控與管理
EMC Data Protection Advisor 強化 DR-As-A-Service
DISCOVER ANALYZE VERIFY
Providers
Analysis
Engine
Consumers
© Copyright 2012 EMC Corporation. All rights reserved. 18

19. ACTIVE -ACTIVE
ZERO RPO
© Copyright 2012 EMC Corporation. All rights reserved. 19

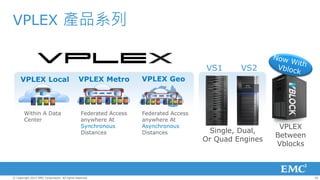

20. VPLEX 產品系列
VS1 VS2
VPLEX Local VPLEX Metro VPLEX Geo
Within A Data Federated Access Federated Access
Center anywhere At anywhere At
Synchronous Asynchronous VPLEX
Distances Distances Single, Dual,
Between
Or Quad Engines
Vblocks
© Copyright 2012 EMC Corporation. All rights reserved. 20

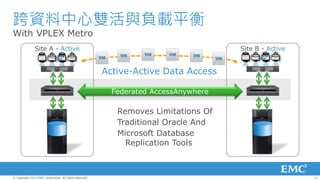

21. 跨資料中心雙活與負載平衡
With VPLEX Metro
Site A - Active Site B - Active
Active-Active Data Access
Federated AccessAnywhere
Removes Limitations Of
Traditional Oracle And
Microsoft Database
Replication Tools
© Copyright 2012 EMC Corporation. All rights reserved. 21

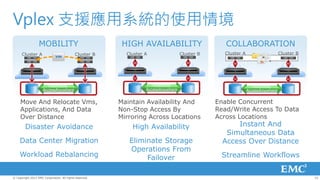

22. Vplex 支援應用系統的使用情境
MOBILITY HIGH AVAILABILITY COLLABORATION
Cluster A Cluster B Cluster A Cluster B Cluster A Cluster B
Federated Federated Federated
AccessAnywhere AccessAnywhere AccessAnywhere
Move And Relocate Vms, Maintain Availability And Enable Concurrent
Applications, And Data Non-Stop Access By Read/Write Access To Data
Over Distance Mirroring Across Locations Across Locations
Disaster Avoidance High Availability Instant And
Simultaneous Data
Data Center Migration Eliminate Storage Access Over Distance
Operations From
Workload Rebalancing Failover Streamline Workflows
© Copyright 2012 EMC Corporation. All rights reserved. 22

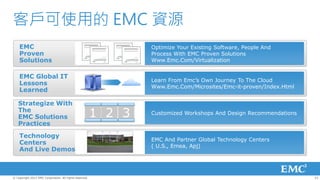

23. 客戶可使用的 EMC 資源
EMC Optimize Your Existing Software, People And
Proven Process With EMC Proven Solutions
Solutions Www.Emc.Com/Virtualization
EMC Global IT
Learn From Emc’s Own Journey To The Cloud
Lessons
Www.Emc.Com/Microsites/Emc-it-proven/Index.Html
Learned
Strategize With
The
EMC Solutions 1 2 3 Customized Workshops And Design Recommendations
Practices
Technology
EMC And Partner Global Technology Centers
Centers
( U.S., Emea, Apj)
And Live Demos
© Copyright 2012 EMC Corporation. All rights reserved. 23

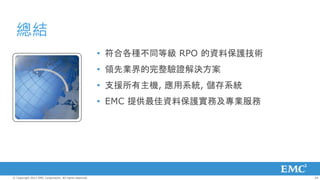

24. 總結
• 符合各種不同等級 RPO 的資料保護技術
• 領先業界的完整驗證解決方案
• 支援所有主機, 應用系統, 儲存系統
• EMC 提供最佳資料保護實務及專業服務
© Copyright 2012 EMC Corporation. All rights reserved. 24
