Opus Interactive, established in 1994, offers cloud hosting, managed services, and colocation from its tier III+ data centers located in Hillsboro, Portland, Santa Clara, and Dallas, with a commitment to 100% uptime and 24/7 support. The Hillsboro data center features high energy efficiency, extensive security measures, and an array of customizable solutions designed to meet the unique needs of clients. The facility supports 7.9 MW of critical power load, is PCI compliant, and provides a robust infrastructure backed by on-site engineering and support.

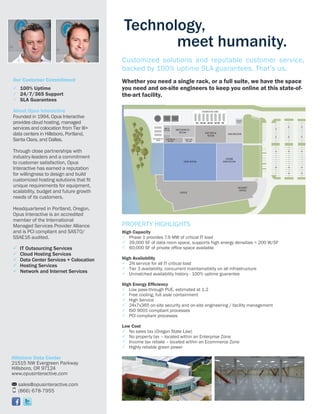

1. Hillsboro Data Center

2. Technology,
meet humanity.
Our Customer Commitment
99 100% Uptime
99 24/7/365 Support
99 SLA Guarantees
About Opus Interactive
Founded in 1994, Opus Interactive
provides cloud hosting, managed
services and colocation from Tier III+
data centers in Hillsboro, Portland,
Santa Clara, and Dallas.
Through close partnerships with
industry-leaders and a commitment
to customer satisfaction, Opus
Interactive has earned a reputation
for willingness to design and build
customized hosting solutions that fit
unique requirements for equipment,
scalability, budget and future growth
needs of its customers.
Headquartered in Portland, Oregon,
Opus Interactive is an accredited
member of the International
Managed Services Provider Alliance
and is PCI compliant and SAS70/
SSAE16 audited.
99 IT Outsourcing Services
99 Cloud Hosting Services
99 Data Center Services + Colocation
99 Hosting Services
99 Network and Internet Services
Hillsboro Data Center
21515 NW Evergreen Parkway
Hillsboro, OR 97124
www.opusinteractive.com
sales@opusinteractive.com
(866) 678-7955
Customized solutions and reputable customer service,
backed by 100% uptime SLA guarantees. That’s us.
Whether you need a single rack, or a full suite, we have the space
you need and on-site engineers to keep you online at this state-of-
the-art facility.
Property Highlights
High Capacity
99 Phase 1 provides 7.9 MW of critical IT load
99 39,000 SF of data room space, supports high energy densities > 200 W/SF
99 60,000 SF of private office space available
High Availability
99 2N service for all IT critical load
99 Tier 3 availability, concurrent maintainability on all infrastructure
99 Unmatched availability history - 100% uptime guarantee
High Energy Efficiency
99 Low pass-through PUE, estimated at 1.2
99 Free cooling, full aisle containment
99 High Service
99 24x7x365 on-site security and on-site engineering / facility management
99 ISO 9001 compliant processes
99 PCI compliant processes
Low Cost
99 No sales tax (Oregon State Law)
99 No property tax – located within an Enterprise Zone
99 Income tax rebate – located within an Ecommerce Zone
99 Highly reliable green power

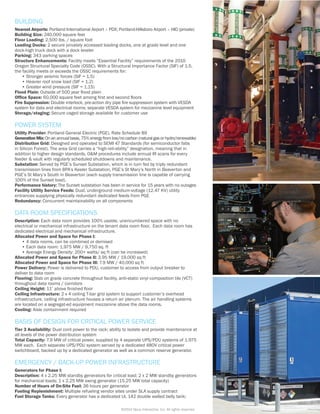

3. Building
Nearest Airports: Portland International Airport – PDX; Portland-Hillsboro Airport – HIO (private)
Building Size: 240,000 square feet
Floor Loading: 2,500 lbs. / square foot
Loading Docks: 2 secure privately accessed loading docks, one at grade level and one
dock-high truck dock with a dock leveler
Parking: 343 parking spaces
Structure Enhancements: Facility meets “Essential Facility” requirements of the 2010
Oregon Structural Specialty Code (OSSC). With a Structural Importance Factor (SIF) of 1.5,
the facility meets or exceeds the OSSC requirements for:
• Stronger seismic forces (SIF = 1.5)
• Heavier roof snow load (SIF = 1.2)
• Greater wind pressure (SIF = 1.15)
Flood Plain: Outside of 500 year flood plain
Office Space: 60,000 square feet among first and second floors
Fire Suppression: Double interlock, pre-action dry pipe fire suppression system with VESDA
system for data and electrical rooms; separate VESDA system for mezzanine level equipment
Storage/staging: Secure caged storage available for customer use
Power System
Utility Provider: Portland General Electric (PGE), Rate Schedule 89
Generation Mix:Onanannual basis, 75% energyfrom low/nocarbon(naturalgasorhydro/renewable)
Distribution Grid: Designed and operated to SEMI 47 Standards (for semiconductor fabs
in Silicon Forest). The area Grid carries a “high-reli-ability” designation, meaning that in
addition to higher design standards, O&M procedures include annual IR scans for every
feeder & vault with regularly scheduled shutdowns and maintenance.
Substation: Served by PGE’s Sunset Substation, which is in turn fed by triply redundant
transmission lines from BPA’s Keeler Substation, PGE’s St Mary’s North in Beaverton and
PGE’s St Mary’s South in Beaverton (each supply transmission line is capable of carrying
100% of the Sunset load).
Performance history: The Sunset substation has been in service for 15 years with no outages
Facility Utility Service Feeds: Dual, underground medium-voltage (12.47 KV) utility
entrances supplying physically redundant dedicated feeds from PGE
Redundancy: Concurrent maintainability on all components
Data Room Specifications
Description: Each data room provides 100% usable, unencumbered space with no
electrical or mechanical infrastructure on the tenant data room floor. Each data room has
dedicated electrical and mechanical infrastructure.
Allocated Power and Space for Phase I:
• 4 data rooms, can be combined or demised
• Each data room: 1.975 MW / 9,750 sq. ft
• Average Energy Density: 200+ watts/ sq ft (can be increased)
Allocated Power and Space for Phase II: 3.95 MW / 19,000 sq ft
Allocated Power and Space for Phase III: 7.9 MW / 40,000 sq ft
Power Delivery: Power is delivered to PDU, customer to access from output breaker to
deliver to data room
Flooring: Slab on grade concrete throughout facility, anti-static vinyl composition tile (VCT)
throughout data rooms / corridors
Ceiling Height: 11’ above finished floor
Ceiling Infrastructure: 2 x 4 ceiling T-bar grid system to support customer’s overhead
infrastructure, ceiling infrastructure houses a return air plenum. The air handling systems
are located on a segregat-ed equipment mezzanine above the data rooms.
Cooling: Aisle containment required
Basis of Design for Critical Power Service
Tier 3 Availability: Dual cord power to the rack; ability to isolate and provide maintenance at
all levels of the power distribution system
Total Capacity: 7.9 MW of critical power, supplied by 4 separate UPS/PDU systems of 1.975
MW each. Each separate UPS/PDU system served by a dedicated 480V critical power
switchboard, backed up by a dedicated generator as well as a common reserve generator.
Emergency / Back-up Power Infrastructure
Generators for Phase I:
Description: 4 x 2.25 MW standby generators for critical load; 2 x 2 MW standby generators
for mechanical loads; 1 x 2.25 MW swing generator (15.25 MW total capacity)
Number of Hours of On-Site Fuel: 36 hours per generator
Fueling Replenishment: Multiple refueling vendor sites under SLA supply contract
Fuel Storage Tanks: Every generator has a dedicated UL 142 double walled belly tank;
©2014 Opus Interactive, Inc. All rights reserved.

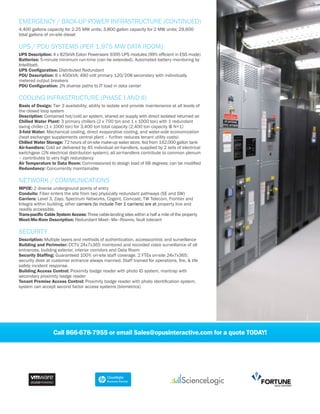

4. Emergency / Back-up Power Infrastructure (continued)
4,400 gallons capacity for 2.25 MW units; 3,800 gallon capacity for 2 MW units; 29,600
total gallons of on-site diesel
UPS / PDU Systems (per 1.975 MW Data Room)
UPS Description: 4 x 825kVA Eaton Powerware 9395 UPS modules (99% efficient in ESS mode)
Batteries: 5-minute minimum run-time (can be extended). Automated battery monitoring by
Intellibatt.
UPS Configuration: Distributed Redundant
PDU Description: 8 x 400kVA; 480 volt primary 120/208 secondary with individually
metered output breakers
PDU Configuration: 2N diverse paths to IT load in data center
Cooling Infrastructure (Phase I and II)
Basis of Design: Tier 3 availability; ability to isolate and provide maintenance at all levels of
the closed loop system
Description: Contained hot/cold air system, shared air supply with direct isolated returned air
Chilled Water Plant: 3 primary chillers (2 x 700 ton and 1 x 1000 ton) with 1 redundant
swing chiller (1 x 1000 ton) for 3,400 ton total capacity (2,400 ton capacity @ N+1)
3-fold Water: Mechanical cooling, direct evaporative cooling, and water-side economization
(heat exchanger supplements central plant – further reduces tenant utility costs)
Chilled Water Storage: 72 hours of on-site make-up water store, fed from 142,000 gallon tank
Air-handlers: Cold air delivered by 45 individual air-handlers, supplied by 2 sets of electrical
switchgear (2N electrical distribution system); all air-handlers contribute to common plenum
– contributes to very high redundancy
Air Temperature to Data Room: Commissioned to design load of 68 degrees; can be modified
Redundancy: Concurrently maintainable
Network / Communications
MPOE: 2 diverse underground points of entry
Conduits: Fiber enters the site from two physically redundant pathways (SE and SW)
Carriers: Level 3, Zayo, Spectrum Networks, Cogent, Comcast, TW Telecom, Frontier and
Integra within building, other carriers (to include Tier 1 carriers) are at property line and
readily accessible.
Trans-pacific Cable System Access: Three cable-landing sites within a half a mile of the property
Meet-Me-Rom Description: Redundant Meet–Me–Rooms, fault tolerant
Security
Description: Multiple layers and methods of authentication, accesscontrol, and surveillance
Building and Perimeter: CCTV 24x7x365 monitored and recorded video surveillance of all
entrances, building exterior, interior corridors and Data Room
Security Staffing: Guaranteed 100% on-site staff coverage. 2 FTEs on-site 24x7x365;
security desk at customer entrance always manned. Staff trained for operations, fire, & life
safety incident response.
Building Access Control: Proximity badge reader with photo ID system, mantrap with
secondary proximity badge reader
Tenant Premise Access Control: Proximity badge reader with photo identification system,
system can accept second factor access systems (biometrics)
Call 866-678-7955 or email Sales@opusinteractive.com for a quote TODAY!
