Intergate.Seattle
East Campus
Design Efficiency
•	 On-deck mounting for racks, cabinets
& SAN devices
•	 Overhead cable tray & power distribution
•	 Modular for easy, cost-effective expansion
•	 Hot aisle encapsulation
Critical Environment Management
•	 Award-winning Operations Team
•	 State of the art control and monitoring 24/7
•	 Physical security audits and assessments
•	 Mission critical responsiveness

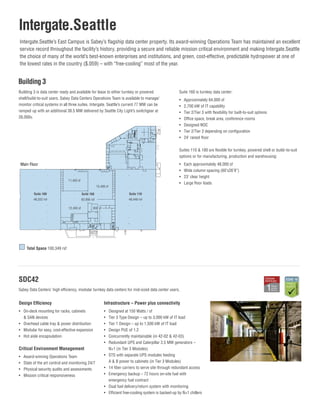

Intergate.Seattle
SDC42
Main Floor
Building 3
Suite 180
48,332 rsf
Suite 110
48,448 rsf
Building 3 is data center ready and available for lease to either turnkey or powered
shell/build-to-suit users. Sabey Data Centers Operations Team is available to manage/
monitor critical systems in all three suites. Intergate. Seattle’s current 77 MW can be
ramped up with an additional 38.5 MW delivered by Seattle City Light’s switchgear at
26,000v.
Infrastructure – Power plus connectivity
•	 Designed at 150 Watts / sf
•	 Tier 3 Type Design – up to 3,000 kW of IT load
•	 Tier 1 Design – up to 1,500 kW of IT load
•	 Design PUE of 1.2
•	 Concurrently maintainable (in 42-02 & 42-03)
•	 Redundant UPS and Caterpillar 2.5 MW generators –
	 N+1 (in Tier 3 Modules)
•	 STS with separate UPS modules feeding
	 A & B power to cabinets (in Tier 3 Modules)
•	 14 fiber carriers to serve site through redundant access
•	 Emergency backup – 72 hours on-site fuel with
	 emergency fuel contract
•	 Dual fuel delivery/return system with monitoring
•	 Efficient free-cooling system is backed-up by N+1 chillers
Total Space 100,349 rsf
Suite 160
63,956 rsf
11,400 sf
15,400 sf
12,400 sf 800 sf
Suite 160 is turnkey data center:
•	 Approximately 64,000 sf
•	 2,700 kW of IT capability
•	 Tier 2/Tier 3 with flexibility for built-to-suit options
•	 Office space, break area, conference rooms
•	 Designed NOC
•	 Tier 2/Tier 3 depending on configuration
•	 24’ raised floor
Suites 110 & 180 are flexible for turnkey, powered shell or build–to-suit
options or for manufacturing, production and warehousing:
•	 Each approximately 48,000 sf
•	 Wide column spacing (60’x26’9”)
•	 23’ clear height
•	 Large floor loads
Sabey Data Centers’ high efficiency, modular turnkey data centers for mid-sized data center users.
Intergate.Seattle’s East Campus is Sabey’s flagship data center property. Its award-winning Operations Team has maintained an excellent
service record throughout the facility’s history, providing a secure and reliable mission critical environment and making Intergate.Seattle
the choice of many of the world’s best-known enterprises and institutions, and green, cost-effective, predictable hydropower at one of
the lowest rates in the country ($.059) – with “free-cooling” most of the year.

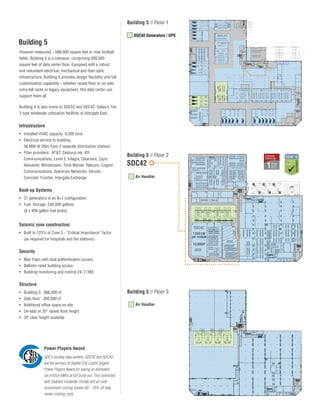

However measured – 566,000 square feet or nine football
fields, Building 5 is a colossus, comprising 300,000
square feet of data center floor. Equipped with a robust
and redundant electrical, mechanical and fiber optic
infrastructure, Building 5 provides design flexibility and full
customization capability – whether raised floor or on slab,
extra-tall racks or legacy equipment, this data center can
support them all.
Building 5 is also home to SDC52 and SDC42, Sabey’s Tier
3 type wholesale colocation facilities at Intergate.East.
Building 5
Building 5 // Floor 1
SDC42 Generators / UPS
Building 5 // Floor 3
Air Handler
Building 5 // Floor 2
Air Handler SDC52
4203
4201
SDC42
1,500 kW
per module
10,000SF
4202
OFFICE 1,763 sf
Infrastructure
•	 Installed HVAC capacity: 9,500 tons
•	 Electrical service to building:
56 MW @ 26kv from 2 separate distribution stations
•	 Fiber providers: AT&T, CenturyLink, XO
Communications, Level 3, Integra, Clearwire, Zayo/
Abovenet, Windstream, Time Warner Telecom, Cogent
Communications, Spectrum Networks, Verizon,
Comcast, Frontier, Intergate.Exchange
Back-up Systems
• 	 27 generators in an N+1 configuration
• 	 Fuel Storage: 240,000 gallons
	 (6 x 40K gallon fuel tanks)
Seismic zone construction:
•	 Built to 125% of Zone 3 - “Critical Importance” factor
(as required for hospitals and fire stations)
Security
• 	 Man traps with dual authentication access
• 	 Ballistic-rated building access
• 	 Building monitoring and control 24/7/365
Structure
• 	 Building 5: 566,000 sf
• 	 Data floor:  300,000 sf
• 	 Additional office space on site
• 	 On-slab or 30” raised floor height
• 	 20’ clear height available
Power Players Award
SDC’s turnkey data centers, SDC52 and SDC42,
are the winners of Seattle City Light’s largest
Power Players Award for saving an estimated
six million kWhs at full build out. This combined
with Seattle’s moderate climate and air-side
economizer cooling shaves 60 – 70% off data
center cooling costs.
SDC42
03.15

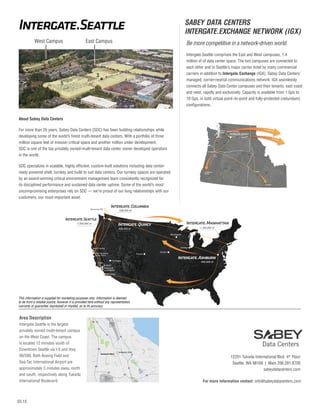

Area Description
Intergate.Seattle is the largest
privately owned multi-tenant campus
on the West Coast. The campus
is located 12 minutes south of
Downtown Seattle via I-5 and Hwy
99/599. Both Boeing Field and
Sea-Tac International Airport are
approximately 5 minutes away, north
and south, respectively along Tukwila
International Boulevard.
West Campus East Campus
5
3
Intergate.Seattle
TukwilaInternationalBlvd
Westfield
Southcenter
SeaTac
Seattle-Tacoma
International
Airport
S 154th St
Boeing Field
King County
International
Airport
509 99
99
509
509
W
MarginalW
ay
EMarginalWay
Rainier
Beach
Bryn
Mawr-Skyway
MartinLutherKingJrW
ayS
518
518
MilitaryRdS
8thAveS8thAveS
42ndAveS
Beacon
Ave S
S 136th St
Starfire Sports
Complex
SW Grady Way
SW Sunset Blvd
Foster Golf
Course
S 162th St
SW 7th
Renton Ave S
Sunset
Park
Hilltop
Park
South
Beacon Hill
S Othello St
Rento
n
Ave
S
Rainier Ave S
S 128th St
DesMoinesMemorialDr
SABEY DATA CENTERS
INTERGATE.EXCHANGE NETWORK (IGX)
Be more competitive in a network-driven world.
Intergate.Seattle comprises the East and West campuses, 1.4
million sf of data center space. The two campuses are connected to
each other and to Seattle’s major carrier hotel by many commercial
carriers in addition to Intergate.Exchange (IGX), Sabey Data Centers’
managed, carrier-neutral communications network. IGX seamlessly
connects all Sabey Data Center campuses and their tenants, east coast
and west, rapidly and exclusively. Capacity is available from 1 Gps to
10 Gps, in both virtual point–to-point and fully-protected (redundant)
configurations.
12201 Tukwila International Blvd. 4th
Floor
Seattle, WA 98168 | Main 206.281.8700
sabeydatacenters.com
For more information contact: info@sabeydatacenters.com
This information is supplied for marketing purposes only. Information is deemed
to be from a reliable source, however it is provided here without any representation,
warranty or guarantee, expressed or implied, as to its accuracy.
Portland
PDX-
Pittock
To California,
Arizona
Boise
10Gbs
10Gbs
10Gbs
10Gbs
10Gbs
WA
OR
ID
10Gbs
10Gbs
10Gbs
WA
10Gb
10Gbs
To New York City
To Denver
To Chicago
Boise
ID
To D
Portland
PD
Pit
To California,
Westin
Seattle
SpokaneTukwila bs
About Sabey Data Centers
For more than 25 years, Sabey Data Centers (SDC) has been building relationships while
developing some of the world’s finest multi-tenant data centers. With a portfolio of three
million square feet of mission critical space and another million under development,
SDC is one of the top privately owned-multi-tenant data center owner developed operators
in the world.
SDC specializes in scalable, highly efficient, custom-built solutions including data center-
ready powered shell, turnkey and build to suit data centers. Our turnkey spaces are operated
by an award-winning critical environment management team consistently recognized for
its disciplined performance and sustained data center uptime. Some of the world’s most
uncompromising enterprises rely on SDC — we’re proud of our long relationships with our
customers, our most important asset.
