1. OneCore Storage SDK 3.6 Roll-out and Walkthrough
Eric McLaughlin John Cedillo
Director, Engineering Sr. Marketing Manager
eric.mclaughlin@emulex.com john.cedillo@emulex.com

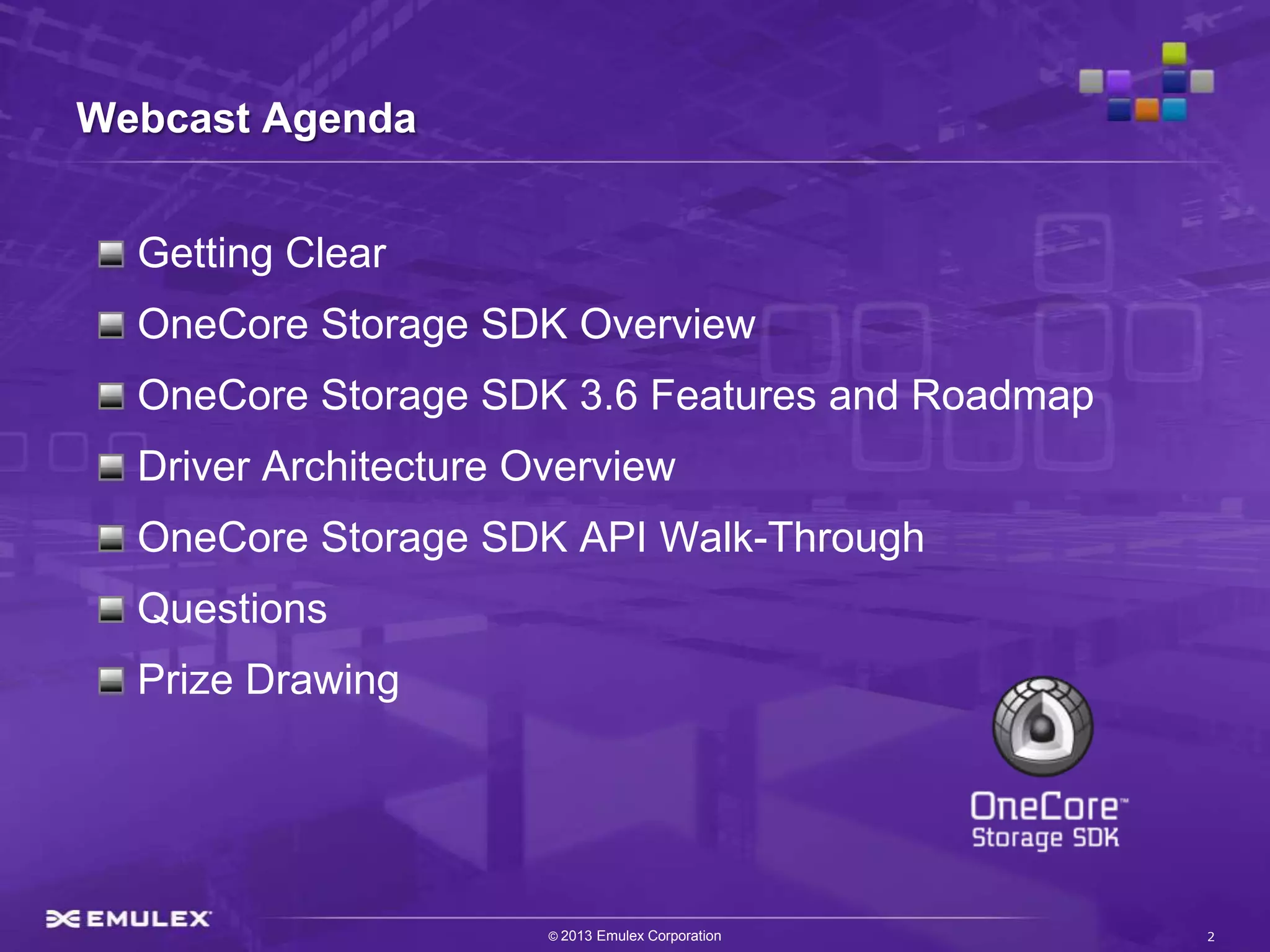

2. Webcast Agenda
Getting Clear
OneCore Storage SDK Overview
OneCore Storage SDK 3.6 Features and Roadmap
Driver Architecture Overview
OneCore Storage SDK API Walk-Through
Questions
Prize Drawing
© 2013 Emulex Corporation 2

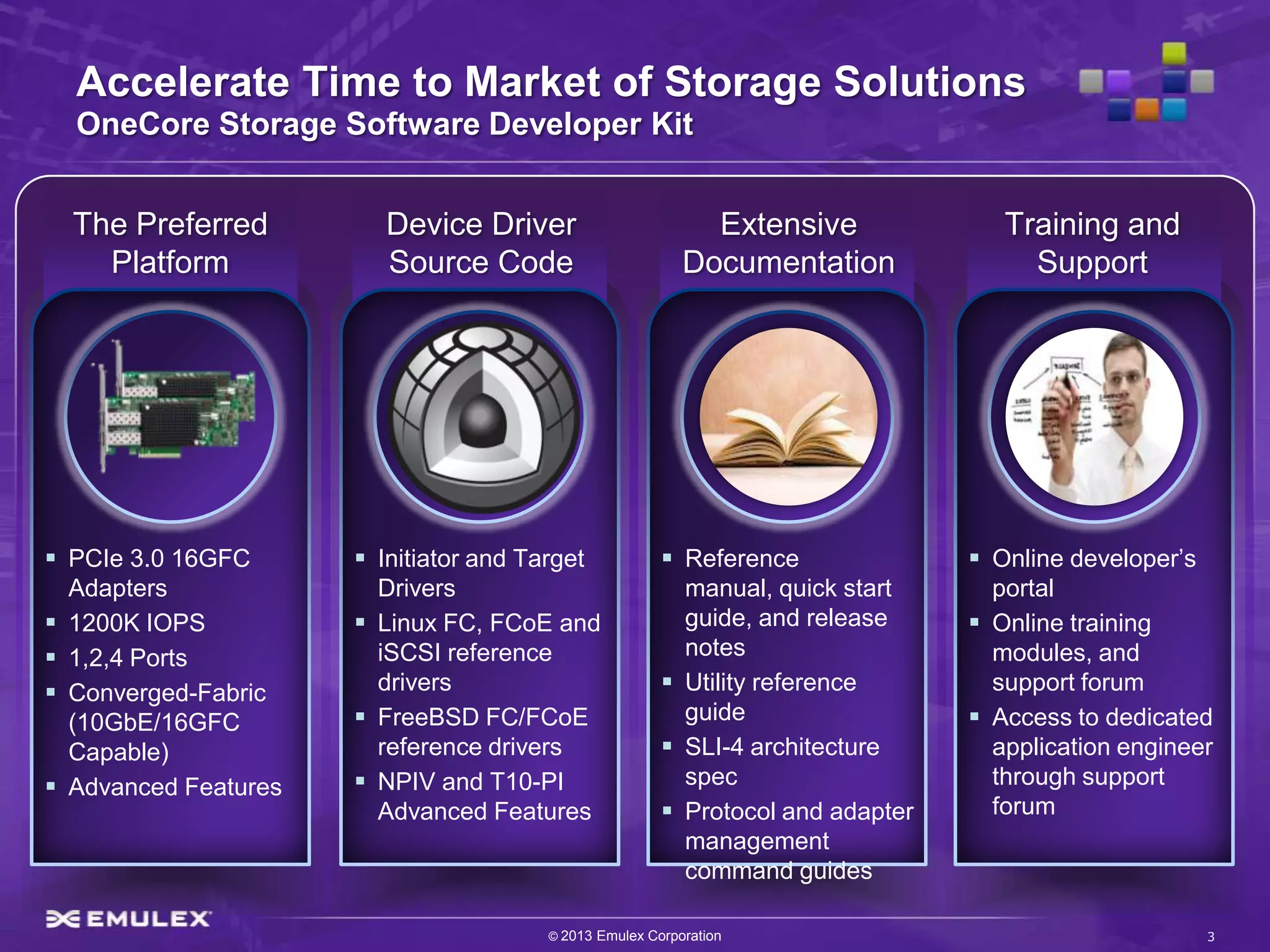

3. Accelerate Time to Market of Storage Solutions
OneCore Storage Software Developer Kit
The Preferred Device Driver Extensive Training and
Platform Source Code Documentation Support
 PCIe 3.0 16GFC  Initiator and Target  Reference  Online developer’s
Adapters Drivers manual, quick start portal
 1200K IOPS  Linux FC, FCoE and guide, and release  Online training
 1,2,4 Ports iSCSI reference notes modules, and
 Converged-Fabric drivers  Utility reference support forum
(10GbE/16GFC  FreeBSD FC/FCoE guide  Access to dedicated
Capable) reference drivers  SLI-4 architecture application engineer
 Advanced Features  NPIV and T10-PI spec through support
Advanced Features  Protocol and adapter forum
management
command guides
© 2013 Emulex Corporation 3

4. Getting Clear –
The Preferred Enterprise Development Platform
Emulex Engine (XE) 201
~12 Million Ports Installed
Converged Fabric Controller
 8GFC, 16GFC, 10GbE, FCoE,
and iSCSI connectivity
 Rock-solid reliability
 >10 million hours MTBF
 10th Generation FC HBA  10% improvement in thermal
 76% market share characteristics
Optimal Performance The Platform of Choice
 1.2 Million IOPS
 PCIe 3.0 with backward  Awarded Every 16GFC Design-
compatibility to PCIe 2.0 in to Date
 Cuts Latency by 75%  Ultimate in deployment flexibility
 T10 PI offload  Cloud scalability
 NPIV support
More Than Just Incredible Performance!
© 2013 Emulex Corporation 4

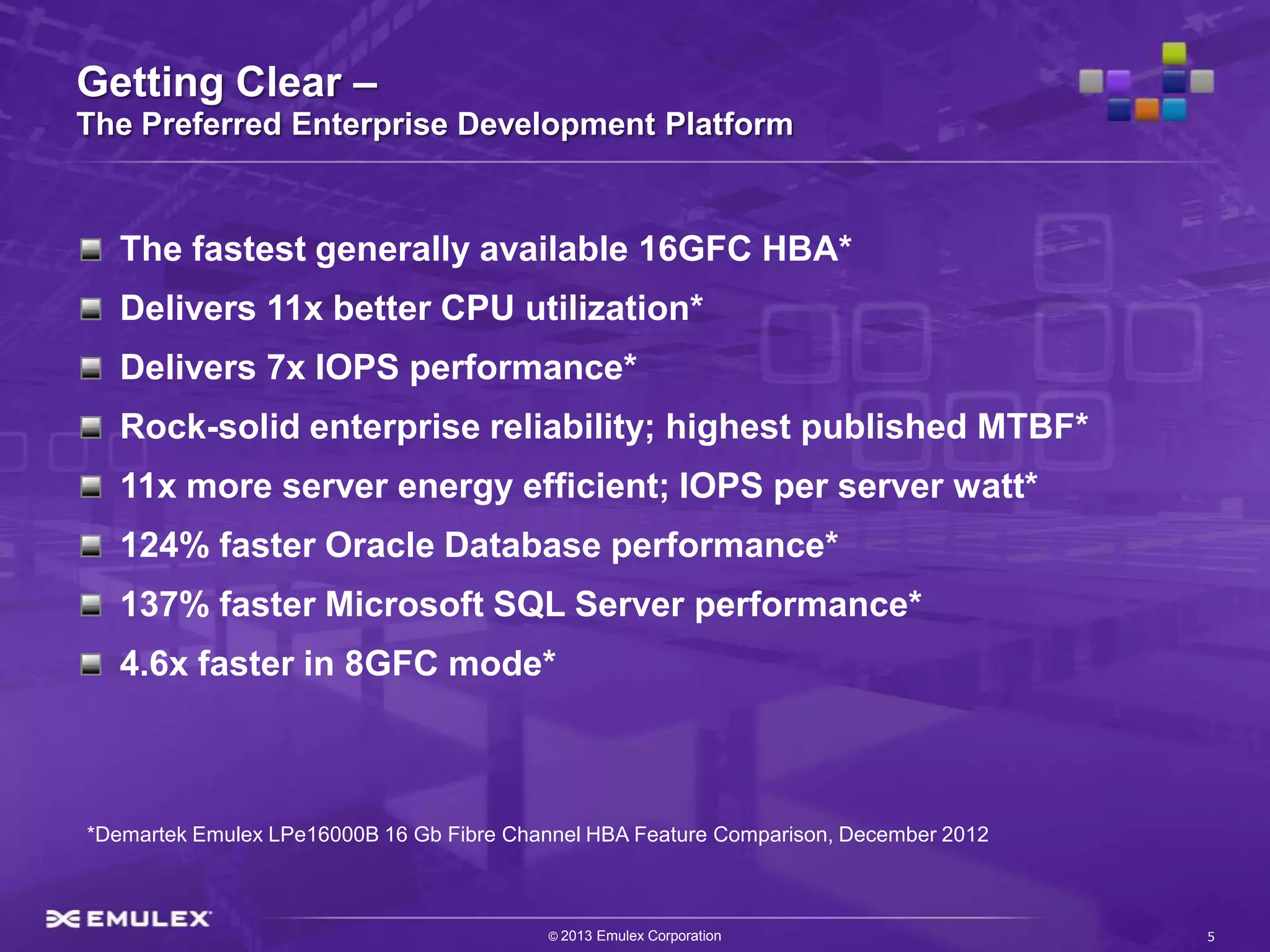

5. Getting Clear –
The Preferred Enterprise Development Platform
The fastest generally available 16GFC HBA*
Delivers 11x better CPU utilization*
Delivers 7x IOPS performance*
Rock-solid enterprise reliability; highest published MTBF*
11x more server energy efficient; IOPS per server watt*
124% faster Oracle Database performance*
137% faster Microsoft SQL Server performance*
4.6x faster in 8GFC mode*
*Demartek Emulex LPe16000B 16 Gb Fibre Channel HBA Feature Comparison, December 2012
© 2013 Emulex Corporation 5

6. Overview

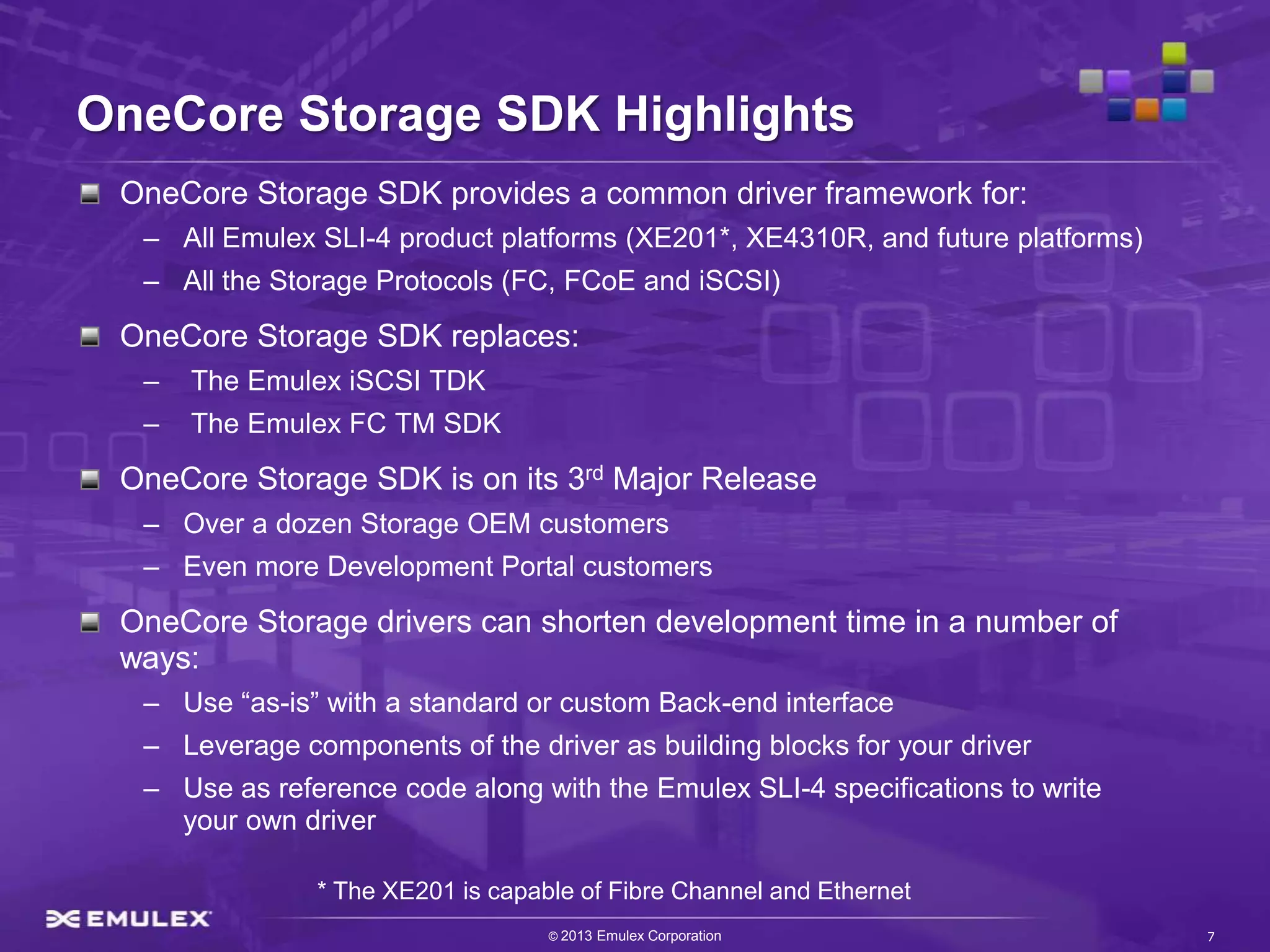

7. OneCore Storage SDK Highlights
OneCore Storage SDK provides a common driver framework for:
– All Emulex SLI-4 product platforms (XE201*, XE4310R, and future platforms)
– All the Storage Protocols (FC, FCoE and iSCSI)
OneCore Storage SDK replaces:
– The Emulex iSCSI TDK
– The Emulex FC TM SDK
OneCore Storage SDK is on its 3rd Major Release
– Over a dozen Storage OEM customers
– Even more Development Portal customers
OneCore Storage drivers can shorten development time in a number of
ways:
– Use “as-is” with a standard or custom Back-end interface
– Leverage components of the driver as building blocks for your driver
– Use as reference code along with the Emulex SLI-4 specifications to write
your own driver
* The XE201 is capable of Fibre Channel and Ethernet
© 2013 Emulex Corporation 7

8. 3.6 Features &
SDK Roadmap

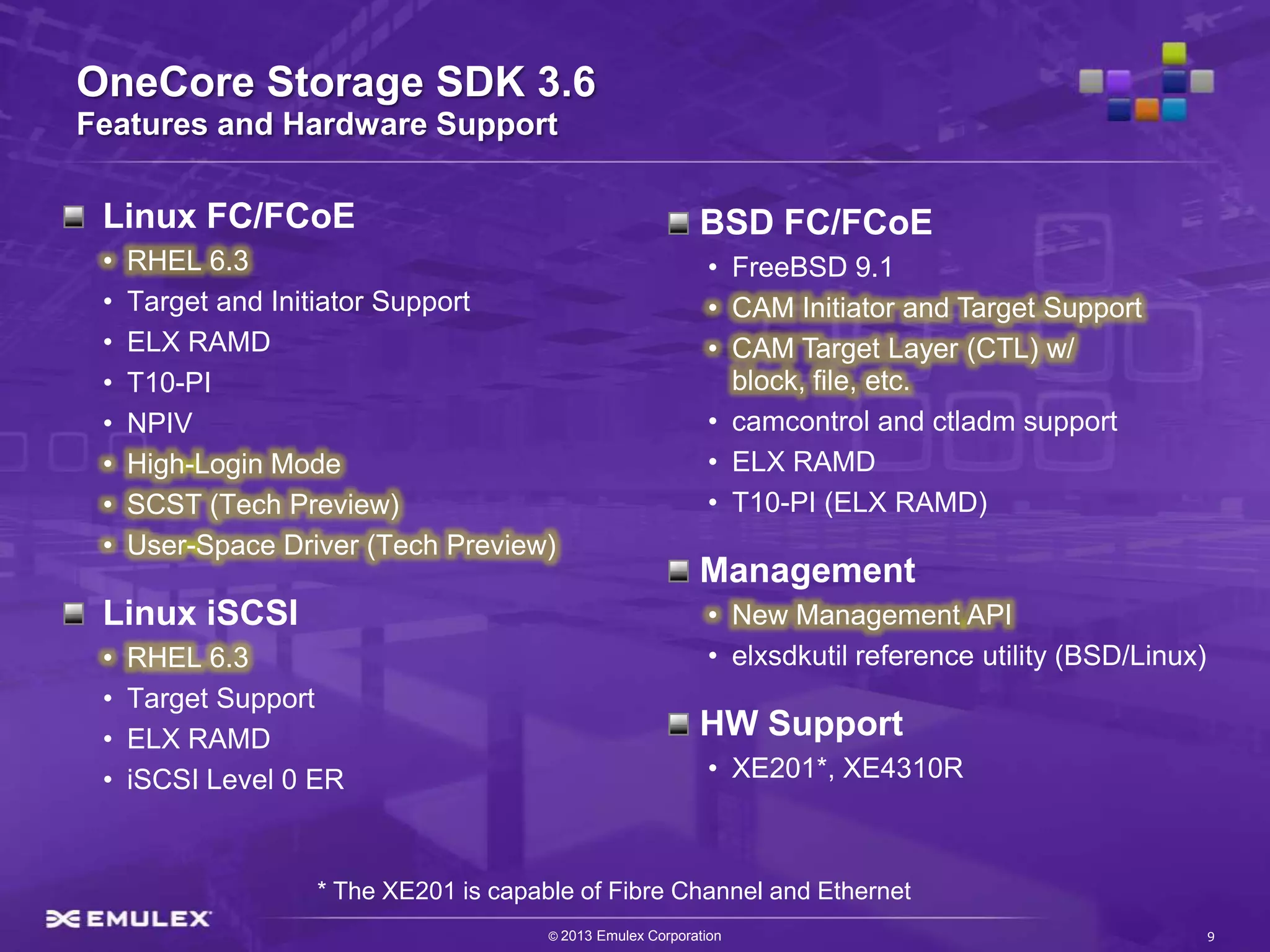

9. OneCore Storage SDK 3.6
Features and Hardware Support
Linux FC/FCoE BSD FC/FCoE
• RHEL 6.3 • FreeBSD 9.1
• Target and Initiator Support • CAM Initiator and Target Support
• ELX RAMD • CAM Target Layer (CTL) w/
• T10-PI block, file, etc.
• NPIV • camcontrol and ctladm support
• High-Login Mode • ELX RAMD
• SCST (Tech Preview) • T10-PI (ELX RAMD)
• User-Space Driver (Tech Preview)
Management
Linux iSCSI • New Management API
• RHEL 6.3 • elxsdkutil reference utility (BSD/Linux)
• Target Support
• ELX RAMD HW Support
• iSCSI Level 0 ER • XE201*, XE4310R
* The XE201 is capable of Fibre Channel and Ethernet
© 2013 Emulex Corporation 9

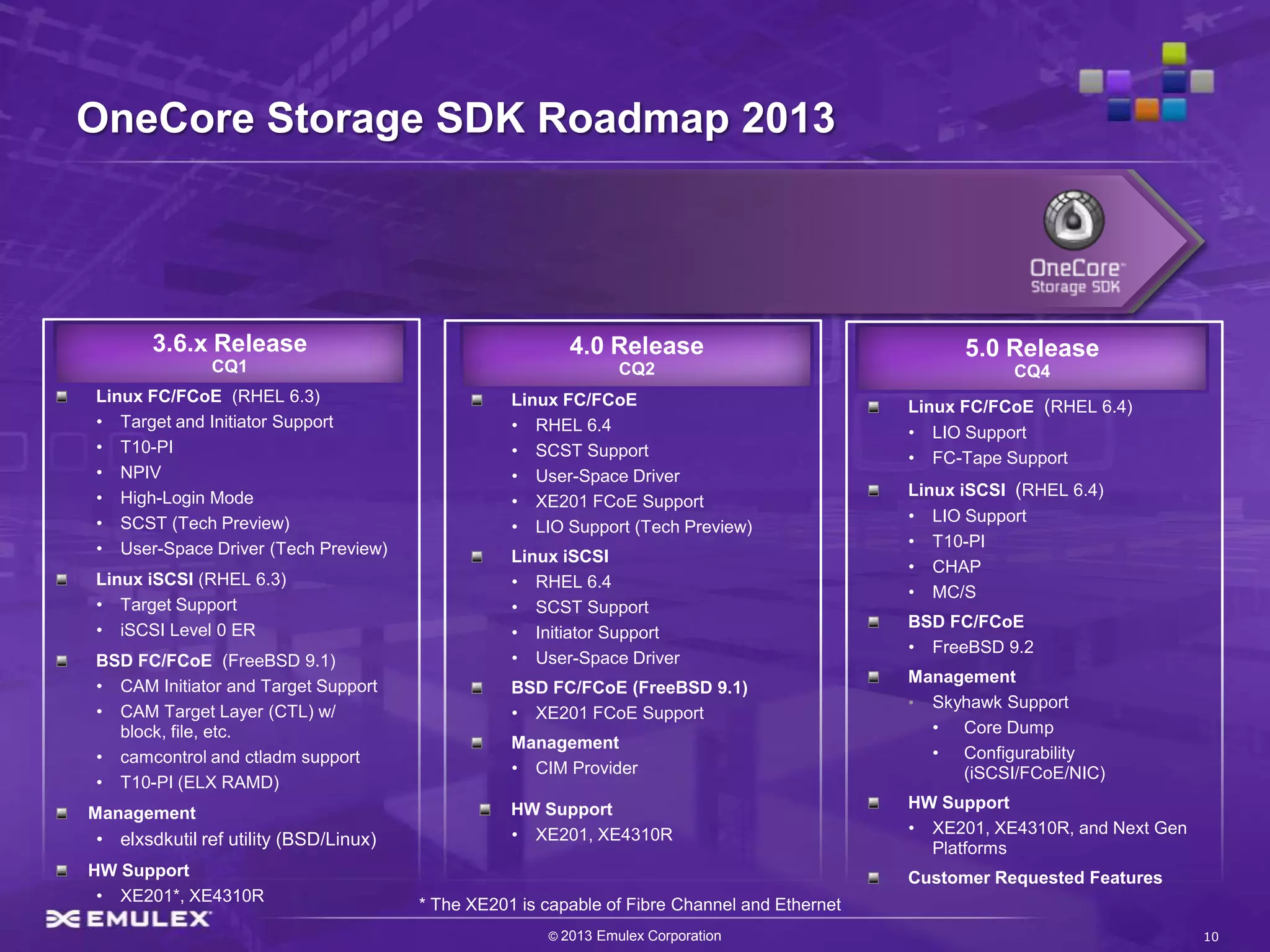

10. OneCore Storage SDK Roadmap 2013
3.6.x Release 4.0 Release 5.0 Release
CQ1 CQ2 CQ4
Linux FC/FCoE (RHEL 6.3) Linux FC/FCoE Linux FC/FCoE (RHEL 6.4)
• Target and Initiator Support • RHEL 6.4 • LIO Support
• T10-PI • SCST Support • FC-Tape Support
• NPIV • User-Space Driver
• High-Login Mode Linux iSCSI (RHEL 6.4)
• XE201 FCoE Support
• SCST (Tech Preview) • LIO Support
• LIO Support (Tech Preview)
• User-Space Driver (Tech Preview) • T10-PI
Linux iSCSI
• CHAP
Linux iSCSI (RHEL 6.3) • RHEL 6.4
• MC/S
• Target Support • SCST Support
• iSCSI Level 0 ER BSD FC/FCoE
• Initiator Support
• FreeBSD 9.2
BSD FC/FCoE (FreeBSD 9.1) • User-Space Driver
Management
• CAM Initiator and Target Support BSD FC/FCoE (FreeBSD 9.1)
• Skyhawk Support
• CAM Target Layer (CTL) w/ • XE201 FCoE Support
block, file, etc. • Core Dump
Management
• camcontrol and ctladm support • Configurability
• CIM Provider (iSCSI/FCoE/NIC)
• T10-PI (ELX RAMD)
HW Support HW Support
Management
• XE201, XE4310R • XE201, XE4310R, and Next Gen
• elxsdkutil ref utility (BSD/Linux) Platforms
HW Support Customer Requested Features
• XE201*, XE4310R * The XE201 is capable of Fibre Channel and Ethernet
© 2013 Emulex Corporation 10

11. Driver Architecture
Overview

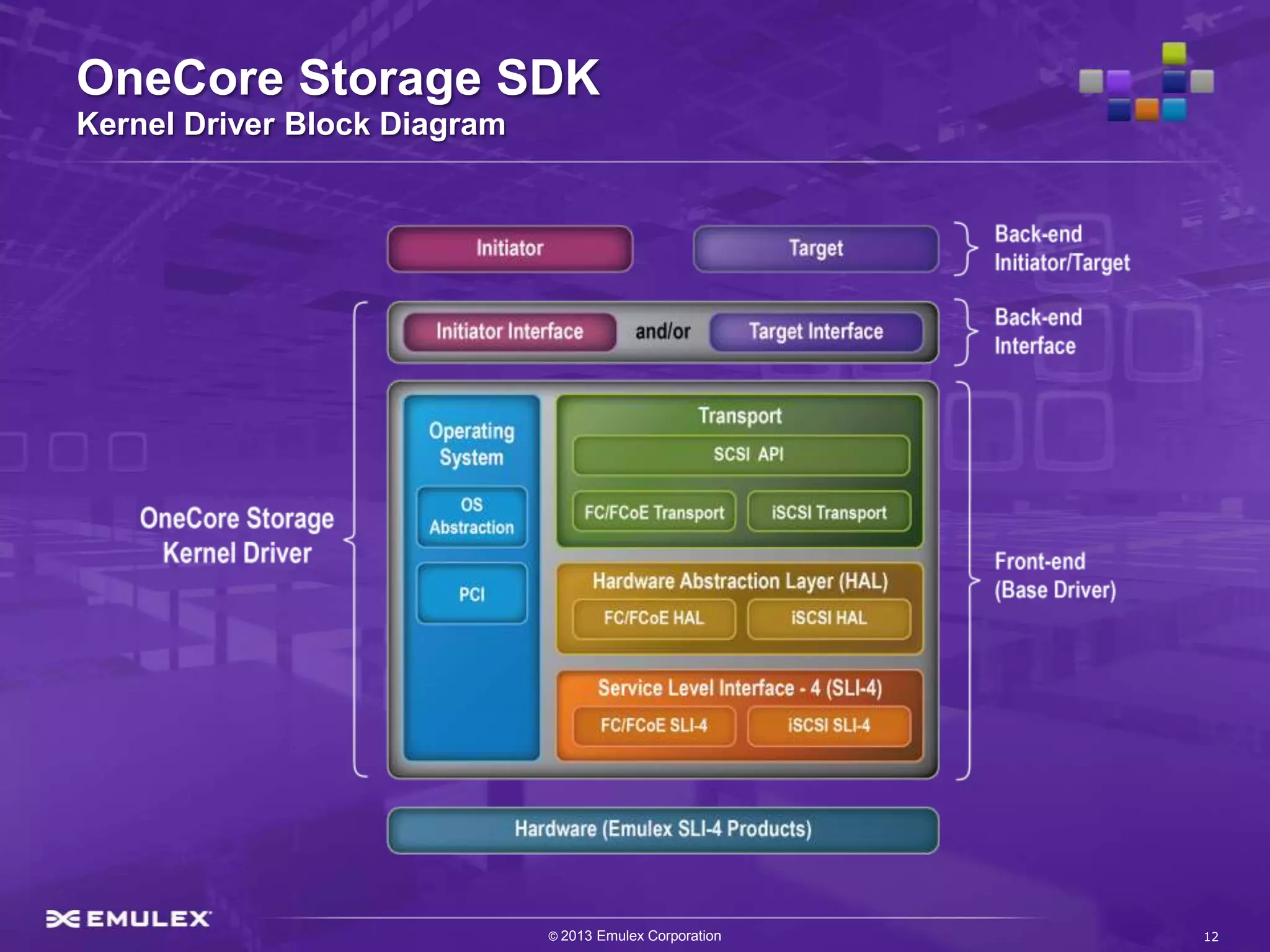

12. OneCore Storage SDK
Kernel Driver Block Diagram
© 2013 Emulex Corporation 12

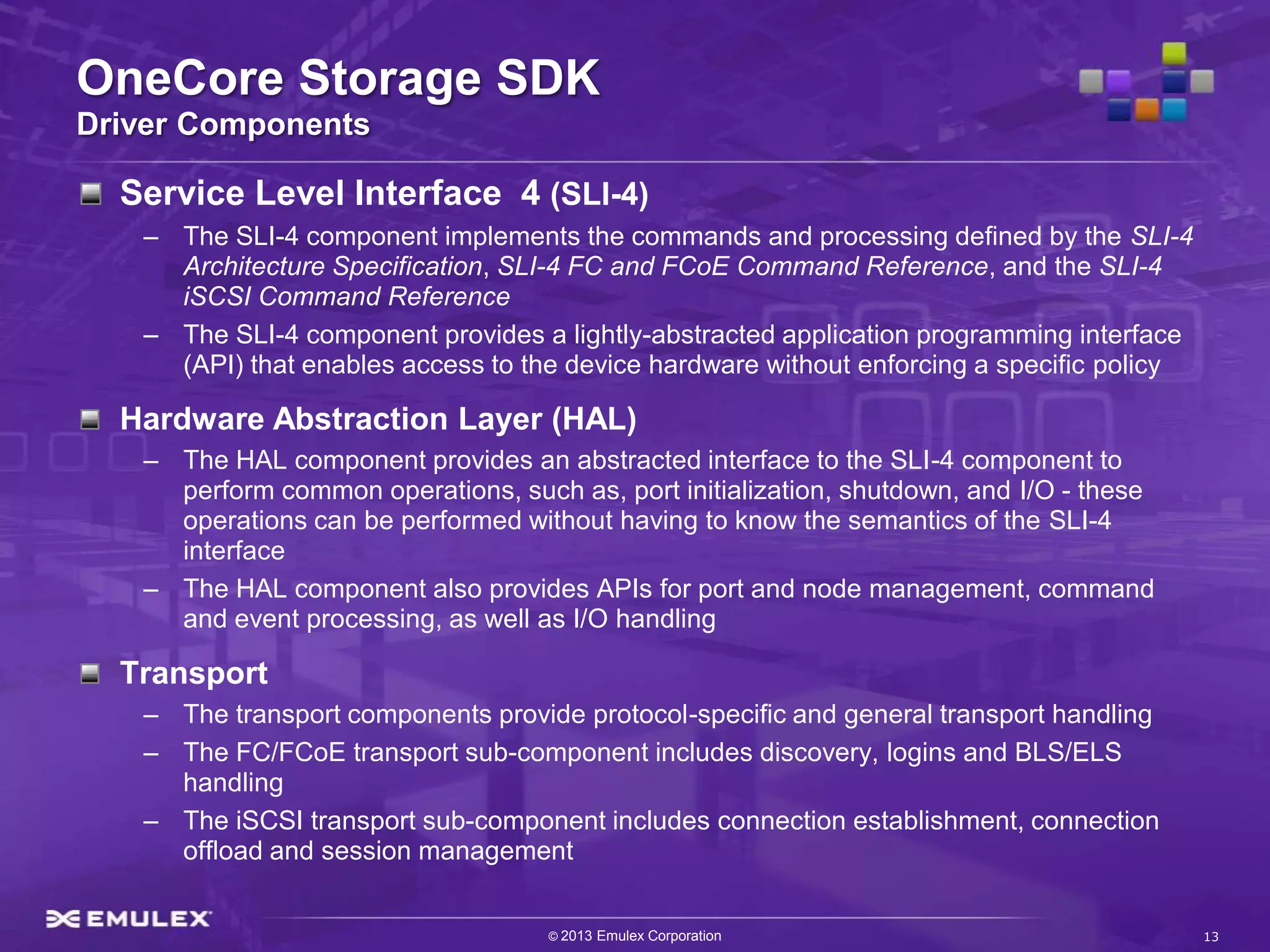

13. OneCore Storage SDK
Driver Components
Service Level Interface 4 (SLI-4)
– The SLI-4 component implements the commands and processing defined by the SLI-4
Architecture Specification, SLI-4 FC and FCoE Command Reference, and the SLI-4
iSCSI Command Reference
– The SLI-4 component provides a lightly-abstracted application programming interface
(API) that enables access to the device hardware without enforcing a specific policy
Hardware Abstraction Layer (HAL)
– The HAL component provides an abstracted interface to the SLI-4 component to
perform common operations, such as, port initialization, shutdown, and I/O - these
operations can be performed without having to know the semantics of the SLI-4
interface
– The HAL component also provides APIs for port and node management, command
and event processing, as well as I/O handling
Transport
– The transport components provide protocol-specific and general transport handling
– The FC/FCoE transport sub-component includes discovery, logins and BLS/ELS
handling
– The iSCSI transport sub-component includes connection establishment, connection
offload and session management
© 2013 Emulex Corporation 13

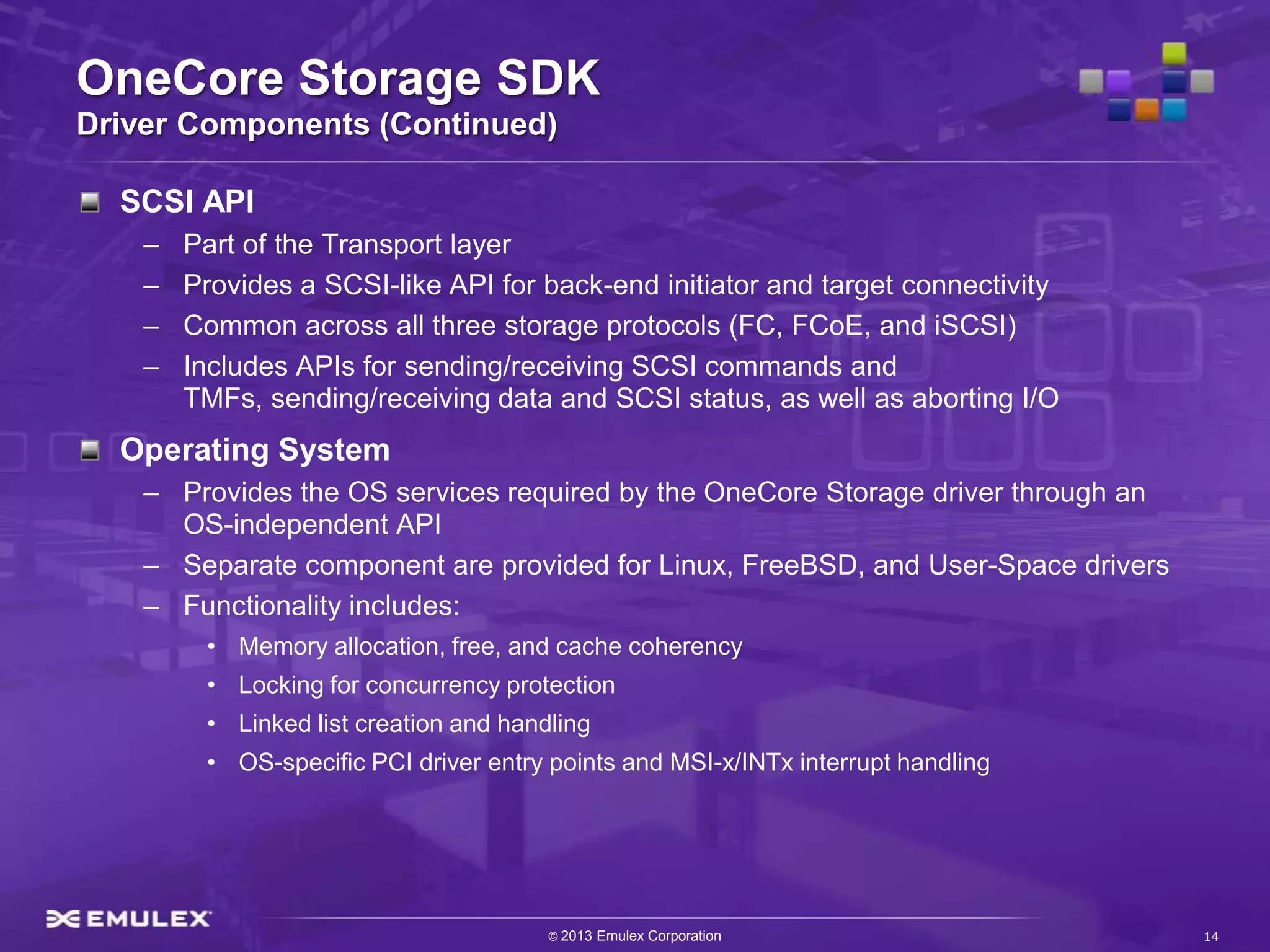

14. OneCore Storage SDK
Driver Components (Continued)
SCSI API
– Part of the Transport layer
– Provides a SCSI-like API for back-end initiator and target connectivity
– Common across all three storage protocols (FC, FCoE, and iSCSI)
– Includes APIs for sending/receiving SCSI commands and
TMFs, sending/receiving data and SCSI status, as well as aborting I/O
Operating System
– Provides the OS services required by the OneCore Storage driver through an
OS-independent API
– Separate component are provided for Linux, FreeBSD, and User-Space drivers
– Functionality includes:
• Memory allocation, free, and cache coherency
• Locking for concurrency protection
• Linked list creation and handling
• OS-specific PCI driver entry points and MSI-x/INTx interrupt handling
© 2013 Emulex Corporation 14

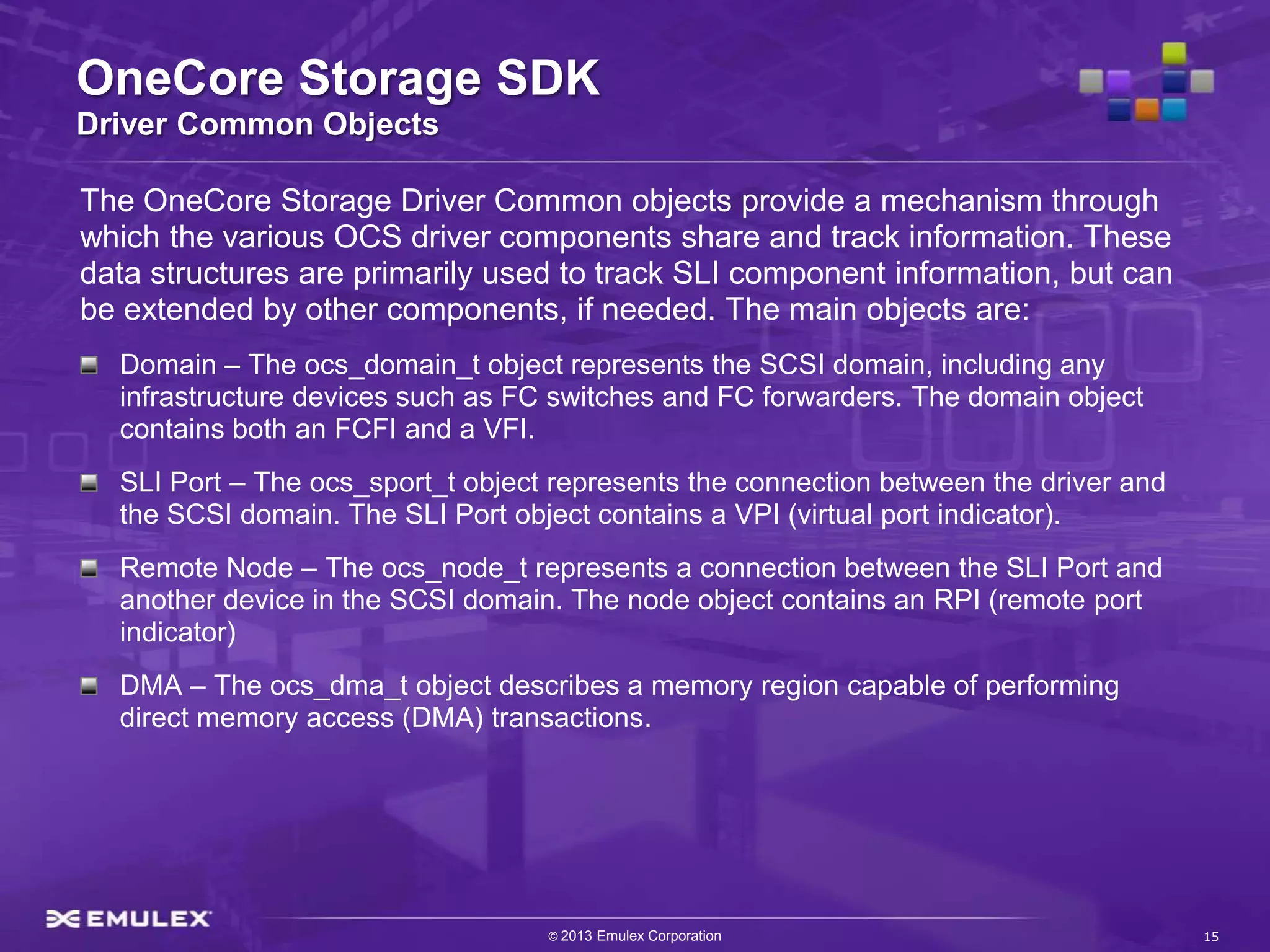

15. OneCore Storage SDK
Driver Common Objects
The OneCore Storage Driver Common objects provide a mechanism through
which the various OCS driver components share and track information. These
data structures are primarily used to track SLI component information, but can
be extended by other components, if needed. The main objects are:
Domain – The ocs_domain_t object represents the SCSI domain, including any
infrastructure devices such as FC switches and FC forwarders. The domain object
contains both an FCFI and a VFI.
SLI Port – The ocs_sport_t object represents the connection between the driver and
the SCSI domain. The SLI Port object contains a VPI (virtual port indicator).
Remote Node – The ocs_node_t represents a connection between the SLI Port and
another device in the SCSI domain. The node object contains an RPI (remote port
indicator)
DMA – The ocs_dma_t object describes a memory region capable of performing
direct memory access (DMA) transactions.
© 2013 Emulex Corporation 15

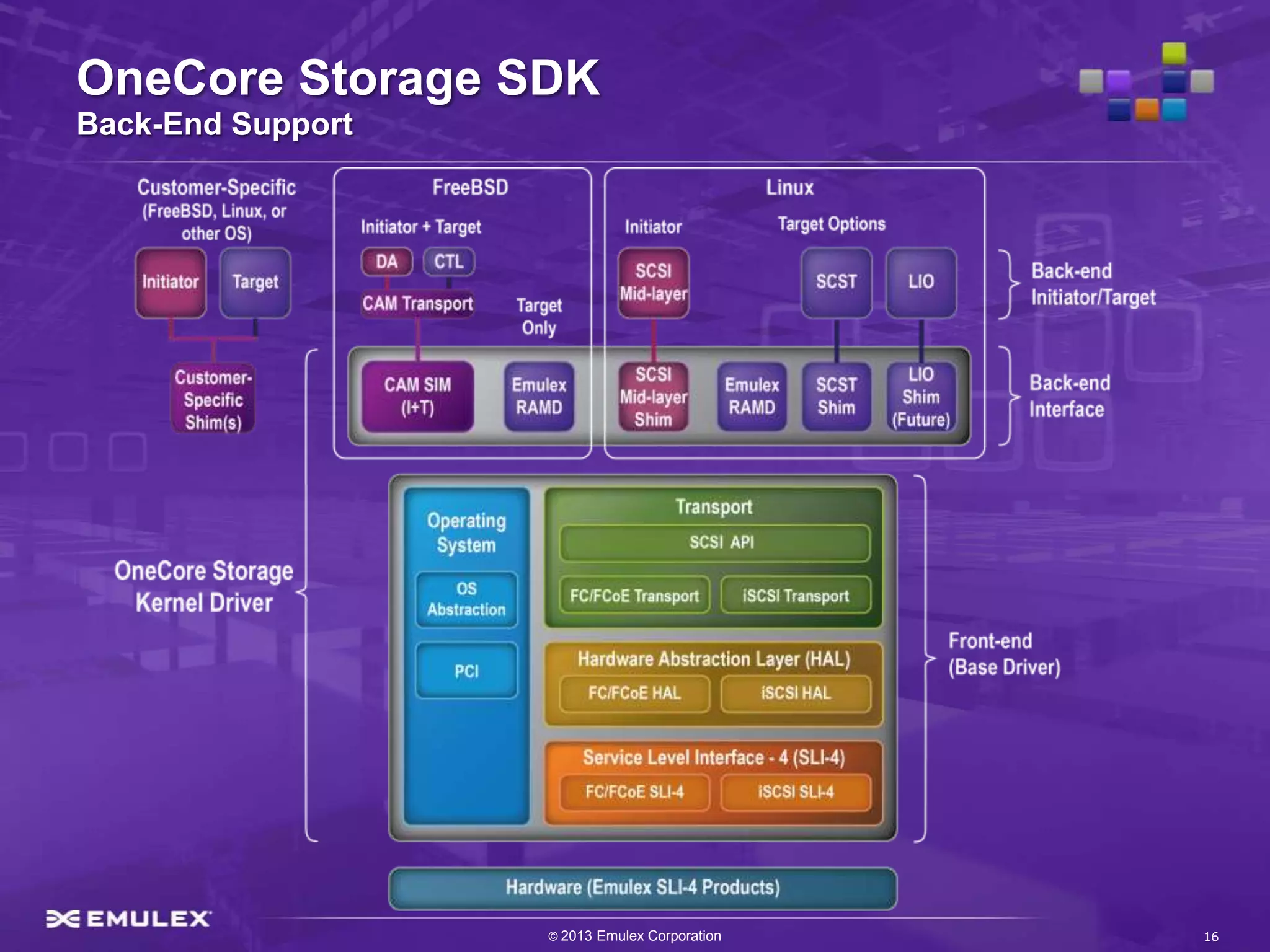

16. OneCore Storage SDK
Back-End Support
© 2013 Emulex Corporation 16

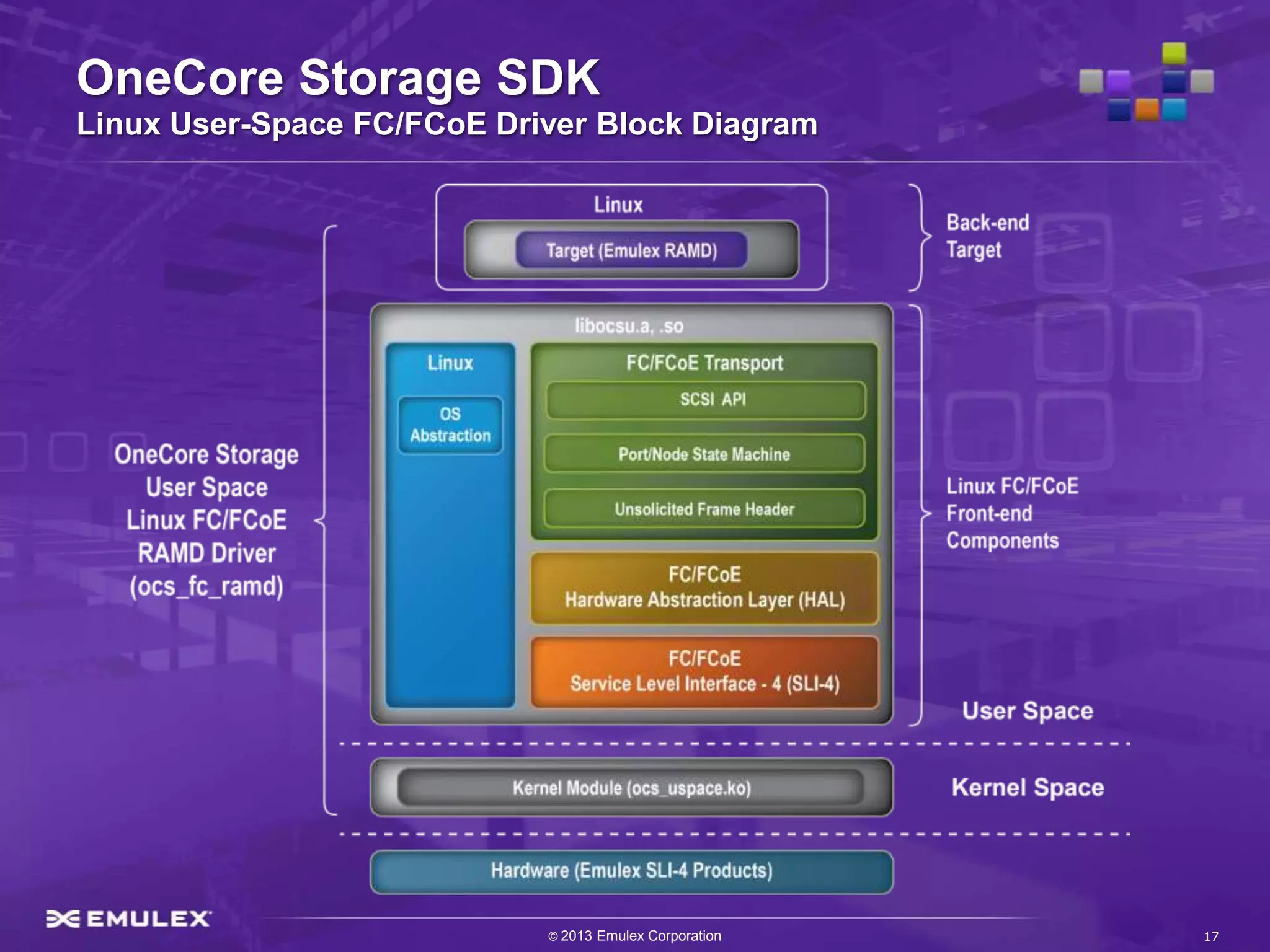

17. OneCore Storage SDK
Linux User-Space FC/FCoE Driver Block Diagram
© 2013 Emulex Corporation 17

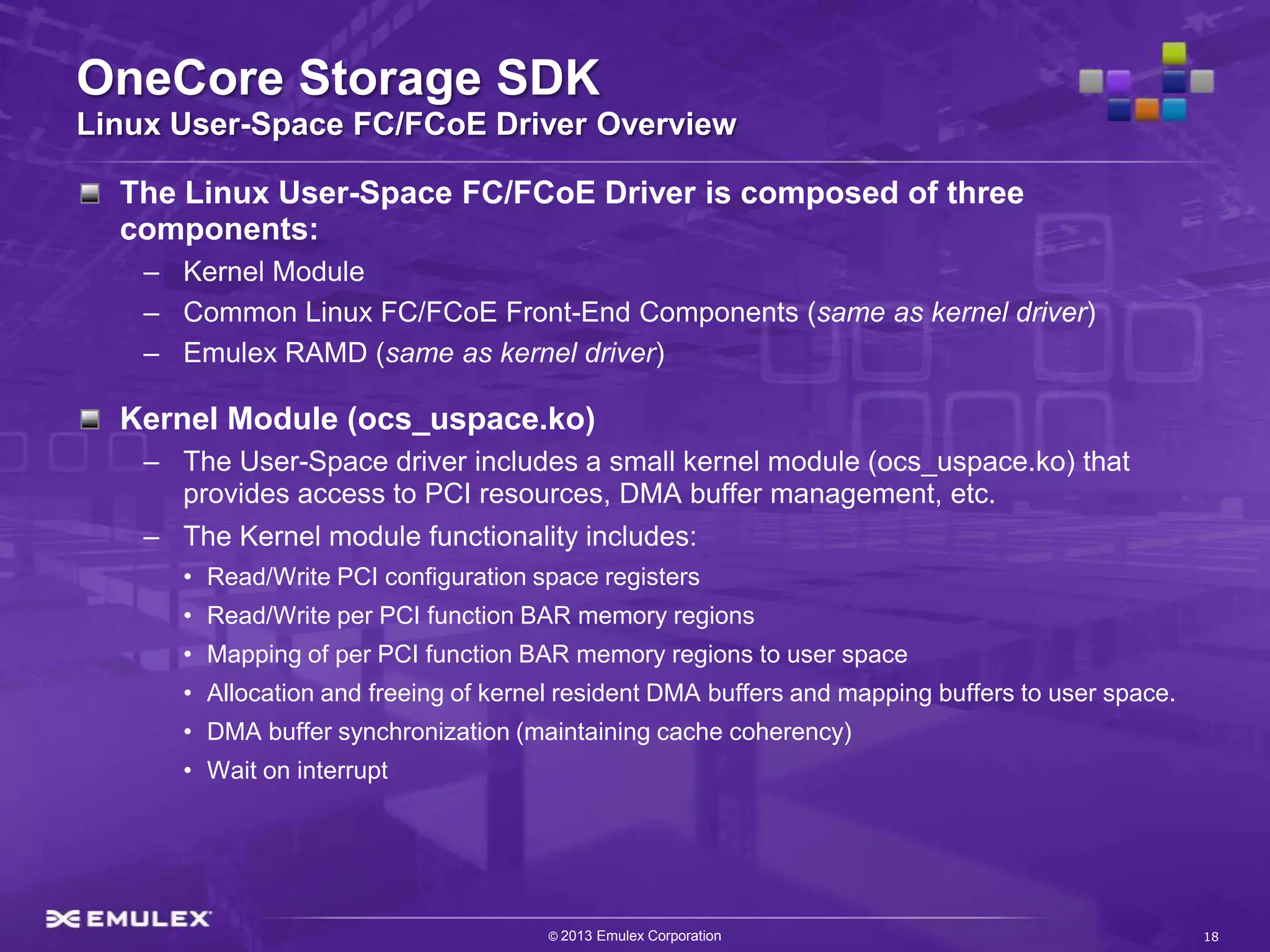

18. OneCore Storage SDK
Linux User-Space FC/FCoE Driver Overview
The Linux User-Space FC/FCoE Driver is composed of three
components:
– Kernel Module
– Common Linux FC/FCoE Front-End Components (same as kernel driver)
– Emulex RAMD (same as kernel driver)
Kernel Module (ocs_uspace.ko)
– The User-Space driver includes a small kernel module (ocs_uspace.ko) that
provides access to PCI resources, DMA buffer management, etc.
– The Kernel module functionality includes:
• Read/Write PCI configuration space registers
• Read/Write per PCI function BAR memory regions
• Mapping of per PCI function BAR memory regions to user space
• Allocation and freeing of kernel resident DMA buffers and mapping buffers to user space.
• DMA buffer synchronization (maintaining cache coherency)
• Wait on interrupt
© 2013 Emulex Corporation 18

19. API Walk-Through

20. OneCore Storage SDK API Walk-Through
Documentation Dashboard
© 2013 Emulex Corporation 20

21. Q&A

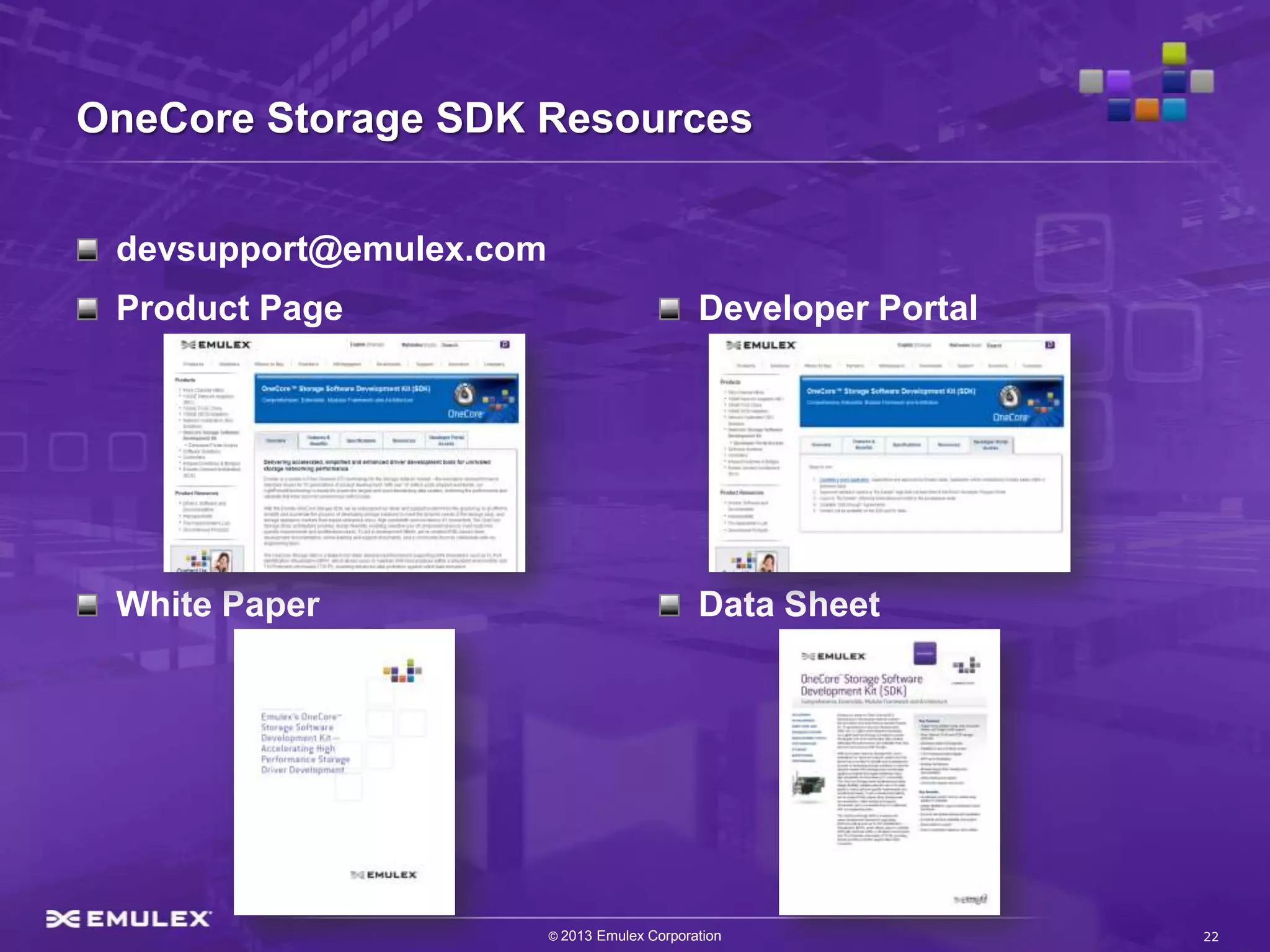

22. OneCore Storage SDK Resources
