Intel movidius: Neural Compute Stick

1. Globalcode – Open4education
Intel Movidius: Neural Compute Stick
João Guilherme Reiser de Melo
Luana Vieira Martinez Bonatto
M.Sc Students in Electrical Engineering at UFSC
Trilha – Machine Learning

2. Globalcode – Open4education
Intel Machine Learning
● Software
○ Intel® Optimization for TensorFlow
○ Intel® Optimization for Caffe
○ Intel® Math Kernel Library
○ Intel® Movidius™ Neural Compute
SDK
● Hardware
○ Intel® Xeon Phi™ processor
○ Intel® Movidius™ Neural Compute
Stick
● Project
○ Evaluation of Intel Machine Learning Solutions

3. Globalcode – Open4education
What is the Intel Movidius
Neural Compute Stick?
The Intel Movidius Neural Compute Stick (NCS) is a tiny fanless deep learning device that
you can use to learn AI programming at the edge.
3
Computer Vision
What kind of AI programming?

4. Globalcode – Open4education
Computer Vision

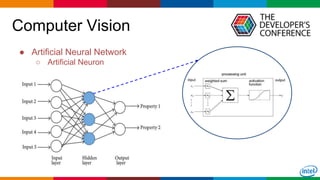

● Artificial Neural Network
○ Artificial Neuron

5. Globalcode – Open4education
Computer Vision

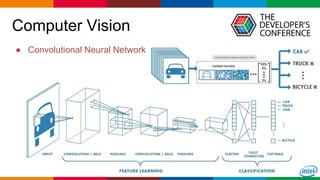

● Convolutional Neural Network

6. Globalcode – Open4education6
● ILSVRC ImageNet
(2010 - 2017)
Computer Vision

7. Globalcode – Open4education7
Computer Vision
Typical use cases:
Robot
Security cameras
Smart-home assistant
...
Key capabilities:
Object detection
Classification of objects
Facial recognition
...

8. Globalcode – Open4education
An Overview about Intel
Movidius NCS
Intel Movidius NCS is a low-power device designed to accelerate perform inference of
Deep Neural Network (DNN).
▪ Ultra-low-power tool
▪ Embedded applications
▪ High-performance processor
▪ Programmable architecture
▪ Small-area footprint
▪ And more!
8
Dedicated structure of CNN
hardware blocks

9. Globalcode – Open4education

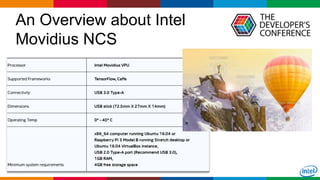

An Overview about Intel
Movidius NCS
9

10. Globalcode – Open4education
Introducing the Myriad 2
Vision Processor SoC
Myriad 2 can be found in millions of devices on the market today and continues to be
utilized for some of the most ambitious AI, vision and imaging applications where both
performance and low consumption are mandatory.
▪ An ultra-low power design
▪ Unique design for vision and AI workloads
▪ 12 programmable SHAVE cores
▪ A small-area footprint
10

11. Globalcode – Open4education
Intel Movidius NCS
Quick Start
1. You will need the following:
▪ Ubuntu 16.04 system, RPI3 Model B with Raspian Stretch or
Ubuntu VirtualBox instance
▪ Intel Movidius Neural Compute Stick (NCS)
▪ Internet connection to download and install NC SDK
11
2. Install NC SDK
Run these commands on a terminal window
▪ mkdir -p ~/workspace
▪ cd ~/workspace
▪ git clone https://github.com/movidius/ncsdk.git
▪ cd ~/workspace/ncsdk
▪ make install

12. Globalcode – Open4education

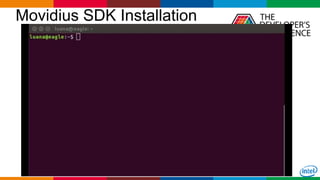

Movidius SDK Installation
12

13. Globalcode – Open4education
Intel Movidius NCS
Quick Start
3. Test installation by running built-in
examples
Plug the Intel Movidius NCS to your system’s USB port and run these commands
on a new terminal window
▪ cd ~/workspace/ncsdk
▪ make examples
13
4. Next steps
Review Intel Movidius NCS deep learning technical documentation

14. Globalcode – Open4education

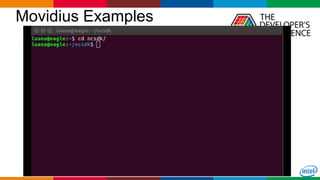

Movidius Examples
14

15. Globalcode – Open4education
Intel Movidius NCS
Quick Start
15
git clone http://github.com/Movidius/ncsdk && cd ncsdk && make install && make examples

16. Globalcode – Open4education
Intel Movidius NCS
Quick Start
16
Movidius Neural Compute SDK (NCSDK)
Development Flow:

17. Globalcode – Open4education
Frameworks Optimized by
Intel AI Academy
17
Neural Compute Stick currently supports two Deep Learning frameworks:
▪ Caffe:
Is a deep learning framework from
Berkeley Vision Labs.
▪ TensorFlow:
Is a deep learning framework from
Google.

18. Globalcode – Open4education

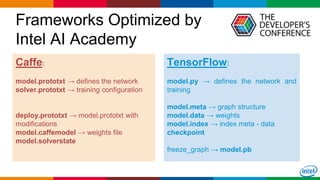

Frameworks Optimized by
Intel AI Academy
18
Caffe:
model.prototxt → defines the network
solver.prototxt → training configuration
deploy.prototxt → model.prototxt with
modifications
model.caffemodel → weights file
model.solverstate
TensorFlow:
model.py → defines the network and
training
model.meta → graph structure
model.data → weights
model.index → index meta - data
checkpoint
freeze_graph → model.pb

19. Globalcode – Open4education

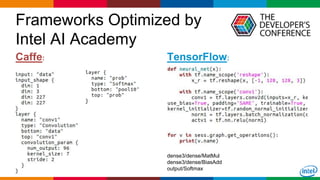

Frameworks Optimized by
Intel AI Academy
19
Caffe: TensorFlow:
dense3/dense/MatMul
dense3/dense/BiasAdd
output/Softmax

20. Globalcode – Open4education

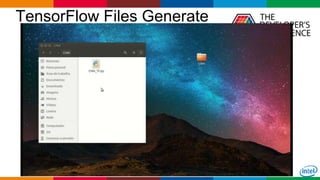

TensorFlow Files Generate
20

21. Globalcode – Open4education

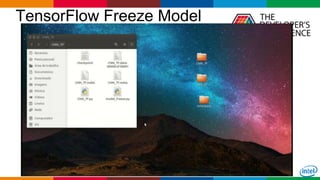

TensorFlow Freeze Model
21

22. Globalcode – Open4education
Neural Compute SDK Tools
22
The SDK comes with a set of tools to assist in development and deployment of
applications that utilize hardware accelerated Deep Neural Networks via the Intel
Movidius Neural Compute Stick. Each tool and its usage is described below:
▪ mvNCCompile: Converts Caffe/TF network and weights to Intel Movidius technology internal compiled format.
▪ mvNCProfile: Provides layer-by-layer statistics to evaluate the performance of Caffe/TF networks on the NCS.
▪ mvNCCheck: Compares the results from an inference by running the network on the NCS and Caffe/TF.

23. Globalcode – Open4education

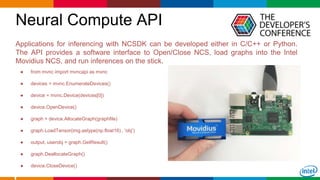

Neural Compute API
23
Applications for inferencing with NCSDK can be developed either in C/C++ or Python.
The API provides a software interface to Open/Close NCS, load graphs into the Intel
Movidius NCS, and run inferences on the stick.
● from mvnc import mvncapi as mvnc
● devices = mvnc.EnumerateDevices()
● device = mvnc.Device(devices[0])
● device.OpenDevice()
● graph = device.AllocateGraph(graphfile)
● graph.LoadTensor(img.astype(np.float16) , 'obj')
● output, userobj = graph.GetResult()
● graph.DeallocateGraph()
● device.CloseDevice()

24. Globalcode – Open4education

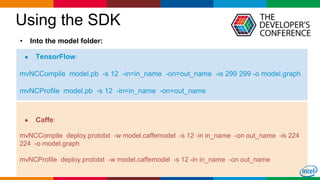

Using the SDK
24
● TensorFlow:
mvNCCompile model.pb -s 12 -in=in_name -on=out_name -is 299 299 -o model.graph
mvNCProfile model.pb -s 12 -in=in_name -on=out_name
• Into the model folder:
● Caffe:
mvNCCompile deploy.prototxt -w model.caffemodel -s 12 -in in_name -on out_name -is 224
224 -o model.graph
mvNCProfile deploy.prototxt -w model.caffemodel -s 12 -in in_name -on out_name

25. Globalcode – Open4education

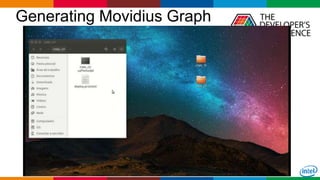

Generating Movidius Graph
25

26. Globalcode – Open4education

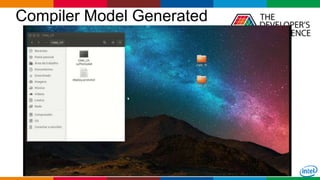

Compiler Model Generated
26

27. Globalcode – Open4education

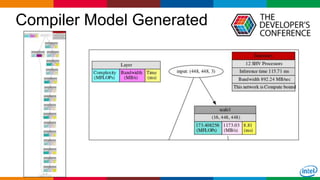

Compiler Model Generated
27

28. Globalcode – Open4education28

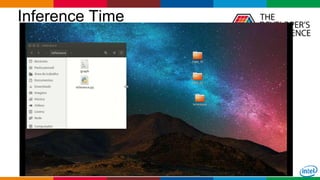

Inference Time

29. Globalcode – Open4education29

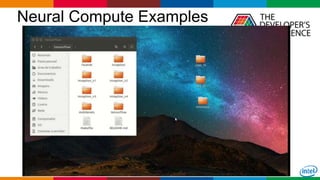

Neural Compute Examples

30. Globalcode – Open4education30

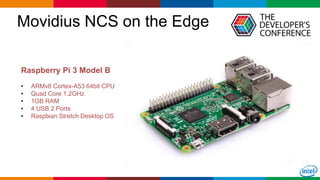

Movidius NCS on the Edge
Raspberry Pi 3 Model B
• ARMv8 Cortex-A53 64bit CPU
• Quad Core 1.2GHz
• 1GB RAM
• 4 USB 2 Ports
• Raspbian Stretch Desktop OS

31. Globalcode – Open4education31

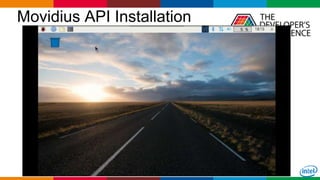

Movidius API Installation

32. Globalcode – Open4education

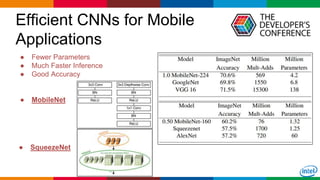

Efficient CNNs for Mobile
Applications
32
● Fewer Parameters
● Much Faster Inference
● Good Accuracy
● MobileNet
● SqueezeNet

33. Globalcode – Open4education
Raspberry Pi + Movidius
33

34. Globalcode – Open4education34

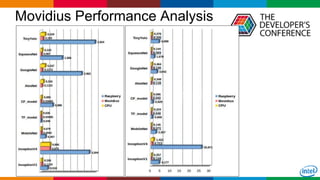

Movidius Performance Analysis

35. Globalcode – Open4education35
• https://github.com/intel/caffe
• https://software.intel.com/en-us/articles/intel-optimized-tensorflow-installation-guide
• https://developer.movidius.com/
• https://movidius.github.io/ncsdk/
• https://www.raspberrypi.org/downloads/raspbian/
