1. TCF - Target Communication
Framework Update for Helios
Martin Oberhuber
Pawel Piech
Wind River

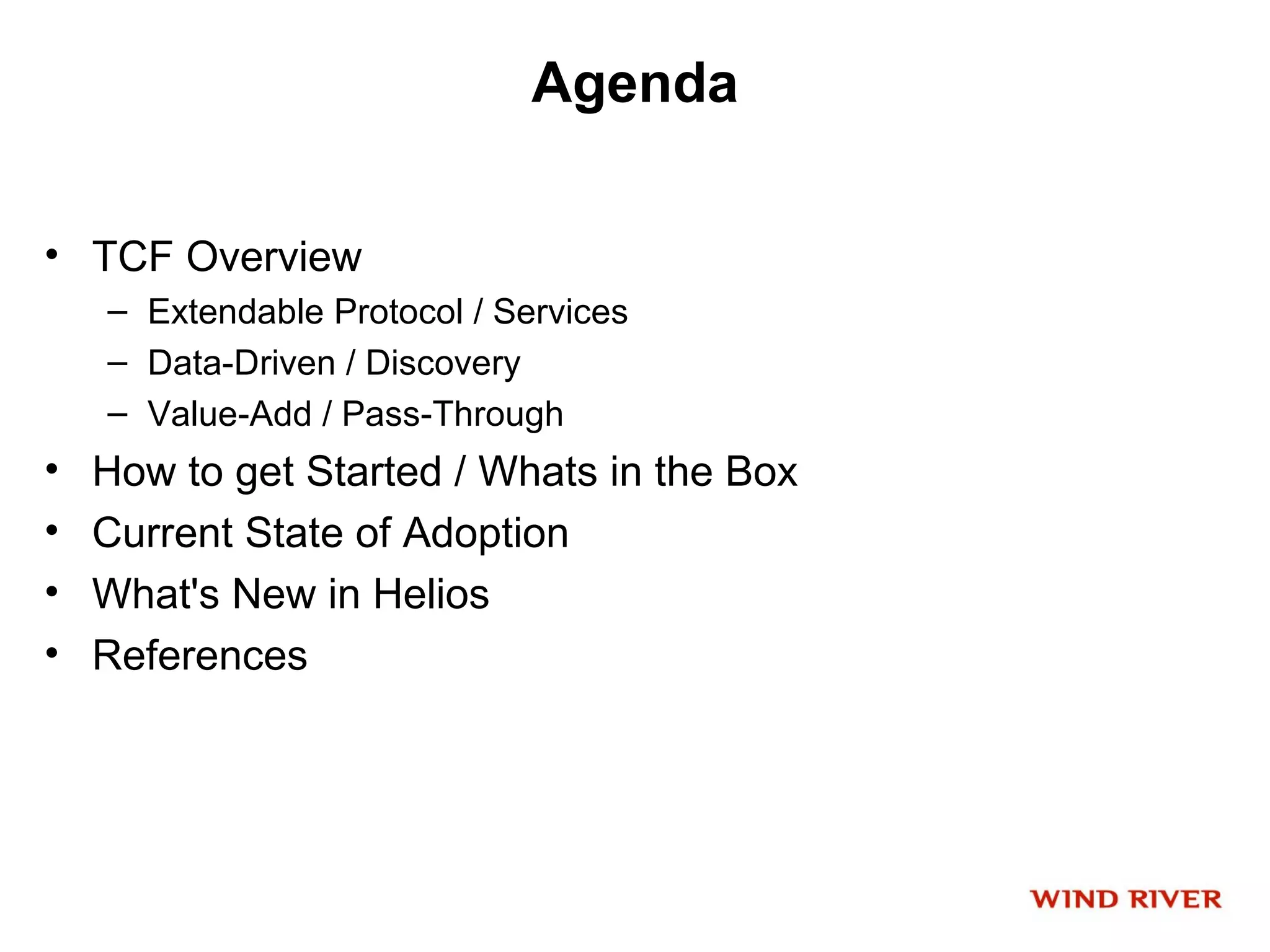

2. Agenda
• TCF Overview
– Extendable Protocol / Services
– Data-Driven / Discovery
– Value-Add / Pass-Through
• How to get Started / Whats in the Box
• Current State of Adoption
• What's New in Helios
• References

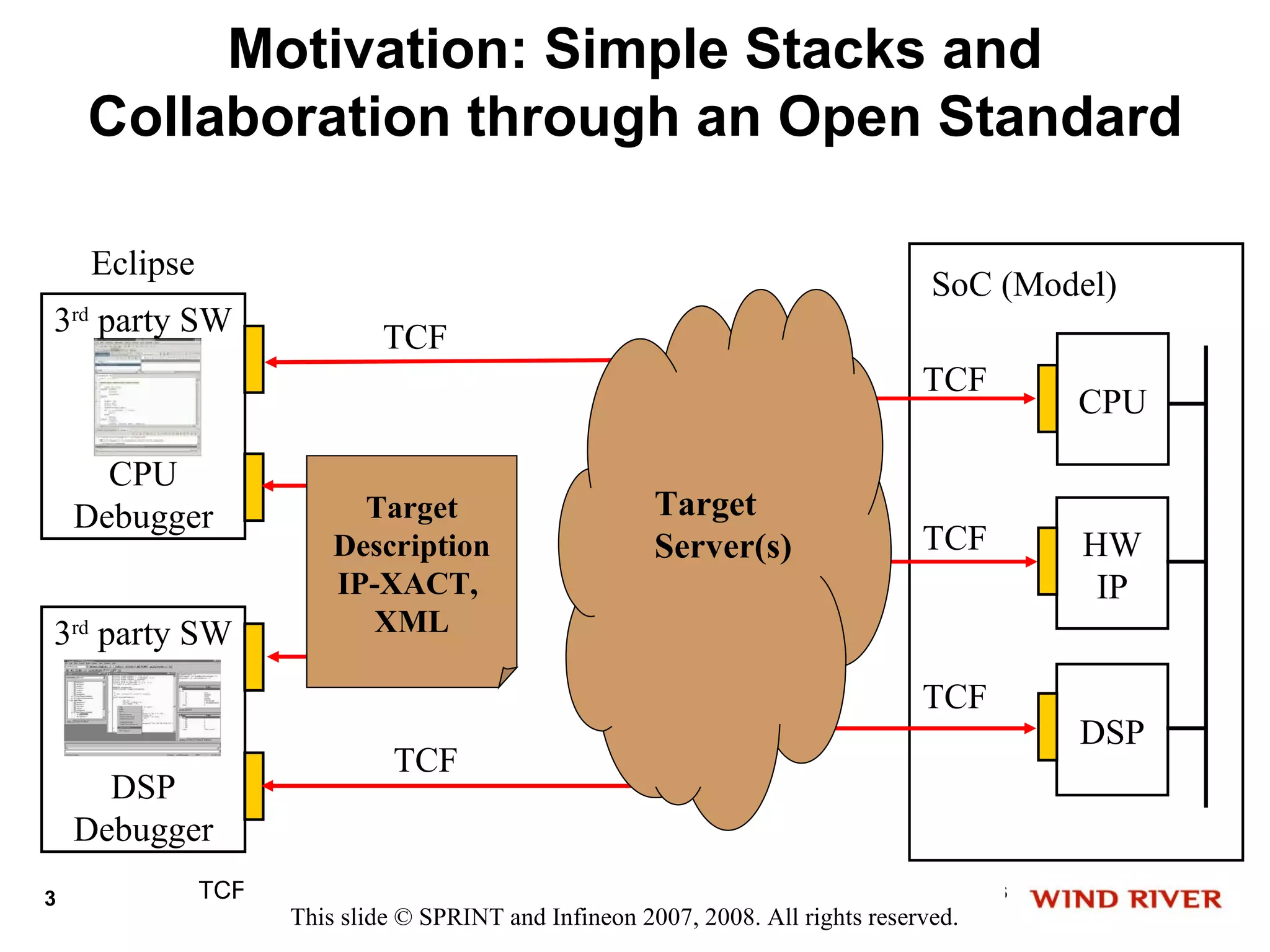

3. Motivation: Simple Stacks and
Collaboration through an Open Standard
Eclipse
SoC (Model)
3rd party SW TCF
TCF
CPU
CPU
Debugger Target Target
Description Server(s) TCF HW
IP-XACT, IP
3rd party SW XML
TCF
DSP
TCF
DSP
Debugger
3 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos © SPRINT and Infineon available underrightsEPL v1.0
This slide and trademarks made 2007, 2008. All the reserved.

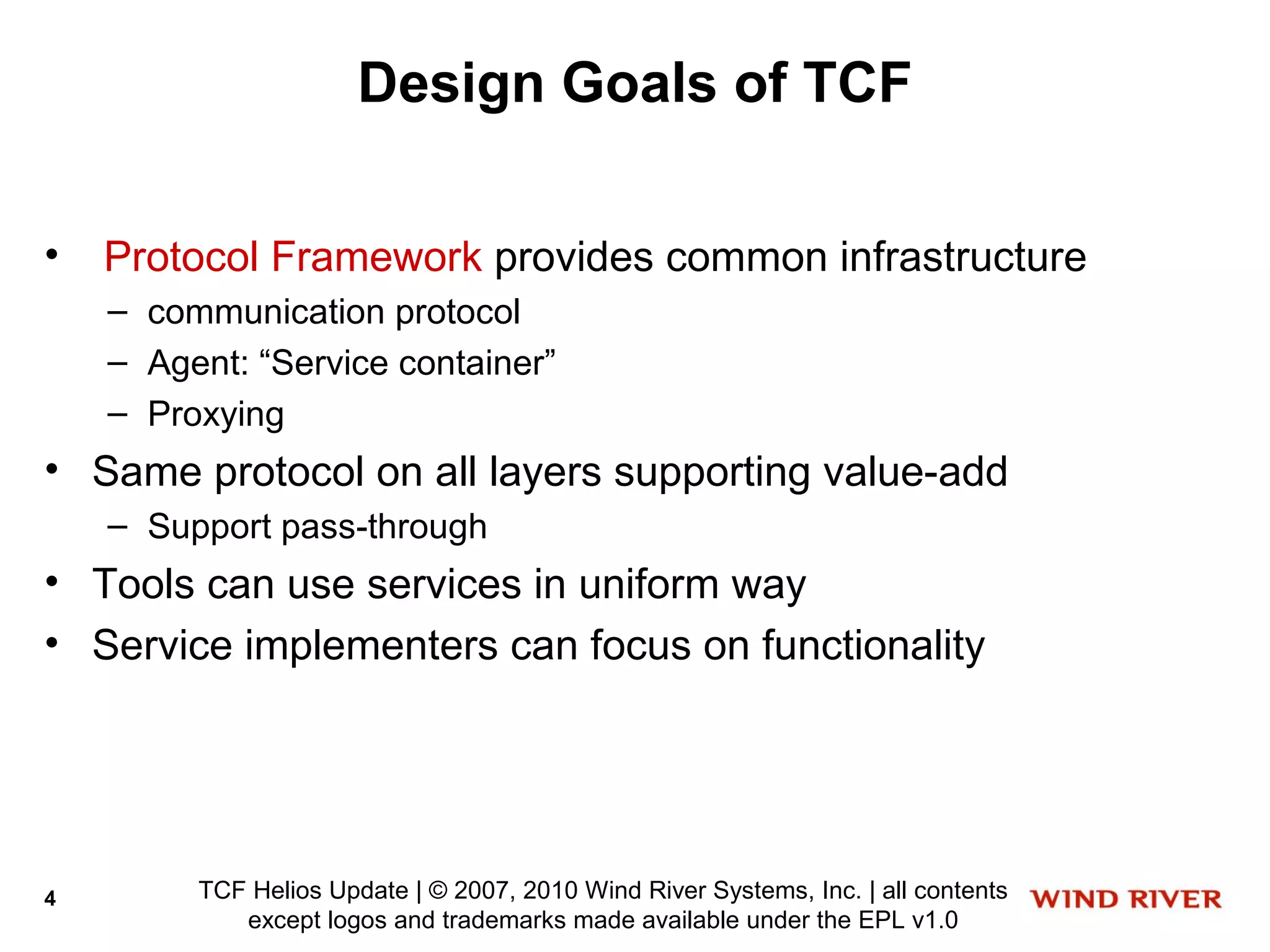

4. Design Goals of TCF
• Protocol Framework provides common infrastructure
– communication protocol
– Agent: “Service container”
– Proxying
• Same protocol on all layers supporting value-add
– Support pass-through
• Tools can use services in uniform way
• Service implementers can focus on functionality
4 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

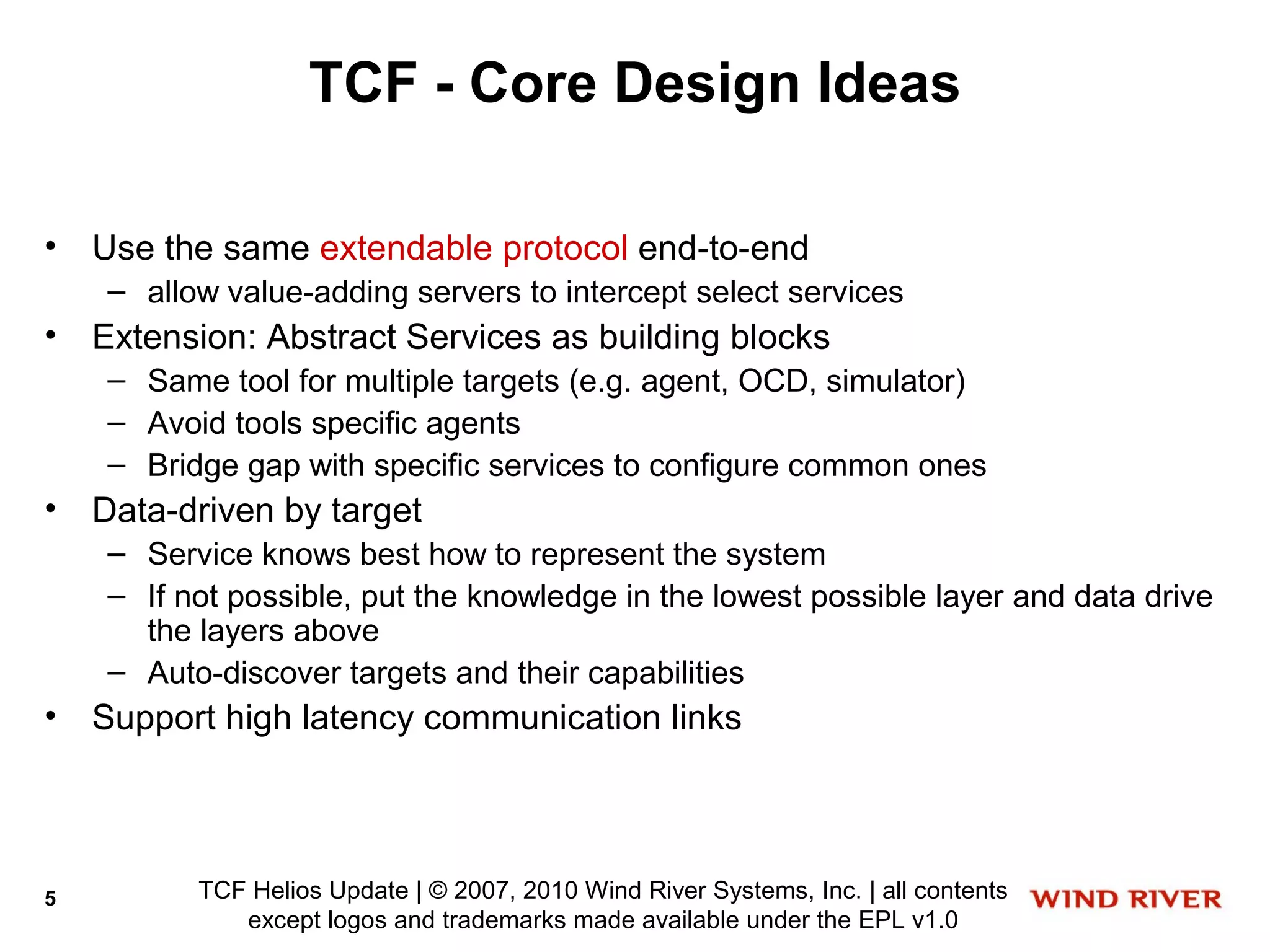

5. TCF - Core Design Ideas
• Use the same extendable protocol end-to-end
– allow value-adding servers to intercept select services
• Extension: Abstract Services as building blocks
– Same tool for multiple targets (e.g. agent, OCD, simulator)
– Avoid tools specific agents
– Bridge gap with specific services to configure common ones
• Data-driven by target
– Service knows best how to represent the system
– If not possible, put the knowledge in the lowest possible layer and data drive
the layers above
– Auto-discover targets and their capabilities
• Support high latency communication links
5 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

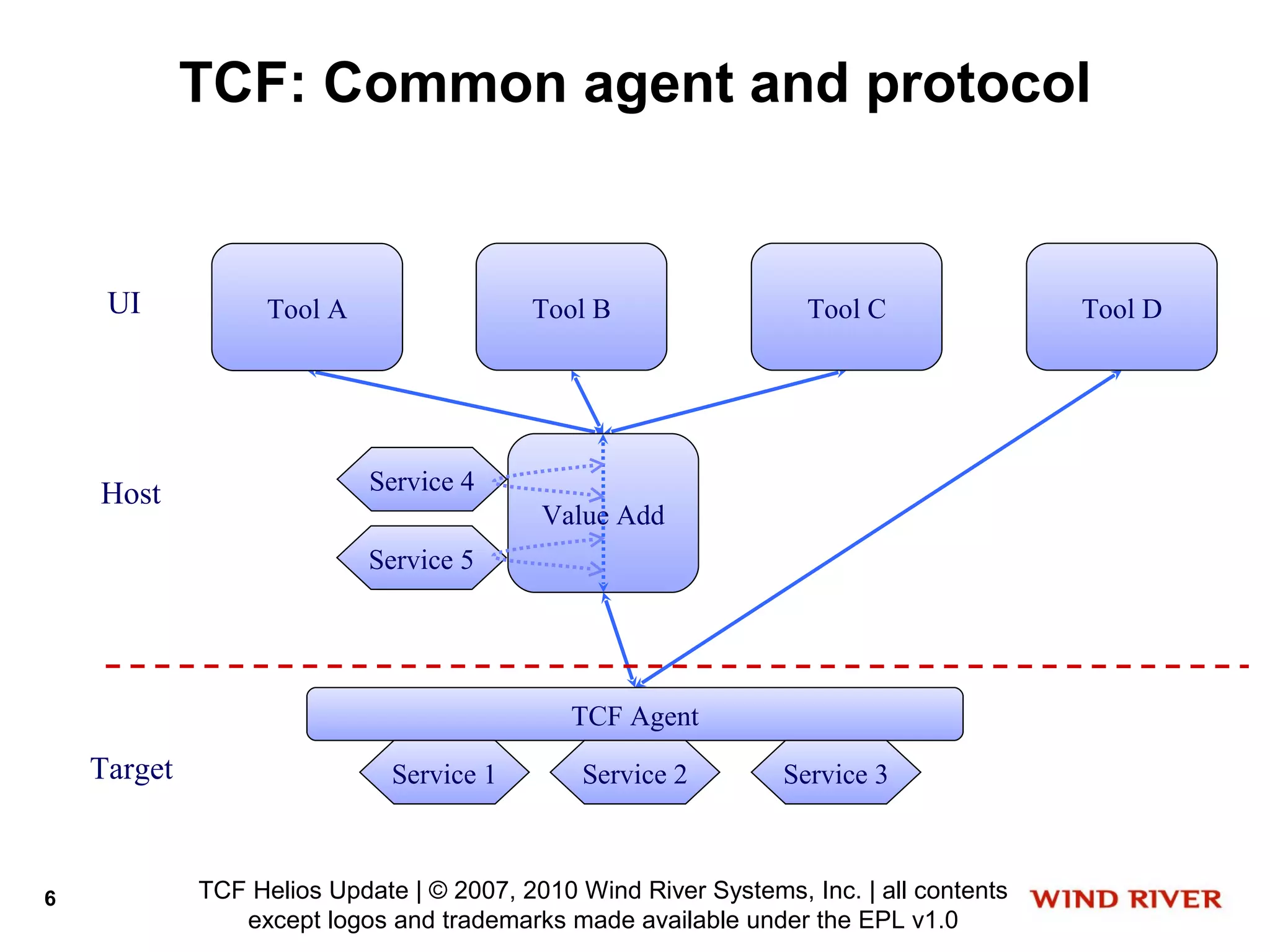

6. TCF: Common agent and protocol
UI Tool A Tool B Tool C Tool D
Host Service 4
Value Add
Service 5
TCF Agent
Target Service 1 Service 2 Service 3
6 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

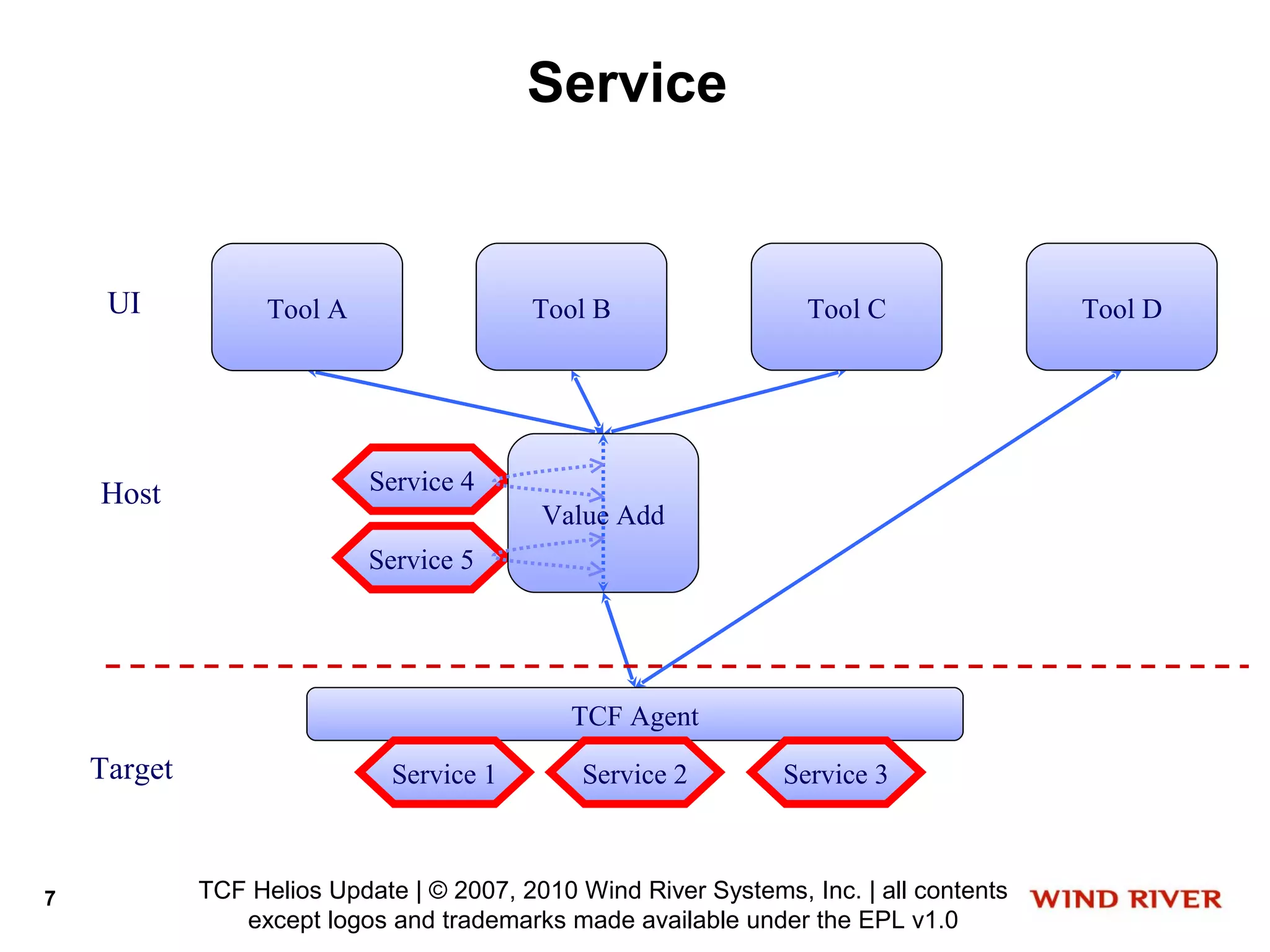

7. Service
UI Tool A Tool B Tool C Tool D
Host Service 4
Value Add
Service 5
TCF Agent
Target Service 1 Service 2 Service 3
7 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

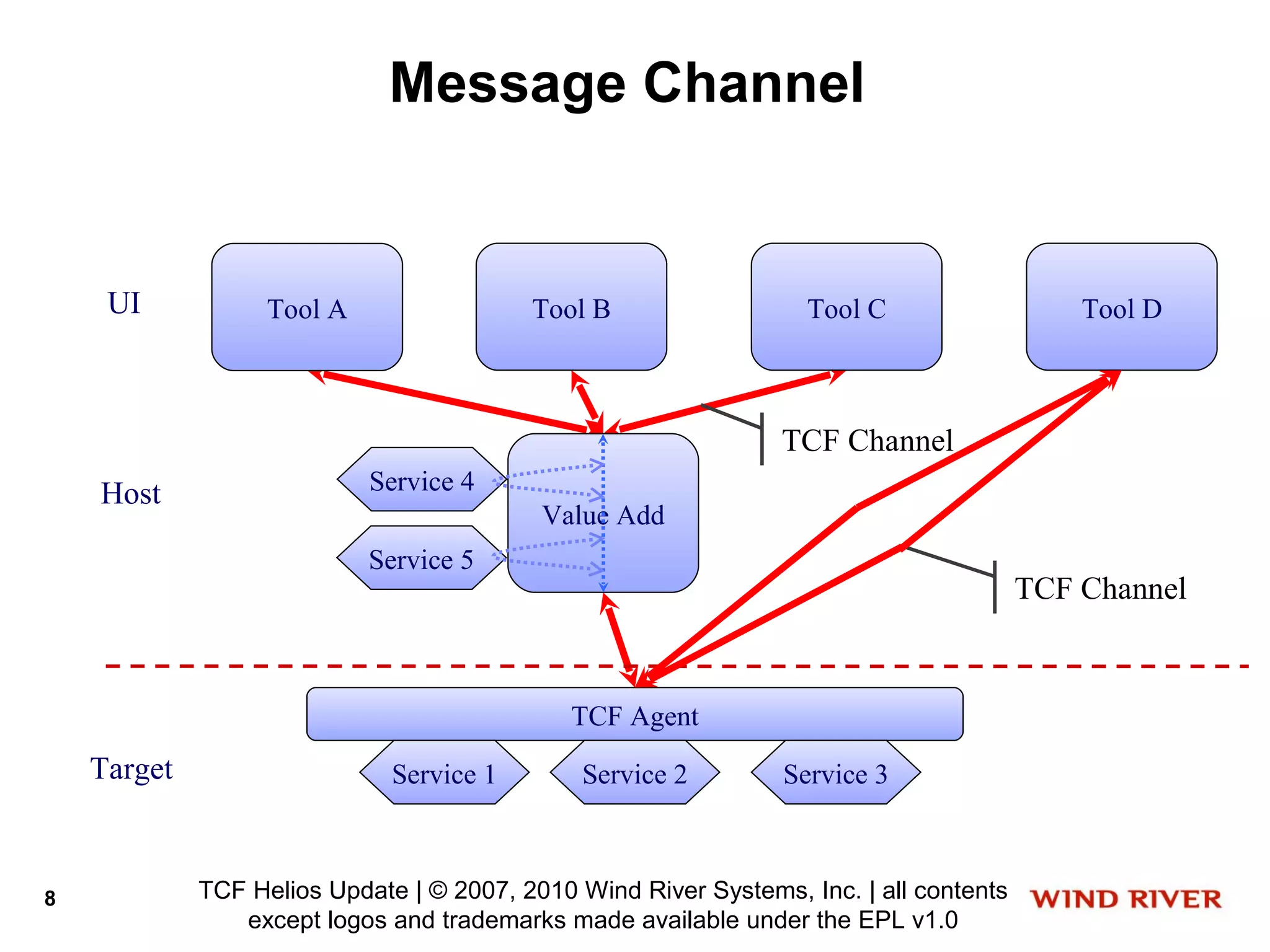

8. Message Channel
UI Tool A Tool B Tool C Tool D
TCF Channel
Host Service 4
Value Add
Service 5
TCF Channel
TCF Agent
Target Service 1 Service 2 Service 3
8 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

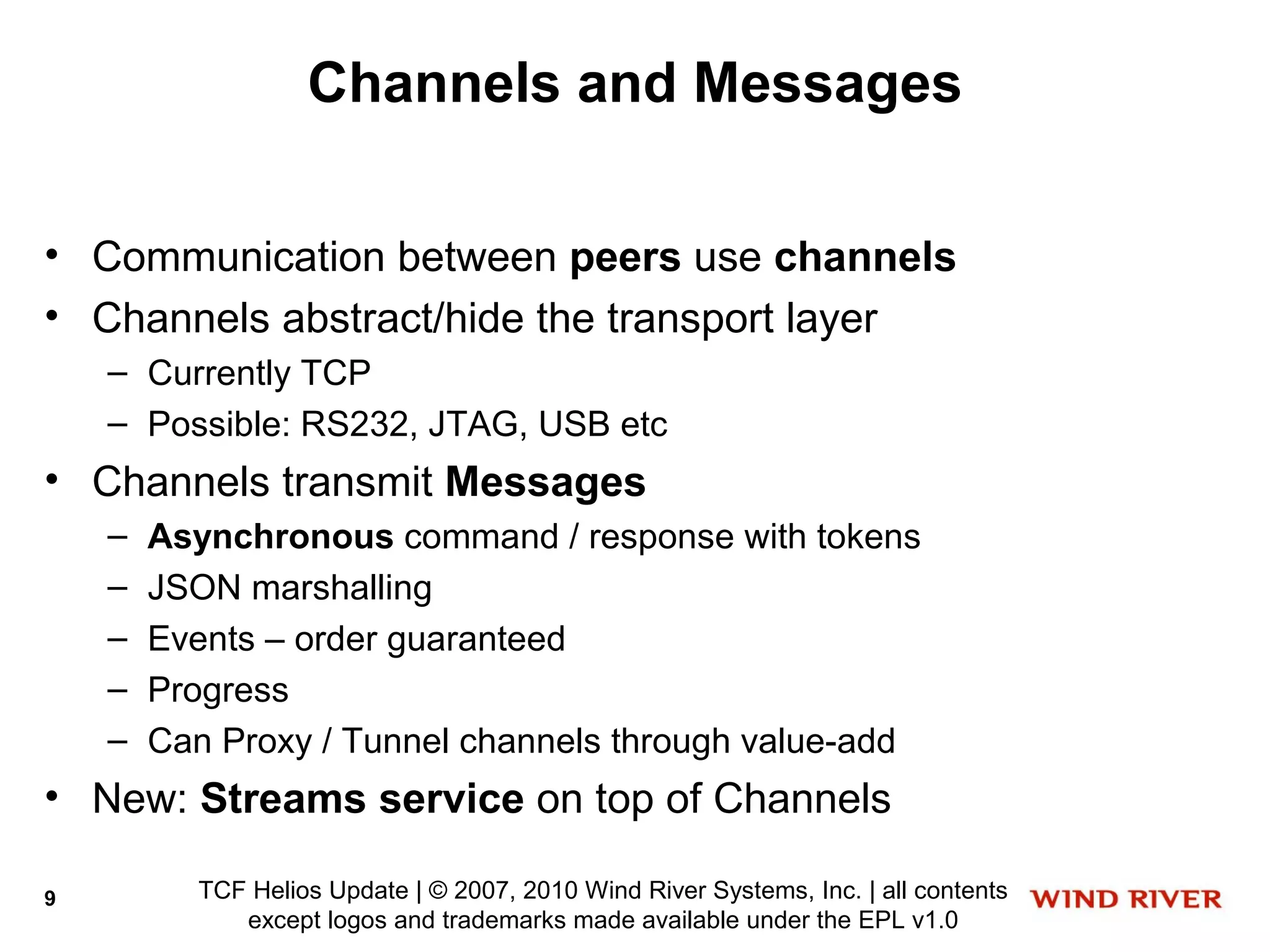

9. Channels and Messages
• Communication between peers use channels
• Channels abstract/hide the transport layer
– Currently TCP
– Possible: RS232, JTAG, USB etc
• Channels transmit Messages
– Asynchronous command / response with tokens
– JSON marshalling
– Events – order guaranteed
– Progress
– Can Proxy / Tunnel channels through value-add
• New: Streams service on top of Channels
9 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

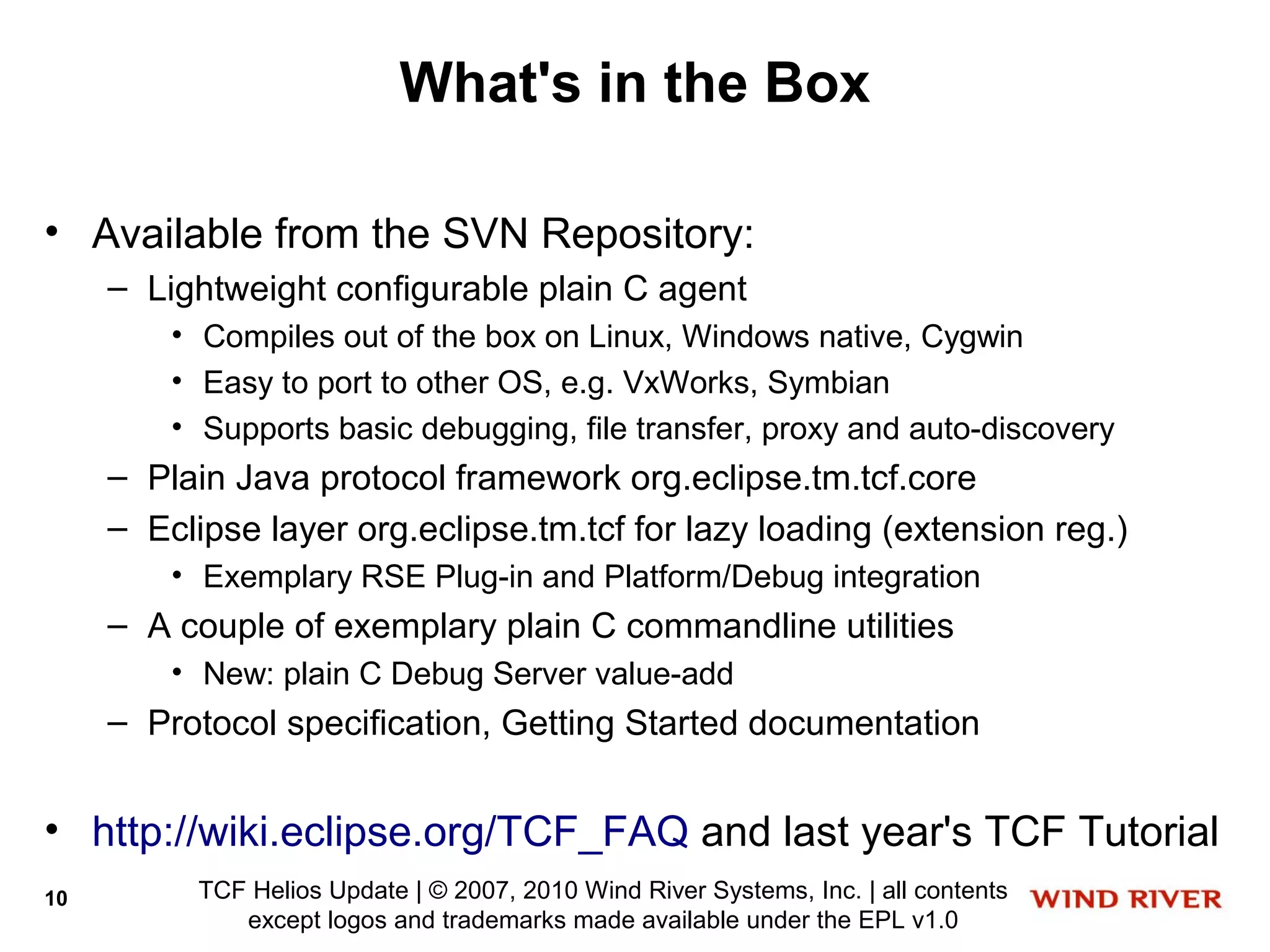

10. What's in the Box
• Available from the SVN Repository:
– Lightweight configurable plain C agent
• Compiles out of the box on Linux, Windows native, Cygwin
• Easy to port to other OS, e.g. VxWorks, Symbian
• Supports basic debugging, file transfer, proxy and auto-discovery
– Plain Java protocol framework org.eclipse.tm.tcf.core
– Eclipse layer org.eclipse.tm.tcf for lazy loading (extension reg.)
• Exemplary RSE Plug-in and Platform/Debug integration
– A couple of exemplary plain C commandline utilities
• New: plain C Debug Server value-add
– Protocol specification, Getting Started documentation
• http://wiki.eclipse.org/TCF_FAQ and last year's TCF Tutorial
10 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

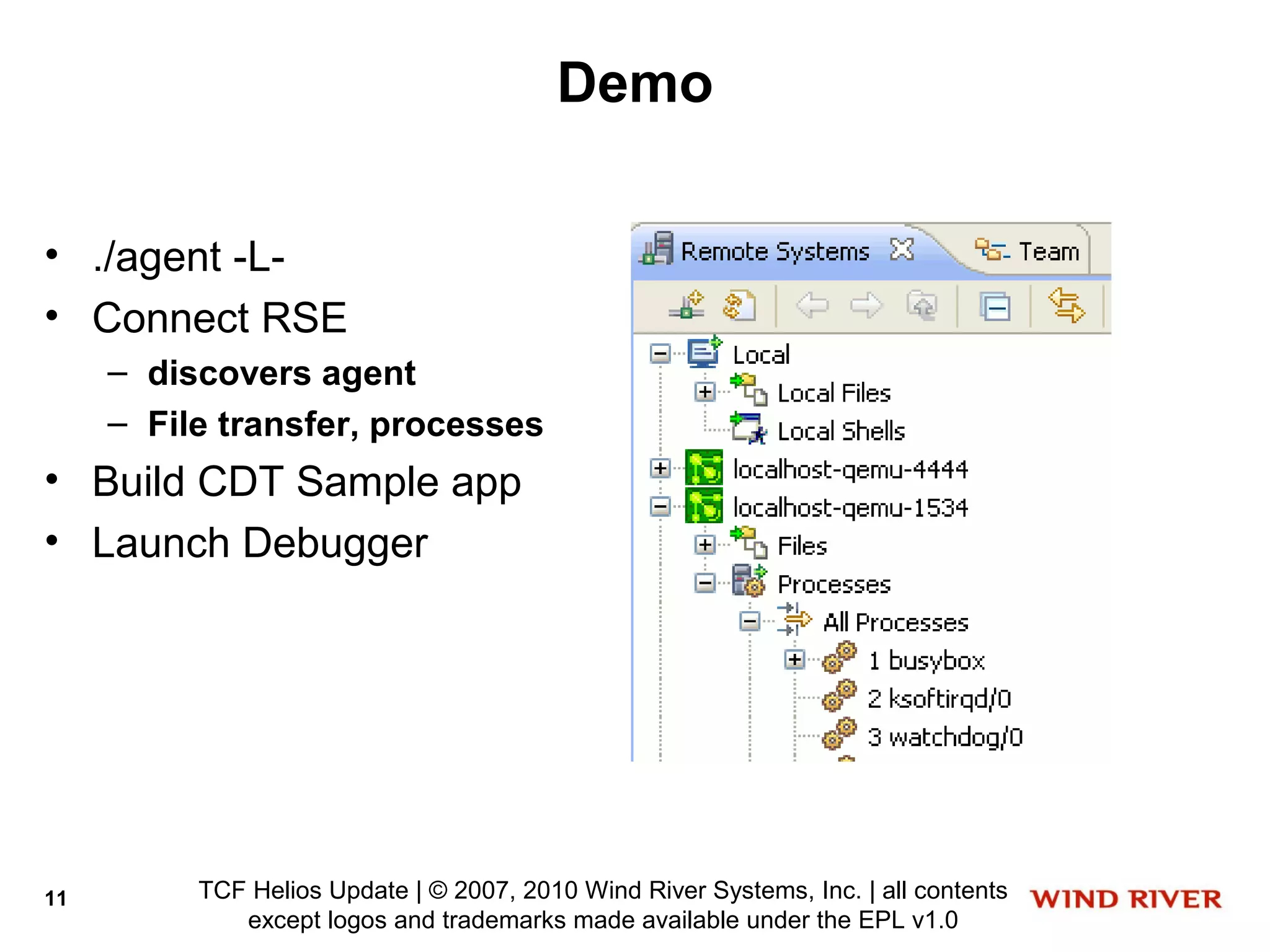

11. Demo
• ./agent -L-
• Connect RSE
– discovers agent
– File transfer, processes
• Build CDT Sample app
• Launch Debugger
11 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

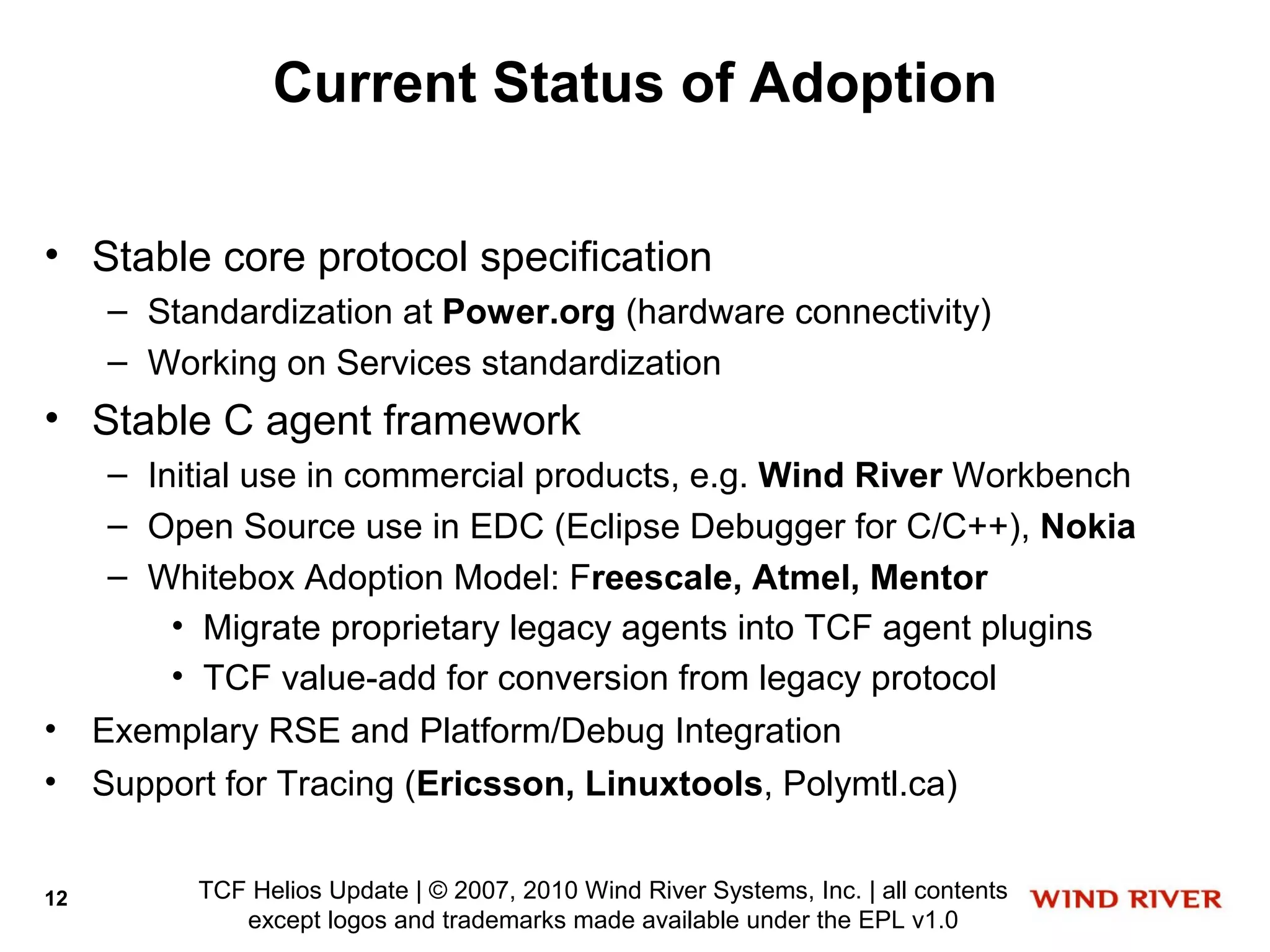

12. Current Status of Adoption
• Stable core protocol specification
– Standardization at Power.org (hardware connectivity)
– Working on Services standardization
• Stable C agent framework
– Initial use in commercial products, e.g. Wind River Workbench
– Open Source use in EDC (Eclipse Debugger for C/C++), Nokia
– Whitebox Adoption Model: Freescale, Atmel, Mentor
• Migrate proprietary legacy agents into TCF agent plugins
• TCF value-add for conversion from legacy protocol
• Exemplary RSE and Platform/Debug Integration
• Support for Tracing (Ericsson, Linuxtools, Polymtl.ca)
12 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

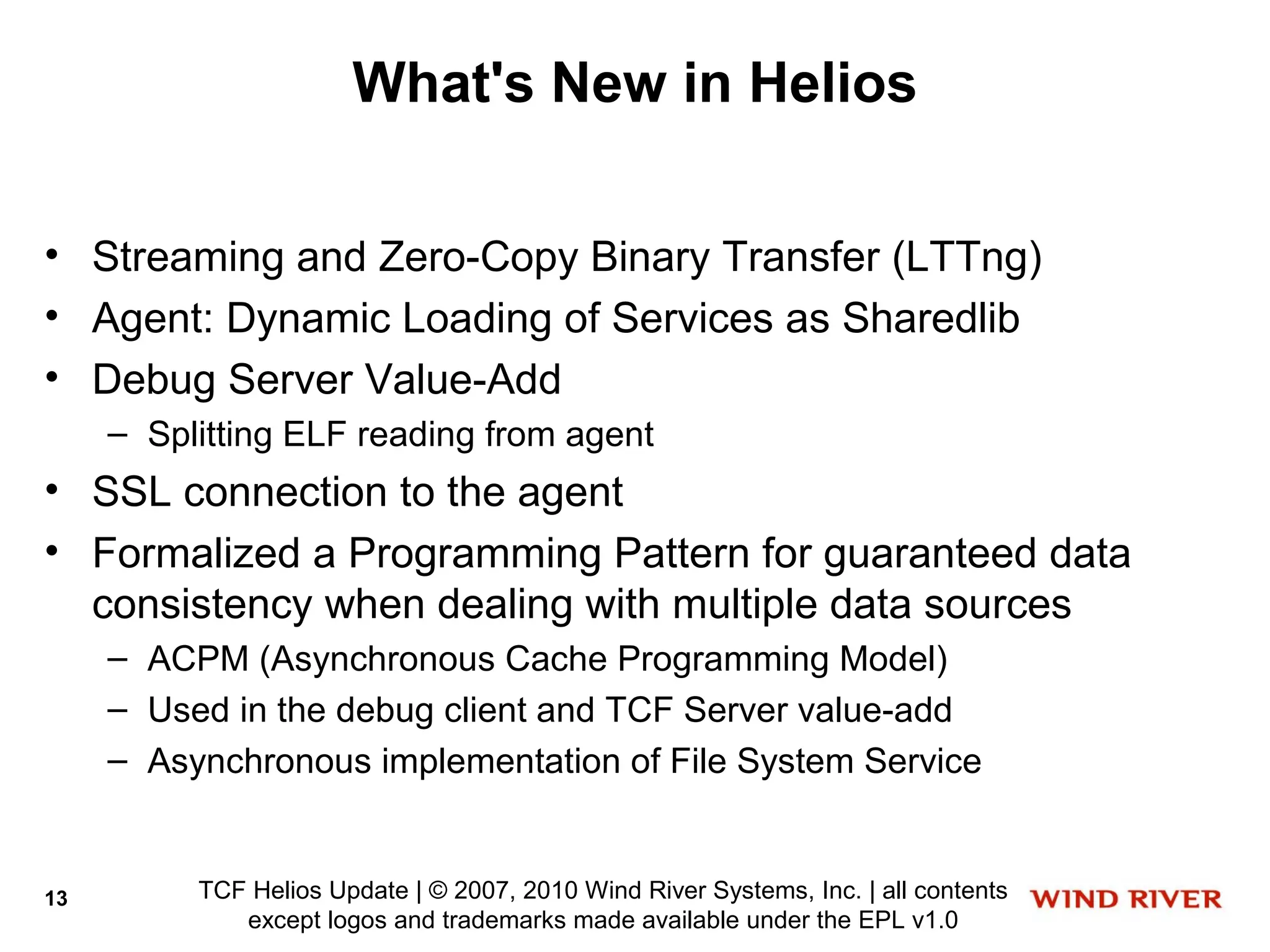

13. What's New in Helios
• Streaming and Zero-Copy Binary Transfer (LTTng)
• Agent: Dynamic Loading of Services as Sharedlib
• Debug Server Value-Add
– Splitting ELF reading from agent
• SSL connection to the agent
• Formalized a Programming Pattern for guaranteed data
consistency when dealing with multiple data sources
– ACPM (Asynchronous Cache Programming Model)
– Used in the debug client and TCF Server value-add
– Asynchronous implementation of File System Service
13 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

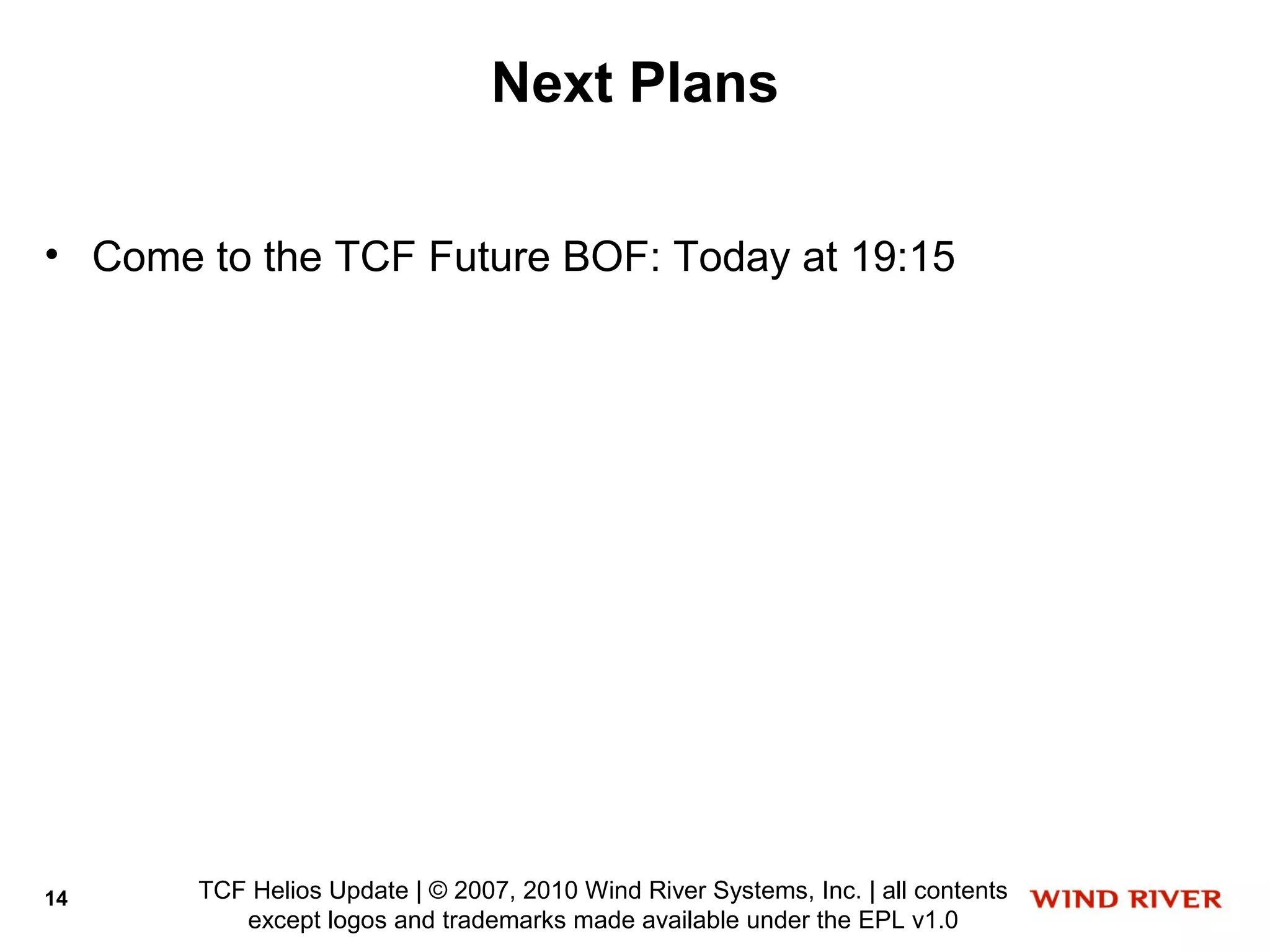

14. Next Plans
• Come to the TCF Future BOF: Today at 19:15
14 TCF Helios Update | © 2007, 2010 Wind River Systems, Inc. | all contents
except logos and trademarks made available under the EPL v1.0

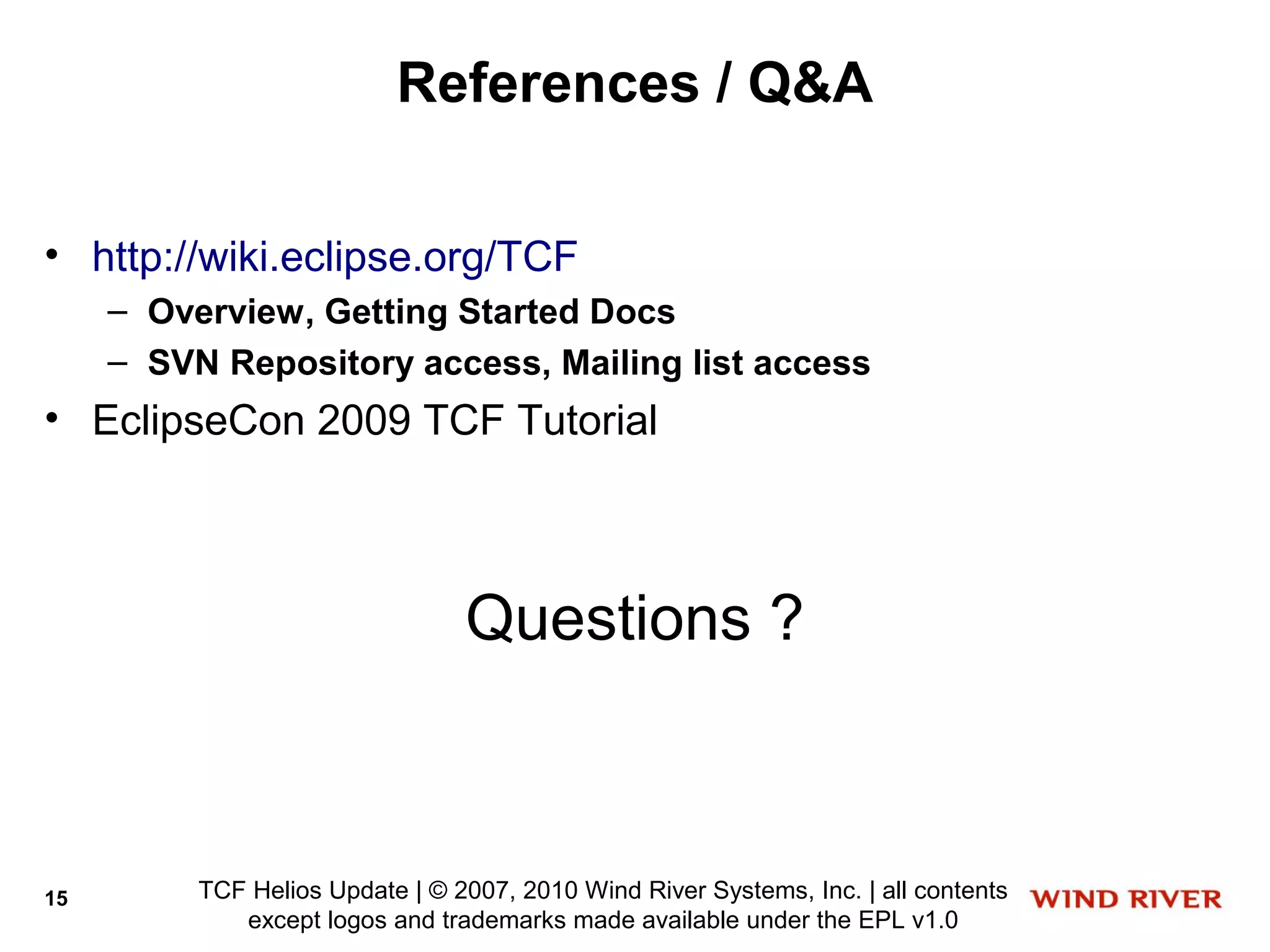

15. References / Q&A
• http://wiki.eclipse.org/TCF
– Overview, Getting Started Docs
– SVN Repository access, Mailing list access
• EclipseCon 2009 TCF Tutorial
Questions ?
