This document provides an introduction to workflows and web services at EBI. It discusses Taverna as a workflow management system that allows users to compose and execute workflows using various online biological databases and analysis tools as services. It also describes other myGrid solutions like Biocatalogue for discovering services and myExperiment for sharing workflows. Finally, it demonstrates a simple example of building a workflow in Taverna to retrieve molecular interactions from PSICQUIC services.

1. Taverna (as a service)
Programmatic Access To Biological Databases (Perl)
1 – 4 October 2012
Rafael C. Jimenez
rafael@ebi.ac.uk

2. Introduction to Web Services at EBI
Table of contents
• Workflows
• Web Services
• myGrid solutions
– Biocatalogue
– Taverna
– myExperiment
• Installing Taverna
• Simple PSICQUIC workflow with Taverna

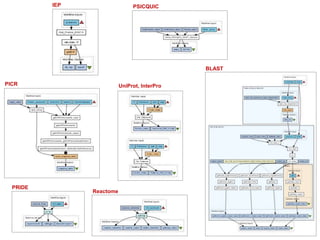

3. UniProt, InterPro
PSICQUIC
Reactome
PICR
PRIDE
BLAST
IEP

4. Introduction to Web Services at EBI
Workflow
• Workflow
• Sequence of tasks that produces a
result of observable value
• Workflow management system
• Computer system to compose and
execute workflows.
• Workflow components
• Input
• Service
• Output
• Shims
Workflow
Task
Output
Service
Input
Task
Output
Service
Input

5. Introduction to Web Services at EBI
Workflow
• Workflow
• Sequence of tasks that produces a
result of observable value
• Workflow management system
• Computer system to compose and
execute workflows.
• Workflow components
• Input
• Service
• Output
• Shims
Service A
Service B

6. MatchMismatch

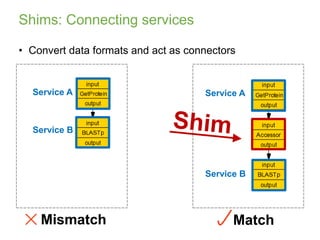

Shims: Connecting services
Service A
Service B
Service A
Service B
• Convert data formats and act as connectors

7. Type of services
• Data Resources
• Analysis tools
• Web Services
• SOAP
• REST
• APIs (application programming interface)
• Grid Services
• Local scripts
• Local software
• Workflows

8. Create and run workflows
Share, discover and reuse workflows
Discover and reuse services

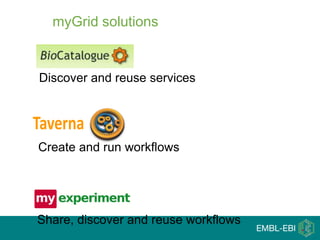

myGrid solutions

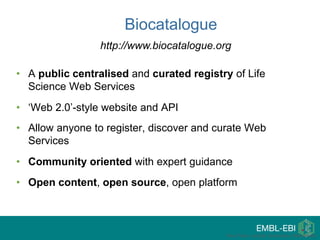

9. • A public centralised and curated registry of Life
Science Web Services
• ‘Web 2.0’-style website and API
• Allow anyone to register, discover and curate Web
Services
• Community oriented with expert guidance
• Open content, open source, open platform
Paul Fisher, myGrid, University of Manchester
Biocatalogue
http://www.biocatalogue.org

10. BioCatalogue’s Mission
12/13/2018
10

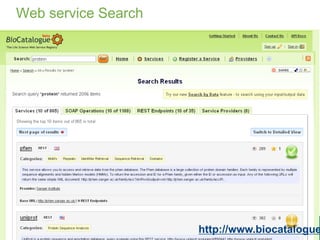

11. Web service Search
http://www.biocatalogue

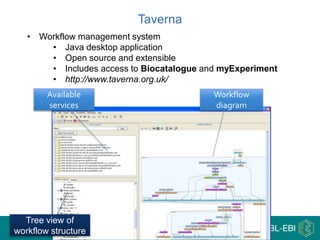

12. Workflow
diagram
Tree view of
workflow structure
Available
services
Taverna
• Workflow management system
• Java desktop application
• Open source and extensible
• Includes access to Biocatalogue and myExperiment
• http://www.taverna.org.uk/

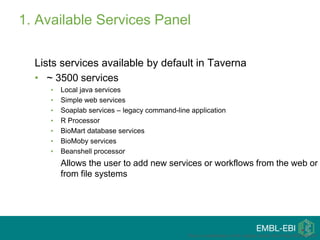

13. 1. Available Services Panel
Lists services available by default in Taverna
• ~ 3500 services
• Local java services
• Simple web services
• Soaplab services – legacy command-line application
• R Processor
• BioMart database services
• BioMoby services
• Beanshell processor
Allows the user to add new services or workflows from the web or
from file systems
This is a modification of the original tutorial from Katy Wolstencroft

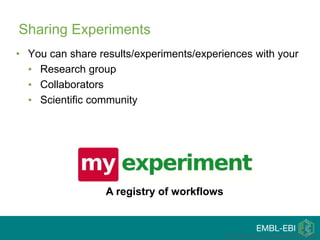

14. Sharing Experiments
• You can share results/experiments/experiences with your
• Research group
• Collaborators
• Scientific community
Paul Fisher, myGrid, University of Manchester
A registry of workflows

15. myExperiment
http://www.myexperiment.org/

16. Recycling, Reuse, Repurposing
• Paul writes workflows for identifying biological pathways
implicated in resistance to Trypanosomiasis
• Paul meets Jo. Jo is investigating mouse Whipworm
infection.
• Jo reuses one of Paul’s workflows.
• Jo identifies the biological pathways involved in sex
dependence in the mouse model, believed to be involved in
the ability of mice to expel the parasite.
• Previously a manual two year study by Jo had failed to do
this.
Workflows are protocols
Paul Fisher, myGrid, University of Manchester

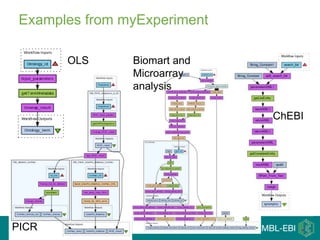

17. Examples from myExperiment
OLS
PICR
Biomart and
Microarray
analysis
ChEBI

18. Rafael Jimenez
rafael@ebi.ac.uk
TavernaWorkflow Management System
Installing the workbench

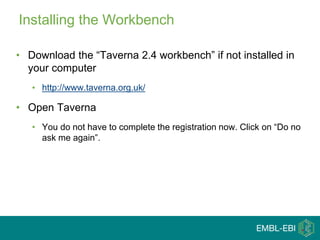

19. Installing the Workbench
• Download the “Taverna 2.4 workbench” if not installed in
your computer
• http://www.taverna.org.uk/
• Open Taverna
• You do not have to complete the registration now. Click on “Do no
ask me again”.

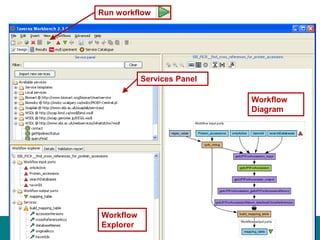

20. Workflow
Diagram
Services Panel
Workflow
Explorer
Run workflow

21. Input
list
Input description
Input example
Input value

22. Output
tab
Results
List of
results

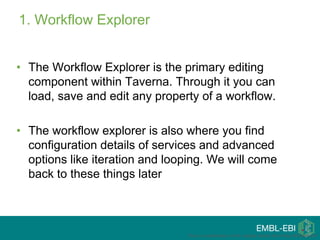

23. 1. Workflow Explorer
• The Workflow Explorer is the primary editing
component within Taverna. Through it you can
load, save and edit any property of a workflow.
• The workflow explorer is also where you find
configuration details of services and advanced
options like iteration and looping. We will come
back to these things later
This is a modification of the original tutorial from Katy Wolstencroft

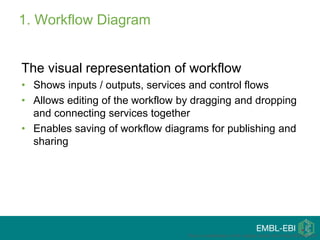

24. 1. Workflow Diagram
The visual representation of workflow
• Shows inputs / outputs, services and control flows
• Allows editing of the workflow by dragging and dropping
and connecting services together
• Enables saving of workflow diagrams for publishing and
sharing
This is a modification of the original tutorial from Katy Wolstencroft

25. 1. Available Services Panel
Lists services available by default in Taverna
• ~ 3500 services
• Local java services
• Simple web services
• Soaplab services – legacy command-line application
• R Processor
• BioMart database services
• BioMoby services
• Beanshell processor
Allows the user to add new services or workflows from the web or
from file systems
This is a modification of the original tutorial from Katy Wolstencroft

26. Rafael Jimenez
rafael@ebi.ac.uk
TavernaSimple PSICQUIC workflows with
Taverna

27. 1. Open one PSICQUIC workflow
1. Open Taverna and click the “myExperiment” button.
myExperiment is a repository of workflows
2. In the “Query” field, type “psicquic”
3. Find the “Molecular Interactions from IntAct PSICQUIC service (REST)”
workflow and click on the “Open” button.
2. Run a PSICQUIC workflow
1. In the menu click on “File” and “Run workflow”
3. Define your query
1. Find and click the “Set value” button
2. Specify your MIQL query. i.e
• species:trypanosoma AND detmethod:"two hybrid"
3. Click on the button “Run workflow”
4. Check your results
1. In the bottom left corner, in the “MITAB” tab, click on “Value1”
5. Save results
1. Click on the “Save value” button on the bottom right corner.
Simple PSICQUIC workflow with Taverna

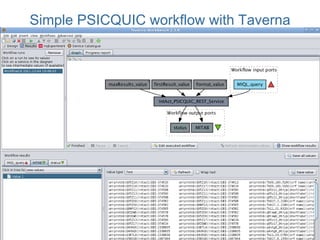

28. Simple PSICQUIC workflow with Taverna

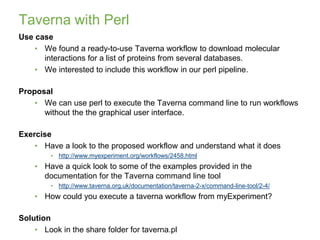

29. Taverna with Perl
Use case
• We found a ready-to-use Taverna workflow to download molecular
interactions for a list of proteins from several databases.
• We interested to include this workflow in our perl pipeline.
Proposal
• We can use perl to execute the Taverna command line to run workflows
without the the graphical user interface.
Exercise
• Have a look to the proposed workflow and understand what it does
• http://www.myexperiment.org/workflows/2458.html
• Have a quick look to some of the examples provided in the
documentation for the Taverna command line tool
• http://www.taverna.org.uk/documentation/taverna-2-x/command-line-tool/2-4/
• How could you execute a taverna workflow from myExperiment?
Solution
• Look in the share folder for taverna.pl
13/12/2018
30

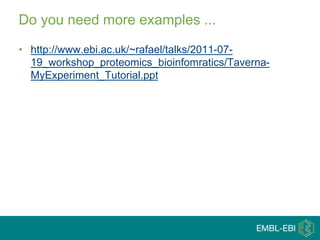

30. Do you need more examples ...
• http://www.ebi.ac.uk/~rafael/talks/2011-07-
19_workshop_proteomics_bioinfomratics/Taverna-
MyExperiment_Tutorial.ppt

31. Thank you!
13/12/2018
32
ProteomicsServicesTeam

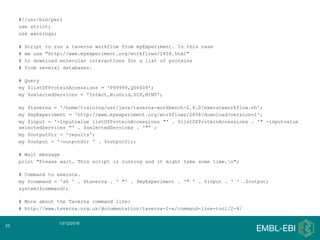

32. #!/usr/bin/perl
