1. Taking containers from
development to production
FOSDEM 2017
Suraj Deshmukh

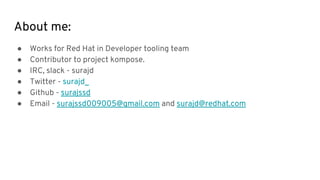

2. About me:
● Works for Red Hat in Developer tooling team
● Contributor to project kompose.
● IRC, slack - surajd
● Twitter - surajd_
● Github - surajssd
● Email - surajssd009005@gmail.com and surajd@redhat.com

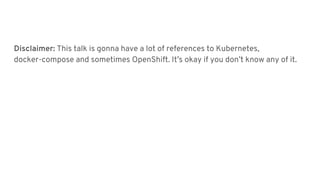

3. Disclaimer: This talk is gonna have a lot of references to Kubernetes,
docker-compose and sometimes OpenShift. It’s okay if you don’t know any of it.

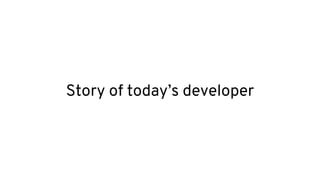

4. Story of today’s developer

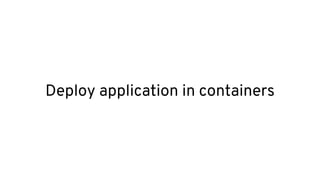

5. Deploy application in containers

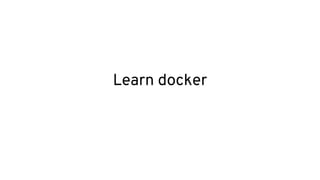

6. Learn docker

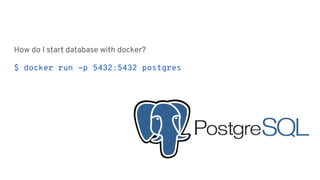

7. How do I start database with docker?
$ docker run -p 5432:5432 postgres

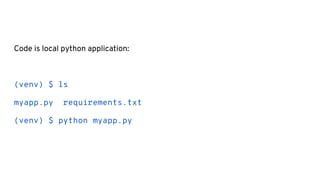

8. Code is local python application:
(venv) $ ls
myapp.py requirements.txt
(venv) $ python myapp.py

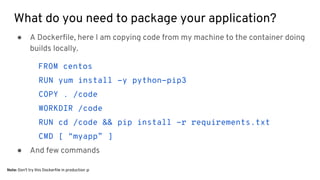

9. What do you need to package your application?
● A Dockerfile, here I am copying code from my machine to the container doing
builds locally.
FROM centos
RUN yum install -y python-pip3
COPY . /code
WORKDIR /code
RUN cd /code && pip install -r requirements.txt
CMD [ “myapp” ]
● And few commands
Note: Don’t try this Dockerfile in production :p

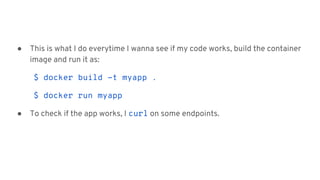

10. ● This is what I do everytime I wanna see if my code works, build the container
image and run it as:
$ docker build -t myapp .
$ docker run myapp
● To check if the app works, I curl on some endpoints.

11. Enter docker-compose

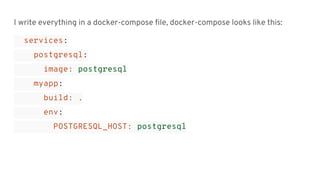

12. I write everything in a docker-compose file, docker-compose looks like this:
services:
postgresql:
image: postgresql
myapp:
build: .
env:
POSTGRESQL_HOST: postgresql

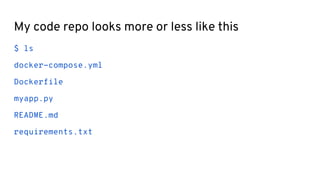

13. My code repo looks more or less like this
$ ls
docker-compose.yml
Dockerfile
myapp.py
README.md
requirements.txt

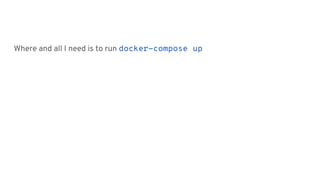

14. Where and all I need is to run docker-compose up

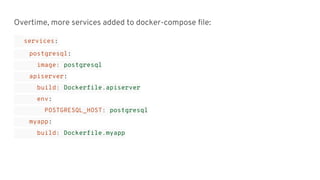

15. Overtime, more services added to docker-compose file:
services:
postgresql:
image: postgresql
apiserver:
build: Dockerfile.apiserver
env:
POSTGRESQL_HOST: postgresql
myapp:
build: Dockerfile.myapp

16. Docker-compose is easier for development
I am happy (Not for long).

17. Now that everything is running locally, how and
where do I deploy this?

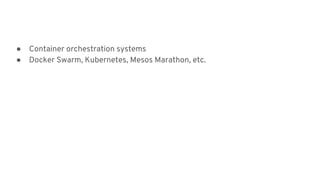

18. ● Container orchestration systems
● Docker Swarm, Kubernetes, Mesos Marathon, etc.

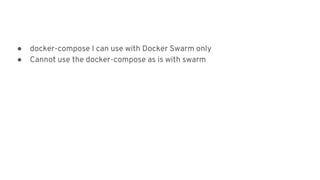

19. ● docker-compose I can use with Docker Swarm only
● Cannot use the docker-compose as is with swarm

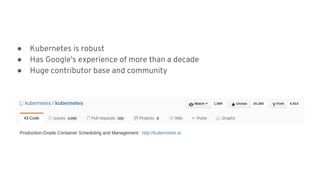

20. ● Kubernetes is robust
● Has Google’s experience of more than a decade
● Huge contributor base and community

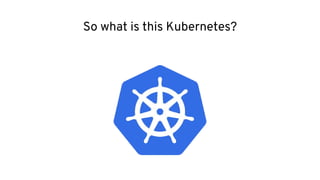

21. So what is this Kubernetes?

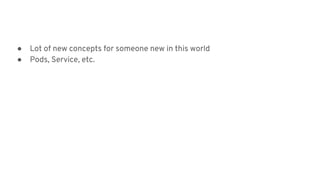

22. ● Lot of new concepts for someone new in this world
● Pods, Service, etc.

23. More google search
I want to make my life easier

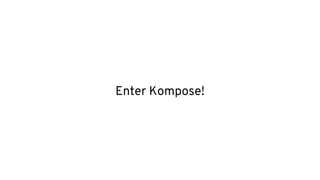

24. Enter Kompose!

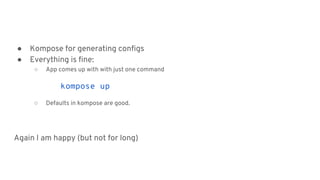

25. ● Kompose for generating configs
● Everything is fine:
○ App comes up with with just one command
kompose up
○ Defaults in kompose are good.
Again I am happy (but not for long)

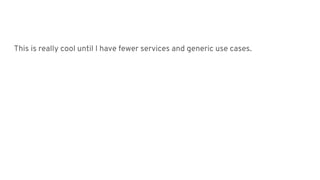

26. This is really cool until I have fewer services and generic use cases.

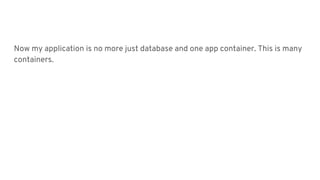

27. Now my application is no more just database and one app container. This is many
containers.

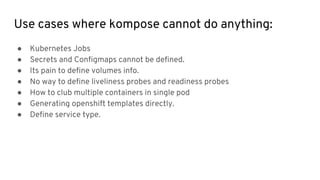

28. Use cases where kompose cannot do anything:
● Kubernetes Jobs
● Secrets and Configmaps cannot be defined.
● Its pain to define volumes info.
● No way to define liveliness probes and readiness probes
● How to club multiple containers in single pod
● Generating openshift templates directly.
● Define service type.

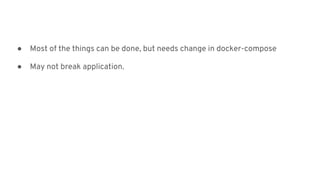

29. ● Most of the things can be done, but needs change in docker-compose
● May not break application.

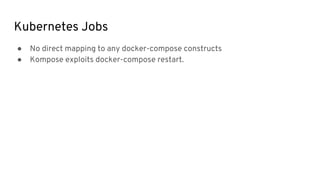

30. ● No direct mapping to any docker-compose constructs
● Kompose exploits docker-compose restart.
Kubernetes Jobs

31. Secrets and Configmaps
● No direct mapping to any docker-compose constructs
● But other ways of doing it.

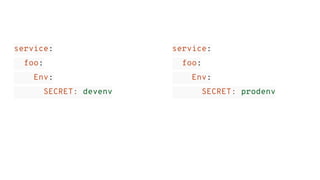

32. service:
foo:
Env:
SECRET: devenv
service:
foo:
Env:
SECRET: prodenv

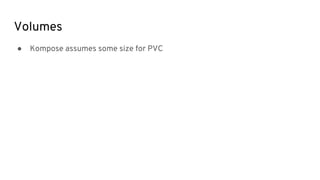

33. Volumes
● Kompose assumes some size for PVC

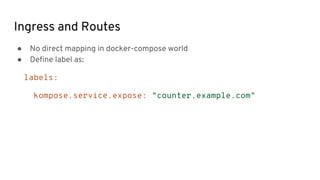

34. Ingress and Routes
● No direct mapping in docker-compose world
● Define label as:
labels:
kompose.service.expose: "counter.example.com"

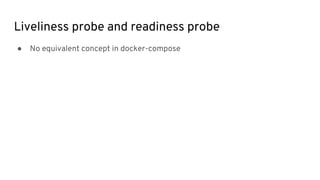

35. Liveliness probe and readiness probe
● No equivalent concept in docker-compose

36. Kubernetes Service type
● Here also there is no direct mapping in docker-compose world to do so.
● Use labels as following:
labels:
kompose.service.type: nodeport

37. So what do I do to get around it?
● Generate configs with Kompose
● Edit it yourself

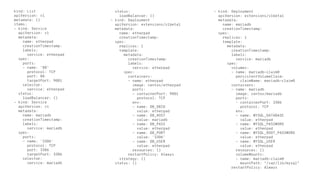

38. kind: List
apiVersion: v1
metadata: {}
items:
- kind: Service
apiVersion: v1
metadata:
name: etherpad
creationTimestamp:
labels:
service: etherpad
spec:
ports:
- name: '80'
protocol: TCP
port: 80
targetPort: 9001
selector:
service: etherpad
status:
loadBalancer: {}
- kind: Service
apiVersion: v1
metadata:
name: mariadb
creationTimestamp:
labels:
service: mariadb
spec:
ports:
- name: '3306'
protocol: TCP
port: 3306
targetPort: 3306
selector:
service: mariadb
status:
loadBalancer: {}
- kind: Deployment
apiVersion: extensions/v1beta1
metadata:
name: etherpad
creationTimestamp:
spec:
replicas: 1
template:
metadata:
creationTimestamp:
labels:
service: etherpad
spec:
containers:
- name: etherpad
image: centos/etherpad
ports:
- containerPort: 9001
protocol: TCP
env:
- name: DB_DBID
value: etherpad
- name: DB_HOST
value: mariadb
- name: DB_PASS
value: etherpad
- name: DB_PORT
value: '3306'
- name: DB_USER
value: etherpad
resources: {}
restartPolicy: Always
strategy: {}
status: {}
- kind: Deployment
apiVersion: extensions/v1beta1
metadata:
name: mariadb
creationTimestamp:
spec:
replicas: 1
template:
metadata:
creationTimestamp:
labels:
service: mariadb
spec:
volumes:
- name: mariadb-claim0
persistentVolumeClaim:
claimName: mariadb-claim0
containers:
- name: mariadb
image: centos/mariadb
ports:
- containerPort: 3306
protocol: TCP
env:
- name: MYSQL_DATABASE
value: etherpad
- name: MYSQL_PASSWORD
value: etherpad
- name: MYSQL_ROOT_PASSWORD
value: etherpad
- name: MYSQL_USER
value: etherpad
resources: {}
volumeMounts:
- name: mariadb-claim0
mountPath: "/var/lib/mysql"
restartPolicy: Always

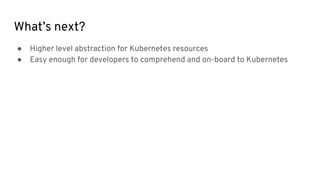

39. What’s next?
● Higher level abstraction for Kubernetes resources
● Easy enough for developers to comprehend and on-board to Kubernetes

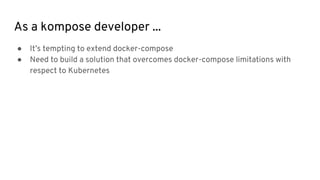

40. As a kompose developer ...
● It’s tempting to extend docker-compose
● Need to build a solution that overcomes docker-compose limitations with
respect to Kubernetes

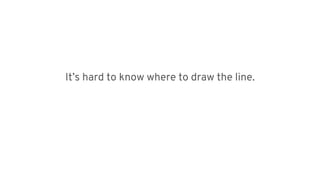

41. It’s hard to know where to draw the line.

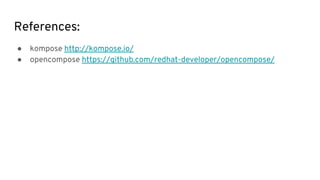

42. References:
● kompose http://kompose.io/
● opencompose https://github.com/redhat-developer/opencompose/
