This document discusses using Docker images and containers in a Jenkins continuous integration/continuous delivery (CI/CD) pipeline. It describes configuring Jenkins to build Docker images from code repositories and deploy them to a Docker registry. It also covers using Docker Compose to define and run multi-container applications, and deploying containers to OpenShift, a Kubernetes-based Platform as a Service (PaaS). Future work mentioned includes improving scalability, using a Kubernetes cluster, adding MongoDB replication, and removing dependencies on host volumes.

1. Cloud ComputingCloud Computing
27 juin 2017

2. 2 / 30

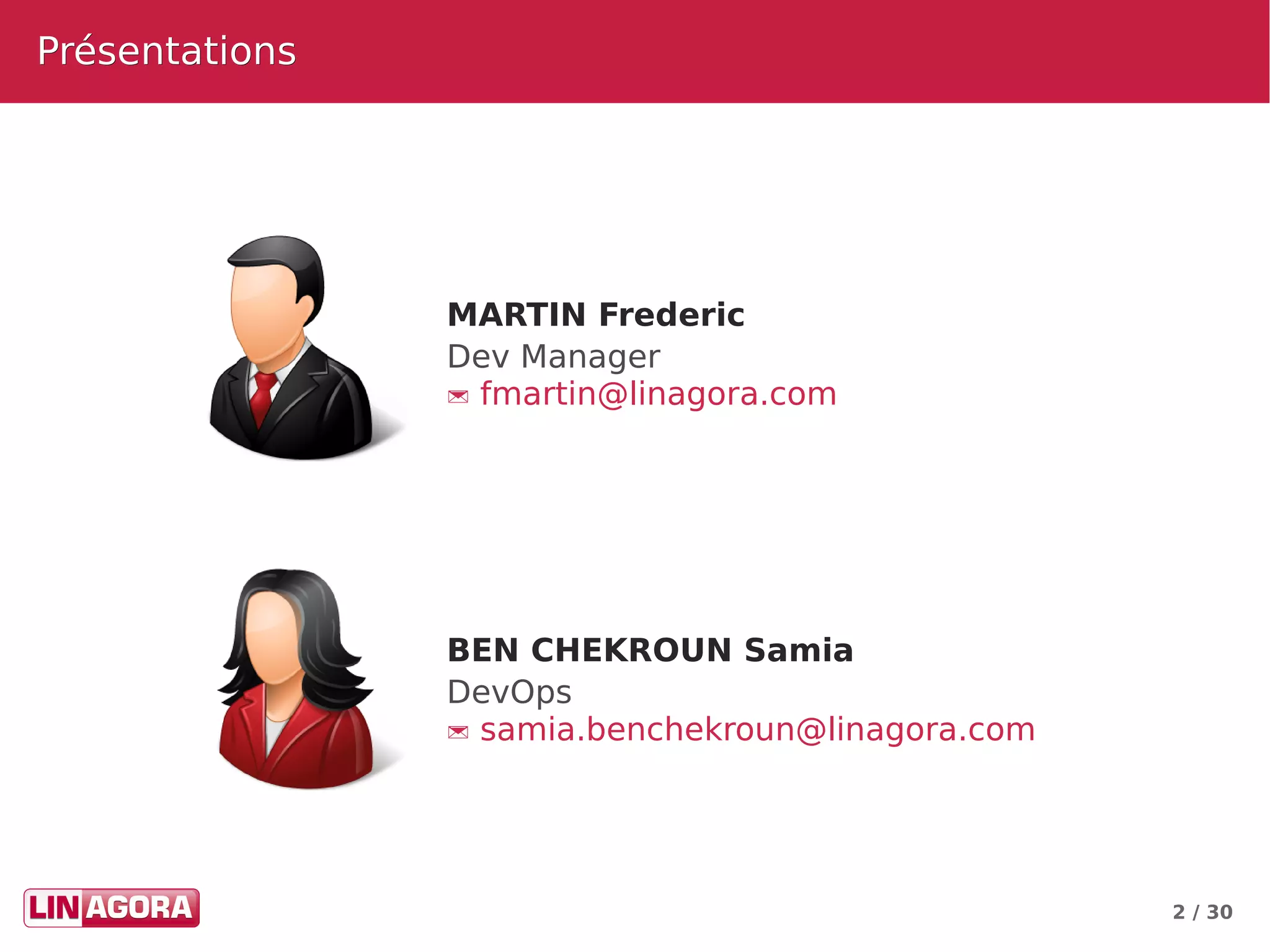

PrésentationsPrésentations
MARTIN Frederic
Dev Manager
 fmartin@linagora.com
BEN CHEKROUN Samia
DevOps
 samia.benchekroun@linagora.com

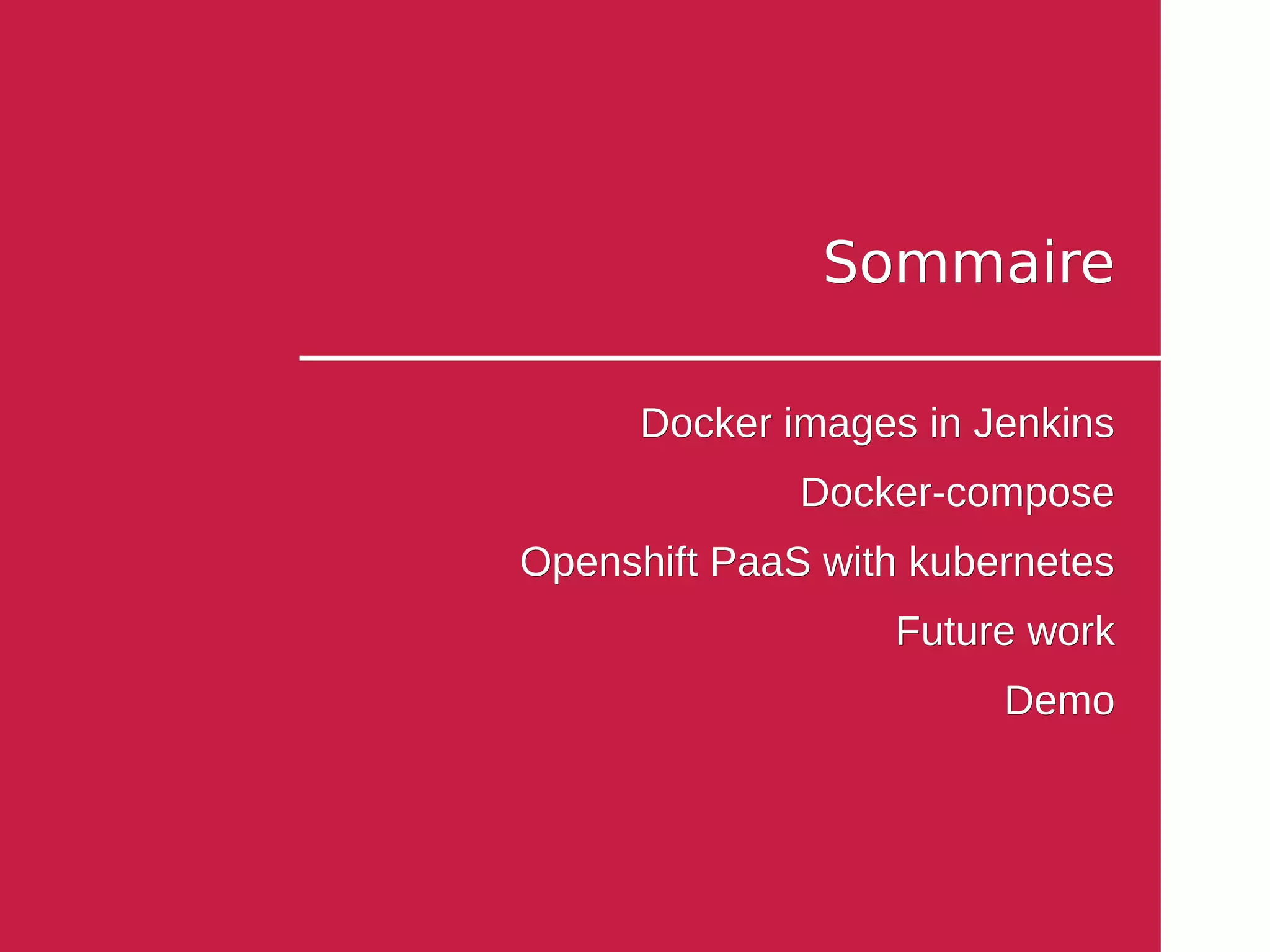

3. SommaireSommaire
Docker images in JenkinsDocker images in Jenkins
Docker-composeDocker-compose
Openshift PaaS with kubernetesOpenshift PaaS with kubernetes
Future workFuture work
DemoDemo

4. 4 / 30
Docker images in JenkinsDocker images in Jenkins

5. 5 / 30

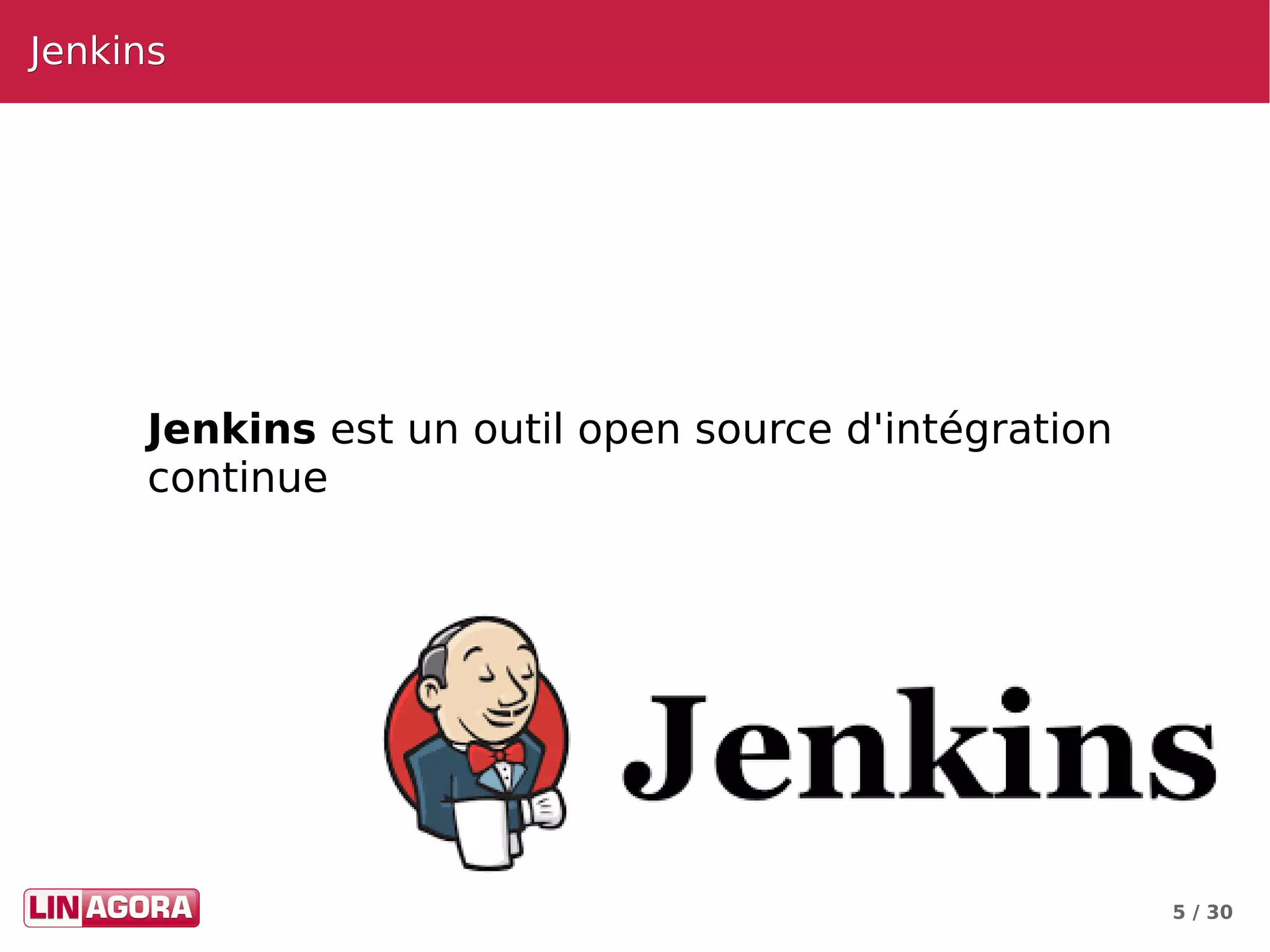

JenkinsJenkins
Jenkins est un outil open source d'intégration
continue

6. 6 / 30

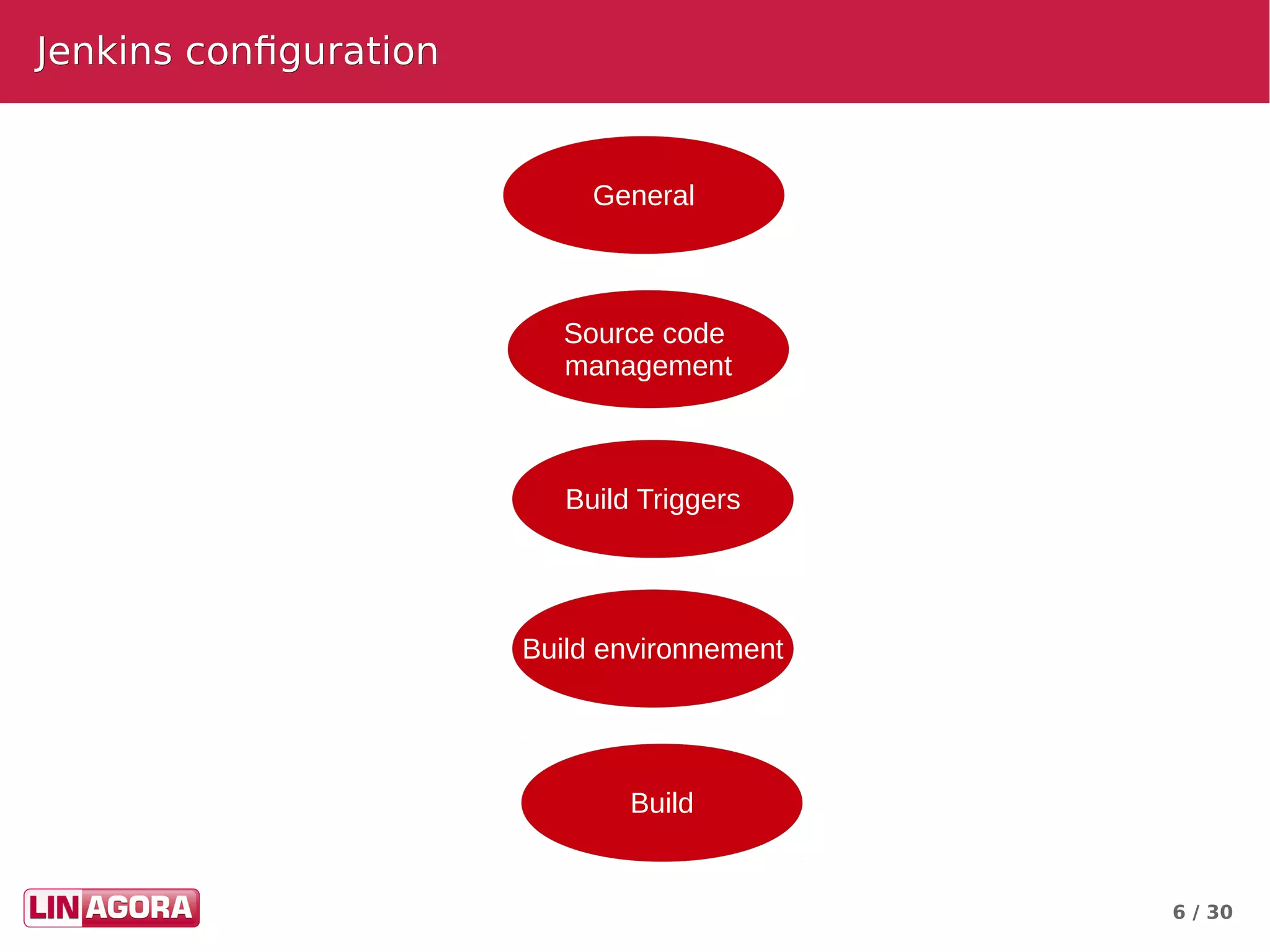

Jenkins configurationJenkins configuration
General
Source code
management
Build Triggers
Build environnement
Build

7. 7 / 30

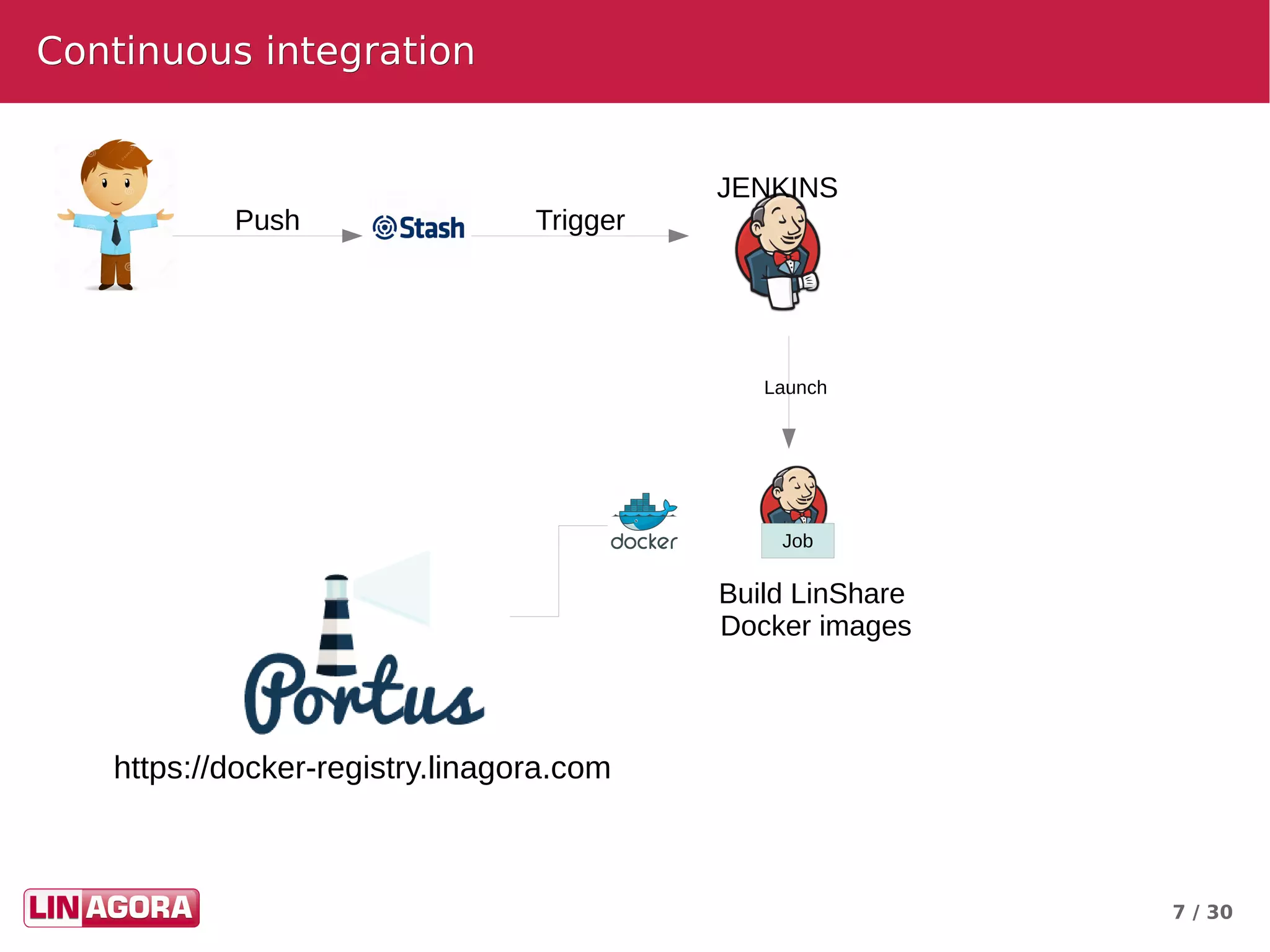

Continuous integrationContinuous integration
Push Trigger
JENKINS
Launch
Job
Build LinShare
Docker images
https://docker-registry.linagora.com

8. 8 / 30

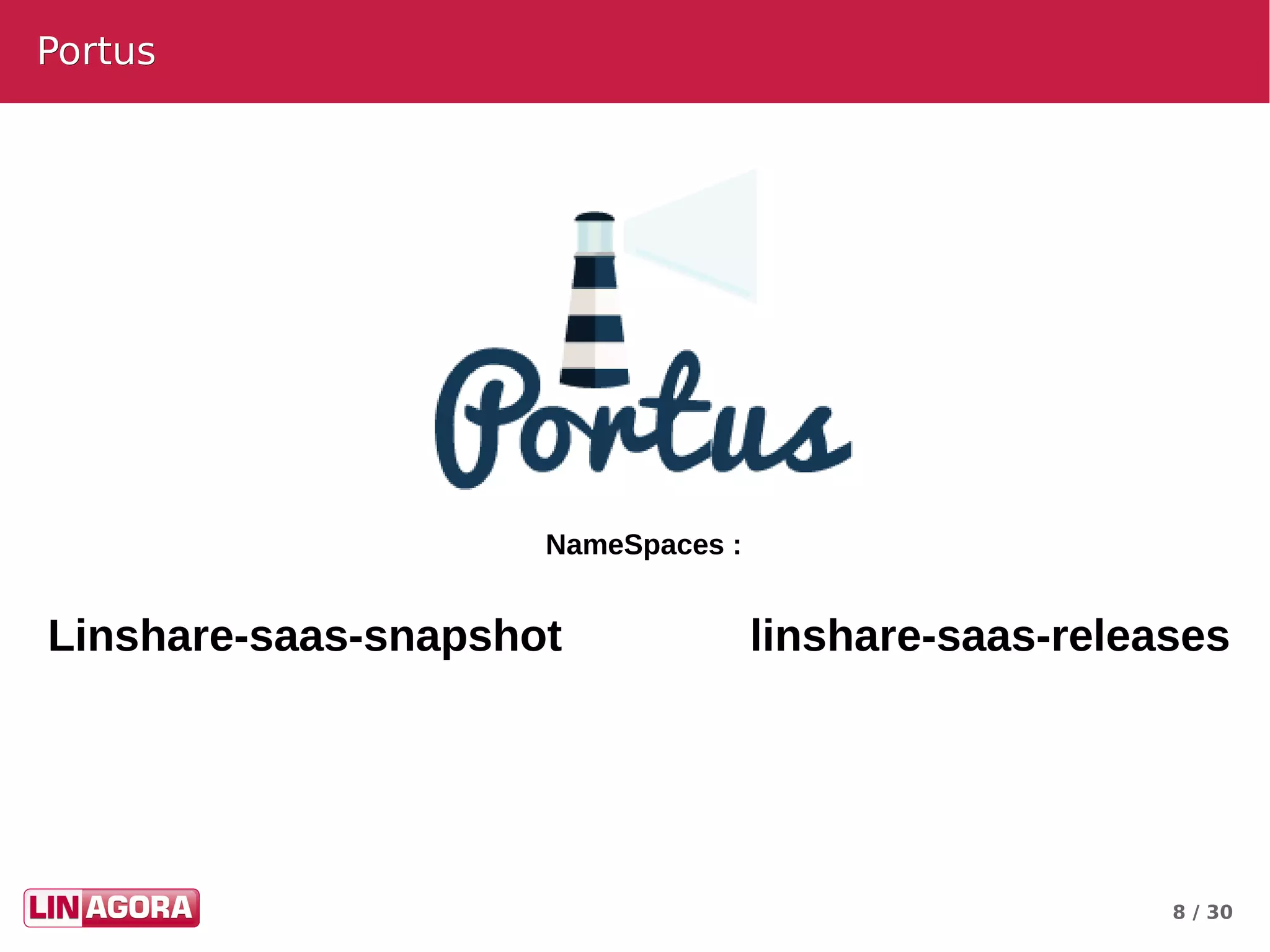

PortusPortus
NameSpaces :
Linshare-saas-snapshot linshare-saas-releases

9. 9 / 30

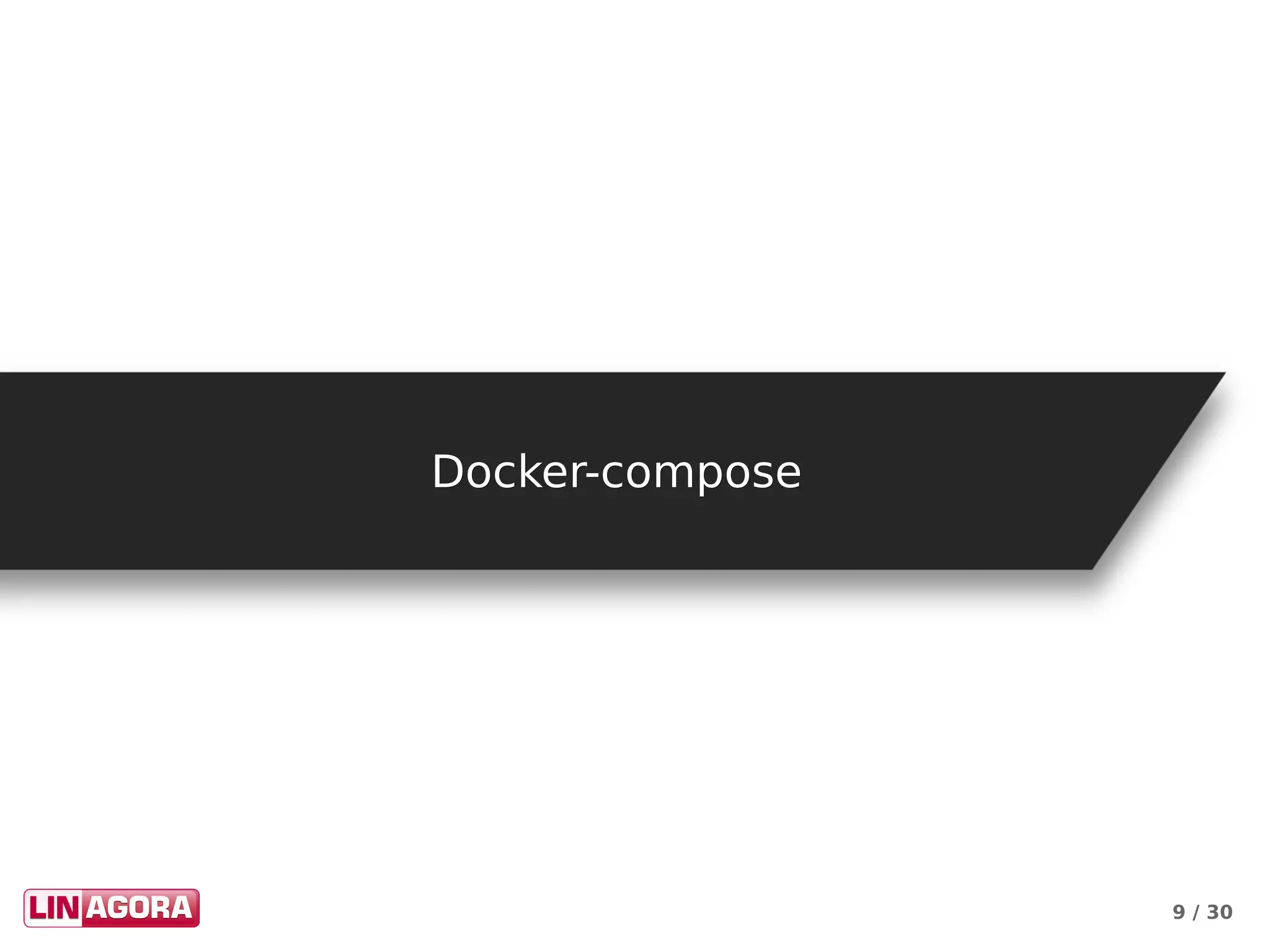

Docker-composeDocker-compose

10. 10 / 30
Docker-composeDocker-compose
Compose is a tool for defining and running multi-container Docker applications.

11. 11 / 30

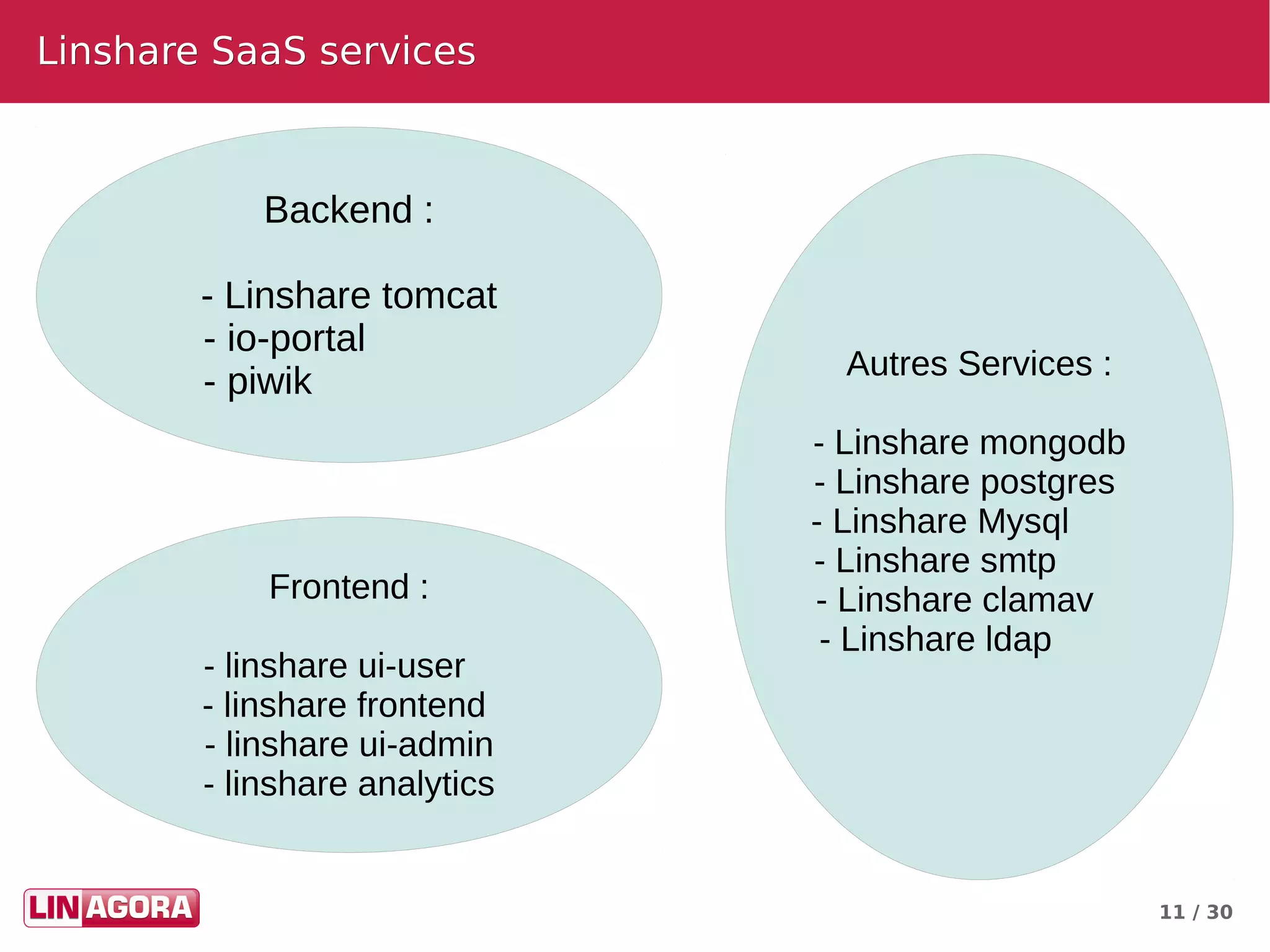

Linshare SaaS servicesLinshare SaaS services
Backend :
- Linshare tomcat
- io-portal
- piwik
Frontend :
- linshare ui-user
- linshare frontend
- linshare ui-admin
- linshare analytics
Autres Services :
- Linshare mongodb
- Linshare postgres
- Linshare Mysql
- Linshare smtp
- Linshare clamav
- Linshare ldap

12. 12 / 30

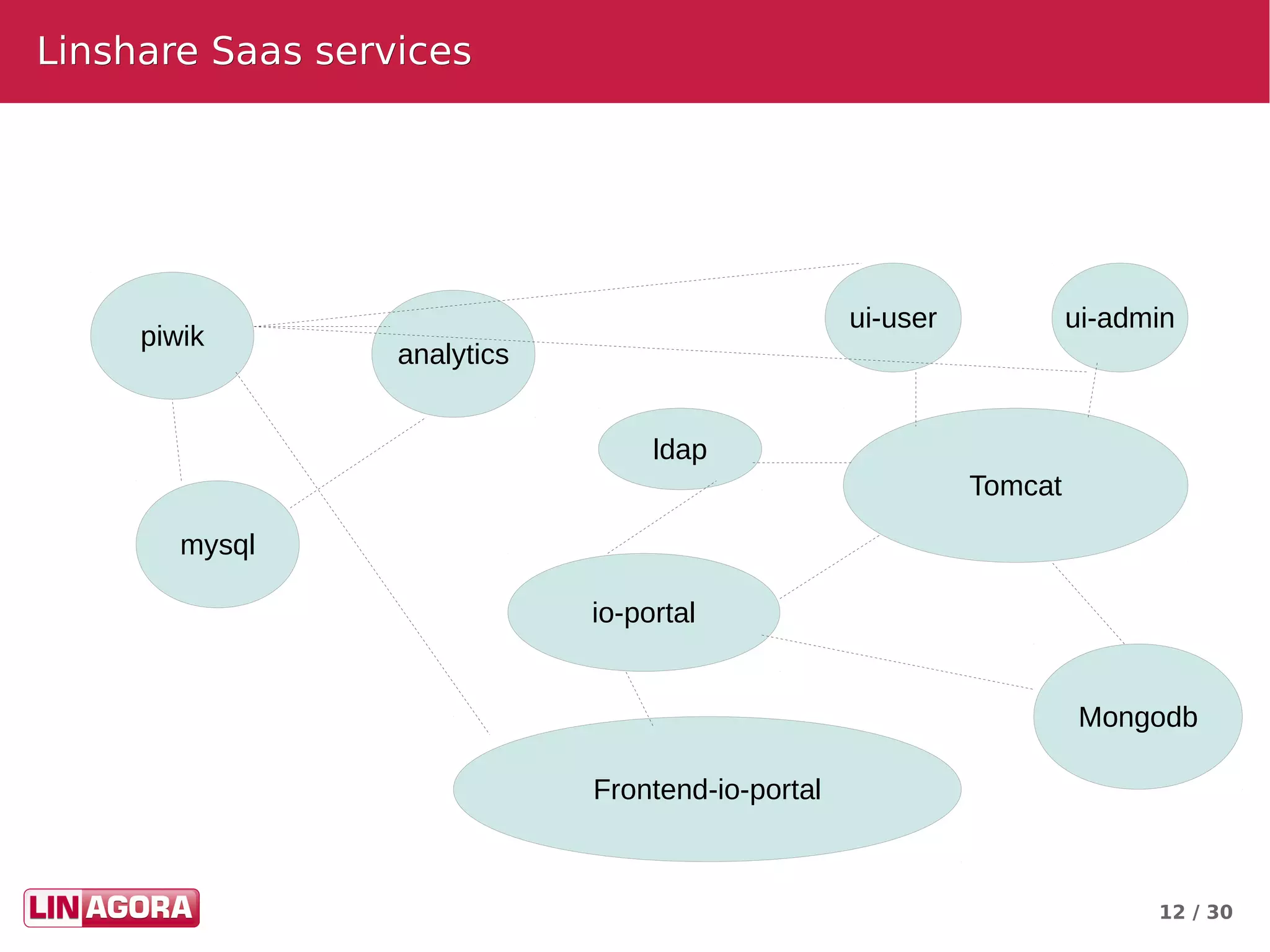

Linshare Saas servicesLinshare Saas services
piwik
analytics
mysql
Tomcat
ui-user ui-admin
Frontend-io-portal
io-portal
Mongodb
ldap

13. 13 / 30
Openshift Paas with KubernetesOpenshift Paas with Kubernetes

14. 14 / 30

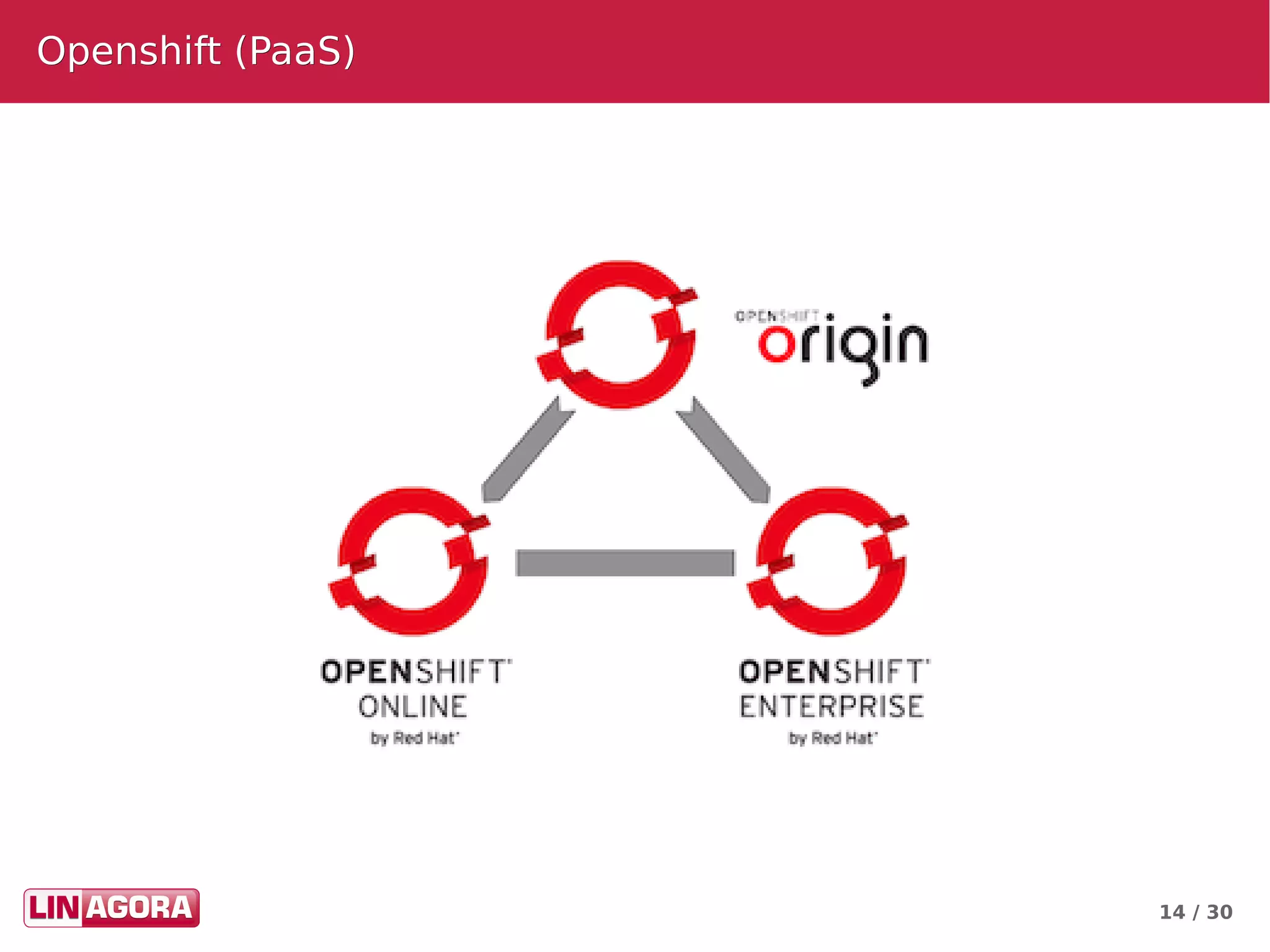

Openshift (PaaS)Openshift (PaaS)

15. 15 / 30

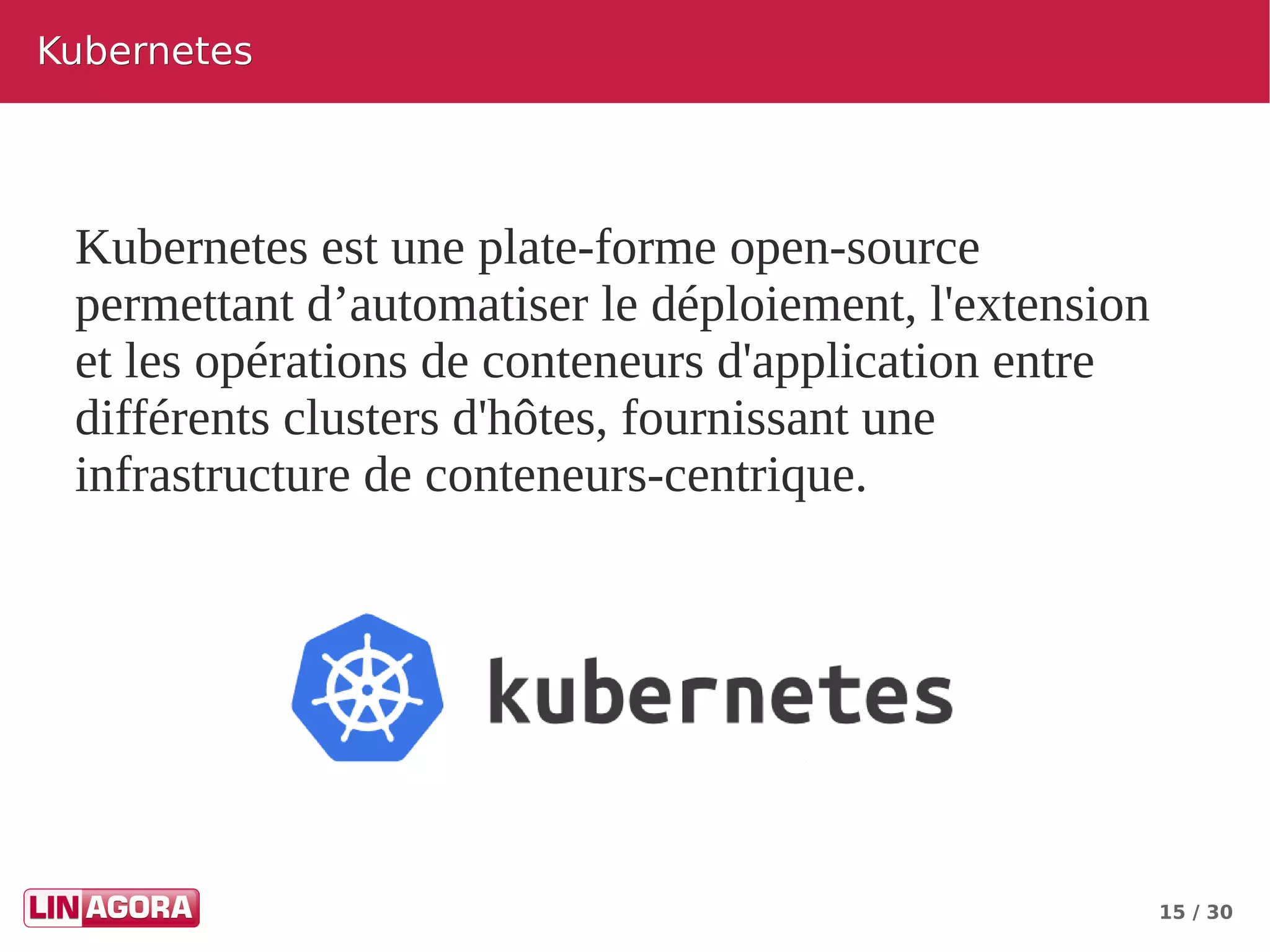

KubernetesKubernetes
Kubernetes est une plate-forme open-source
permettant d’automatiser le déploiement, l'extension
et les opérations de conteneurs d'application entre
différents clusters d'hôtes, fournissant une
infrastructure de conteneurs-centrique.

16. 16 / 30

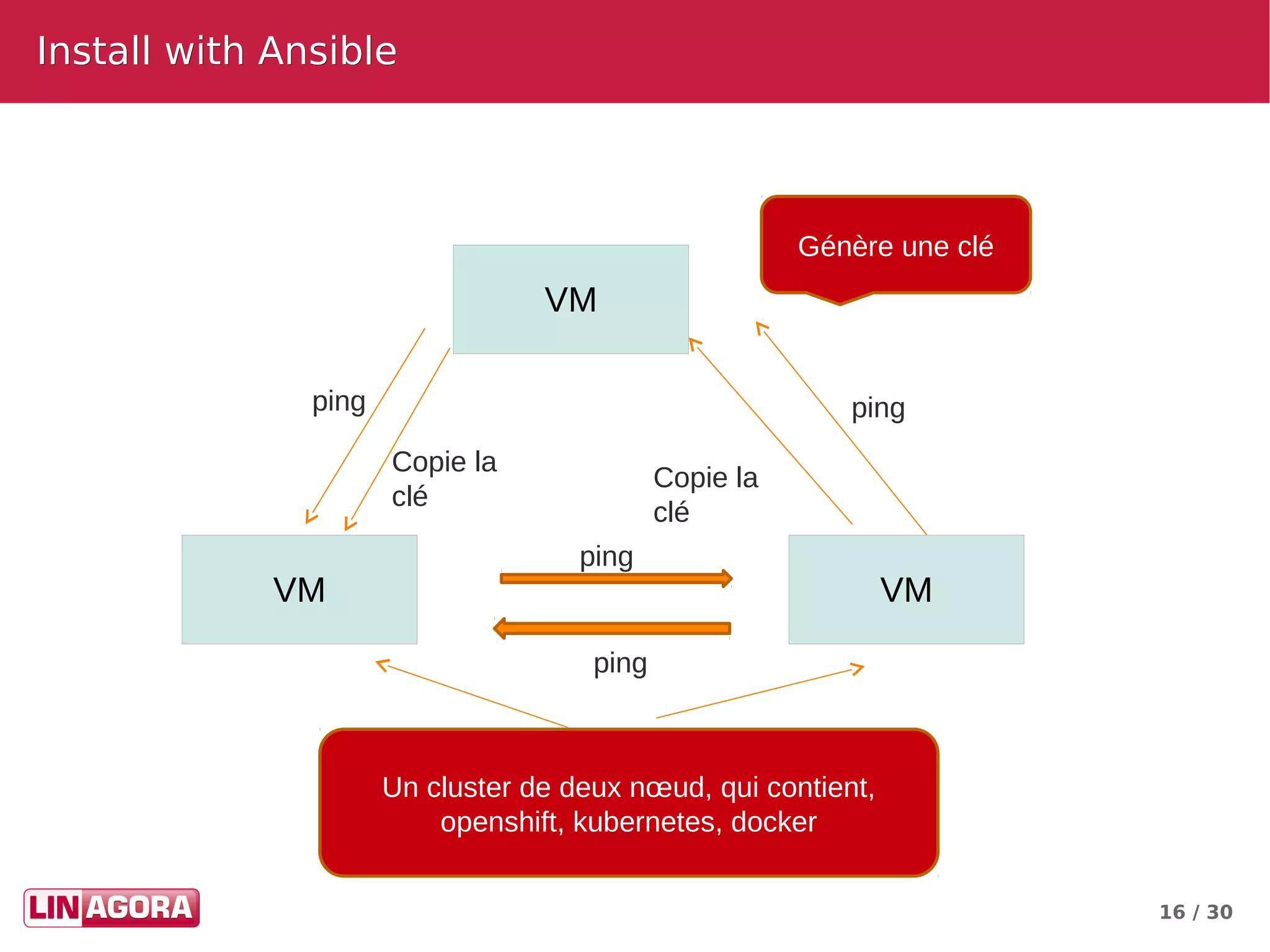

Install with AnsibleInstall with Ansible
ping
ping
ping ping
Génère une clé
Copie la
clé
Copie la
clé
Un cluster de deux nœud, qui contient,
openshift, kubernetes, docker
VM
VM VM

17. 17 / 30

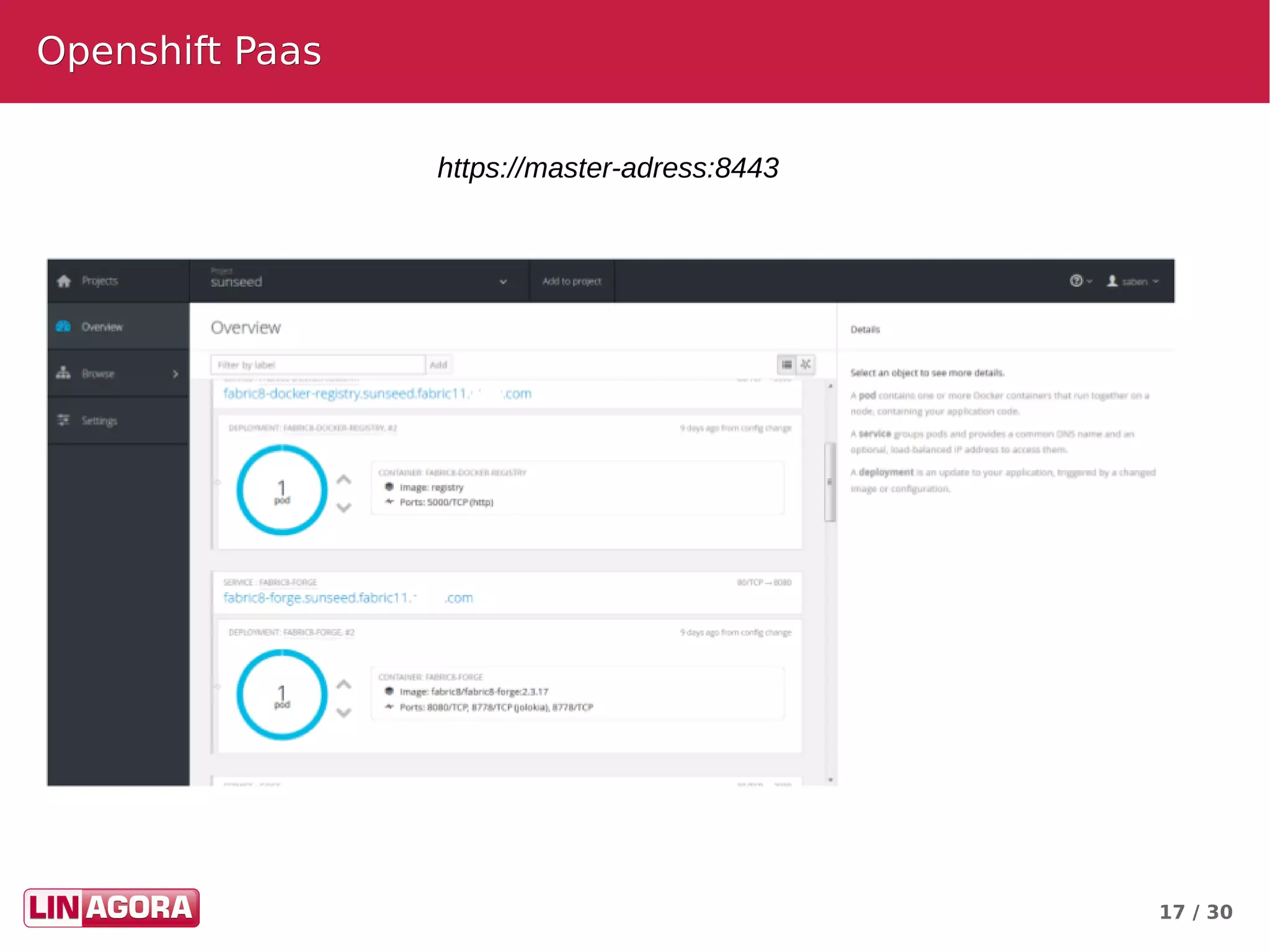

Openshift PaasOpenshift Paas
https://master-adress:8443

18. 18 / 30

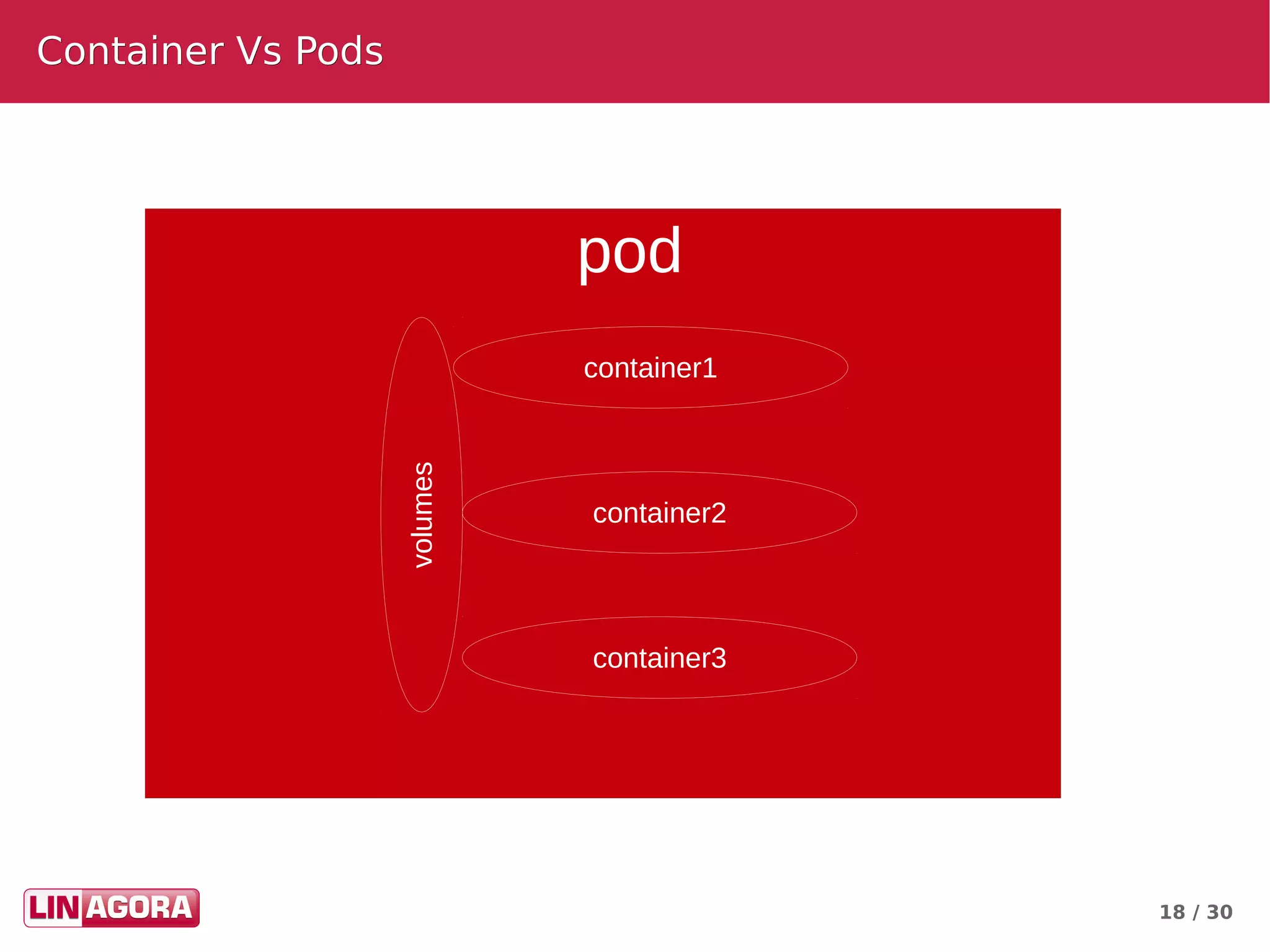

Container Vs PodsContainer Vs Pods
pod
container1
container2
container3
volumes

19. 19 / 30

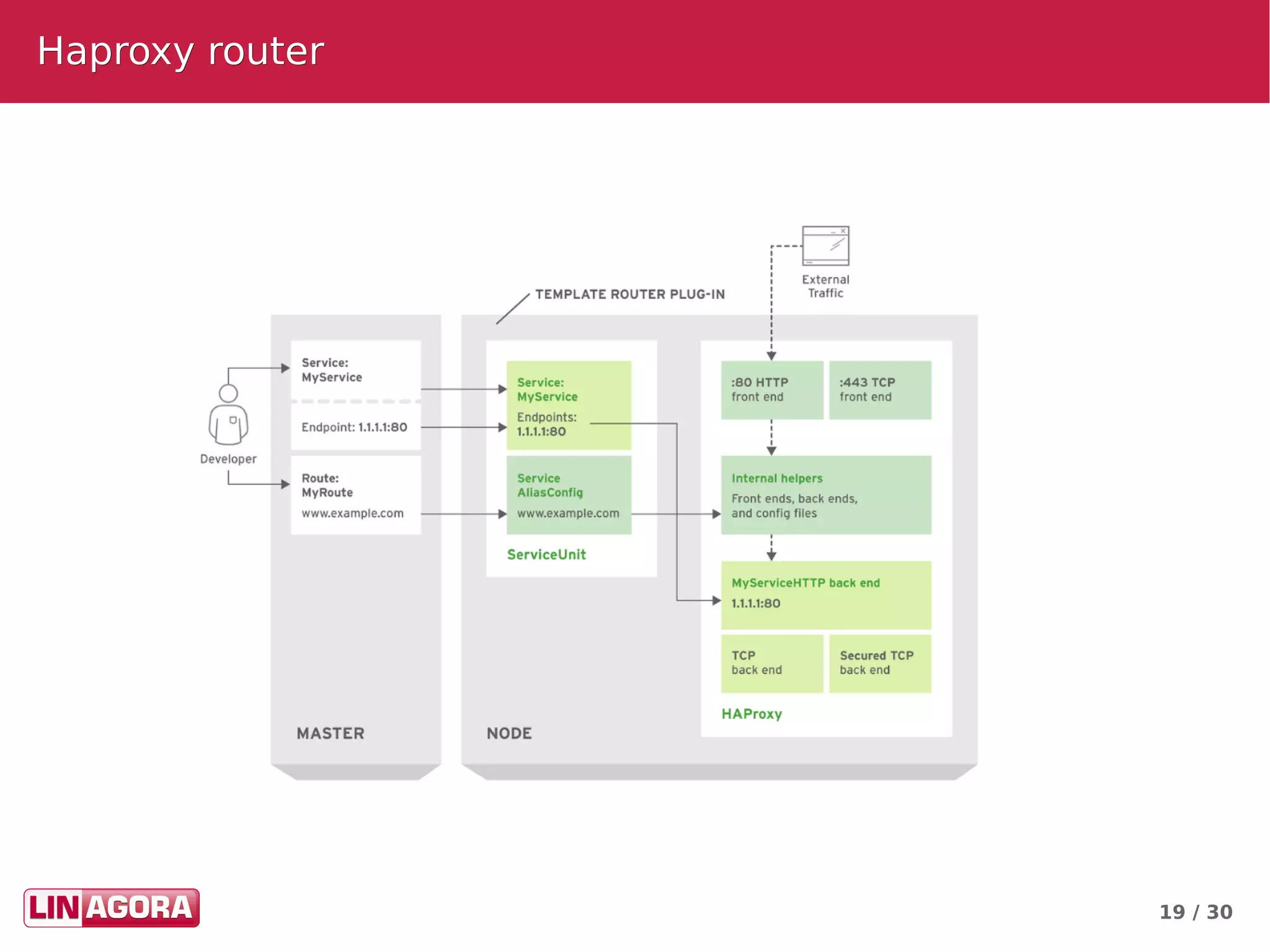

Haproxy routerHaproxy router

20. 20 / 30

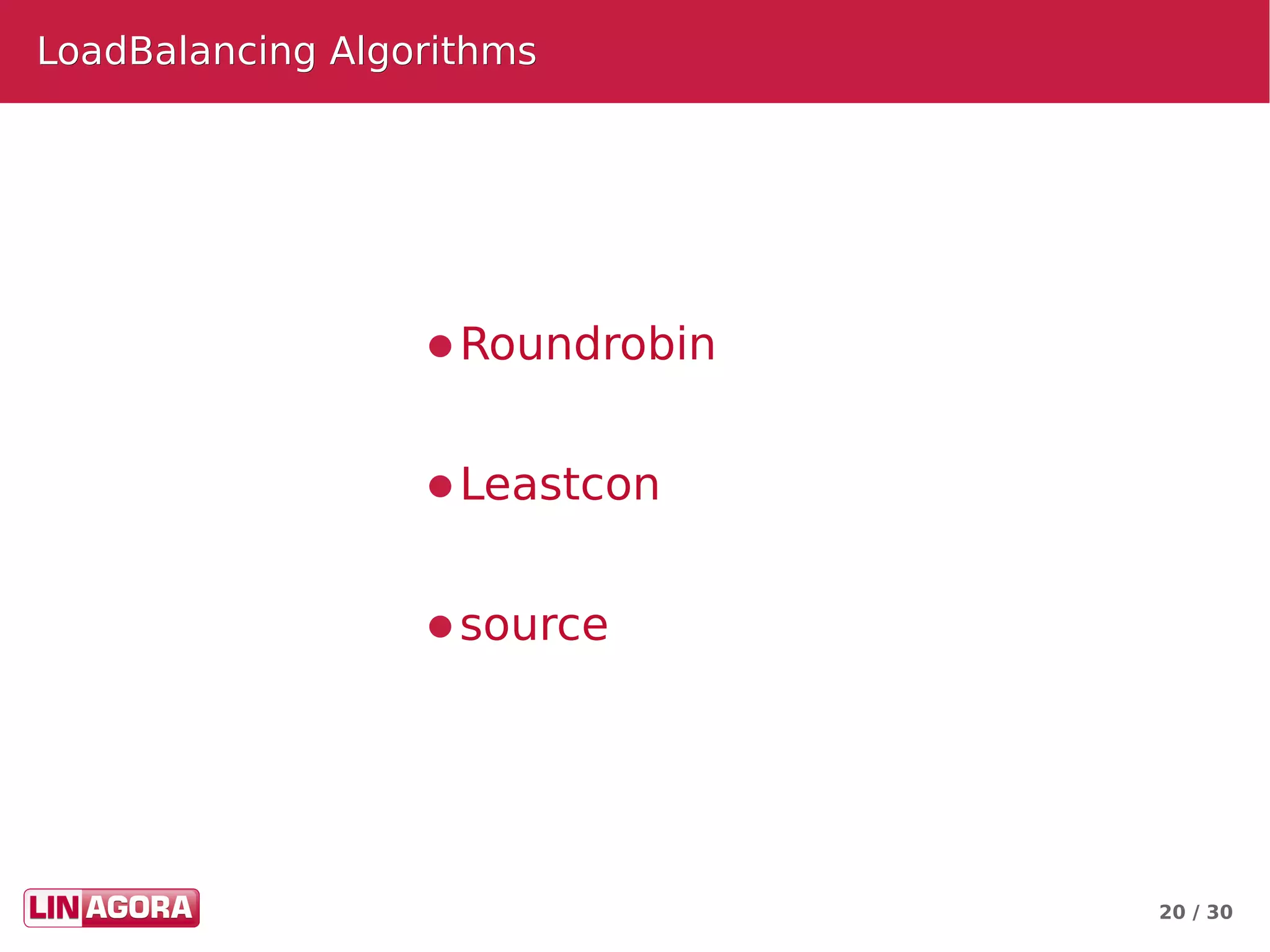

LoadBalancing AlgorithmsLoadBalancing Algorithms
● Roundrobin
● Leastcon
● source

21. 21 / 30

22. 22 / 30

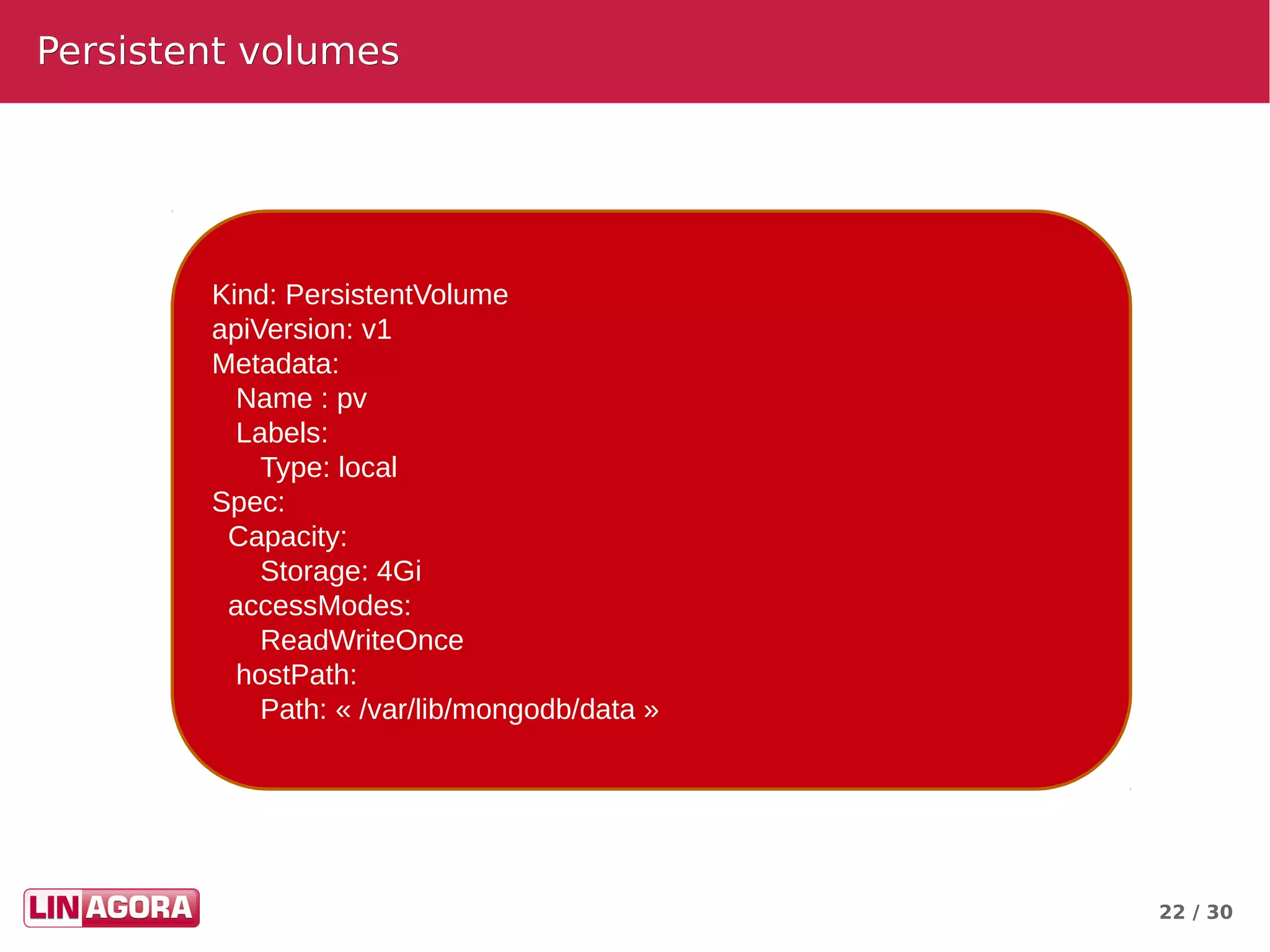

Persistent volumesPersistent volumes
Kind: PersistentVolume
apiVersion: v1
Metadata:
Name : pv
Labels:
Type: local
Spec:
Capacity:
Storage: 4Gi
accessModes:
ReadWriteOnce
hostPath:
Path: « /var/lib/mongodb/data »

23. 23 / 30

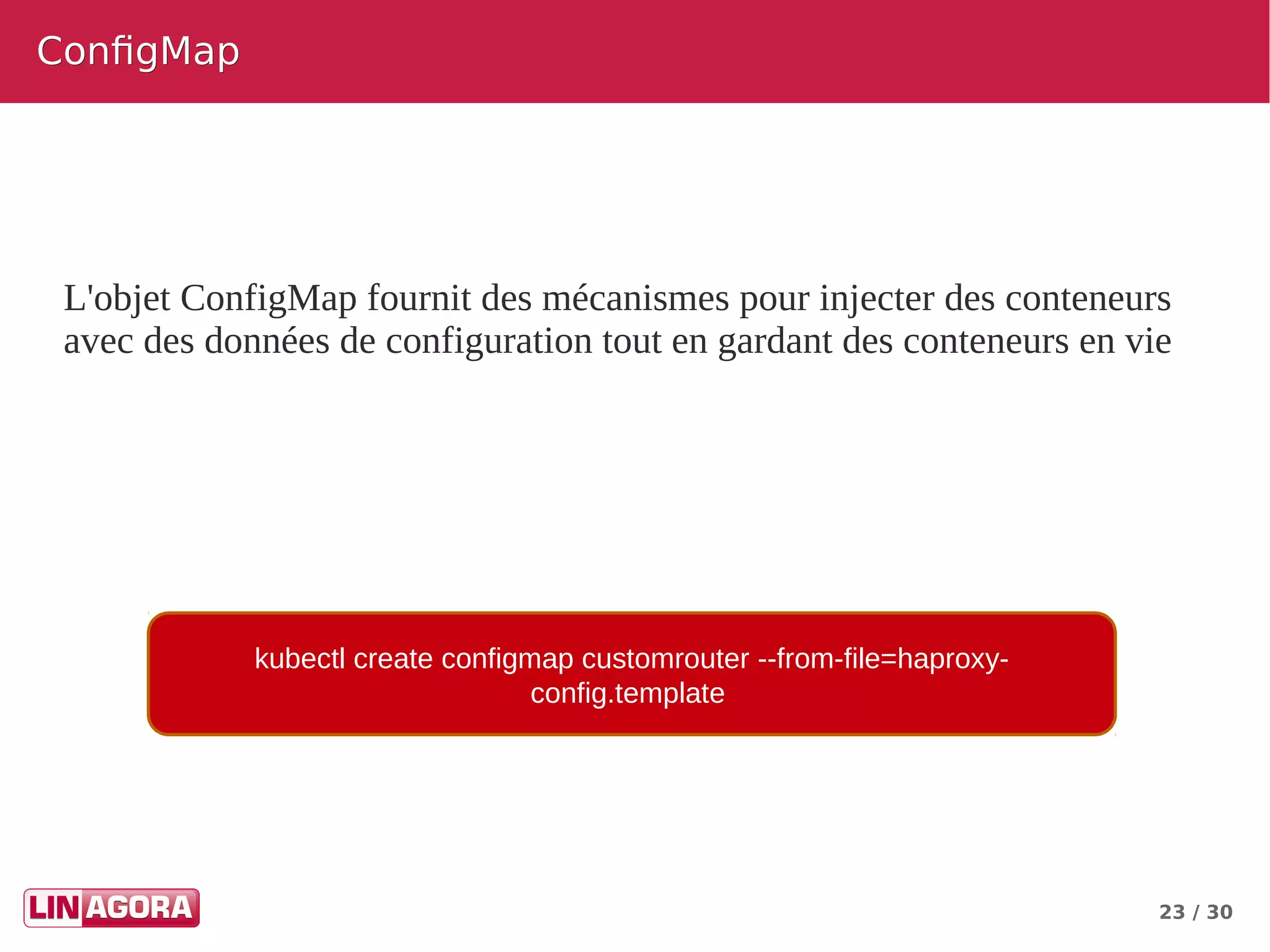

ConfigMapConfigMap
L'objet ConfigMap fournit des mécanismes pour injecter des conteneurs
avec des données de configuration tout en gardant des conteneurs en vie
kubectl create configmap customrouter --from-file=haproxy-
config.template

24. 24 / 30

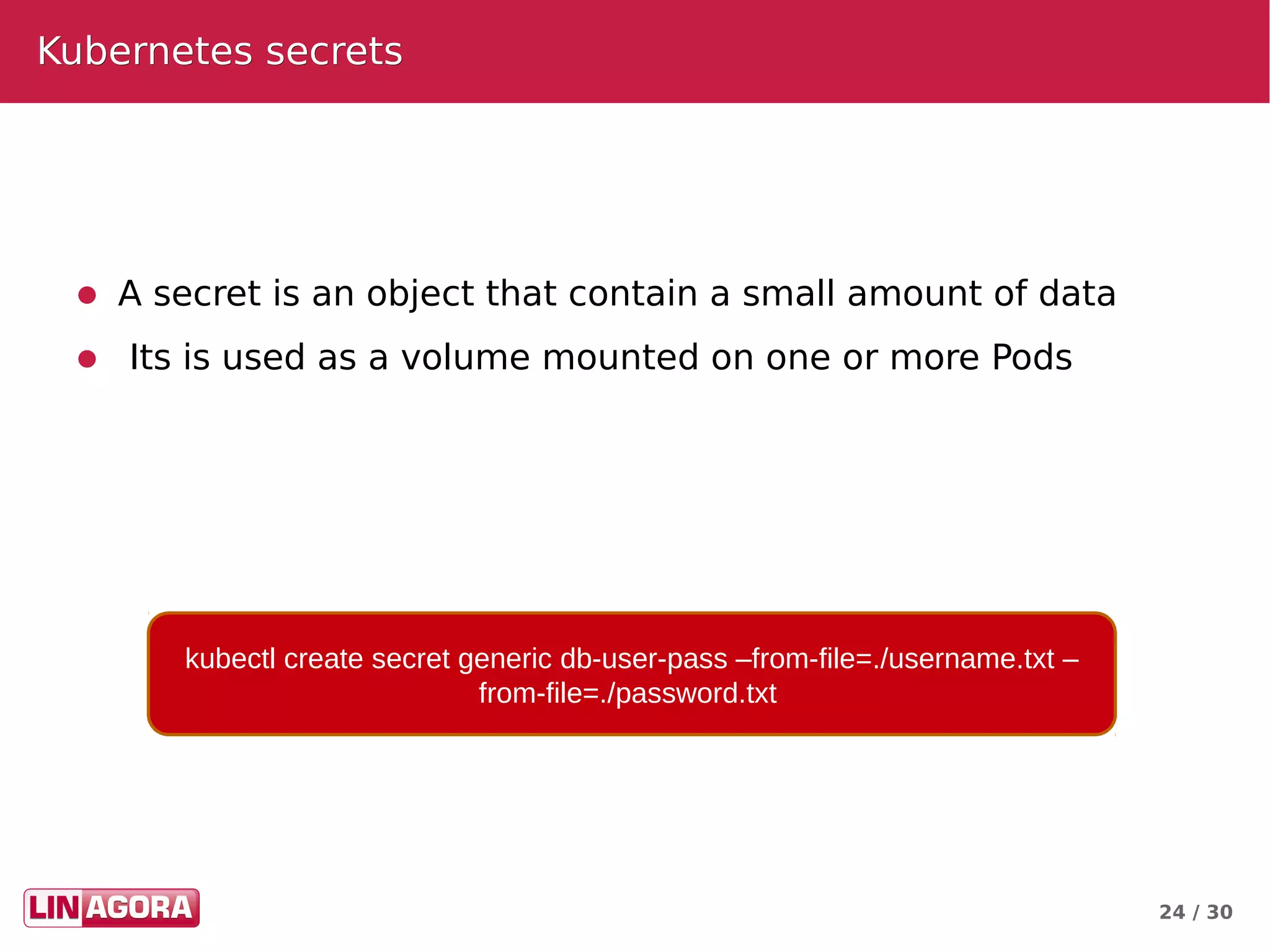

Kubernetes secretsKubernetes secrets
● A secret is an object that contain a small amount of data
● Its is used as a volume mounted on one or more Pods
kubectl create secret generic db-user-pass –from-file=./username.txt –
from-file=./password.txt

25. 25 / 30

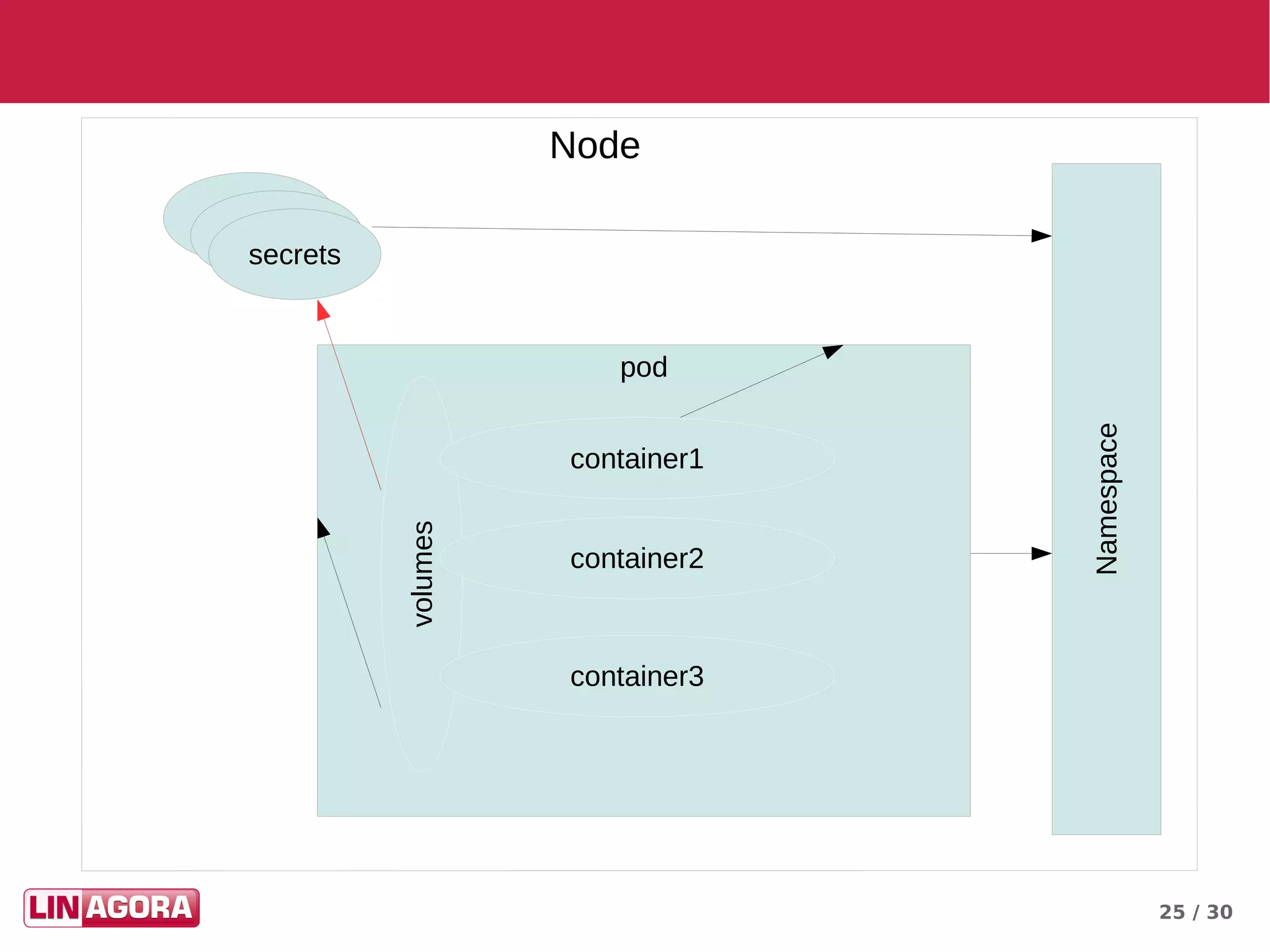

Node
secrets
Namespace
pod
volumes
container1
container2
container3

26. 26 / 30

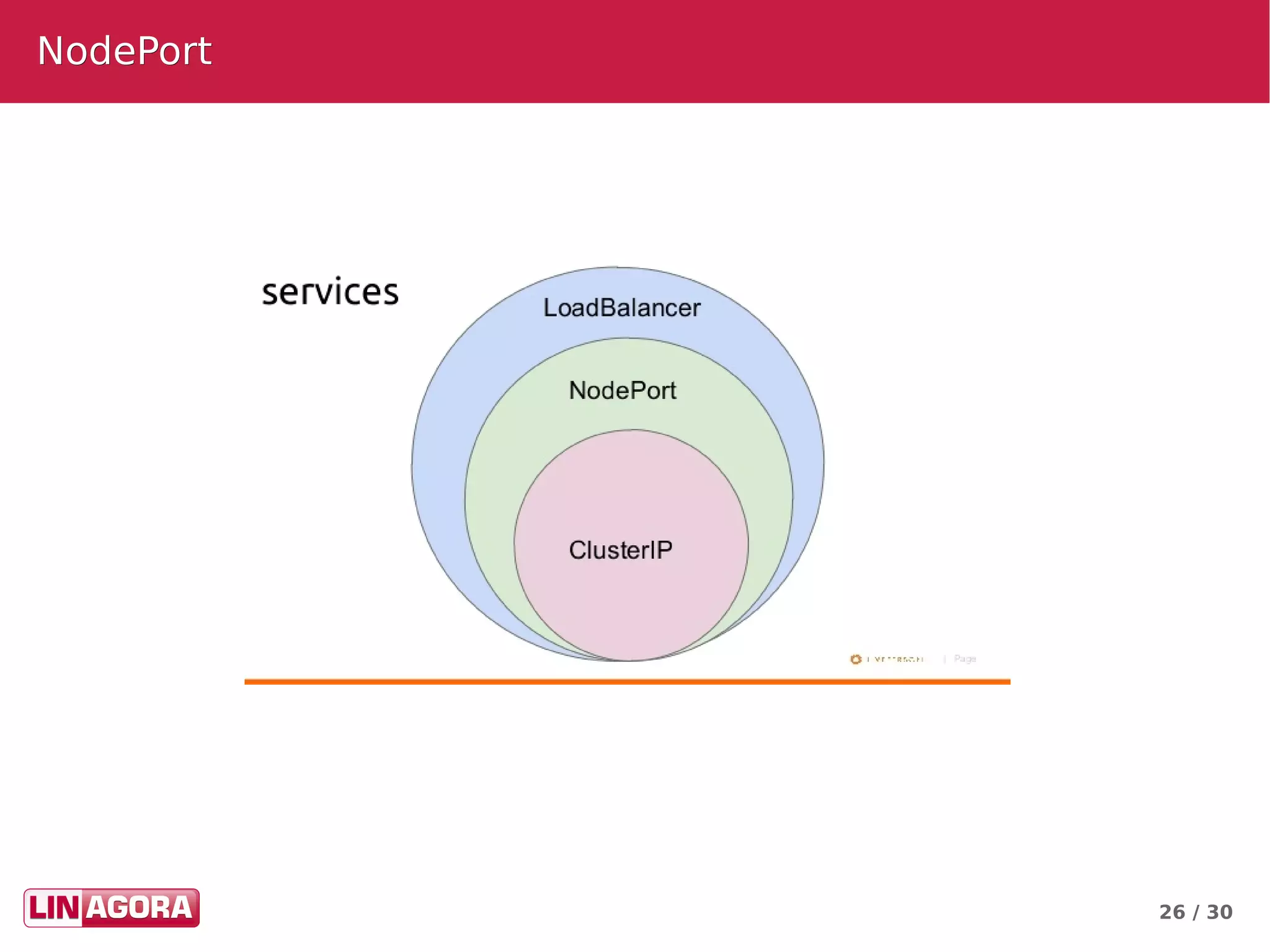

NodePortNodePort

27. 27 / 30
DemoDemo

28. 28 / 30

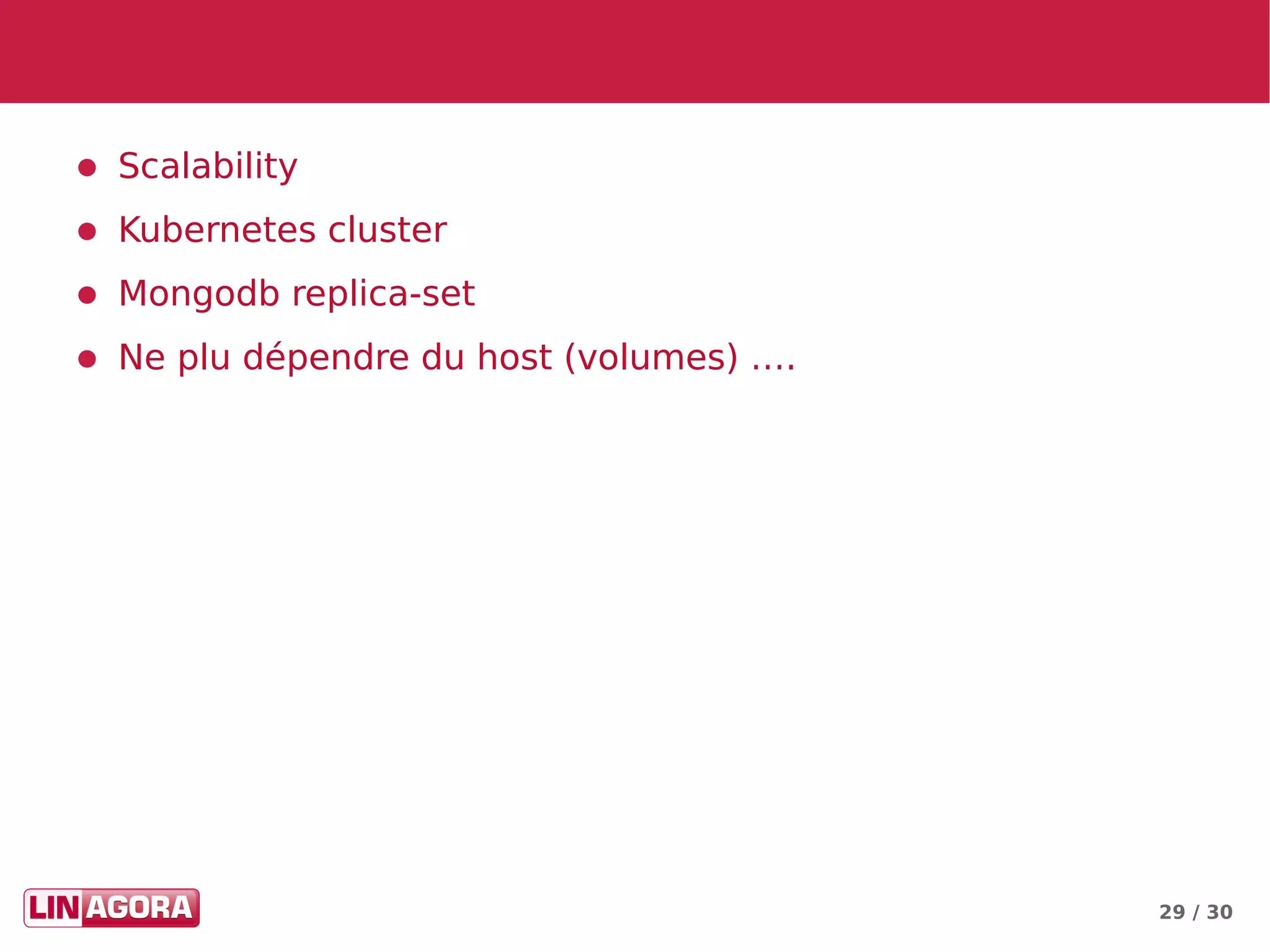

Future workFuture work

29. 29 / 30
● Scalability
● Kubernetes cluster
● Mongodb replica-set
● Ne plu dépendre du host (volumes) ….

30. Thanks for your attentionThanks for your attention
