The document discusses the development of TYPO3 extensions using the new Extbase framework, focusing on creating applications and customizing extensions. It emphasizes the importance of understanding extension structure, using Kickstarter for efficient coding, and compares old and new extension styles. The workshop aims to provide participants with a comprehensive understanding of TYPO3 extension functionalities and best practices.

1. TYPO3 Extension
development using
new Extbase
framework
2011/02/18, T3Ski11 Tokyo
Christian Trabold

2. Christian Trabold
Senior Developer
dkd Internet Service GmbH
TYPO3 since 2004
Focus on quality assurance
Author of TYPO3 Cookbook, O'Reilly
About me

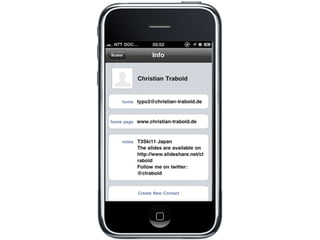

4. Carrier 12:34 PM
Web Page Title
http://host.domain.tld
320 x 480
Vertical Resolution

5. - TYPO3 basics
- Find extensions with TER
- Get your ideas into TYPO3
- Question and answers
Agenda - Part 1

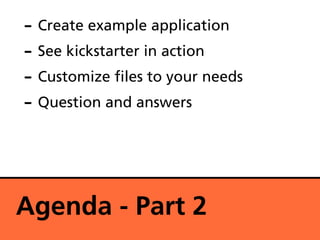

6. - Create example application
- See kickstarter in action
- Customize les to your needs
- Question and answers
Agenda - Part 2

7. Goal of this workshop

8. Get the big picture

9. Understand concepts

10. Find nice Sushi bars

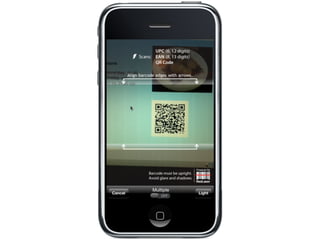

13. Carrier 12:34 PM
Web Page Title
http://host.domain.tld
320 x 480
Vertical Resolution

14. Part 1
TYPO3 Basics

15. Frontend
Backend
Extensions
http://www.flickr.com/photos/grendelkhan/121671781/sizes/l/in/photostream/
TYPO3 is like Sushi

16. Extensions extend
everything

17. Extensions contain
your PHP code

18. Extensions contain
your ideas

19. Inspiring people to
share

20. How to nd extensions

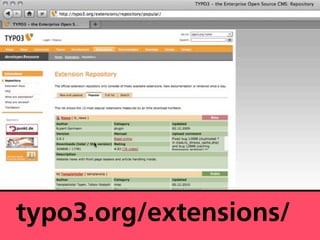

21. typo3.org/extensions/

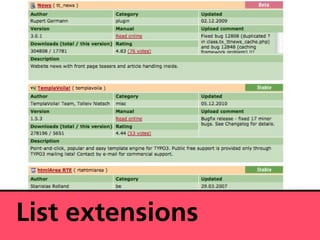

22. List extensions

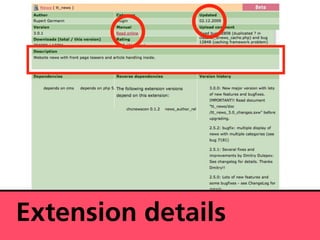

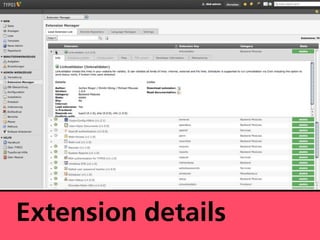

23. Extension details

24. View les

25. Extension manager

26. Extension details

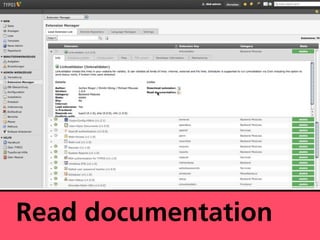

27. Read documentation

28. Look into les

29. It is very important
that you check every
detail of an extension
before you install.
Security and con dence

30. What if nothing ts?

31. http://www.flickr.com/photos/rreid/420388478/
Add your own creation

32. How do you start
your own creation?

33. Understand
extension structure

34. Install
extbase kickstarter

35. And
start coding!

36. Why do I need a
kickstarter?

37. Faster and less errors

38. The kickstarter does
all the boring work

39. You can focus on your
ideas and design
= more fun!

40. TYPO3 has old and
new extension styles
Old pi_base
New extbase

41. We will focus on the
new extbase kickstarter
✘
Old pi_base
New extbase

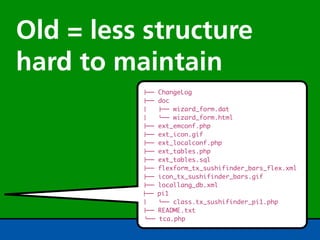

42. Old = less structure
hard to maintain
!"" ChangeLog
!"" doc
# !"" wizard_form.dat
# %"" wizard_form.html
!"" ext_emconf.php
!"" ext_icon.gif
!"" ext_localconf.php
!"" ext_tables.php
!"" ext_tables.sql
!"" flexform_tx_sushifinder_bars_flex.xml
!"" icon_tx_sushifinder_bars.gif
!"" locallang_db.xml
!"" pi1
# %"" class.tx_sushifinder_pi1.php
!"" README.txt
%"" tca.php

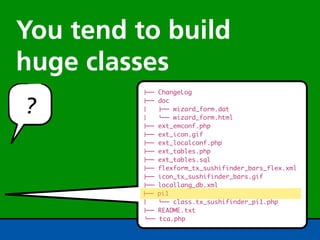

43. You tend to build
huge classes
!"" ChangeLog
? !""
#
#
doc
!"" wizard_form.dat
%"" wizard_form.html
!"" ext_emconf.php
!"" ext_icon.gif
!"" ext_localconf.php
!"" ext_tables.php
!"" ext_tables.sql
!"" flexform_tx_sushifinder_bars_flex.xml
!"" icon_tx_sushifinder_bars.gif
!"" locallang_db.xml
!"" pi1
# %"" class.tx_sushifinder_pi1.php
!"" README.txt
%"" tca.php

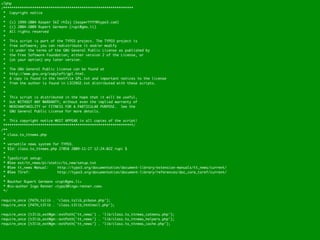

44. <?php
/***************************************************************
* Copyright notice
*
* (c) 1999-2004 Kasper SkÌ´rhÌüj (kasperYYYY@typo3.com)
* (c) 2004-2009 Rupert Germann (rupi@gmx.li)
* All rights reserved
*
* This script is part of the TYPO3 project. The TYPO3 project is
* free software; you can redistribute it and/or modify
* it under the terms of the GNU General Public License as published by
* the Free Software Foundation; either version 2 of the License, or
* (at your option) any later version.
*
* The GNU General Public License can be found at
* http://www.gnu.org/copyleft/gpl.html.
* A copy is found in the textfile GPL.txt and important notices to the license
* from the author is found in LICENSE.txt distributed with these scripts.
*
*
* This script is distributed in the hope that it will be useful,
* but WITHOUT ANY WARRANTY; without even the implied warranty of
* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
* GNU General Public License for more details.
*
* This copyright notice MUST APPEAR in all copies of the script!
***************************************************************/
/**
* class.tx_ttnews.php
*
* versatile news system for TYPO3.
* $Id: class.tx_ttnews.php 27058 2009-11-27 12:24:02Z rupi $
*
* TypoScript setup:
* @See ext/tt_news/pi/static/ts_new/setup.txt
* @See tt_news Manual: http://typo3.org/documentation/document-library/extension-manuals/tt_news/current/
* @See TSref: http://typo3.org/documentation/document-library/references/doc_core_tsref/current/
*
* @author Rupert Germann <rupi@gmx.li>
* @co-author Ingo Renner <typo3@ingo-renner.com>
*/
require_once (PATH_tslib . 'class.tslib_pibase.php');
require_once (PATH_t3lib . 'class.t3lib_htmlmail.php');
require_once (t3lib_extMgm::extPath('tt_news') . 'lib/class.tx_ttnews_catmenu.php');
require_once (t3lib_extMgm::extPath('tt_news') . 'lib/class.tx_ttnews_helpers.php');
require_once (t3lib_extMgm::extPath('tt_news') . 'lib/class.tx_ttnews_cache.php');

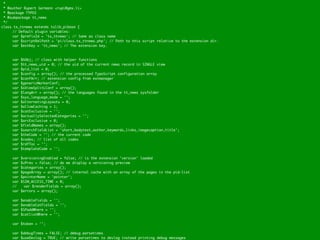

45. *
* @author Rupert Germann <rupi@gmx.li>
* @package TYPO3
* @subpackage tt_news
*/
class tx_ttnews extends tslib_pibase {
// Default plugin variables:
var $prefixId = 'tx_ttnews'; // Same as class name
var $scriptRelPath = 'pi/class.tx_ttnews.php'; // Path to this script relative to the extension dir.
var $extKey = 'tt_news'; // The extension key.
var $hObj; // class with helper functions
var $tt_news_uid = 0; // the uid of the current news record in SINGLE view
var $pid_list = 0;
var $config = array(); // the processed TypoScript configuration array
var $confArr; // extension config from extmanager
var $genericMarkerConf;
var $sViewSplitLConf = array();
var $langArr = array(); // the languages found in the tt_news sysfolder
var $sys_language_mode = '';
var $alternatingLayouts = 0;
var $allowCaching = 1;
var $catExclusive = '';
var $actuallySelectedCategories = '';
var $arcExclusive = 0;
var $fieldNames = array();
var $searchFieldList = 'short,bodytext,author,keywords,links,imagecaption,title';
var $theCode = ''; // the current code
var $codes; // list of all codes
var $rdfToc = '';
var $templateCode = '';
var $versioningEnabled = false; // is the extension 'version' loaded
var $vPrev = false; // do we display a versioning preview
var $categories = array();
var $pageArray = array(); // internal cache with an array of the pages in the pid-list
var $pointerName = 'pointer';
var $SIM_ACCESS_TIME = 0;
// var $renderFields = array();
var $errors = array();
var $enableFields = '';
var $enableCatFields = '';
var $SPaddWhere = '';
var $catlistWhere = '';
var $token = '';
var $debugTimes = FALSE; // debug parsetimes
var $useDevlog = TRUE; // write parsetimes to devlog instead printing debug messages

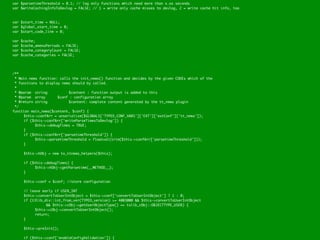

46. var $parsetimeThreshold = 0.1; // log only functions which need more than x.xx seconds
var $writeCachingInfoToDevlog = FALSE; // 1 = write only cache misses to devlog, 2 = write cache hit info, too
var $start_time = NULL;
var $global_start_time = 0;
var $start_code_line = 0;
var $cache;
var $cache_amenuPeriods = FALSE;
var $cache_categoryCount = FALSE;
var $cache_categories = FALSE;
/**
* Main news function: calls the init_news() function and decides by the given CODEs which of the
* functions to display news should by called.
*
* @param string $content : function output is added to this
* @param array
$conf : configuration array
* @return string $content: complete content generated by the tt_news plugin
*/
function main_news($content, $conf) {
$this->confArr = unserialize($GLOBALS['TYPO3_CONF_VARS']['EXT']['extConf']['tt_news']);
if ($this->confArr['writeParseTimesToDevlog']) {
$this->debugTimes = TRUE;
}
if ($this->confArr['parsetimeThreshold']) {
$this->parsetimeThreshold = floatval(trim($this->confArr['parsetimeThreshold']));
}
$this->hObj = new tx_ttnews_helpers($this);
if ($this->debugTimes) {
$this->hObj->getParsetime(__METHOD__);
}
$this->conf = $conf; //store configuration
// leave early if USER_INT
$this->convertToUserIntObject = $this->conf['convertToUserIntObject'] ? 1 : 0;
if (t3lib_div::int_from_ver(TYPO3_version) >= 4003000 && $this->convertToUserIntObject
&& $this->cObj->getUserObjectType() == tslib_cObj::OBJECTTYPE_USER) {
$this->cObj->convertToUserIntObject();
return;
}
$this->preInit();
if ($this->conf['enableConfigValidation']) {

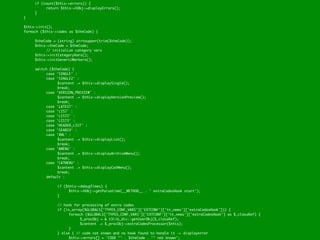

47. if (count($this->errors)) {
return $this->hObj->displayErrors();
}
}
$this->init();
foreach ($this->codes as $theCode) {
$theCode = (string) strtoupper(trim($theCode));
$this->theCode = $theCode;
// initialize category vars
$this->initCategoryVars();
$this->initGenericMarkers();
switch ($theCode) {
case 'SINGLE' :
case 'SINGLE2' :
$content .= $this->displaySingle();
break;
case 'VERSION_PREVIEW' :
$content .= $this->displayVersionPreview();
break;
case 'LATEST' :
case 'LIST' :
case 'LIST2' :
case 'LIST3' :
case 'HEADER_LIST' :
case 'SEARCH' :
case 'XML' :
$content .= $this->displayList();
break;
case 'AMENU' :
$content .= $this->displayArchiveMenu();
break;
case 'CATMENU' :
$content .= $this->displayCatMenu();
break;
default :
if ($this->debugTimes) {
$this->hObj->getParsetime(__METHOD__ . ' extraCodesHook start');
}
// hook for processing of extra codes
if (is_array($GLOBALS['TYPO3_CONF_VARS']['EXTCONF']['tt_news']['extraCodesHook'])) {
foreach ($GLOBALS['TYPO3_CONF_VARS']['EXTCONF']['tt_news']['extraCodesHook'] as $_classRef) {
$_procObj = & t3lib_div::getUserObj($_classRef);
$content .= $_procObj->extraCodesProcessor($this);
}
} else { // code not known and no hook found to handle it -> displayerror
$this->errors[] = 'CODE "' . $theCode . '" not known';

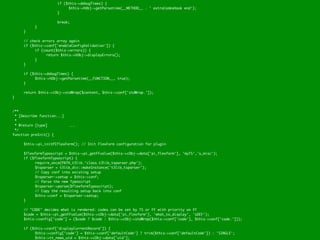

48. if ($this->debugTimes) {
$this->hObj->getParsetime(__METHOD__ . ' extraCodesHook end');
}
break;
}
}
// check errors array again
if ($this->conf['enableConfigValidation']) {
if (count($this->errors)) {
return $this->hObj->displayErrors();
}
}
if ($this->debugTimes) {
$this->hObj->getParsetime(__FUNCTION__, true);
}
return $this->cObj->stdWrap($content, $this->conf['stdWrap.']);
}
/**
* [Describe function...]
*
* @return [type] ...
*/
function preInit() {
$this->pi_initPIflexForm(); // Init FlexForm configuration for plugin
$flexformTyposcript = $this->pi_getFFvalue($this->cObj->data['pi_flexform'], 'myTS','s_misc');
if ($flexformTyposcript) {
require_once(PATH_t3lib.'class.t3lib_tsparser.php');
$tsparser = t3lib_div::makeInstance('t3lib_tsparser');
// Copy conf into existing setup
$tsparser->setup = $this->conf;
// Parse the new Typoscript
$tsparser->parse($flexformTyposcript);
// Copy the resulting setup back into conf
$this->conf = $tsparser->setup;
}
// "CODE" decides what is rendered: codes can be set by TS or FF with priority on FF
$code = $this->pi_getFFvalue($this->cObj->data['pi_flexform'], 'what_to_display', 'sDEF');
$this->config['code'] = ($code ? $code : $this->cObj->stdWrap($this->conf['code'], $this->conf['code.']));
if ($this->conf['displayCurrentRecord']) {
$this->config['code'] = $this->conf['defaultCode'] ? trim($this->conf['defaultCode']) : 'SINGLE';
$this->tt_news_uid = $this->cObj->data['uid'];

49. }
// get codes and decide which function is used to process the content
$codes = t3lib_div::trimExplode(',', $this->config['code'] ? $this->config['code'] : $this->conf['defaultCode'], 1);
if (! count($codes)) { // no code at all
$codes = array();
$this->errors[] = 'No code given';
}
$this->codes = $codes;
}
/**
* Init Function: here all the needed configuration values are stored in class variables..
*
* @param array
$conf : configuration array from TS
* @return void
*/
function init() {
$this->pi_loadLL(); // Loading language-labels
$this->pi_setPiVarDefaults(); // Set default piVars from TS
$this->SIM_ACCESS_TIME = $GLOBALS['SIM_ACCESS_TIME'];
// fallback for TYPO3 < 4.2
if (! $this->SIM_ACCESS_TIME) {
$simTime = $GLOBALS['SIM_EXEC_TIME'];
$this->SIM_ACCESS_TIME = $simTime - ($simTime % 60);
}
$this->initCaching();
$this->local_cObj = t3lib_div::makeInstance('tslib_cObj'); // Local cObj.
$this->enableFields = $this->getEnableFields('tt_news');
if ($this->tt_news_uid === 0) { // no tt_news_uid set by displayCurrentRecord
$this->tt_news_uid = intval($this->piVars['tt_news']); // Get the submitted uid of a news (if any)
}
if (! isset($this->conf['compatVersion']) || ! preg_match('/^d+.d+.d+$/', $this->conf['compatVersion'])) {
$this->conf['compatVersion'] = $this->hObj->getCurrentVersion();
}
$this->token = md5(microtime());
if (t3lib_extMgm::isLoaded('version')) {
$this->versioningEnabled = true;
}
// load available syslanguages
$this->initLanguages();
// sys_language_mode defines what to do if the requested translation is not found

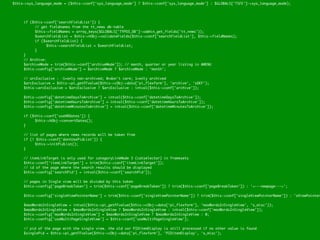

50. $this->sys_language_mode = ($this->conf['sys_language_mode'] ? $this->conf['sys_language_mode'] : $GLOBALS['TSFE']->sys_language_mode);
if ($this->conf['searchFieldList']) {
// get fieldnames from the tt_news db-table
$this->fieldNames = array_keys($GLOBALS['TYPO3_DB']->admin_get_fields('tt_news'));
$searchFieldList = $this->hObj->validateFields($this->conf['searchFieldList'], $this->fieldNames);
if ($searchFieldList) {
$this->searchFieldList = $searchFieldList;
}
}
// Archive:
$archiveMode = trim($this->conf['archiveMode']); // month, quarter or year listing in AMENU
$this->config['archiveMode'] = $archiveMode ? $archiveMode : 'month';
// arcExclusive : -1=only non-archived; 0=don't care; 1=only archived
$arcExclusive = $this->pi_getFFvalue($this->cObj->data['pi_flexform'], 'archive', 'sDEF');
$this->arcExclusive = $arcExclusive ? $arcExclusive : intval($this->conf['archive']);
$this->config['datetimeDaysToArchive'] = intval($this->conf['datetimeDaysToArchive']);
$this->config['datetimeHoursToArchive'] = intval($this->conf['datetimeHoursToArchive']);
$this->config['datetimeMinutesToArchive'] = intval($this->conf['datetimeMinutesToArchive']);
if ($this->conf['useHRDates']) {
$this->hObj->convertDates();
}
// list of pages where news records will be taken from
if (! $this->conf['dontUsePidList']) {
$this->initPidList();
}
// itemLinkTarget is only used for categoryLinkMode 3 (catselector) in framesets
$this->conf['itemLinkTarget'] = trim($this->conf['itemLinkTarget']);
// id of the page where the search results should be displayed
$this->config['searchPid'] = intval($this->conf['searchPid']);
// pages in Single view will be divided by this token
$this->config['pageBreakToken'] = trim($this->conf['pageBreakToken']) ? trim($this->conf['pageBreakToken']) : '<---newpage--->';
$this->config['singleViewPointerName'] = trim($this->conf['singleViewPointerName']) ? trim($this->conf['singleViewPointerName']) : 'sViewPointer
$maxWordsInSingleView = intval($this->pi_getFFvalue($this->cObj->data['pi_flexform'], 'maxWordsInSingleView', 's_misc'));
$maxWordsInSingleView = $maxWordsInSingleView ? $maxWordsInSingleView : intval($this->conf['maxWordsInSingleView']);
$this->config['maxWordsInSingleView'] = $maxWordsInSingleView ? $maxWordsInSingleView : 0;
$this->config['useMultiPageSingleView'] = $this->conf['useMultiPageSingleView'];
// pid of the page with the single view. the old var PIDitemDisplay is still processed if no other value is found
$singlePid = $this->pi_getFFvalue($this->cObj->data['pi_flexform'], 'PIDitemDisplay', 's_misc');

51. Does this tell you
anything about the
application?

52. Maybe
#wtf!

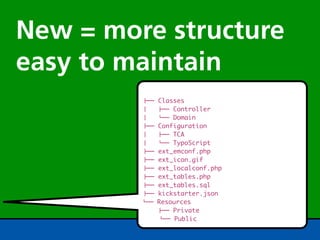

53. New = more structure
easy to maintain
!"" Classes
# !"" Controller
# %"" Domain
!"" Configuration
# !"" TCA
# %"" TypoScript
!"" ext_emconf.php
!"" ext_icon.gif
!"" ext_localconf.php
!"" ext_tables.php
!"" ext_tables.sql
!"" kickstarter.json
%"" Resources
!"" Private
%"" Public

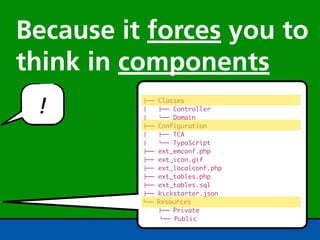

54. Because it forces you to
think in components
! !""
#
#
Classes
!"" Controller
%"" Domain
!"" Configuration
# !"" TCA
# %"" TypoScript
!"" ext_emconf.php
!"" ext_icon.gif
!"" ext_localconf.php
!"" ext_tables.php
!"" ext_tables.sql
!"" kickstarter.json
%"" Resources
!"" Private
%"" Public

55. How do I get
started?

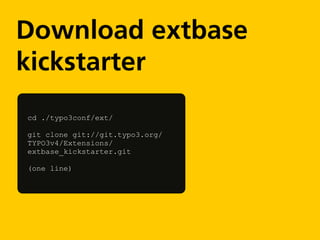

56. Download extbase
kickstarter
cd ./typo3conf/ext/
git clone git://git.typo3.org/
TYPO3v4/Extensions/
extbase_kickstarter.git
(one line)

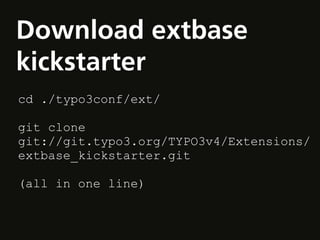

57. Download extbase
kickstarter
cd ./typo3conf/ext/
git clone
git://git.typo3.org/TYPO3v4/Extensions/
extbase_kickstarter.git
(all in one line)

58. Why git?
Fast, comfortable version control system
Smooth development even with large files
Graphical interfaces available
http://git-scm.com/tools
Download it
http://git-scm.com/download

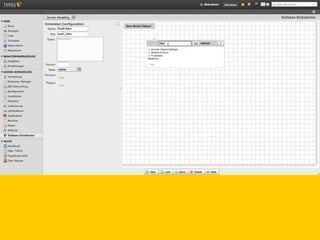

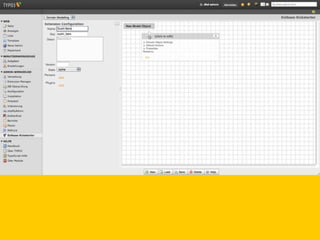

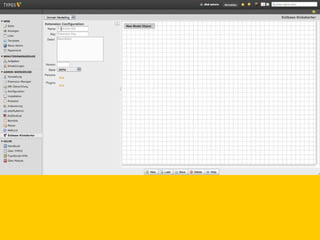

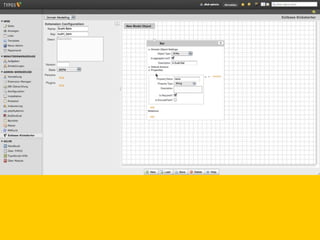

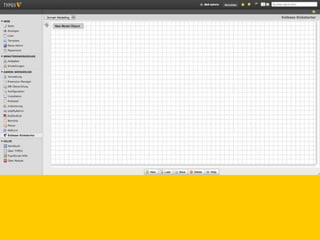

59. Use extbase
kickstarter
Demo

67. We created le with
our new Domain Class
.
!"" Classes
# !"" Controller
# %"" Domain
# %"" Model
# %"" Bar.php
!"" Configuration
# !"" TCA
# %"" TypoScript
!"" ext_emconf.php
!"" ext_icon.gif
!"" ext_localconf.php
!"" ext_tables.php
!"" ext_tables.sql
!"" kickstarter.json
%"" Resources

68. + Backend forms

69. You can instantly create
new content for our
website!

70. "BREAK"

71. Part 2
Example

72. - Create a web application
to manage sushi bars
- Click on a bar to get details
- Find bar on Google Maps

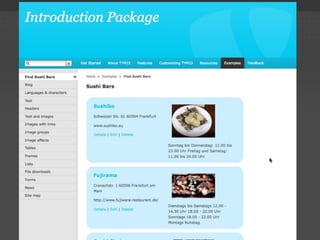

Goal: Find Sushi Bars

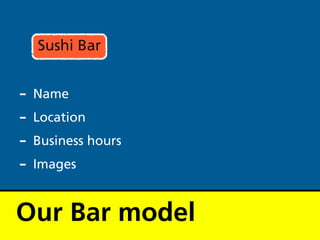

73. Sushi Bar
- Name
- Location
- Business hours
- Images
Our Bar model

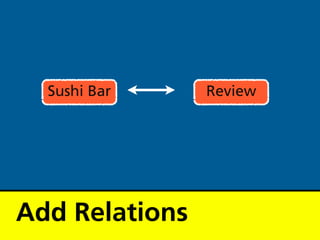

74. Sushi Bar Review
Add Relations

75. - Allow Feedback
- Rating
- Statement
Review model

76. - Link Website
- Add QRCode to open a map
- Easy to nd
Improve view

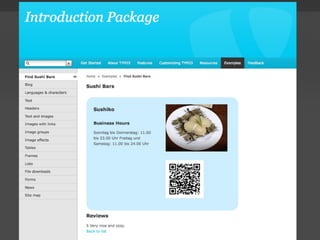

77. Final result

78. Many happy customers!

79. http://forge.typo3.org/projects/typo3v4-mvc
http://wiki.typo3.org/Category:Topic/extbase
Further reading

80. Thank you!

81. Have fun with
TYPO3!
