Lessons learned from years of maintaining/extending/improving an in house CMS. Hopefully these will present things to avoid and things to try that will save others some pain.

1. Lessons from
a Dying CMS
Sandy Smith
sfsmith.com
@SandyS1

2. huh?

3. lesson 1:
history ma7ers

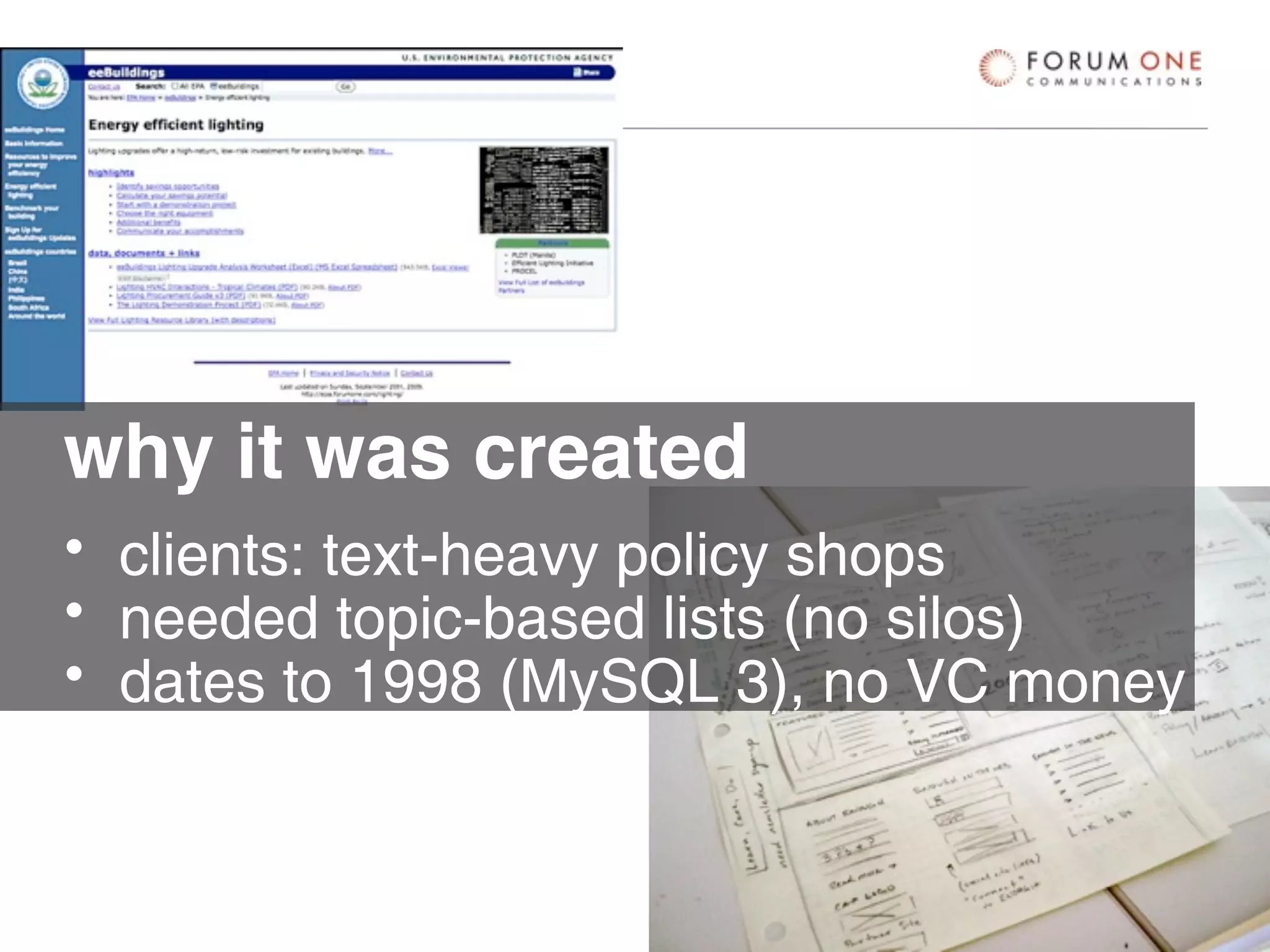

4. why it was created
• clients: text-heavy policy shops
• needed topic-based lists (no silos)
• dates to 1998 (MySQL 3), no VC money

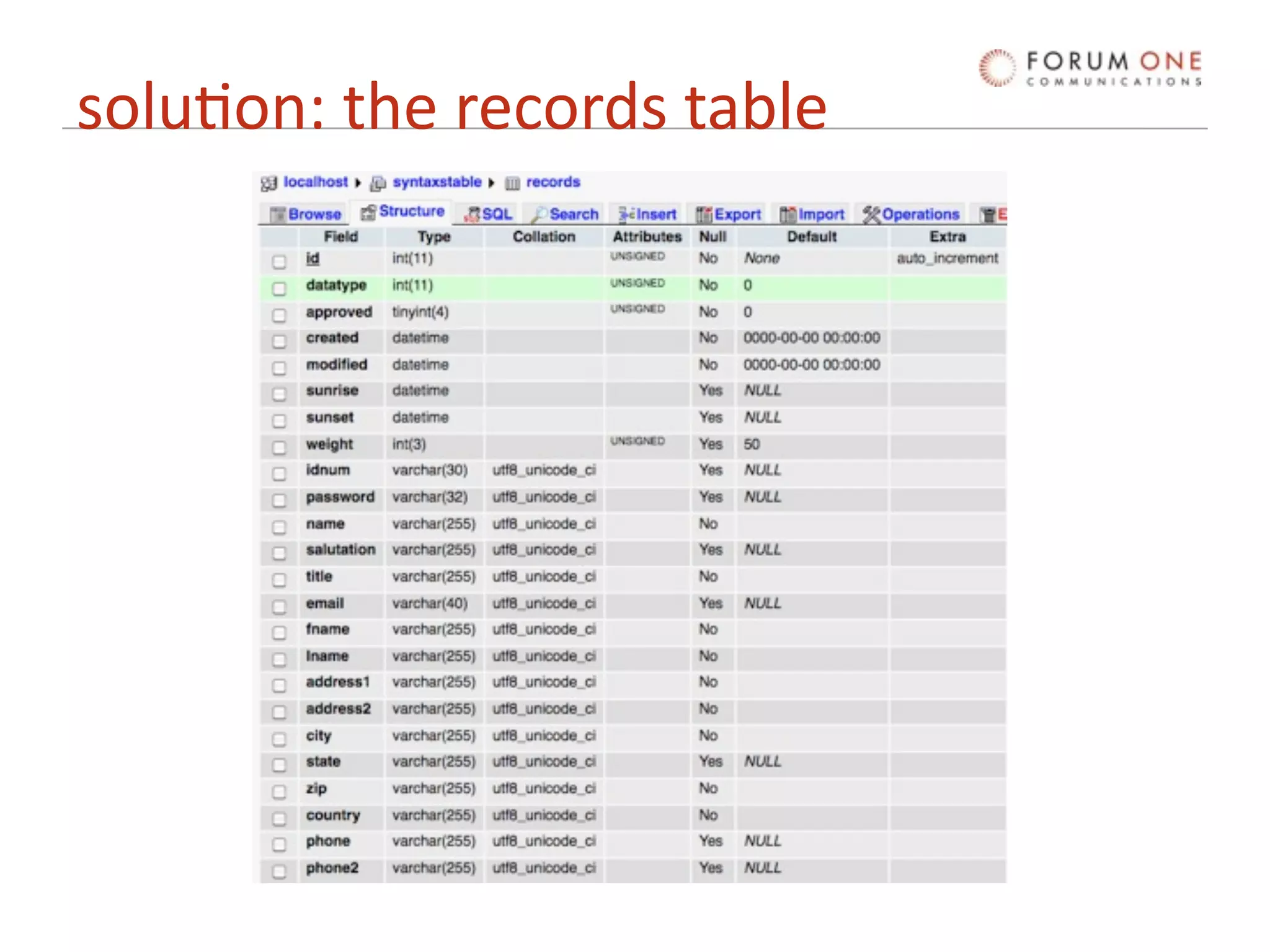

5. solu'on: the records table

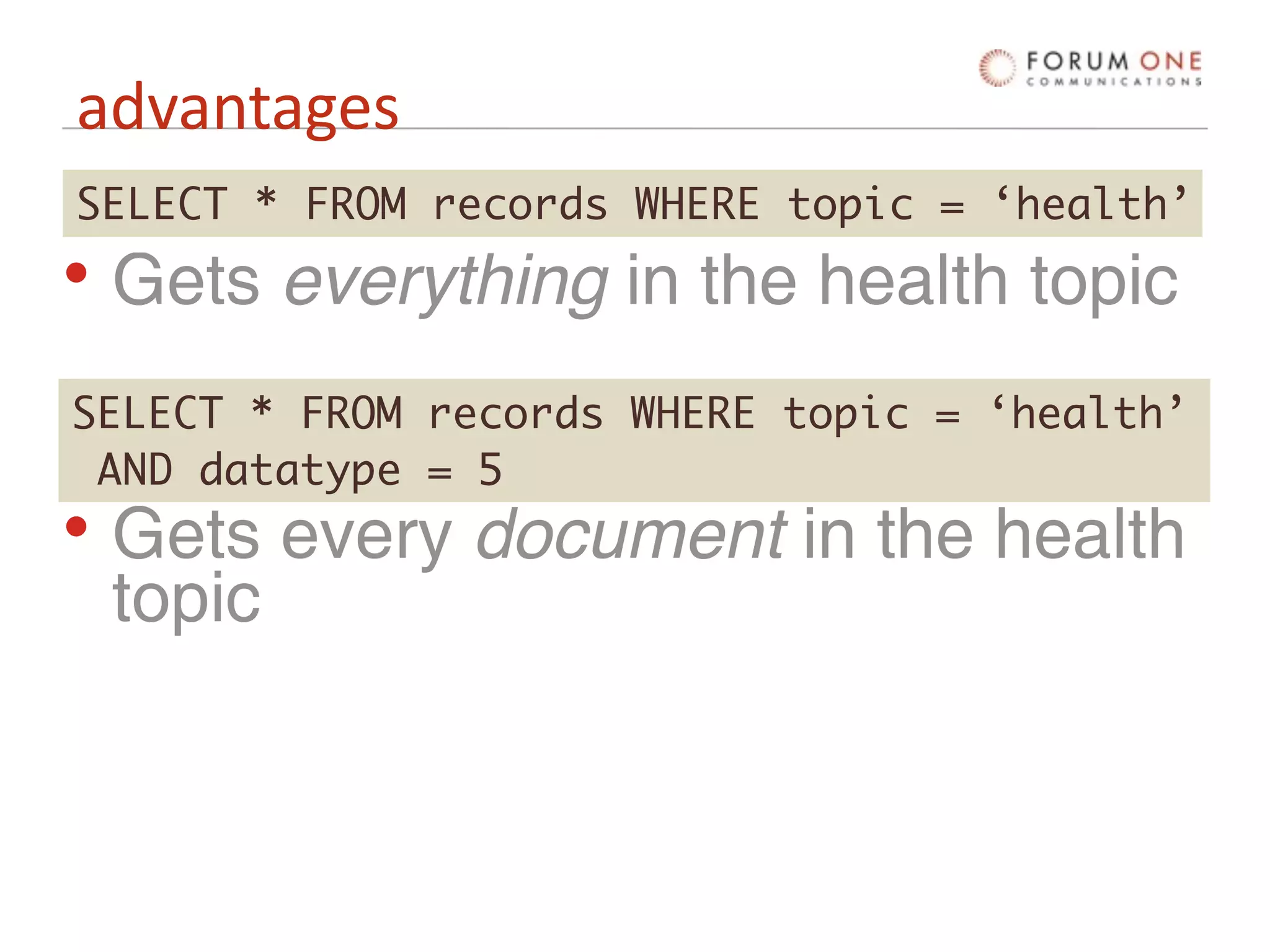

6. advantages
SELECT * FROM records WHERE topic = ‘health’
• Gets everything in the health topic
SELECT * FROM records WHERE topic = ‘health’
AND datatype = 5
• Gets every document in the health
topic

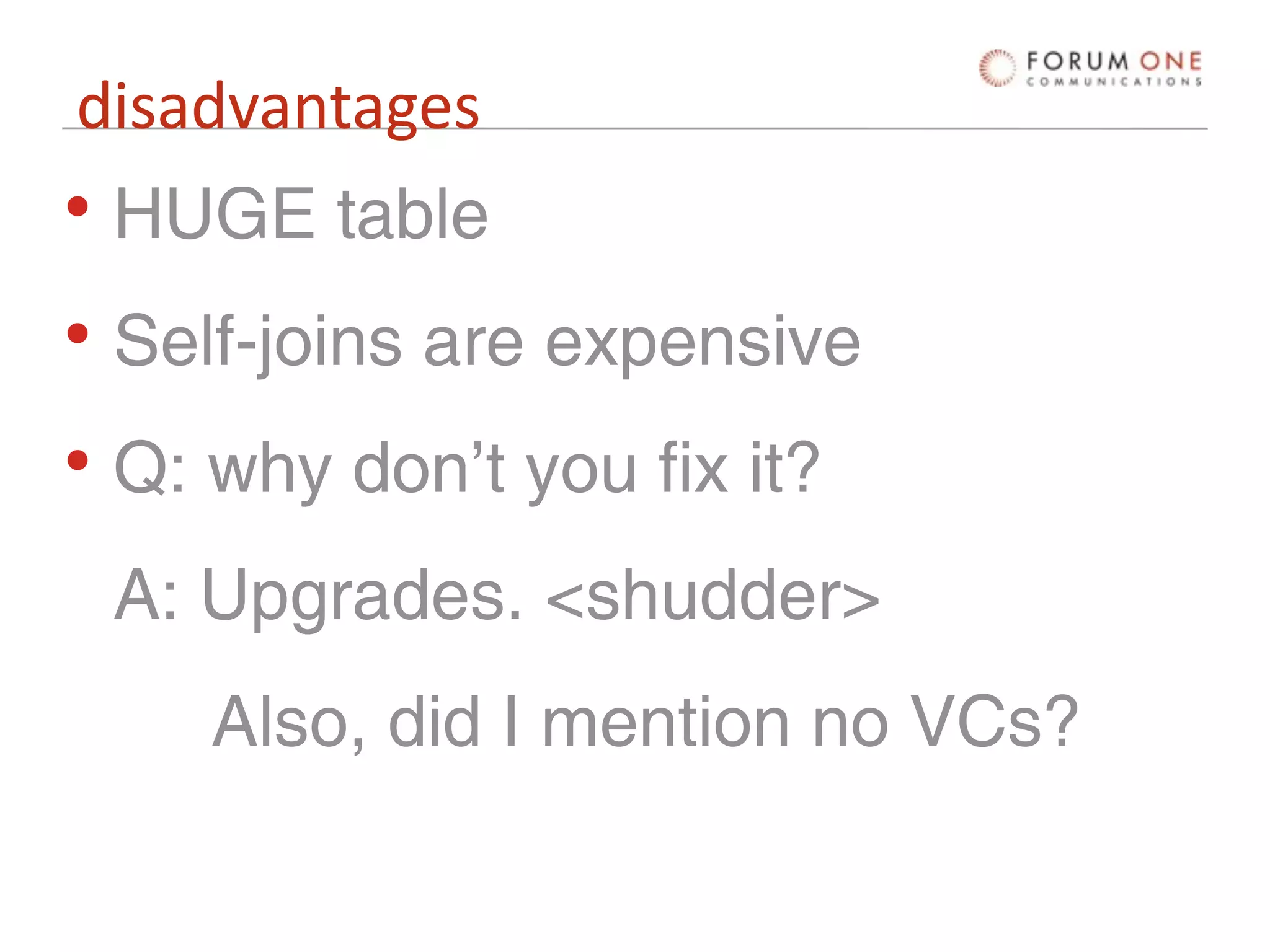

7. disadvantages
• HUGE table
• Self-joins are expensive
• Q: why don’t you fix it?
A: Upgrades. <shudder>
Also, did I mention no VCs?

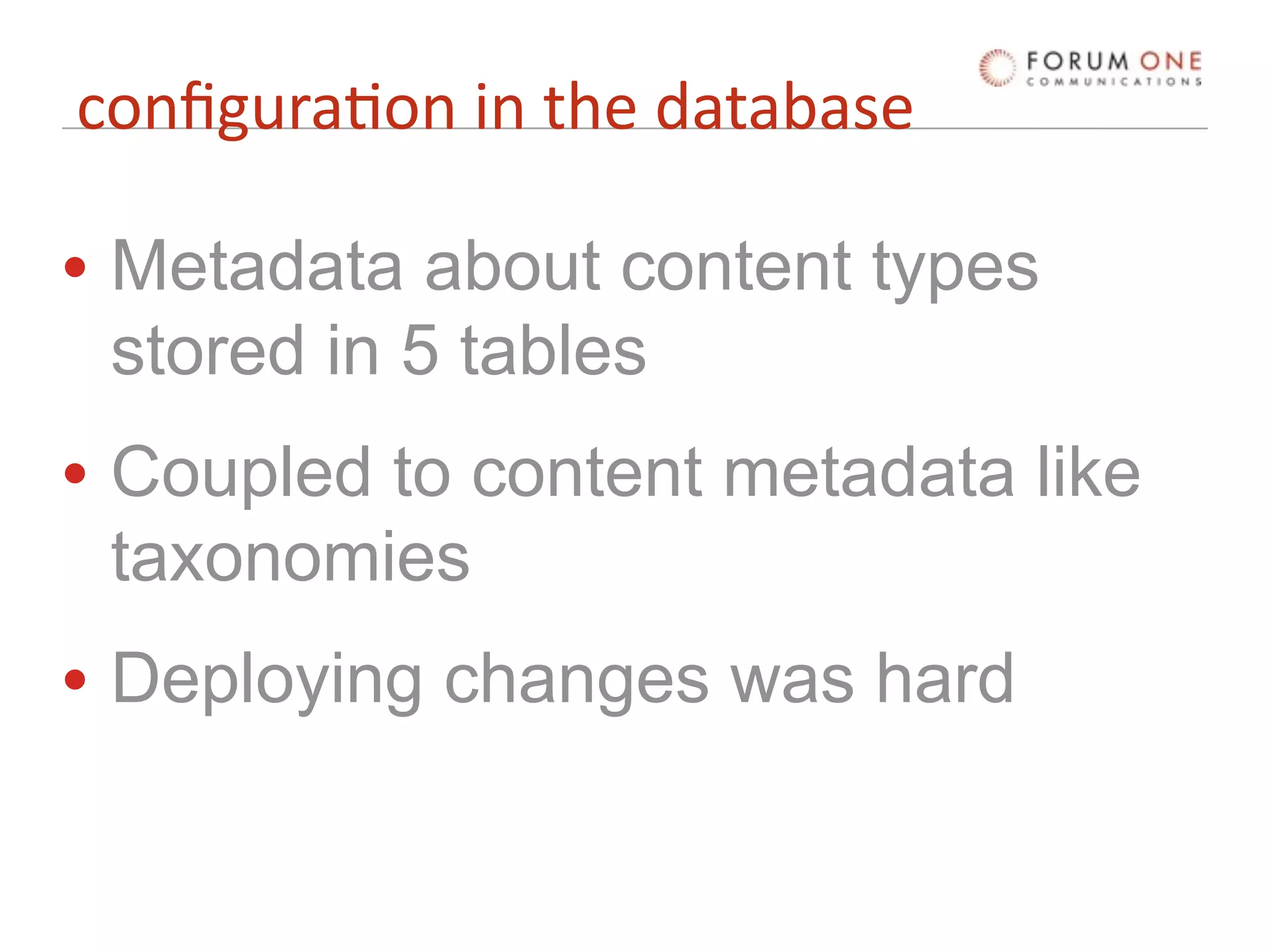

8. configura'on in the database
• Metadata about content types
stored in 5 tables
• Coupled to content metadata like
taxonomies
• Deploying changes was hard

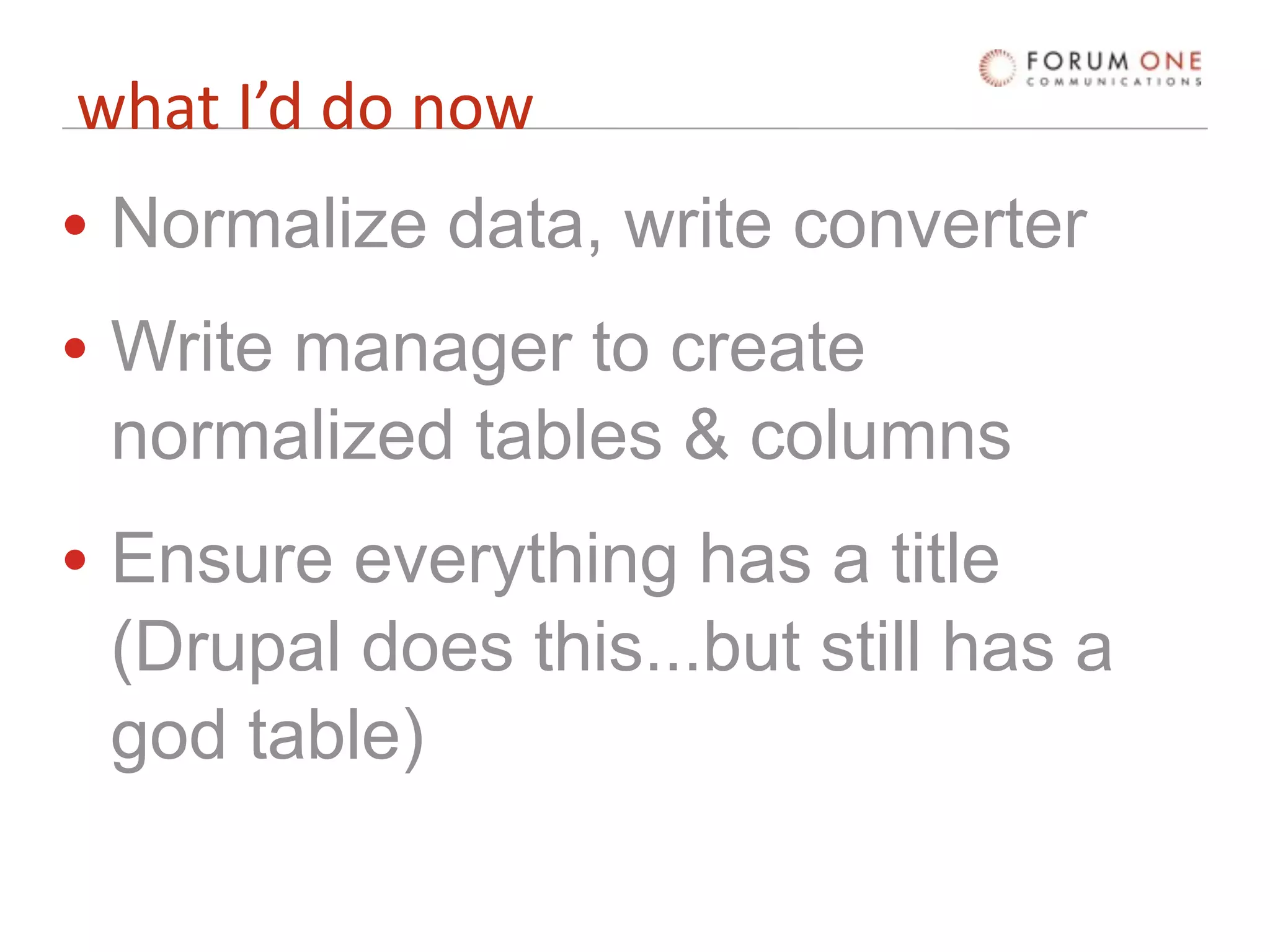

9. what I’d do now
• Normalize data, write converter
• Write manager to create
normalized tables & columns
• Ensure everything has a title
(Drupal does this...but still has a
god table)

10. Lesson 2: Decide what
business you’re in
lesson 2:
What business are you in?

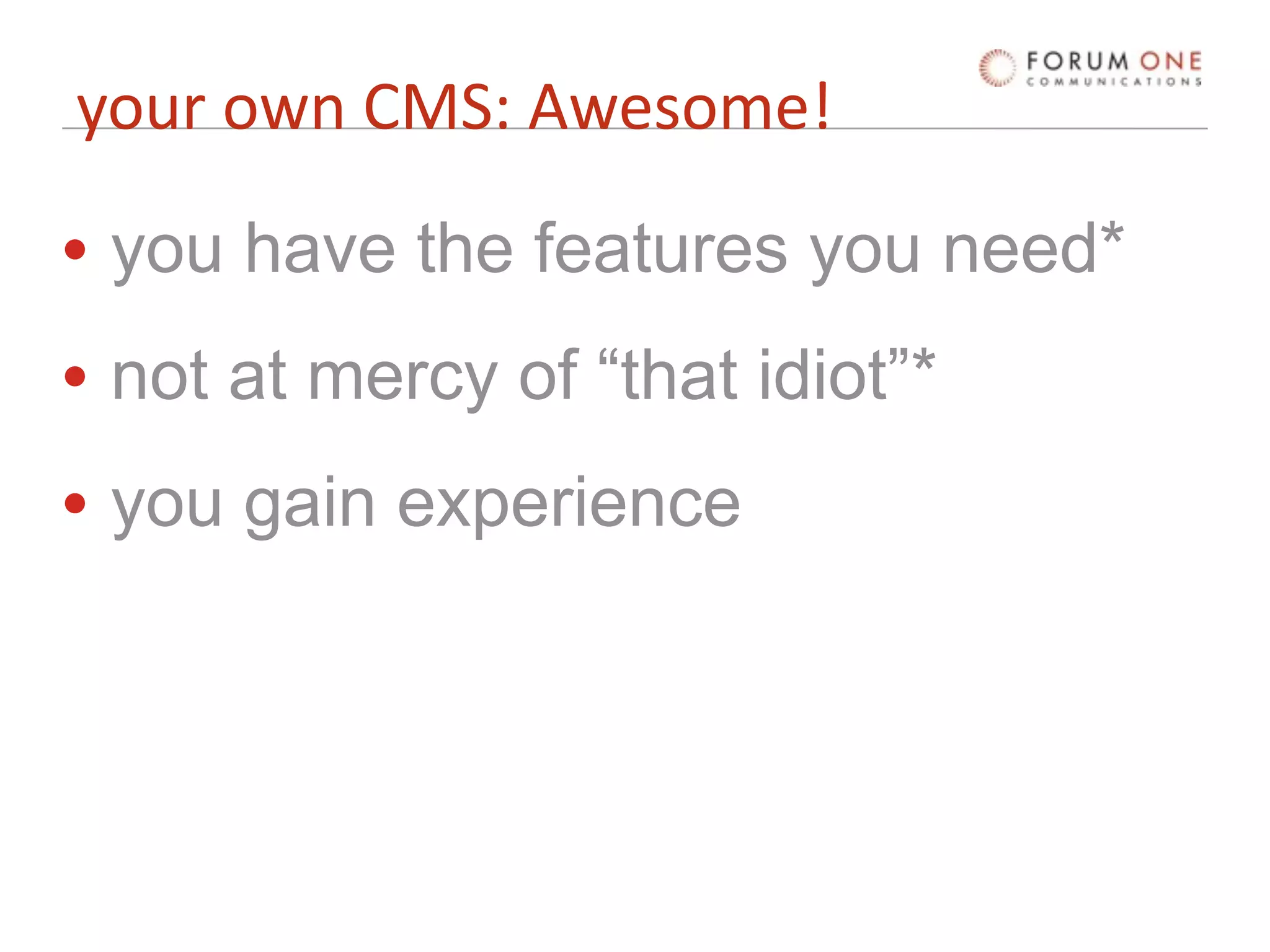

11. your own CMS: Awesome!
• you have the features you need*
• not at mercy of “that idiot”*
• you gain experience

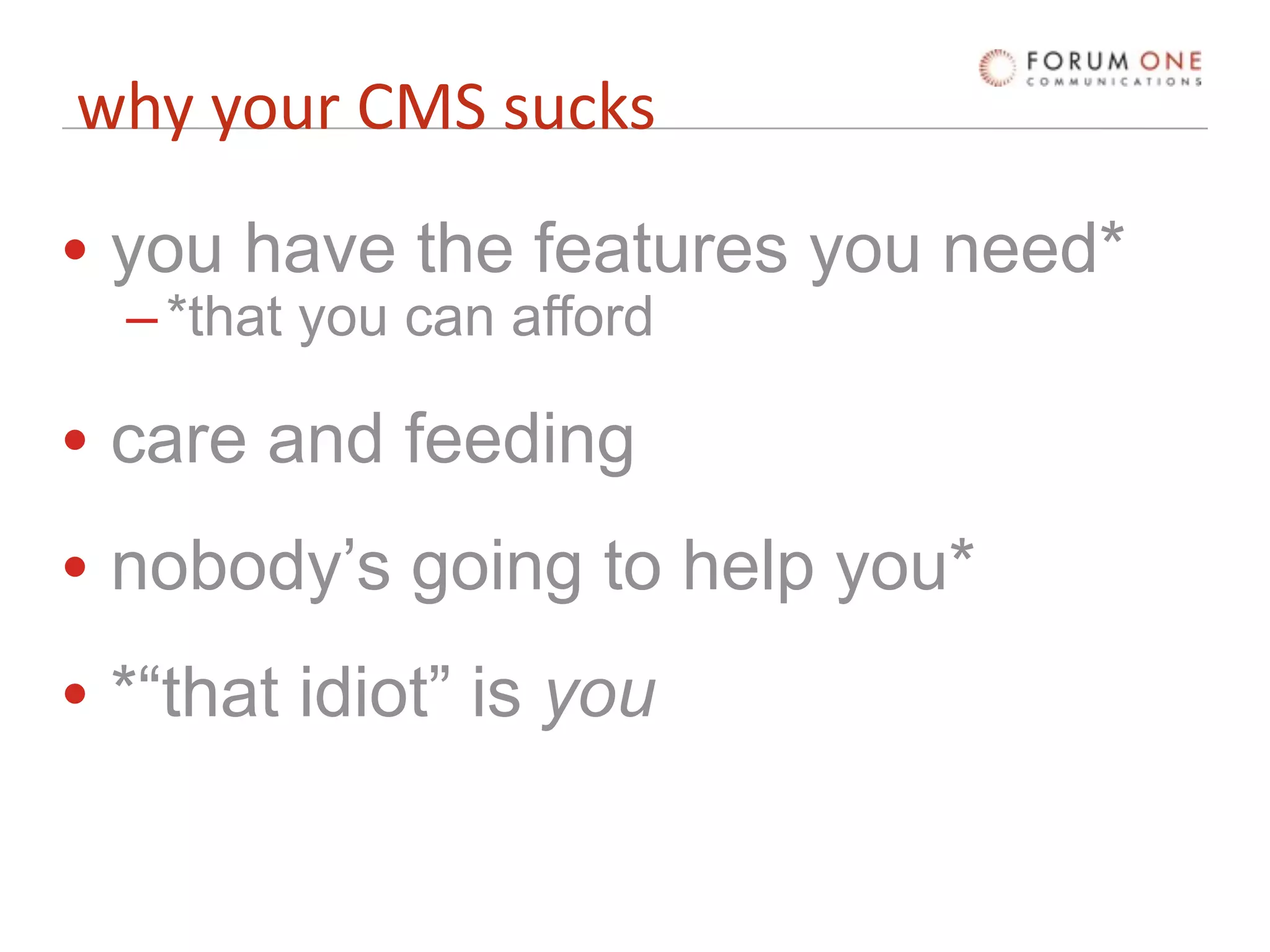

12. why your CMS sucks
• you have the features you need*
– *that you can afford
• care and feeding
• nobody’s going to help you*
• *“that idiot” is you

13. “what am I payin’ you for?”
1. website?
2. CMS?

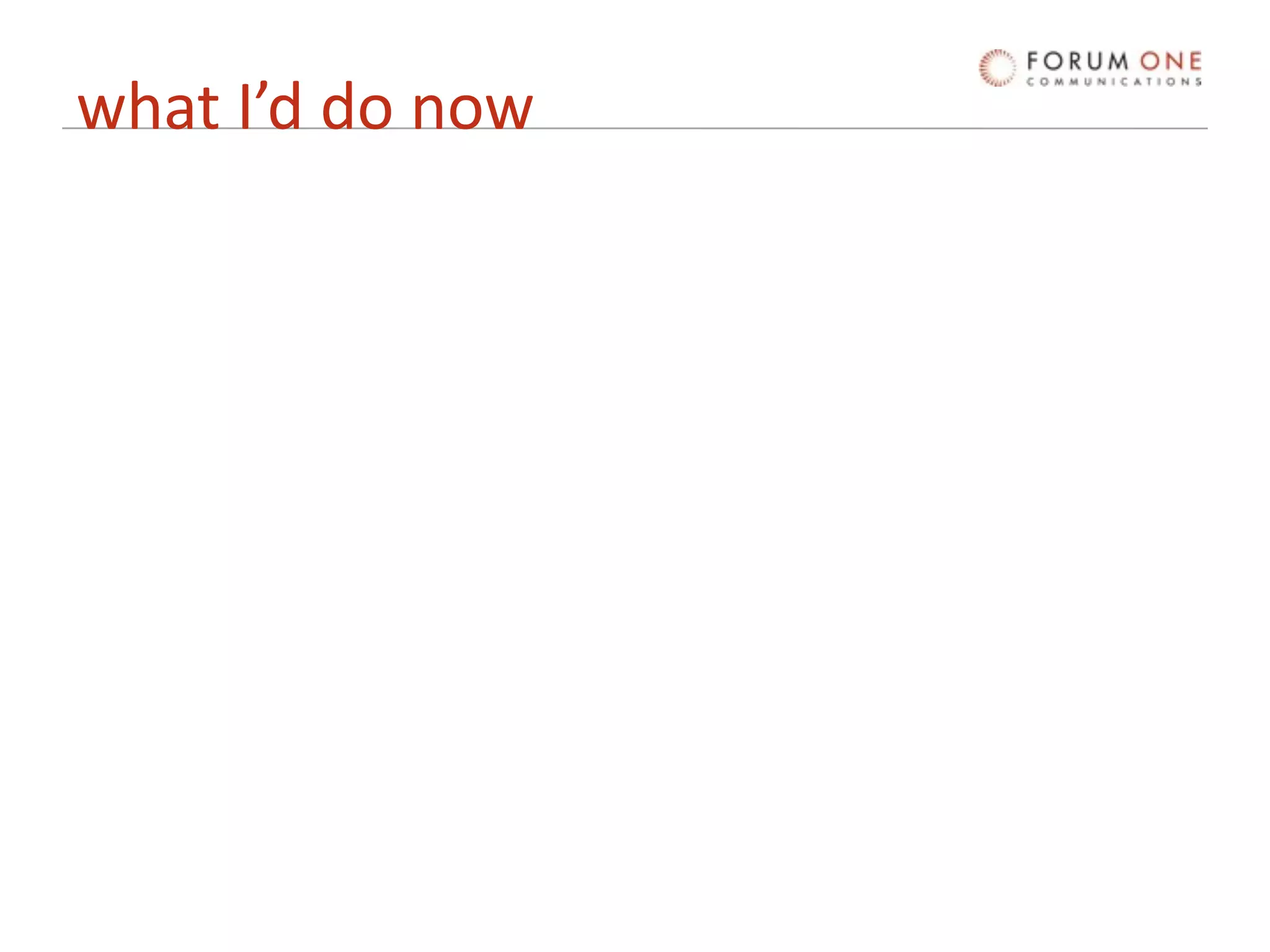

14. what I’d do now

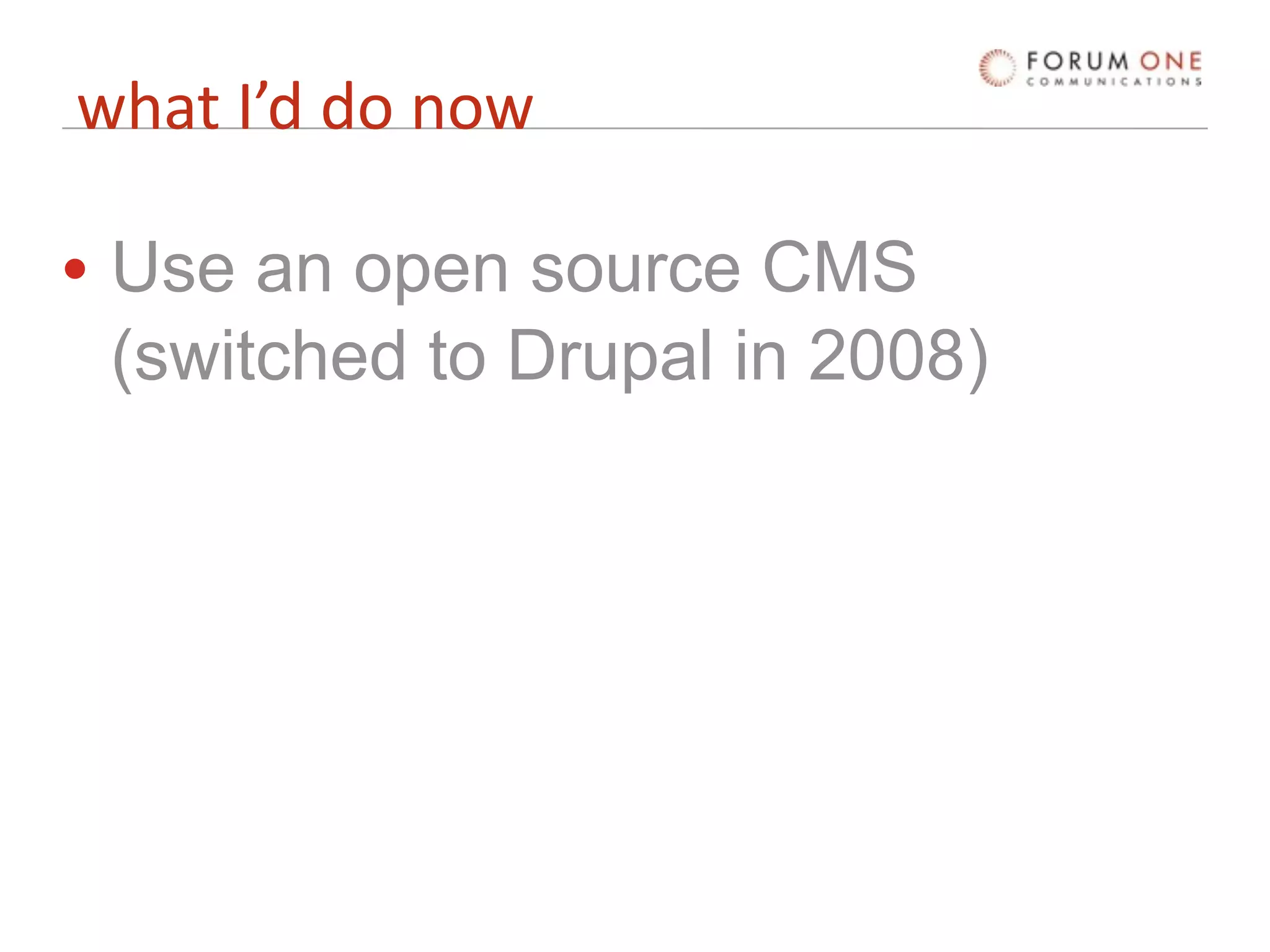

15. what I’d do now
• Use an open source CMS
(switched to Drupal in 2008)

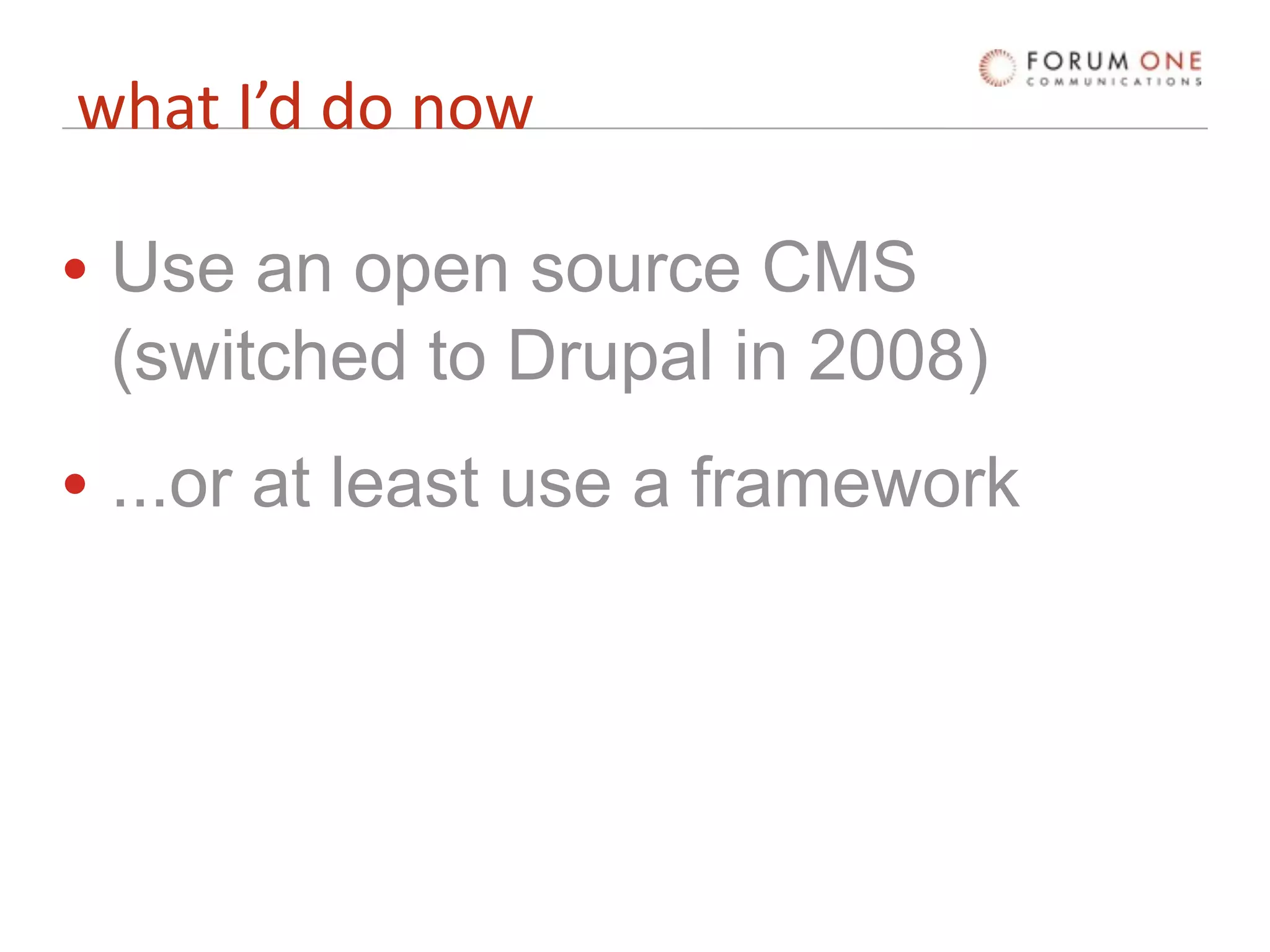

16. what I’d do now
• Use an open source CMS
(switched to Drupal in 2008)
• ...or at least use a framework

17. Lesson 3: Beware Lone
Wolves
lesson 3:
beware lone wolves

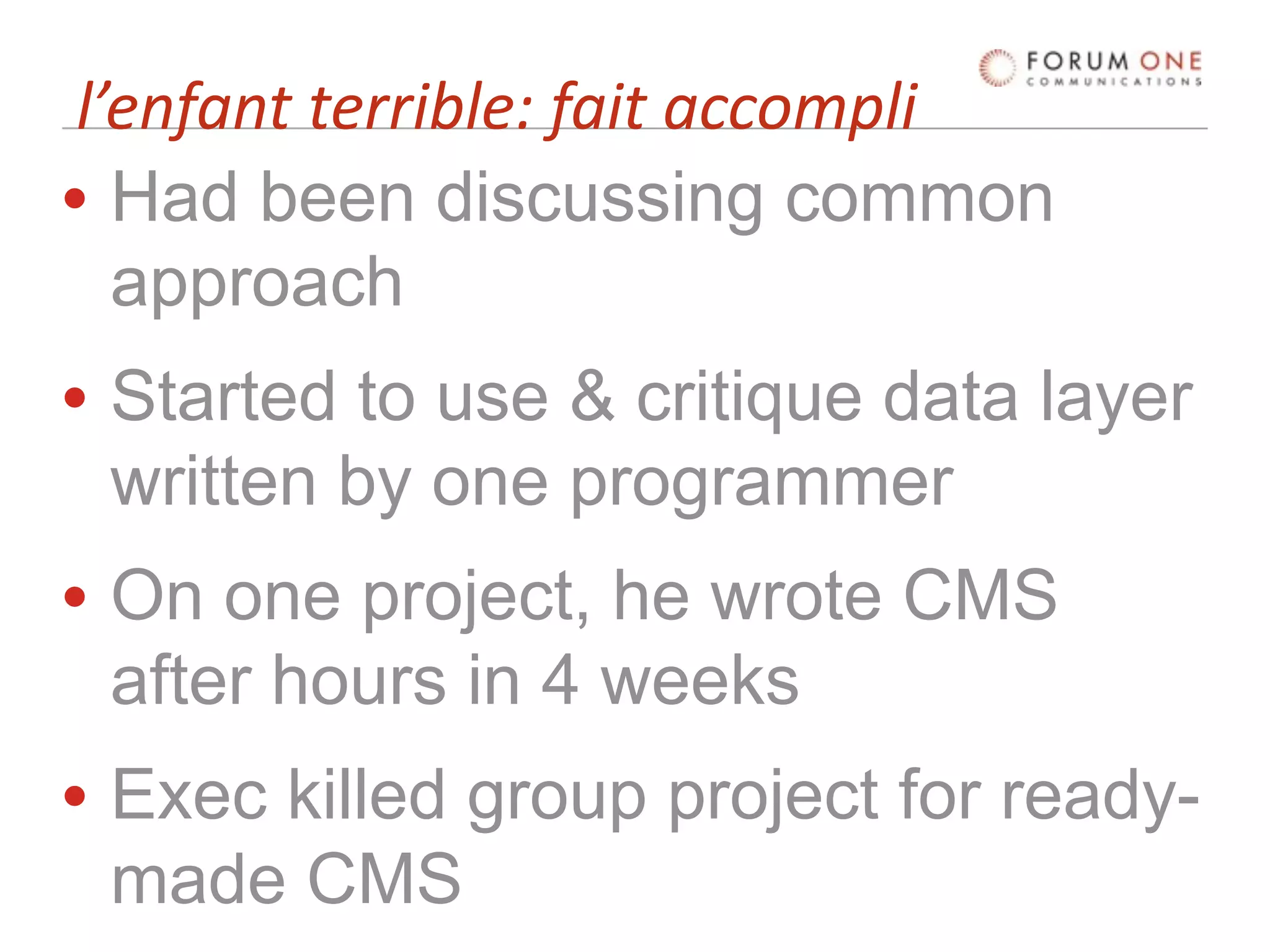

18. l’enfant terrible: fait accompli
• Had been discussing common
approach
• Started to use & critique data layer
written by one programmer
• On one project, he wrote CMS
after hours in 4 weeks
• Exec killed group project for ready-
made CMS

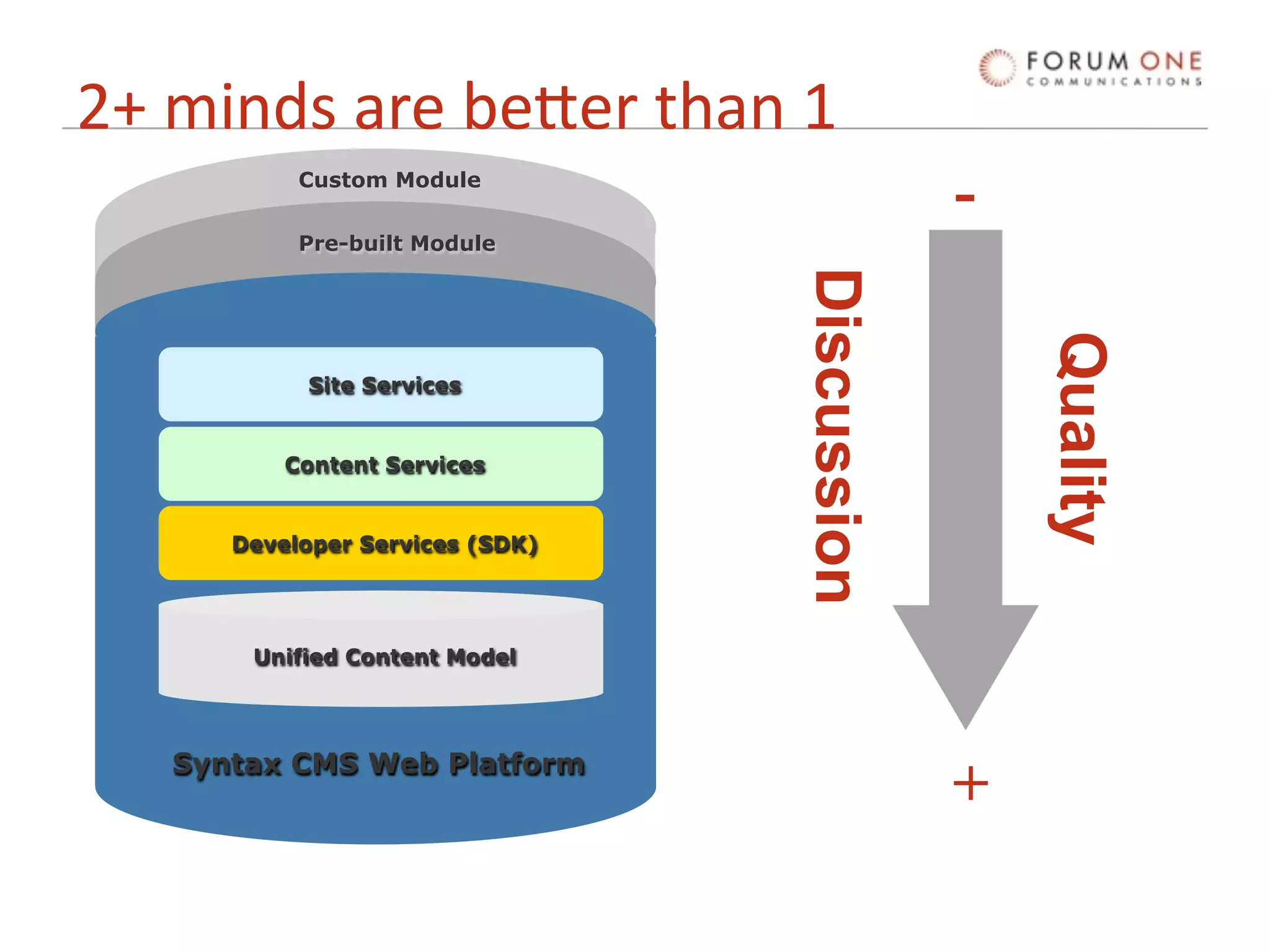

19. 2+ minds are beLer than 1
Custom Module
-
Pre-built Module
Discussion
Quality
Site Services
Content Services
Developer Services (SDK)
Unified Content Model
Syntax CMS Web Platform
+

20. what I’d do now

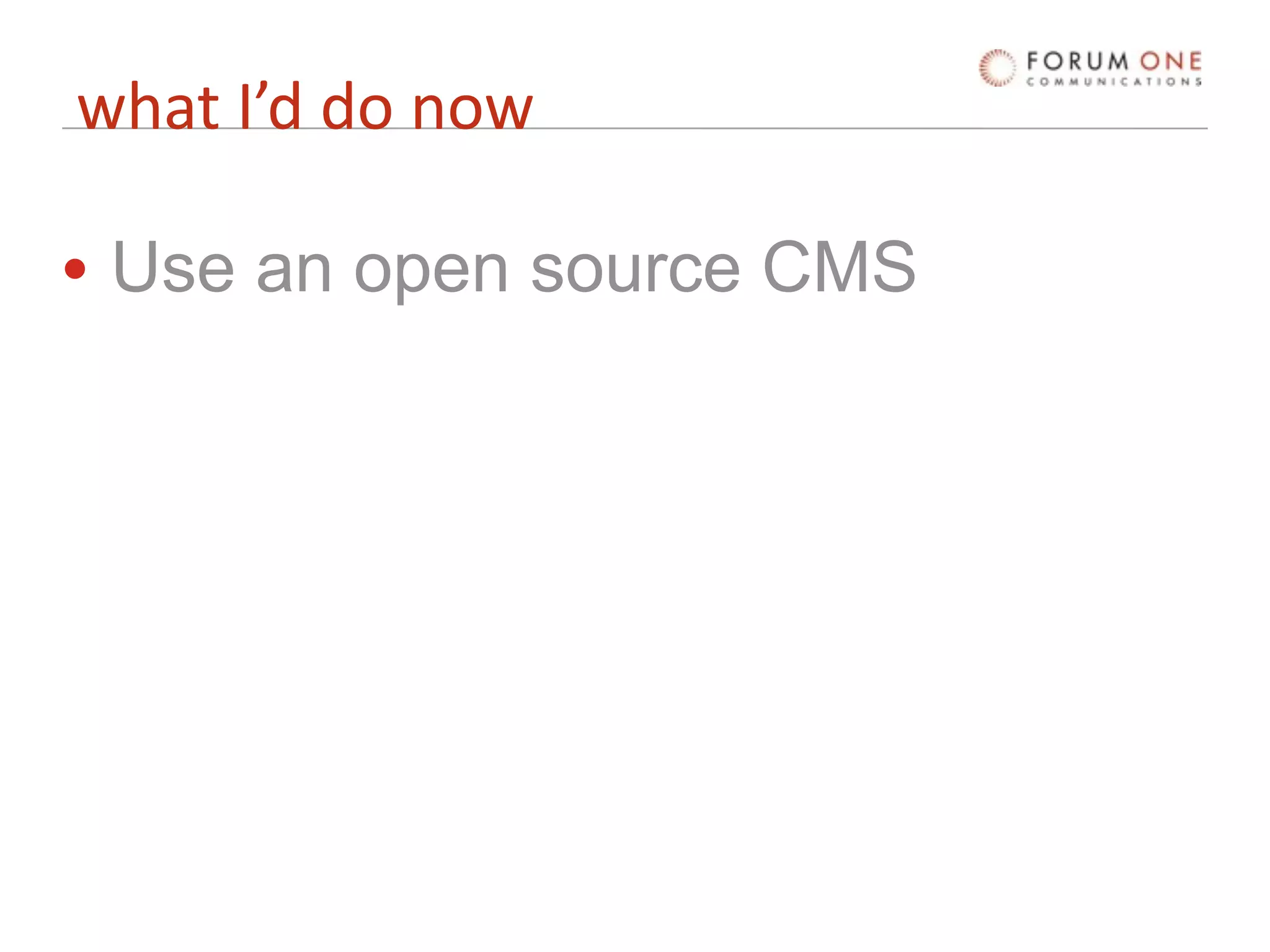

21. what I’d do now
• Use an open source CMS

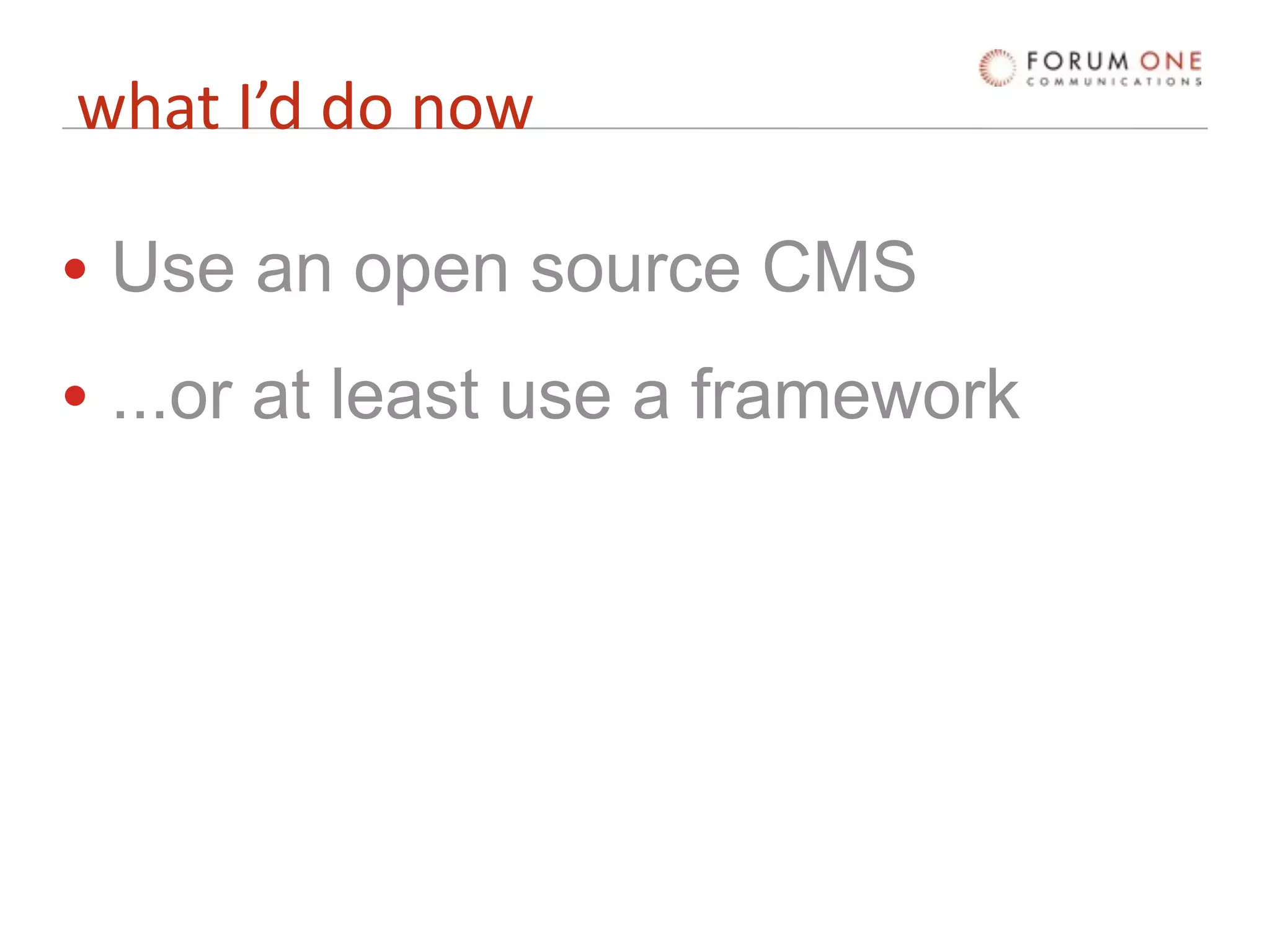

22. what I’d do now
• Use an open source CMS
• ...or at least use a framework

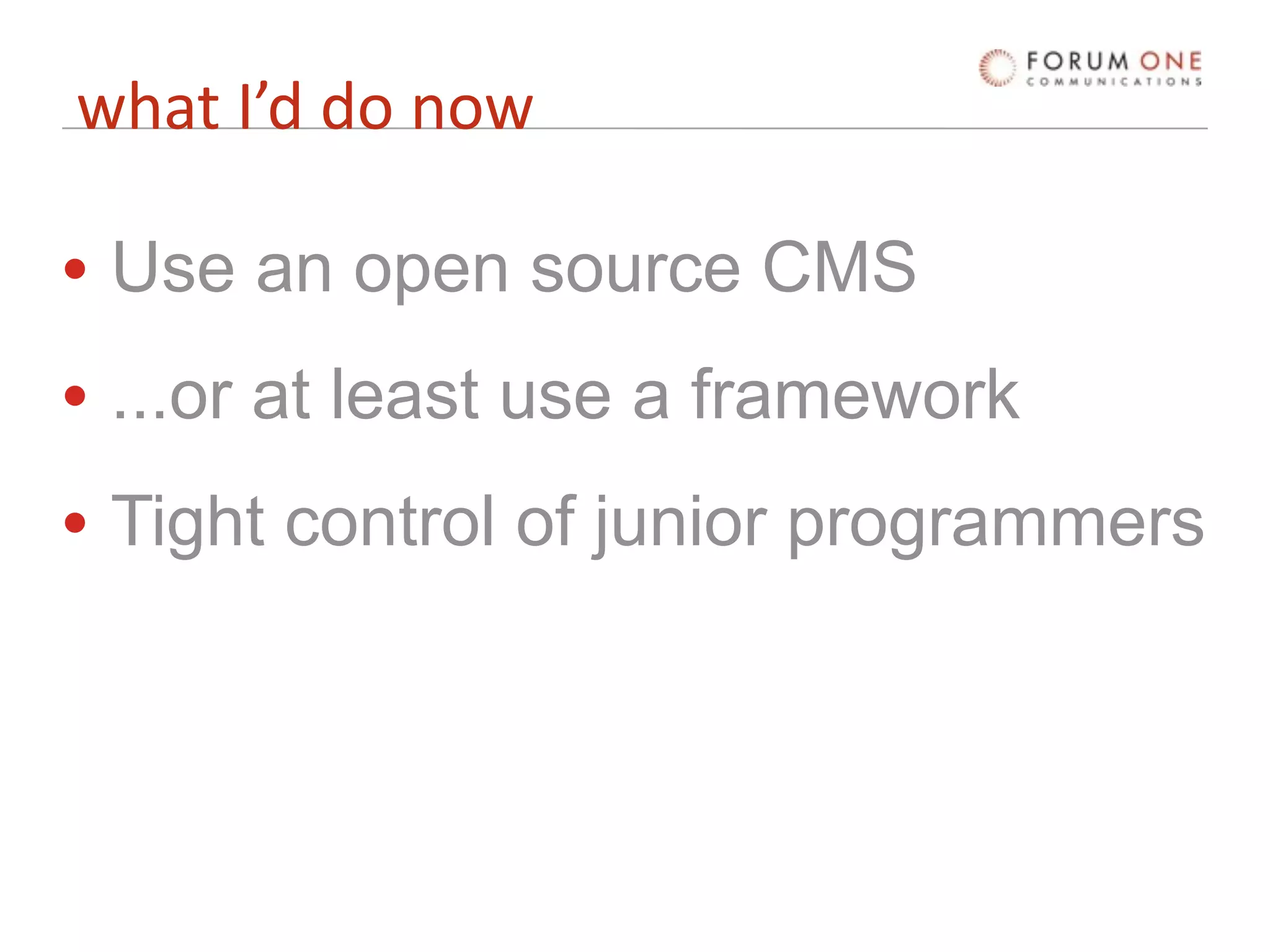

23. what I’d do now
• Use an open source CMS
• ...or at least use a framework
• Tight control of junior programmers

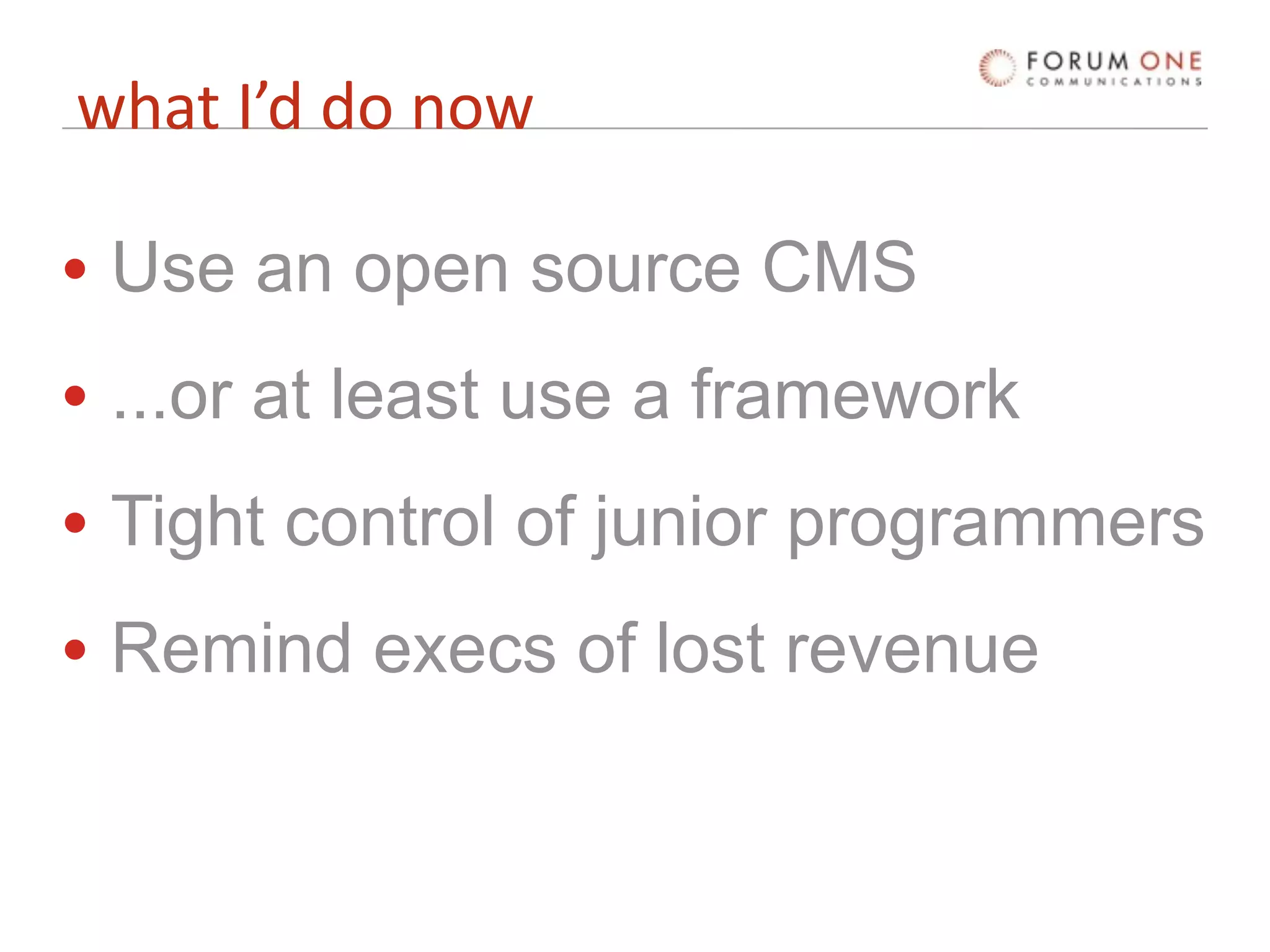

24. what I’d do now
• Use an open source CMS
• ...or at least use a framework
• Tight control of junior programmers
• Remind execs of lost revenue

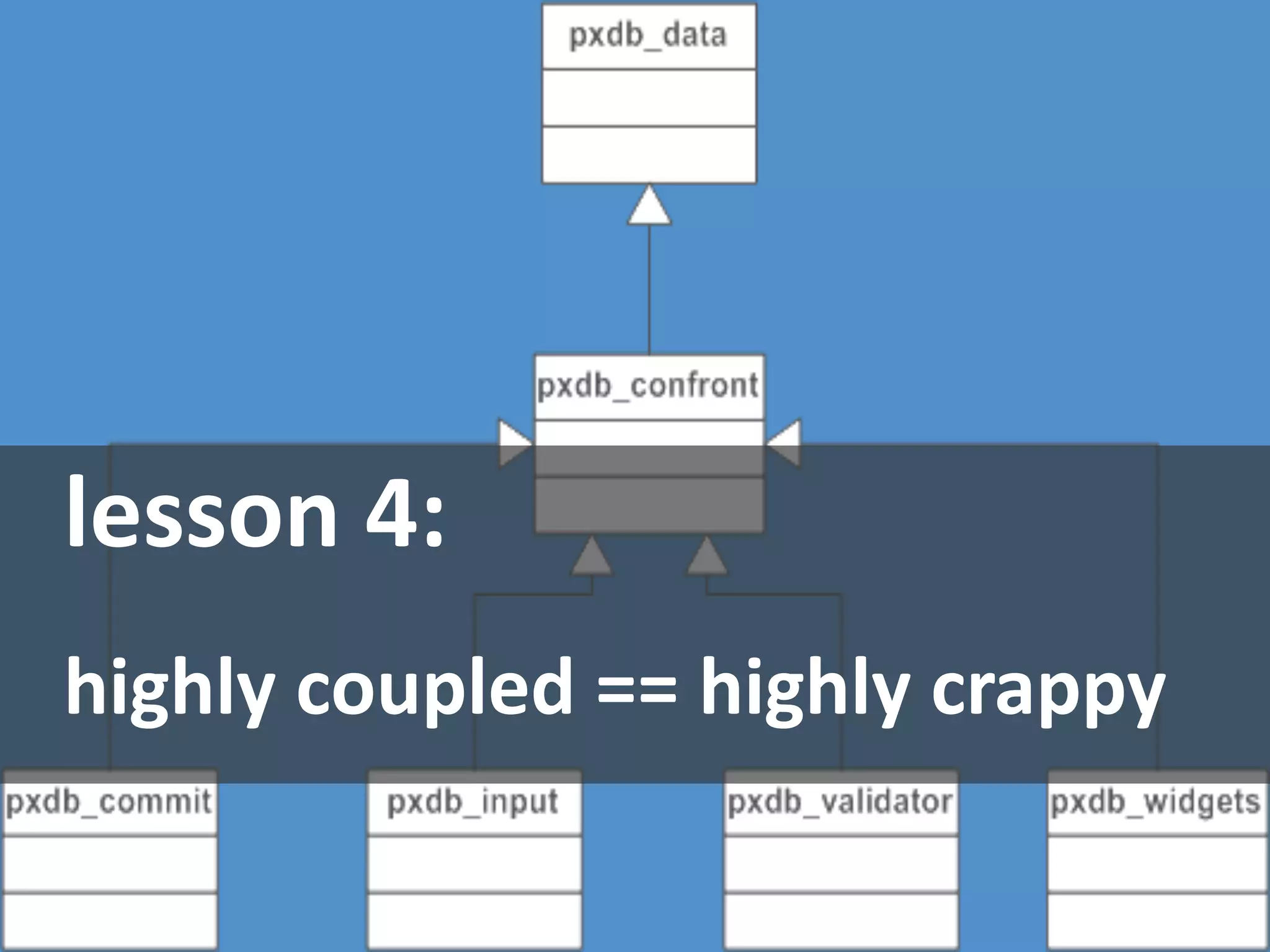

25. Lesson 5: Highly Coupled ==
Highly Crappy
lesson 4:
highly coupled == highly crappy

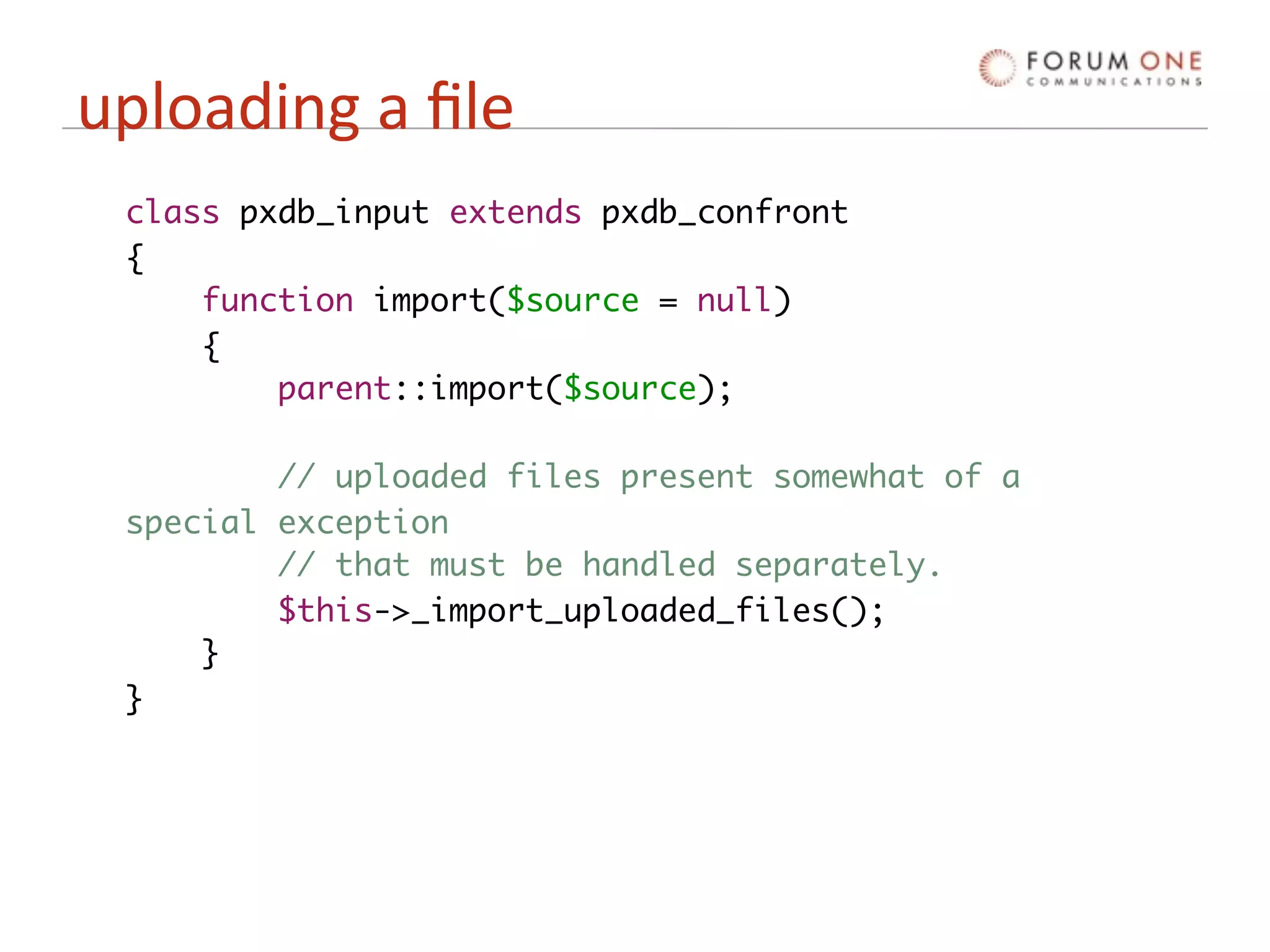

26. uploading a file
class pxdb_input extends pxdb_confront
{
function import($source = null)
{
parent::import($source);
// uploaded files present somewhat of a
special exception
// that must be handled separately.
$this->_import_uploaded_files();
}
}

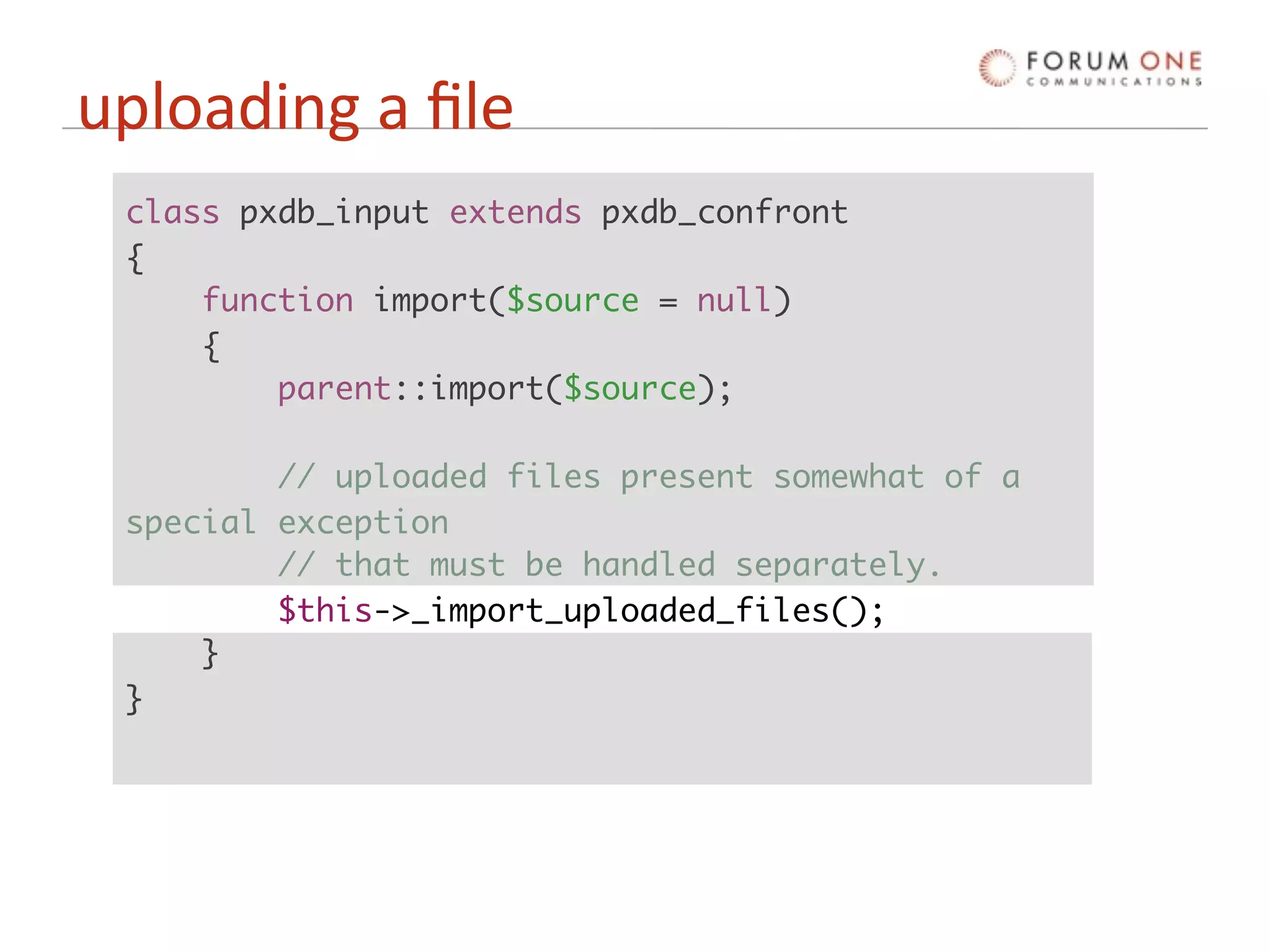

27. uploading a file
class pxdb_input extends pxdb_confront
{
function import($source = null)
{
parent::import($source);
// uploaded files present somewhat of a
special exception
// that must be handled separately.
$this->_import_uploaded_files();
}
}

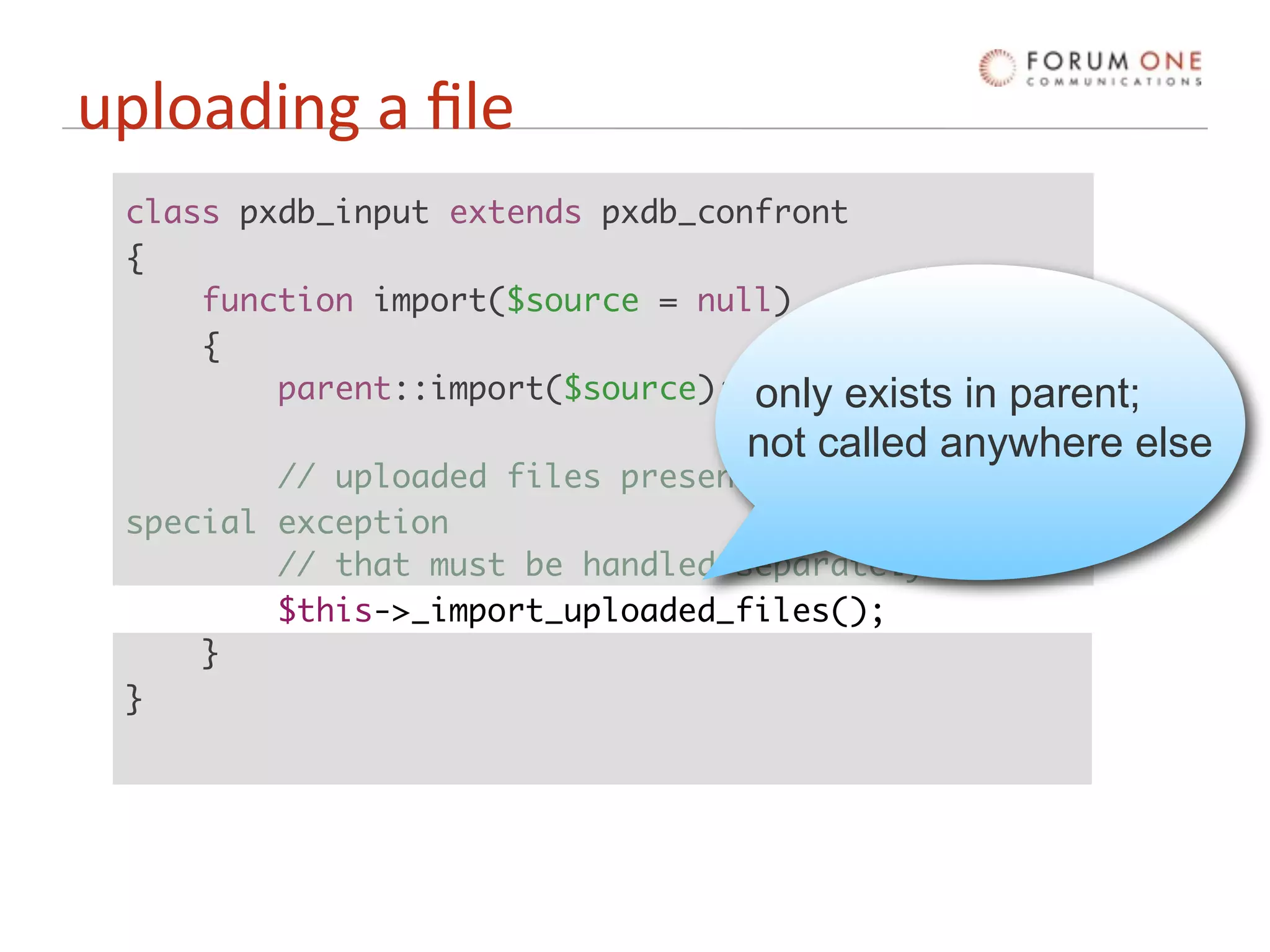

28. uploading a file
class pxdb_input extends pxdb_confront
{
function import($source = null)
{
parent::import($source); only exists in parent;
not called anywhere else
// uploaded files present somewhat of a
special exception
// that must be handled separately.
$this->_import_uploaded_files();
}
}

29. Are these really similar?

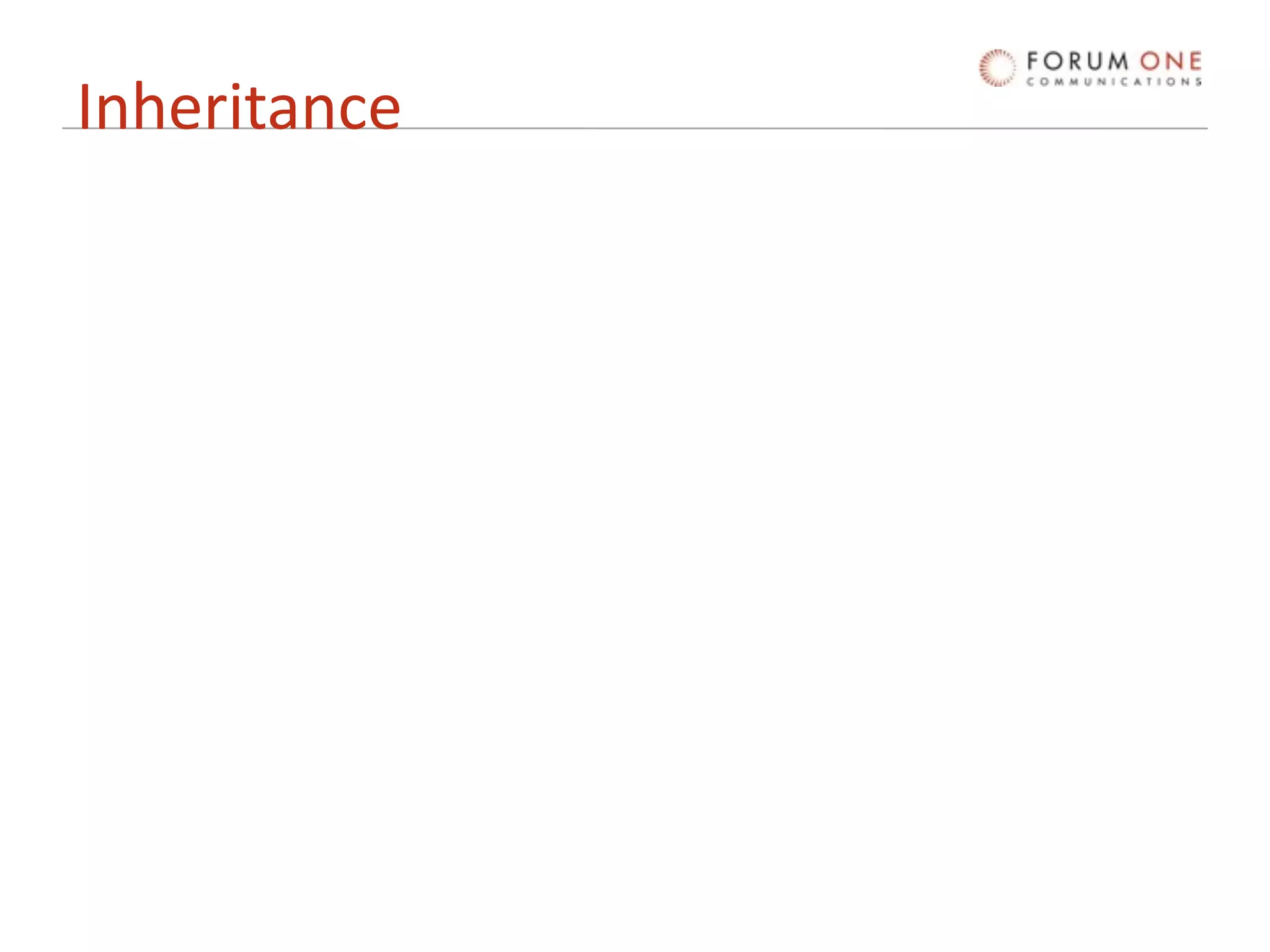

30. Inheritance

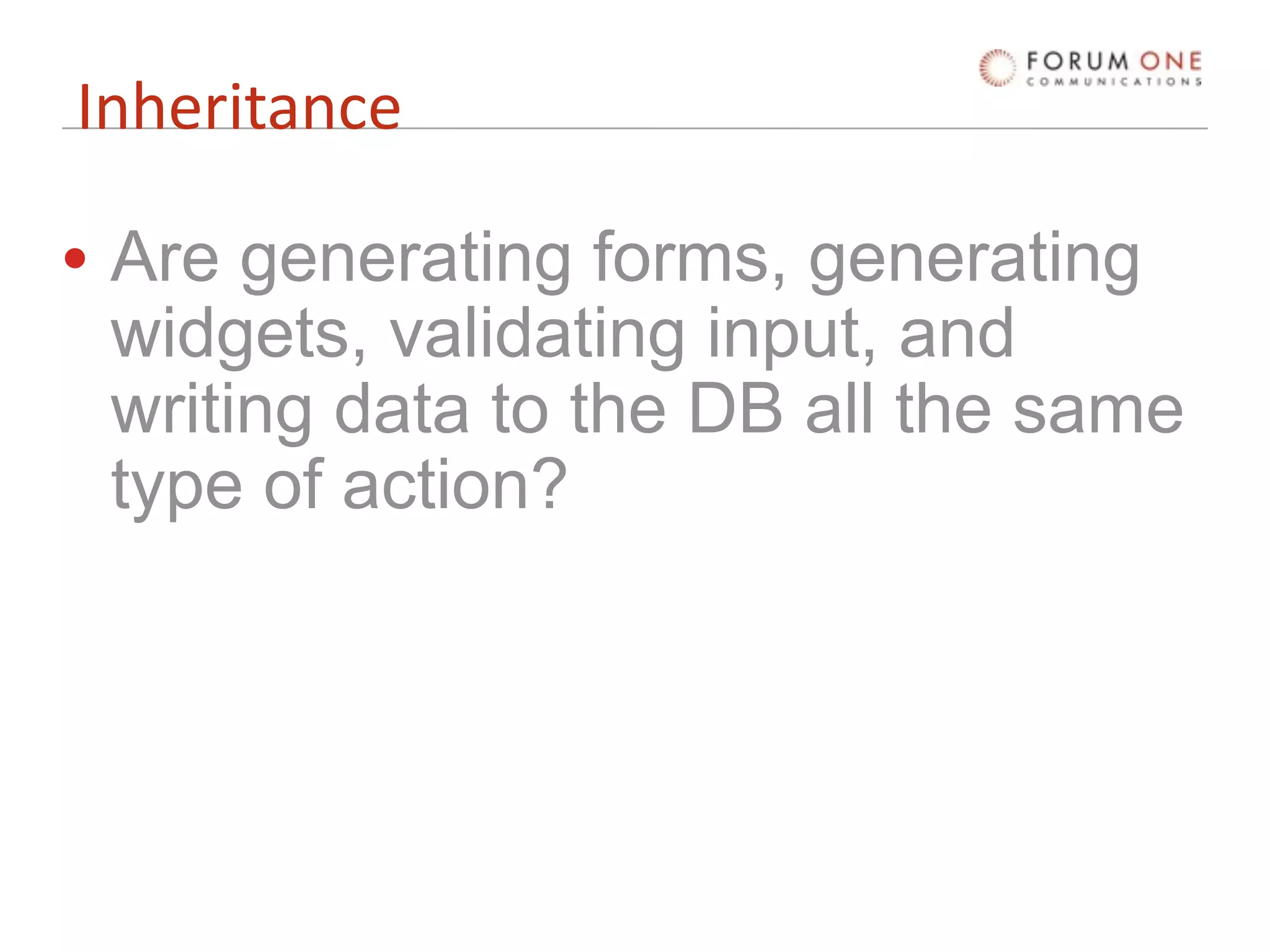

31. Inheritance
• Are generating forms, generating
widgets, validating input, and
writing data to the DB all the same
type of action?

32. Inheritance
• Are generating forms, generating
widgets, validating input, and
writing data to the DB all the same
type of action?
• They all use data, but they aren’t
data.

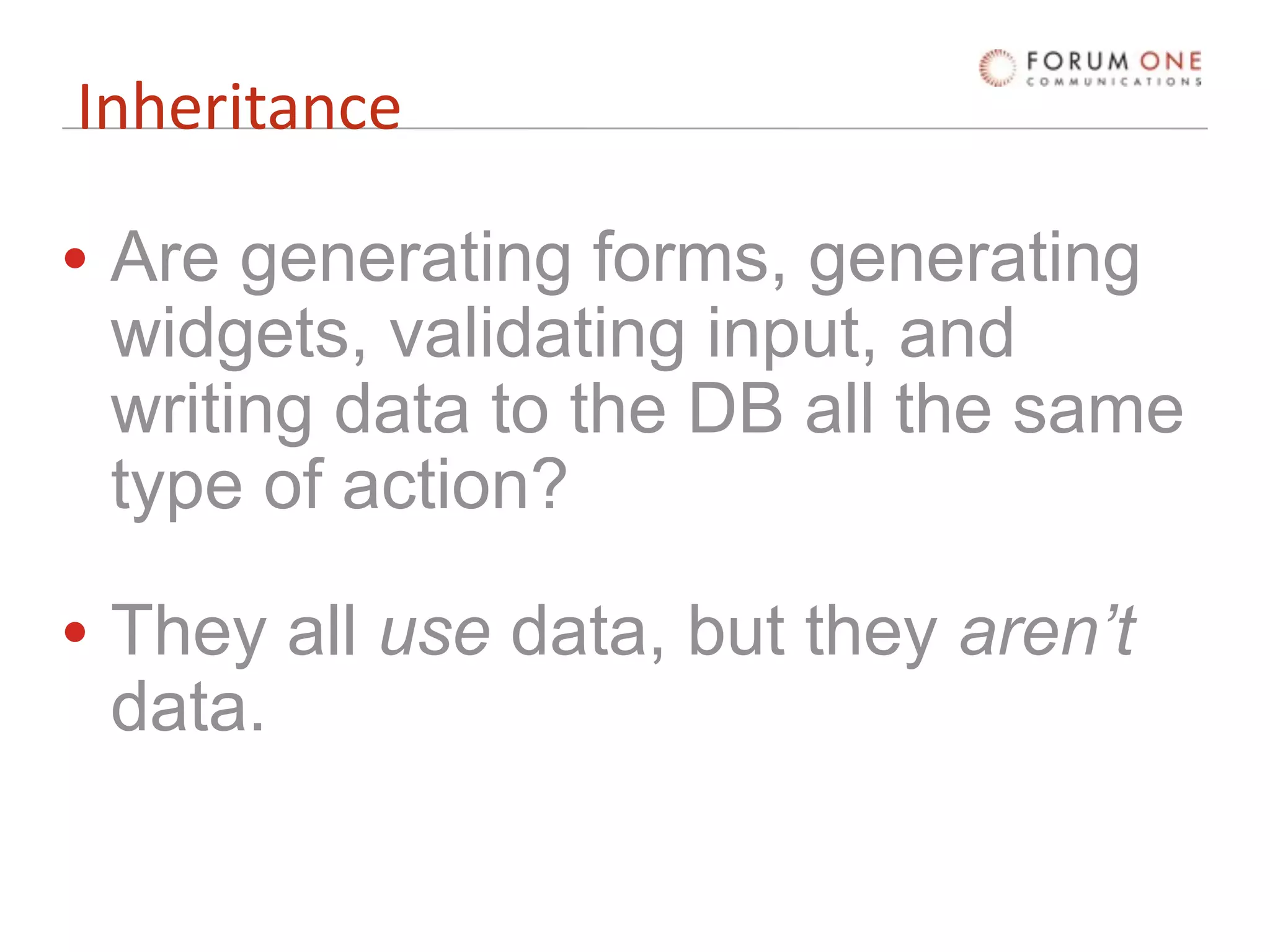

33. Inheritance
• Are generating forms, generating
widgets, validating input, and
writing data to the DB all the same
type of action?
• They all use data, but they aren’t
data.
• WTF is confront anyway?

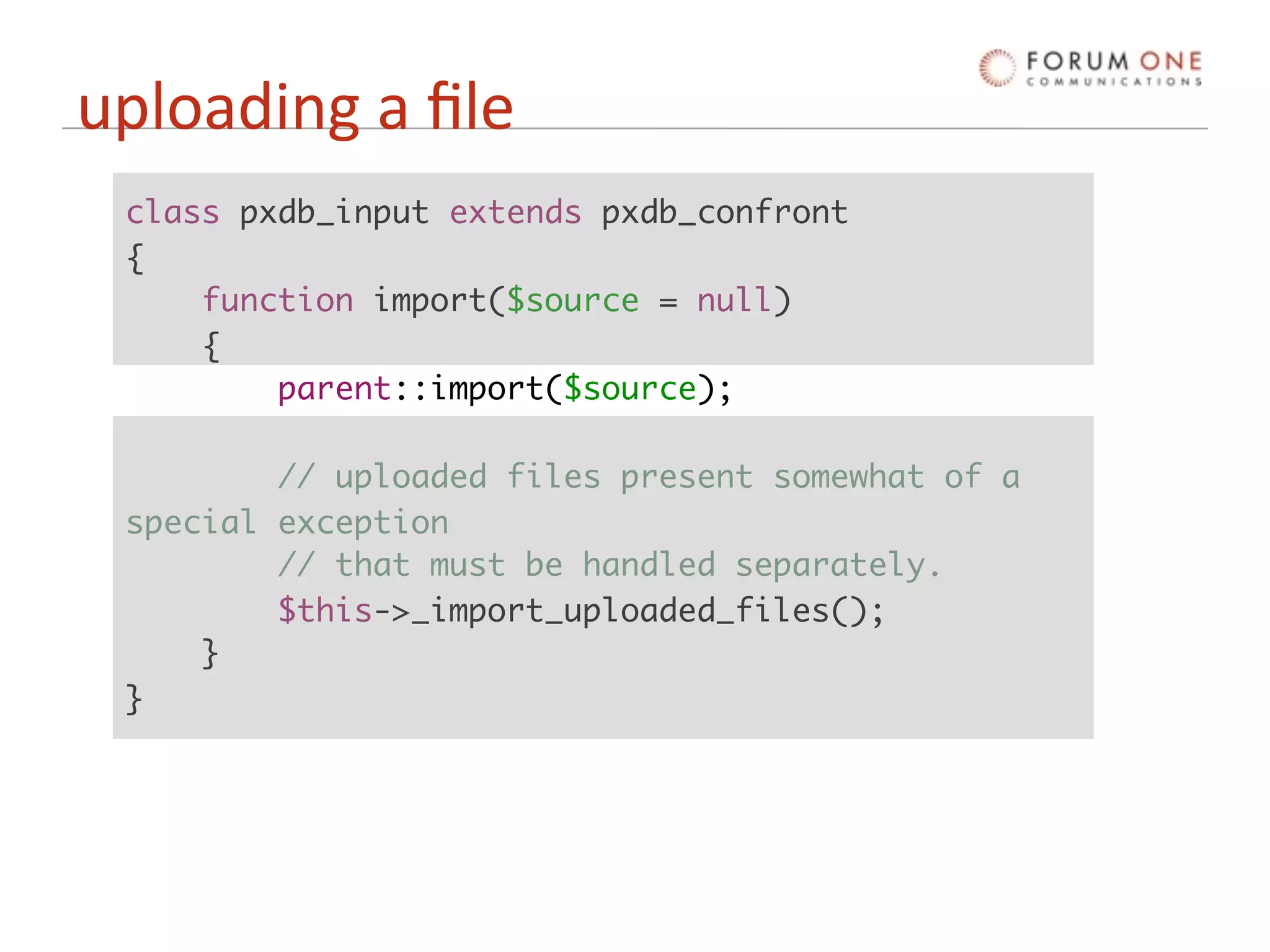

34. uploading a file
class pxdb_input extends pxdb_confront
{
function import($source = null)
{
parent::import($source);
// uploaded files present somewhat of a
special exception
// that must be handled separately.
$this->_import_uploaded_files();
}
}

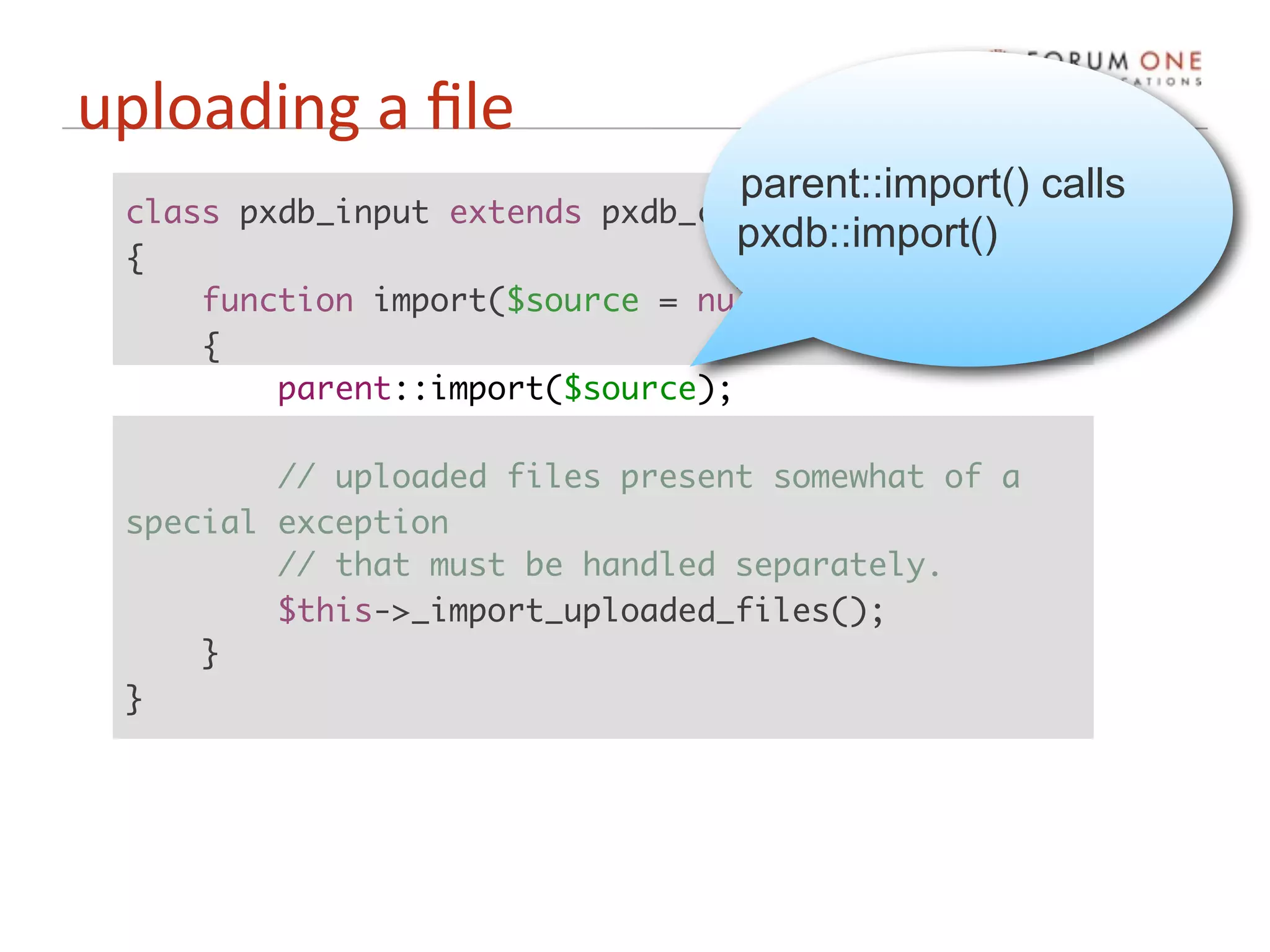

35. uploading a file
parent::import() calls
class pxdb_input extends pxdb_confront
pxdb::import()
{
function import($source = null)
{
parent::import($source);
// uploaded files present somewhat of a
special exception
// that must be handled separately.
$this->_import_uploaded_files();
}
}

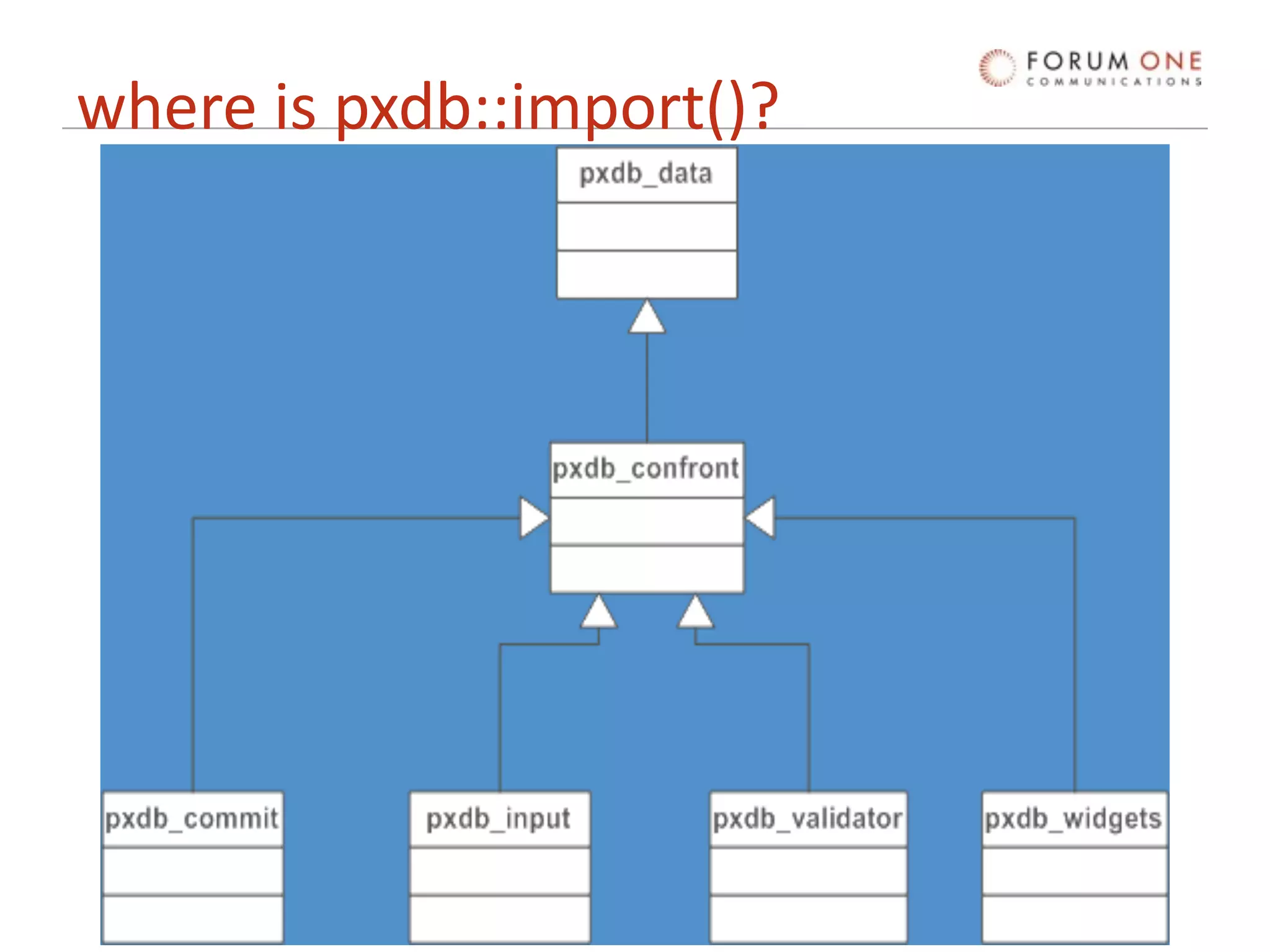

36. where is pxdb::import()?

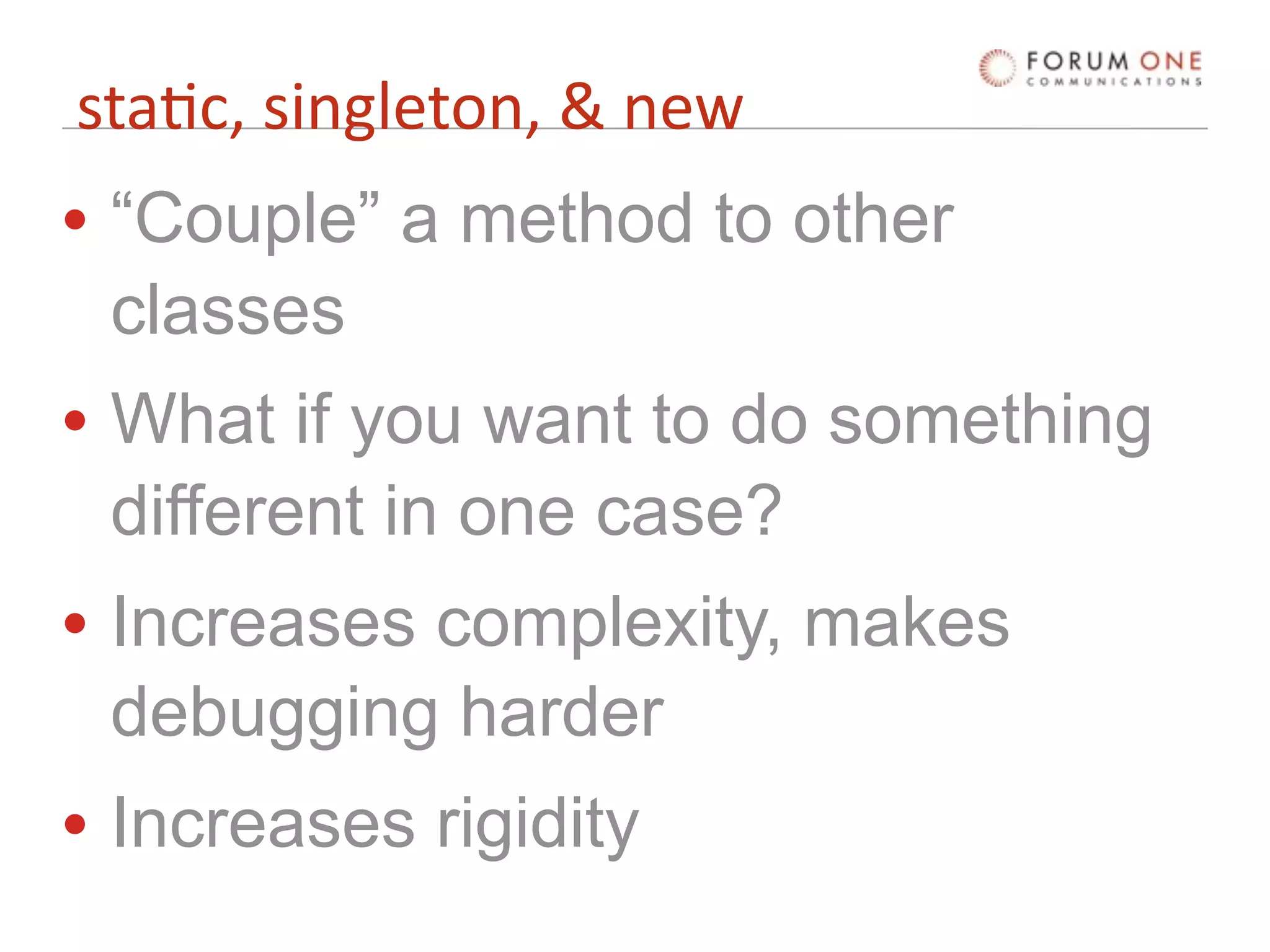

37. sta'c, singleton, & new
• “Couple” a method to other
classes
• What if you want to do something
different in one case?
• Increases complexity, makes
debugging harder
• Increases rigidity

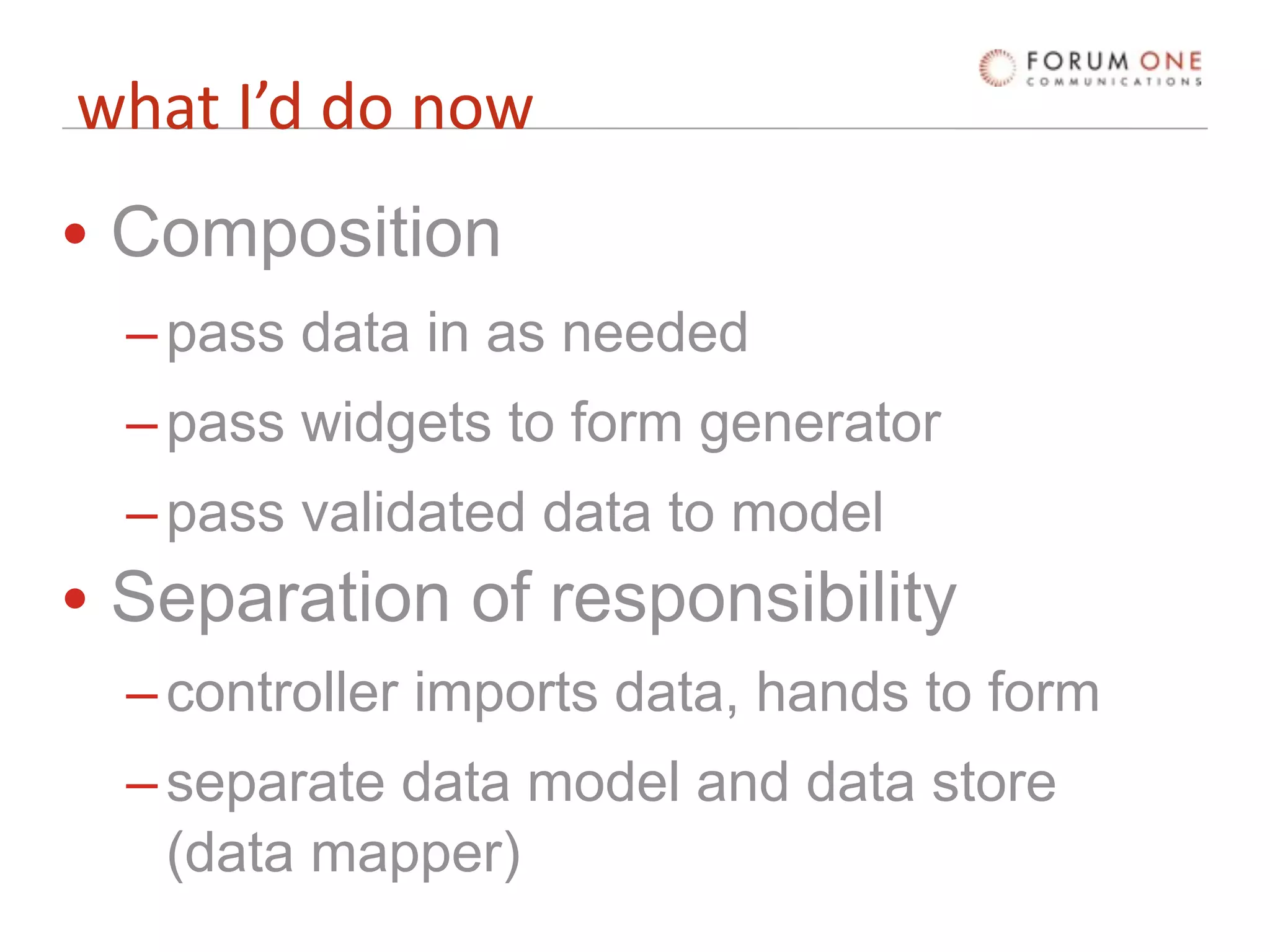

38. what I’d do now
• Composition
– pass data in as needed
– pass widgets to form generator
– pass validated data to model
• Separation of responsibility
– controller imports data, hands to form
– separate data model and data store
(data mapper)

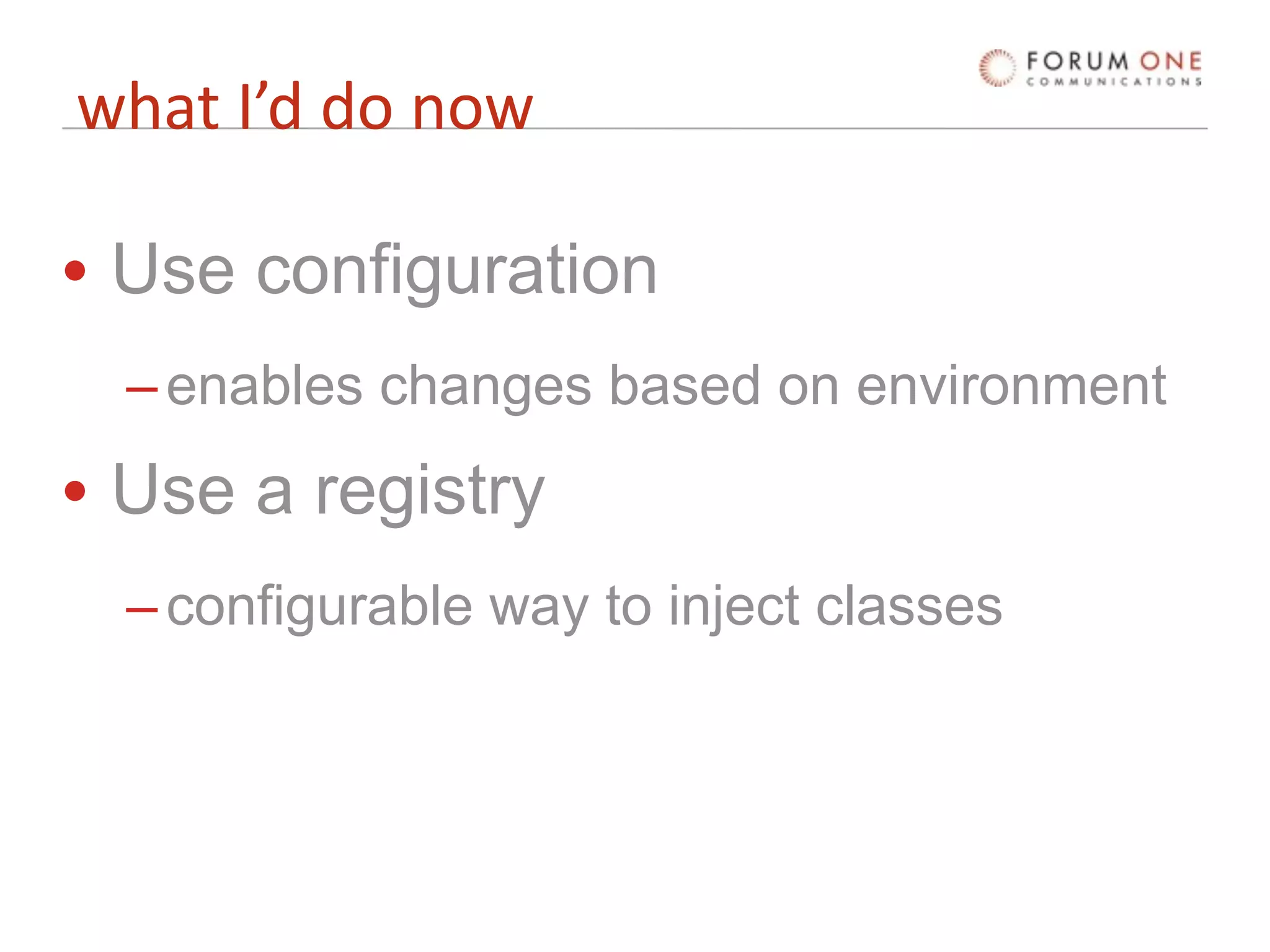

39. what I’d do now
• Use configuration
– enables changes based on environment
• Use a registry
– configurable way to inject classes

40. lesson 5:
cheap & easy hierarchies

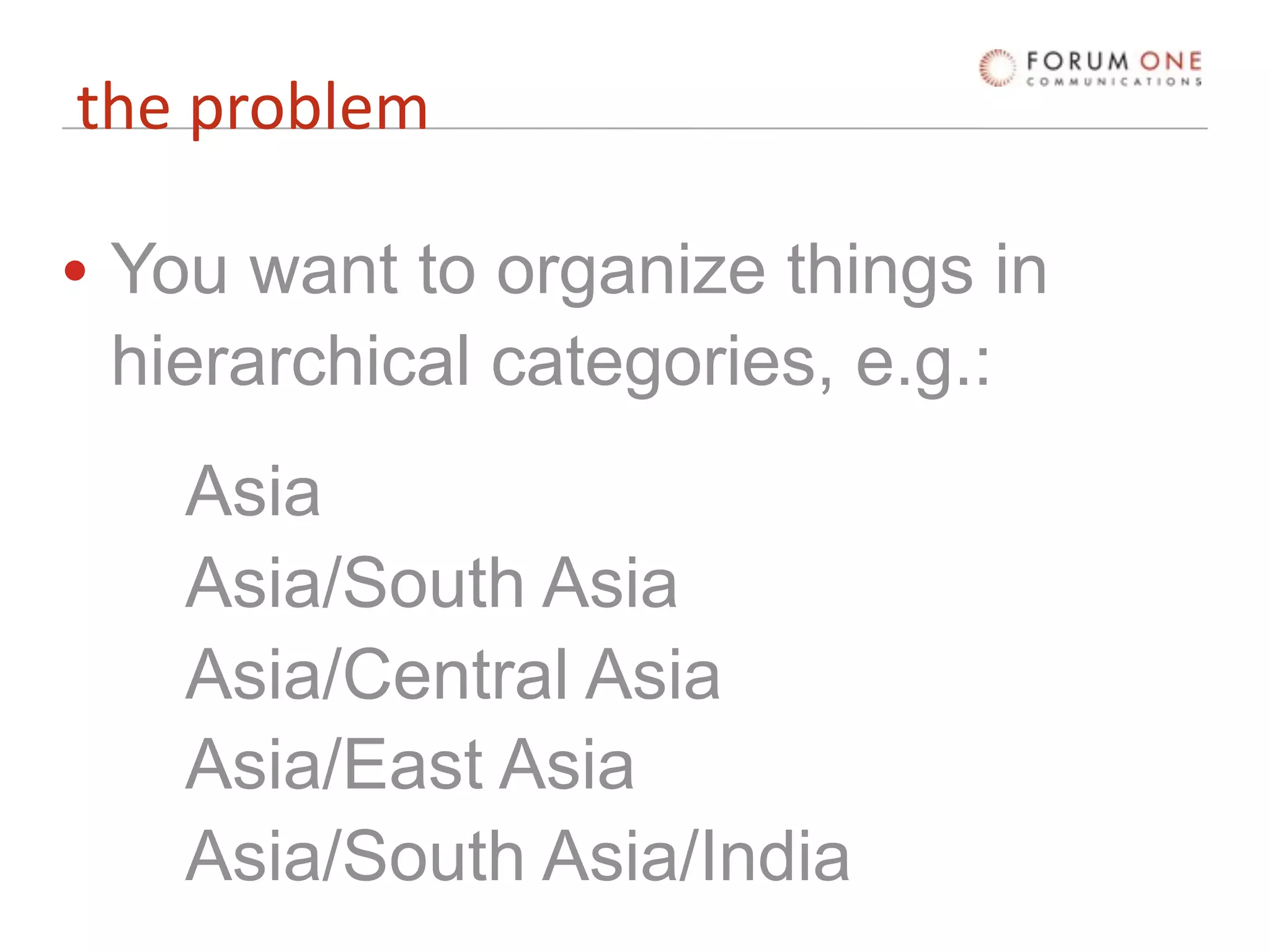

41. the problem
• You want to organize things in
hierarchical categories, e.g.:
Asia
Asia/South Asia
Asia/Central Asia
Asia/East Asia
Asia/South Asia/India

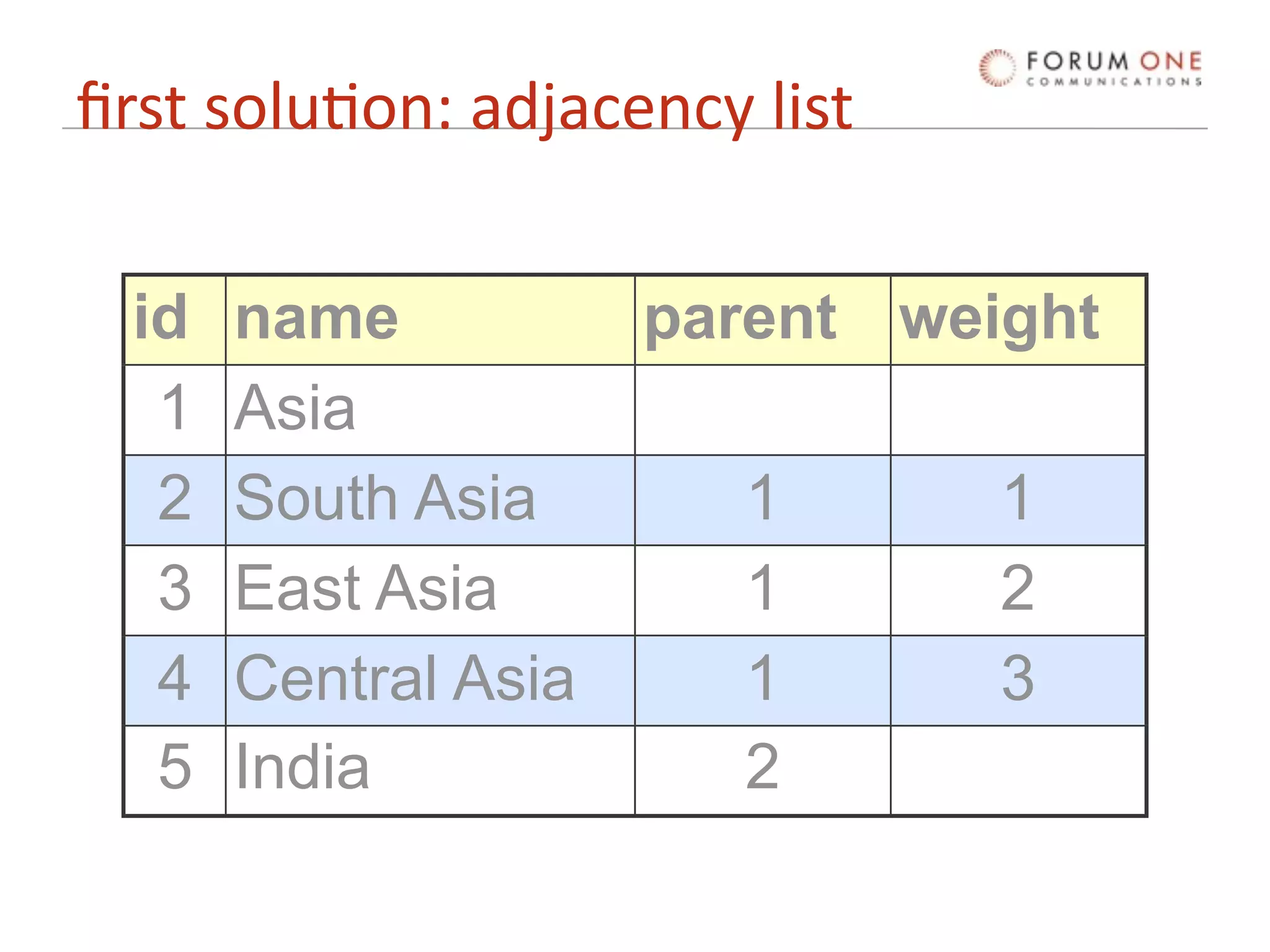

42. first solu'on: adjacency list
id name parent weight
1 Asia
2 South Asia 1 1
3 East Asia 1 2
4 Central Asia 1 3
5 India 2

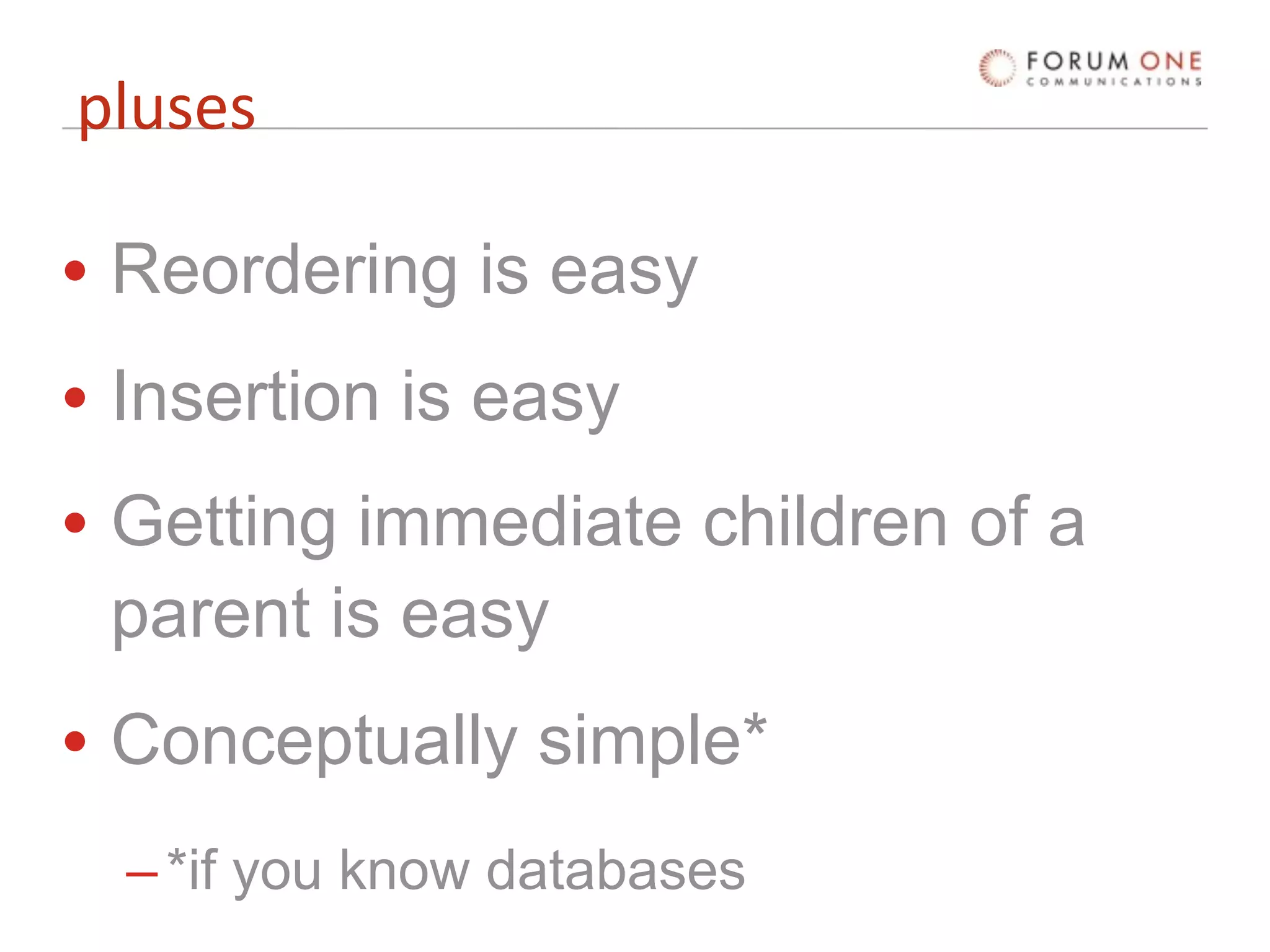

43. pluses
• Reordering is easy
• Insertion is easy
• Getting immediate children of a
parent is easy
• Conceptually simple*
– *if you know databases

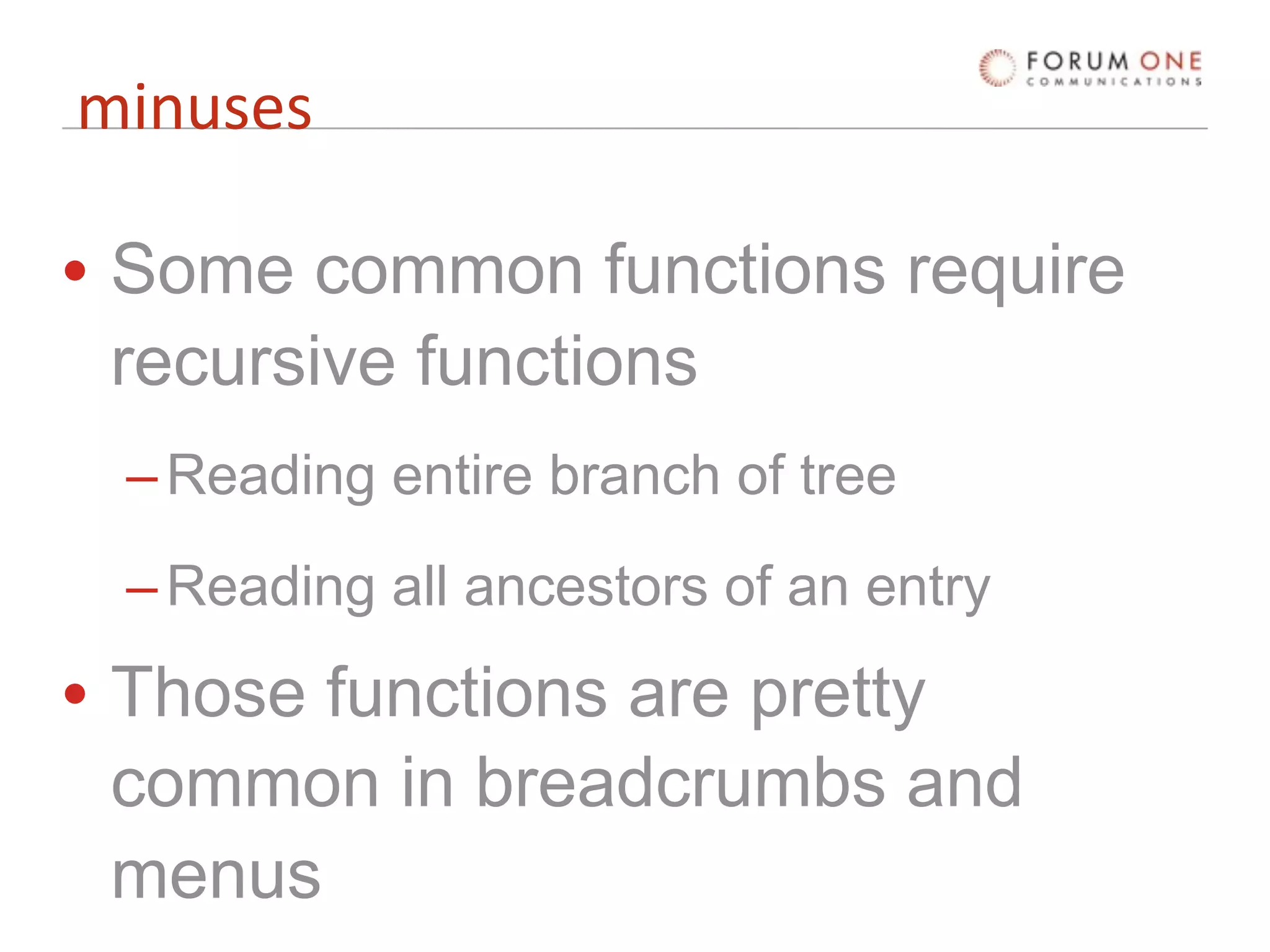

44. minuses
• Some common functions require
recursive functions
– Reading entire branch of tree
– Reading all ancestors of an entry
• Those functions are pretty
common in breadcrumbs and
menus

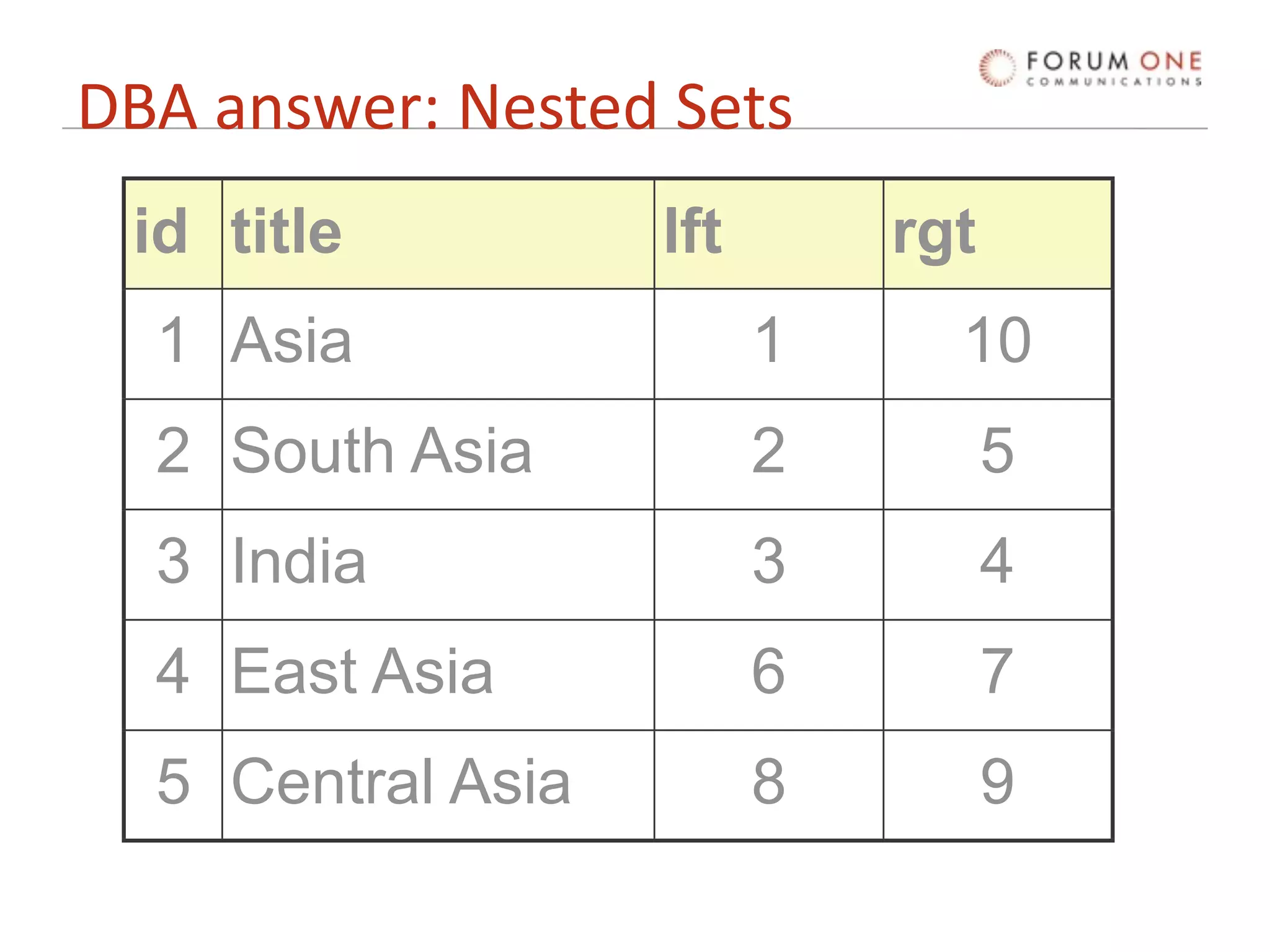

45. DBA answer: Nested Sets
id title lft rgt
1 Asia 1 10
2 South Asia 2 5
3 India 3 4
4 East Asia 6 7
5 Central Asia 8 9

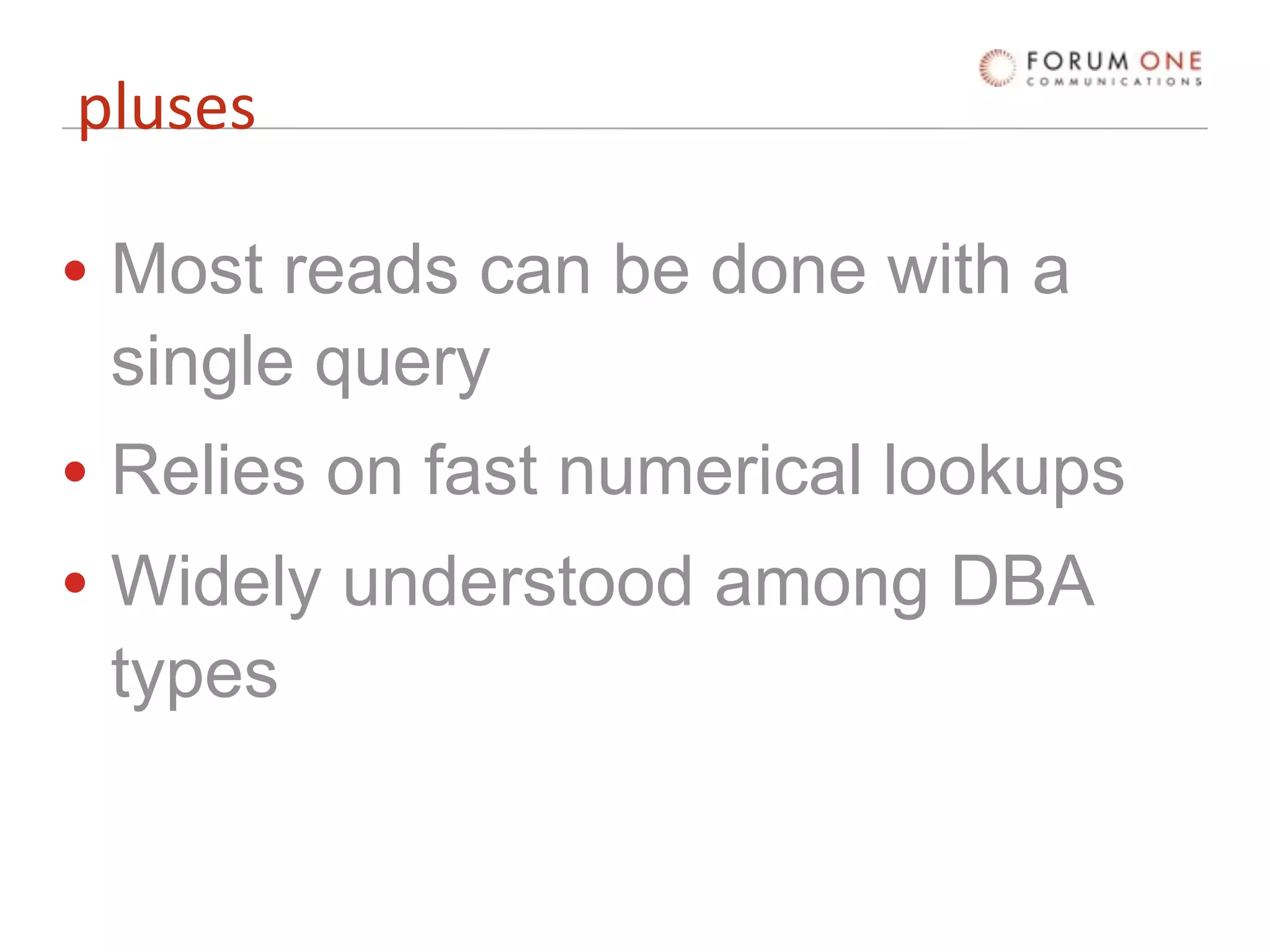

46. pluses
• Most reads can be done with a
single query
• Relies on fast numerical lookups
• Widely understood among DBA
types

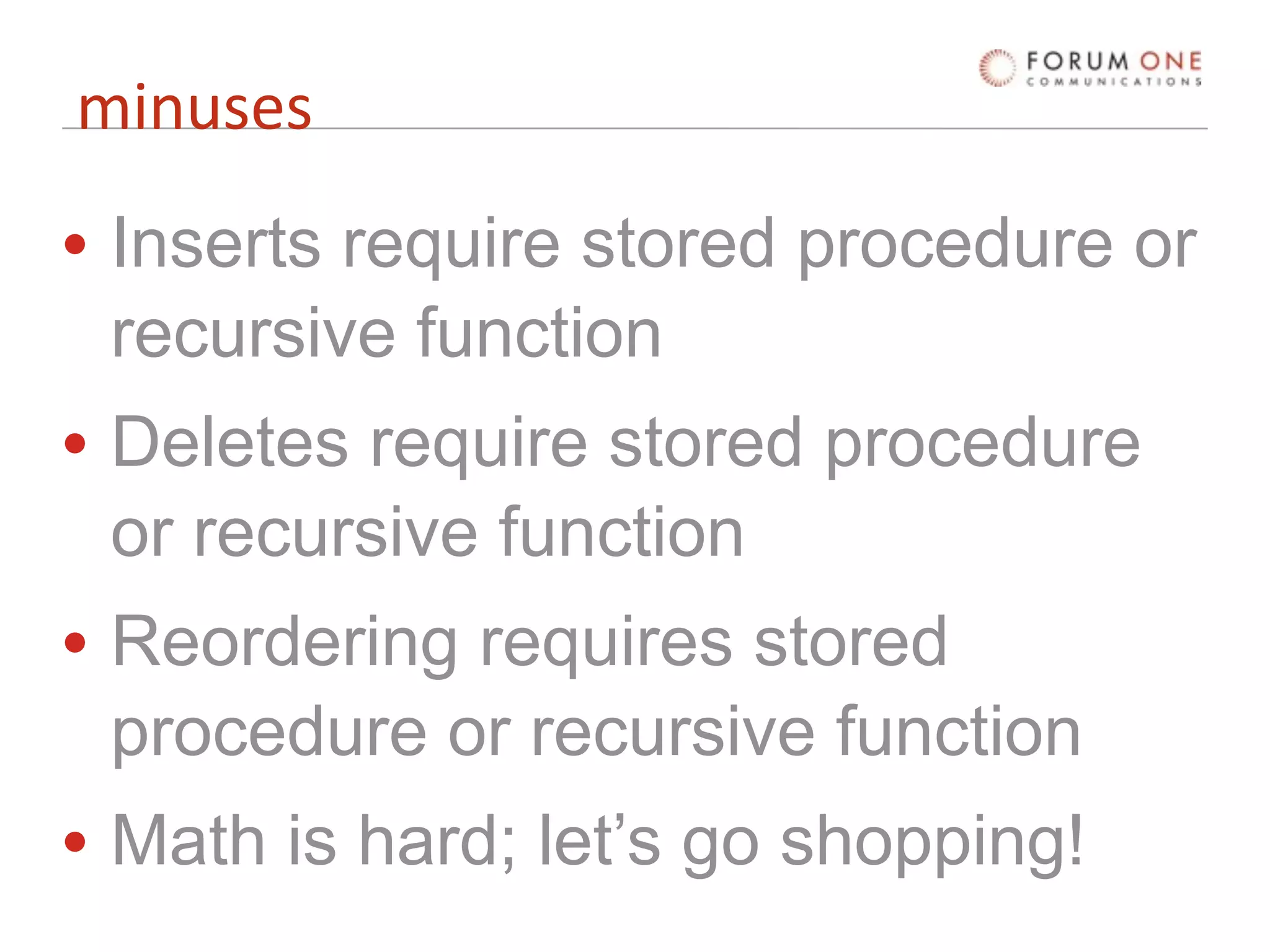

47. minuses
• Inserts require stored procedure or
recursive function
• Deletes require stored procedure
or recursive function
• Reordering requires stored
procedure or recursive function
• Math is hard; let’s go shopping!

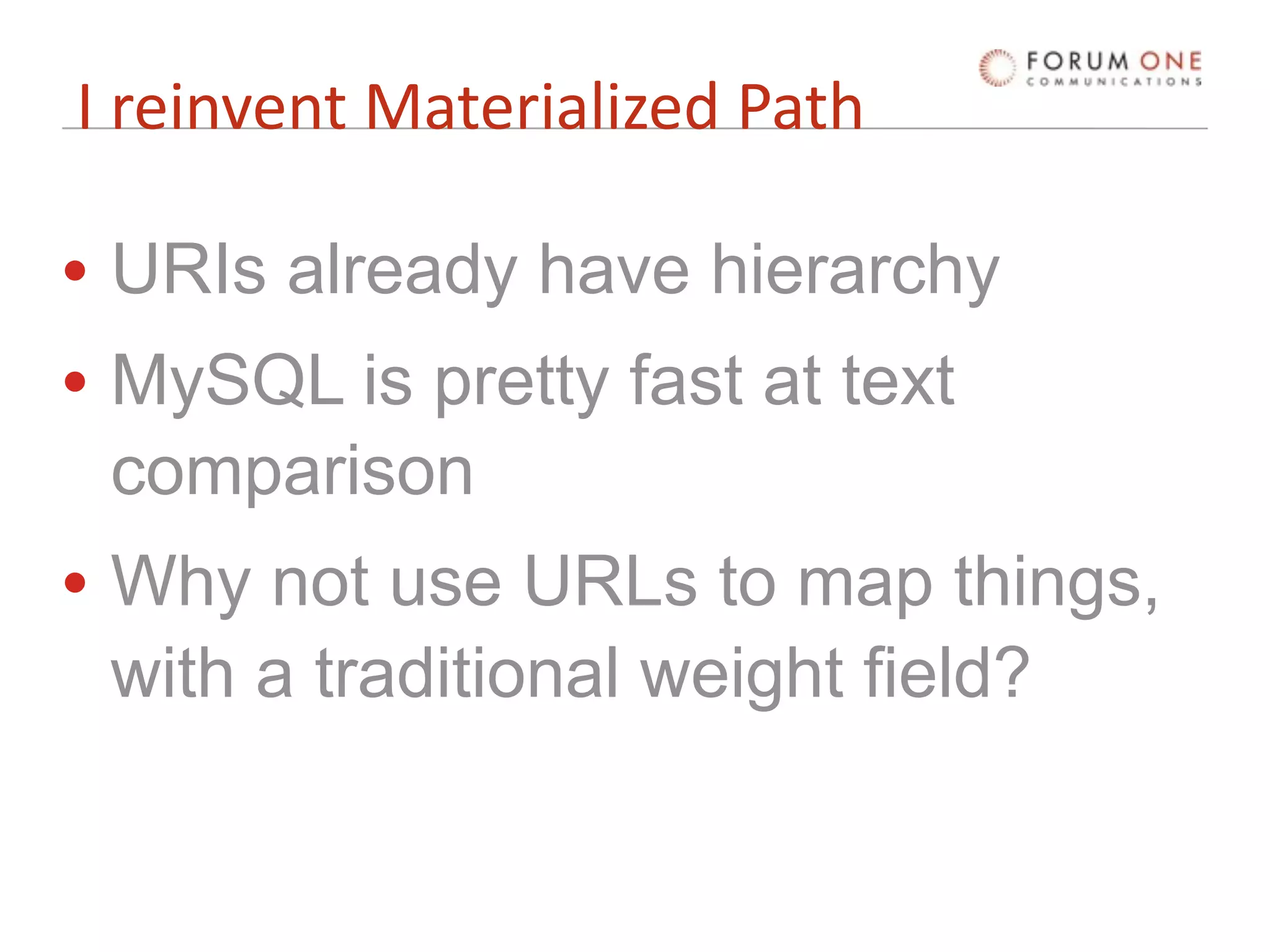

48. I reinvent Materialized Path
• URIs already have hierarchy
• MySQL is pretty fast at text
comparison
• Why not use URLs to map things,
with a traditional weight field?

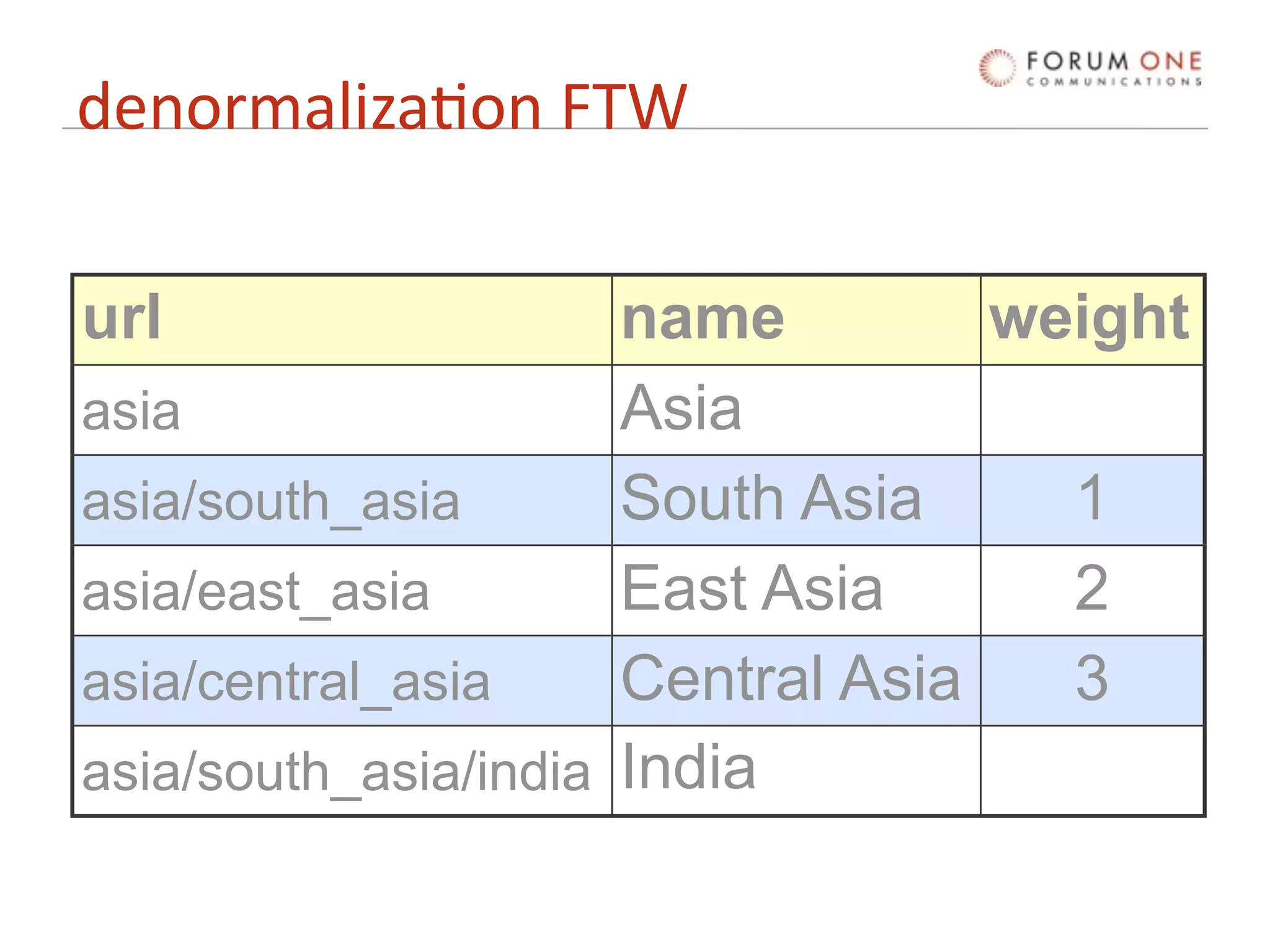

49. denormaliza'on FTW
url name weight
asia Asia
asia/south_asia South Asia 1
asia/east_asia East Asia 2
asia/central_asia Central Asia 3
asia/south_asia/india India

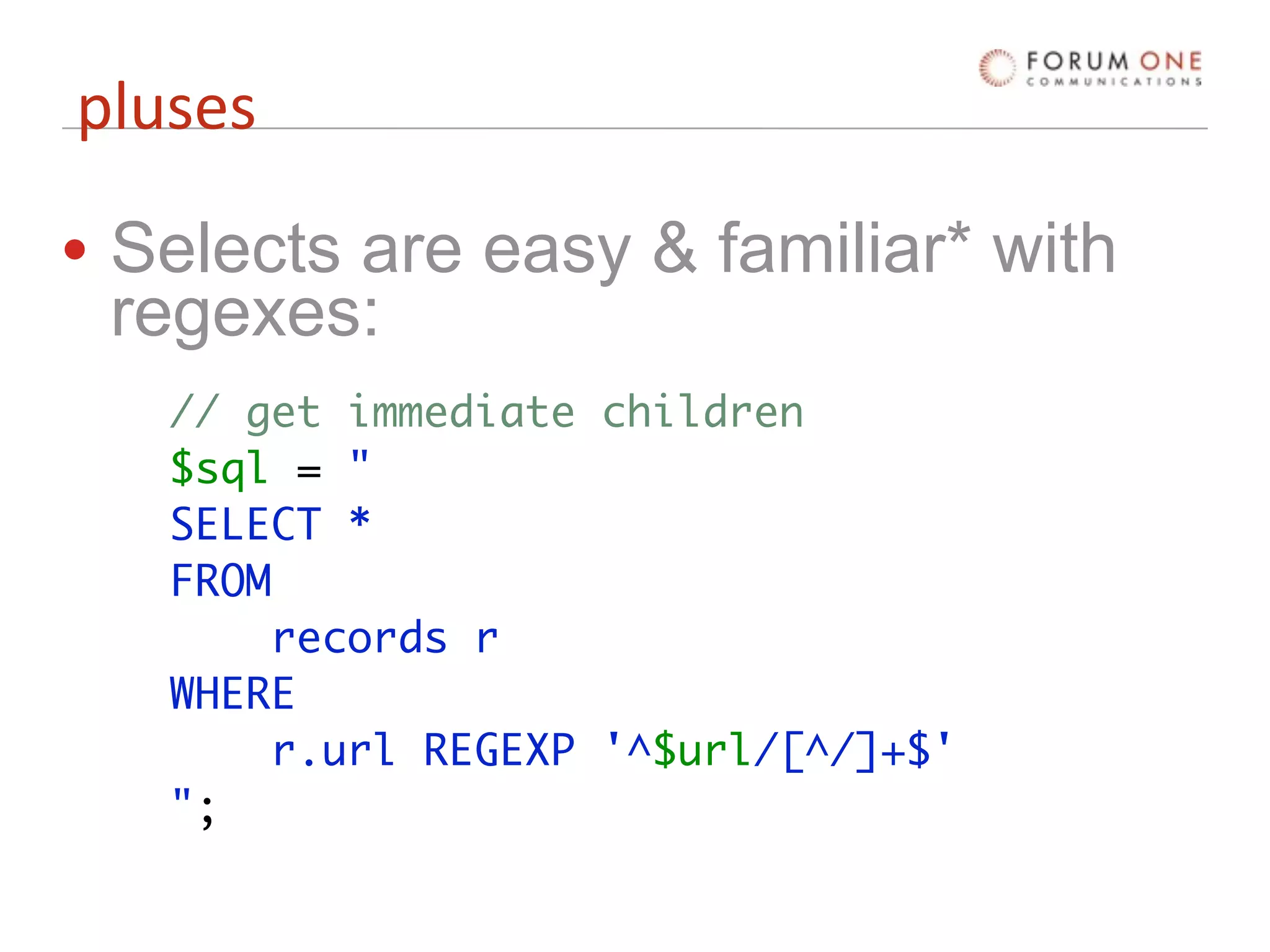

50. pluses
• Selects are easy & familiar* with
regexes:
// get immediate children
$sql = "
SELECT *
FROM
records r
WHERE
r.url REGEXP '^$url/[^/]+$'
";

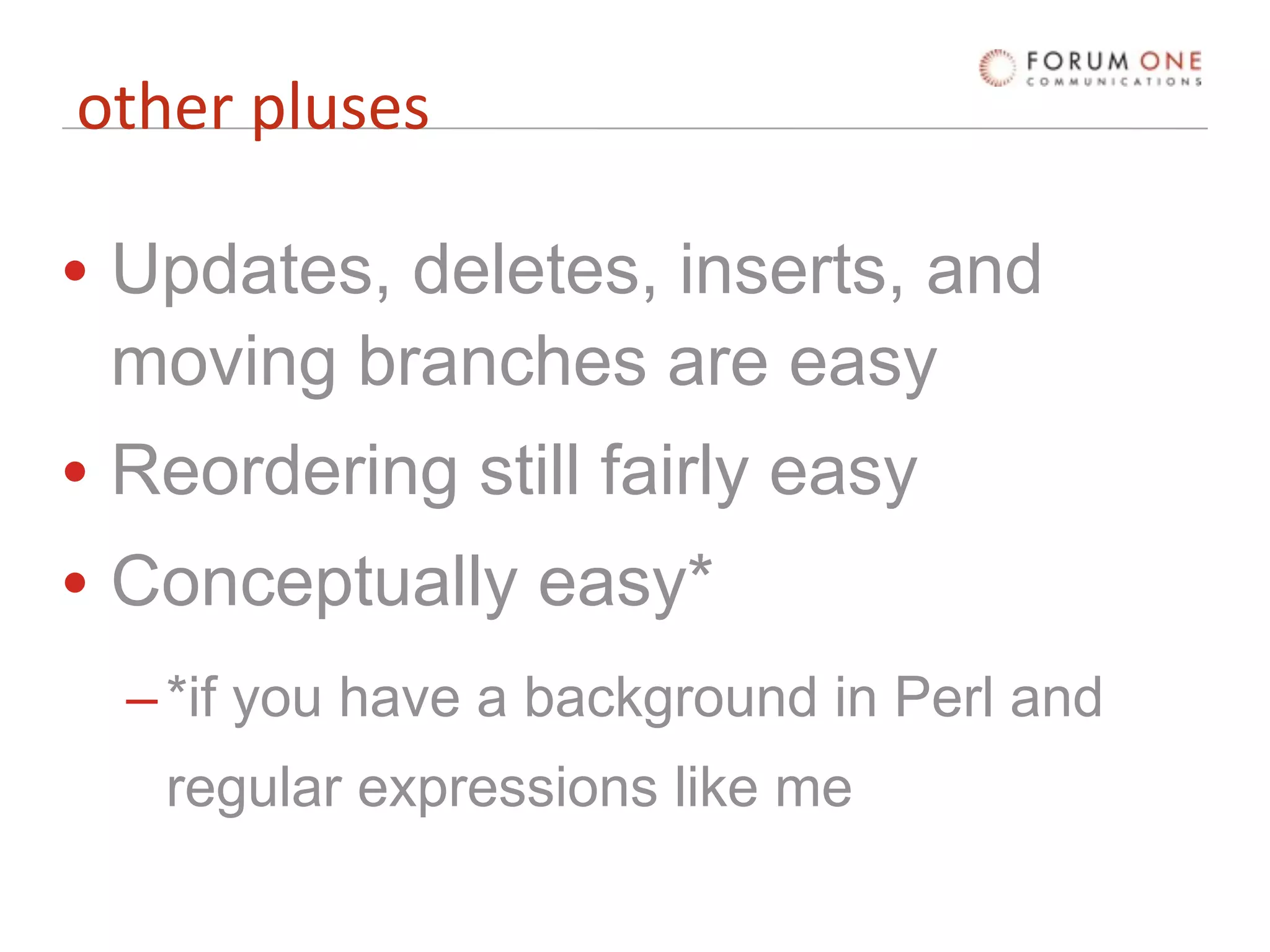

51. other pluses
• Updates, deletes, inserts, and
moving branches are easy
• Reordering still fairly easy
• Conceptually easy*
– *if you have a background in Perl and
regular expressions like me

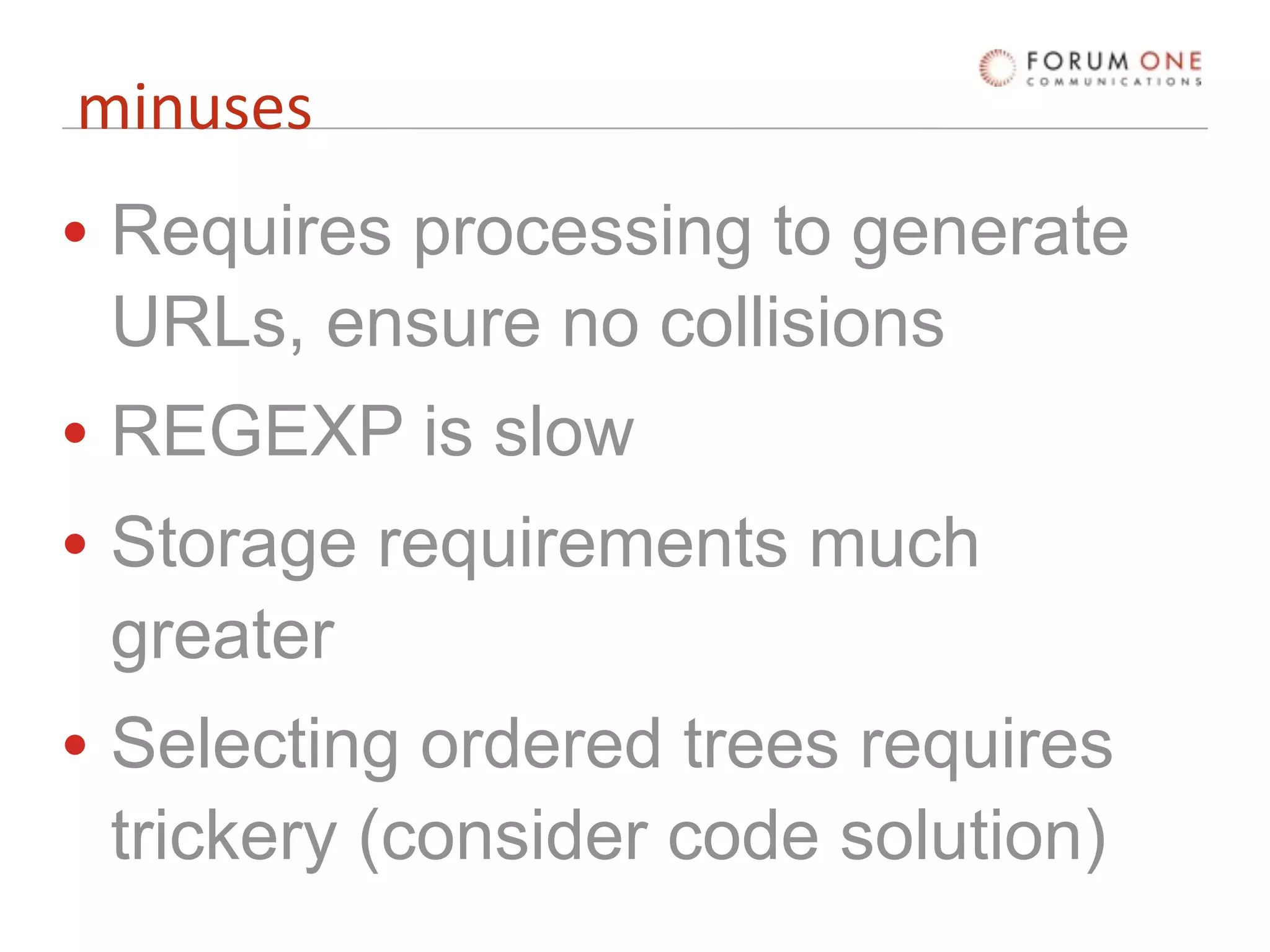

52. minuses
• Requires processing to generate
URLs, ensure no collisions
• REGEXP is slow
• Storage requirements much
greater
• Selecting ordered trees requires
trickery (consider code solution)

53. Lesson 7: Measure Everything
lesson 6:
measure twice, cut once

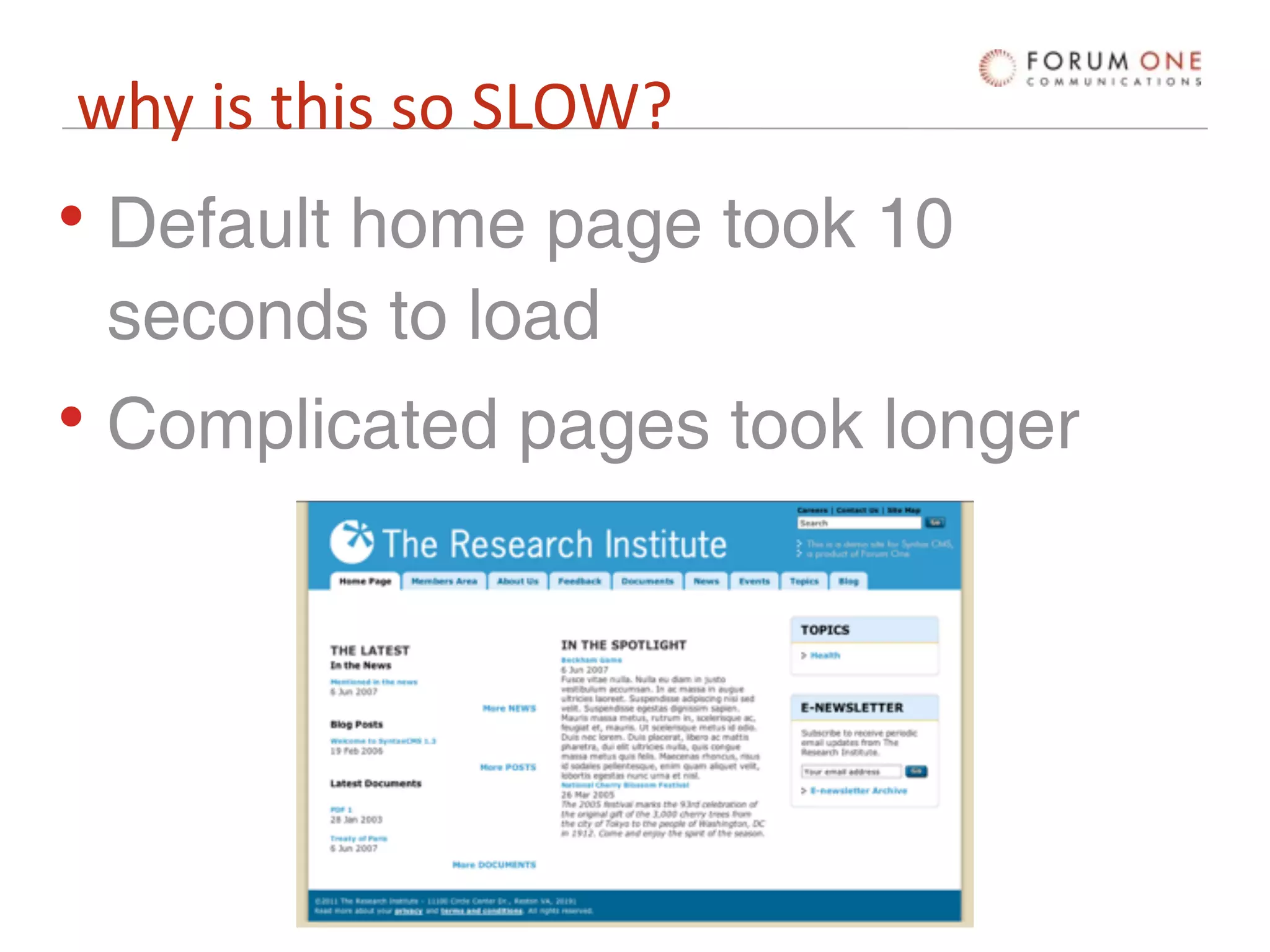

54. why is this so SLOW?
• Default home page took 10
seconds to load
• Complicated pages took longer

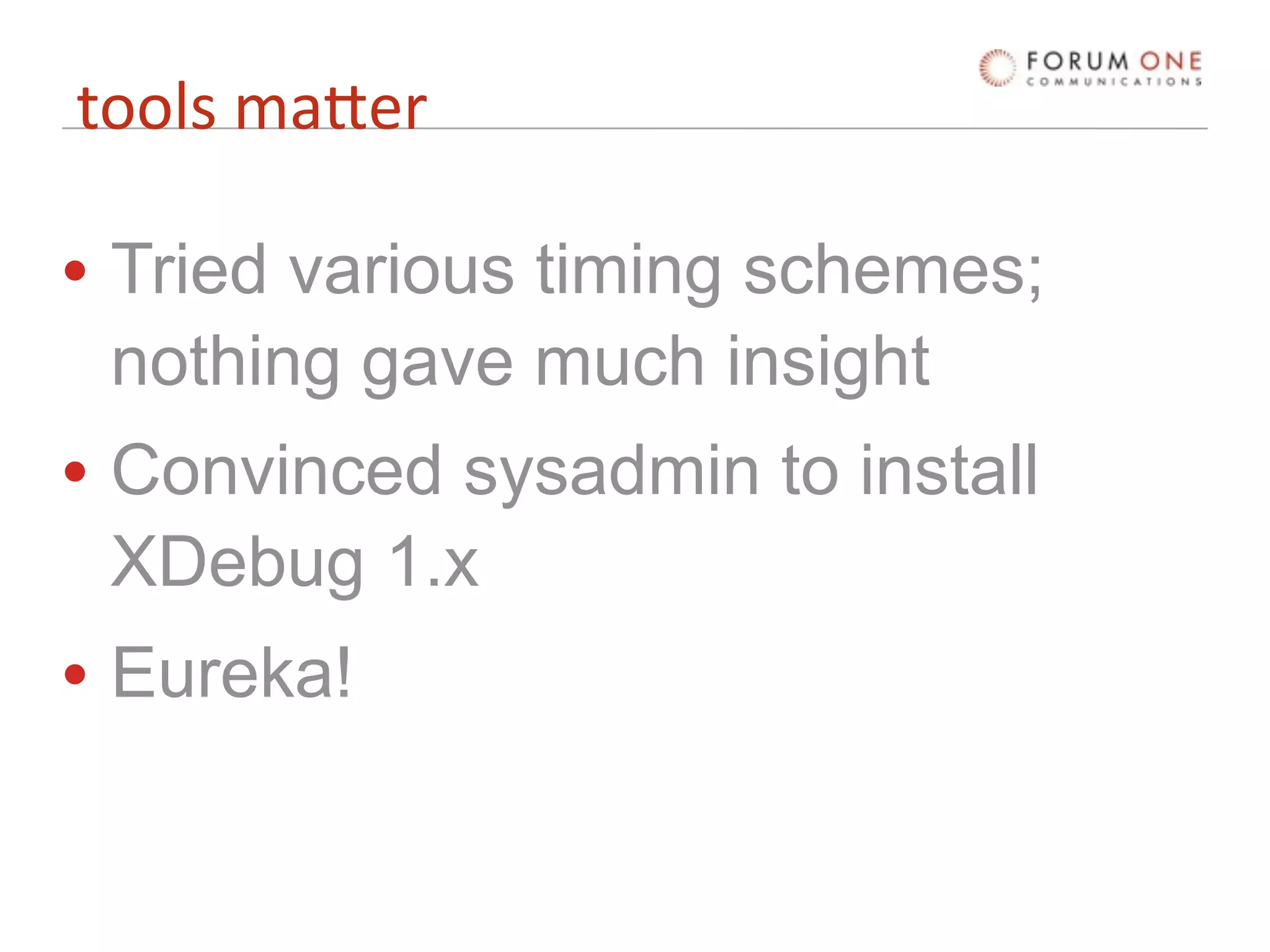

55. tools maLer
• Tried various timing schemes;
nothing gave much insight
• Convinced sysadmin to install
XDebug 1.x
• Eureka!

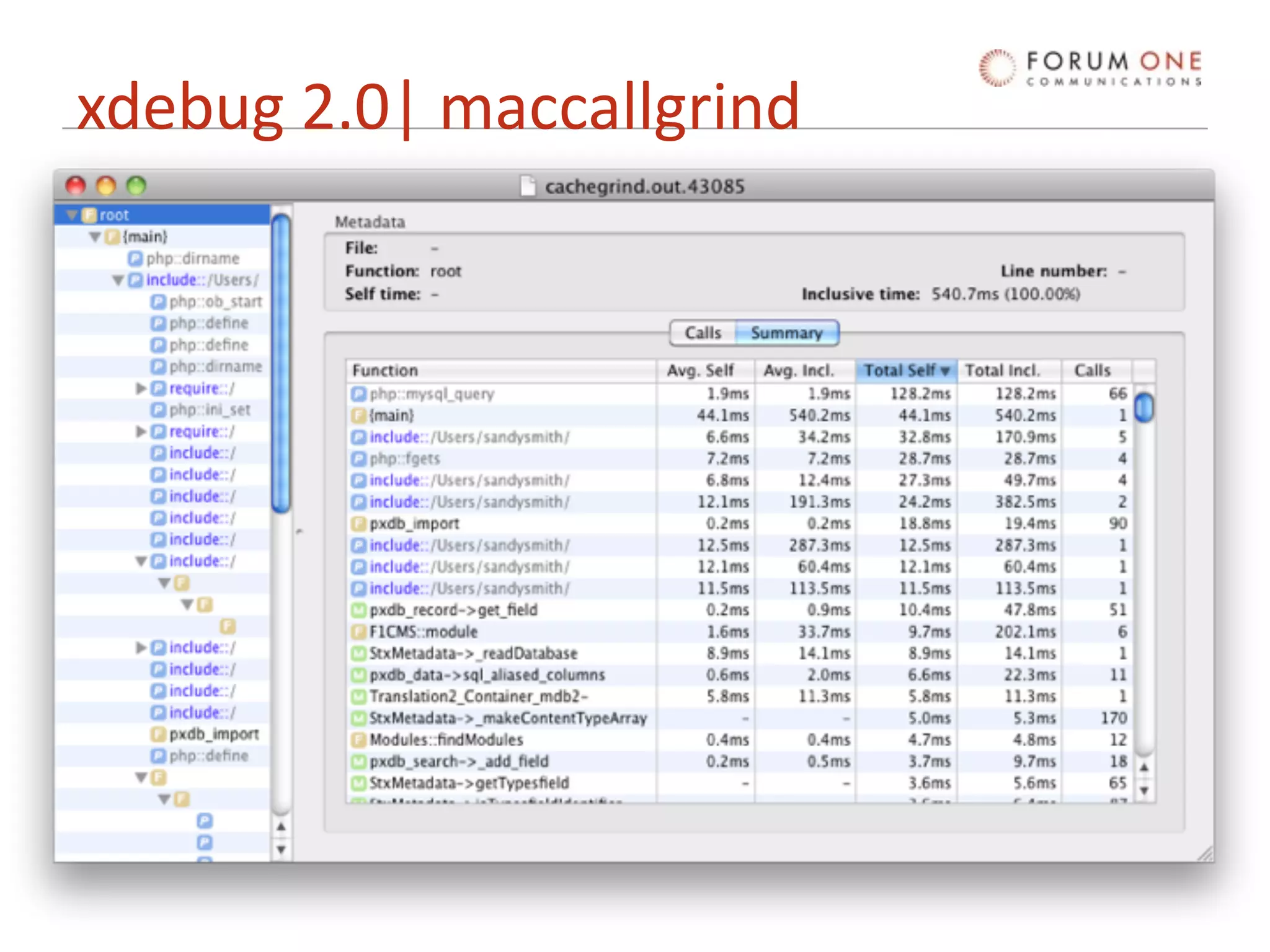

56. xdebug 2.0| maccallgrind

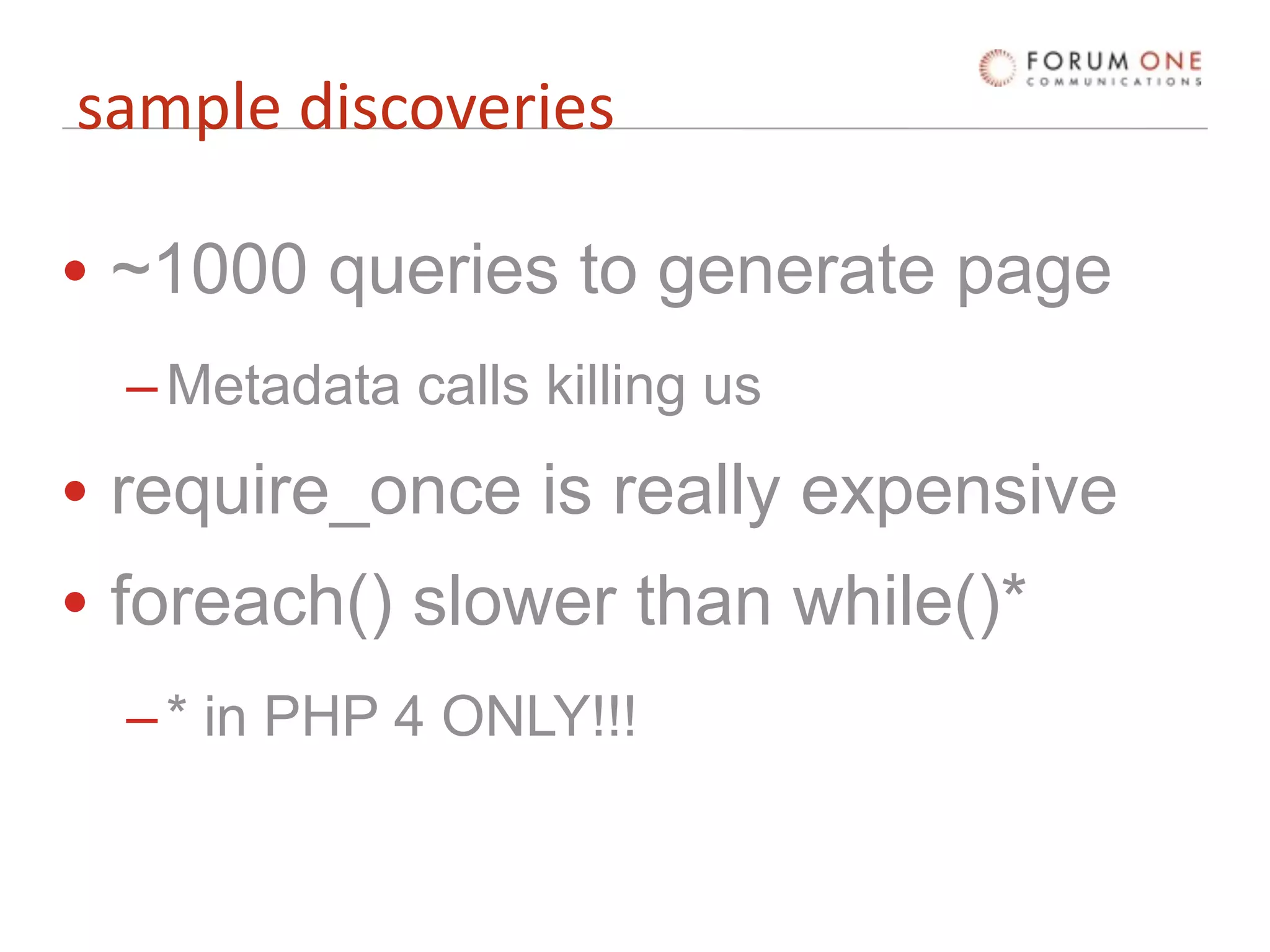

57. sample discoveries
• ~1000 queries to generate page
– Metadata calls killing us
• require_once is really expensive
• foreach() slower than while()*
– * in PHP 4 ONLY!!!

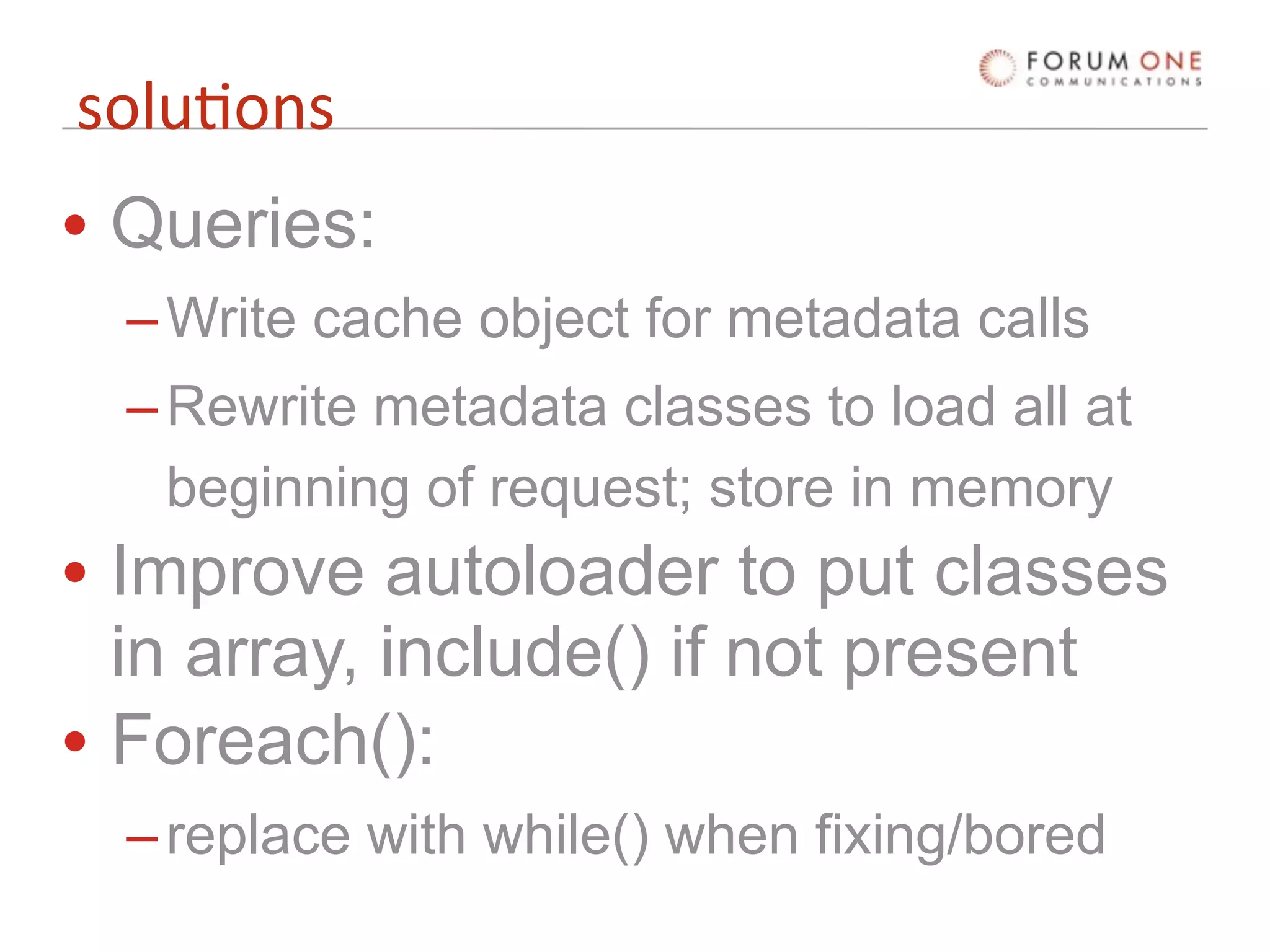

58. solu'ons
• Queries:
– Write cache object for metadata calls
– Rewrite metadata classes to load all at
beginning of request; store in memory
• Improve autoloader to put classes
in array, include() if not present
• Foreach():
– replace with while() when fixing/bored

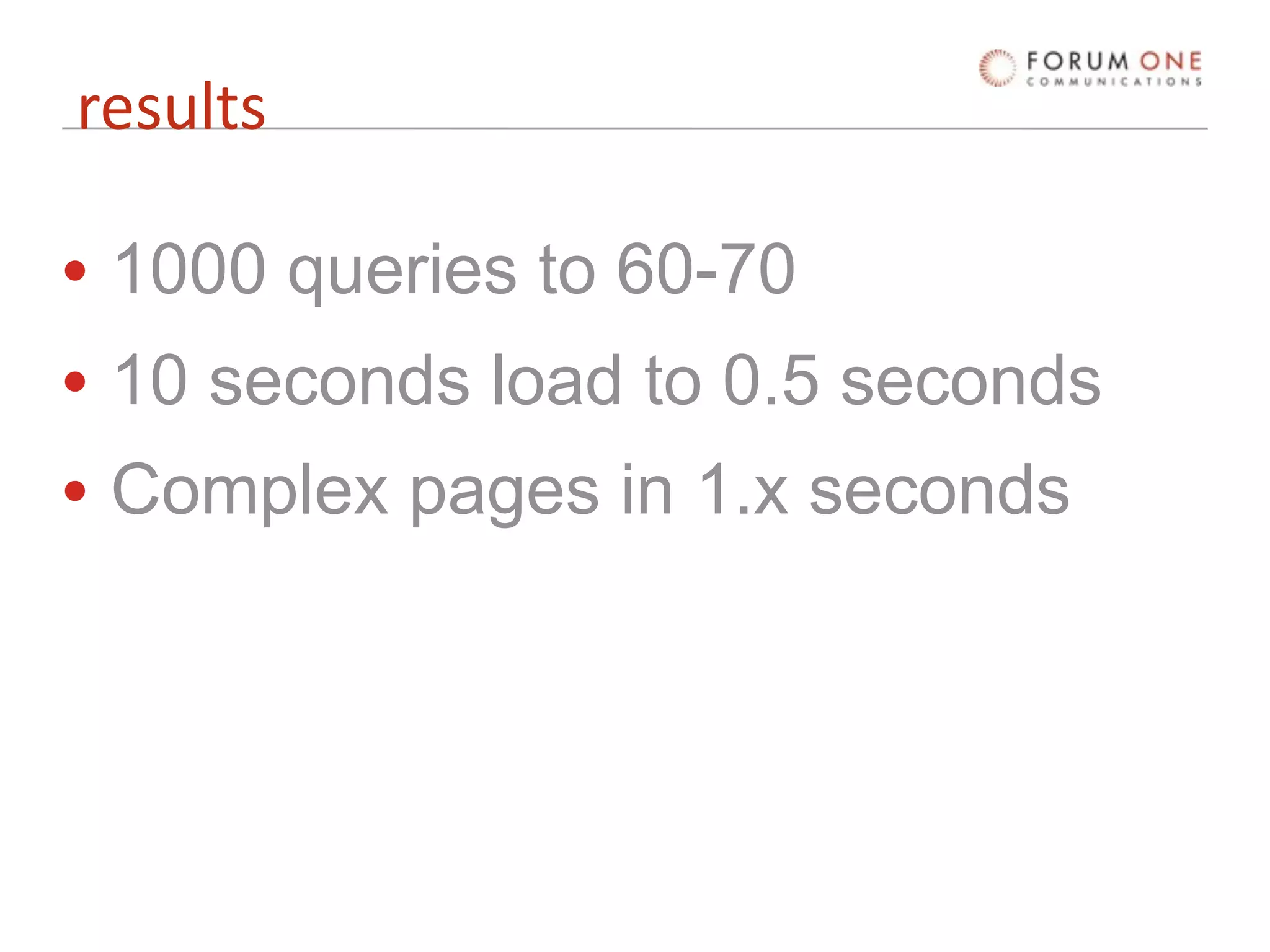

59. results
• 1000 queries to 60-70
• 10 seconds load to 0.5 seconds
• Complex pages in 1.x seconds

60. lesson review:
what have we learned?

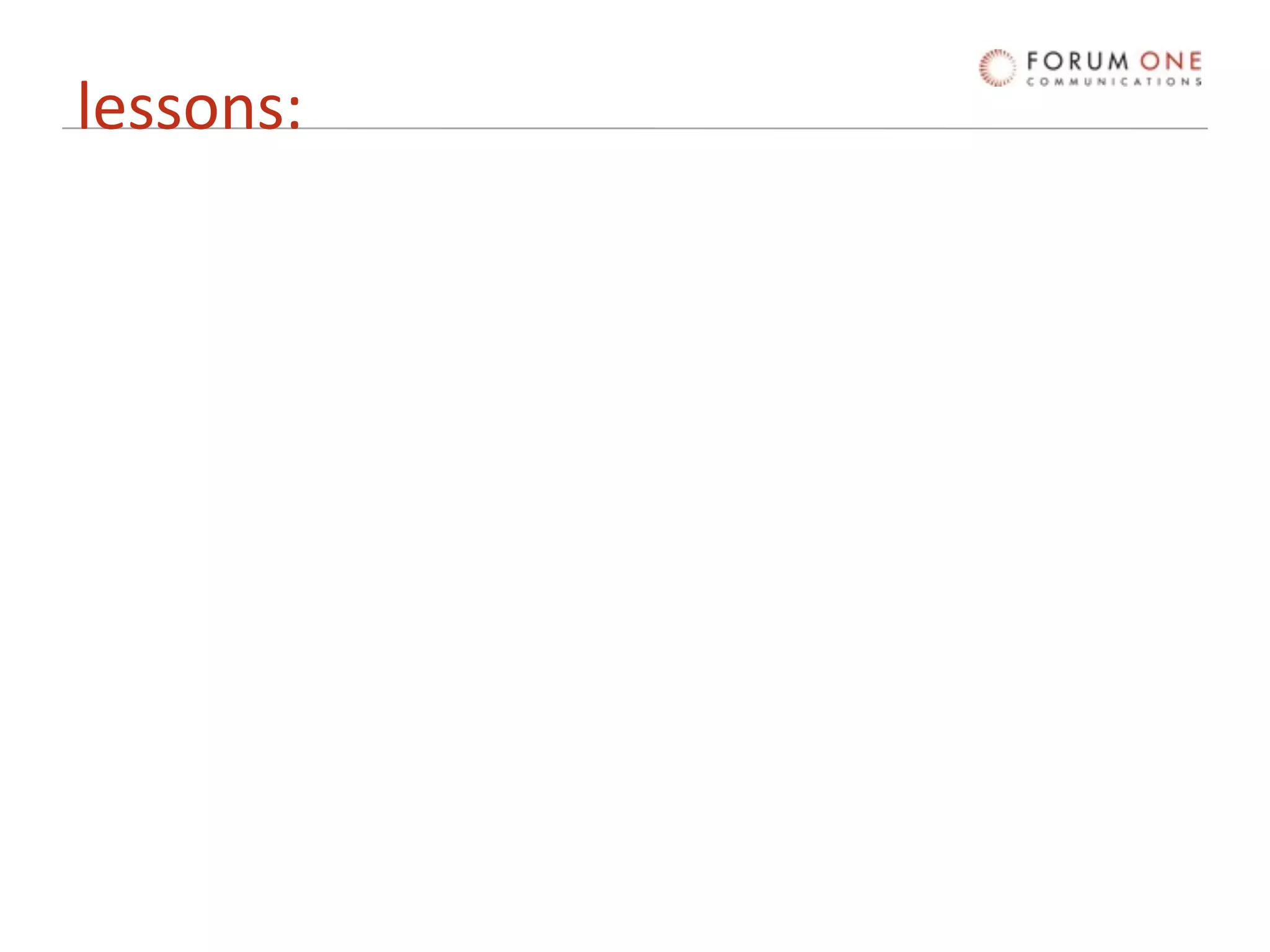

61. lessons:

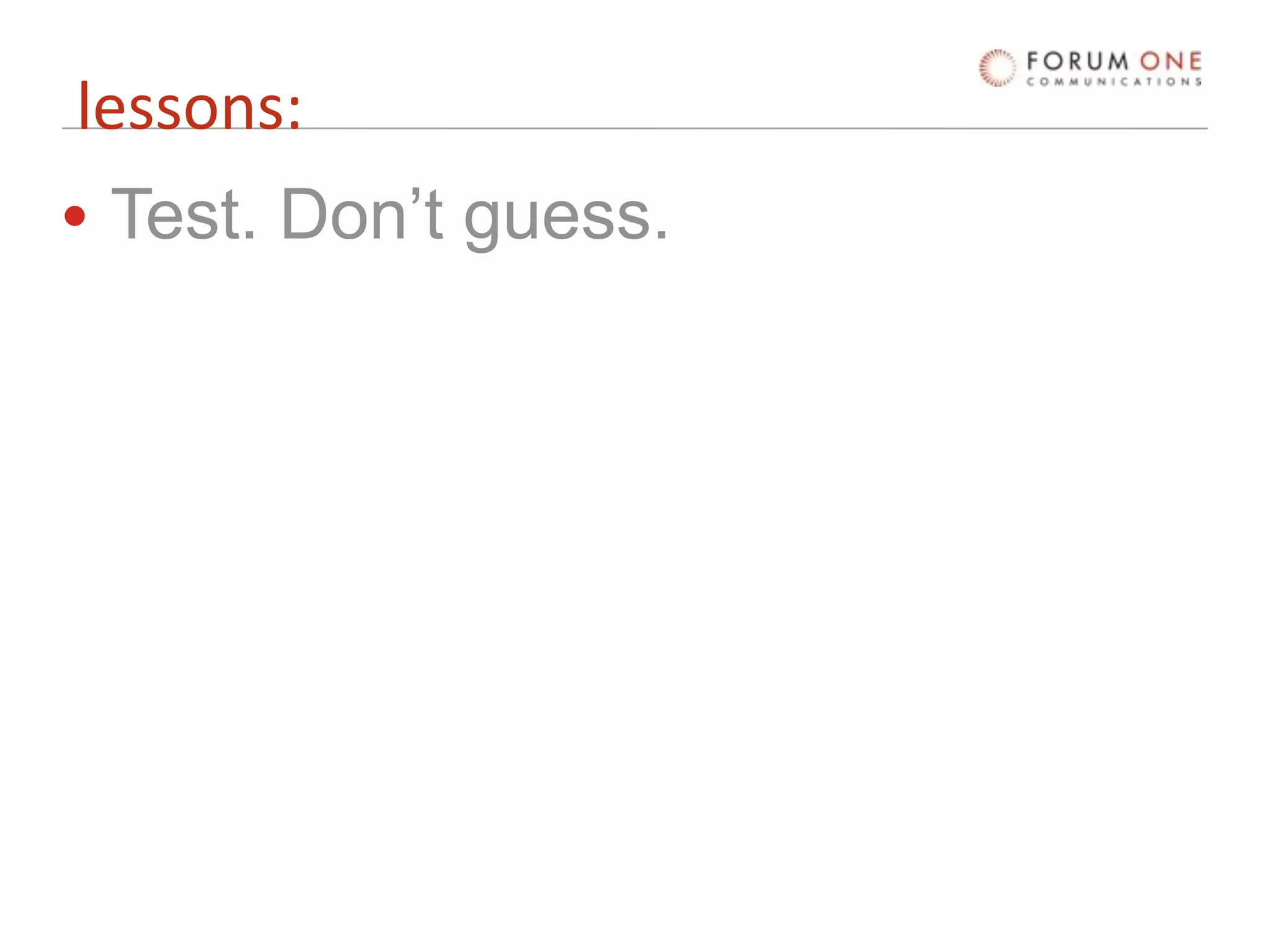

62. lessons:
• Test. Don’t guess.

63. lessons:
• Test. Don’t guess.
• Research your problem.
Somebody’s done it better than
you.

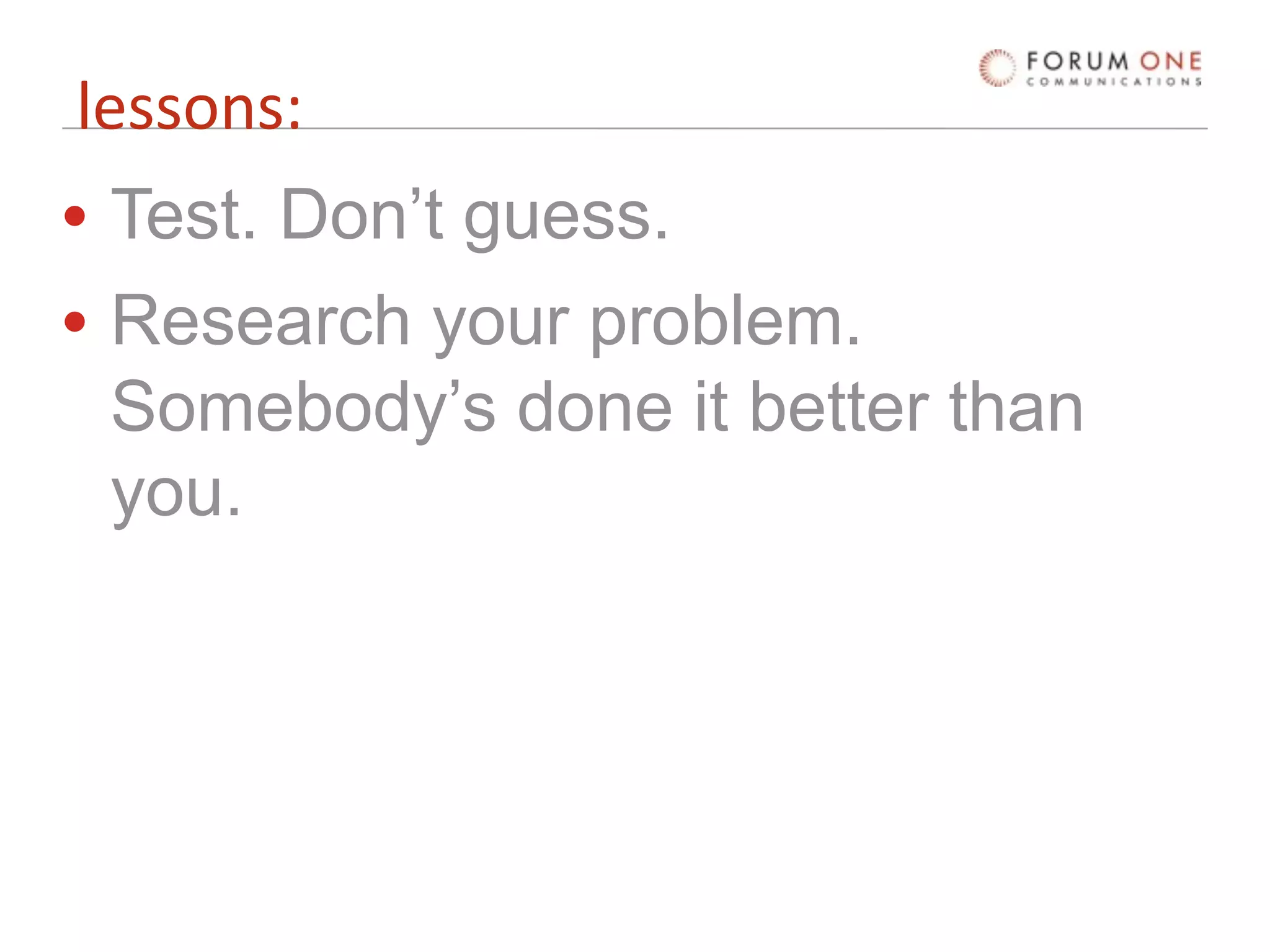

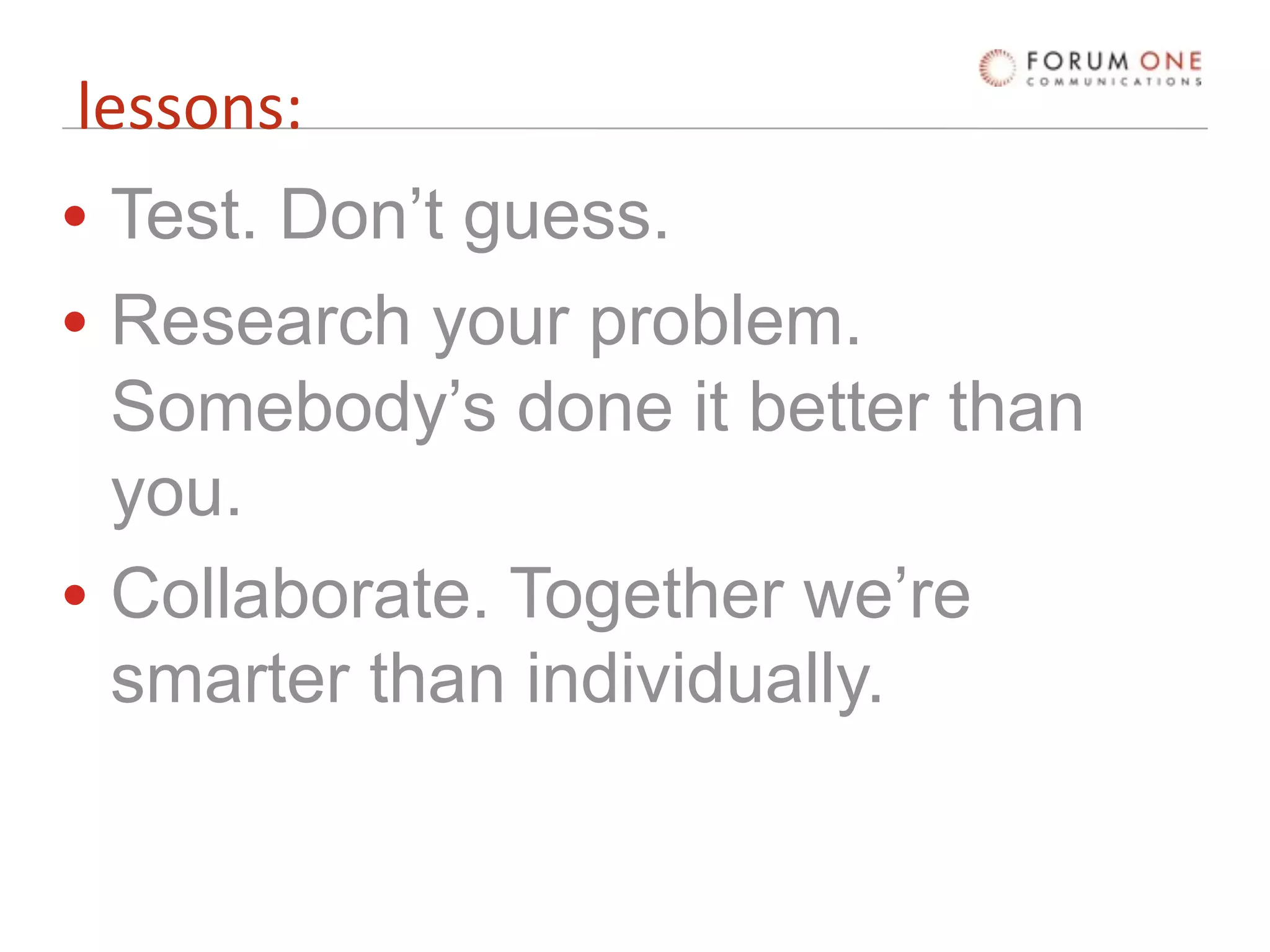

64. lessons:
• Test. Don’t guess.
• Research your problem.
Somebody’s done it better than
you.
• Collaborate. Together we’re
smarter than individually.

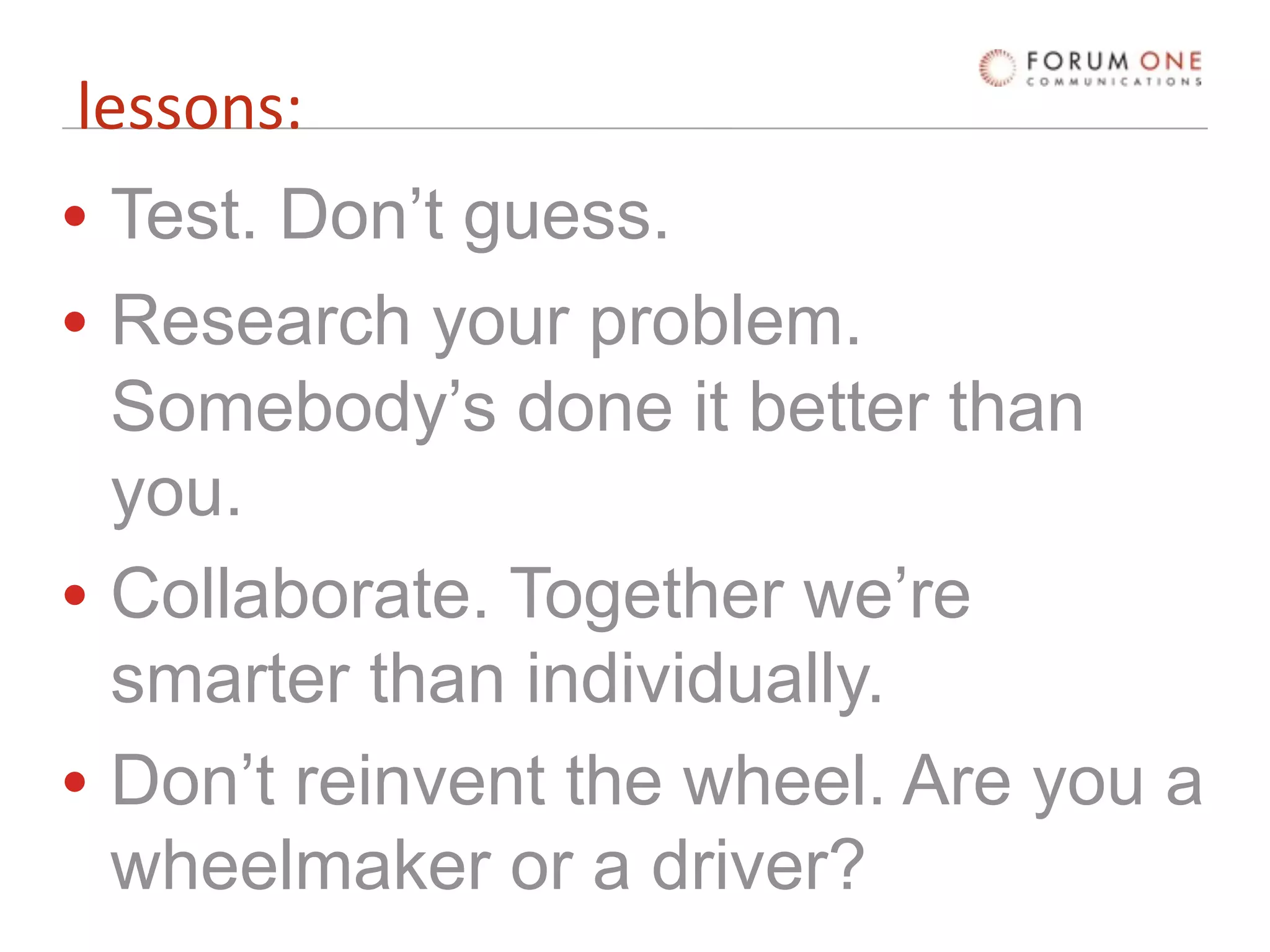

65. lessons:
• Test. Don’t guess.
• Research your problem.
Somebody’s done it better than
you.
• Collaborate. Together we’re
smarter than individually.
• Don’t reinvent the wheel. Are you a
wheelmaker or a driver?

66. Thank you
Sandy Smith
@SandyS1
