1. SYSTEMS PROGRAMMING
LECTURE 7
INTERPROCESS COMMUNCATION

2. INTERPROCESS COMMUNICATION
• IPC allows different processes to communicate
between themselves
• So far, processes could communicate using fork/child
inheritance, passing arguments in exec calls, through
the file system and using signals
• There are more structures which allows proceses to
communicate more efficiently
• IPC structures provide different flavors of
communication
• Some can only be used between realated processes
(fork/child). Unnamed structures

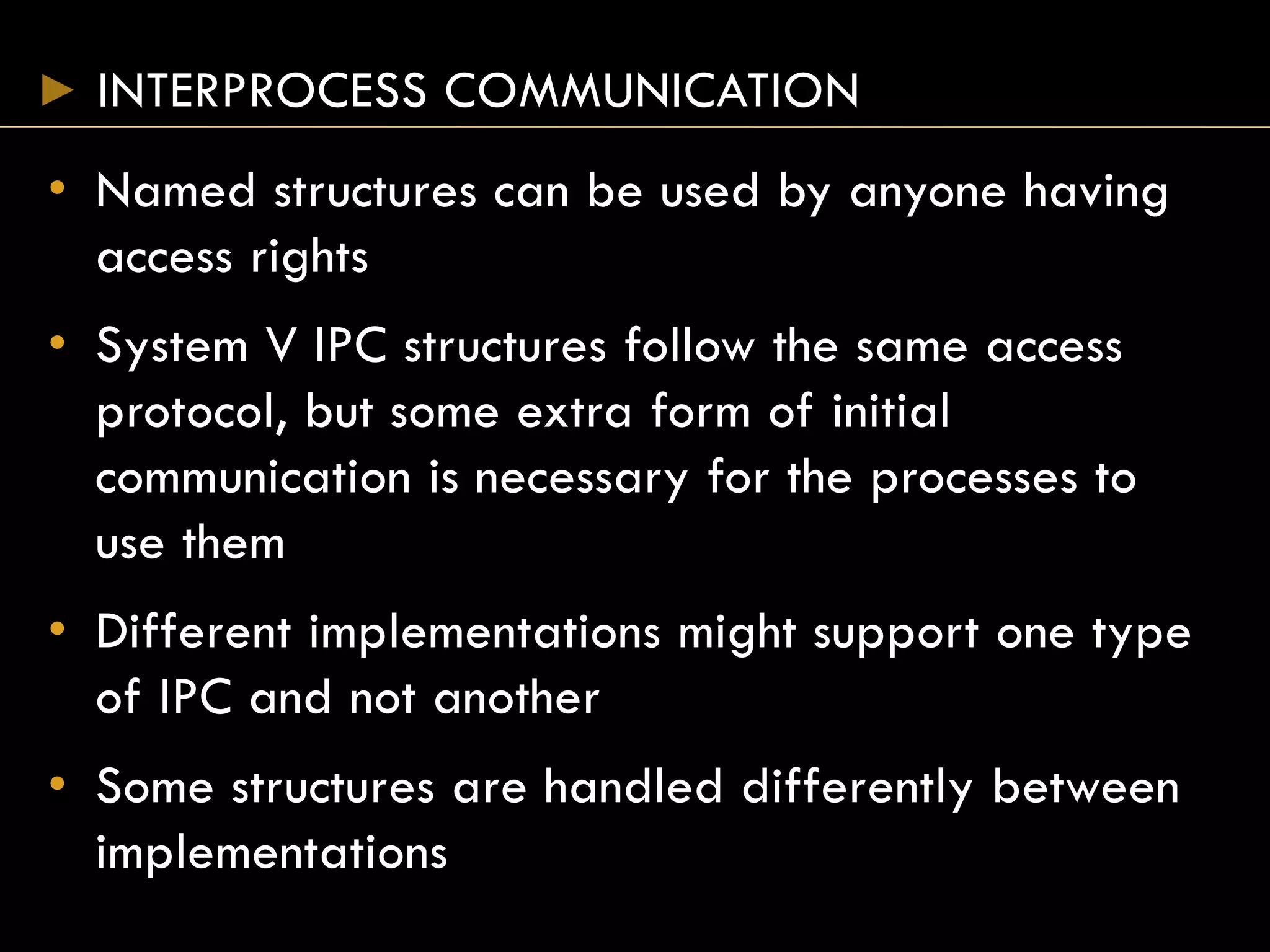

3. INTERPROCESS COMMUNICATION
• Named structures can be used by anyone having
access rights
• System V IPC structures follow the same access
protocol, but some extra form of initial
communication is necessary for the processes to
use them
• Different implementations might support one type
of IPC and not another
• Some structures are handled differently between
implementations

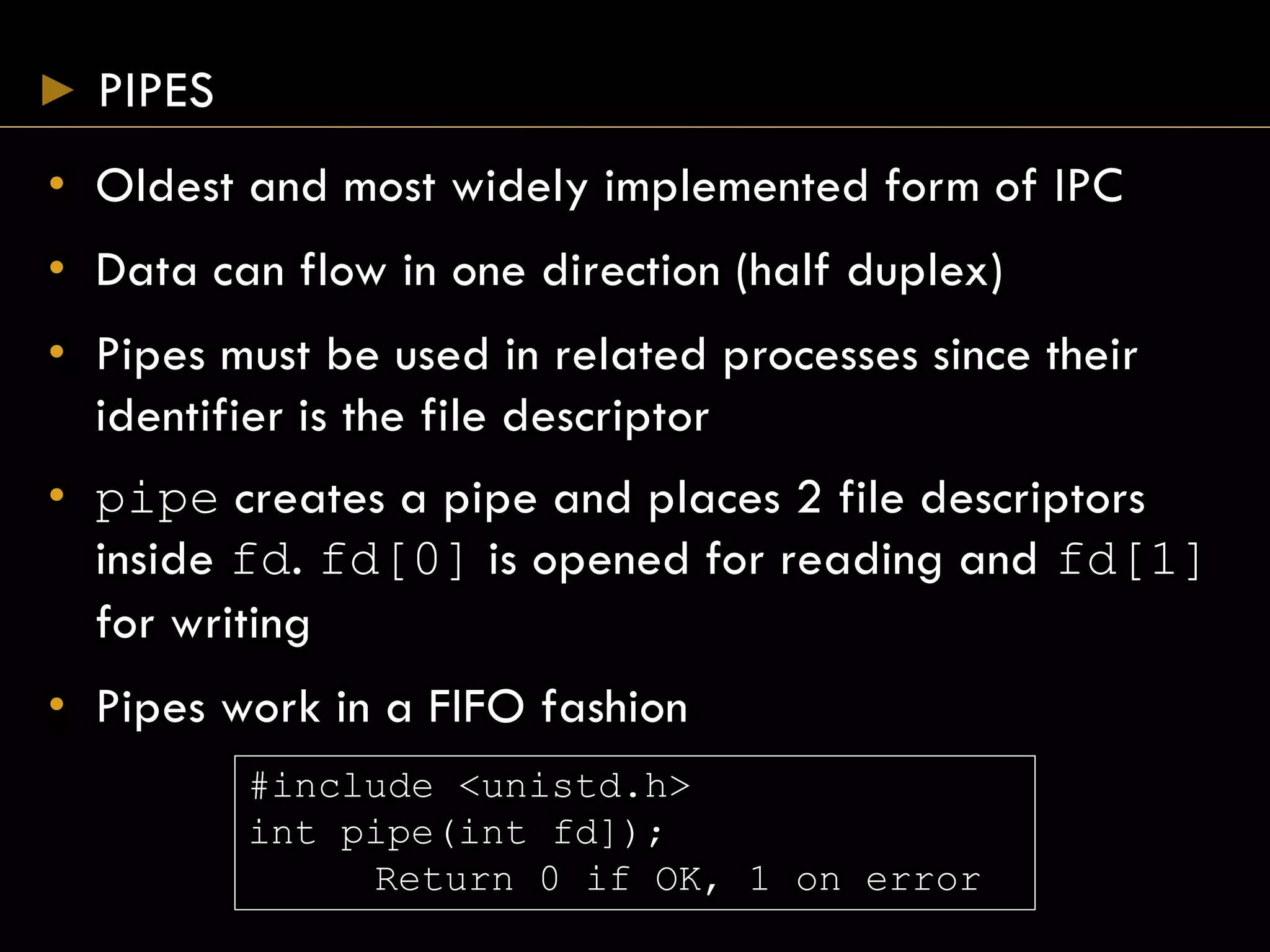

4. PIPES
• Oldest and most widely implemented form of IPC
• Data can flow in one direction (half duplex)
• Pipes must be used in related processes since their
identifier is the file descriptor
• pipe creates a pipe and places 2 file descriptors
inside fd. fd[0] is opened for reading and fd[1]
for writing
• Pipes work in a FIFO fashion
#include <unistd.h>
int pipe(int fd]);
Return 0 if OK, 1 on error

5. PIPES
• fstat return st_mode of FIFO which can be tested
by the S_ISFIFO macro
• We use normal read, write and close operations
to access pipes
• If we read from a pipe whose write end has been
closed, read returns 0, showing an end of file
• If we write to a pipe whose read end has been closed,
write returns -1 with errono EPIPE, and SIGPIPE
is generated
• The constant PIPE_BUF gives the maximum amount of
bytes that can be written in one go without interleaving
between different writers

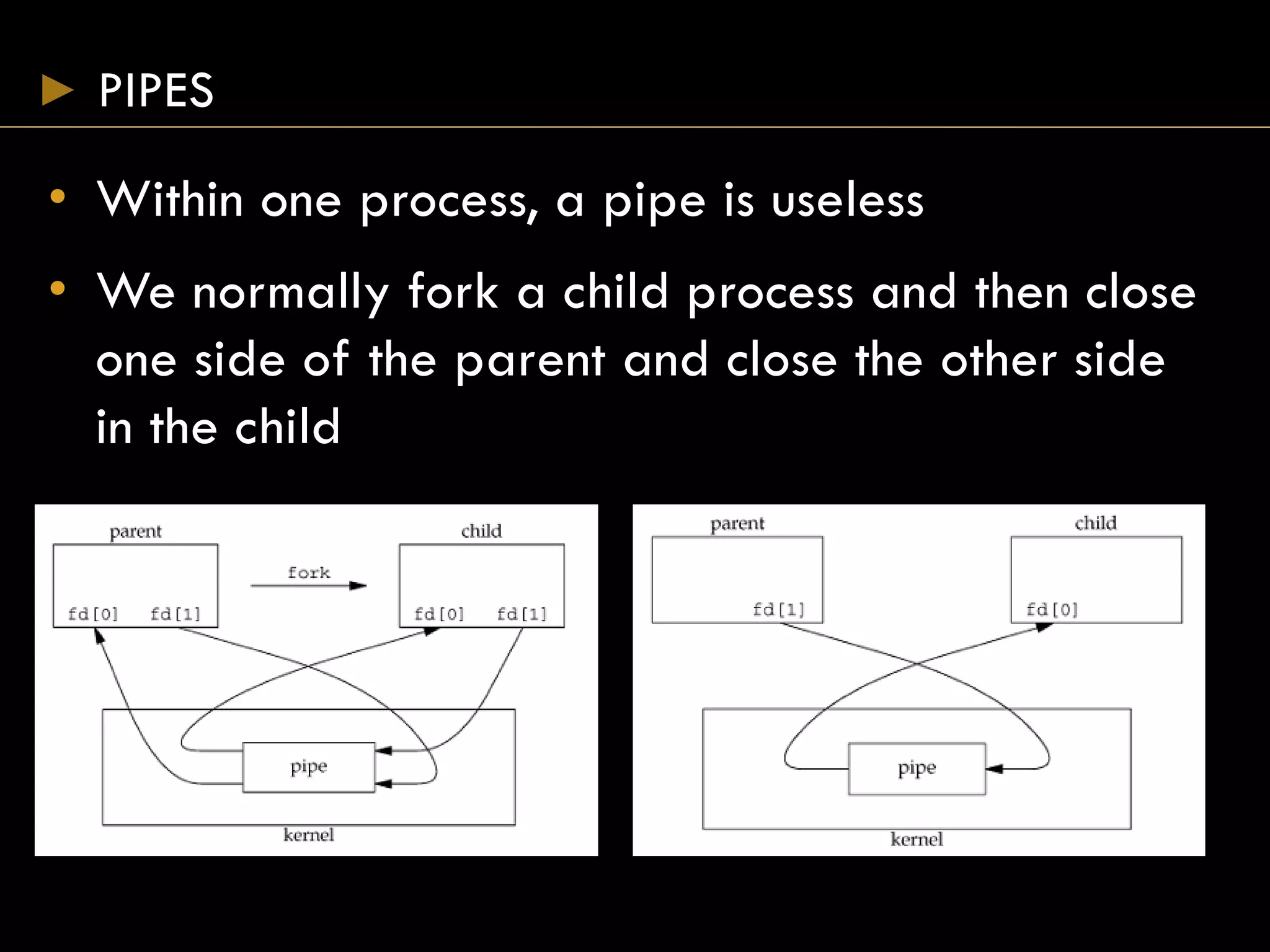

6. PIPES
• Within one process, a pipe is useless
• We normally fork a child process and then close
one side of the parent and close the other side
in the child

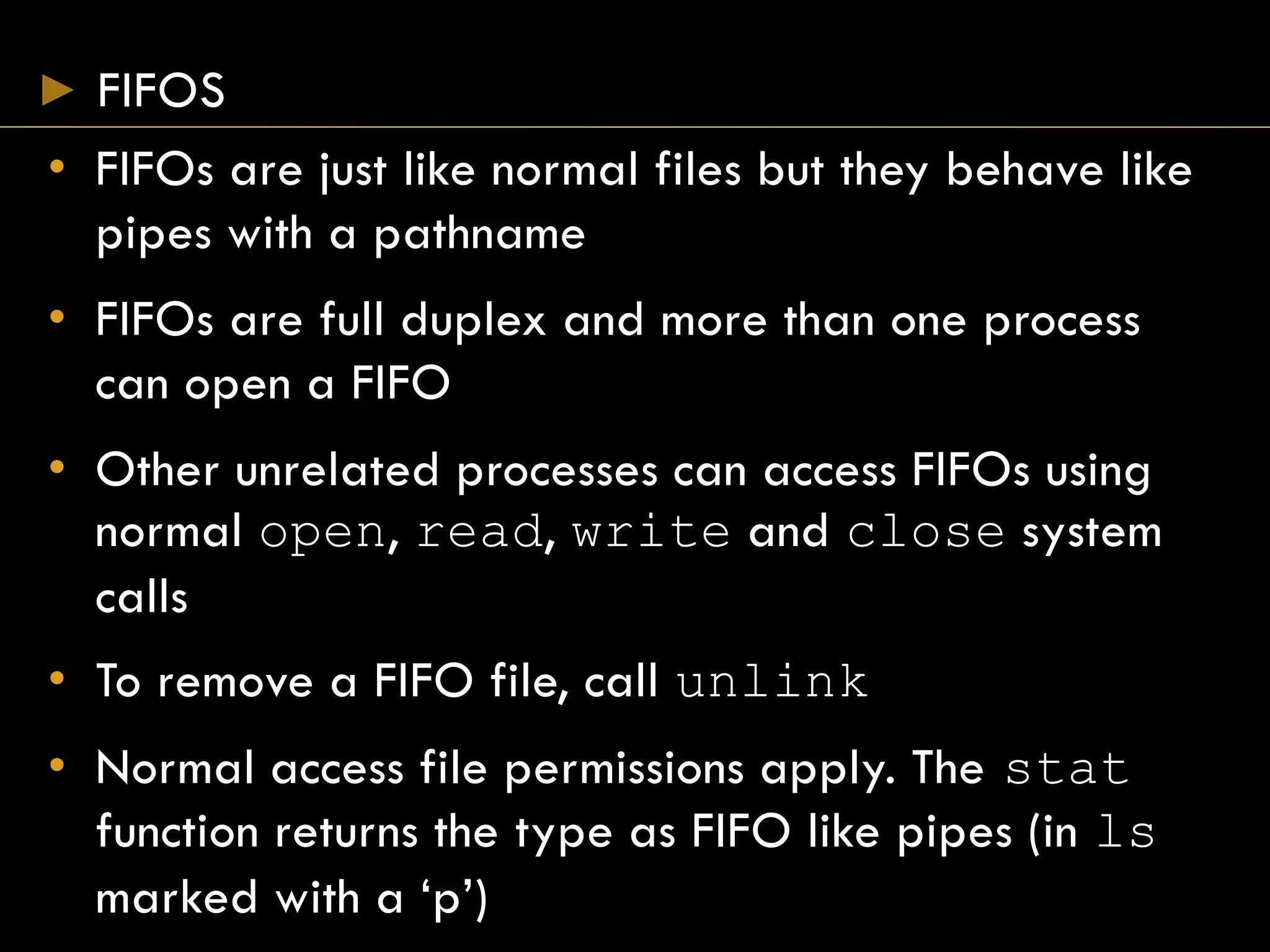

7. FIFOS
• FIFOs are just like normal files but they behave like
pipes with a pathname
• FIFOs are full duplex and more than one process
can open a FIFO
• Other unrelated processes can access FIFOs using
normal open, read, write and close system
calls
• To remove a FIFO file, call unlink
• Normal access file permissions apply. The stat
function returns the type as FIFO like pipes (in ls
marked with a ‘p’)

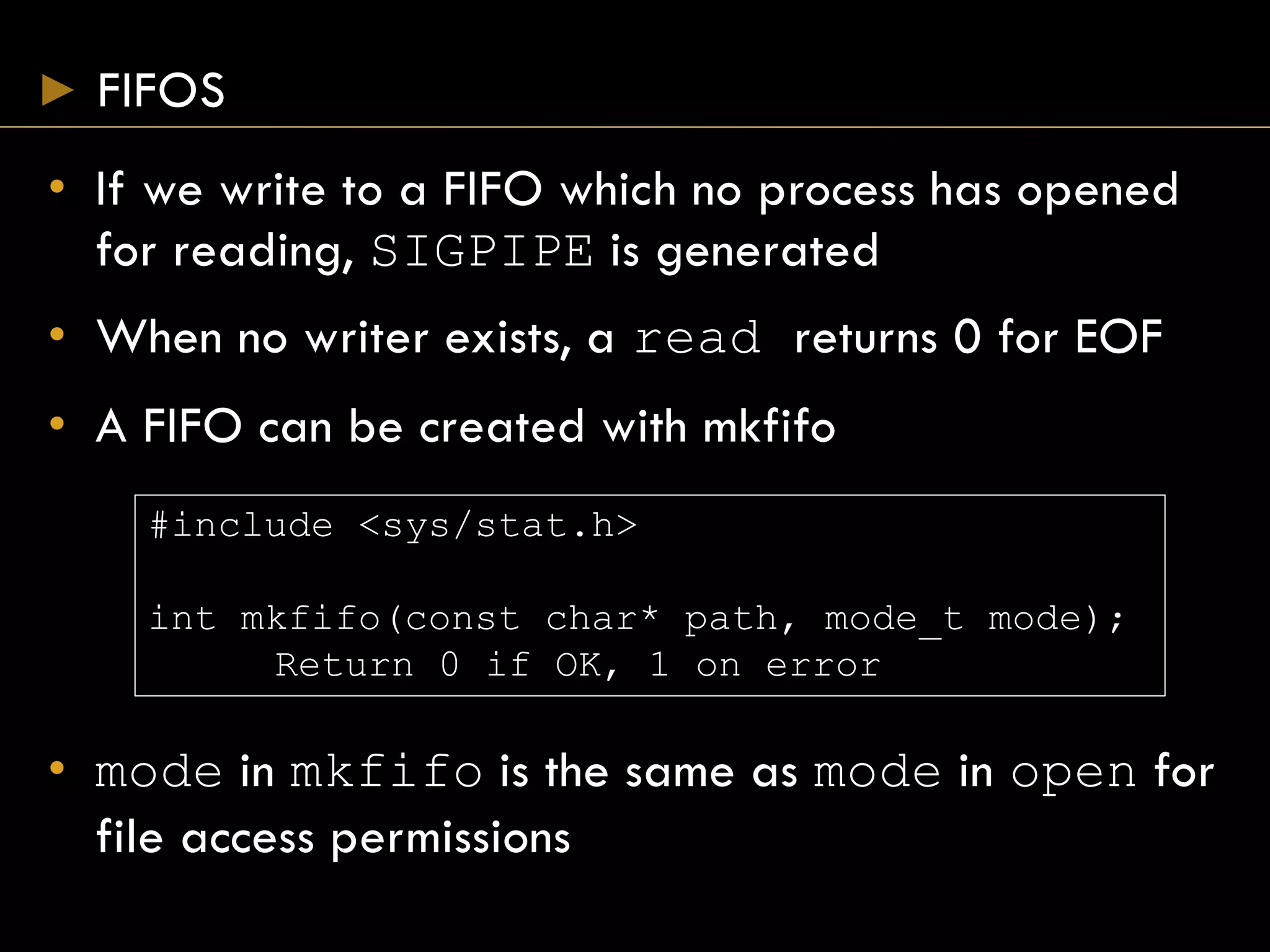

8. FIFOS
• If we write to a FIFO which no process has opened
for reading, SIGPIPE is generated
• When no writer exists, a read returns 0 for EOF
• A FIFO can be created with mkfifo
• mode in mkfifo is the same as mode in open for
file access permissions
#include <sys/stat.h>
int mkfifo(const char* path, mode_t mode);
Return 0 if OK, 1 on error

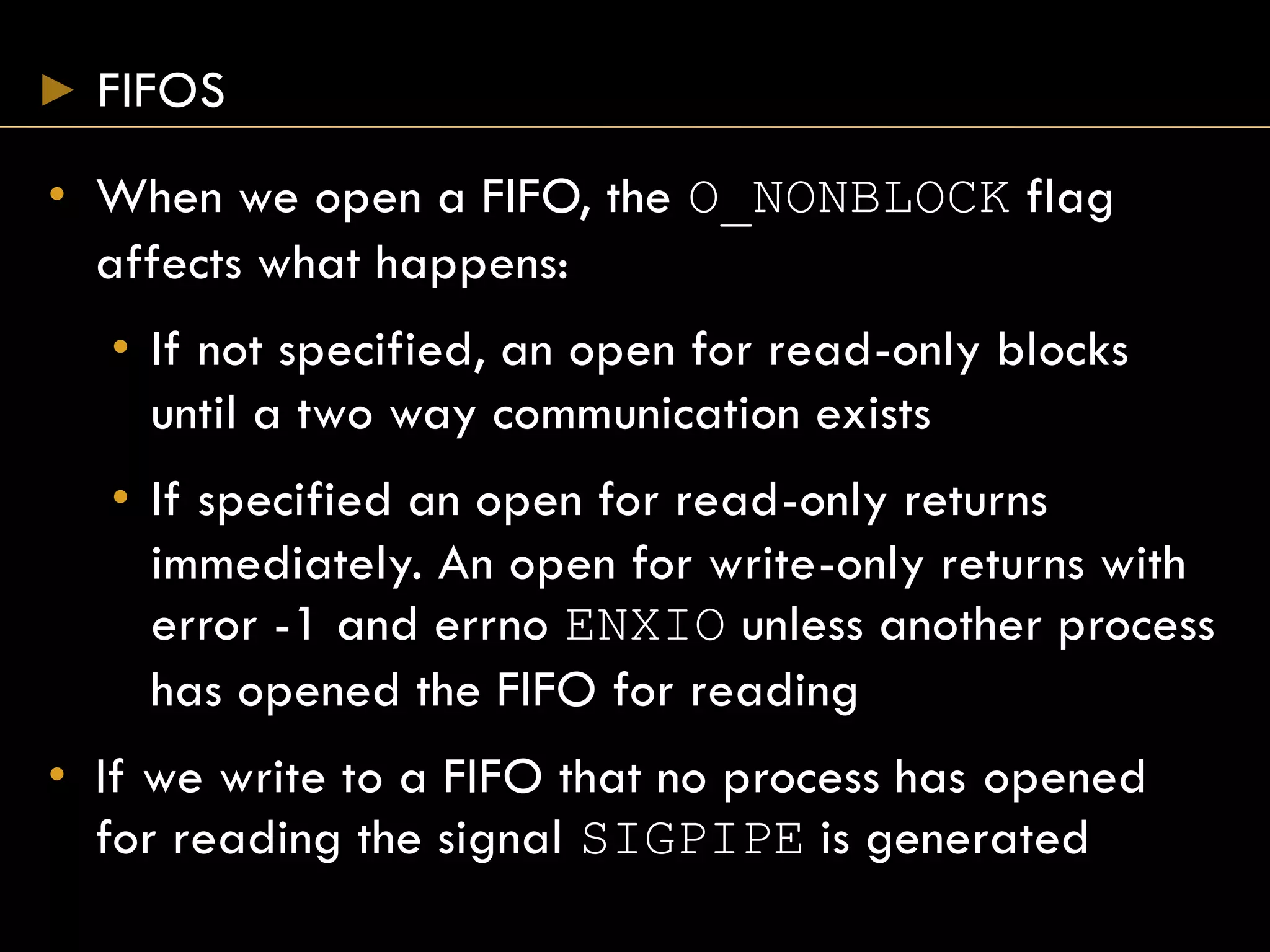

9. FIFOS
• When we open a FIFO, the O_NONBLOCK flag
affects what happens:
• If not specified, an open for read-only blocks
until a two way communication exists
• If specified an open for read-only returns
immediately. An open for write-only returns with
error -1 and errno ENXIO unless another process
has opened the FIFO for reading
• If we write to a FIFO that no process has opened
for reading the signal SIGPIPE is generated

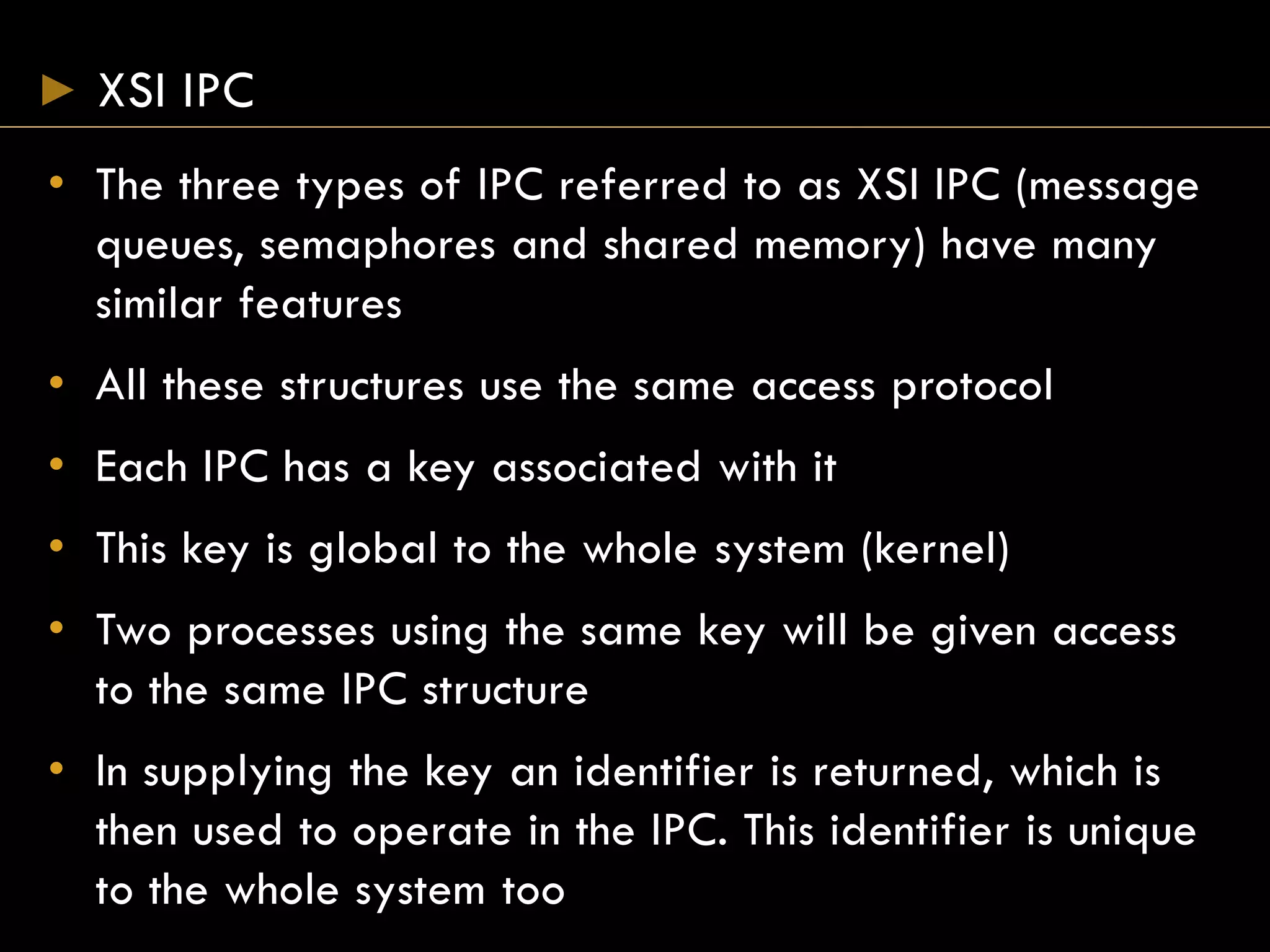

10. XSI IPC
• The three types of IPC referred to as XSI IPC (message
queues, semaphores and shared memory) have many
similar features
• All these structures use the same access protocol
• Each IPC has a key associated with it
• This key is global to the whole system (kernel)
• Two processes using the same key will be given access
to the same IPC structure
• In supplying the key an identifier is returned, which is
then used to operate in the IPC. This identifier is unique
to the whole system too

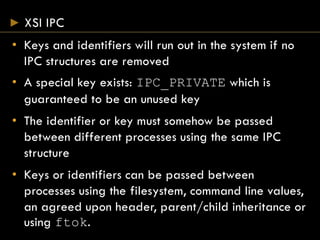

11. XSI IPC
• Keys and identifiers will run out in the system if no
IPC structures are removed
• A special key exists: IPC_PRIVATE which is
guaranteed to be an unused key
• The identifier or key must somehow be passed
between different processes using the same IPC
structure
• Keys or identifiers can be passed between
processes using the filesystem, command line values,
an agreed upon header, parent/child inheritance or
using ftok.

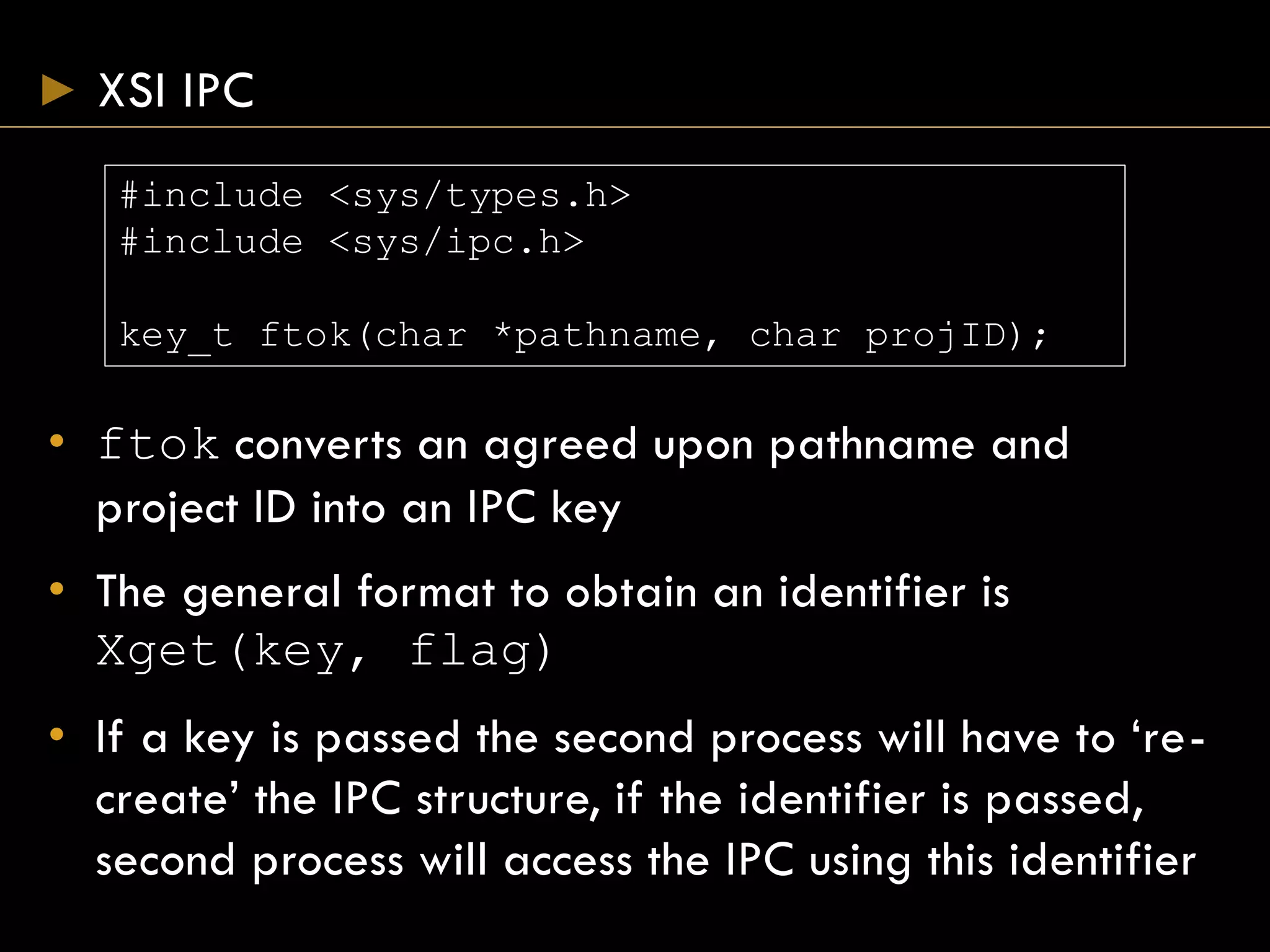

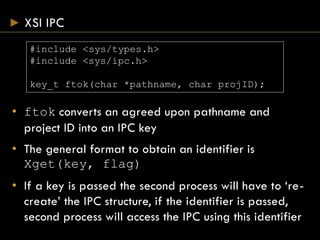

12. XSI IPC
• ftok converts an agreed upon pathname and
project ID into an IPC key
• The general format to obtain an identifier is
Xget(key, flag)
• If a key is passed the second process will have to ‘re-
create’ the IPC structure, if the identifier is passed,
second process will access the IPC using this identifier
#include <sys/types.h>
#include <sys/ipc.h>
key_t ftok(char *pathname, char projID);

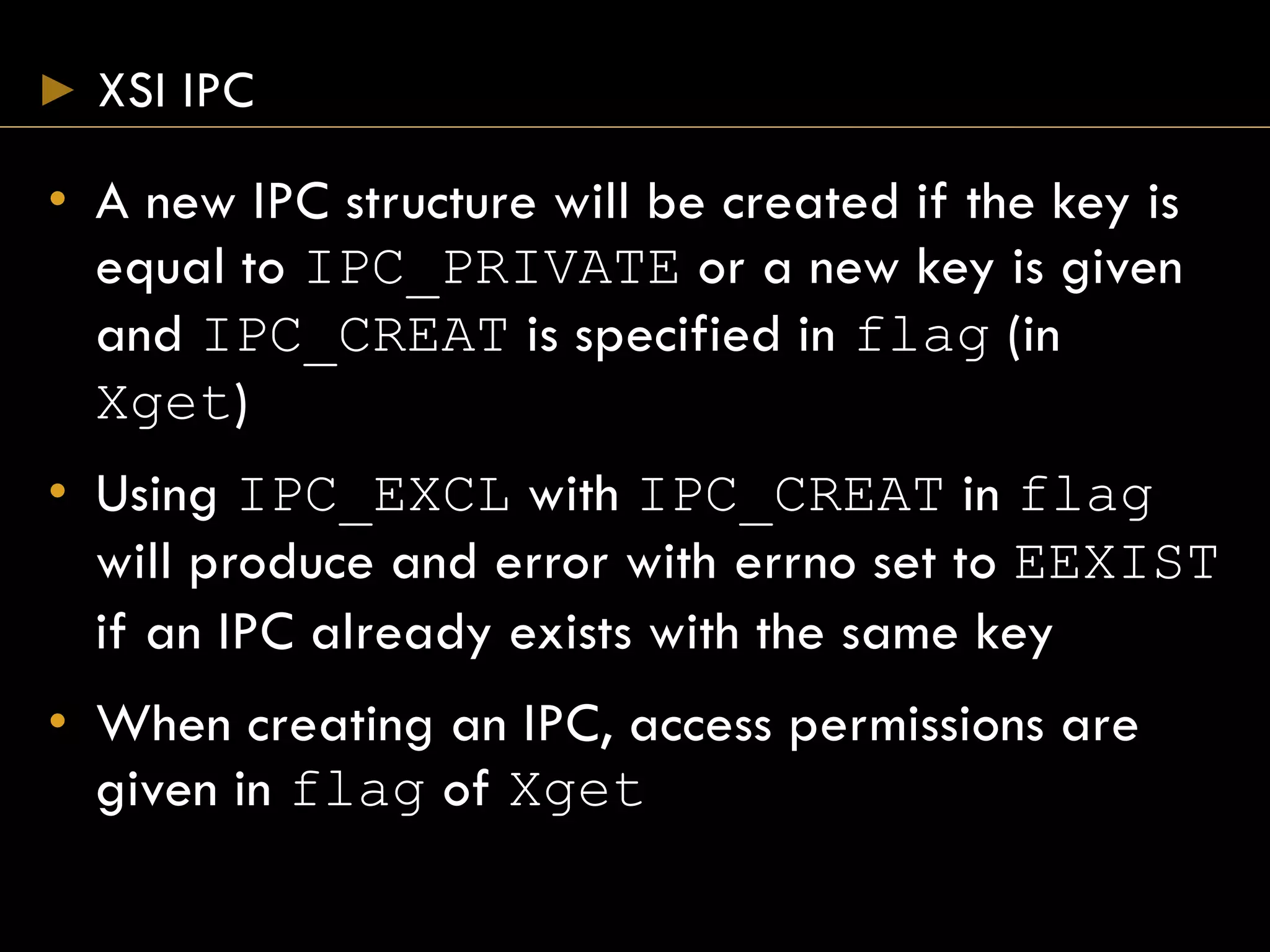

13. XSI IPC
• A new IPC structure will be created if the key is
equal to IPC_PRIVATE or a new key is given
and IPC_CREAT is specified in flag (in
Xget)
• Using IPC_EXCL with IPC_CREAT in flag
will produce and error with errno set to EEXIST
if an IPC already exists with the same key
• When creating an IPC, access permissions are
given in flag of Xget

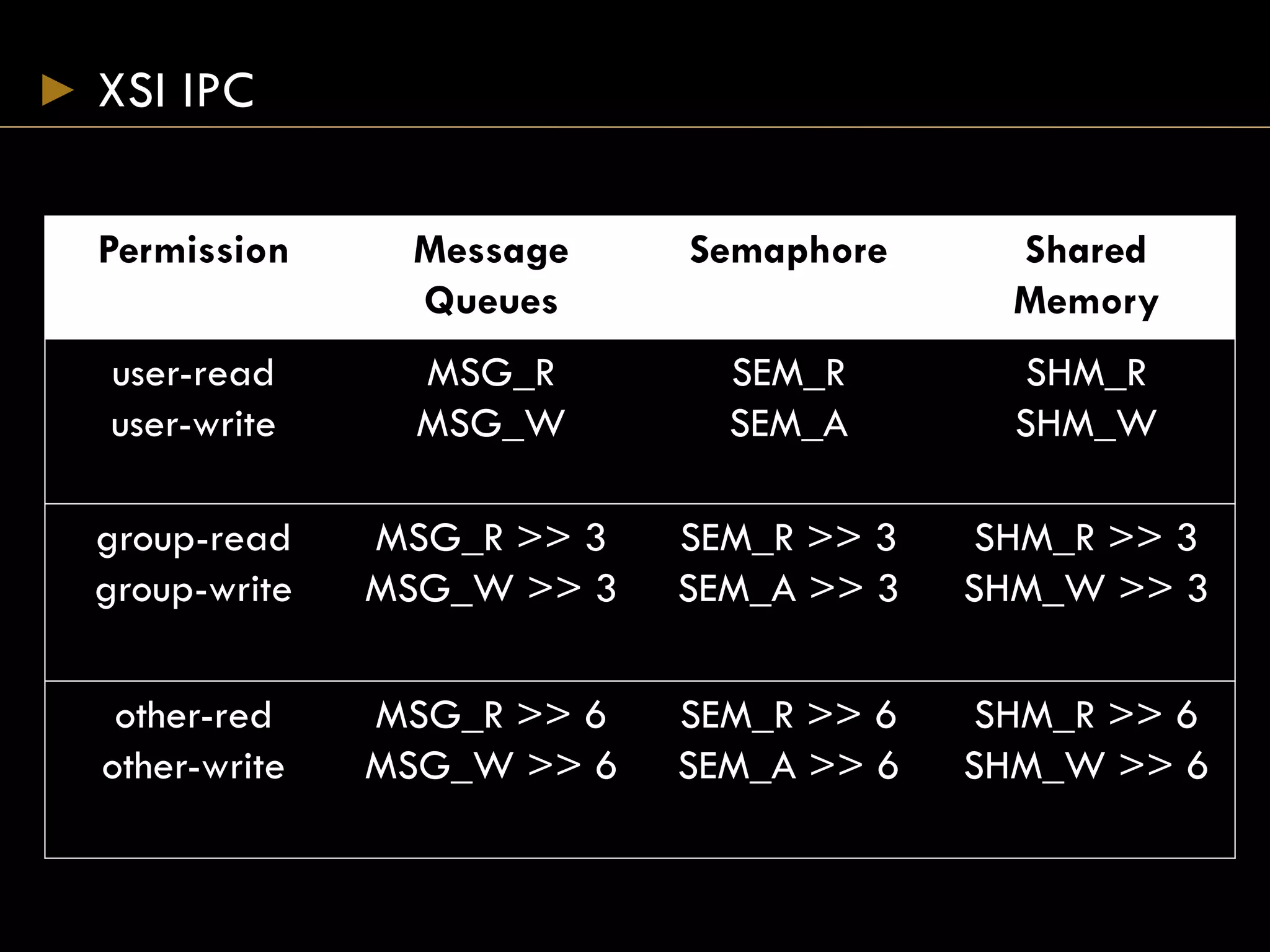

14. XSI IPC
Permission Message
Queues
Semaphore Shared
Memory
user-read
user-write
MSG_R
MSG_W
SEM_R
SEM_A
SHM_R
SHM_W
group-read
group-write
MSG_R >> 3
MSG_W >> 3
SEM_R >> 3
SEM_A >> 3
SHM_R >> 3
SHM_W >> 3
other-red
other-write
MSG_R >> 6
MSG_W >> 6
SEM_R >> 6
SEM_A >> 6
SHM_R >> 6
SHM_W >> 6

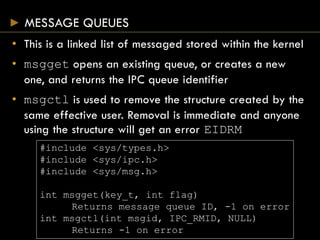

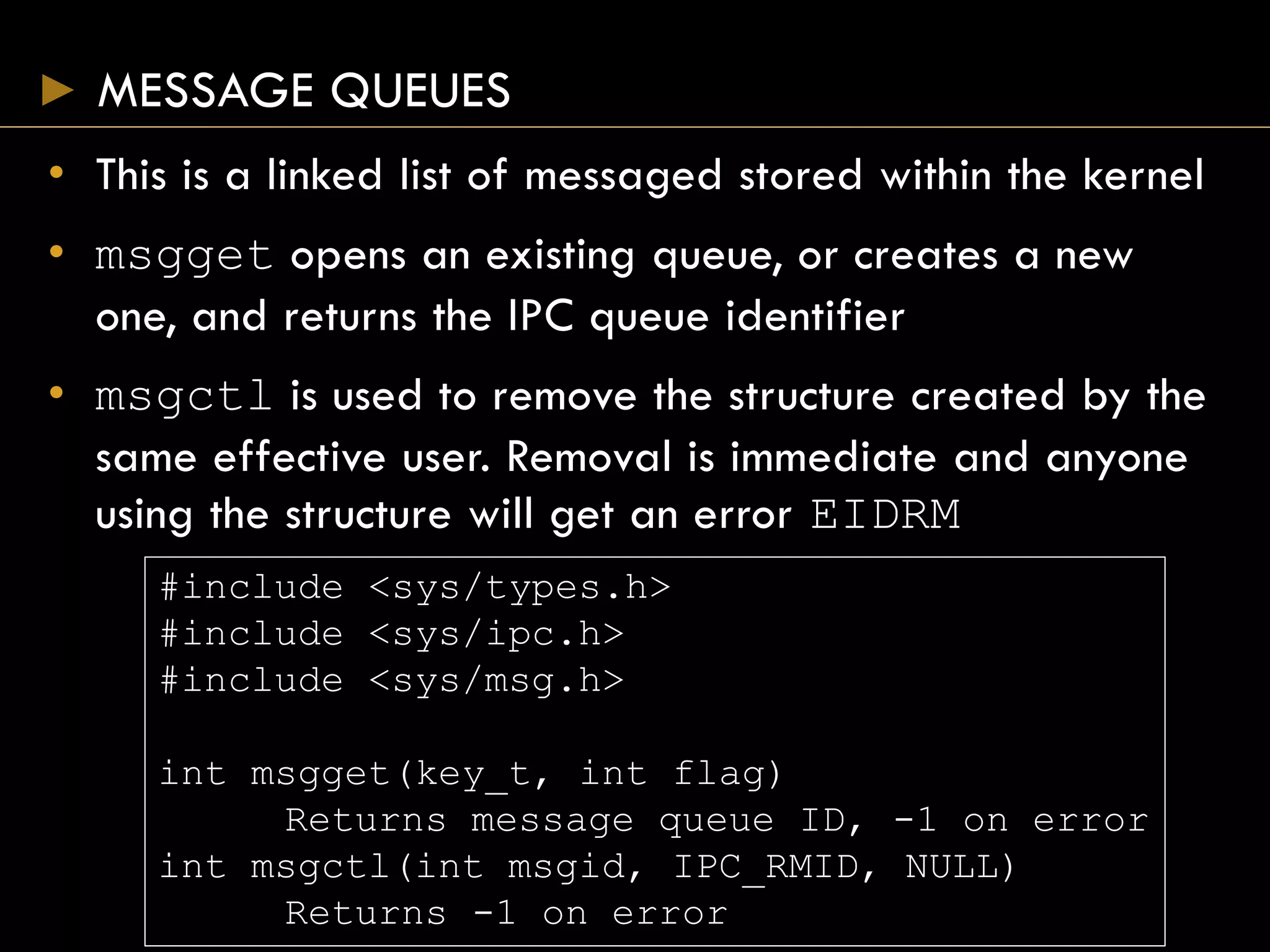

15. MESSAGE QUEUES
• This is a linked list of messaged stored within the kernel
• msgget opens an existing queue, or creates a new
one, and returns the IPC queue identifier
• msgctl is used to remove the structure created by the
same effective user. Removal is immediate and anyone
using the structure will get an error EIDRM
#include <sys/types.h>
#include <sys/ipc.h>
#include <sys/msg.h>
int msgget(key_t, int flag)
Returns message queue ID, -1 on error
int msgctl(int msgid, IPC_RMID, NULL)
Returns -1 on error

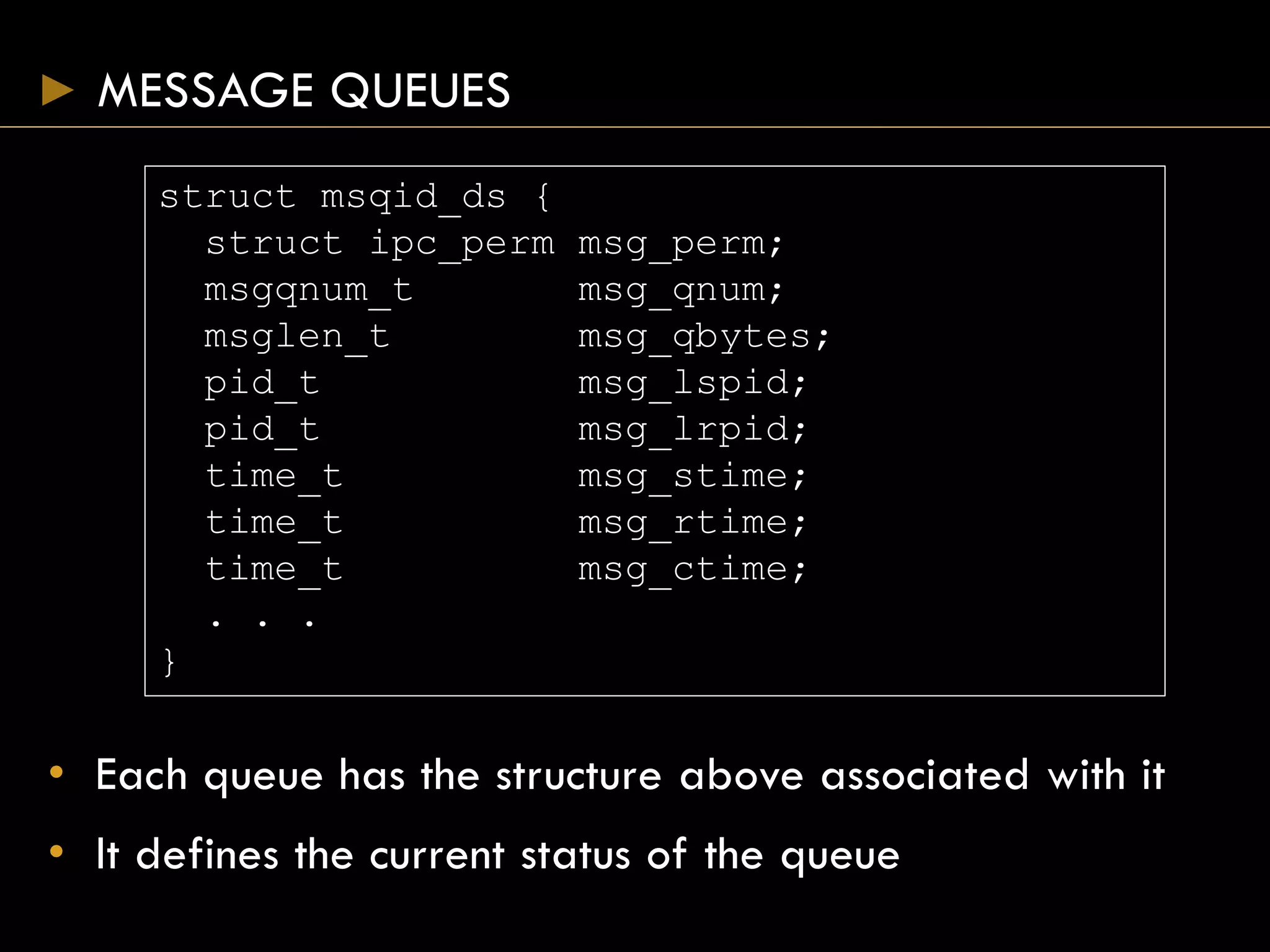

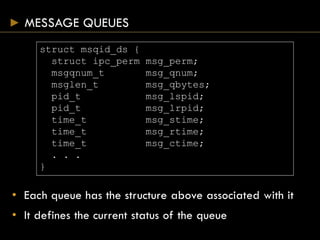

16. MESSAGE QUEUES
• Each queue has the structure above associated with it
• It defines the current status of the queue
struct msqid_ds {
struct ipc_perm msg_perm;
msgqnum_t msg_qnum;
msglen_t msg_qbytes;
pid_t msg_lspid;
pid_t msg_lrpid;
time_t msg_stime;
time_t msg_rtime;
time_t msg_ctime;
. . .
}

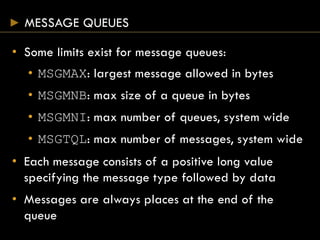

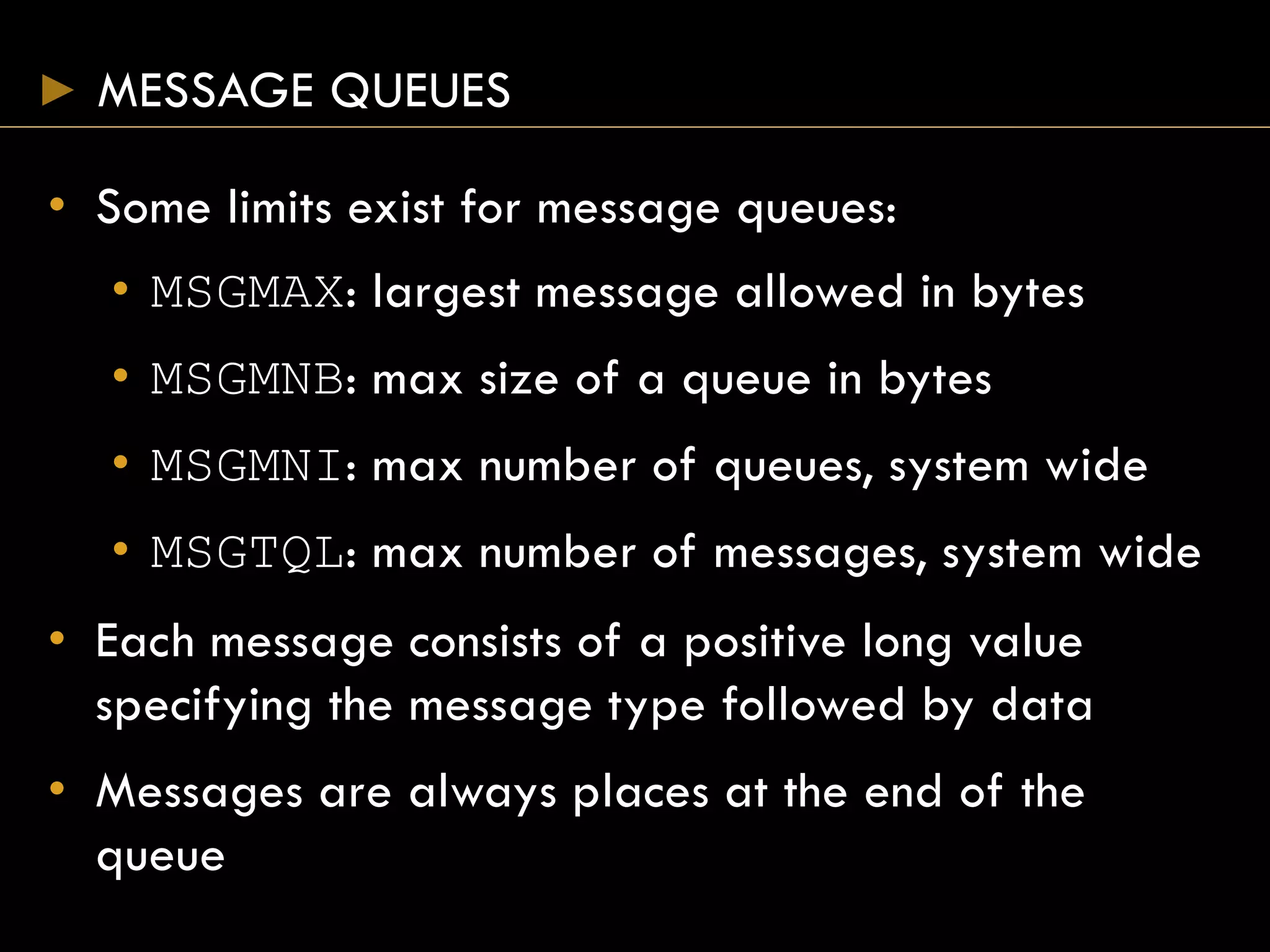

17. MESSAGE QUEUES
• Some limits exist for message queues:
• MSGMAX: largest message allowed in bytes
• MSGMNB: max size of a queue in bytes
• MSGMNI: max number of queues, system wide
• MSGTQL: max number of messages, system wide
• Each message consists of a positive long value
specifying the message type followed by data
• Messages are always places at the end of the
queue

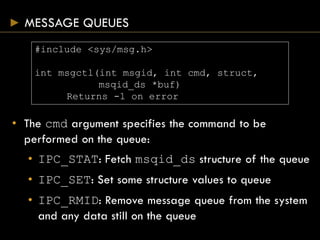

18. MESSAGE QUEUES
• The cmd argument specifies the command to be
performed on the queue:
• IPC_STAT: Fetch msqid_ds structure of the queue
• IPC_SET: Set some structure values to queue
• IPC_RMID: Remove message queue from the system
and any data still on the queue
#include <sys/msg.h>
int msgctl(int msgid, int cmd, struct,
msqid_ds *buf)
Returns -1 on error

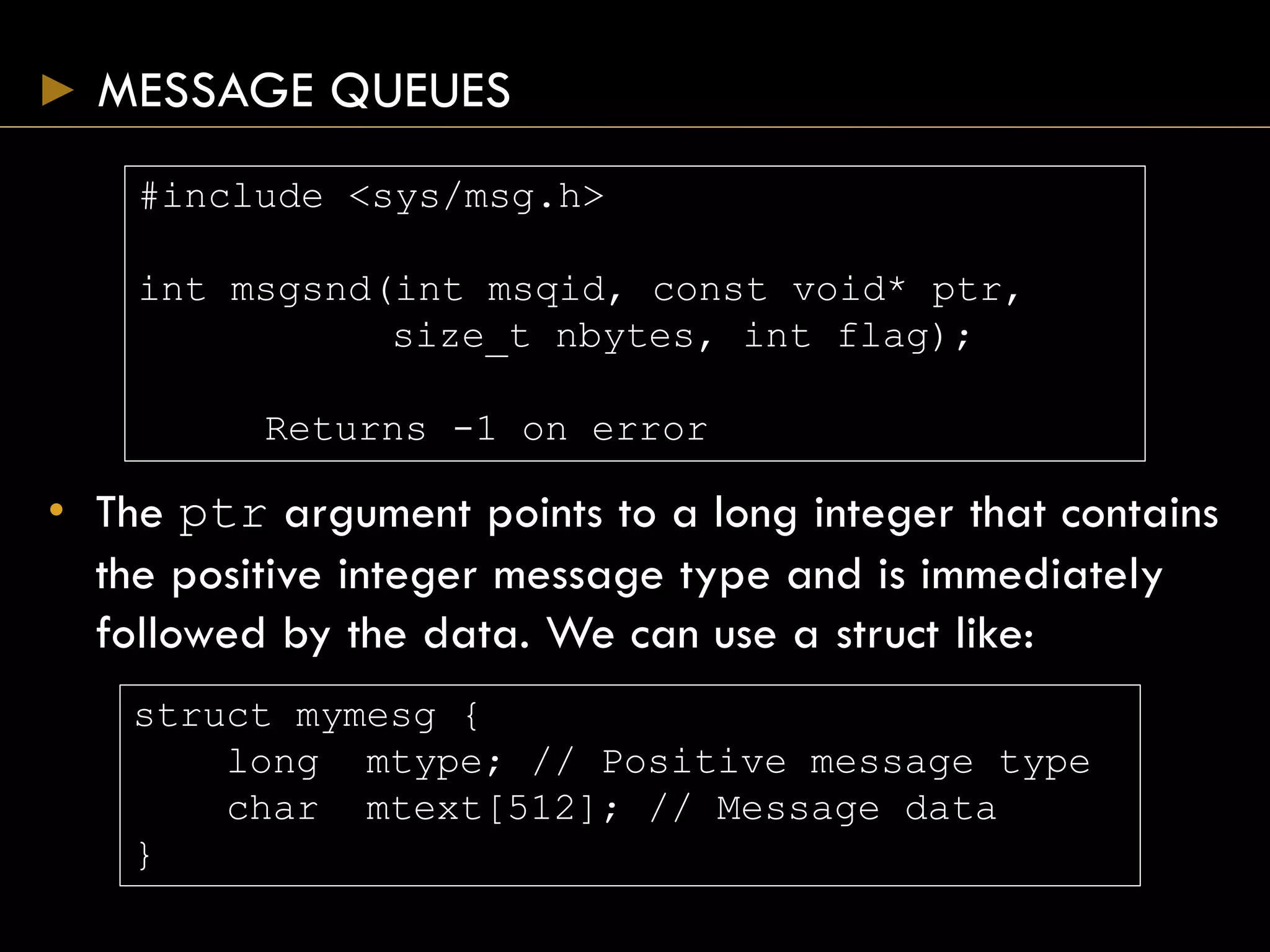

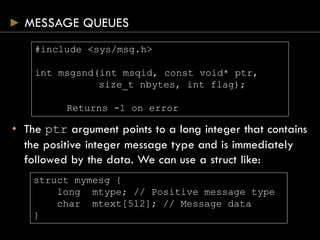

19. MESSAGE QUEUES
• The ptr argument points to a long integer that contains
the positive integer message type and is immediately
followed by the data. We can use a struct like:
#include <sys/msg.h>
int msgsnd(int msqid, const void* ptr,
size_t nbytes, int flag);
Returns -1 on error
struct mymesg {
long mtype; // Positive message type
char mtext[512]; // Message data
}

20. MESSAGE QUEUES
• A flag of IPC_NOWAIT can be specified
• If message queue is full causes msgsnd to return
immediately with EAGAIN
• If not specified, call is blocked until there is room,
queue is removed or signal is caught
• Since a reference count is not maintained with each
message queue the removal of a queue simply
generates errors on the next queue operation
• When msgsnd returns successfully, the msqid_ds
structure is updated

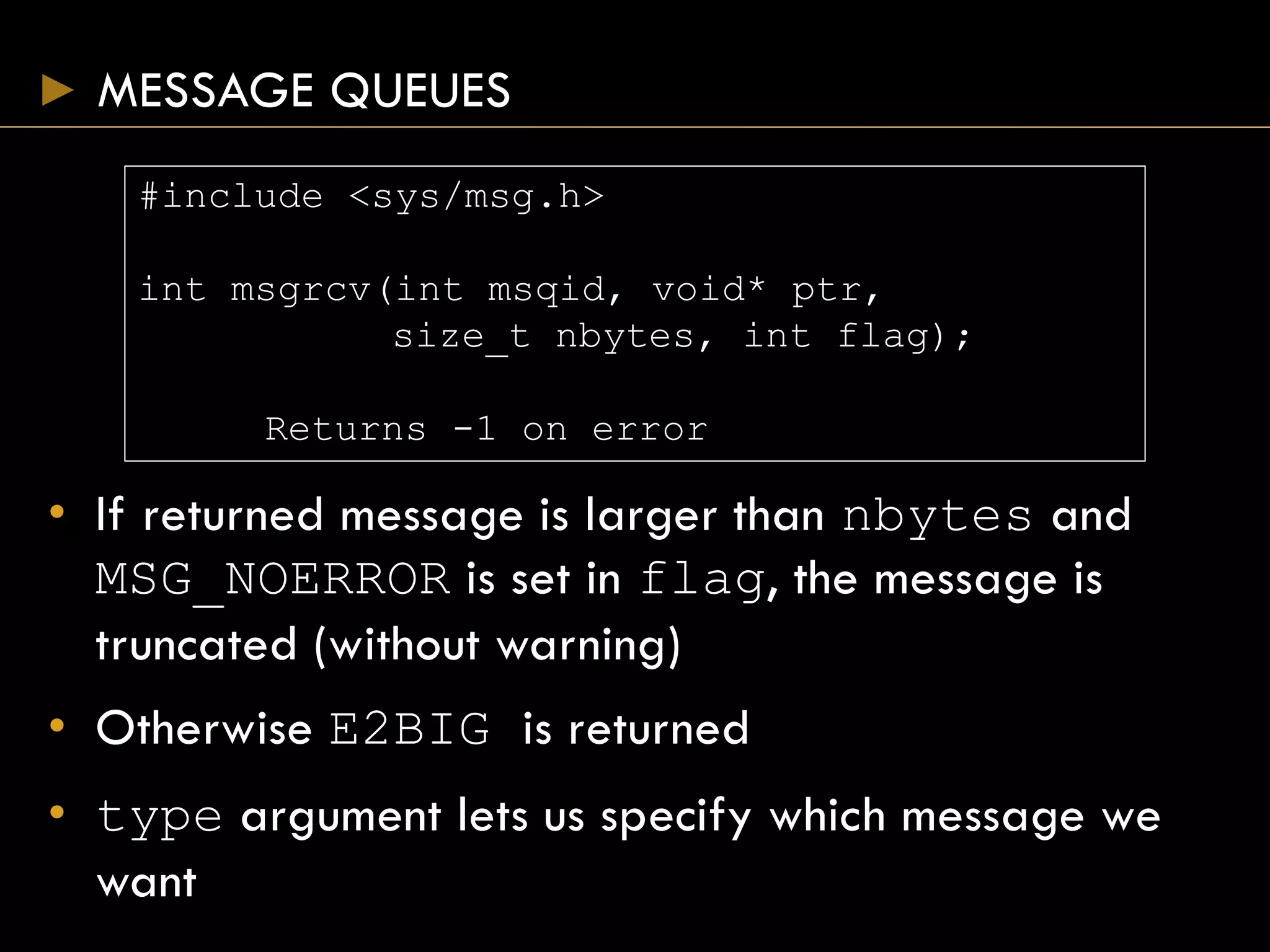

21. MESSAGE QUEUES
• If returned message is larger than nbytes and
MSG_NOERROR is set in flag, the message is
truncated (without warning)
• Otherwise E2BIG is returned
• type argument lets us specify which message we
want
#include <sys/msg.h>
int msgrcv(int msqid, void* ptr,
size_t nbytes, int flag);
Returns -1 on error

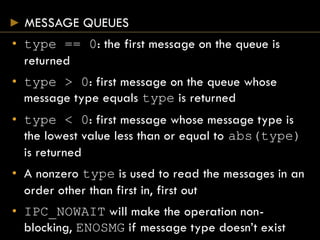

22. MESSAGE QUEUES
• type == 0: the first message on the queue is
returned
• type > 0: first message on the queue whose
message type equals type is returned
• type < 0: first message whose message type is
the lowest value less than or equal to abs(type)
is returned
• A nonzero type is used to read the messages in an
order other than first in, first out
• IPC_NOWAIT will make the operation non-
blocking, ENOSMG if message type doesn’t exist

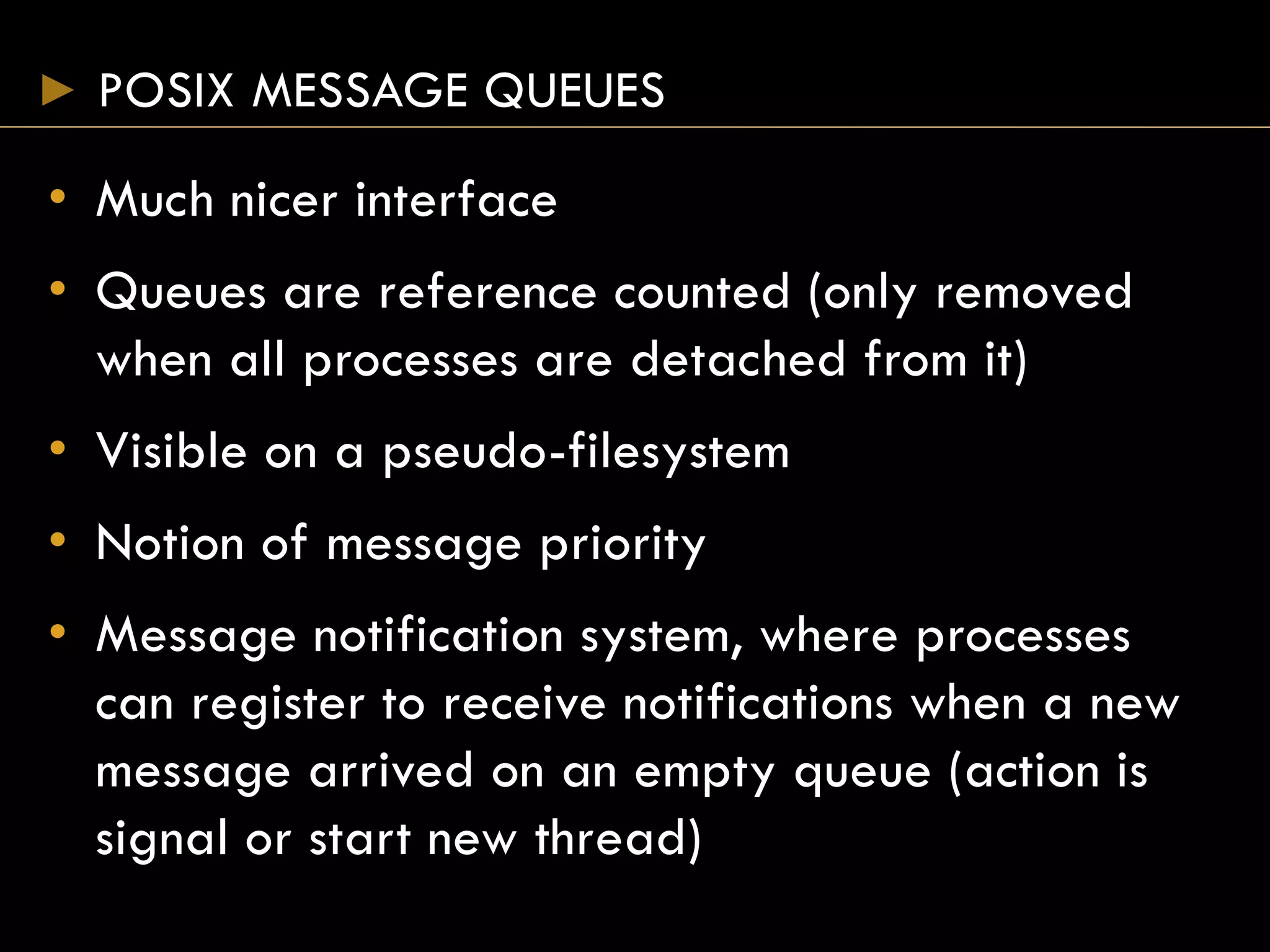

23. POSIX MESSAGE QUEUES
• Much nicer interface
• Queues are reference counted (only removed
when all processes are detached from it)
• Visible on a pseudo-filesystem
• Notion of message priority
• Message notification system, where processes
can register to receive notifications when a new
message arrived on an empty queue (action is
signal or start new thread)

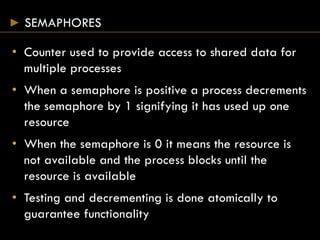

24. SEMAPHORES
• Counter used to provide access to shared data for
multiple processes
• When a semaphore is positive a process decrements
the semaphore by 1 signifying it has used up one
resource
• When the semaphore is 0 it means the resource is
not available and the process blocks until the
resource is available
• Testing and decrementing is done atomically to
guarantee functionality

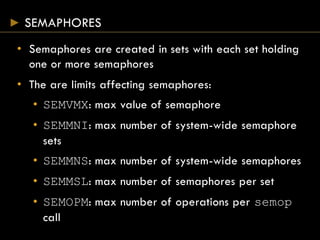

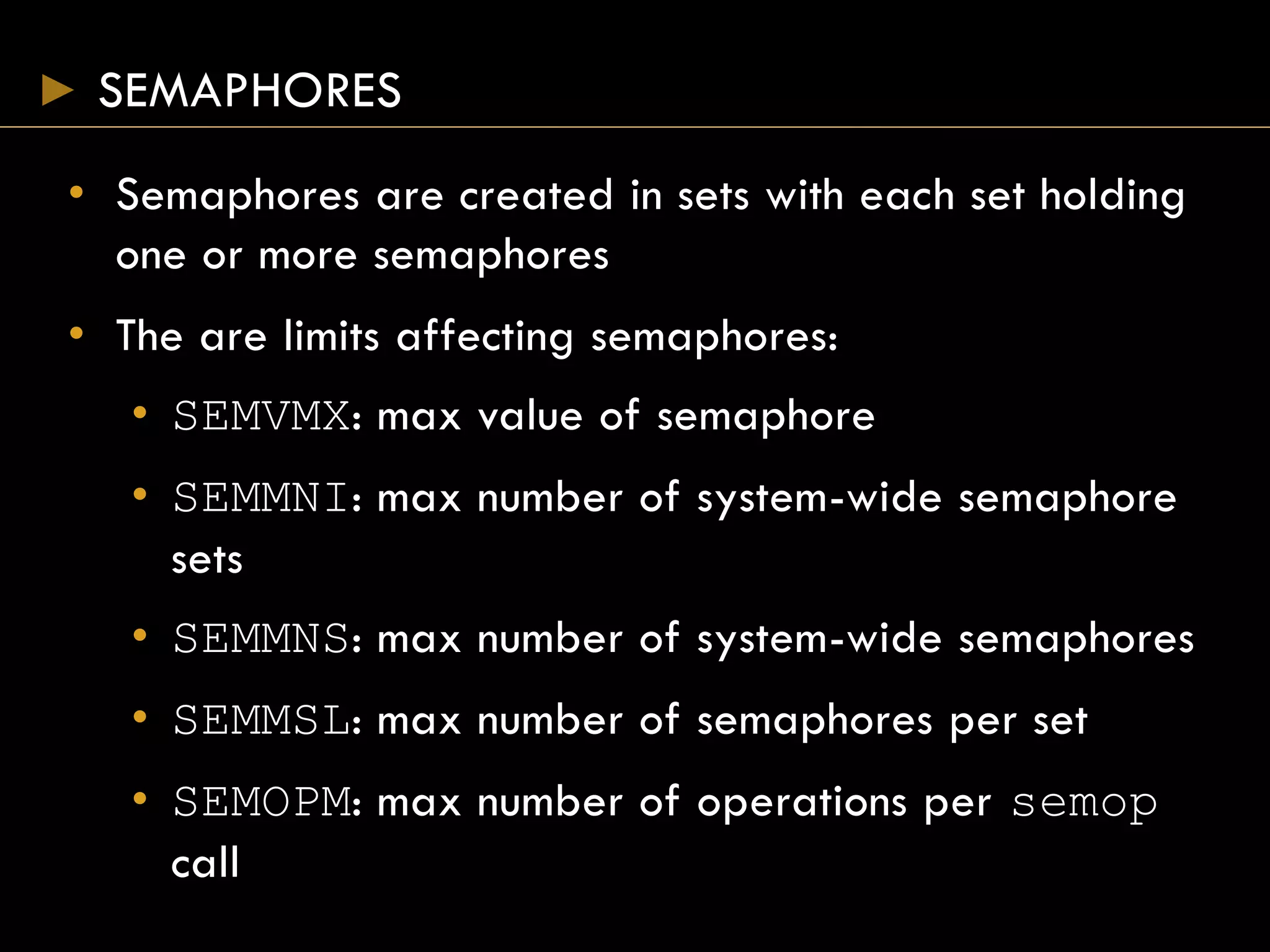

25. SEMAPHORES
• Semaphores are created in sets with each set holding
one or more semaphores
• The are limits affecting semaphores:
• SEMVMX: max value of semaphore
• SEMMNI: max number of system-wide semaphore
sets
• SEMMNS: max number of system-wide semaphores
• SEMMSL: max number of semaphores per set
• SEMOPM: max number of operations per semop
call

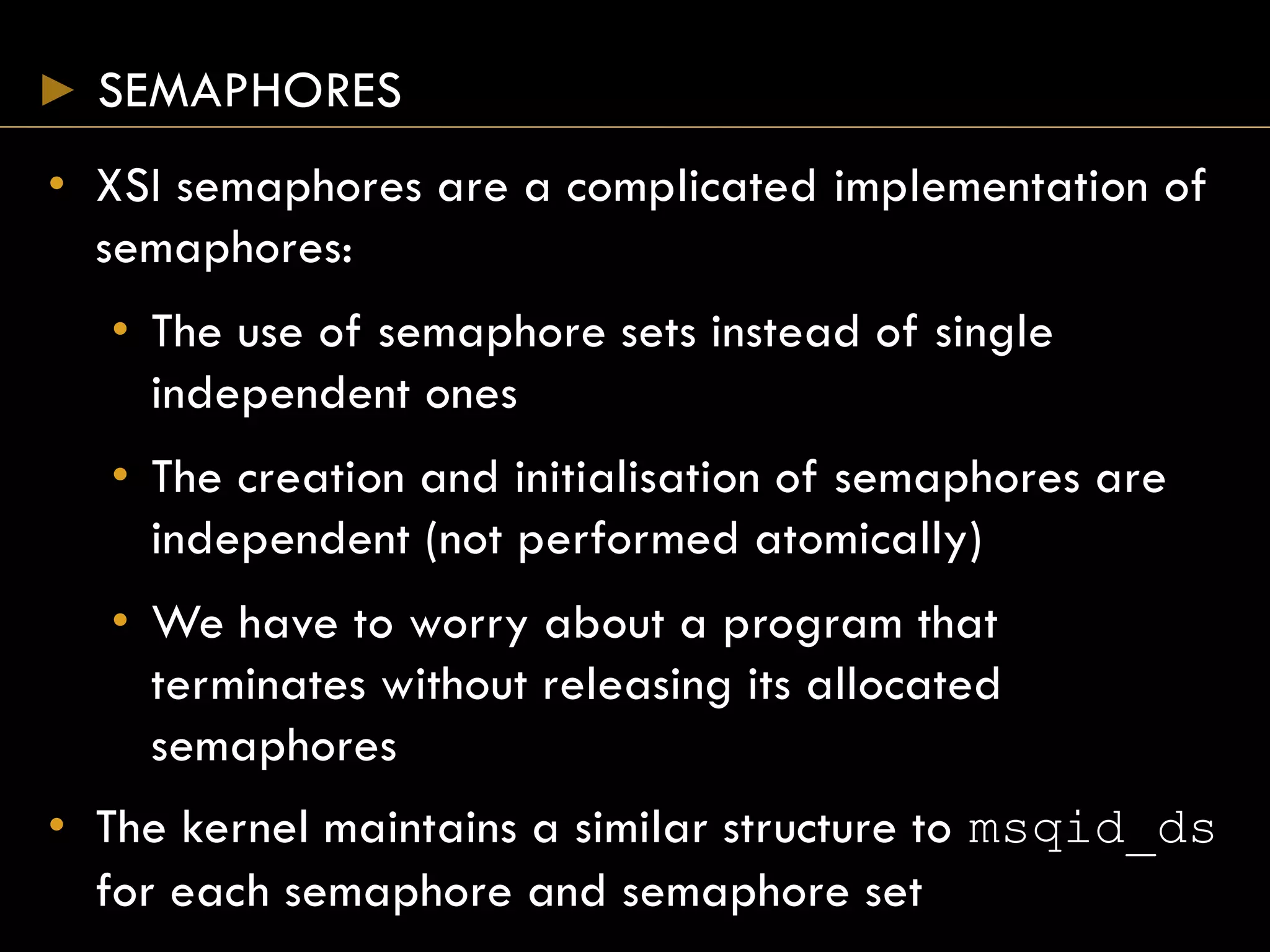

26. SEMAPHORES
• XSI semaphores are a complicated implementation of
semaphores:
• The use of semaphore sets instead of single
independent ones
• The creation and initialisation of semaphores are
independent (not performed atomically)
• We have to worry about a program that
terminates without releasing its allocated
semaphores
• The kernel maintains a similar structure to msqid_ds
for each semaphore and semaphore set

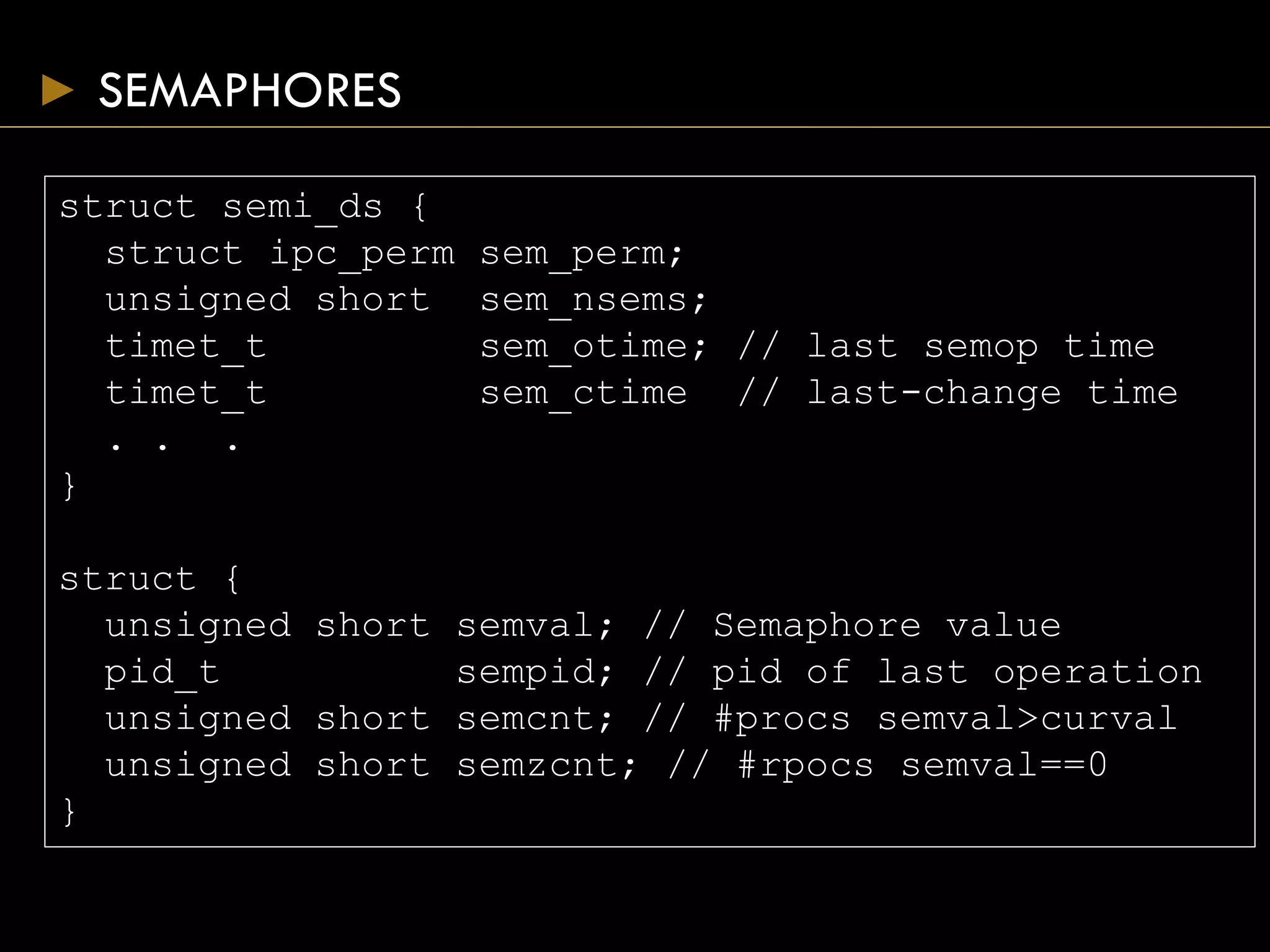

27. SEMAPHORES
struct semi_ds {
struct ipc_perm sem_perm;
unsigned short sem_nsems;
timet_t sem_otime; // last semop time
timet_t sem_ctime // last-change time
. . .
}
struct {
unsigned short semval; // Semaphore value
pid_t sempid; // pid of last operation
unsigned short semcnt; // #procs semval>curval
unsigned short semzcnt; // #rpocs semval==0
}

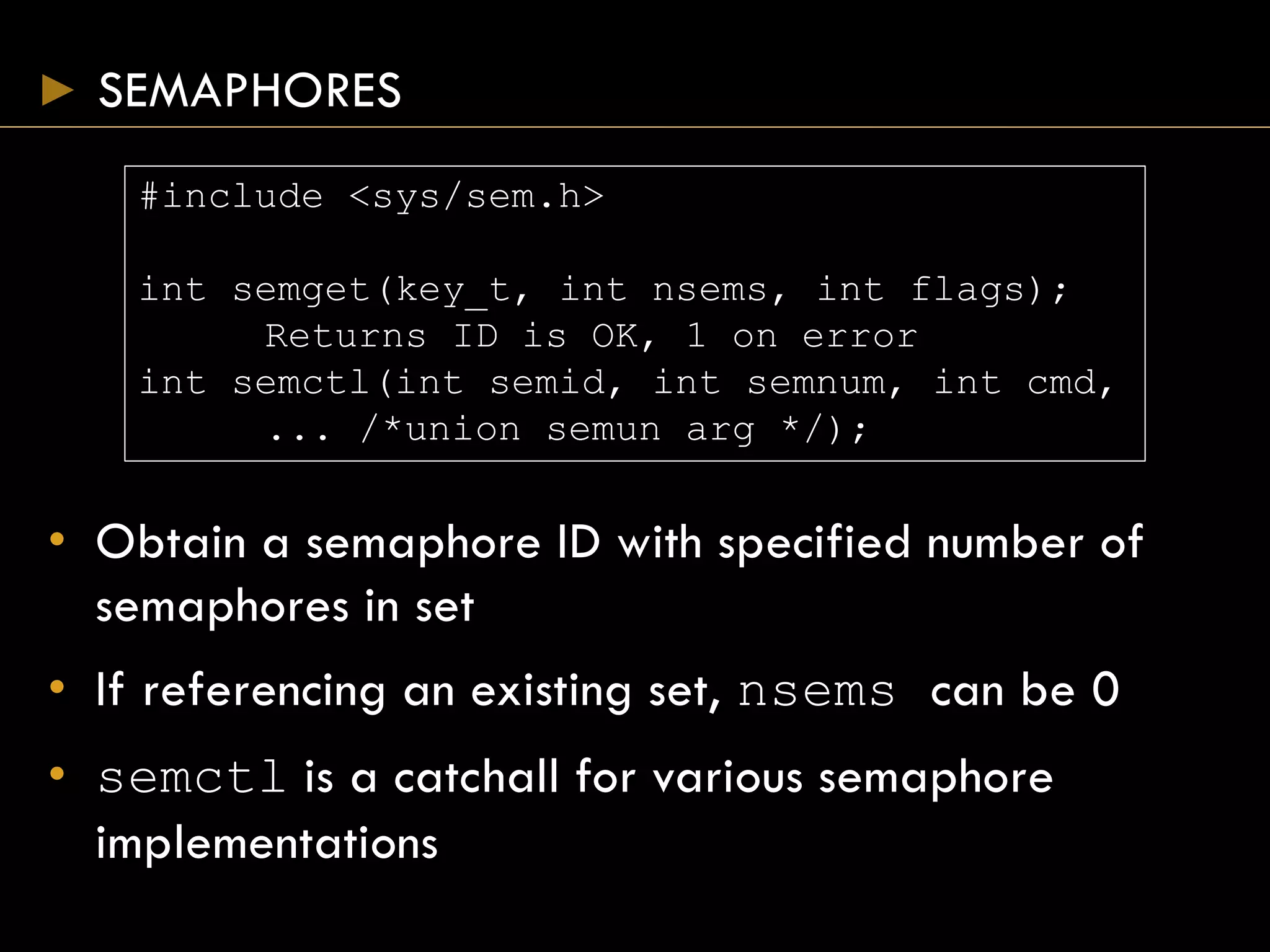

28. SEMAPHORES
• Obtain a semaphore ID with specified number of
semaphores in set
• If referencing an existing set, nsems can be 0
• semctl is a catchall for various semaphore
implementations
#include <sys/sem.h>
int semget(key_t, int nsems, int flags);
Returns ID is OK, 1 on error
int semctl(int semid, int semnum, int cmd,
... /*union semun arg */);

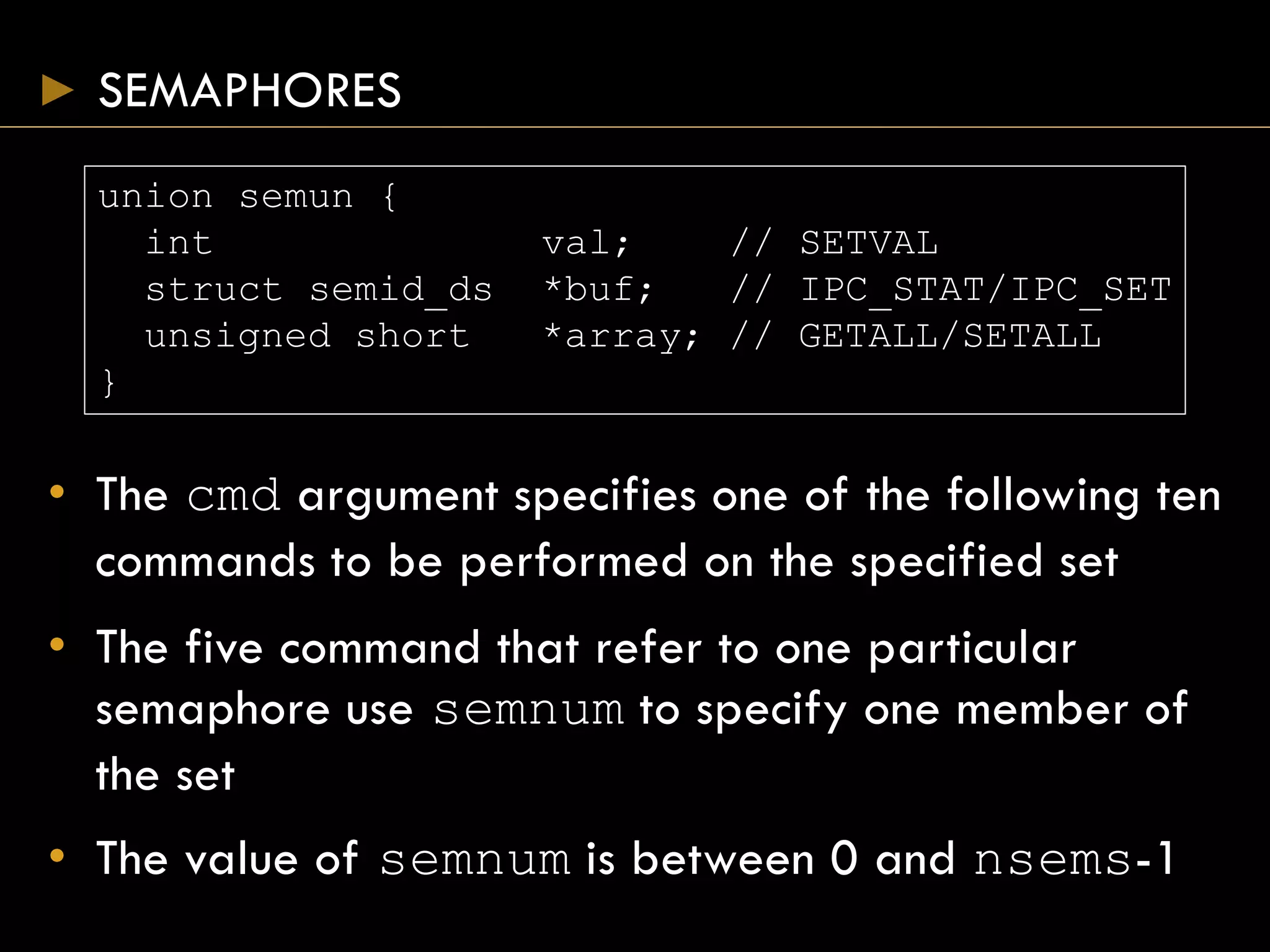

29. SEMAPHORES
• The cmd argument specifies one of the following ten
commands to be performed on the specified set
• The five command that refer to one particular
semaphore use semnum to specify one member of
the set
• The value of semnum is between 0 and nsems-1
union semun {
int val; // SETVAL
struct semid_ds *buf; // IPC_STAT/IPC_SET
unsigned short *array; // GETALL/SETALL
}

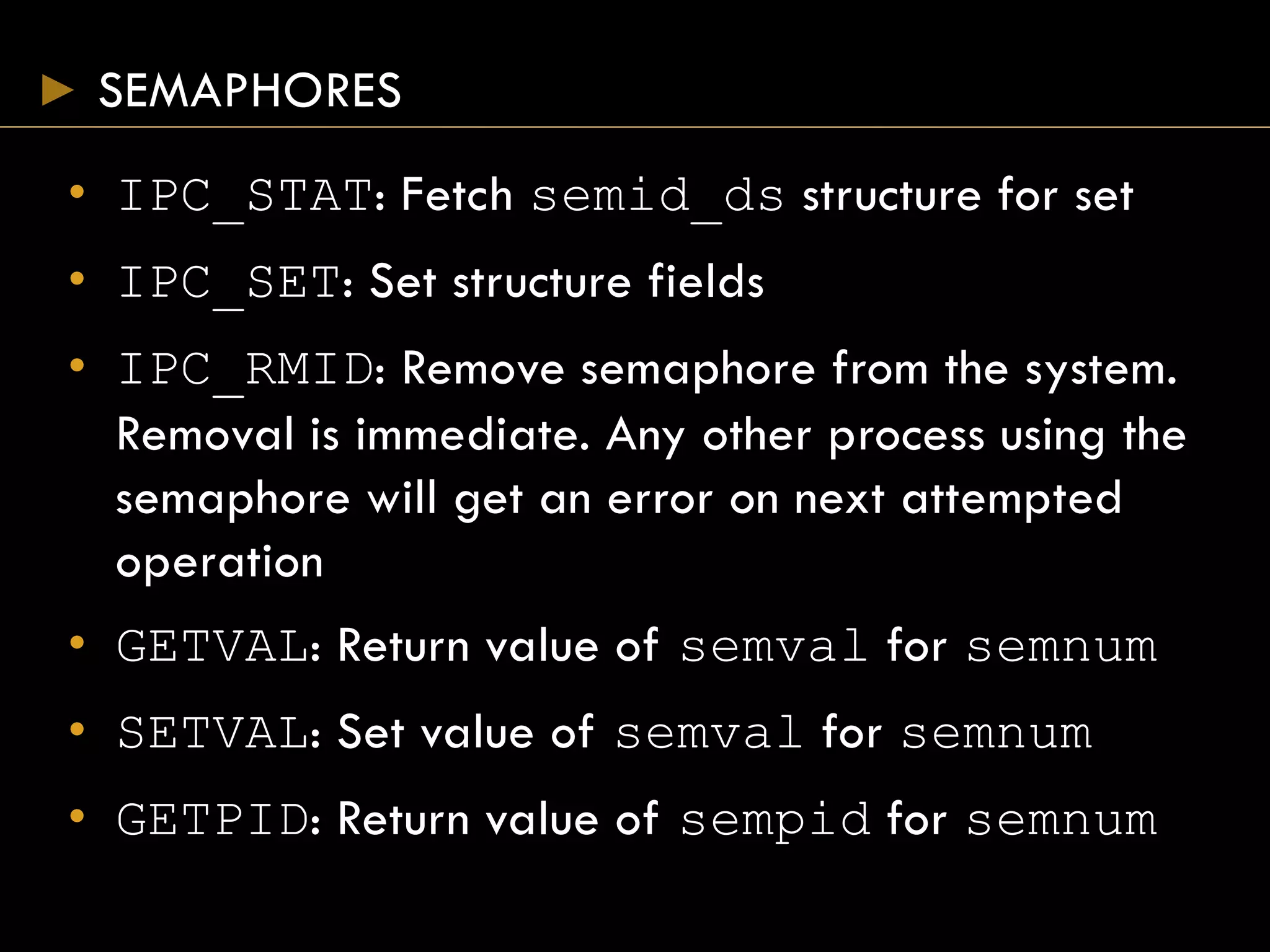

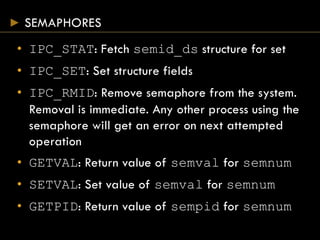

30. SEMAPHORES
• IPC_STAT: Fetch semid_ds structure for set
• IPC_SET: Set structure fields
• IPC_RMID: Remove semaphore from the system.
Removal is immediate. Any other process using the
semaphore will get an error on next attempted
operation
• GETVAL: Return value of semval for semnum
• SETVAL: Set value of semval for semnum
• GETPID: Return value of sempid for semnum

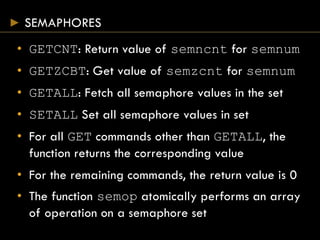

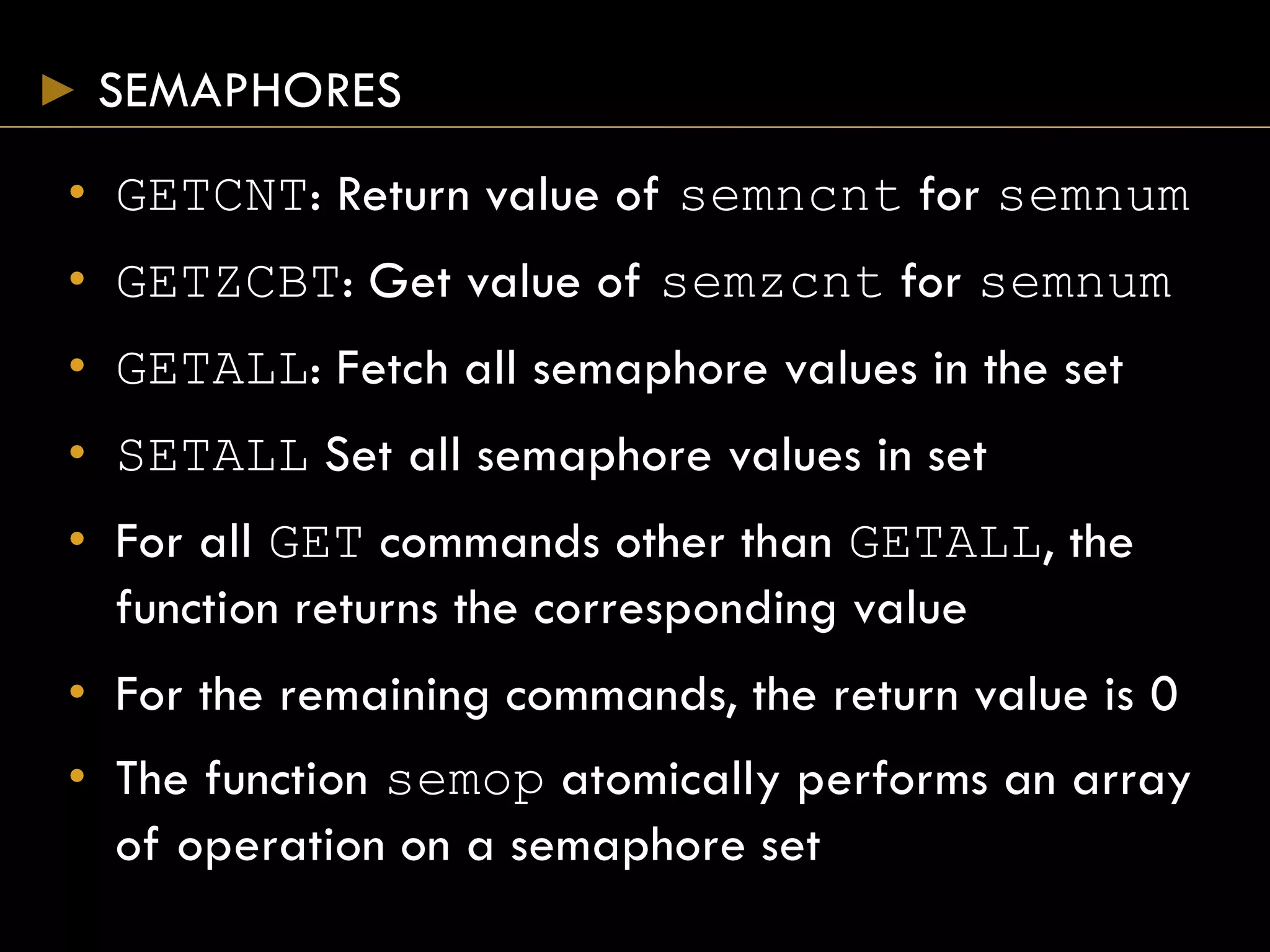

31. SEMAPHORES
• GETCNT: Return value of semncnt for semnum
• GETZCBT: Get value of semzcnt for semnum
• GETALL: Fetch all semaphore values in the set
• SETALL Set all semaphore values in set
• For all GET commands other than GETALL, the
function returns the corresponding value
• For the remaining commands, the return value is 0
• The function semop atomically performs an array
of operation on a semaphore set

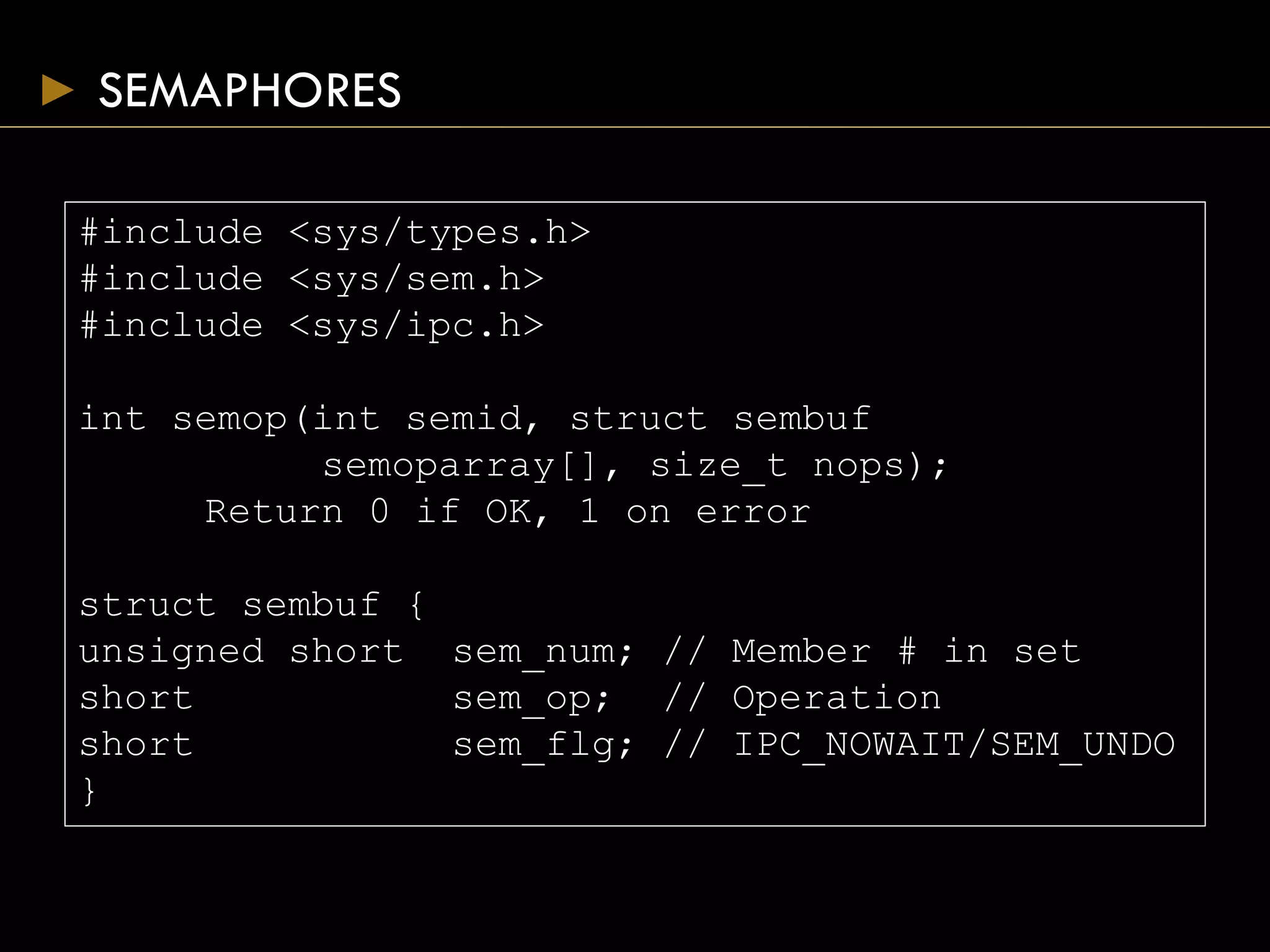

32. SEMAPHORES
#include <sys/types.h>
#include <sys/sem.h>
#include <sys/ipc.h>
int semop(int semid, struct sembuf
semoparray[], size_t nops);
Return 0 if OK, 1 on error
struct sembuf {
unsigned short sem_num; // Member # in set
short sem_op; // Operation
short sem_flg; // IPC_NOWAIT/SEM_UNDO
}

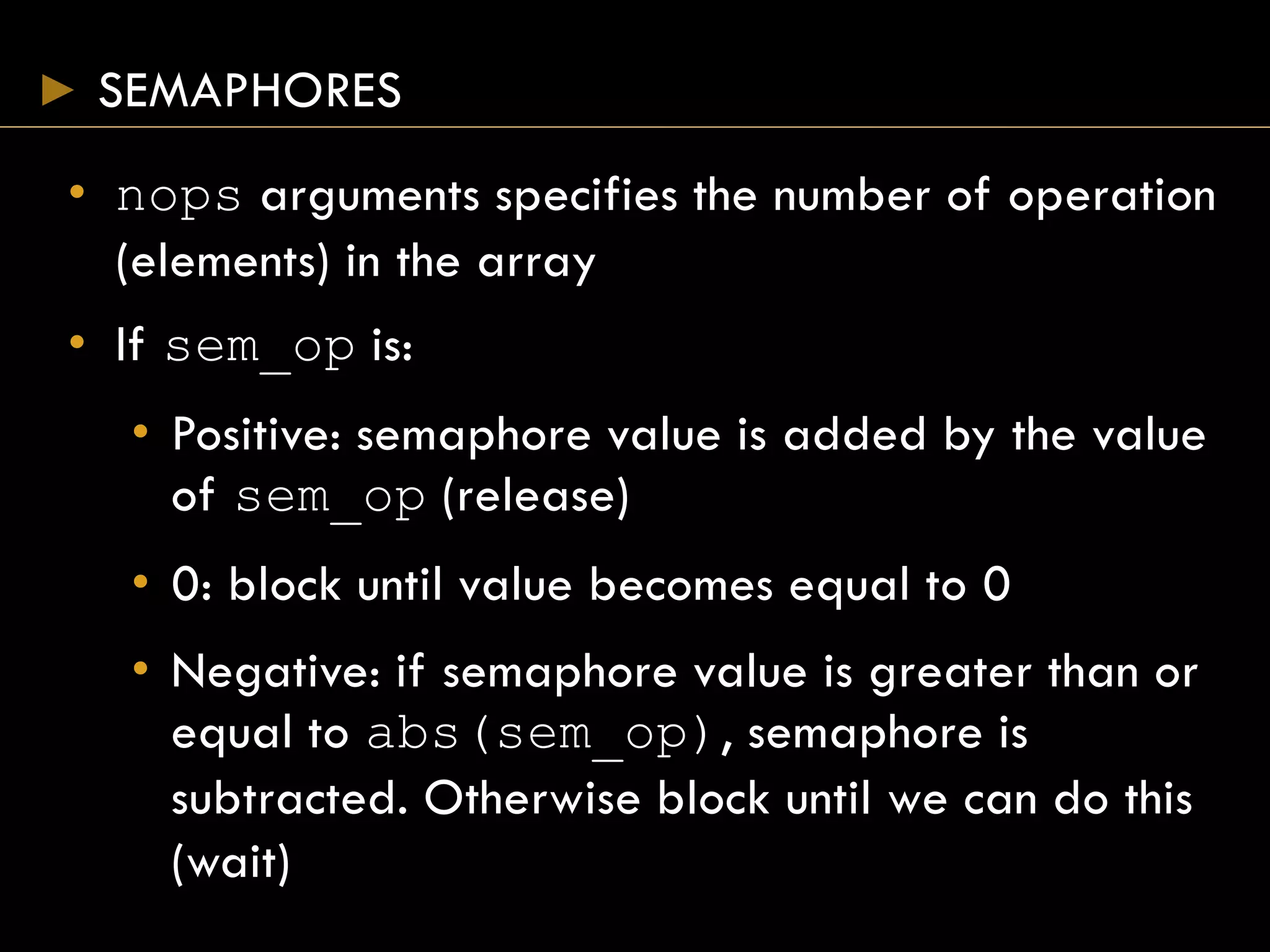

33. SEMAPHORES
• nops arguments specifies the number of operation
(elements) in the array
• If sem_op is:
• Positive: semaphore value is added by the value
of sem_op (release)
• 0: block until value becomes equal to 0
• Negative: if semaphore value is greater than or
equal to abs(sem_op), semaphore is
subtracted. Otherwise block until we can do this
(wait)

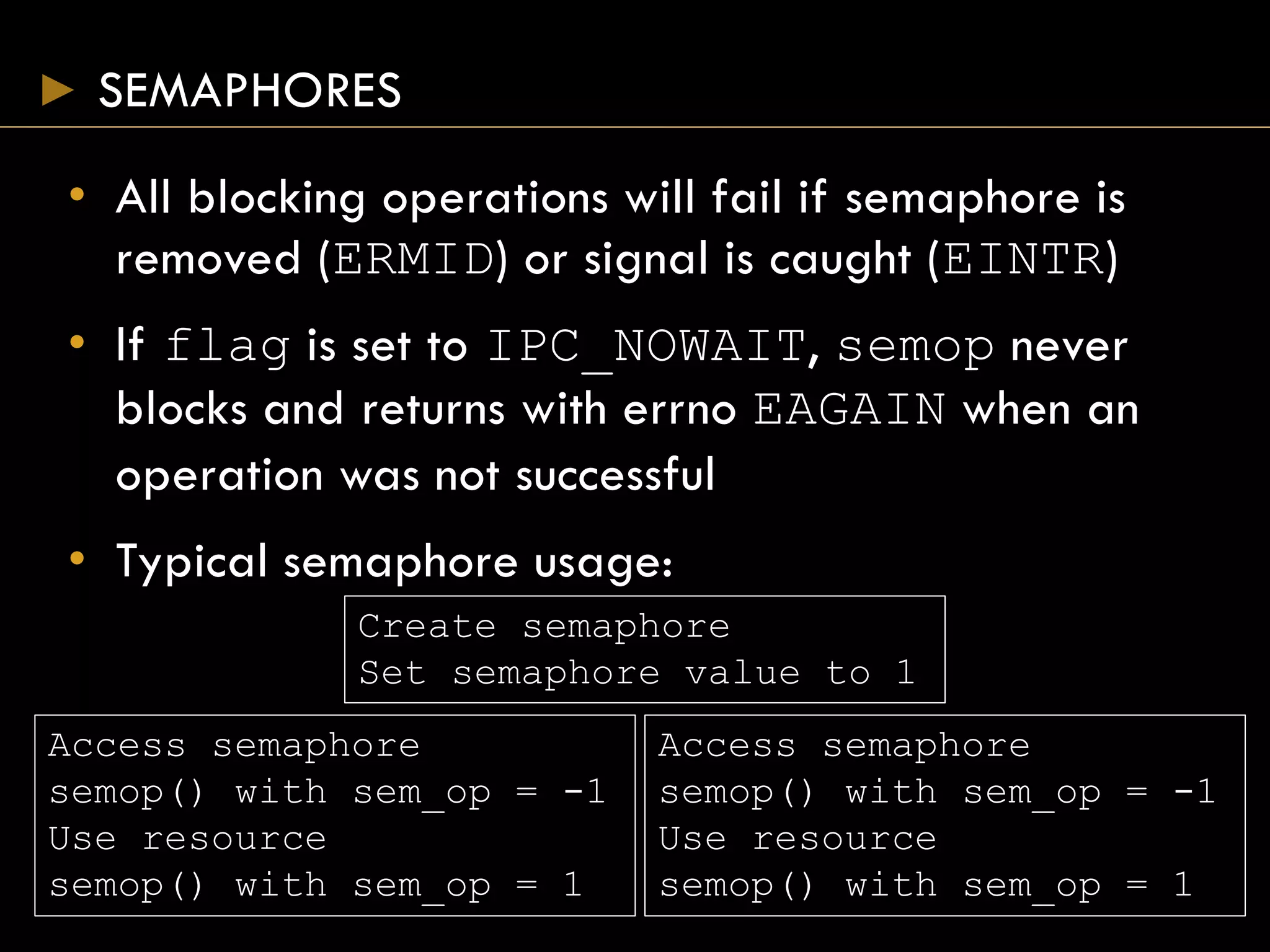

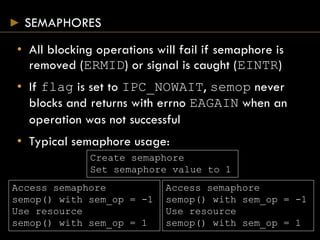

34. SEMAPHORES
• All blocking operations will fail if semaphore is
removed (ERMID) or signal is caught (EINTR)
• If flag is set to IPC_NOWAIT, semop never
blocks and returns with errno EAGAIN when an
operation was not successful
• Typical semaphore usage:
Access semaphore
semop() with sem_op = -1
Use resource
semop() with sem_op = 1
Access semaphore
semop() with sem_op = -1
Use resource
semop() with sem_op = 1
Create semaphore
Set semaphore value to 1

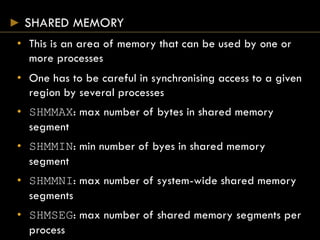

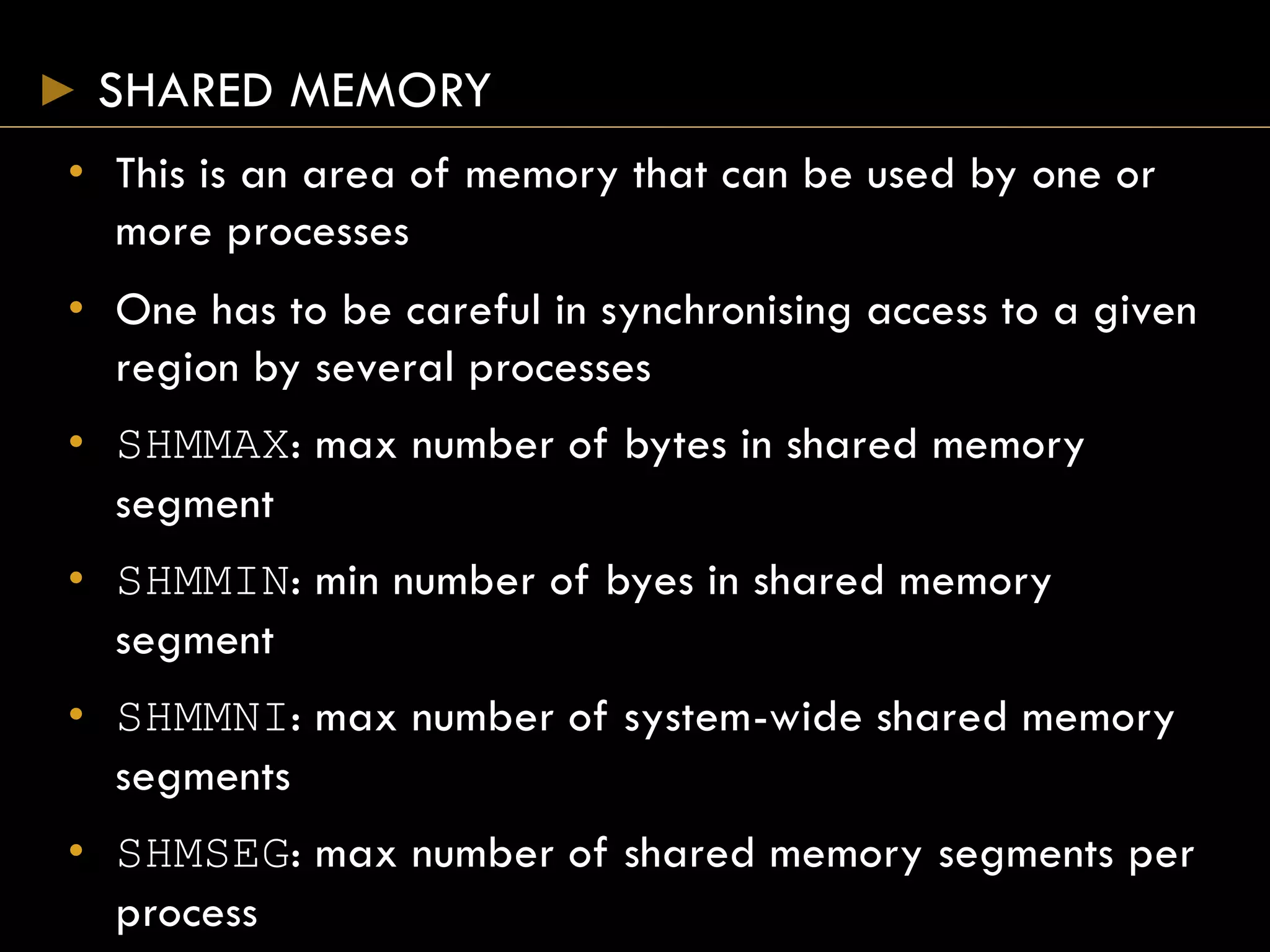

35. SHARED MEMORY
• This is an area of memory that can be used by one or
more processes
• One has to be careful in synchronising access to a given
region by several processes
• SHMMAX: max number of bytes in shared memory
segment
• SHMMIN: min number of byes in shared memory
segment
• SHMMNI: max number of system-wide shared memory
segments
• SHMSEG: max number of shared memory segments per
process

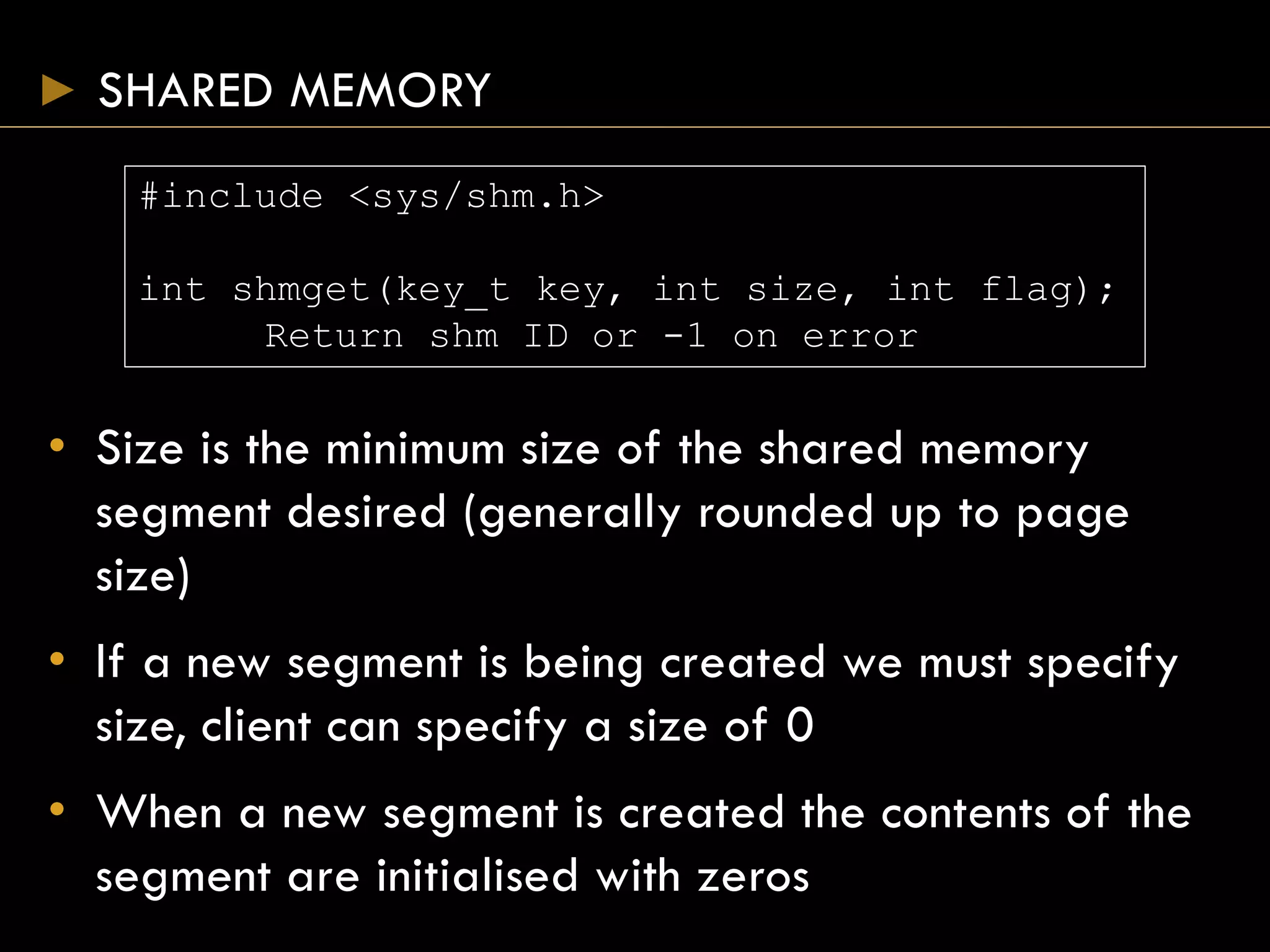

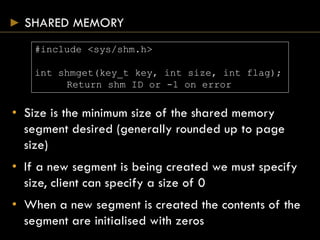

36. SHARED MEMORY
• Size is the minimum size of the shared memory
segment desired (generally rounded up to page
size)
• If a new segment is being created we must specify
size, client can specify a size of 0
• When a new segment is created the contents of the
segment are initialised with zeros
#include <sys/shm.h>
int shmget(key_t key, int size, int flag);
Return shm ID or -1 on error

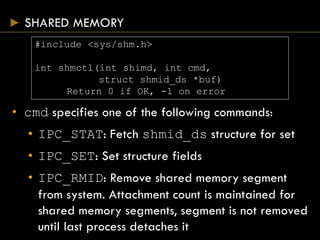

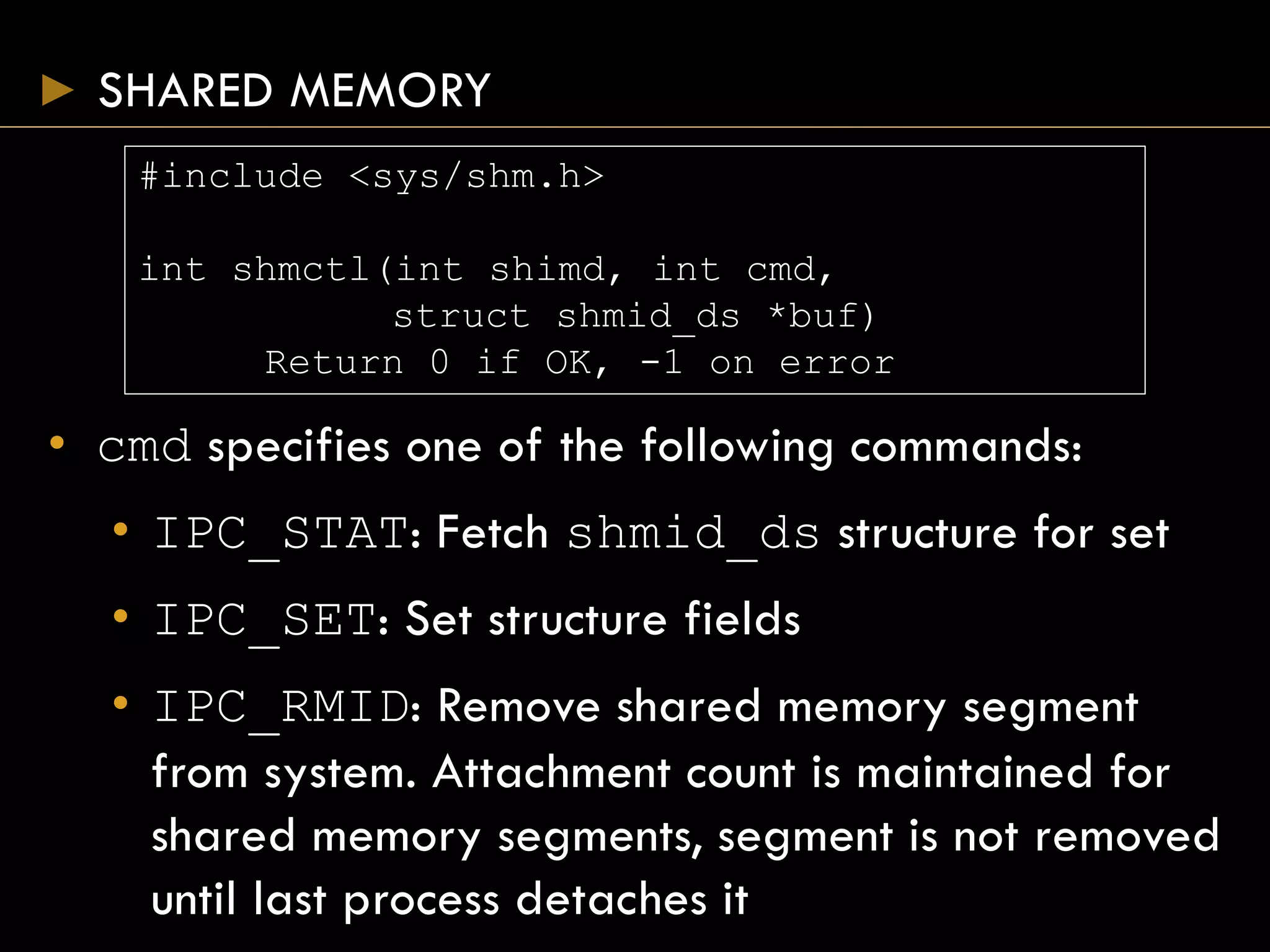

37. SHARED MEMORY
• cmd specifies one of the following commands:
• IPC_STAT: Fetch shmid_ds structure for set
• IPC_SET: Set structure fields
• IPC_RMID: Remove shared memory segment
from system. Attachment count is maintained for
shared memory segments, segment is not removed
until last process detaches it
#include <sys/shm.h>
int shmctl(int shimd, int cmd,
struct shmid_ds *buf)
Return 0 if OK, -1 on error

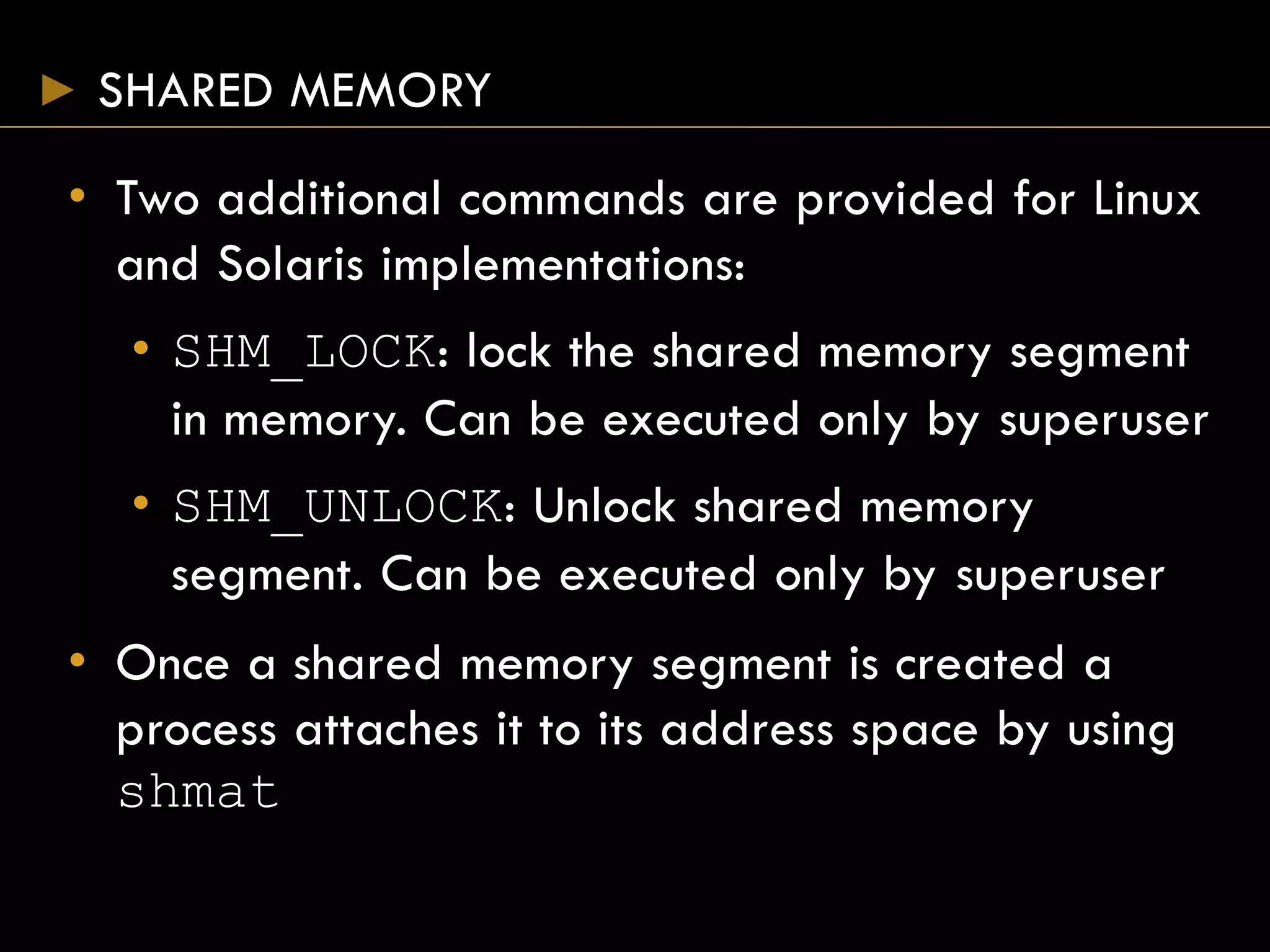

38. SHARED MEMORY
• Two additional commands are provided for Linux
and Solaris implementations:
• SHM_LOCK: lock the shared memory segment
in memory. Can be executed only by superuser
• SHM_UNLOCK: Unlock shared memory
segment. Can be executed only by superuser
• Once a shared memory segment is created a
process attaches it to its address space by using
shmat

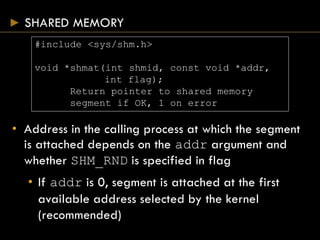

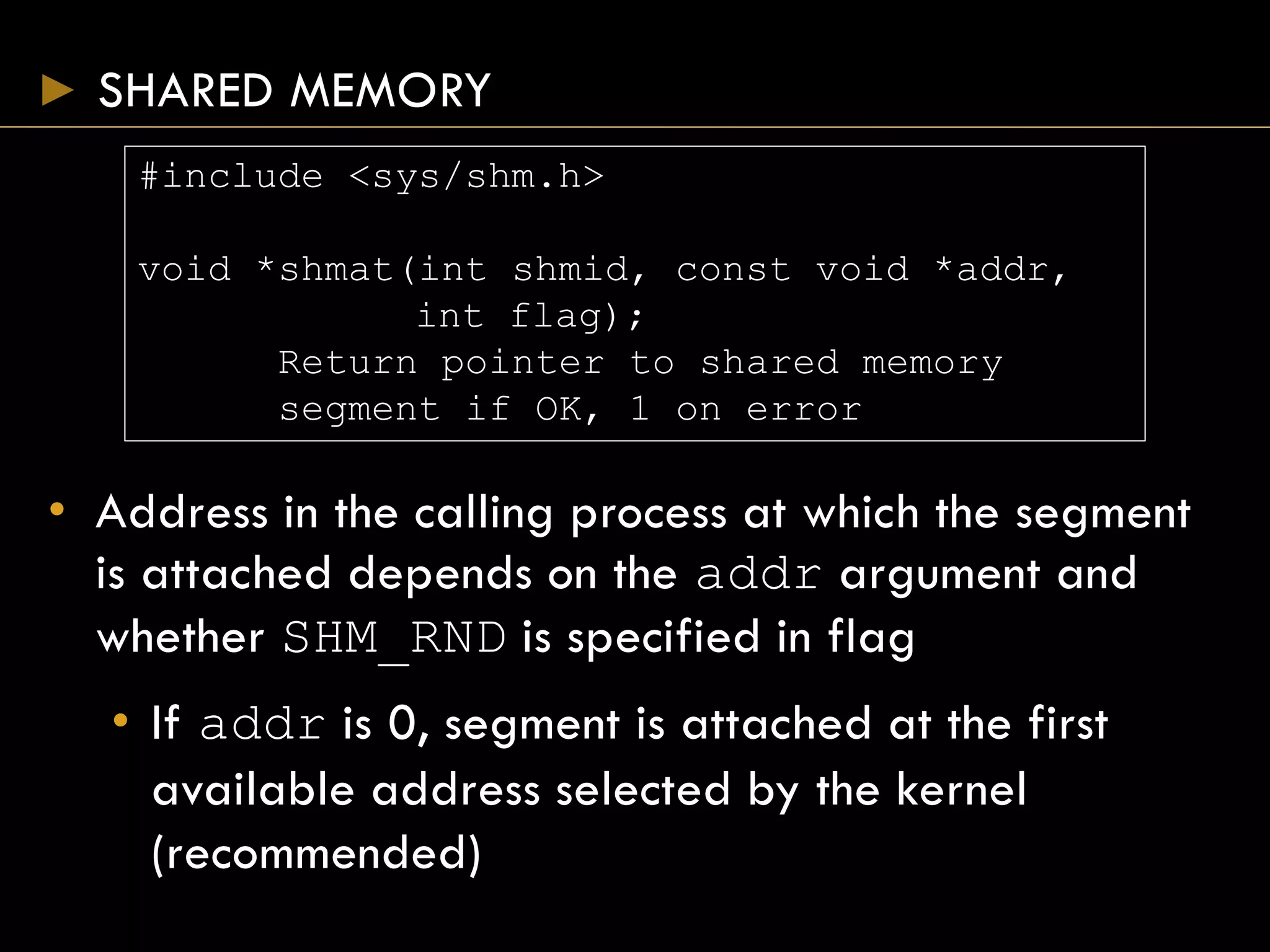

39. SHARED MEMORY
• Address in the calling process at which the segment
is attached depends on the addr argument and
whether SHM_RND is specified in flag
• If addr is 0, segment is attached at the first
available address selected by the kernel
(recommended)
#include <sys/shm.h>
void *shmat(int shmid, const void *addr,
int flag);
Return pointer to shared memory
segment if OK, 1 on error

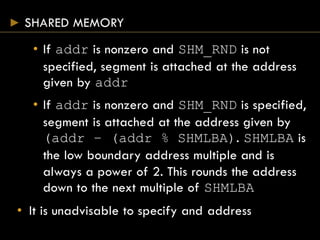

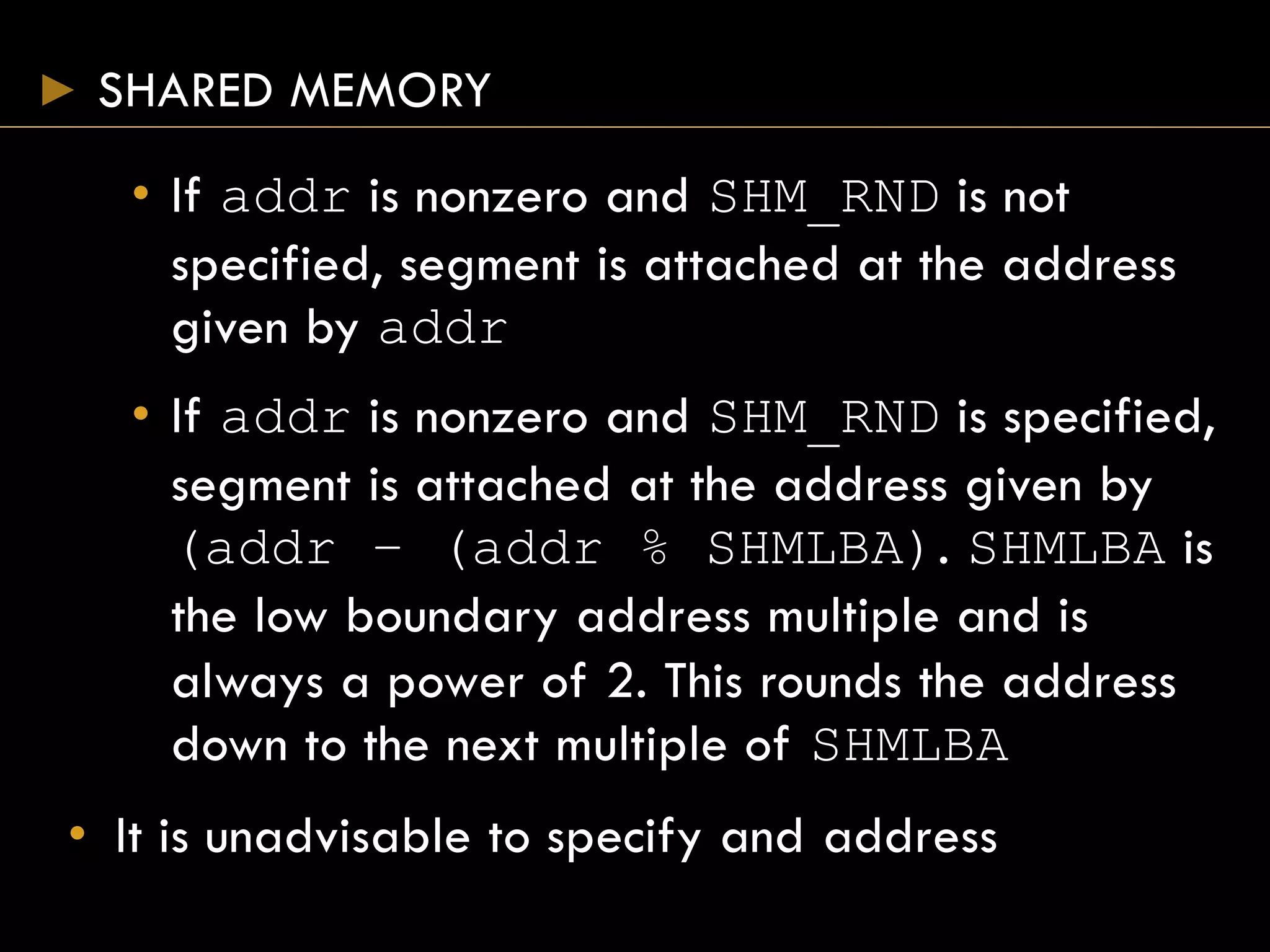

40. SHARED MEMORY
• If addr is nonzero and SHM_RND is not
specified, segment is attached at the address
given by addr
• If addr is nonzero and SHM_RND is specified,
segment is attached at the address given by
(addr – (addr % SHMLBA). SHMLBA is
the low boundary address multiple and is
always a power of 2. This rounds the address
down to the next multiple of SHMLBA
• It is unadvisable to specify and address

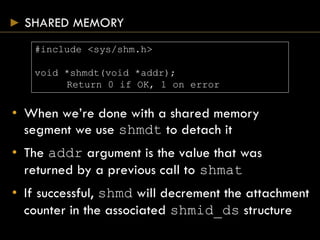

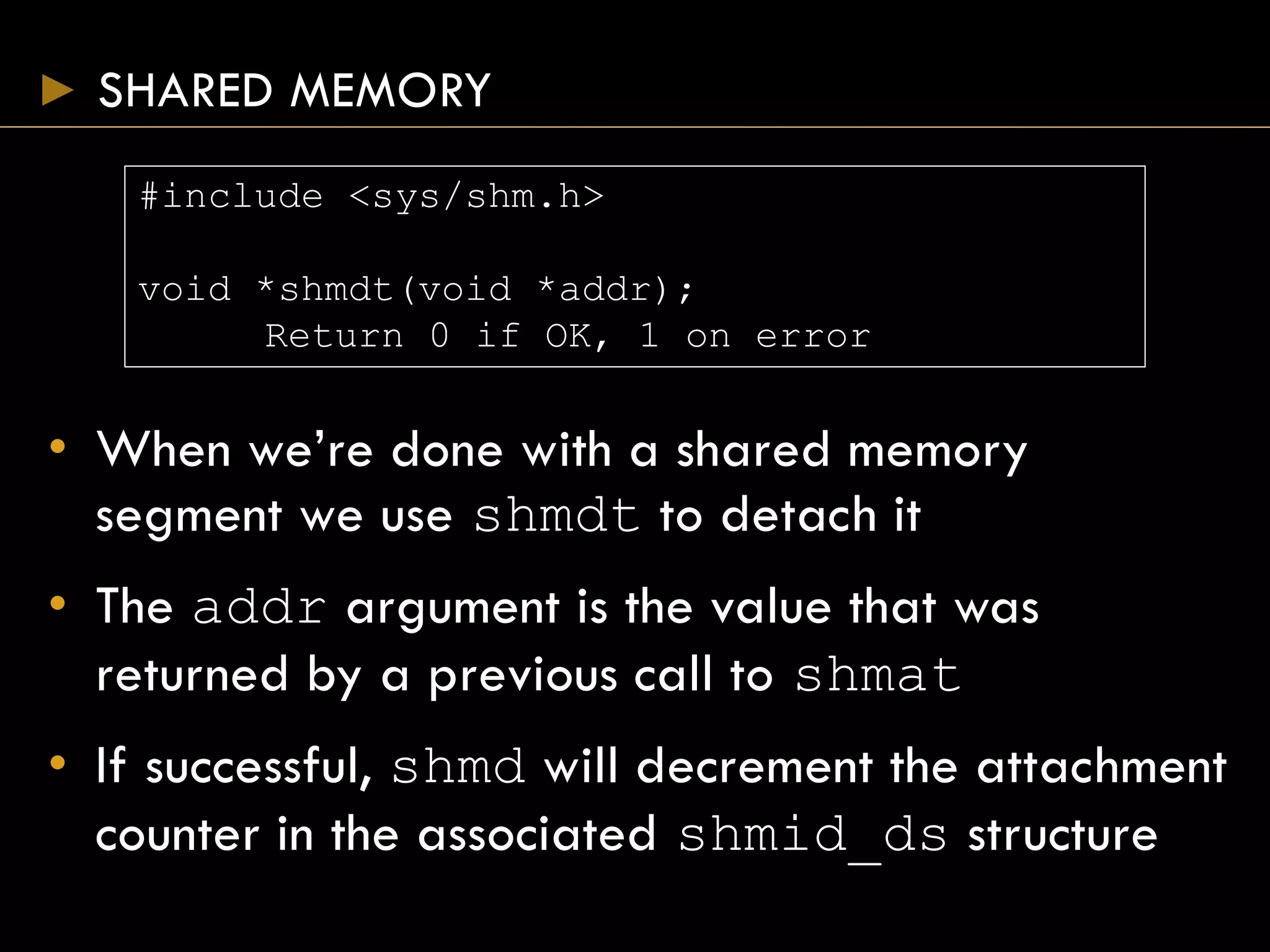

41. SHARED MEMORY
• When we’re done with a shared memory
segment we use shmdt to detach it
• The addr argument is the value that was
returned by a previous call to shmat
• If successful, shmd will decrement the attachment
counter in the associated shmid_ds structure
#include <sys/shm.h>
void *shmdt(void *addr);
Return 0 if OK, 1 on error
