This document summarizes the technical characteristics of the synthetic artificial graphite PGPT203. It has high specific capacity and first efficiency with long life cycle. The graphite has a black or grey color with no agglomeration or impurities. Key properties include a D50 of 15.048 μm, tap density of 1.30 g/cm3, moisture of 0.03%, ash of 0.01%, and graphitization of 95.6%. Its first discharge capacity is 355.6 mAh/g with 94.2% first efficiency. Applications include soft pack batteries, aluminum-can batteries, polymer batteries, and EV batteries.

1. Technical Characteristics: Synthetic artificial graphite with modified performance. High specific capacity, high
first efficiency and long life cycle.
General Characteristics
1. Composition: Graphite
2. Appearance: Black or grey color, no agglomeration, no sundries
Technical Data
Property Unit Typical Value Test Method
PSD D50 µm 15.048 Mastersizer 2000E
Tap density g/cm3 1.30 GB/T 5162
Moisture % 0.03 GB/T 3521
Ash % 0.01 GB/T 3521
FC % 99.99 GB/T 3521
SSA m2/g 1.02 BET
True density g/cm3 2.21 Ultrapyc 1200e
Graphitisation % 95.6 XRD
First discharge capacity mAh/g 355.6 0.2C/Half cell / SBR+CMC
First efficiency % 94.2
Synthetic Artificial Graphite
PGPT203

2. PDS Targray High Rate Capability Synthetic Artificial Graphite PGPT203 Rev 1.0 2015.04.07”
Synthetic Artificial Graphite PGPT203

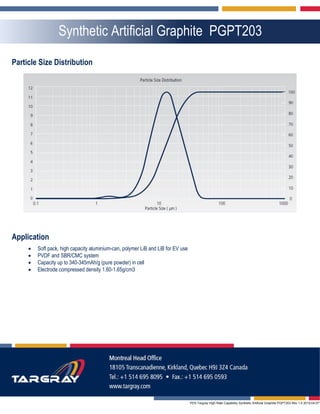

Particle Size Distribution
Application
 Soft pack, high capacity aluminium-can, polymer LiB and LiB for EV use
 PVDF and SBR/CMC system
 Capacity up to 340-345mAh/g (pure powder) in cell
 Electrode compressed density 1.60-1.65g/cm3
