The document is a technical presentation detailing summer training at Hindustan Aeronautics Limited's Accessories Division in Lucknow, supervised by Mr. S. P. Singh. It covers various aspects such as the organizational structure, products, and services related to multiple aircraft projects, including the Bahadur and Adour engine projects, as well as production capabilities in mechanical and electronics factories. Additionally, it outlines specific equipment and technologies employed in aircraft manufacturing and testing.

1. A

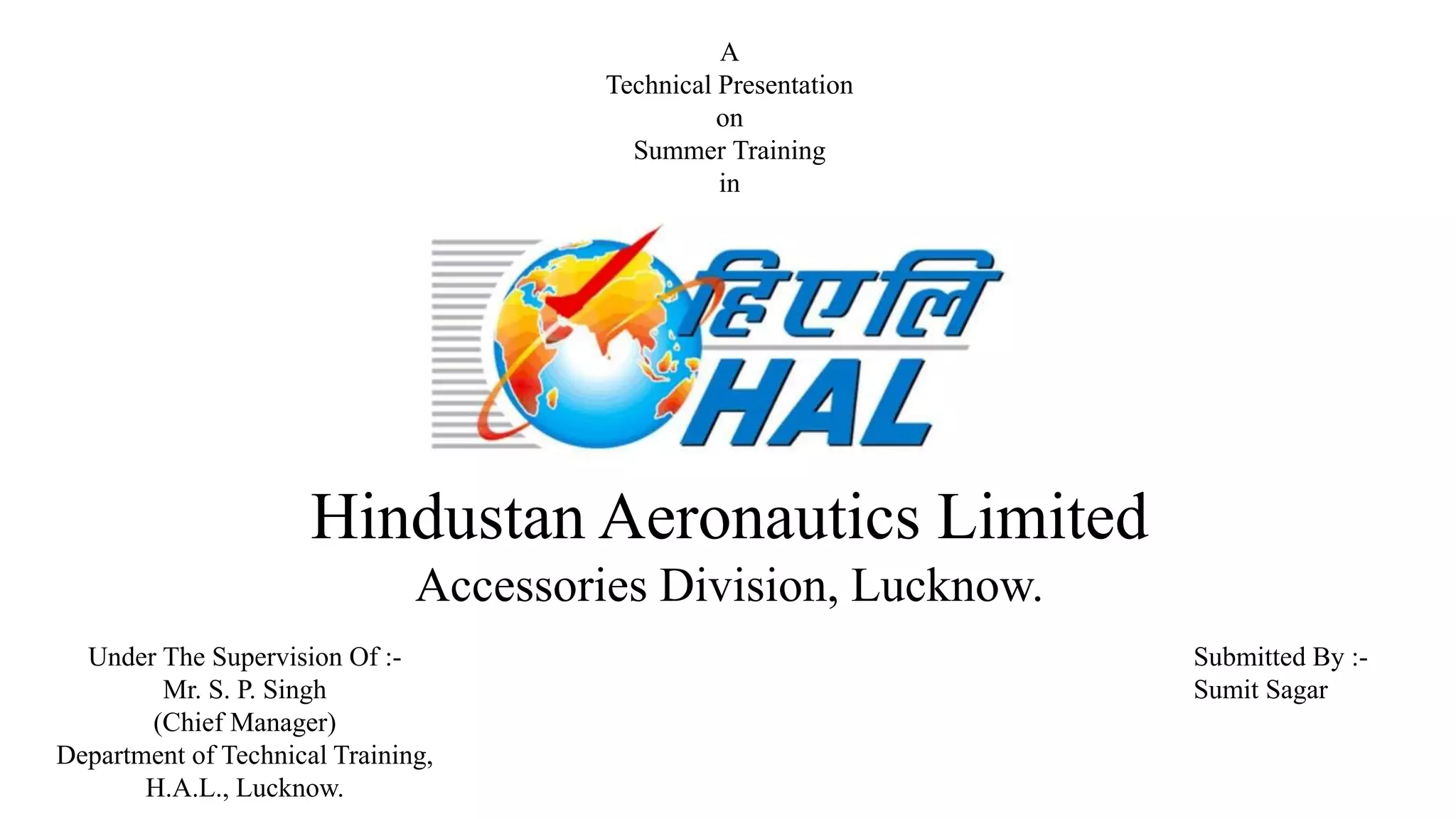

Technical Presentation
on
Summer Training
in
Hindustan Aeronautics Limited
Accessories Division, Lucknow.
Under The Supervision Of :-
Mr. S. P. Singh
(Chief Manager)
Department of Technical Training,
H.A.L., Lucknow.
Submitted By :-
Sumit Sagar

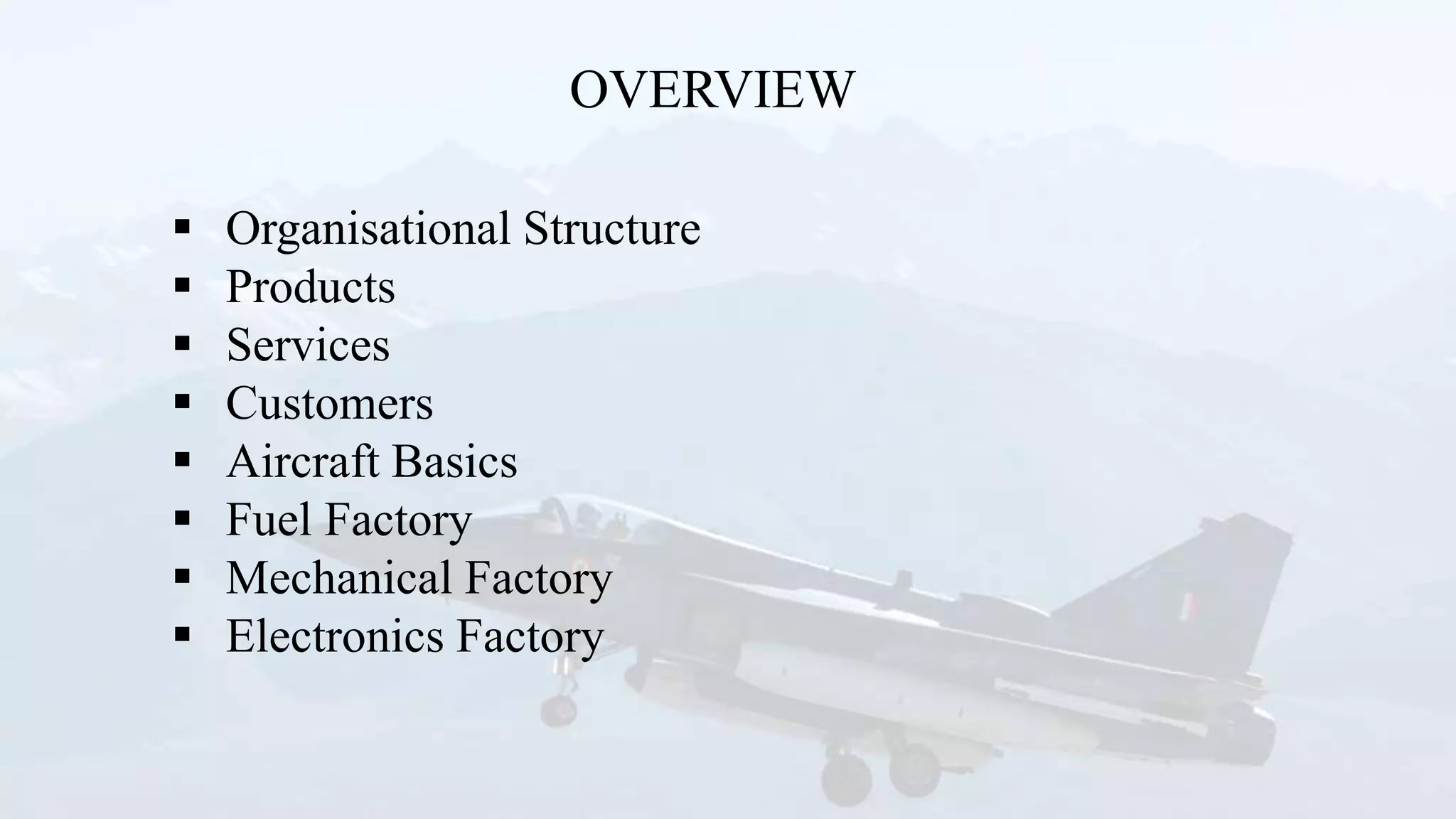

2. OVERVIEW
 Organisational Structure
 Products
 Services
 Customers
 Aircraft Basics
 Fuel Factory
 Mechanical Factory
 Electronics Factory

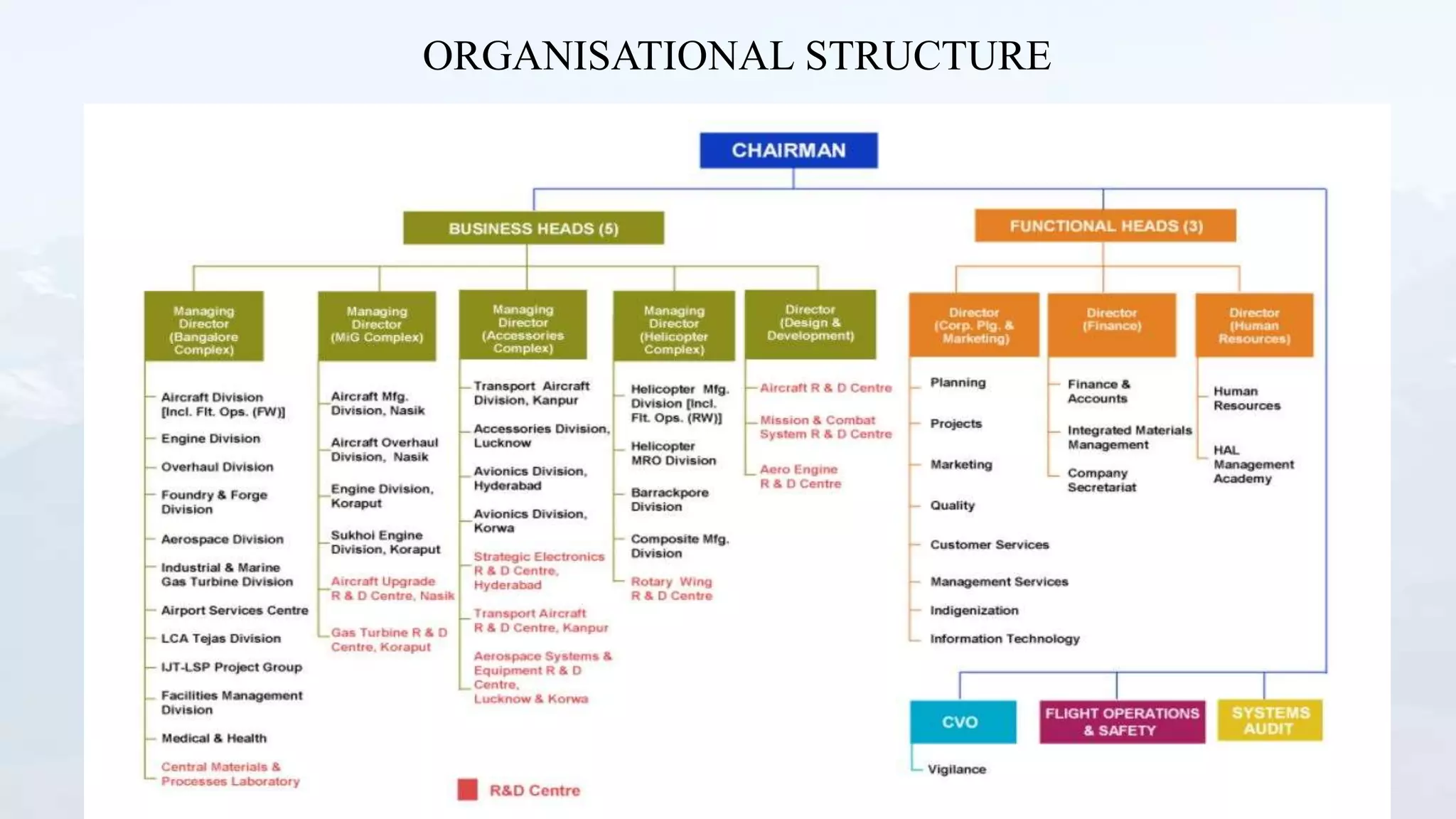

3. ORGANISATIONAL STRUCTURE

4. PRODUCTS

5. SERVICES

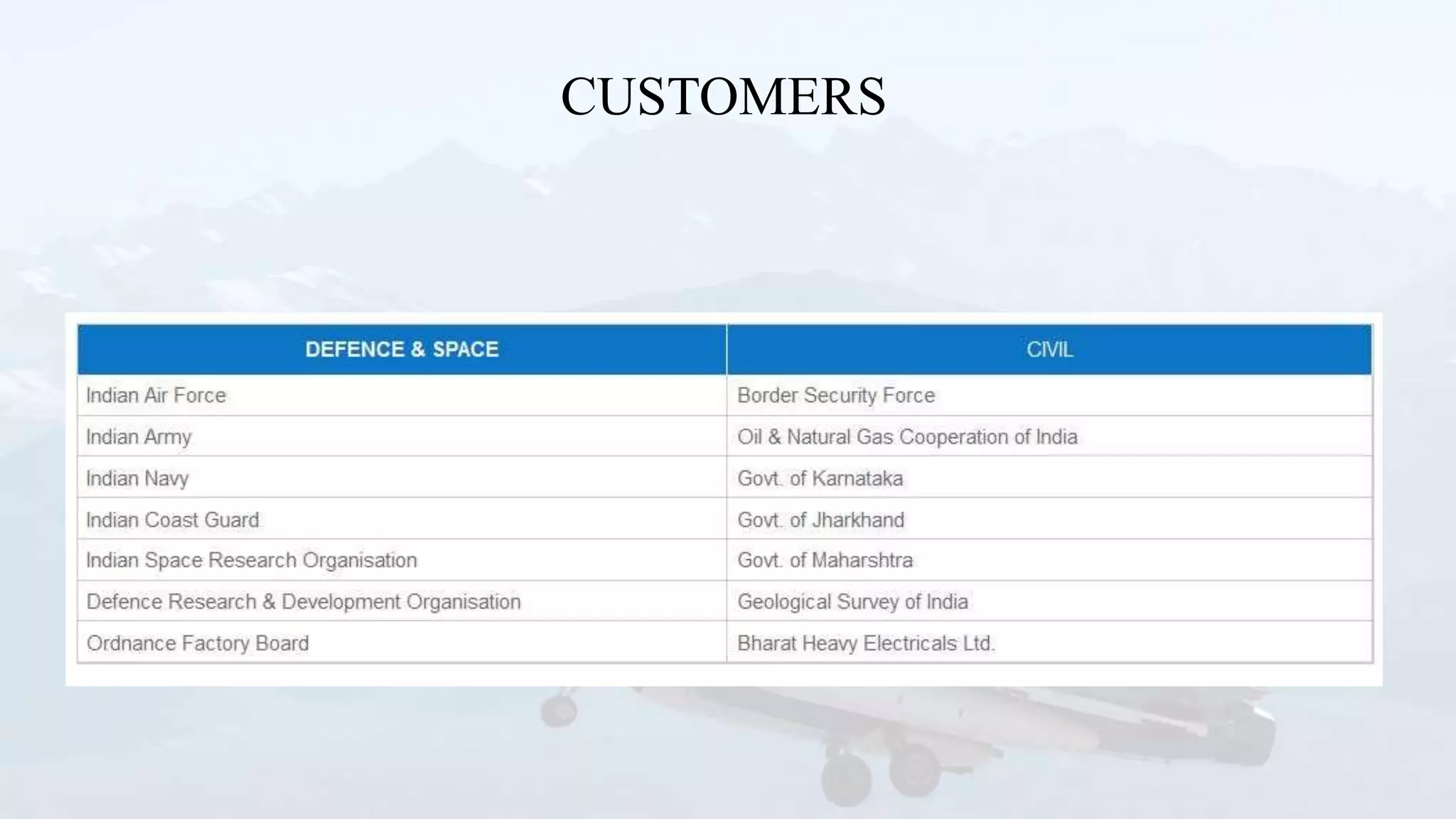

6. CUSTOMERS

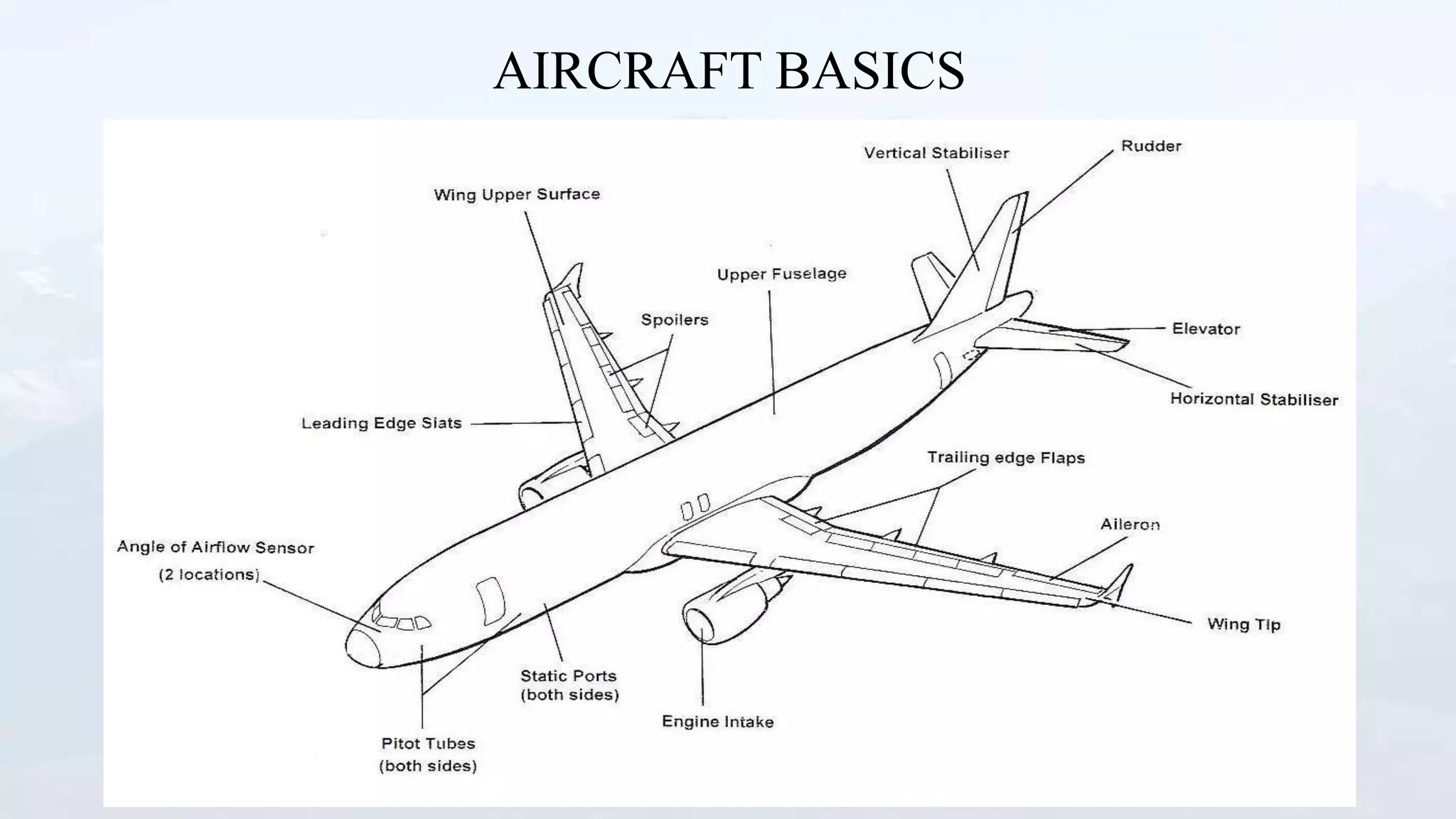

7. AIRCRAFT BASICS

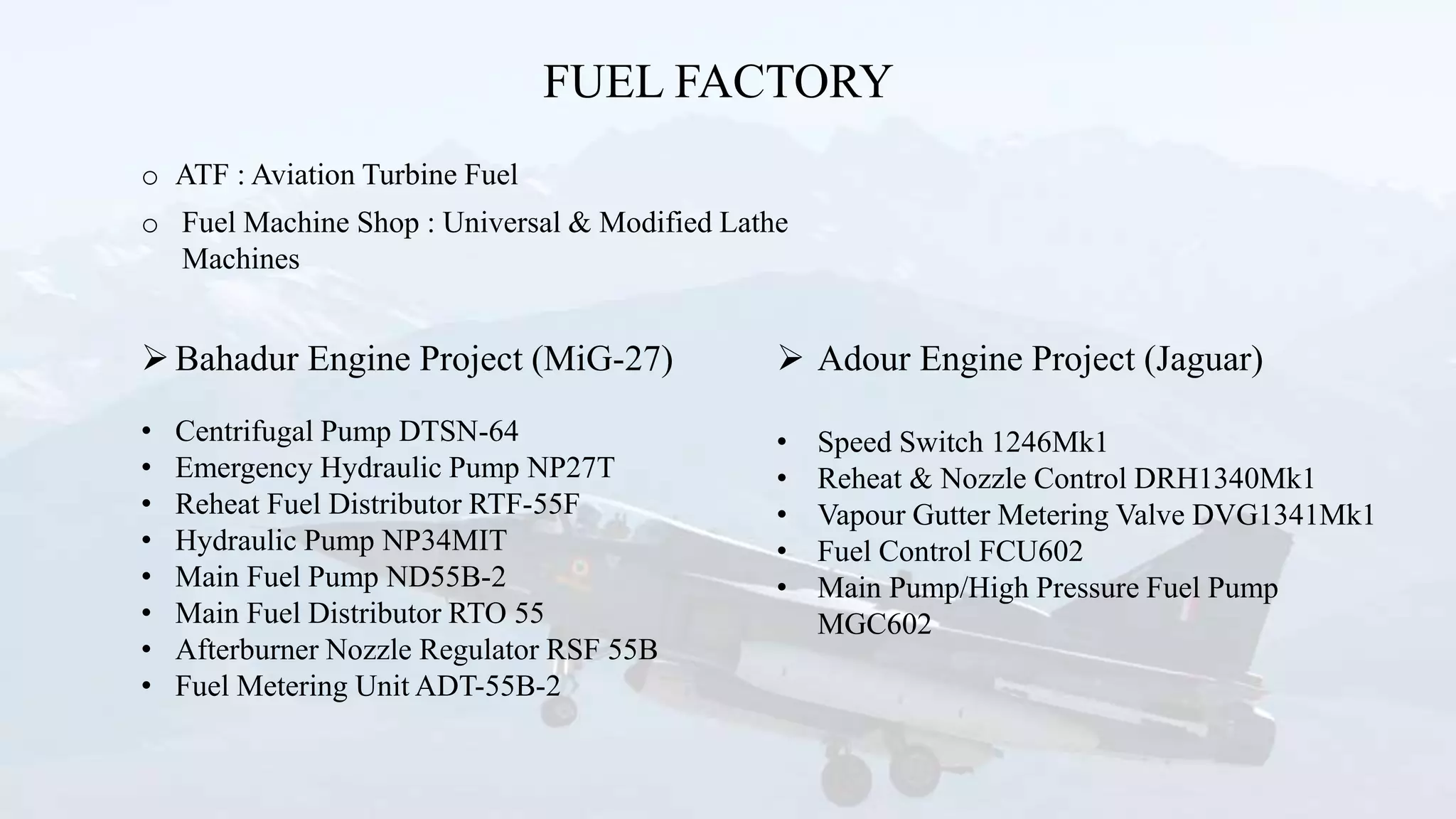

8. FUEL FACTORY
Bahadur Engine Project (MiG-27)
• Centrifugal Pump DTSN-64
• Emergency Hydraulic Pump NP27T
• Reheat Fuel Distributor RTF-55F
• Hydraulic Pump NP34MIT
• Main Fuel Pump ND55B-2
• Main Fuel Distributor RTO 55
• Afterburner Nozzle Regulator RSF 55B
• Fuel Metering Unit ADT-55B-2
o ATF : Aviation Turbine Fuel
o Fuel Machine Shop : Universal & Modified Lathe
Machines
 Adour Engine Project (Jaguar)
• Speed Switch 1246Mk1
• Reheat & Nozzle Control DRH1340Mk1
• Vapour Gutter Metering Valve DVG1341Mk1
• Fuel Control FCU602
• Main Pump/High Pressure Fuel Pump
MGC602

9. MECHANICAL FACTORY
o Aron Harley Cold Chamber (-60°C)
o Canard Structure
o Rudder/Aileron/Elevator Test Equipments
o Flight Control Actuator
o Heat Treatment using Electric Furnace at 900+ °C & Hisalt 660
o Electroplating
o Job – Process Layout & Drawing of Final Product
 CNC (Computerised Numerical Control)
• Job Cutter Made of Steel Carbide
• Axis of x;A,y;B,z;C
• G01 – linear
• G02 – clockwise
• G03 – anticlockwise

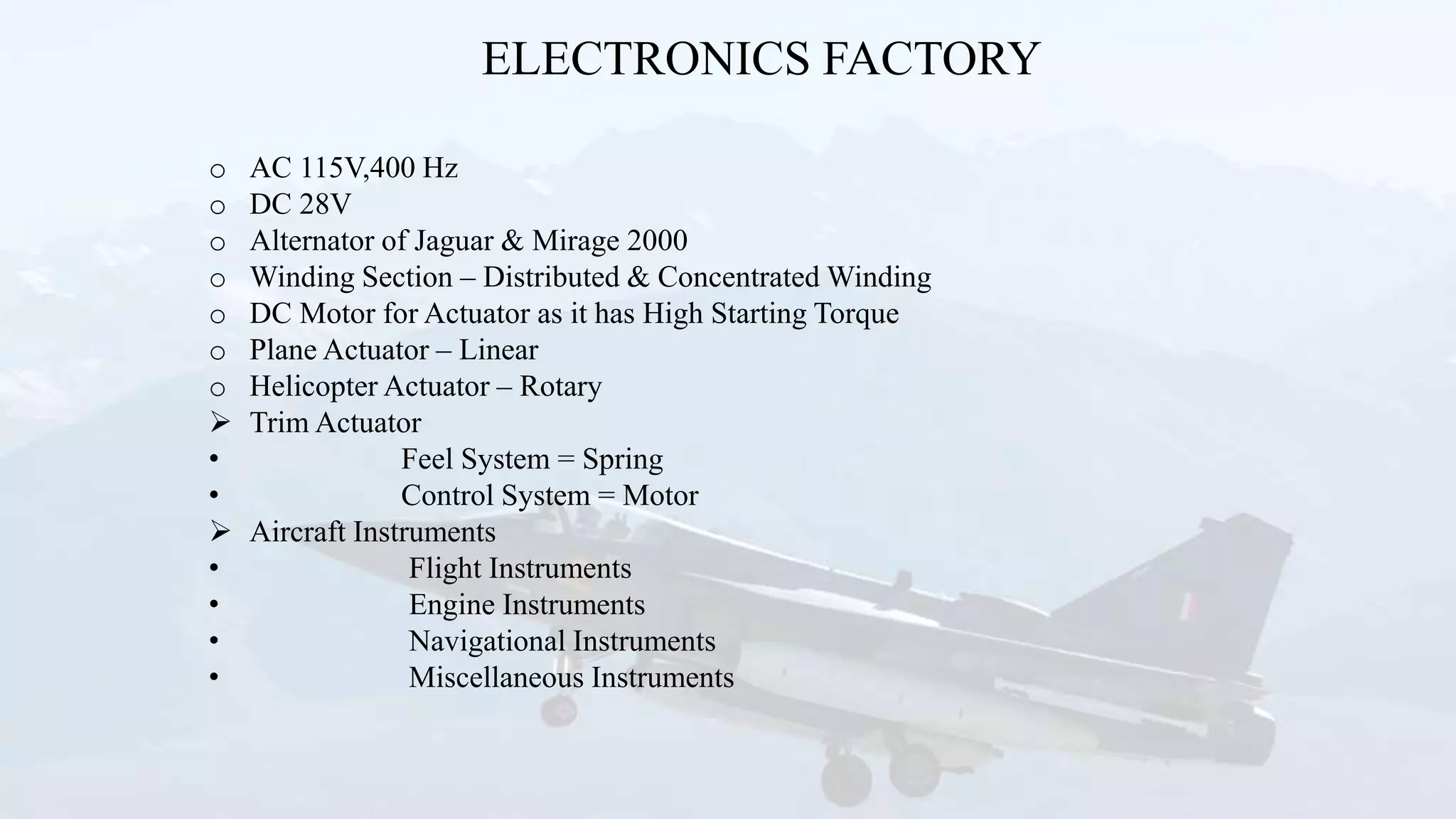

10. ELECTRONICS FACTORY
o AC 115V,400 Hz
o DC 28V
o Alternator of Jaguar & Mirage 2000
o Winding Section – Distributed & Concentrated Winding
o DC Motor for Actuator as it has High Starting Torque
o Plane Actuator – Linear
o Helicopter Actuator – Rotary
 Trim Actuator
• Feel System = Spring
• Control System = Motor
 Aircraft Instruments
• Flight Instruments
• Engine Instruments
• Navigational Instruments
• Miscellaneous Instruments

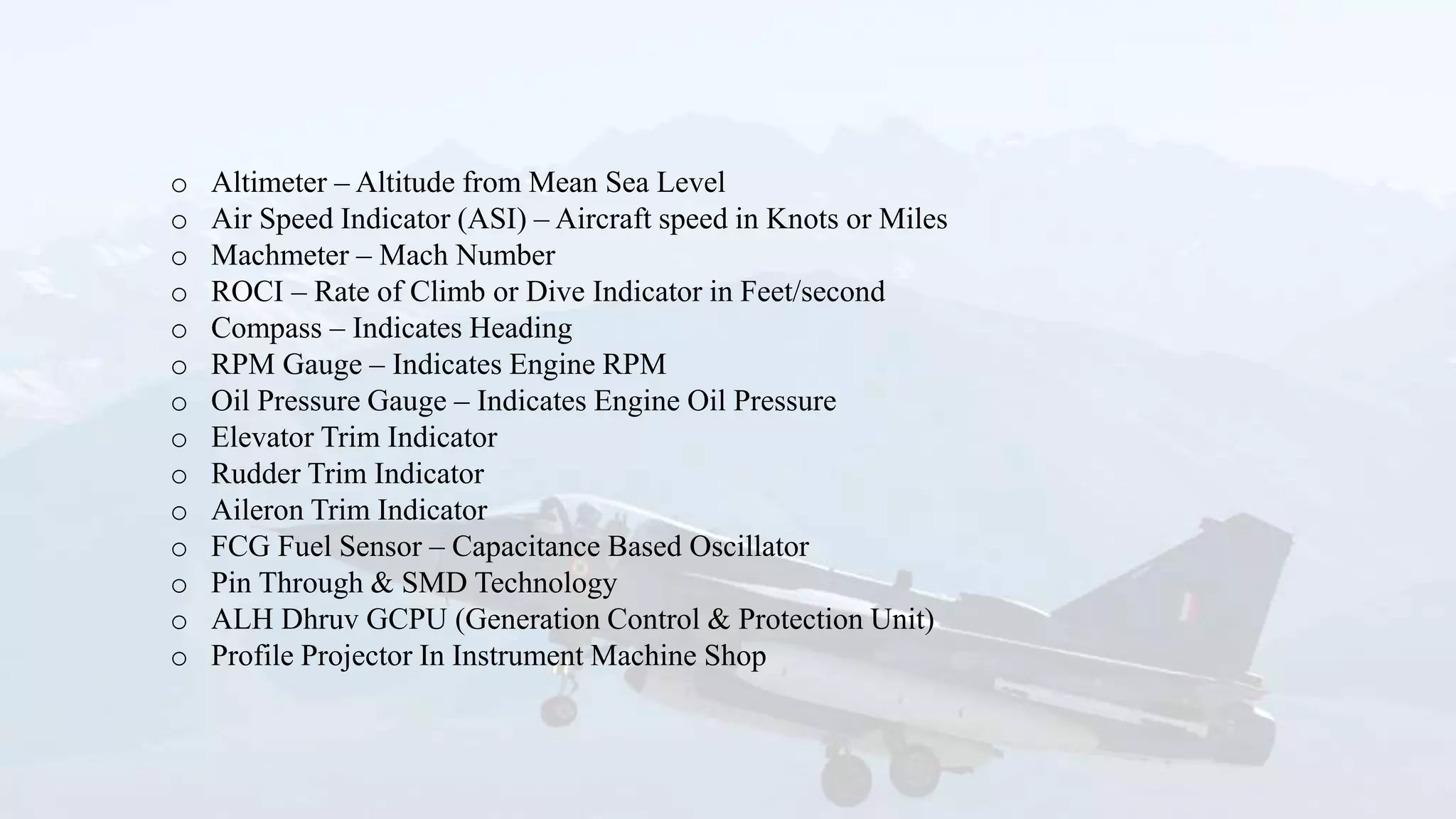

11. o Altimeter – Altitude from Mean Sea Level
o Air Speed Indicator (ASI) – Aircraft speed in Knots or Miles
o Machmeter – Mach Number
o ROCI – Rate of Climb or Dive Indicator in Feet/second
o Compass – Indicates Heading
o RPM Gauge – Indicates Engine RPM
o Oil Pressure Gauge – Indicates Engine Oil Pressure
o Elevator Trim Indicator
o Rudder Trim Indicator
o Aileron Trim Indicator
o FCG Fuel Sensor – Capacitance Based Oscillator
o Pin Through & SMD Technology
o ALH Dhruv GCPU (Generation Control & Protection Unit)
o Profile Projector In Instrument Machine Shop
