This document provides information on a Box Rain Test Chamber manufactured by Technocracy Pvt. Ltd. The chamber tests vehicles' body sealing against water leakage. It has an auto spray timer and rotating flat plate to enable even spray. The exterior is made of non-corrosive FRP and the interior uses non-corrosive FRP or stainless steel. It has features like communication with a computer, low cost, large viewing glass, digital controls and a rotating test table.

1. TECHNOCRACY PVT. LTD.
R
BOX RAIN TEST CHAMBER
MODEL NO. - ACM- 110221-RT

2. TECHNOCRACY PVT. LTD.

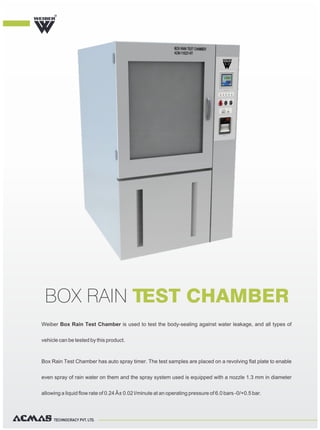

Weiber Box Rain Test Chamber is used to test the body-sealing against water leakage, and all types of
vehicle can be tested by this product.
Box Rain Test Chamber has auto spray timer. The test samples are placed on a revolving flat plate to enable
even spray of rain water on them and the spray system used is equipped with a nozzle 1.3 mm in diameter
allowing a liquid flow rate of 0.24 ± 0.02 l/minute at an operating pressure of 6.0 bars -0/+0.5 bar.
BOX RAIN TEST CHAMBER
R

3. TECHNOCRACY PVT. LTD.
The exterior with non-corrosive FRP (Fiber Reinforced Plastic).
Whereas the Interior with non-corrosive FRP (Fiber Reinforced Plastic) / stainless steel. A sample table with
rotate speed adjustable is also available.
CONSTRUCTION DETAILS
TECHNICAL SPECIFICATIONS
R
SALIENT FEATURES
Ÿ Communication with computer
Ÿ Good quality and low cost
Ÿ Adopt large viewing glass that can let operator see the specimen clearly.
Ÿ Digital setting, operating easy, maintenance quickly
Ÿ Rotating test table to expose the specimen for spray from all sides.
Ÿ The chamber is also designed for multiple tests as per different standards
Ÿ Designed for re-circulation of water for continuous tests.
Water Pipe Diameter Φ16mm
Spraying Hole Diameter Φ0.4mm
Aperture Spacing 50mm
Working Volume 500 L
Test Bench Rotation Speed 1r/Min, Or Stepless Speed Regulating (Optional)
Cabinet Construction Stainless Steel Plate + Powder Coated

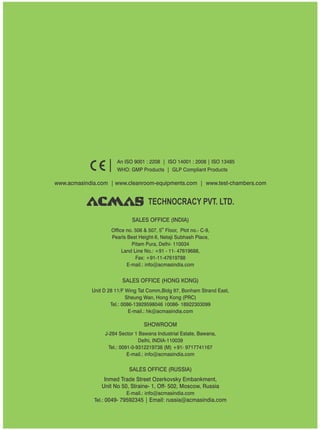

4. SALES OFFICE (HONG KONG)
