2. Successfully Interconnecting
Data Centers
Ronnie Scott
Technology Solutions Architect
Sept 2014

3. Cisco Confidential 4© 2013-2014 Cisco and/or its affiliates. All rights reserved.
 The Intent
 The Reality
 Delivering On The Promise
Agenda

4. Cisco Confidential 5© 2013-2014 Cisco and/or its affiliates. All rights reserved.

5. Cisco Confidential 6© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Data Center BData Center A

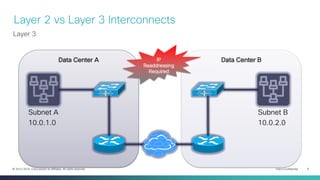

Layer 2 vs Layer 3 Interconnects
Layer 3
Subnet A
10.0.1.0
Subnet B
10.0.2.0
IP
Readdressing
Required

6. Cisco Confidential 7© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center
Layer 2 vs Layer 3 Interconnects

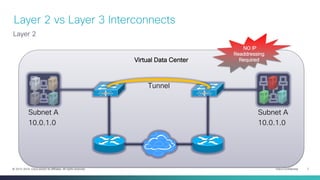

Layer 2
Subnet A
10.0.1.0
Subnet A
10.0.1.0
NO IP
Readdressing
Required
Tunnel

7. Cisco Confidential 8© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Layer 1, 2, or 3 Transport
• Dark Fiber
• Lambda (CWDM / DWDM)

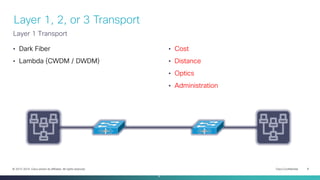

Layer 1 Transport
8
• Cost
• Distance
• Optics
• Administration

8. Cisco Confidential 9© 2013-2014 Cisco and/or its affiliates. All rights reserved.
• MPLS (EoMPLS)
• Metro Ethernet
• Wireless
Layer 1, 2, or 3 Transport
Layer 2 Transport
9
• Latency
• Bandwidth
• Frame Size
• Spanning Tree

9. Cisco Confidential 10© 2013-2014 Cisco and/or its affiliates. All rights reserved.

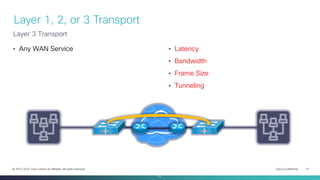

• Any WAN Service
Layer 1, 2, or 3 Transport
Layer 3 Transport
10
• Latency
• Bandwidth
• Frame Size
• Tunneling

10. Cisco Confidential 11© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center

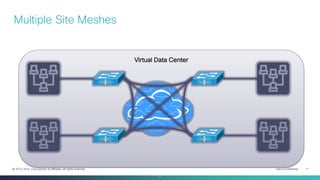

Multiple Site Meshes
11

11. Cisco Confidential 12© 2013-2014 Cisco and/or its affiliates. All rights reserved.

12. Cisco Confidential 13© 2013-2014 Cisco and/or its affiliates. All rights reserved.

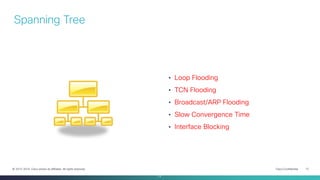

Spanning Tree
• Loop Flooding
• TCN Flooding
• Broadcast/ARP Flooding
• Slow Convergence Time
• Interface Blocking
13

13. Cisco Confidential 14© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center

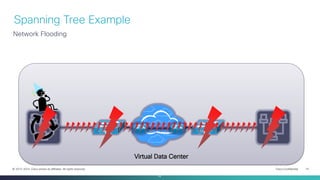

Spanning Tree Example
Network Flooding
14

14. Cisco Confidential 15© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Split Brain
• Potential Data Corruption
• Incorrect DR Take Over
• Loss Of Network State
• Loss Of Application Tiers
15

15. Cisco Confidential 16© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center
Split Brain Example
Data Inconsistency
16
Branch 1 Branch 2

16. vPC
DC Edge
Internal DC Zone(s)
DC Core VDC (Routed)
DC Aggregation Layer VDC
Compute Access Layer
FW
CLUSTER

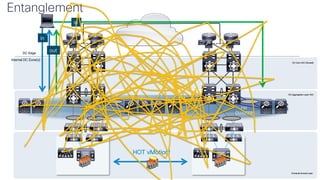

Entanglement
HOT vMotion!
in
in
out

17. Cisco Confidential 18© 2013-2014 Cisco and/or its affiliates. All rights reserved.

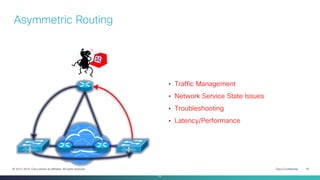

Asymmetric Routing
• Traffic Management
• Network Service State Issues
• Troubleshooting
• Latency/Performance
18

18. Cisco Confidential 19© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center

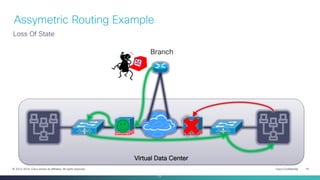

Assymetric Routing Example
Loss Of State
19
Branch

19. 20

20. 21

21. Cisco Confidential 22© 2013-2014 Cisco and/or its affiliates. All rights reserved.

22. 23

23. Cisco Confidential 24© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center
• Physically Diverse Paths
• Physically Separate Devices
• No Shared Fate Domain
Best Practice
Dual Redundant and Diverse Paths
24

24. Cisco Confidential 25© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Virtual Data Center
• VPC
• OTV
• VXLAN
Best Practice
Avoid Spanning Tree
25
• FabricPath
• NVGRE
• MPLS

25. Cisco Confidential 26© 2013-2014 Cisco and/or its affiliates. All rights reserved.

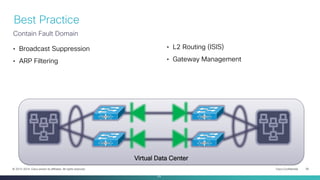

Virtual Data Center
• Broadcast Suppression
• ARP Filtering
Best Practice
Contain Fault Domain
26
• L2 Routing (ISIS)
• Gateway Management

26. Cisco Confidential 27© 2013-2014 Cisco and/or its affiliates. All rights reserved.

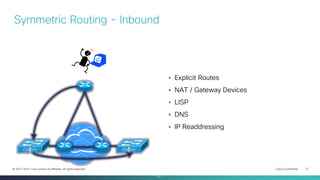

Symmetric Routing - Inbound
• Explicit Routes
• NAT / Gateway Devices
• LISP
• DNS
• IP Readdressing
2727

27. Cisco Confidential 28© 2013-2014 Cisco and/or its affiliates. All rights reserved.

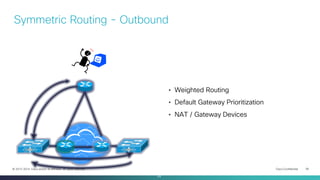

Symmetric Routing - Outbound
28
• Weighted Routing
• Default Gateway Prioritization
• NAT / Gateway Devices

28. Cisco Confidential 29© 2013-2014 Cisco and/or its affiliates. All rights reserved.
Optimal Routing
• GSLB
• SLB Clustering
• FW Clustering
• LISP
2929

29. Cisco Confidential 30© 2013-2014 Cisco and/or its affiliates. All rights reserved.

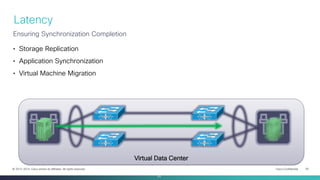

Virtual Data Center
Latency
Ensuring Synchronization Completion
30
• Storage Replication
• Application Synchronization
• Virtual Machine Migration

30. Cisco Confidential 31© 2013-2014 Cisco and/or its affiliates. All rights reserved.

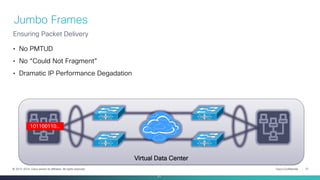

Virtual Data Center
Jumbo Frames
Ensuring Packet Delivery
31
• No PMTUD
• No “Could Not Fragment”
• Dramatic IP Performance Degadation
101100110…

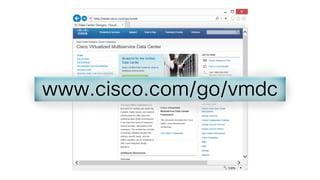

31. www.cisco.com/go/vmdc
32

32. Cisco Confidential 33© 2013-2014 Cisco and/or its affiliates. All rights reserved.

33. Cisco Confidential 34© 2013-2014 Cisco and/or its affiliates. All rights reserved.

34. Cisco Confidential 35© 2013-2014 Cisco and/or its affiliates. All rights reserved.
35

35. Cisco Confidential 36© 2013-2014 Cisco and/or its affiliates. All rights reserved.
36

36. Cisco Confidential 37© 2013-2014 Cisco and/or its affiliates. All rights reserved.
37

37. Thank you.
