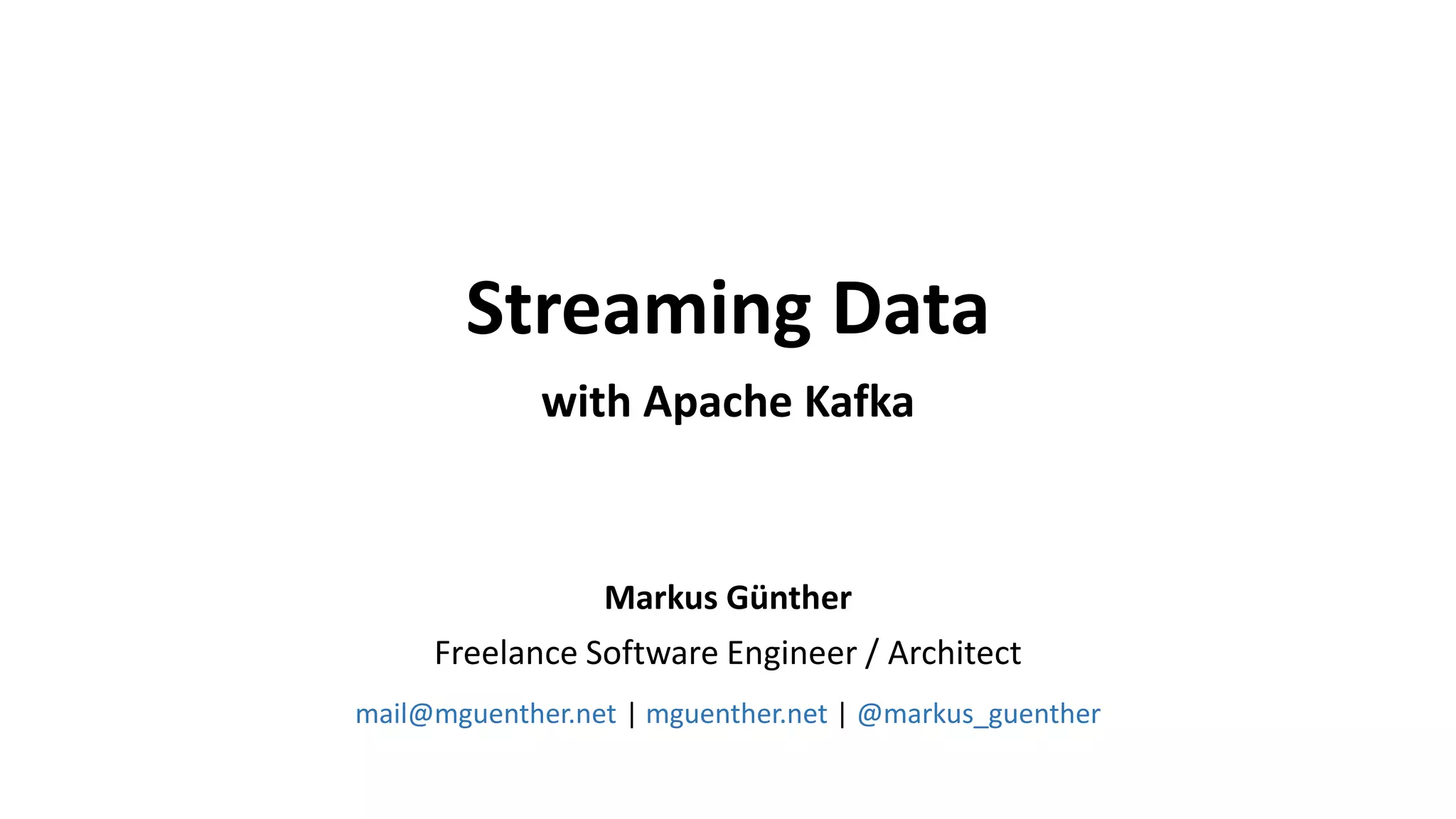

Streaming Data
with Apache Kafka

2. 2

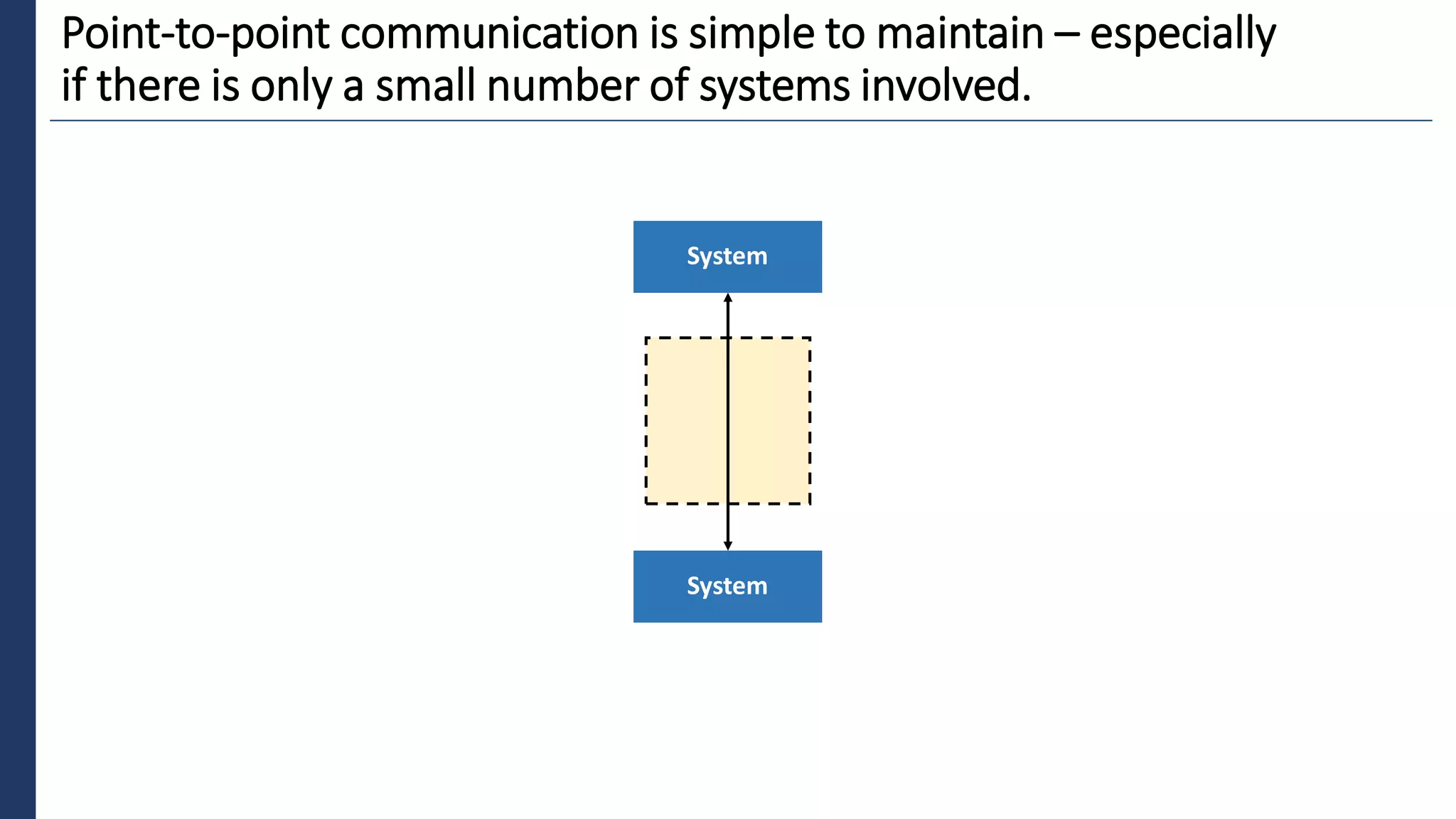

Point-to-point communication is simple to maintain – especially
if there is only a small number of systems involved.
System
System

3. 3
Adding more systems increases the complexity of
communication channels in this kind of architecture.
System
System
System System
System
System

4. 4
A messaging solution can be used to decouple producing systems
from consuming systems and thus remove that complexity.
Producer
Consumer
Producer Producer
Consumer
Consumer
Messaging Solution

5. 5
Apache Kafka supports this communication model.
Producer
Consumer
Producer Producer
Consumer
Consumer
Apache Kafka Cluster

6. 6
Producers publish data to specific topics, consumers subscribe to
topics of interest and consume data at their own pace.
Producer
Consumer
Producer Producer
Consumer
Consumer
Topic A Topic B Topic C
Consumer
Consumer

7. 7
Apache Kafka is a distributed publish-subscribe messaging
system that supports topic access semantics.
History
Intentions ▪ Designed for near-real-time processing of events
▪ Supports multiple delivery semantics
▪ At-least-once
▪ Exactly-once (well, not quite)
▪ Optimized binary protocol for client-to-broker communication
▪ No integration with JMS, …
▪ Apache Kafka originated at LinkedIn
▪ Maintained by the Apache Foundation
▪ Confluent drives further development
▪ Confluent provides various system components that enrich the Kafka ecosystem

8. 8
Apache Kafka is a distributed publish-subscribe messaging
system that supports topic access semantics. (cont.)
Innovations ▪ Messages are acknowledged in order
▪ Messages are persisted for days / weeks / indefinite
▪ Consumers manage their offsets

9. 9
Kafka uses a persistent log to implement publish-subscribe
messaging. Publishers append, consumers read sequentially.
9 8 7 6 5 4 3 2 1 0
Producer
publishes
Consumer
consumer group: A
Consumer
consumer group: B
current position: 8 current position: 3

10. 1

11. 1
A Kafka topic is comprised of at least one partition.
8 7 6 5 4 3 2 1 0
1 0
4 3 2 1 0
Partition 0
Topic with 3 partitions
Partition 1
Partition 2

12. 1
Consumers that participate in the same consumer group share the
read workload of an equally partition-sized topic.
8 7 6 5 4 3 2 1 0
1 0
4 3 2 1 0
Partition 0
Topic with 3 partitions
Partition 1
Partition 2
Consumer
Consumer
Consumer
Consumer group

13. 1
Kafka redistributes work if a consumer process fails and is no
longer able to process messages.
8 7 6 5 4 3 2 1 0
1 0
4 3 2 1 0
Partition 0
Topic with 3 partitions
Partition 1
Partition 2
Consumer
Consumer
Consumer
Consumer group

14. 1
A message (or record, or event, or what-have-you) contains
metadata alongside the actual message payload.
Headers
(optional)
Key
(optional)
Value
(set by application)
Timestamp
(set by Kafka or by application)

15. 1
Topic-partitions are spread across available brokers and can thus
span multiple machines in a Apache Kafka cluster.
Partition 0
Partition 1
Partition 2
Broker 1
Partition 2
Apache Kafka Cluster
Broker 2
Partition 0
Broker 3
Partition 1
Topic with 3 partitions, replication factor = 1

16. 1
Topic-partitions are spread across available brokers and can thus
span multiple machines in a Apache Kafka cluster.
Partition 0
Partition 1
Partition 2
Broker 1
Leader-partition 2
Apache Kafka Cluster
Broker 2
Leader-partition 0
Broker 3
Leader-partition 1
Topic with 3 partitions, replication factor = 2
Follower-partition 0 Follower-partition 1 Follower-partition 2

17. 1
In-Sync-Replica set
for partition 0
The In-Sync-Replica set (ISR) contains all brokers that are either a
leader or a follower for a dedicated topic-partition.
Partition 0
Broker 1
Follower-partition 0
Broker 2
Leader-partition 0
replicate
acknowledge

18. 1
Code, anyone?

19. 1
A reference architecture helps us to sort things into categories that
are driven by certain (non-)functional requirements.
Collection Tier Messaging Tier Analysis Tier Persistence Tier Data Access Tier
Collection Service
(MQTT)
Collection Service
(HTTP)
Cache
Topic 1
Topic 2
Topic 3
Subscriber 2
(Stream Processor)
Subscriber 3
(Stream Processor)
Search
Engine
RDBMS
Client Application
Subscriber 1
(Stream Processor)

20. 2
Apache Kafka features a rich ecosystem of supporting services that
fit nicely into the tiers of a streaming architecture.
Collection Tier Messaging Tier Analysis Tier Persistence Tier Data Access Tier
Kafka Connect
(Source Connector)
Kafka Client DSL
(Producing System) Topic 1
Topic 2
Topic 3
Search
Engine
RDBMS
Client Application
Kafka Client DSL
(Consuming System)
Confluent
Schema Registry
Confluent
REST Proxy
Kafka Streams DSL
or ksqlDB
(Stream Processor)
Kafka Connect
(Sink Connector)
Kafka Cluster

21. 2
Want to know more?
