- 1. BUILDING FOR 22NDCENTURY LONDON IAM CONFERENCE JUNE 2017
- 3. 3 HISTORY OF LONDON’SSEWERS

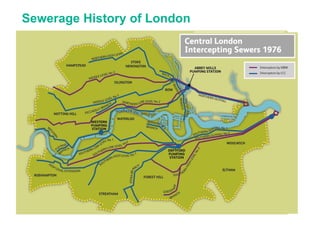

- 4. Sewerage History ofLondon
- 5. 8 million people62 million cubic meters Strained ecosystem
- 6. 6 TUNNEL DESIGN, CONSTRUCTIONAND HANDOVER

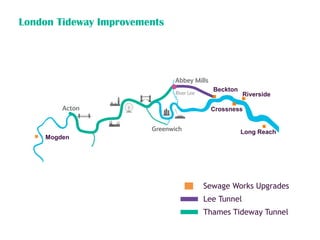

- 7. London Tideway Improvements Riverside LongReach Mogden Crossness Sewage Works Upgrades Lee Tunnel Thames Tideway Tunnel Beckton
- 8.

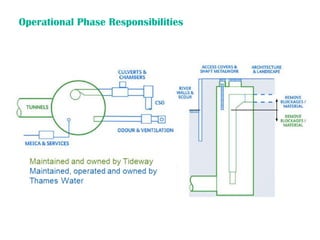

- 9. Engineering challenges • Variableground conditions • 120 year design life • Dissipate energy and minimise air entrapment • Provide mechanical ventilation and odour treatment

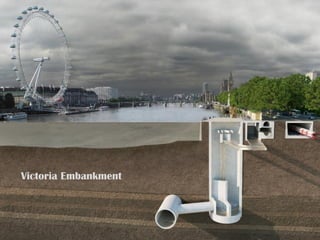

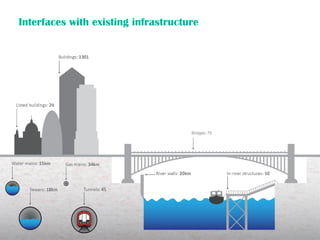

- 10. Interfaces with existinginfrastructure Bridges: 75
- 11.
- 13. Critical periods oftransition and certification Design / Construction phase System Acceptance Period (up to 3 years) System Commissioning Commencement System AcceptanceHandover Construction Start Licence Award August 2015 OCI Period TWUL maintains MEICA elements Pre-System (Worksite) Commissioning Period Planning Ready ? System Commissioning Period TWUL Operates Integrated CSO System TWUL Operators begin CSO System Training SCCD Criteria Certify System is Ready for Commissioning Handover Criteria Certify System is Ready for Handover SA Criteria Certify System is Ready for Acceptance
- 14.
- 15.

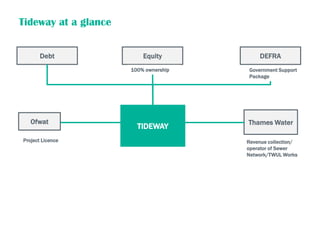

- 16. Tideway at aglance Revenue collection/ operator of Sewer Network/TWUL Works Debt Equity Ofwat Thames Water 100% ownership Project Licence Government Support Package TIDEWAY DEFRA
- 17. Bazalgette Tunnel Limited:trading as Tideway The new Infrastructure Provider is the first Wastewater only company in the UK. It is made up of the following shareholders: The investor group includes a significant proportion of UK pension funds through which over 1.7 million UK pensioners will have an indirect investment in Tideway.

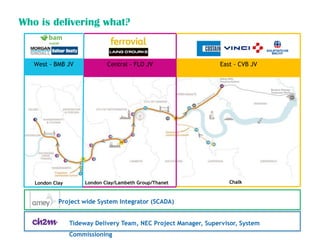

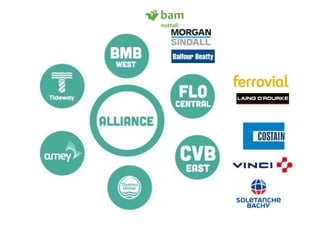

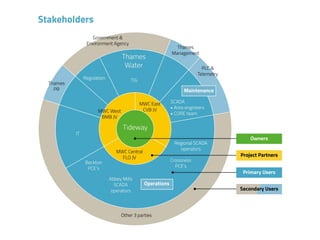

- 18. West - BMBJV Central - FLO JV East - CVB JV Who is delivering what? London Clay London Clay/Lambeth Group/Thanet Chalk Project wide System Integrator (SCADA) Tideway Delivery Team, NEC Project Manager, Supervisor, System Commissioning
- 20. 20 The Role ofthe System Integrator

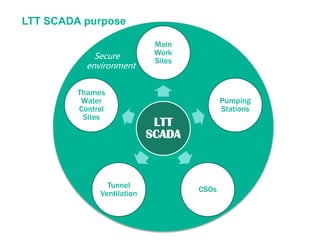

- 22.

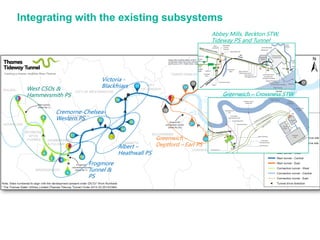

- 23. and Tideway PS/ CSO Abbey Mills, Beckton STW, Tideway PS and Tunnel Greenwich – Crossness STW Greenwich – Deptford – Earl PS Victoria - Blackfriars Albert – Heathwall PS Cremorne-Chelsea- Western PS West CSOs & Hammersmith PS Frogmore Tunnel & PS Integrating with the existing subsystems

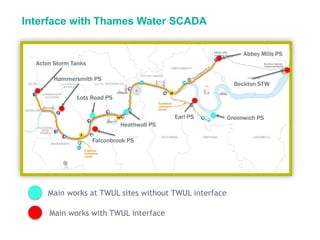

- 24. Interface with ThamesWater SCADA Acton Storm Tanks Hammersmith PS Lots Road PS Falconbrook PS Heathwall PS Greenwich PSEarl PS Abbey Mills PS Beckton STW Main works at TWUL sites without TWUL interface Main works with TWUL interface
- 25. Interface with ThamesWater SCADA

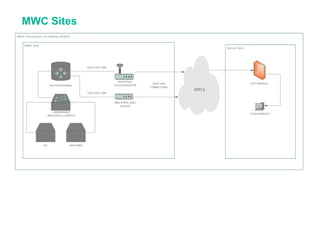

- 26.

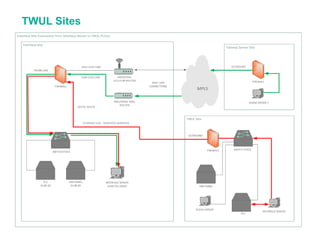

- 27.

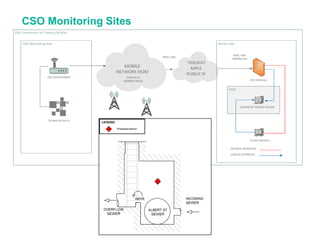

- 28.

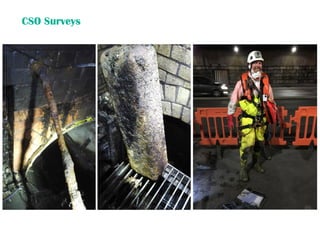

- 29.
- 30.

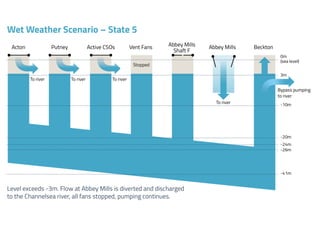

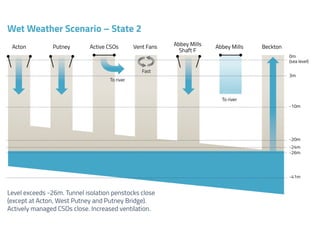

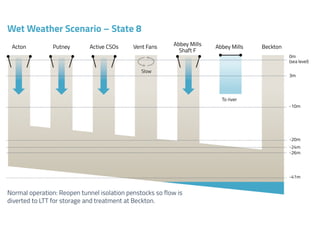

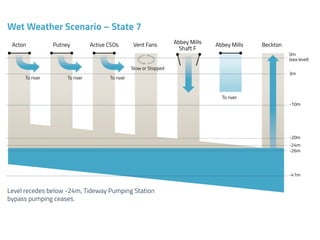

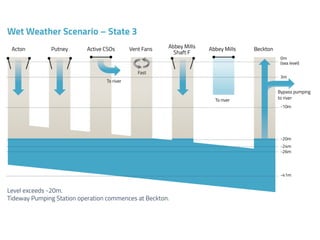

- 39. Normal Operation Flow fromthe NLL is lifted by pumps at Station F to enable gravity flow to join the NOS and flow to Beckton for treatment. At the moment, if the restriction of flow to the NOS requires alternative discharge from Abbey Mills, then the river penstocks will open and the flow diverts to the Channelsea river. Once the Lee tunnel is operating, those river penstocks will permanently close and the TTT penstocks will divert flow via the Lee tunnel. When the TTT is operating and joined to the Lee tunnel to form the LTT discharge to the Channelsea River will be possible during storm conditions (or at high levels, -3mAOD) Abbey Mills
- 40. Ideally flow travelsdown the nos, enters Beckton inlet works, gets treated and the effluent is discharged to river The nos flow might be combined with flow from Abbey Mills, and Meanwhile to protect the nos there might also be flow diverting to TTT If Beckton starts to reach capacity (there is an F5 at the inlet wks) flow can be diverted to the storm tanks and if necessary discharged to River (untreated). If LTT levels at Beckton reach a certain point,, it can discharge to River via the Tideway CSO (weir). If Beckton has the capacity, the Tideway PS lifts the TTT flow to the nos for treatment. When the TTT is built, there will be discharge point lower than the Tideway CSO (weir), so this will no longer be used to discharge in storm conditions. Instead the Tideway PS flow will be controlled by penstocks so that it Beckton

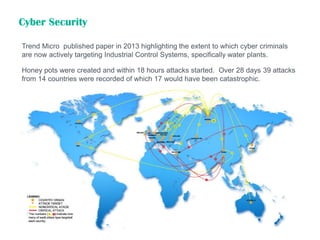

- 41. Cyber Security Trend Micropublished paper in 2013 highlighting the extent to which cyber criminals are now actively targeting Industrial Control Systems, specifically water plants. Honey pots were created and within 18 hours attacks started. Over 28 days 39 attacks from 14 countries were recorded of which 17 would have been catastrophic.

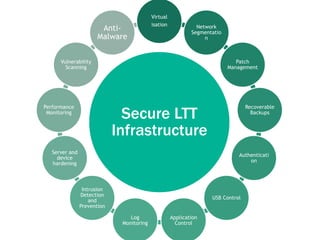

- 42. Secure LTT Infrastructure Virtual isation Network Segmentatio n Patch Management Recoverable Backups Authenticati on USBControl Application Control Log Monitoring Intrusion Detection and Prevention Server and device hardening Performance Monitoring Vulnerability Scanning Anti- Malware
- 43.
- 44. We do thingssafely or not at all
- 46.
- 50. “The Great Think”is Tideway’s innovation programme Can we find our very own 21st Century Sir Joseph Bazalgette’s? ‘Tideway will deliver a sustainable legacy of innovation by capturing and sharing our solutions via I3P (Infrastructure Industry Innovation Platform) to support UK’s Construction 2025 strategic vision’ Innovation in 2017 and beyond? The Great Think is hosted on ‘i3P’ www.thegreatthink.london Our innovation legacy commitment:
