in this ppt we get to know about steralisation

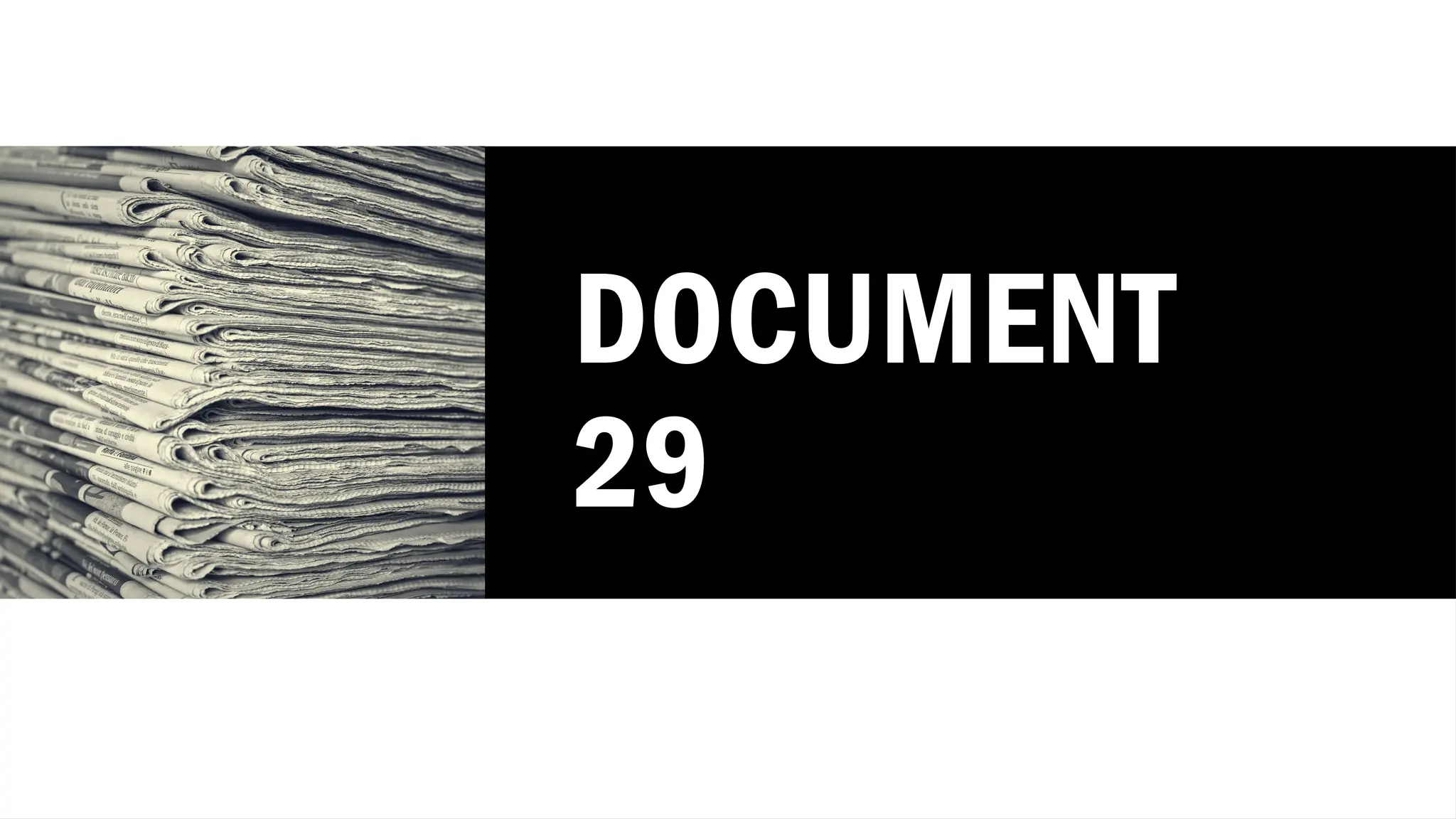

1. DOCUMENT
29

2. Here's an outline for the
PowerPoint presentation on the
requested topics using the
information extracted from your
document

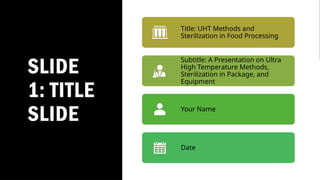

3. SLIDE
1: TITLE
SLIDE
Title: UHT Methods and
Sterilization in Food Processing
Subtitle: A Presentation on Ultra
High Temperature Methods,
Sterilization in Package, and
Equipment
Your Name
Date

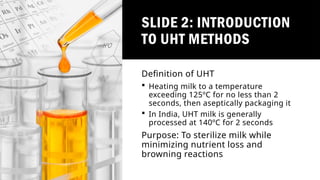

4. SLIDE 2: INTRODUCTION
TO UHT METHODS
Definition of UHT
 Heating milk to a temperature
exceeding 125ºC for no less than 2
seconds, then aseptically packaging it
 In India, UHT milk is generally
processed at 140ºC for 2 seconds
Purpose: To sterilize milk while
minimizing nutrient loss and
browning reactions

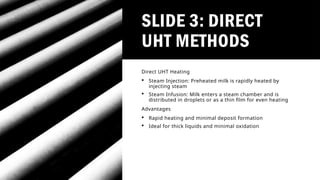

5. SLIDE 3: DIRECT
UHT METHODS
Direct UHT Heating
 Steam Injection: Preheated milk is rapidly heated by
injecting steam
 Steam Infusion: Milk enters a steam chamber and is
distributed in droplets or as a thin film for even heating
Advantages
 Rapid heating and minimal deposit formation
 Ideal for thick liquids and minimal oxidation

6. SLIDE 4: INDIRECT
UHT METHODS
Indirect UHT Heating
 Plate Heat Exchangers: Use stainless steel plates
for heating; widely used in HTST pasteurization
 Tubular Heat Exchangers: Multiple tubes in a
cylindrical shell, ideal for heating viscous liquids
 Scraped Surface Heat Exchangers: Specialized for
thick liquids; scrapers provide turbulence and
even heating

7. SLIDE
5: STERILIZATION
IN PACKAGE
Process
Temperature
Range:
Typically
between
110°C and
130°C for 10-
30 minutes
Pressure:
Controlled
through
steam and
air-steam
mixtures to
ensure
uniform
heating
Cooling: Post-
sterilization, containers
are cooled before
labeling

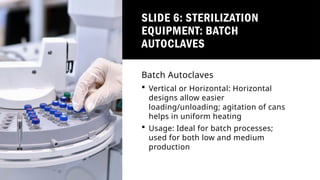

8. SLIDE 6: STERILIZATION
EQUIPMENT: BATCH
AUTOCLAVES
Batch Autoclaves
 Vertical or Horizontal: Horizontal
designs allow easier
loading/unloading; agitation of cans
helps in uniform heating
 Usage: Ideal for batch processes;
used for both low and medium
production

9. SLIDE 7: CONTINUOUS
STERILIZATION EQUIPMENT
Types
 Cooker-Coolers: Cans pass through a conveyor
with different pressure sections for preheating,
sterilization, and cooling
 Hydrostatic Sterilizers: Involve tall water columns
to regulate steam pressure, suitable for large-
scale sterilization
 Rotary Sterilizers: Rotating cans along a spiral
track ensure uniform heating, ideal for heat-
sensitive products

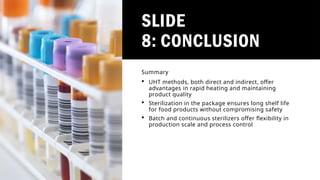

10. SLIDE
8: CONCLUSION
Summary
 UHT methods, both direct and indirect, offer
advantages in rapid heating and maintaining
product quality
 Sterilization in the package ensures long shelf life
for food products without compromising safety
 Batch and continuous sterilizers offer flexibility in
production scale and process control

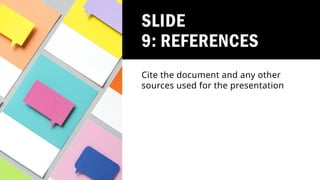

11. SLIDE
9: REFERENCES
Cite the document and any other
sources used for the presentation
