CSS Layout – Steps



               http://flic.kr/p/9P5DTb

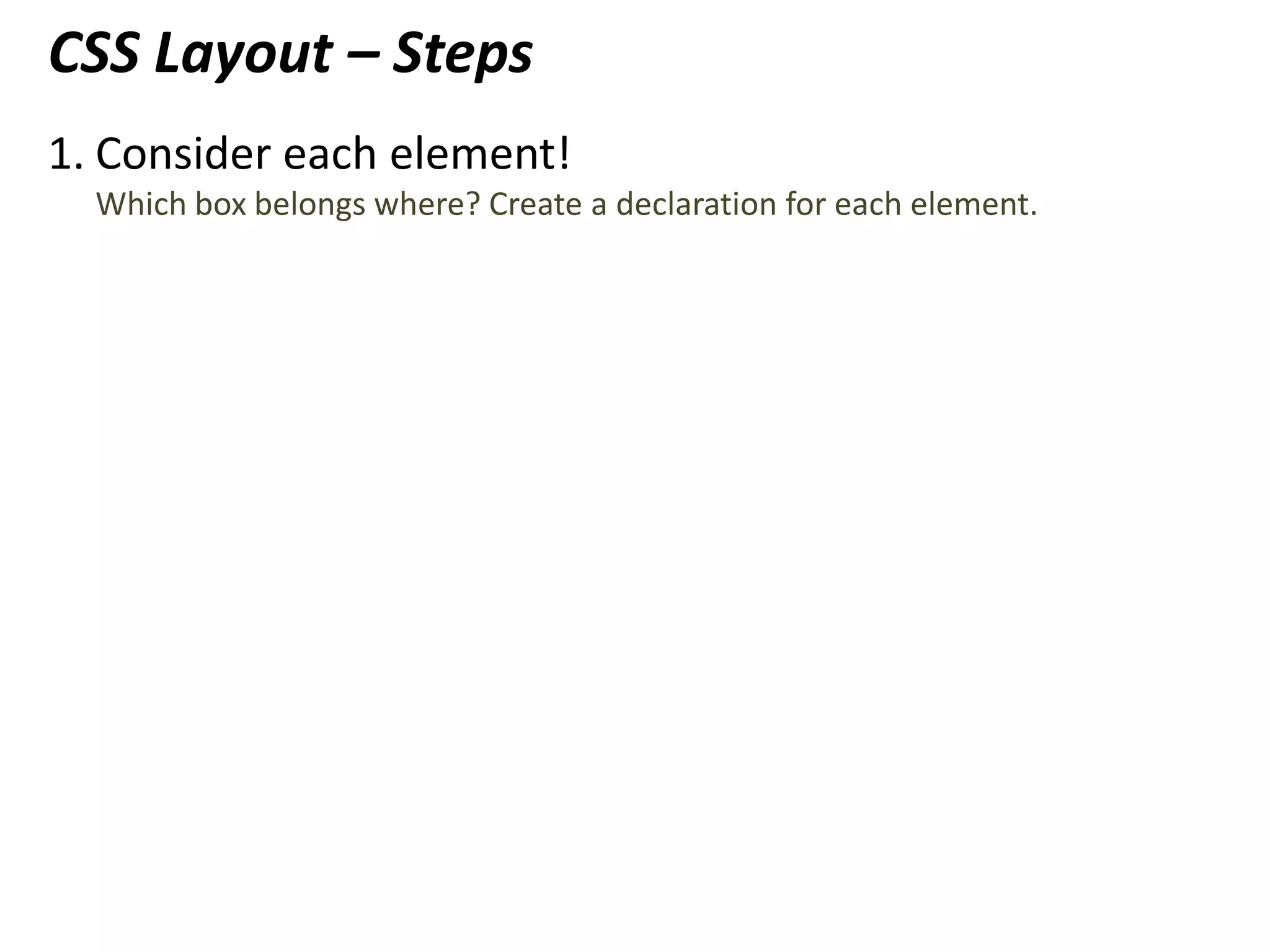

CSS Layout – Steps

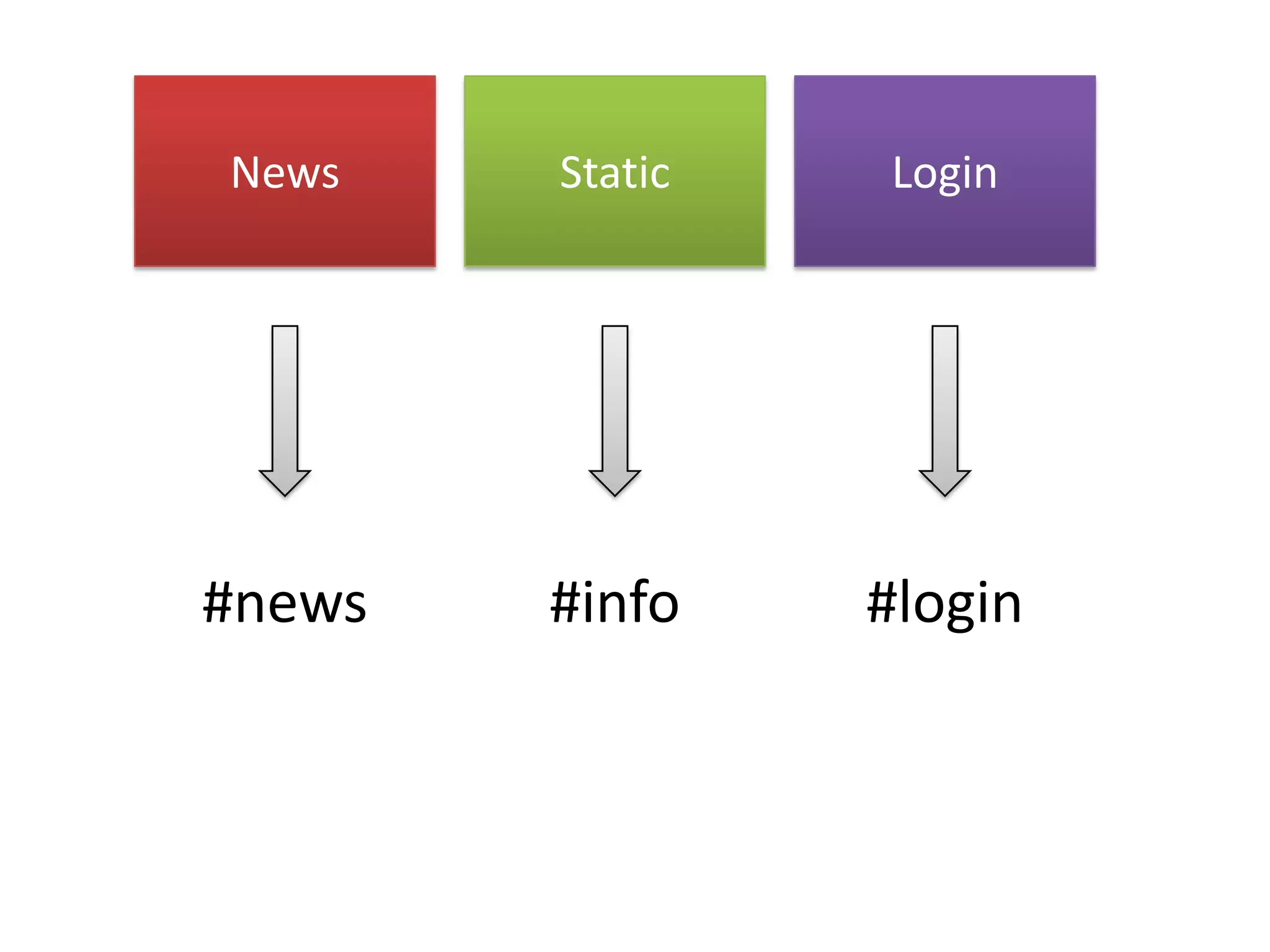

1. Consider each element!
  Which box belongs where? Create a declaration for each element.
News    Static   Login




#news   #info    #login

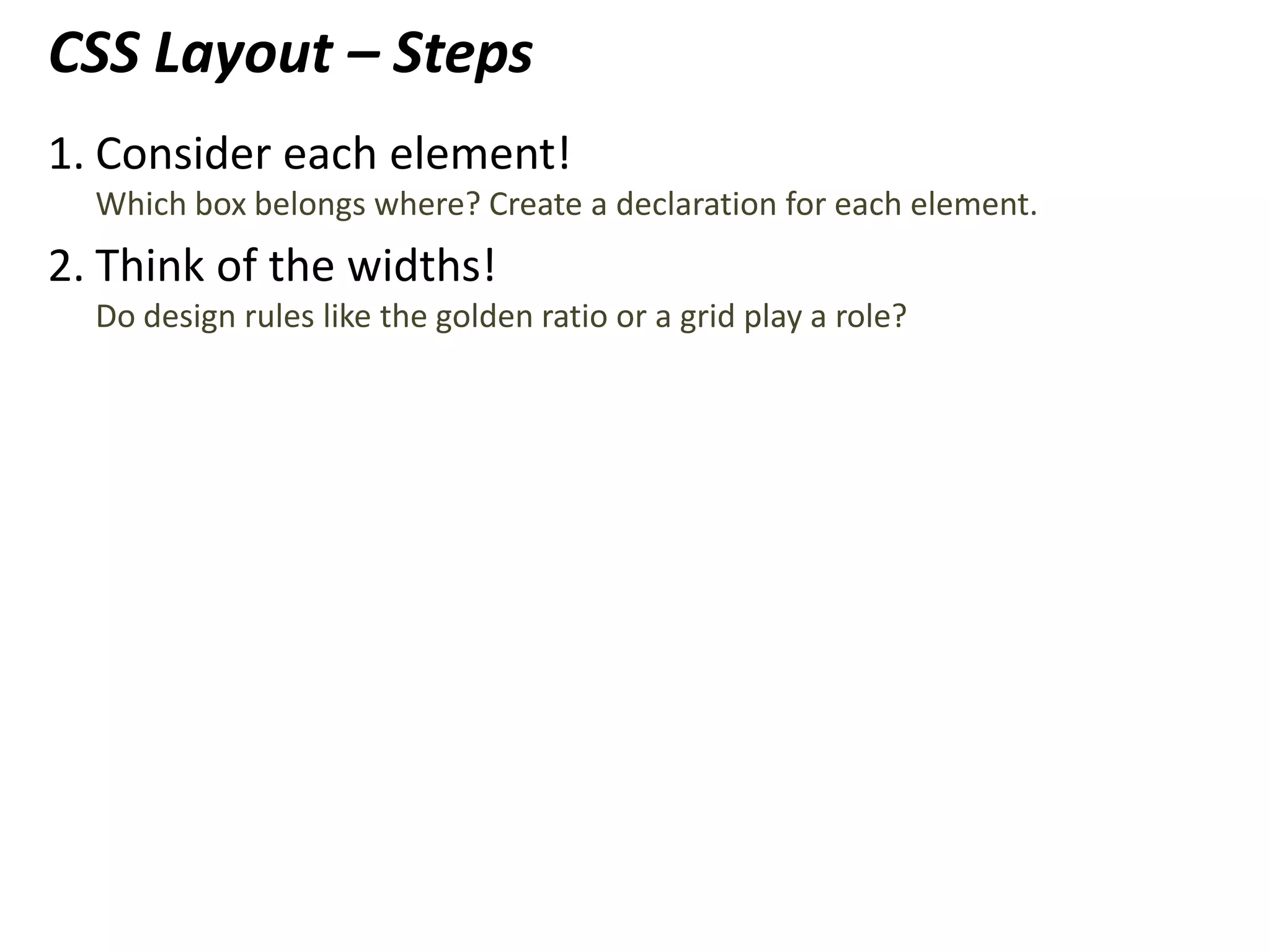

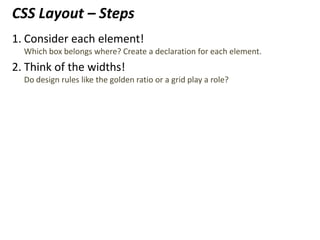

CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?

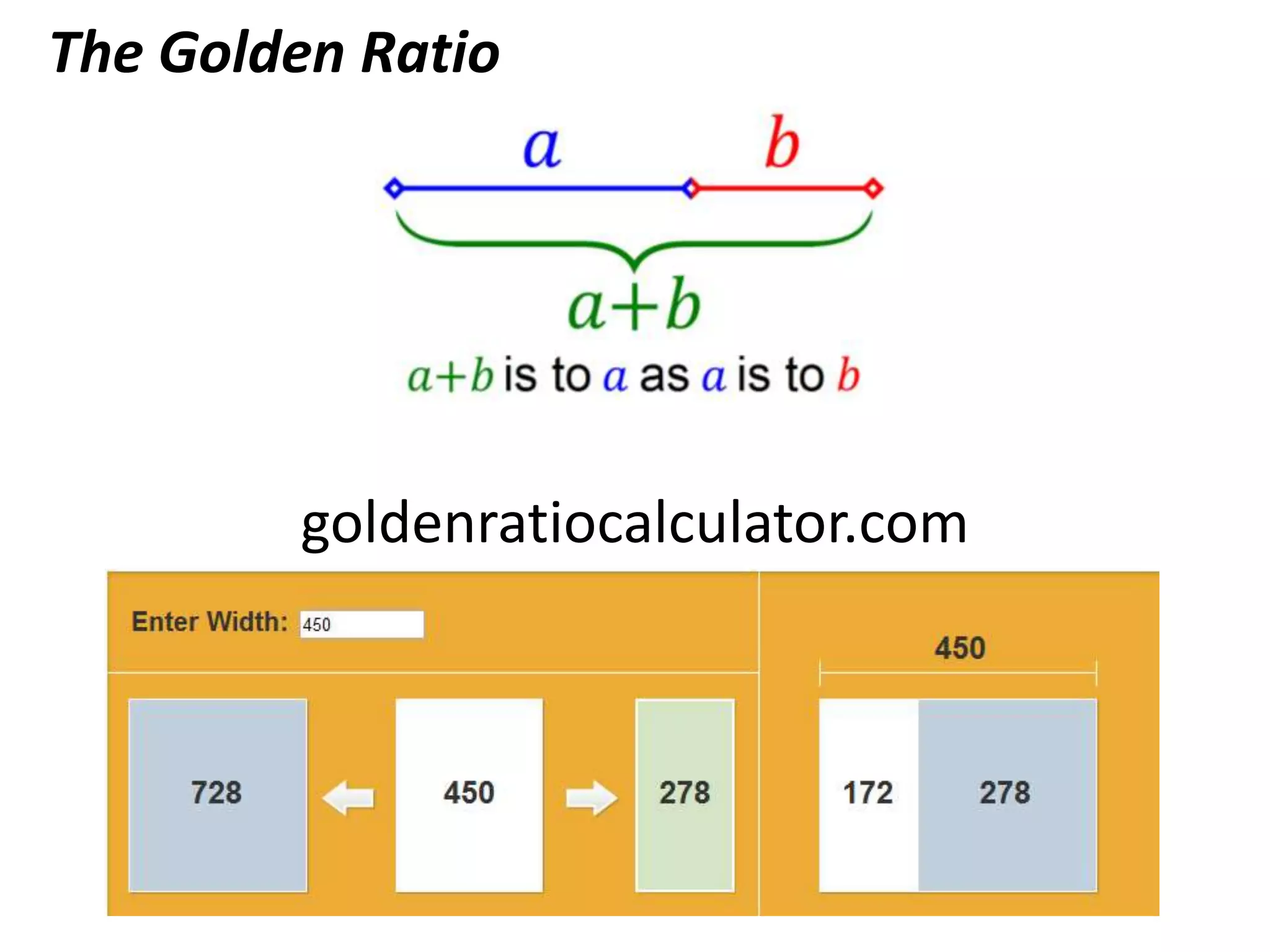

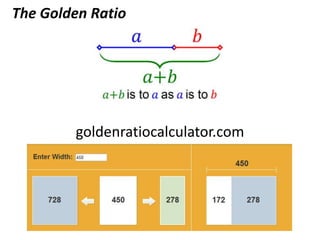

The Golden Ratio




        goldenratiocalculator.com

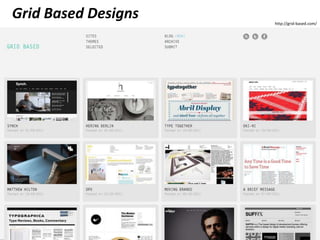

Grid Based Designs   http://grid-based.com/

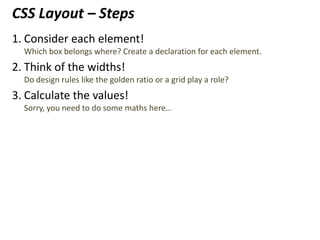

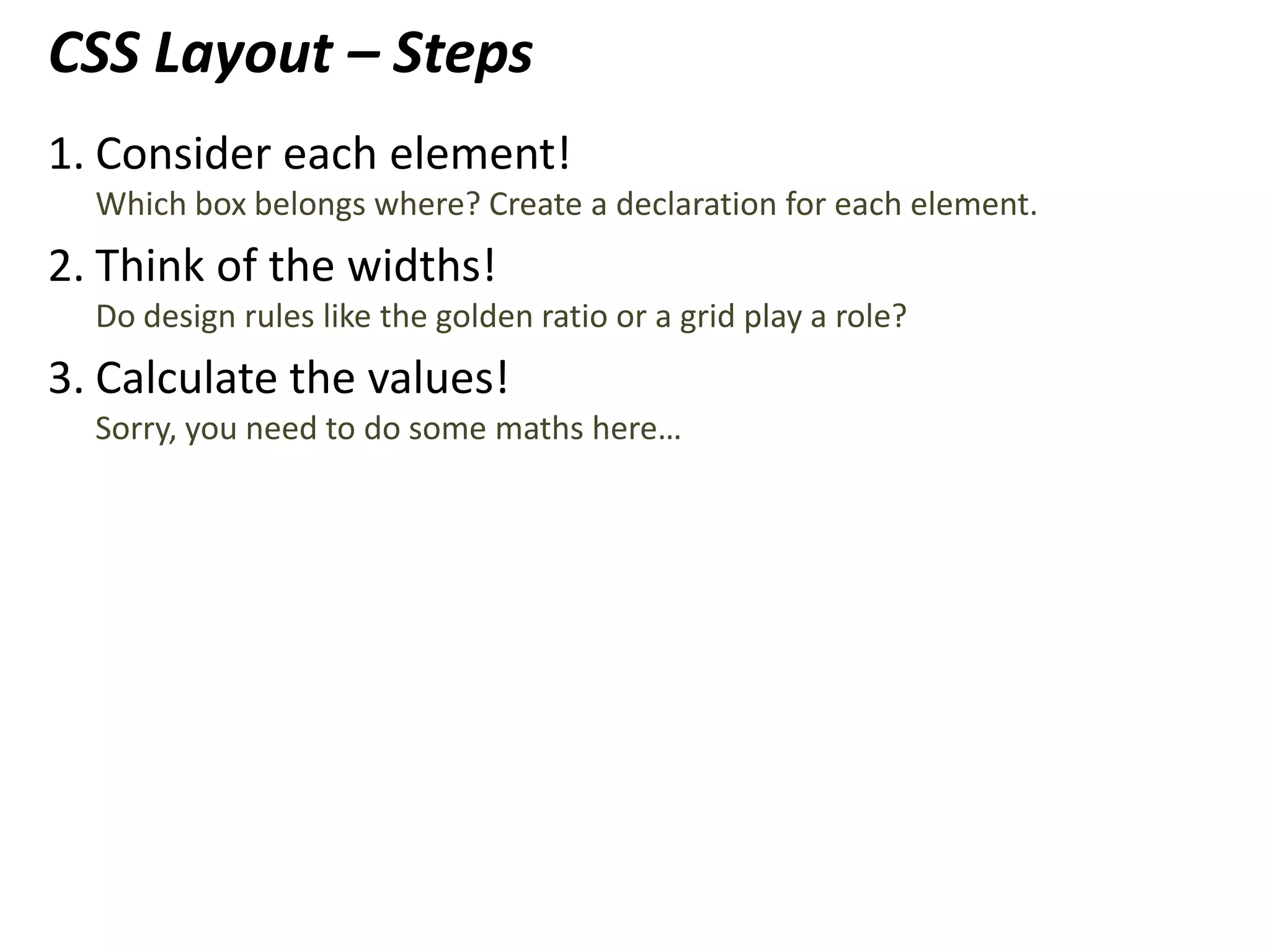

CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?
3. Calculate the values!
  Sorry, you need to do some maths here…

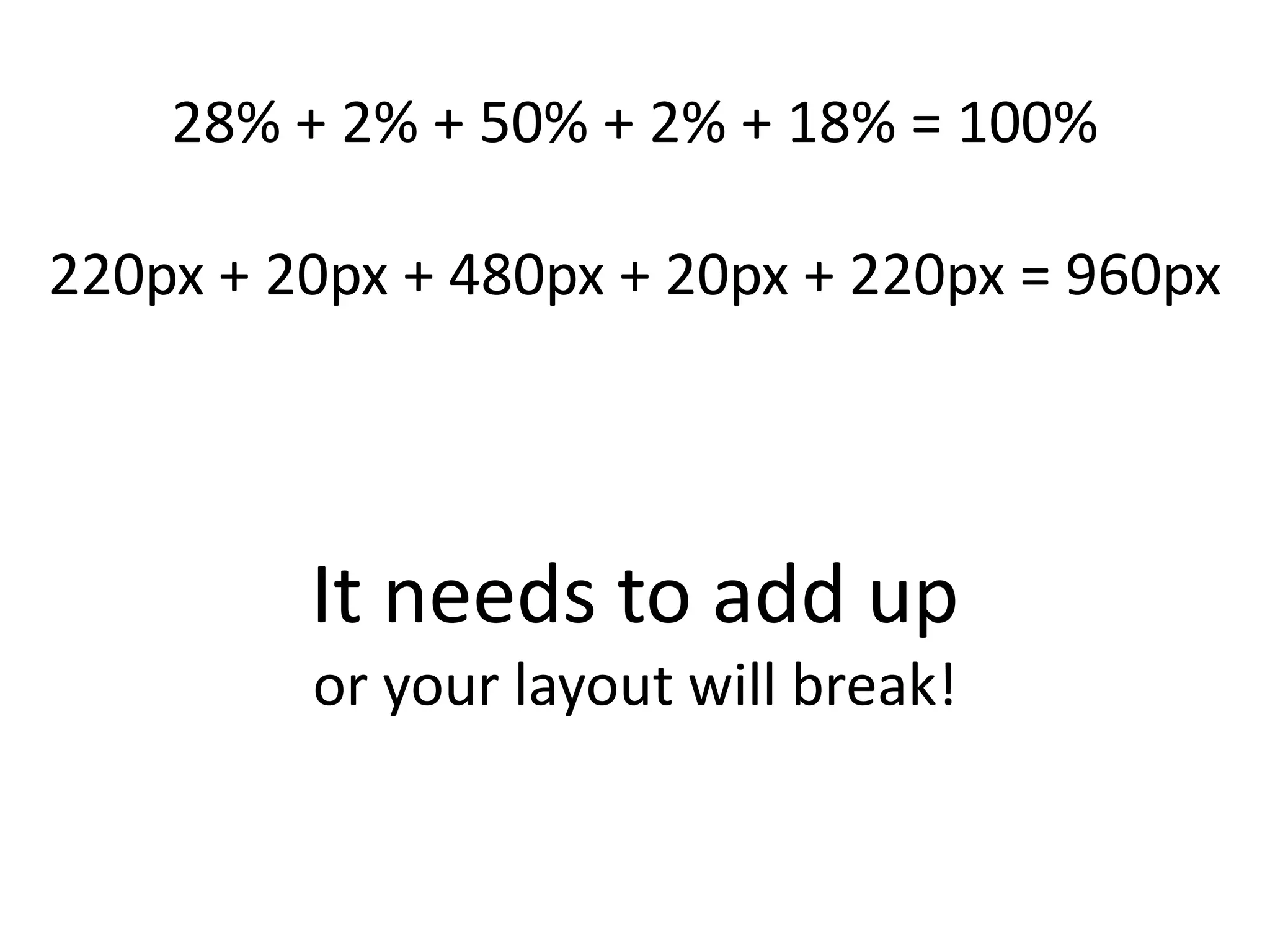

28% + 2% + 50% + 2% + 18% = 100%

220px + 20px + 480px + 20px + 220px = 960px




         It needs to add up
         or your layout will break!

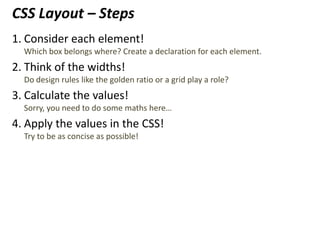

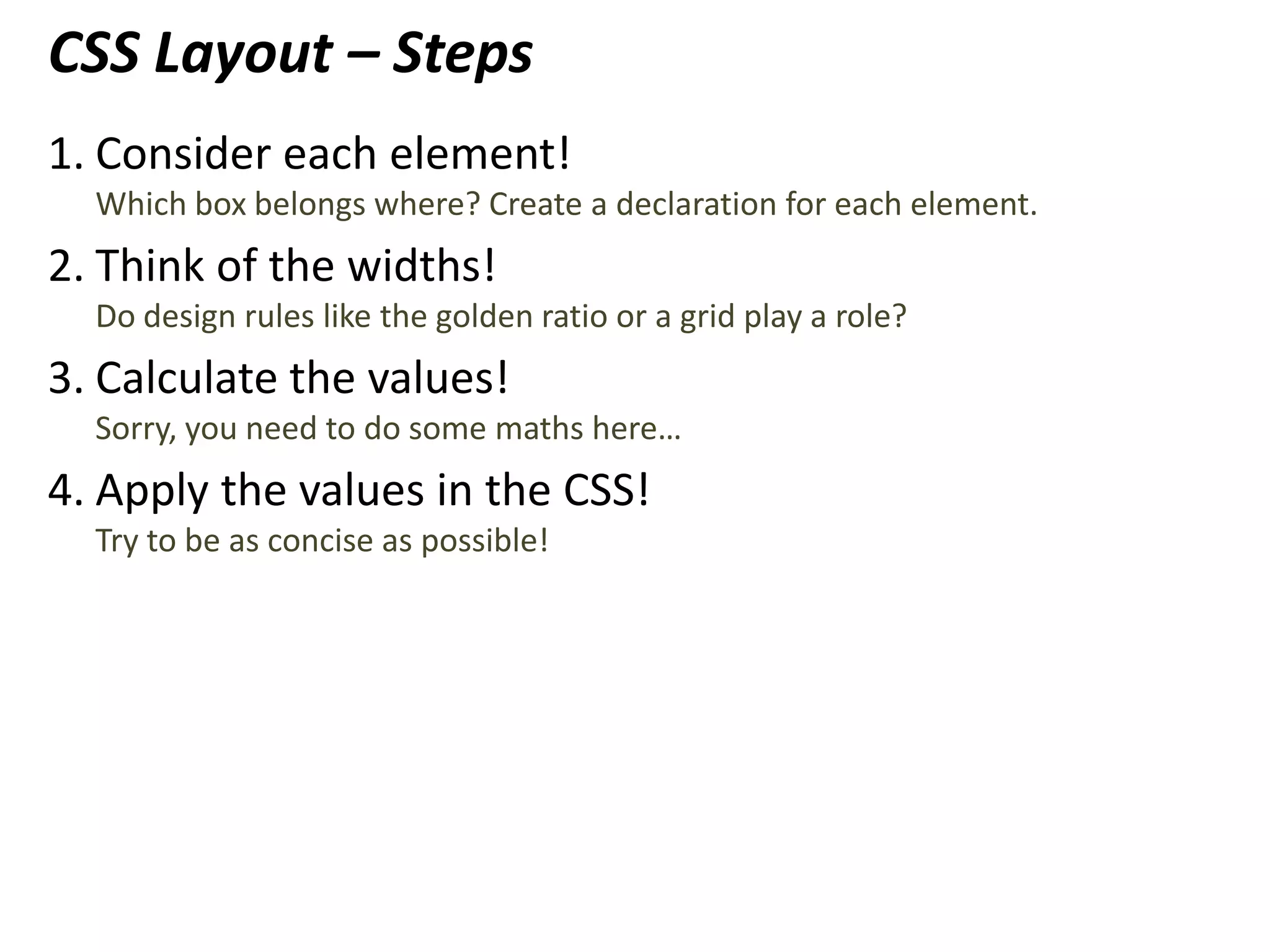

CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?
3. Calculate the values!
  Sorry, you need to do some maths here…
4. Apply the values in the CSS!
  Try to be as concise as possible!

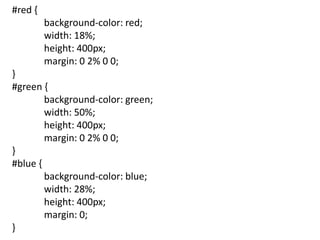

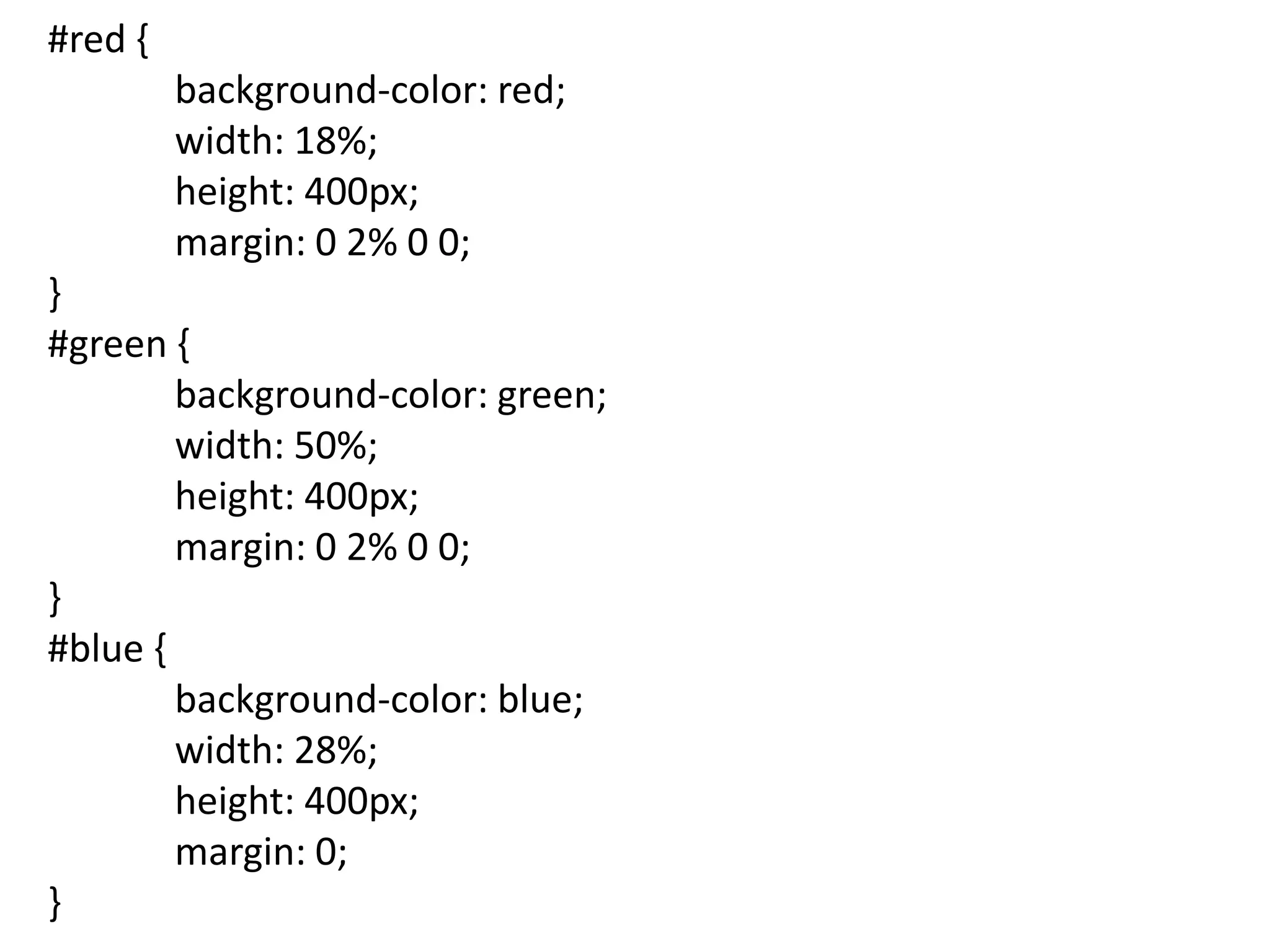

#red {
         background-color: red;
         width: 18%;
         height: 400px;
         margin: 0 2% 0 0;
}
#green {
        background-color: green;
        width: 50%;
        height: 400px;
        margin: 0 2% 0 0;
}
#blue {
        background-color: blue;
        width: 28%;
        height: 400px;
        margin: 0;
}

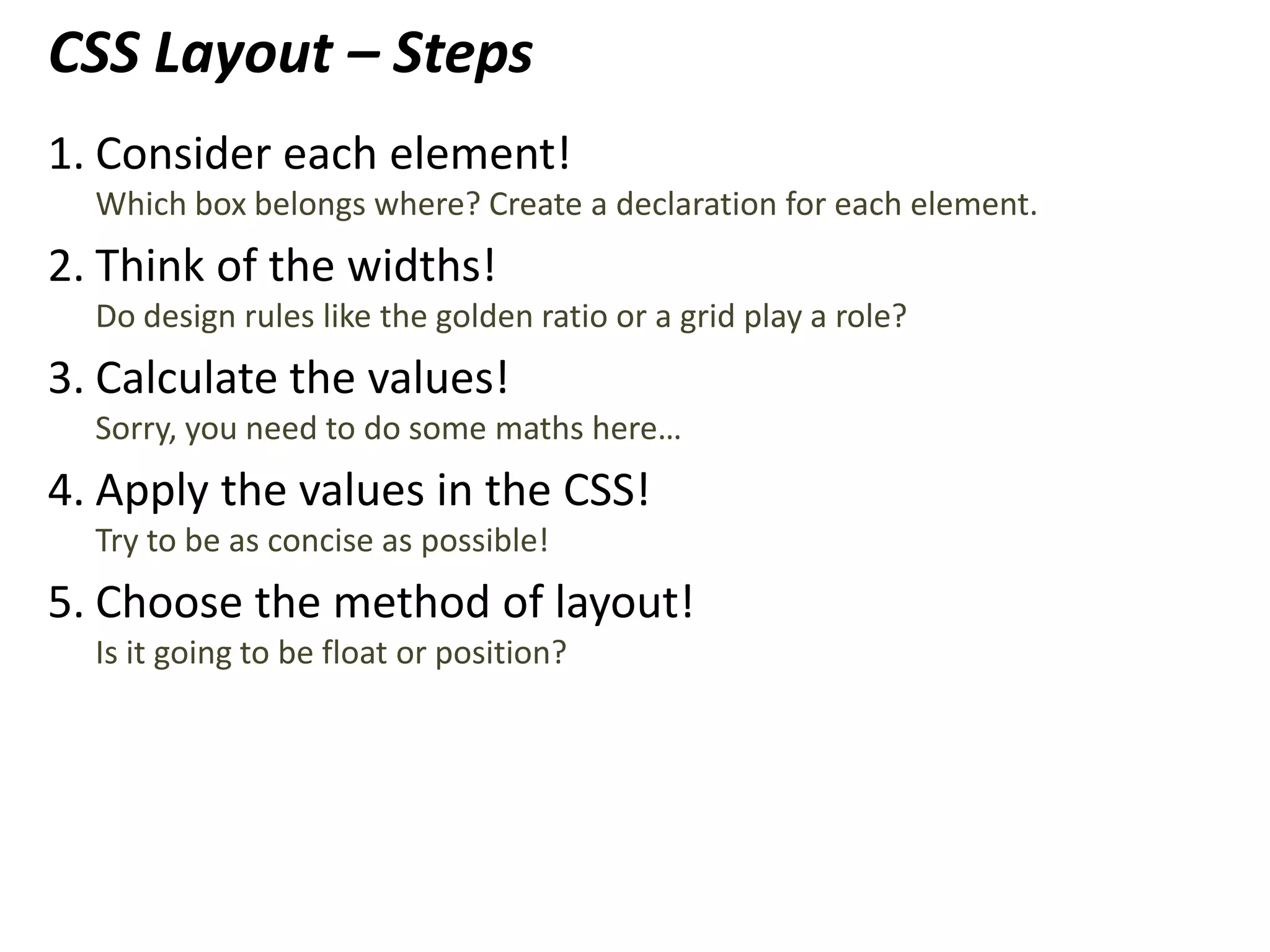

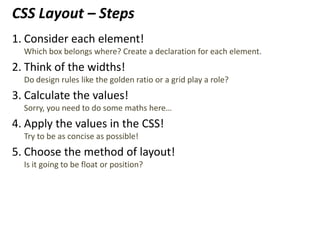

CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?
3. Calculate the values!
  Sorry, you need to do some maths here…
4. Apply the values in the CSS!
  Try to be as concise as possible!
5. Choose the method of layout!
  Is it going to be float or position?
VS
http://flic.kr/p/56L7gN                          http://flic.kr/p/aeLWkc


    • text related images        • elements in a
    • varying heights in           concreted position
      column layout              • need to overwrite
      ( less hassle)              document flow
    • listing things             • flexible
      (document flow             • need to overlap
      matters)

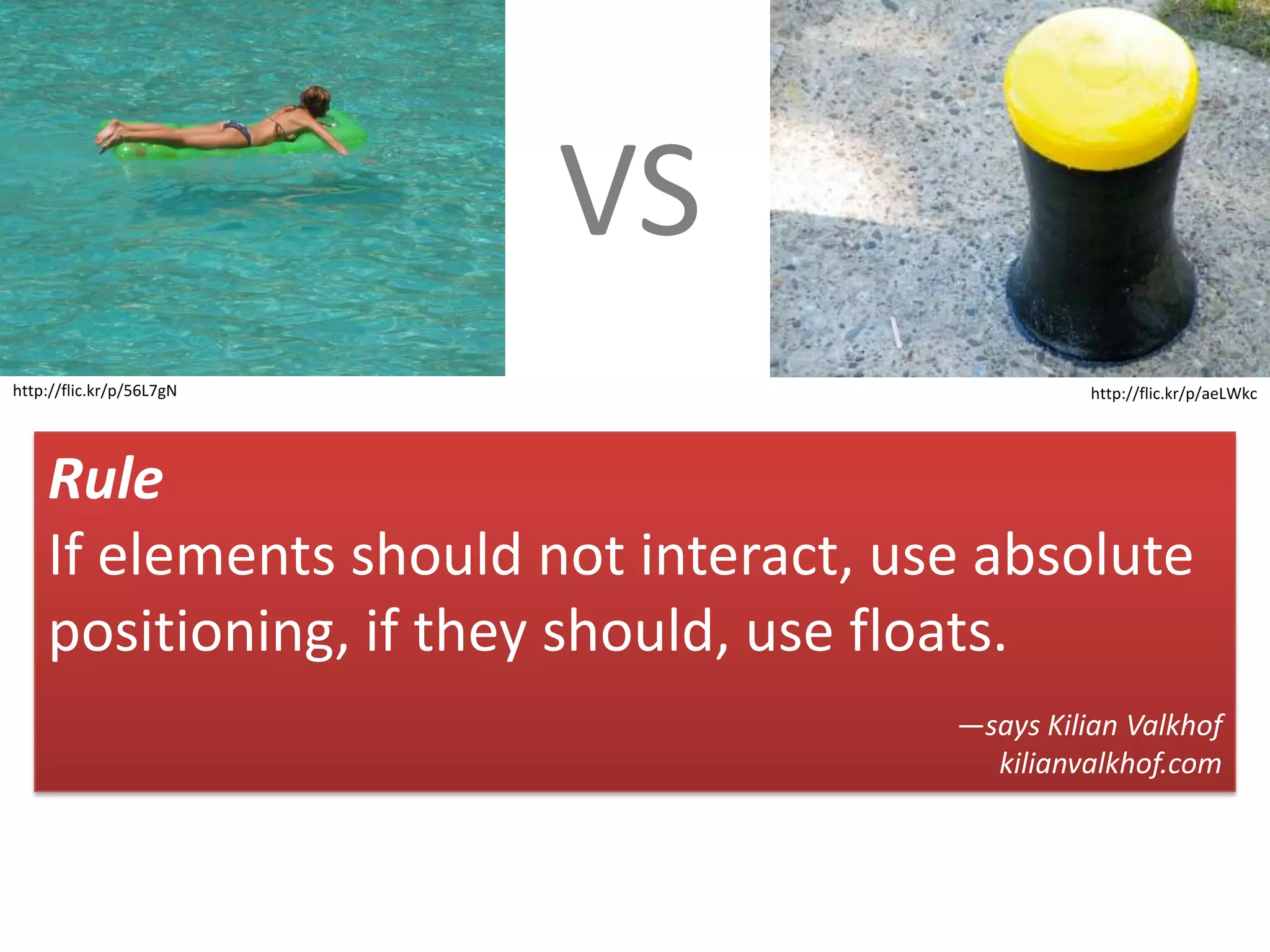

VS
http://flic.kr/p/56L7gN                          http://flic.kr/p/aeLWkc




    Rule
    If elements should not interact, use absolute
    positioning, if they should, use floats.
                                       —says Kilian Valkhof
                                         kilianvalkhof.com

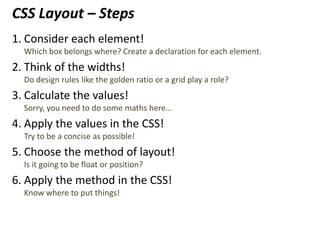

CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?
3. Calculate the values!
  Sorry, you need to do some maths here…
4. Apply the values in the CSS!
  Try to be a concise as possible!
5. Choose the method of layout!
  Is it going to be float or position?
6. Apply the method in the CSS!
  Know where to put things!
#red {                                #red {
           background-color: red;                background-color: red;
           width: 18%;                           width: 18%;
                                                 height: 400px;
           height: 400px;
                                                 position: absolute;
           margin: 0 2% 0 0;
                                                 top: 0;
           float: left;                          left: 0;
}                                     }
#green {                              #green {
           background-color: green;              background-color: green;
           width: 50%;                           width: 50%;
           height: 400px;                        height: 400px;
           margin: 0 2% 0 0;                     position: absolute;
                                                 top: 0;
           float: left;
                                                 left: 20%;
}
                                      }
#blue {                               #blue {
           background-color: blue;               background-color: blue;
           width: 28%;                           width: 28%;
           height: 400px;                        height: 400px;
           margin: 0;                            position: absolute;
           float: left;                          top: 0;
}                                                left: 72%;
                                      }
CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?
3. Calculate the values!
  Sorry, you need to do some maths here…
4. Apply the values in the CSS!
  Try to be as concise as possible!
5. Choose the method of layout!
  Is it going to be float or position?
6. Apply the method in the CSS!
  Know where to put things!
7. Rewrite the CSS with combined selectors
   and shorthand notation!

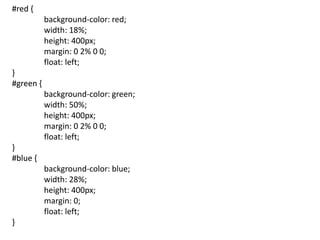

#red {
           background-color: red;
           width: 18%;
           height: 400px;
           margin: 0 2% 0 0;
           float: left;
}
#green {
           background-color: green;
           width: 50%;
           height: 400px;
           margin: 0 2% 0 0;
           float: left;
}
#blue {
           background-color: blue;
           width: 28%;
           height: 400px;
           margin: 0;
           float: left;
}

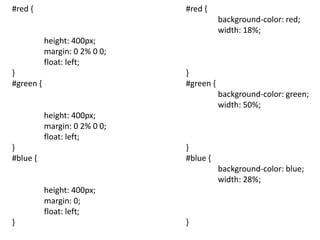

#red {                         #red {
                                          background-color: red;
                                          width: 18%;
           height: 400px;
           margin: 0 2% 0 0;
           float: left;
}                              }
#green {                       #green {
                                          background-color: green;
                                          width: 50%;
           height: 400px;
           margin: 0 2% 0 0;
           float: left;
}                              }
#blue {                        #blue {
                                          background-color: blue;
                                          width: 28%;
           height: 400px;
           margin: 0;
           float: left;
}                              }

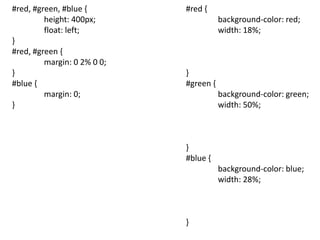

#red, #green, #blue {        #red {
         height: 400px;                 background-color: red;
         float: left;                   width: 18%;
}
#red, #green {
         margin: 0 2% 0 0;
}                            }
#blue {                      #green {
         margin: 0;                     background-color: green;
}                                       width: 50%;



                             }
                             #blue {
                                        background-color: blue;
                                        width: 28%;



                             }
#red, #green, #blue {
         height: 400px;
         float: left;
}
#red, #green {
         margin: 0 2% 0 0;
}
#red {
         background-color: red;
         width: 18%;
}
#green {
         background-color: green;
         width: 50%;
}
#blue {
         background-color: blue;
         width: 28%;
         margin: 0;
}
CSS Layout – Steps
1. Consider each element!
  Which box belongs where? Create a declaration for each element.
2. Think of the widths!
  Do design rules like the golden ratio or a grid play a role?
3. Calculate the values!
  Sorry, you need to do some maths here…
4. Apply the values in the CSS!
  Try to be as concise as possible!
5. Choose the method of layout!
  Is it going to be float or position?
6. Apply the method in the CSS!
  Know where to put things!
7. Rewrite the CSS with combined selectors
   and shorthand notation!
