1. Modern Software Testing and Formal Verification
Techniques
Day 3
Sergey Staroletov
Polzunov Altai State Technical University,
Lenin avenue 46, Barnaul, 656038, Russia
Email: serg soft@mail.ru
June 26, 2019
1 / 42

2. Today’s agenda
1 Design-By-Contract. MS Code Contracts
2 Deductive verification of C-code with Frama-C WP
3 C-code: is LTL applicable here?
4 Cyber-physical systems and their verification
2 / 42

3. Overall picture of tools applicability
3 / 42

4. Design-By-Contract
Created by Bertrand Meyer, firstly implemented in Eiffel language and
based on the Sir Tony Hoare’s logic
The approach is based on specifying pre-conditions, post-conditions
and invariant to functions (methods, classes).
4 / 42

5. Design-By-Contract
Well-known forms:
{P}C{Q}
P =⇒ [C]Q
where P – precondition, C – code, Q – postcondition. Invariant is a
form of a global pre- and post- condition {I}C{I}
In OOP languages:
Pre- and Post- conditions are specified for methods
Invariant is specified for the whole class
Also, for loops Loop Invariants and Loop Variant are specified
The things can be specified:
As a part of language syntax (Eiffel)
In comments (Frama-C)
In annotations and special code (MS Code contracts)
5 / 42

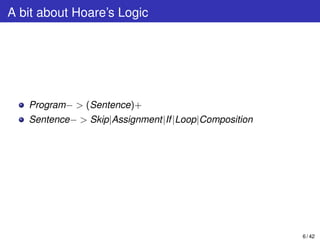

6. A bit about Hoare’s Logic
Program− > (Sentence)+
Sentence− > Skip|Assignment|If|Loop|Composition
6 / 42

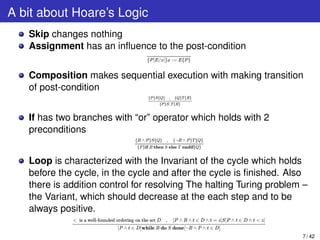

7. A bit about Hoare’s Logic
Skip changes nothing
Assignment has an influence to the post-condition
Composition makes sequential execution with making transition
of post-condition
If has two branches with “or” operator which holds with 2
preconditions
Loop is characterized with the Invariant of the cycle which holds
before the cycle, in the cycle and after the cycle is finished. Also
there is addition control for resolving The halting Turing problem –
the Variant, which should decrease at the each step and to be
always positive.
7 / 42

8. MS Code contracts
Microsoft, known for its research departments, has added a method to
programming using contracts for .NET programs as a special library
and extension for Visual Studio.
Initially, the research included Spec# (Specification Sharp) language
for contract description, but now the contracts are fully integrated into
the project in the target programming language (for example, in C#).
Contracts can be checked:
In dynamic, that is, while the program is running, expressions in
the contracts are calculated, and if they are not as expected, an
exception is thrown.
In static, i.e. during the project build without needing it to run, a
special static checker can check the program branches and find
some potential errors.
8 / 42

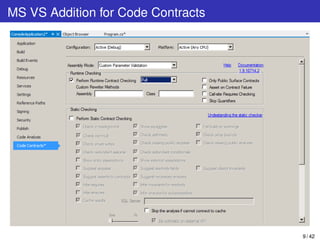

9. MS VS Addition for Code Contracts
9 / 42

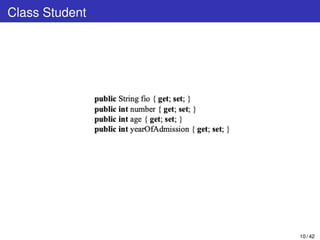

10. Class Student
10 / 42

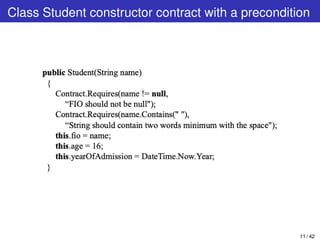

11. Class Student constructor contract with a precondition
11 / 42

12. Class Student object invariant
12 / 42

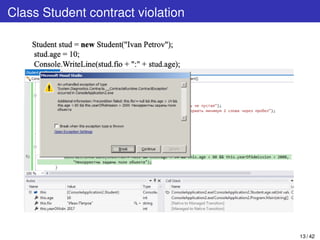

13. Class Student contract violation
13 / 42

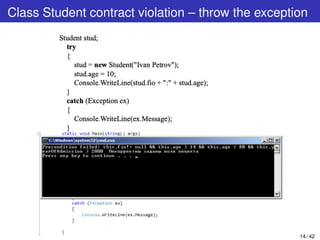

14. Class Student contract violation – throw the exception
14 / 42

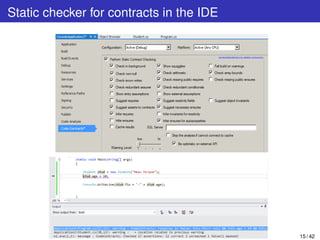

15. Static checker for contracts in the IDE
15 / 42

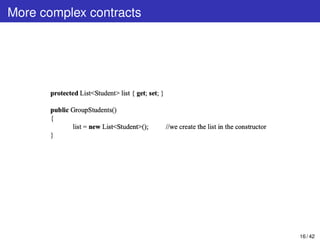

16. More complex contracts
16 / 42

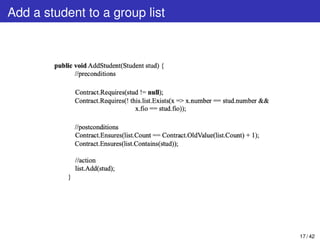

17. Add a student to a group list
17 / 42

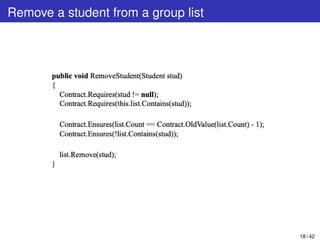

18. Remove a student from a group list
18 / 42

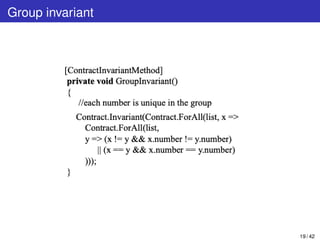

19. Group invariant
19 / 42

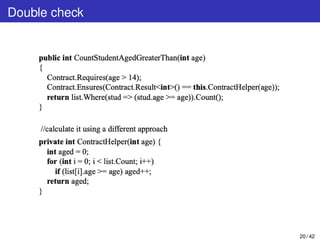

20. Double check
20 / 42

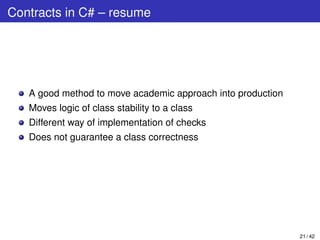

21. Contracts in C# – resume
A good method to move academic approach into production
Moves logic of class stability to a class
Different way of implementation of checks
Does not guarantee a class correctness
21 / 42

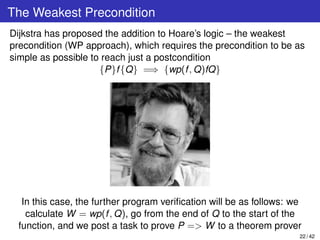

22. The Weakest Precondition
Dijkstra has proposed the addition to Hoare’s logic – the weakest
precondition (WP approach), which requires the precondition to be as
simple as possible to reach just a postcondition
{P}f{Q} =⇒ {wp(f, Q)fQ}
In this case, the further program verification will be as follows: we
calculate W = wp(f, Q), go from the end of Q to the start of the
function, and we post a task to prove P => W to a theorem prover
22 / 42

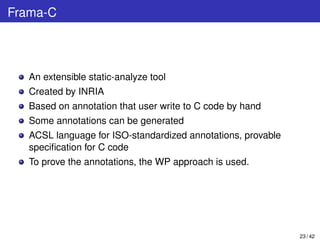

23. Frama-C
An extensible static-analyze tool
Created by INRIA
Based on annotation that user write to C code by hand
Some annotations can be generated
ACSL language for ISO-standardized annotations, provable
specification for C code
To prove the annotations, the WP approach is used.
23 / 42

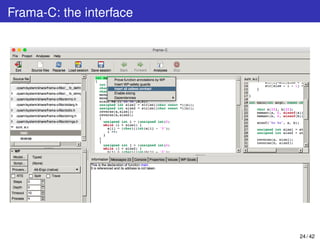

24. Frama-C: the interface
24 / 42

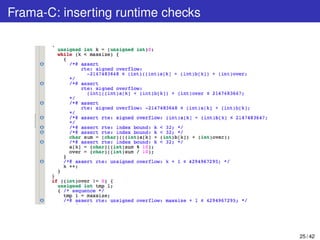

25. Frama-C: inserting runtime checks
25 / 42

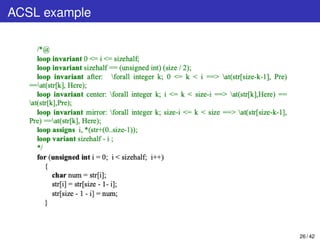

26. ACSL example
26 / 42

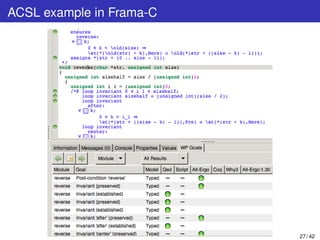

27. ACSL example in Frama-C
27 / 42

28. Verifying a simple car moving model
28 / 42

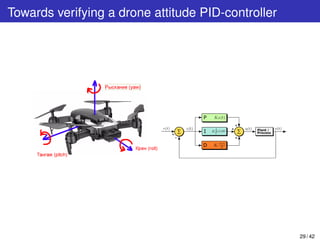

29. Towards verifying a drone attitude PID-controller
29 / 42

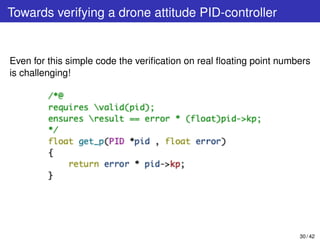

30. Towards verifying a drone attitude PID-controller
Even for this simple code the verification on real floating point numbers
is challenging!
30 / 42

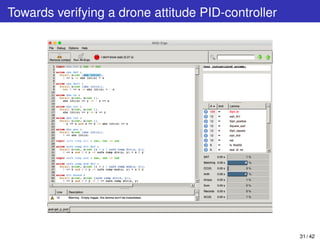

31. Towards verifying a drone attitude PID-controller
31 / 42

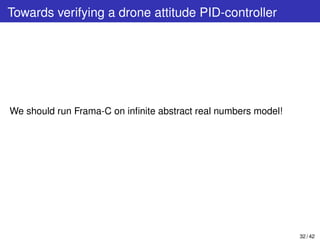

32. Towards verifying a drone attitude PID-controller
We should run Frama-C on infinite abstract real numbers model!
32 / 42

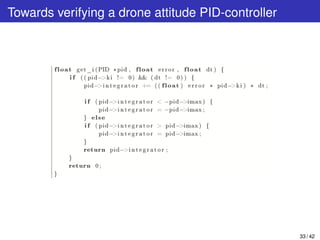

33. Towards verifying a drone attitude PID-controller
33 / 42

34. Towards verifying a drone attitude PID-controller

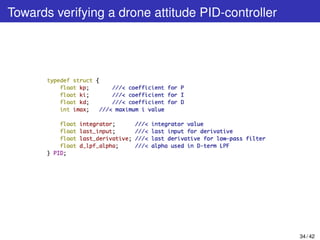

34 / 42

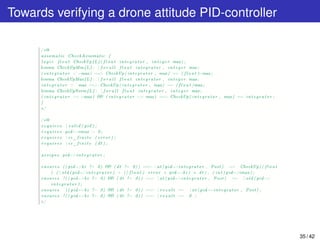

35. Towards verifying a drone attitude PID-controller
35 / 42

36. C code and LTL: Aora¨ı
36 / 42

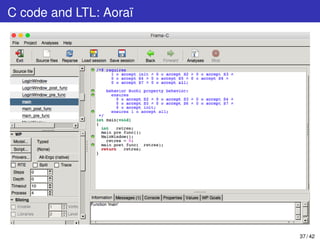

37. C code and LTL: Aora¨ı
37 / 42

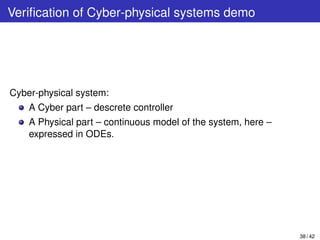

38. Verification of Cyber-physical systems demo
Cyber-physical system:
A Cyber part – descrete controller
A Physical part – continuous model of the system, here –
expressed in ODEs.
38 / 42

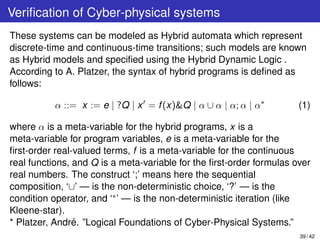

39. Verification of Cyber-physical systems
These systems can be modeled as Hybrid automata which represent
discrete-time and continuous-time transitions; such models are known
as Hybrid models and specified using the Hybrid Dynamic Logic .
According to A. Platzer, the syntax of hybrid programs is defined as
follows:
α ::= x := e | ?Q | x = f(x)&Q | α ∪ α | α; α | α∗
(1)
where α is a meta-variable for the hybrid programs, x is a
meta-variable for program variables, e is a meta-variable for the
first-order real-valued terms, f is a meta-variable for the continuous
real functions, and Q is a meta-variable for the first-order formulas over
real numbers. The construct ‘;’ means here the sequential
composition, ‘∪’ — is the non-deterministic choice, ‘?’ — is the
condition operator, and ‘∗’ — is the non-deterministic iteration (like
Kleene-star).
* Platzer, Andr´e. ”Logical Foundations of Cyber-Physical Systems.”
39 / 42

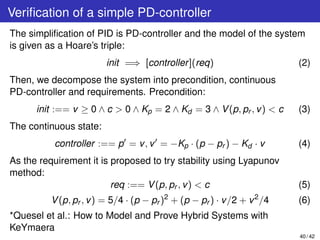

40. Verification of a simple PD-controller
The simplification of PID is PD-controller and the model of the system
is given as a Hoare’s triple:
init =⇒ [controller](req) (2)
Then, we decompose the system into precondition, continuous
PD-controller and requirements. Precondition:
init :== v ≥ 0 ∧ c > 0 ∧ Kp = 2 ∧ Kd = 3 ∧ V(p, pr , v) < c (3)
The continuous state:
controller :== p = v, v = −Kp · (p − pr ) − Kd · v (4)
As the requirement it is proposed to try stability using Lyapunov
method:
req :== V(p, pr , v) < c (5)
V(p, pr , v) = 5/4 · (p − pr )2
+ (p − pr ) · v/2 + v2
/4 (6)
*Quesel et al.: How to Model and Prove Hybrid Systems with
KeYmaera
40 / 42

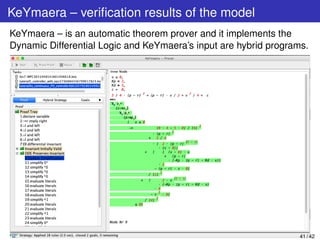

41. KeYmaera – verification results of the model
KeYmaera – is an automatic theorem prover and it implements the
Dynamic Differential Logic and KeYmaera’s input are hybrid programs.
41 / 42

42. Learn more about ways of verification and contracts
42 / 42
