C Programming CS 002 Computer Programming

1. LOGO
Higher Technological Institute
10th of Ramadan City
6th of October Branch
Electrical and Computer Engineering Department
Lecture Notes in
Prepaid By: Eng. Ibrahim Elewah
Main Reference
HTI Student Book and “C For Dummies”
by Dan Gookin 2nd Edition
1

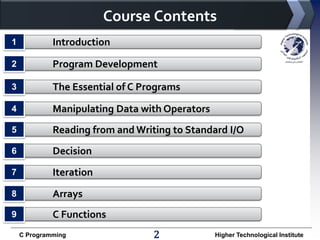

2. Course Contents
1
Introduction
2
Program Development
3
The Essential of C Programs
4
Manipulating Data with Operators
5
Reading from and Writing to Standard I/O
6
Decision
7
Iteration
8
Arrays
9
C Functions
C Programming
2
Higher Technological Institute

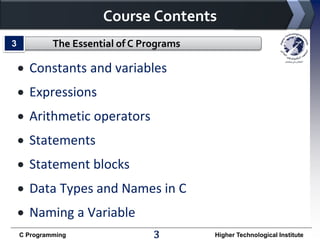

3. Course Contents
3
The Essential of C Programs
 Constants and variables
 Expressions
 Arithmetic operators
 Statements
 Statement blocks
 Data Types and Names in C
 Naming a Variable
C Programming
3
Higher Technological Institute

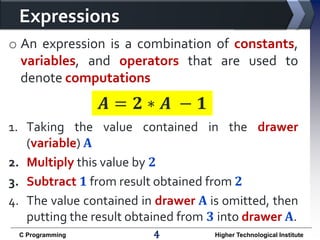

4. Expressions
o An expression is a combination of constants,
variables, and operators that are used to
denote computations
𝑨= 𝟐∗ 𝑨 − 𝟏
1. Taking the value contained in the drawer
(variable) A
2. Multiply this value by 2
3. Subtract 1 from result obtained from 2
4. The value contained in drawer A is omitted, then
putting the result obtained from 3 into drawer A.
C Programming
4
Higher Technological Institute

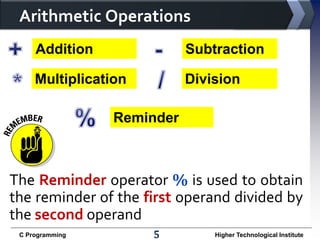

5. Arithmetic Operations
Addition
Subtraction
Multiplication
Division
Reminder
The Reminder operator % is used to obtain
the reminder of the first operand divided by
the second operand
C Programming
5
Higher Technological Institute

6. Arithmetic Operations
Addition
Subtraction
Multiplication
Division
Reminder
Example
𝟔% 𝟒= 𝟐
C Programming
𝟏𝟎𝟎𝟏%𝟐 = 𝟏
6
𝟒𝟖%𝟓 =
Higher Technological Institute

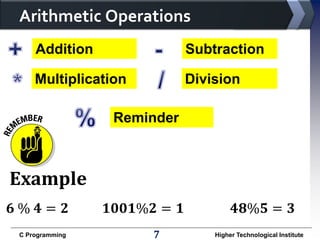

7. Arithmetic Operations
Addition
Subtraction
Multiplication
Division
Reminder
Example
𝟔% 𝟒= 𝟐
C Programming
𝟏𝟎𝟎𝟏%𝟐 = 𝟏
7
𝟒𝟖%𝟓 = 𝟑
Higher Technological Institute

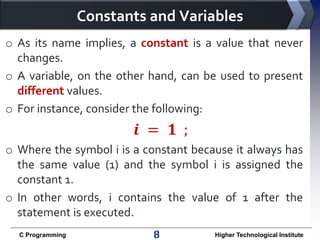

8. Constants and Variables
o As its name implies, a constant is a value that never
changes.
o A variable, on the other hand, can be used to present
different values.
o For instance, consider the following:
𝒊 = 𝟏 ;
o Where the symbol i is a constant because it always has
the same value (1) and the symbol i is assigned the
constant 1.
o In other words, i contains the value of 1 after the
statement is executed.
C Programming
8
Higher Technological Institute

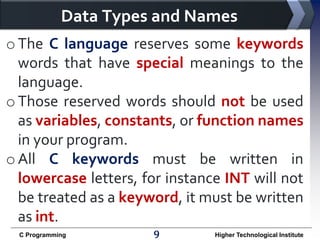

9. Data Types and Names
o The C language reserves some keywords
words that have special meanings to the
language.
o Those reserved words should not be used
as variables, constants, or function names
in your program.
o All C keywords must be written in
lowercase letters, for instance INT will not
be treated as a keyword, it must be written
as int.
C Programming
9
Higher Technological Institute

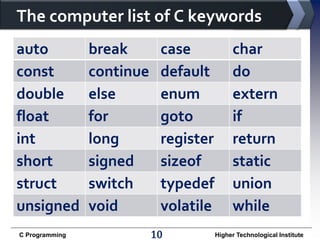

10. The computer list of C keywords
auto
const
double
float
int
short
struct
unsigned
C Programming
break
continue
else
for
long
signed
switch
void
case
default
enum
goto
register
sizeof
typedef
volatile
10
char
do
extern
if
return
static
union
while
Higher Technological Institute

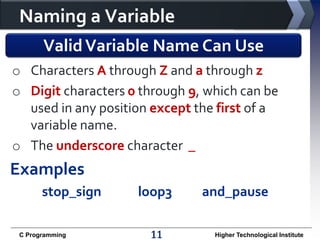

11. Naming a Variable
Valid Variable Name Can Use
o Characters A through Z and a through z
o Digit characters 0 through 9, which can be
used in any position except the first of a
variable name.
o The underscore character _
Examples
stop_sign
C Programming
loop3
11
and_pause
Higher Technological Institute

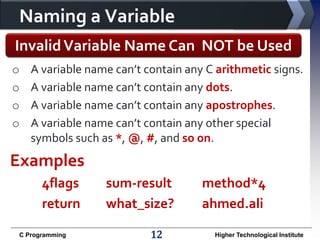

12. Naming a Variable
Invalid Variable Name Can NOT be Used
o
o
o
o
A variable name can’t contain any C arithmetic signs.
A variable name can’t contain any dots.
A variable name can’t contain any apostrophes.
A variable name can’t contain any other special
symbols such as *, @, #, and so on.
Examples
4flags
return
C Programming
sum-result
what_size?
12
method*4
ahmed.ali
Higher Technological Institute

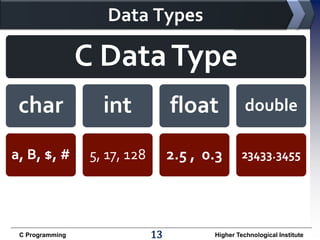

13. Data Types
C Data Type
char
int
float
double
a, B, $, #
5, 17, 128
2.5 , 0.3
23433.3455
C Programming
13
Higher Technological Institute

14. Declaration Statement
Type
Name Value
char
int
float
double
c1
N1
F1
d1
char c1
= ‘&’ ;
int
‘&’
100
32/10
5e3
= 100 ;
n1
C Programming
14
Higher Technological Institute

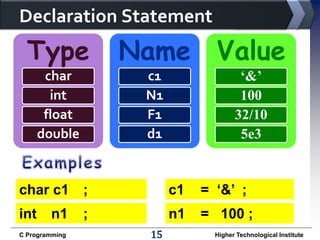

15. Declaration Statement
Type
char
int
float
double
Name Value
‘&’
100
32/10
5e3
c1
N1
F1
d1
char c1
;
c1
= ‘&’ ;
int
;
n1
= 100 ;
n1
C Programming
15
Higher Technological Institute

16. Declaration Statement
Type
Name Value
char
int
float
double
float
c1
n1
f1
d1
‘&’
100
32/10
5e3
f1= 32/100 ;
double
C Programming
d1=5e3 ;
16
Higher Technological Institute

17. Declaration Statement
Type
Name Value
char
int
float
double
‘&’
100
32/10
5e3
c1
n1
f1
d1
float
f1
;
f1
=
32/100 ;
double
d1 ;
d1
=
5e3
C Programming
17
;
Higher Technological Institute

18. Some special characters in C
b
Backspace
f
Form feed
n
New line
r
Return
t
Tab
C Programming
Moves the cursor to the left
one character
Goes to the top of a new
page
Carriage return and line
feeds
Returns to the beginning of
the current line
Advances to the next tab
stop
18
Higher Technological Institute

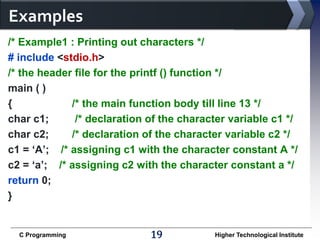

19. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
char c2;
/* declaration of the character variable c2 */
c1 = ‘A’; /* assigning c1 with the character constant A */
c2 = ‘a’; /* assigning c2 with the character constant a */
return 0;
}
C Programming
19
Higher Technological Institute

20. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
char c2;
/* declaration of the character variable c2 */
c1 = ‘A’;
/* assigning c1 with the character constant A */
c2 = ‘a’;
/* assigning c2 with the character constant a */
printf ( “ The character c1 is : %c n ”, c1);
printf ( “ The character c1 is : %c ” , c1);
printf ( “ while the character c2 is : %c n”, c2);
return 0;
}
C Programming
20
Higher Technological Institute

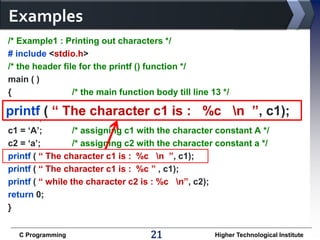

21. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
printf ( “ The character c1 is : variablen */”, c1);
%c c2
char c2;
/* declaration of the character
c1 = ‘A’;
/* assigning c1 with the character constant A */
c2 = ‘a’;
/* assigning c2 with the character constant a */
printf ( “ The character c1 is : %c n ”, c1);
printf ( “ The character c1 is : %c ” , c1);
printf ( “ while the character c2 is : %c n”, c2);
return 0;
}
C Programming
21
Higher Technological Institute

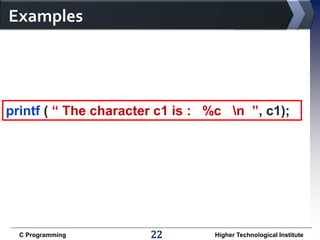

22. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
printf ( “ The character c1 is : variablen */”, c1);
%c c2
char c2;
/* declaration of the character
c1 = ‘A’;
/* assigning c1 with the character constant A */
c2 = ‘a’;
/* assigning c2 with the character constant a */
printf ( “ The character c1 is : %c n ”, c1);
printf ( “ The character c1 is : %c ” , c1);
printf ( “ while the character c2 is : %c n”, c2);
return 0;
}
C Programming
22
Higher Technological Institute

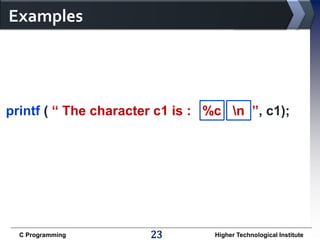

23. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
printf ( “ The character c1 is : variablen */”, c1);
%c c2
char c2;
/* declaration of the character
c1 = ‘A’;
/* assigning c1 with the character constant A */
c2 = ‘a’;
/* assigning c2 with the character constant a */
printf ( “ The character c1 is : %c n ”, c1);
printf ( “ The character c1 is : %c ” , c1);
printf ( “ while the character c2 is : %c n”, c2);
return 0;
}
C Programming
23
Higher Technological Institute

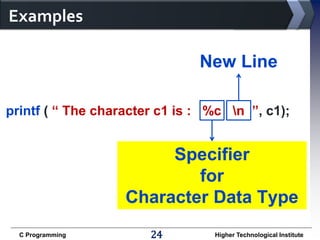

24. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
printf ( “ The character c1 is : variablen */”, c1);
%c c2
char c2;
/* declaration of the character
c1 = ‘A’;
/* assigning c1 with the character constant A */
c2 = ‘a’;
/* assigning c2 with the character constant a */
printf ( “ The character c1 is : %c n ”, c1);
printf ( “ The character c1 is : %c ” , c1);
printf ( “ while the character c2 is : %c n”, c2);
return 0;
}
New Line
Specifier
for
Character Data Type
C Programming
24
Higher Technological Institute

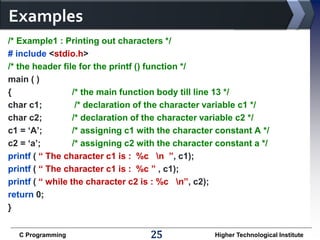

25. Examples
/* Example1 : Printing out characters */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 13 */
char c1;
/* declaration of the character variable c1 */
char c2;
/* declaration of the character variable c2 */
c1 = ‘A’;
/* assigning c1 with the character constant A */
c2 = ‘a’;
/* assigning c2 with the character constant a */
printf ( “ The character c1 is : %c n ”, c1);
printf ( “ The character c1 is : %c ” , c1);
printf ( “ while the character c2 is : %c n”, c2);
return 0;
}
C Programming
25
Higher Technological Institute

26. You Have To Know about Data Types
Type
Name
Value
Specifier
char
c1
‘&’
%c
int
n1
100
%d
float
f1
32/10
%f
double
d1
5e3
%e,%E
C Programming
26
Higher Technological Institute

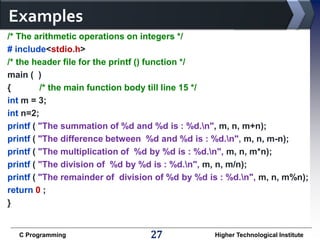

27. Examples
/* The arithmetic operations on integers */
# include<stdio.h>
/* the header file for the printf () function */
main ( )
{
/* the main function body till line 15 */
int m = 3;
int n=2;
printf ( "The summation of %d and %d is : %d.n", m, n, m+n);
printf ( "The difference between %d and %d is : %d.n", m, n, m-n);
printf ( "The multiplication of %d by %d is : %d.n", m, n, m*n);
printf ( "The division of %d by %d is : %d.n", m, n, m/n);
printf ( "The remainder of division of %d by %d is : %d.n", m, n, m%n);
return 0 ;
}
C Programming
27
Higher Technological Institute

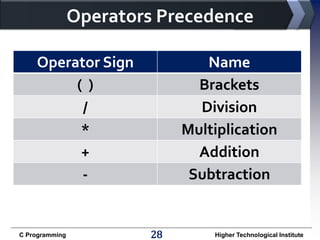

28. Operators Precedence
Operator Sign
( )
/
*
+
-
C Programming
Name
Brackets
Division
Multiplication
Addition
Subtraction
28
Higher Technological Institute

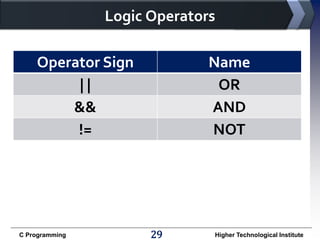

29. Logic Operators
Operator Sign
||
&&
!=
C Programming
Name
OR
AND
NOT
29
Higher Technological Institute

30. Examples
/* Example3 : Integer vs. floating point divisions */
# include <stdio.h>
/* the header file for the printf ()
function */
main ( )
{
int n1,n2,n3;
float m1,m2,m3;
n1 = 32/10;
m1= 32/10;
n2 = 32.0/10;
m2= 32.0/10;
n3 = 32/10.0;
m3 = 32/10.0;
return 0;
}
C Programming
30
Higher Technological Institute

31. Examples
/* Example3 : Integer vs. floating point divisions */
# include <stdio.h>
/* the header file for the printf () function */
main ( )
{
int n1,n2,n3;
float m1,m2,m3;
n1 = 32/10;
m1= 32/10;
n2 = 32.0/10;
m2= 32.0/10;
n3 = 32/10.0;
m3 = 32/10.0;
printf ( “ The integer division of 32/10 is :
%d n”, n1);
printf ( “The floating point division of 32/10 is :
%f n”, m1);
printf ( “The integer division of 32.0/10 is :
%d n”, n2);
printf ( “The floating point division of 32.0/10 is :
%f n”, m2);
printf ( “The integer division of 32/10.0 is :
%d n”, n3);
printf ( “The floating point division of 32/10.0 is :
%f n”, m3);
return 0;
}
C Programming
31
Higher Technological Institute

32. Double Data Type
o Here are two examples:
[mantissa] e [exponent]
[mantissa] E [exponent]
Example
5000
-300
0.0025
5e3.
-3e2
2.5e-3.
Specifier %e or %E
With printf ( )
C Programming
32
Higher Technological Institute

33. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
33
Higher Technological Institute

34. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
34
Higher Technological Institute

35. Precedence Example
# include<stdio.h>
X(
B/C + A ;
main = ) E * D –
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
35
Higher Technological Institute

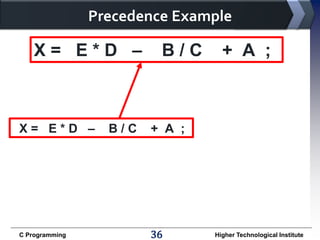

36. Precedence Example
X= E*D –
X= E*D –
C Programming
B/C
B/C
+ A ;
+ A ;
36
Higher Technological Institute

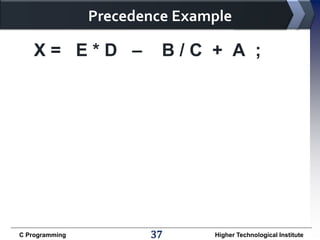

37. Precedence Example
X= E*D –
C Programming
B/C + A ;
37
Higher Technological Institute

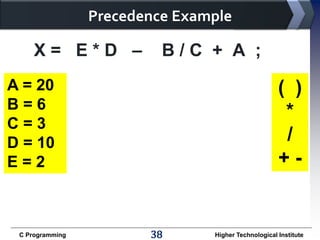

38. Precedence Example
X= E*D –
B/C + A ;
A = 20
B=6
C=3
D = 10
E=2
C Programming
( )
*
/
+-
38
Higher Technological Institute

39. Precedence Example
X= E*D –
2 * 10 –
A = 20
B/C + A ;
6 / 3 + 20
B=6
C=3
D = 10
E=2
C Programming
39
( )
*
/
+-
Higher Technological Institute

40. Precedence Example
X= E*D –
2 * 10 –
A = 20
B=6
C=3
D = 10
E=2
C Programming
20
B/C + A ;
6 / 3 + 20
–
2
40
+ 20
( )
*
/
+-
Higher Technological Institute

41. Precedence Example
X= E*D –
2 * 10 –
A = 20
B=6
C=3
D = 10
E=2
C Programming
20
B/C + A ;
6 / 3 + 20
–
2
38
41
+ 20
( )
*
/
+-
Higher Technological Institute

42. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
42
Higher Technological Institute

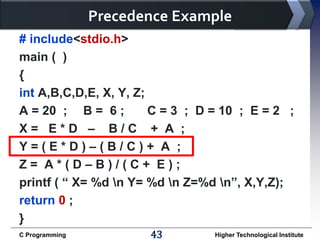

43. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
43
Higher Technological Institute

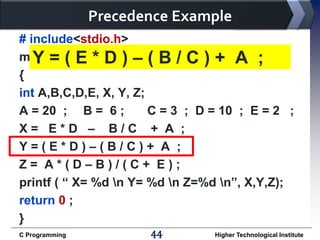

44. Precedence Example
# include<stdio.h>
main = )( E * D ) – ( B / C ) + A ;
Y (
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
44
Higher Technological Institute

45. Precedence Example
Y=(E*D)–(B/C)+ A ;
.
.
.
C Programming
45
Higher Technological Institute

46. Precedence Example
Y=(E*D)–(B/C)+ A ;
.
.
.
38
C Programming
46
Higher Technological Institute

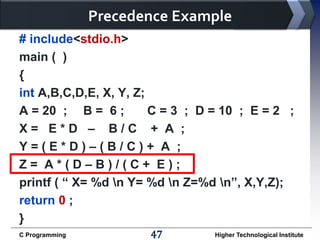

47. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
47
Higher Technological Institute

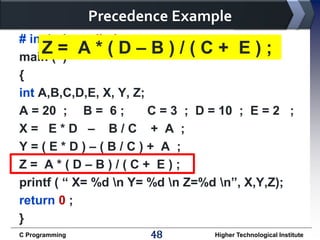

48. Precedence Example
# include<stdio.h>
Z( = A * ( D – B ) / ( C + E ) ;
main )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
48
Higher Technological Institute

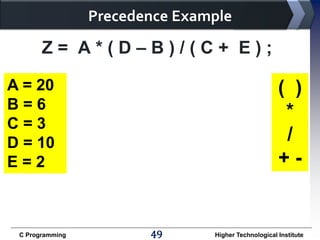

49. Precedence Example
Z= A*(D–B)/(C+ E);
A = 20
B=6
C=3
D = 10
E=2
C Programming
( )
*
/
+-
49
Higher Technological Institute

50. Precedence Example
Z= A*(D–B)/(C+ E);
A = 20
B=6
C=3
D = 10
E=2
C Programming
( )
*
/
+-
50
Higher Technological Institute

51. Precedence Example
Z= A*(D–B)/(C+ E);
A = 20
B=6
C=3
D = 10
E=2
C Programming
20 *
4
/
51
5
( )
*
/
+-
Higher Technological Institute

52. Precedence Example
Z= A*(D–B)/(C+ E);
A = 20
B=6
C=3
D = 10
E=2
C Programming
20 *
4
/
16
52
5
( )
*
/
+-
Higher Technological Institute

53. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
53
Higher Technological Institute

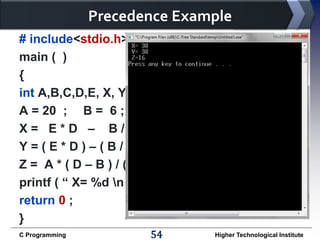

54. Precedence Example
# include<stdio.h>
main ( )
{
int A,B,C,D,E, X, Y, Z;
A = 20 ; B = 6 ;
C = 3 ; D = 10 ; E = 2 ;
X= E*D – B/C + A ;
Y=(E*D)–(B/C)+ A ;
Z= A*(D–B)/(C+ E);
printf ( “ X= %d n Y= %d n Z=%d n”, X,Y,Z);
return 0 ;
}
C Programming
54
Higher Technological Institute

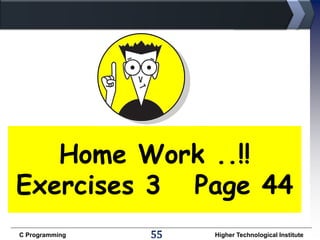

55. Home Work ..!!
Exercises 3 Page 44
C Programming
55
Higher Technological Institute

56. LOGO
Higher Technological Institute
10th of Ramadan City
6th of October Branch
Electrical and Computer Engineering Department
Eng. Ibrahim Elewah
Main Reference
HTI Student Book and “C For Dummies”
by Dan Gookin 2nd Edition
56
