1. STACK
Data Structure
www.btechsmartclass.com

2. What is a STACK ?
A stack is a container of elements that are inserted
and
removed according to the last-in first-out (LIFO)
principle.
A stack is a ordered list of elements of same data
type
A stack is a Linear list

3. What is a STACK ?
0 1 2 3 4
In a stack all operation like
insertion and deletion are
performed at only one end
called Top

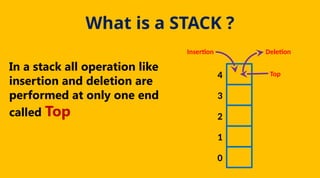

4. What is a STACK ?
In a stack all operation like
insertion and deletion are
performed at only one end
called Top
1
2
3
4
0
Insertion Deletion
Top

5. Operations on STACK ?
Insertion
Deletion
Displaying
Creation

6. Operations on STACK ?
Insertion
Deletion
Displaying
Creation #define SIZE 5
int stack[SIZE];
1
2
3
4
0
stack

7. Operations on STACK ?
Insertion
Deletion
Displaying
Creation
void push(element){
if(Stack is full)
{
printf(“FULL!!!”);
}
else
{
Top++;
stack[Top] = element;
}
}
1
2
3
4
0
stack
Insertion operation is called as “push”

8. Operations on STACK ?
Insertion
Deletion
Displaying
Creation
int pop( ){
if(Stack is Empty)
{
printf(“EMPTY!!!”);
return Top;
}
else
{
deleted = stack[Top];
Top--;
return deleted;
}
}
1
2
3
4
0
stack
Deletion operation is called as “pop”

9. Operations on STACK ?
Insertion
Deletion
Displaying
Creation
void display( ){
if(Stack is Empty)
{
printf(“EMPTY!!!”);
}
else
{
for(i=Top; i>-1; i--)
printf(“%dn”,stack[i]);
}
}
1
2
3
4
0
stack
