Jill is a Microsoft Certified Software Developer (MCSD) and Microsoft Certified IT Professional (MCITP) in Business Intelligence and Database Development. She has been a valued member of the Greystone team since 2000. Jill has worked on a variety of successful projects involving database design, development, integration, and administration. In addition to her database skills, Jill is a talented .NET developer with several years of web application design and development experience. In this deck, Jill walks her audience through the features & benefits of leveraging SharePoint 2013 & related technologies to deliver robust self-service Business Intelligence solutions to the masses.

1. Jill Kaszynski
Principal Consultant
Greystone Solutions
jkaszynski@greystone.com
Business Intelligence in SharePoint 2013
Power View Deep Dive

2. was made possible by the generous
support of the following sponsors…
And by your participation… Thank you!

3. Be sure to fill out your eval form
& turn in at the end of the day
for a ticket to the BIG raffle!
Join us for the raffle & SharePint
following the last session

4. © Greystone Solutions, Incorporated

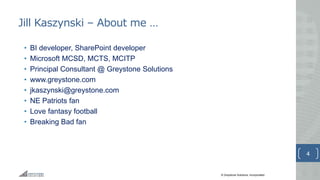

Jill Kaszynski – About me …
• BI developer, SharePoint developer
• Microsoft MCSD, MCTS, MCITP
• Principal Consultant @ Greystone Solutions
• www.greystone.com
• jkaszynski@greystone.com
• NE Patriots fan
• Love fantasy football
• Breaking Bad fan
4

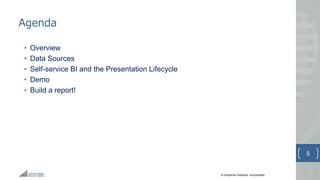

5. © Greystone Solutions, Incorporated
Agenda
• Overview
• Data Sources
• Self-service BI and the Presentation Lifecycle
• Demo
• Build a report!
5

6. © Greystone Solutions, Incorporated
6
vi
Overview

7. © Greystone Solutions, Incorporated
What is Power View
• End user ad-hoc reporting tool
• Browser-based Silverlight application *
• Interactive filtering, sorting, and drill down
• Works with Analysis Services databases & PowerPivot workbooks
• Publish reports to SharePoint and export to PowerPoint
* There is now a preview version of Power View HTML5 in Office 365
7

8. © Greystone Solutions, Incorporated

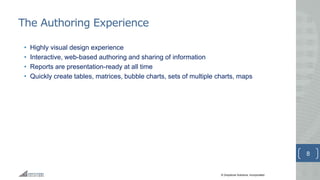

The Authoring Experience
• Highly visual design experience
• Interactive, web-based authoring and sharing of information
• Reports are presentation-ready at all time
• Quickly create tables, matrices, bubble charts, sets of multiple charts, maps
8

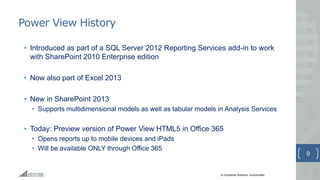

9. © Greystone Solutions, Incorporated
Power View History
• Introduced as part of a SQL Server 2012 Reporting Services add-in to work
with SharePoint 2010 Enterprise edition
• Now also part of Excel 2013
• New in SharePoint 2013
• Supports multidimensional models as well as tabular models in Analysis Services
• Today: Preview version of Power View HTML5 in Office 365
• Opens reports up to mobile devices and iPads
• Will be available ONLY through Office 365
9

10. © Greystone Solutions, Incorporated

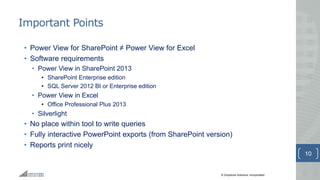

Important Points
• Power View for SharePoint ≠ Power View for Excel
• Software requirements
• Power View in SharePoint 2013
• SharePoint Enterprise edition
• SQL Server 2012 BI or Enterprise edition
• Power View in Excel
• Office Professional Plus 2013
• Silverlight
• No place within tool to write queries
• Fully interactive PowerPoint exports (from SharePoint version)
• Reports print nicely
10

11. © Greystone Solutions, Incorporated
11
Data Sources

12. © Greystone Solutions, Incorporated

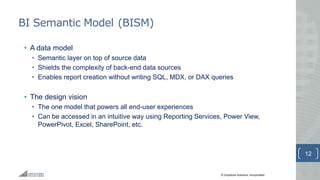

BI Semantic Model (BISM)
• A data model
• Semantic layer on top of source data
• Shields the complexity of back-end data sources
• Enables report creation without writing SQL, MDX, or DAX queries
• The design vision
• The one model that powers all end-user experiences
• Can be accessed in an intuitive way using Reporting Services, Power View,
PowerPivot, Excel, SharePoint, etc.
12

13. © Greystone Solutions, Incorporated

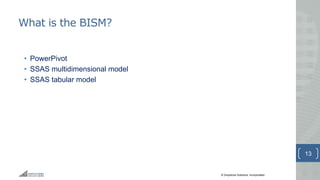

What is the BISM?
• PowerPivot
• SSAS multidimensional model
• SSAS tabular model
13

14. © Greystone Solutions, Incorporated
PowerPivot (or Power Pivot)
• Embedded in Excel and SharePoint 2013
• xVelocity engine - the SSAS engine with an in-memory database
• Stores data in a highly-compressed format in memory
• No row limit
• Storage limit of 2GB (SharePoint limit)
• Significantly improves performance of analysis
• Can be deployed to SharePoint for collaboration
• Can be used as a data source
14

15. © Greystone Solutions, Incorporated
Tabular Model vs. Multidimensional Model
• The Multidimensional Model is the traditional OLAP cube
• Tabular Model – Essentially the server version of PowerPivot
• Data persisted in memory
• DAX
• Xvelocity engine
• Separate products
• Different design experiences
• Different underlying data architectures
• Both provide a semantic layer on top of your Data Warehouse with high
performance capabilities 15

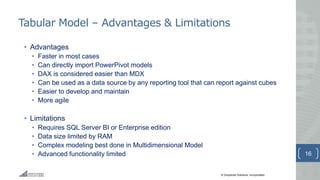

16. © Greystone Solutions, Incorporated
Tabular Model – Advantages & Limitations
• Advantages
• Faster in most cases
• Can directly import PowerPivot models
• DAX is considered easier than MDX
• Can be used as a data source by any reporting tool that can report against cubes
• Easier to develop and maintain
• More agile
• Limitations
• Requires SQL Server BI or Enterprise edition
• Data size limited by RAM
• Complex modeling best done in Multidimensional Model
• Advanced functionality limited 16

17. © Greystone Solutions, Incorporated
17
,

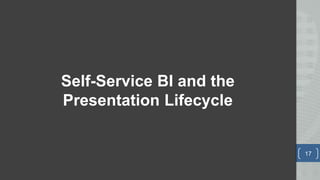

Self-Service BI and the
Presentation Lifecycle

18. © Greystone Solutions, Incorporated

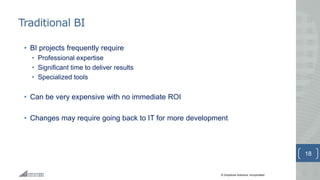

Traditional BI
• BI projects frequently require
• Professional expertise
• Significant time to deliver results
• Specialized tools
• Can be very expensive with no immediate ROI
• Changes may require going back to IT for more development
18

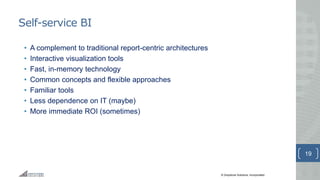

19. © Greystone Solutions, Incorporated
Self-service BI
• A complement to traditional report-centric architectures
• Interactive visualization tools
• Fast, in-memory technology
• Common concepts and flexible approaches
• Familiar tools
• Less dependence on IT (maybe)
• More immediate ROI (sometimes)
19

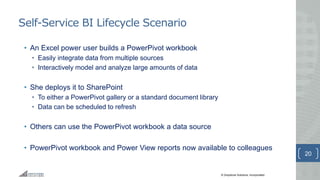

20. © Greystone Solutions, Incorporated
Self-Service BI Lifecycle Scenario
• An Excel power user builds a PowerPivot workbook
• Easily integrate data from multiple sources
• Interactively model and analyze large amounts of data
• She deploys it to SharePoint
• To either a PowerPivot gallery or a standard document library
• Data can be scheduled to refresh
• Others can use the PowerPivot workbook a data source
• PowerPivot workbook and Power View reports now available to colleagues
20

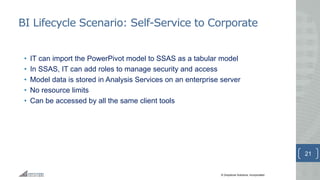

21. © Greystone Solutions, Incorporated
BI Lifecycle Scenario: Self-Service to Corporate
• IT can import the PowerPivot model to SSAS as a tabular model
• In SSAS, IT can add roles to manage security and access
• Model data is stored in Analysis Services on an enterprise server
• No resource limits
• Can be accessed by all the same client tools
21

22. © Greystone Solutions, Incorporated
22
Demo
