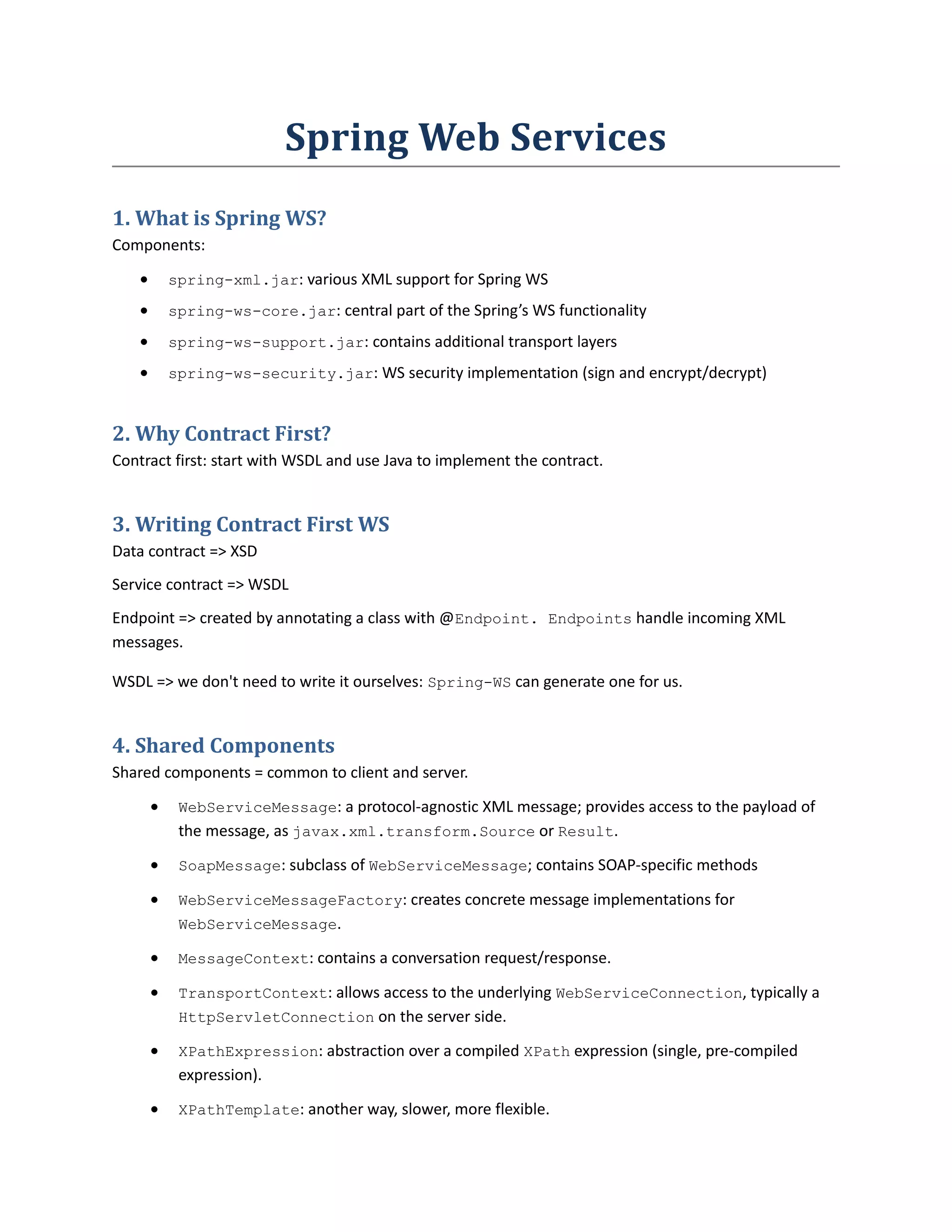

1. Spring Web Services
1. What is Spring WS?
Components:
· spring-xml.jar: various XML support for Spring WS
· spring-ws-core.jar: central part of the Spring’s WS functionality
· spring-ws-support.jar: contains additional transport layers
· spring-ws-security.jar: WS security implementation (sign and encrypt/decrypt)
2. Why Contract First?
Contract first: start with WSDL and use Java to implement the contract.
3. Writing Contract First WS
Data contract => XSD
Service contract => WSDL
Endpoint => created by annotating a class with @Endpoint. Endpoints handle incoming XML
messages.
WSDL => we don't need to write it ourselves: Spring-WS can generate one for us.
4. Shared Components
Shared components = common to client and server.
· WebServiceMessage: a protocol-agnostic XML message; provides access to the payload of
the message, as javax.xml.transform.Source or Result.
· SoapMessage: subclass of WebServiceMessage; contains SOAP-specific methods
· WebServiceMessageFactory: creates concrete message implementations for
WebServiceMessage.
· MessageContext: contains a conversation request/response.
· TransportContext: allows access to the underlying WebServiceConnection, typically a
HttpServletConnection on the server side.
· XPathExpression: abstraction over a compiled XPath expression (single, pre-compiled
expression).
· XPathTemplate: another way, slower, more flexible.

2. · Logging: org.springframework.ws.server.MessageTracing=DEBUG.
5. Creating a Web Service with Spring WS
Spring WS server-side support is designed around a MessageDispatcher that dispatches incoming
messages to endpoints, with configurable endpoint mappings, response generation, and endpoint
interception.
The MessageDispatcherServlet is a standard servlet which conveniently extends from the standard
Spring Web DispatcherServlet, and wraps a MessageDispatcher. It will look for a file named
[servlet-name]-servlet.xml in the WEB-INF directory.
Static WSDL:
<sws:static-wsdl id="orders" location="/WEB-INF/wsdl/orders.wsdl"/>:
The WSDL will be available on http://localhost:8080/spring-ws/orders.wsdl.
Dynamic WSDL:
<sws:dynamic-wsdl id="orders"><sws:xsd location=”file.xsd”/>...
This builds a WSDL from a XSD schema by using conventions.
JMS Transport
Spring WS supports server-side JMS handling through the JMS functionality provided in the Spring
framework. Spring WS provides the WebServiceMessageListener to plug in to a
MessageListenerContainer.
Email Transport

3. In addition to HTTP and JMS, Spring WS also provides server-side email handling. This functionality is
provided through the MailMessageReceiver class. This class monitors a POP3 or IMAP folder,
converts the email to a WebServiceMessage, and sends any response using SMTP.
Endpoints
An endpoint interprets the XML request message and uses that input to invoke a method on the
business service (typically).
To enable the support for @Endpoint and related Spring WS annotations, you will need to add
<sws:annotation-driven /> in the servlet XML file.
Endpoints are singleton by default, so they have to be thread-safe.
Endpoint interceptors
Endpoint interceptors are typically defined by using a <sws:interceptors>. You can specify for which
payload root name or SOAP action the interceptor should apply.
PayloadLoggingInterceptor: logs the payload of the message.
SoapEnvelopeLoggingInterceptor: logs the entire SOAP envelop, including the headers.
PayloadTransformingInterceptor: transform the payload to another XML format.
Server-side testing
The integration test support lives in the org.springframework.ws.test.server package. The core
class in that package is the MockWebServiceClient.
6. Using Spring Web Services on the Client
WebServiceTemplate
The core class for client-side Web service access in Spring WS. It contains methods for sending Source
objects, and receiving response messages as either Source or Result. WebServiceGatewaySupport is
a convenience base class.
JmsMessageSender
This class uses the facilities of the Spring framework to transform the WebServiceMessage into a JMS
Message, send it on its way on a Queue or Topic, and receive a response (if any).
MailMessageSender
This class provides an email transport via SMTP, and retrieves them via POP3.
7. Securing the Web Services with Spring WS
XWSS = XML Web Services Security package

4. XwsSecurityInterceptor
Endpoint interceptor based on XWSS. It requires JSE5, SAAJ and an XML security policy file (what to
require, what to add).
<bean id="wsSecurityInterceptor"
class="org.springframework.ws.soap.security.xwss.XwsSecurityInterceptor">
<property name="policyConfiguration" value="cp:securityPolicy.xml"/>
<property name="callbackHandlers">
<list>
<ref bean="certificateHandler"/>
<ref bean="authenticationHandler"/>
</list>
</property>
</bean>
Keystores
They are storage facilities for private keys, symmetric keys, and trusted certificates (X509 certificates):
<bean id="keyStore" class="org.springframework.*.KeyStoreFactoryBean">
<property name="password" value="password"/>
<property name="location" value="cp:*/test-keystore.jks"/>
</bean>
KeyStoreCallbackHandler
This callback must be used with keystores. To validate incoming certificates or signatures, use the
truststore. To decrypt incoming certificates or sign outgoing messages, use the keystore.
<bean id="keyStoreHandler" class="org.*.KeyStoreCallbackHandler">
<property name="trustStore" ref="trustStore"/>
<property name="keyStore" ref="keyStore"/>
<property name="privateKeyPassword" value="changeit"/>
</bean>
<bean id="trustStore" class="org.*.KeyStoreFactoryBean">
<property name="location" value="classpath:truststore.jks"/>
<property name="password" value="changeit"/>
</bean>
<bean id="keyStore" class="org.*.KeyStoreFactoryBean">
<property name="location" value="classpath:keystore.jks"/>
<property name="password" value="changeit"/>

5. </bean>
Authentication
Plain text: the SOAP message contains Username and Password elements with plain text password.
<xwss:RequireUsernameToken passwordDigestRequired="false"
nonceRequired="false"/>
Digest: passwordDigestRequired="true" nonceRequired="true"
Simple validation handler
SimplePasswordValidationCallbackHandler
With Spring security
SpringPlainTextPasswordValidationCallbackHandler or
SpringDigestPasswordValidationCallbackHandler
Decryption
<xwss:RequireEncryption />
<bean id="keyStoreHandler" class="org.*.KeyStoreCallbackHandler">
<property name="keyStore" ref="keyStore"/>
<property name="privateKeyPassword" value="changeit"/>
</bean>
Encryption
<xwss:Encrypt />
<bean id="keyStoreHandler" class="org.*.KeyStoreCallbackHandler">
<property name="trustStore" ref="trustStore"/>
</bean>
Wss4jSecurityInterceptor
The Wss4jSecurityInterceptor is an Endpoint Interceptor that is based on Apache's WSS4J.
WSS4J implements:
· OASIS Web Services Security: SOAP Message Security 1.0
· Username Token Profile 1.0
· X509 Token Profile 1.0

6. A. Annex: WSDL
WSDL
· <types>: defines the data types used by the WS
· <message>: defines the data element of the operation
· <portType>: describes a WS, the operations it can perform, and the messages involved; cor-responds
to a class; operations have input/output nodes.
· <binding>: defines the message format and protocol details for each port
Example:
<portType name="glossaryTerms">
<operation name="getTerm">
<input message="getTermRequest"/>
<output message="getTermResponse"/>
</operation>
</portType>
<binding type="glossaryTerms" name="b1">
<soap:binding style="document" transport="http://..." />
<operation>
<soap:operation soapAction="http://example.com/getTerm"/>
<input><soap:body use="literal"/></input>
<output><soap:body use="literal"/></output>
</operation>
</binding>
<service name=”...”>
<port binding=”...” name=”...”>
<soap:address location=”...” />
</port>
</service>
B. Annex: SOAP
Skeleton SOAP Message:
<?xml version="1.0"?>
<soap:Envelope
xmlns:soap="http://www.w3.org/2001/12/soap-envelope"
soap:encodingStyle="http://www.w3.org/2001/12/soap-encoding">
<soap:Header>
[metadata; must be namespace-qualified]
...
</soap:Header>

7. <soap:Body>
[actual soap message intended for the ultimate endpoint]
...
<soap:Fault>
[optional element used to indicate error]
...
</soap:Fault>
</soap:Body>
</soap:Envelope>
