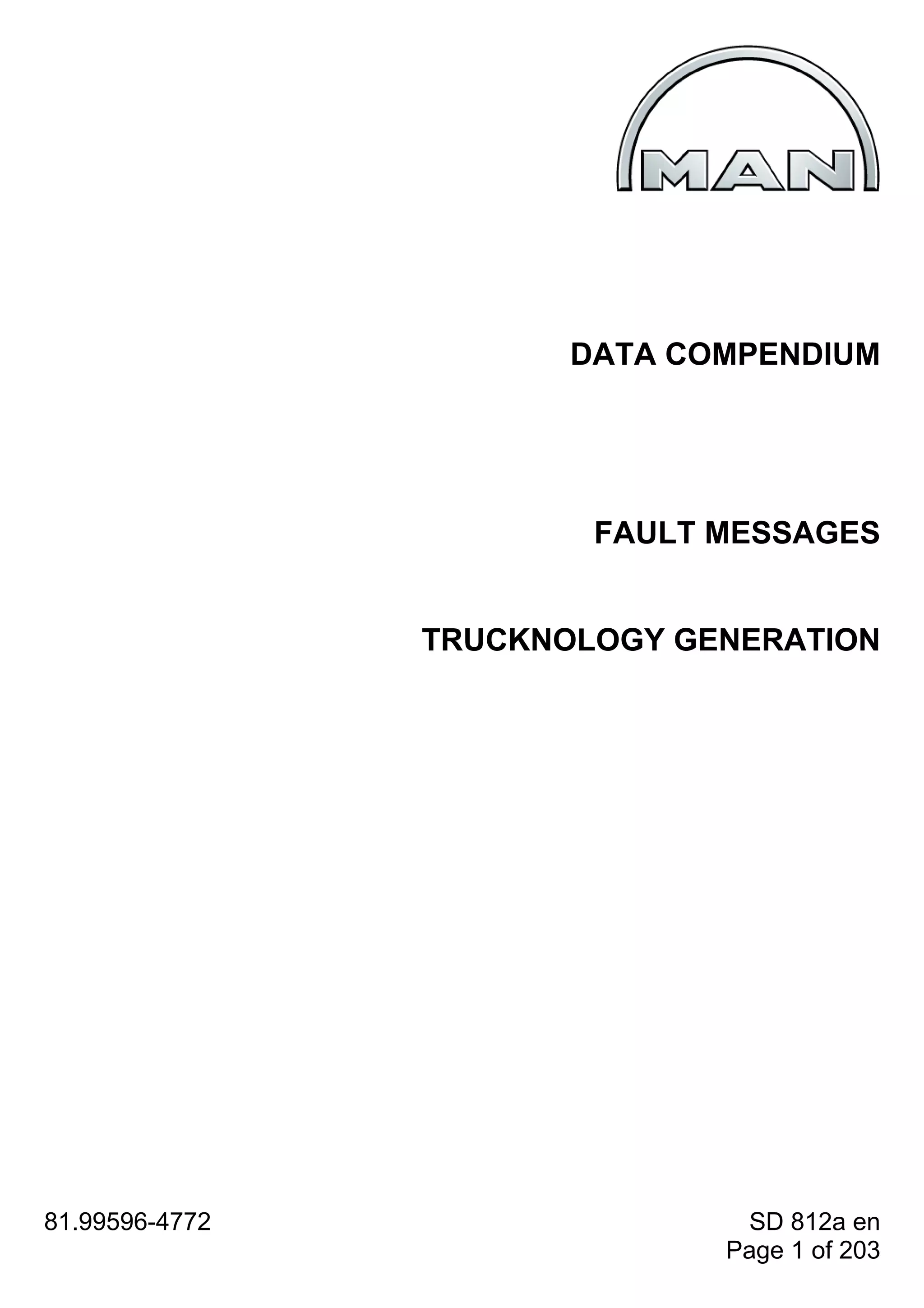

- 1. DATA COMPENDIUM FAULT MESSAGES TRUCKNOLOGY GENERATION 81.99596-4772 SD 812a en Page 1 of 203

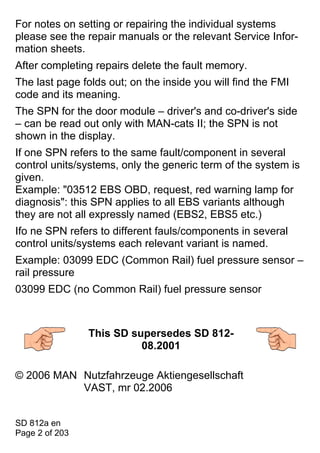

- 2. For notes onsetting or repairing the individual systems please see the repair manuals or the relevant Service Infor- mation sheets. After completing repairs delete the fault memory. The last page folds out; on the inside you will find the FMI code and its meaning. The SPN for the door module – driver's and co-driver's side – can be read out only with MAN-cats II; the SPN is not shown in the display. If one SPN refers to the same fault/component in several control units/systems, only the generic term of the system is given. Example: "03512 EBS OBD, request, red warning lamp for diagnosis": this SPN applies to all EBS variants although they are not all expressly named (EBS2, EBS5 etc.) Ifo ne SPN refers to different fauls/components in several control units/systems each relevant variant is named. Example: 03099 EDC (Common Rail) fuel pressure sensor – rail pressure 03099 EDC (no Common Rail) fuel pressure sensor This SD supersedes SD 812- 08.2001 © 2006 MAN Nutzfahrzeuge Aktiengesellschaft VAST, mr 02.2006 SD 812a en Page 2 of 203

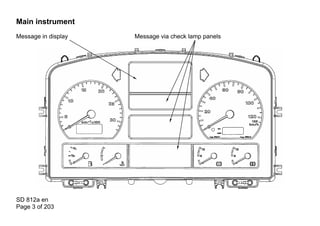

- 3. Main instrument Message indisplay Message via check lamp panels SD 812a en Page 3 of 203

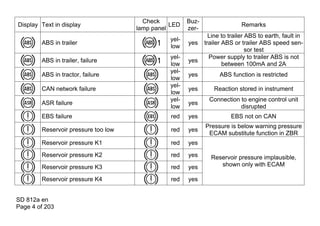

- 4. Check Buz- Display Text in display LED Remarks lamp panel zer- Line to trailer ABS to earth, fault in yel- ABS in trailer yes trailer ABS or trailer ABS speed sen- low sor test yel- Power supply to trailer ABS is not ABS in trailer, failure yes low between 100mA and 2A yel- ABS in tractor, failure yes ABS function is restricted low yel- CAN network failure yes Reaction stored in instrument low yel- Connection to engine control unit ASR failure yes low disrupted EBS failure red yes EBS not on CAN Pressure is below warning pressure Reservoir pressure too low red yes ECAM substitute function in ZBR Reservoir pressure K1 red yes Reservoir pressure K2 red yes Reservoir pressure implausible, Reservoir pressure K3 red yes shown only with ECAM Reservoir pressure K4 red yes SD 812a en Page 4 of 203

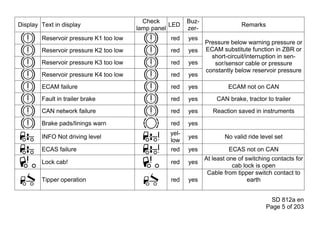

- 5. Check Buz- Display Text in display LED Remarks lamp panel zer- Reservoir pressure K1 too low red yes Pressure below warning pressure or Reservoir pressure K2 too low red yes ECAM substitute function in ZBR or short-circuit/interruption in sen- Reservoir pressure K3 too low red yes sor/sensor cable or pressure constantly below reservoir pressure Reservoir pressure K4 too low red yes ECAM failure red yes ECAM not on CAN Fault in trailer brake red yes CAN brake, tractor to trailer CAN network failure red yes Reaction saved in instruments Brake pads/linings warn red yes yel- INFO Not driving level yes No valid ride level set low ECAS failure red yes ECAS not on CAN At least one of switching contacts for Lock cab! red yes cab lock is open Cable from tipper switch contact to Tipper operation red yes earth SD 812a en Page 5 of 203

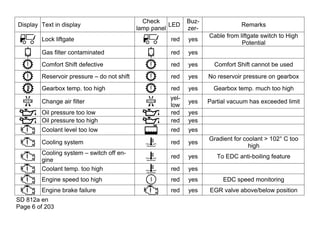

- 6. Check Buz- Display Text in display LED Remarks lamp panel zer- Cable from liftgate switch to High Lock liftgate red yes Potential Gas filter contaminated red yes Comfort Shift defective red yes Comfort Shift cannot be used Reservoir pressure – do not shift red yes No reservoir pressure on gearbox Gearbox temp. too high red yes Gearbox temp. much too high yel- Change air filter yes Partial vacuum has exceeded limit low Oil pressure too low red yes Oil pressure too high red yes Coolant level too low red yes Gradient for coolant > 102° C too Cooling system red yes high Cooling system – switch off en- red yes To EDC anti-boiling feature gine Coolant temp. too high red yes Engine speed too high red yes EDC speed monitoring Engine brake failure red yes EGR valve above/below position SD 812a en Page 6 of 203
- 7. Check Buz- Display Text in display LED Remarks lamp panel zer- Engine oil temp. too high red yes yel- ESP no onCAN or CAN message ESP failure yes low with ESP contents is missing yel- FDR function is restricted or not pre- ESP failure yes low sent yel- ABS switch-off or - No text no low ABS OFFROAD yel- Reaction in instrument saved on - No text yes low CAN in event of failure yel- Reaction in instrument saved on - No text yes low CAN in event of failure yel- - No text no No ABS on trailer low Comes on when ignition is switched - No text red no on, remains on after bulb test , - No text red no Cable for belt check is on earth yel- ASR intervention (LED comes on) or - No text no low ASR OFFROAD (LED flashes) SD 812a en Page 7 of 203
- 8. Check Buz- Display Text in display LED Remarks lamp panel zer- - No text grün no Flasher check for trailer yel- - No text no ESP (FDR) interventions low - No text blau no High beam function check - No text red no Parking brake function check yel- - No text no Flame start function check low yel- - No text no low Overload on rear axle or - - yes overload on front axle Ride level implausible or cannot be Level not reached - - yes set by ECAS TCO failure - - yes EU tachograph not on CAN Check TCO - - yes EU tachograph not in order. Brake lights without function - - yes Brake light signal failure on CAN SD 812a en Page 8 of 203
- 9. Check Buz- Display Text in display LED Remarks lamp panel zer- Lamp defective short-circuit, cable Tractor brake lights failure - - yes interrupted Lamp defective short-circuit, cable Trailer brake lights failure - - yes interrupted Trailer flashers rh failure or Failure of flasher lamp, or lamp load - - yes Trailer flashers lh failure out of tolerance Tractor flashers rh failure or - - yes Tractor flashers lh failure Clear lighting monitoring - - no Block lighting monitoring - - no Flasher test - - no Light test - - no Light test aborted - - no Light test again - - no End of light test - - no SD 812a en Page 9 of 203

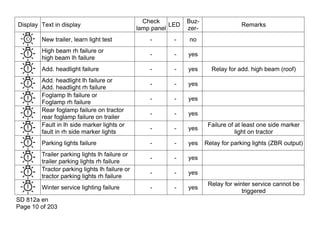

- 10. Check Buz- Display Text in display LED Remarks lamp panel zer- New trailer, learn light test - - no High beam rh failure or - - yes high beam lh failure Add. headlight failure - - yes Relay for add. high beam (roof) Add. headlight lh failure or - - yes Add. headlight rh failure Foglamp lh failure or - - yes Foglamp rh failure Rear foglamp failure on tractor - - yes rear foglamp failure on trailer Fault in lh side marker lights or Failure of at least one side marker - - yes fault in rh side marker lights light on tractor Parking lights failure - - yes Relay for parking lights (ZBR output) Trailer parking lights lh failure or - - yes trailer parking lights rh failure Tractor parking lights lh failure or - - yes tractor parking lights rh failure Relay for winter service cannot be Winter service lighting failure - - yes triggered SD 812a en Page 10 of 203

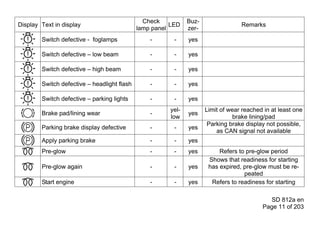

- 11. Check Buz- Display Text in display LED Remarks lamp panel zer- Switch defective - foglamps - - yes Switch defective – low beam - - yes Switch defective – high beam - - yes Switch defective – headlight flash - - yes Switch defective – parking lights - - yes yel- Limit of wear reached in at least one Brake pad/lining wear - yes low brake lining/pad Parking brake display not possible, Parking brake display defective - - yes as CAN signal not available Apply parking brake - - yes Pre-glow - - yes Refers to pre-glow period Shows that readiness for starting Pre-glow again - - yes has expired, pre-glow must be re- peated Start engine - - yes Refers to readiness for starting SD 812a en Page 11 of 203

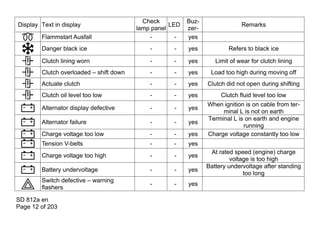

- 12. Check Buz- Display Text in display LED Remarks lamp panel zer- Flammstart Ausfall - - yes Danger black ice - - yes Refers to black ice Clutch lining worn - - yes Limit of wear for clutch lining Clutch overloaded – shift down - - yes Load too high during moving off Actuate clutch - - yes Clutch did not open during shifting Clutch oil level too low - - yes Clutch fluid level too low When ignition is on cable from ter- Alternator display defective - - yes minal L is not on earth Terminal L is on earth and engine Alternator failure - - yes running Charge voltage too low - - yes Charge voltage constantly too low Tension V-belts - - yes At rated speed (engine) charge Charge voltage too high - - yes voltage is too high Battery undervoltage after standing Battery undervoltage - - yes too long Switch defective – warning - - yes flashers SD 812a en Page 12 of 203
- 13. Check Buz- Display Text in display LED Remarks lamp panel zer- Service due - - yes TBM failure - - yes TBM not on CAN Apply parking brake - - yes Tells you to apply parking brake Engage neutral - - yes Tells you to shift gearbox to neutral SET xxkm/h - - no MEMO xxkm/h - - no LIMIT - - no Info ! Fault or - - yes grease fault in central lube EDC failure - - yes EDC not on CAN Boost pressure cannot be measured Boost pressure sensor defective - - yes correctly Engine brake (in vehicles without re- No text - - no tarder) FFR failure - - yes FFR not on CAN LGS failure - - yes LGS not on CAN SD 812a en Page 13 of 203

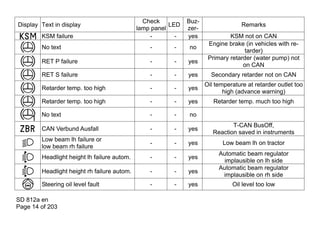

- 14. Check Buz- Display Text in display LED Remarks lamp panel zer- KSM failure - - yes KSM not on CAN Engine brake (in vehicles with re- No text - - no tarder) Primary retarder (water pump) not RET P failure - - yes on CAN RET S failure - - yes Secondary retarder not on CAN Oil temperature at retarder outlet too Retarder temp. too high - - yes high (advance warning) Retarder temp. too high - - yes Retarder temp. much too high No text - - no T-CAN BusOff, CAN Verbund Ausfall - - yes Reaction saved in instruments Low beam lh failure or - - yes Low beam lh on tractor low beam rh failure Automatic beam regulator Headlight height lh failure autom. - - yes implausible on lh side Automatic beam regulator Headlight height rh failure autom. - - yes implausible on rh side Steering oil level fault - - yes Oil level too low SD 812a en Page 14 of 203

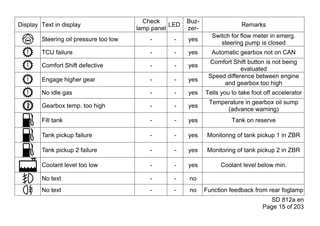

- 15. Check Buz- Display Text in display LED Remarks lamp panel zer- Switch for flow meter in emerg. Steering oil pressure too low - - yes steering pump is closed TCU failure - - yes Automatic gearbox not on CAN Comfort Shift button is not being Comfort Shift defective - - yes evaluated Speed difference between engine Engage higher gear - - yes and gearbox too high No idle gas - - yes Tells you to take foot off accelerator Temperature in gearbox oil sump Gearbox temp. too high - - yes (advance warning) Fill tank - - yes Tank on reserve Tank pickup failure - - yes Monitoring of tank pickup 1 in ZBR Tank pickup 2 failure - - yes Monitoring of tank pickup 2 in ZBR Coolant level too low - - yes Coolant level below min. No text - - no No text - - no Function feedback from rear foglamp SD 812a en Page 15 of 203

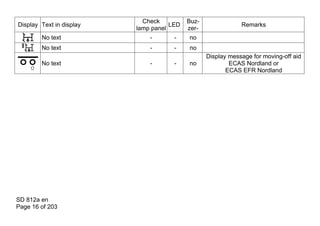

- 16. Check Buz- Display Text in display LED Remarks lamp panel zer- No text - - no No text - - no Display message for moving-off aid No text - - no ECAS Nordland or ECAS EFR Nordland SD 812a en Page 16 of 203

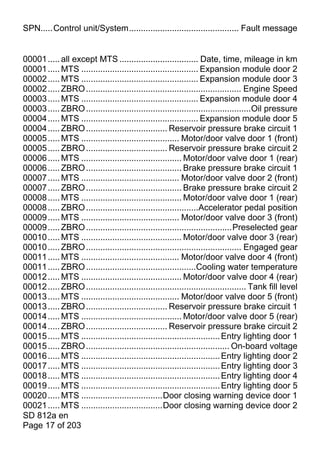

- 17. SPN.....Control unit/System.............................................. Faultmessage 00001 ..... all except MTS ................................. Date, time, mileage in km 00001 ..... MTS ................................................. Expansion module door 2 00002 ..... MTS ................................................. Expansion module door 3 00002 ..... ZBRO ................................................................. Engine Speed 00003 ..... MTS ................................................. Expansion module door 4 00003 ..... ZBRO .....................................................................Oil pressure 00004 ..... MTS ................................................. Expansion module door 5 00004 ..... ZBRO .................................. Reservoir pressure brake circuit 1 00005 ..... MTS ......................................... Motor/door valve door 1 (front) 00005 ..... ZBRO .................................. Reservoir pressure brake circuit 2 00006 ..... MTS .......................................... Motor/door valve door 1 (rear) 00006 ..... ZBRO ........................................ Brake pressure brake circuit 1 00007 ..... MTS ......................................... Motor/door valve door 2 (front) 00007 ..... ZBRO ........................................ Brake pressure brake circuit 2 00008 ..... MTS .......................................... Motor/door valve door 1 (rear) 00008 ..... ZBRO ...............................................Accelerator pedal position 00009 ..... MTS ......................................... Motor/door valve door 3 (front) 00009 ..... ZBRO .............................................................Preselected gear 00010 ..... MTS .......................................... Motor/door valve door 3 (rear) 00010 ..... ZBRO ................................................................. Engaged gear 00011 ..... MTS ......................................... Motor/door valve door 4 (front) 00011 ..... ZBRO ..............................................Cooling water temperature 00012 ..... MTS .......................................... Motor/door valve door 4 (rear) 00012 ..... ZBRO ................................................................... Tank fill level 00013 ..... MTS ......................................... Motor/door valve door 5 (front) 00013 ..... ZBRO .................................. Reservoir pressure brake circuit 1 00014 ..... MTS .......................................... Motor/door valve door 5 (rear) 00014 ..... ZBRO .................................. Reservoir pressure brake circuit 2 00015 ..... MTS .......................................................... Entry lighting door 1 00015 ..... ZBRO ............................................................ On-board voltage 00016 ..... MTS .......................................................... Entry lighting door 2 00017 ..... MTS .......................................................... Entry lighting door 3 00018 ..... MTS .......................................................... Entry lighting door 4 00019 ..... MTS .......................................................... Entry lighting door 5 00020 ..... MTS ..................................Door closing warning device door 1 00021 ..... MTS ..................................Door closing warning device door 2 SD 812a en Page 17 of 203

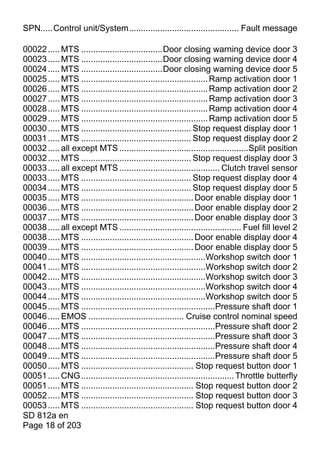

- 18. SPN.....Control unit/System.............................................. Faultmessage 00022 ..... MTS ..................................Door closing warning device door 3 00023 ..... MTS ..................................Door closing warning device door 4 00024 ..... MTS ..................................Door closing warning device door 5 00025 ..... MTS ..................................................... Ramp activation door 1 00026 ..... MTS ..................................................... Ramp activation door 2 00027 ..... MTS ..................................................... Ramp activation door 3 00028 ..... MTS ..................................................... Ramp activation door 4 00029 ..... MTS ..................................................... Ramp activation door 5 00030 ..... MTS .............................................. Stop request display door 1 00031 ..... MTS .............................................. Stop request display door 2 00032 ..... all except MTS ......................................................Split position 00032 ..... MTS .............................................. Stop request display door 3 00033 ..... all except MTS .......................................... Clutch travel sensor 00033 ..... MTS .............................................. Stop request display door 4 00034 ..... MTS .............................................. Stop request display door 5 00035 ..... MTS ............................................... Door enable display door 1 00036 ..... MTS ............................................... Door enable display door 2 00037 ..... MTS ............................................... Door enable display door 3 00038 ..... all except MTS ................................................... Fuel fill level 2 00038 ..... MTS ............................................... Door enable display door 4 00039 ..... MTS ............................................... Door enable display door 5 00040 ..... MTS ....................................................Workshop switch door 1 00041 ..... MTS ....................................................Workshop switch door 2 00042 ..... MTS ....................................................Workshop switch door 3 00043 ..... MTS ....................................................Workshop switch door 4 00044 ..... MTS ....................................................Workshop switch door 5 00045 ..... MTS ........................................................Pressure shaft door 1 00046 ..... EMOS ........................................ Cruise control nominal speed 00046 ..... MTS ........................................................Pressure shaft door 2 00047 ..... MTS ........................................................Pressure shaft door 3 00048 ..... MTS ........................................................Pressure shaft door 4 00049 ..... MTS ........................................................Pressure shaft door 5 00050 ..... MTS ............................................... Stop request button door 1 00051 ..... CNG ................................................................ Throttle butterfly 00051 ..... MTS ............................................... Stop request button door 2 00052 ..... MTS ............................................... Stop request button door 3 00053 ..... MTS ............................................... Stop request button door 4 SD 812a en Page 18 of 203

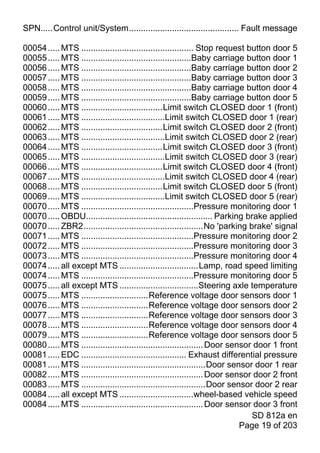

- 19. SPN.....Control unit/System.............................................. Faultmessage 00054 ..... MTS ............................................... Stop request button door 5 00055 ..... MTS ..............................................Baby carriage button door 1 00056 ..... MTS ..............................................Baby carriage button door 2 00057 ..... MTS ..............................................Baby carriage button door 3 00058 ..... MTS ..............................................Baby carriage button door 4 00059 ..... MTS ..............................................Baby carriage button door 5 00060 ..... MTS ..................................Limit switch CLOSED door 1 (front) 00061 ..... MTS ...................................Limit switch CLOSED door 1 (rear) 00062 ..... MTS ..................................Limit switch CLOSED door 2 (front) 00063 ..... MTS ...................................Limit switch CLOSED door 2 (rear) 00064 ..... MTS ..................................Limit switch CLOSED door 3 (front) 00065 ..... MTS ...................................Limit switch CLOSED door 3 (rear) 00066 ..... MTS ..................................Limit switch CLOSED door 4 (front) 00067 ..... MTS ...................................Limit switch CLOSED door 4 (rear) 00068 ..... MTS ..................................Limit switch CLOSED door 5 (front) 00069 ..... MTS ...................................Limit switch CLOSED door 5 (rear) 00070 ..... MTS ...............................................Pressure monitoring door 1 00070 ..... OBDU..................................................... Parking brake applied 00070 ..... ZBR2..................................................No 'parking brake' signal 00071 ..... MTS ...............................................Pressure monitoring door 2 00072 ..... MTS ...............................................Pressure monitoring door 3 00073 ..... MTS ...............................................Pressure monitoring door 4 00074 ..... all except MTS .................................Lamp, road speed limiting 00074 ..... MTS ...............................................Pressure monitoring door 5 00075 ..... all except MTS .................................Steering axle temperature 00075 ..... MTS ............................Reference voltage door sensors door 1 00076 ..... MTS ............................Reference voltage door sensors door 2 00077 ..... MTS ............................Reference voltage door sensors door 3 00078 ..... MTS ............................Reference voltage door sensors door 4 00079 ..... MTS ............................Reference voltage door sensors door 5 00080 ..... MTS ................................................... Door sensor door 1 front 00081 ..... EDC ............................................ Exhaust differential pressure 00081 ..... MTS ....................................................Door sensor door 1 rear 00082 ..... MTS ................................................... Door sensor door 2 front 00083 ..... MTS ....................................................Door sensor door 2 rear 00084 ..... all except MTS ...............................wheel-based vehicle speed 00084 ..... MTS ................................................... Door sensor door 3 front SD 812a en Page 19 of 203
- 20. SPN.....Control unit/System.............................................. Faultmessage 00085 ..... MTS ....................................................Door sensor door 3 rear 00086 ..... all except MTS ............................... Road speed, cruise control 00086 ..... MTS ................................................... Door sensor door 4 front 00087 ..... MTS ....................................................Door sensor door 4 rear 00088 ..... MTS ................................................... Door sensor door 5 front 00089 ..... MTS ....................................................Door sensor door 5 rear 00090 ..... MTS ........................................................................... C3 signal 00091 ..... all except MTS .................................Accelerator pedal position 00091 ..... MTS .......................................... Checklamp driver's workplace 00092 ..... all except MTS ................... Current torque to maximum torque 00092 ..... MTS ................................................................. Pneumatic seal 00094 ..... EDC .........................................................Fuel supply pressure 00094 ..... MTS ............................................................. Red/green display 00095 ..... MTS ....................................................... Depressurised buzzer 00096 ..... all except MTS ................................................... Fuel fill level 1 00096 ..... MTS ..................................................................Bus-stop brake 00097 ..... MTS ............................................... Stop request display driver 00098 ..... all except MTS ..................................................Engine oil level 00098 ..... MTS ..............................................Baby carriage display driver 00100 ..... all ...........................................................................Oil pressure 00102 ..... all ......................................................................Boost pressure 00105 ..... all .........................................................Charge air temperature 00107 ..... all ...................................................................Air filter pressure 00108 ..... all ............................................................. Barometric Pressure 00109 ..... all ......................................................... Cooling water pressure 00110 ..... all ............................................................. Coolant temperature 00111 ..... all ........................................................................ Coolant Level 00119 ..... RET...............................................................Housing pressure 00120 ..... DIW5 ................................ Temperature acquisition retarder oil 00132 ..... CNG ............................................................................ Air mass 00157 ..... EDC, Common Rail................................... Fuel pressure in rail 00157 ..... EDC6, not Common Rail..................................... Fuel pressure 00158 ..... all ................................... Battery Potential (Voltage), Switched 00159 ..... all ............................................................ Gas Supply Pressure 00161 ..... all .............................................................Gearbox input speed 00168 ..... all ...................................................................... Battery voltage 00171 ..... all ............................................................. Outside temperature SD 812a en Page 20 of 203
- 21. SPN.....Control unit/System.............................................. Faultmessage 00173 ..... CNG .............................................Exhaust temperature sensor 00173 ..... EDC .................... Exhaust temperature before particulate filter 00174 ..... all ...................................................................Fuel temperature 00175 ..... all ..........................................................Engine oil temperature 00177 ..... all .............................................Transmission fluid temperature 00190 ..... all ........................................................................ Engine speed 00191 ..... all .......................................................... Gearbox output speed 00228 ..... RAS........................................Speed speedometer and sensor 00245 ..... all .....................................................................Vehicle mileage 00359 ..... all ......................................................... Kickdown switch signal 00512 ..... EMOS ..................................................... Driver request torque 00513 ..... all ........................................................................Engine torque 00514 ..... CRT.................................................................... Friction torque 00514 ..... EMOS ............................... 'Engine friction loss moment' signal 00518 ..... all ................................................................ Requested Torque 00520 ..... all ......................................................... Current retarder torque 00521 ..... all ............................................................... Brake pedal setting 00523 ..... all ..........................................................................Current gear 00525 ..... EMOS ....................................................... Nominal gear signal 00544 ..... CRT................................................ Faulty engine speed signal 00556 ..... all ...........................................Reference torque of the retarder 00558 ..... all ................................................Unladen driving switch signal 00560 ..... CRT.........................................................CAN message ETC 1 00561 ..... all ..................................................... ASR engine check switch 00562 ..... all ....................................................... ASR brake check switch 00563 ..... all .................................................................. ABS active signal 00572 ..... all .............................................. Retarder switch shift assistant 00578 ..... all .......................................................... Rear axle temperature 00582 ..... all ............................................................................... Axle load 00595 ..... all ................................................... Cruise control active signal 00597 ..... all ............................................................... Brake switch signal 00598 ..... KSM .......................................................... Clutch switch signal 00601 ..... all ................................... Road speed governor resume switch 00603 ..... EBS............................................. Pedal brake module switch 2 00609 ..... EBS....................................... Central control unit - B-controller 00609 ..... EDC ...................................................................... Engine CAN 00617 ..... all .............................................................Parking brake output SD 812a en Page 21 of 203

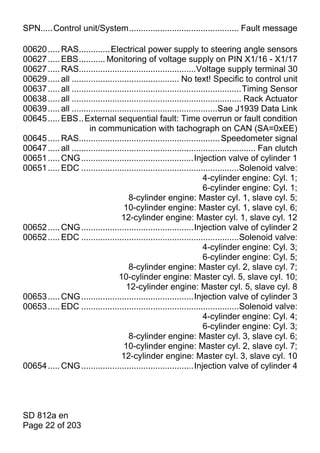

- 22. SPN.....Control unit/System.............................................. Faultmessage 00620 ..... RAS............. Electrical power supply to steering angle sensors 00627 ..... EBS........... Monitoring of voltage supply on PIN X1/16 - X1/17 00627 ..... RAS.................................................Voltage supply terminal 30 00629 ..... all ............................................. No text! Specific to control unit 00637 ..... all .......................................................................Timing Sensor 00638 ..... all ....................................................................... Rack Actuator 00639 ..... all .............................................................Sae J1939 Data Link 00645 ..... EBS.. External sequential fault: Time overrun or fault condition in communication with tachograph on CAN (SA=0xEE) 00645 ..... RAS........................................................... Speedometer signal 00647 ..... all ............................................................................. Fan clutch 00651 ..... CNG ...............................................Injection valve of cylinder 1 00651 ..... EDC ..................................................................Solenoid valve: 4-cylinder engine: Cyl. 1; 6-cylinder engine: Cyl. 1; 8-cylinder engine: Master cyl. 1, slave cyl. 5; 10-cylinder engine: Master cyl. 1, slave cyl. 6; 12-cylinder engine: Master cyl. 1, slave cyl. 12 00652 ..... CNG ...............................................Injection valve of cylinder 2 00652 ..... EDC ..................................................................Solenoid valve: 4-cylinder engine: Cyl. 3; 6-cylinder engine: Cyl. 5; 8-cylinder engine: Master cyl. 2, slave cyl. 7; 10-cylinder engine: Master cyl. 5, slave cyl. 10; 12-cylinder engine: Master cyl. 5, slave cyl. 8 00653 ..... CNG ...............................................Injection valve of cylinder 3 00653 ..... EDC ..................................................................Solenoid valve: 4-cylinder engine: Cyl. 4; 6-cylinder engine: Cyl. 3; 8-cylinder engine: Master cyl. 3, slave cyl. 6; 10-cylinder engine: Master cyl. 2, slave cyl. 7; 12-cylinder engine: Master cyl. 3, slave cyl. 10 00654 ..... CNG ...............................................Injection valve of cylinder 4 SD 812a en Page 22 of 203
- 23. SPN.....Control unit/System.............................................. Faultmessage 00654 ..... EDC ..................................................................Solenoid valve: 4-cylinder engine: Cyl. 2; 6-cylinder engine: Cyl. 6; 8-cylinder engine: Master cyl. 4, slave cyl. 8; 10-cylinder engine: Master cyl. 3, slave cyl. 8; 12-cylinder engine: Master cyl. 6, slave cyl. 7 00655 ..... CNG ...............................................Injection valve of cylinder 5 00655 ..... EDC ..................................................................Solenoid valve: 6-cylinder engine: Cyl. 2; 10-cylinder engine: Master cyl. 4, slave cyl. 9; 12-cylinder engine: Master cyl. 2, slave cyl. 11 00656 ..... CNG ...............................................Injection valve of cylinder 6 00656 ..... EDC ..................................................................Solenoid valve: 6-cylinder engine: Cyl. 4; 12-cylinder engine: Master cyl. 4, slave cyl. 9 00697 ..... all ............................................Accelerator pedal PWM1 signal 00698 ..... all ............................................Accelerator pedal PWM2 signal 00699 ..... all ......................... Accelerator pedal PWM1 and PWM2 signal 00702 ..... KSM ......................Earth switch output, adjustable parameters 00703 ..... KSM ............ Switch terminal 30 output, adjustable parameters 00704 ..... KSM ......... Switch 2 terminal 30 output, adjustable parameters 00705 ..... KSM ......... Switch 3 terminal 30 output, adjustable parameters 00706 ..... KSM ......... Switch 4 terminal 30 output, adjustable parameters 00707 ..... KSM ......... Switch 5 terminal 30 output, adjustable parameters 00708 ..... KSM ...................Earth switch 2 output, adjustable parameters 00709 ..... KSM ...................Earth switch 3 output, adjustable parameters 00711 ..... EDC ................................................. Duration of main injection 00723 ..... all .............................................. Auxiliary engine speed sensor 00731 ..... CNG ................................................................. Knock sensor 1 00734 ..... all ......................................................... Solenoid valve circuit 1 00735 ..... all ......................................................... Solenoid valve circuit 2 00736 ..... all ......................................................... Solenoid valve circuit 3 00737 ..... all ......................................................... Solenoid valve circuit 4 00738 ..... all ........................................ Solenoid valve pressure regulator 00739 ..... all ................................................. Solenoid valve regeneration 00743 ..... RET........................................................................On/off valve 00744 ..... RET.............................................................. Proportional valve SD 812a en Page 23 of 203

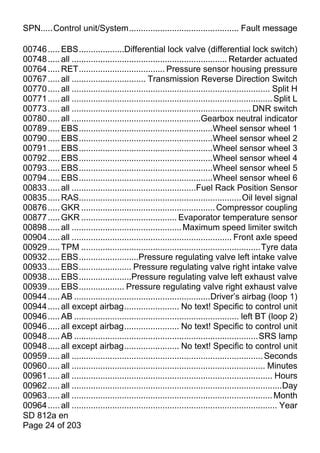

- 24. SPN.....Control unit/System.............................................. Faultmessage 00746 ..... EBS...................Differential lock valve (differential lock switch) 00748 ..... all ................................................................. Retarder actuated 00764 ..... RET.................................... Pressure sensor housing pressure 00767 ..... all ............................... Transmission Reverse Direction Switch 00770 ..... all ................................................................................... Split H 00771 ..... all .................................................................................... Split L 00773 ..... all ........................................................................... DNR switch 00780 ..... all ......................................................Gearbox neutral indicator 00789 ..... EBS........................................................Wheel sensor wheel 1 00790 ..... EBS........................................................Wheel sensor wheel 2 00791 ..... EBS........................................................Wheel sensor wheel 3 00792 ..... EBS........................................................Wheel sensor wheel 4 00793 ..... EBS........................................................Wheel sensor wheel 5 00794 ..... EBS........................................................Wheel sensor wheel 6 00833 ..... all ....................................................Fuel Rack Position Sensor 00835 ..... RAS....................................................................Oil level signal 00876 ..... GKR ........................................................ Compressor coupling 00877 ..... GKR ........................................ Evaporator temperature sensor 00898 ..... all .............................................. Maximum speed limiter switch 00904 ..... all ................................................................... Front axle speed 00929 ..... TPM ...........................................................................Tyre data 00932 ..... EBS.........................Pressure regulating valve left intake valve 00933 ..... EBS...................... Pressure regulating valve right intake valve 00938 ..... EBS......................Pressure regulating valve left exhaust valve 00939 ..... EBS................... Pressure regulating valve right exhaust valve 00944 ..... AB .........................................................Driver’s airbag (loop 1) 00944 ..... all except airbag....................... No text! Specific to control unit 00946 ..... AB ..................................................................... left BT (loop 2) 00946 ..... all except airbag....................... No text! Specific to control unit 00948 ..... AB .............................................................................SRS lamp 00948 ..... all except airbag....................... No text! Specific to control unit 00959 ..... all ................................................................................ Seconds 00960 ..... all ................................................................................. Minutes 00961 ..... all .................................................................................... Hours 00962 ..... all ........................................................................................Day 00963 ..... all .................................................................................... Month 00964 ..... all ...................................................................................... Year SD 812a en Page 24 of 203
- 25. SPN.....Control unit/System.............................................. Faultmessage 00974 ..... KSM ........................................................... Pedal value sensor 00976 ..... KSM .....................................................................Ready output 01007 ..... ZBR2................................. Trip Drive Fuel Used (Natural Gas) 01031 ..... ZBR2............................. Trip Average Fuel Rate (Natural Gas) 01042 ..... EBS................ ISO 11992 (trailer CAN): Data bus switched off 01043 ..... ECAS ........................................ Supply voltage for peripherals 01045 ..... all ........................................................................Gate interlock (auxiliary engines also brake lamp output stage) 01056 ..... EBS............................ Trailer control module pressure control, maximum pressure 01057 ..... EBS...................................... Central control unit - B-controller: Implausible pressure from trailer control module pressure sensor, when brakes not applied 01058 ..... EBS.................Trailer control module - pressure sensor signal 01060 ..... EBS.............................. Brake pad wear sensor signal wheel 1 01061 ..... EBS.............................. Brake pad wear sensor signal wheel 2 01062 ..... EBS.............................. Brake pad wear sensor signal wheel 3 01063 ..... EBS.............................. Brake pad wear sensor signal wheel 4 01064 ..... EBS.............................. Brake pad wear sensor signal wheel 5 01065 ..... EBS.............................. Brake pad wear sensor signal wheel 6 01066 ..... EBS........................................................ Service brake module 01067 ..... EBS....................... Service brake module signal 1 (increasing) 01068 ..... EBS......................Service brake module signal 2 (decreasing) 01072 ..... all ..............................................................Engine brake switch 01079 ..... CNG ..................................................Supply voltage sensors 1 01079 ..... EDC .......................................... Supply to rail pressure sensor 01079 ..... HDS ....................................................Supply voltage sensor 1 01079 ..... RET............................. Supply voltage pressure sensor 5 volts 01080 ..... CNG ..................................................Supply voltage sensors 2 01080 ..... EDC .............................................Supply fuel supply pressure, charge air pressure and oil pressure sensor 01080 ..... HDS ....................................................Supply voltage sensor 2 01086 ..... all .................................... Pressure, pressure sensor - circuit 3 01087 ..... all .................................... Pressure, pressure sensor - circuit 1 01088 ..... all .................................... Pressure, pressure sensor - circuit 2 01089 ..... all .................................... Pressure, pressure sensor - circuit 4 01090 ..... all .................................... Pressure, pressure sensor - circuit 5 SD 812a en Page 25 of 203

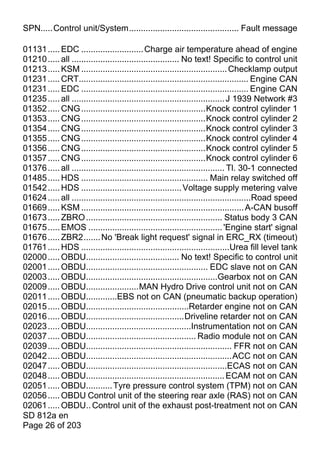

- 26. SPN.....Control unit/System.............................................. Faultmessage 01131 ..... EDC .......................... Charge air temperature ahead of engine 01210 ..... all ............................................. No text! Specific to control unit 01213 ..... KSM ............................................................. Checklamp output 01231 ..... CRT....................................................................... Engine CAN 01231 ..... EDC ...................................................................... Engine CAN 01235 ..... all ................................................................ J 1939 Network #3 01352 ..... CNG ....................................................Knock control cylinder 1 01353 ..... CNG ....................................................Knock control cylinder 2 01354 ..... CNG ....................................................Knock control cylinder 3 01355 ..... CNG ....................................................Knock control cylinder 4 01356 ..... CNG ....................................................Knock control cylinder 5 01357 ..... CNG ....................................................Knock control cylinder 6 01376 ..... all ................................................................ Tl. 30-1 connected 01485 ..... HDS ..................................................... Main relay switched off 01542 ..... HDS .......................................... Voltage supply metering valve 01624 ..... all ...........................................................................Road speed 01669 ..... KSM .................................................................... A-CAN busoff 01673 ..... ZBRO ......................................................... Status body 3 CAN 01675 ..... EMOS ........................................................ 'Engine start' signal 01676 ..... ZBR2....... No 'Break light request' signal in ERC_RX (timeout) 01761 ..... HDS ..............................................................Urea fill level tank 02000 ..... OBDU....................................... No text! Specific to control unit 02001 ..... OBDU................................................... EDC slave not on CAN 02003 ..... OBDU.......................................................Gearbox not on CAN 02009 ..... OBDU......................MAN Hydro Drive control unit not on CAN 02011 ..... OBDU.............EBS not on CAN (pneumatic backup operation) 02015 ..... OBDU...........................................Retarder engine not on CAN 02016 ..... OBDU.........................................Driveline retarder not on CAN 02023 ..... OBDU............................................Instrumentation not on CAN 02037 ..... OBDU.............................................. Radio module not on CAN 02039 ..... OBDU............................................................. FFR not on CAN 02042 ..... OBDU.............................................................ACC not on CAN 02047 ..... OBDU...........................................................ECAS not on CAN 02048 ..... OBDU.......................................................... ECAM not on CAN 02051 ..... OBDU........... Tyre pressure control system (TPM) not on CAN 02056 ..... OBDU Control unit of the steering rear axle (RAS) not on CAN 02061 ..... OBDU.. Control unit of the exhaust post-treatment not on CAN SD 812a en Page 26 of 203

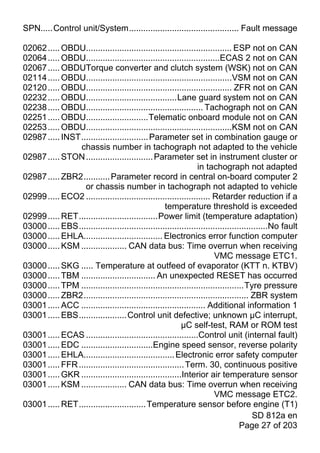

- 27. SPN.....Control unit/System.............................................. Faultmessage 02062 ..... OBDU............................................................. ESP not on CAN 02064 ..... OBDU........................................................ECAS 2 not on CAN 02067 ..... OBDUTorque converter and clutch system (WSK) not on CAN 02114 ..... OBDU.............................................................VSM not on CAN 02120 ..... OBDU............................................................. ZFR not on CAN 02232 ..... OBDU......................................Lane guard system not on CAN 02238 ..... OBDU................................................. Tachograph not on CAN 02251 ..... OBDU..........................Telematic onboard module not on CAN 02253 ..... OBDU.............................................................KSM not on CAN 02987 ..... INST............................ Parameter set in combination gauge or chassis number in tachograph not adapted to the vehicle 02987 ..... STON ............................ Parameter set in instrument cluster or in tachograph not adapted 02987 ..... ZBR2........... Parameter record in central on-board computer 2 or chassis number in tachograph not adapted to vehicle 02999 ..... ECO2 .................................................... Retarder reduction if a temperature threshold is exceeded 02999 ..... RET.................................Power limit (temperature adaptation) 03000 ..... EBS...............................................................................No fault 03000 ..... EHLA................................. Electronics error function computer 03000 ..... KSM ................... CAN data bus: Time overrun when receiving VMC message ETC1. 03000 ..... SKG ..... Temperature at outfeed of evaporator (KTT n. KTBV) 03000 ..... TBM ............................... An unexpected RESET has occurred 03000 ..... TPM ....................................................................Tyre pressure 03000 ..... ZBR2..................................................................... ZBR system 03001 ..... ACC .................................................... Additional information 1 03001 ..... EBS....................Control unit defective; unknown µC interrupt, µC self-test, RAM or ROM test 03001 ..... ECAS ...............................................Control unit (internal fault) 03001 ..... EDC ..............................Engine speed sensor, reverse polarity 03001 ..... EHLA...................................... Electronic error safety computer 03001 ..... FFR ............................................ Term. 30, continuous positive 03001 ..... GKR ..........................................Interior air temperature sensor 03001 ..... KSM ................... CAN data bus: Time overrun when receiving VMC message ETC2. 03001 ..... RET............................ Temperature sensor before engine (T1) SD 812a en Page 27 of 203

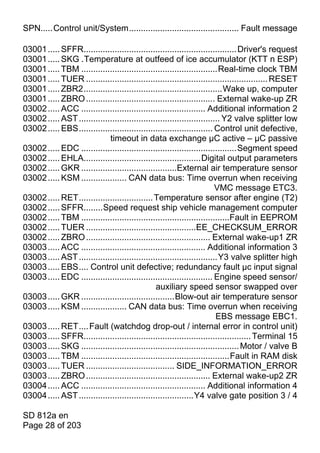

- 28. SPN.....Control unit/System.............................................. Faultmessage 03001 ..... SFFR................................................................ Driver's request 03001 ..... SKG .Temperature at outfeed of ice accumulator (KTT n ESP) 03001 ..... TBM .........................................................Real-time clock TBM 03001 ..... TUER ............................................................................ RESET 03001 ..... ZBR2..........................................................Wake up, computer 03001 ..... ZBRO ...................................................... External wake-up ZR 03002 ..... ACC .................................................... Additional information 2 03002 ..... AST ........................................................... Y2 valve splitter low 03002 ..... EBS........................................................ Control unit defective, timeout in data exchange µC active – µC passive 03002 ..... EDC .................................................................Segment speed 03002 ..... EHLA.................................................Digital output parameters 03002 ..... GKR ........................................External air temperature sensor 03002 ..... KSM ................... CAN data bus: Time overrun when receiving VMC message ETC3. 03002 ..... RET............................... Temperature sensor after engine (T2) 03002 ..... SFFR........Speed request ship vehicle management computer 03002 ..... TBM ..............................................................Fault in EEPROM 03002 ..... TUER ..............................................EE_CHECKSUM_ERROR 03002 ..... ZBRO .................................................... External wake-up1 ZR 03003 ..... ACC .................................................... Additional information 3 03003 ..... AST ..........................................................Y3 valve splitter high 03003 ..... EBS.... Control unit defective; redundancy fault µc input signal 03003 ..... EDC ....................................................... Engine speed sensor/ auxiliary speed sensor swapped over 03003 ..... GKR .......................................Blow-out air temperature sensor 03003 ..... KSM ................... CAN data bus: Time overrun when receiving EBS message EBC1. 03003 ..... RET.... Fault (watchdog drop-out / internal error in control unit) 03003 ..... SFFR...................................................................... Terminal 15 03003 ..... SKG .................................................................. Motor / valve B 03003 ..... TBM ..............................................................Fault in RAM disk 03003 ..... TUER ..................................... SIDE_INFORMATION_ERROR 03003 ..... ZBRO .................................................... External wake-up2 ZR 03004 ..... ACC .................................................... Additional information 4 03004 ..... AST ................................................Y4 valve gate position 3 / 4 SD 812a en Page 28 of 203

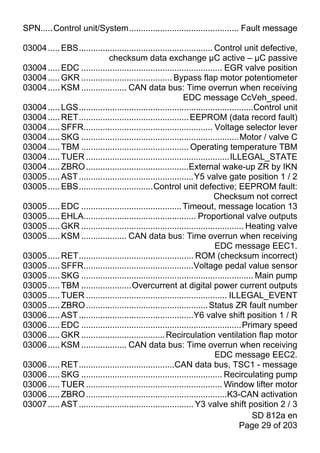

- 29. SPN.....Control unit/System.............................................. Faultmessage 03004 ..... EBS........................................................ Control unit defective, checksum data exchange µC active – µC passive 03004 ..... EDC ........................................................... EGR valve position 03004 ..... GKR ...................................... Bypass flap motor potentiometer 03004 ..... KSM ................... CAN data bus: Time overrun when receiving EDC message CcVeh_speed. 03004 ..... LGS.........................................................................Control unit 03004 ..... RET.............................................. EEPROM (data record fault) 03004 ..... SFFR...................................................... Voltage selector lever 03004 ..... SKG ..................................................................Motor / valve C 03004 ..... TBM ............................................. Operating temperature TBM 03004 ..... TUER ............................................................ILLEGAL_STATE 03004 ..... ZBRO ...........................................External wake-up ZR by IKN 03005 ..... AST ................................................Y5 valve gate position 1 / 2 03005 ..... EBS...............................Control unit defective; EEPROM fault: Checksum not correct 03005 ..... EDC .......................................... Timeout, message location 13 03005 ..... EHLA............................................... Proportional valve outputs 03005 ..... GKR .................................................................... Heating valve 03005 ..... KSM ................... CAN data bus: Time overrun when receiving EDC message EEC1. 03005 ..... RET................................................ ROM (checksum incorrect) 03005 ..... SFFR..............................................Voltage pedal value sensor 03005 ..... SKG ........................................................................ Main pump 03005 ..... TBM .....................Overcurrent at digital power current outputs 03005 ..... TUER ........................................................... ILLEGAL_EVENT 03005 ..... ZBRO ................................................... Status ZR fault number 03006 ..... AST ................................................Y6 valve shift position 1 / R 03006 ..... EDC ...................................................................Primary speed 03006 ..... GKR ................................... Recirculation ventilation flap motor 03006 ..... KSM ................... CAN data bus: Time overrun when receiving EDC message EEC2. 03006 ..... RET........................................CAN data bus, TSC1 - message 03006 ..... SKG ........................................................... Recirculating pump 03006 ..... TUER ......................................................... Window lifter motor 03006 ..... ZBRO ...........................................................K3-CAN activation 03007 ..... AST ................................................ Y3 valve shift position 2 / 3 SD 812a en Page 29 of 203
- 30. SPN.....Control unit/System.............................................. Faultmessage 03007 ..... EDC ................................................ DM4 request, invalid PGN 03007 ..... GKR ............................................................. Bypass flap motor 03007 ..... KSM ................... CAN data bus: Time overrun when receiving EDC message Eng_Temp. 03007 ..... RET....................................... CAN data bus, EEC1 - message 03007 ..... SKG ..................Communication control element – control unit 03007 ..... TUER ..................................................right/left switch (mirrors) 03007 ..... ZBRO .............................................................T-CAN activation 03008 ..... AST ..................................... Y3 valve range-change group low 03008 ..... EBS........................................................ Control unit defective; test transfer from µc to CAN trailer IC 03008 ..... EDC .............................FFR3: Retarder oil temperature invalid 03008 ..... EHLA..................................................Sensor supply, deviation 03008 ..... GKR .......................................................Blower control voltage 03008 ..... KSM ................... CAN data bus: Time overrun when receiving EDC message EngFlui_LevPre. 03008 ..... RET....................................... CAN data bus, TCO1 - message 03008 ..... SKG ..................Filling/bleeding mode not completed correctly 03008 ..... TUER ...................................................... Window lifter shut-off 03008 ..... ZBRO .......................................... Central computer running on 03009 ..... AST .................................... Y3 valve range-change group high 03009 ..... EBS.. Control unit defective; redundancy fault µc output signal 03009 ..... EDC ........................................................................ Overspeed 03009 ..... EHLA........... Voltage supply switched on when vehicle moving 03009 ..... KSM ...................................................................CAN data bus: Time overrun when receiving EDC message Amb_Cond. 03009 ..... RET....................................... CAN data bus, ERC1 - message 03009 ..... SKG ................................................................ Controller mode 03009 ..... TUER ............................................Mirror adjust time exceeded 03010 ..... AST .................................................................. Y10 main valve 03010 ..... EBS........................................................ Control unit defective; wheel diameter compensation value not correct 03010 ..... ECAS .................... Control unit (checksum ECU-specific data) 03010 ..... EDC ........................................Control deviation, injection start 03010 ..... EHLA....................Signature EOL parameter advance warning 03010 ..... FFR ......................... Torque and engine speed limiting system SD 812a en Page 30 of 203

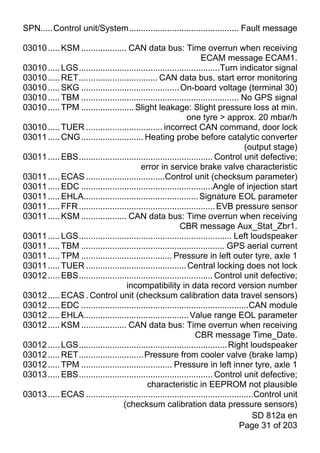

- 31. SPN.....Control unit/System.............................................. Faultmessage 03010 ..... KSM ................... CAN data bus: Time overrun when receiving ECAM message ECAM1. 03010 ..... LGS...........................................................Turn indicator signal 03010 ..... RET................................. CAN data bus, start error monitoring 03010 ..... SKG ......................................... On-board voltage (terminal 30) 03010 ..... TBM .................................................................. No GPS signal 03010 ..... TPM ...................... Slight leakage: Slight pressure loss at min. one tyre > approx. 20 mbar/h 03010 ..... TUER ................................ incorrect CAN command, door lock 03011 ..... CNG .......................... Heating probe before catalytic converter (output stage) 03011 ..... EBS........................................................ Control unit defective; error in service brake valve characteristic 03011 ..... ECAS .................................Control unit (checksum parameter) 03011 ..... EDC .......................................................Angle of injection start 03011 ..... EHLA................................................ Signature EOL parameter 03011 ..... FFR ......................................................... EVB pressure sensor 03011 ..... KSM ................... CAN data bus: Time overrun when receiving CBR message Aux_Stat_Zbr1. 03011 ..... LGS................................................................ Left loudspeaker 03011 ..... TBM ............................................................ GPS aerial current 03011 ..... TPM ...................................... Pressure in left outer tyre, axle 1 03011 ..... TUER .......................................... Central locking does not lock 03012 ..... EBS........................................................ Control unit defective; incompatibility in data record version number 03012 ..... ECAS . Control unit (checksum calibration data travel sensors) 03012 ..... EDC ......................................................................CAN module 03012 ..... EHLA............................................ Value range EOL parameter 03012 ..... KSM ................... CAN data bus: Time overrun when receiving CBR message Time_Date. 03012 ..... LGS.............................................................. Right loudspeaker 03012 ..... RET........................... Pressure from cooler valve (brake lamp) 03012 ..... TPM ...................................... Pressure in left inner tyre, axle 1 03013 ..... EBS........................................................ Control unit defective; characteristic in EEPROM not plausible 03013 ..... ECAS ......................................................................Control unit (checksum calibration data pressure sensors) SD 812a en Page 31 of 203

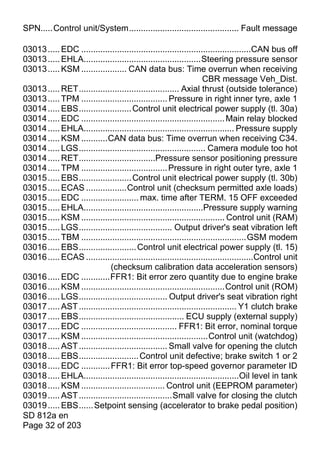

- 32. SPN.....Control unit/System.............................................. Faultmessage 03013 ..... EDC .......................................................................CAN bus off 03013 ..... EHLA.................................................Steering pressure sensor 03013 ..... KSM ................... CAN data bus: Time overrun when receiving CBR message Veh_Dist. 03013 ..... RET.......................................... Axial thrust (outside tolerance) 03013 ..... TPM .................................... Pressure in right inner tyre, axle 1 03014 ..... EBS...................... Control unit electrical power supply (tl. 30a) 03014 ..... EDC ............................................................ Main relay blocked 03014 ..... EHLA............................................................... Pressure supply 03014 ..... KSM ...........CAN data bus: Time overrun when receiving C34. 03014 ..... LGS..................................................... Camera module too hot 03014 ..... RET................................Pressure sensor positioning pressure 03014 ..... TPM .................................... Pressure in right outer tyre, axle 1 03015 ..... EBS...................... Control unit electrical power supply (tl. 30b) 03015 ..... ECAS .................Control unit (checksum permitted axle loads) 03015 ..... EDC ........................ max. time after TERM. 15 OFF exceeded 03015 ..... EHLA..................................................Pressure supply warning 03015 ..... KSM ............................................................ Control unit (RAM) 03015 ..... LGS....................................... Output driver's seat vibration left 03015 ..... TBM .....................................................................GSM modem 03016 ..... EBS........................ Control unit electrical power supply (tl. 15) 03016 ..... ECAS ......................................................................Control unit (checksum calibration data acceleration sensors) 03016 ..... EDC ............FFR1: Bit error zero quantity due to engine brake 03016 ..... KSM ............................................................Control unit (ROM) 03016 ..... LGS..................................... Output driver's seat vibration right 03017 ..... AST .................................................................. Y1 clutch brake 03017 ..... EBS............................................ ECU supply (external supply) 03017 ..... EDC ........................................ FFR1: Bit error, nominal torque 03017 ..... KSM .....................................................Control unit (watchdog) 03018 ..... AST ..................................... Small valve for opening the clutch 03018 ..... EBS......................... Control unit defective; brake switch 1 or 2 03018 ..... EDC ............ FFR1: Bit error top-speed governor parameter ID 03018 ..... EHLA.................................................................Oil level in tank 03018 ..... KSM ................................... Control unit (EEPROM parameter) 03019 ..... AST .......................................Small valve for closing the clutch 03019 ..... EBS...... Setpoint sensing (accelerator to brake pedal position) SD 812a en Page 32 of 203

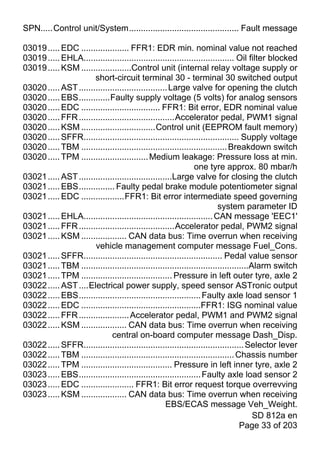

- 33. SPN.....Control unit/System.............................................. Faultmessage 03019 ..... EDC .................... FFR1: EDR min. nominal value not reached 03019 ..... EHLA............................................................... Oil filter blocked 03019 ..... KSM .....................Control unit (internal relay voltage supply or short-circuit terminal 30 - terminal 30 switched output 03020 ..... AST ..................................... Large valve for opening the clutch 03020 ..... EBS.............Faulty supply voltage (5 volts) for analog sensors 03020 ..... EDC ................................. FFR1: Bit error, EDR nominal value 03020 ..... FFR ........................................Accelerator pedal, PWM1 signal 03020 ..... KSM ...............................Control unit (EEPROM fault memory) 03020 ..... SFFR................................................................. Supply voltage 03020 ..... TBM ............................................................. Breakdown switch 03020 ..... TPM ............................ Medium leakage: Pressure loss at min. one tyre approx. 80 mbar/h 03021 ..... AST .......................................Large valve for closing the clutch 03021 ..... EBS............... Faulty pedal brake module potentiometer signal 03021 ..... EDC ..................FFR1: Bit error intermediate speed governing system parameter ID 03021 ..... EHLA...................................................... CAN message 'EEC1' 03021 ..... FFR ........................................Accelerator pedal, PWM2 signal 03021 ..... KSM ................... CAN data bus: Time overrun when receiving vehicle management computer message Fuel_Cons. 03021 ..... SFFR.......................................................... Pedal value sensor 03021 ..... TBM ......................................................................Alarm switch 03021 ..... TPM ...................................... Pressure in left outer tyre, axle 2 03022 ..... AST ....Electrical power supply, speed sensor ASTronic output 03022 ..... EBS................................................... Faulty axle load sensor 1 03022 ..... EDC ..................................................FFR1: ISG nominal value 03022 ..... FFR ..................... Accelerator pedal, PWM1 and PWM2 signal 03022 ..... KSM ................... CAN data bus: Time overrun when receiving central on-board computer message Dash_Disp. 03022 ..... SFFR................................................................... Selector lever 03022 ..... TBM ................................................................ Chassis number 03022 ..... TPM ...................................... Pressure in left inner tyre, axle 2 03023 ..... EBS................................................... Faulty axle load sensor 2 03023 ..... EDC ...................... FFR1: Bit error request torque overrevving 03023 ..... KSM ................... CAN data bus: Time overrun when receiving EBS/ECAS message Veh_Weight. SD 812a en Page 33 of 203
- 34. SPN.....Control unit/System.............................................. Faultmessage 03023 ..... SFFR.............................................. Idling speed harmonisation 03023 ..... TBM .............................................................. Geographic width 03023 ..... TPM .................................... Pressure in right inner tyre, axle 2 03024 ..... AST ............................ Current WSK retarder torque in percent 03024 ..... EBS.... Brake pad wear: Incorrect tendency between the axles 03024 ..... EBS_K1 .....................................Dynamic pad trend fault axles 03024 ..... EDC .............................. FFR1: Bit error, request ramps off/out 03024 ..... EHLA...................................................................... Engine revs 03024 ..... KSM ................... CAN data bus: Time overrun when receiving vehicle management computer message Eng_Hour/Rev. 03024 ..... SFFR........................................................... Default driving unit 03024 ..... TBM .............................................................Geographic length 03024 ..... TPM .................................... Pressure in right outer tyre, axle 2 03025 ..... EBS.................................. Brake pad wear: Incorrect tendency between the wheels of axle 1 03025 ..... EBS_K1 ............................ Dynamic pad trend fault front axles 03025 ..... EDC .............................................FFR1: reserved Bits & Bytes 03025 ..... EHLA.......................Cab position, impermissible change when vehicle moving 03025 ..... KSM ................... CAN data bus: Time overrun when receiving tachograph message Veh_Ident. 03025 ..... SFFR..................................................................... Engine CAN 03025 ..... TBM ............................................................. GPS position data 03026 ..... AST ........................... CAN data bus engine configuration from the EDC, engine configuration 03026 ..... CNG ......................Vehicle management computer message 1 03026 ..... EBS.................................. Brake pad wear: Incorrect tendency between the wheels of axle 2 03026 ..... EBS_K1 ............................ Dynamic pad trend fault rear axle 1 03026 ..... EDC .................................................................. FFR1: Timeout 03026 ..... EHLA................. Cab position, vehicle moving when swivelling 03026 ..... EMOS ..............................Timeout of Engine_Config message 03026 ..... KSM ................... CAN data bus: Time overrun when receiving vehicle management computer message Service. 03026 ..... SFFR..................................................................... MMDS CAN 03026 ..... TBM ...........................................................CPU TRAP register SD 812a en Page 34 of 203
- 35. SPN.....Control unit/System.............................................. Faultmessage 03027 ..... AST ........... CAN data bus engine configuration from the EDC, engine configuration 03027 ..... EBS.................................. Brake pad wear: Incorrect tendency between the wheels of axle 3 03027 ..... EBS_K1 ............................ Dynamic pad trend fault rear axle 2 03027 ..... EDC ......................................................... FFR2: Driveline fault 03027 ..... EHLA..................................................................... Cab position 03027 ..... KSM ................... CAN data bus: Time overrun when receiving tachograph message TCO1. 03027 ..... SFFR..................... Engine CAN: Time overrun when receiving EDC message EDC1 03028 ..... AST .... CAN data bus retarder check from secondary retarder, ERC1_RD (current retarder torque) 03028 ..... EBS.................................. Brake pad wear: Incorrect tendency between the wheels of axle 4 03028 ..... EBS_K1 ...................... Dynamic pad trend fault additional axle 03028 ..... EDC .................................FFR2: Nominal torque value too low 03028 ..... EHLA........................Cab position, swivelling is taking too long 03028 ..... KSM ................... CAN data bus: Time overrun when receiving vehicle management computer message ERC1_RX. 03028 ..... SFFR..................... Engine CAN: Time overrun when receiving EDC message EDC2 03029 ..... AST .................................... CAN data bus retarder check from secondary retarder, ERC1 (additional heating of the engine, engine coolant load increase) 03029 ..... EBS...................................................................SPN undefined 03029 ..... EDC .................................FFR2: Bit error, nominal idling value 03029 ..... EHLA........................Emergency steering pump, no oil volume 03029 ..... EMOS ................................'Request engine speed increase in braking mode' signal 03029 ..... KSM ................... CAN data bus: Time overrun when receiving tachograph message BAM_MTCO_VIN. 03029 ..... SFFR..................... Engine CAN: Time overrun when receiving EDC message EDC3 SD 812a en Page 35 of 203
- 36. SPN.....Control unit/System.............................................. Faultmessage 03030 ..... AST ................................. CAN data bus retarder configuration from secondary retarder, Ret_Conf driveline retarder configuration 03030 ..... EBS.......................... Faulty brake pad wear and retarder relay output stage checkback 03030 ..... EDC ...... FFR2: Bit error, idling speed governing parameter ID 03030 ..... EHLA............................................... Emergency steering pump 03030 ..... KSM ................... CAN data bus: Time overrun when receiving tachograph message P_MTCO_VIN. 03030 ..... SFFR..................... Engine CAN: Time overrun when receiving EDC message EDC4 03030 ..... TPM ................. Severe leakage: Severe pressure loss at min. one tyre approx. 200 mbar/h 03031 ..... AST .................................... CAN data bus retarder check from vehicle management computer engine brake torque 'ERC1_ REX retarder percent torque' 03031 ..... EBS.................... Faulty retarder relay output stage checkback 03031 ..... EDC ...... FFR2: nominal idling speed governing value too high 03031 ..... EHLA...... Pressure build-up in pressure accumulator too short 03031 ..... HDS ...................................................... Urea tank temperature 03031 ..... KSM .............................Adjustment lever angle reduction input (throttle butterfly reduction request) 03031 ..... SFFR..................... Engine CAN: Time overrun when receiving EDC message EDC5 03031 ..... TPM ...................................... Pressure in left outer tyre, axle 3 03032 ..... AST ........................ CAN data bus engine brake configuration, 'engine retarder configuration' 03032 ..... EBS................ Faulty brake pad wear output stage checkback 03032 ..... EDC .................................FFR2: Bit error, stand alone request 03032 ..... EHLA................................................... Centring circuit warning 03032 ..... KSM ...... Signal frequency at adjustment lever angle reduction input (throttle butterfly reduction request) 03032 ..... SFFR..................... Engine CAN: Time overrun when receiving EDC message EngineConfig 03032 ..... TPM ...................................... Pressure in left inner tyre, axle 3 03033 ..... AST ........................ CAN data bus engine brake configuration, 'engine retarder configuration' SD 812a en Page 36 of 203
- 37. SPN.....Control unit/System.............................................. Faultmessage 03033 ..... EBS.........Invalid checkback signal for the yellow warning light 03033 ..... EDC ............................................ FFR2: Bit error, start request 03033 ..... EHLA................................................................. Centring circuit 03033 ..... KSM ................... CAN data bus: Time overrun when receiving body CAN message KSM2_A. 03033 ..... SFFR..................... MMDS CAN: Time overrun when receiving MMDS message TSC1-FME. 03033 ..... TPM .................................... Pressure in right inner tyre, axle 3 03034 ..... EBS..............Invalid checkback signal for the red warning light 03034 ..... EDC .................................FFR2: Bit error, engine stop request 03034 ..... EHLA........... Actuator test of axle behaviour in centring circuit, implausible 03034 ..... KSM ........................................................Power take-off output 03034 ..... SFFR..................... MMDS CAN: Time overrun when receiving MMDS message Time/Date 03034 ..... TPM .................................... Pressure in right outer tyre, axle 3 03035 ..... EBS..............................Electrical power supply axle modulator 03035 ..... EDC .............................................FFR2: reserved Bits & Bytes 03035 ..... EHLA..... Actuator test of pressure behaviour in centring circuit 03035 ..... KSM ................... CAN data bus: Time overrun when receiving retarder message ERC1_RD. 03035 ..... SFFR..................... MMDS CAN: Time overrun when receiving MMDS message VehDistance 03036 ..... CNG ......................Vehicle management computer message 2 03036 ..... EBS.............. Short-circuit on one of the module output stages 03036 ..... EDC .................................................................. FFR2: Timeout 03036 ..... KSM ................... CAN data bus: Time overrun when receiving retarder message ERC1_RE. 03037 ..... EBS................Vehicle dynamics control steering angle sensor electrical power supply 03037 ..... EDC .....................FFR3: Bit error, pedal value sensor position 03037 ..... KSM ...................................CAN data bus: Time overrun when receiving user-definable message FREI_1. 03038 ..... EBS......................................................................Interaxle lock 03038 ..... EDC .......................................... FFR3: Bit error, standstill info. 03038 ..... KSM ...................................CAN data bus: Time overrun when receiving user-definable message FREI_2. SD 812a en Page 37 of 203
- 38. SPN.....Control unit/System.............................................. Faultmessage 03039 ..... EBS..........................................................Lock relay, front axle 03039 ..... EDC .............................................FFR3: reserved Bits & Bytes 03039 ..... KSM ...................................CAN data bus: Time overrun when receiving user-definable message FREI_3. 03040 ..... CNG ......................Vehicle management computer message 3 03040 ..... EBS...................................................... Display bus-stop brake 03040 ..... EDC .................................................................. FFR3: Timeout 03040 ..... EHLA............................................ Angle encoder configuration 03040 ..... KSM ...................................CAN data bus: Time overrun when receiving user-definable message FREI_4. 03041 ..... EBS.. Engine interface, adjustment lever angle increase input, permanently low, > 400 ms 03041 ..... EDC .........DM4 request frequency too high ( docu. page 172 ) 03041 ..... EHLA...................................................... Angle encoder supply 03041 ..... TPM ...................................... Pressure in left outer tyre, axle 4 03042 ..... EBS.. Engine interface, adjustment lever angle increase input, permanently high, > 400 ms 03042 ..... EDC ........................................ FFR2: Input shaft speed invalid 03042 ..... EHLA......................Angle encoder, steering axle 1, differential 03042 ..... KSM ........... CAN data bus: Time overrun when receiving FFR (vehicle management computer) message Fuel_Eco. 03042 ..... TPM ...................................... Pressure in left inner tyre, axle 4 03043 ..... EBS.. Engine interface, adjustment lever angle increase input, frequency > 220 Hz 03043 ..... EDC ........... Fault memory info., timeout, message location 10 03043 ..... EHLA................... Angle encoder, steering axle 1, total voltage 03043 ..... TPM .................................... Pressure in right inner tyre, axle 4 03044 ..... CNG ....................Lambda control adaptation additive (bank 1) 03044 ..... EBS.. Engine interface, adjustment lever angle increase input, mark-to-space ratio > 95 % 03044 ..... EHLA........................................ Angle encoder, steering axle 1 03044 ..... TPM .................................... Pressure in right outer tyre, axle 4 03045 ..... CNG .....................................................Starter control: Blocked 03045 ..... EBS.. Engine interface, adjustment lever angle increase input, mark-to-space ratio < 5 % 03045 ..... EDC ................................................Starter activation defective 03045 ..... EHLA............................Angle encoder, steering axle 1, track 1 SD 812a en Page 38 of 203
- 39. SPN.....Control unit/System.............................................. Faultmessage 03046 ..... EBS.. Engine interface, adjustment lever angle increase input, mark-to-space ratio > 95 % 03046 ..... EDC ....................................... Atmospheric pressure detection 03046 ..... EHLA............................Angle encoder, steering axle 1, track 2 03047 ..... EBS.. Engine interface, adjustment lever angle increase input, permanently low or high 80 – 400 ms 03047 ..... EDC ...................... Overrun test gate array monitoring module 03047 ..... EHLA......................Angle encoder, steering axle 2, differential 03048 ..... EDC ...............................Overrun test undervoltage monitoring 03048 ..... EHLA................... Angle encoder, steering axle 2, total voltage 03049 ..... AST .................................................................. Y1 clutch brake 03049 ..... EBS................ CAN data bus driveline, receive time exceeded 03049 ..... EDC .................................Overrun test overvoltage monitoring 03049 ..... EHLA........................................ Angle encoder, steering axle 2 03050 ..... AST ..................................... Small valve for opening the clutch 03050 ..... EBS......................................... CAN data bus driveline, bus off 03050 ..... ECAS .............................................Control unit, supply voltage 03050 ..... EDC ...............................................After-run test, zero quantity 03050 ..... EHLA............................Angle encoder, steering axle 2, track 1 03051 ..... AST .......................................Small valve for closing the clutch 03051 ..... EBS............ CAN data bus driveline, receive time exceeded in EEC1 message from the EDC 03051 ..... ECAS ........................................................... Operator unit data 03051 ..... EDC .............................................. After-run test, MES1 output 03051 ..... EHLA............................Angle encoder, steering axle 2, track 2 03051 ..... TPM ...................................... Pressure in left outer tyre, axle 5 03052 ..... AST ..................................... Large valve for opening the clutch 03052 ..... EBS...............................CAN J 1939 receive time exceeded in message EEC2 from the EDC 03052 ..... ECAS ..........................................................Operator unit clock 03052 ..... EDC ............................................ Timeout, message location 5 03052 ..... EHLA......................Angle encoder, steering axle 3, differential 03052 ..... TPM ...................................... Pressure in left inner tyre, axle 5 03053 ..... AST .......................................Large valve for closing the clutch 03053 ..... EBS...... CAN J 1939 receive time exceeded message CFG_E 03053 ..... ECAS ........................................................ Operator unit 2 data 03053 ..... EDC ............................................ Timeout, message location 6 SD 812a en Page 39 of 203
- 40. SPN.....Control unit/System.............................................. Faultmessage 03053 ..... EHLA................... Angle encoder, steering axle 3, total voltage 03053 ..... TPM .................................... Pressure in right inner tyre, axle 5 03054 ..... ECAS .......................................................Operator unit 2 clock 03054 ..... EDC ............................................ Timeout, message location 7 03054 ..... EHLA........................................ Angle encoder, steering axle 3 03054 ..... TPM .................................... Pressure in right outer tyre, axle 5 03055 ..... EDC .......................................... Timeout, message location 14 03055 ..... EHLA............................Angle encoder, steering axle 3, track 1 03056 ..... EBS............ CAN data bus driveline, receive time exceeded in ERC1_D message from retarder 03056 ..... EDC ...........Checksum HW calibration date in serial EEPROM 03056 ..... EHLA............................Angle encoder, steering axle 3, track 2 03057 ..... EBS............ CAN data bus driveline, receive time exceeded in ERC1_E message from retarder 03057 ..... EDC ......................Ser. EEPROM data not equal to checksum 03057 ..... EHLA......................Angle encoder, steering axle 4, differential 03058 ..... EBS............ CAN data bus driveline, receive time exceeded in ERC1_EX message from vehicle management computer 03058 ..... EDC .... Ser. EEPROM: Data main relay monitoring checksum 03058 ..... EHLA................... Angle encoder, steering axle 4, total voltage 03059 ..... AST .............................................. Checkback power take-off 1 03059 ..... EBS............ CAN data bus driveline, receive time exceeded in 'High Resolution Vehicle Distance' message from tachograph 03059 ..... EDC ................. Ser. EEPROM: Data error memory checksum 03059 ..... EHLA........................................ Angle encoder, steering axle 4 03060 ..... AST .............................................. Checkback power take-off 2 03060 ..... EBS............ CAN data bus driveline, receive time exceeded in 'Supply pressure' message from the ECAM 03060 ..... EDC . Ser. EEPROM: Data operating hours counter checksum 03060 ..... EHLA............................Angle encoder, steering axle 4, track 1 03060 ..... FFR .....Engine CAN sending message timeout (time overrun). 03061 ..... AST .................................................Switch off power take-off 1 03061 ..... EBS................ CAN data bus driveline, receive time exceeded in EEC3 message from the EDC 03061 ..... ECAS .........................................Interruption in communication SD 812a en Page 40 of 203
- 41. SPN.....Control unit/System.............................................. Faultmessage 03061 ..... EDC ........................... Ser. EEPROM: Actuator test checksum 03061 ..... EHLA............................Angle encoder, steering axle 4, track 2 03061 ..... FFR .................... CAN data bus: Time overrun when receiving EDC message engine configuration. 03062 ..... AST .................................................Switch off power take-off 2 03062 ..... EBS............ CAN data bus driveline, receive time exceeded in 'Cruise Control/Vehicle Speed' message from the EDC via vehicle management computer 03062 ..... ECAS ...................................................... CAN message VSC1 03062 ..... EDC ................... Ser. EEPROM: Starter monitoring checksum 03062 ..... EHLA.............................. Angle encoder, front axle, differential 03062 ..... FFR .................... CAN data bus: Time overrun when receiving EDC message EDC1. 03063 ..... AST .................................................Switch on power take-off 1 03063 ..... EBS................ CAN data bus driveline, receive time exceeded in vehicle weight measurement message from the ECAS 03063 ..... ECAS ...................................................... CAN message EEC1 03063 ..... EDC .................................................... After-run not completed 03063 ..... EHLA............................Angle encoder, front axle, total voltage 03063 ..... FFR .................... CAN data bus: Time overrun when receiving EDC message EDC2. 03064 ..... AST .................................................Switch on power take-off 2 03064 ..... EBS............. CAN data bus driveline, values for vehicle weight in the 'Vehicle Weight' message from the ECAS outside the range 03064 ..... ECAS ...................................................... CAN message EBC2 03064 ..... EDC .................................................... Stand alone mode EDC 03064 ..... EHLA................................................. Angle encoder, front axle 03064 ..... FFR ............... BotCAN data bus: Time overrun when receiving EDC message EDC3. 03065 ..... EBS................ CAN data bus driveline, receive time exceeded in TSC1_ACC message from the ACC 03065 ..... ECAS .....................................................CAN message FFR_1 03065 ..... EDC ..........................................Triggering individual operation 03065 ..... EHLA.................................... Angle encoder, front axle, track 1 SD 812a en Page 41 of 203
- 42. SPN.....Control unit/System.............................................. Faultmessage 03065 ..... FFR .................... CAN data bus: Time overrun when receiving EDC message EDC4. 03066 ..... EBS.................Driveline CAN databus, receive time exceeded for EEC2 message from the EDC 03066 ..... ECAS ................................................. CAN message ECAM_1 03066 ..... EDC ..................................................................Time after start 03066 ..... EHLA.................................... Angle encoder, front axle, track 2 03066 ..... FFR .................... CAN data bus: Time overrun when receiving EDC message EDC5. 03067 ..... EBS................ CAN data bus driveline, receive time exceeded in TCO1 message from tachograph 03067 ..... ECAS ................... CAN message EBS (axle load, driven axle) 03067 ..... EDC .............................................................................Self-test 03067 ..... EHLA................................. Angle encoder, joystick, differential 03068 ..... EBS...................................... CAN data bus driveline, values in 'TCO1 Vehicle Speed' message from tachograph not plausible 03068 ..... ECAS ...................................................... CAN message EBC5 03068 ..... EDC ............................................. Monitoring module defective 03068 ..... EHLA...............................Angle encoder, joystick, total voltage 03069 ..... EBS............. CAN J 1939 receive time exceeded message TD 03069 ..... ECAS ...................................................... CAN message EBC1 03069 ..... EDC ............................................Redundant speed monitoring 03069 ..... EHLA.................................................... Angle encoder, joystick 03070 ..... EBS...... CAN J1939 receive time exceeded in message ETC1 from the vehicle management computer 03070 ..... ECAS ........................... Incorrect CAN message time and date 03070 ..... EDC ............................................ Status of plausibility violation 03070 ..... EHLA....................................... Angle encoder, joystick, track 1 03071 ..... EBS...... CAN J1939 receive time exceeded in message ETC2 from the vehicle management computer 03071 ..... EDC ...................................................Operating noise analysis 03071 ..... EHLA....................................... Angle encoder, joystick, track 2 03072 ..... EBS.................Driveline CAN databus, receive time exceeded for ETC2 message from VMC 03072 ..... EDC ............................................. Status of defective cylinders 03072 ..... EHLA................................................Speed signals, differential SD 812a en Page 42 of 203
- 43. SPN.....Control unit/System.............................................. Faultmessage 03073 ..... EBS.................Driveline CAN databus, receive time exceeded 03073 ..... EDC ........................................................Amount violation sign 03073 ..... EHLA...................................................Speed signal parameter 03074 ..... EBS.................Driveline CAN databus, receive time exceeded 03074 ..... EBS...CAN J 1939 receive time exceeded message AS1-ZBR 03074 ..... ECAS .......... Incorrect CAN message display instrument panel 03074 ..... EDC ................................................................. ID number FFR 03074 ..... EHLA......................Can message 'Wheel speed information 2' 03075 ..... EBS.................Driveline CAN databus, receive time exceeded 03075 ..... ECAS ................................ Incorrect CAN message (ASC_2C) 03075 ..... EDC ............................................ Fuel pressure sensor (phys.) 03076 ..... CNG ........................................ Immobiliser: No quantity due to incorrect vehicle management computer ID 03076 ..... EBS.................Driveline CAN databus, receive time exceeded 03076 ..... ECAS .................................Incorrect CAN message (ASC_2A) 03076 ..... EDC ........................................ Immobiliser: No quantity due to incorrect vehicle management computer ID 03076 ..... RAS....................................................................Oil level check 03077 ..... EBS.................. CAN data bus driveline, message XBR (ACC) 03077 ..... ECAS .................................Incorrect CAN message (ASC_2B) 03077 ..... EDC ........................................ Immobiliser: No quantity due to vehicle management computer ID being 'not ready' for too long 03077 ..... EHLA............................................ CAN message 'Tachograph' 03077 ..... RAS...... Comparison between tachometer / EBC speed signal 03078 ..... EBS........................... CAN data bus driveline, message ETC7 03078 ..... ECAS .................................Incorrect CAN message (ASC_6A) 03078 ..... EDC ............... Immobiliser: Invalid FR ID after quantity enable 03078 ..... RAS........................................ CAN signal speed speedometer 03079 ..... ECAS .................................Incorrect CAN message (ASC_6B) 03079 ..... EDC ................................................. Governor linkage position 03080 ..... EBS...................... Impermissible signal CCVS (parking brake) 03080 ..... ECAS ............................... Incorrect CAN message door status 03080 ..... EDC .............................................................ID number of EDC 03080 ..... EHLA.......................................................CAN message CCVS 03080 ..... FFR .. Driveline CAN sending message timeout (time overrun). 03081 ..... EBS...................................Impermissible signal CCVS (clutch) SD 812a en Page 43 of 203
- 44. SPN.....Control unit/System.............................................. Faultmessage 03081 ..... ECAS ...................................... Incorrect CAN message TCO 1 03081 ..... EDC .............................. Charge air pressure governor shut-off 03081 ..... FFR .................... CAN data bus: Time overrun when receiving EBS message EBC1. 03081 ..... RAS..............................................CAN signal road speed EBC 03082 ..... CNG ......................................... Oil pressure sensor plausibility 03082 ..... EBS......................... Impermissible signal EEC1 (rated torque) 03082 ..... ECAS ............... Incorrect CAN message mileage reading (km) 03082 ..... EDC ......................................... Oil pressure sensor plausibility 03082 ..... FFR .................... CAN data bus: Time overrun when receiving EBS message EBC2. 03082 ..... RAS.................................................. CAN signal engine speed 03083 ..... EBS........................Impermissible signal EEC1 (actual torque) 03083 ..... EDC .......................................Fuel pressure sensor plausibility 03083 ..... EHLA................................................................. Speed signal 1 03083 ..... FFR .................... CAN data bus: Time overrun when receiving retarder message ERC1_RD. 03083 ..... RAS..............................................................CAN signal weight 03084 ..... EBS.......................... Impermissible signal EEC1 (engine revs) 03084 ..... EDC ..................................Stop position test, governor linkage 03084 ..... EHLA................................................................. Speed signal 2 03084 ..... FFR .................... CAN data bus: Time overrun when receiving EBS message EBC3. 03084 ..... RAS........................................................ CAN signal lifting axle 03085 ..... EBS.............. Impermissible signal EEC2 (idling speed switch) 03085 ..... EDC ..........................................FFR3: Vehicle distance invalid 03085 ..... EHLA................................................................. Speed signal 3 03085 ..... RAS.................................................. CAN signal parking brake 03086 ..... CNG .............Monitoring exhaust gas recirculation throughflow 03086 ..... EBS....Impermissible signal EEC2 (accelerator pedal position) 03086 ..... EDC ............... Exhaust gas recirculation actuator position limit 03086 ..... EDC_7 ........... Exhaust gas recirculation actuator position limit 03086 ..... EHLA.................................................................. Speed signals 03086 ..... FFR .................... CAN data bus: Time overrun when receiving Astronic message ETC1. 03086 ..... RAS.................................. CAN signal bus transmitter/receiver 03087 ..... EBS..............Impermissible signal EEC3 (nom. friction torque) SD 812a en Page 44 of 203
- 45. SPN.....Control unit/System.............................................. Faultmessage 03087 ..... EDC ...........................................................Oil pressure sensor 03087 ..... EHLA................................................Speed signals, differential 03087 ..... FFR .................... CAN data bus: Time overrun when receiving Astronic message ETC2. 03087 ..... RAS............................................... Parameter value calibration 03088 ..... EBS......................Impermissible signal ERC1_MC (ret. mode) 03088 ..... EDC ...................................................... Boost pressure sensor 03088 ..... FFR .................... CAN data bus: Time overrun when receiving tachograph message TCO1. 03089 ..... EBS.................... Impermissible signal ERC1_MC (ret. torque) 03089 ..... EDC ......................................... Charge air temperature sensor 03089 ..... FFR .................... CAN data bus: Time overrun when receiving central on-board computer message Veh_Dist. 03090 ..... AST ............................. ECU (communication controllers 1 + 2) 03090 ..... EBS............................... Impermissible signal ETC1 (driveline) 03090 ..... EHLA...............................................Axle monitoring parameter 03090 ..... FFR .................... CAN data bus: Time overrun when receiving central on-board computer message Time/Date. 03091 ..... AST ...............................CAN data bus EBS1 from EBS, EBC1 03091 ..... EBS...................Impermissible signal ETC2 (gear information) 03091 ..... EDC ....................................Cooling water temperature sensor 03091 ..... EHLA.............................. Inverse movement on steering axle 1 03091 ..... EMOS ............................................ Timeout of EBC1 message 03091 ..... FFR .................... CAN data bus: Time overrun when receiving retarder message RE_Fluids. 03092 ..... EBS......................Impermissible signal SP (reservoir circuit 1) 03092 ..... EDC .......................................................... Time/date: Timeout, 03092 ..... EHLA................................ System deviation on steering axle 1 03092 ..... FFR .................... CAN data bus: Time overrun when receiving retarder message RD_Fluids. 03093 ..... EBS......................Impermissible signal SP (reservoir circuit 2) 03093 ..... EDC .................................. TIME/DATE: reserved Bits & Bytes 03093 ..... EHLA.......................Large system deviation on steering axle 1 03093 ..... FFR .................... CAN data bus: Time overrun when receiving Astronic message TSC1_TE. 03094 ..... EBS................ Impermissible signal CFG_MC (ref. ret. torque) 03094 ..... EDC ............................................. Timeout message position 8 SD 812a en Page 45 of 203
- 46. SPN.....Control unit/System.............................................. Faultmessage 03094 ..... EHLA.............................. Inverse movement on steering axle 2 03094 ..... FFR .................... CAN data bus: Time overrun when receiving EBS message TSC1_AE. 03095 ..... EBS............... Impermissible signal CFG_E (ref. motor torque) 03095 ..... EDC ...................................Nominal quantity value percentage 03095 ..... EHLA................................ System deviation on steering axle 2 03095 ..... FFR .................... CAN data bus: Time overrun when receiving EBS message Veh_weight. 03096 ..... EBS..... CAN data bus driveline, 'Lighting on trailer 1 detected' in message AS1_ZBR 03096 ..... EDC .............................................................. Accelerator pedal 03096 ..... EHLA.......................Large system deviation on steering axle 2 03096 ..... FFR .................... CAN data bus: Time overrun when receiving central on-board computer message AUX-STAT-ZBR1. 03097 ..... EBS..................................................... CAN data bus driveline, 'Actual Inner Wheel Steering Angle' in message ESC1 (steering angle) 03097 ..... EDC ...................................................Fuel temperature sensor 03097 ..... EHLA.............................. Inverse movement on steering axle 3 03097 ..... FFR .................... CAN data bus: Time overrun when receiving ECAS message ECAS1. 03098 ..... EBS................... CAN data bus driveline, 'Steering axle status' in message ESC1 03098 ..... EDC .............................................. Control path: Loose contact 03098 ..... EHLA................................ System deviation on steering axle 3 03098 ..... FFR .....................................CAN databus: Time overrun when receiving message ERC1_RE. 03099 ..... AST .................................................................. Output speed 1 03099 ..... EBS................CAN data bus driveline, 'Percentage clutch slip' in message ETC1 03099 ..... EDC, Common Rail.......... Fuel pressure sensor - rail pressure 03099 ..... EDC, not Common Rail........................... Fuel pressure sensor 03099 ..... EHLA.......................Large system deviation on steering axle 3 03099 ..... FFR .................... CAN data bus: Time overrun when receiving ECAM message ECAM1. 03100 ..... CRT..................Exhaust differential pressure via the CRT filter 03100 ..... EBS................Pressure control module, left front axle, no fault SD 812a en Page 46 of 203
- 47. SPN.....Control unit/System.............................................. Faultmessage 03100 ..... EDC .............................................Fuel supply pressure sensor 03100 ..... EHLA.............................. Inverse movement on steering axle 4 03100 ..... FFR ..................... CAN data bus: EDC message EDC1, byte 0 03101 ..... AST ........................................................... Output speeds 1+ 2 03101 ..... CRT................... Exhaust temperature in front of the CRT filter 03101 ..... EBS............................ Pressure control module, left front axle, interruption, short-circuit wheel sensor A 03101 ..... EBS_K1 ........................................ Wheel sensor front axle left 03101 ..... ECAS ....................................... Travel sensor left REAR AXLE 03101 ..... ECAS2 .................................. Height sensor FRONT AXLE left 03101 ..... EHLA................................ System deviation on steering axle 4 03101 ..... EMOS ....................................................Gearbox output signal 03101 ..... FFR ..................... CAN data bus: EDC message EDC1, byte 1 03102 ..... AST ......................................Gearbox input and output speeds 03102 ..... CNG ....................Exhaust gas recirculation valve output stage 03102 ..... CRT........................................................ Current engine torque 03102 ..... EBS............................ Pressure control module, left front axle, wheel sensor A: Delay too long 03102 ..... ECAS ..................................... Travel sensor right REAR AXLE 03102 ..... ECAS2 ............................... Height sensor, FRONT AXLE right 03102 ..... EDC .................Exhaust gas recirculation system output stage 03102 ..... EHLA.......................Large system deviation on steering axle 4 03102 ..... FFR ..................... CAN data bus: EDC message EDC1, byte 2 03102 ..... ZBR2............................................................ZBR power supply 03103 ..... AST .............................CAN data bus vehicle speed from EDC 03103 ..... CNG ........... Lambda probe before catalytic converter (bank 1) 03103 ..... CRT......................................... Status of the regeneration logic 03103 ..... EBS............................ Pressure control module, left front axle, wheel sensor A: Moving off fault 03103 ..... ECAS ...........................................Travel sensor FRONT AXLE 03103 ..... ECAS2 ...................................... CENTRE AXLE height sensor 03103 ..... EHLA........................... Calibration mode when vehicle moving 03103 ..... FFR ......... CAN data bus: EDC message EDC1, bytes 3 and 4 03103 ..... OBDU.................................................................Tension V-belt 03103 ..... ZBR2..................................................................Analog ground 03104 ..... CNG ...........................................Lambda probe heating before catalytic converter (bank 1) SD 812a en Page 47 of 203
- 48. SPN.....Control unit/System.............................................. Faultmessage 03104 ..... EBS............................ Pressure control module, left front axle, wheel sensor A: Clearance too great 03104 ..... EHLA....................................... Calibration data steering axle 1 03104 ..... FFR ......... CAN data bus: EDC message EDC1, bytes 5 and 6 03104 ..... ZBR2..................................................................Analog ground 03105 ..... CNG .........................Lambda control adaptation multi (bank 1) 03105 ..... EBS............................ Pressure control module, left front axle, perpetual control wheel sensor A 03105 ..... EHLA....................................... Calibration data steering axle 2 03105 ..... FFR ..................... CAN data bus: EDC message EDC1, byte 7 03105 ..... OBDU...................................................Water pump V-belt torn 03106 ..... CNG ................................. Idling speed control, nominal speed 03106 ..... EBS............................ Pressure control module, left front axle, long instability wheel sensor A 03106 ..... EHLA....................................... Calibration data steering axle 3 03106 ..... FFR ......... CAN data bus: EDC message EDC2, bytes 0 and 1 03106 ..... OBDU........................................................... Cooling defective: Water temperature gradient too steep 03107 ..... AST ...................................................... Voltage (clutch sensor) 03107 ..... CNG ................................. Total exhaust-relevant errors (ASE) 03107 ..... EBS............................ Pressure control module, left front axle, pulse ring fault wheel sensor A 03107 ..... EBS_K1 ................................Impulse wheel fault front axle left 03107 ..... EHLA....................................... Calibration data steering axle 4 03107 ..... FFR ......... CAN data bus: EDC message EDC2, bytes 2 and 3 03107 ..... ZBR2................................................... Ignition ON (relay tl. 15) 03108 ..... CNG ........................................................ Gas system pressure 03108 ..... EBS............................ Pressure control module, left front axle, fault on lifting axle wheel sensor A 03108 ..... EHLA................................................ Calibration data front axle 03108 ..... FFR ......... CAN data bus: EDC message EDC2, bytes 4 and 5 03108 ..... ZBR2....................................... Electrical battery master switch 03109 ..... EBS.... Brake/impulse wheel/sensor combination front axle left 03109 ..... EHLA................................................... Calibration data joystick 03109 ..... FFR ......... CAN data bus: EDC message EDC2, bytes 6 and 7 03109 ..... HYD .............................Water pump malfunction or fuse blown 03109 ..... ZBRO ...............................................Ignition lock radio position SD 812a en Page 48 of 203
- 49. SPN.....Control unit/System.............................................. Faultmessage 03110 ..... CNG .................. Engine speed sensor crankshaft toothed disc 03110 ..... EBS............................. Pressure control module, left front axle 03110 ..... EHLA................................................... Number of CAN objects 03110 ..... FFR ......... CAN data bus: EDC message EDC3, bytes 0 and 1 03110 ..... HYD .................................. Vehicle blower control discontinuity 03110 ..... ZBRO ....................................................Ignition lock ignition on 03111 ..... AST ..... CAN data bus message timeout time/date information from central on-board computer ZBR2, TIME/DATE 03111 ..... CNG .....................................................Reference mark sensor 03111 ..... EBS............................ Pressure control module, left front axle, interruption, short-circuit wheel sensor B 03111 ..... EHLA........................................................ CAN communication 03111 ..... EMOS ....................................Timeout of Time_Date message 03111 ..... FFR ......... CAN data bus: EDC message EDC3, bytes 2 and 3 03111 ..... TPM ..........................Slight leakage from left outer tyre, axle 1 03111 ..... ZBR2.................................................. Ignition lock starter tl. 50 03112 ..... AST .......CAN data bus signal error time/date information from central on-board computer ZBR2, TIME/DATE 03112 ..... CNG .................................................................... Phase sensor 03112 ..... EBS............................ Pressure control module, left front axle, wheel sensor B: Delay too long 03112 ..... EHLA............................................ CAN data has been falsified 03112 ..... FFR ..................... CAN data bus: EDC message EDC3, byte 4 03112 ..... TPM ..........................Slight leakage from left inner tyre, axle 1 03112 ..... ZBRO ....................................................Ignition lock ignition off 03113 ..... AST .... CAN data bus message timeout retarder configuration, Ret_Conf (driveline retarder configuration) 03113 ..... EBS............................ Pressure control module, left front axle, wheel sensor B: Moving off fault 03113 ..... EHLA........................................................ CAN communication 03113 ..... FFR ..................... CAN data bus: EDC message EDC3, byte 5 03113 ..... TPM ........................Slight leakage from right inner tyre, axle 1 03113 ..... ZBRO .......................................................Battery undervoltage 03114 ..... EBS............................ Pressure control module, left front axle, wheel sensor B: Clearance too great 03114 ..... EHLA.................................... Steering wheel sensor - not used 03114 ..... FFR ..................... CAN data bus: EDC message EDC3, byte 6 SD 812a en Page 49 of 203
- 50. SPN.....Control unit/System.............................................. Faultmessage 03114 ..... TPM ....................... Slight leakage from right outer tyre, axle 1 03114 ..... ZBRO ......................................................Battery master switch 03115 ..... EBS............................ Pressure control module, left front axle, perpetual control wheel sensor B 03115 ..... EHLA................................... Steering wheel sensor - operating 03115 ..... FFR ..................... CAN data bus: EDC message EDC3, byte 7 03115 ..... ZBRO ........................................................... Battery main relay 03116 ..... EBS............................ Pressure control module, left front axle, long instability wheel sensor B 03116 ..... FFR ..................... CAN data bus: EDC message EDC4, byte 0 03116 ..... ZBRO ....................................................................... Ignition on 03117 ..... AST ..............................................Clutch self-adjustment faulty 03117 ..... EBS............................ Pressure control module, left front axle, pulse ring fault wheel sensor B 03117 ..... FFR ..................... CAN data bus: EDC message EDC4, byte 3 03117 ..... ZBRO ....................................................................... Ignition on 03118 ..... AST ......................................................... Clutch does not open 03118 ..... EBS............................ Pressure control module, left front axle, fault on lifting axle wheel sensor B 03118 ..... EMOS ....................................Clutch regulator switched on but no clutch opening valve available for opening clutch 03118 ..... FFR ..................... CAN data bus: EDC message EDC4, byte 3 03118 ..... ZBRO ............................................................. Ignition on check 03119 ..... AST ...............Clutch does not close / does not transmit torque 03119 ..... CNG .................................................................. Altitude sensor 03119 ..... EBS............................. Pressure control module, left front axle 03119 ..... EMOS ....................................Clutch regulator switched on but no clutch closing valve available for closing clutch 03119 ..... FFR ..................... CAN data bus: EDC message EDC4, byte 4 03119 ..... ZBRO ...................................................Battery master switch 1 03120 ..... AST ........ Mechanical fault (small valve for opening the clutch) 03120 ..... EBS...........................Electrical power supply pad wear sensor (front axle left or front axle) 03120 ..... EHLA............................................................................ Joystick 03120 ..... FFR ......... CAN data bus: EDC message EDC4, bytes 5 and 6 03120 ..... ZBRO ...................................................Battery master switch 3 03121 ..... AST .......... Mechanical fault (small valve for closing the clutch) SD 812a en Page 50 of 203
- 51. SPN.....Control unit/System.............................................. Faultmessage 03121 ..... CNG ......................................... Ignition output stage cylinder 1 03121 ..... EBS............................ Pressure control module, left front axle, pad wear sensor A outside permitted value range 03121 ..... EHLA...........................................................Joystick both sides 03121 ..... FFR ..................... CAN data bus: EDC message EDC4, byte 7 03121 ..... TPM ..........................Slight leakage from left outer tyre, axle 2 03121 ..... ZBRO ...................................................Battery master switch 4 03122 ..... AST .........Mechanical fault (large valve for opening the clutch) 03122 ..... CNG ......................................... Ignition output stage cylinder 2 03122 ..... EBS............................ Pressure control module, left front axle, pad wear sensor B outside permitted value range 03122 ..... EHLA...........................................Joystick, sustained operation 03122 ..... FFR ..................... CAN data bus: EDC message EDC4, byte 8 03122 ..... TPM ..........................Slight leakage from left inner tyre, axle 2 03122 ..... ZBRO ..........................................................Starting assistance 03123 ..... AST .......... Mechanical fault (large valve for closing the clutch) 03123 ..... CNG ......................................... Ignition output stage cylinder 3 03123 ..... EBS.....................Pressure sensor (front axle left or front axle) outside valid range 03123 ..... FFR ..................... CAN data bus: EDC message EDC5, byte 1 03123 ..... TPM ........................Slight leakage from right inner tyre, axle 2 03123 ..... ZBRO ............................................... Starting assistance check 03124 ..... AST ............................................................... Clutch travel fault 03124 ..... CNG ......................................... Ignition output stage cylinder 4 03124 ..... EBS............... Pressure control module, left front axle, time for 'Current pressure' inquiry too long 03124 ..... EHLA.............................................. Configuration of axle count 03124 ..... EMOS .............................................Clutch travel sensor signal 03124 ..... FFR ..................... CAN data bus: EDC message EDC5, byte 2 03124 ..... TPM ....................... Slight leakage from right outer tyre, axle 2 03124 ..... ZBRO ................................................... Ignition on switched off 03125 ..... AST ............................................... Pressure limiting valve fault 03125 ..... CNG ......................................... Ignition output stage cylinder 5 03125 ..... EBS... Pressure control module, left front axle, poor ventilation 03125 ..... EHLA.................................. Locking monitoring steering axle 1 03125 ..... FFR ......... CAN data bus: EDC message EDC5, bytes 3 and 4 03126 ..... AST .........................................................Pressure signal faulty SD 812a en Page 51 of 203
- 52. SPN.....Control unit/System.............................................. Faultmessage 03126 ..... CNG ......................................... Ignition output stage cylinder 6 03126 ..... EBS............................ Pressure control module, left front axle, excessive pressure during pulse test 03126 ..... EHLA...........Steering axle 1 has moved out of locking position 03126 ..... FFR ..................... CAN data bus: EDC message EDC5, byte 5 03127 ..... AST ....................................................... ECU temperature fault 03127 ..... EBS............................ Pressure control module, left front axle, residual pressure after braking 03127 ..... EHLA.................................. Locking monitoring steering axle 2 03127 ..... EMOS .............. 'Temperature sensor next to processor' signal 03127 ..... FFR ......... CAN data bus: EDC message EDC5, bytes 5 and 6 03128 ..... AST ................................................ Oil temperature signal fault 03128 ..... EBS............................ Pressure control module, left front axle, pressure sensor fault without braking 03128 ..... EHLA...........Steering axle 2 has moved out of locking position 03128 ..... FFR ..................... CAN data bus: EDC message EDC5, byte 7 03129 ..... AST ................... No signal from shift transmitter main gearbox 03129 ..... EBS............................. Pressure control module, left front axle 03129 ..... EHLA.................................. Locking monitoring steering axle 3 03129 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 0 and 1 03130 ..... EBS............................ Pressure control module, left front axle, wheel sensor IC defective 03130 ..... EHLA...........Steering axle 3 has moved out of locking position 03130 ..... FFR ......... CAN data bus: EDC message engine configuration, byte 2 03131 ..... EBS....... Backup valve checkback (front axle left or front axle) 03131 ..... EHLA.................................. Locking monitoring steering axle 4 03131 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 3 and 4 03131 ..... TPM ..........................Slight leakage from left outer tyre, axle 3 03132 ..... AST .................................Shift transmitter self-adjustment fault 03132 ..... EBS............ Intake valve checkback (ABS valve front axle left) 03132 ..... EHLA...........Steering axle 4 has moved out of locking position 03132 ..... FFR ......... CAN data bus: EDC message engine configuration, byte 5 03132 ..... TPM ..........................Slight leakage from left inner tyre, axle 3 SD 812a en Page 52 of 203
- 53. SPN.....Control unit/System.............................................. Faultmessage 03133 ..... AST ........................................Gate selection transmitter signal 03133 ..... EBS........ Pressure control module, left front axle, faulty intake and backup valve checkback 03133 ..... EHLA............................................ Actuator test steering axle 1 03133 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 6 and 7 03133 ..... TPM .................................. Slight leakage from right inner tyre, axle 3 03134 ..... EBS......... Exhaust valve checkback (ABS valve front axle left) 03134 ..... EHLA............................................ Actuator test steering axle 2 03134 ..... FFR ......... CAN data bus: EDC message engine configuration, byte 8 03134 ..... TPM ....................... Slight leakage from right outer tyre, axle 3 03135 ..... EBS......... Pressure control module, left front axle, faulty outlet and backup valve checkback 03135 ..... EHLA............................................ Actuator test steering axle 3 03135 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 9 and 10 03136 ..... AST .................Teach-in fault, gate selection transmitter signal 03136 ..... EBS................................. Exhaust and intake valve checkback (ABS valve front axle left) 03136 ..... EHLA............................................ Actuator test steering axle 4 03136 ..... FFR ......... CAN data bus: EDC message engine configuration, byte 11 03137 ..... AST ......................... Range-change group travel sensor signal 03137 ..... EBS......... Pressure control module, left front axle, faulty outlet and intake and backup valve checkback 03137 ..... EHLA................................................... Digital input parameters 03137 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 12 and 13 03138 ..... EBS.................. Proportional valve (front axle left or front axle) 03138 ..... EHLA................................................... Digital input parameters 03138 ..... FFR ......... CAN data bus: EDC message engine configuration, byte 14 03139 ..... EBS...................................................... ABS valves (front axle) 03139 ..... EHLA................................................................... Analog inputs SD 812a en Page 53 of 203
- 54. SPN.....Control unit/System.............................................. Faultmessage 03139 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 15 and 16 03140 ..... AST ............. Teach-in fault, range-change group travel sensor 03140 ..... EBS............................ Pressure control module, left front axle, no CAN reception from module 03140 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 17 and 18 03141 ..... AST ...................................No travel sensor signal from splitter 03141 ..... CNG ................................. Total exhaust-relevant errors (ASE) cylinder 1, exhaust-relevant 03141 ..... EBS............................ Pressure control module, left front axle, software incompatibility between control unit and pressure control module 03141 ..... EHLA.......................................... Digital CAN input parameters 03141 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 19 and 20 03141 ..... TPM ..........................Slight leakage from left outer tyre, axle 4 03142 ..... CNG ................................. Total exhaust-relevant errors (ASE) cylinder 2, exhaust-relevant 03142 ..... EBS............................ Pressure control module, left front axle, 12/24 volt incompatibility between control unit and pressure control module 03142 ..... FFR ......... CAN data bus: EDC message engine configuration, bytes 21 and 22 03142 ..... TPM ..........................Slight leakage from left inner tyre, axle 4 03143 ..... CNG ................................. Total exhaust-relevant errors (ASE) cylinder 3, exhaust-relevant 03143 ..... EBS............................ Pressure control module, left front axle, high cycle protection intake valve active, pressure < 4 bar 03143 ..... EHLA........................................ Digital CAN output parameters 03143 ..... FFR ......... CAN data bus: EDC message engine configuration, byte 23 03143 ..... HYD ......................................Overheating sensor discontinuity 03143 ..... TPM ........................Slight leakage from right inner tyre, axle 4 03144 ..... AST ..... Self-adjustment fault, travel sensor signal from splitter SD 812a en Page 54 of 203
- 55. SPN.....Control unit/System.............................................. Faultmessage 03144 ..... CNG ................................. Total exhaust-relevant errors (ASE) cylinder 4, exhaust-relevant 03144 ..... EBS............................ Pressure control module, left front axle, arithmetic test not successful 03144 ..... EHLA..............................................Prop. valve steering axle 1, incorrect movement direction 03144 ..... TPM ....................... Slight leakage from right outer tyre, axle 4 03145 ..... AST .........................Range-change group does not disengage 03145 ..... CNG ................................. Total exhaust-relevant errors (ASE) cylinder 5, exhaust-relevant 03145 ..... EBS............................ Pressure control module, left front axle, wheel compensation fault wheel sensor A 03145 ..... EHLA.............................. Prop. valve steering axle 1, deviation 03146 ..... AST ............... Changeover fault with range-change group shift 03146 ..... CNG ................................. Total exhaust-relevant errors (ASE) cylinder 6, exhaust-relevant 03146 ..... EBS............................ Pressure control module, left front axle, wheel compensation fault wheel sensor B 03146 ..... EHLA..............................................Prop. valve steering axle 2, incorrect movement direction 03147 ..... AST ............................. Range-change group does not engage 03147 ..... EBS............................ Pressure control module, left front axle, electrical power supply fault, axle load sensor 03147 ..... EHLA.............................. Prop. valve steering axle 2, deviation 03148 ..... AST ............................................... Splitter does not disengage 03148 ..... EBS............................ Pressure control module, left front axle, pressure differential on pressure control module pair, front axle 03148 ..... EHLA..............................................Prop. valve steering axle 3, incorrect movement direction 03149 ..... AST ..................................... Changeover fault with splitter shift 03149 ..... EBS................................. Pneumatic redundant path front axle 03149 ..... EHLA.............................. Prop. valve steering axle 3, deviation 03150 ..... AST ..........................................Splitter group does not engage 03150 ..... EBS............. Pressure control module, right front axle, no fault 03150 ..... EHLA..............................................Prop. valve steering axle 4, incorrect movement direction SD 812a en Page 55 of 203
- 56. SPN.....Control unit/System.............................................. Faultmessage 03150 ..... FFR ......................CAN data bus: EBS message EBC1, byte 0 03151 ..... AST .........................................Selector cylinder does not open 03151 ..... EBS.......................... Pressure control module, right front axle, interruption, short-circuit wheel sensor A 03151 ..... ECAS ...................................Pressure sensor left REAR AXLE 03151 ..... ECAS2 .............................. Pressure sensor FRONT AXLE left 03151 ..... EHLA.............................. Prop. valve steering axle 4, deviation 03151 ..... FFR ......................CAN data bus: EBS message EBC1, byte 1 03151 ..... TPM ..........................Slight leakage from left outer tyre, axle 5 03152 ..... AST ....................................................................Gate shift fault 03152 ..... EBS.......................... Pressure control module, right front axle, wheel sensor A: Delay too long 03152 ..... ECAS .................................Pressure sensor right REAR AXLE 03152 ..... ECAS2 ............................ Pressure sensor FRONT AXLE right 03152 ..... FFR ......................CAN data bus: EBS message EBC1, byte 2 03152 ..... TPM ..........................Slight leakage from left inner tyre, axle 5 03153 ..... AST ........................................ Selector cylinder does not close 03153 ..... EBS.......................... Pressure control module, right front axle, wheel sensor A: Moving off fault 03153 ..... ECAS ...................................... Pressure sensor FRONT AXLE 03153 ..... ECAS2 ..................................Pressure sensor CENTRE AXLE 03153 ..... FFR ......................CAN data bus: EBS message EBC1, byte 3 03153 ..... TPM ........................Slight leakage from right inner tyre, axle 5 03154 ..... AST .............................Main gearbox gear does not disengage 03154 ..... EBS.......................... Pressure control module, right front axle, wheel sensor A: Clearance too great 03154 ..... FFR ......................CAN data bus: EBS message EBC1, byte 4 03154 ..... TPM ....................... Slight leakage from right outer tyre, axle 5 03155 ..... AST ................................. Main gearbox gear does not engage 03155 ..... EBS.......................... Pressure control module, right front axle, perpetual control wheel sensor A 03155 ..... FFR ..........CAN data bus: EBS message EBC2, bytes 0 and 1 03155 ..... HYD ........................................ Malfunction display short circuit 03156 ..... AST ............................... Wrong gear selected in main gearbox 03156 ..... EBS.......................... Pressure control module, right front axle, long instability wheel sensor A 03156 ..... FFR ......................CAN data bus: EBS message EBC2, byte 2 SD 812a en Page 56 of 203
- 57. SPN.....Control unit/System.............................................. Faultmessage 03157 ..... EBS.......................... Pressure control module, right front axle, pulse ring fault wheel sensor A 03157 ..... ECAS ...................................................Pressure sensor, brake 03157 ..... FFR ......................CAN data bus: EBS message EBC2, byte 3 03158 ..... AST .............................. Shift sensor signal continuously active 03158 ..... EBS.......................... Pressure control module, right front axle, fault on lifting axle wheel sensor A 03158 ..... ECAS .............................................Pressure sensor lifting axle 03158 ..... FFR ......................CAN data bus: EBS message EBC2, byte 4 03159 ..... AST ........................... Range-change group shift sensor signal continuously active 03159 ..... EBS..Brake/impulse wheel/sensor combination front axle right 03159 ..... FFR ......................CAN data bus: EBS message EBC2, byte 5 03160 ..... AST ...................Splitter shift sensor signal continuously active 03160 ..... EBS........................... Pressure control module, right front axle 03160 ..... FFR ......................CAN data bus: EBS message EBC2, byte 6 03161 ..... EBS.......................... Pressure control module, right front axle, interruption, short-circuit wheel sensor B 03161 ..... EHLA............................................. Recirculating/centring valve 03161 ..... FFR ......................CAN data bus: EBS message EBC2, byte 7 03162 ..... EBS.......................... Pressure control module, right front axle, wheel sensor B: Delay too long 03162 ..... EHLA................................................................. Digital output 2 03162 ..... FFR ......................CAN data bus: EBS message EBC3, byte 0 03163 ..... AST .................... Engine does not react to torque specification 03163 ..... EBS.......................... Pressure control module, right front axle, wheel sensor B: Moving off fault 03163 ..... EHLA................................................................. Digital output 3 03163 ..... FFR ......................CAN data bus: EBS message EBC3, byte 1 03164 ..... AST ...................... CAN data bus electronic engine governor 1 from EDC, EEC1 (accelerator pedal position, drivers demand engine percent torque) 03164 ..... EBS.......................... Pressure control module, right front axle, wheel sensor B: Clearance too great 03164 ..... EHLA................................................................. Digital output 4 03164 ..... FFR ......................CAN data bus: EBS message EBC3, byte 2 SD 812a en Page 57 of 203
- 58. SPN.....Control unit/System.............................................. Faultmessage 03165 ..... EBS.......................... Pressure control module, right front axle, perpetual control wheel sensor B 03165 ..... EHLA................................................................. Digital output 5 03165 ..... FFR ......................CAN data bus: EBS message EBC3, byte 3 03166 ..... AST ...........................................Permanent idling speed signal 03166 ..... EBS.......................... Pressure control module, right front axle, long instability wheel sensor B 03166 ..... EHLA................................................................. Digital output 6 03166 ..... FFR ......................CAN data bus: EBS message EBC3, byte 4 03167 ..... EBS.......................... Pressure control module, right front axle, pulse ring fault wheel sensor A 03167 ..... EHLA................................................................. Digital output 7 03167 ..... FFR ......................CAN data bus: EBS message EBC3, byte 5 03168 ..... EBS.......................... Pressure control module, right front axle, fault on lifting axle wheel sensor B 03168 ..... EHLA................................................................. Digital output 8 03168 ..... FFR ......................CAN data bus: EBS message EBC3, byte 6 03169 ..... AST .......................... Shut-off relay in ECU does not switch off 03169 ..... EBS................................................... Pressure control module, right front axle 03169 ..... EHLA................................................................. Digital output 9 03169 ..... FFR ......................CAN data bus: EBS message EBC3, byte 7 03170 ..... AST ...................... No electrical power supply at terminal 30 or shut-off relay in ECU does not switch on 03170 ..... EBS.......................... Pressure control module, right front axle, electrical power supply fault, pad wear sensor 03170 ..... ECAS ..................................................... Steering angle sensor 03170 ..... EHLA............................................................... Digital output 10 03170 ..... FFR ......................CAN data bus: EBS message EBC4, byte 0 03171 ..... AST ...................... CAN data bus electronic engine governor 1 from EDC, EEC1 (engine torque, actual engine percent torque) 03171 ..... CNG .......................................... Charge pressure control valve 03171 ..... EBS.......................... Pressure control module, right front axle, pad wear sensor A outside permitted value range 03171 ..... EDC .................................. Boost pressure switch output stage 03171 ..... EHLA............................................................... Digital output 11 SD 812a en Page 58 of 203
- 59. SPN.....Control unit/System.............................................. Faultmessage 03171 ..... FFR ......................CAN data bus: EBS message EBC4, byte 1 03172 ..... EBS.......................... Pressure control module, right front axle, pad wear sensor B outside permitted value range 03172 ..... EHLA............................................................... Digital output 12 03172 ..... FFR ......................CAN data bus: EBS message EBC4, byte 2 03173 ..... EBS.......................... Pressure control module, right front axle, pressure sensor outside permitted value range 03173 ..... EHLA............................................................... Digital output 13 03173 ..... FFR ......................CAN data bus: EBS message EBC4, byte 3 03174 ..... EBS.......................... Pressure control module, right front axle, time for 'Current pressure' inquiry too long 03174 ..... EHLA............................................................... Digital output 14 03174 ..... FFR ......................CAN data bus: EBS message EBC4, byte 4 03175 ..... AST .................................Ignition lock signal fault (terminal 15) 03175 ..... EBS.Pressure control module, right front axle, poor ventilation 03175 ..... EHLA............................................................... Digital output 15 03175 ..... FFR ......................CAN data bus: EBS message EBC4, byte 5 03176 ..... EBS.......................... Pressure control module, right front axle, excessive pressure during pulse test 03176 ..... FFR ......................CAN data bus: EBS message EBC4, byte 6 03177 ..... AST ...................................................... CAN data bus driveline 03177 ..... EBS.......................... Pressure control module, right front axle, residual pressure after braking 03177 ..... EMOS ....................................................BUSOFF vehicle CAN 03177 ..... FFR ......................CAN data bus: EBS message EBC4, byte 7 03178 ..... AST .............................................. CAN data bus error warning 03178 ..... EBS.......................... Pressure control module, right front axle, pressure sensor fault without braking 03178 ..... FFR ............ CAN data bus: EBS message Veh_weight, byte 0 03179 ..... AST .................................... CAN data bus input buffer overrun 03179 ..... EBS........................... Pressure control module, right front axle 03179 ..... FFR CAN data bus: EBS message Veh_weight, bytes 1 and 2 03180 ..... AST ...................... CAN data bus electronic engine governor 1 from EDC, EEC1 03180 ..... EBS.......................... Pressure control module, right front axle, wheel sensor IC defective 03180 ..... EMOS ............................................ Timeout of EEC1 message SD 812a en Page 59 of 203
- 60. SPN.....Control unit/System.............................................. Faultmessage 03180 ..... FFR ............ CAN data bus: EBS message Veh_weight, byte 3 03181 ..... AST ...................... CAN data bus electronic engine governor 2 from EDC, EEC2 03181 ..... CNG ................ Total exhaust-relevant errors (ASE) cylinder 1, damaging to catalytic converter 03181 ..... EBS.......................... Pressure control module, right front axle, faulty backup valve checkback 03181 ..... EHLA........................................ CAN signal 'Position Of Doors' 03181 ..... EMOS ............................................ Timeout of EEC2 message 03181 ..... FFR ....... CAN data bus: Retarder message RET_Conf, byte 0 03182 ..... AST ...... CAN data bus cruise control/speed from EDC, CCVS 03182 ..... CNG ................ Total exhaust-relevant errors (ASE) cylinder 2, damaging to catalytic converter 03182 ..... EBS.......................... Pressure control module, right front axle, faulty intake valve checkback 03182 ..... EHLA................ CAN signal 'Seconds' in 'Time/Date' message 03182 ..... EMOS ....................................Timeout CcVeh speed message 03182 ..... FFR ....... CAN data bus: Retarder message RET_Conf, byte 1 03183 ..... AST .......................................CAN data bus engine brake from vehicle management computer, ERC1_REX 03183 ..... CNG ................ Total exhaust-relevant errors (ASE) cylinder 3, damaging to catalytic converter 03183 ..... EBS.......................... Pressure control module, right front axle, faulty intake and backup valve checkback 03183 ..... EHLA..................CAN signal 'Minutes' in 'Time/Date' message 03183 ..... FFR .................. CAN data bus: Retarder message RET_Conf, bytes 2 and 3 03184 ..... AST ...............CAN data bus retarder from secondary retarder, ERC1_RD 03184 ..... CNG ................ Total exhaust-relevant errors (ASE) cylinder 4, damaging to catalytic converter 03184 ..... EBS.......................... Pressure control module, right front axle, faulty outlet valve checkback 03184 ..... EHLA.....................CAN signal 'Hours' in 'Time/Date' message 03184 ..... FFR ....... CAN data bus: Retarder message RET_Conf, byte 4 03185 ..... AST .............. CAN data bus primary retarder WSK, ERC1_RE SD 812a en Page 60 of 203
- 61. SPN.....Control unit/System.............................................. Faultmessage 03185 ..... CNG ................ Total exhaust-relevant errors (ASE) cylinder 5, damaging to catalytic converter 03185 ..... EBS.......................... Pressure control module, right front axle, faulty outlet and backup valve checkback 03185 ..... EHLA........................CAN signal 'Day' in 'Time/Date' message 03185 ..... FFR .................. CAN data bus: Retarder message RET_Conf, bytes 5 and 6 03186 ..... AST ........... CAN data bus primary retarder WSK, ERC1_WSK 03186 ..... CNG ................ Total exhaust-relevant errors (ASE) cylinder 6, damaging to catalytic converter 03186 ..... EBS.......................... Pressure control module, right front axle, faulty outlet and intake valve checkback 03186 ..... EHLA.................... CAN signal 'Month' in 'Time/Date' message 03186 ..... FFR ....... CAN data bus: Retarder message RET_Conf, byte 7 03187 ..... AST ..CAN data bus primary retarder configuration information 03187 ..... CNG ........................Total exhaust-relevant errors (ASE), total, damaging to catalytic converter 03187 ..... EBS.......................... Pressure control module, right front axle, faulty outlet and intake and backup valve checkback 03187 ..... EHLA.......................CAN signal 'Year' in 'Time/Date' message 03187 ..... FFR .................. CAN data bus: Retarder message RET_Conf, bytes 8 and 9 03188 ..... AST ...................................Control unit fault, incorrect interrupt 03188 ..... CNG ....................................Input parameters filling acquisition 03188 ..... EBS........................... Pressure control module, right front axle 03188 ..... EHLA.............................................. CAN signal 'Engine Speed' 03188 ..... FFR ..... CAN data bus: Retarder message RET_Conf, byte 10 03189 ..... AST ............................................ Control unit fault, stack watch 03189 ..... EBS........................... Pressure control module, right front axle 03189 ..... EHLA.........................................CAN signal 'Front Axle Speed' 03189 ..... FFR .................. CAN data bus: Retarder message RET_Conf, bytes 11 and 12 03190 ..... AST ...................EOL EEPROM parameter outside valid range 03190 ..... EBS.......................... Pressure control module, right front axle, no CAN reception from module 03190 ..... EHLA......................... CAN signal 'Tachograph Vehicle Speed' 03190 ..... FFR ..... CAN data bus: Retarder message RET_Conf, byte 13 SD 812a en Page 61 of 203
- 62. SPN.....Control unit/System.............................................. Faultmessage 03191 ..... AST ........................................ EOL EEPROM: checksum error 03191 ..... EBS.......................... Pressure control module, right front axle, software incompatibility between control unit and pressure control module 03191 ..... EHLA........................ CAN signal 'Wheel_BasedVehicleSpeed' 03191 ..... FFR .................. CAN data bus: Retarder message RET_Conf, bytes 14 and 15 03192 ..... AST ......................... Control unit fault – EEPROM access fault 03192 ..... EBS.......................... Pressure control module, right front axle, 12/24 volt incompatibility between control unit and pressure control module 03192 ..... FFR .................. CAN data bus: Retarder message RET_Conf, bytes 16 and 17 03193 ..... AST ................................................. ECU temperature too high 03193 ..... EBS.......................... Pressure control module, right front axle, high cycle protection intake valve active, pressure < 4 bar 03193 ..... EMOS ..................Permitted temperature limit value exceeded 03193 ..... FFR ..... CAN data bus: Retarder message RET_Conf, byte 18 03194 ..... AST ............ Failure of both signal sources for front axle speed 03194 ..... EBS.......................... Pressure control module, right front axle, arithmetic test not successful 03194 ..... EHLA............ CAN signal 'ASR Engine Control Active Passive' 03194 ..... FFR ....... CAN data bus: Retarder message ERC1_RD, byte 0 03195 ..... EBS.......................... Pressure control module, right front axle, wheel compensation fault wheel sensor A 03195 ..... EHLA..............CAN signal 'ASR Brake Control Active Passive' 03195 ..... FFR ....... CAN data bus: Retarder message ERC1_RD, byte 1 03196 ..... AST ...................................CAN data bus vehicle mileage from central on-board computer ZBR2, Veh_Dist 03196 ..... EBS.......................... Pressure control module, right front axle, wheel compensation fault wheel sensor B 03196 ..... EHLA................... CAN signal 'Anti-Lock Braking (ABS) Active' 03196 ..... EMOS .......................................Timeout of Veh_Dist message 03196 ..... FFR ....... CAN data bus: Retarder message ERC1_RD, byte 2 03197 ..... EBS.......................... Pressure control module, right front axle, electrical power supply fault, axle load sensor SD 812a en Page 62 of 203
- 63. SPN.....Control unit/System.............................................. Faultmessage 03197 ..... FFR ................ CAN data bus: Astronic message ETC1, byte 0 03198 ..... AST ...........................CAN data bus relative wheel speed from EBS, EBC2 (WSI) (relative wheel speed) 03198 ..... EBS.......................... Pressure control module, right front axle, pressure differential on pressure control module pair, front axle 03198 ..... FFR .... CAN data bus: Astronic message ETC1, bytes 1 and 2 03199 ..... AST .............................CAN data bus wheel speed information from EBS, EBC2 (WSI) 03199 ..... EBS........................... Pressure control module, right front axle 03199 ..... EMOS ............................................ Timeout of EBC2 message 03199 ..... FFR ................ CAN data bus: Astronic message ETC1, byte 3 03200 ..... EBS................ Pressure control module, left rear axle, no fault 03200 ..... ECAS .................... Supply voltage / feedback, solenoid valves 03200 ..... FFR ................ CAN data bus: Astronic message ETC1, byte 4 03201 ..... EBS............................. Pressure control module, left rear axle, interruption, short-circuit wheel sensor A 03201 ..... EBS_K1 ......................................... Wheel sensor rear axle left 03201 ..... ECAS ................................Solenoid valve 2/2 left REAR AXLE 03201 ..... EHLA.................................................................. Valve output 1 03201 ..... FFR .... CAN data bus: Astronic message ETC1, bytes 5 and 6 03201 ..... OBDU........................................................ Charge air pressure 03201 ..... ZBR2...................................................Low pressure in air filter 03202 ..... EBS............................. Pressure control module, left rear axle, wheel sensor A: Delay too long 03202 ..... ECAS ............................. Solenoid valve 2/2 right REAR AXLE 03202 ..... EHLA.................................................................. Valve output 2 03202 ..... FFR ................ CAN data bus: Astronic message ETC1, byte 7 03203 ..... EBS............................. Pressure control module, left rear axle, wheel sensor A: Moving off fault 03203 ..... ECAS ................................... Solenoid valve 2/2 FRONT AXLE 03203 ..... EHLA.................................................................. Valve output 3 03203 ..... FFR ................ CAN data bus: Astronic message ETC2, byte 0 03203 ..... OBDU...................................... Leak in oil pump overflow valve 03204 ..... EBS............................. Pressure control module, left rear axle, wheel sensor A: Clearance too great 03204 ..... ECAS .............Solenoid valve 3/3 lower/load lifting/trailing axle SD 812a en Page 63 of 203
- 64. SPN.....Control unit/System.............................................. Faultmessage 03204 ..... EHLA.................................................................. Valve output 4 03204 ..... FFR .... CAN data bus: Astronic message ETC2, bytes 1 and 2 03204 ..... ZBRO .................................................................. EDC is active 03205 ..... EBS............................. Pressure control module, left rear axle, perpetual control wheel sensor A 03205 ..... ECAS ..............Solenoid valve 3/3 lift/unload lifting/trailing axle 03205 ..... EHLA.................................................................. Valve output 5 03205 ..... FFR ................ CAN data bus: Astronic message ETC2, byte 3 03205 ..... ZBRO ..............................................................EDC brake lamp 03206 ..... EBS............................. Pressure control module, left rear axle, long instability wheel sensor A 03206 ..... ECAS ............................................Solenoid valve 3/2 reservoir 03206 ..... EHLA.................................................................. Valve output 6 03206 ..... FFR ................ CAN data bus: Astronic message ETC2, byte 4 03206 ..... ZBRO .......................................................EDC overtravel relay 03207 ..... EBS............................. Pressure control module, left rear axle, pulse ring fault wheel sensor A 03207 ..... EBS_K1 ................................ Impulse wheel fault rear axle left 03207 ..... ECAS .................................... Solenoid valve 3/3 lifting bellows 03207 ..... EHLA.................................................................. Valve output 7 03207 ..... FFR ................ CAN data bus: Astronic message ETC2, byte 5 03207 ..... ZBRO ............................................................. EDC malfunction 03208 ..... EBS............................. Pressure control module, left rear axle, fault on lifting axle wheel sensor A 03208 ..... ECAS ............................. Solenoid valve 2/2, 3rd AXLE RIGHT 03208 ..... EHLA.................................................................. Valve output 8 03208 ..... FFR ................ CAN data bus: Astronic message ETC2, byte 6 03208 ..... ZBRO ............................................................. EDC malfunction 03209 ..... AST ........ Emergency off button pressed or ECU de-energised 03209 ..... EBS.............................. Pressure control module, left rear axle 03209 ..... EBS_K1 ..................................................Brake/impulse wheel/ sensor combination rear axle left 03209 ..... ECAS ............................... Solenoid valve 2/2, 3rd AXLE LEFT 03209 ..... FFR ................ CAN data bus: Astronic message ETC2, byte 7 03209 ..... ZBRO ............................................................... EDC ignition on 03210 ..... AST ......................................... CAN data bus tachograph from central on-board computer ZBR2, TCO1 SD 812a en Page 64 of 203
- 65. SPN.....Control unit/System.............................................. Faultmessage 03210 ..... EBS.............................. Pressure control module, left rear axle 03210 ..... EMOS ............................................Timeout of TCO1 message 03210 ..... FFR ........ CAN data bus: Central on-board computer message TCO1, byte 0 03210 ..... OBDU.............................................................. Air filter vacuum 03211 ..... AST .................................... CAN data bus gearbox check from vehicle management computer FFR, TC1_FT 03211 ..... CNG ................................................................. Knock sensor 2 03211 ..... EBS......... Pressure control module, left rear axle, interruption, short-circuit wheel sensor B 03211 ..... EMOS ........................................ Timeout of TC1_FT message 03211 ..... FFR ........ CAN data bus: Central on-board computer message TCO1, byte 1 03211 ..... KSM ......................................................................Oil pressure. 03211 ..... OBDU.............................................Engine oil pressure too low 03211 ..... TPM ......................Medium leakage from left outer tyre, axle 1 03211 ..... ZBRO .............................................Engine oil pressure too low 03212 ..... AST .................................... CAN data bus gearbox check from vehicle management computer FFR, TC1_FT (requested gear) 03212 ..... EBS............................. Pressure control module, left rear axle, wheel sensor B: Delay too long 03212 ..... ECAS ...................................Solenoid valve transverse throttle 03212 ..... FFR ........ CAN data bus: Central on-board computer message TCO1, byte 2 03212 ..... OBDU.......................................................Oil pressure too high 03212 ..... TPM ...................... Medium leakage from left inner tyre, axle 1 03213 ..... AST .................................... CAN data bus gearbox check from vehicle management computer FFR, TC1_FT (requested range) 03213 ..... EBS............................. Pressure control module, left rear axle, wheel sensor B: Moving off fault 03213 ..... FFR ........ CAN data bus: Central on-board computer message TCO1, byte 3 03213 ..... TPM ....................Medium leakage from right inner tyre, axle 1 SD 812a en Page 65 of 203
- 66. SPN.....Control unit/System.............................................. Faultmessage 03214 ..... AST .................................... CAN data bus gearbox check from vehicle management computer FFR, TC1_FT (PTO request) 03214 ..... EBS............................. Pressure control module, left rear axle, wheel sensor B: Clearance too great 03214 ..... FFR ........ CAN data bus: Central on-board computer message TCO1, bytes 4 and 5 03214 ..... TPM ....................Medium leakage from right outer tyre, axle 1 03214 ..... ZBRO ..............................................................FFR malfunction 03215 ..... AST ..........................................CAN data bus information from central on-board computer (aux_stat_zbr#1), timeout 03215 ..... EBS............................. Pressure control module, left rear axle, perpetual control wheel sensor B 03215 ..... FFR ........................CAN data bus: Central on-board computer message TCO1, bytes 6 and 7 03215 ..... ZBRO ..............................................................FFR malfunction 03216 ..... EBS............................. Pressure control module, left rear axle, long instability wheel sensor B 03216 ..... ECAS ..... Solenoid valve 3/3, lift/unload 2nd lifting/trailing axle 03216 ..... FFR ........................CAN data bus: Central on-board computer message VEH_DIST, bytes 0 to 3 03216 ..... ZBRO ..........................Accelerator pedal not pressed (T-CAN) 03217 ..... EBS............................. Pressure control module, left rear axle, pulse ring fault wheel sensor B 03217 ..... ECAS .... Solenoid valve 3/3, lower/load 2nd lifting/trailing axle 03217 ..... FFR ........................CAN data bus: Central on-board computer message VEH_DIST, bytes 4 to 5 03217 ..... ZBRO .............................................. Accelerator pedal pressed 03218 ..... EBS............................. Pressure control module, left rear axle, fault on lifting axle wheel sensor B 03218 ..... FFR ........................CAN data bus: Central on-board computer message TIME/DATE, byte 0 03218 ..... ZBRO ..............................Accelerator pedal kickdown (T-CAN) 03219 ..... EBS.............................. Pressure control module, left rear axle 03219 ..... FFR ........................CAN data bus: Central on-board computer message TIME/DATE, byte 1 03219 ..... ZBRO ................................ Accelerator pedal position (0...250) SD 812a en Page 66 of 203
- 67. SPN.....Control unit/System.............................................. Faultmessage 03220 ..... CNG ..................................................... Knock control zero test 03220 ..... EBS............................. Pressure control module, left rear axle, electrical power supply fault, pad wear sensor 03220 ..... EBS_K1 ....................Electrical power supply pad wear sensor (rear axle left or rear axle) 03220 ..... EHLA................................................ CAN message 'Door_Ctrl' 03220 ..... FFR ........................CAN data bus: Central on-board computer message TIME/DATE, byte 2 03220 ..... ZBRO ............................................. Cooling water level too low 03221 ..... CNG .......................................................... Knock control offset 03221 ..... EBS............................. Pressure control module, left rear axle, pad wear sensor A outside permitted value range 03221 ..... EHLA..............................................CAN message 'Time_Date' 03221 ..... FFR ........................CAN data bus: Central on-board computer message TIME/DATE, byte 3 03221 ..... TPM ......................Medium leakage from left outer tyre, axle 2 03221 ..... ZBRO .................................... Cooling water level probe supply 03222 ..... CNG ....................................................Knock control test pulse 03222 ..... EBS............................. Pressure control module, left rear axle, pad wear sensor B outside permitted value range 03222 ..... EHLA.......... CAN message 'High Resolution Vehicle Distance' 03222 ..... FFR ........................CAN data bus: Central on-board computer message TIME/DATE, byte 4 03222 ..... TPM ...................... Medium leakage from left inner tyre, axle 2 03222 ..... ZBRO ................................Cooling water temperature too high 03223 ..... EBS............................. Pressure control module, left rear axle, pressure sensor outside permitted value range 03223 ..... EHLA...................................................... CAN message 'ETC2' 03223 ..... FFR ........................CAN data bus: Central on-board computer message TIME/DATE, byte 6 03223 ..... TPM ....................Medium leakage from right inner tyre, axle 2 03223 ..... ZBRO ..............................................Cooling water temperature 03224 ..... EBS............................. Pressure control module, left rear axle, time for 'Current pressure' inquiry too long 03224 ..... EHLA...................................................... CAN message 'EBC1' 03224 ..... FFR ........ CAN data bus: Central on-board computer message TIME/DATE, bytes 7 and 8 SD 812a en Page 67 of 203
- 68. SPN.....Control unit/System.............................................. Faultmessage 03224 ..... TPM ....................Medium leakage from right outer tyre, axle 2 03224 ..... ZBRO ................................Cooling water temperature too high 03225 ..... CNG ........................................Requirement adaptation at stop 03225 ..... EBS....Pressure control module, left rear axle, poor ventilation 03225 ..... FFR .... CAN data bus: Retarder message RE_FLUIDS, byte 2 03225 ..... ZBRO ..................................Motronic (accelerator) malfunction 03226 ..... EBS............................. Pressure control module, left rear axle, excessive pressure during pulse test 03226 ..... FFR .... CAN data bus: Retarder message RE_FLUIDS, byte 2 03226 ..... ZBRO ..................................Motronic (accelerator) malfunction 03227 ..... AST .....................................Data field for CAN communication 03227 ..... EBS............................. Pressure control module, left rear axle, residual pressure after braking 03227 ..... FFR .... CAN data bus: Retarder message RE_FLUIDS, byte 3 03227 ..... ZBRO .............................................Engine oil pressure too low 03228 ..... EBS............................. Pressure control module, left rear axle, pressure sensor fault without braking 03228 ..... FFR .... CAN data bus: Retarder message RD_FLUIDS, byte 2 03228 ..... ZBRO ......................................................... Engine oil pressure 03229 ..... EBS.............................. Pressure control module, left rear axle 03229 ..... FFR .... CAN data bus: Retarder message RD_FLUIDS, byte 2 03230 ..... EBS............................. Pressure control module, left rear axle, wheel sensor IC defective 03230 ..... ECAS .......................................................Setpoint level control 03230 ..... EHLA. Signature ECU lids (LID 0x86-0x9F) - advance warning 03230 ..... FFR .... CAN data bus: Retarder message RD_FLUIDS, byte 3 03231 ..... CNG ............................. Charge air pressure governing system 03231 ..... EBS............................. Pressure control module, left rear axle, faulty backup valve checkback 03231 ..... ECAS .......................................................................... Leakage 03231 ..... EHLA.....................Signature ECU lids (LID 0x86-0x9F) - error 03231 ..... FFR ......... CAN data bus: Astronic message TSC1_TE, byte 1 03231 ..... TPM ......................Medium leakage from left outer tyre, axle 3 03231 ..... ZBRO ......................................... Oil replenishment float switch 03232 ..... EBS............................. Pressure control module, left rear axle, faulty intake valve checkback SD 812a en Page 68 of 203
- 69. SPN.....Control unit/System.............................................. Faultmessage 03232 ..... EHLA..........................................Signature variable priority lids (LID 0x40-0x47) - advance warning 03232 ..... FFR ...................................... CAN data bus: Astronic message TSC1_TE, bytes 2 and 3 03232 ..... TPM ...................... Medium leakage from left inner tyre, axle 3 03232 ..... ZBRO ...................................................Oil replenishment valve 03233 ..... EBS............................. Pressure control module, left rear axle, faulty intake and backup valve checkback 03233 ..... EHLA.... Signature variable priority lids (LID 0x40-0x47) - error 03233 ..... FFR ......... CAN data bus: Astronic message TSC1_TE, byte 3 03233 ..... TPM ....................Medium leakage from right inner tyre, axle 3 03233 ..... ZBRO ................................................. Engine oil level (T-CAN) 03234 ..... EBS............................. Pressure control module, left rear axle, faulty outlet valve checkback 03234 ..... FFR ......... CAN data bus: Astronic message TSC1_TE, byte 4 03234 ..... TPM ....................Medium leakage from right outer tyre, axle 3 03234 ..... ZBRO .........................Economy circ. headl. (oil pressure+v<3) 03235 ..... EBS............................. Pressure control module, left rear axle, faulty outlet and backup valve checkback 03235 ..... FFR ............... CAN data bus: EBS message TSC1_AE, byte 0 03235 ..... ZBRO .................................................. DeltecCNG malfunction 03236 ..... EBS................................. Exhaust and intake valve checkback (rear axle left or rear axle) 03236 ..... FFR ... CAN data bus: EBS message TSC1_AE, bytes 1 and 2 03236 ..... ZBRO .................................................. DeltecCNG malfunction 03237 ..... EBS............................. Pressure control module, left rear axle, faulty outlet and intake and backup valve checkback 03237 ..... FFR ............... CAN data bus: EBS message TSC1_AE, byte 3 03237 ..... ZBRO ........................................................EMS3.3 malfunction 03238 ..... EBS.............................. Pressure control module, left rear axle 03238 ..... EHLA...........................................................Air pressure switch 03238 ..... FFR ............... CAN data bus: EBS message TSC1_AE, byte 4 03238 ..... ZBRO ........................................................EMS3.3 malfunction 03239 ..... EBS.............................. Pressure control module, left rear axle 03239 ..... EHLA.................. Actuator test when vehicle moving cancelled s03239 ... FFR .........................CAN databus: Central on-board computer message AUX_ZBR1, bytes 0 and 1 SD 812a en Page 69 of 203
- 70. SPN.....Control unit/System.............................................. Faultmessage 03239 ..... ZBRO ............................................ Fire in engine compartment 03240 ..... EBS............................. Pressure control module, left rear axle, no CAN reception from module 03240 ..... EHLA.................................. Redundant electrical power supply 03240 ..... FFR .........................CAN databus: Central on-board computer message AUX_ZBR1, byte 2 03240 ..... ZBRO ............................................ Fire in engine compartment 03241 ..... EBS............................. Pressure control module, left rear axle, software incompatibility between control unit and pressure control module 03241 ..... EHLA.................. Incorrect operation steering program change 03241 ..... FFR .........................CAN databus: Central on-board computer message AUX_ZBR1, byte 4 03241 ..... TPM ......................Medium leakage from left outer tyre, axle 4 03241 ..... ZBRO ............................Engine control unit activation (T-CAN) 03242 ..... EBS............................. Pressure control module, left rear axle, 12/24 volt incompatibility between control unit and pressure control module 03242 ..... EHLA........................................................ CAN communication 03242 ..... FFR .........CAN databus: ECAS message ECAS1, bytes 5 to 7 03242 ..... TPM ...................... Medium leakage from left inner tyre, axle 4 03242 ..... ZBRO ...........................................Engine oil pressure (T-CAN) 03243 ..... EBS............................. Pressure control module, left rear axle, high cycle protection intake valve active, pressure < 4 bar 03243 ..... EHLA......................... First non-volatile memory is inconsistent 03243 ..... FFR .......................CAN data bus: Message ERC1_RE, byte 1 03243 ..... TPM ....................Medium leakage from right inner tyre, axle 4 03243 ..... ZBRO ...................................Oil replenishment oil level too low 03244 ..... EBS......... Pressure-control module (rear axle left or rear axle) defective, arithmetic test unsuccessful 03244 ..... EHLA.................................................................Lowside switch 03244 ..... FFR ............... CAN data bus: ECAM message ECAM1, byte 4 03244 ..... TPM ....................Medium leakage from right outer tyre, axle 4 03244 ..... ZBRO ...................................Oil replenishment oil level too low 03245 ..... EBS............................. Pressure control module, left rear axle, wheel compensation fault wheel sensor A 03245 ..... EHLA...................................................... Speed limiting system SD 812a en Page 70 of 203
- 71. SPN.....Control unit/System.............................................. Faultmessage 03245 ..... ZBRO .............................................ECE36 emergency shut-off 03246 ..... EBS............................. Pressure control module, left rear axle, wheel compensation fault wheel sensor B 03246 ..... EHLA........................................................... Incorrect operation 03246 ..... ZBRO ........................Cooling water level probe not connected 03247 ..... EBS............................. Pressure control module, left rear axle, electrical power supply fault, axle load sensor 03247 ..... EHLA....................................................Parameters for controls 03247 ..... FFR .................... CAN data bus: Time overrun when receiving ESP message VDC1. 03247 ..... ZBRO ............... Engine oil pressure warning contact not conn. 03248 ..... EBS............................. Pressure control module, left rear axle, pressure differential on pressure control module pair, rear axle 03248 ..... EHLA............................................................... Control, sticking 03248 ..... ZBRO ................EDC malfunction (before 1st starting attempt) 03249 ..... EBS........................................... Redundant pressure rear axle 03249 ..... EHLA...................... Second non-volatile memory, inconsistent 03249 ..... ZBRO ..................................EDC malfunction (engine running) 03250 ..... EBS.............. Pressure control module, right rear axle, no fault 03250 ..... EHLA...................................................... Geometry parameters 03250 ..... FFR .................................. Comfort Shift inputs (CS1 and CS2) 03250 ..... ZBRO ..........................EDC malfunction (starting not possible) 03251 ..... EBS........................... Pressure control module, right rear axle, interruption, short-circuit wheel sensor A 03251 ..... EHLA............................................. Axle movement parameters 03251 ..... FFR ................................................................ RSG/RSL switch 03251 ..... TPM ......................Medium leakage from left outer tyre, axle 5 03251 ..... ZBRO ............................................... Hydro fan oil level too low 03252 ..... EBS........................... Pressure control module, right rear axle, wheel sensor A: Delay too long 03252 ..... EHLA.........................................Steering reduction parameters 03252 ..... FFR .....................................................................Splitter switch 03252 ..... TPM ...................... Medium leakage from left inner tyre, axle 5 03252 ..... ZBRO .......................................................................FFR check 03253 ..... EBS........................... Pressure control module, right rear axle, wheel sensor A: Moving off fault SD 812a en Page 71 of 203
- 72. SPN.....Control unit/System.............................................. Faultmessage 03253 ..... EHLA.................................... Steering suppression parameters 03253 ..... FFR ........................................................................Int. coupling 03253 ..... TPM ....................Medium leakage from right inner tyre, axle 5 03253 ..... ZBRO ................................................................... FFR warning 03254 ..... EBS........................... Pressure control module, right rear axle, wheel sensor A: Clearance too great 03254 ..... EHLA......................................... Axle configuration parameters 03254 ..... FFR ...............................................................................Anf_EH 03254 ..... TPM ....................Medium leakage from right outer tyre, axle 5 03254 ..... ZBRO ............................Cool.w.lev.probe too low or probe n.c. 03255 ..... EBS........................... Pressure control module, right rear axle, perpetual control wheel sensor A 03255 ..... EHLA............................Internal monitoring of software runtime 03255 ..... FFR .........................................................................Input ZDR1 03255 ..... ZBRO ................................... Back pressure CRT filter too high 03256 ..... EBS........................... Pressure control module, right rear axle, long instability wheel sensor A 03256 ..... FFR .........................................................................Input ZDR2 03257 ..... EBS........................... Pressure control module, right rear axle, pulse ring fault wheel sensor A 03257 ..... FFR .........................................................................Input ZDR3 03258 ..... EBS........................... Pressure control module, right rear axle, fault on lifting axle wheel sensor A 03258 ..... FFR ........................................... Input request power take-off 1 03259 ..... EBS............................ Pressure control module, right rear axle 03259 ..... EBS_K1 ...................Brake/impulse wheel/sensor combination rear axle right 03259 ..... FFR ........................................... Input request power take-off 2 03260 ..... EBS............................ Pressure control module, right rear axle 03260 ..... ECAS ....................... Supply voltage / feedback, damper valve 03260 ..... FFR ............................................................. Input ECO / Power 03261 ..... EBS........................... Pressure control module, right rear axle, interruption, short-circuit wheel sensor B 03261 ..... ECAS ................................................. Damper valve, front axle 03261 ..... EHLA................................... Function computer, computer unit 03261 ..... FFR ...................................... Input checkback power take-off 1 SD 812a en Page 72 of 203
- 73. SPN.....Control unit/System.............................................. Faultmessage 03262 ..... EBS........................... Pressure control module, right rear axle, wheel sensor B: Delay too long 03262 ..... ECAS ............................................ Damper valve, 1st rear axle 03262 ..... EHLA................................... Function computer, computer unit 03262 ..... FFR ...................................... Input checkback power take-off 2 03263 ..... EBS........................... Pressure control module, right rear axle, wheel sensor B: Moving off fault 03263 ..... ECAS ...........................................Damper valve, 2nd rear axle 03263 ..... EHLA................................... Function computer, computer unit 03263 ..... FFR ....................................... Input gearbox neutral checkback 03264 ..... EBS........................... Pressure control module, right rear axle, wheel sensor B: Clearance too great 03264 ..... EHLA................................... Function computer, computer unit 03264 ..... FFR ............................................................ Input parking brake 03265 ..... EBS........................... Pressure control module, right rear axle, perpetual control wheel sensor B 03265 ..... EHLA.................................Function computer, parameter area 03265 ..... FFR ......................... Input checkback single H (does not exist) 03266 ..... EBS........................... Pressure control module, right rear axle, long instability wheel sensor B 03266 ..... EHLA................. Function computer, internal program memory 03266 ..... FFR ....................................... Input request engine start / tl. 50 03267 ..... EBS........................... Pressure control module, right rear axle, pulse ring fault wheel sensor B 03267 ..... EHLA........................... Function computer, time measurement 03267 ..... FFR .................................................. Input request engine stop 03268 ..... EBS........................... Pressure control module, right rear axle, fault on lifting axle wheel sensor B 03268 ..... EHLA..........................Function computer, monitoring modules 03269 ..... EBS............................ Pressure control module, right rear axle 03269 ..... EHLA..........................Function computer, monitoring modules 03269 ..... FFR .........................Plausibility message 'Start engine' – input request engine start 03270 ..... EBS........................... Pressure control module, right rear axle, electrical power supply fault, pad wear sensor 03270 ..... EHLA..........................Function computer, monitoring modules 03270 ..... FFR ...CAN message 'Start engine' although engine is running SD 812a en Page 73 of 203
- 74. SPN.....Control unit/System.............................................. Faultmessage 03271 ..... EBS........................... Pressure control module, right rear axle, pad wear sensor A outside permitted value range 03271 ..... EHLA..........................Function computer, monitoring modules 03271 ..... FFR ...................... CAN message 'Start engine' although v > 0 03272 ..... EBS........................... Pressure control module, right rear axle, pad wear sensor B outside permitted value range 03272 ..... EHLA..........................Function computer, monitoring modules 03272 ..... FFR ...................... CAN message 'Start engine' although input gearbox neutral open 03273 ..... EBS........................... Pressure control module, right rear axle, pressure sensor outside permitted value range 03273 ..... EHLA..........................Function computer, monitoring modules 03273 ..... FFR ................ CAN message 'Stop engine' although still v > 0 03274 ..... EBS........................... Pressure control module, right rear axle, time for 'Current pressure' inquiry too long 03274 ..... EHLA..........................Function computer, monitoring modules 03274 ..... FFR ..................Gearbox input speed to gearbox output speed with gearbox in neutral 03275 ..... EBS. Pressure control module, right rear axle, poor ventilation 03275 ..... EHLA..........................Function computer, monitoring modules 03276 ..... EBS........................... Pressure control module, right rear axle, excessive pressure during pulse test 03276 ..... EHLA..........................Function computer, monitoring modules 03277 ..... EBS........................... Pressure control module, right rear axle, residual pressure after braking 03277 ..... EHLA..........................Function computer, monitoring modules 03277 ..... FFR .................................................................. No engine CAN 03278 ..... EBS........................... Pressure control module, right rear axle, pressure sensor fault without braking 03278 ..... EHLA..........................Function computer, monitoring modules 03278 ..... FFR ........................................................................ Input speed 03279 ..... EBS............................ Pressure control module, right rear axle 03279 ..... EHLA.....................................Function computer, safety switch 03279 ..... FFR ................................................................. No speed signal (torque and engine speed limiting initiated) 03280 ..... EBS........................... Pressure control module, right rear axle, wheel sensor IC defective SD 812a en Page 74 of 203
- 75. SPN.....Control unit/System.............................................. Faultmessage 03280 ..... EHLA..........................Function computer, monitoring modules 03280 ..... FFR .... Vehicle management computer cannot be switched off 03281 ..... EBS........................... Pressure control module, right rear axle, faulty backup valve checkback 03281 ..... EHLA................................ Function computer: Digital output 1, switch-on test 03281 ..... FFR ....................Input request single H (group change switch) 03282 ..... EBS........................... Pressure control module, right rear axle, faulty intake valve checkback 03282 ..... EHLA......................... Function computer, digital outputs 2 – 6, switch-on test 03283 ..... EBS........................... Pressure control module, right rear axle, faulty intake and backup valve checkback 03283 ..... EHLA......................... Function computer, digital outputs 2 – 6, switch-on test 03284 ..... EBS........................... Pressure control module, right rear axle, faulty outlet valve checkback 03284 ..... EHLA......................... Function computer, digital outputs 2 – 6, switch-on test 03285 ..... EBS........................... Pressure control module, right rear axle, faulty outlet and backup valve checkback 03285 ..... EHLA......................... Function computer, digital outputs 2 – 6, switch-on test 03286 ..... EBS........................... Pressure control module, right rear axle, faulty outlet and intake valve checkback 03286 ..... EHLA......................... Function computer, digital outputs 2 – 6, switch-on test 03287 ..... EBS........................... Pressure control module, right rear axle, faulty outlet and intake and backup valve checkback 03288 ..... EBS............................ Pressure control module, right rear axle 03289 ..... EBS............................ Pressure control module, right rear axle 03290 ..... EBS........................... Pressure control module, right rear axle, no CAN reception from module 03290 ..... FFR .................................................. Control unit (register test) 03291 ..... EBS........................... Pressure control module, right rear axle, software incompatibility between control unit and pressure control module SD 812a en Page 75 of 203
- 76. SPN.....Control unit/System.............................................. Faultmessage 03291 ..... FFR ......................................................Control unit (arithmetic) 03292 ..... EBS........................... Pressure control module, right rear axle, 12/24 volt incompatibility between control unit and pressure control module 03292 ..... FFR ............................................................. Control unit (RAM) 03293 ..... EBS........................... Pressure control module, right rear axle, high cycle protection intake valve active, pressure < 4 bar 03293 ..... FFR ......................................................Control unit (watchdog) 03294 ..... EBS........................... Pressure control module, right rear axle, arithmetic test not successful 03294 ..... FFR ................................... Control unit (watchdog has tripped) 03295 ..... EBS................................................... Pressure control module, right rear axle, wheel compensation fault wheel sensor A 03295 ..... FFR .................................................... Control unit (RAM page) 03296 ..... EBS................................................... Pressure control module, right rear axle, wheel compensation fault wheel sensor B 03296 ..... FFR ..................................... Control unit (RAM/ROM segment) 03297 ..... EBS................................................... Pressure control module, right rear axle, electrical power supply fault, axle load sensor 03297 ..... FFR ........................................... Control unit (page error ROM) 03298 ..... EBS........................... Pressure control module, right rear axle, pressure differential on pressure control module pair, rear axle 03298 ..... FFR ............................................Control unit (checksum ROM) 03299 ..... CNG .......................................... Pressure sensor surroundings 03299 ..... EBS............................ Pressure control module, right rear axle 03300 ..... EBS...................................Pressure control module E, no fault 03300 ..... FFR .................................................... Control unit or cable line (engine brake output stage) 03300 ..... OBDU..............................................................Alternator speed 03300 ..... ZBR2............................................................ Alternator / starter 03300 ..... ZBRO ..................................................................... Engine revs 03301 ..... EBS................................................Pressure control module E, interruption, short-circuit wheel sensor A SD 812a en Page 76 of 203
- 77. SPN.....Control unit/System.............................................. Faultmessage 03301 ..... FFR ..................................................Control unit or peripherals (output stage, clutch servo) 03301 ..... OBDU...................................... Engine oil temperature too high 03301 ..... ZBR2...................................................................Alternator tl. L 03302 ..... EBS................................................Pressure control module E, wheel sensor A: Delay too long 03302 ..... FFR .................................................... Control unit or cable line (power take-off 1 output stage) 03302 ..... ZBR2......................................................... Alternator B+ sense 03303 ..... EBS................................................Pressure control module E, wheel sensor A: Moving off fault 03303 ..... FFR .................................................... Control unit or cable line (power take-off 2 output stage) 03303 ..... ZBR2........................................... Engine running (= signal D+) 03303 ..... ZBRO ................................................................Engine running 03304 ..... EBS................................................Pressure control module E, wheel sensor A: Clearance too great 03304 ..... FFR .................................................... Control unit or cable line (thermostat heater output stage) 03304 ..... OBDU.................................................... EDC boiling protection 03305 ..... EBS................................................Pressure control module E, perpetual control wheel sensor A 03305 ..... FFR ........... Control unit or cable line (high range output stage) 03306 ..... EBS................................................Pressure control module E, long instability wheel sensor A 03306 ..... FFR ............ Control unit or cable line (low range output stage) 03306 ..... OBDU......................Thermostat in cooling system defective or too much heat being taken (heater) 03307 ..... EBS................................................Pressure control module E, pulse ring fault wheel sensor A 03308 ..... EBS................................................Pressure control module E, fault on lifting axle wheel sensor A 03308 ..... FFR ......... Control unit or cable line (earth group output stage) 03309 ..... EBS.................................................Pressure control module E 03309 ..... EBS_K1 ..................................................Brake/impulse wheel/ sensor combination additional axle left 03309 ..... FFR ........ Control unit or cable line (earth splitter output stage) SD 812a en Page 77 of 203
- 78. SPN.....Control unit/System.............................................. Faultmessage 03310 ..... EBS.................................................Pressure control module E 03310 ..... FFR .........................................................................Ride height 03311 ..... EBS................................................Pressure control module E, interruption, short-circuit wheel sensor B 03311 ..... FFR .................................... Control unit (EEPROM checksum) 03311 ..... KSM ...............................................Cooling water temperature. 03311 ..... OBDU................................Cooling water temperature too high 03311 ..... TPM ....................... Severe leakage from left outer tyre, axle 1 03312 ..... EBS................................................Pressure control module E, wheel sensor B: Delay too long 03312 ..... TPM ....................... Severe leakage from left inner tyre, axle 1 03313 ..... EBS................................................Pressure control module E, wheel sensor B: Moving off fault 03313 ..... TPM ..................... Severe leakage from right inner tyre, axle 1 03313 ..... ZBRO ............................ Econ. circ. heat./airc. (altern. running) 03314 ..... EBS................................................Pressure control module E, wheel sensor B: Clearance too great 03314 ..... TPM ..................... Severe leakage from right outer tyre, axle 1 03314 ..... ZBRO .................................. Economy circuit workshop jumper 03315 ..... EBS................................................Pressure control module E, perpetual control wheel sensor B 03315 ..... ZBRO ...................................... Charge check alternator LIMA1 03316 ..... EBS................................................Pressure control module E, long instability wheel sensor B 03316 ..... ZBRO ......................................Starter start interlock repeat rel. 03317 ..... EBS................................................Pressure control module E, pulse ring fault wheel sensor B 03317 ..... ZBRO ................................Roller-type sw. 1 start interr. (open) 03318 ..... EBS................................................Pressure control module E, fault on lifting axle wheel sensor B 03318 ..... ZBRO ............................. Roller-type sw. 2 start interr. (closed) 03319 ..... CNG ...........................Throttle butterfly actuator minimum stop 03319 ..... EBS.................................................Pressure control module E 03319 ..... ZBRO ........................................ Alternator LIMA1 not charging 03320 ..... EBS................................................Pressure control module E, electrical power supply fault, pad wear sensor 03320 ..... ZBRO ...................................... Charge check alternator LIMA2 SD 812a en Page 78 of 203
- 79. SPN.....Control unit/System.............................................. Faultmessage 03321 ..... EBS................................................Pressure control module E, pad wear sensor A outside permitted value range 03321 ..... TPM ....................... Severe leakage from left outer tyre, axle 2 03321 ..... ZBRO ........................................ Alternator LIMA2 not charging 03322 ..... CNG ...........................................Crankshaft to camshaft signal 03322 ..... EBS................................................Pressure control module E, pad wear sensor B outside permitted value range 03322 ..... TPM ....................... Severe leakage from left inner tyre, axle 2 03322 ..... ZBRO ..........................................................Engine start in rear 03323 ..... EBS................................................Pressure control module E, pressure sensor outside permitted value range 03323 ..... TPM ..................... Severe leakage from right inner tyre, axle 2 03323 ..... ZBRO ..........................................................Engine stop in rear 03324 ..... EBS................................................Pressure control module E, time for 'Current pressure' inquiry too long 03324 ..... TPM ..................... Severe leakage from right outer tyre, axle 2 03324 ..... ZBRO ...................................... Roller-type sw. start interr. fault 03325 ..... CNG ............................ Crankshaft to camshaft signal (bank 2) 03325 ..... EBS...................... Pressure control module E, poor ventilation 03325 ..... ZBRO ..........................Fuel tank flap (start interlock/eng. stop) 03326 ..... EBS................................................Pressure control module E, excessive pressure during pulse test 03326 ..... ZBRO ....................................... Engine compartment flap open 03327 ..... EBS................................................Pressure control module E, residual pressure after braking 03327 ..... ZBRO ............................Gearb. n. neutral (starting impossible) 03328 ..... EBS................................................Pressure control module E, pressure sensor fault without braking 03328 ..... OUZBRO............................. Start interruption via fuel tank flap 03328 ..... ZBRO .................................. Start interruption via fuel tank flap 03329 ..... CNG ........................................... Suction pipe pressure sensor 03329 ..... EBS.................................................Pressure control module E 03329 ..... ZBRO .............................................................Engine start front 03330 ..... EBS..... Pressure control module E, wheel sensor IC defective 03330 ..... ZBRO .............................................................Engine stop front 03331 ..... EBS................................................Pressure control module E, faulty backup valve checkback SD 812a en Page 79 of 203
- 80. SPN.....Control unit/System.............................................. Faultmessage 03331 ..... TPM ....................... Severe leakage from left outer tyre, axle 3 03331 ..... ZBRO ................................Roller-type sw. 3 start interr. (open) 03332 ..... EBS Pressure control module E, faulty intake valve checkback 03332 ..... TPM ....................... Severe leakage from left inner tyre, axle 3 03332 ..... ZBRO ............................. Roller-type sw. 4 start interr. (closed) 03333 ..... EBS................................................Pressure control module E, faulty intake and backup valve checkback 03333 ..... TPM ..................... Severe leakage from right inner tyre, axle 3 03333 ..... ZBRO .................................................... Central front flap open 03334 ..... EBS................................................Pressure control module E, faulty outlet valve checkback 03334 ..... TPM ..................... Severe leakage from right outer tyre, axle 3 03334 ..... ZBRO .................................. Roller-type sw. start interr. fault fr. 03335 ..... EBS................................................Pressure control module E, faulty outlet and backup valve checkback 03335 ..... ZBR2.... Voltage specification not possible (alternator / starter) 03336 ..... EBS................................................Pressure control module E, faulty outlet and intake valve checkback 03336 ..... ZBRO .............................................. Supply compartment open 03337 ..... EBS................................................Pressure control module E, faulty outlet and intake and backup valve checkback 03337 ..... ZBRO .................................. Roller-type sw. start interr. fault fr. 03338 ..... EBS.................................................Pressure control module E 03338 ..... ZBRO .............................................................. Start interrupted 03339 ..... EBS.................................................Pressure control module E 03339 ..... ZBRO ............................................................... Flap 1 left open 03340 ..... EBS................................................Pressure control module E, no CAN reception from module 03340 ..... ZBRO ............................................................... Flap 2 left open 03341 ..... EBS................................................Pressure control module E, software incompatibility between control unit and pressure control module 03341 ..... EBS_K1 ..........................Software statuses of control unit and pressure-control module (additional axle left or additional axle) do not match 03341 ..... TPM ....................... Severe leakage from left outer tyre, axle 4 03341 ..... ZBRO ............................................................. Flap 2 right open SD 812a en Page 80 of 203
- 81. SPN.....Control unit/System.............................................. Faultmessage 03342 ..... EBS................................................Pressure control module E, 12/24 volt incompatibility between control unit and pressure control module 03342 ..... TPM ....................... Severe leakage from left inner tyre, axle 4 03342 ..... ZBRO ............................................................... Flap 3 left open 03343 ..... EBS................................................Pressure control module E, high cycle protection intake valve active, pressure < 4 bar 03343 ..... TPM ..................... Severe leakage from right inner tyre, axle 4 03343 ..... ZBRO ............................................................... Flap 4 left open 03344 ..... EBS................................................Pressure control module E, arithmetic test not successful 03344 ..... TPM ..................... Severe leakage from right outer tyre, axle 4 03344 ..... ZBRO .............................................................Battery flap open 03345 ..... EBS................................................Pressure control module E, wheel compensation fault wheel sensor A 03345 ..... ZBRO ...................................................... Flap in rear flap open 03346 ..... EBS................................................Pressure control module E, wheel compensation fault wheel sensor B 03346 ..... ZBRO ..........................................................Engine stop in rear 03347 ..... EBS................................................Pressure control module E, electrical power supply fault, axle load sensor 03348 ..... EBS................................................Pressure control module E, pressure differential on pressure control module pair, rear axle 03349 ..... EBS.................................................Pressure control module E 03350 ..... EBS................................... Pressure control module F, no fault 03351 ..... EBS................................................Pressure control module F, interruption, short-circuit wheel sensor A 03351 ..... TPM ....................... Severe leakage from left outer tyre, axle 5 03352 ..... EBS................................................Pressure control module F, wheel sensor A: Delay too long 03352 ..... TPM ....................... Severe leakage from left inner tyre, axle 5 03353 ..... CNG ................................Pressure sensor charge air pressure 03353 ..... EBS................................................Pressure control module F, wheel sensor A: Moving off fault 03353 ..... TPM ..................... Severe leakage from right inner tyre, axle 5 SD 812a en Page 81 of 203
- 82. SPN.....Control unit/System.............................................. Faultmessage 03354 ..... EBS................................................Pressure control module F, wheel sensor A: Clearance too great 03354 ..... TPM ..................... Severe leakage from right outer tyre, axle 5 03355 ..... EBS................................................Pressure control module F, perpetual control wheel sensor A 03355 ..... TPM ...........................................................LID checksum error 03356 ..... CNG ..........................Lambda control adaptation multiplicative lower range (bank 1) 03356 ..... EBS................................................Pressure control module F, long instability wheel sensor A 03357 ..... CNG ..........................Lambda control adaptation multiplicative upper range (bank 1) 03357 ..... EBS................................................Pressure control module F, pulse ring fault wheel sensor A 03358 ..... EBS................................................Pressure control module F, fault on lifting axle wheel sensor A 03359 ..... EBS.................................................Pressure control module F 03359 ..... EBS_K1 ..................................................Brake/impulse wheel/ sensor combination additional axle right 03360 ..... CNG .............. Lambda control adaptation leakage air (bank 1) 03360 ..... EBS.................................................Pressure control module F 03361 ..... EBS................................................Pressure control module F, interruption, short-circuit wheel sensor B 03361 ..... EHLA..........................Function computer, monitoring modules 03362 ..... CNG .......................... Lambda control adaptation fuel (bank 1) 03362 ..... EBS................................................Pressure control module F, wheel sensor B: Delay too long 03362 ..... EHLA..........................Function computer, monitoring modules 03363 ..... EBS................................................Pressure control module F, wheel sensor B: Moving off fault 03363 ..... EHLA..........................Function computer, monitoring modules 03364 ..... EBS................................................Pressure control module F, wheel sensor B: Clearance too great 03364 ..... EHLA..........................Function computer, monitoring modules 03365 ..... EBS................................................Pressure control module F, perpetual control wheel sensor B 03365 ..... EHLA..........................Function computer, monitoring modules SD 812a en Page 82 of 203
- 83. SPN.....Control unit/System.............................................. Faultmessage 03366 ..... EBS................................................Pressure control module F, long instability wheel sensor B 03367 ..... EBS................................................Pressure control module F, pulse ring fault wheel sensor B 03368 ..... EBS................................................Pressure control module F, fault on lifting axle wheel sensor B 03368 ..... EHLA...............................Function computer, overtemperature 03369 ..... EBS.................................................Pressure control module F 03369 ..... EHLA..........................Function computer, monitoring modules 03370 ..... EBS................................................Pressure control module F, electrical power supply fault, pad wear sensor 03370 ..... EHLA..........................Function computer, monitoring modules 03371 ..... EBS................................................Pressure control module F, pad wear sensor A outside permitted value range 03371 ..... EHLA..........................Function computer, monitoring modules 03372 ..... EBS................................................Pressure control module F, pad wear sensor B outside permitted value range 03372 ..... EHLA..........................Function computer, monitoring modules 03373 ..... EBS................................................Pressure control module F, pressure sensor outside permitted value range 03373 ..... EHLA..........................Function computer, monitoring modules 03374 ..... EBS................................................Pressure control module F, time for 'Current pressure' inquiry too long 03374 ..... EHLA. Function computer, reference voltage outside tolerance 03375 ..... EBS...................... Pressure control module F, poor ventilation 03376 ..... EBS................................................Pressure control module F, excessive pressure during pulse test 03376 ..... EHLA..........................Function computer, monitoring modules 03377 ..... EBS................................................Pressure control module F, residual pressure after braking 03378 ..... EBS................................................Pressure control module F, pressure sensor fault without braking 03379 ..... EBS.................................................Pressure control module F 03380 ..... EBS................................................Pressure control module F, wheel sensor IC defective 03381 ..... EBS................................................Pressure control module F, faulty backup valve checkback SD 812a en Page 83 of 203
- 84. SPN.....Control unit/System.............................................. Faultmessage 03381 ..... EHLA..................................Function computer, digital output 1 03382 ..... CNG .........................Circuit trailing throttle circulating air valve 03382 ..... EBS................................................Pressure control module F, faulty intake valve checkback 03382 ..... EHLA......... Function computer, digital outputs 2 – 6, operation 03383 ..... EBS................................................Pressure control module F, faulty intake and backup valve checkback 03383 ..... EHLA......... Function computer, digital outputs 2 – 6, operation 03384 ..... EBS................................................Pressure control module F, faulty outlet valve checkback 03384 ..... EHLA......... Function computer, digital outputs 2 – 6, operation 03385 ..... EBS................................................Pressure control module F, faulty outlet and backup valve checkback 03385 ..... EHLA......... Function computer, digital outputs 2 – 6, operation 03386 ..... EBS................................................Pressure control module F, faulty outlet and intake valve checkback 03386 ..... EHLA......... Function computer, digital outputs 2 – 6, operation 03387 ..... EBS................................................Pressure control module F, faulty outlet and intake and backup valve checkback 03388 ..... EBS.................................................Pressure control module F 03389 ..... EBS.................................................Pressure control module F 03390 ..... EBS................................................Pressure control module F, no CAN reception from module 03391 ..... EBS................................................Pressure control module F, software incompatibility between control unit and pressure control module 03392 ..... EBS................................................Pressure control module F, 12/24 volt incompatibility between control unit and pressure control module 03393 ..... EBS................................................Pressure control module F, high cycle protection intake valve active, pressure < 4 bar 03394 ..... EBS................................................Pressure control module F, arithmetic test not successful 03395 ..... EBS................................................Pressure control module F, wheel compensation fault wheel sensor A SD 812a en Page 84 of 203
- 85. SPN.....Control unit/System.............................................. Faultmessage 03396 ..... EBS................................................Pressure control module F, wheel compensation fault wheel sensor B 03397 ..... EBS................................................Pressure control module F, electrical power supply fault, axle load sensor 03398 ..... EBS................................................Pressure control module F, pressure differential on pressure control module pair, rear axle 03399 ..... EBS.................................................Pressure control module F 03400 ..... EBS.......................................... Trailer control module, no fault 03400 ..... ZBR2............................................... Flame start solenoid valve 03401 ..... EBS......................... Trailer control module control electronics, unknown µC interrupt, µC self-test, RAM or ROM test 03401 ..... OBDU................................Engine oil level too high/low (static) 03401 ..... ZBR2.............................................................. Flame start relay 03402 ..... CNG ................................... Throttle butterfly position deviation 03402 ..... EBS........................................................ Trailer control module 03402 ..... OBDU................................. Engine oil level too high (dynamic) 03402 ..... ZBR2...................................................Flame glow plug current 03403 ..... CNG ....................... Throttle butterfly output stage switched off 03403 ..... EBS......................... Trailer control module control electronics, EEPROM, too many write accesses 03403 ..... OBDU...................................Engine oil level too low (dynamic) 03403 ..... ZBR2...................................................Flame glow plug current 03404 ..... CNG ..................................... Throttle butterfly controller in limit 03404 ..... EBS......................... Trailer control module control electronics, EEPROM, checksum fault or EOL data invalid 03404 ..... OBDU............................................. Cooling water level too low 03405 ..... CNG ...............................................Monitoring computer; ROM 03405 ..... EBS......................... Trailer control module control electronics, EEPROM, too many data repairs required 03406 ..... CNG ............................................... Monitoring computer; RAM 03406 ..... EBS......................... Trailer control module control electronics, EEPROM, monitoring time exceeded when writing data 03407 ..... CNG ............................................... Monitoring computer; reset 03407 ..... EBS........................................................ Trailer control module 03407 ..... OBDU............................... Oil level in power steering 1 too low SD 812a en Page 85 of 203
- 86. SPN.....Control unit/System.............................................. Faultmessage 03408 ..... CNG ............................Monitoring function; torque comparison 03408 ..... EBS......................... Trailer control module control electronics, EEPROM, fault in dynamic parameter setting 03408 ..... OBDU............................... Oil level in power steering 2 too low 03409 ..... CNG ............................ Monitoring function; safety fuel shut-off 03409 ..... EBS....... Trailer control module control electronics, EEPROM, dynamic parameters outside permitted value range 03410 ..... CNG ..............................................Throttle butterfly error when checking limp-home air position 03410 ..... EBS........................................................ Trailer control module 03410 ..... OBDU.................................................... Clutch oil level too low 03411 ..... CNG ...................... Throttle butterfly error in booster balancing 03411 ..... EBS........................................................ Trailer control module 03411 ..... FFR ................... Gearbox output speed out of permitted range 03412 ..... CNG ................ Throttle butterfly error in spring check 'Closing' 03412 ..... EBS........................................................ Trailer control module 03412 ..... FFR ............................. Range-change neutral switch indicates 'Neutral' - Power take-off neutral switch indicates 'Not Neutral' 03413 ..... CNG ..........................................Throttle butterfly learning error when ignition on/off 03413 ..... EBS........................................................ Trailer control module 03413 ..... FFR ............................. Range-change neutral switch indicates 'Not Neutral' - Power take-off neutral switch indicates 'Neutral' 03414 ..... EBS........................................................ Trailer control module 03414 ..... FFR ..................Output stage lamp FGB (driving speed limiter) 03415 ..... EBS........................................................ Trailer control module 03415 ..... FFR ...................................CAN data bus, oil sensor message: Temperature rise not plausible although engine is warm (> 60 °C) 03416 ..... EBS........ Trailer control module, fault in coupling force control 03416 ..... FFR ...................................CAN data bus, oil sensor message: Oil level drop not plausible although engine is running 03417 ..... EBS........................................................ Trailer control module SD 812a en Page 86 of 203
- 87. SPN.....Control unit/System.............................................. Faultmessage 03417 ..... FFR ............................. Range-change neutral switch indicates 'Not Neutral' - Power take-off neutral switch indicates 'Neutral' 03418 ..... EBS........................................................ Trailer control module 03419 ..... EBS................. Trailer control module, fault in earth estimation 03420 ..... EBS........................................................ Trailer control module 03421 ..... EBS........................................................ Trailer control module 03421 ..... EBS_K1 ............... Pressure sensor supply trailer control valve 03421 ..... EHLA.................................... Function computer, digital input 1 03422 ..... EBS................Trailer control module, pressure sensor outside permitted value range 03422 ..... EBS_K1 .........................Pressure sensor supply trailer control valve outside the permitted range 03422 ..... EHLA.................................... Function computer, digital input 2 03423 ..... EBS..................... Trailer control module, implausible pressure sensor value when braking was not taking place 03423 ..... EHLA.................................... Function computer, digital input 3 03424 ..... EBS........................................................ Trailer control module 03424 ..... EHLA.................................... Function computer, digital input 4 03425 ..... EBS...................... Trailer control module, pressure dissipation too slow and fault on parking brake switch 03426 ..... EBS.................. Trailer control module, residual pressure after pressure dissipation greater than threshold value on parking brake switch 03427 ..... EBS......Trailer control module, residual pressure after braking 03428 ..... EBS........................................................ Trailer control module 03429 ..... EBS........................................................ Trailer control module 03430 ..... CNG ...................................... Throttle butterfly potentiometer 1 03430 ..... EBS...................................Trailer control valve; solenoid valve 03430 ..... FFR .....................CAN databus: Timeout when receiving KSM message KSM1 03431 ..... CNG ...................................... Throttle butterfly potentiometer 2 03431 ..... EBS..... Trailer control module, faulty backup valve checkback 03431 ..... FFR ..........CAN databus: KSM message KSM1, bytes 2 and 3 03432 ..... EBS....... Trailer control module, faulty intake valve checkback 03432 ..... FFR ......................CAN databus: KSM message KSM1, byte 4 03433 ..... EBS.................... Trailer control valve; solenoid valve feed line SD 812a en Page 87 of 203
- 88. SPN.....Control unit/System.............................................. Faultmessage 03433 ..... FFR ......................CAN databus: KSM message KSM1, byte 5 03434 ..... EBS........ Trailer control module, faulty outlet valve checkback 03434 ..... FFR ......................CAN databus: KSM message KSM1, byte 8 03435 ..... EBS_K1 ...........Trailer control valve; solenoid valve return line 03435 ..... FFR .. Engine start requested although vehicle speed > 0 km/h 03436 ..... EBS...................... Trailer control module, fault from outlet and intake valve checkback 03436 ..... FFR ........................................ Engine start requested although gearbox not in neutral position 03437 ..... EBS........................................................ Trailer control module 03437 ..... FFR .. Engine start requested although vehicle speed > 0 km/h 03438 ..... EBS........................................................ Trailer control module 03439 ..... EBS........................................................ Trailer control module 03440 ..... EBS..................Trailer control module, no CAN reception from trailer control module 03441 ..... EBS................. Trailer control module, software incompatibility between control unit and trailer control module 03442 ..... EBS............... Trailer control module, 12/24 volt incompatibility between control unit and trailer control module 03443 ..... EBS...........Trailer control module, high cycle protection intake valve active, pressure < 4 bar 03444 ..... EBS........ Trailer control module, arithmetic test not successful 03445 ..... EBS................................ Trailer control module, impermissible pressure on coupling head 03446 ..... EBS........................................................ Trailer control module 03447 ..... EBS........................................................ Trailer control module 03448 ..... EBS........ Trailer control module, pressure differential between pressure control modules and trailer control module 03449 ..... EBS........................................................ Trailer control module 03449 ..... FFR .............. Exhaust backpressure is measured although the exhaust valve brake control valve is not activated 03450 ..... FFR ....................................................... Exhaust backpressure (plausibility pressure - valve control) 03451 ..... EBS...........................................ESP, internal control unit error 03453 ..... EBS................................ ESP, checkback, voltage implausible 03455 ..... EBS................................................ESP configuration not valid 03456 ..... EBS.....................................ESP, EEPROM, checksum invalid SD 812a en Page 88 of 203
- 89. SPN.....Control unit/System.............................................. Faultmessage 03457 ..... EBS................................ ESP, EEPROM, parameter defective 03457 ..... FFR .................... CAN data bus: Time overrun when receiving ACC message TSC1-ACC. 03457 ..... HDS ................................................................Urea tank empty 03458 ..... EBS........................... ESP, EEPROM, parameter out-of-range 03458 ..... FFR ....................... CAN data bus: ACC message TSC1-ACC, bytes 1 and 2 03459 ..... EBS................................... ESP, EEPROM, not programmable 03459 ..... FFR ....................... CAN data bus: ACC message TSC1-ACC, bytes 4 and 5 03460 ..... FFR .................... CAN data bus: Time overrun when receiving ACC message ACC1. 03461 ..... EBS......................................... ESP EOL data in the EBS ECU not compatible with ESP software version 03461 ..... EHLA..........Function computer, analog inputs 1 – 4, operation 03461 ..... FFR ....................... CAN data bus: ACC message ACC, byte 4 03462 ..... EHLA..........Function computer, analog inputs 1 – 4, operation 03462 ..... FFR ......................................... CAN data bus: Time overrun of gearbox message TSC1-TRX 03463 ..... EHLA..........Function computer, analog inputs 1 – 4, operation 03463 ..... FFR .............................. DNR switch: No neutral position found 03464 ..... EHLA..........Function computer, analog inputs 1 – 4, operation 03467 ..... EBS... ESP, lateral acceleration sensor out of permitted range 03467 ..... FFR ....... CAN databus: Time overrun message EEC1-CM570 03468 ..... FFR ....... CAN databus: Time overrun message EEC2-CM570 03469 ..... EBS...... ESP, lateral acceleration sensor, long-time alignment 03469 ..... FFR ....... CAN databus: Time overrun message EEC3-CM570 03470 ..... EBS....... ESP, lateral acceleration sensor, standstill alignment 03470 ..... FFR ...............................CAN databus: Time overrun message ERC1_RE-CM570 03471 ..... EBS.......................................ESP, lateral acceleration sensor, plausibility monitoring valid for model 03471 ..... FFR CAN databus: Time overrun message ENG_TEMP-M570 03472 ..... EBS.......................................ESP, lateral acceleration sensor, plausibility monitoring not valid for model 03472 ..... FFR ...............................CAN databus: Time overrun message FUEL_ECO-CM570 SD 812a en Page 89 of 203
- 90. SPN.....Control unit/System.............................................. Faultmessage 03473 ..... EBS.........................ESP, steering angle sensor not calibrated 03473 ..... FFR ...............................CAN databus: Time overrun message INL_EXH_COND_CM570 03474 ..... EBS......................... ESP, steering angle sensor, CAN timeout 03474 ..... FFR ...............................CAN databus: Time overrun message ENG_FL_LV_PR_CM570 03475 ..... EBS........... ESP, steering angle sensor out of permitted range 03475 ..... FFR ............................CAN databus: Message ECAM1, byte 1 03476 ..... EBS.............................................. ESP, steering angle sensor, defective CAN message content 03476 ..... FFR ............................CAN databus: Message ECAM1, byte 2 03477 ..... EBS........................ESP, steering angle sensor, gradient error 03477 ..... FFR ............................CAN databus: Message ECAM1, byte 3 03478 ..... EBS.............. ESP, steering angle sensor, long-time alignment 03478 ..... FFR .................... CAN databus: Time overrun message KSM2 03479 ..... EBS..................... ESP, steering angle sensor, constant signal 03479 ..... FFR ................ CAN databus: Time overrun message ASC1_A 03480 ..... EBS.............. ESP, steering angle sensor incorrectly mounted, incorrect steering angle sign 03480 ..... FFR ................ CAN databus: Time overrun message ASC1_B 03481 ..... EBS........... ESP, steering angle sensor, plausibility monitoring between steering angle and rotational speed 03483 ..... EBS...................... ESP, rotational speed sensor, CAN timeout 03484 ..... EBS.................................. ESP, rotational speed sensor signal out of permitted range 03485 ..... EBS........................................... ESP, rotational speed sensor, defective CAN message content 03486 ..... EBS................ ESP, rotational speed sensor, static BITE error 03487 ..... EBS........... ESP, rotational speed sensor, dynamic BITE error 03488 ..... EBS........................ESP, steering angle sensor, gradient error 03490 ..... EBS.................... ESP, rotational speed sensor, fast alignment 03491 ..... EBS............ESP, rotational speed sensor, standstill alignment 03492 ..... EBS...............ESP, rotational speed sensor, normal alignment 03493 ..... EBS.................. ESP, rotational speed sensor, sensitivity error 03494 ..... EBS........................................... ESP, rotational speed sensor, plausibility monitoring valid for model SD 812a en Page 90 of 203
- 91. SPN.....Control unit/System.............................................. Faultmessage 03495 ..... EBS........................................... ESP, rotational speed sensor, plausibility monitoring not valid for model 03496 ..... EBS............................................ ESP, rotational speed sensor incorrectly mounted, incorrect steering angle sign 03497 ..... EBS........................................... ESP, rotational speed sensor, plausibility monitoring between rotational speed and steering angle 03500 ..... EBS............................ ESP, no CAN communication with ESP 03500 ..... FFR ...............................CAN databus: Time overrun message RET_CONF_RX_M 03500 ..... KSM ...........................................................First faulty EOL LID 03500 ..... ZBR2................................................... Brake (ABS/ASR/ EBS) 03501 ..... EBS............................................... ESP, software incompatible 03501 ..... FFR ........ CAN databus: Time overrun message ERC1_RX_M 03501 ..... OBDU....................................... Alternator charge check failure 03501 ..... ZBR2.............................. Electrical power supply to trailer ABS 03502 ..... EBS..................................ESP, 12/24V incompatible with EBS 03502 ..... FFR ......... CAN databus: Time overrun message TANK_INFO 03502 ..... OBDU............................................... Charging voltage too high 03502 ..... ZBR2.................................................. Brake lamp, tractive unit 03502 ..... ZBRO ......................................................................Brake lamp 03503 ..... FFR ..... CAN databus: Time overrun message ENG_TEMP_M 03503 ..... OBDU..............................Vehicle system voltage often too low 03503 ..... ZBR2......................................................... Brake lamp in trailer 03503 ..... ZBRO ............................................................Brake lamp trailer 03504 ..... EBS.......................................................... ESP, ALU test failed 03504 ..... FFR ...............................CAN databus: Time overrun message ENG_TEMP_M_TIMEOUT_SPN 03504 ..... OBDU................. Battery undervoltage after vehicle parked up 03505 ..... EBS...............................................ESP, output stage defective 03505 ..... FFR ................CAN databus: Time overrun message EFLP_M 03505 ..... OBDU........................... Charge voltage too low for long period when engine running 03506 ..... EBS.......................................... ESP, intervention not plausible 03506 ..... FFR ......CAN databus: Time overrun message FUEL_ECO_M 03506 ..... OBDU..........................Vehicle system voltage too low for long period when engine running SD 812a en Page 91 of 203
- 92. SPN.....Control unit/System.............................................. Faultmessage 03506 ..... ZBRO .......................................................Battery undervoltage 03507 ..... ZBRO ...................................................Starting interlock active 03508 ..... ZBRO ...................................................Starting interlock active 03509 ..... ZBRO ................................................ Starting interlock request 03510 ..... OBDU........................................................... Retarder actuated 03510 ..... ZBRO ...........................................................ASR button/switch 03511 ..... OBDU....................................................Engine brake operated 03511 ..... ZBRO ...........................................................ASR button/switch 03512 ..... EBS.................. OBD, request, red warning lamp for diagnosis 03512 ..... OBDU....................................................... Brake pedal pressed 03512 ..... ZBRO ........................................................... ASR control (INA) 03513 ..... EBS............. OBD, request, yellow warning lamp for diagnosis 03513 ..... ZBRO ............................................................. ASR check lamp 03514 ..... ZBRO .......................................ASR control (brake via T-CAN) 03515 ..... EBS......................................... OBD, brake wear sensor signal 03515 ..... ZBRO ..................................... ASR control (engine via T-CAN) 03516 ..... EBS..........................................OBD, trailer EBS has no errors 03516 ..... EBS_5............................................. Request red warning light, ISO 11992 trailer interface 03516 ..... EBS_K1 .......................................... Request red warning light, ISO 11992 trailer interface 03516 ..... ZBRO ...............................................ASR check not connected 03517 ..... EBS....................................... OBD, voltage too high or too low 03517 ..... ZBRO .......................................................... ASR interface fault 03518 ..... EBS...........................OBD, trailer interface in single line mode 03518 ..... ZBRO ................................................ Brake pad wear indicator 03519 ..... EBS.............................OBD, wheel speed sensor, error during the last switch-on cycle 03519 ..... ZBRO ........................................ Brake pressure brake circuit 1 03520 ..... EBS................................. OBD, limit gap speed, warning level, repeated every second 03520 ..... ZBRO ........................................ Brake pressure brake circuit 2 03521 ..... EBS........................................OBD, frequent-stop brake active 03521 ..... ZBRO ...........................................Brake pressure rear axle left 03522 ..... EBS..........................OBD, chassis dynamometer mode active 03522 ..... ZBRO .........................................Brake pressure rear axle right 03523 ..... ZBRO ....................................... Brake pressure centre axle left SD 812a en Page 92 of 203
- 93. SPN.....Control unit/System.............................................. Faultmessage 03524 ..... ZBRO ..................................... Brake pressure centre axle right 03525 ..... EBS......................................... OBD, external wheel alignment (speedo signal/speed sensor) 03525 ..... ZBRO .......................................... Brake pressure front axle left 03526 ..... EBS................................. OBD, alignment, lateral acceleration sensor not completed 03526 ..... ZBRO ........................................Brake pressure front axle right 03527 ..... EBS..............................................OBD, steering angle sensor, fast alignment not completed 03527 ..... ZBRO ....................................................................... Brake light 03528 ..... EBS..........OBD, ESP control unit overvoltage or undervoltage 03528 ..... ZBRO ...........................................................Brake lamp centre 03529 ..... EBS......................................................... OBD, ESP is passive 03529 ..... EBS_K1 .............. Fault in trailer control valve pressure control during most recent ignition on cycle 03529 ..... ZBRO ................................................................ Brake lamp left 03530 ..... EBS.................................Fault in pressure control during most recent ignition on cycle 03530 ..... ZBRO ..............................................................Brake lamp right 03531 ..... EBS................................Fault in redundant circuit during most recent ignition on cycle 03531 ..... ZBRO ...................................................... Brake lamp trailer left 03532 ..... EBS................................... Incorrect tyre diameter during most recent ignition on cycle, short-term tyre monitoring 03532 ..... ZBRO ....................................................Brake lamp trailer right 03533 ..... ZBRO ......................................... Brake pedal position (0...250) 03534 ..... ZBRO ........................................ EBS brake pad wear indicator 03535 ..... ZBRO ........................................ EBS brake pad wear indicator 03536 ..... ZBRO ........................................................... EBS check yellow 03537 ..... ZBRO ........................................................... EBS check yellow 03538 ..... ZBRO ....................................EBS check yellow not connected 03539 ..... ZBRO ......................................................EBS air gap too large 03540 ..... ZBRO ................................................................ EBS check red 03541 ..... ZBRO .........................................EBS check red not connected 03542 ..... ZBRO .................................................. EBS malfunction prio. 1 03543 ..... ZBRO ...................................... EBS reservoir pressure too low 03544 ..... ZBRO .............................. Spring-loaded accumulator reservoir SD 812a en Page 93 of 203
- 94. SPN.....Control unit/System.............................................. Faultmessage 03545 ..... ZBRO .............................. Spring-loaded accumulator reservoir 03546 ..... ZBRO ....................................... Parking brake 1 5.8 bar (open) 03547 ..... ZBRO .......................................Parking brake 2 0.8 bar (close) 03548 ..... ZBRO ................................................................Bus-stop brake 03549 ..... ZBRO ................................................................Bus-stop brake 03550 ..... ZBRO ............. Buzzer engage parking brake/door malfunction 03551 ..... ZBRO .................................................. ABS active (via T-CAN) 03552 ..... ZBRO ..................................................... Malfunction ABS/ASR 03553 ..... ZBRO ..........................................Check malfunction ABS/ASR 03554 ..... ZBRO .......................................... EBS/ABS activation (T-CAN) 03555 ..... ZBRO ................................ UDS accident data box brake lamp 03556 ..... ZBRO .......................................................... Parking brake fault 03557 ..... ZBRO ...........................................EBS check yellow (via CAN) 03558 ..... ZBRO ................................................EBS check red (via CAN) 03559 ..... ZBRO .......................................................ABS fully operational 03560 ..... ZBRO ................................. Brake pad thickness, 1st axle right 03561 ..... ZBRO ................................... Brake pad thickness, 1st axle left 03562 ..... ZBRO ................................ Brake pad thickness, 2nd axle right 03563 ..... ZBRO .................................. Brake pad thickness, 2nd axle left 03564 ..... ZBRO .................................Brake pad thickness, 3rd axle right 03565 ..... ZBRO ................................... Brake pad thickness, 3rd axle left 03566 ..... ZBRO ................................................Parking brake 1 forebody 03567 ..... ZBRO ..................................................Parking brake 1 for FFR 03568 ..... OBDU........................................................... Retarder actuated 03568 ..... ZBR2........................................................................... Retarder 03569 ..... OBDU....................................................Engine brake operated 03569 ..... ZBR2....................................................................Engine brake 03570 ..... OBDU....................................................... Brake pedal pressed 03570 ..... ZBR2................................................................... Service brake 03571 ..... ZBRO ............................................ Bus stop brake switched off 03572 ..... ZBR2.................................................................Bus-stop brake 03581 ..... CNG ........................................ Diagnosis lambda probe before catalytic converter; 03582 ..... CNG ...................................... Heating diagnosis lambda probe before catalytic converter 03583 ..... CNG ......................................................... Pressure sensor gas 03584 ..... CNG ........................................................... Coding; quality gas SD 812a en Page 94 of 203
- 95. SPN.....Control unit/System.............................................. Faultmessage 03584 ..... TRON............................................................. Control unit error 03585 ..... CNG ...............................................................Temperature gas 03585 ..... TRON................................. No ignition – safety time exceeded 03586 ..... TRON........................................... Flame failure from operation 03587 ..... TRON............................................................................Voltage 03588 ..... TRON... Flame present during switch-on, cold blowing timeout 03589 ..... TRON.................................................................. Flame sensor 03590 ..... TRON........................ Actual value temperature control sensor 03591 ..... TRON................................................................ Metering pump 03592 ..... TRON................................................................... Burner motor 03593 ..... CNG ................................Solenoid stop valve (gas LD) leaking 03593 ..... TRON........................................................................ Glow plug 03594 ..... CNG ..................... Supply injection valves bank 1 output stage 03594 ..... TRON.................................................................... Overheating 03595 ..... CNG ..................... Supply injection valves bank 2 output stage 03596 ..... CNG ...................Stop valve gas 1 output stage (low pressure) 03596 ..... TRON...........................................................................Setpoint 03597 ..... CNG ................. Stop valve gas 2 output stage (high pressure) 03597 ..... TRON.........................................................Overheating sensor 03598 ..... CNG .....................................Balancing in trailing throttle mode (measuring probe) 03598 ..... TRON....................Warning short-circuit output fresh air signal 03599 ..... CNG .....................................Balancing in trailing throttle mode (diagnostic probe) 03599 ..... TRON.......................... Warning short-circuit output theft alarm 03600 ..... EBS.......................................................... System bus, general 03600 ..... TRON....... No ignition - Too many unsuccessful start attempts (operation interlock) 03600 ..... ZBR2......................................................... Fill level, clutch fluid 03601 ..... CNG .............................................. Output stage starter control 03601 ..... EBS.. System bus, monitoring of the axle modulator drive axle messages by central brake unit; CAN brake 03601 ..... OBDU............ Front axle above technically permitted axle load 03601 ..... TRON................. Overheating - Hardware threshold exceeded in control unit (operation interlock) SD 812a en Page 95 of 203
- 96. SPN.....Control unit/System.............................................. Faultmessage 03602 ..... EBS...................System bus, monitoring of the axle modulator additional axle messages by central brake unit; CAN brake 03602 ..... OBDU.............Rear axle above technically permitted axle load 03602 ..... TRON....................... Overheating - Too many overheatings or hardware threshold exceeded in control unit (operation interlock) 03602 ..... ZBR2........................................................ Reversing light relay 03603 ..... EBS............... System bus, monitoring of the vehicle dynamics control messages by central brake unit 03603 ..... TRON............. Overheating sensor - Permitted difference from flame sensor exceeded (redundant overheating monitoring) 03603 ..... ZBR2...............................................Heating, Kongsberg circuit 03604 ..... EBS....................System bus, monitoring of the steering angle sensor messages by central brake unit 03604 ..... ZBRO .......................................................Clutch brake shut-off 03605 ..... ZBRO .......................................................Clutch brake shut-off 03606 ..... ZBRO .......................................................Clutch brake shut-off 03607 ..... ZBRO ............................................ Clutch brake shut-off check 03608 ..... ZBRO .......................................................... Clutch brake direct 03609 ..... ZBRO ............................................. Clutch brake direct stage 1 03610 ..... EBS...............System bus, monitoring of the central brake unit messages by axle modulator drive axle; CAN brake 03610 ..... ZBRO ............................................. Clutch brake direct stage 2 03611 ..... ZBRO ............................................. Clutch brake direct stage 3 03612 ..... EBS.. System bus, monitoring of the axle modulator additional axle messages by axle modulator drive axle 03612 ..... OUZBRO......................................................... Gearbox neutral 03612 ..... ZBRO .............................................................. Gearbox neutral 03613 ..... EBS_K1 ....... System bus, monitoring of the electronic stability program messages by axle modulator drive axle 03613 ..... ZBRO ..................................................... Current gear (T-CAN) 03614 ..... ZBRO ...................................................Gear engaged (T-CAN) 03615 ..... ZBRO ..................................................................Selected gear 03616 ..... ZBRO ............................................................... Gear oil too hot 03617 ..... ZBRO ............................................................... Gear oil too hot SD 812a en Page 96 of 203
- 97. SPN.....Control unit/System.............................................. Faultmessage 03618 ..... ZBRO ................................................................ Reversing light 03619 ..... ZBRO ............................................................. Reverse light left 03620 ..... EBS..................... System bus, monitoring of the central brake unit messages by axle modulator additional axle 03620 ..... ZBRO ........................................................... Reverse light right 03621 ..... EBS.. System bus, monitoring of the axle modulator drive axle messages by axle modulator additional axle 03621 ..... ZBRO ............................................Gearbox activation (T-CAN) 03622 ..... ZBRO ............................................................. EK shut-off Voith 03623 ..... EBS... System bus, monitoring of the vehicle dynamics control messages by axle modulator additional axle 03623 ..... ZBRO .................................................... Neutral at standstill ZF 03624 ..... ZBRO ............................UDS accident data box reversing light 03625 ..... ZBR2..................................................................Off-road range 03626 ..... ZBRO .................................................... Reversing light buzzer 03627 ..... ZBRO ........................................................... Gear enable Voith 03628 ..... ZBRO ................................................. Gearbox oil temperature 03629 ..... ZBR2....................................................... Transfer case neutral 03630 ..... EBS..................... System bus, monitoring of the central brake unit messages by vehicle dynamics control 03631 ..... EBS...................System bus, monitoring of the axle modulator drive axle messages by vehicle dynamics control 03632 ..... EBS...................System bus, monitoring of the axle modulator additional axle messages by vehicle dynamics control 03634 ..... EBS....................System bus, monitoring of the steering angle sensor messages by electronic stability program 03650 ..... EBS...........................................................CAN trailer interface 03651 ..... EBS......................................... CAN trailer interface, CAN high 03652 ..... EBS...........................................CAN trailer interface, CAN low 03671 ..... EDC ....................................... Error when reading in EEPROM 03672 ..... EDC ............................Error when reading in the fault memory 03673 ..... EDC ...................................................................... CAN block 2 03674 ..... EDC ...................................... FFR1: Bank shut-off byte8/bit5-8 03675 ..... EDC ................ Faulty redundant shut-off device afterrun drive 03676 ..... EDC .................. Faulty redundant shut-off device afterrun test 03677 ..... EDC ........................................ Charge air low pressure sensor 03678 ..... EDC ..................................................... Booster voltage bank 1 SD 812a en Page 97 of 203
- 98. SPN.....Control unit/System.............................................. Faultmessage 03679 ..... EDC ..................................................... Booster voltage bank 2 03680 ..... EDC ..................................... Current high pressure pump CP3 03681 ..... EDC .......................................................... Starter output stage 03682 ..... EDC ........................................... Averaged control rod position 03683 ..... EDC ............... Signalling of activation request for output stage 03684 ..... EDC .........................................Starter output stage monitoring 03685 ..... EDC ............................................Activation pulse duty ratio for exhaust gas recirculation valve 03686 ..... EDC ....... Activation pulse duty ratio for boost pressure control 03687 ..... EDC ......................................................... Pressure relief valve 03688 ..... EDC .................. Pressure controller variable (pulse duty ratio) 03689 ..... EDC ....................................... Rail pressure control differential 03690 ..... EDC ........................................................Synchronisation state 03691 ..... EDC ..............................Current equivalent of clock-pulse ratio 03692 ..... EDC ............................................recorded filtered temperature 03693 ..... EDC ................................................................. Booster voltage 03694 ..... EDC ............................................. Timeout message position 4 03700 ..... ZBRO ................................................................Retarder active 03701 ..... EBS...................................... Vehicle dynamics control module 03701 ..... ZBRO .................................. Retarder torque gearbox (T-CAN) 03702 ..... EDC ............................................... CAN A block DPRAM error 03702 ..... ZBRO .........................Retarder torque engine control (T-CAN) 03703 ..... EDC ................................................CAN A block error passive 03703 ..... ZBRO ........................................... Retarder activation (T-CAN) 03704 ..... ZBRO ........................................................Retarder off (switch) 03705 ..... EBS......................................Vehicle dynamics control system, EEPROM parameter setting 03705 ..... ZBRO ........................................................Retarder off (button) 03706 ..... EBS...................Installation, vehicle dynamics control module, vehicle adaptation 03706 ..... ZBRO ..................................................................... Retarder off 03707 ..... EBS..........Ensure the ESP components are installed correctly and calibrate the steering angle sensor 03707 ..... ZBRO ..................................................................... Retarder off 03708 ..... ZBRO ...........................................................Retarder off check 03709 ..... ZBRO ................................................ Engine brake off (switch) 03710 ..... ZBRO ................................................ Engine brake off (button) SD 812a en Page 98 of 203
- 99. SPN.....Control unit/System.............................................. Faultmessage 03711 ..... EDC ..........................................................CAN B block bus off 03711 ..... ZBRO ..............................................................Engine brake off 03712 ..... EDC ............................................... CAN B block DPRAM error 03712 ..... ZBRO ..............................................................Engine brake off 03713 ..... ZBRO ................................................... Engine brake off check 03720 ..... EBS Vehicle dynamics control module, electrical power supply 03720 ..... EDC ........................... Supply to atmospheric pressure sensor 03721 ..... EDC ......................................... Supply to fuel pressure sensor 03722 ..... EDC .........................Supply to charge air low pressure sensor 03723 ..... EDC ............................................Supply to oil pressure sensor 03724 ..... EDC ............................... Supply to charge air pressure sensor 03726 ..... EDC ................................... Supply to fuel low pressure sensor 03730 ..... EBS........................................................ Steering angle sensor 03730 ..... EDC .............................Defective classification for initialisation 03731 ..... EBS...... Steering angle sensor, voltage transformer signal line 03732 ..... EBS......................................Steering angle sensor, calibration 03732 ..... EDC .............................Defective classification for initialisation 03733 ..... EBS.......................... Steering angle sensor, parameter setting 03733 ..... EDC ......................................................... High-pressure pump 03734 ..... EBS................................. Steering angle sensor, steering ratio 03734 ..... EDC ...................................................... Pressure control valve 03735 ..... EDC ................................................. EDC internal temperature 03736 ..... EDC ........................................... Output stage shut-off by EDC 03737 ..... EDC .................................... Initialisation in master/slave mode 03738 ..... EDC ................................... Quantity correction value too great 4-cylinder engine: Cyl. 1; 6-cylinder engine: Cyl. 1; 8-cylinder engine: Master cyl. 1, slave cyl. 5; 10-cylinder engine: Master cyl. 1, slave cyl. 6; 12-cylinder engine: Master cyl. 01, slave cyl. 12 03739 ..... EDC ................................... Quantity correction value too great 4-cylinder engine: Cyl. 3; 6-cylinder engine: Cyl. 5; 8-cylinder engine: Master cyl. 2, slave cyl. 7; 10-cylinder engine: Master cyl. 5, slave cyl. 10; 12-cylinder engine: Master 0cyl. 5, slave cyl. 8 SD 812a en Page 99 of 203
- 100. SPN.....Control unit/System.............................................. Faultmessage 03740 ..... EDC ................................... Quantity correction value too great 4-cylinder engine: Cyl. 4; 6-cylinder engine: Cyl. 3; 8-cylinder engine: Master cyl. 3, slave cyl. 6; 10-cylinder engine: Master cyl. 2, slave cyl. 7; 12-cylinder engine: Master cyl. 03, slave cyl. 10 03741 ..... EDC ................................... Quantity correction value too great 4-cylinder engine: Cyl. 2; 6-cylinder engine: Cyl. 6; 8-cylinder engine: Master cyl. 4, slave cyl. 8; 10-cylinder engine: Master cyl. 3, slave cyl. 8; 12-cylinder engine: Master cyl. 06, slave cyl. 7 03742 ..... EDC ................................... Quantity correction value too great 6-cylinder engine: Cyl. 2; 10-cylinder engine: Master cyl. 4, slave cyl. 9; 12-cylinder engine: Master cyl. 2, slave cyl. 11 03743 ..... EDC ................................... Quantity correction value too great 6-cylinder engine: Cyl. 4; 12-cylinder engine: Master cyl. 4, slave cyl. 9 03744 ..... EDC .............. Highside output stage exhaust gas recirculation system throttle butterfly 03745 ..... EDC ....................... Highside output stage charge air pressure governing system 03746 ..... EDC ...................................Highside output stage exhaust gas recirculation system 03747 ..... EDC .............. Highside output stage pressure governing valve 03748 ..... EDC ................................. Highside output stage metering unit high-pressure pump CP3 03749 ..... EDC ............ Highside output stage engine air flow sensor flap 03750 ..... EDC ............................................ Highside output stage RH 07 03751 ..... EDC ................................... Highside output stage starter relay 03752 ..... EDC ............................................Segment encoder (camshaft) 03753 ..... EDC ..................................... Incremental encoder (crankshaft) 03754 ..... EDC .................................Monitoring error when system starts 03755 ..... EDC ........................................Plausibility fuel supply pressure 03756 ..... EDC ............................. Supply voltage sensor group 3 CY310 03758 ..... EDC .......................Send error message slot 2 to partner EDC SD 812a en Page 100 of 203
- 101. SPN.....Control unit/System.............................................. Faultmessage 03759 ..... EDC .......................Send error message slot 3 to partner EDC 03760 ..... EDC .......................Send error message slot 4 to partner EDC 03761 ..... EDC .......................Send error message slot 5 to partner EDC 03762 ..... EDC .............................. Timeout of the CAMD_ANA message 03763 ..... EDC ........................... Timeout of the CAMD_CMOL message 03764 ..... EDC .................... Timeout of the CAMD_CONTROL message 03765 ..... EDC .............................Timeout of the CAMD_FFR1 message 03766 ..... EDC .............................Timeout of the CAMD_FFR2 message 03767 ..... EDC .............................Timeout of the CAMD_FFR3 message 03768 ..... EDC ......................... Fault status of the CAMD_INIT message 03769 ..... EDC .............................. Timeout of the CAMD_Limit message 03771 ..... EDC ................................... Master / slave error in reception of vehicle management computer CAN 03772 ..... EDC ...................................................... Monitoring terminal 15 03773 ..... EDC ..................... Operating mode change error master/slave 03774 ..... EDC .................... Temporary CMOL mode of the partner EDC 03775 ..... EDC ................................................... Rail pressure monitoring 03776 ..... EDC ............................... Excessive positive control differential (control system cannot compensate for too low rail pressure) 03777 ..... EDC ..............................Excessive negative control differential (control system cannot compensate for too high rail pressure) 03778 ..... EDC ...................Rail pressure: Leakage in overrun conditions 03779 ..... EDC ............ Rail pressure: Leakage in quantity compensation 03780 ..... EDC ............. Rail pressure: High controller output when idling 03781 ..... EDC ................. Pressure relief valve open (pressure too high) 03782 ..... EDC .......................................... Fuel supply pressure dynamic 03783 ..... EDC .......................... FFR (vehicle management computer) 2: Bit error max. permitted engine acceleration 03784 ..... EDC ............................................................. Bit error smoke ID 03785 ..... EDC ................ Monitoring particle filter/PM catalytic converter 03786 ..... EDC ....................................Particulate filter temperature limits 03787 ..... EDC .......................................No particulate filter regeneration 03788 ..... EDC ............................................ Exhaust differential pressure 03789 ..... EDC ................................ Exhaust differential pressure sensor 03790 ..... EDC ...........................Exhaust differential pressure plausibility SD 812a en Page 101 of 203
- 102. SPN.....Control unit/System.............................................. Faultmessage 03791 ..... EDC .................... Exhaust temperature before particulate filter 03792 ..... EDC ........ Exhaust temperature sensor before particulate filter 03793 ..... EDC ....................... Exhaust temperature after particulate filter 03794 ..... EDC ........... Exhaust temperature sensor after particulate filter 03795 ..... EDC ........................ Exhaust gas recirculation throttle butterfly 03796 ..... EDCHighside output stage exhaust gas recirculation system 2 03797 ..... EDC ................................ Highside output stage lambda probe 03798 ..... EDC .......................................... Output stage OBD lamp (MIL) 03799 ..... EDC ..................................... Highside output stage reserve 01 03800 ..... EDC ..................................... Highside output stage reserve 02 03800 ..... ZBR2.......................................................Air suspension/ECAS 03801 ..... EDC ..................................... Highside output stage reserve 03 03801 ..... OBDU................................No engine start for at least 3 weeks 03802 ..... EDC ............ Highside output stage stop valve compressed air 03802 ..... OBDU..............................No engine start for at least 10 weeks 03803 ..... EDC .......................... Engine CAN transmit error, no message available in vehicle management computer 03804 ..... EDC ........................Engine CAN receive error, not possible to receive a message from vehicle management computer 03805 ..... EDC ....................................Master/slave CAN communication disrupted, bus load too high 03806 ..... EDC ....................................Master/slave CAN communication disrupted, receive error 03806 ..... ZBRO .............................................................. Raise bus again 03807 ..... EDC ............................. Vehicle management computer sends invalid value in FFR1 message 03807 ..... ZBRO .............................................................. Raise bus again 03808 ..... EDC ............................. Vehicle management computer sends invalid value in FFR2 message 03809 ..... EDC ............................. Vehicle management computer sends invalid value in FFR3 message 03809 ..... ZBRO ...........................................................ECAS malfunction 03810 ..... EDC ............................. Vehicle management computer sends invalid numerical value, date/time error 03810 ..... ZBRO .................................................................ECAS warning 03811 ..... ZBRO ............................... ECAS governing suppression brake 03812 ..... EDC ........................... Particulate filter temperature plausibility SD 812a en Page 102 of 203
- 103. SPN.....Control unit/System.............................................. Faultmessage 03812 ..... ZBRO ............................................................Kneeling lowering 03813 ..... EDC ............................................................. Starter monitoring 03813 ..... ZBRO ............................................................Kneeling lowering 03814 ..... EDC .....................Recording of control unit switch-off duration 03814 ..... ZBRO ..................................................... Kneeling fully lowered 03815 ..... EDC ...................................................... Exhaust backpressure 03815 ..... ZBRO ..................................................... Kneeling fully lowered 03816 ..... EDC ...........................................Exhaust backpressure sensor 03816 ..... ZBRO ................................................................. Kneeling raise 03817 ..... EDC ........ Permanent system deviation exhaust backpressure 03817 ..... ZBRO ................................................................. Kneeling raise 03818 ..... EDC .....................................Exhaust backpressure plausibility 03818 ..... ZBRO ............................................Kneeling, manual/automatic 03819 ..... EDC ...................................................................... CAN block 3 03819 ..... ZBRO ......................................................... Kneeling automatic 03820 ..... EDC ..................................................... Byte monitoring CAN 1 (oil, ambient and air temperature) 03820 ..... ZBRO ............................................... Kneeling automatic check 03821 ..... EDC ..................................................... Byte monitoring CAN 3 (exhaust temperature, AdBlue fill level, AdBlue temperature) 03821 ..... ZBRO ....................................... Kneeling raise control unit (16) 03822 ..... EDC .................................. Time overrun CAN 3, exhaust CAN 03822 ..... ZBRO .............................................. Kneeling emergency raise 03823 ..... EDC ............................................Misfiring on several cylinders 03823 ..... ZBRO .............................................. Kneeling emergency raise 03824 ..... EDC ...................................................... Misfiring status master 8-cylinder engine: Cylinder 1; 10-cylinder engine: Cylinder 1; 12-cylinder engine: Cylinder 1 03824 ..... ZBRO ................................... Kneeling emergency raise prio. 1 03825 ..... EDC ...................................................... Misfiring status master 8-cylinder engine: Cylinder 2; 10-cylinder engine: Cylinder 5; 12-cylinder engine: Cylinder 5 03826 ..... ZBRO ...................................... Kneeling lower control unit (19) SD 812a en Page 103 of 203
- 104. SPN.....Control unit/System.............................................. Faultmessage 03827 ..... EDC ...................................................... Misfiring status master 8-cylinder engine: Cylinder 4; 10-cylinder engine: Cylinder 3; 12-cylinder engine: Cylinder 6 03827 ..... ZBRO .........................................................Kneeling door open 03828 ..... EDC ...................................................... Misfiring status master 10-cylinder engine: Cylinder 4; 12-cylinder engine: Cylinder 2 03828 ..... ZBRO ..................................... Air suspension reservoir too low 03829 ..... EDC ...................................................... Misfiring status master 12-cylinder engine: Cylinder 4 03829 ..... ZBRO ..................................... Air suspension reservoir too low 03830 ..... EDC .................................................................. Misfiring status 4-cylinder engine: Cylinder 1; 6-cylinder engine: Cylinder 1; slave 8-cylinder engine: Cylinder 5; 10-cylinder engine: Cylinder 6; 12-cylinder engine: Cylinder 12 03830 ..... ZBRO ...................................v <= 3 km/h and no door interlock 03831 ..... EDC .................................................................. Misfiring status 4-cylinder engine: Cylinder 3; 6-cylinder engine: Cylinder 5; slave 8-cylinder engine: Cylinder 7; 10-cylinder engine: Cylinder 10; 12-cylinder engine: Cylinder 8 03831 ..... ZBRO ............................................ v > 3 km/h or door interlock 03832 ..... EDC .................................................................. Misfiring status 4-cylinder engine: Cylinder 4; 6-cylinder engine: Cylinder 3; slave 8-cylinder engine: Cylinder 6; 10-cylinder engine: Cylinder 7; 12-cylinder engine: Cylinder 10 03832 ..... ZBRO ................................................................. Moving-off aid SD 812a en Page 104 of 203
- 105. SPN.....Control unit/System.............................................. Faultmessage 03833 ..... EDC .................................................................. Misfiring status 4-cylinder engine: Cylinder 2; 6-cylinder engine: Cylinder 6; slave 8-cylinder engine: Cylinder 8; 10-cylinder engine: Cylinder 8; 12-cylinder engine: Cylinder 7 03833 ..... ZBRO ................................................................. Moving-off aid 03834 ..... EDC .................................................................. Misfiring status 6-cylinder engine: Cylinder 2; slave 10-cylinder engine: Cylinder 9; 12-cylinder engine: Cylinder 11 03834 ..... ZBRO ....................................................... Moving-off aid check 03835 ..... EDC .................................................................. Misfiring status 6-cylinder engine: Cylinder 4; slave 12-cylinder engine: Cylinder 9 03835 ..... ZBRO ................................................. Moving-off aid switch-off 03836 ..... EDC ..................................... Lambda probe sensor acquisition 03836 ..... ZBRO ........................................ Lifting bus above normal level 03837 ..... EDC ..................................... Lambda probe sensor acquisition 03837 ..... ZBRO ........................................ Lifting bus above normal level 03838 ..... EDC ......................Lambda probe internal resistance, physical 03838 ..... ZBRO .........................................................Lowering bus again 03839 ..... EDC .....................................Lambda probe internal resistance 03839 ..... ZBRO ...................................... Lowering bus below ride height 03840 ..... EDC ..................................................... Oil temperature sensor 03840 ..... ZBRO ...................................... Lowering bus below ride height 03841 ..... EDC ...................................................Coolant pressure sensor 03841 ..... ZBRO ............................................................. Bus normal level 03842 ..... EDC ............................................. Coolant pressure plausibility 03842 ..... ZBRO ................................................ECAS activation (T-CAN) 03843 ..... EDC ........................................Coolant temperature plausibility 03843 ..... ZBRO ....................................................Kneeling start interlock 03844 ..... EDC ................Plausibility, temperature ahead of cylinder inlet 03844 ..... ZBRO .................... NLA bellows is depressurised (p < 0.3 bar) SD 812a en Page 105 of 203
- 106. SPN.....Control unit/System.............................................. Faultmessage 03845 ..... EDC ..................................Ambient air temperature plausibility 03845 ..... ZBRO ........................ Switch off NLA bellows depressurisation 03846 ..... EDC .................................................. Control unit configuration 03846 ..... ZBRO ..............................Driven axle pressurised (p > 8.4 bar) 03847 ..... EDC ................Charge air temperature sensor ahead of motor 03847 ..... ZBRO ................................. ECAS malfunction flashing at 1 Hz 03848 ..... EDC ........................................Ambient air temperature sensor 03848 ..... ZBRO .................................ECAS malfunction continuous light 03849 ..... EDC .......................................................Catalyser not installed 03849 ..... ZBRO .................................ECAS warning or malfunction 2 Hz 03850 ..... EDC ..... Position deviation enclosed exhaust gas recirculation 03850 ..... ZBRO .......................................ECAS warning flashing at 1 Hz 03851 ..... EDC ..................Exhaust gas recirculation flap position sensor 03852 ..... EDC ............Exhaust gas recirculation temperature plausibility 03853 ..... EDC ....Permanent system deviation exhaust gas recirculation 03854 ..... EDC .................................. EDC internal temperature sensor 2 03855 ..... EDC ...................................................... Lambda probe system 03856 ..... EDC ................................................. Lambda probe calibration 03857 ..... EDC ..........................................Lambda probe communication 03858 ..... EDC .............................................. Lambda probe temperature 03859 ..... EDC ............................. Lambda probe temperature calibration 03860 ..... EDC .........................................................Turbine wheel speed 03861 ..... EDC .............................................Turbine wheel speed sensor 03862 ..... EDC ...............................NBF pulses without quantity requests (redundant control travel monitoring) 03863 ..... EDC ................................................ Trailing throttle monitoring 03903 ..... ZBR2.................................................................Tank/ fuel level 03904 ..... OBDU............................. Reservoir pressure circuit 1 (too low) 03905 ..... OBDU............................. Reservoir pressure circuit 2 (too low) 03906 ..... OBDU............................. Reservoir pressure circuit 3 (too low) 03907 ..... OBDU............................. Reservoir pressure circuit 4 (too low) 03909 ..... OBDU................................................ Previous circuit defective 03913 ..... OBDU............................ECAM in pneumatic backup, CAN OK 03915 ..... OBDU...........................................ASR engine governor failure 03918 ..... ZBRO ...................................................Fuel tank almost empty 03919 ..... ZBR2.................................................................. Fill level Gas2 03920 ..... ZBR2.................................................................. Fill level Gas3 SD 812a en Page 106 of 203
- 107. SPN.....Control unit/System.............................................. Faultmessage 04000 ..... AST .................................................. Foot off accelerator pedal 04000 ..... EBS Central control unit - B-controller: Brake performance test 04000 ..... EDC .......................... Communication fault to CRT control unit 04000 ..... TBM .................. No response to DM4 request to control unit 0 04000 ..... ZBR2............................................................... External lighting 04000 ..... ZBRO ........................................................ Headlight low beam 04001 ..... AST ................................................................ Low air pressure 04001 ..... EBS........Central control unit - A-controller: Checksum error in configuration RAM 04001 ..... EDC ............. Exhaust temperature too high or communication fault to CRT control unit 04001 ..... INT ...................................................Accumulator charge valve 04001 ..... SFFR......................................................Selector lever position 04001 ..... ZBR2...................................................Headlight low beam, left 04001 ..... ZBRO ..................................................................Low beam left 04002 ..... AST .................................................................. Clutch overload 04002 ..... EBS... Central control unit - A-controller: Internal data memory 04002 ..... INT ..........................................................Engine brake request 04002 ..... SFFR........Speed request ship vehicle management computer 04002 ..... ZBR2................................................ Headlight low beam, right 04002 ..... ZBRO ............................................................... Low beam right 04003 ..... EBS...................................... Central control unit - B-controller: ESP intervention implausible 04003 ..... INT ............................................................ Intarder check lamp 04003 ..... SFFR...................................................................... Terminal 15 04003 ..... ZBR2.............................................. Right headlight adjustment 04004 ..... AST ........................................................................ Clutch word 04004 ..... EBS...................................... ESP logic, incorrect configuration 04004 ..... HVA...................................................................EEPROM error 04004 ..... INT ........................................... Display, temperature reduction 04004 ..... SFFR...................................................... Voltage selector lever 04004 ..... TBM .................. No response to DM4 request to control unit 4 04004 ..... ZBR2.................................................Left headlight adjustment 04005 ..... AST ................................................................Overtemperature 04005 ..... EBS...... Central control unit - B-controller: Pressure regulating valves (ABS) are in an undefined status 04005 ..... INT ...............................................................Brake lamp output SD 812a en Page 107 of 203
- 108. SPN.....Control unit/System.............................................. Faultmessage 04005 ..... SFFR..............................................Voltage pedal value sensor 04005 ..... ZBR2...............................Turn indicators, tractive unit, rear left 04005 ..... ZBRO .........................................Turn indicator rear left bottom 04006 ..... EBS............. Central control unit - B-controller: Calculated ISC pressures in A and B-controller do not match 04006 ..... INT ................................................................ Fault lamp output 04006 ..... ZBR2............................ Turn indicators, tractive unit, rear right 04006 ..... ZBRO .......................................Turn indicator rear right bottom 04007 ..... EBS.......................... ABS logic, FMI 3 = Pressure plausibility / FMI 8 = Data record plausibility 04007 ..... HVA...........................Failure of CAN message CCVeh_Speed 04007 ..... INT .........................................................Cruise control shut-off 04007 ..... ZBR2................................... Turn indicator, tractive unit s/f, left 04007 ..... ZBRO ............................................ Turn indicator front left side 04008 ..... EBS...................ABS (pressure control valve): Installed but no components configured 04008 ..... HVA......................................... Failure of CAN message EBC2 04008 ..... INT .............................................. Braking level selector supply 04008 ..... ZBR2.................................Turn indicator, tractive unit s/f, right 04008 ..... ZBRO .......................................... Turn indicator front right side 04009 ..... EBS.............................................................Central control unit 04009 ..... HVA......................................... Failure of CAN message EEC1 04009 ..... INT ............................................................... Proportional valve 04009 ..... ZBR2.............................. Hall sensor, indicator stalk switch RL 04010 ..... EBS.....Central control unit - Internal controller communication of the A-controller, checksum error 04010 ..... HVA......................................... Failure of CAN message EBC1 04010 ..... INT ...........................................Earth return, proportional valve 04010 ..... ZBR2..............................Hall sensor, indicator stalk switch RR 04011 ..... EBS.....Central control unit - Internal controller communication of the A-controller, interruption in communication 04011 ..... HVA..................................... ABS signals 'Not fully operational' 04011 ..... INT ...................................................................... Output ADM2 04011 ..... ZBR2.........................................Switch, indicators, left (button) 04011 ..... ZBRO ........................................................... Turn indicator, left 04012 ..... EBS.....Central control unit - Internal controller communication of the A-controller, format error SD 812a en Page 108 of 203
- 109. SPN.....Control unit/System.............................................. Faultmessage 04012 ..... HVA........ Cable fault oil temperature sensor (pin III/3 or IV/18) 04012 ..... INT ............................................Speed sensor, gearbox output 04012 ..... ZBR2.......................................Switch, indicators, right (button) 04012 ..... ZBRO ......................................................... Turn indicator, right 04013 ..... EBS.................. Central control unit - A-controller, format error 04013 ..... HVA..................... Oil pressure sensor signals 'No oil pressure' 04013 ..... INT ..................................Temperature detection, system error 04013 ..... ZBR2.................................. Check lamp, hazard warning lights 04013 ..... ZBRO ........................................... Hazard warning lights check 04014 ..... EBS.....Central control unit - Internal controller communication of the B-controller, checksum error 04014 ..... HVA....... Oil pressure sensor signals 'Continuous oil pressure' 04014 ..... INT ................................. Readback current, proportional valve 04014 ..... ZBR2............................................. Hazard warning light switch 04014 ..... ZBRO ............................................ Hazard warning light switch 04015 ..... EBS.....Central control unit - Internal controller communication of the B-controller interruption in communication 04015 ..... HVA........... Cable fault oil pressure sensor (pin III/4, II/5 or I/5) 04015 ..... INT ...................................................................... Power supply 04015 ..... ZBR2.............................................Turn indicators in trailer, left 04015 ..... ZBRO .................................................. Turn indicator left trailer 04016 ..... EBS.....Central control unit - Internal controller communication of the B-controller, format error 04016 ..... HVA...........................................Fault at output ZP1 (pin IV/11) 04016 ..... INT ..........................................................Braking level selector 04016 ..... ZBR2.......................................... Turn indicators in trailer, right 04016 ..... ZBRO ................................................ Turn indicator right trailer 04017 ..... EBS.........Central control unit EEPROM: Implausible values in 'General vehicle configuration' block 04017 ..... HVA................................. Fault at output ZP2 (pin IV/2 or IV/6) 04017 ..... INT ............................... Operating hours counter, system error 04017 ..... ZBR2................................................. Headlight high beam, left 04017 ..... ZBRO ..............................................................High beam 1 left 04018 ..... EBS.............Central control unit EEPROM: Checksum error in 'General vehicle configuration' block 04018 ..... INT ................................................. Faul memory, system error 04018 ..... ZBR2............................................... Headlight high beam, right SD 812a en Page 109 of 203
- 110. SPN.....Control unit/System.............................................. Faultmessage 04018 ..... ZBRO ............................................................High beam 1 right 04019 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own vehicle configuration' block 04019 ..... HVA........................................... Fault at output ZP3 (pin III/13) 04019 ..... INT ......................................................................CAN data bus 04019 ..... ZBR2...............................Switch, headlight high beam (button) 04019 ..... ZBRO ............................................................High beam switch 04020 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own vehicle configuration' block 04020 ..... HVA......... Fault at output clutch main pump (pin IV/7 and III/5) 04020 ..... INT ..................................Data bus, message EEC2 from EDC 04020 ..... SFFR................................................................. Supply voltage 04020 ..... ZBR2...................................................... Headlight flash button 04021 ..... EBS.........Central control unit EEPROM: Implausible values in 'General wheel configuration' block 04021 ..... INT .......................................................... Engine speed sensor 04021 ..... SFFR.......................................................... Pedal value sensor 04021 ..... ZBR2...................................................Auxiliary high beam, left 04021 ..... ZBRO ..............................................................High beam 2 left 04022 ..... EBS.............Central control unit EEPROM: Checksum error in 'General wheel configuration' block 04022 ..... HVA.................................... Fault at output fan relay (pin III/10) 04022 ..... INT ........................................................................ System fault 04022 ..... SFFR................................................................... Selector lever 04022 ..... ZBR2.................................................Auxiliary high beam, right 04022 ..... ZBRO ............................................................High beam 2 right 04023 ..... HVA................................................. Speed signals implausible 04023 ..... INT ...........................CAN data bus, message TSC1 from FFR 04023 ..... SFFR.............................................. Idling speed harmonisation 04023 ..... ZBR2....................................Relay, additional headlight in roof 04024 ..... EBS.............Central control unit EEPROM: Checksum error in 'General axle configuration' block 04024 ..... HVA.................................................. Operating voltage too low 04024 ..... INT .......................................CAN data bus, send system error 04024 ..... SFFR........................................................... Default driving unit 04024 ..... ZBR2.............................................. Rear fog lamp, tractive unit 04024 ..... ZBRO ................................................................. Rear fog lamp SD 812a en Page 110 of 203
- 111. SPN.....Control unit/System.............................................. Faultmessage 04025 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own axle configuration' block 04025 ..... INT .........................................................CAN data bus, BusOff 04025 ..... SFFR..................................................................... Engine CAN 04025 ..... ZBR2....................................................... Rear fog lamp, trailer 04025 ..... ZBRO ....................................................... Rear fog lamp trailer 04026 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own axle configuration' block 04026 ..... INT .................. CAN data bus, message EBC1 from EBS/ABS 04026 ..... SFFR..................................................................... MMDS CAN 04026 ..... ZBR2................................................................. Fog lamp, right 04026 ..... ZBRO ................................................................. Fog lamp right 04027 ..... EBS.........Central control unit EEPROM: Implausible values in 'General CAN configuration' block 04027 ..... INT ..........................CAN data bus, acknowledge system error 04027 ..... SFFR............ Engine CAN: Time overrun when receiving EDC message EDC1 04027 ..... ZBR2................................................................... Fog lamp, left 04027 ..... ZBRO ................................................................... Fog lamp left 04028 ..... EBS.............Central control unit EEPROM: Checksum error in 'General CAN configuration' block 04028 ..... INT ..........................CAN data bus, message EEC1 from EDC 04028 ..... SFFR............ Engine CAN: Time overrun when receiving EDC message EDC2 04028 ..... ZBR2.........................Switch-on enable check lamp, fog lamps 04029 ..... EBS.........Central control unit EEPROM: Implausible values in 'General function configuration' block 04029 ..... INT ............... CAN data bus, message TCO1 from tachograph 04029 ..... SFFR............ Engine CAN: Time overrun when receiving EDC message EDC3 04029 ..... ZBR2..............................................Relay, additional fog lamps 04030 ..... EBS.............Central control unit EEPROM: Checksum error in 'General function configuration' block 04030 ..... INT ..................................................................................... LED 04030 ..... SFFR............ Engine CAN: Time overrun when receiving EDC message EDC4 04030 ..... ZBR2.......................... Current, parking light, tractive unit, right SD 812a en Page 111 of 203
- 112. SPN.....Control unit/System.............................................. Faultmessage 04031 ..... EBS.........Central control unit EEPROM: Implausible values in 'General ISR configuration' block 04031 ..... INT ..........................CAN data bus, message CCVS from FFR 04031 ..... SFFR............ Engine CAN: Time overrun when receiving EDC message EDC5 04031 ..... ZBR2............................ Current, parking light, tractive unit, left 04032 ..... EBS.............Central control unit EEPROM: Checksum error in 'General ISR configuration' block 04032 ..... INT .................. CAN data bus, message ERC1_ER from EDC 04032 ..... SFFR............ Engine CAN: Time overrun when receiving EDC message EngineConfig 04032 ..... ZBR2...............................................Current, parking light, right 04033 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own ISR configuration' block 04033 ..... INT .................... CAN data bus, message ETC1 from gearbox 04033 ..... SFFR......... MMDS CAN: Time overrun when receiving MMDS message TSC1-FME. 04033 ..... ZBR2.................................................Current, parking light, left 04034 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own ISR configuration' block 04034 ..... INT ...........................CAN data bus, message ETC1 from FFR 04034 ..... SFFR......... MMDS CAN: Time overrun when receiving MMDS message Time/Date 04034 ..... ZBR2..................................................... Side marker light, right 04035 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own ABS configuration' block 04035 ..... INT ............................ CAN data bus, message ETP from EDC 04035 ..... SFFR......... MMDS CAN: Time overrun when receiving MMDS message VehDistance 04035 ..... ZBR2....................................................... Side marker light, left 04036 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own ABS configuration' block 04036 ..... INT .......................... CAN data bus, message ERC1 from FFR 04036 ..... ZBR2....................................Current, parking light, trailer, right 04036 ..... ZBRO .........................................................Tail light right trailer 04037 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own ASR configuration' block SD 812a en Page 112 of 203
- 113. SPN.....Control unit/System.............................................. Faultmessage 04037 ..... INT ...........................CAN data bus, message TSC1 from FFR 04037 ..... ZBR2......................................Current, parking light, trailer, left 04037 ..... ZBRO ...........................................................Tail light left trailer 04038 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own ASR configuration' block 04038 ..... INT .......... CAN data bus, time/date message from tachograph 04038 ..... ZBR2...................................................Relay, parking lights left 04039 ..... EBS.........Central control unit EEPROM: Implausible values in 'General ESP configuration' block 04039 ..... INTCAN data bus, mileage message (HRVD) from tachograph 04039 ..... ZBR2.......................................................... Parking light switch 04039 ..... ZBRO ......................................................... Parking light switch 04040 ..... EBS.............Central control unit EEPROM: Checksum error in 'General ESP configuration' block 04040 ..... INT ............................Lamp, Bremsomat/braking control active 04040 ..... ZBR2......................................................... Winter service relay 04041 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own ESP configuration' block 04041 ..... INT .................... CAN data bus, ABS message from EBS/ABS 04041 ..... ZBR2.........................................................Relay, blackout light 04042 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own ESP configuration' block 04042 ..... INT .......................... CAN data bus, FMR1 message from FFR 04042 ..... ZBR2......................................... Perform lighting training again 04043 ..... EBS.........Central control unit EEPROM: Implausible values in 'Own plausibility configuration' block 04043 ..... INT .............................................................Flashing code lamp 04043 ..... ZBR2.............................................. Interlock function, light test 04044 ..... EBS.............Central control unit EEPROM: Checksum error in 'Own plausibility configuration' block 04044 ..... INT .......................................... CAN data bus, message FMR2 04044 ..... ZBR2...............................................Release function, light test 04045 ..... EBS............ Central control unit EEPROM: Implausible values from 'Error memory' 04045 ..... INT .............................................CAN data bus, message EPS 04045 ..... ZBR2.................... Turn indicators operated for both directions SD 812a en Page 113 of 203
- 114. SPN.....Control unit/System.............................................. Faultmessage 04046 ..... EBS.................Central control unit EEPROM: Checksum error for 'Error memory' 04046 ..... ZBR2...........................................................ALW not calibrated 04047 ..... EBS............ Central control unit EEPROM: Implausible values in 'Axle configuration' block 04047 ..... INT ..................................Vehicle electrical system terminal 30 04047 ..... ZBRO ...............................................Turn indicator rear left top 04048 ..... EBS.................Central control unit EEPROM: Checksum error in 'Self-taught EBS data' block 04048 ..... ZBRO .............................................Turn indicator rear right top 04049 ..... EBS.................Central control unit EEPROM: Checksum error in 'Own test' block 04049 ..... ZBRO ............................................. Turn indicator rear left side 04050 ..... EBS....................................................................... Brakes CAN 04050 ..... ZBRO ........................................... Turn indicator rear right side 04051 ..... EBS......................................ESP sensor CAN: System bus off 04051 ..... ZBRO .................................................... Turn indicator front left 04052 ..... EBS................... Electrical power supply, comparison between terminal 15 and terminal 30 04052 ..... ZBRO ..................................................Turn indicator front right 04053 ..... EBS............................................................................... Earth 2 04053 ..... ZBRO ........................................................... School bus button 04054 ..... EBS...... Control unit switch-off delay: Fault in electronic circuit 04054 ..... ZBRO ........................................................... School bus button 04055 ..... EBS..................................................ASR: Invalid configuration 04055 ..... ZBRO .................................................School bus button check 04056 ..... EBS.................... Central control unit - B-controller: Checksum error in boot software 04056 ..... ZBRO ......................... Additional turn indicator behind bumper 04057 ..... EBS....................................................... Pressure control valve 04057 ..... ZBRO .................................................................... Clicker relay 04058 ..... EBS..................... Steering angle sensor, CAN communication 04058 ..... ZBRO ....................................Hazard warning light switch CAN 04059 ..... EBS..............................................Steering angle sensor signal 04059 ..... ZBRO .............................. Hazard warning light switch external 04060 ..... EBS........... Steering angle sensor, installed but not configured 04060 ..... ZBRO ....................................................... Headlight high beam SD 812a en Page 114 of 203
- 115. SPN.....Control unit/System.............................................. Faultmessage 04061 ..... EBS............................Yaw rate sensor, quick calibration faulty 04061 ..... ZBRO ............................................ High-beam headlight check 04062 ..... EBS.......................................................Yaw rate sensor signal 04062 ..... ZBRO ....................................................... Licence plate light(s) 04063 ..... EBS.............................. Yaw rate sensor, CAN communication 04063 ..... ZBRO ................................................................. Rear fog lamp 04064 ..... EBS.....................Yaw rate sensor, sensor installed incorrectly 04064 ..... ZBRO ......................................................... Rear fog lamp right 04065 ..... EBS.................... Yaw rate sensor, installed but not configured 04065 ..... ZBRO ............................................................Rear fog lamp left 04066 ..... EBS............. Yaw angle sensor, long-time calibration incorrect 04066 ..... ZBRO ............................................... Rear fog lamp trailer right 04067 ..... EBS.............................. Transverse acceleration sensor signal 04067 ..... ZBRO ..................................................Rear fog lamp trailer left 04068 ..... EBS....... Steering angle sensor, long-time calibration incorrect 04068 ..... ZBRO ....................................................................... Fog lamps 04069 ..... EBS.................. Steering angle sensor signal, implausible with regard to reference rate of turn 04069 ..... ZBRO ....................................................................... Fog lamps 04070 ..... EBS...............................Steering angle sensor, signal gradient 04070 ..... ZBRO ...................................................................Tail light right 04071 ..... EBS........... Steering angle sensor, sensor installed incorrectly 04071 ..... ZBRO .....................................................................Tail light left 04072 ..... EBS.............................................................ESP sensor supply 04072 ..... ZBRO .................................................. Side marker light 1 right 04073 ..... EBS.............................................Service brake module supply 04073 ..... ZBRO .................................................... Side marker light 1 left 04074 ..... EBS........... Pressure control module, outdated driver software 04074 ..... ZBRO .................................................. Side marker light 2 right 04075 ..... EBS...................... Inconsistent driver software status between ECU and pressure control module 04075 ..... ZBRO .................................................... Side marker light 2 left 04076 ..... EBS..................... Pressure control module, checksum error in external flash memory 04076 ..... ZBRO .................................................. Side marker light 3 right 04077 ..... EBS....... Pressure control module, installed but not configured 04077 ..... ZBRO .................................................... Side marker light 3 left SD 812a en Page 115 of 203
- 116. SPN.....Control unit/System.............................................. Faultmessage 04078 ..... EBS.................................. Trailer control module - intake valve 04078 ..... ZBRO .................................................. Side marker light 4 right 04079 ..... EBS............................... Trailer control module - exhaust valve 04079 ..... ZBRO .................................................... Side marker light 4 left 04080 ..... EBS...................................Trailer control module: Check valve 04080 ..... ZBRO .................................................. Side marker light 5 right 04081 ..... EBS................Trailer control module - pressure sensor supply 04081 ..... ZBRO .................................................... Side marker light 5 left 04082 ..... EBS........................................................ Trailer control module 04082 ..... ZBRO .................................................. Side marker light 6 right 04083 ..... EBS..................... Trailer control module, short circuit between intake and exhaust valves 04083 ..... ZBRO .................................................... Side marker light 6 left 04084 ..... EBS..................... Trailer control module, short circuit between check and intake valves 04084 ..... ZBRO .................................................. Side marker light 7 right 04085 ..... EBS..................... Trailer control module, short circuit between check and exhaust valves 04085 ..... ZBRO .................................................... Side marker light 7 left 04086 ..... EBS........................................................Wheel sensor wheel 7 04086 ..... ZBRO .................................................. Side marker light 8 right 04087 ..... EBS..........................Wheel sensor wheel 7: Connection cable damaged or sensor defective 04087 ..... ZBRO .................................................... Side marker light 8 left 04088 ..... EBS........................................................Wheel sensor wheel 8 04088 ..... ZBRO ............................................................ Parking light right 04089 ..... EBS..........................Wheel sensor wheel 8: Connection cable damaged or sensor defective 04089 ..... ZBRO .............................................................. Parking light left 04090 ..... EBS.................................. Brake pad wear connection wheel 1 04090 ..... ZBRO ......................................................Outline light rear right 04091 ..... EBS.............................. Brake pad wear sensor signal wheel 7 04091 ..... ZBRO ........................................................Outline light rear left 04092 ..... EBS........................................Brake pad wear sensor wheel 7: Difference between the 2 signals on the left and right sides of the axle too great 04092 ..... ZBRO .....................................................Outline light front right SD 812a en Page 116 of 203
- 117. SPN.....Control unit/System.............................................. Faultmessage 04093 ..... EBS.............................. Brake pad wear sensor signal wheel 8 04093 ..... ZBRO ....................................................... Outline light front left 04094 ..... EBS........................................Brake pad wear sensor wheel 8: Difference between the 2 signals on the left and right sides of the axle too great 04094 ..... ZBRO ........................................................Turn indicator check 04095 ..... EBS..........................Pressure module control unit on wheel 1, incompatible software components 04095 ..... ZBRO ..............................................Turn indicator check trailer 04096 ..... EBS..........................Pressure module control unit on wheel 1, fault in electronic circuit 04096 ..... ZBRO ............................ Parking light 1 (tl. 58 for body builder) 04097 ..... EBS..........................Pressure module control unit on wheel 1, internal control unit test incorrect 04097 ..... ZBRO ............................ Parking light 2 (tl. 58 for body builder) 04098 ..... EBS..........................Pressure module control unit on wheel 1, unknown pressure control module fault code 04098 ..... ZBRO ...................................................... Reversing light trailer 04099 ..... EBS..........................Pressure module control unit on wheel 1, incorrect system monitoring after activation 04100 ..... EBS..........................Pressure module control unit on wheel 2, incompatible software components 04100 ..... ZBR2............................. Headlight low beam, snowplough and gritter operation, right 04101 ..... EBS..........................Pressure module control unit on wheel 2, fault in electronic circuit 04101 ..... EMOS ............................................... Gearshift sensor position 04101 ..... ZBR2............................. Headlight low beam, snowplough and gritter operation, left 04102 ..... EBS..........................Pressure module control unit on wheel 2, internal control unit test incorrect 04102 ..... EMOS ............................................... Selection sensor position 04102 ..... ZBR2............................Headlight high beam, snowplough and gritter operation, right 04103 ..... EBS..........................Pressure module control unit on wheel 2, unknown pressure control module fault code 04103 ..... EMOS ................................................................. Engine signal SD 812a en Page 117 of 203
- 118. SPN.....Control unit/System.............................................. Faultmessage 04103 ..... ZBR2............................Headlight high beam, snowplough and gritter operation, left 04104 ..... EBS..........................Pressure module control unit on wheel 2, incorrect system monitoring after activation 04104 ..... EMOS .................................... Gearbox pressure sensor signal 04104 ..... ZBR2....... Current, parking light, tractive unit, snowplough and gritter operation, right 04105 ..... EBS..........................Pressure module control unit on wheel 3, incompatible software components 04105 ..... EMOS .............................................. Selector lever information 04105 ..... ZBR2....... Current, parking light, tractive unit, snowplough and gritter operation, left 04106 ..... EBS..........................Pressure module control unit on wheel 3, fault in electronic circuit 04106 ..... EMOS .....................................................Request PTO1 signal 04106 ..... ZBRO .................................................. School bus lights check 04107 ..... EBS..........................Pressure module control unit on wheel 3, internal control unit test incorrect 04107 ..... EMOS .....................................................Request PTO2 signal 04107 ..... ZBRO .........................................................School bus light left 04108 ..... EBS..........................Pressure module control unit on wheel 3, unknown pressure control module fault code 04108 ..... EMOS .......................................................Coding PTO1 signal 04108 ..... ZBRO .......................................................School bus light right 04109 ..... EBS..........................Pressure module control unit on wheel 3, incorrect system monitoring after activation 04109 ..... EMOS .......................................................Coding PTO2 signal 04109 ..... ZBR2....................................................... Switch, blackout light 04110 ..... EBS..........................Pressure module control unit on wheel 4, incompatible software components 04110 ..... EMOS .................................................... PTO1 engaged signal 04110 ..... ZBRO .............................................................Fog lamps check 04111 ..... EBS..........................Pressure module control unit on wheel 4, fault in electronic circuit 04111 ..... EMOS .................................................... PTO2 engaged signal 04111 ..... ZBRO .................................................... Side marker light 9 left SD 812a en Page 118 of 203
- 119. SPN.....Control unit/System.............................................. Faultmessage 04112 ..... EBS..........................Pressure module control unit on wheel 4, internal control unit test incorrect 04112 ..... EMOS ............................................ Timeout of EEC3 message 04112 ..... ZBRO .................................................. Side marker light 9 right 04113 ..... EBS..........................Pressure module control unit on wheel 4, unknown pressure control module fault code 04113 ..... EMOS ....................................................... Timeout Eng_Temp 04113 ..... ZBR2.................................................Relay, parking lights right 04114 ..... EBS..........................Pressure module control unit on wheel 4, incorrect system monitoring after activation 04114 ..... EMOS ................................... Timeout of Amb_Cond message 04114 ..... ZBRO ......................................................Daytime driving lights 04115 ..... EBS..........................Pressure module control unit on wheel 5, incompatible software components 04115 ..... EMOS ............................................ Timeout of ETC3 message 04115 ..... ZBR2................................ Number of height sensors RA set in parameters is incorrect (in ALW) 04116 ..... EBS..........................Pressure module control unit on wheel 5, fault in electronic circuit 04116 ..... EMOS ..................................Send error of TSC1_TE message 04116 ..... ZBRO ............................................................... Light test active 04117 ..... EBS..........................Pressure module control unit on wheel 5, internal control unit test incorrect 04117 ..... EMOS ........................................ Send error of ETC1 message 04117 ..... ZBRO .............................................................. Light test cancel 04118 ..... EBS..........................Pressure module control unit on wheel 5, unknown pressure control module fault code 04118 ..... EMOS .............................................Error warning vehicle CAN 04118 ..... ZBRO .................................................................. Light test end 04119 ..... EBS..........................Pressure module control unit on wheel 5, incorrect system monitoring after activation 04119 ..... EMOS ..............................Timeout of Transm_Fluids message 04120 ..... EBS..........................Pressure module control unit on wheel 6, incompatible software components 04120 ..... EMOS ............................................Timeout of KSM1 message 04121 ..... EBS..........................Pressure module control unit on wheel 6, fault in electronic circuit SD 812a en Page 119 of 203
- 120. SPN.....Control unit/System.............................................. Faultmessage 04121 ..... EMOS .........................Checksum error when reading out data from EEPROM on ECU start 04122 ..... EBS..........................Pressure module control unit on wheel 6, internal control unit test incorrect 04122 ..... EMOS ........................ Electrical power supply of gearshift and selection sensor: Value range exceeded 04123 ..... EBS..........................Pressure module control unit on wheel 6, unknown pressure control module fault code 04123 ..... EMOS ...................... Clutch biting point cannot be ascertained 04124 ..... EBS..........................Pressure module control unit on wheel 6, incorrect system monitoring after activation 04124 ..... EMOS ..................................................... Gear disengagement 04125 ..... EBS..........................Pressure module control unit on wheel 1, EEPROM data record is not compatible with the system 04125 ..... EMOS ............................... Gate selection in gear engagement 04126 ..... EBS..........................Pressure module control unit on wheel 1, EEPROM cannot be written 04126 ..... EMOS ...............................................Gear selection procedure 04127 ..... EBS..........................Pressure module control unit on wheel 2, EEPROM data record is not compatible with the system 04127 ..... EMOS ..................................................... Gear synchronisation 04128 ..... EBS..........................Pressure module control unit on wheel 2, EEPROM cannot be written 04128 ..... EMOS .......................................................... Gear engagement 04129 ..... EBS..........................Pressure module control unit on wheel 3, EEPROM data record is not compatible with the system 04129 ..... EMOS .....................................Timeout of ERC1_RX message 04130 ..... EBS..........................Pressure module control unit on wheel 3, EEPROM cannot be written 04130 ..... EMOS .................... Float switch signals Pentosin level too low 04131 ..... EBS..........................Pressure module control unit on wheel 4, EEPROM data record is not compatible with the system 04131 ..... EMOS ........................................ Gearshift sensor temperature 04132 ..... EBS..........................Pressure module control unit on wheel 4, EEPROM cannot be written 04132 ..... EMOS ........................................ Selection sensor temperature SD 812a en Page 120 of 203
- 121. SPN.....Control unit/System.............................................. Faultmessage 04133 ..... EBS..........................Pressure module control unit on wheel 5, EEPROM data record is not compatible with the system 04133 ..... EMOS .......................................Timeout of PROP_A message 04134 ..... EBS..........................Pressure module control unit on wheel 5, EEPROM cannot be written 04134 ..... EMOS .................Tear-off or undervoltage of VPHS (TL 30-1). Pump inoperative or only operable with restrictions. 04135 ..... EBS..........................Pressure module control unit on wheel 6, EEPROM data record is not compatible with the system 04135 ..... EMOS ......................Tear-off or undervoltage of VP (TL 30-2). Redundant power supply is no longer available. 04136 ..... EBS..........................Pressure module control unit on wheel 6, EEPROM cannot be written 04136 ..... EMOS ................. Tear-off or excessive voltage drop of VMHS (TL 31-1). ECU power supply via VM (TL 31-2). Pump inoperative or only operable with restrictions. 04137 ..... EBS...................... Power supply pressure module on wheel 1, short circuit to terminal 15 04138 ..... EBS....................... Power supply pressure module on wheel 1 04139 ..... EBS...................... Power supply pressure module on wheel 1, short circuit between the connection cables 04139 ..... EMOS .............................. Main switch-off relay 1 discontinuity 04140 ..... EBS...................... Power supply pressure module on wheel 2, short circuit to terminal 15 04141 ..... EBS....................... Power supply pressure module on wheel 2 04141 ..... EMOS .............................. Main switch-off relay 2 discontinuity 04142 ..... EBS...................... Power supply pressure module on wheel 2, short circuit between the connection cables 04143 ..... EBS...................... Power supply pressure module on wheel 3, short circuit to terminal 15 04144 ..... EBS....................... Power supply pressure module on wheel 3 04145 ..... EBS...................... Power supply pressure module on wheel 3, short circuit between the connection cables 04146 ..... EBS...................... Power supply pressure module on wheel 4, short circuit to terminal 15 04147 ..... EBS....................... Power supply pressure module on wheel 4 SD 812a en Page 121 of 203
- 122. SPN.....Control unit/System.............................................. Faultmessage 04148 ..... EBS...................... Power supply pressure module on wheel 4, short circuit between the connection cables 04149 ..... EBS...................... Power supply pressure module on wheel 5, short circuit to terminal 15 04150 ..... EBS....................... Power supply pressure module on wheel 5 04151 ..... EBS...................... Power supply pressure module on wheel 5, short circuit between the connection cables 04152 ..... EBS...................... Power supply pressure module on wheel 6, short circuit to terminal 15 04152 ..... EMOS ......................................Pump activation, ECU problem 04153 ..... EBS....................... Power supply pressure module on wheel 6 04154 ..... EBS...................... Power supply pressure module on wheel 6, short circuit between the connection cables 04155 ..... EBS.............................................CAN signal brake on wheel 1 04156 ..... EBS.............................................CAN signal brake on wheel 2 04157 ..... EBS.............................................CAN signal brake on wheel 3 04158 ..... EBS.............................................CAN signal brake on wheel 4 04159 ..... EBS.............................................CAN signal brake on wheel 5 04160 ..... EBS.............................................CAN signal brake on wheel 6 04160 ..... EMOS .. 'Idling speed switch' signal or 'Kickdown active' signal 04161 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 11 04161 ..... EMOS ...................................... Wheel differential speed signal 04162 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 12 04162 ..... EMOS ... Time information via CAN is not completely available 04163 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 13 04163 ..... EMOS .... On-time exceeded for 'Open clutch' actuator system 04164 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 14 04164 ..... EMOS .... On-time exceeded for 'Close clutch' actuator system 04165 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 21 04165 ..... EMOS ...........On-time exceeded for selection actuator system 04166 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 22 SD 812a en Page 122 of 203
- 123. SPN.....Control unit/System.............................................. Faultmessage 04166 ..... EMOS ..... On-time exceeded for engagement actuator system 04167 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 23 04167 ..... EMOS ........................... On-time exceeded for hydraulic pump 04168 ..... EBS.......................CAN signal brake on wheel 1, time overrun of message 24 04168 ..... EMOS ....................... Temperature below permitted limit value 04169 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 11 04170 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 12 04170 ..... EMOS ............... Safety device (WDC/redundant shut-off path) does not function 04171 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 13 04171 ..... EMOS 'Temperature sensor next to pump output stage' signal 04172 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 14 04172 ..... EMOS .. No pressure build-up possible during pump activation 04173 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 21 04174 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 22 04175 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 23 04176 ..... EBS.......................CAN signal brake on wheel 2, time overrun of message 24 04177 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 11 04178 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 12 04179 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 13 04180 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 14 04180 ..... EMOS .......................Sequence monitoring has detected error in function call sequence SD 812a en Page 123 of 203
- 124. SPN.....Control unit/System.............................................. Faultmessage 04181 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 21 04181 ..... EMOS ..................................................Security layer activated 04182 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 22 04183 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 23 04184 ..... EBS.......................CAN signal brake on wheel 3, time overrun of message 24 04185 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 11 04186 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 12 04187 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 13 04188 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 14 04189 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 21 04190 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 22 04191 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 23 04192 ..... EBS.......................CAN signal brake on wheel 4, time overrun of message 24 04193 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 11 04194 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 12 04195 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 13 04196 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 14 04197 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 21 04198 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 22 SD 812a en Page 124 of 203
- 125. SPN.....Control unit/System.............................................. Faultmessage 04199 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 23 04200 ..... EBS.......................CAN signal brake on wheel 5, time overrun of message 24 04200 ..... ZBR2.................................Entry light and interior lighting, right 04201 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 11 04201 ..... ZBR2...................................Entry light and interior lighting, left 04202 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 12 04202 ..... ZBRO ...................................................... Interior lighting check 04203 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 13 04203 ..... ZBRO ............................................................. Interior lighting 1 04204 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 14 04204 ..... ZBRO ........................................... Interior lighting 1 continuous 04205 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 21 04205 ..... ZBRO ..............................................Interior lighting 1 economy 04206 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 22 04206 ..... ZBRO ........................................................Interior lighting 1 full 04207 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 23 04207 ..... ZBRO ............................................................. Interior lighting 2 04208 ..... EBS.......................CAN signal brake on wheel 6, time overrun of message 24 04208 ..... ZBRO ........................................... Interior lighting 2 continuous 04209 ..... EBS.......... Speed sensor input on pressure regulating module wheel 1, faulty electronic circuit 04209 ..... ZBRO ..............................................Interior lighting 2 economy 04210 ..... EBS.......... Speed sensor input on pressure regulating module wheel 2, faulty electronic circuit 04210 ..... ZBRO ........................................................Interior lighting 2 full 04211 ..... EBS.......... Speed sensor input on pressure regulating module wheel 3, faulty electronic circuit SD 812a en Page 125 of 203
- 126. SPN.....Control unit/System.............................................. Faultmessage 04211 ..... ZBRO ......................................... Interior lighting 2a continuous 04212 ..... EBS.......... Speed sensor input on pressure regulating module wheel 4, faulty electronic circuit 04212 ..... ZBRO ......................................................Interior lighting 2a full 04213 ..... EBS.......... Speed sensor input on pressure regulating module wheel 5, faulty electronic circuit 04213 ..... ZBRO ......................................... Interior lighting 2b continuous 04214 ..... EBS.......... Speed sensor input on pressure regulating module wheel 6, faulty electronic circuit 04214 ..... ZBRO ......................................................Interior lighting 2b full 04215 ..... EBS.......... Speed sensor input on pressure regulating module wheel 7, faulty electronic circuit 04215 ..... ZBRO ............................................................. Interior lighting 3 04216 ..... EBS.......... Speed sensor input on pressure regulating module wheel 8, faulty electronic circuit 04216 ..... ZBRO ............................................................. Interior lighting 3 04217 ..... EBS.......... Speed sensor input on pressure regulating module wheel 1, faulty electronic circuit 04217 ..... ZBRO ................................................... Interior lighting 3 check 04218 ..... EBS........................... Speed sensor wheel 2, air gap too great 04218 ..... ZBRO ..............................................Interior lighting 3 economy 04219 ..... EBS........................... Speed sensor wheel 3, air gap too great 04219 ..... ZBRO ........................................................Interior lighting 3 full 04220 ..... EBS........................... Speed sensor wheel 4, air gap too great 04220 ..... ZBRO ................................................................... Night lighting 04221 ..... EBS........................... Speed sensor wheel 5, air gap too great 04221 ..... ZBRO ................................................................... Night lighting 04222 ..... EBS........................... Speed sensor wheel 6, air gap too great 04222 ..... ZBRO .........................................................Night lighting check 04223 ..... EBS........................... Speed sensor wheel 7, air gap too great 04223 ..... ZBRO ...................................................... Interior lighting 2c full 04224 ..... EBS........................... Speed sensor wheel 8, air gap too great 04224 ..... ZBRO ......................................................Interior lighting 1a full 04225 ..... EBS............... Speed sensor wheel 1, impulse wheel defective 04225 ..... ZBRO ......................................................Interior lighting 1b full 04226 ..... EBS............... Speed sensor wheel 2, impulse wheel defective 04226 ..... ZBRO ...................................................... Interior lighting 1c full SD 812a en Page 126 of 203
- 127. SPN.....Control unit/System.............................................. Faultmessage 04227 ..... EBS............... Speed sensor wheel 3, impulse wheel defective 04227 ..... ZBRO .................................................Interior lighting reduction 04228 ..... EBS............... Speed sensor wheel 4, impulse wheel defective 04228 ..... ZBRO .......................................... Interior lighting reduct. check 04229 ..... EBS............... Speed sensor wheel 5, impulse wheel defective 04229 ..... ZBRO .............................................................. Footwell lighting 04230 ..... EBS............... Speed sensor wheel 6, impulse wheel defective 04230 ..... ZBRO .............................................................. Footwell lighting 04231 ..... EBS............... Speed sensor wheel 7, impulse wheel defective 04231 ..... ZBRO ....................................................................Aisle lighting 04232 ..... EBS............... Speed sensor wheel 8, impulse wheel defective 04232 ..... ZBRO ............................................................ Reading lights on 04233 ..... EBS................. Speed sensor wheel 1, tyre diameter too great 04233 ..... ZBRO ..................................................... Reading lights enable 04234 ..... EBS................. Speed sensor wheel 2, tyre diameter too great 04234 ..... ZBRO ............................................................. Interior lighting 4 04235 ..... EBS................. Speed sensor wheel 3, tyre diameter too great 04236 ..... EBS................. Speed sensor wheel 4, tyre diameter too great 04237 ..... EBS................. Speed sensor wheel 5, tyre diameter too great 04238 ..... EBS................. Speed sensor wheel 6, tyre diameter too great 04239 ..... EBS................. Speed sensor wheel 7, tyre diameter too great 04240 ..... EBS................. Speed sensor wheel 8, tyre diameter too great 04241 ..... EBS......................... Pressure module intake valve on wheel 1 04242 ..... EBS........................ Pressure module intake valve on wheel 1, valve cannot be switched and is opened 04243 ..... EBS........................ Pressure module intake valve on wheel 1, valve cannot be switched and is closed 04244 ..... EBS......................... Pressure module intake valve on wheel 2 04245 ..... EBS........................ Pressure module intake valve on wheel 2, valve cannot be switched and is opened 04246 ..... EBS........................ Pressure module intake valve on wheel 2, valve cannot be switched and is closed 04247 ..... EBS......................... Pressure module intake valve on wheel 3 04248 ..... EBS........................ Pressure module intake valve on wheel 3, valve cannot be switched and is opened 04249 ..... EBS........................ Pressure module intake valve on wheel 3, valve cannot be switched and is closed SD 812a en Page 127 of 203
- 128. SPN.....Control unit/System.............................................. Faultmessage 04250 ..... EBS......................... Pressure module intake valve on wheel 4 04251 ..... EBS........................ Pressure module intake valve on wheel 4, valve cannot be switched and is opened 04252 ..... EBS........................ Pressure module intake valve on wheel 4, valve cannot be switched and is closed 04253 ..... EBS......................... Pressure module intake valve on wheel 5 04254 ..... EBS........................ Pressure module intake valve on wheel 5, valve cannot be switched and is opened 04255 ..... EBS........................ Pressure module intake valve on wheel 5, valve cannot be switched and is closed 04256 ..... EBS......................... Pressure module intake valve on wheel 6 04257 ..... EBS........................ Pressure module intake valve on wheel 6, valve cannot be switched and is opened 04258 ..... EBS........................ Pressure module intake valve on wheel 6, valve cannot be switched and is closed 04259 ..... EBS...................... Pressure module exhaust valve on wheel 1 04260 ..... EBS..................... Pressure module exhaust valve on wheel 1, valve cannot be switched and is opened 04261 ..... EBS..................... Pressure module exhaust valve on wheel 1, valve cannot be switched and is closed 04262 ..... EBS...................... Pressure module exhaust valve on wheel 2 04263 ..... EBS..................... Pressure module exhaust valve on wheel 2, valve cannot be switched and is opened 04264 ..... EBS..................... Pressure module exhaust valve on wheel 2, valve cannot be switched and is closed 04265 ..... EBS...................... Pressure module exhaust valve on wheel 3 04266 ..... EBS..................... Pressure module exhaust valve on wheel 3, valve cannot be switched and is opened 04267 ..... EBS..................... Pressure module exhaust valve on wheel 3, valve cannot be switched and is closed 04268 ..... EBS...................... Pressure module exhaust valve on wheel 4 04269 ..... EBS..................... Pressure module exhaust valve on wheel 4, valve cannot be switched and is opened 04270 ..... EBS..................... Pressure module exhaust valve on wheel 4, valve cannot be switched and is closed 04271 ..... EBS...................... Pressure module exhaust valve on wheel 5 SD 812a en Page 128 of 203
- 129. SPN.....Control unit/System.............................................. Faultmessage 04272 ..... EBS..................... Pressure module exhaust valve on wheel 5, valve cannot be switched and is opened 04273 ..... EBS..................... Pressure module exhaust valve on wheel 5, valve cannot be switched and is closed 04274 ..... EBS...................... Pressure module exhaust valve on wheel 6 04275 ..... EBS..................... Pressure module exhaust valve on wheel 6, valve cannot be switched and is opened 04276 ..... EBS....................... Pressure module backup valve on wheel 1 04277 ..... EBS...................... Pressure module backup valve on wheel 1, valve cannot be switched and is closed 04278 ..... EBS....................... Pressure module backup valve on wheel 2 04279 ..... EBS...................... Pressure module backup valve on wheel 2, valve cannot be switched and is closed 04280 ..... EBS....................... Pressure module backup valve on wheel 3 04281 ..... EBS...................... Pressure module backup valve on wheel 3, valve cannot be switched and is closed 04282 ..... EBS....................... Pressure module backup valve on wheel 4 04283 ..... EBS...................... Pressure module backup valve on wheel 4, valve cannot be switched and is closed 04284 ..... EBS....................... Pressure module backup valve on wheel 5 04285 ..... EBS...................... Pressure module backup valve on wheel 5, valve cannot be switched and is closed 04286 ..... EBS....................... Pressure module backup valve on wheel 6 04287 ..... EBS...................... Pressure module backup valve on wheel 6, valve cannot be switched and is closed 04288 ..... EBS................. Pressure module pressure sensor on wheel 1, offset learned by teach-in 04289 ..... EBS....... Pressure module pressure sensor on wheel 1, signal 04291 ..... EBS................. Pressure module pressure sensor on wheel 2, offset learned by teach-in 04292 ..... EBS....... Pressure module pressure sensor on wheel 2, signal 04294 ..... EBS................. Pressure module pressure sensor on wheel 3, offset learned by teach-in 04295 ..... EBS....... Pressure module pressure sensor on wheel 3, signal 04297 ..... EBS................. Pressure module pressure sensor on wheel 4, offset learned by teach-in 04298 ..... EBS....... Pressure module pressure sensor on wheel 4, signal SD 812a en Page 129 of 203
- 130. SPN.....Control unit/System.............................................. Faultmessage 04300 ..... EBS................. Pressure module pressure sensor on wheel 5, offset learned by teach-in is too high 04300 ..... ZBR2...................................................Fill level, cleaning water 04301 ..... EBS....... Pressure module pressure sensor on wheel 5, signal 04301 ..... ZBR2...................................................................Washer pump 04301 ..... ZBRO .......................................................Windscreen washers 04302 ..... EBS................. Pressure module pressure sensor on wheel 5, offset learned by teach-in is too low 04302 ..... ZBR2....................................................Intermittent wipe switch 04302 ..... ZBRO ...............................................Windscreen wiper interval 04303 ..... EBS................. Pressure module pressure sensor on wheel 6, offset learned by teach-in 04303 ..... ZBR2.......................................................... CLK interval switch 04304 ..... EBS....... Pressure module pressure sensor on wheel 6, signal 04304 ..... ZBR2.............................................. Windscreen washer button 04304 ..... ZBRO .......................................................Windscreen washers 04305 ..... ZBR2........................................................... Rain sensor signal 04306 ..... EBS........................... Wheel 1: Brake performance monitoring 04306 ..... ZBR2.................................Fill level, headlight cleaning system 04307 ..... EBS........................... Wheel 2: Brake performance monitoring 04307 ..... ZBR2.................................... Pump, headlight cleaning system 04308 ..... EBS........................... Wheel 3: Brake performance monitoring 04308 ..... ZBR2................................................... Wiper motor revolutions 04309 ..... EBS........................... Wheel 4: Brake performance monitoring 04309 ..... ZBR2...........................................................Wiper motor speed 04310 ..... EBS........................... Wheel 5: Brake performance monitoring 04310 ..... ZBR2............................ Wiper relay (spare relay, parking light) 04310 ..... ZBRO ...................................................Windscreen wiper relay 04311 ..... EBS........................... Wheel 6: Brake performance monitoring 04311 ..... ZBR2............................................................. Wiper limit switch 04311 ..... ZBRO ...................................... Windscreen wiper zero position 04312 ..... EBS..............................Wheel 1 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04312 ..... ZBR2....................................................... Wiper switch position SD 812a en Page 130 of 203
- 131. SPN.....Control unit/System.............................................. Faultmessage 04313 ..... EBS..............................Wheel 2 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04313 ..... ZBRO ...............................................Windscreen wiper stage 1 04314 ..... EBS..............................Wheel 3 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04314 ..... ZBRO ...............................................Windscreen wiper stage 2 04315 ..... EBS..............................Wheel 4 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04316 ..... EBS..............................Wheel 5 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04317 ..... EBS..............................Wheel 6 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04318 ..... EBS..............................Wheel 1 in conjunction with ABS logic: Wheel speed error 04319 ..... EBS..............................Wheel 2 in conjunction with ABS logic: Wheel speed error 04320 ..... EBS..............................Wheel 3 in conjunction with ABS logic: Wheel speed error 04321 ..... EBS..............................Wheel 4 in conjunction with ABS logic: Wheel speed error 04322 ..... EBS..............................Wheel 5 in conjunction with ABS logic: Wheel speed error 04323 ..... EBS..............................Wheel 6 in conjunction with ABS logic: Wheel speed error 04324 ..... EBS..............................Wheel 1 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04325 ..... EBS..............................Wheel 2 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast SD 812a en Page 131 of 203
- 132. SPN.....Control unit/System.............................................. Faultmessage 04326 ..... EBS..............................Wheel 3 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04327 ..... EBS..............................Wheel 4 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04328 ..... EBS..............................Wheel 5 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04329 ..... EBS..............................Wheel 6 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04330 ..... EBS....................................................External sequential fault: External vehicle speed signal implausible 04331 ..... EBS....................................................External sequential fault: Time overrun or fault condition in communication with gearbox control unit on CAN (SA=0x03) 04332 ..... EBS....................................................External sequential fault: Time overrun or fault condition in communication with EAC control unit d on CAN (SA=0x30) 04333 ..... EBS....................................................External sequential fault: Time overrun or fault condition in communication with ECAS control unit on CAN (SA=0x2F) 04334 ..... EBS....................................................External sequential fault: Time overrun or fault condition in communication with central on-board computer on CAN (SA=0x21) 04335 ..... EBS....................................................External sequential fault: Time overrun in communication with trailer control unit 1 04336 ..... EBS....................................................External sequential fault: Time overrun in communication with trailer control unit 2 04337 ..... EBS............................ Trailer control module pressure control: Implausible intake valve actuation 04338 ..... EBS............................ Trailer control module pressure control: Residual pressure detected 04339 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and parking brake signal defective SD 812a en Page 132 of 203
- 133. SPN.....Control unit/System.............................................. Faultmessage 04340 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and long actuation of the parking brake switch 04341 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and long actuation of the anti-jackknife brake valve 04342 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and parking brake switch and trailer brake switch not actuated 04343 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and parking brake signal defective 04344 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and long actuation of the parking brake switch 04345 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and long actuation of the anti-jackknife brake switch 04346 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure at the end of braking and parking brake switch and trailer brake switch not actuated 04347 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure in the exhaust valve actuation and parking brake signal defective 04348 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure in the exhaust valve actuation and long actuation of the parking brake switch 04349 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure in the exhaust valve actuation and long actuation of the valve-controlled trailer brake switch 04350 ..... EBS............................ Trailer control module pressure control: Implausibly high pressure in the exhaust valve actuation and parking brake switch and trailer brake switch not actuated 04351 ..... EBS.......................................................J1939 (driveline CAN): Time overrun in EBC1-RX message SD 812a en Page 133 of 203
- 134. SPN.....Control unit/System.............................................. Faultmessage 04352 ..... EBS..................Pressure module pressure control on wheel 1: Pressure comparison plausibility error: Request is greater than the measured pressure 04353 ..... EBS..................Pressure module pressure control on wheel 2: Pressure comparison plausibility error: Request is greater than the measured pressure 04354 ..... EBS..................Pressure module pressure control on wheel 3: Pressure comparison plausibility error: Request is greater than the measured pressure 04355 ..... EBS..................Pressure module pressure control on wheel 4: Pressure comparison plausibility error: Request is greater than the measured pressure 04356 ..... EBS..................Pressure module pressure control on wheel 5: Pressure comparison plausibility error: Request is greater than the measured pressure 04357 ..... EBS..................Pressure module pressure control on wheel 6: Pressure comparison plausibility error: Request is greater than the measured pressure 04358 ..... EBS..................Pressure module pressure control on wheel 1: Pressure comparison plausibility error: Measured pressure is greater than request 04359 ..... EBS..................Pressure module pressure control on wheel 2: Pressure comparison plausibility error: Measured pressure is greater than request 04360 ..... EBS..................Pressure module pressure control on wheel 3: Pressure comparison plausibility error: Measured pressure is greater than request 04361 ..... EBS..................Pressure module pressure control on wheel 4: Pressure comparison plausibility error: Measured pressure is greater than request 04362 ..... EBS..................Pressure module pressure control on wheel 5: Pressure comparison plausibility error: Measured pressure is greater than request 04363 ..... EBS..................Pressure module pressure control on wheel 6: Pressure comparison plausibility error: Measured pressure is greater than request SD 812a en Page 134 of 203
- 135. SPN.....Control unit/System.............................................. Faultmessage 04364 ..... EBS.Pressure regulating module pressure control on wheel 1: Full braking test 04365 ..... EBS.Pressure regulating module pressure control on wheel 2: Full braking test 04366 ..... EBS.Pressure regulating module pressure control on wheel 3: Full braking test 04367 ..... EBS.Pressure regulating module pressure control on wheel 4: Full braking test 04368 ..... EBS.Pressure regulating module pressure control on wheel 5: Full braking test 04369 ..... EBS.Pressure regulating module pressure control on wheel 6: Full braking test 04370 ..... EBS.Pressure regulating module pressure control on wheel 1: Nominal/actual comparison between pressure regulating module pressure and supply pressure 04371 ..... EBS.Pressure regulating module pressure control on wheel 2: Nominal/actual comparison between pressure regulating module pressure and supply pressure 04372 ..... EBS.Pressure regulating module pressure control on wheel 3: Nominal/actual comparison between pressure regulating module pressure and supply pressure 04373 ..... EBS.Pressure regulating module pressure control on wheel 4: Nominal/actual comparison between pressure regulating module pressure and supply pressure 04374 ..... EBS.Pressure regulating module pressure control on wheel 5: Nominal/actual comparison between pressure regulating module pressure and supply pressure 04375 ..... EBS.Pressure regulating module pressure control on wheel 6: Nominal/actual comparison between pressure regulating module pressure and supply pressure 04376 ..... EBS.Pressure regulating module pressure control on wheel 1: Temporary backup test 04377 ..... EBS.Pressure regulating module pressure control on wheel 2: Temporary backup test 04378 ..... EBS.Pressure regulating module pressure control on wheel 3: Temporary backup test SD 812a en Page 135 of 203
- 136. SPN.....Control unit/System.............................................. Faultmessage 04379 ..... EBS.Pressure regulating module pressure control on wheel 4: Temporary backup test 04380 ..... EBS.Pressure regulating module pressure control on wheel 5: Temporary backup test 04381 ..... EBS.Pressure regulating module pressure control on wheel 6: Temporary backup test 04382 ..... EBS.Pressure regulating module pressure control on wheel 1: Temporary brake test 04383 ..... EBS.Pressure regulating module pressure control on wheel 2: Temporary brake test 04384 ..... EBS.Pressure regulating module pressure control on wheel 3: Temporary brake test 04385 ..... EBS.Pressure regulating module pressure control on wheel 4: Temporary brake test 04386 ..... EBS.Pressure regulating module pressure control on wheel 5: Temporary brake test 04387 ..... EBS.Pressure regulating module pressure control on wheel 6: Temporary brake test 04388 ..... EBS..................Pressure module pressure control on wheel 1: Implausible pressure differential right/left 04389 ..... EBS..................Pressure module pressure control on wheel 2: Implausible pressure differential right/left 04390 ..... EBS..................Pressure module pressure control on wheel 3: Implausible pressure differential right/left 04391 ..... EBS..................Pressure module pressure control on wheel 4: Implausible pressure differential right/left 04392 ..... EBS..................Pressure module pressure control on wheel 5: Implausible pressure differential right/left 04393 ..... EBS..................Pressure module pressure control on wheel 6: Implausible pressure differential right/left 04394 ..... EBS..................Pressure module pressure control on wheel 1: Implausible pressure when no braked applied 04395 ..... EBS..................Pressure module pressure control on wheel 2: Implausible pressure when no braked applied 04396 ..... EBS..................Pressure module pressure control on wheel 3: Implausible pressure when no braked applied SD 812a en Page 136 of 203
- 137. SPN.....Control unit/System.............................................. Faultmessage 04397 ..... EBS..................Pressure module pressure control on wheel 4: Implausible pressure when no braked applied 04398 ..... EBS..................Pressure module pressure control on wheel 5: Implausible pressure when no braked applied 04399 ..... EBS..................Pressure module pressure control on wheel 6: Implausible pressure when no braked applied 04400 ..... EBS..................Pressure module pressure control on wheel 1: Implausible pressure at end of braking 04400 ..... ZBR2..................... Grease quantity, central lubrication system 04401 ..... EBS..................Pressure module pressure control on wheel 2: Implausible pressure at end of braking 04401 ..... ZBR2..................................... Motor, central lubrication system 04402 ..... EBS..................Pressure module pressure control on wheel 3: Implausible pressure at end of braking 04402 ..... ZBR2........................ Pump strokes, central lubrication system 04403 ..... EBS..................Pressure module pressure control on wheel 4: Implausible pressure at end of braking 04403 ..... ZBR2..................................................Interim lubrication button 04404 ..... EBS..................Pressure module pressure control on wheel 5: Implausible pressure at end of braking 04404 ..... ZBRO ...............................................Central lubrication system 04405 ..... EBS..................Pressure module pressure control on wheel 6: Implausible pressure at end of braking 04405 ..... ZBRO ...............................................Central lubrication system 04406 ..... EBS..................Pressure module pressure control on wheel 1: Implausible intake valve actuation 04407 ..... EBS..................Pressure module pressure control on wheel 2: Implausible intake valve actuation 04408 ..... EBS..................Pressure module pressure control on wheel 3: Implausible intake valve actuation 04409 ..... EBS..................Pressure module pressure control on wheel 4: Implausible intake valve actuation 04410 ..... EBS..................Pressure module pressure control on wheel 5: Implausible intake valve actuation 04411 ..... EBS..................Pressure module pressure control on wheel 6: Implausible intake valve actuation SD 812a en Page 137 of 203
- 138. SPN.....Control unit/System.............................................. Faultmessage 04412 ..... EBS..................Pressure module pressure control on wheel 1: Implausible exhaust valve actuation 04413 ..... EBS..................Pressure module pressure control on wheel 2: Implausible exhaust valve actuation 04414 ..... EBS..................Pressure module pressure control on wheel 3: Implausible exhaust valve actuation 04415 ..... EBS..................Pressure module pressure control on wheel 4: Implausible exhaust valve actuation 04416 ..... EBS..................Pressure module pressure control on wheel 5: Implausible exhaust valve actuation 04417 ..... EBS..................Pressure module pressure control on wheel 6: Implausible exhaust valve actuation 04418 ..... EBS..................Pressure module pressure control on wheel 1: Residual pressure detected 04419 ..... EBS..................Pressure module pressure control on wheel 2: Residual pressure detected 04420 ..... EBS..................Pressure module pressure control on wheel 3: Residual pressure detected 04421 ..... EBS..................Pressure module pressure control on wheel 4: Residual pressure detected 04422 ..... EBS..................Pressure module pressure control on wheel 5: Residual pressure detected 04423 ..... EBS..................Pressure module pressure control on wheel 6: Residual pressure detected 04424 ..... EBS...................Yaw angle sensor: Standstill calibration failed 04425 ..... EBS................. Yaw angle sensor: Long-time calibration failed 04426 ..... EBS................................. Yaw angle sensor: Fine tuning failed 04427 ..... EBS................................Yaw angle sensor: Implausible signal (outside the validity range of the physical model) 04428 ..... EBS.......................Yaw angle sensor: Signal gradient too high 04429 ..... EBS.................... Yaw angle sensor: Implausible sensor signal in relation to reference yaw angle 04430 ..... EBS.........................Yaw angle sensor: Static self-check failed 04431 ..... EBS....................Yaw angle sensor: Dynamic self-check failed 04432 ..... ACC ............................Cruise control switch (sleeve) operated 04432 ..... EBS........................................Transverse acceleration sensor: Standstill calibration failed SD 812a en Page 138 of 203
- 139. SPN.....Control unit/System.............................................. Faultmessage 04433 ..... ACC .................................. Cruise control switch 'Off' operated 04433 ..... EBS................ Central control unit B-controller: ABS reference pressure implausible 04434 ..... ACC ............ Driving speed limiter mode / driving speed limiter switch is on 04434 ..... EBS............................... ABS logic: Implausible activation time 04435 ..... ACC ........... Parking brake not released/parking brake applied 04435 ..... EBS..........................Pressure module control unit on wheel 1, inconsistent driver software version between ECU and boot loader 04436 ..... ACC ........................................................ ABS defective/invalid 04436 ..... EBS..........................Pressure module control unit on wheel 1, checksum error in external flash memory 04437 ..... ACC ........................................................ EBS defective/invalid 04437 ..... EBS..........................Pressure module control unit on wheel 1, outdated driver software 04438 ..... ACC ......................................................... Pedal brake pressed 04438 ..... EBS..........................Pressure module control unit on wheel 2, inconsistent driver software version between ECU and boot loader 04439 ..... ACC ............................. Sustained-action brake lever operated 04439 ..... EBS..........................Pressure module control unit on wheel 2, checksum error in external flash memory 04440 ..... ACC ............................................ Sustained-action brakes 'Off' 04440 ..... EBS..........................Pressure module control unit on wheel 2, outdated driver software 04441 ..... ACC ............................................................... ASR intervention 04441 ..... EBS..........................Pressure module control unit on wheel 3, inconsistent driver software version between ECU and boot loader 04442 ..... ACC ............................................................... ABS intervention 04442 ..... EBS..........................Pressure module control unit on wheel 3, checksum error in external flash memory 04443 ..... ACC ............................................................... ESP intervention 04443 ..... EBS..........................Pressure module control unit on wheel 3, outdated driver software SD 812a en Page 139 of 203
- 140. SPN.....Control unit/System.............................................. Faultmessage 04444 ..... ACC ............................... ACC has activated EBS for too long / brake temperature 04444 ..... EBS..........................Pressure module control unit on wheel 4, inconsistent driver software version between ECU and boot loader 04445 ..... ACC ......................................................... Engine revs too high 04445 ..... EBS..........................Pressure module control unit on wheel 4, checksum error in external flash memory 04446 ..... ACC ................................................................... Delay too long 04446 ..... EBS..........................Pressure module control unit on wheel 4, outdated driver software 04447 ..... ACC ....................................................... No/invalid road speed 04447 ..... EBS..........................Pressure module control unit on wheel 5, inconsistent driver software version between ECU and boot loader 04448 ..... ACC ........................................... No EBS intervention possible 04448 ..... EBS..........................Pressure module control unit on wheel 5, checksum error in external flash memory 04449 ..... ACC ..............................................................EBS status check 04449 ..... EBS..........................Pressure module control unit on wheel 5, outdated driver software 04450 ..... ACC ................................................................... ESP defective 04450 ..... EBS..........................Pressure module control unit on wheel 6, inconsistent driver software version between ECU and boot loader 04451 ..... ACC ............................ No brake pedal / invalid CAN message EBC1.Brake pedal 04451 ..... EBS..........................Pressure module control unit on wheel 6, checksum error in external flash memory 04452 ..... ACC ........................... Sustained-action brake lever defective / invalid CAN message ERC1X.Sustained-action brake lever 04452 ..... EBS..........................Pressure module control unit on wheel 6, outdated driver software 04453 ..... ACC ............. No engine / invalid CAN message EEC1.Torque SD 812a en Page 140 of 203
- 141. SPN.....Control unit/System.............................................. Faultmessage 04453 ..... EBS...................................... Central control unit - B-controller: Configured service brake module characteristic has exceeded range 04454 ..... ACC .......................................Engine intervention not by ACC, driver, gearbox, HGB, FGB, EDR or brake 04454 ..... EBS...................................... Central control unit - B-controller: Implausibly large difference between the deceleration requirements calculated by both controllers 04455 ..... ACC ................................................................No engine revs / invalid CAN message EEC1.Engine revs 04455 ..... EBS........................... Central control unit - B-controller critical: Variable range overrun or invalid function call 04456 ..... ACC .......................................................No accelerator pedal / invalid CAN message EEC2.Accelerator pedal 04456 ..... EBS........................... Central control unit - B-controller critical: Checksum error in boot loader software 04457 ..... ACC .......................................................No accelerator pedal / invalid CAN message EEC2.Idling speed switch 04457 ..... EBS............................. Central control unit B-controller critical: Checksum error in external flash memory 04458 ..... ACC ....................... No RX / Invalid CAN message ERC1_RX. Torques (engine brake) 04458 ..... EBS Central control unit B-controller critical: RAM check failed 04459 ..... ACC .......................No RD / Invalid CAN message ERC1_RD. Torques (secondary retarder) 04459 ..... EBS............................. Central control unit B-controller critical: Arithmetic comparison test in microcontroller failed 04460 ..... ACC ....................... No RE / Invalid CAN message ERC1_RE. Torques (primary retarder) 04460 ..... EBS............................. Central control unit B-controller critical: Stack memory overrun 04461 ..... ACC .................................................Retarder intervention fault 04461 ..... EBS............................. Central control unit B-controller critical: SWI instruction or watchdog or clock pulse generator or PLL defect or external interruption was activated 04462 ..... ACC ............................................................................ No earth SD 812a en Page 141 of 203
- 142. SPN.....Control unit/System.............................................. Faultmessage 04462 ..... EBS............................. Central control unit B-controller critical: Internal microcontroller fault detected 04463 ..... ACC ...............................................................Display defective 04463 ..... EBS............................. Central control unit B-controller critical: Internal control unit fault 04464 ..... ACC .................................................. No cruise control switch / invalid CAN message CCVS.Cruise control switch 04464 ..... EBS............................. Central control unit B-controller critical: Internal control unit fault 04465 ..... ACC ................................. Cruise control active in ACC mode / invalid CAN message CCVS.Enable == cruise control 04465 ..... EBS............................. Central control unit B-controller critical: Internal control unit fault 04466 ..... ACC ....................................... No driving speed limiter switch / invalid CAN message CCVS.Driving speed limiter switch 04466 ..... EBS............................. Central control unit B-controller critical: Unused interrupt routine activated 04467 ..... ACC .................................... No OFF sustained-action brakes / invalid CAN message CCVS.IntelBremsKopl 04467 ..... EBS..........................Pressure module control unit on wheel 7: Mismatch between control unit types of operating software and boot loader 04468 ..... ACC .................................................... No cruise control lever / invalid CAN message CCVS.Off switch or CCVS.Lever 04468 ..... EBS............... Supply voltage brake pad wear sensor wheel 1: Short circuit to ground 04469 ..... ACC ............................................ No distance selector switch / invalid CAN message AUX1_ZBR.Switch 04469 ..... EBS............... Supply voltage brake pad wear sensor wheel 2: Short circuit to ground 04470 ..... ACC ...............................Driveline fault / invalid CAN message ETC1.ShiftInProcess or ETC1.DrivelineEngaged 04470 ..... EBS............... Supply voltage brake pad wear sensor wheel 3: Short circuit to ground 04471 ..... ACC ............ Clutch fault / invalid CAN message CCVS.Clutch 04471 ..... EBS............... Supply voltage brake pad wear sensor wheel 4: Short circuit to ground SD 812a en Page 142 of 203
- 143. SPN.....Control unit/System.............................................. Faultmessage 04472 ..... ACC ...........................................................Clutch travel invalid 04472 ..... EBS............... Supply voltage brake pad wear sensor wheel 5: Short circuit to ground 04473 ..... ACC .............. Speed irregularities between EEC1.Engine revs and TCO1.Revs 04473 ..... EBS............... Supply voltage brake pad wear sensor wheel 6: Short circuit to ground 04474 ..... ACC .........................Valid ETC2.Ratio markedly different from valid speed ratio 04474 ..... EBS............... Supply voltage brake pad wear sensor wheel 7: Short circuit to ground 04475 ..... ACC ........ No TCO speed / invalid CAN message TCO.Speed 04475 ..... EBS............... Supply voltage brake pad wear sensor wheel 8: Short circuit to ground 04476 ..... ACC ..... No wheel speed / invalid CAN message EBC2.Speed 04476 ..... EBS............... Supply voltage brake pad wear sensor wheel 1: was deactivated 04477 ..... ACC ......................................................... Engine revs too high 04477 ..... EBS............... Supply voltage brake pad wear sensor wheel 2: was deactivated 04478 ..... ACC ......................................... No gear or clutch disengaged / open driveline for about 10 s 04478 ..... EBS............... Supply voltage brake pad wear sensor wheel 3: was deactivated 04479 ..... ACC ................................................................. Speed too slow 04479 ..... EBS............... Supply voltage brake pad wear sensor wheel 4: was deactivated 04480 ..... ACC ...................................................................Speed too fast 04480 ..... EBS............... Supply voltage brake pad wear sensor wheel 5: was deactivated 04481 ..... ACC ............................ Bend too tight / valid bending too great 04481 ..... EBS............... Supply voltage brake pad wear sensor wheel 6: was deactivated 04482 ..... ACC ..........................................................No / invalid yaw rate 04482 ..... EBS............... Supply voltage brake pad wear sensor wheel 7: was deactivated 04483 ..... ACC .................................. No / invalid transverse acceleration SD 812a en Page 143 of 203
- 144. SPN.....Control unit/System.............................................. Faultmessage 04483 ..... EBS............... Supply voltage brake pad wear sensor wheel 8: was deactivated 04484 ..... ACC .........................................Radar still in initialisation mode (after ACC initialisation mode) 04484 ..... EBS............................ Trailer control module pressure control: Control piston (42) is defective 04485 ..... ACC .............. Bending is detected as invalid in CAN message 04485 ..... EBS..................................... Wheel sensor: Speed comparison 04486 ..... EBS..................Differential lock valve (differential lock switch): Installed component but not configured 04487 ..... EBS............................................... ESP sensor voltage supply: Faulty electronic circuit in EBS control unit 04488 ..... EBS........................................ Central control unit B-controller: Cannot be switched OFF 04489 ..... EBS........................................ Central control unit A-controller: internal calculation error 04490 ..... EBS.......................................................J1939 (driveline CAN): Time overrun or fault condition in communication with ACC control unit on CAN (SA=0x2A) 04491 ..... EBS........................................ Central control unit A-controller: Mismatch between control unit types of operating software and boot loader 04492 ..... EBS........................ Pressure module supply cable to wheel 1: Current magnitude too high 04493 ..... EBS........................ Pressure module supply cable to wheel 2: Current magnitude too high 04494 ..... EBS........................................Brake pad wear sensor wheel 1: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04495 ..... EBS........................ Pressure module supply cable to wheel 3: Current magnitude too high 04496 ..... EBS........................................Brake pad wear sensor wheel 2: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04497 ..... EBS........................ Pressure module supply cable to wheel 4: Current magnitude too high SD 812a en Page 144 of 203
- 145. SPN.....Control unit/System.............................................. Faultmessage 04498 ..... EBS........................................Brake pad wear sensor wheel 3: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04499 ..... ACC ....................ACC control unit is still in initialisation phase 04499 ..... EBS........................ Pressure module supply cable to wheel 5: Current magnitude too high 04500 ..... ACC ........................................ Internal system error, Trap NMI 04500 ..... EBS........................................Brake pad wear sensor wheel 4: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04500 ..... ZBR2................... Steering/trailing axle/anti-jacknife protection 04500 ..... ZBRO ................................................. Steering oil level too low 04501 ..... ACC ................................Internal system error, Stack overflow 04501 ..... EBS........................ Pressure module supply cable to wheel 6: Current magnitude too high 04502 ..... ACC ............................. Internal system error, Stack underflow 04502 ..... DIW5 ................................................ Turbine speed acquisition 04502 ..... EBS........................................Brake pad wear sensor wheel 5: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04502 ..... ZBR2.......................................Power steering oil level circuit 2 04503 ..... ACC .................................. Internal system error, Trap ILLBUS 04503 ..... EBS........................................Brake pad wear sensor wheel 6: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04503 ..... ZBRO ................................... Anti-jackknife protection damping 04504 ..... ACC ....................................Internal system error, Trap ILLINA 04504 ..... EBS........................................Brake pad wear sensor wheel 7: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04504 ..... ZBRO ........................ Anti-jackknife protection oil level too low 04505 ..... ACC .................................. Internal system error, Trap ILLOPA 04505 ..... EBS........................................Brake pad wear sensor wheel 8: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04505 ..... ZBRO ........................ Anti-jackknife protection oil level too low 04506 ..... ACC ................................. Internal system error, Trap PRTFLT SD 812a en Page 145 of 203
- 146. SPN.....Control unit/System.............................................. Faultmessage 04506 ..... EBS...................... Supply voltage trailer control module valve: Current magnitude too high 04506 ..... ZBRO ............................................ Articulation damping button 04507 ..... ACC ............................... Internal system error, Trap UNDOPC 04507 ..... EBS........................................Brake pad wear sensor wheel 1: Monitoring of brake pad wear signal (decreasing) within the axles 04507 ..... ZBRO ...................................... Articulation angle > 48 degrees 04508 ..... ACC ...................................Internal system error, Trap PECC5 04508 ..... EBS........................................Brake pad wear sensor wheel 2: Monitoring of brake pad wear signal (decreasing) within the axles 04508 ..... ZBRO ................................................. Steering oil level too low 04509 ..... ACC ...................................Internal system error, Trap PECC6 04509 ..... DIW5 .........................................Central solenoid valve handler 04509 ..... EBS........................................Brake pad wear sensor wheel 3: Monitoring of brake pad wear signal (decreasing) within the axles 04509 ..... ZBRO ............................................ Steering adjustment enable 04510 ..... ACC ...................................Internal system error, Trap PECC7 04510 ..... EBS........................................Brake pad wear sensor wheel 4: Monitoring of brake pad wear signal (decreasing) within the axles 04510 ..... ZBRO ..................................Brake lamp to steered trailing axle 04511 ..... ACC ......... Internal RAM defective / memory test on switch-on 04511 ..... EBS........................................Brake pad wear sensor wheel 5: Monitoring of brake pad wear signal (decreasing) within the axles 04511 ..... ZBRO ............................Bus-stop brake to steered trailing axle 04512 ..... ACC .. External RAM defective / address line test on switch-on 04512 ..... EBS........................................Brake pad wear sensor wheel 6: Monitoring of brake pad wear signal (decreasing) within the axles 04512 ..... ZBRO ............................Engine running to steered trailing axle 04513 ..... ACC ........ External RAM defective / memory test on switch-on SD 812a en Page 146 of 203
- 147. SPN.....Control unit/System.............................................. Faultmessage 04513 ..... EBS........................................Brake pad wear sensor wheel 7: Monitoring of brake pad wear signal (decreasing) within the axles 04513 ..... ZBRO ...................................Steered trailing axle check yellow 04514 ..... ACC .........Flash defective / Flash checksum test on switch-on 04514 ..... EBS........................................Brake pad wear sensor wheel 8: Monitoring of brake pad wear signal (decreasing) within the axles 04514 ..... ZBRO ........................................Steered trailing axle check red 04515 ..... ACC .......................External watchdog / Test of function of the external watchdog on switch-on 04515 ..... ZBRO ....................................... Steered trailing axle red STOP 04516 ..... ACC ...............................................Program runtime exceeded 04516 ..... ZBRO .................................Steered trailing axle check oil level 04517 ..... ACC ....................HighLevelTask too long / runtime monitoring 04517 ..... EBS........... Central control unit - A-controller: Checksum error 04517 ..... ZBRO .................................Steered trailing axle check oil level 04518 ..... ACC .................... LowLevelTask too long / runtime monitoring 04518 ..... EBS...................................... Central control unit - A-controller: Incompatible software components 04518 ..... ZBRO .......................Anti-jackknife protection bypass damping 04519 ..... ACC ................................................... Application task too long 04519 ..... EBS...................................... Central control unit - A-controller: Checksum error in the boot loader software 04519 ..... ZBRO ...................................Steered trailing axle check yellow 04520 ..... ACC ............................................Supply voltage (tl.15) too low 04520 ..... EBS...................................... Central control unit - B-controller: Mismatch between control unit types of operating software and boot loader 04520 ..... ZBRO ........................................Steered trailing axle check red 04521 ..... ACC .........................................................TL30 voltage too low 04521 ..... EBS........... Central control unit - B-controller: Checksum error 04521 ..... ZBRO ....................................... Steered trailing axle red STOP 04522 ..... ACC .................................................. Relay defective, no TL30 04522 ..... EBS........................ Central control unit EEPROM: implausible values in configuration list SD 812a en Page 147 of 203
- 148. SPN.....Control unit/System.............................................. Faultmessage 04522 ..... ZBRO .............................. Bus-stop brake automatic shut-off to steered trailing axle 04523 ..... ACC .....................................Relay defective, continuous TL30 04523 ..... EBS......................... Central control unit EEPROM: Checksum error in configuration list 04523 ..... ZBR2.................................................. Oil pressure steering K1 04524 ..... ACC .........................Invalid data record / EEPROM checksum test on switch-on 04524 ..... EBS.............. Transverse acceleration sensor: EOL calibration not completed 04524 ..... ZBR2.................................................. Oil pressure steering K2 04525 ..... ACC ........................ Driveline Can error / if Bus-Off is reached and 0.5 s afterwards. 04525 ..... ZBRO ...................................... Articulation angle > 17 degrees 04526 ..... ACC ......................Driveline Can error / if overflow occurred in CAN controller 04526 ..... EBS............. ISO 11992 (trailer CAN): CAN-Low line defective 04526 ..... ZBRO .............................Anti-jackknife protection engine idling 04527 ..... ACC .................. Cannot send TSC1-EBS / last send message has not been sent yet 04527 ..... EBS.............ISO 11992 (trailer CAN): CAN-High line defective 04527 ..... ZBRO .......................Anti-jackknife protection torque reduction 04528 ..... ACC .................. Cannot send TSC1-FFR / last send message has not been sent yet 04528 ..... EBS....................................... Brakes CAN: No communication 04528 ..... ZBRO ....................... Articulation button when driving forwards 04529 ..... ACC ....................................EBC1 CAN message not received 04529 ..... EBS....................................... Sensor CAN: No communication 04529 ..... ZBRO ............. Articulation button in R gear/art. ang. > 48 deg. 04530 ..... ACC .... ERC1_RX CAN message not received (engine brake) 04530 ..... EBS................................ Time overrun or implausible status in communication with the ACC control unit (SA=0x2A) 04530 ..... ZBRO ...................................... Articulation angle < 17 degrees 04531 ..... ACC ERC1_RE CAN message not received (primary retarder) 04531 ..... EBS............................ Supply voltage for the EBS control unit: Range overrun or underrun (< 8.5 volts / > 36 volts) 04531 ..... ZBRO ........................................... Steering column adjustment SD 812a en Page 148 of 203
- 149. SPN.....Control unit/System.............................................. Faultmessage 04532 ..... ACC ............................ ERC1_RD CAN message not received (secondary retarder) 04532 ..... EBS............................... Yaw angle sensor: implausible values 04533 ..... ACC ....................................EEC1 CAN message not received 04533 ..... EBS........................ Supply voltage for pressure control valves and trailer control module: Range underrun when starting 04534 ..... ACC ................................... CCVS CAN message not received 04534 ..... EBS.........................................Supply voltage for the modules: Range underrun when starting 04535 ..... ACC ............................ Not all control lever operations / CCVS (cruise control/vehicle speed) message cycle too fast 04535 ..... EBS...............................................Supply voltage for the CAN: Range underrun when starting 04536 ..... ACC ....................................TCO1 CAN message not received 04536 ..... EBS...... Supply voltage for the ESP sensors: Range underrun 04537 ..... ACC ....................................EBC2 CAN message not received 04537 ..... EBS Supply voltage for the pressure module: Range underrun 04538 ..... ACC ....................................EEC2 CAN message not received 04538 ..... EBS...............................Supply voltage for electronic pressure control of the pressure modules: Range underrun 04539 ..... ACC .................................... ETC1 CAN message not received 04539 ..... EBS............ Supply voltage for the pressure regulating valves: Range underrun 04540 ..... ACC .................................... ETC2 CAN message not received 04540 ..... EBS.. Supply voltage for the additional valve: Range underrun 04541 ..... ACC ...................................... TC1 CAN message not received 04541 ..... EBS................... Supply voltage for the differential lock switch: Range underrun 04542 ..... ACC ....................................VDC1 CAN message not received 04542 ..... EBS......... Supply voltage for the trailer control module valves: Range underrun 04543 ..... ACC ...........................AUX1_ZBR CAN message not received 04543 ..... EBS......................... Supply voltage for J1939 (driveline CAN): Range underrun 04544 ..... ACC ................... Cannot send ACC1 / last send message has not been sent yet SD 812a en Page 149 of 203
- 150. SPN.....Control unit/System.............................................. Faultmessage 04544 ..... EBS...................... Supply voltage for ISO 11992 (trailer CAN): Range underrun 04545 ..... ACC ............................ Cannot send DM1 / last send message has not been sent yet 04545 ..... EBS............... Supply voltage for CAN brake: Range underrun 04546 ..... ACC ...................................Synchronisation error / TCO1 CAN messages not received in cycle 04546 ..... EBS............................... ABS logic: Request red warning lamp 04547 ..... ACC ....................................WEIG CAN message not received 04547 ..... EBS...................................... System test: Invalid configuration 04548 ..... ACC ...................................... ALB CAN message not received 04548 ..... EBS. System test: Reconfiguration of pressure control module 04549 ..... ACC ....................................Cannot send Trans-Conf request / Cannot request Trans Config CAN message 04549 ..... EBS............... System test: Dynamometer test rig mode active 04550 ..... ACC ............................................ No configuration messages / Trans,Rx,Rd,Re,Ccvs Config not received 04550 ..... EBS. System test: Pressure regulating module voltage supply; short circuit to terminal 15 04551 ..... ACC ............................ Eng-Conf CAN messages not received 04551 ..... EBS....................................................External sequential fault: External vehicle weight signal implausible (CAN message: vehicle weight) 04552 ..... ACC ..........................Check EBC1 timeout / Timeout was only detected by additional monitoring 04552 ..... EBS....................................................External sequential fault: Trailer ABS is not fully functional 04553 ..... ACC .............................. Check brake / Excessive braking time only detected in additional monitoring 04553 ..... EBS....................................................External sequential fault: External input is implausible for ESP 04554 ..... ACC ................................... Check TCO1 tachograph timeout / Timeout was only detected by additional monitoring 04554 ..... EBS.............................External sequential fault: External input is implausible for EBS functions 04555 ..... ACC ........................Check delay / Excessively long delay was only detected in additional monitoring SD 812a en Page 150 of 203
- 151. SPN.....Control unit/System.............................................. Faultmessage 04555 ..... EBS..........................Pressure module control unit on wheel 1: Axle load sensor electrical power supply is not switched on 04556 ..... ACC ...........................Sensor CAN fault / if Bus-Off is reached 04556 ..... EBS..........................Pressure module control unit on wheel 1: Axle load sensor electrical power supply short circuit to terminal 30 04557 ..... ACC ............................................................ SSTA not received 04557 ..... EBS..........................Pressure module control unit on wheel 1: incorrect / inconsistent data record parameter in EEPROM 04558 ..... ACC ............................................................STGT not received 04558 ..... EBS.............CAN signal brake on wheel 1: No communication 04559 ..... ACC ..........................................................STGT2 not received 04559 ..... EBS..........................Pressure module control unit on wheel 2: Axle load sensor electrical power supply is not switched on 04560 ..... ACC ........................................ Radar fault / internal radar fault 04560 ..... EBS..........................Pressure module control unit on wheel 2: Axle load sensor electrical power supply short circuit to terminal 30 04561 ..... ACC ................. Radar fault / incorrect or irreparably damaged radar software (ERROR_SOFTWARE1) 04561 ..... EBS..........................Pressure module control unit on wheel 2: incorrect / inconsistent data record parameter in EEPROM 04562 ..... ACC ................. Radar fault / Incorrect or irreparably damaged radar software (ERROR_SOFTWARE2) 04562 ..... EBS.............CAN signal brake on wheel 2: No communication 04563 ..... ACC .................................Radar fault / supply voltage too high 04563 ..... EBS..........................Pressure module control unit on wheel 3: Axle load sensor electrical power supply is not switched on 04564 ..... ACC .................................. Radar fault / supply voltage too low 04564 ..... EBS..........................Pressure module control unit on wheel 3: Axle load sensor electrical power supply short circuit to terminal 30 SD 812a en Page 151 of 203
- 152. SPN.....Control unit/System.............................................. Faultmessage 04565 ..... ACC ..................................................Radar fault / TRM too hot 04565 ..... EBS..........................Pressure module control unit on wheel 3: incorrect / inconsistent data record parameter in EEPROM 04566 ..... ACC ................................................ Radar fault / TRM too cold 04566 ..... EBS.............CAN signal brake on wheel 3: No communication 04567 ..... ACC ................................................. Radar fault / PCM too hot 04567 ..... EBS..........................Pressure module control unit on wheel 4: Axle load sensor electrical power supply is not switched on 04568 ..... ACC ................................... Radar fault / sensor CAN bus fault 04568 ..... EBS..........................Pressure module control unit on wheel 4: Axle load sensor electrical power supply short circuit to terminal 30 04569 ..... ACC ...........................Radar fault / sensor CAN message fault 04569 ..... EBS..........................Pressure module control unit on wheel 4: incorrect / inconsistent data record parameter in EEPROM 04570 ..... ACC ...................................Radar fault / no parameter settings 04570 ..... DIW5 ...........................................................Solenoid valve WP 04570 ..... EBS.............CAN signal brake on wheel 4: No communication 04571 ..... ACC ...................................................Radar fault / pairing fault 04571 ..... EBS..........................Pressure module control unit on wheel 5: Axle load sensor electrical power supply is not switched on 04572 ..... ACC .............................................Radar fault / HF switched off 04572 ..... EBS..........................Pressure module control unit on wheel 5: Axle load sensor electrical power supply short circuit to terminal 30 04573 ..... ACC .................................. Radar fault / sensor alignment fault 04573 ..... EBS..........................Pressure module control unit on wheel 5: incorrect / inconsistent data record parameter in EEPROM 04574 ..... ACC ................................. Radar fault / background noise fault 04574 ..... EBS.............CAN signal brake on wheel 5: No communication 04575 ..... ACC ............................................... Radar fault / aerial blocked SD 812a en Page 152 of 203
- 153. SPN.....Control unit/System.............................................. Faultmessage 04575 ..... EBS..........................Pressure module control unit on wheel 6: Axle load sensor electrical power supply is not switched on 04576 ..... ACC ................................................................... ESP gyro fault 04576 ..... EBS..........................Pressure module control unit on wheel 6: Axle load sensor electrical power supply short circuit to terminal 30 04577 ..... ACC ........ Cannot send YRSContr. / last gyro request not sent 04577 ..... EBS..........................Pressure module control unit on wheel 6: incorrect / inconsistent data record parameter in EEPROM 04578 ..... ACC ... Cannot receive YRSData / gyro message not received 04578 ..... EBS.............CAN signal brake on wheel 6: No communication 04579 ..... ACC .........................YRS fault / internal gyro fault or wrong ID 04579 ..... EBS..........................Pressure module control unit on wheel 7: Axle load sensor electrical power supply is not switched on 04580 ..... ACC ...........................................................Cannot send SVEH 04580 ..... EBS..........................Pressure module control unit on wheel 7: Axle load sensor electrical power supply short circuit to terminal 30 04581 ..... ACC . Yaw rates installation / Internal gyro installed incorrectly 04581 ..... EBS..........................Pressure module control unit on wheel 7: incorrect / inconsistent data record parameter in EEPROM 04582 ..... ACC ................................Transverse acceleration installation / Internal gyro installed incorrectly 04582 ..... EBS............................................CAN signal brake on wheel 7: No communication 04583 ..... ACC ................................................................ User stack error 04583 ..... EBS..........................Pressure module control unit on wheel 8: Axle load sensor electrical power supply is not switched on 04584 ..... ACC ....................................................................Piece AT fault 04584 ..... EBS..........................Pressure module control unit on wheel 8: Axle load sensor electrical power supply short circuit to terminal 30 SD 812a en Page 153 of 203
- 154. SPN.....Control unit/System.............................................. Faultmessage 04585 ..... ACC ................................................................ ACC status fault 04585 ..... EBS..........................Pressure module control unit on wheel 8: incorrect / inconsistent data record parameter in EEPROM 04586 ..... EBS.............CAN signal brake on wheel 8: No communication 04587 ..... EBS.....Pedal brake module switch 1: internal control unit fault 04588 ..... EBS...................................... Central control unit - B-controller: internal control unit fault 04589 ..... EBS...................................... Central control unit - B-controller: Analog / digital converter comparison error 04590 ..... EBS... Central control unit - B-controller: Incorrect function call 04591 ..... DIW5 .........................................................Solenoid valve RBG 04591 ..... EBS...................................... Central control unit - B-controller: Self test comparison error 04592 ..... EBS...................................... Central control unit - A-controller: internal control unit fault 04593 ..... EBS... Central control unit - A-controller: Incorrect function call 04594 ..... EBS............ Central control unit - A-controller: not switched on 04595 ..... EBS.......Central control unit EEPROM: incorrect configuration 04596 ..... EBS............................ Trailer control module pressure control: implausible pressure when no braked applied 04597 ..... EBS............................ Trailer control module pressure control: Backup test briefly incorrect 04598 ..... EBS...................................... Central control unit - B-controller: implausibly high pressure from trailer control module sensor 04599 ..... EBS........................................Brake pad wear sensor wheel 1: Difference between the 2 signals on the left and right sides of the axle too great 04600 ..... DIW5 .............................................................. Input signal ABS 04600 ..... EBS........................................Brake pad wear sensor wheel 2: Difference between the 2 signals on the left and right sides of the axle too great 04600 ..... ZBR2..........................................Door and stop symbol system 04601 ..... EBS........................................Brake pad wear sensor wheel 3: Difference between the 2 signals on the left and right sides of the axle too great 04601 ..... ZBR2.............................................................. L.h. door contact SD 812a en Page 154 of 203
- 155. SPN.....Control unit/System.............................................. Faultmessage 04602 ..... EBS........................................Brake pad wear sensor wheel 4: Difference between the 2 signals on the left and right sides of the axle too great 04602 ..... ZBRO ............................................ Request stop button enable 04603 ..... EBS........................................Brake pad wear sensor wheel 5: Difference between the 2 signals on the left and right sides of the axle too great 04603 ..... ZBRO ........................................................Request stop button 04604 ..... EBS........................................Brake pad wear sensor wheel 6: Difference between the 2 signals on the left and right sides of the axle too great 04604 ..... ZBRO ........................................................Request stop button 04605 ..... EBS........................... Wheel 7: Brake performance monitoring 04605 ..... ZBRO .......................................................Request stop display 04606 ..... EBS........................... Wheel 8: Brake performance monitoring 04606 ..... ZBRO ............................Request stop by person with disability 04607 ..... EBS..............................Wheel 7 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04607 ..... ZBRO ..................................................................Baby carriage 04608 ..... EBS..............................Wheel 8 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04608 ..... ZBRO ..................................................................Baby carriage 04609 ..... EBS..............................Wheel 7 in conjunction with ABS logic: Wheel speed error 04609 ..... ZBRO .................................................. Baby carriage message 04610 ..... EBS..............................Wheel 8 in conjunction with ABS logic: Wheel speed error 04610 ..... ZBRO .................................................. Baby carriage message 04611 ..... EBS..............................Wheel 7 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04611 ..... ZBRO ...................................................... Cancel baby carriage 04612 ..... DIW5 .............................................................. Input signal ABS SD 812a en Page 155 of 203
- 156. SPN.....Control unit/System.............................................. Faultmessage 04612 ..... EBS..............................Wheel 8 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04612 ..... ZBRO ...................................................... Cancel baby carriage 04613 ..... EBS........................ Central control unit: Temperature too high 04613 ..... ZBRO ..........................................................Light barrier door 3 04614 ..... EBS.......................................................Wheel sensor wheel 1: Connection cable damaged or sensor defective 04614 ..... ZBRO ..........................................................Light barrier door 3 04615 ..... EBS.......................................................Wheel sensor wheel 2: Connection cable damaged or sensor defective 04615 ..... ZBRO ....................................................... Request stop buzzer 04616 ..... EBS.......................................................Wheel sensor wheel 3: Connection cable damaged or sensor defective 04616 ..... ZBRO ..................................................Fault value door system 04617 ..... EBS.......................................................Wheel sensor wheel 4: Connection cable damaged or sensor defective 04617 ..... ZBRO ............................... Request for bus-stop brake by MTS 04618 ..... EBS.......................................................Wheel sensor wheel 5: Connection cable damaged or sensor defective 04618 ..... ZBRO ........................................................................Door icing 04619 ..... EBS.......................................................Wheel sensor wheel 6: Connection cable damaged or sensor defective 04619 ..... ZBRO ...................................... Red/green display door system 04620 ..... EBS............................................. Output from additional valve: Short circuit between the connection cables 04620 ..... ZBRO ............................................................... Stop lamp MTS 04621 ..... EBS................Output from additional valve: Circuit interrupted 04621 ..... ZBRO ...................................................... Warning buzzer MTS 04622 ..... EBS......... Output from additional valve: Short circuit to ground 04622 ..... ZBRO ......................................................................Door status 04623 ..... EBS............................................. Output from additional valve: Short circuit after terminal 30 04623 ..... ZBRO .................................................... Door 1 / panel 1 check 04624 ..... EBS........... Output from additional valve: Short circuit in circuit 04624 ..... ZBRO ................................................... Door 1 / panel 1 button SD 812a en Page 156 of 203
- 157. SPN.....Control unit/System.............................................. Faultmessage 04625 ..... EBS............................................. Output from additional valve: Installed but not configured 04625 ..... ZBRO ................................................... Door 1 / panel 1 button 04626 ..... EBS........................................................Wheel sensor wheel 9 04626 ..... ZBRO .................................................... Door 1 / panel 2 check 04627 ..... EBS..........................Wheel sensor wheel 9: Connection cable damaged or sensor defective 04627 ..... ZBRO ................................................... Door 1 / panel 2 button 04628 ..... EBS......................................................Wheel sensor wheel 10 04628 ..... ZBRO ................................................... Door 1 / panel 2 button 04629 ..... EBS........................Wheel sensor wheel 10: Connection cable damaged or sensor defective 04629 ..... ZBRO ...................................................................Door 1 check 04630 ..... EBS.................................. Brake pad wear connection wheel 9 04630 ..... ZBRO ...................................................................Door 1 check 04631 ..... EBS.............................. Brake pad wear sensor signal wheel 9 04631 ..... ZBRO .................................................... Door 1 emergency tap 04632 ..... EBS........................................Brake pad wear sensor wheel 9: Difference between the 2 signals on the left and right sides of the axle too great 04632 ..... ZBRO ............................................................. Door 1 disrupted 04633 ..... EBS............................ Brake pad wear sensor signal wheel 10 04633 ..... ZBRO .................................................................. Door 1 button 04634 ..... EBS......................................Brake pad wear sensor wheel 10: Difference between the 2 signals on the left and right sides of the axle too great 04634 ..... ZBRO .................................................................. Door 1 button 04635 ..... EBS..........................Pressure module control unit on wheel 7, incompatible software components 04635 ..... ZBRO ...................................................................Door 2 check 04636 ..... EBS..........................Pressure module control unit on wheel 7, fault in electronic circuit 04636 ..... ZBRO ...................................................................Door 2 check 04637 ..... EBS..........................Pressure module control unit on wheel 7, internal control unit test incorrect 04637 ..... ZBRO .................................................... Door 2 emergency tap SD 812a en Page 157 of 203
- 158. SPN.....Control unit/System.............................................. Faultmessage 04638 ..... EBS..........................Pressure module control unit on wheel 7, unknown pressure control module fault code 04638 ..... ZBRO ............................................................. Door 2 disrupted 04639 ..... EBS..........................Pressure module control unit on wheel 7, incorrect system monitoring after activation 04639 ..... ZBRO .................................................................. Door 2 button 04640 ..... EBS..........................Pressure module control unit on wheel 8, incompatible software components 04640 ..... ZBRO .................................................................. Door 2 button 04641 ..... EBS..........................Pressure module control unit on wheel 8, fault in electronic circuit 04641 ..... ZBRO ...................................................................Door 3 check 04642 ..... EBS..........................Pressure module control unit on wheel 8, internal control unit test incorrect 04642 ..... ZBRO ...................................................................Door 3 check 04643 ..... EBS..........................Pressure module control unit on wheel 8, unknown pressure control module fault code 04643 ..... ZBRO ............................................................. Door 3 disrupted 04644 ..... EBS..........................Pressure module control unit on wheel 8, incorrect system monitoring after activation 04644 ..... ZBRO .................................................................. Door 3 button 04645 ..... EBS..........................Pressure module control unit on wheel 9, incompatible software components 04645 ..... ZBRO .................................................................. Door 3 button 04646 ..... EBS..........................Pressure module control unit on wheel 9, fault in electronic circuit 04646 ..... ZBRO ...................................................................Door 4 check 04647 ..... EBS..........................Pressure module control unit on wheel 9, internal control unit test incorrect 04647 ..... ZBRO ...................................................................Door 4 check 04648 ..... EBS..........................Pressure module control unit on wheel 9, unknown pressure control module fault code 04648 ..... ZBRO .................................................................. Door 4 button 04649 ..... EBS..........................Pressure module control unit on wheel 9, incorrect system monitoring after activation 04649 ..... ZBRO .................................................................. Door 4 button SD 812a en Page 158 of 203
- 159. SPN.....Control unit/System.............................................. Faultmessage 04650 ..... EBS........................Pressure module control unit on wheel 10, incompatible software components 04650 ..... ZBRO .......................................................... Block door panel 1 04651 ..... EBS........................Pressure module control unit on wheel 10, fault in electronic circuit 04651 ..... ZBRO .......................................................... Block door panel 1 04652 ..... EBS........................Pressure module control unit on wheel 10, internal control unit test incorrect 04652 ..... ZBRO .......................................................... Block door panel 2 04653 ..... EBS........................Pressure module control unit on wheel 10, unknown pressure control module fault code 04653 ..... ZBRO .......................................................... Block door panel 2 04654 ..... EBS........................Pressure module control unit on wheel 10, incorrect system monitoring after activation 04654 ..... ZBRO ................................................................... Door release 04655 ..... EBS..........................Pressure module control unit on wheel 7, EEPROM data record is not compatible with the system 04655 ..... ZBRO ................................................................... Door release 04656 ..... EBS..........................Pressure module control unit on wheel 7, EEPROM cannot be written 04656 ..... ZBRO .........................................Door release checkback MTS 04657 ..... EBS..........................Pressure module control unit on wheel 8, EEPROM data record is not compatible with the system 04657 ..... ZBRO .......................................................Ignition 1 on for MTS 04658 ..... EBS..........................Pressure module control unit on wheel 8, EEPROM cannot be written 04658 ..... ZBRO .................................................................... Light enable 04659 ..... EBS..........................Pressure module control unit on wheel 9, EEPROM data record is not compatible with the system 04659 ..... ZBRO .......................................................Request stop display 04660 ..... EBS..........................Pressure module control unit on wheel 9, EEPROM cannot be written 04660 ..... ZBRO ................................................MTS activation (K3-CAN) 04661 ..... EBS........................Pressure module control unit on wheel 10, EEPROM data record is not compatible with the system 04661 ..... ZBRO ................................................................Emergency tap SD 812a en Page 159 of 203
- 160. SPN.....Control unit/System.............................................. Faultmessage 04662 ..... EBS........................Pressure module control unit on wheel 10, EEPROM cannot be written 04662 ..... ZBRO .................................................... Door 1 external button 04663 ..... EBS...................... Power supply pressure module on wheel 7, short circuit to terminal 15 04663 ..... ZBRO ...................................... Door release checkback door 1 04664 ..... EBS....................... Power supply pressure module on wheel 7 04664 ..... ZBRO ...................................... Door release checkback door 2 04665 ..... EBS...................... Power supply pressure module on wheel 7, short circuit between the connection cables 04665 ..... ZBRO ...................................... Door release checkback door 3 04666 ..... EBS...................... Power supply pressure module on wheel 8, short circuit to terminal 15 04666 ..... ZBRO ...................................... Door release checkback door 4 04667 ..... EBS...................... Power supply pressure module on wheel 8, short circuit to terminal 15 04667 ..... ZBRO ........................................Bus-stop switching backwards 04668 ..... EBS...................... Power supply pressure module on wheel 8, short circuit between the connection cables 04668 ..... ZBRO ........................................Bus-stop switching backwards 04669 ..... EBS...................... Power supply pressure module on wheel 9, short circuit to terminal 15 04669 ..... ZBRO ........................................... Bus-stop switching forwards 04670 ..... EBS....................... Power supply pressure module on wheel 9 04670 ..... ZBRO ........................................... Bus-stop switching forwards 04671 ..... EBS...................... Power supply pressure module on wheel 9, short circuit between the connection cables 04671 ..... ZBRO ............... External request stop by person with disability 04672 ..... EBS.................... Power supply pressure module on wheel 10, short circuit to terminal 15 04672 ..... ZBRO ................ Display request stop by person with disability 04673 ..... EBS..................... Power supply pressure module on wheel 10 04673 ..... ZBRO .............................................................Door malfunction 04674 ..... EBS.................... Power supply pressure module on wheel 10, short circuit between the connection cables 04674 ..... ZBRO ............................................ Door 1 activation (K3-CAN) 04675 ..... EBS.............................................CAN signal brake on wheel 7 SD 812a en Page 160 of 203
- 161. SPN.....Control unit/System.............................................. Faultmessage 04675 ..... ZBRO ..................................................... Door 1 / panel 1 open 04676 ..... EBS.............................................CAN signal brake on wheel 8 04676 ..... ZBRO .................................................Door 1 / panel 1 opening 04677 ..... EBS.............................................CAN signal brake on wheel 9 04677 ..... ZBRO .................................................. Door 1 / panel 1 closing 04678 ..... EBS...........................................CAN signal brake on wheel 10 04678 ..... ZBRO ..................................................... Door 1 / panel 2 open 04679 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 11 04679 ..... ZBRO .................................................Door 1 / panel 2 opening 04680 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 12 04680 ..... ZBRO .................................................. Door 1 / panel 2 closing 04681 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 13 04681 ..... ZBRO ............................................ Door 1 request stop display 04682 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 14 04682 ..... ZBRO ............................................ Door 1 request stop display 04683 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 21 04683 ..... ZBRO ................. Door 1 request stop by person with disability 04684 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 22 04684 ..... ZBRO ............................................................Door 1 ignition on 04685 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 23 04685 ..... ZBRO ........................................................Door 1 entry lighting 04686 ..... EBS............................................CAN signal brake on wheel 7, time overrun of message 24 04686 ..... ZBRO ....................................................... Door 1 in local mode 04687 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 11 04687 ..... ZBRO ................. Door 2 request stop by person with disability 04688 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 12 04688 ..... ZBRO ................................................................... Door 1 ready SD 812a en Page 161 of 203
- 162. SPN.....Control unit/System.............................................. Faultmessage 04689 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 13 04689 ..... ZBRO ....................................................Door 1 standstill signal 04690 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 14 04690 ..... ZBRO ............................................ Door 2 activation (K3-CAN) 04691 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 21 04691 ..... ZBRO ..................................................... Door 2 / panel 1 open 04692 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 22 04692 ..... ZBRO .................................................Door 2 / panel 1 opening 04693 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 23 04693 ..... ZBRO .................................................. Door 2 / panel 1 closing 04694 ..... EBS............................................CAN signal brake on wheel 8, time overrun of message 24 04694 ..... ZBRO ..................................................... Door 2 / panel 2 open 04695 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 11 04695 ..... ZBRO .................................................Door 3 / panel 2 opening 04696 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 12 04696 ..... ZBRO .................................................. Door 2 / panel 2 closing 04697 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 13 04697 ..... ZBRO ............................................ Door 2 request stop display 04698 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 14 04698 ..... ZBRO ............................................ Door 2 request stop display 04699 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 21 04699 ..... ZBRO ............................................................Door 2 ignition on 04700 ..... DIW5 ...........................................Unknown engine load source 04700 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 22 04700 ..... ZBRO .......................................................................... Raise lift SD 812a en Page 162 of 203
- 163. SPN.....Control unit/System.............................................. Faultmessage 04701 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 23 04701 ..... ZBRO .......................................................................... Raise lift 04702 ..... EBS............................................CAN signal brake on wheel 9, time overrun of message 24 04702 ..... ZBRO ....................................................................Lift in motion 04703 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 11 04703 ..... ZBRO ..........................................................................Lower lift 04704 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 12 04704 ..... ZBRO ..........................................................................Lower lift 04705 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 13 04705 ..... ZBRO ......................................................... Ramp full deployed 04706 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 14 04706 ..... ZBRO ...............................................................Ramp in motion 04707 ..... DIW5 ................ Engine load source CAN: Error in engine map 04707 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 21 04707 ..... ZBRO ............................................. Ramp multifunction display 04708 ..... DIW5 .................................................Engine load source CAN: Error that cannot be diagnosed with greater precision. 04708 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 22 04708 ..... ZBRO ...................................................................Ramp enable 04709 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 23 04709 ..... ZBRO ...................................................................Ramp enable 04710 ..... EBS..........................................CAN signal brake on wheel 10, time overrun of message 24 04710 ..... ZBRO ......................................................... Ramp flashing light 04711 ..... DIW5 .......................................Engine load source Bosch EDC 04711 ..... EBS....................... Speed sensor input on pressure regulating module wheel 9, faulty electronic circuit 04711 ..... ZBRO ........................................................Ramp fully retracted SD 812a en Page 163 of 203
- 164. SPN.....Control unit/System.............................................. Faultmessage 04712 ..... EBS....................... Speed sensor input on pressure regulating module wheel 10, faulty electronic circuit 04712 ..... ZBRO ........................................................Door 2 entry lighting 04713 ..... EBS........................... Speed sensor wheel 9, air gap too great 04713 ..... ZBRO ....................................................... Door 2 in local mode 04714 ..... EBS......................... Speed sensor wheel 10, air gap too great 04714 ..... ZBRO ................. Door 3 request stop by person with disability 04715 ..... EBS............... Speed sensor wheel 9, impulse wheel defective 04715 ..... ZBRO ................................................................... Door 2 ready 04716 ..... DIW5 ......................................Engine load source Bosch EDC: Speed range in data record faulty. 04716 ..... EBS............. Speed sensor wheel 10, impulse wheel defective 04716 ..... ZBRO ....................................................Door 2 standstill signal 04717 ..... DIW5 ..... Engine load source Bosch EDC: Error in engine map 04717 ..... EBS................. Speed sensor wheel 9, tyre diameter too great 04717 ..... ZBRO ............................................ Door 3 activation (K3-CAN) 04718 ..... DIW5 ......................................Engine load source Bosch EDC: Error that cannot be diagnosed with greater precision. 04718 ..... EBS............... Speed sensor wheel 10, tyre diameter too great 04718 ..... ZBRO ..................................................... Door 3 / panel 1 open 04719 ..... EBS......................... Pressure module intake valve on wheel 7 04719 ..... ZBRO .................................................Door 3 / panel 1 opening 04720 ..... DIW5 ................................................ Brake request evaluation: Unknown brake sensor in data record. 04720 ..... EBS........................ Pressure module intake valve on wheel 7, valve cannot be switched and is opened 04720 ..... ZBRO .................................................. Door 3 / panel 1 closing 04721 ..... DIW5 ......................... Brake request evaluation: Impermissible brake sensor combination in data record. 04721 ..... EBS........................ Pressure module intake valve on wheel 7, valve cannot be switched and is closed 04721 ..... ZBRO ..................................................... Door 3 / panel 2 open 04722 ..... DIW5 ................................................ Brake request evaluation: No brake sensor set in data record. 04722 ..... EBS......................... Pressure module intake valve on wheel 8 04722 ..... ZBRO .................................................Door 3 / panel 2 opening SD 812a en Page 164 of 203
- 165. SPN.....Control unit/System.............................................. Faultmessage 04723 ..... DIW5 ...........................Brake request evaluation: Invalid brake sensor priority in data record. 04723 ..... EBS........................ Pressure module intake valve on wheel 8, valve cannot be switched and is opened 04723 ..... ZBRO .................................................. Door 3 / panel 2 closing 04724 ..... DIW5 .................... Brake request evaluation: Error that cannot be diagnosed with greater precision. 04724 ..... EBS......................... Pressure module intake valve on wheel 9 04724 ..... ZBRO ............................................ Door 3 request stop display 04725 ..... EBS........................ Pressure module intake valve on wheel 9, valve cannot be switched and is opened 04725 ..... ZBRO ............................................ Door 3 request stop display 04726 ..... EBS........................ Pressure module intake valve on wheel 9, valve cannot be switched and is closed 04726 ..... ZBRO ............................................................Door 3 ignition on 04727 ..... EBS....................... Pressure module intake valve on wheel 10 04727 ..... ZBRO ........................................................Door 3 entry lighting 04728 ..... EBS...................... Pressure module intake valve on wheel 10, valve cannot be switched and is opened 04728 ..... ZBRO ....................................................... Door 3 in local mode 04729 ..... EBS...................... Pressure module intake valve on wheel 10, valve cannot be switched and is closed 04729 ..... ZBRO ......................................Door 3 emergency tap actuated 04730 ..... DIW5 ....................................CAN message TSC1, CAN signal (override control mode priority) 04730 ..... EBS.................................. Brake pad wear connection wheel 2 04730 ..... ZBRO ................................................................... Door 3 ready 04731 ..... EBS.................................. Brake pad wear connection wheel 3 04731 ..... ZBRO ....................................................Door 3 standstill signal 04732 ..... EBS.................................. Brake pad wear connection wheel 4 04732 ..... ZBRO ............................................ Door 4 activation (K3-CAN) 04733 ..... EBS.................................. Brake pad wear connection wheel 5 04733 ..... ZBRO ..................................................... Door 4 / panel 1 open 04734 ..... EBS.................................. Brake pad wear connection wheel 6 04734 ..... ZBRO .................................................Door 4 / panel 1 opening 04735 ..... EBS.................................. Brake pad wear connection wheel 7 04735 ..... ZBRO .................................................. Door 4 / panel 1 closing SD 812a en Page 165 of 203
- 166. SPN.....Control unit/System.............................................. Faultmessage 04736 ..... DIW5 ............................Brake signal source CAN: Brake pedal continuously pressed. 04736 ..... EBS.................................. Brake pad wear connection wheel 8 04736 ..... ZBRO ..................................................... Door 4 / panel 2 open 04737 ..... DIW5 .................... Brake signal source CAN: Error that cannot be diagnosed with greater precision. 04737 ..... EBS...................... Pressure module exhaust valve on wheel 7 04737 ..... ZBRO .................................................Door 4 / panel 2 opening 04738 ..... EBS..................... Pressure module exhaust valve on wheel 7, valve cannot be switched and is opened 04738 ..... ZBRO .................................................. Door 4 / panel 2 closing 04739 ..... EBS..................... Pressure module exhaust valve on wheel 7, valve cannot be switched and is closed 04739 ..... ZBRO ............................................ Door 4 request stop display 04740 ..... DIW5 . Brake sensor signal source pedal brake sensor 3-stage 04740 ..... EBS...................... Pressure module exhaust valve on wheel 8 04740 ..... ZBRO ............................................................Door 4 ignition on 04741 ..... DIW5 . Brake sensor signal source infinitely variable (WABCO) 04741 ..... EBS..................... Pressure module exhaust valve on wheel 8, valve cannot be switched and is opened 04741 ..... ZBRO ........................................................Door 1 entry lighting 04742 ..... DIW5 .......................Brake sensor signal source parking brake sensor 3-stage 04742 ..... EBS..................... Pressure module exhaust valve on wheel 8, valve cannot be switched and is closed 04742 ..... ZBRO ....................................................Door 4 standstill signal 04743 ..... EBS...................... Pressure module exhaust valve on wheel 9 04743 ..... ZBRO ......................................................... Door enable door 1 04744 ..... EBS..................... Pressure module exhaust valve on wheel 9, valve cannot be switched and is opened 04744 ..... ZBRO ......................................................... Door enable door 2 04745 ..... EBS..................... Pressure module exhaust valve on wheel 9, valve cannot be switched and is closed 04745 ..... ZBRO ......................................................... Door enable door 3 04746 ..... EBS.................... Pressure module exhaust valve on wheel 10 04746 ..... ZBRO ......................................................... Door enable door 4 04747 ..... EBS................... Pressure module exhaust valve on wheel 10, SD 812a en Page 166 of 203
- 167. SPN.....Control unit/System.............................................. Faultmessage valve cannot be switched and is opened 04747 ..... ZBRO ................................................................... Door 4 ready 04748 ..... EBS................... Pressure module exhaust valve on wheel 10, valve cannot be switched and is closed 04748 ..... ZBRO ....................................................... Door 4 in local mode 04749 ..... EBS....................... Pressure module backup valve on wheel 7 04749 ..... ZBRO ......................................Door 4 emergency tap actuated 04750 ..... EBS...................... Pressure module backup valve on wheel 7, valve cannot be switched and is closed 04750 ..... ZBRO ............................................ Door 4 request stop display 04751 ..... EBS....................... Pressure module backup valve on wheel 8 04751 ..... ZBRO ................. Door 4 request stop by person with disability 04752 ..... EBS...................... Pressure module backup valve on wheel 8, valve cannot be switched and is closed 04752 ..... ZBRO ..................................... Door 2 interior sign/exterior sign 04753 ..... EBS....................... Pressure module backup valve on wheel 9 04753 ..... ZBRO .........................Door 2 preliminary storage request stop 04754 ..... EBS...................... Pressure module backup valve on wheel 9, valve cannot be switched and is closed 04754 ..... ZBRO ..................................... Door 3 interior sign/exterior sign 04755 ..... EBS..................... Pressure module backup valve on wheel 10 04755 ..... ZBRO .........................Door 3 preliminary storage request stop 04756 ..... EBS.................... Pressure module backup valve on wheel 10, valve cannot be switched and is closed 04756 ..... ZBRO .........................................................Enable 20:00 hours 04757 ..... EBS........Pressure module pressure sensor on wheel 7, offset 04757 ..... ZBRO .........................................................Enable 20:00 hours 04758 ..... EBS....... Pressure module pressure sensor on wheel 7, signal 04758 ..... ZBRO .............................................. Enable 20:00 hours check 04759 ..... EBS........Pressure module pressure sensor on wheel 8, offset 04759 ..... ZBRO ..........................................................Door 1 malfunction 04760 ..... EBS....... Pressure module pressure sensor on wheel 8, signal 04760 ..... ZBRO ................................................................Door 1 warning 04761 ..... EBS........Pressure module pressure sensor on wheel 9, offset 04761 ..... ZBRO ..........................................................Door 2 malfunction 04762 ..... EBS....... Pressure module pressure sensor on wheel 9, signal 04762 ..... ZBRO ................................................................Door 2 warning SD 812a en Page 167 of 203
- 168. SPN.....Control unit/System.............................................. Faultmessage 04763 ..... EBS......Pressure module pressure sensor on wheel 10, offset 04763 ..... ZBRO ..........................................................Door 3 malfunction 04764 ..... EBS..... Pressure module pressure sensor on wheel 10, signal 04764 ..... ZBRO ................................................................Door 3 warning 04765 ..... EBS........................... Wheel 9: Brake performance monitoring 04765 ..... ZBRO ..........................................................Door 4 malfunction 04766 ..... EBS......................... Wheel 10: Brake performance monitoring 04766 ..... ZBRO ................................................................Door 4 warning 04767 ..... EBS.................. Wheel 9 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04767 ..... ZBRO .................................................... Door 1 auxiliary button 04768 ..... EBS................ Wheel 10 in conjunction with ABS logic: ABS is demanding insufficient brake pressure over an implausibly long time 04768 ..... ZBRO .................................................... Door 2 auxiliary button 04769 ..... EBS..............................Wheel 9 in conjunction with ABS logic: Wheel speed error 04769 ..... ZBRO ...................................................................Waiting room 04770 ..... EBS............................Wheel 10 in conjunction with ABS logic: Wheel speed error 04770 ..... ZBRO ...................................................................Waiting room 04771 ..... EBS................ Wheel 9 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04771 ..... ZBRO .........................Door 1 preliminary storage request stop 04772 ..... EBS.............. Wheel 10 in conjunction with ABS logic: Change between active and inactive ABS intervention too fast 04772 ..... ZBRO ..................................... Door 1 interior sign/exterior sign 04773 ..... EBS..........................External sequential fault: Time overrun in communication with trailer control unit 3 04773 ..... ZBRO ............................................ Switch doors back to active 04774 ..... EBS..........................External sequential fault: Time overrun in communication with trailer control unit 4 04774 ..... ZBRO ............................................ Switch doors back to active 04775 ..... EBS..........................External sequential fault: Time overrun in communication with trailer control unit 5 04775 ..... ZBRO ...................................................Door manual/automatic SD 812a en Page 168 of 203
- 169. SPN.....Control unit/System.............................................. Faultmessage 04776 ..... EBS..................Pressure module pressure control on wheel 7: Pressure comparison plausibility error: Request is greater than the measured pressure 04776 ..... ZBRO ....................................................Request stop display 2 04777 ..... EBS..................Pressure module pressure control on wheel 8: Pressure comparison plausibility error: Request is greater than the measured pressure 04777 ..... ZBRO ....................................................................Door 2 block 04778 ..... EBS..................Pressure module pressure control on wheel 9: Pressure comparison plausibility error: Request is greater than the measured pressure 04778 ..... ZBRO ............................................. Door 1 constrained closing 04779 ..... EBS............... Pressure module pressure control on wheel 10: Pressure comparison plausibility error: Request is greater than the measured pressure 04779 ..... ZBRO ............................................. Door 2 constrained closing 04780 ..... EBS..................Pressure module pressure control on wheel 7: Pressure comparison plausibility error: Measured pressure is greater than request 04780 ..... ZBRO ............................................. Door 3 constrained closing 04781 ..... EBS..................Pressure module pressure control on wheel 8: Pressure comparison plausibility error: Measured pressure is greater than request 04781 ..... ZBRO ............................................. Cancel stop request button 04782 ..... EBS..................Pressure module pressure control on wheel 9: Pressure comparison plausibility error: Measured pressure is greater than request 04782 ..... ZBRO ................................................ Block door 3 20:00 hours 04783 ..... EBS............... Pressure module pressure control on wheel 10: Pressure comparison plausibility error: Measured pressure is greater than request 04783 ..... ZBRO .......................................................Baby carriage door 3 04784 ..... EBS.................... Pressure regulating module pressure control on wheel 7: Full braking test 04784 ..... ZBRO ...........................................Cancel baby carriage door 3 04785 ..... EBS.................... Pressure regulating module pressure control on wheel 8: Full braking test SD 812a en Page 169 of 203
- 170. SPN.....Control unit/System.............................................. Faultmessage 04785 ..... ZBRO .................................................... Ramp weight overload 04786 ..... EBS.................... Pressure regulating module pressure control on wheel 9: Full braking test 04786 ..... ZBRO ......................................................... Stop request chime 04787 ..... EBS.................... Pressure regulating module pressure control on wheel 10: Full braking test 04787 ..... ZBRO ...................................................Switch off chime switch 04788 ..... EBS..................Pressure module pressure control on wheel 7: Mismatch between pressure module pressure and supply pressure 04788 ..... ZBRO ....................................................... Emergency exit door 04789 ..... EBS..................Pressure module pressure control on wheel 8: Mismatch between pressure module pressure and supply pressure 04790 ..... EBS..................Pressure module pressure control on wheel 9: Mismatch between pressure module pressure and supply pressure 04791 ..... EBS............... Pressure module pressure control on wheel 10: Mismatch between pressure module pressure and supply pressure 04792 ..... EBS................................ Pressure regulating module pressure control on wheel 7: Temporary backup test 04793 ..... EBS................................ Pressure regulating module pressure control on wheel 8: Temporary backup test 04794 ..... EBS................................ Pressure regulating module pressure control on wheel 9: Temporary backup test 04795 ..... EBS................................ Pressure regulating module pressure control on wheel 10: Temporary backup test 04796 ..... EBS................................ Pressure regulating module pressure control on wheel 7: Temporary brake test 04797 ..... EBS................................ Pressure regulating module pressure control on wheel 8: Temporary brake test 04798 ..... EBS................................ Pressure regulating module pressure control on wheel 9: Temporary brake test 04799 ..... EBS................................ Pressure regulating module pressure control on wheel 10: Temporary brake test SD 812a en Page 170 of 203
- 171. SPN.....Control unit/System.............................................. Faultmessage 04800 ..... EBS..................Pressure module pressure control on wheel 7: Implausible pressure differential right/left 04800 ..... ZBR2........................................... Status signal, central locking 04801 ..... EBS..................Pressure module pressure control on wheel 8: Implausible pressure differential right/left 04801 ..... ZBRO ............................... Central locking left checkback open 04802 ..... EBS..................Pressure module pressure control on wheel 9: Implausible pressure differential right/left 04802 ..... ZBRO ................................................. Open central locking left 04803 ..... EBS............... Pressure module pressure control on wheel 10: Implausible pressure differential right/left 04803 ..... ZBRO ................................................. Open central locking left 04804 ..... EBS..................Pressure module pressure control on wheel 7: Implausible pressure when no braked applied 04804 ..... ZBRO ...................................................Lock central locking left 04805 ..... EBS..................Pressure module pressure control on wheel 8: Implausible pressure when no braked applied 04805 ..... ZBRO ...................................................Lock central locking left 04806 ..... EBS..................Pressure module pressure control on wheel 9: Implausible pressure when no braked applied 04806 ..... ZBRO ............................. Central locking left checkback locked 04807 ..... EBS............... Pressure module pressure control on wheel 10: Implausible pressure when no braked applied 04807 ..... ZBRO ............................. Central locking right checkback open 04808 ..... EBS..................Pressure module pressure control on wheel 7: Implausible pressure at end of braking 04808 ..... ZBRO ............................................... Open central locking right 04809 ..... EBS..................Pressure module pressure control on wheel 8: Implausible pressure at end of braking 04809 ..... ZBRO ............................................... Open central locking right 04810 ..... DIW5 .......................................Evaluation gear selection range 04810 ..... EBS..................Pressure module pressure control on wheel 9: Implausible pressure at end of braking 04810 ..... ZBRO ................................................ Lock central locking right 04811 ..... EBS............... Pressure module pressure control on wheel 10: Implausible pressure at end of braking 04811 ..... ZBRO ................................................ Lock central locking right SD 812a en Page 171 of 203
- 172. SPN.....Control unit/System.............................................. Faultmessage 04812 ..... DIW5 ..........Evaluation gear selection range: Gear information from button switch outside permitted value range or CAN signal requested gear or requested range outside the permitted value range. 04812 ..... EBS..................Pressure module pressure control on wheel 7: Implausible intake valve actuation 04812 ..... ZBRO ...........................Central locking right checkback locked 04813 ..... DIW5 ..........Evaluation gear selection range: Gear information from button switch incorrect or CAN signals requested gear or requested range return an error identification. 04813 ..... EBS_5..............Pressure module pressure control on wheel 8: Implausible intake valve actuation 04813 ..... OUZBRO.............................................Central locking flaps left 04813 ..... ZBRO ..................................................Central locking flaps left 04814 ..... DIW5 ....... Evaluation gear selection range: Error in plausibility check within the gearbox control unit or CAN signals requested gear and requested range are contradictory. 04814 ..... EBS..................Pressure module pressure control on wheel 9: Implausible intake valve actuation 04814 ..... ZBRO ................................................Central locking flaps right 04815 ..... DIW5 ..........Evaluation gear selection range: Error that cannot be diagnosed with greater precision. 04815 ..... EBS............... Pressure module pressure control on wheel 10: Implausible intake valve actuation 04815 ..... ZBRO ............................................................. CL flaps left fault 04816 ..... EBS..................Pressure module pressure control on wheel 7: Implausible exhaust valve actuation 04816 ..... ZBRO ........................................................... CL flaps right fault 04817 ..... EBS..................Pressure module pressure control on wheel 8: Implausible exhaust valve actuation 04818 ..... EBS..................Pressure module pressure control on wheel 9: Implausible exhaust valve actuation 04819 ..... EBS............... Pressure module pressure control on wheel 10: Implausible exhaust valve actuation 04820 ..... EBS..................Pressure module pressure control on wheel 7: Residual pressure detected SD 812a en Page 172 of 203
- 173. SPN.....Control unit/System.............................................. Faultmessage 04821 ..... EBS..................Pressure module pressure control on wheel 8: Residual pressure detected 04822 ..... EBS..................Pressure module pressure control on wheel 9: Residual pressure detected 04823 ..... EBS............... Pressure module pressure control on wheel 10: Residual pressure detected 04824 ..... EBS..........................Pressure module control unit on wheel 7, checksum error in external flash memory 04825 ..... DIW5 ................................................................. Supply voltage 04825 ..... EBS..........................Pressure module control unit on wheel 7, outdated driver software 04826 ..... EBS..........................Pressure module control unit on wheel 8, inconsistent driver software version between ECU and boot loader 04827 ..... EBS..........................Pressure module control unit on wheel 8, checksum error in external flash memory 04828 ..... EBS..........................Pressure module control unit on wheel 8, outdated driver software 04829 ..... EBS..........................Pressure module control unit on wheel 9, inconsistent driver software version between ECU and boot loader 04830 ..... DIW5 ............................................................Reference voltage 04830 ..... EBS..........................Pressure module control unit on wheel 9, checksum error in external flash memory 04831 ..... DIW5 ............................Reference voltage: Undervoltage Uref. 04831 ..... EBS..........................Pressure module control unit on wheel 9, outdated driver software 04832 ..... DIW5 ..............................Reference voltage: Overvoltage Uref. 04832 ..... EBS........................Pressure module control unit on wheel 10, inconsistent driver software version between ECU and boot loader 04833 ..... DIW5 ........ Reference voltage: Error that cannot be diagnosed with greater precision. 04833 ..... EBS........................Pressure module control unit on wheel 10, checksum error in external flash memory 04834 ..... EBS........................Pressure module control unit on wheel 10, outdated driver software SD 812a en Page 173 of 203
- 174. SPN.....Control unit/System.............................................. Faultmessage 04835 ..... EBS............... Supply voltage brake pad wear sensor wheel 9: Short circuit to ground 04836 ..... EBS............. Supply voltage brake pad wear sensor wheel 10: Short circuit to ground 04837 ..... EBS............... Supply voltage brake pad wear sensor wheel 9: was deactivated 04838 ..... EBS............. Supply voltage brake pad wear sensor wheel 10: was deactivated 04839 ..... EBS........................ Pressure module supply cable to wheel 7: Current magnitude too high 04840 ..... EBS........................ Pressure module supply cable to wheel 8: Current magnitude too high 04841 ..... EBS........................ Pressure module supply cable to wheel 9: Current magnitude too high 04842 ..... EBS...................... Pressure module supply cable to wheel 10: Current magnitude too high 04843 ..... EBS........................................Brake pad wear sensor wheel 9: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04844 ..... EBS......................................Brake pad wear sensor wheel 10: Monitoring of brake pad wear signal (decreasing) between the axles of the vehicle 04845 ..... EBS........................................Brake pad wear sensor wheel 9: Monitoring of brake pad wear signal (decreasing) within the axles 04846 ..... EBS......................................Brake pad wear sensor wheel 10: Monitoring of brake pad wear signal (decreasing) within the axles 04847 ..... EBS..........................Pressure module control unit on wheel 9: Axle load sensor electrical power supply is not switched on 04848 ..... EBS..........................Pressure module control unit on wheel 9: Axle load sensor electrical power supply short circuit to terminal 30 04849 ..... EBS..........................Pressure module control unit on wheel 9: incorrect / inconsistent data record parameter in EEPROM SD 812a en Page 174 of 203
- 175. SPN.....Control unit/System.............................................. Faultmessage 04850 ..... DIW5 ..................................... Software module event memory: Data record value EVENTMEM_DELETE_ELEMENT_AFTER_ is set to '0' which is not permitted. 04850 ..... EBS.............CAN signal brake on wheel 9: No communication 04851 ..... DIW5 ..................................... Software module event memory: An error was detected in the software when checking the EventTab event table. 04851 ..... EBS........................Pressure module control unit on wheel 10: Axle load sensor electrical power supply is not switched on 04852 ..... DIW5 ..................................... Software module event memory: A signalled event is in the EventTab event table without reference. 04852 ..... EBS........................Pressure module control unit on wheel 10: Axle load sensor electrical power supply short circuit to terminal 30 04853 ..... DIW5 ..................................... Software module event memory: There is no reference in the form of a DTC column in the EventTab event table as the basis for the OEM_ID_ data record value. The non-referenced data record value is specified in the system description. 04853 ..... EBS....... Pressure module control unit on wheel 10: incorrect / inconsistent data record parameter in EEPROM 04854 ..... DIW5 ....................... Software module event memory: A defect was detected in the event memory structure. The structure has been set up again. This means any stored events have been lost. 04854 ..... EBS...........CAN signal brake on wheel 10: No communication 04855 ..... DIW5 ................ Software module event memory: A diagnostic object is signalling multiple instances of one error type. 04855 ..... EBS Pressure regulating valve left: implausible activation time 04856 ..... DIW5 .......................Software module event memory: The size of a system description of a diagnostic object is greater than the available memory space. 04856 ..... EBS........................Pressure regulating valve left intake valve: Short circuit between the connections SD 812a en Page 175 of 203
- 176. SPN.....Control unit/System.............................................. Faultmessage 04857 ..... DIW5 ............. Software module event memory: Buffer overrun of the (reentrant-capable) event memory or calls of the (non-reentrant-capable) event memory outside the time slices. 04857 ..... EBS...................... Pressure regulating valve right: implausible activation time 04858 ..... EBS..................... Pressure regulating valve right intake valve: Short circuit between the connections 04859 ..... EBS.................... Pressure regulating valve left exhaust valve: Short circuit between the connections 04860 ..... DIW5 ................. Gearshift manager: Invalid gearshift program in data record. 04860 ..... EBS.................. Pressure regulating valve right exhaust valve: Short circuit between the connections 04861 ..... DIW5 ......................... Gearshift manager: Invalid dynamic tyre radius in data record. 04861 ..... EBS..................... Pressure module exhaust valve on wheel 6, valve cannot be switched and is closed 04862 ..... DIW5 ....... Gearshift manager: Invalid axle ratio in data record. 04862 ..... EBS.....................J1939 (driveline CAN): Time overrun or fault condition in communication with engine control unit (SA=0x00) 04863 ..... DIW5 ......... Gearshift manager: Invalid maximum gear hunting time in data record. 04863 ..... EBS................................ Brake pad wear connection wheel 10 04864 ..... DIW5 .............. Gearshift manager: Invalid maximum time for a forced downshift in data record. 04864 ..... EBS............... Pressure module intake valve on wheel 8, valve cannot be switched and is closed 04865 ..... DIW5 .......................Gearshift manager: Incorrectly configured gearshift program in data record. 04865 ..... EBS............ Central control unit EEPROM: Implausible values in 'General ABS configuration' block 04866 ..... DIW5 ......................... Gearshift manager: Error that cannot be diagnosed with greater precision. 04866 ..... EBS.................Central control unit EEPROM: Checksum error in 'General ABS configuration' block SD 812a en Page 176 of 203
- 177. SPN.....Control unit/System.............................................. Faultmessage 04867 ..... EBS................. External sequential fault: Time overrun or fault condition in communication with engine control unit (SA=0x00) 04868 ..... EBS................. External sequential fault: Time overrun or fault condition in communication with vehicle management computer control unit (SA=0x27) 04869 ..... EBS................. External sequential fault: Time overrun or fault condition in communication with tachograph (SA=0xEE) 04870 ..... DIW5 ................................. Security Manager software module 04870 ..... EBS................. External sequential fault: Time overrun or fault condition in communication with TCU control unit (SA=0x03) 04871 ..... DIW5 ................................. Identification data software module 04871 ..... EBS................. External sequential fault: Time overrun or fault condition in communication with EAC control unit (SA=0x30) 04872 ..... DIW5 ...............................................................Safety computer 04872 ..... EBS.. External sequential fault: Time overrun or fault condition in communication with ECAS control unit (SA=0x2F) 04873 ..... DIW5 ..................................................................... Memory test 04873 ..... EBS................. External sequential fault: Time overrun or fault condition in communication with central on-board computer control unit (SA=0x21) 04874 ..... DIW5 .......................................................................TRAP error 04874 ..... EBS................................. Steering angle sensor not calibrated 04875 ..... DIW5 ................ Analog/digital converter: ADC still occupied or ADC channel faulty. 04875 ..... EBS.............. CAN bus fault: Time overrun or fault condition in communication with the electronically steered rear axle 04879 ..... DIW5 ......Calibration data (for correcting hardware/component tolerances) 04880 ..... DIW5 ............. Gearbox mechanical system: Blocking of output detected. 04900 ..... DIW5 ....... CAN 1 - hardware: Memory test of CAN controller 1 was unsuccessful or defect within CAN controller 1 (RAM test). SD 812a en Page 177 of 203
- 178. SPN.....Control unit/System.............................................. Faultmessage 04900 ..... ZBRO ............................................................... Sun blind down 04901 ..... ZBRO ........................................................Sun blind down high 04902 ..... ZBRO ......................................................... Sun blind down low 04903 ..... ZBRO .................................................................... Sun blind up 04904 ..... ZBRO ............................................................ Sun blind up high 04905 ..... DIW5 ....................................CAN 1 - hardware: Invalid bitrate. 04905 ..... ZBRO ..............................................................Sun blind up low 04909 ..... DIW5 .........CAN 1 - hardware: Error that cannot be diagnosed with greater precision. 04910 ..... DIW5 ....... CAN 2 - hardware: Memory test of CAN controller 2 was unsuccessful or defect within CAN controller 2 (RAM test). 04911 ..... DIW5 ....... CAN 2 - hardware: Occurrence of BUS-OFF states. Failures of CAN bus by occurrence of BUS-OFF states. 04912 ..... DIW5 .. CAN 2 - hardware: Occurrence of BUS warning states. 04913 ..... DIW5 ........ CAN 2 - hardware: At least one message could not be sent within timeout time of send messages. 04914 ..... DIW5 .........CAN 2 - hardware: Send buffer overrun or pipeline sending messages of CAN controller 2 is full. 04915 ..... DIW5 ....................................CAN 2 - hardware: Invalid bitrate. 04919 ..... DIW5 .........CAN 2 - hardware: Error that cannot be diagnosed with greater precision. 04931 ..... DIW5 ............CAN protocol SAE J1939: Invalid CAN controller number in data record. 04949 ..... DIW5 ...............CAN protocol SAE J1939: Error that cannot be diagnosed with greater precision. 04960 ..... DIW5 .................................. CAN protocol VOITH private CAN: Timeout of message TC1 (Transmission Control 1). 04961 ..... DIW5 .................................. CAN protocol VOITH private CAN: Timeout of message INPUT VALUES 0. 04962 ..... DIW5 .................................. CAN protocol VOITH private CAN: Timeout of message INPUT VALUES 1. 04963 ..... DIW5 .................................. CAN protocol VOITH private CAN: Timeout of message INPUT VALUES 2. 04964 ..... DIW5 .................................. CAN protocol VOITH private CAN: Timeout of message CMD_Response. SD 812a en Page 178 of 203
- 179. SPN.....Control unit/System.............................................. Faultmessage 04969 ..... DIW5 .................................. CAN protocol VOITH private CAN: Error that cannot be diagnosed with greater precision. 05000 ..... ECO2 .............................................ZF environmental condition 05000 ..... HDS ..................................Air pressure after nozzle evaluation 05000 ..... ZBR2......................... Audio-visual warning device and display 05000 ..... ZFR ................................. CAN data bus: EDC message EEC1 05001 ..... CRT....................................CAN message engine temperature 05001 ..... ECO2 .............................................ZF environmental condition 05001 ..... HDS ..................................................Compressed air pressure 05001 ..... RAS....................................................................Oil level check 05001 ..... WSK.................................. Retarder accumulator charge valve 05001 ..... ZBR2......................................... Check, instrumentation failure 05001 ..... ZFR ......................CAN data bus: Torque converter and clutch system message Transmission Fluid WSK 05002 ..... CRT......................................................... CAN message EEC1 05002 ..... HDS ........................ Temperature ahead of catalytic converter 05002 ..... RAS........................................ Steering angle sensor front axle 05002 ..... WSK............................ Valve of torque converter lockup clutch 05002 ..... ZBRO ........................................ Alarm level red (prio. 1) check 05002 ..... ZFR ..........................CAN data bus: EDC message Eng Temp 05003 ..... CRT........................................................... CAN message BAM 05003 ..... HDS ............................... Temperature after catalytic converter 05003 ..... RAS............................ Steering angle sensor steered rear axle 05003 ..... ZBRO ................................................Switch off display lighting 05003 ..... ZFR ..... CAN data bus: EDC message Inlet Exhaust Condition 05004 ..... CRT.................................................................. CAN messages 05004 ..... HDS ................................................................... Urea pressure 05004 ..... RAS.................. Speedometer / EBC speed signal comparison 05004 ..... WSK...............................................Retarder proportional valve 05004 ..... ZBRO ................................................... Display dimming (0-15) 05004 ..... ZFR ..................... CAN data bus: Tachograph message TCO1 05005 ..... CRT..............................................Exhaust temperature sensor 05005 ..... HDS ................................... Urea temperature in pump module 05005 ..... RAS..................................................................... Shut-off valve 05005 ..... WSK......................................Retarder proportional valve, fault 05005 ..... ZBRO ....................................Display dimming bottom pressed 05005 ..... ZFR ................... CAN data bus: Retarder message ERC1_RE SD 812a en Page 179 of 203
- 180. SPN.....Control unit/System.............................................. Faultmessage 05006 ..... CRT................................. Exhaust differential pressure sensor 05006 ..... HDS ..................................................................EEPROM error 05006 ..... RAS.............................................. Control valve working circuit 05006 ..... WSK.............................. Output earth return proportional valve 05006 ..... ZBRO ..........................................Display dimming top pressed 05006 ..... ZFR ................... CAN data bus: Retarder message ERC1_RX 05007 ..... CRT.......................................... Charge air temperature sensor 05007 ..... HDS .................................................... Freezing cycles counter 05007 ..... RAS........Deviation from setpoint in steering angle of rear axle 05007 ..... ZBRO ............................................................ Display change 1 05007 ..... ZFR ................... CAN data bus: Retarder message ERC1_RD 05008 ..... CRT........................................................ Engine brake butterfly 05008 ..... HDS ...................................................................Emergency off 05008 ..... RAS............................................. Monitoring circuit control unit 05008 ..... WSK.................................................. Turbine speed: No signal 05008 ..... ZBRO ............................................................ Display change 2 05008 ..... ZFR CAN data bus: Retarder message Ret_Config_BAM (RE) 05009 ..... CRT........................ CRT temperature too low for regeneration 05009 ..... HDS ................................................... Detection of frozen lines 05009 ..... RAS...................... Working circuit control unit for valve control 05009 ..... WSK................................... Sensor, cooling water temperature 05009 ..... ZBRO ................................................................................ Horn 05009 ..... ZFR ..................................... CAN data bus: Retarder message Ret_Config_Packet (RE) 05010 ..... CRT.............................. CRT is not regenerating although filter temperature is correct 05010 ..... HDS ............................................ Nitrogen oxide (NOx) sensor 05010 ..... WSK.......... Read-back current of the proportional valve output 05010 ..... ZBRO ................................................................................ Horn 05010 ..... ZFR CAN data bus: Retarder message Ret_Config_BAM (RX) 05011 ..... CRT................................ CRT is blocked and must be cleaned 05011 ..... HDS ..................................................... Heating return flow line 05011 ..... WSK......................... Vehicle electrical system voltage (TL 30) 05011 ..... ZBRO ............................................................................. Horn a 05011 ..... ZFR ..................................... CAN data bus: Retarder message Ret_Config_Packet (RX) 05012 ..... CRT................................................. CRT temperature too high SD 812a en Page 180 of 203
- 181. SPN.....Control unit/System.............................................. Faultmessage 05012 ..... ECO2 ............................................................ Load sensor (A3) 05012 ..... HDS ....................................................... Compressed air valve 05012 ..... RAS....................................... CAN signal, speedometer speed 05012 ..... WSK......................... Vehicle electrical system voltage (TL 15) 05012 ..... ZBRO ............................................................................. Horn b 05012 ..... ZFR ..................................... CAN data bus: Retarder message Ret_Config_BAM (RD) 05013 ..... CRT......................................... Charge air temperature outside permitted tolerance range 05013 ..... ECO2 ................................................... Voltage output (5V) AU 05013 ..... HDS ............................................................Heating supply line 05013 ..... RAS.........................................CAN signal, EBC vehicle speed 05013 ..... ZBRO ...............................................Supply instrument lighting 05013 ..... ZFR ..................................... CAN data bus: Retarder message Ret_Config_Packet (RD) 05014 ..... CRT......................................................... CAN message EEC3 05014 ..... ECO2 ............................................Retarder control lever (A12) 05014 ..... HDS ..................................................................... inner heating 05014 ..... RAS................................................. CAN signal, engine speed 05014 ..... ZBRO .........................................Display day/night changeover 05014 ..... ZFR ............... CAN data bus: Tachograph message TimeDate 05015 ..... CRT.................................................. CAN message time / date 05015 ..... ECO2 ................................................................. Voltage failure 05015 ..... HDS .......................................... Heating pressure equalisation 05015 ..... RAS.............................................................CAN signal, weight 05015 ..... WSK.................................. Checksum operating hours counter 05015 ..... ZBRO .......................................................... Buzzer alarm level 05015 ..... ZFR .... CAN data bus: Tachograph message Vehicle Distance 05016 ..... CRT....................................... CAN message vehicle clearance 05016 ..... ECO2 .................... Switch retarder (retarder pedal digital S12) 05016 ..... HDS ....................................................................Pump heating 05016 ..... RAS....................................................... CAN signal, lifting axle 05016 ..... WSK................................................... Checksum fault memory 05016 ..... ZBRO .................................................Buzzer function indicator 05017 ..... CRT....................................................................... AGR throttle 05017 ..... ECO2 .................................. Retarder temperature sensor (B4) 05017 ..... HDS ........................................................ Heating pressure line SD 812a en Page 181 of 203
- 182. SPN.....Control unit/System.............................................. Faultmessage 05017 ..... RAS................................................. CAN signal, parking brake 05017 ..... WSK................................ Data bus, message EEC2 from FFR 05017 ..... ZBRO ........................................ Buzzer advance warning level 05018 ..... CRT...........................................................Internal system fault 05018 ..... ECO2 .....................................Sump temperature sensor (B14) 05018 ..... HDS ..........................................................Urea metering valve 05018 ..... RAS................................. CAN signal, bus transmitter-receiver 05018 ..... WSK.....................................................................Engine brake 05018 ..... ZBRO ........................ Adv. warning level yellow (prio. 2) check 05019 ..... CRT.............................................. EEPROM memory defective 05019 ..... HDS ............................................................ Urea heating valve 05019 ..... RAS..................................................Calibrate parameter value 05019 ..... WSK...................................... Internal system error control unit 05019 ..... ZBRO .................................................On-board diagnosis fault 05020 ..... CRT....................................Exhaust temperature after the filter 05020 ..... HDS ..................................... Nitrogen fill level plausibility error 05020 ..... RAS................................................ZF environmental condition 05020 ..... WSK...................... Data bus, message TSC1 (braking torque) 05020 ..... ZBRO .............................................On-board diagnosis enable 05021 ..... CRT.........................................................CAN message ETC 1 05021 ..... ECO2 .............................Output to gear element A valve (Y17) 05021 ..... HDS ......................................................................Pump speed 05021 ..... WSK...................................... CAN data bus, memory overflow 05021 ..... ZBRO ............................................................ Horn changeover 05022 ..... CRT..........................................CRT filter burnt out or not fitted 05022 ..... ECO2 .............................Output to gear element B valve (Y16) 05022 ..... HDS ............................................ Air supply valve output stage 05022 ..... WSK...............................................CAN data bus, switched off 05022 ..... ZBRO ............................................................ Horn changeover 05023 ..... ECO2 ............................ Output to gear element C valve (Y15) 05023 ..... HDS ..................................................................Blocked nozzle 05023 ..... ZBRO .................................................. Horn changeover check 05024 ..... ECO2 ............................ Output to gear element D valve (Y14) 05024 ..... HDS ......................................... Air pressure sensor plausibility 05024 ..... WSK................................. CAN data bus, receive confirmation 05024 ..... ZBRO ....................................................... Outside temperature 05025 ..... ECO2 .............................Output to gear element E valve (Y13) SD 812a en Page 182 of 203
- 183. SPN.....Control unit/System.............................................. Faultmessage 05025 ..... HDS ..................................Compressed air fault during startup 05025 ..... RAS..........................................................................Calibration 05025 ..... WSK................................ Data bus, message EEC1 from FFR 05025 ..... ZBRO ......................................................................Ice warning 05026 ..... ECO2 .............................Output to gear element F valve (Y12) 05026 ..... HDS .................................... Blockage of compressed air valve 05026 ..... RAS......................................................... Ambient temperature 05027 ..... ECO2 ............................ Output to gear element G valve (Y11) 05027 ..... HDS ........................................... Compressed air not plausible 05027 ..... RAS............................... Rear axle too close to measured stop 05027 ..... WSK....................................... Data bus, message ETC1_TCU 05028 ..... ECO2 ................................. Output to torque converter lock-up clutch WK valve (Y18) 05028 ..... HDS ........................ Temperature ahead of catalytic converter 05028 ..... WSK........... Data bus, message TC1_TWSK from ASTRONIC 05029 ..... ECO2 ......................Output to retarder accumulator valve (Y2) 05029 ..... HDS ................................................................... Hydraulic fault 05029 ..... WSK........................................Time / date message from TCO 05030 ..... HDS ........................................Pump motor fault during startup 05030 ..... WSK..................................... Data bus, mileage (km) message 05031 ..... ECO2 ...................................Output to engine brake relay (K1) 05031 ..... HDS ...............................................................Pump motor fault 05032 ..... ECO2 ...................................... Output to gear signal relay (K2) 05032 ..... HDS ....................... Temperatures not plausible during startup 05033 ..... ECO2 ...........................................Output to gear signal relay 2 05033 ..... HDS .............................................. Urea pressure not plausible 05034 ..... ECO2 ................................... Output to speed signal relay (K3) 05034 ..... HDS .............................. Urea temperature of metering module 05035 ..... ECO2 ........................................ Output to speed signal relay 2 05035 ..... HDS ............................................ Urea temperature of the tank 05036 ..... ECO2 ................................ Output to power take-off valve (Y3) 05036 ..... HDS .......................Air supply valve implausible during startup 05037 ..... ECO2 .......................Output to accelerator interlock valve (Y4) 05037 ..... HDS ............................................Air supply valve not plausible 05038 ..... ECO2 ................................... Output to load enable relay (K11) 05038 ..... HDS .....................................External 12 V supply voltage fault 05039 ..... ECO2 ............................... Output to detent solenoid relay (K4) SD 812a en Page 183 of 203
- 184. SPN.....Control unit/System.............................................. Faultmessage 05041 ..... ECO2 .......................................... Output to selector lever lamp 05042 ..... ECO2 ................................... Output ADVP (continuous signal) 05043 ..... ECO2 ...................... Output to retarder brake lamp relay (K10) 05044 ..... ECO2 ....................... Output to proportional solenoid D1 (Y20) 05045 ..... ECO2 ................. Output to retarder proportional solenoid (Y1) 05046 ..... ECO2 .......................................................... Selector lever (A2) 05047 ..... ECO2 ......................... Speedo signal output via pin SD2 (A10) 05048 ..... ECO2 .........................................................PWM interface (A8) 05049 ..... ECO2 ............................................... EEPROM data checksum 05051 ..... ECO2 .................................................. CAN B application CAN 05051 ..... HDS ........................................................... Urea quality sensor 05052 ..... ECO2 ................... System fault electronic control unit EST146 05053 ..... ECO2 ................................Malfunction SAE J 1708 (BUSOFF) 05054 ..... ECO2 ..................................Malfunction SAE J 1708 (warning) 05055 ..... ECO2 ........................................................ CAN A vehicle CAN 05056 ..... ECO2 ................................... Output to retarder on valve (Y19) 05057 ..... ECO2 ........................................................... Input speed (B13) 05058 ..... ECO2 .........................................................Output speed (B11) 05059 ..... ECO2 .............................................Gearbox input speed (B12) 05062 ..... ECO2 ..................................................Retarder identifier (B16) 05063 ..... ECO2 ...............................................................Gearbox coding 05064 ..... ECO2 .................................................. Gearbox slip monitoring 05065 ..... ECO2 ............................................Retarder outlet temperature 05066 ..... ECO2 .......................................................... Sump temperature 05067 ..... ECO2 ..................................... Digital output (AD) not occupied 05068 ..... ECO2 ............................................ Central shut-off device ZAE 05071 ..... ECO2 ...........................................Temperature warning output 05072 ..... ECO2 .................................. PWM signal oil level sensor (B15) 05073 ..... ECO2 ...........................................Temperature warning output 05074 ..... ECO2 ...........................................Temperature warning output 05075 ..... ECO2 ................................................ Retarder sensor 'Manual' (retarder control lever digital S12) 05076 ..... ECO2 .................................................... Gear element slip time 05077 ..... ECO2 ................................................... TSC1_TE specification 05079 ..... ECO2 ............................................................Operating voltage 05080 ..... HDS ..... Limit value error for exhaust mass and nitrogen oxide 05081 ..... ECO2 ............................. Output relay selector lever 'Neutral 1' SD 812a en Page 184 of 203
- 185. SPN.....Control unit/System.............................................. Faultmessage 05082 ..... ECO2 ............................. Output relay selector lever 'Neutral 2' 05083 ..... ECO2 ............................................. Output relay reversing light 05084 ..... ECO2 ............................. EEPROM data customer (checksum) 05085 ..... ECO2 .....................................Output to status monitoring (H1) 05086 ..... ECO2 ....................... Output 'Neutral at standstill (NBS) active' 05091 ..... ECO2 ...............................Special function 1 set in parameters 05093 ..... ECO2 ............. D1 shift pressure adaptation upshift under load 05094 ..... ECO2 ............ D1 shift pressure adaptation coasting downshift 05095 ..... ECO2 ....................................................... Shift time adaptation 05096 ..... ECO2 ...........................................Contact pressure adaptation 05098 ..... ECO2 ...............................Special function 2 set in parameters 05100 ..... HDS ..............................................................................Dummy 05100 ..... ZBRO ...............................................................................Radio 05100 ..... ZFR ..................................................................... Additional fan 05101 ..... ZBRO ...............................................................................Radio 05101 ..... ZFR ............................................................................. Main fan 05102 ..... ZBRO .................................................................... Radio check 05102 ..... ZFR ....................................................... Additional compressor 05103 ..... ZBRO ..................................Loudspeaker changeover external 05103 ..... ZFR ................................................... Speed-dependent output 05104 ..... ZBRO ..................................Loudspeaker changeover external 05104 ..... ZFR ............................................................Additional fan valve 05105 ..... ZBRO .............................. Loudspeaker changeover ext. check 05106 ..... ZBRO .......................................................................PA system 05107 ..... ZBRO .......................................................................PA system 05108 ..... ZBRO ............................................................ PA system check 05109 ..... ZBRO ............................................... Input alarm system active 05110 ..... HDS ................................................................... Urea pressure 05110 ..... ZBRO .......................................................... Alarm system horn 05111 ..... HDS ......................................Compressed air ahead of throttle 05111 ..... ZBRO .............................................................. IBIS BON active 05112 ..... HDS ....................................................................... Engine revs 05112 ..... ZBRO .................................................................Switch on IBIS 05113 ..... HDS ............................................................... Metering volume 05113 ..... ZBRO ......................................................... IBIS transmit active 05114 ..... HDS ................................................................................Status 05114 ..... ZBRO ...............................................IBIS external loudspeaker SD 812a en Page 185 of 203
- 186. SPN.....Control unit/System.............................................. Faultmessage 05115 ..... ZBRO .............................................................. IBIS mike active 05116 ..... ZBRO ............................................ IBIS control input 1 (output) 05117 ..... ZBRO ............................................ IBIS control input 2 (output) 05118 ..... ZBRO ...........................................................................IBIS call 05119 ..... ZBRO ................................................................ IBIS call active 05120 ..... HDS .............................. Monitoring error in monitoring module 05120 ..... ZBRO ................................................... IBIS acknowledgement 05121 ..... ZBRO .........................................IBIS acknowledgement active 05122 ..... ZBRO ........................................................... IBIS door criterion 05126 ..... ZBRO ......................................................Switch canceller OFF 05127 ..... ZBRO ......................................................Output canceller OFF 05128 ..... ZBRO ............................................................. Switch IBIS OFF 05129 ..... ZBRO ............................................................. Output IBIS OFF 05130 ..... ZBRO .......................................................Switch coin box OFF 05131 ..... ZBRO .......................................................Output coin box OFF 05200 ..... ZBRO ........................................................... Driver's area door 05201 ..... ZBRO ........................................................... Driver's area door 05202 ..... ZBRO ................................................. Driver's area door check 05203 ..... ZBRO ................................................Driver's area door buzzer 05204 ..... ZBRO ...................................................Destination box lighting 05205 ..... ZBRO ...................................................Destination box lighting 05206 ..... ZBRO ........................................Destination box lighting Check 05207 ..... ZBRO .............................. Paying console/driver's area lighting 05208 ..... ZBRO .............................. Paying console/driver's area lighting 05209 ..... ZBRO .................... Paying console/driver's area lighting check 05210 ..... ZBRO .................................................... Paying console socket 05211 ..... ZBRO .................................................... Paying console socket 05212 ..... ZBRO ..........................................Paying console socket check 05213 ..... ZBRO ................................................ Paying console lighting 1 05215 ..... ZBRO ....................................................... Driver's area lighting 05216 ..... ZBRO .................................................... Driver's area lighting 1 05217 ..... ZBRO ....................................................... Driver's area lighting 05218 ..... ZBRO ................................. Paying console activation coin box 05219 ..... ZBRO ................................. Paying console activation coin box 05300 ..... ZBRO .................................... Economy circuit front-end heater 05301 ..... ZBRO .................................. Front-end heater circulating pump 05302 ..... ZBRO ...............................Front-end heater inclined seat valve SD 812a en Page 186 of 203
- 187. SPN.....Control unit/System.............................................. Faultmessage 05303 ..... ZBRO .................................................................Roof ventilator 05304 ..... ZBRO ........................................................... Roof ventilator left 05305 ..... ZBRO .........................................................Roof ventilator right 05306 ..... ZBRO ............................................................Roof duct heating 05307 ..... ZBRO ....................................................... Roof duct ventilation 05308 ..... ZBRO ............................................................ Roof hatch check 05309 ..... ZBRO ................................................... Roof hatch 1 rear open 05310 ..... ZBRO ................................................... Roof hatch 1 rear open 05311 ..... ZBRO ........................................ Roof hatch 1 completely open 05312 ..... ZBRO .................................................. Roof hatch 1 front open 05313 ..... ZBRO .................................................. Roof hatch 1 front open 05314 ..... ZBRO ................................................... Roof hatch 2 rear open 05315 ..... ZBRO ................................................... Roof hatch 2 rear open 05316 ..... ZBRO ........................................ Roof hatch 2 completely open 05317 ..... ZBRO .................................................. Roof hatch 2 front open 05318 ..... ZBRO .................................................. Roof hatch 2 front open 05319 ..... ZBRO ............................................................................Heating 05320 ..... ZBRO .............................................. Air-conditioning requested 05321 ..... ZBRO ............................................................ Cool driver's area 05322 ..... ZBRO ............................................. Coolant valve driver's area 05323 ..... ZBRO ................................ Set driver's area to recirculating air 05324 ..... ZBRO .........................Recirculation ventilation hatch front-end 05325 ..... ZBRO ............................................. Roof duct blower reduction 05326 ..... ZBRO ............................................ Ice warning air-conditioning 05327 ..... ZBRO ....................................................... Air-conditioning fault 05328 ..... ZBRO ......................................................... Set roof to fresh air 05329 ..... ZBRO ................................................... Ventilation hatch roof + 05330 ..... ZBRO ..................................................... Compressor activated 05331 ..... ZBRO ............................................ Input check air-conditioning 05332 ..... ZBRO .............................Air conditioning idling speed increase 05333 ..... ZBRO .................................. Engine running to air-conditioning 05334 ..... ZBRO ........................................Terminal 58 to air-conditioning 05335 ..... ZBRO ............................... Air-conditioning circulating pump on 05336 ..... ZBRO .........................Inclined seat valve from air-conditioning 05337 ..... ZBRO ..................................Auxiliary heater to air-conditioning 05338 ..... ZBRO ....................................................................... Ventilation 05339 ..... ZBRO .......................................Passenger area heater stage 1 SD 812a en Page 187 of 203
- 188. SPN.....Control unit/System.............................................. Faultmessage 05340 ..... ZBRO ..................................................Heater fan 1 left stage 1 05341 ..... ZBRO ..................................................Heater fan 2 left stage 1 05342 ..... ZBRO ..................................................Heater fan 3 left stage 1 05343 ..... ZBRO ............................................. Heater fan 2a right stage 1 05344 ..... ZBRO ............................................. Heater fan 2b right stage 1 05345 ..... ZBRO .......................................Passenger area heater stage 2 05346 ..... ZBRO ..................................................Heater fan 1 left stage 2 05347 ..... ZBRO ..................................................Heater fan 2 left stage 2 05348 ..... ZBRO ..................................................Heater fan 3 left stage 2 05349 ..... ZBRO ............................................. Heater fan 2a right stage 2 05350 ..... ZBRO ............................................. Heater fan 2b right stage 2 05351 ..... ZBRO ..............................................Heater fan 2c right stage 2 05352 ..... ZBRO .................................... Interior thermostat (low=heating) 05353 ..... ZBRO ....................................Circulating pump a cooling water 05354 ..... ZBRO ....................................Circulating pump b cooling water 05355 ..... ZBRO .................................... Inclined seat valve cooling water 05356 ..... ZBRO ..................................................Valve convector heating 05357 ..... ZBRO .....................................................Auxiliary heater check 05358 ..... ZBRO ..................................... Auxiliary heater economy circuit 05359 ..... ZBRO .......................................... Auxiliary heater pre-set timer 05360 ..... ZBRO .......................................... Auxiliary heater pre-set timer 05361 ..... ZBRO ................................ Auxiliary heater water v./circ. pump 05362 ..... ZBRO .................................................................Roof ventilator 05363 ..... ZBRO .................................................................Roof ventilator 05364 ..... ZBRO .................................................................Roof ventilator 05365 ..... ZBRO ..............................................................Roof ventilator a 05366 ..... ZBRO ..............................................................Roof ventilator b 05367 ..... ZBRO .................................................... Ventilation hatch roof - 05368 ..... ZBRO .............................................. Set roof to recirculating air 05369 ..... ZBRO ..............................Recirculation ventilation hatch roof + 05370 ..... ZBRO ...............................Recirculation ventilation hatch roof - 05371 ..... ZBRO ................................................... Interior thermostat fault 05372 ..... ZBRO .........................Air-conditioning auxiliary heater request 05373 ..... ZBRO .......................................Passenger area heater stage 1 05374 ..... ZBRO .......................................Passenger area heater stage 2 05375 ..... ZBRO .................................... Interior thermostat (low=heating) 05376 ..... ZBRO ...................................Interior thermostat (high=heating) SD 812a en Page 188 of 203
- 189. SPN.....Control unit/System.............................................. Faultmessage 05377 ..... ZBRO ......................................................... Roof ventilator fault 05378 ..... ZBRO ....................................................... Auxiliary heater fault 05379 ..... ZBRO ....................................................... Air-conditioning fault 05380 ..... ZBRO ...................................... Driver's fan switched off or fault 05381 ..... ZBRO .............................................................. Driver's fan fault 05382 ..... ZBRO .................................................. Pedestal heater stage 1 05383 ..... ZBRO .................................................. Pedestal heater stage 2 05384 ..... ZBRO .................................................. Pedestal heater stage 1 05385 ..... ZBRO .................................................. Pedestal heater stage 2 05386 ..... ZBRO ....... Sw. driver's fan 2nd stage switched off or defective 05387 ..... ZBRO ......................................................... Driver's fan stage 1 05388 ..... ZBRO ......................................................... Driver's fan stage 2 05389 ..... ZBRO ................................................... Roof hatch 3 rear open 05390 ..... ZBRO ................................................... Roof hatch 3 rear open 05391 ..... ZBRO ........................................ Roof hatch 3 completely open 05392 ..... ZBRO .................................................. Roof hatch 3 front open 05393 ..... ZBRO .................................................. Roof hatch 3 front open 05394 ..... ZBRO ................................................... Water pump requested 05395 ..... ZBRO ..........................................Parking lights heating control 05396 ..... ZBRO ... Auxiliary heater requested via passenger area heater 05397 ..... ZBRO ........................................ Recirculation/ventilation hatch 05398 ..... ZBRO ........................................ Recirculation/ventilation hatch 05399 ..... ZBRO .................................... Interior thermostat forebody fault 05400 ..... ZBRO ............................................ Driver's seat heating switch 05401 ..... ZBRO ....................................................... Driver's seat heating 05402 ..... ZBRO ......................................................................... ATC fault 05403 ..... ZBRO .................................Air-conditioning system lower deck 05404 ..... ZBRO ................................ Air-conditioning system upper deck 05500 ..... HDS ............................................ CAN error (no AAI message) 05500 ..... ZBRO ................................................................ Window heater 05501 ..... HDS .......................................... CAN error (no ABC message) 05501 ..... ZBRO ................................................................ Window heater 05502 ..... HDS ............................................ CAN error (no ATI message) 05502 ..... ZBRO ..................................................................Mirror heaters 05503 ..... HDS ........................................ CAN error (no EEC1 message) 05503 ..... ZBRO ..............................................................Mirror heater left 05504 ..... HDS ...........................................CAN error (no ETP message) SD 812a en Page 189 of 203
- 190. SPN.....Control unit/System.............................................. Faultmessage 05504 ..... ZBRO ........................................................... Mirror heater right 05505 ..... HDS ........................................CAN error (no CEXH message) 05505 ..... ZBRO ........................................................ Door window heater 05506 ..... HDS ...........................................CAN error (no FEC message) 05506 ..... ZBRO ..................................................... Door window heater a 05507 ..... HDS ............................................CAN error (no IEC message) 05507 ..... ZBRO ..................................................... Door window heater b 05508 ..... HDS .......................................... CAN error (no NO1 message) 05508 ..... ZBRO ..................................................... Door window heater c 05509 ..... HDS .......................................... CAN error (no PRO message) 05509 ..... ZBRO ..................................................... Door window heater d 05510 ..... HDS ........................................ CAN error (no CTDA message) 05510 ..... ZBRO ..........................................................Windscreen heater 05511 ..... HDS ...................................... Control unit or 'Heating on' faulty 05511 ..... ZBRO ..........................................................Windscreen heater 05512 ..... HDS ........................................CAN error (no CVDR message) 05513 ..... HDS ....................................... CAN error (no CUQS message) 05600 ..... KSM ........................................................................... Cab lock. 05600 ..... ZBR2........................................................................... Cab lock 05700 ..... ZBR2..........................................................ACC rated distance 05800 ..... ZBRO ................................................................... Check CSR2 05801 ..... ZBRO ................................................................... Check CSR2 05802 ..... ZBRO ................................................................... Check CSR3 05803 ..... ZBRO ................................................................... Check CSR3 05804 ..... ZBRO ................................................................... Check CSR4 05805 ..... ZBRO ................................................................... Check CSR4 05806 ..... ZBRO ................................................................... Check CSR5 05807 ..... ZBRO ................................................................... Check CSR5 05808 ..... ZBRO ................................................................... Check CSR6 05809 ..... ZBRO ................................................................... Check CSR6 05810 ..... ZBRO ......................................... Switch CSR1 bottom pressed 05811 ..... ZBRO ......................................... Switch CSR1 bottom pressed 05812 ..... ZBRO ............................................... Switch CSR1 top pressed 05813 ..... ZBRO ............................................... Switch CSR1 top pressed 05814 ..... ZBRO ........................................................ Switch CSR1 check 05815 ..... ZBRO ......................................... Switch CSR2 bottom pressed 05816 ..... ZBRO ......................................... Switch CSR2 bottom pressed SD 812a en Page 190 of 203
- 191. SPN.....Control unit/System.............................................. Faultmessage 05817 ..... ZBRO ............................................... Switch CSR2 top pressed 05818 ..... ZBRO ............................................... Switch CSR2 top pressed 05819 ..... ZBRO ........................................................ Switch CSR2 check 05820 ..... ZBRO ......................................... Switch CSR4 bottom pressed 05821 ..... ZBRO ......................................... Switch CSR4 bottom pressed 05822 ..... ZBRO ............................................... Switch CSR4 top pressed 05823 ..... ZBRO ............................................... Switch CSR4 top pressed 05824 ..... ZBRO ........................................................ Switch CSR4 check 05825 ..... ZBRO ......................................... Switch CSR5 bottom pressed 05826 ..... ZBRO ......................................... Switch CSR5 bottom pressed 05827 ..... ZBRO ............................................... Switch CSR5 top pressed 05828 ..... ZBRO ............................................... Switch CSR5 top pressed 05829 ..... ZBRO ........................................................ Switch CSR5 check 05830 ..... ZBRO ......................................... Switch CSR6 bottom pressed 05831 ..... ZBRO ......................................... Switch CSR6 bottom pressed 05832 ..... ZBRO ............................................... Switch CSR6 top pressed 05833 ..... ZBRO ............................................... Switch CSR6 top pressed 05834 ..... ZBRO ........................................................ Switch CSR6 check 05835 ..... ZBRO ......................................... Switch CSR7 bottom pressed 05836 ..... ZBRO ......................................... Switch CSR7 bottom pressed 05837 ..... ZBRO ............................................... Switch CSR7 top pressed 05838 ..... ZBRO ............................................... Switch CSR7 top pressed 05839 ..... ZBRO ........................................................ Switch CSR7 check 05840 ..... ZBRO ......................................... Switch CSR8 bottom pressed 05841 ..... ZBRO ......................................... Switch CSR8 bottom pressed 05842 ..... ZBRO ............................................... Switch CSR8 top pressed 05843 ..... ZBRO ............................................... Switch CSR8 top pressed 05844 ..... ZBRO ........................................................ Switch CSR8 check 05900 ..... ZBRO ................................................................... Speed signal 05901 ..... ZBRO ........................................................... Speed signal fault 05902 ..... ZBRO ................................................................... Speed signal 06000 ..... ZBR2............................................TCO1 message, tachograph 06001 ..... ZBR2................................................................................. ACC 06002 ..... ZBR2........................................................................Date / time 06003 ..... ZBR2.................................Road speed governing, road speed 06004 ..... ZBR2................................................................ Instrumentation 06005 ..... ZBR2.......................................................EBC1 message, EBS SD 812a en Page 191 of 203
- 192. SPN.....Control unit/System.............................................. Faultmessage 06006 ..... ZBR2..................................................ECAS1 message, ECAS 06007 ..... ZBR2.................................................ECAM1 message, ECAM 06008 ..... ZBR2....................................................... EEC1 message, FFR 06009 ..... ZBR2.......................... ERC_RD message, secondary retarder 06010 ..... ZBR2............................... ERC_RE message, primary retarder 06011 ..... ZBR2.......................................................... Engine oil pressure 06012 ..... ZBR2........................................................ Coolant temperature 06013 ..... ZBR2.....................Ambient conditions missing, FFR message 06014 ..... ZBR2.................................................................................. FFR 06015 ..... ZBR2..........................................EBC2 missing message, EBS 06016 ..... ZBR2..........................................EBC3 missing message, EBS 06017 ..... ZBR2..........................................EBC4 missing message, EBS 06018 ..... ZBR2......................................................Engine speed missing 06019 ..... ZBR2.......................................... ETC1 missing message, FFR 06020 ..... ZBR2.......................................... ETC2 missing message, FFR 06021 ..... ZBR2.......................................... ETC3 missing message, FFR 06022 ..... ZBR2........ Fuel consumption missing, total fuel consumption / consumption since last reset 06023 ..... ZBR2.................... Fuel economy missing, fuel consumption in litres per hour 06024 ..... ZBR2........................... Inlet/exhaust conditions missing, boost pressure information 06025 ..... ZBR2... TC1_FT missing, FFR message to automatic gearbox 06026 ..... ZBR2..... ACC1 message missing, display message from ACC 06027 ..... ZBR2........... Aux_stat_ZBR_1 not on T-CAN, switch message 1 not on T-CAN 06028 ..... ZBR2............ Aux_stat_ZBR_1 not on I-CAN, switch message 1 not on I-CAN 06029 ..... ZBR2...............Dash display/fuel not on I-CAN, cleaning water tank display 06030 ..... ZBR2....... ERC1_RX missing, engine brake message missing from FFR 06032 ..... ZBR2............ Aux_stat_ZBR_2 not on I-CAN, switch message 2 not on I-CAN 06033 ..... ZBR2............ Aux_stat_ZBR_3 not on I-CAN, switch message 3 not on I-CAN SD 812a en Page 192 of 203
- 193. SPN.....Control unit/System.............................................. Faultmessage 06034 ..... ZBR2....... Reserved Aux_stat_ZBR_4 not on I-CAN, reserved switch message 4 not on I-CAN 06035 ..... ZBR2.........Vehicle electrical power not on CAN, voltage term. 30 and 15 from EDC via FFR 06036 ..... ZBR2............Retarder_Fluids RD missing, secondary retarder fill level missing 06037 ..... ZBR2............ Retarder_Fluids RE missing, primary retarder fill level missing 06038 ..... ZBR2........... EEC2 message missing, electronic engine check 2 missing 06039 ..... ZBR2............... Transmission_Fluids missing, gearbox fill level 06040 ..... ZBR2.................. Vehicle weight (EBS) missing, rear axle load (EBS) missing 06041 ..... ZBR2...............Vehicle weight (ECAS) missing, vehicle weight (ECAS) missing 06042 ..... ZBR2............................ No engine configuration (multipacket), no engine configuration 06043 ..... ZBR2........... SPN reply message (MAN request) not on I-CAN 06044 ..... ZBR2........... SPN reply message (MAN request) not on I-CAN 06045 ..... ZBR2...................................... ECAM1 message not on T-CAN (ECAM auxiliary function only), reservoir pressures not on T-CAN 06046 ..... ZBR2Torque converter and clutch system (WSK) no message 06047 ..... ZBR2........T-CAN fault: VDC1 message could not be received 06048 ..... ZBR2................................................ I-CAN ETC2 no message 06050 ..... ZBR2.............DM-1 ZBR2 message could not be sent (I-CAN) 06051 ..... ZBR2.......................DM-1 message vehicle error memory and data memory (OBDU) could not be sent 06052 ..... ZBR2...................... I-CAN error: No chassis number message 06053 ..... ZBR2.......T-CAN error: KSM2 message could not be received 06054 ..... ZBR2..... Vehicle weight message from EBS could not be sent 06055 ..... ZBR2....................................ECAS message failure (ASC1_A) 06056 ..... ZBR2......................................ECAS message failure (RGE21) 06057 ..... ZBR2..............................I-CAN error: No door check message 06058 ..... ZBR2.............. Aux_stat_Inst_2 not on I-CAN Switch message 2 not on I-CAN 06059 ..... ZBR2....................................................... ESP message failure SD 812a en Page 193 of 203
- 194. SPN.....Control unit/System.............................................. Faultmessage 06060 ..... ZBR2.......... ECAS message failure (ASC3) height information 06061 ..... ZBR2...Vehicle weight message from ECAS could not be sent 06062 ..... ZBR2..... Vehicle weight message from EBS could not be sent 06110 ..... ZBRO ............................................................ Status IKN active 06111 ..... ZBRO ..........................................Status node 1.1 fault number 06112 ..... ZBRO ..........................................Status node 1.2 fault number 06113 ..... ZBRO ..........................................Status node 1.3 fault number 06114 ..... ZBRO ..........................................Status node 1.4 fault number 06115 ..... ZBRO ..........................................Status node 1.5 fault number 06116 ..... ZBRO ..........................................Status node 1.6 fault number 06117 ..... ZBRO ..........................................Status node 1.7 fault number 06118 ..... ZBRO ..........................................Status node 1.8 fault number 06121 ..... ZBRO ..........................................Status node 2.1 fault number 06122 ..... ZBRO ..........................................Status node 2.2 fault number 06123 ..... ZBRO ..........................................Status node 2.3 fault number 06124 ..... ZBRO ..........................................Status node 2.4 fault number 06125 ..... ZBRO ..........................................Status node 2.5 fault number 06126 ..... ZBRO ..........................................Status node 2.6 fault number 06127 ..... ZBRO ..........................................Status node 2.7 fault number 06128 ..... ZBRO ..........................................Status node 2.8 fault number 06202 ..... ZBR2...........................I-CAN fault: Aux_stat_ZBR_2 message could not be sent 06203 ..... ZBR2...........................I-CAN fault: Aux_stat_ZBR_3 message could not be sent 06204 ..... ZBR2. I-CAN fault: Modified message ETC2 could not be sent 06205 ..... ZBR2.... I-CAN fault: Dash Display message could not be sent 06206 ..... ZBR2............T-CAN fault: ECAM1 message could not be sent 06207 ..... ZBR2............. I-CAN fault: ECAM1 message could not be sent 06208 ..... ZBR2....... I-CAN fault: DM1 ZBR2 message could not be sent 06209 ..... ZBR2...... I-CAN fault: DM1 OBDU message could not be sent 06250 ..... ZBR2...................................................no CAN message buffer 06251 ..... ZBR2........................................... CAN message not evaluated 06280 ..... ZBR2................................. ROM test (program code) incorrect 06281 ..... ZBR2............................. ROM test (EOL parameters) incorrect 06302 ..... ZBR2.......................................................Serial communication 06303 ..... ZBR2.................................................................. T CAN ground 06304 ..... ZBR2.................. T-CAN warning level, temporary fault T-CAN SD 812a en Page 194 of 203
- 195. SPN.....Control unit/System.............................................. Faultmessage 06305 ..... ZBR2.................... I-CAN warning level, temporary fault I-CAN 06320 ..... ZBRO .................................. Status EBS (T-CAN) fault number 06321 ..... ZBRO .......................... Status engine control (T-CAN) fault no. 06322 ..... ZBRO ....................................Status gearbox (T-CAN) fault no. 06323 ..... ZBRO ................................................ Status MTS fault number 06324 ..... ZBRO .................................... Status retarder (T-CAN) fault no. 06325 ..... ZBRO ................................Status ECAS (T-CAN) fault number 06326 ..... ZBRO ............................. Status door 1 (K3-CAN) fault number 06327 ..... ZBRO ............................. Status door 2 (K3-CAN) fault number 06328 ..... ZBRO ............................. Status door 3 (K3-CAN) fault number 06329 ..... ZBRO ............................. Status door 4 (K3-CAN) fault number 06393 ..... ZBRO ............................Status K3-CAN fault no. (new: 01673) 06394 ..... ZBRO .................................. Status FFR (T-CAN) fault number 06395 ..... ZBRO ..............................Status ECAS2 (T-CAN) fault number 06396 ..... ZBRO .....................................................Status CBR2 (T-CAN) 06397 ..... ZBRO .................................................... Status ECAM (T-CAN) 06400 ..... ZBRO ............................................................................ Monitor 06401 ..... ZBRO ............................................................................ Monitor 06402 ..... ZBRO ...........................................................Reversing camera 06403 ..... ZBRO ...........................................................Reversing camera 06500 ..... ZBRO ....................................................................Snow chains 06501 ..... ZBRO ....................................................................Snow chains 06502 ..... ZBRO .................................................. Emergency exit window 06600 ..... ZBRO ..............................................................................Galley 06601 ..... ZBRO ...............................................................Coffee machine 06602 ..... ZBRO ............................................................................... Toilet 06603 ..... ZBRO ............................................................... Winter package 08000 ..... ZBRO ................................................................... Oil separator 08001 ..... ZBRO ........................................Oil separator middle of vehicle 08002 ..... ZBRO ............................................................ Oil separator rear 08003 ..... ZBRO ..................................... Reservoir pressure BK1 too low 08004 ..... ZBRO ..................................... Reservoir pressure BK2 too low 08005 ..... ZBRO ..................................... Reservoir pressure BK4 too low 08006 ..... ZBRO .......................Reservoir pressure BK2 sensor defective 08007 ..... ZBRO .......................Reservoir pressure BK1 sensor defective 08008 ..... ZBRO .................................. Res. pres. BK2 sensor def. or. n.c 08009 ..... ZBRO .................................. Res. pres. BK1 sensor def. or. n.c SD 812a en Page 195 of 203
- 196. SPN.....Control unit/System.............................................. Faultmessage 08010 ..... ECAM......................................... Pressure below warning level 08010 ..... ZBR2.......................................... Pressure below warning level 08010 ..... ZBRO ............................ Res. pres. BK1 too low or sensor def. 08011 ..... ECAM........................................ Initial filling of circuit 1 – faulty 08011 ..... ZBRO ............................ Res. pres. BK1 too low or sensor def. 08012 ..... ECAM........................................ Initial filling of circuit 2 – faulty 08013 ..... ECAM........................................ Initial filling of circuit 3 – faulty 08014 ..... ECAM........................................ Initial filling of circuit 4 – faulty 08020 ..... ECAM....................................................No valid fault definition 08100 ..... ECAM............Control unit defective; ROM checksum incorrect 08101 ..... ECAM.................................... Control unit defective; RAM fault 08101 ..... INST......................................... Total failure of CAN messages 08101 ..... STON ...............Failure of all CAN messages, but no BUSOFF 08102 ..... ECAM............................Control unit defective; calibration data checksum incorrect 08103 ..... ECAM............................Control unit defective; parameter data checksum incorrect 08103 ..... INST...............................................CAN message tachograph: Speed and daily mileage counter 08103 ..... STON .... Failure of message TCO1 (speed, reset trip counter) 08104 ..... ECAM........................ Pressure, pressure sensor – preliminary circuit/pressure regulator 08104 ..... INST................. CAN message tachograph: Route information 08104 ..... STON ..............................Failure of Vehicle Distance message (trip mileage counter, total mileage counter) 08104 ..... ZBR2.................................................................Previous circuit 08105 ..... INST............................ CAN message tachograph: Date / time 08105 ..... STON ........................................Failure of Time Date message (time information from tachograph) 08106 ..... INST...................................................... CAN message ECAM: Brake pressure pickup (ECAM1) 08106 ..... STON ............................................ Failure of ECAM1 message (reservoir pressures for brake) 08107 ..... INST.......................CAN message central on-board computer: Tank content 08107 ..... STON ..................Failure of Dash Display/Fuel Level message 08108 ..... INST..............CAN message EDC: Cooling water temperature SD 812a en Page 196 of 203
- 197. SPN.....Control unit/System.............................................. Faultmessage 08108 ..... STON ........................Failure of Engine Temperature message 08109 ..... INST................................. CAN message gearbox control unit: Gear display (ETC2) 08109 ..... STON ..................Failure of ETC2 message (gear information) 08110 ..... INST.................... CAN message gearbox control unit: Display of splitter group (gear symbol, ETC3) 08110 ..... STON ....................... Failure of ETC3 message (splitter group) 08111 ..... INST................................ CAN message EDC: Boost pressure 08111 ..... STON ................. Failure of Inlet/Exhaust Conditions message (boost pressure bar) 08112 ..... INST.................................. CAN message EDC: Engine speed 08112 ..... STON ..........Failure of EEC1 message (engine speed display) 08113 ..... INST............... CAN message vehicle management computer: Outside temperature 08113 ..... STON ......................... Failure of Ambient Conditions message (external temperature display) 08114 ..... INST.........................Control unit defective (ICOM total failure) 08114 ..... STON ...................................Combi-internal: ICOM total failure (internal plug connection between PCBs) 08115 ..... INST...................................................................... Display fault 08116 ..... INST.................................................Stepping motor zero point 08117 ..... INST.......................... Buffer overrun with DM1 fault messages 08117 ..... STON ........... Combi-internal: Processing error when receiving DM1 messages: * Buffer overrun * Timeout error * Sequence number error 08118 ..... INST........... Control unit defective (EEPROM checksum error) 08118 ..... STON .............. Combi-internal: Checksum error when reading EEPROM during ongoing operation 08119 ..... INST............ Control unit defective (EEPROM checksum error during initialisation) 08119 ..... STON .............. Combi-internal: Checksum error when reading EEPROM in the initialisation phase 08120 ..... INST..........................................................Temperature sensor 08120 ..... STON ....................... Combi-internal: Temperature outside the permitted range 08121 ..... INST.......................CAN message central on-board computer: Status message 1 SD 812a en Page 197 of 203
- 198. SPN.....Control unit/System.............................................. Faultmessage 08121 ..... STON ..................................Failure of AUX_STAT_1 message 08122 ..... INST.......................CAN message central on-board computer: Status message 2 08122 ..... STON ..................................Failure of AUX_STAT_2 message 08123 ..... INST.......................CAN message central on-board computer: Status message 3 08123 ..... STON ..................................Failure of AUX_STAT_3 message 08124 ..... INST.......................CAN message central on-board computer: Status message 4 08124 ..... STON ..................................Failure of AUX_STAT_4 message 08125 ..... INST.......................CAN message central on-board computer: Status message 5 08125 ..... STON ..................................Failure of AUX_STAT_5 message 08126 ..... INST.......................CAN message central on-board computer: Status message 6 08126 ..... STON ..................................Failure of AUX_STAT_6 message 08127 ..... INST.......................CAN message central on-board computer: Status message 7 08127 ..... STON ..................................Failure of AUX_STAT_7 message 08128 ..... INST.......................CAN message central on-board computer: Status message 8 08128 ..... STON ..................................Failure of AUX_STAT_8 message 08129 ..... INST.......................CAN message central on-board computer: DM1 body controller 08129 ..... STON ...Failure of DM1 Body Controller message (monitoring) 08130 ..... INST........... CAN message EDC: Cruise control vehicle speed for cruise control function (CCVS) 08130 ..... STON .... Failure of CC/VHS message (cruise control function) 08131 ..... STON ........................ Failure of vehicle identification message (chassis number) 08132 ..... STON .........Failure of Transmission Fluids exclusive message or Transmission Fluids converter and clutch unit message 08133 ..... INST.................... Parameter configuration faulty (consistency, plausibility, assignment error) 08133 ..... STON ........ Consistency error/plausibility error in configuration in parameter tables 08134 ..... INST...........................................EOL parameter content: Error SD 812a en Page 198 of 203
- 199. SPN.....Control unit/System.............................................. Faultmessage 08134 ..... STON ......................................Error in EOL parameter content 08135 ..... STON ................ Failure message tank info 1 (AdBlue fill level) 08200 ..... STON ...... Button fault on multifunctional steering wheel (MFL) 08201 ..... ECAM............................Control unit defective; watchdog reset 08201 ..... STON ..... Failure message MFL1 from multifunctional steering wheel (LIN data bus) 08202 ..... ECAM................................................................. Heating circuit 08203 ..... ECAM......................................................... Temperature circuit 08204 ..... ECAM.............Maximum delivery volume without regeneration exceeded after completion of first fill 08310 ..... ECAM.............CAN data bus driveline, receive time overrun in message 'Wheel-based vehicle speed' from VMC 08320 ..... ECAM...................................... CAN data bus driveline, bus off 08330 ..... ECAM..............................CAN data bus driveline, receive time exceeded in TCO1 message from tachograph 08331 ..... ECAM........................CAN data bus driveline, values in 'TCO1 Vehicle Speed' message from tachograph not plausible 08340 ..... ECAM............. CAN data bus driveline, receive time exceeded in EBC1 message from the EBS 08341 ..... ECAM.........................CAN data bus driveline, values in EBC1 message from the EBS not plausible 08350 ..... ECAM..............................CAN data bus driveline, receive time violation (too short) in 'Aux_Stat_ZBR_1' message from the central on-board computer 08351 ..... ECAM.....................................CAN data bus driveline, value in 'Aux_Stat_ZBR_1' message from the central on-board computer not plausible 08360 ..... ECAM..............................CAN data bus driveline, receive time exceeded in 'Ambient_Condition' message from vehicle management computer 08361 ..... ECAM................................... CAN data bus driveline, values in 'Ambient air temperature' message from vehicle management computer not plausible 08370 ..... ECAM.................................................. CAN data bus driveline, receive time exceeded in 'EEC1' message from the EDC SD 812a en Page 199 of 203
- 200. SPN.....Control unit/System.............................................. Faultmessage 08371 ..... ECAM................................... CAN data bus driveline, values in 'EEC1 - act_engine_torque' message from the EDC not plausible 08372 ..... ECAM................................... CAN data bus driveline, values in 'EEC1 - engine_speed' message from the EDC not plausible 08380 ..... ECAM............. CAN data bus driveline, receive time exceeded in 'Time/Date' message from tachograph 08381 ..... ECAM................................... CAN data bus driveline, values in 'Time/Date - Time parameter' message from tachograph not plausible 08382 ..... ECAM................................... CAN data bus driveline, values in Time/Date - Date parameter' message from tachograph not plausible 08390 ..... ECAM......... CAN data bus driveline, receive time exceeded in 'High Resolution Vehicle Distance' message from tachograph 08391 ..... ECAM........CAN data bus driveline, values in 'High Resolution Vehicle Distance' message from tachograph not plausible SD 812a en Page 200 of 203
- 201. Abbreviations Adaptive Cruise Control.................................................................... ACC Exhaust-gas recirculation ................................................................. EGR Arithmetic Logic Unit .......................................................................... ALU AS-Tronic ........................................................................................... AST Service brake valve ...........................................................................BBV Belt tensioner ....................................................................................... BT Control unit network.......................................................................... CAN Cruise Control Vehicle Speed ........................................................ CCVS Continuously Regenerating Trap (catalytic converter).......................CRT Comfort Shift ........................................................................................ CS Butterfly valve stipulation (adjustment angle) ....................................DKV Diagnostic message .......................................................................... DM Drive Neutral Reverse (selector lever/switches for autom. gearbox) DNR Pressure before radiator .................................................................... DvK Speed pickup .................................................................................... DZG Electronic Brake System....................................................................EBS Electronically Controlled Air Management......................................ECAM Electronically Controlled Air Suspension (applies to trucks and afterbody of articulated buses) .................... ECAS Electronically Controlled Air Suspension (applies to forebody of articulated buses)..................................... ECAS2 Eelctronic control unit ....................................................................... ECU Electronic Diesel Control .................................................................. EDC Final speed control ........................................................................... EDR Electronic Engine Controller ..............................................................EEC Electrically programmable non-volatile read-only memory ....... EEPROM Exhaust gas recirculation.................................................................. EGR Electrohydraulic steering system .....................................................EHLA AS-Tronic lite ................................................................................. EMOS End of Line programming ..................................................................EOL Electronic Transmission Control ........................................................ETC Exhaust Valve Brake .........................................................................EVB Ride dynamics control .......................................................................FDR Vehicle management computer ......................................................... FFR Road speed limiter .............................................................................FGB Road speed control........................................................................... FGR SD 812a en Page 201 of 203
- 202. Failure mode identification(fault type)................................................FMI Closed-loop diesel catalyst ............................................................... GDK Behr air-conditioner control............................................................... GKR Urea metering system....................................................................... HDS Hydraulic front axle drive (HydroDrive)..............................................HVA Auxiliary speed pickup ...................................................................... HZG Integrated circuit ................................................................................... IC CAN-connection between the two processors in main instrument ...............................................................................ICOM Identification.......................................................................................... ID Instrument .........................................................................................INST Intarder................................................................................................ INT Customer-specific module ................................................................ KSM Message from customer-specific module .......................................KSMA Temperature sensor .......................................................................... KTY Data transfer protocol MAN-cats II ...........................................KWP2000 Lane Guard System ...........................................................................LGS Local Identifier .................................................................................... LID Idling speed ....................................................................................... LLR Microprocessor .................................................................................... µC Delivery control rack ......................................................................... MES Modular door control ......................................................................... MTS On-board diagnostic unit.................................................................OBDU Parameter group number.................................................................. PGN Pulse width modulation.................................................................... PWM Rear Axle Steering.............................................................................RAS Central tyre inflation system ...........................................................RDRA Secondary retarder ..........................................................................Ret-S Primary retarder ...............................................................................Ret-P Ship vehicle management computer ...............................................SFFR Side marker light ...............................................................................SML Suspect Parameter Number ..............................................................SPN Headlight cleaning system................................................................SWR Telematic Board Module ................................................................... TBM EU tachograph .................................................................................. TCO Gearbox control unit ..........................................................................TCU Torque speed control (brake torque) .................................................TSC Central on-board computer................................................................ZBR Intermediate speed control ................................................................ZDR SD 812a en Page 202 of 203
- 203. FMI Definition - No fault - Fault saved - Intermittent fault - Fault is present and saved 0 Fault not specified 1 Too high 2 Too low 3 Implausible 4 No signal present 5 Short-circuit to earth 6 Short-circuit to UBatt. 7 Short-circuit 8 Fault signal 9 Fault in component 10 Interruption 11 Not defined 12 Not defined 13 Not defined 14 Not defined 15 Not defined SD 812a en Page 203 of 203
