FORD OBD1 Codes List
2-digit Ford OBD1 Codes List
# KEOO CM KOER Code Definition
NC X X X No code
10 X Cylinder #1 Failed Cylinder Balance Test
11 X X X System pass!
12 X Cannot control RPM during ER Self-Test high RPM check.
13 X Cannot control RPM during ER Self-Test low RPM check.
14 X
Two or more successive erratic Profile Ignition Pickup (PIP) pulses occurred, resulting in a
possible engine miss or stall.
15 X EEC permanent Read Only Memory (ROM) test failed.
15 X EEC battery powered Keep Alive Memory (KAM) test failed.
16 X IDM signal not received.
16 X RPM too low to perform HEGO test.
17 X RPM below Self-Test limit with Idle Air Control off
18 X SPOUT circuit open or spark angle word failure.
18 X IDM circuit failure or SPOUT circuit grounded
19 X Failure in EEC internal voltage.
19 X Cylinder Identification CID circuit failure.
19 X RPM erratic, dropped too low during test.
20 X Cylinder #2 Failed Cylinder Balance Test.
21 X X X ECT out of self test range 0.3 to 3.7 volts.
22 X X X MAP/BP sensor out of self test range
23 X X Closed throttle TPS voltage higher or lower than expected
24 X X X ACT sensor out of self test range 0.3 to 3.7 volts.
25 X Knock not sensed during dynamic test
26 X MAF sensor was greater than 0.7 volts with engine off
26 X MAF sensor was not between 0.2 and 1.5 volts with engine running.
26 X X TOT sensor out of self test range.
27 ?
28 X X VAT sensor out of self test range.
28 X Loss of IDM, right side.
29 X Insufficient input from vehicle speed sensor
30 X Cylinder #3 Failed Cylinder Balance Test.
31 X X PFE or EVP circuit below minimum voltage of 0.24 volts
31 X PFE or EVP circuit has intermittently failed below minimum voltage of 0.24 volts.
32 X X EVP circuit below minimum voltage of 0.24 volts.
32 X EVP circuit has intermittently failed below minimum voltage of 0.24 volts.
33 X X EGR valve opening not detected
34 X X PFE or EVP circuit above the closed limit of 0.67 volts
34 X PFE or EVP circuit has intermittently failed above the closed limit of 0.67 volts.
35 X X PFE or EVP circuit above the maximum limit of 4.81 volts.
35 X PFE or EVP circuit has intermittently failed above the maximum limit of 4.81 volts
39 X AXOD converter bypass clutch not applying properly
40 X Cylinder #4 Failed Cylinder Balance Test.
41 X HEGO sensor circuit indicates system lean (right side).
41 X No HEGO switching detected always lean (right side).
42 X HEGO sensor circuit indicates system rich (right side).
42 X No HEGO switching detected always rich (right side).
43 X HEGO lean at Full Throttle.
44 X X Thermactor Air Injection system inoperative (Right side).
45 X DIS coil pack 3 circuit failure or coil 1 primary circuit failure.
45 X Thermactor secondary air is misdirected
46 X DIS coil pack 1 circuit failure or coil 2 primary circuit failure.
46 X Thermactor air not bypassed during self test.
47 X 4WD switch closed.
47 X Measured air flow too low at base idle
48 X Loss of IDM, left side.
48 X Measured air flow too high at base idle
49 X SPOUT signal default to 10 BTDC.
49 X 1 - 2 shift error (E4OD).
50 X Cylinder #5 Failed Cylinder Balance Test.
51 X X ECT sensor signal is greater than the Self-Test maximum of 4.6 volts.
52 X X X Power steering pressure switch always open or closed.
53 X TPS circuit above maximum 4.5 volts.
53 X TPS circuit has intermittently failed above maximum 4.5 volts.
54 X X ACT sensor signal is greater than the Self-Test maximum of 4.6 volts.

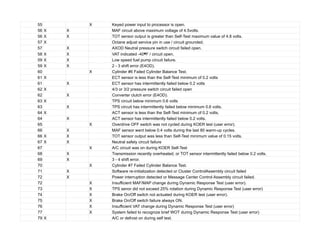

55 X Keyed power input to processor is open.
56 X X MAF circuit above maximum voltage of 4.5volts.
56 X X TOT sensor output is greater than Self-Test maximum value of 4.8 volts.
57 X Octane adjust service pin in use / circuit grounded.
57 X AXOD Neutral pressure switch circuit failed open.
58 X X VAT indicated -40F / circuit open.
59 X X Low speed fuel pump circuit failure.
59 X X 2 - 3 shift error (E4OD).
60 X Cylinder #6 Failed Cylinder Balance Test.
61 X ECT sensor is less than the Self-Test minimum of 0.2 volts
61 X ECT sensor has intermittently failed below 0.2 volts
62 X 4/3 or 3/2 pressure switch circuit failed open
62 X Converter clutch error (E4OD).
63 X TPS circuit below minimum 0.6 volts
63 X TPS circuit has intermittently failed below minimum 0.6 volts.
64 X ACT sensor is less than the Self-Test minimum of 0.2 volts.
64 X ACT sensor has intermittently failed below 0.2 volts.
65 X Overdrive OFF switch was not cycled during KOER test (user error).
66 X MAF sensor went below 0.4 volts during the last 80 warm-up cycles.
66 X X TOT sensor output was less than Self-Test minimum value of 0.15 volts.
67 X X Neutral safety circuit failure
67 X A/C circuit was on during KOER Self-Test
68 X Transmission recently overheated, or TOT sensor intermittently failed below 0.2 volts.
69 X 3 - 4 shift error.
70 X Cylinder #7 Failed Cylinder Balance Test.
71 X Software re-initialization detected or Cluster ControlAssembly circuit failed
72 X Power interruption detected or Message Center Control Assembly circuit failed.
72 X Insufficient MAF/MAP change during Dynamic Response Test (user error).
73 X TPS senor did not exceed 25% rotation during Dynamic Response Test (user error)
74 X Brake On/Off switch not actuated during KOER test (user error).
75 X Brake On/Off switch failure always ON.
76 X Insufficient VAT change during Dynamic Response Test (user error)
77 X System failed to recognize brief WOT during Dynamic Response Test (user error)
79 X A/C or defrost on during self test.
80 X Cylinder #8 Failed Cylinder Balance Test
81 X Air management 2 circuit failure (AM2/TAD).
81 X MAP sensor vacuum was not greater than 2 in-Hg (7 kPa) during normal vehicle operation
82 X Air management 1 circuit failure (AM1/TAB) .
83 X EGR Control solenoid circuit failure.
83 X High speed electro-drive fan circuit failure.
83 X X Low speed fuel pump relay circuit open
84 X X EGR Vacuum Solenoid circuit failure.
85 X X Canister Purge Solenoid circuit failure.
86 X 3  4 Shift solenoid circuit failure.
86 X Adaptive fuel limit reached.
87 X
Fuel pump primary circuit failure. When the FP relay was activated by the EEC, voltage was not
detected on the control circuit.
87 X Voltage was not detected on Fuel Pump Monitor while the engine was running.
88 X Electro-drive fan circuit failure.
88 X Loss of dual plug input control
89 X Converter clutch solenoid circuit failure.
90 X All cylinders passed Cylinder Balance Test.
91 X Shift solenoid 1 circuit failure (E4OD).
91 X No HEGO switching detected always lean (left side).
91 X HEGO sensor circuit indicates system lean (left side).
92 X Shift solenoid 2 circuit failure (E4OD).
92 X No HEGO switching detected always rich (left side).
92 X HEGO sensor circuit indicates system rich (left side).
93 X Coast clutch solenoid circuit failure (E4OD).
94 X Converter clutch solenoid circuit failure (E4OD).
94 X Thermactor Air Injection system inoperative (left side).
95 X X
Fuel pump secondary circuit failure. The EEC senses infinite resistance to ground from the fuel
pump on the Fuel Pump Monitor circuit.
96 X X
Fuel pump secondary circuit failure. The EEC did not sense battery voltage on the Fuel Pump
Monitor circuit.
97 X Overdrive cancel indicator light circuit failure (E4OD)
98 X X Electronic pressure control driver open in EEC (E4OD).
98 X Hard fault present
99 X X Electronic pressure control circuit failure (E4OD).

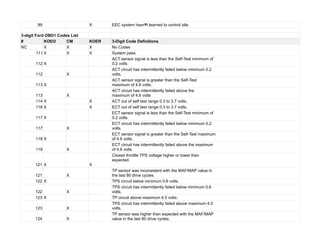

99 X EEC system hasnt learned to control idle.
3-digit Ford OBD1 Codes List
# KOEO CM KOER 3-Digit Code Definitions
NC X X X No Codes
111 X X X System pass
112 X
ACT sensor signal is less than the Self-Test minimum of
0.2 volts
112 X
ACT circuit has intermittently failed below minimum 0.2
volts.
113 X
ACT sensor signal is greater than the Self-Test
maximum of 4.6 volts.
113 X
ACT circuit has intermittently failed above the
maximum of 4.6 volts
114 X X ACT out of self test range 0.3 to 3.7 volts.
116 X X ECT out of self test range 0.3 to 3.7 volts.
117 X
ECT sensor signal is less than the Self-Test minimum of
0.2 volts.
117 X
ECT circuit has intermittently failed below minimum 0.2
volts.
118 X
ECT sensor signal is greater than the Self-Test maximum
of 4.6 volts.
118 X
ECT circuit has intermittently failed above the maximum
of 4.6 volts
121 X X
Closed throttle TPS voltage higher or lower than
expected.
121 X
TP sensor was inconsistent with the MAF/MAP value in
the last 80 drive cycles.
122 X TPS circuit below minimum 0.6 volts.
122 X
TPS circuit has intermittently failed below minimum 0.6
volts.
123 X TP circuit above maximum 4.5 volts.
123 X
TPS circuit has intermittently failed above maximum 4.5
volts.
124 X
TP sensor was higher than expected with the MAF/MAP
value in the last 80 drive cycles.

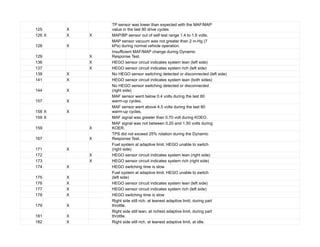

125 X
TP sensor was lower than expected with the MAF/MAP
value in the last 80 drive cycles
126 X X X MAP/BP sensor out of self test range 1.4 to 1.6 volts.
128 X
MAP sensor vacuum was not greater than 2 in-Hg (7
kPa) during normal vehicle operation.
129 X
Insufficient MAF/MAP change during Dynamic
Response Test.
136 X HEGO sensor circuit indicates system lean (left side)
137 X HEGO sensor circuit indicates system rich (left side)
139 X No HEGO sensor switching detected or disconnected (left side)
141 X HEGO sensor circuit indicates system lean (both sides)
144 X
No HEGO sensor switching detected or disconnected
(right side)
157 X
MAF sensor went below 0.4 volts during the last 80
warm-up cycles.
158 X X
MAF sensor went above 4.5 volts during the last 80
warm-up cycles.
159 X MAF signal was greater than 0.70 volt during KOEO.
159 X
MAF signal was not between 0.20 and 1.50 volts during
KOER.
167 X
TPS did not exceed 25% rotation during the Dynamic
Response Test.
171 X
Fuel system at adaptive limit, HEGO unable to switch
(right side)
172 X HEGO sensor circuit indicates system lean (right side)
173 X HEGO sensor circuit indicates system rich (right side)
174 X HEGO switching time is slow
175 X
Fuel system at adaptive limit, HEGO unable to switch
(left side)
176 X HEGO sensor circuit indicates system lean (left side)
177 X HEGO sensor circuit indicates system rich (left side)
178 X HEGO switching time is slow
179 X
Right side still rich, at leanest adaptive limit, during part
throttle.
181 X
Right side still lean, at richest adaptive limit, during part
throttle.
182 X Right side still rich, at leanest adaptive limit, at idle.
183 X Right side still lean, at richest adaptive limit, at idle.
184 X MAF higher than expected
185 X MAF lower than expected
186 X Injector pulse width longer than expected
187 X Injector pulse width shorter than expected
188 X
Left side still rich, at leanest adaptive limit, during part
throttle.
189 X
Left side still lean, at richest adaptive limit, during part
throttle
191 X Left side still rich, at leanest adaptive limit, at idle.
192 X Left side still lean, at richest adaptive limit, at idle.
193 X Flexible Fuel sensor circuit failure
194 X Run cylinder balance diagnostic test.
195 X Run cylinder balance diagnostic test.
211 X
Two or more successive erratic Profile Ignition Pickup
(PIP) pulses occurred, resulting in a possible engine miss
or stall.
212 X Loss of IDM input to EEC or SPOUT circuit grounded.
213 X SPOUT circuit open
214 X Cylinder Identification (CID) circuit failure
215 X EEC detected coil 1 primary circuit failure
216 X EEC detected coil 2 primary circuit failure
217 X EEC detected coil 3 primary circuit failure
218 X Loss of IDM signal (left side)
219 X
SPOUT failure, spark timing has defaulted to 10 degrees
BTDC.
222 X Loss of IDM signal (right side)
223 X Loss of Dual Plug Inhibit control
224 X Erratic IDM input to processor
225 X
Knock Sensor (KS) signal not sensed during dynamic
response test.
226 X IDM signal not received
244 X Camshaft Position (CMP) Sensor failure.
311 X Thermactor air system inoperative (right side)
312 X Thermactor air misdirected upstream during self test
313 X

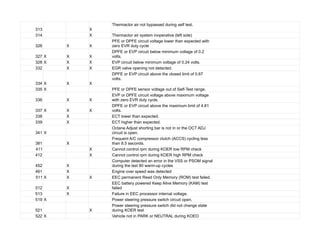

Thermactor air not bypassed during self test.
314 X Thermactor air system inoperative (left side)
326 X X
PFE or DPFE circuit voltage lower than expected with
zero EVR duty cycle
327 X X X
DPFE or EVP circuit below minimum voltage of 0.2
volts.
328 X X X EVP circuit below minimum voltage of 0.24 volts.
332 X X EGR valve opening not detected.
334 X X X
DPFE or EVP circuit above the closed limit of 0.67
volts.
335 X PFE or DPFE sensor voltage out of Self-Test range.
336 X X
EVP or DPFE circuit voltage above maximum voltage
with zero EVR duty cycle.
337 X X X
DPFE or EVP circuit above the maximum limit of 4.81
volts.
338 X ECT lower than expected.
339 X ECT higher than expected.
341 X
Octane Adjust shorting bar is not in or the OCT ADJ
circuit is open.
381 X
Frequent A/C compressor clutch (ACCS) cycling less
than 8.5 seconds.
411 X Cannot control rpm during KOER low RPM check
412 X Cannot control rpm during KOER high RPM check
452 X
Computer detected an error in the VSS or PSOM signal
during the last 80 warm-up cycles
461 X Engine over speed was detected
511 X X X EEC permanent Read Only Memory (ROM) test failed.
512 X
EEC battery powered Keep Alive Memory (KAM) test
failed
513 X Failure in EEC processor internal voltage.
519 X Power steering pressure switch circuit open.
521 X
Power steering pressure switch did not change state
during KOER test
522 X Vehicle not in PARK or NEUTRAL during KOEO

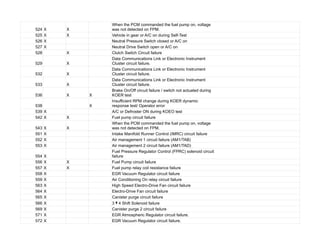

524 X X
When the PCM commanded the fuel pump on, voltage
was not detected on FPM.
525 X X Vehicle in gear or A/C on during Self-Test
526 X Neutral Pressure Switch closed or A/C on
527 X Neutral Drive Switch open or A/C on
528 X Clutch Switch Circuit failure
529 X
Data Communications Link or Electronic Instrument
Cluster circuit failure.
532 X
Data Communications Link or Electronic Instrument
Cluster circuit failure.
533 X
Data Communications Link or Electronic Instrument
Cluster circuit failure.
536 X X
Brake On/Off circuit failure / switch not actuated during
KOER test
538 X
Insufficient RPM change during KOER dynamic
response test/ Operator error
539 X A/C or Defroster ON during KOEO test
542 X X Fuel pump circuit failure
543 X X
When the PCM commanded the fuel pump on, voltage
was not detected on FPM.
551 X Intake Manifold Runner Control (IMRC) circuit failure
552 X Air management 1 circuit failure (AM1/TAB)
553 X Air management 2 circuit failure (AM1/TAD)
554 X
Fuel Pressure Regulator Control (FPRC) solenoid circuit
failure
556 X X Fuel Pump circuit failure
557 X X Fuel pump relay coil resistance failure
558 X EGR Vacuum Regulator circuit failure
559 X Air Conditioning On relay circuit failure
563 X High Speed Electro-Drive Fan circuit failure
564 X Electro-Drive Fan circuit failure
565 X Canister purge circuit failure
566 X 3  4 Shift Solenoid failure
569 X Canister purge 2 circuit failure
571 X EGR Atmospheric Regulator circuit failure.
572 X EGR Vacuum Regulator circuit failure.
578 X
A/C Pressure (ACP) sensor VREF circuit is short to
ground.
579 X
A/C Pressure (ACP) sensor circuit is above maximum
voltage.
581 X
When the cooling fan was activated, the circuit exceeded
current draw.
582 X
Open or short to power in the power-to-cooling fan
circuit.
583 X
When the fuel pump was activated, the power-to-pump
circuit exceeded the normal current draw
584 X Variable Control Relay Module circuit grounded.
585 X A/C clutch circuit exceeded the normal current draw
586 X A/C clutch circuit open or shorted to power
587 X X Data Communications Link (DCL) error
593 X X Oxygen Sensor Heater circuit failure
617 X 1 - 2 shift error (E4OD)
618 X 2 - 3 shift error (E4OD)
619 X 3 - 4 shift error (E4OD)
621 X Shift solenoid #1 circuit failure
622 X Shift solenoid #2 circuit failure
623 X
Overdrive light circuit failure
624 X X
Electronic Pressure Control solenoid or driver circuit
failure
625 X X Electronic Pressure Control driver open in EEC
626 X Coast clutch solenoid circuit failure (E4OD)
627 X Converter clutch solenoid circuit failure (E4OD)
628 X Converter clutch Lock-Up error (E4OD)
629 X X Converter clutch control circuit failure
631 X Overdrive light circuit failure
632 X Overdrive cancel switch not changing state (E4OD)
633 X 4WD switch is closed
634 X X
Transmission Manual Lever Position Sensor circuit out
of self test.
636 X X TOT sensor voltage out of self test range.

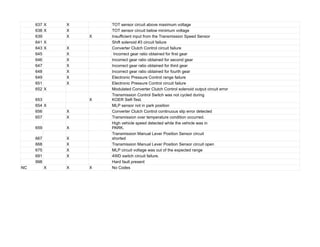

637 X X TOT sensor circuit above maximum voltage
638 X X TOT sensor circuit below minimum voltage
639 X X Insufficient input from the Transmission Speed Sensor
641 X Shift solenoid #3 circuit failure
643 X X Converter Clutch Control circuit failure
645 X Incorrect gear ratio obtained for first gear
646 X Incorrect gear ratio obtained for second gear
647 X Incorrect gear ratio obtained for third gear
648 X Incorrect gear ratio obtained for fourth gear
649 X Electronic Pressure Control range failure
651 X Electronic Pressure Control circuit failure
652 X Modulated Converter Clutch Control solenoid output circuit error
653 X
Transmission Control Switch was not cycled during
KOER Self-Test.
654 X MLP sensor not in park position
656 X Converter Clutch Control continuous slip error detected
657 X Transmission over temperature condition occurred.
659 X
High vehicle speed detected while the vehicle was in
PARK.
667 X
Transmission Manual Lever Position Sensor circuit
shorted
668 X Transmission Manual Lever Position Sensor circuit open
675 X MLP circuit voltage was out of the expected range
691 X 4WD switch circuit failure.
998 Hard fault present
NC X X X No Codes

More Related Content

What's hot

4 jh1+gestión+electrónica
4 jh1+gestión+electrónica4 jh1+gestión+electrónica
4 jh1+gestión+electrónica
carlos malvacia

GOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdf
GOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdfGOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdf
GOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdf
JorgeIvanAraujoSanch

Lista de codigos de fallas nissan
Lista de codigos de fallas nissanLista de codigos de fallas nissan
Lista de codigos de fallas nissan
Andy Pirca


What's hot (20)

Codigos de falhas volvo fh12 d12 a
Codigos de falhas volvo fh12 d12 aCodigos de falhas volvo fh12 d12 a
Codigos de falhas volvo fh12 d12 a

dr ecus null-1.pdf
dr ecus null-1.pdfdr ecus null-1.pdf
dr ecus null-1.pdf

Manual de sintomas e falhas
Manual de sintomas e falhasManual de sintomas e falhas
Manual de sintomas e falhas

4 jh1+gestión+electrónica
4 jh1+gestión+electrónica4 jh1+gestión+electrónica
4 jh1+gestión+electrónica

Motor j08 e hino ak 500 pines ecu2
Motor j08 e hino ak 500 pines ecu2Motor j08 e hino ak 500 pines ecu2
Motor j08 e hino ak 500 pines ecu2

Componentes Elétricos Motor Scania
Componentes Elétricos Motor Scania Componentes Elétricos Motor Scania
Componentes Elétricos Motor Scania

Honda/ Acura OBD1 Code List (PDF)
Honda/ Acura OBD1 Code List (PDF)Honda/ Acura OBD1 Code List (PDF)
Honda/ Acura OBD1 Code List (PDF)

GOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdf
GOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdfGOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdf
GOLF-JETTA 2.0 L. INYECCIÓN Y ENCENDIDO.pdf

Innova 3123 GM OBD1 Code Reader User Manual
Innova 3123 GM OBD1 Code Reader User ManualInnova 3123 GM OBD1 Code Reader User Manual
Innova 3123 GM OBD1 Code Reader User Manual

lkenmrglkemrlgñlermg.pdf
lkenmrglkemrlgñlermg.pdflkenmrglkemrlgñlermg.pdf
lkenmrglkemrlgñlermg.pdf

X12 constellation
X12 constellationX12 constellation
X12 constellation

GM OBD1 Code List (PDF)
GM OBD1 Code List (PDF)GM OBD1 Code List (PDF)
GM OBD1 Code List (PDF)

124798864 codigos-de-falla-isx-modulo-cm871
124798864 codigos-de-falla-isx-modulo-cm871124798864 codigos-de-falla-isx-modulo-cm871
124798864 codigos-de-falla-isx-modulo-cm871

Lista de codigos de fallas nissan
Lista de codigos de fallas nissanLista de codigos de fallas nissan
Lista de codigos de fallas nissan

S10 edc16 c9 ecu
S10   edc16 c9 ecuS10   edc16 c9 ecu
S10 edc16 c9 ecu

Obd1 pinout of honda, gm, ford
Obd1 pinout of honda, gm, fordObd1 pinout of honda, gm, ford
Obd1 pinout of honda, gm, ford

GM OBD2 Code List (PDF)
GM OBD2 Code List (PDF)GM OBD2 Code List (PDF)
GM OBD2 Code List (PDF)

70 c17 3.0 16v_euro5
70 c17 3.0 16v_euro570 c17 3.0 16v_euro5
70 c17 3.0 16v_euro5

Manual v mac 3 parte 5
Manual v mac 3 parte 5Manual v mac 3 parte 5
Manual v mac 3 parte 5

Dodge, Jeep, and Chrysler OBD1 Code List (PDF)
Dodge, Jeep, and Chrysler OBD1 Code List (PDF)Dodge, Jeep, and Chrysler OBD1 Code List (PDF)
Dodge, Jeep, and Chrysler OBD1 Code List (PDF)


Similar to Ford OBD1 Code List (PDF)

Similar to Ford OBD1 Code List (PDF) (20)

KTM LC4/LC8 Failure code
KTM LC4/LC8 Failure codeKTM LC4/LC8 Failure code
KTM LC4/LC8 Failure code

GM328 Tester condensadores, diodos, transistores
GM328 Tester condensadores, diodos, transistoresGM328 Tester condensadores, diodos, transistores
GM328 Tester condensadores, diodos, transistores

1 a3
1 a31 a3
1 a3

1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf

1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf

1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf

1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf1999 Nissan Altima Service Repair Manual.pdf
1999 Nissan Altima Service Repair Manual.pdf

1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf

1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf

1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf

1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf

1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf

1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf1998 Nissan Altima Service Repair Manual.pdf
1998 Nissan Altima Service Repair Manual.pdf

1999 nissan altima service repair manual
1999 nissan altima service repair manual1999 nissan altima service repair manual
1999 nissan altima service repair manual

1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf

1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf

1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf

1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf

1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf

1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf1998 Nissan Maxima Service Repair Manual 1.pdf
1998 Nissan Maxima Service Repair Manual 1.pdf


More from Tim Miller

More from Tim Miller (20)

Mazda Dashboard Warning Lights: Symbols and Meanings [FULL LIST]
Mazda Dashboard Warning Lights: Symbols and Meanings [FULL LIST]Mazda Dashboard Warning Lights: Symbols and Meanings [FULL LIST]
Mazda Dashboard Warning Lights: Symbols and Meanings [FULL LIST]

Mini Cooper Dashboard Warning Lights: Symbols and Meanings [FULL LIST]
Mini Cooper Dashboard Warning Lights: Symbols and Meanings [FULL LIST]Mini Cooper Dashboard Warning Lights: Symbols and Meanings [FULL LIST]
Mini Cooper Dashboard Warning Lights: Symbols and Meanings [FULL LIST]

Mack Trucks' Body Builder Instructions
Mack Trucks' Body Builder InstructionsMack Trucks' Body Builder Instructions
Mack Trucks' Body Builder Instructions

Kenworth W900 Heavy Duty Body Builder Manual
Kenworth W900 Heavy Duty Body Builder ManualKenworth W900 Heavy Duty Body Builder Manual
Kenworth W900 Heavy Duty Body Builder Manual

Massey Ferguson Global Series Product Book
Massey Ferguson Global Series Product BookMassey Ferguson Global Series Product Book
Massey Ferguson Global Series Product Book

Ancel DS700 User's Manual
Ancel DS700 User's ManualAncel DS700 User's Manual
Ancel DS700 User's Manual

Honda/ Acura OBD2 Code List (PDF)
Honda/ Acura OBD2 Code List (PDF)Honda/ Acura OBD2 Code List (PDF)
Honda/ Acura OBD2 Code List (PDF)

GM OBD2 Code List (PDF)
GM OBD2 Code List (PDF)GM OBD2 Code List (PDF)
GM OBD2 Code List (PDF)

Toyota Dashboard Warning Lights [FULL]
Toyota Dashboard Warning Lights [FULL]Toyota Dashboard Warning Lights [FULL]
Toyota Dashboard Warning Lights [FULL]

ThinkOBD 500 User's Manual
ThinkOBD 500 User's ManualThinkOBD 500 User's Manual
ThinkOBD 500 User's Manual

Ancel V6 User's Manual
Ancel V6 User's ManualAncel V6 User's Manual
Ancel V6 User's Manual

Thinkscan User's Manual
Thinkscan User's ManualThinkscan User's Manual
Thinkscan User's Manual

BMW Dashboard Warning Lights [FULL]
BMW Dashboard Warning Lights [FULL]BMW Dashboard Warning Lights [FULL]
BMW Dashboard Warning Lights [FULL]

Foxwell NT301 Plus User’s Manual
Foxwell NT301 Plus User’s ManualFoxwell NT301 Plus User’s Manual
Foxwell NT301 Plus User’s Manual

Foxwell NT614 Elite User’s Manual
Foxwell NT614 Elite User’s ManualFoxwell NT614 Elite User’s Manual
Foxwell NT614 Elite User’s Manual

Veepeak OBDCheck BLE+ User’s Manual
Veepeak OBDCheck BLE+ User’s ManualVeepeak OBDCheck BLE+ User’s Manual
Veepeak OBDCheck BLE+ User’s Manual

This is the user manual of Veepeak OBDCheck BLE+.
This is the user manual of Veepeak OBDCheck BLE+.This is the user manual of Veepeak OBDCheck BLE+.
This is the user manual of Veepeak OBDCheck BLE+.

Autel AP200 User’s Manual
Autel AP200 User’s ManualAutel AP200 User’s Manual
Autel AP200 User’s Manual

Autel AP200C User Manual
Autel AP200C User ManualAutel AP200C User Manual
Autel AP200C User Manual

Foxwell NT604 Elite User’s Manual
Foxwell NT604 Elite User’s ManualFoxwell NT604 Elite User’s Manual
Foxwell NT604 Elite User’s Manual


Recently uploaded

一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样
一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样
一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样
AD

一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样
一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样
一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样
fsdfdsgf

一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样
一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样
一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样
fsdfdsgf

原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样
原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样
原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样
yuslkdal

一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书
一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书
一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书
egfdgfd

Solar Photovoltaic Plant Project Proposal by Slidesgo.pptx
Solar Photovoltaic Plant Project Proposal by Slidesgo.pptxSolar Photovoltaic Plant Project Proposal by Slidesgo.pptx
Solar Photovoltaic Plant Project Proposal by Slidesgo.pptx
AmarHaddad

一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书
一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书
一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书
AD

Toko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat Viagra
Toko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat ViagraToko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat Viagra
Toko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat Viagra
adet6151


Recently uploaded (20)

AI for Smart Vehicles - A quick overview
AI for Smart Vehicles - A quick overviewAI for Smart Vehicles - A quick overview
AI for Smart Vehicles - A quick overview

一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样
一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样
一比一原版(McMaste毕业证书)加拿大麦克马斯特大学毕业证成绩单原件一模一样

Introduction to Automotive Bootloader | Programming Sequence
Introduction to Automotive Bootloader | Programming SequenceIntroduction to Automotive Bootloader | Programming Sequence
Introduction to Automotive Bootloader | Programming Sequence

-VDA-Special-Characteristics Special characteristics.pdf
-VDA-Special-Characteristics Special characteristics.pdf-VDA-Special-Characteristics Special characteristics.pdf
-VDA-Special-Characteristics Special characteristics.pdf

一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样
一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样
一比一原版曼彻斯特城市大学毕业证成绩单原件一模一样

Why Won't Your Audi A3 Shift Into Reverse Gear Let's Investigate
Why Won't Your Audi A3 Shift Into Reverse Gear Let's InvestigateWhy Won't Your Audi A3 Shift Into Reverse Gear Let's Investigate
Why Won't Your Audi A3 Shift Into Reverse Gear Let's Investigate

一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样
一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样
一比一原版(Temple毕业证书)美国天普大学毕业证成绩单原件一模一样

Basic of Firmware & Embedded Software Programming in C
Basic of Firmware & Embedded Software Programming in CBasic of Firmware & Embedded Software Programming in C
Basic of Firmware & Embedded Software Programming in C

Automotive Bootloader Complete Guide with UDS Frame Format
Automotive Bootloader Complete Guide with UDS Frame FormatAutomotive Bootloader Complete Guide with UDS Frame Format
Automotive Bootloader Complete Guide with UDS Frame Format

原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样
原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样
原版定制(UniSA毕业证书)澳大利亚南澳大学毕业证原件一模一样

technical report on EV. EVs can offer benefitssuch as lower operating costs a...
technical report on EV. EVs can offer benefitssuch as lower operating costs a...technical report on EV. EVs can offer benefitssuch as lower operating costs a...
technical report on EV. EVs can offer benefitssuch as lower operating costs a...

一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书
一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书
一比一定制加拿大安大略理工大学毕业证(UOIT毕业证书)学位证书

Battery Management System Circuit Diagram.pdf
Battery Management System Circuit Diagram.pdfBattery Management System Circuit Diagram.pdf
Battery Management System Circuit Diagram.pdf

ℂall Girls Azad Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7
ℂall Girls Azad Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7ℂall Girls Azad Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7
ℂall Girls Azad Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7

Solar Photovoltaic Plant Project Proposal by Slidesgo.pptx
Solar Photovoltaic Plant Project Proposal by Slidesgo.pptxSolar Photovoltaic Plant Project Proposal by Slidesgo.pptx
Solar Photovoltaic Plant Project Proposal by Slidesgo.pptx

Timer Handling in UDS | S3 Server Timer | P2 and P2 Start Timer
Timer Handling in UDS | S3 Server Timer | P2 and P2 Start TimerTimer Handling in UDS | S3 Server Timer | P2 and P2 Start Timer
Timer Handling in UDS | S3 Server Timer | P2 and P2 Start Timer

一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书
一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书
一比一原版(Cumbria毕业证书)英国坎布里亚大学毕业证成绩单学位证书

Quicker and better: South Korea’s new high-speed train 'EMU-320'
Quicker and better: South Korea’s new high-speed train 'EMU-320'Quicker and better: South Korea’s new high-speed train 'EMU-320'
Quicker and better: South Korea’s new high-speed train 'EMU-320'

ℂall Girls Chirag Delhi ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7
ℂall Girls Chirag Delhi ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7ℂall Girls Chirag Delhi ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7
ℂall Girls Chirag Delhi ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7

Toko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat Viagra
Toko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat ViagraToko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat Viagra
Toko Jual Viagra Asli Di Surabaya 081229400522 COD Obat Kuat Viagra


Ford OBD1 Code List (PDF)

  • 1. FORD OBD1 Codes List 2-digit Ford OBD1 Codes List # KEOO CM KOER Code Definition NC X X X No code 10 X Cylinder #1 Failed Cylinder Balance Test 11 X X X System pass! 12 X Cannot control RPM during ER Self-Test high RPM check. 13 X Cannot control RPM during ER Self-Test low RPM check. 14 X Two or more successive erratic Profile Ignition Pickup (PIP) pulses occurred, resulting in a possible engine miss or stall. 15 X EEC permanent Read Only Memory (ROM) test failed. 15 X EEC battery powered Keep Alive Memory (KAM) test failed. 16 X IDM signal not received. 16 X RPM too low to perform HEGO test. 17 X RPM below Self-Test limit with Idle Air Control off 18 X SPOUT circuit open or spark angle word failure. 18 X IDM circuit failure or SPOUT circuit grounded 19 X Failure in EEC internal voltage. 19 X Cylinder Identification CID circuit failure. 19 X RPM erratic, dropped too low during test. 20 X Cylinder #2 Failed Cylinder Balance Test. 21 X X X ECT out of self test range 0.3 to 3.7 volts. 22 X X X MAP/BP sensor out of self test range 23 X X Closed throttle TPS voltage higher or lower than expected 24 X X X ACT sensor out of self test range 0.3 to 3.7 volts. 25 X Knock not sensed during dynamic test 26 X MAF sensor was greater than 0.7 volts with engine off 26 X MAF sensor was not between 0.2 and 1.5 volts with engine running. 26 X X TOT sensor out of self test range. 27 ? 28 X X VAT sensor out of self test range. 28 X Loss of IDM, right side. 29 X Insufficient input from vehicle speed sensor
  • 2. 30 X Cylinder #3 Failed Cylinder Balance Test. 31 X X PFE or EVP circuit below minimum voltage of 0.24 volts 31 X PFE or EVP circuit has intermittently failed below minimum voltage of 0.24 volts. 32 X X EVP circuit below minimum voltage of 0.24 volts. 32 X EVP circuit has intermittently failed below minimum voltage of 0.24 volts. 33 X X EGR valve opening not detected 34 X X PFE or EVP circuit above the closed limit of 0.67 volts 34 X PFE or EVP circuit has intermittently failed above the closed limit of 0.67 volts. 35 X X PFE or EVP circuit above the maximum limit of 4.81 volts. 35 X PFE or EVP circuit has intermittently failed above the maximum limit of 4.81 volts 39 X AXOD converter bypass clutch not applying properly 40 X Cylinder #4 Failed Cylinder Balance Test. 41 X HEGO sensor circuit indicates system lean (right side). 41 X No HEGO switching detected always lean (right side). 42 X HEGO sensor circuit indicates system rich (right side). 42 X No HEGO switching detected always rich (right side). 43 X HEGO lean at Full Throttle. 44 X X Thermactor Air Injection system inoperative (Right side). 45 X DIS coil pack 3 circuit failure or coil 1 primary circuit failure. 45 X Thermactor secondary air is misdirected 46 X DIS coil pack 1 circuit failure or coil 2 primary circuit failure. 46 X Thermactor air not bypassed during self test. 47 X 4WD switch closed. 47 X Measured air flow too low at base idle 48 X Loss of IDM, left side. 48 X Measured air flow too high at base idle 49 X SPOUT signal default to 10 BTDC. 49 X 1 - 2 shift error (E4OD). 50 X Cylinder #5 Failed Cylinder Balance Test. 51 X X ECT sensor signal is greater than the Self-Test maximum of 4.6 volts. 52 X X X Power steering pressure switch always open or closed. 53 X TPS circuit above maximum 4.5 volts. 53 X TPS circuit has intermittently failed above maximum 4.5 volts. 54 X X ACT sensor signal is greater than the Self-Test maximum of 4.6 volts.
  • 3. 55 X Keyed power input to processor is open. 56 X X MAF circuit above maximum voltage of 4.5volts. 56 X X TOT sensor output is greater than Self-Test maximum value of 4.8 volts. 57 X Octane adjust service pin in use / circuit grounded. 57 X AXOD Neutral pressure switch circuit failed open. 58 X X VAT indicated -40F / circuit open. 59 X X Low speed fuel pump circuit failure. 59 X X 2 - 3 shift error (E4OD). 60 X Cylinder #6 Failed Cylinder Balance Test. 61 X ECT sensor is less than the Self-Test minimum of 0.2 volts 61 X ECT sensor has intermittently failed below 0.2 volts 62 X 4/3 or 3/2 pressure switch circuit failed open 62 X Converter clutch error (E4OD). 63 X TPS circuit below minimum 0.6 volts 63 X TPS circuit has intermittently failed below minimum 0.6 volts. 64 X ACT sensor is less than the Self-Test minimum of 0.2 volts. 64 X ACT sensor has intermittently failed below 0.2 volts. 65 X Overdrive OFF switch was not cycled during KOER test (user error). 66 X MAF sensor went below 0.4 volts during the last 80 warm-up cycles. 66 X X TOT sensor output was less than Self-Test minimum value of 0.15 volts. 67 X X Neutral safety circuit failure 67 X A/C circuit was on during KOER Self-Test 68 X Transmission recently overheated, or TOT sensor intermittently failed below 0.2 volts. 69 X 3 - 4 shift error. 70 X Cylinder #7 Failed Cylinder Balance Test. 71 X Software re-initialization detected or Cluster ControlAssembly circuit failed 72 X Power interruption detected or Message Center Control Assembly circuit failed. 72 X Insufficient MAF/MAP change during Dynamic Response Test (user error). 73 X TPS senor did not exceed 25% rotation during Dynamic Response Test (user error) 74 X Brake On/Off switch not actuated during KOER test (user error). 75 X Brake On/Off switch failure always ON. 76 X Insufficient VAT change during Dynamic Response Test (user error) 77 X System failed to recognize brief WOT during Dynamic Response Test (user error) 79 X A/C or defrost on during self test.
  • 4. 80 X Cylinder #8 Failed Cylinder Balance Test 81 X Air management 2 circuit failure (AM2/TAD). 81 X MAP sensor vacuum was not greater than 2 in-Hg (7 kPa) during normal vehicle operation 82 X Air management 1 circuit failure (AM1/TAB) . 83 X EGR Control solenoid circuit failure. 83 X High speed electro-drive fan circuit failure. 83 X X Low speed fuel pump relay circuit open 84 X X EGR Vacuum Solenoid circuit failure. 85 X X Canister Purge Solenoid circuit failure. 86 X 3 4 Shift solenoid circuit failure. 86 X Adaptive fuel limit reached. 87 X Fuel pump primary circuit failure. When the FP relay was activated by the EEC, voltage was not detected on the control circuit. 87 X Voltage was not detected on Fuel Pump Monitor while the engine was running. 88 X Electro-drive fan circuit failure. 88 X Loss of dual plug input control 89 X Converter clutch solenoid circuit failure. 90 X All cylinders passed Cylinder Balance Test. 91 X Shift solenoid 1 circuit failure (E4OD). 91 X No HEGO switching detected always lean (left side). 91 X HEGO sensor circuit indicates system lean (left side). 92 X Shift solenoid 2 circuit failure (E4OD). 92 X No HEGO switching detected always rich (left side). 92 X HEGO sensor circuit indicates system rich (left side). 93 X Coast clutch solenoid circuit failure (E4OD). 94 X Converter clutch solenoid circuit failure (E4OD). 94 X Thermactor Air Injection system inoperative (left side). 95 X X Fuel pump secondary circuit failure. The EEC senses infinite resistance to ground from the fuel pump on the Fuel Pump Monitor circuit. 96 X X Fuel pump secondary circuit failure. The EEC did not sense battery voltage on the Fuel Pump Monitor circuit. 97 X Overdrive cancel indicator light circuit failure (E4OD) 98 X X Electronic pressure control driver open in EEC (E4OD). 98 X Hard fault present 99 X X Electronic pressure control circuit failure (E4OD).
  • 5. 99 X EEC system hasnt learned to control idle. 3-digit Ford OBD1 Codes List # KOEO CM KOER 3-Digit Code Definitions NC X X X No Codes 111 X X X System pass 112 X ACT sensor signal is less than the Self-Test minimum of 0.2 volts 112 X ACT circuit has intermittently failed below minimum 0.2 volts. 113 X ACT sensor signal is greater than the Self-Test maximum of 4.6 volts. 113 X ACT circuit has intermittently failed above the maximum of 4.6 volts 114 X X ACT out of self test range 0.3 to 3.7 volts. 116 X X ECT out of self test range 0.3 to 3.7 volts. 117 X ECT sensor signal is less than the Self-Test minimum of 0.2 volts. 117 X ECT circuit has intermittently failed below minimum 0.2 volts. 118 X ECT sensor signal is greater than the Self-Test maximum of 4.6 volts. 118 X ECT circuit has intermittently failed above the maximum of 4.6 volts 121 X X Closed throttle TPS voltage higher or lower than expected. 121 X TP sensor was inconsistent with the MAF/MAP value in the last 80 drive cycles. 122 X TPS circuit below minimum 0.6 volts. 122 X TPS circuit has intermittently failed below minimum 0.6 volts. 123 X TP circuit above maximum 4.5 volts. 123 X TPS circuit has intermittently failed above maximum 4.5 volts. 124 X TP sensor was higher than expected with the MAF/MAP value in the last 80 drive cycles.
  • 6. 125 X TP sensor was lower than expected with the MAF/MAP value in the last 80 drive cycles 126 X X X MAP/BP sensor out of self test range 1.4 to 1.6 volts. 128 X MAP sensor vacuum was not greater than 2 in-Hg (7 kPa) during normal vehicle operation. 129 X Insufficient MAF/MAP change during Dynamic Response Test. 136 X HEGO sensor circuit indicates system lean (left side) 137 X HEGO sensor circuit indicates system rich (left side) 139 X No HEGO sensor switching detected or disconnected (left side) 141 X HEGO sensor circuit indicates system lean (both sides) 144 X No HEGO sensor switching detected or disconnected (right side) 157 X MAF sensor went below 0.4 volts during the last 80 warm-up cycles. 158 X X MAF sensor went above 4.5 volts during the last 80 warm-up cycles. 159 X MAF signal was greater than 0.70 volt during KOEO. 159 X MAF signal was not between 0.20 and 1.50 volts during KOER. 167 X TPS did not exceed 25% rotation during the Dynamic Response Test. 171 X Fuel system at adaptive limit, HEGO unable to switch (right side) 172 X HEGO sensor circuit indicates system lean (right side) 173 X HEGO sensor circuit indicates system rich (right side) 174 X HEGO switching time is slow 175 X Fuel system at adaptive limit, HEGO unable to switch (left side) 176 X HEGO sensor circuit indicates system lean (left side) 177 X HEGO sensor circuit indicates system rich (left side) 178 X HEGO switching time is slow 179 X Right side still rich, at leanest adaptive limit, during part throttle. 181 X Right side still lean, at richest adaptive limit, during part throttle. 182 X Right side still rich, at leanest adaptive limit, at idle.
  • 7. 183 X Right side still lean, at richest adaptive limit, at idle. 184 X MAF higher than expected 185 X MAF lower than expected 186 X Injector pulse width longer than expected 187 X Injector pulse width shorter than expected 188 X Left side still rich, at leanest adaptive limit, during part throttle. 189 X Left side still lean, at richest adaptive limit, during part throttle 191 X Left side still rich, at leanest adaptive limit, at idle. 192 X Left side still lean, at richest adaptive limit, at idle. 193 X Flexible Fuel sensor circuit failure 194 X Run cylinder balance diagnostic test. 195 X Run cylinder balance diagnostic test. 211 X Two or more successive erratic Profile Ignition Pickup (PIP) pulses occurred, resulting in a possible engine miss or stall. 212 X Loss of IDM input to EEC or SPOUT circuit grounded. 213 X SPOUT circuit open 214 X Cylinder Identification (CID) circuit failure 215 X EEC detected coil 1 primary circuit failure 216 X EEC detected coil 2 primary circuit failure 217 X EEC detected coil 3 primary circuit failure 218 X Loss of IDM signal (left side) 219 X SPOUT failure, spark timing has defaulted to 10 degrees BTDC. 222 X Loss of IDM signal (right side) 223 X Loss of Dual Plug Inhibit control 224 X Erratic IDM input to processor 225 X Knock Sensor (KS) signal not sensed during dynamic response test. 226 X IDM signal not received 244 X Camshaft Position (CMP) Sensor failure. 311 X Thermactor air system inoperative (right side) 312 X Thermactor air misdirected upstream during self test
  • 8. 313 X Thermactor air not bypassed during self test. 314 X Thermactor air system inoperative (left side) 326 X X PFE or DPFE circuit voltage lower than expected with zero EVR duty cycle 327 X X X DPFE or EVP circuit below minimum voltage of 0.2 volts. 328 X X X EVP circuit below minimum voltage of 0.24 volts. 332 X X EGR valve opening not detected. 334 X X X DPFE or EVP circuit above the closed limit of 0.67 volts. 335 X PFE or DPFE sensor voltage out of Self-Test range. 336 X X EVP or DPFE circuit voltage above maximum voltage with zero EVR duty cycle. 337 X X X DPFE or EVP circuit above the maximum limit of 4.81 volts. 338 X ECT lower than expected. 339 X ECT higher than expected. 341 X Octane Adjust shorting bar is not in or the OCT ADJ circuit is open. 381 X Frequent A/C compressor clutch (ACCS) cycling less than 8.5 seconds. 411 X Cannot control rpm during KOER low RPM check 412 X Cannot control rpm during KOER high RPM check 452 X Computer detected an error in the VSS or PSOM signal during the last 80 warm-up cycles 461 X Engine over speed was detected 511 X X X EEC permanent Read Only Memory (ROM) test failed. 512 X EEC battery powered Keep Alive Memory (KAM) test failed 513 X Failure in EEC processor internal voltage. 519 X Power steering pressure switch circuit open. 521 X Power steering pressure switch did not change state during KOER test 522 X Vehicle not in PARK or NEUTRAL during KOEO
  • 9. 524 X X When the PCM commanded the fuel pump on, voltage was not detected on FPM. 525 X X Vehicle in gear or A/C on during Self-Test 526 X Neutral Pressure Switch closed or A/C on 527 X Neutral Drive Switch open or A/C on 528 X Clutch Switch Circuit failure 529 X Data Communications Link or Electronic Instrument Cluster circuit failure. 532 X Data Communications Link or Electronic Instrument Cluster circuit failure. 533 X Data Communications Link or Electronic Instrument Cluster circuit failure. 536 X X Brake On/Off circuit failure / switch not actuated during KOER test 538 X Insufficient RPM change during KOER dynamic response test/ Operator error 539 X A/C or Defroster ON during KOEO test 542 X X Fuel pump circuit failure 543 X X When the PCM commanded the fuel pump on, voltage was not detected on FPM. 551 X Intake Manifold Runner Control (IMRC) circuit failure 552 X Air management 1 circuit failure (AM1/TAB) 553 X Air management 2 circuit failure (AM1/TAD) 554 X Fuel Pressure Regulator Control (FPRC) solenoid circuit failure 556 X X Fuel Pump circuit failure 557 X X Fuel pump relay coil resistance failure 558 X EGR Vacuum Regulator circuit failure 559 X Air Conditioning On relay circuit failure 563 X High Speed Electro-Drive Fan circuit failure 564 X Electro-Drive Fan circuit failure 565 X Canister purge circuit failure 566 X 3 4 Shift Solenoid failure 569 X Canister purge 2 circuit failure 571 X EGR Atmospheric Regulator circuit failure. 572 X EGR Vacuum Regulator circuit failure.
  • 10. 578 X A/C Pressure (ACP) sensor VREF circuit is short to ground. 579 X A/C Pressure (ACP) sensor circuit is above maximum voltage. 581 X When the cooling fan was activated, the circuit exceeded current draw. 582 X Open or short to power in the power-to-cooling fan circuit. 583 X When the fuel pump was activated, the power-to-pump circuit exceeded the normal current draw 584 X Variable Control Relay Module circuit grounded. 585 X A/C clutch circuit exceeded the normal current draw 586 X A/C clutch circuit open or shorted to power 587 X X Data Communications Link (DCL) error 593 X X Oxygen Sensor Heater circuit failure 617 X 1 - 2 shift error (E4OD) 618 X 2 - 3 shift error (E4OD) 619 X 3 - 4 shift error (E4OD) 621 X Shift solenoid #1 circuit failure 622 X Shift solenoid #2 circuit failure 623 X Overdrive light circuit failure 624 X X Electronic Pressure Control solenoid or driver circuit failure 625 X X Electronic Pressure Control driver open in EEC 626 X Coast clutch solenoid circuit failure (E4OD) 627 X Converter clutch solenoid circuit failure (E4OD) 628 X Converter clutch Lock-Up error (E4OD) 629 X X Converter clutch control circuit failure 631 X Overdrive light circuit failure 632 X Overdrive cancel switch not changing state (E4OD) 633 X 4WD switch is closed 634 X X Transmission Manual Lever Position Sensor circuit out of self test. 636 X X TOT sensor voltage out of self test range.
  • 11. 637 X X TOT sensor circuit above maximum voltage 638 X X TOT sensor circuit below minimum voltage 639 X X Insufficient input from the Transmission Speed Sensor 641 X Shift solenoid #3 circuit failure 643 X X Converter Clutch Control circuit failure 645 X Incorrect gear ratio obtained for first gear 646 X Incorrect gear ratio obtained for second gear 647 X Incorrect gear ratio obtained for third gear 648 X Incorrect gear ratio obtained for fourth gear 649 X Electronic Pressure Control range failure 651 X Electronic Pressure Control circuit failure 652 X Modulated Converter Clutch Control solenoid output circuit error 653 X Transmission Control Switch was not cycled during KOER Self-Test. 654 X MLP sensor not in park position 656 X Converter Clutch Control continuous slip error detected 657 X Transmission over temperature condition occurred. 659 X High vehicle speed detected while the vehicle was in PARK. 667 X Transmission Manual Lever Position Sensor circuit shorted 668 X Transmission Manual Lever Position Sensor circuit open 675 X MLP circuit voltage was out of the expected range 691 X 4WD switch circuit failure. 998 Hard fault present NC X X X No Codes
