The document provides a cost survey report for plumbing, electrical, flooring materials used in building construction. It includes types and market rates for plumbing fixtures like pipes, traps and fittings. PVC and CPVC pipes of various diameters and electrical wires, switches and boxes are listed with prices. Granite, marble and brick bat flooring tiles are described along with typical rates based on quality and size. Photos from the market survey are also attached. The survey was conducted by a team of 3 students who collected brochures and price information from various shops in Bhopal.

1. SPECIFICATION AND
ESTIMATION
COST SURVEY REPORT

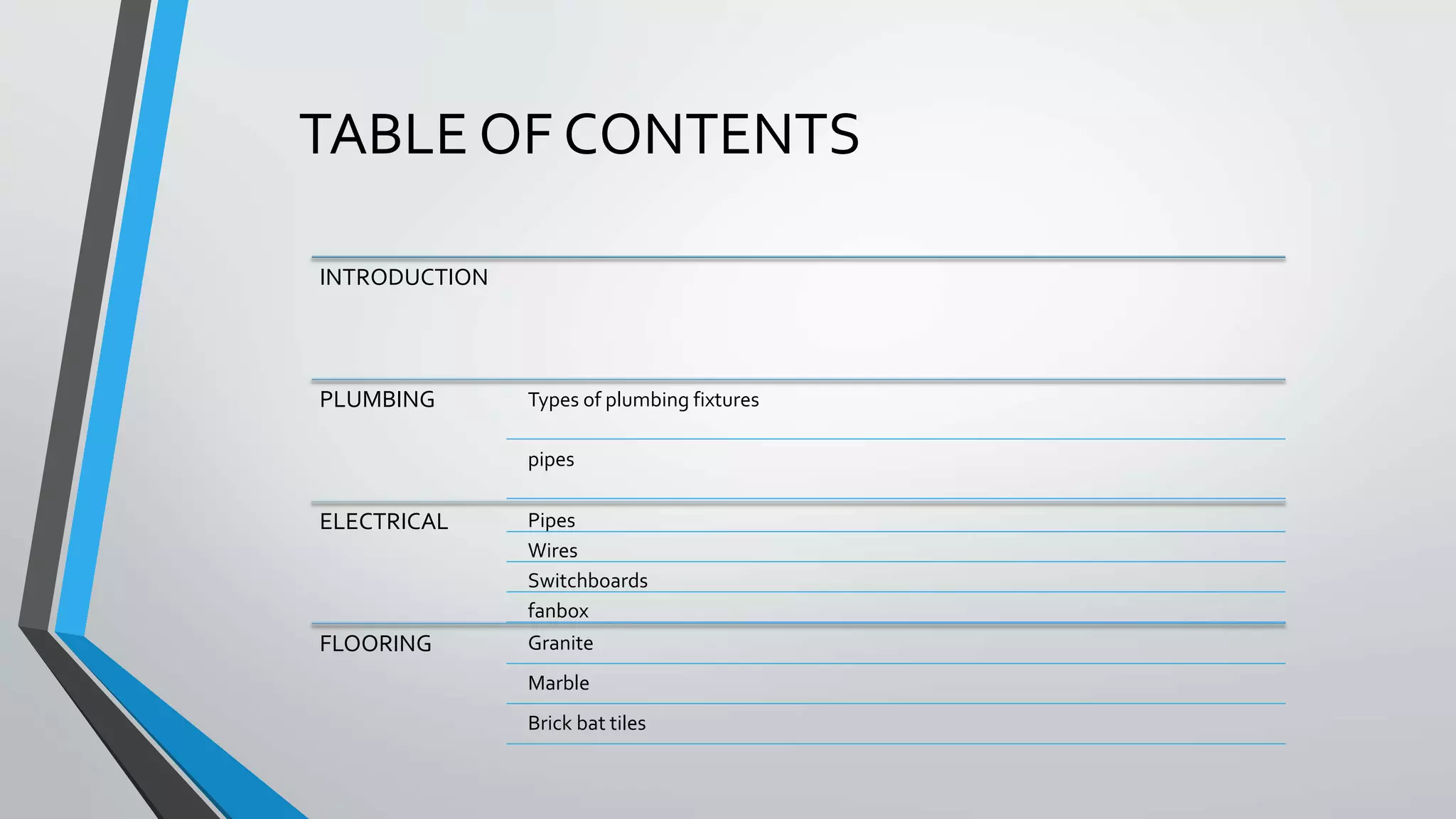

2. TABLE OF CONTENTS
INTRODUCTION
PLUMBING Types of plumbing fixtures
pipes
ELECTRICAL Pipes
Wires
Switchboards
fanbox
FLOORING Granite
Marble
Brick bat tiles

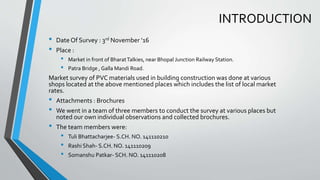

3. INTRODUCTION
• Date Of Survey : 3rd November ’16
• Place :
• Market in front of BharatTalkies, near Bhopal Junction Railway Station.
• Patra Bridge , Galla Mandi Road.
Market survey of PVC materials used in building construction was done at various
shops located at the above mentioned places which includes the list of local market
rates.

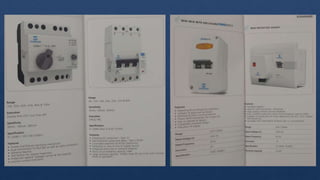

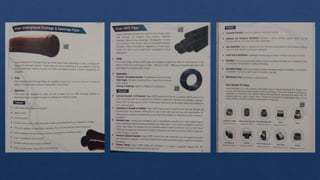

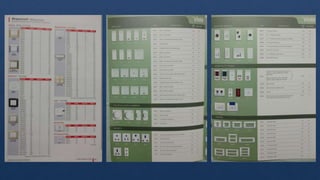

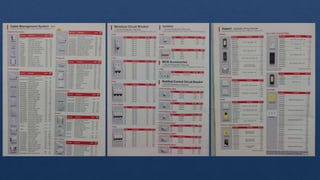

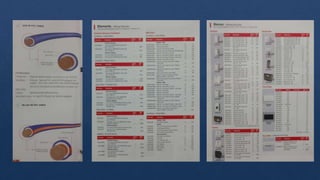

• Attachments : Brochures
• We went in a team of three members to conduct the survey at various places but
noted our own individual observations and collected brochures.
• The team members were:
• Tuli Bhattacharjee- S.CH. NO. 141110210
• Rashi Shah- S.CH. NO. 141110209
• Somanshu Patkar- SCH. NO. 141110208

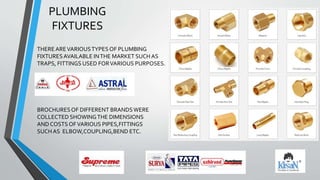

4. PLUMBING
FIXTURES

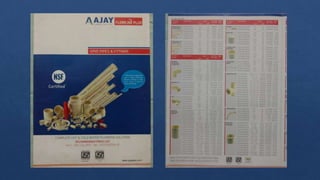

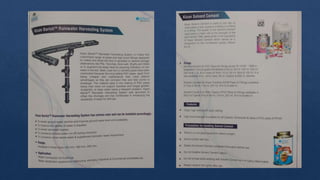

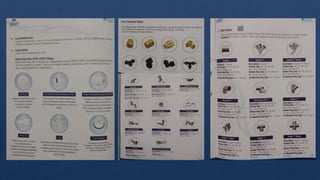

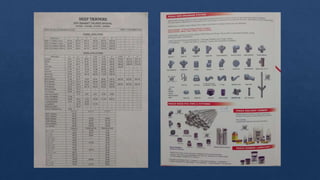

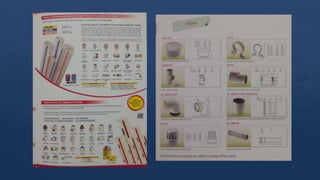

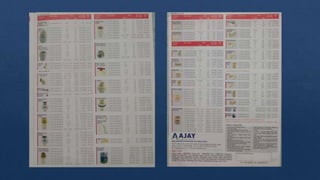

BROCHURESOF DIFFERENT BRANDSWERE
COLLECTED SHOWINGTHE DIMENSIONS
AND COSTS OFVARIOUS PIPES,FITTINGS
SUCH AS ELBOW,COUPLING,BEND ETC.
THEREAREVARIOUSTYPES OF PLUMBING
FIXTURESAVAILABLE INTHE MARKET SUCH AS
TRAPS, FITTINGS USED FORVARIOUS PURPOSES.

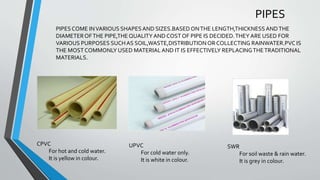

5. PIPES
CPVC
For hot and cold water.
It is yellow in colour.
UPVC
For cold water only.
It is white in colour.
SWR
For soil waste & rain water.
It is grey in colour.
PIPESCOME INVARIOUS SHAPESAND SIZES.BASEDONTHE LENGTH,THICKNESSANDTHE
DIAMETEROFTHE PIPE,THEQUALITY AND COST OF PIPE IS DECIDED.THEY ARE USED FOR
VARIOUS PURPOSES SUCHAS SOIL,WASTE,DISTRIBUTIONOR COLLECTING RAINWATER.PVC IS
THE MOST COMMONLY USED MATERIALAND IT IS EFFECTIVELY REPLACINGTHETRADITIONAL
MATERIALS.

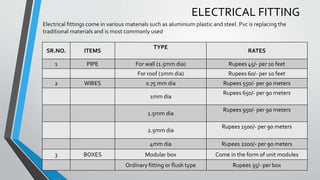

16. ELECTRICAL FITTING
SR.NO. ITEMS
TYPE
RATES
1 PIPE For wall (1.5mm dia) Rupees 45/- per 10 feet
For roof (2mm dia) Rupees 60/- per 10 feet
2 WIRES 0.75 mm dia Rupees 550/- per 90 meters
1mm dia
Rupees 650/- per 90 meters
1.5mm dia
Rupees 950/- per 90 meters
2.5mm dia
Rupees 1500/- per 90 meters
4mm dia Rupees 2200/- per 90 meters

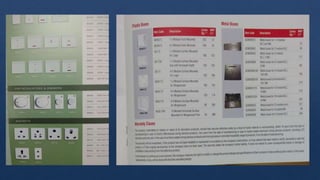

3 BOXES Modular box Come in the form of unit modules
Ordinary fitting or flush type Rupees 35/- per box
Electrical fittings come in various materials such as aluminium plastic and steel. Pvc is replacing the
traditional materials and is most commonly used

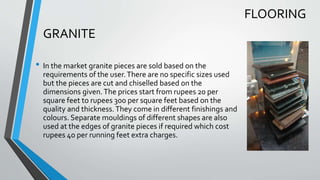

26. GRANITE
• In the market granite pieces are sold based on the
requirements of the user.There are no specific sizes used
but the pieces are cut and chiselled based on the
dimensions given.The prices start from rupees 20 per
square feet to rupees 300 per square feet based on the
quality and thickness.They come in different finishings and
colours. Separate mouldings of different shapes are also
used at the edges of granite pieces if required which cost
rupees 40 per running feet extra charges.
FLOORING

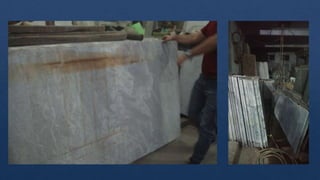

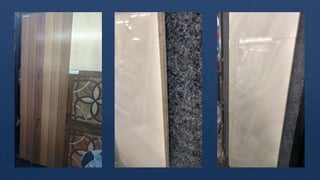

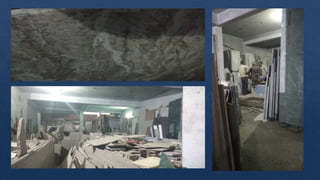

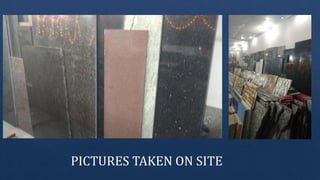

27. PICTURES TAKEN ON SITE

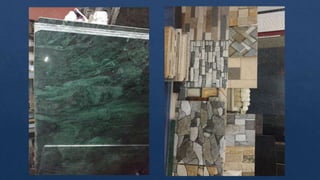

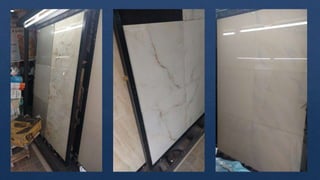

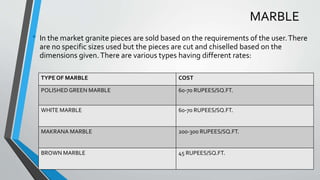

29. MARBLE
• In the market granite pieces are sold based on the requirements of the user.There
are no specific sizes used but the pieces are cut and chiselled based on the
dimensions given.There are various types having different rates:
TYPE OF MARBLE COST
POLISHEDGREEN MARBLE 60-70 RUPEES/SQ.FT.
WHITE MARBLE 60-70 RUPEES/SQ.FT.
MAKRANA MARBLE 200-300 RUPEES/SQ.FT.
BROWN MARBLE 45 RUPEES/SQ.FT.

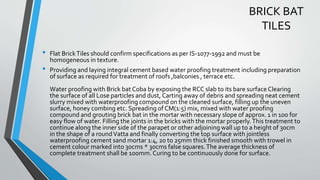

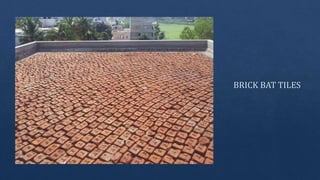

35. BRICK BAT
TILES
• Flat BrickTiles should confirm specifications as per IS-1077-1992 and must be
homogeneous in texture.
• Providing and laying integral cement based water proofing treatment including preparation
of surface as required for treatment of roofs ,balconies , terrace etc.
Water proofing with Brick bat Coba by exposing the RCC slab to its bare surface Clearing
the surface of all Lose particles and dust, Carting away of debris and spreading neat cement
slurry mixed with waterproofing compound on the cleaned surface, filling up the uneven
surface, honey combing etc. Spreading of CM(1:5) mix, mixed with water proofing
compound and grouting brick bat in the mortar with necessary slope of approx. 1 in 100 for
easy flow of water. Filling the joints in the bricks with the mortar properly.This treatment to
continue along the inner side of the parapet or other adjoining wall up to a height of 30cm
in the shape of a roundVatta and finally converting the top surface with jointless
waterproofing cement sand mortar 1:4, 20 to 25mm thick finished smooth with trowel in
cement colour marked into 30cms * 30cms false squares.The average thickness of
complete treatment shall be 100mm. Curing to be continuously done for surface.

40. THANKYOU
SECTION B
Rashi Shah
