The document discusses domain-driven design approaches from the 1980s to present. It covers business domain modeling, the ubiquitous language, and model-driven design principles. An example domain of a music school is used, along with a Ruby on Rails application demonstration. Key concepts explained include entities, value objects, aggregates, factories, repositories, and services in the context of domain-driven design.

2. THE 80’S – RESPONSIBILITY DRIVEN DESIGN

3. THE 90’S – DESIGN PATTERNS

4. THE 2000’S – DOMAIN DRIVEN DESIGN

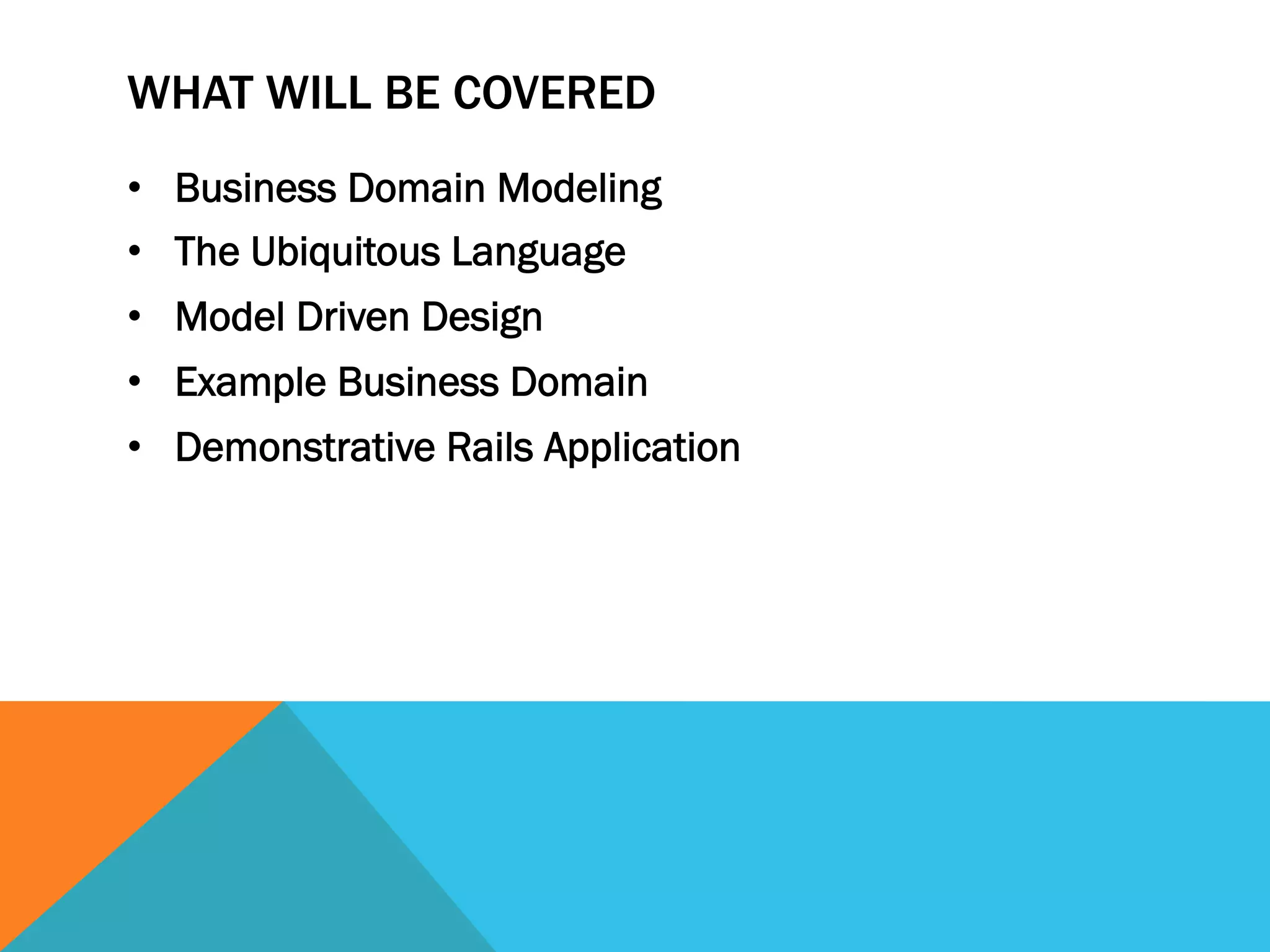

5. WHAT WILL BE COVERED
• Business Domain Modeling
• The Ubiquitous Language
• Model Driven Design
• Example Business Domain
• Demonstrative Rails Application

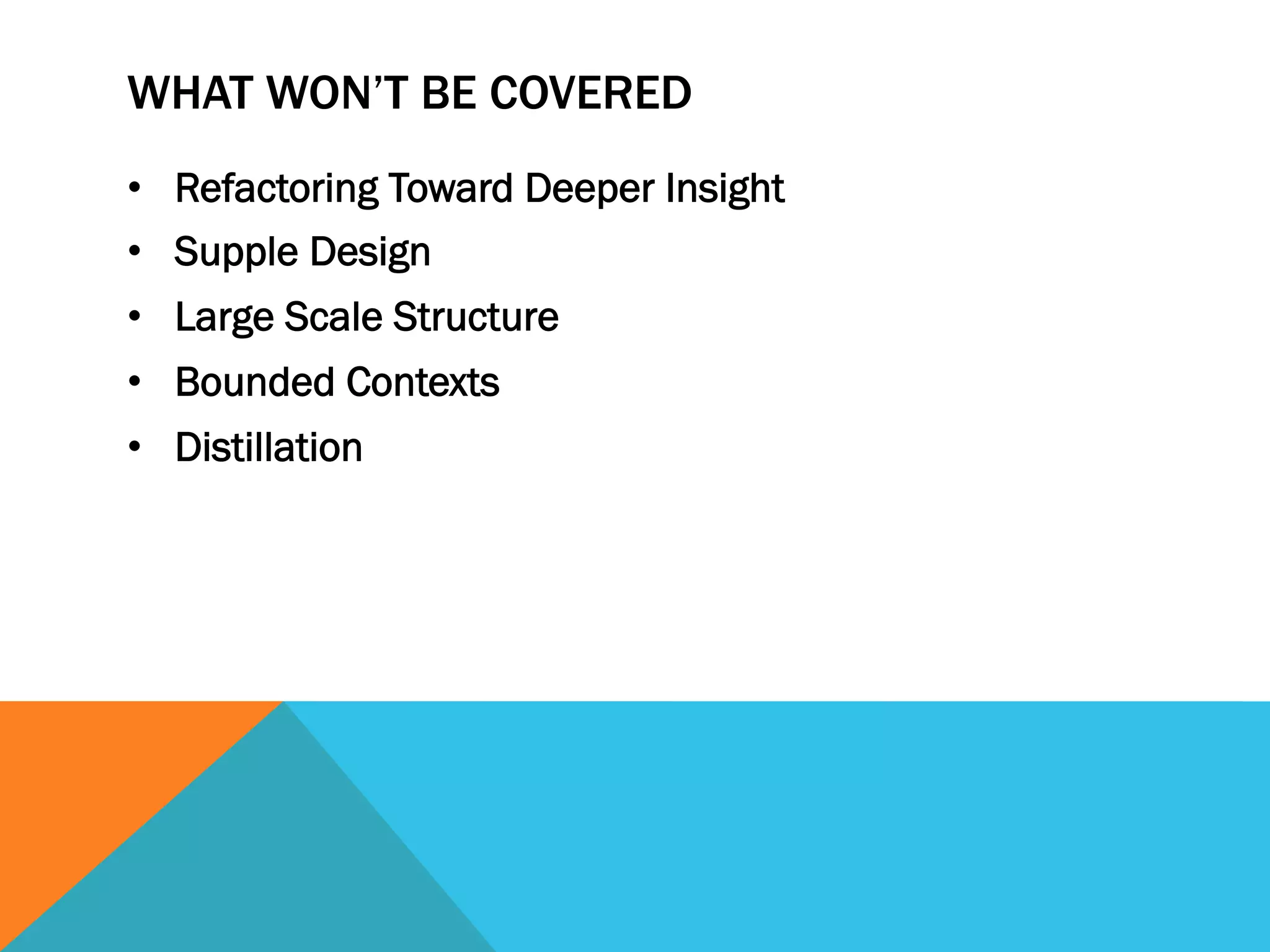

6. WHAT WON’T BE COVERED
• Refactoring Toward Deeper Insight
• Supple Design
• Large Scale Structure
• Bounded Contexts
• Distillation

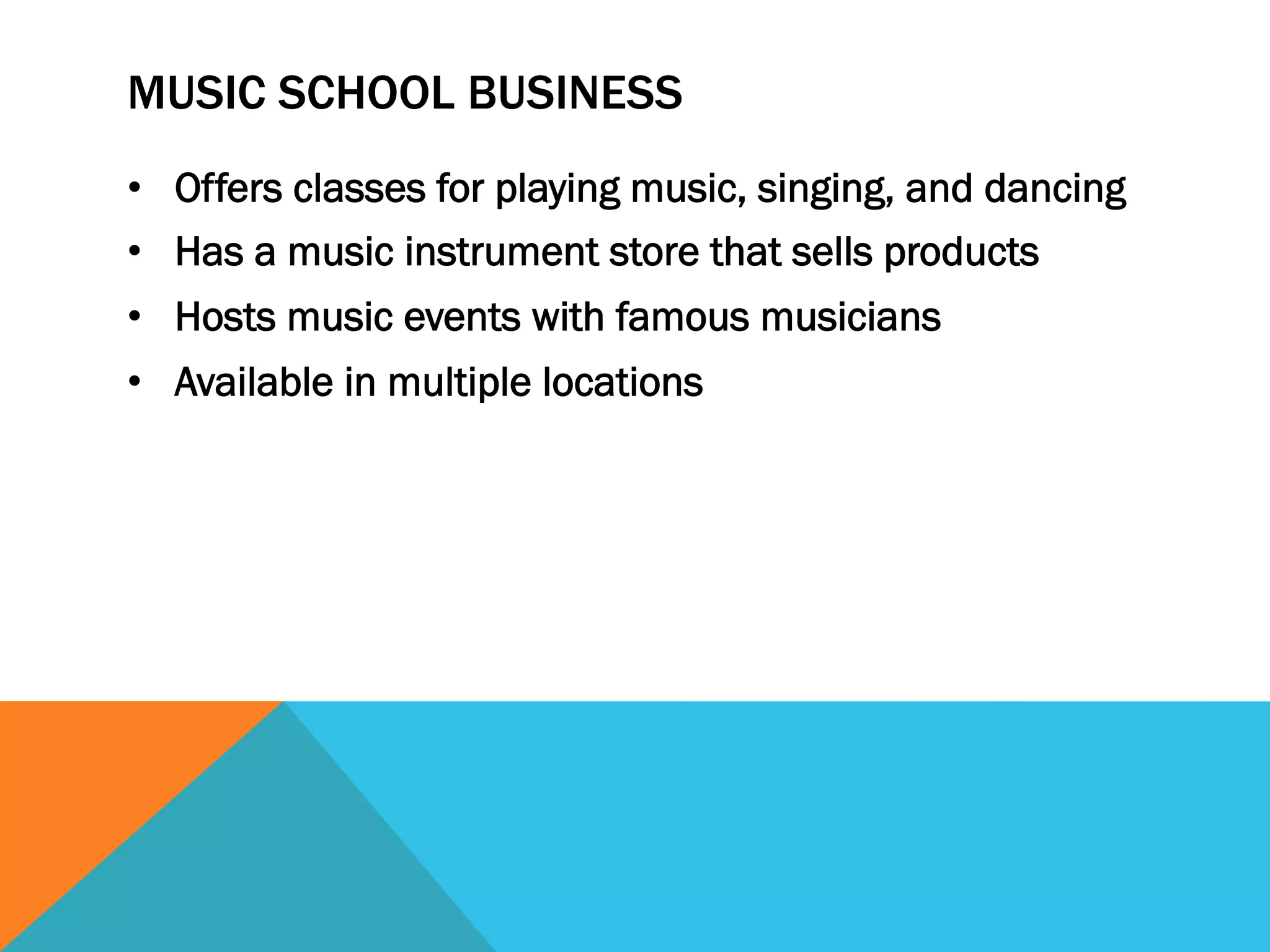

7. MUSIC SCHOOL BUSINESS
• Offers classes for playing music, singing, and dancing
• Has a music instrument store that sells products
• Hosts music events with famous musicians
• Available in multiple locations

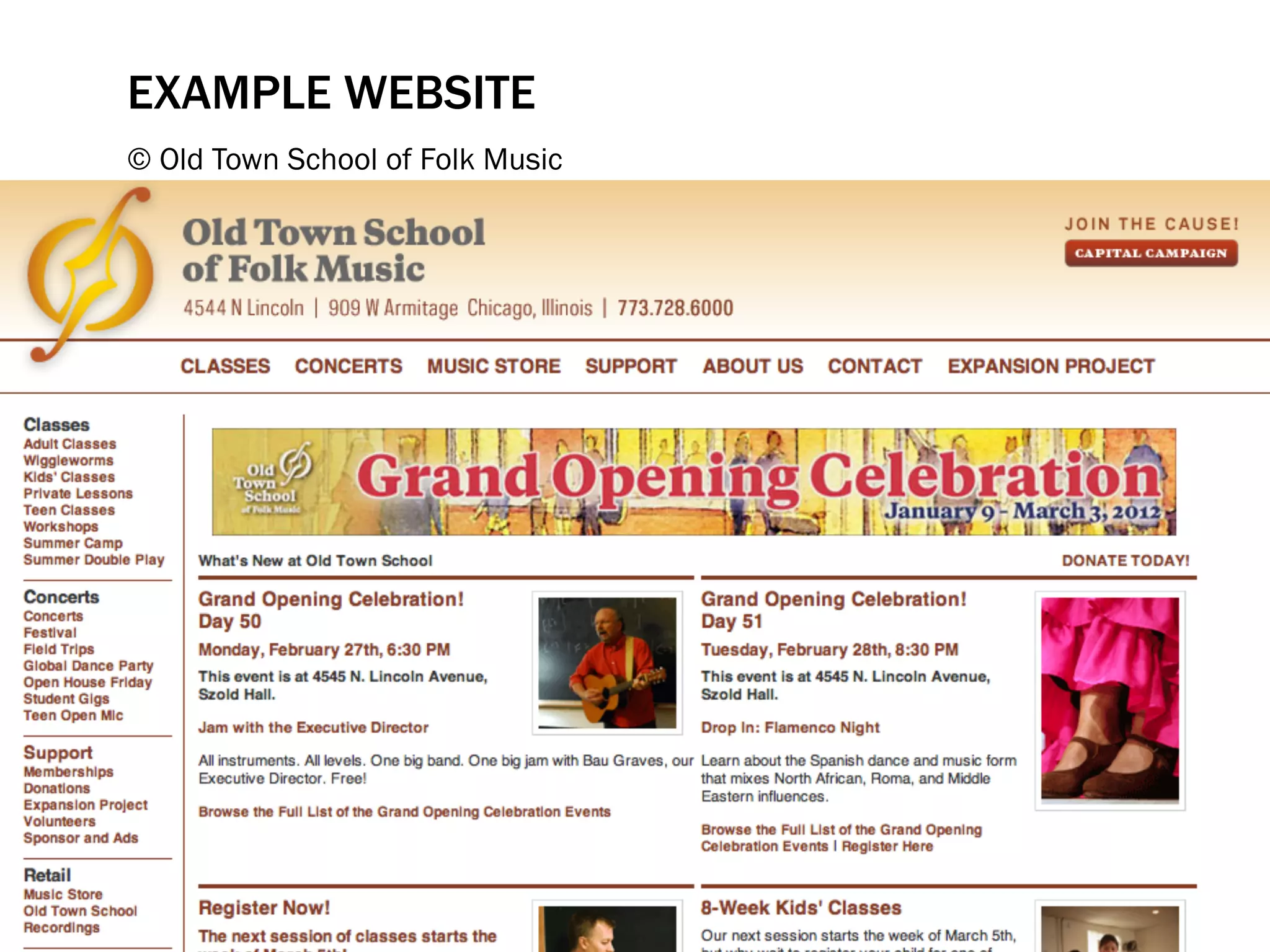

8. EXAMPLE WEBSITE
© Old Town School of Folk Music

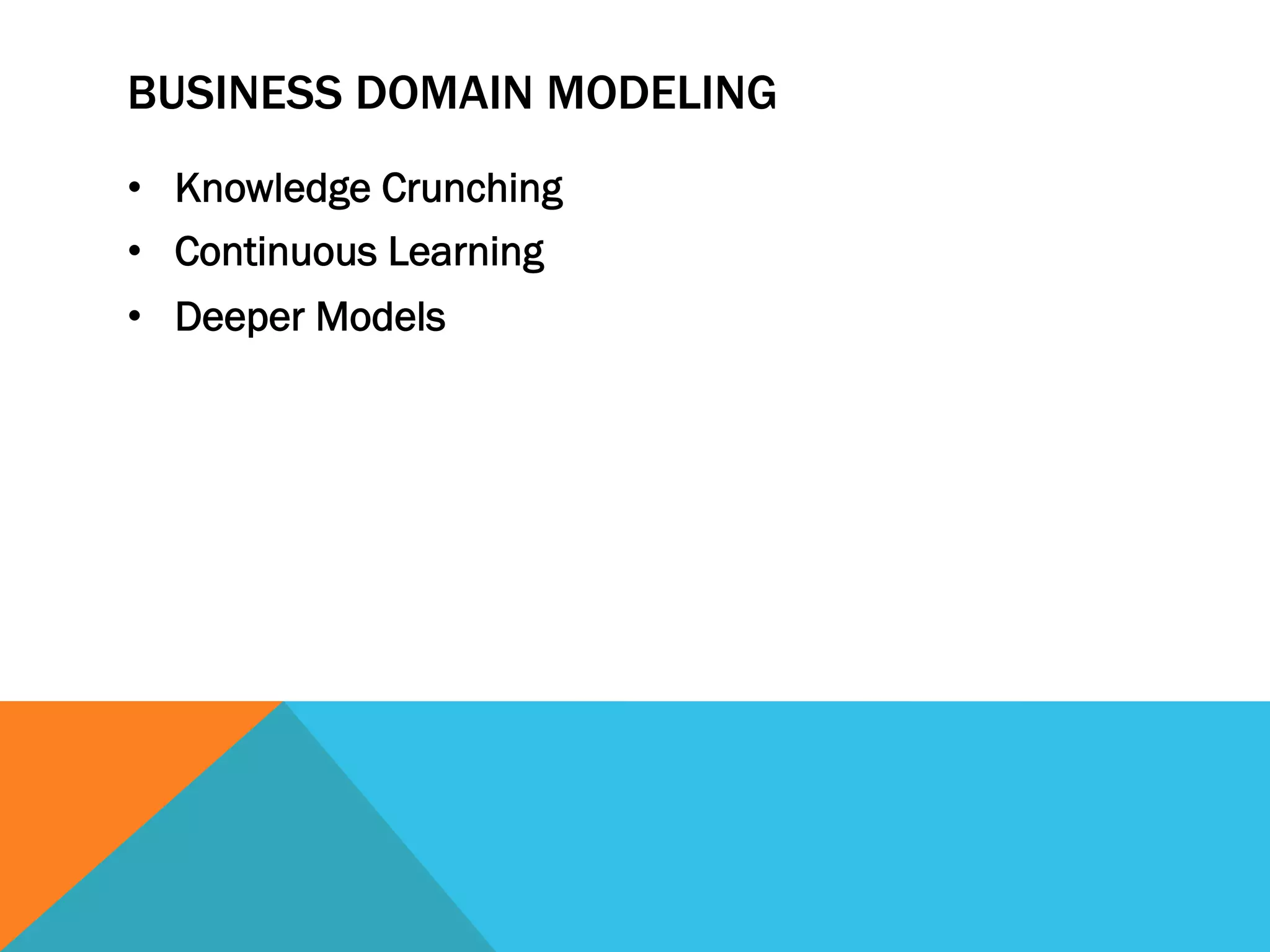

9. BUSINESS DOMAIN MODELING
• Knowledge Crunching
• Continuous Learning
• Deeper Models

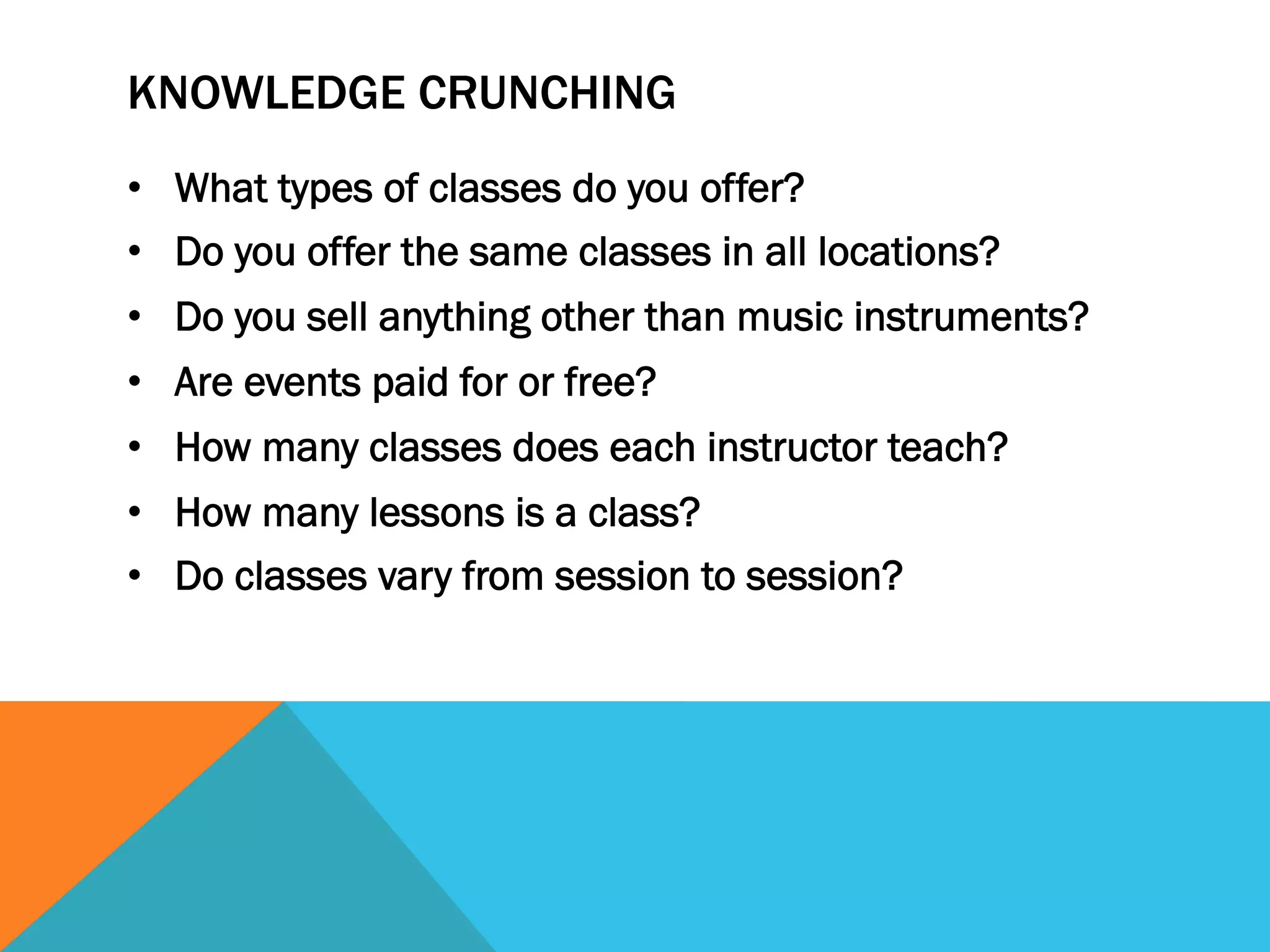

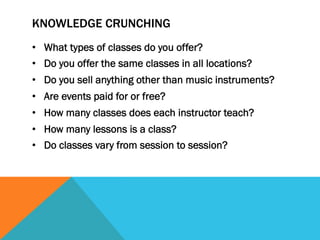

10. KNOWLEDGE CRUNCHING
• What types of classes do you offer?
• Do you offer the same classes in all locations?
• Do you sell anything other than music instruments?
• Are events paid for or free?
• How many classes does each instructor teach?
• How many lessons is a class?
• Do classes vary from session to session?

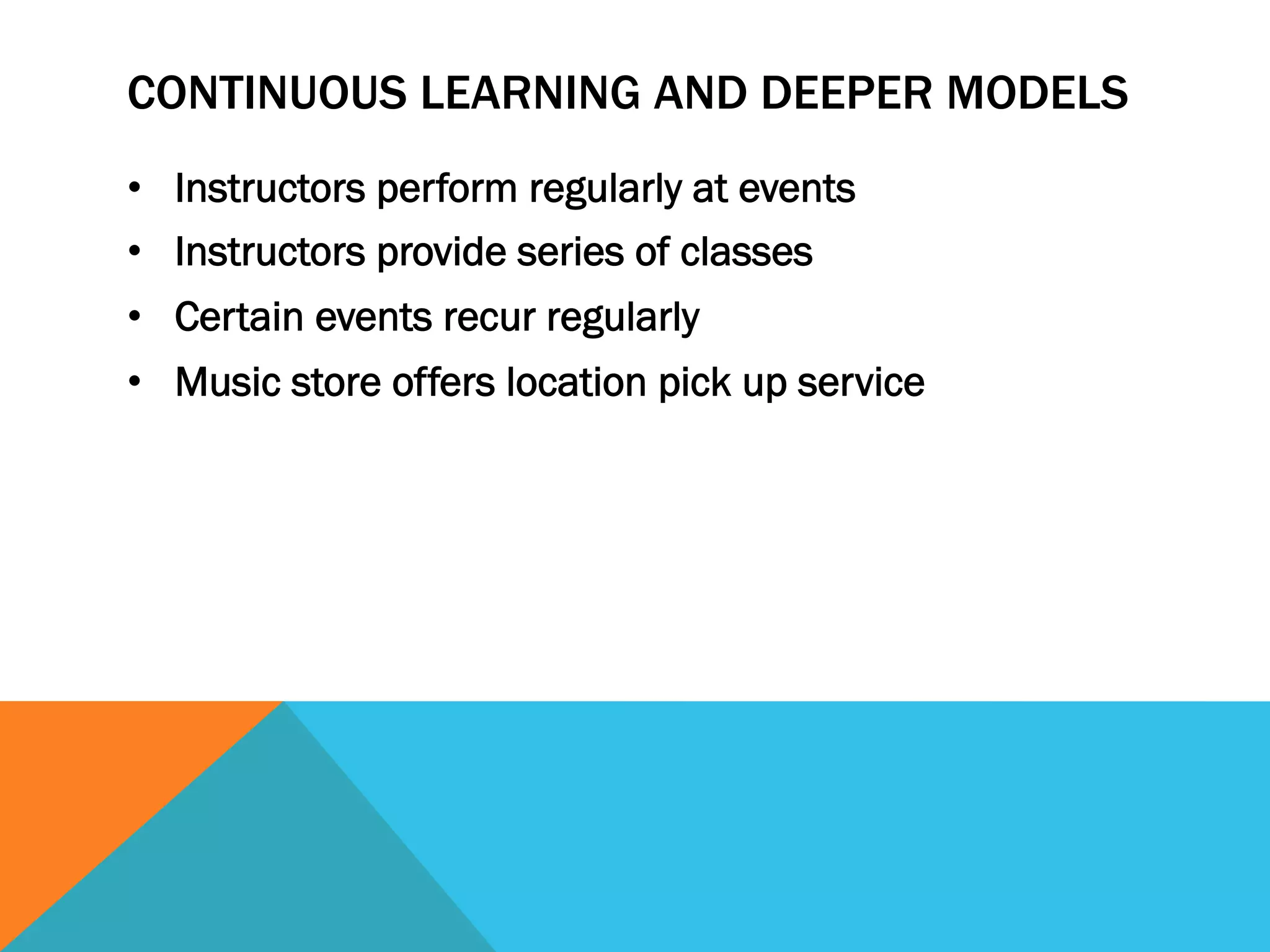

11. CONTINUOUS LEARNING AND DEEPER MODELS
• Instructors perform regularly at events
• Instructors provide series of classes
• Certain events recur regularly
• Music store offers location pick up service

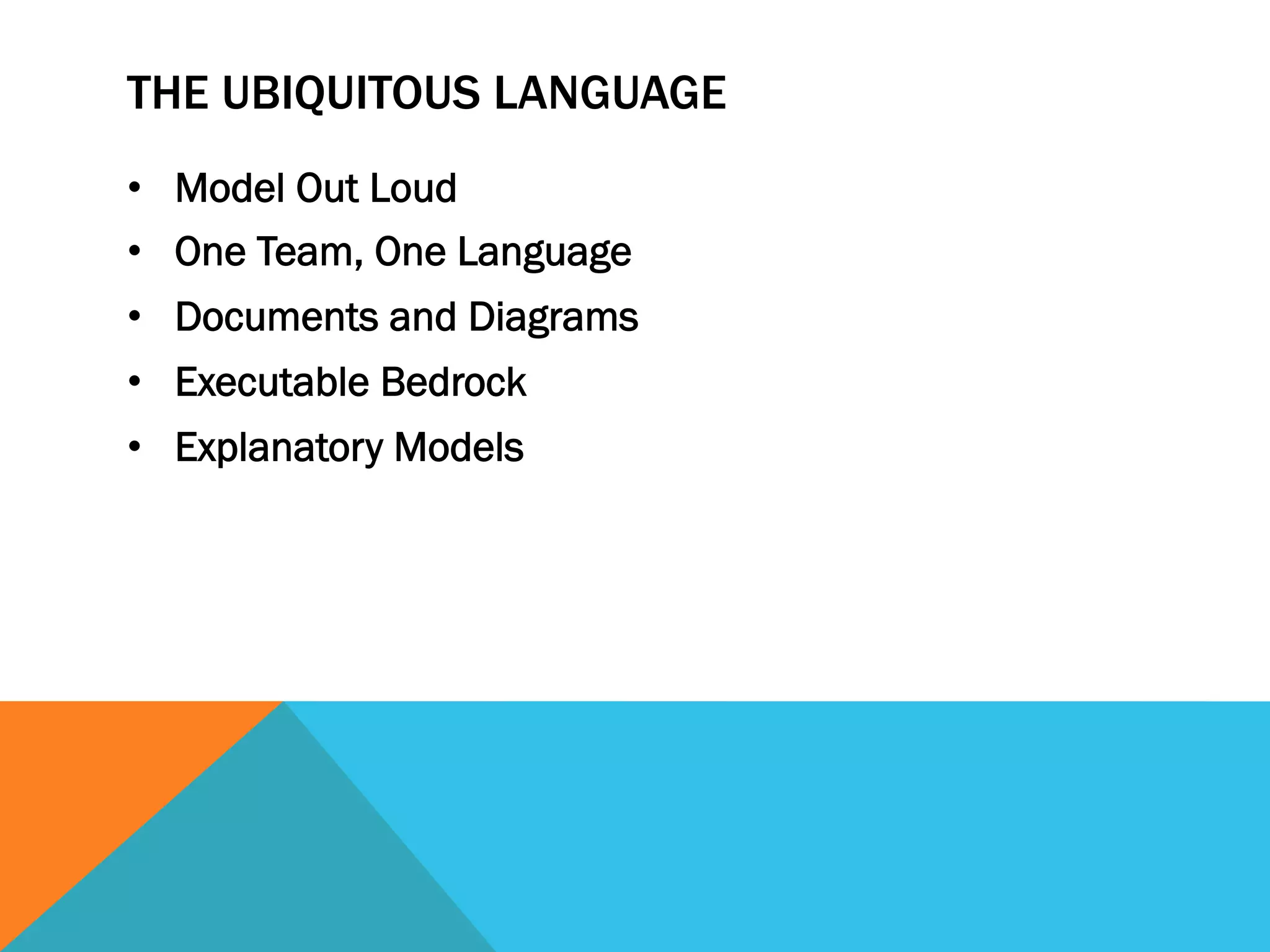

12. THE UBIQUITOUS LANGUAGE
• Model Out Loud
• One Team, One Language
• Documents and Diagrams
• Executable Bedrock
• Explanatory Models

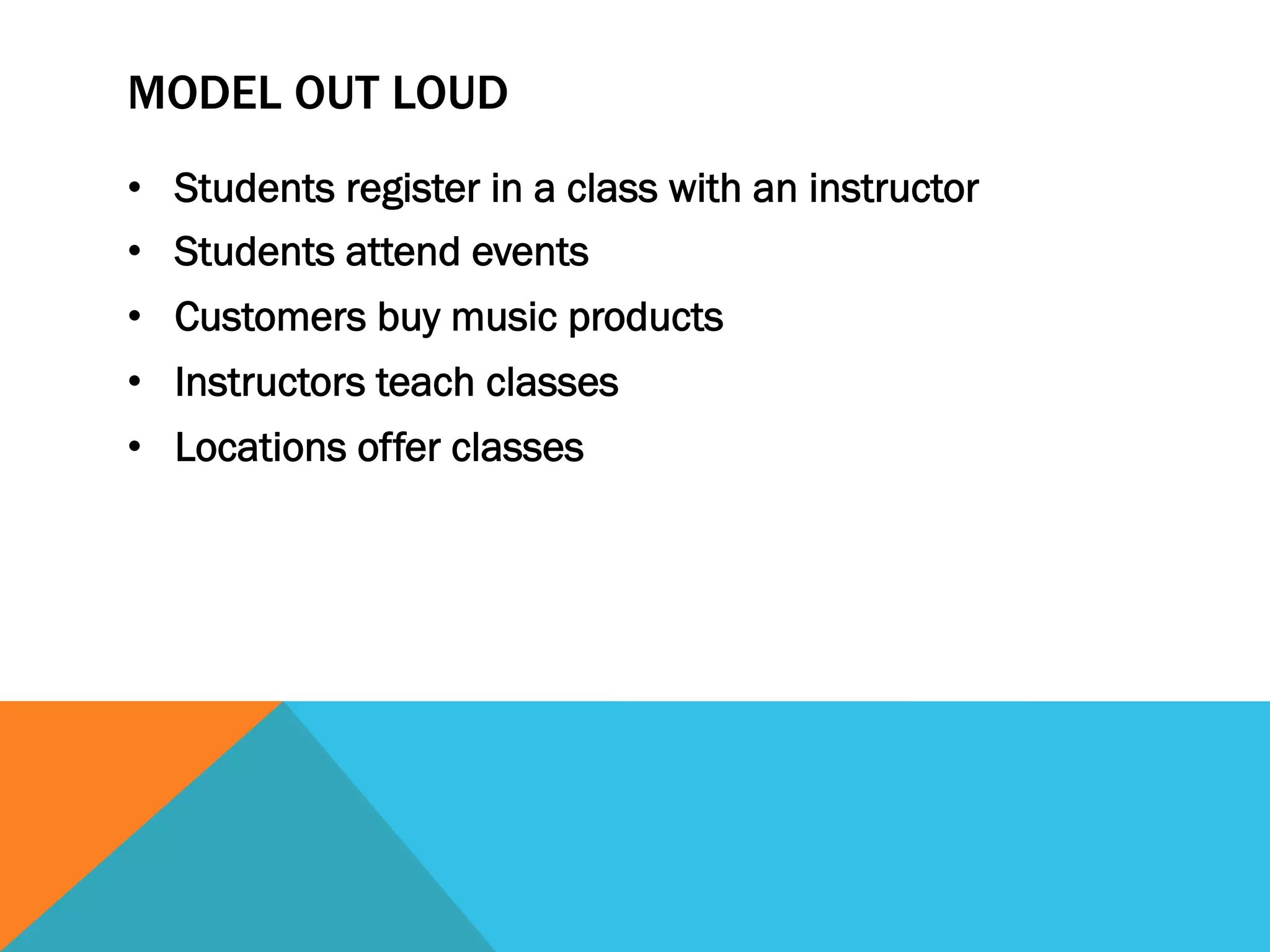

13. MODEL OUT LOUD
• Students register in a class with an instructor
• Students attend events
• Customers buy music products
• Instructors teach classes
• Locations offer classes

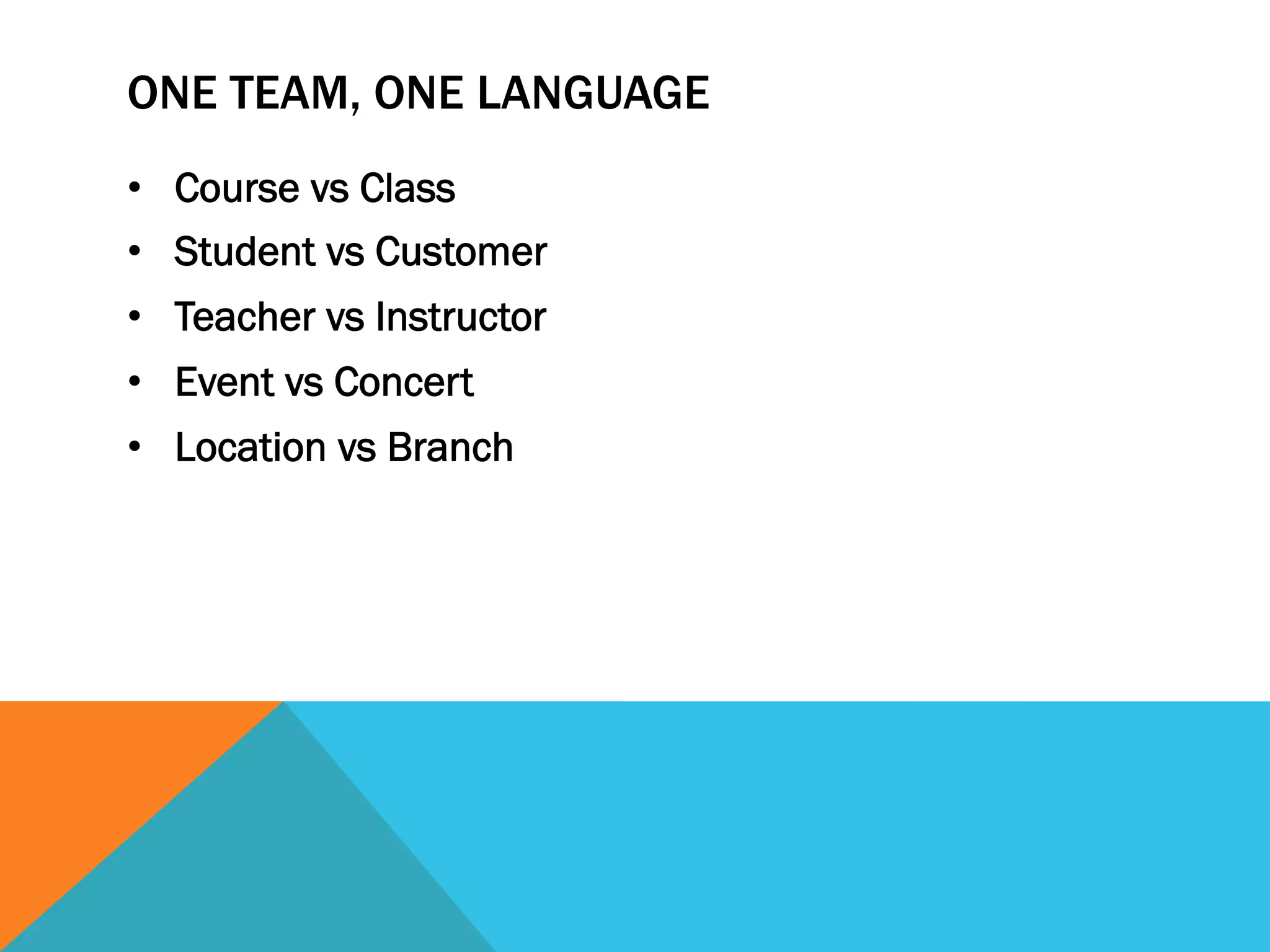

14. ONE TEAM, ONE LANGUAGE
• Course vs Class
• Student vs Customer
• Teacher vs Instructor
• Event vs Concert
• Location vs Branch

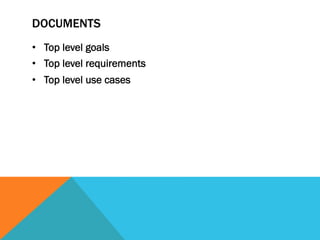

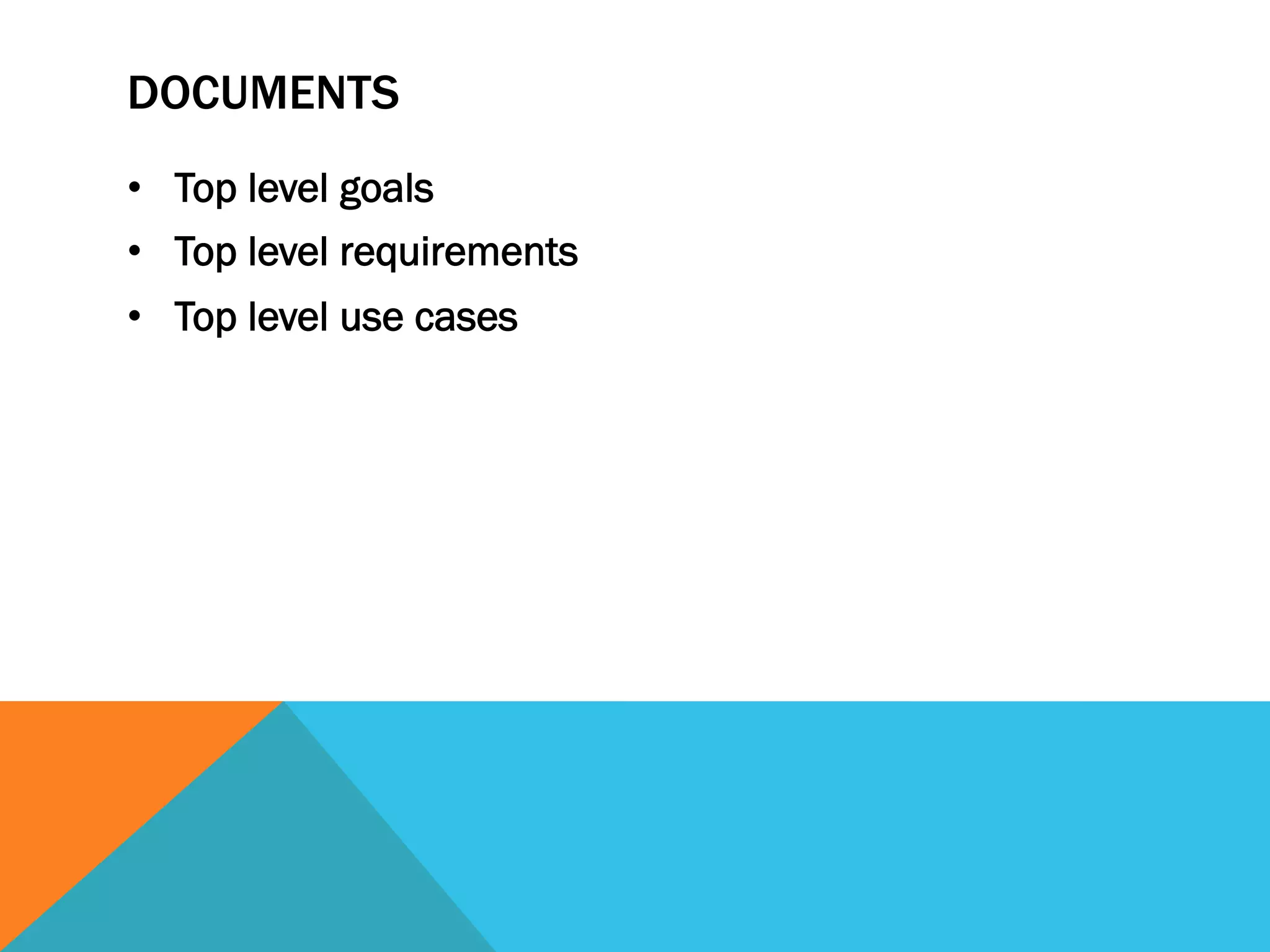

15. DOCUMENTS
• Top level goals
• Top level requirements
• Top level use cases

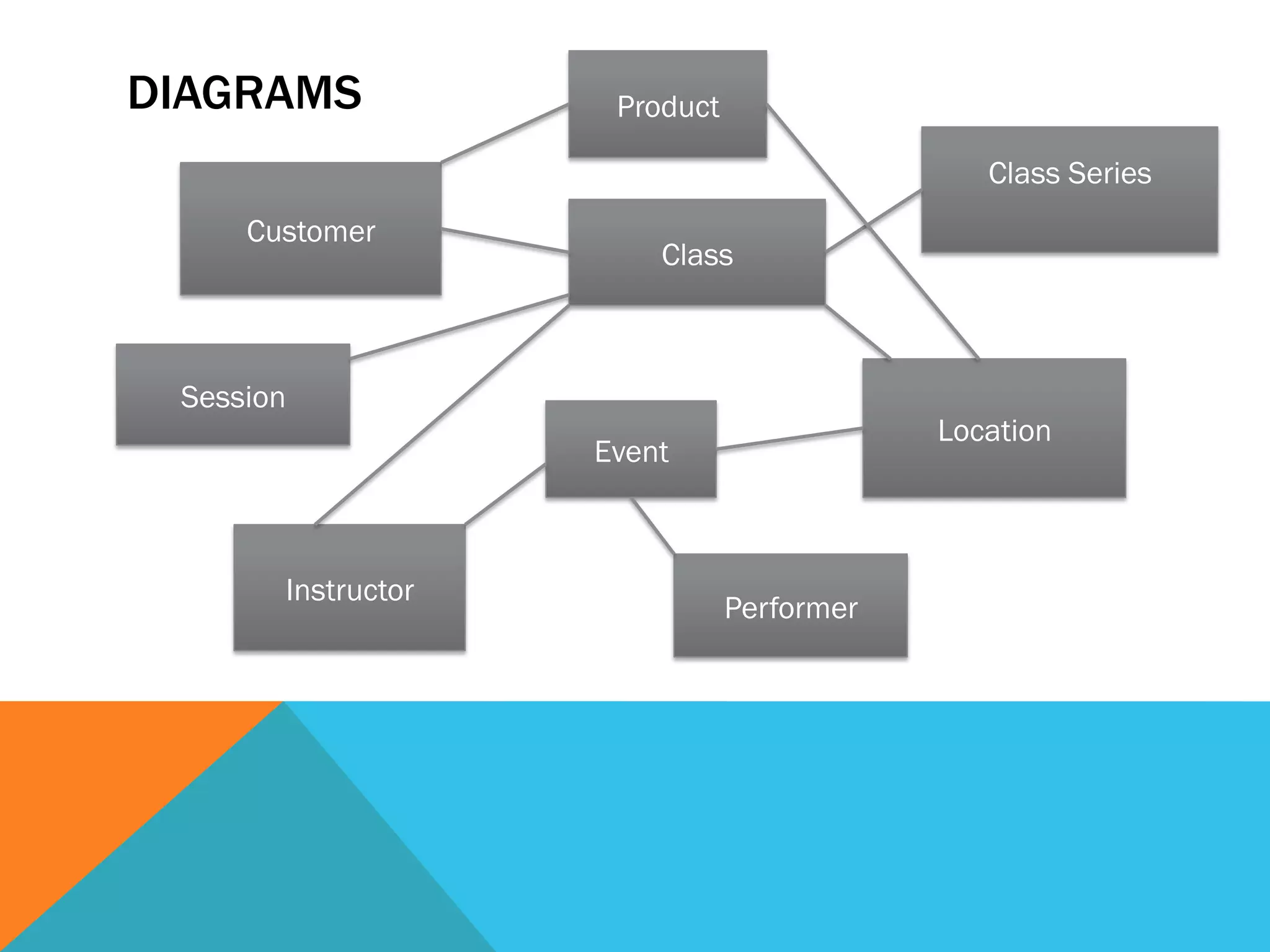

16. DIAGRAMS Product
Class Series
Customer
Class
Session
Location
Event
Instructor
Performer

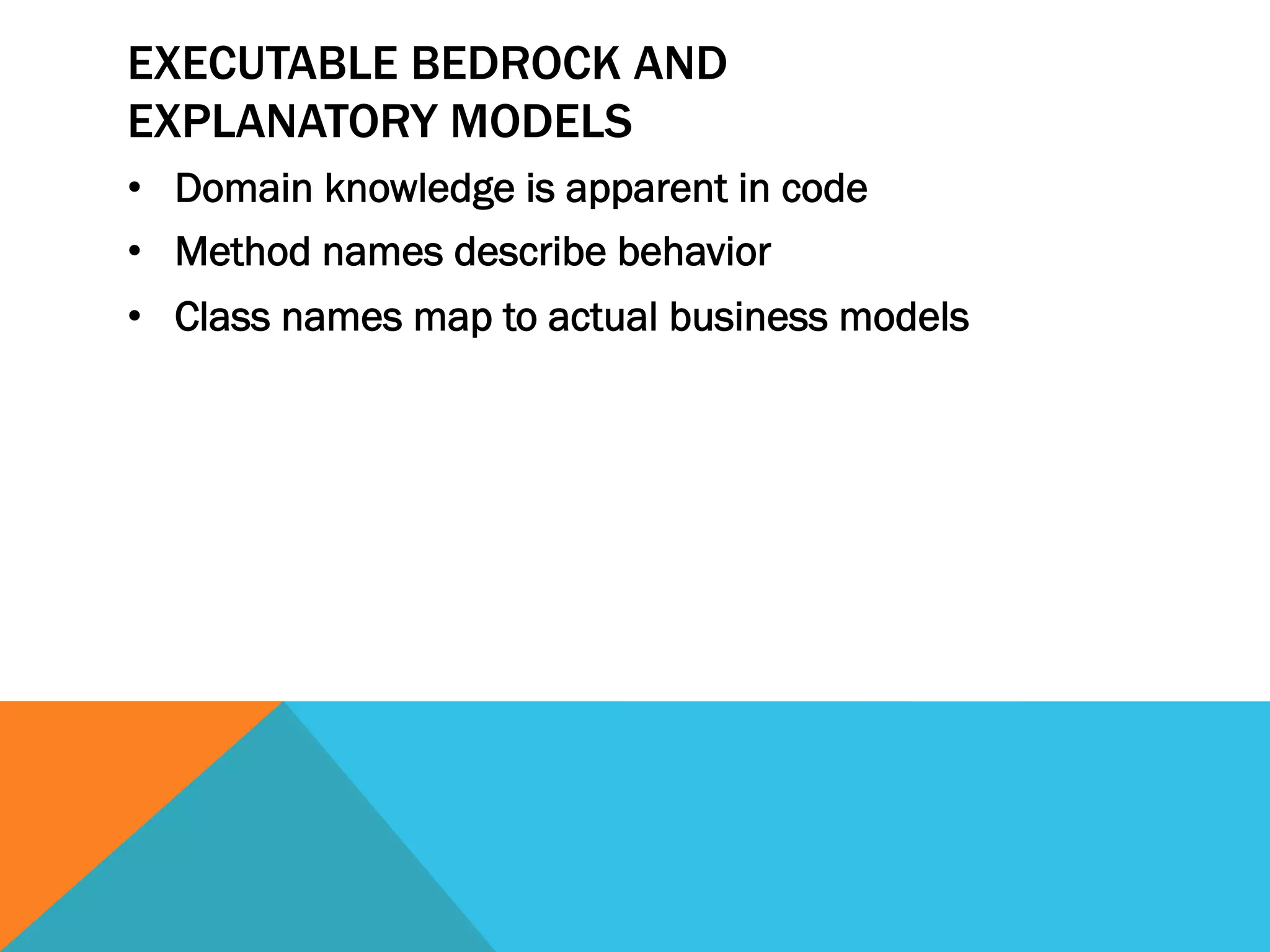

17. EXECUTABLE BEDROCK AND
EXPLANATORY MODELS
• Domain knowledge is apparent in code
• Method names describe behavior
• Class names map to actual business models

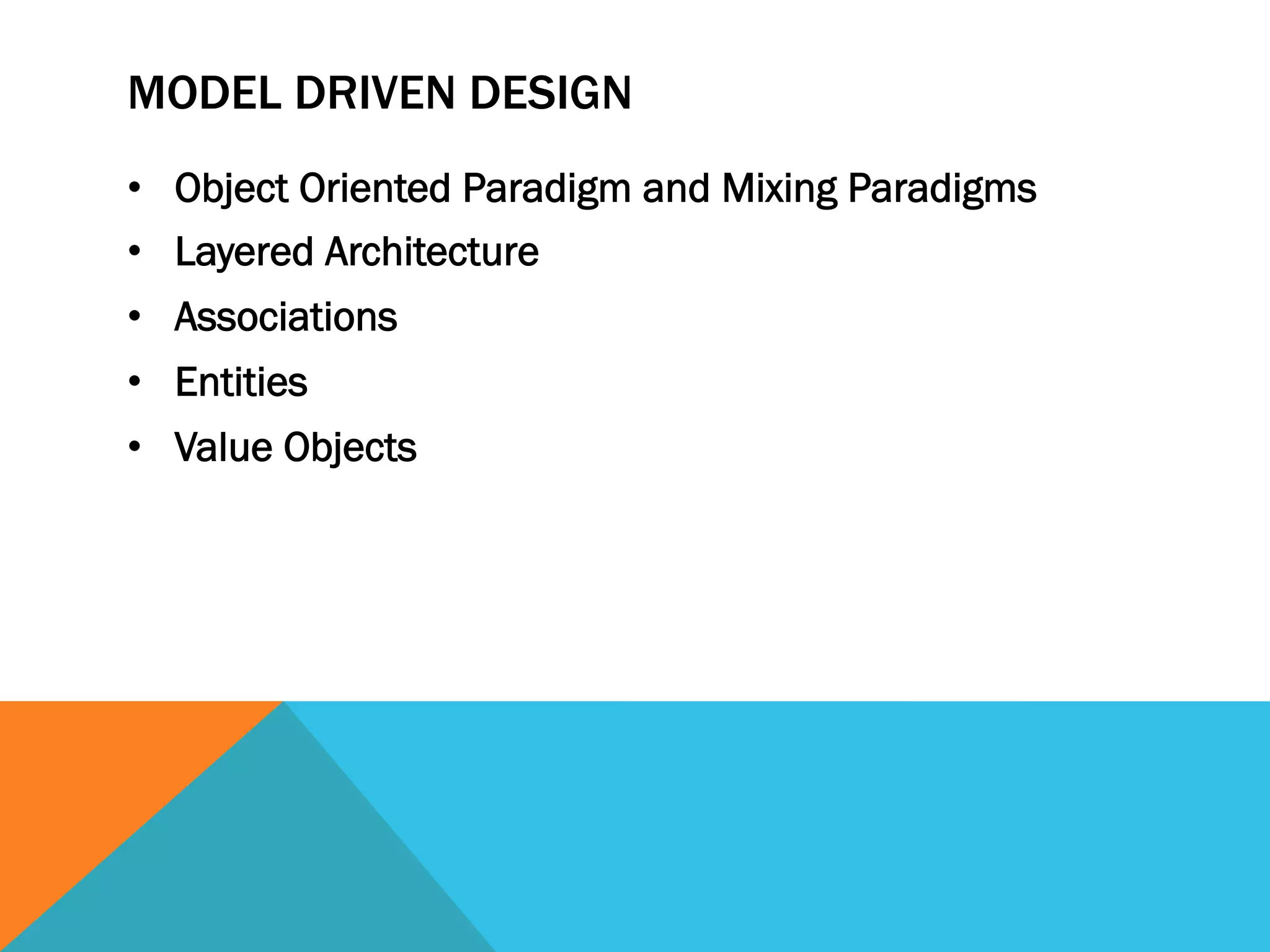

18. MODEL DRIVEN DESIGN
• Object Oriented Paradigm and Mixing Paradigms
• Layered Architecture
• Associations
• Entities
• Value Objects

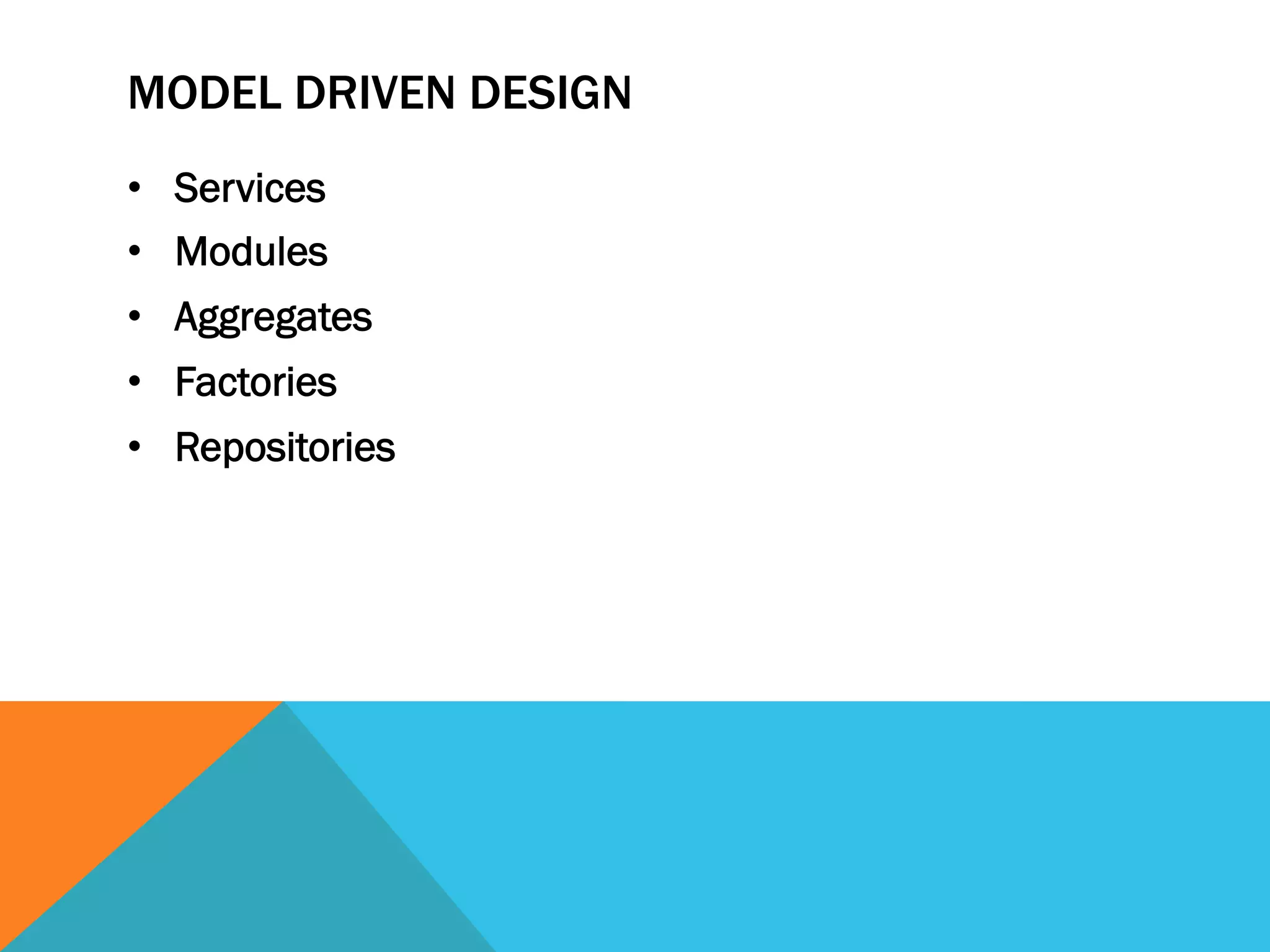

19. MODEL DRIVEN DESIGN
• Services
• Modules
• Aggregates
• Factories
• Repositories

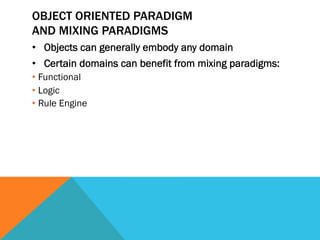

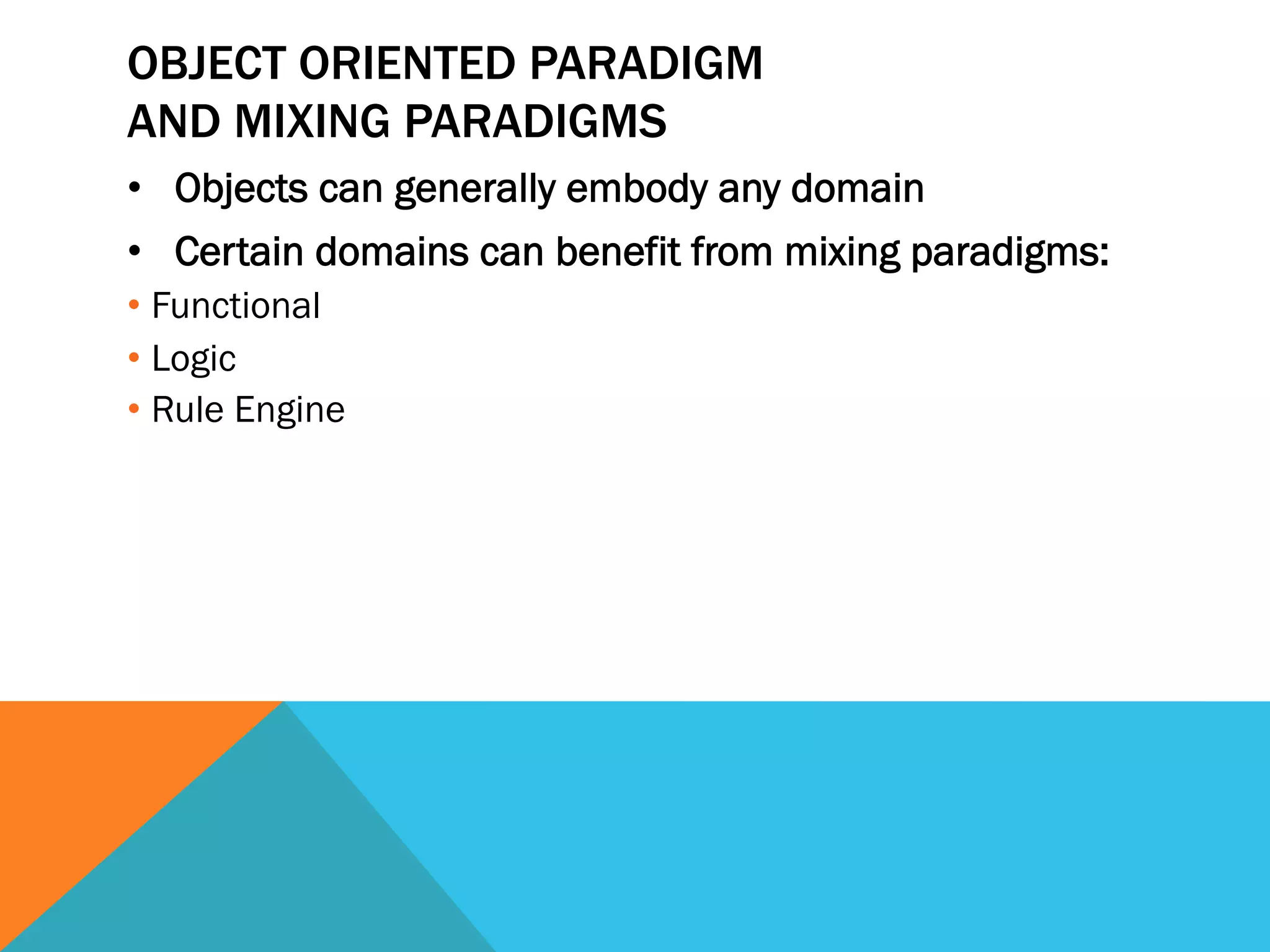

20. OBJECT ORIENTED PARADIGM
AND MIXING PARADIGMS
• Objects can generally embody any domain
• Certain domains can benefit from mixing paradigms:
• Functional
• Logic
• Rule Engine

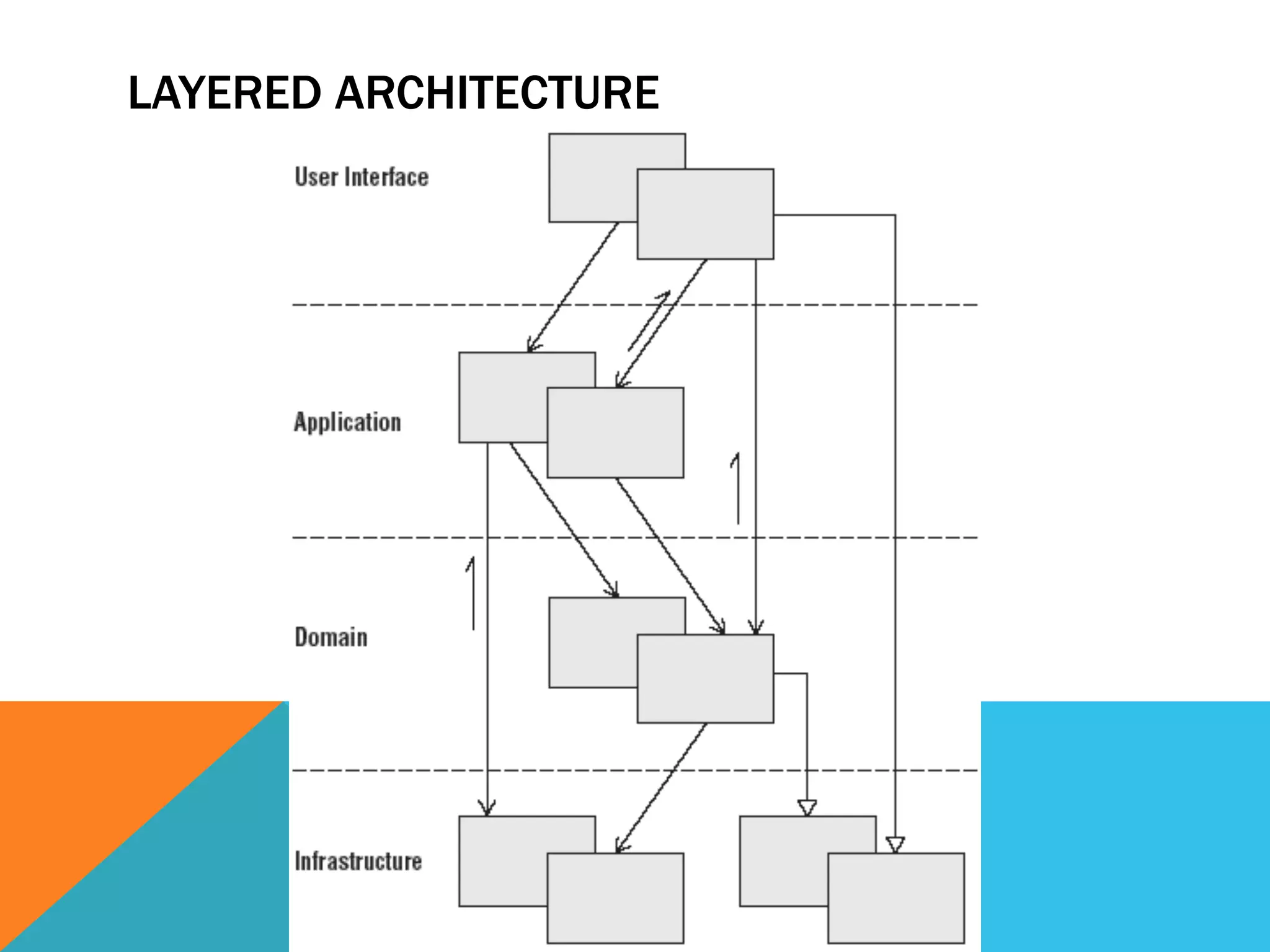

21. LAYERED ARCHITECTURE

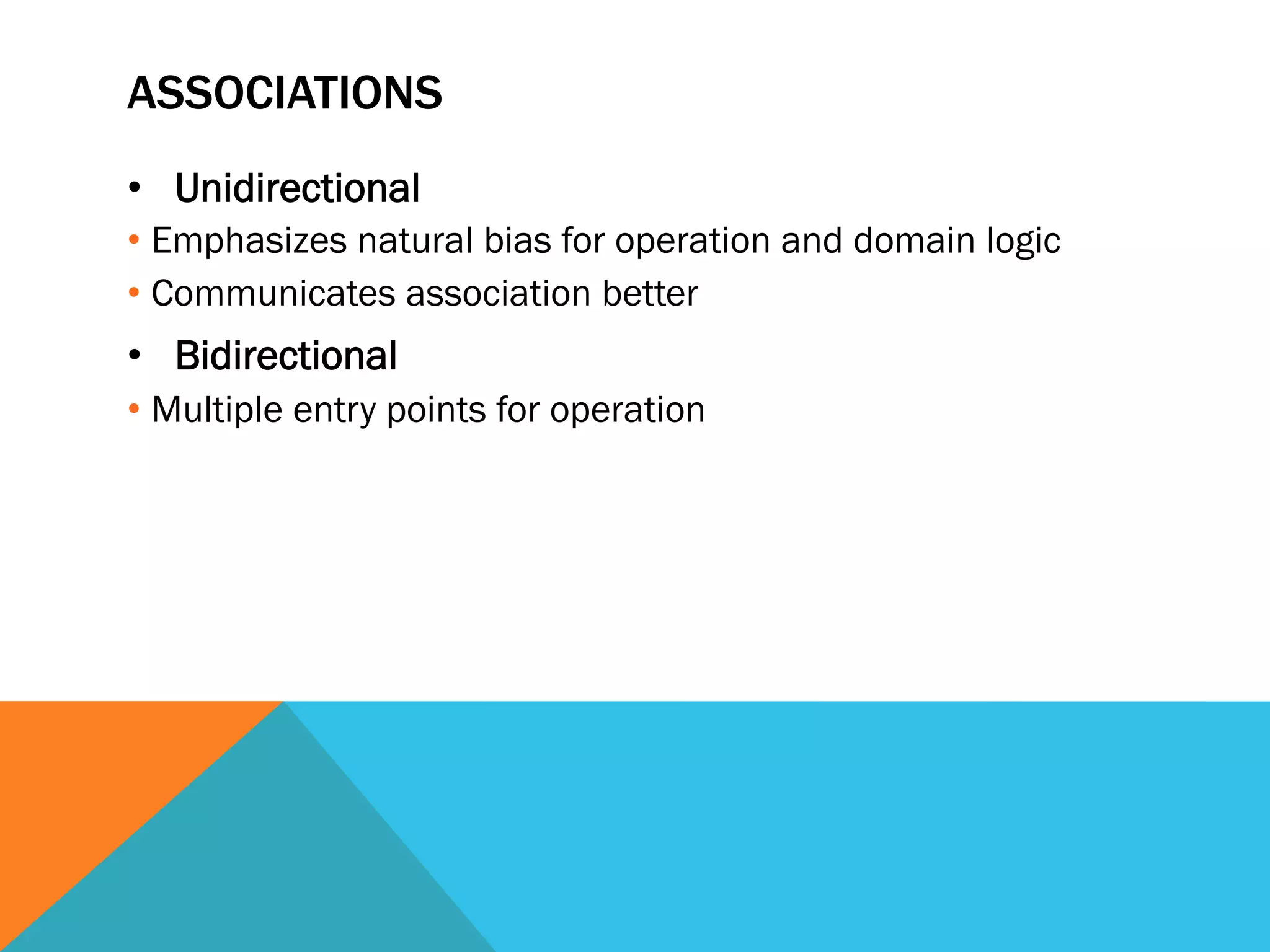

22. ASSOCIATIONS
• Unidirectional
• Emphasizes natural bias for operation and domain logic
• Communicates association better
• Bidirectional
• Multiple entry points for operation

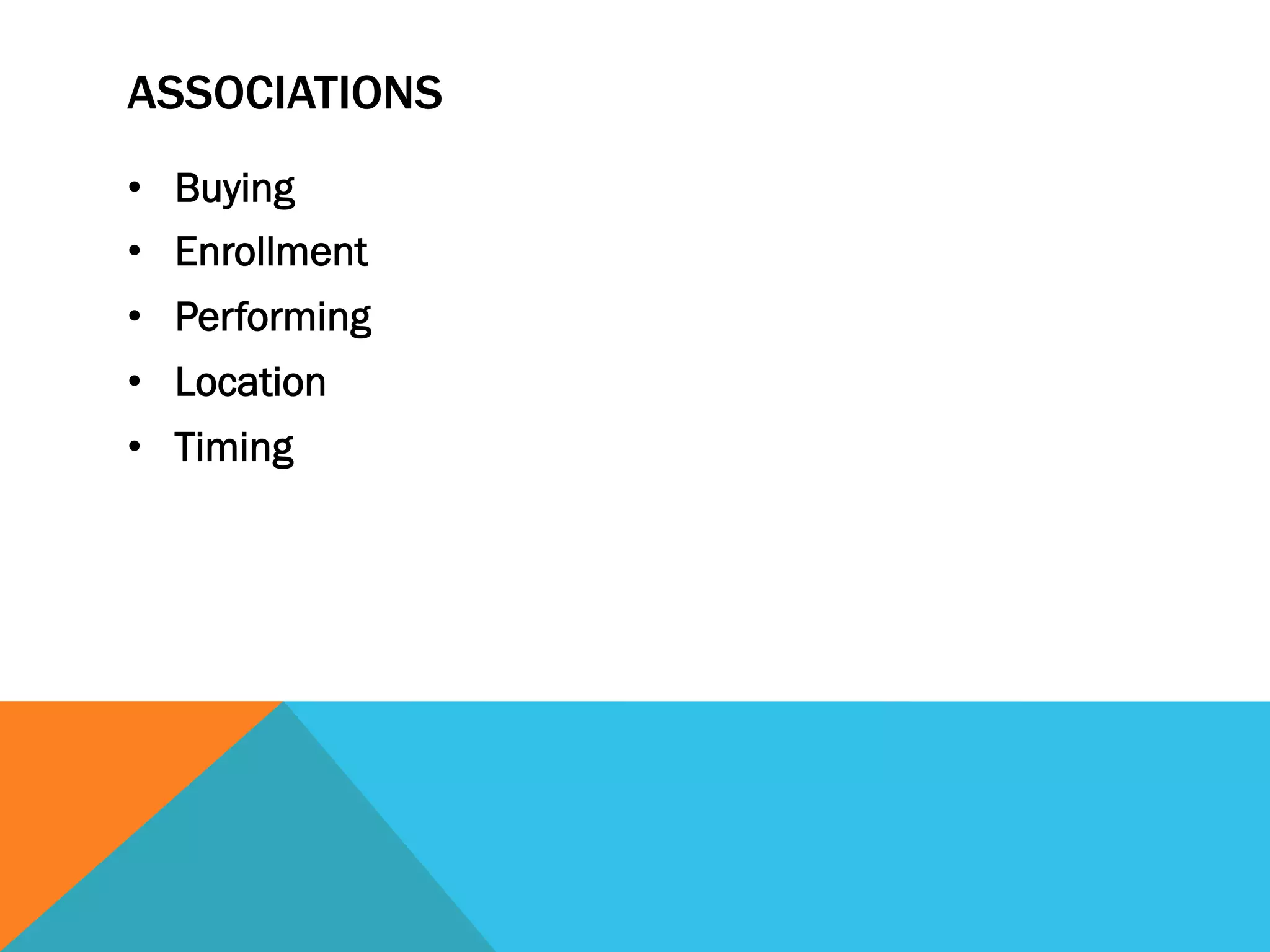

23. ASSOCIATIONS
• Buying
• Enrollment
• Performing
• Location
• Timing

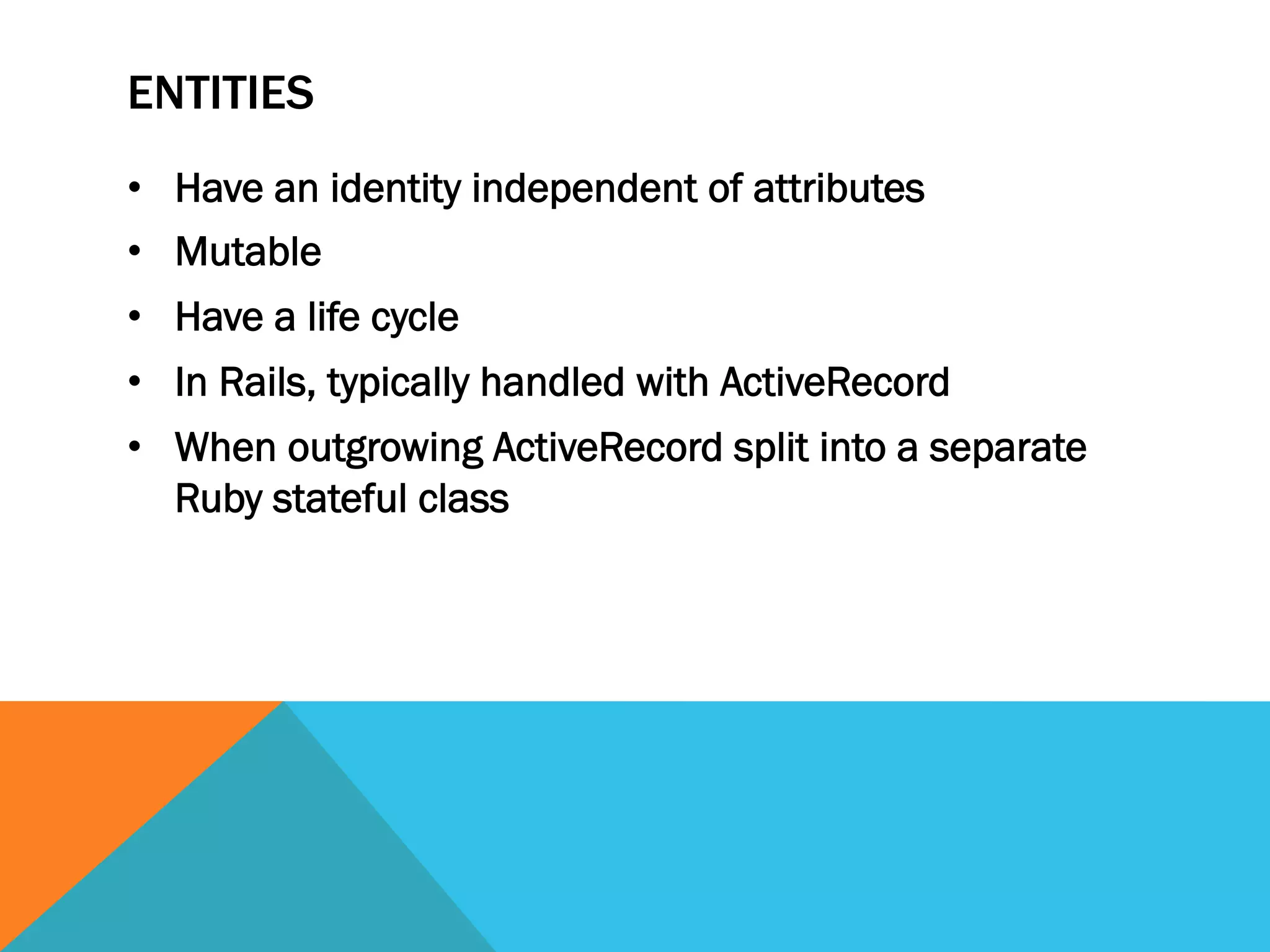

24. ENTITIES
• Have an identity independent of attributes
• Mutable
• Have a life cycle
• In Rails, typically handled with ActiveRecord
• When outgrowing ActiveRecord split into a separate
Ruby stateful class

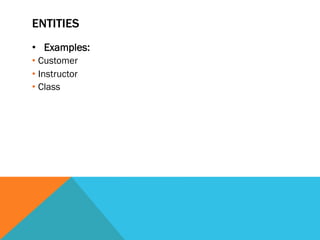

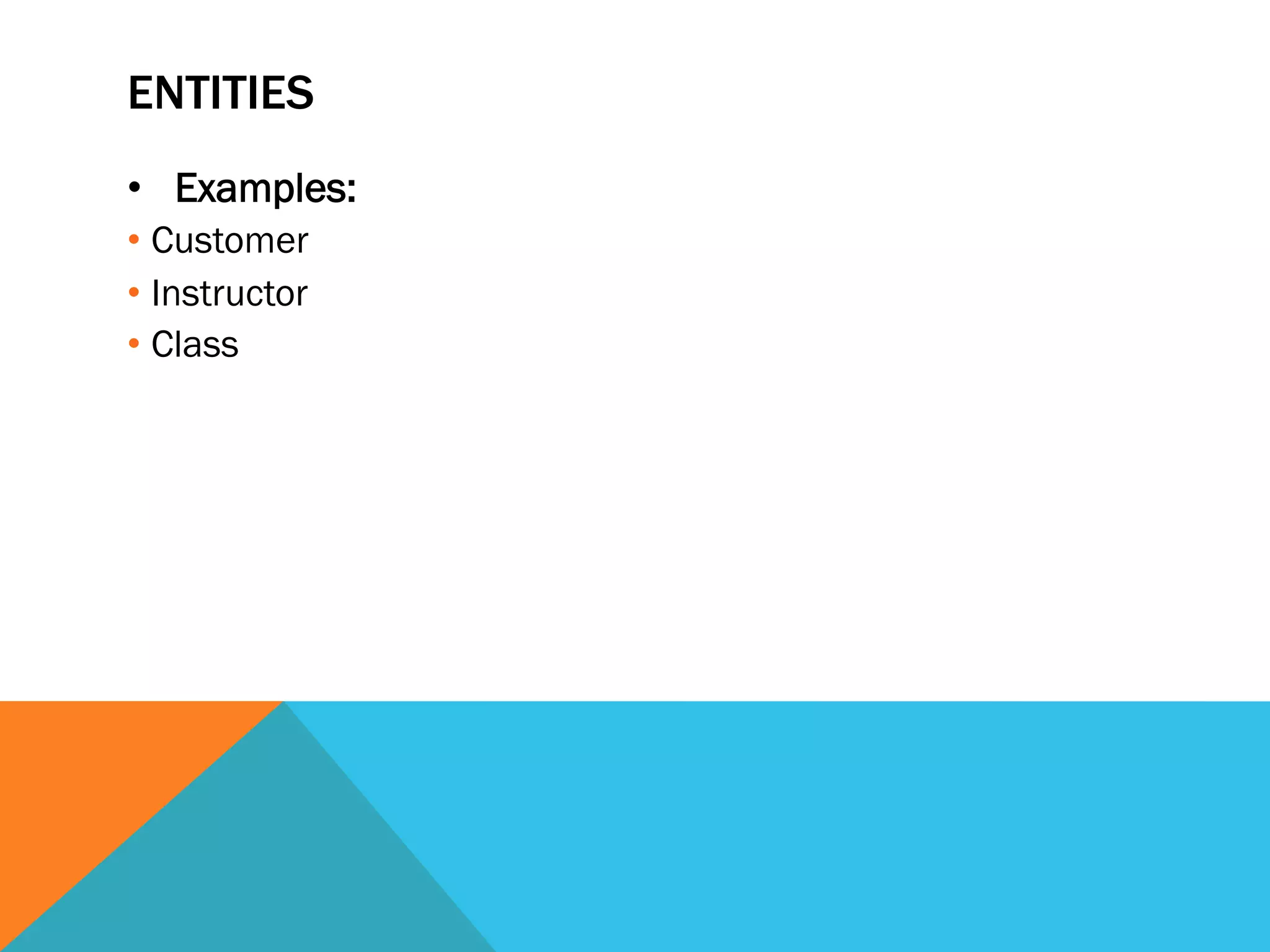

25. ENTITIES
• Examples:
• Customer
• Instructor
• Class

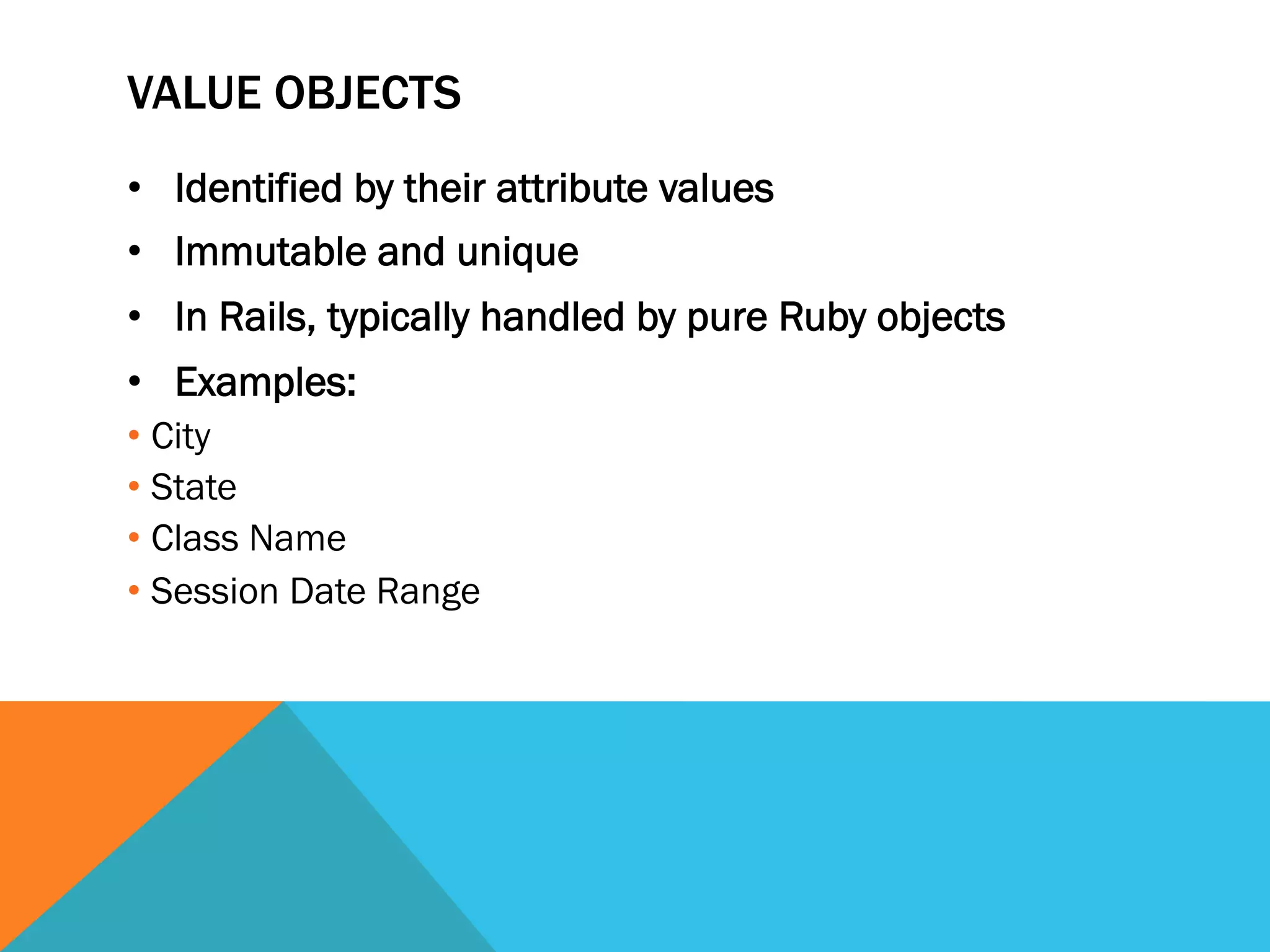

26. VALUE OBJECTS
• Identified by their attribute values
• Immutable and unique
• In Rails, typically handled by pure Ruby objects
• Examples:
• City
• State
• Class Name
• Session Date Range

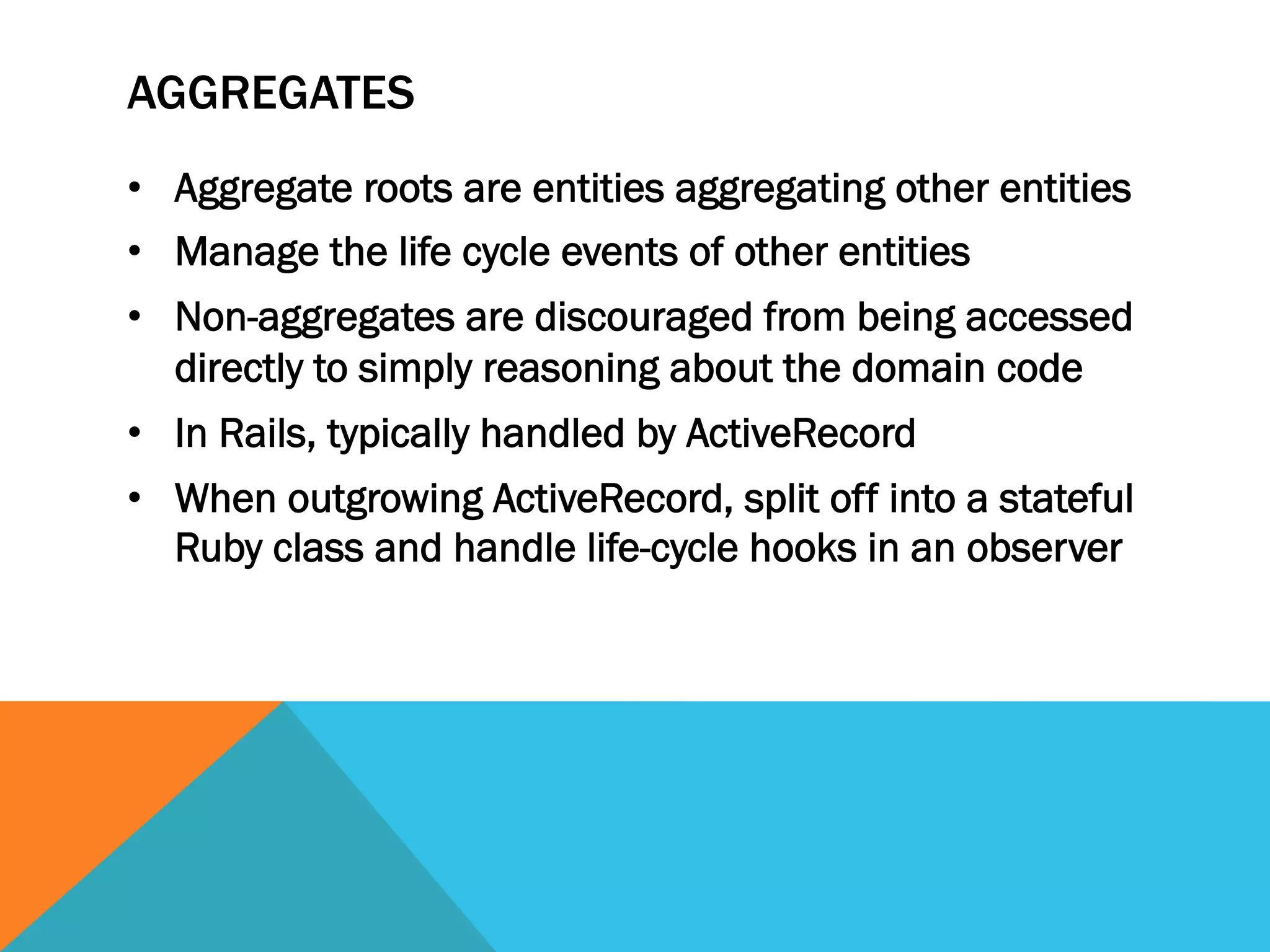

27. AGGREGATES
• Aggregate roots are entities aggregating other entities
• Manage the life cycle events of other entities
• Non-aggregates are discouraged from being accessed
directly to simply reasoning about the domain code
• In Rails, typically handled by ActiveRecord
• When outgrowing ActiveRecord, split off into a stateful
Ruby class and handle life-cycle hooks in an observer

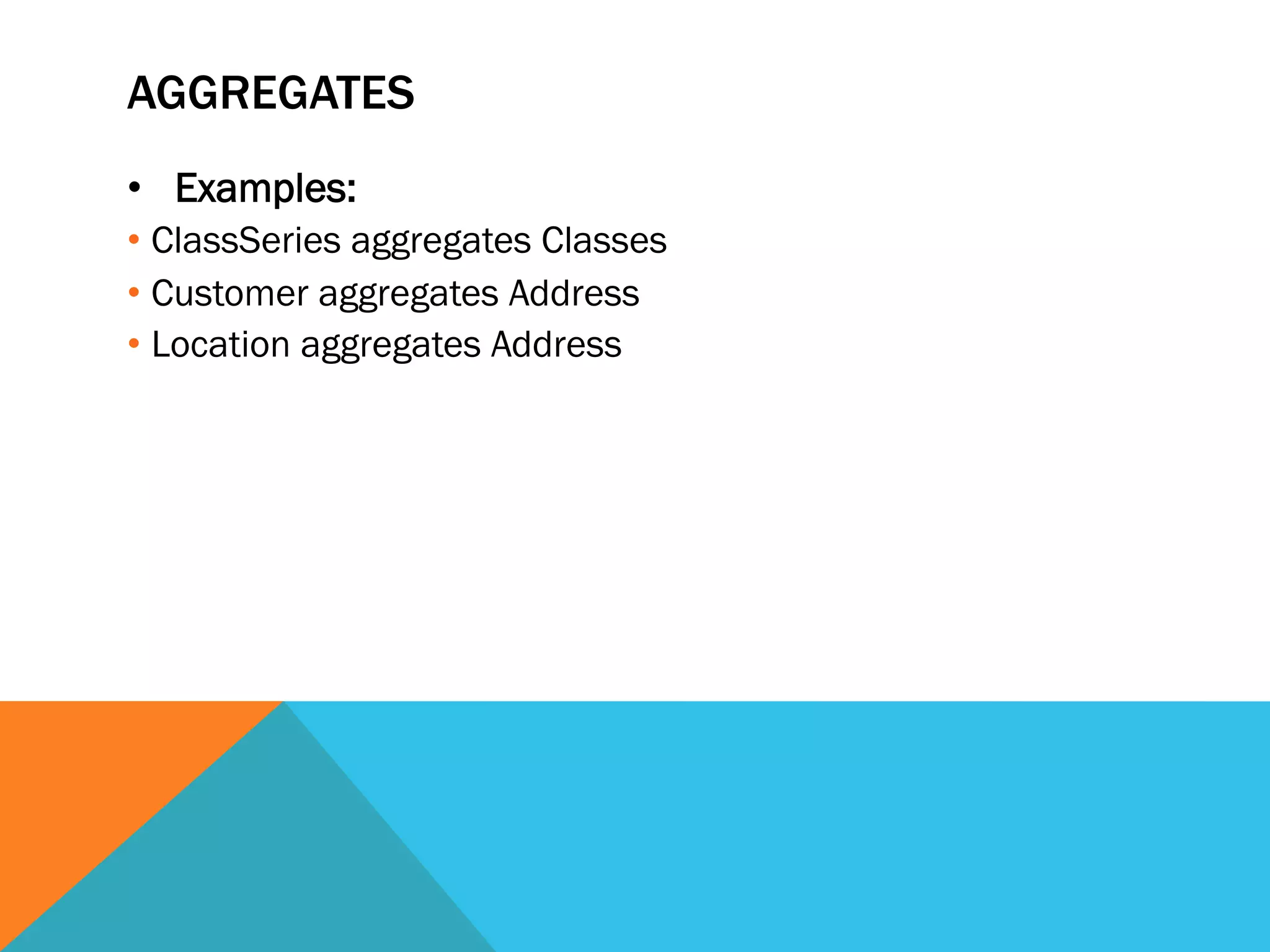

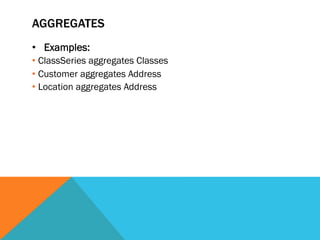

28. AGGREGATES
• Examples:
• ClassSeries aggregates Classes
• Customer aggregates Address
• Location aggregates Address

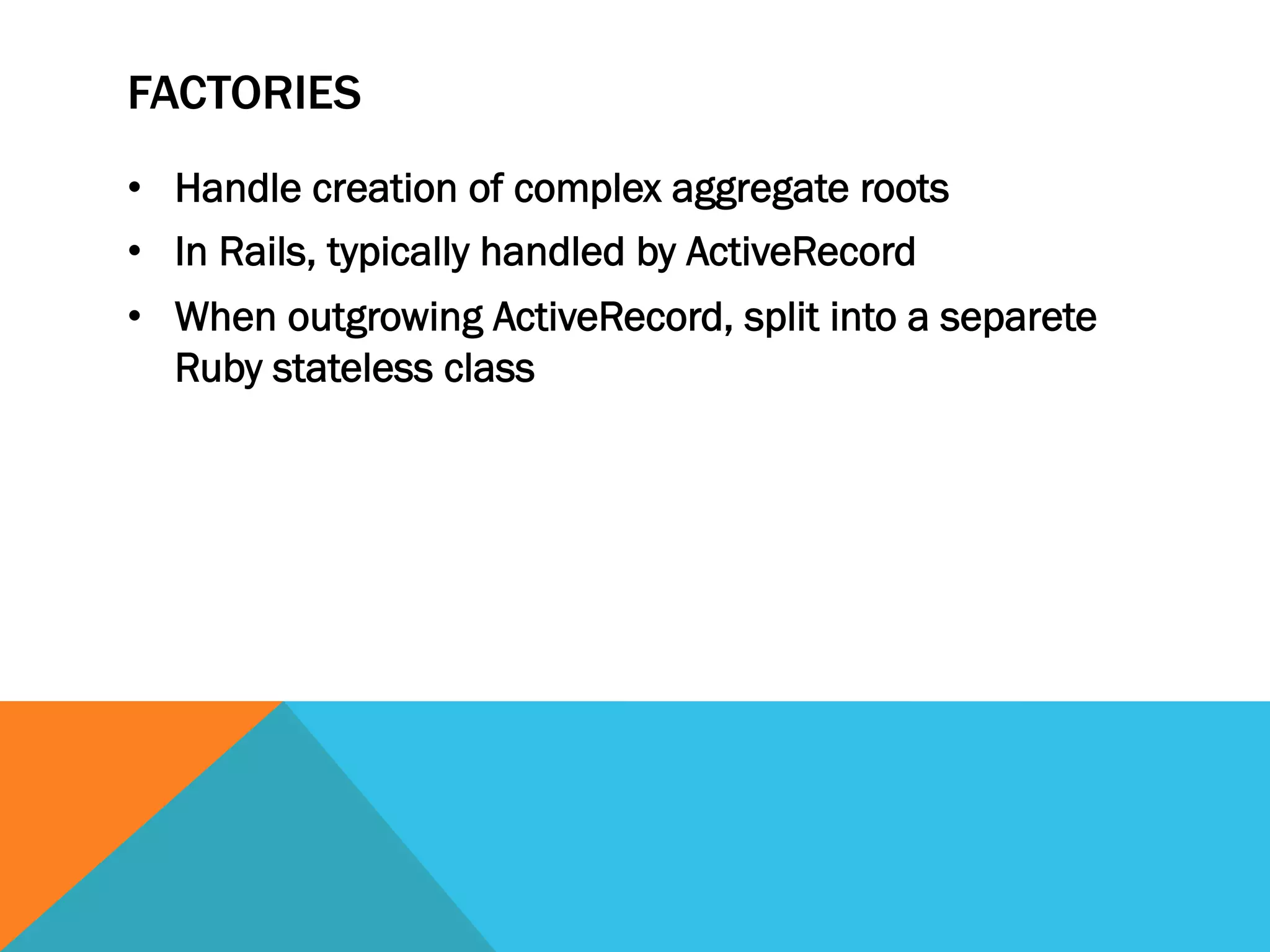

29. FACTORIES
• Handle creation of complex aggregate roots
• In Rails, typically handled by ActiveRecord
• When outgrowing ActiveRecord, split into a separete
Ruby stateless class

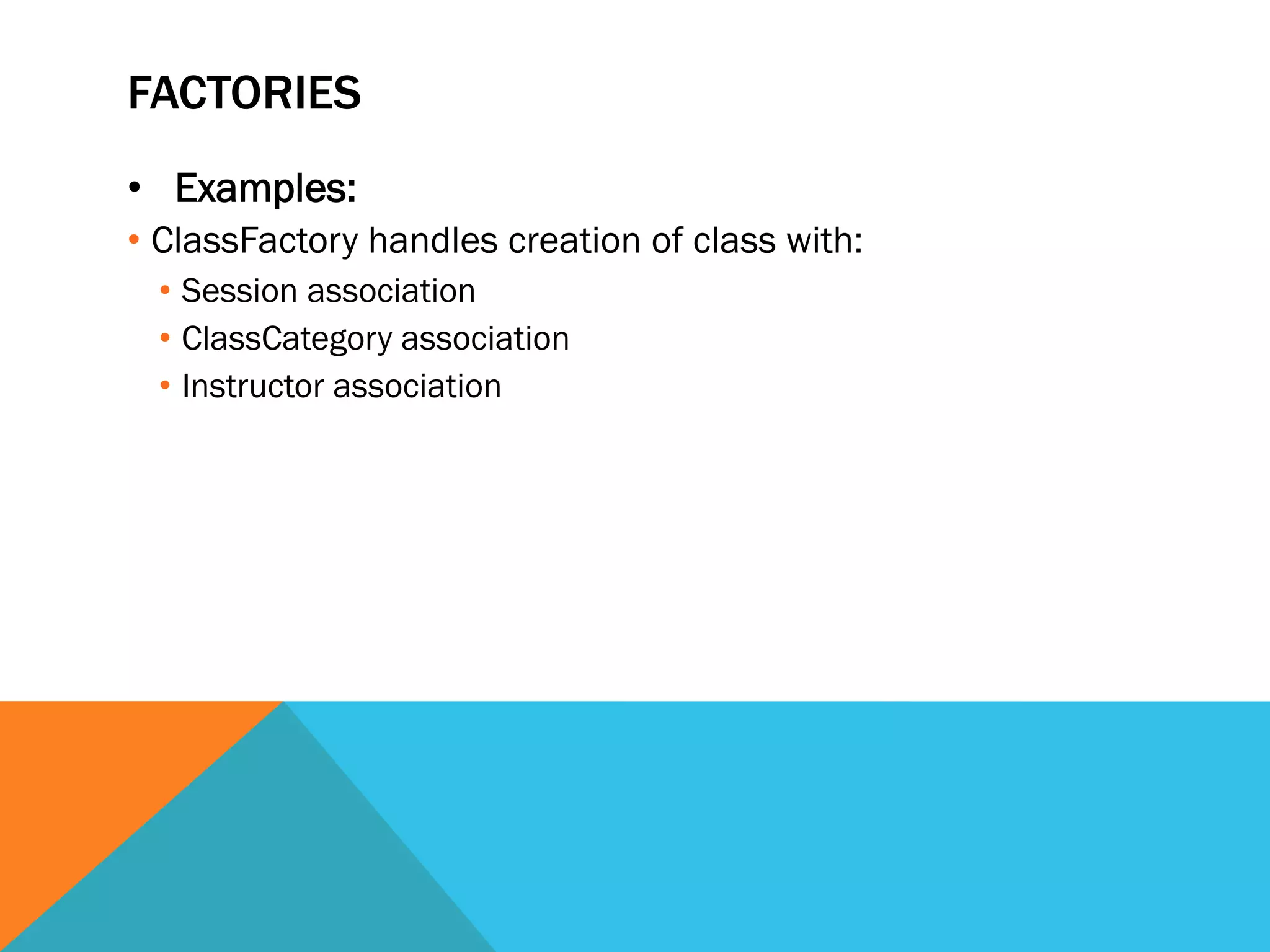

30. FACTORIES
• Examples:
• ClassFactory handles creation of class with:
• Session association
• ClassCategory association
• Instructor association

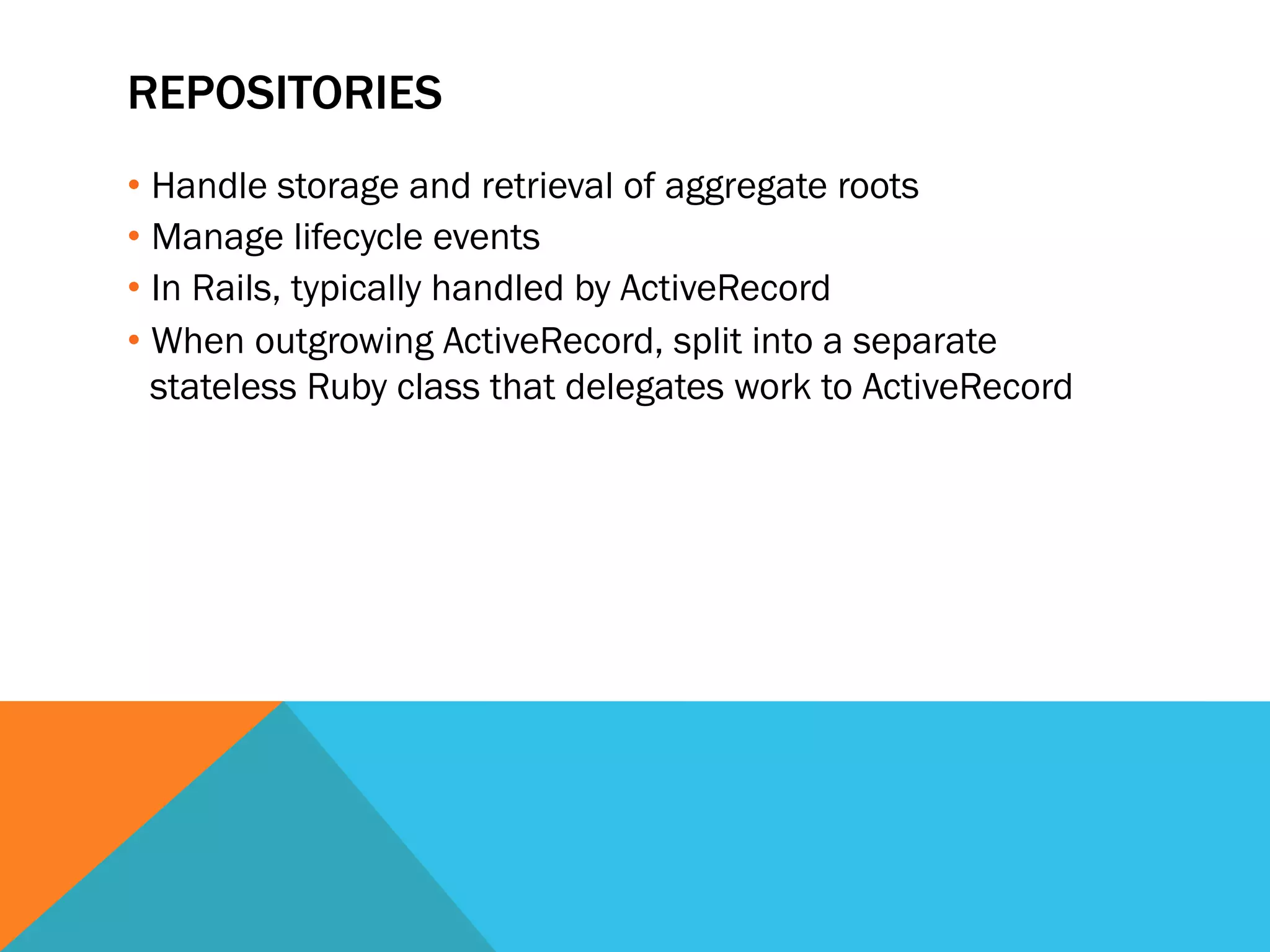

31. REPOSITORIES
• Handle storage and retrieval of aggregate roots
• Manage lifecycle events
• In Rails, typically handled by ActiveRecord
• When outgrowing ActiveRecord, split into a separate
stateless Ruby class that delegates work to ActiveRecord

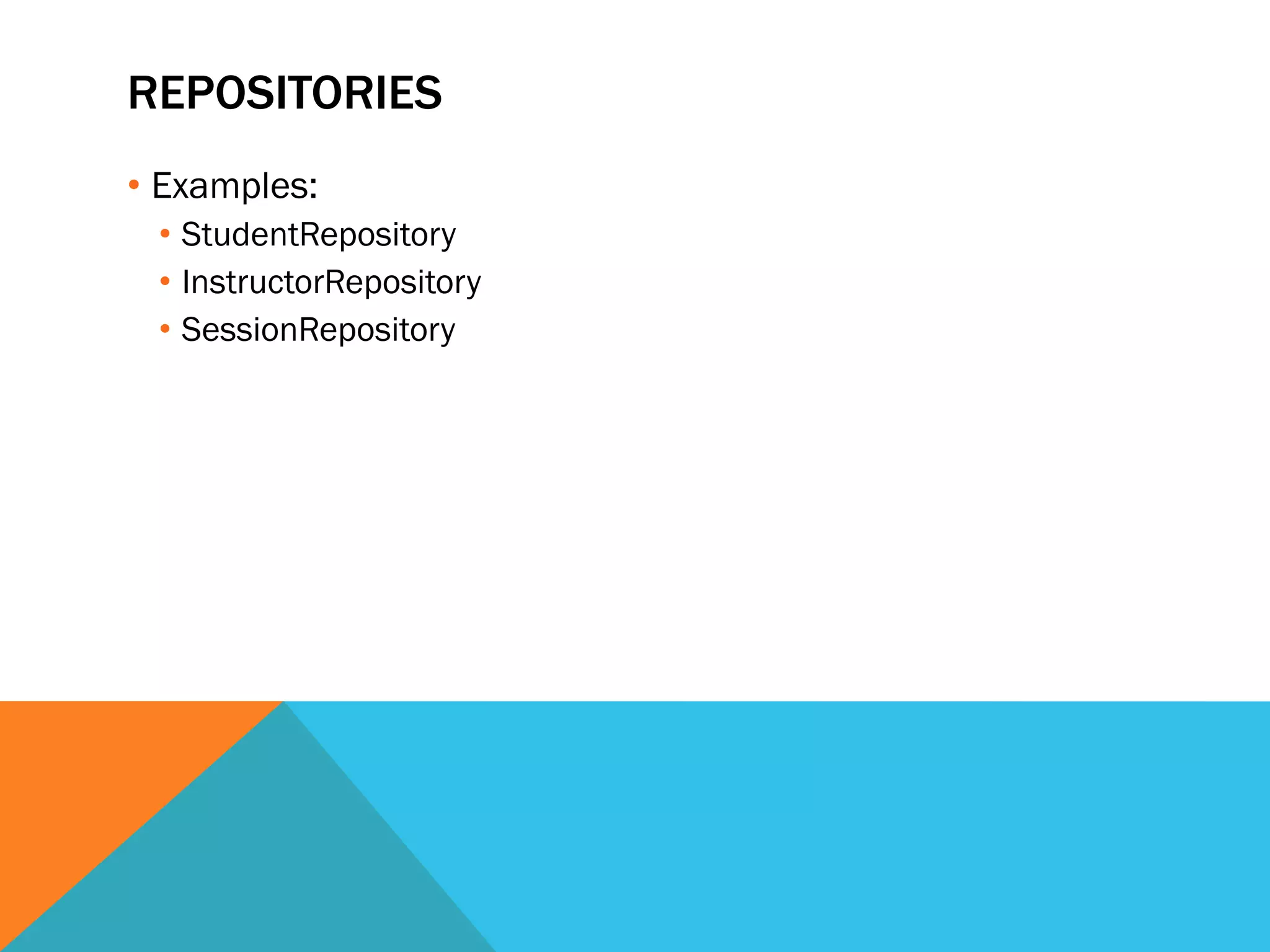

32. REPOSITORIES
• Examples:
• StudentRepository
• InstructorRepository
• SessionRepository

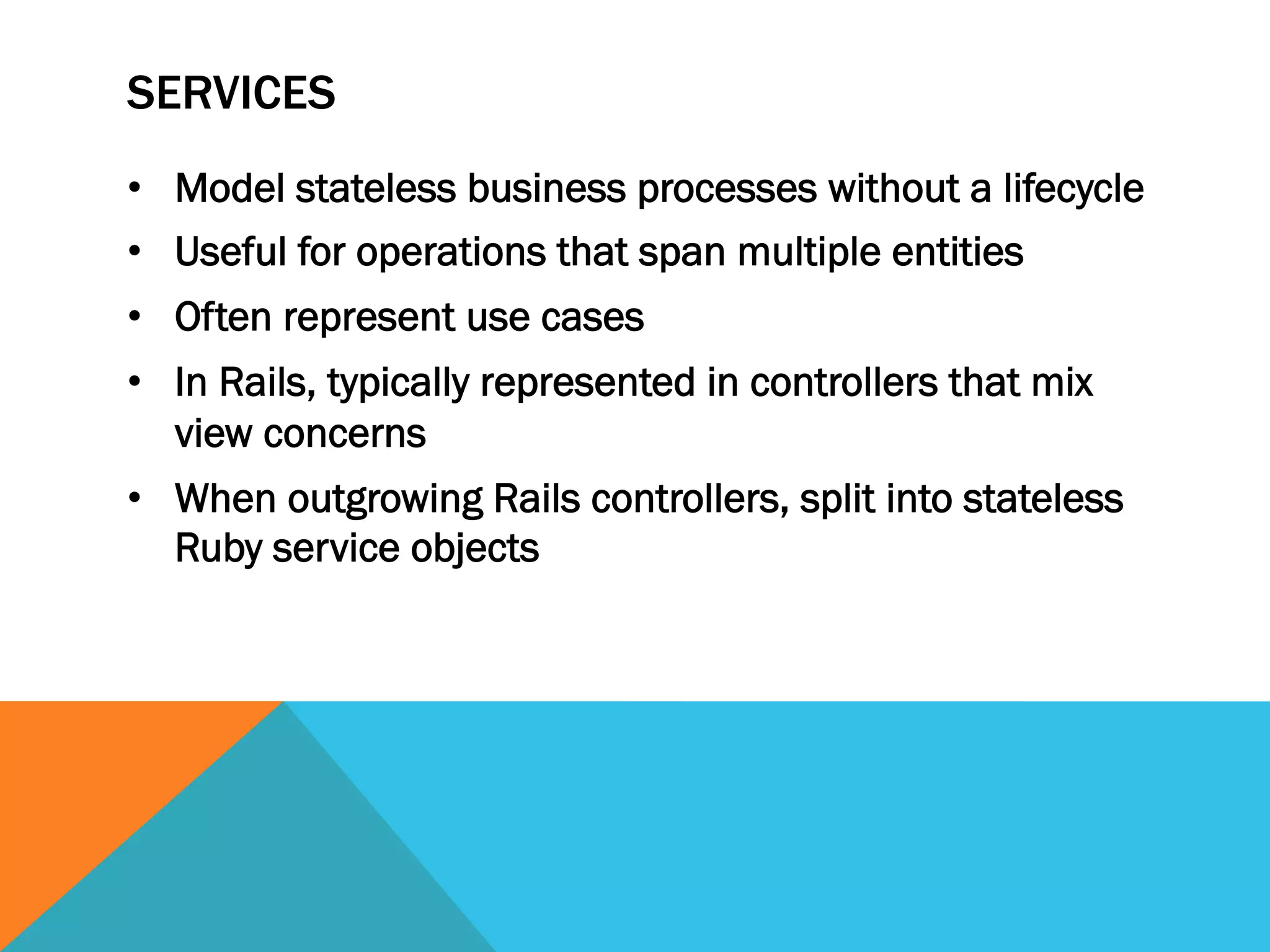

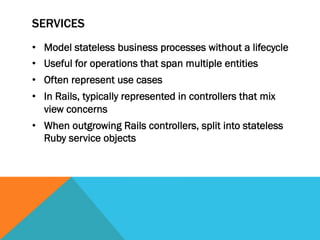

33. SERVICES
• Model stateless business processes without a lifecycle
• Useful for operations that span multiple entities
• Often represent use cases
• In Rails, typically represented in controllers that mix
view concerns
• When outgrowing Rails controllers, split into stateless
Ruby service objects

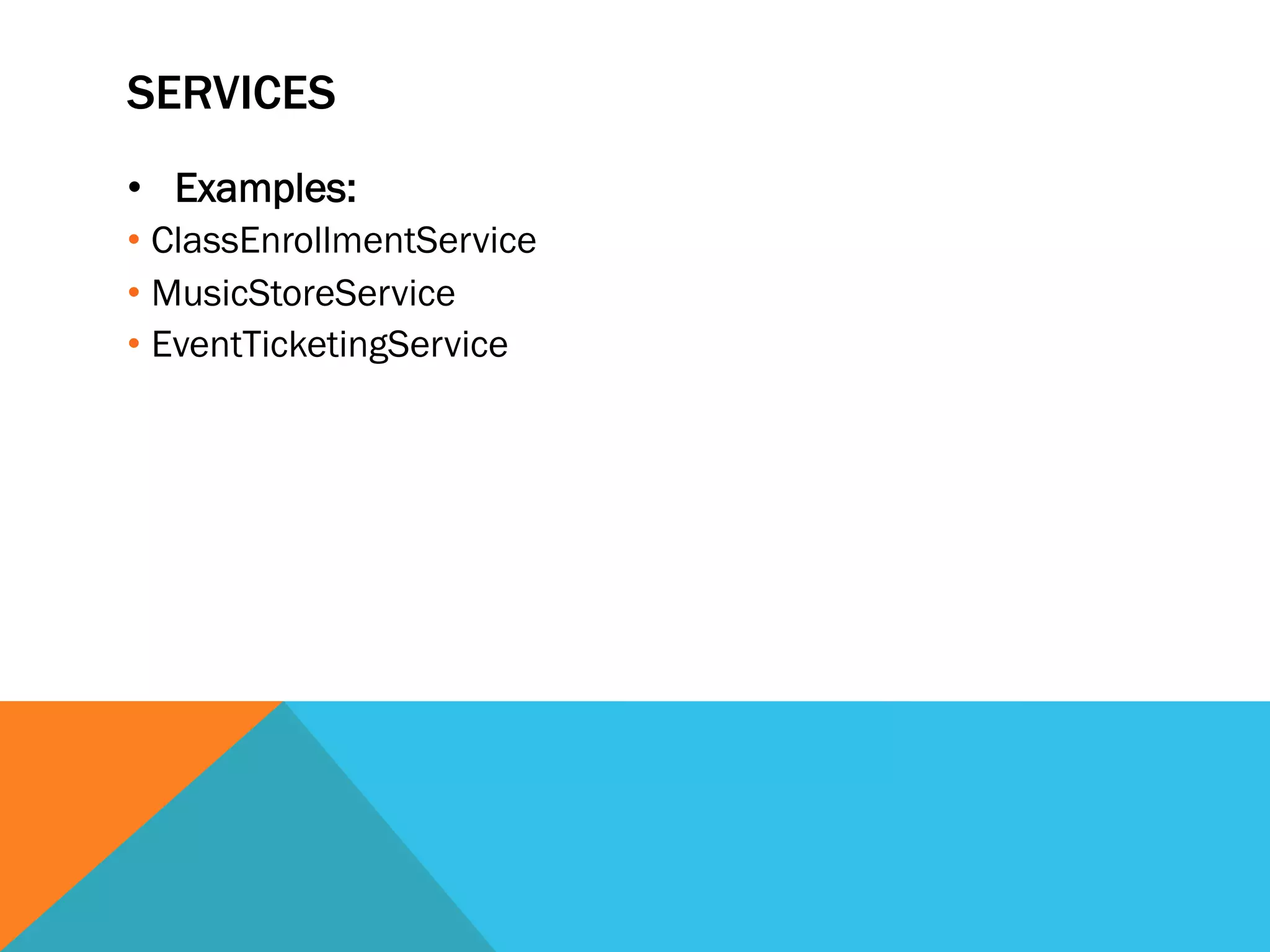

34. SERVICES
• Examples:
• ClassEnrollmentService
• MusicStoreService
• EventTicketingService

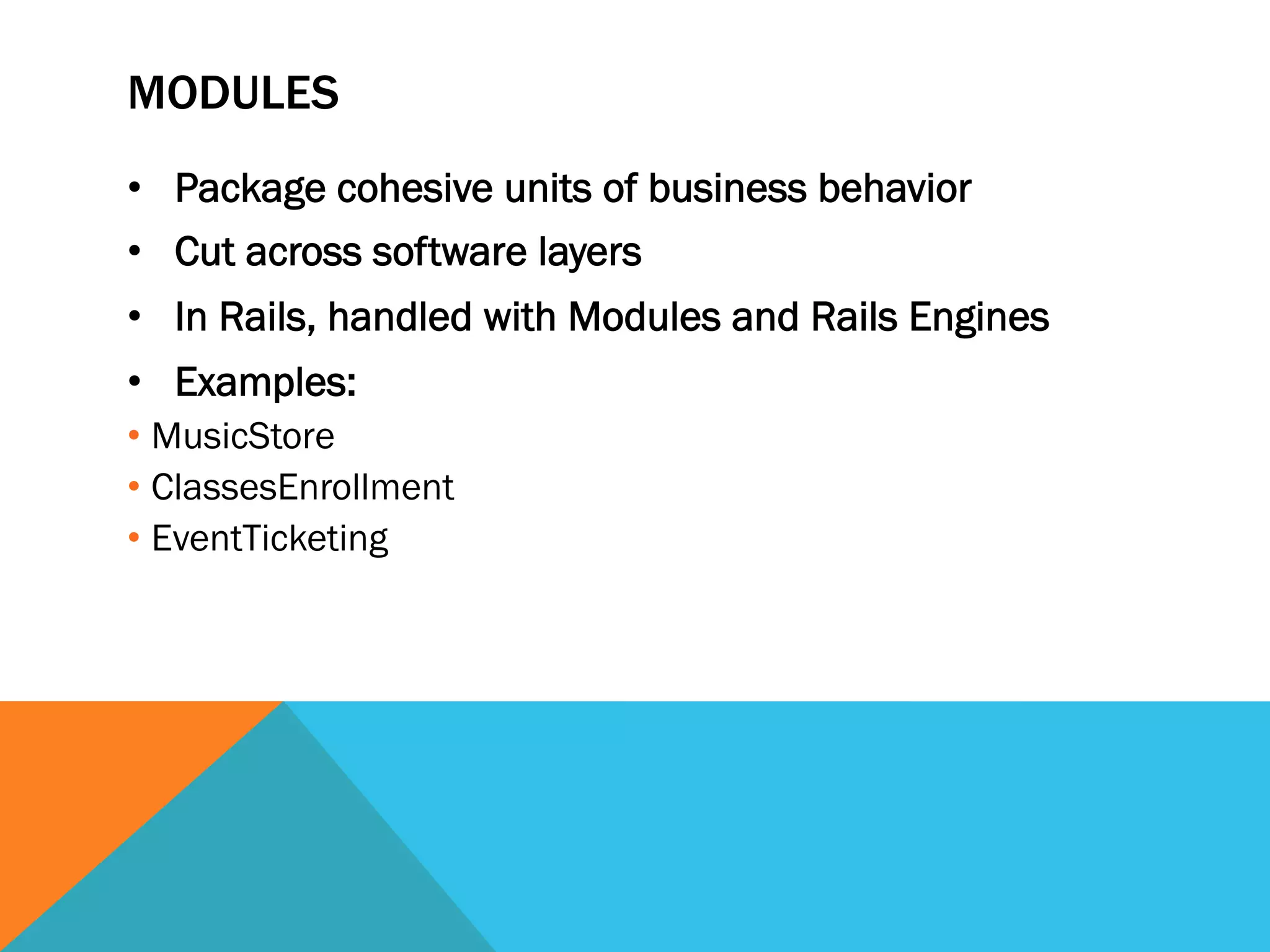

35. MODULES
• Package cohesive units of business behavior
• Cut across software layers
• In Rails, handled with Modules and Rails Engines
• Examples:
• MusicStore
• ClassesEnrollment
• EventTicketing

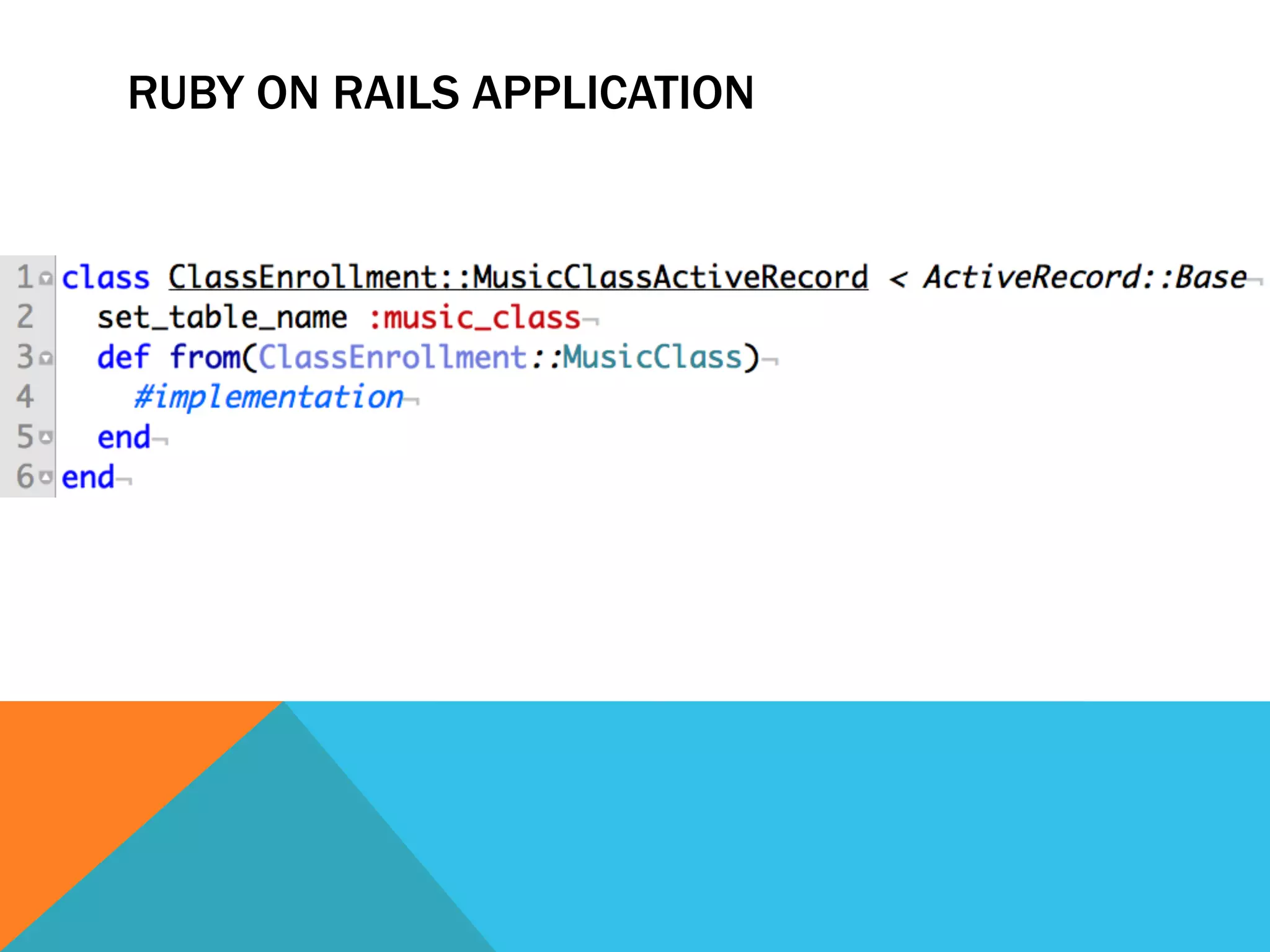

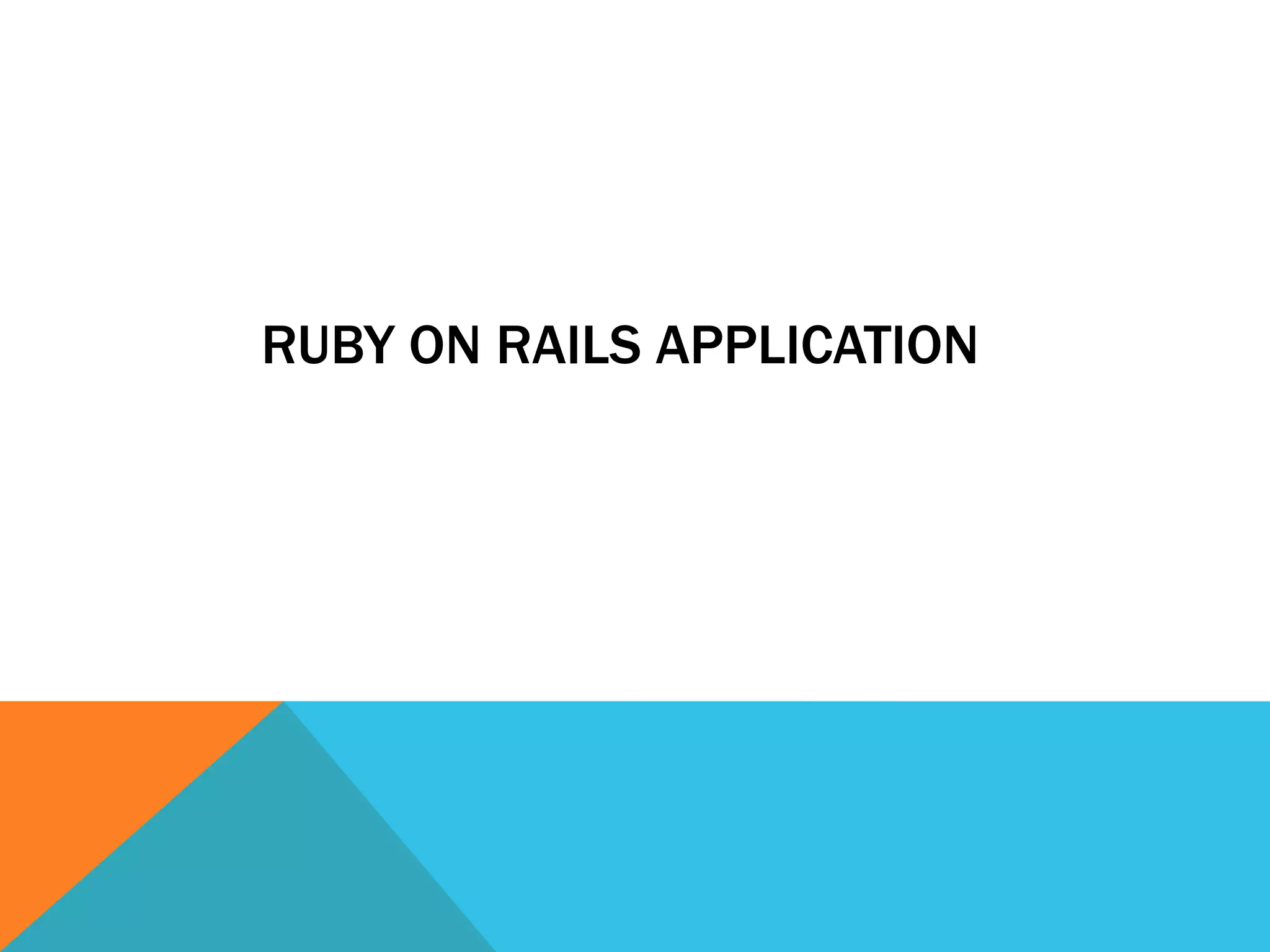

36. RUBY ON RAILS APPLICATION

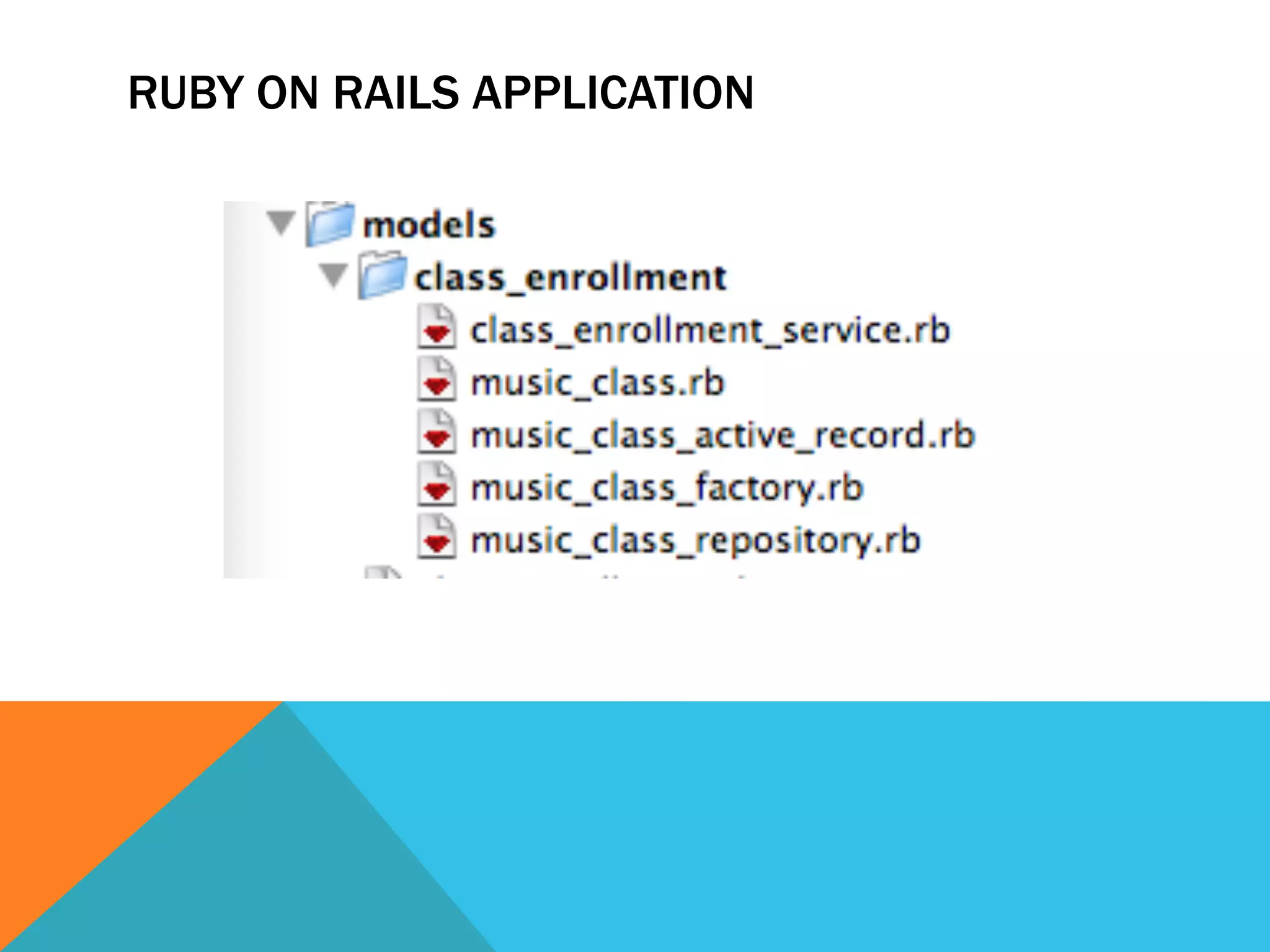

37. RUBY ON RAILS APPLICATION

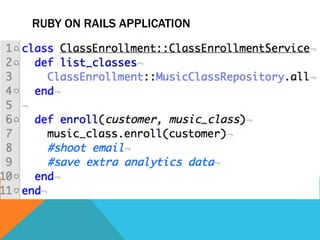

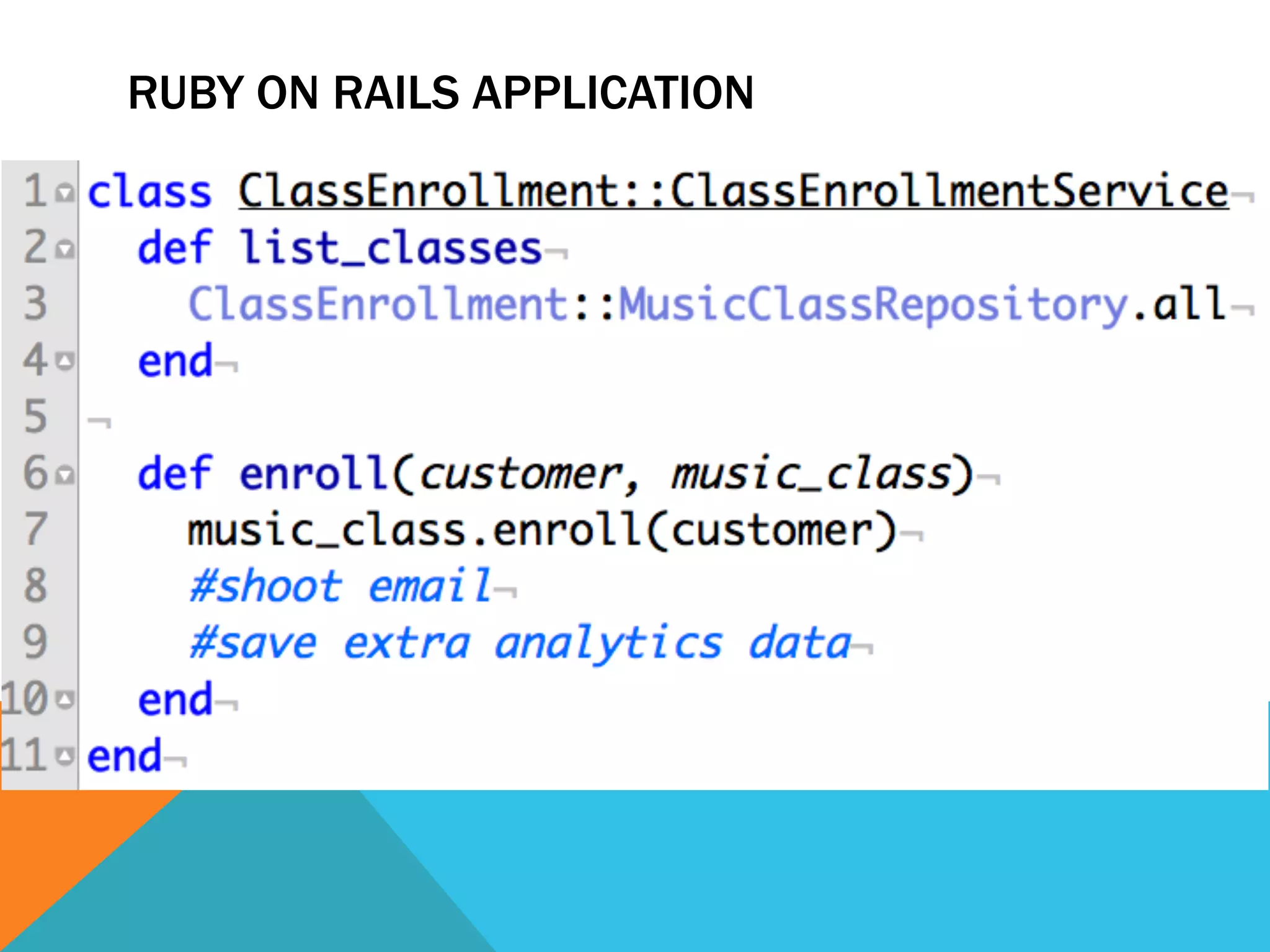

38. RUBY ON RAILS APPLICATION

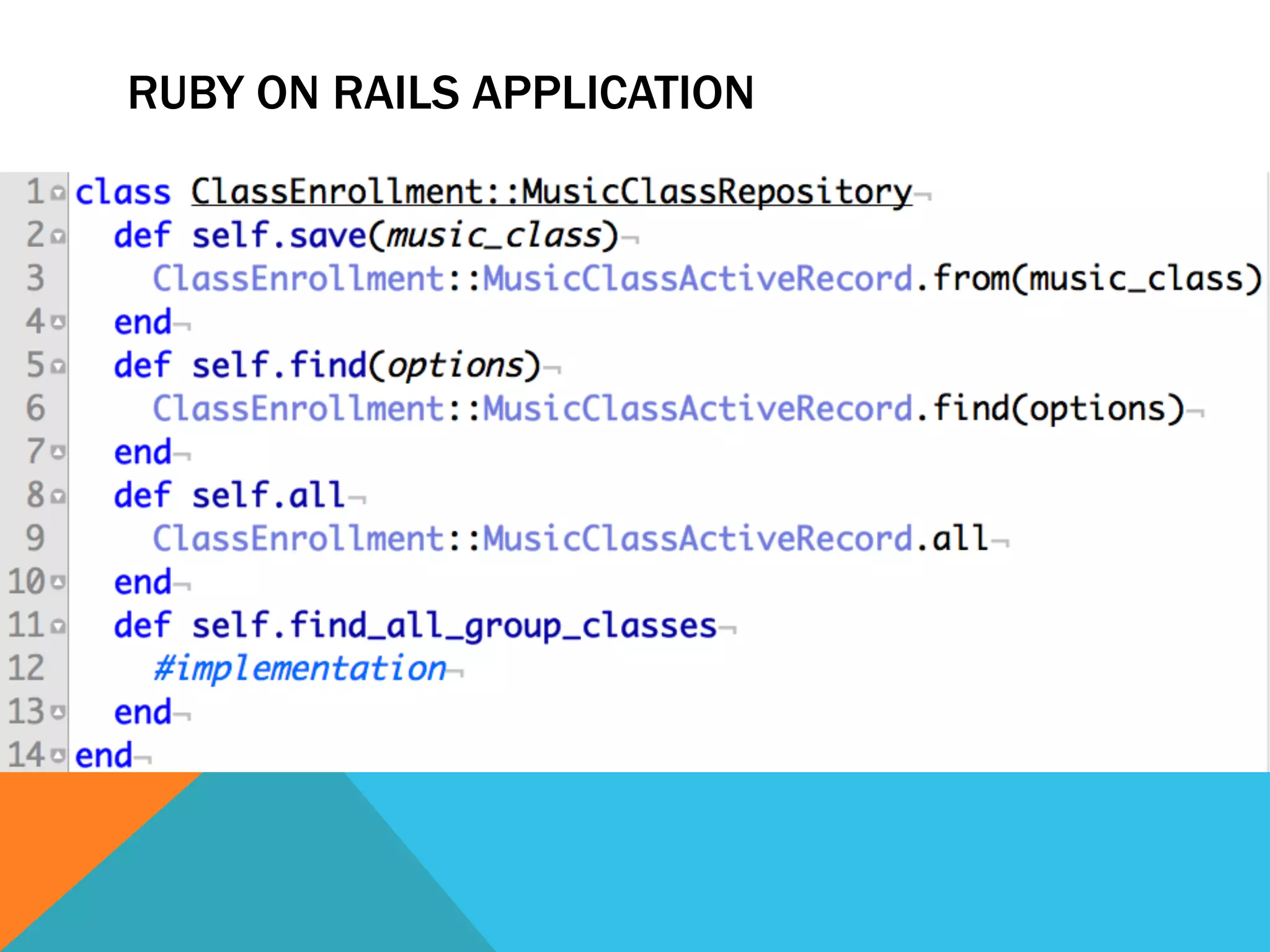

39. RUBY ON RAILS APPLICATION

40. RUBY ON RAILS APPLICATION

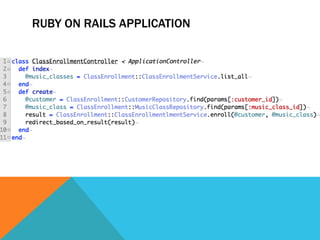

41. RUBY ON RAILS APPLICATION

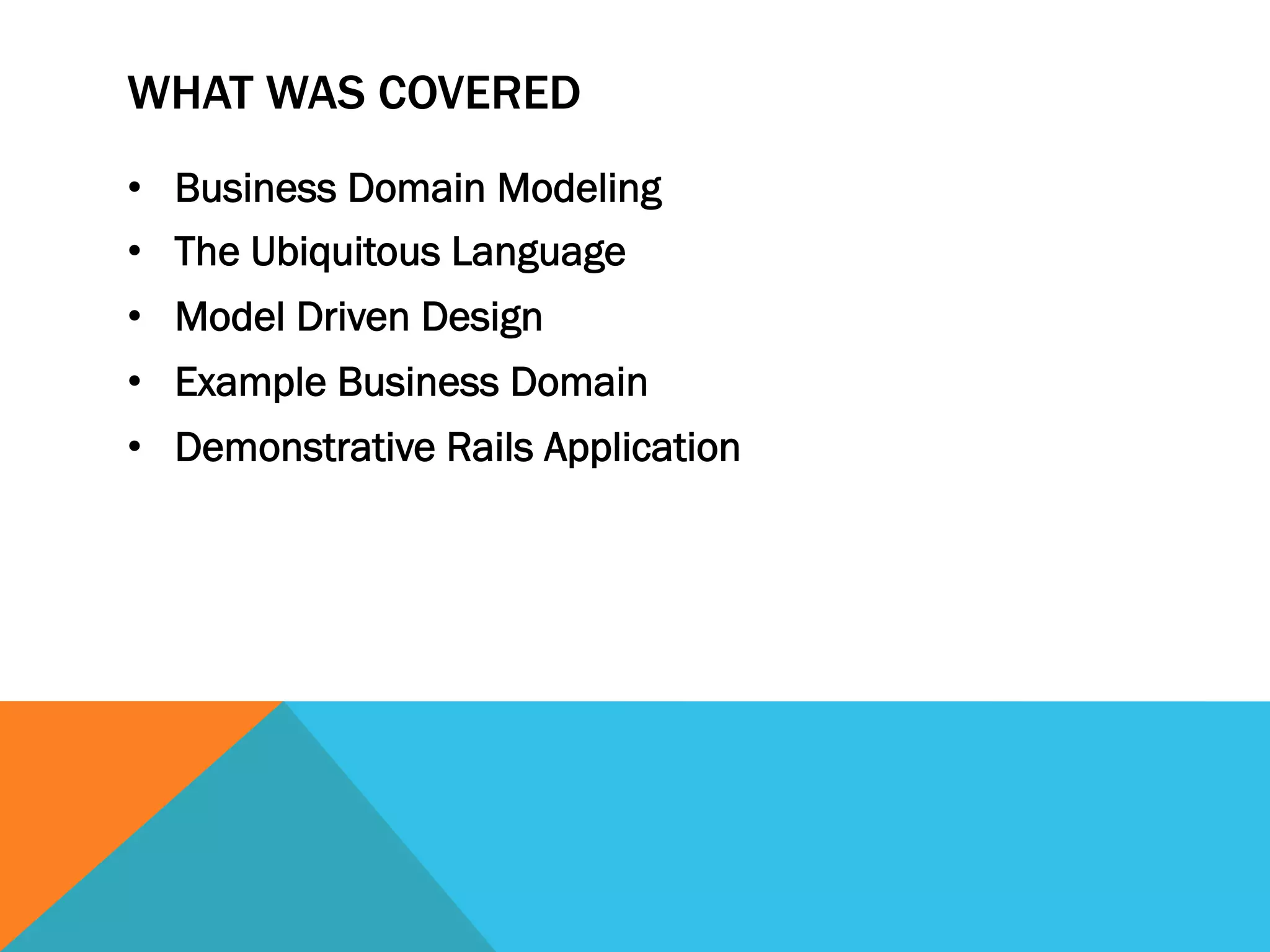

42. WHAT WAS COVERED
• Business Domain Modeling
• The Ubiquitous Language
• Model Driven Design
• Example Business Domain
• Demonstrative Rails Application

43. QUESTIONS
???

44. 2010’S - ???

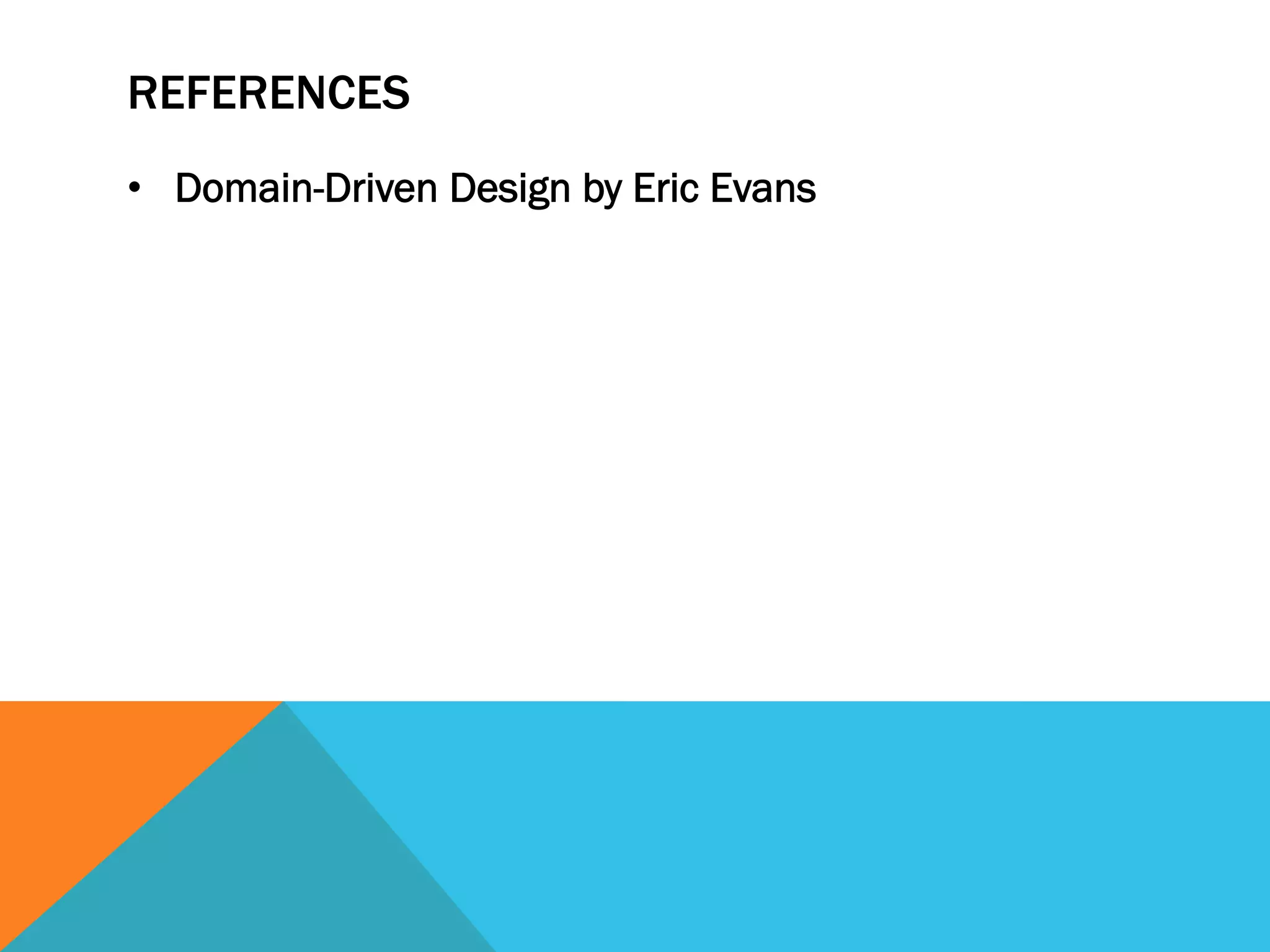

45. REFERENCES
• Domain-Driven Design by Eric Evans

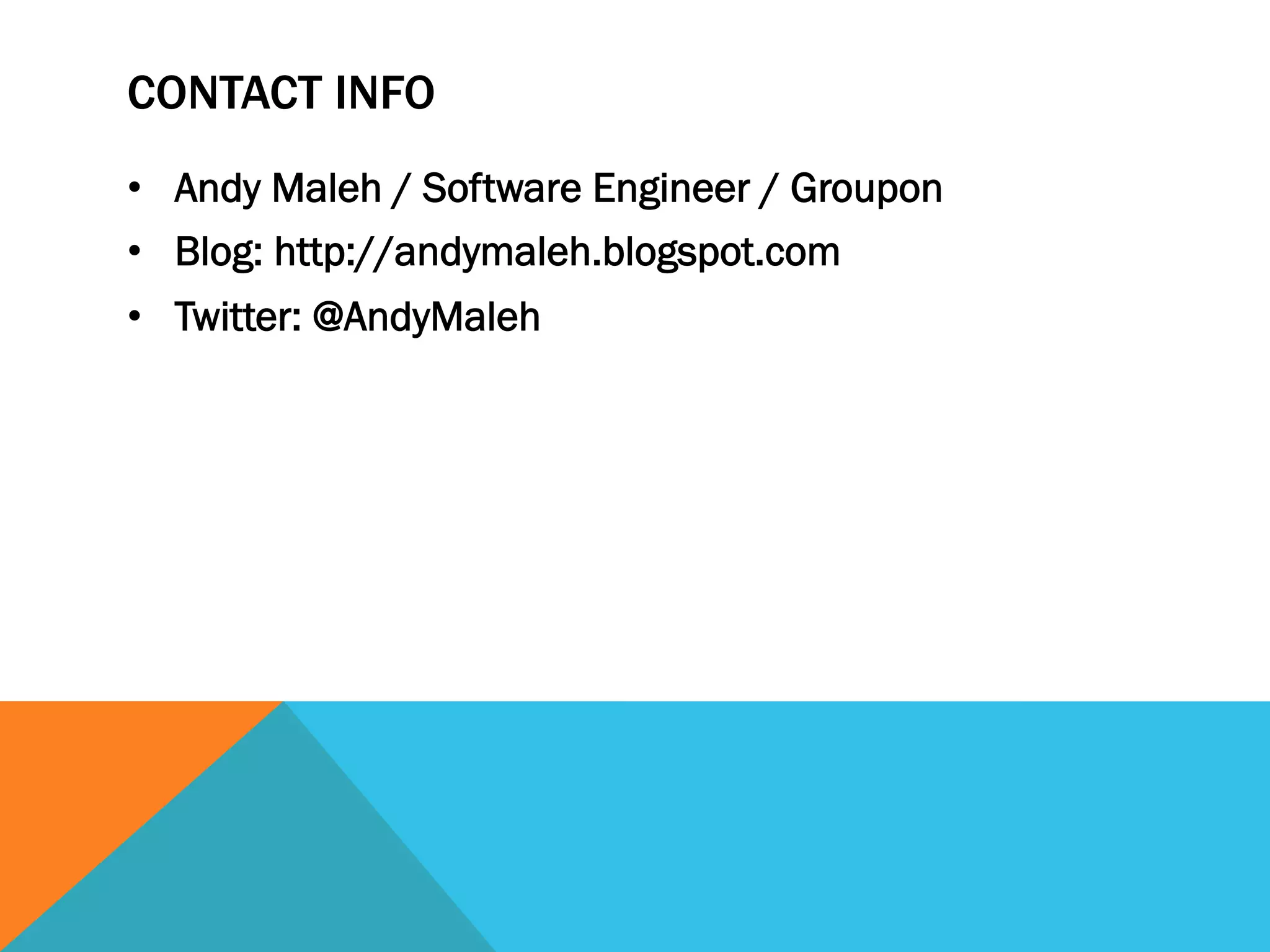

46. CONTACT INFO
• Andy Maleh / Software Engineer / Groupon
• Blog: http://andymaleh.blogspot.com
• Twitter: @AndyMaleh
