Kasturi Foundry Pvt. Ltd. is a leading manufacturer of graded grey cast iron castings established in 1983 in Ashta, India. It has modern manufacturing facilities across melting, moulding, fettling, and pattern shops. The foundry produces 1500MT of castings per month, including components for rear axel housings, rock shaft housings, and more. Training at Kasturi Foundry provided insight into the casting manufacturing process from pattern making to final machining and quality inspections.

1. Training taken at ZanavarGroup
of industries.
Kasturi Foundry Pvt. Ltd.
ASHTA.

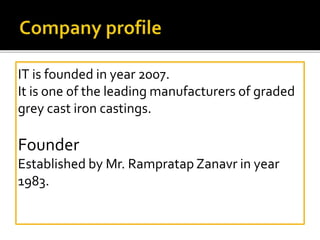

2. IT is founded in year 2007.
It is one of the leading manufacturers of graded
grey cast iron castings.
Founder
Established by Mr. Rampratap Zanavr in year
1983.

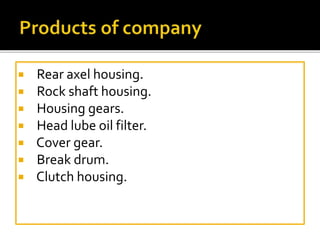

3.  Rear axel housing.
 Rock shaft housing.
 Housing gears.
 Head lube oil filter.
 Cover gear.
 Break drum.
 Clutch housing.

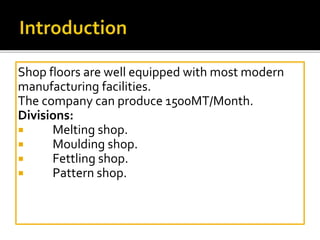

4. Shop floors are well equipped with most modern
manufacturing facilities.
The company can produce 1500MT/Month.
Divisions:
 Melting shop.
 Moulding shop.
 Fettling shop.
 Pattern shop.

5. Purchase:
The purchase in kasturi foundry consists of
following material:
Raw material.
Consumable materials.
Spares.

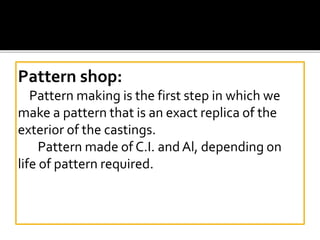

6. Pattern shop:
Pattern making is the first step in which we
make a pattern that is an exact replica of the
exterior of the castings.
Pattern made of C.I. and Al, depending on
life of pattern required.

7. Moulding shop:
Moulding shops of kasturi foundry unit
consists of following machines and labs:
 Sand Muller.
 Moulding machine.
 Pneumatic sand rammer.
 Molding sand testing lab.

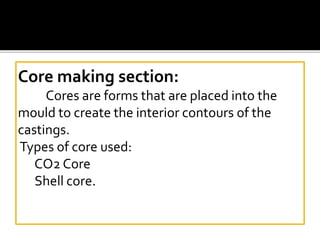

8. Core making section:
Cores are forms that are placed into the
mould to create the interior contours of the
castings.
Types of core used:
CO2 Core
Shell core.

9. Melting section:
The molten metal is then transferred to the
moulding area.
Casting :
Casting is process in which molten metal is
poured into the mould.

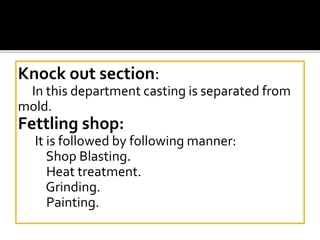

10. Knock out section:
In this department casting is separated from
mold.
Fettling shop:
It is followed by following manner:
Shop Blasting.
Heat treatment.
Grinding.
Painting.

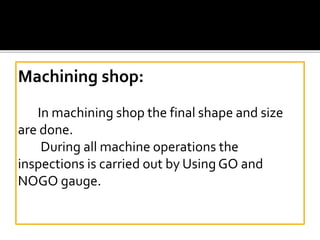

11. Machining shop:
In machining shop the final shape and size
are done.
During all machine operations the
inspections is carried out by Using GO and
NOGO gauge.

12. The training in this foundry eventually ended as
an successful industrial training .
It helped to understand the manufacturing
sciences .
