Welcome to Smart Enviro Systems! The range of solutions we offer has been an outcome of our constant endeavors to evolve for perfection and excellence. The company believes in consistent Research & Development; this helps us to bring new products and novel systems to address the problems of management of solid waste/organic waste/municipal waste/bio-degradable waste.

1. Introduction to
Smart Enviro Systems
&
Solution for Mechanical Composting Of Organic Waste

2. Smart Enviro Systems is a part of
the Shrikrishna Group, a well
diversified Engineering group
engaged in the manufacturing of
Rescue Equipments, Hydraulic
Equipments & a new age lighting
solution through Light Pipes.
INTRODUCTION

3. Group Strengths:
• Original Equipment Manufacturer (OEM) with an established infrastructure.
• In house Design, Engineering, R & D.
• State of Art manufacturing facility in Pune having area of 40,000 Sq. Ft.
• Pan-India Service & dealer network.
Awards:
•National Quality Award- 1995
•Vikas Ratan Award- 1995
•Winner of Hari Malini Joshi Award for new product/ design
INTRODUCTION

4. • Shrikrishna Group manufactured composting machines for Save
Environment Engineers Pvt. Ltd. for their SAVECO range of products for
past 4 years.
• These machines were well accepted by the number of Municipal bodies,
residential & commercial complexes and reputed companies across India.
• Now as part of backward and forward integration program of the Group, it
has introduced a range of products and services to provide solutions in the
areas of Municipal Solid Waste Management (MSW) with the SMART brand
of equipments.
• Smart Enviro Systems is a complete solutions provider in the areas of
Mechanical & Biological Treatment of Organic Biodegradable Waste.
INTRODUCTION

5. What is MSW?
It is Municipal Solid Waste
and it consists of Waste, food
waste, garbage, trash, junk,
debris, refuse etc.
The changing lifestyle has
increased availability of
disposable products and it has
also aggravated the problem of
how to get rid of all this waste.

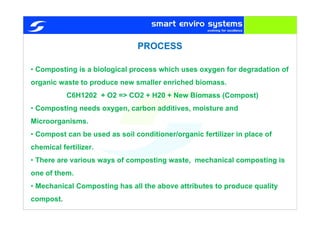

6. • Composting is a biological process which uses oxygen for degradation of
organic waste to produce new smaller enriched biomass.
C6H1202 + O2 => CO2 + H20 + New Biomass (Compost)
• Composting needs oxygen, carbon additives, moisture and
Microorganisms.
• Compost can be used as soil conditioner/organic fertilizer in place of
chemical fertilizer.
• There are various ways of composting waste, mechanical composting is
one of them.
• Mechanical Composting has all the above attributes to produce quality
compost.
PROCESS

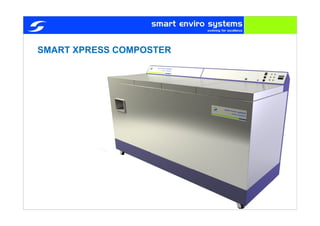

7. SMART XPRESS COMPOSTER

8. SMART XPRESS COMPOSTER
Mechanical Composting is the most efficient and effective mode
of MSW disposal, carried out through a built in shredder and
cylindrical container. Smart Xpress Composter has a churning
system working simultaneously to crush and mix the waste matter
so as to cut down on the volume and to achieve faster pre-
decomposition. The Composter is also equipped with heating
arrangement which optimizes the performance of the micro
organisms and accelerates the composting process. This compost
can directly be used for the field application.
Concept:

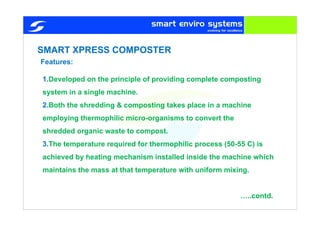

9. SMART XPRESS COMPOSTER
1.Developed on the principle of providing complete composting
system in a single machine.
2.Both the shredding & composting takes place in a machine
employing thermophilic micro-organisms to convert the
shredded organic waste to compost.
3.The temperature required for thermophilic process (50-55 C) is
achieved by heating mechanism installed inside the machine which
maintains the mass at that temperature with uniform mixing.
…..contd.
Features:

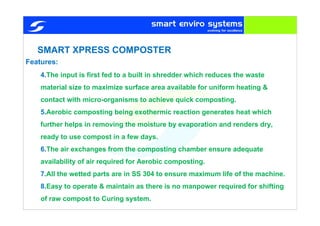

10. SMART XPRESS COMPOSTER
4.The input is first fed to a built in shredder which reduces the waste
material size to maximize surface area available for uniform heating &
contact with micro-organisms to achieve quick composting.
5.Aerobic composting being exothermic reaction generates heat which
further helps in removing the moisture by evaporation and renders dry,
ready to use compost in a few days.
6.The air exchanges from the composting chamber ensure adequate
availability of air required for Aerobic composting.
7.All the wetted parts are in SS 304 to ensure maximum life of the machine.
8.Easy to operate & maintain as there is no manpower required for shifting
of raw compost to Curing system.
Features:

11. SMART XPRESS COMPOSTER FLOW CHART

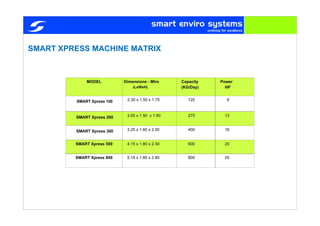

12. SMART XPRESS MACHINE MATRIX

13. The Smart mechanical composter operates
with a very simple mechanism that breaks
down the complex bio-degradable waste into
its simpler forms, and converts into compost.
SMART COMPOSTER
To carry out the mixing and crushing
process the machine is empowered by a
geared motor for mixing & churning purpose
and a high speed motor to crush the waste
material.
The machine is manufactured in SS 304 for
longer life and better results.

15. SMART COMPOSTER Type Capacity HP
SC-15 BATCH 15 Kgs/batch 3.0
SC-25 BATCH 25 Kgs/batch 3.0
SC-50 BATCH 50 Kgs/batch 7.0
SC- 100 BATCH 100 Kgs/batch 11.0
SC-200 BATCH 200 Kgs/batch 15.0
SC- C 500 Continuous 500 Kgs/hr 12.5
SMART COMPOSTER

16. SMART CURING
SYSTEMS
Type Capacity
CURING BAYS
CB-100 Shelves with
crates
100 kgs/day
CB-200 Shelves with
crates
200 kgs/day
CURING DRUMS Type Capacity HP
CD-250 Drum Curing 250 kgs/day 3.0
CD-500 Drum Curing 500 kgs/day 4.0
CD-750 Drum Curing 750 kgs/day 5.0
CD-1000 Drum Curing 1000 kgs/day 7.5
SMART CURING SYSTEMS

17. Curing Bays
Curing Drum

18. Curing Pits

19. MODEL Capacity HP
SD-500 500 kgs/hr 5.0
SD-1000 1000 kgs/hr 7.5
SMART SQUEEZE (DEWATERING PRESS)

20. MODEL TYPE CAPACITY
(KG/HOUR)
HP
BRKT- 25 HYDRAULIC 50 7.5
BRKT- 50 HYDRAULIC 300 25
BRKT- 75 HYDRAULIC 400 80
BRKT- 90 HYDRAULIC 800 100
SMART BRIQUETTING MACHINE

21. Compost
Product

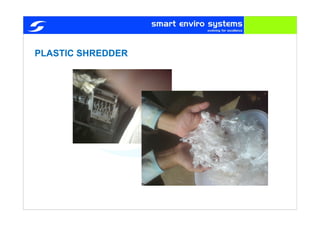

22. PLASTIC SHREDDER

23. MODEL CAPACITY
SC-3 3.0 Cub. Mtr.
SC-4.5 4.5 Cub. Mtr.
SC—6 6.0 Cub. Mtr.
SMART COMPACTOR – VEHICLE MOUNTED

24. Municipal Projects
•Municipal Council of Mahableshwar.
•Bangalore Air Force base
•Pune Municipal Corporation
•Lagos Municipality, Nigeria
•Panaji Municipal Corporation
Residential Projects
•HDIL, Bhandup, Mumbai
•Pentagon Group, Pune
•Ethics Developers, Kondhwa, Pune
•Tirupati Builders, Pune
•Bhandari Associates, Pune
•Kalpataru Constructions, Pune
•Niharika, Kanakia Spaces, Thane
• Rose Icon, Pimpale Soudagar, Pune
Some of our esteemed customers
•Vasundhara, Kanakia Spaces, Thane
• Wadhwa Group, Imperial Heights, Mumbai.
• Ethics Developers, Balewadi, Pune
• Mahindra Royale, PCMC, Pune
• Aishwaryam Ventures, Akhurdi, Pune
• Dynasty, Wakad, Pune
• Palm Beach, Navi Mumbai
• Venkateshwara Lake Vista, Ambegaon, Pune
• Kalpataru Pinnacle, Malad, Mumbai

25. Commercial/ Hotel/ Food waste Projects
•E – Square leisure (Multiplex), Pune- Multicusine Restaurants
•Volkswagen, Pune- Canteen Waste
• The Capital, BKC, Mumbai- Food court waste
•Paramount Food Nutrition, Bidadi, Bangalore- Canteen Waste
•Britannia Industries Ltd.Rudrapur, Factory -Canteen waste
•Britannia Industries Ltd., Office complex, Kolkata- Canteen waste
•Britannia Industries Ltd., Office complex, Delhi- Canteen waste
•BOSCH Industries Ltd.,Bangalore – Canteen & Green Waste
Orders on Hand
•Beverly Hills, Hinjewadi, Pune- Domestic waste
*Please visit www.smartenvirosystems.com for latest list of clients.
Some of our esteemed customers

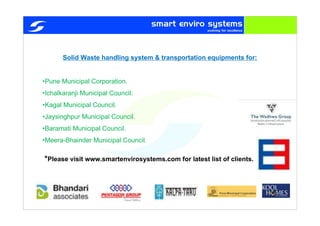

26. Solid Waste handling system & transportation equipments for:
•Pune Municipal Corporation.
•Ichalkaranji Municipal Council.
•Kagal Municipal Council.
•Jaysinghpur Municipal Council.
•Baramati Municipal Council.
•Meera-Bhainder Municipal Council.
*Please visit www.smartenvirosystems.com for latest list of clients.

27. Thank you !Thank you !
Smart Enviro Systems
Head Office: 10, Kothrud Industrial Estate, Pune- 38
Tel : 91-020-25433054,25434328 Fax : 25469440 Email : mkt@smartenvirosystems..co.in
Bangalore Office: # 143, Ground Floor Kamala Mansion Infantry Road,
Bangalore 560001
Tel: 080-22863132,9845195168,9844140150 Email :
simha1832@rediffmail.com,srivishva@gmail.com
www.smartenvirosystems.com
