The document contains details on the site layout, exterior design, floor plan, and interior design for a proposed 46,000 square foot office building development with 230 parking spaces. It includes information on the phases, total square footage, number of tenants, drainage features, building structure, parking lot design, HVAC system, interior features, and references for additional information.

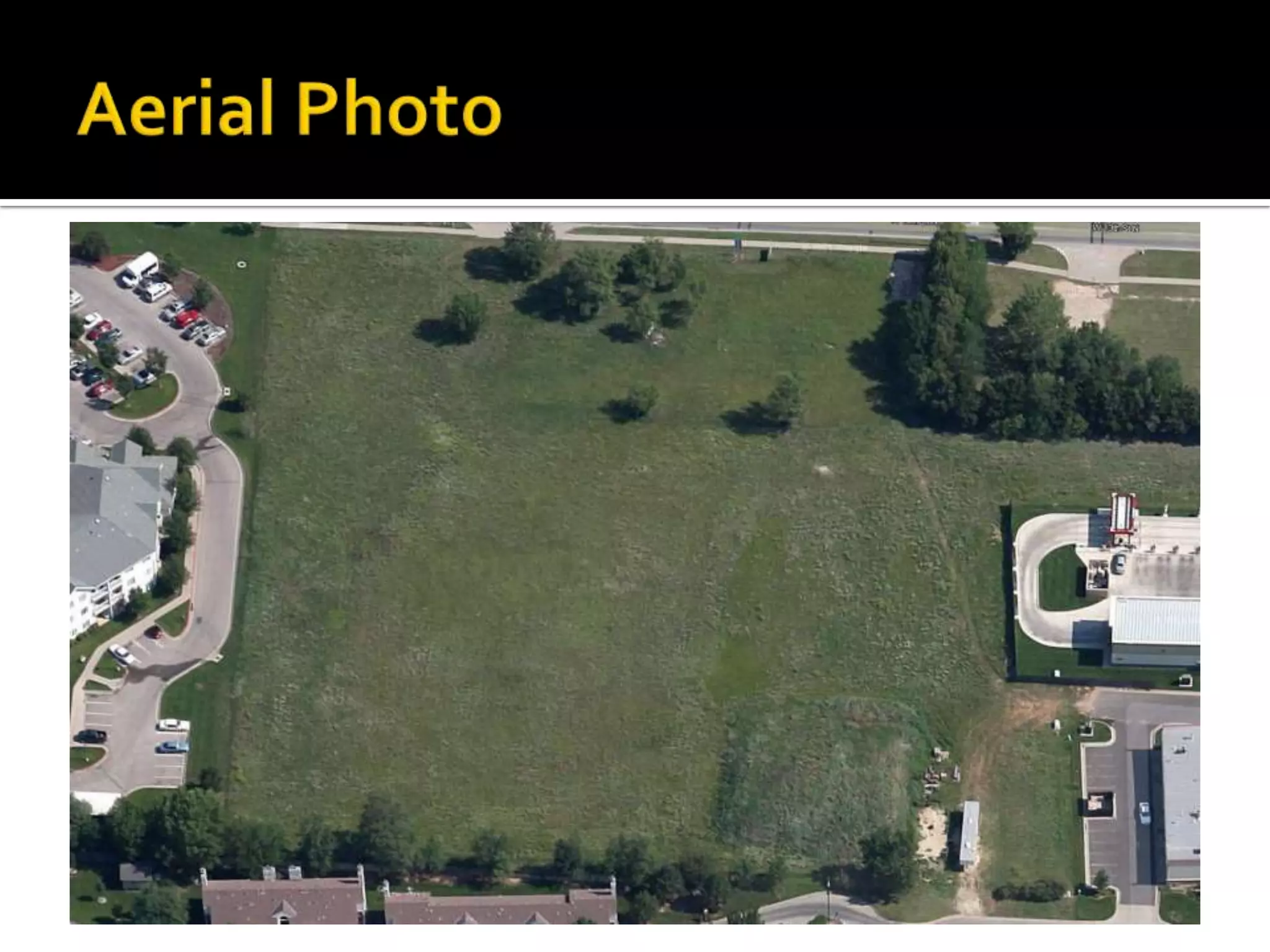

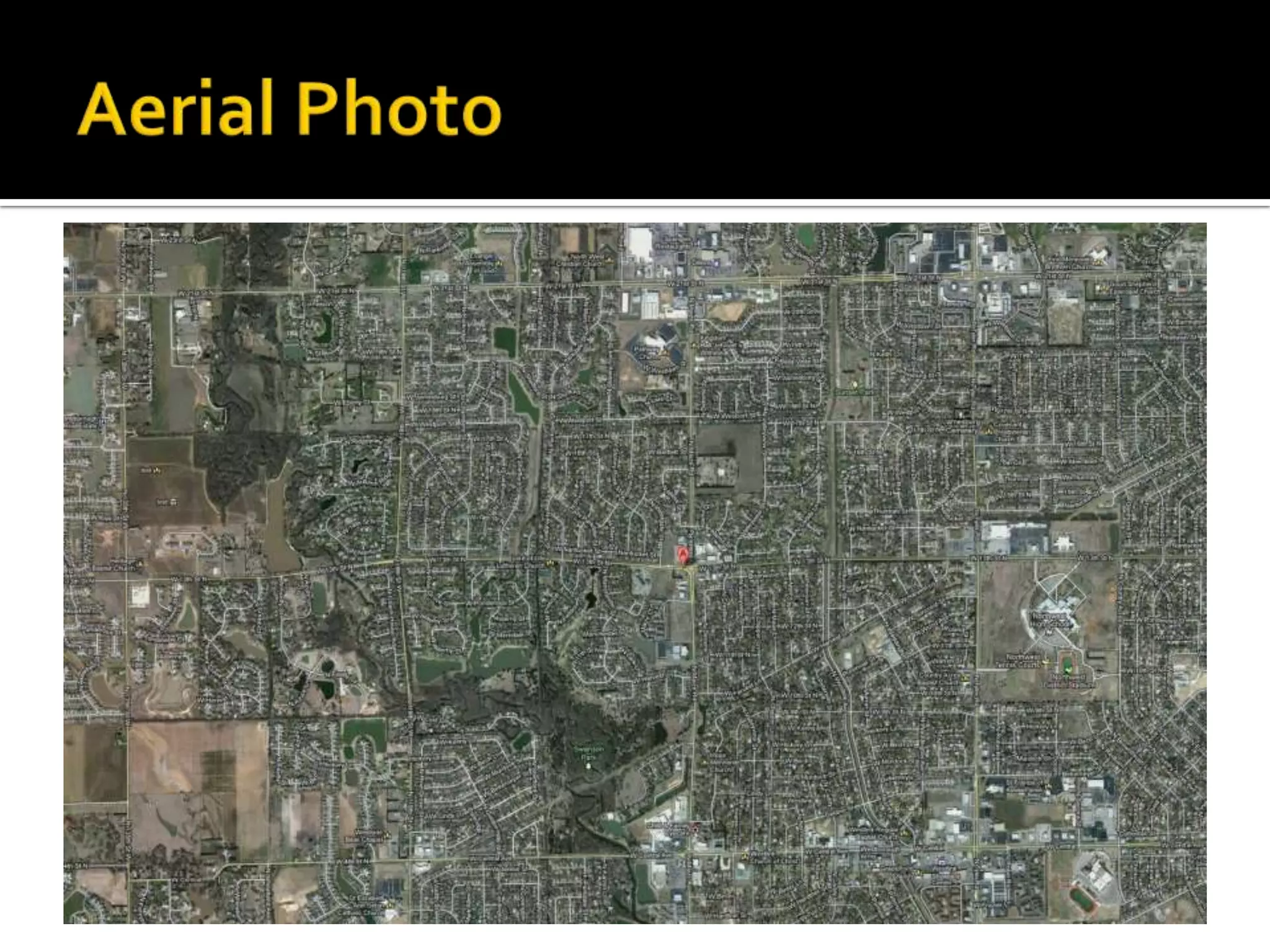

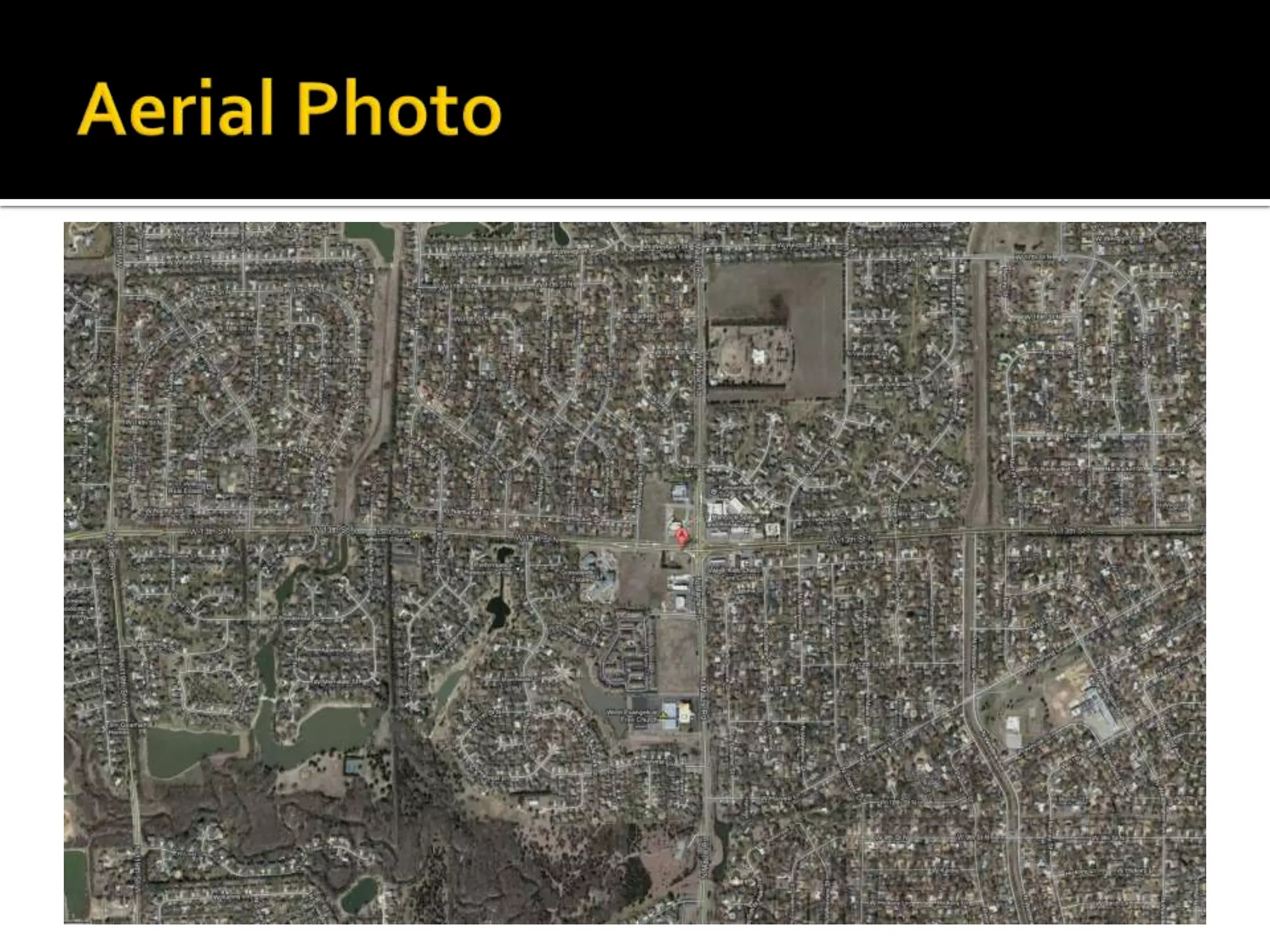

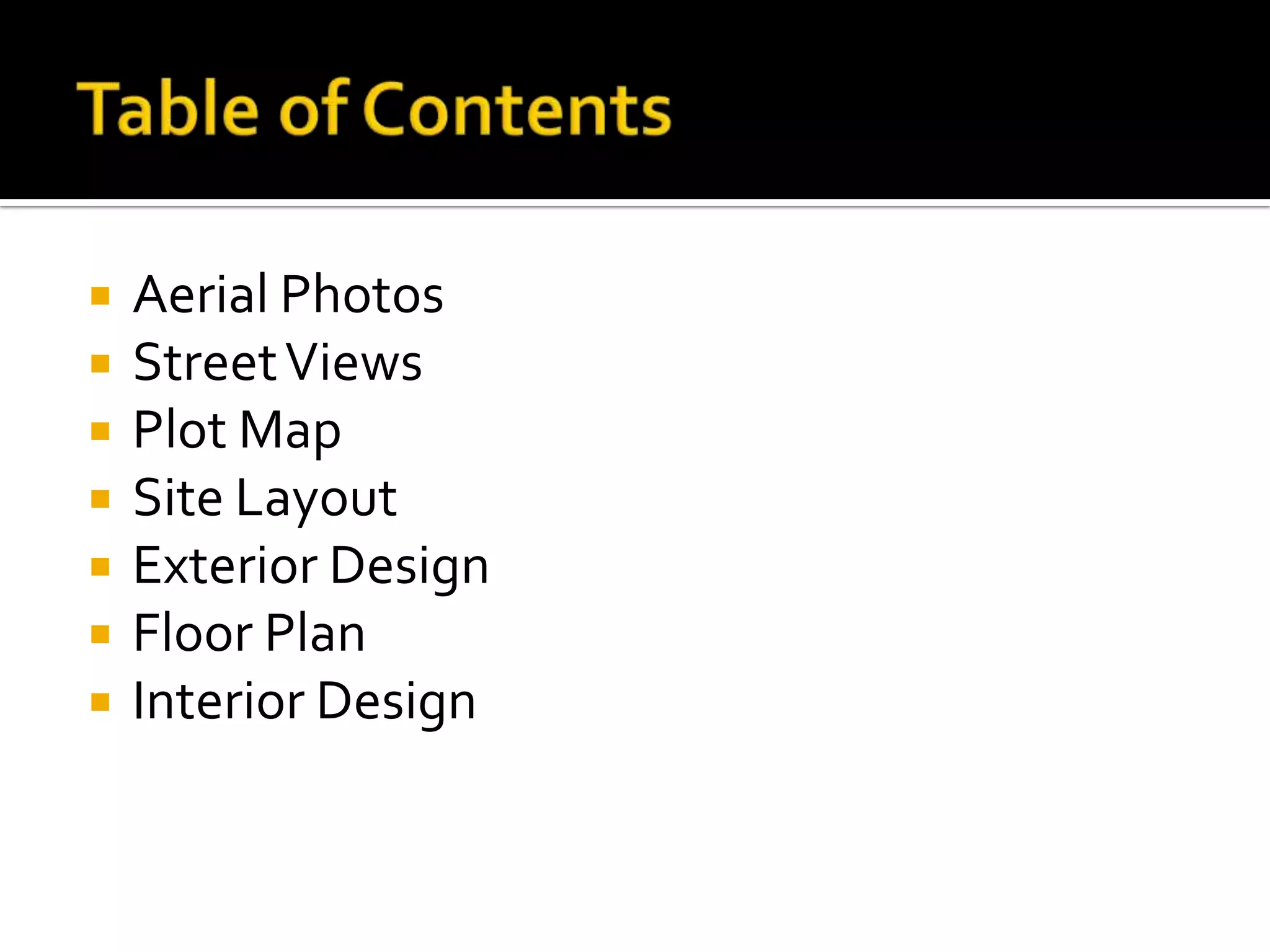

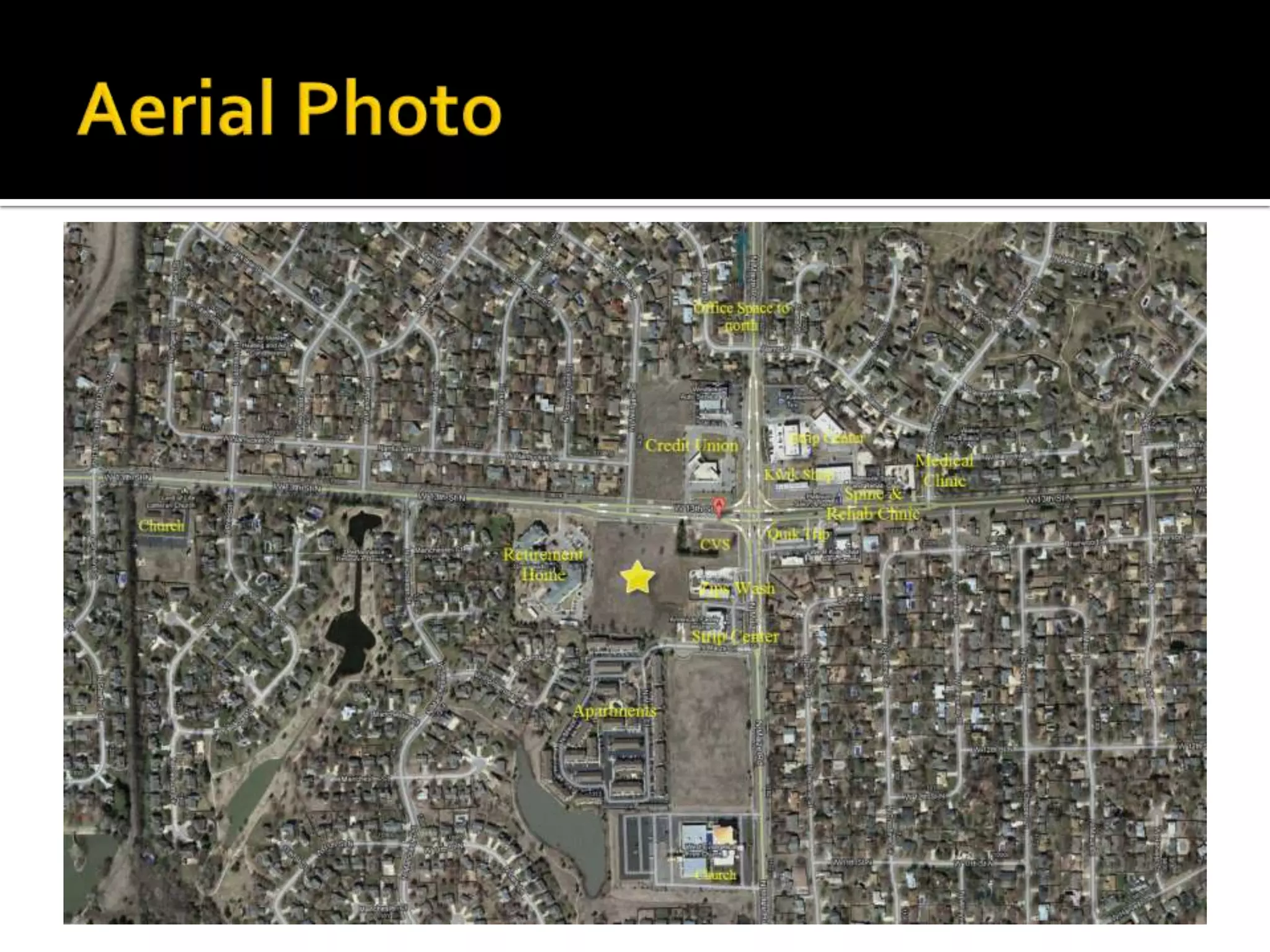

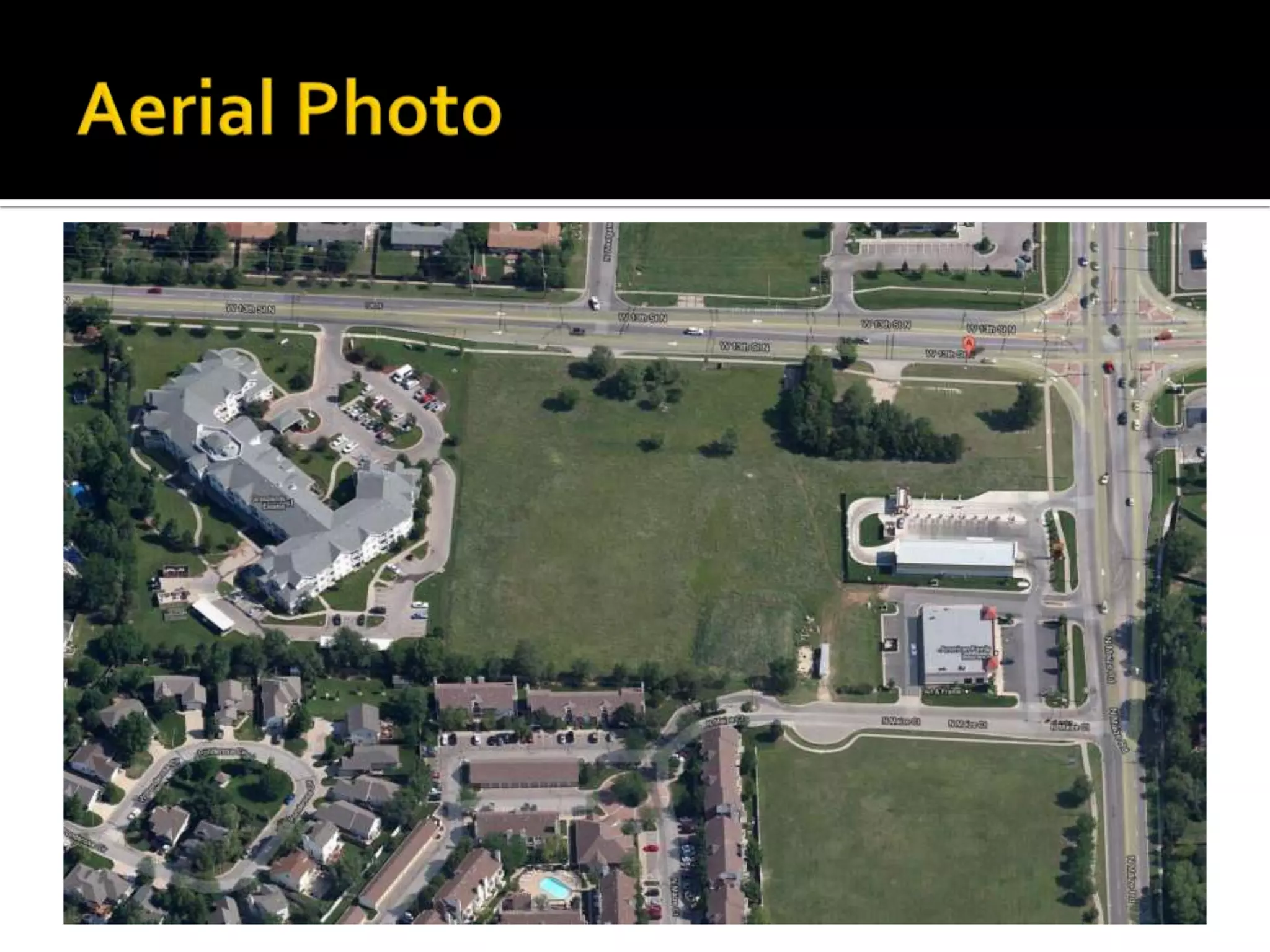

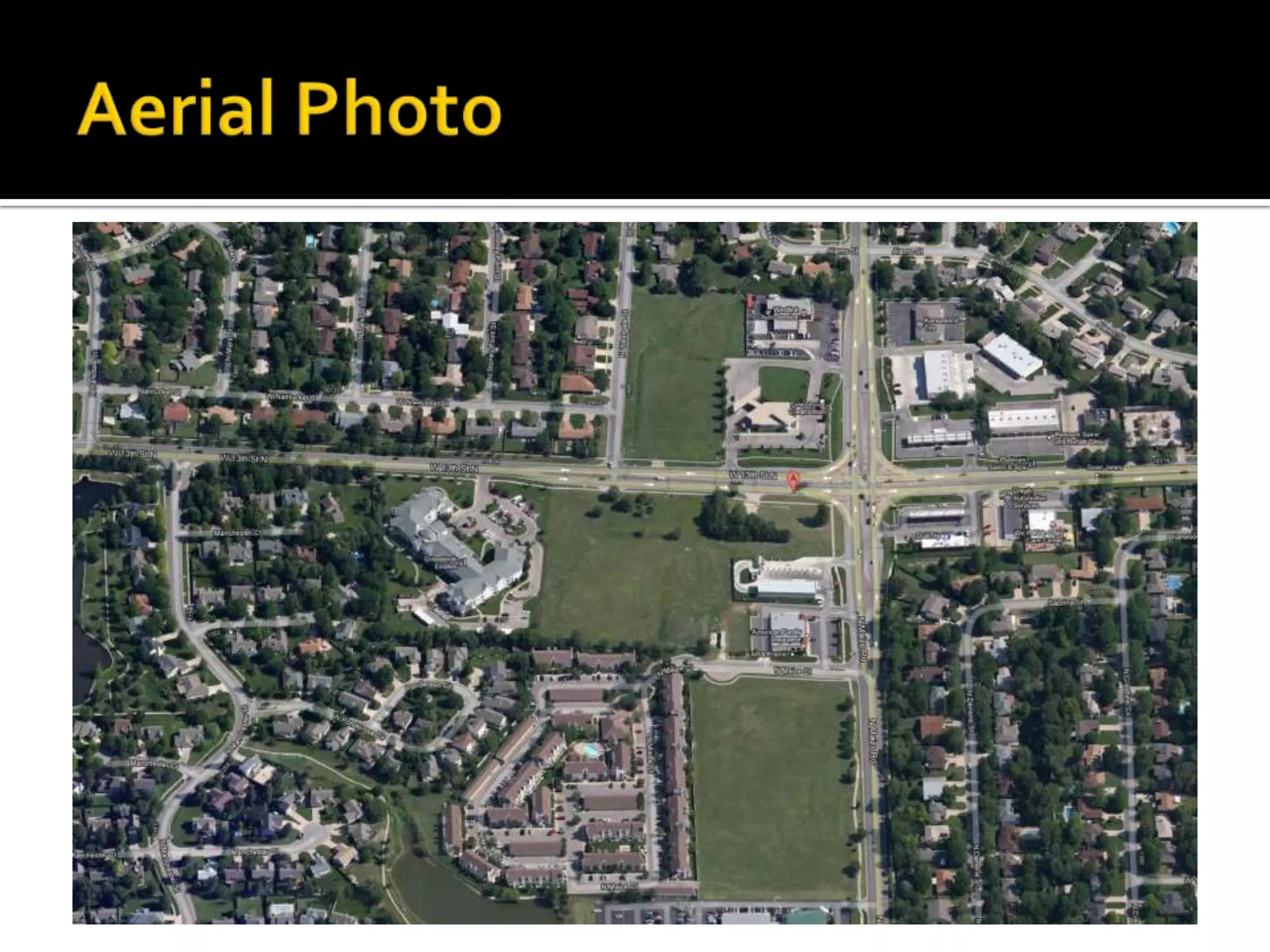

1.  Aerial Photos
 StreetViews

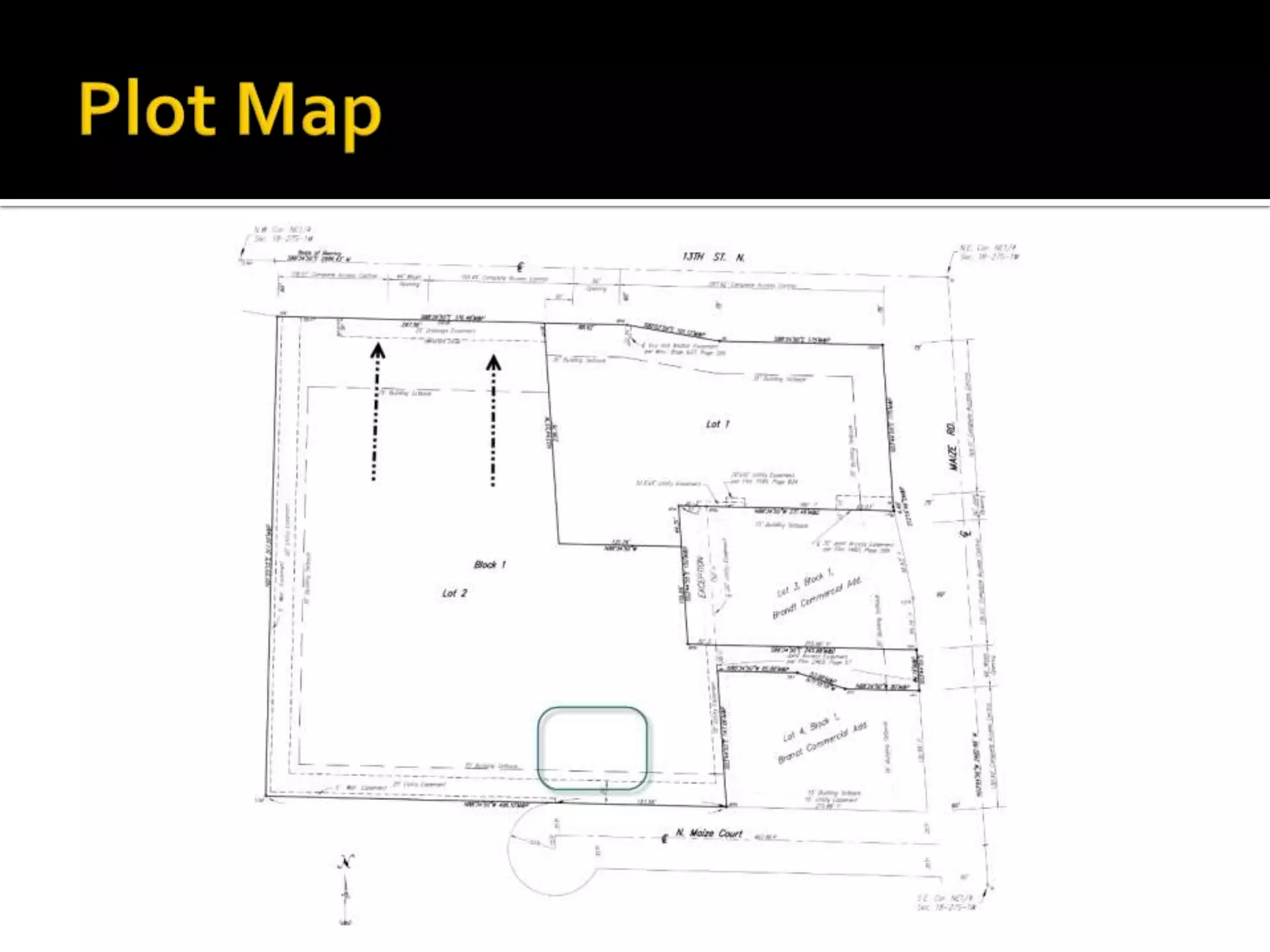

 Plot Map
 Site Layout
 Exterior Design

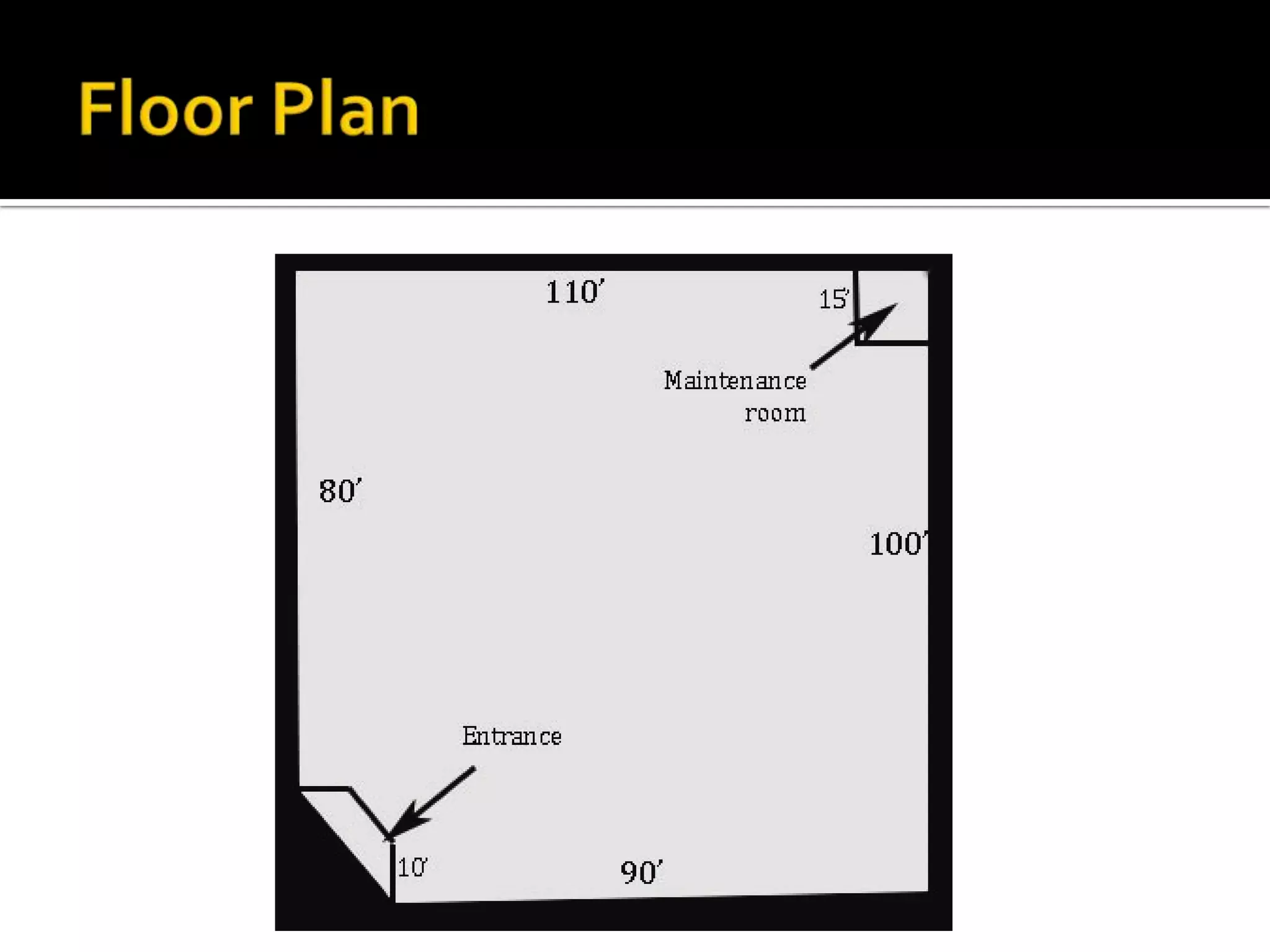

 Floor Plan
 Interior Design

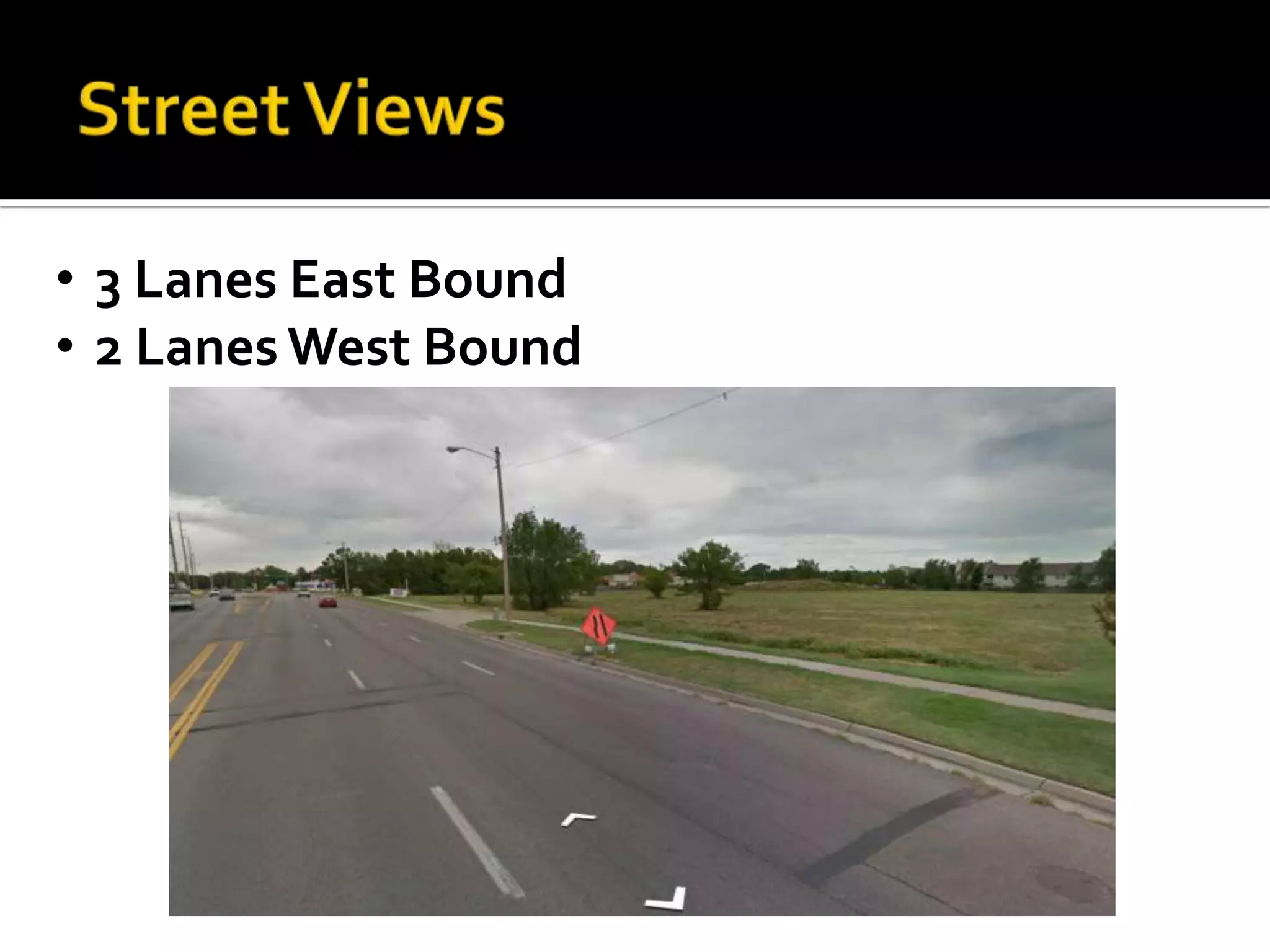

8. • 3 Lanes East Bound
• 2 Lanes West Bound

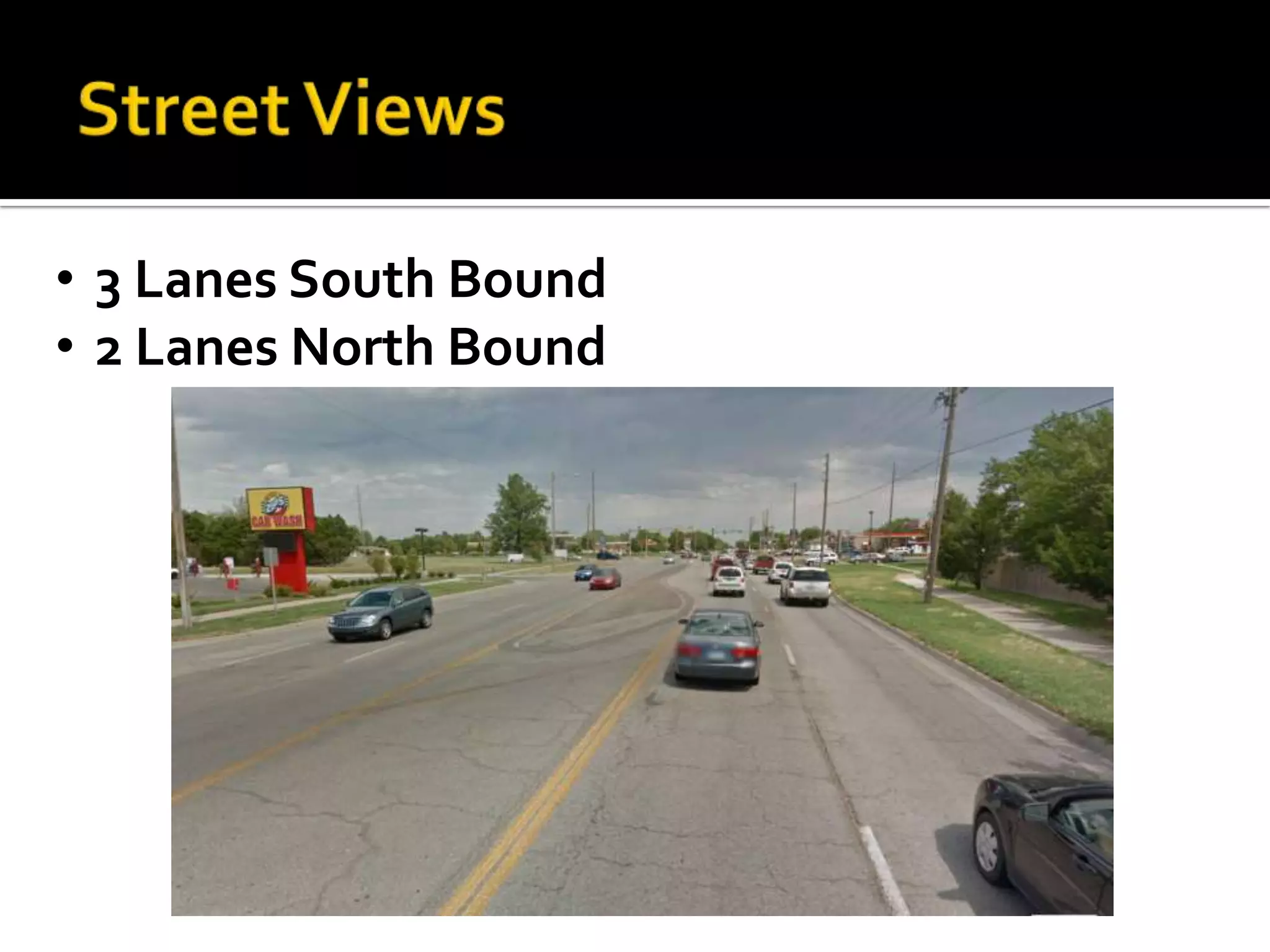

9. • 3 Lanes South Bound
• 2 Lanes North Bound

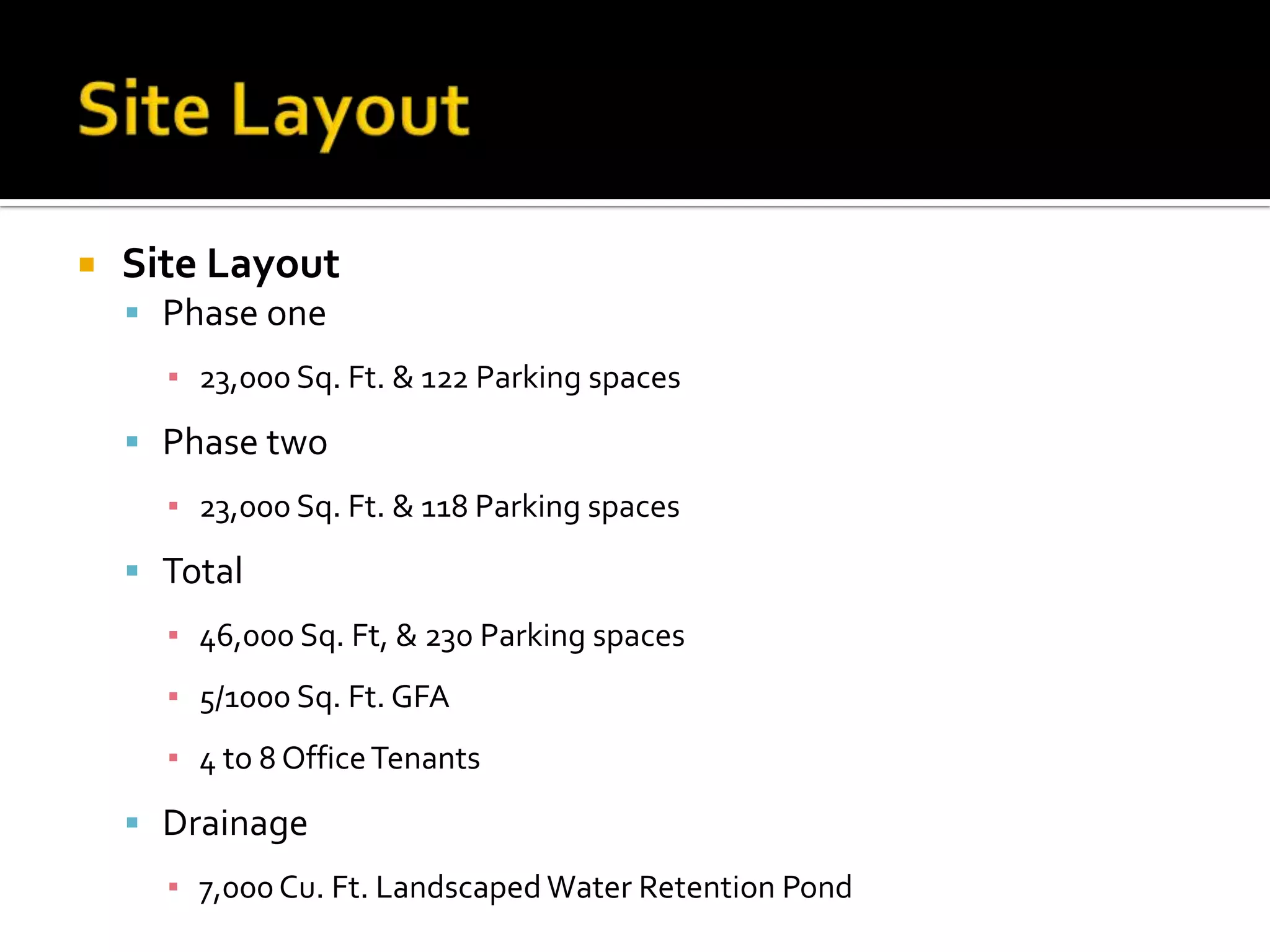

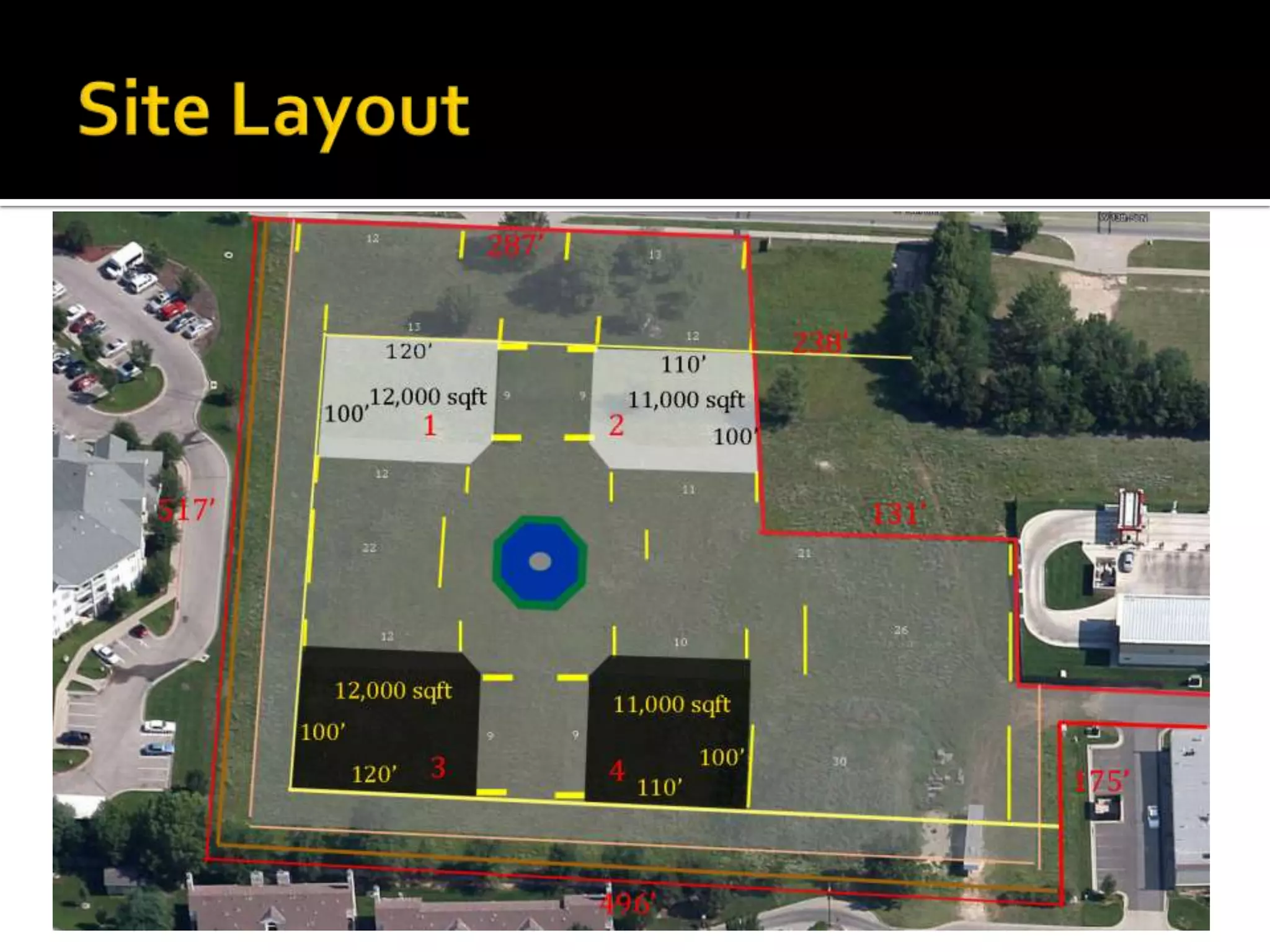

11.  Site Layout
 Phase one
▪ 23,000 Sq. Ft. & 122 Parking spaces
 Phase two
▪ 23,000 Sq. Ft. & 118 Parking spaces
 Total
▪ 46,000 Sq. Ft, & 230 Parking spaces
▪ 5/1000 Sq. Ft. GFA
▪ 4 to 8 OfficeTenants
 Drainage
▪ 7,000Cu. Ft. Landscaped Water Retention Pond

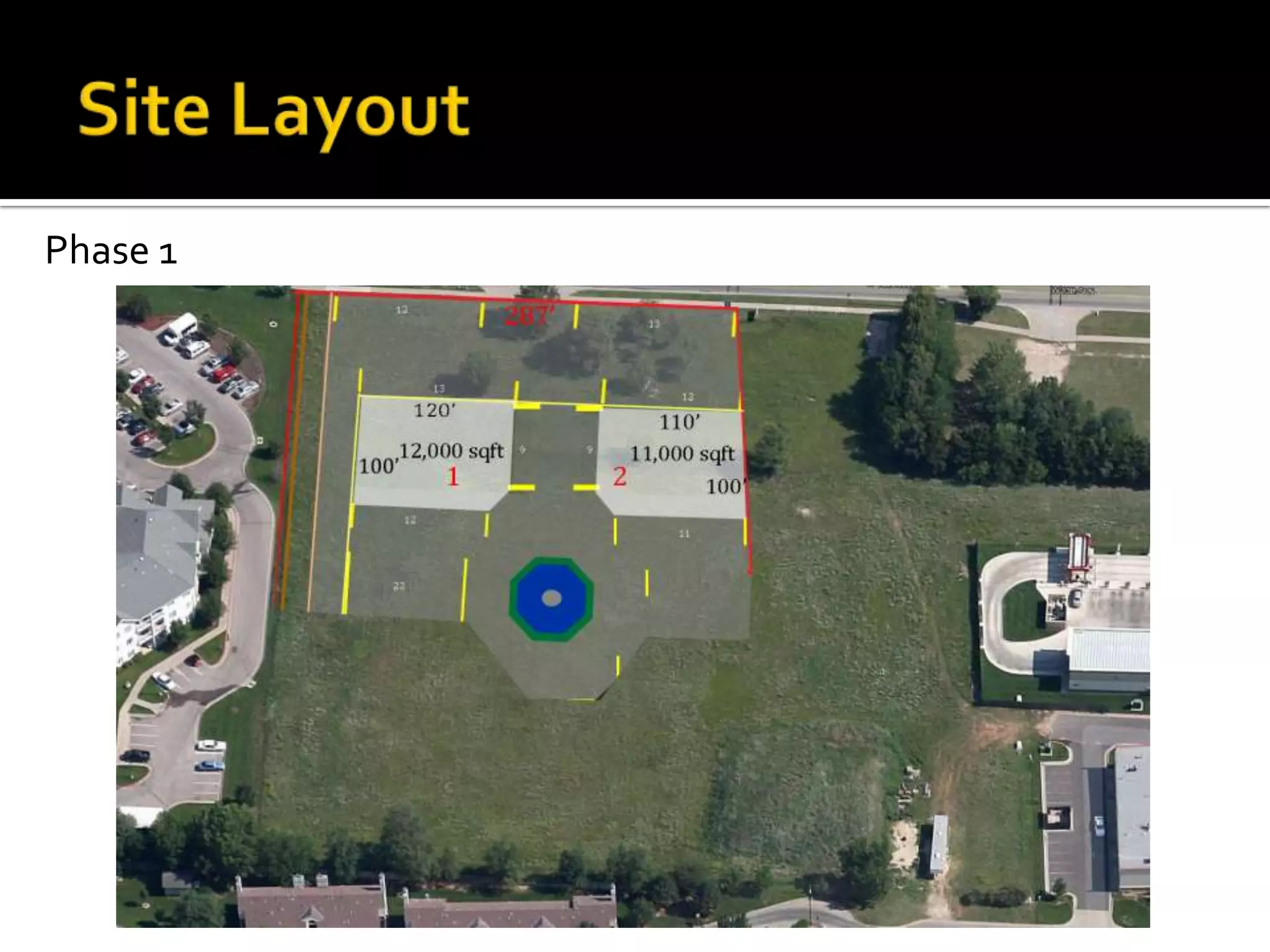

13. Phase 1

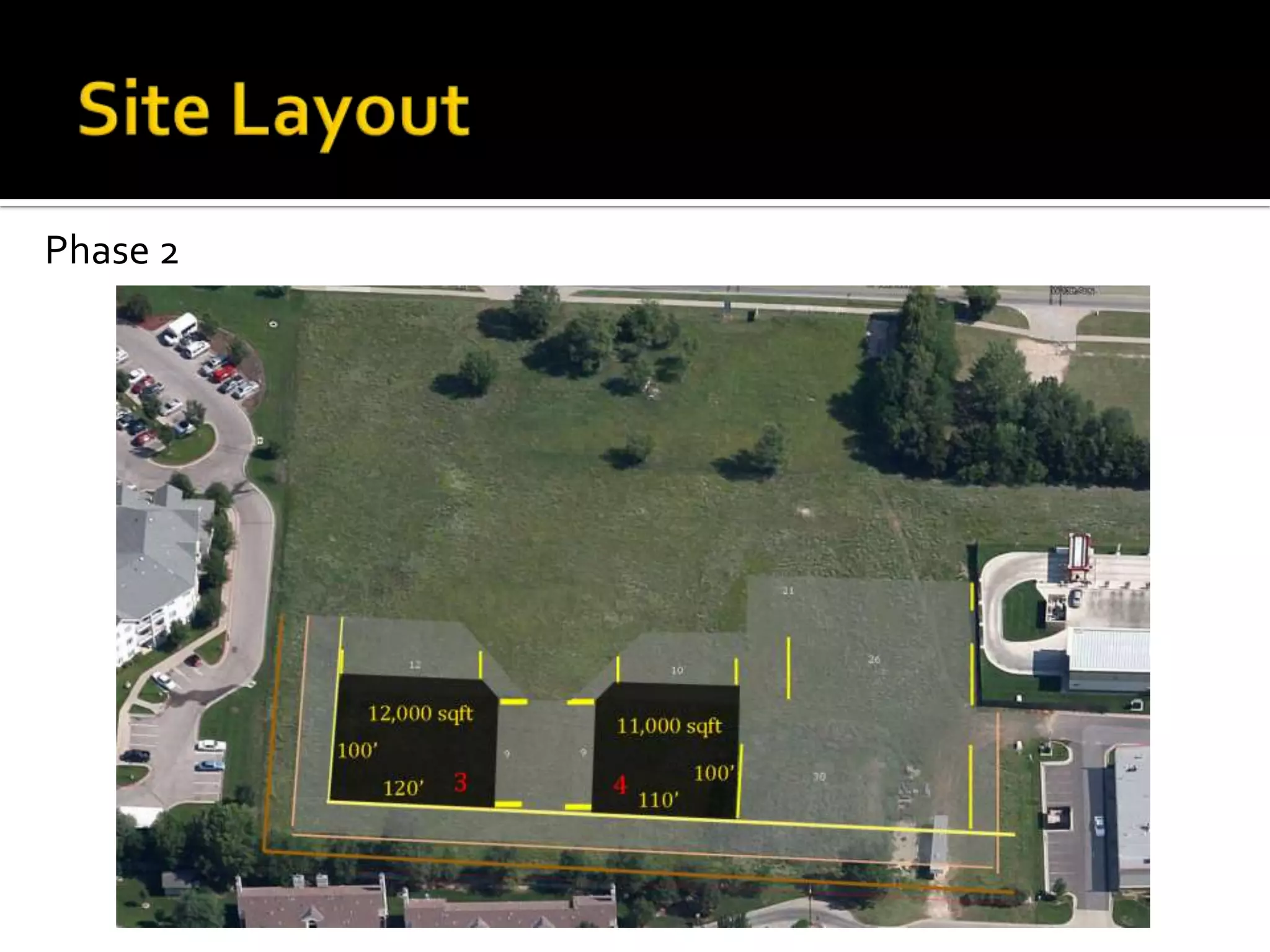

14. Phase 2

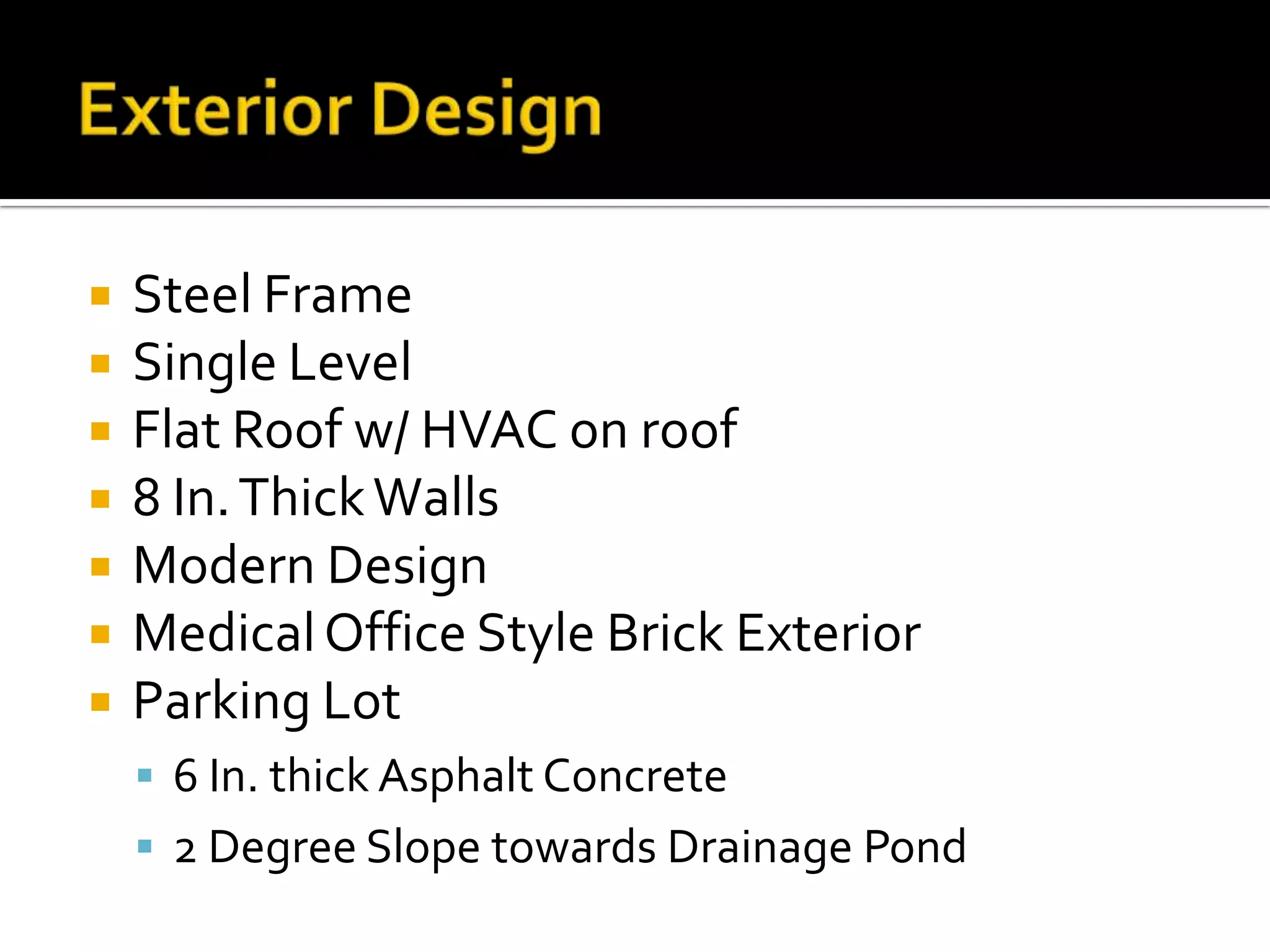

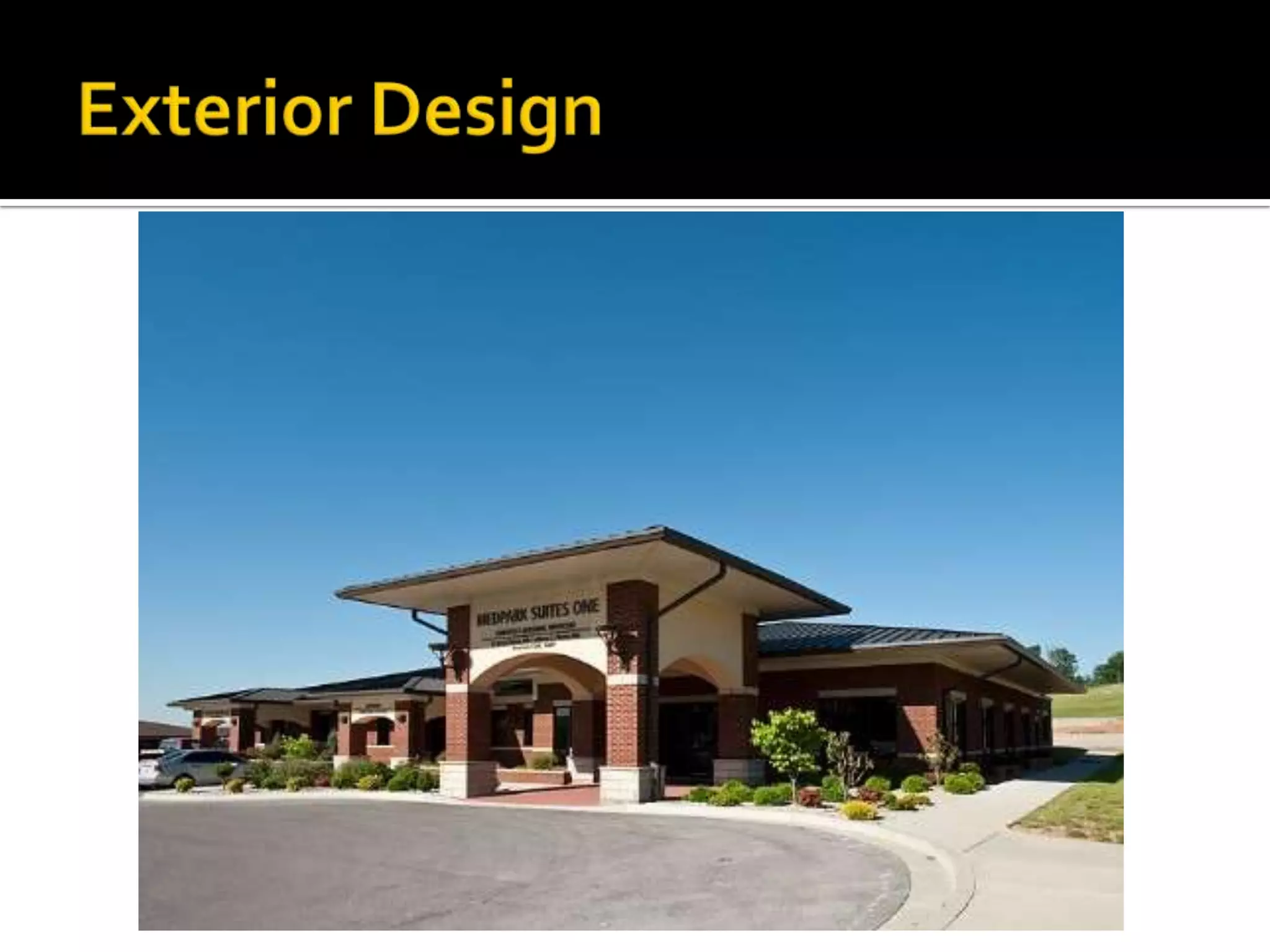

15.  Steel Frame
 Single Level
 Flat Roof w/ HVAC on roof
 8 In.ThickWalls
 Modern Design
 MedicalOffice Style Brick Exterior
 Parking Lot
 6 In. thick Asphalt Concrete
 2 Degree Slope towards Drainage Pond

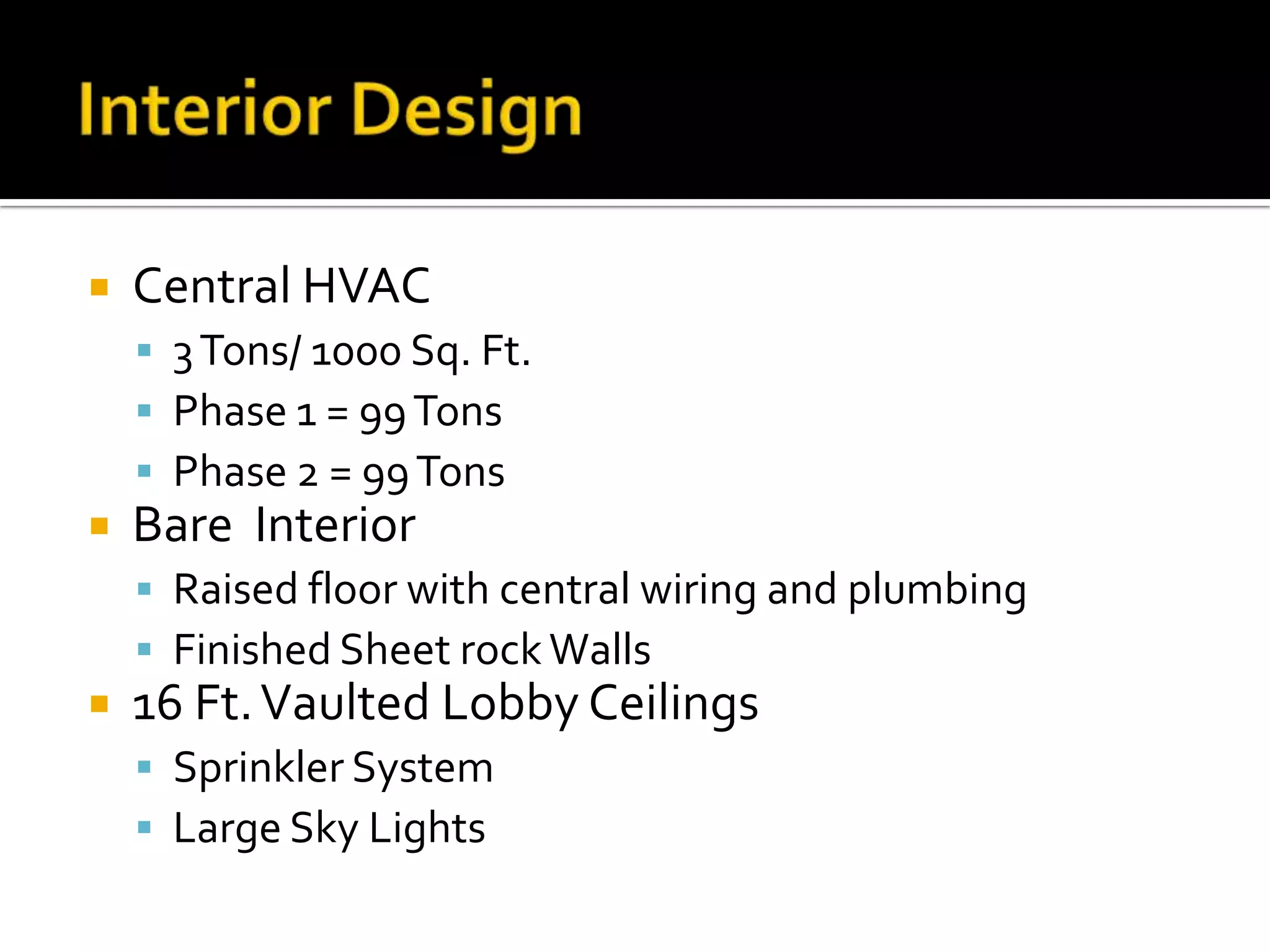

18.  Central HVAC
 3Tons/ 1000 Sq. Ft.
 Phase 1 = 99Tons
 Phase 2 = 99Tons

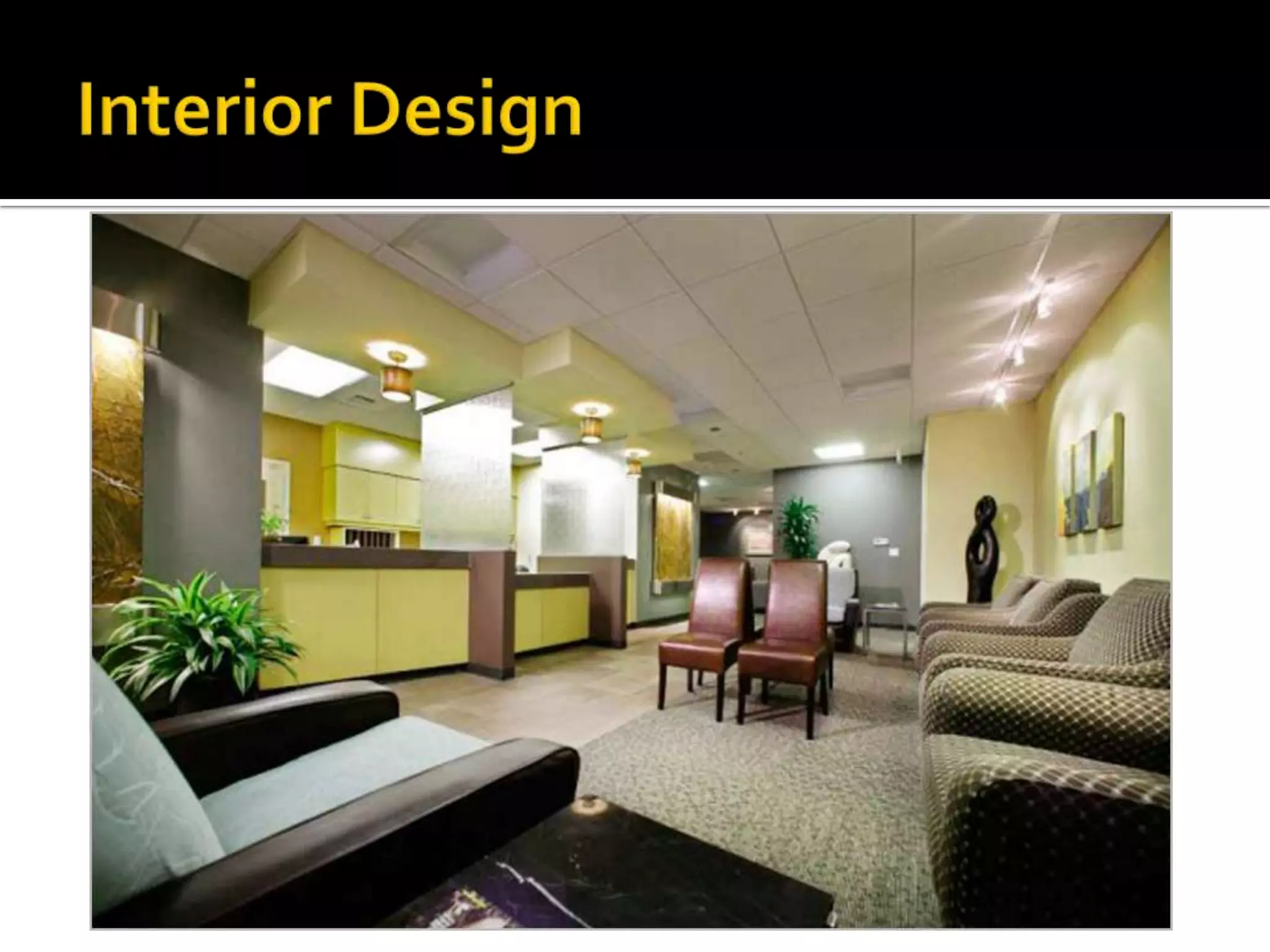

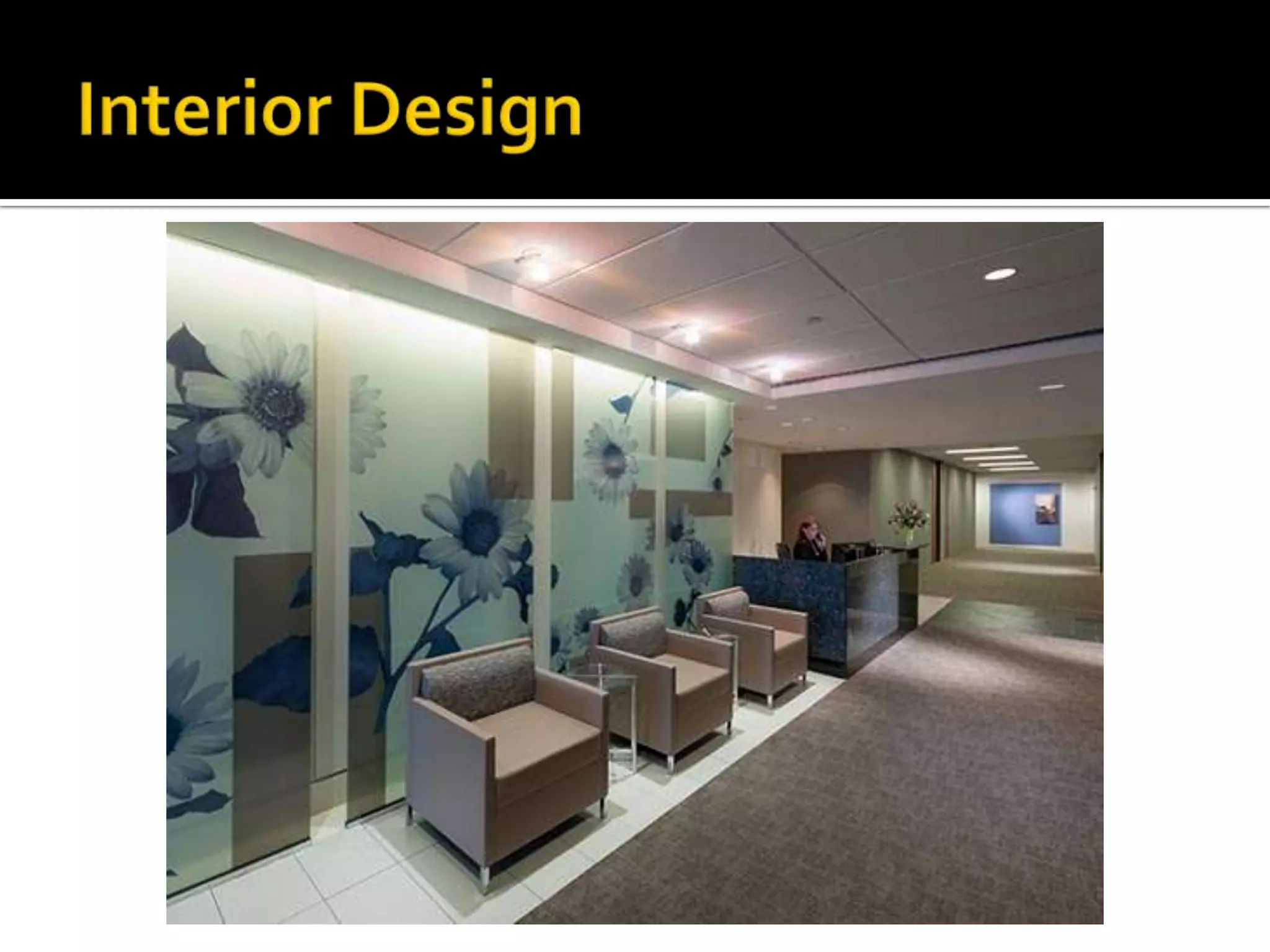

 Bare Interior
 Raised floor with central wiring and plumbing
 Finished Sheet rockWalls
 16 Ft.Vaulted Lobby Ceilings
 Sprinkler System
 Large Sky Lights

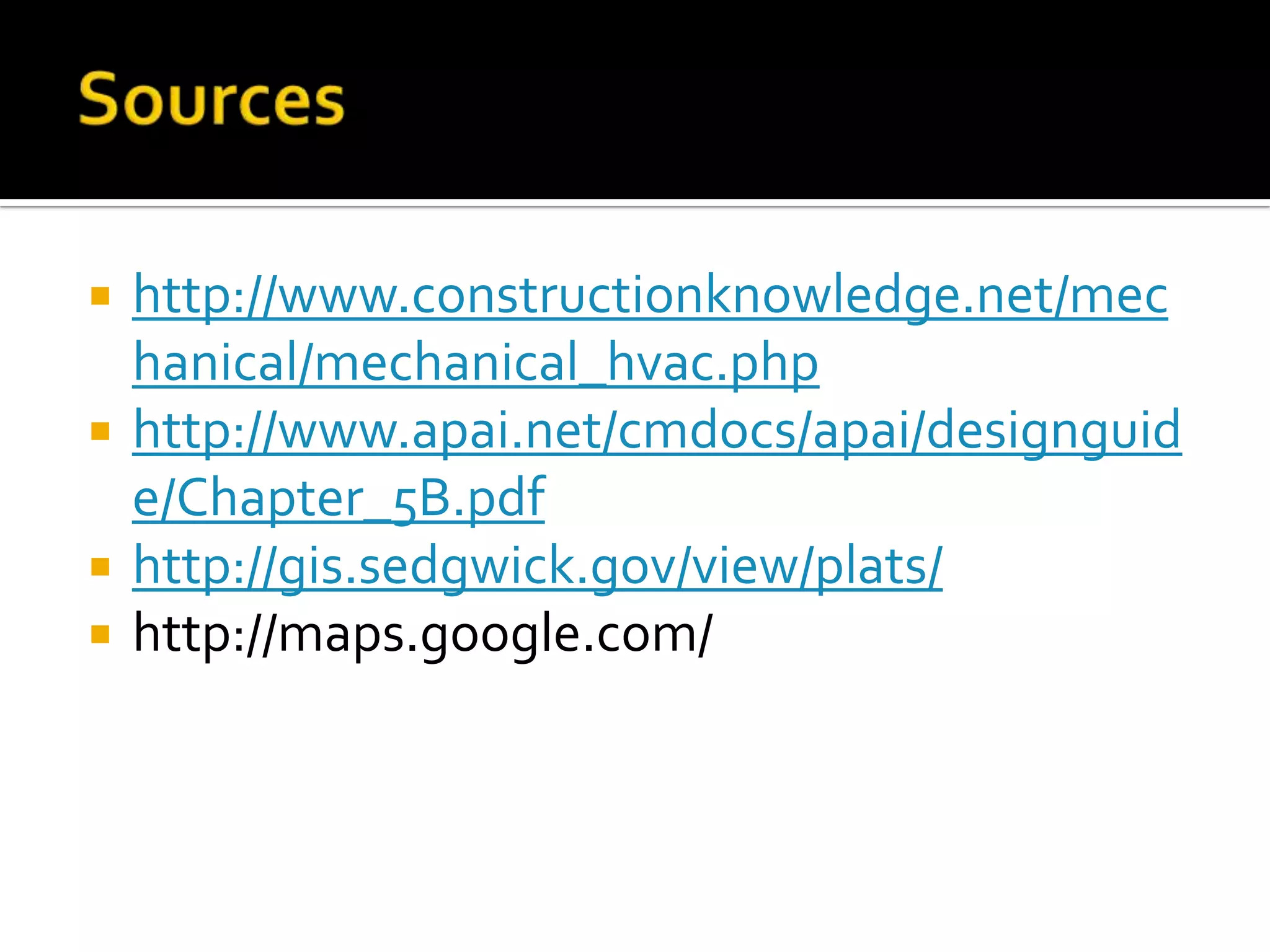

21.  http://www.constructionknowledge.net/mec
