Understanding SIP Architecture
1. SIP Architecture
Raghunath M D
Sub Divisional Engineer (EB)
BSNL Ernakulam
Ph: +91-9446076060
E-mail: mdraghunath@bsnl.co.in

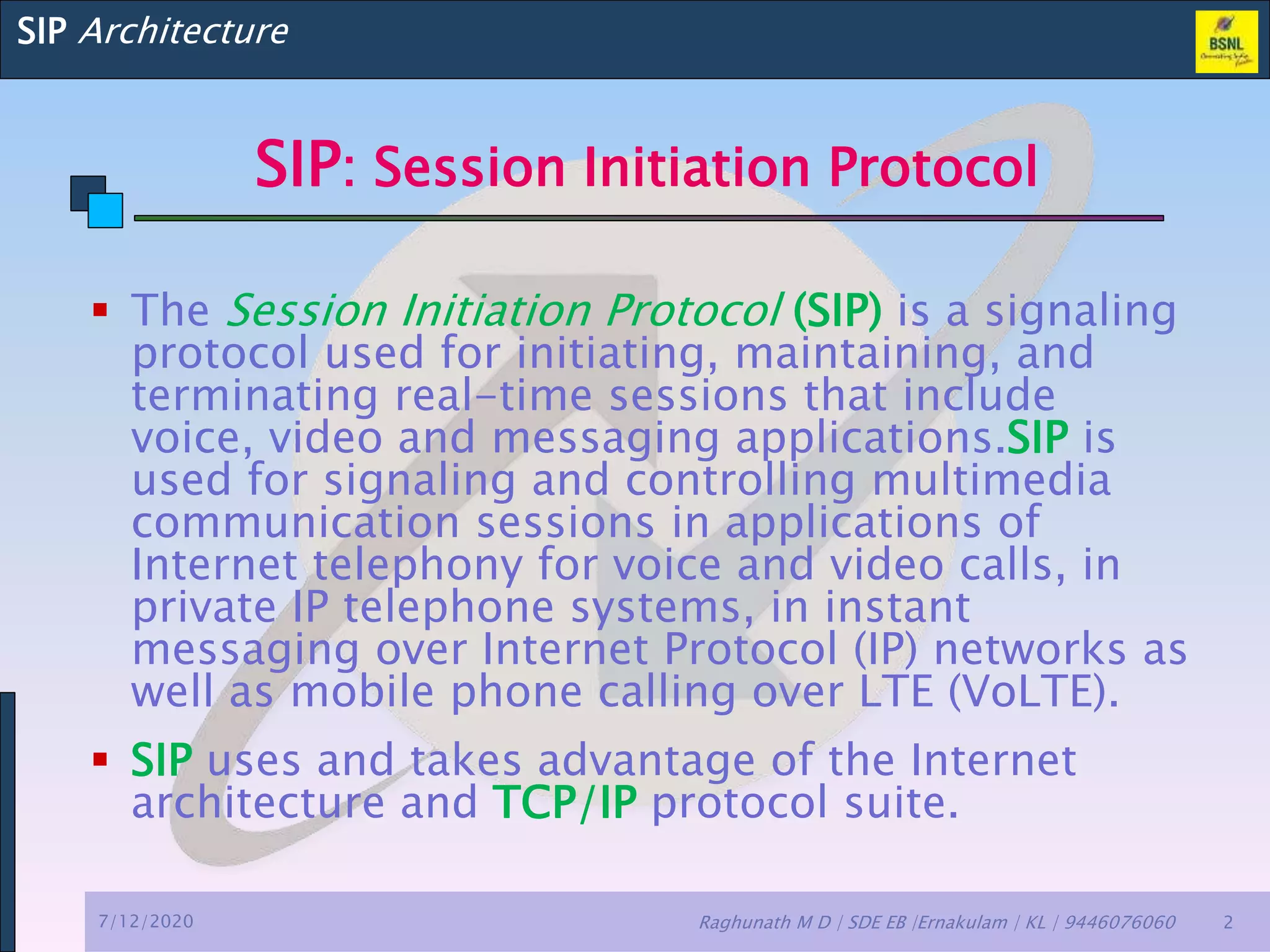

2. SIP Architecture
The Session Initiation Protocol (SIP) is a signaling
protocol used for initiating, maintaining, and
terminating real-time sessions that include
voice, video and messaging applications.SIP is
used for signaling and controlling multimedia
communication sessions in applications of
Internet telephony for voice and video calls, in
private IP telephone systems, in instant
messaging over Internet Protocol (IP) networks as
well as mobile phone calling over LTE (VoLTE).
SIP uses and takes advantage of the Internet
architecture and TCP/IP protocol suite.
2
SIP: Session Initiation Protocol
7/12/2020 Raghunath M D | SDE EB |Ernakulam | KL | 9446076060
3. SIP Architecture
Is SIP a different way of doing what we have
always done with traditional Telephony ?
No….
SIP can offer far more
3
Why SIP ?
7/12/2020 Raghunath M D | SDE EB | 9446076060
4. SIP Architecture
Worldwide, carriers and TSPs have switched to
SIP in their core network, keeping SS7 and legacy
POTS over last mile and SIP for switching across
core network
4
Why SIP ?
7/12/2020 Raghunath M D | SDE EB | 9446076060
SIP
SIP
SIP
SIP
SS7 SS7
5. SIP Architecture
Till 1990s TSPs where depending on Telecom
Equipment Vendors for deploying their network
They were very expensive and proprietary
solutions
TSPs became locked-in with a particular Vendor
New features needed time consuming and
expensive R&D by Vendor and once finished
development, It should’ve been physically
installed/distributed all over the TSP network
5
Why SIP ?
7/12/2020 Raghunath M D | SDE EB | 9446076060
6. SIP Architecture
Enhancements and new services/features where
happening too slowly.
They were much costly too
Eg. The “Call Waiting” took more than one year to
develop and deploy by most of the vendors
TAPI (Telephony Application Programming
Interface) also was very expensive
6
Why SIP ?
7/12/2020 Raghunath M D | SDE EB | 9446076060
7. SIP Architecture
SIP was originally designed by Mark Handley,
Henning Schulzrinne, Eve Schooler and
Jonathan Rosenberg in 1996 in Columbia
University, USA
The protocol was standardized as RFC 2543 in
1999. In November 2000, SIP was accepted as a
3GPP signaling protocol and permanent element
of the IP Multimedia Subsystem (IMS) architecture
for IP-based streaming multimedia services in
cellular networks.
In June 2002 the specification was revised in RFC
3261
7
SIP: History
7/12/2020 Raghunath M D | SDE EB | 9446076060
8. SIP Architecture
SIP was originally designed to provide a signaling
and call setup protocol for IP-based
communications supporting the call processing
functions and features present in the public
switched telephone network (PSTN) with a vision
of supporting new multimedia applications
It has been extended for video conferencing,
streaming media distribution, instant messaging,
presence information, file transfer, Internet fax
and online games
8
SIP: History
7/12/2020 Raghunath M D | SDE EB | 9446076060
9. SIP Architecture
SIP is distinguished by its proponents for having
roots in the Internet community rather than in
the telecommunications industry
SIP has been standardised primarily by the IETF,
while other protocols, such as H.323, have
traditionally been associated with the
International Telecommunication Union (ITU)
9
SIP: History
7/12/2020 Raghunath M D | SDE EB | 9446076060
10. SIP Architecture
SIP is fully implemented in Software
SIP works on Generic Servers rather than on
Proprietary, Vendor supplied Telecom Equipment
Hardware
Easy to upgrade and implement new features
No need to design new hardware and
manufacture
Just modify the code and download to the Server
It works !
10
SIP: General Features
7/12/2020 Raghunath M D | SDE EB | 9446076060
11. SIP Architecture
SIP is an ‘Open Protocol’
Feely available to everyone
SIP is very simple, easy to understand and exploit
Anyone having interest and ability to build
software applications can use it to create
compatible and interoperable communication
products and services
11
SIP: General Features
7/12/2020 Raghunath M D | SDE EB | 9446076060
12. SIP Architecture
SIP is highly Flexible and Extensible
Hundreds of extensions have been added to SIP
during the last years
All SIP Extensions are also feely available
SIP is easy to integrate with Desktop applications
and Web Interfaces
12
SIP: General Features
7/12/2020 Raghunath M D | SDE EB | 9446076060
13. SIP Architecture
SIP Works along with other Protocols
TCP
UDP
TLS
SDP
RTP
RSVP
LDAP
13
SIP: General Features
7/12/2020 Raghunath M D | SDE EB | 9446076060
14. SIP Architecture
SIP is independent of the underlying media
SIP doesn’t have dependency on any particular
Codec
New Codecs can be added
14
SIP: General Features
7/12/2020 Raghunath M D | SDE EB | 9446076060
15. SIP Architecture
SIP is…
Cost Effective
Simple
Open
Accessible
Extensible
Hence SIP is very Flexible
15
SIP: General Features
7/12/2020 Raghunath M D | SDE EB | 9446076060
16. SIP Architecture
SIP address also called a SIP URI (Uniform
Resource Identifier) is written in user@domain.
The format in a similar fashion to an email
address
Eg. sip:alice@work.com, sip:bob@elsewhere.com
sips: is also used in Secure (TLS) SIP
Communication
Using ENUM (IETF standard, RFC 2916)
telephone numbers in E.164 format can be
translated to SIP URI
16
SIP: Addressing
7/12/2020 Raghunath M D | SDE EB | 9446076060
18. SIP Architecture
1. SIP User Agents
SIP User Agents are endpoint clients users use to
communicate each other.
A SIP User Agent can be an application on a PC, an App
on a mobile phone, a SIP Phone, an IP PBX..etc
Functions of User Agents are
Manage Signaling
Capture ,encode and send media
Receive, decode and deliver the media
If there are two SIP User Agents connected to same
network and their IP addresses are known to each
other, they can communicate with SIP Protocol
18
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
19. SIP Architecture
SIP Registrar Service, SIP Location Service, SIP
Registry
In practical scenario, the IP addresses of users may not
be known to each other.
SIP Location service is used to find out the IP address
of User Agent
To accomplish this all User Agents must update their IP
addresses to SIP Registrar Service.
SIP Registrar Service will store this information in SIP
Registry Database
19
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
20. SIP Architecture
2. SIP Proxy Server
SIP Proxy Server is the Network Element which provides
the SIP Registrar Service, SIP Location Service
Additionally SIP Proxy Server is responsible for
receiving and forwarding SIP Messages between SIP
User Agents
20
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
21. SIP Architecture
3. SIP Feature Servers
SIP can support all features available in PSTN
Eg. Call Waiting, Call Hold, Call Divert, Voice Mail..Etc
All of these features are implemented in separate
Servers which are called SIP Feature Sever and can
seamlessly work along with SIP Proxy Server
21
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
22. SIP Architecture
4. SIP Media Server
It is another SIP Endpoint User Agent
It can record inbound media
It can play recorded outbound media
It can collect DTMF input for IVRS Applications
It can act as a Media Bridge by mixing Audio/Video
streams from multiple User Agents for Audio/Video
conferencing
22
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
23. SIP Architecture
5. DNS Server
DNS is required when the Called Part and Calling Party
are in different domains
The SIP Proxy Server queries the DNS Server to get the
IP address of Called Party’s Domain
23
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
24. SIP Architecture
6. SIP Redirect Server
SIP Redirect Service is for forwarding SIP Calls when the
user has moved to another domain
24
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
25. SIP Architecture
7. SBC Session Boarder Controller
SBC act as a Gatekeeper or Firewall to protect the SIP
Domain from malicious use and intruders from outside
It controls incoming and outgoing traffic
Changes sensitive message contents like internal
addresses like what is done in NATing
25
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
26. SIP Architecture
8. SIP Gateways to Communicate with non-SIP
Users
Signaling Gateway
To translate SS7 signaling to SIP Messages and back
Media Gateway
To transcode media streams between PSTN and SIP
26
SIP: Network Elements
7/12/2020 Raghunath M D | SDE EB | 9446076060
28. SIP Architecture
BSNL has deployed state-of-art IMS based Next Generation
Network System with eight cores at Bengaluru, Hyderabad,
Pune,Ahmedabad, Chandigarh, Lucknow, Kolkata and
Bhubaneshwar
Hence, for monetization and optimal utilization of NGN Core, SIP
Trunk service is offered by BSNL which supports Voice over IP
(VoIP) bundled with Data that can be seen as a substitute of ISDN
PRI and Analog Trunk
SIP Trunk is widely deployed by communications service
providers across the globe, and it is being sold as a replacement
for PRI
SIP Trunks are delivered over existing Ethernet(FTTH) or Multi
Protocol Label Switching (MPLS) network infrastructure, this
reduces the cost and management complexity associated with
legacy digital platforms, while also provisioning additional
features
28
BSNL SIP Trunk
7/12/2020 Raghunath M D | SDE EB | 9446076060
29. SIP Architecture
29
BSNL SIP Trunk Vs ISDN PRI
7/12/2020 Raghunath M D | SDE EB | 9446076060
PRI SIP
Distribution
PRI is sold per circuit, each circuit
consist of 30 channels
SIP is sold per channel, it can be offered in
multiples of 10 channels
Scalability
To increase the number of
channels, additional PRI Circuit
must be offered. Delivery of PRI
Circuit takes time.
To increase concurrent channels, additional
bandwidth and channels can be upgraded at
back end on the same link within few hours
without delivering any physical circuit.
Hardware
PRI requires each circuit to be
physically connected via cables and
termination hardware
SIP requires no additional hardware
Call Quality Good Superior
Cost Of
Delivery
High Low
Maintenance
Physical Maintenance is required,
which increases cost of
maintenance
Virtually, no physical maintenance is
required, low cost of maintenance. Can be
monitored and maintained from back end.
Data Service
For Data Service separate link is
required
Data Service can be delivered on the same
link delivered for Voice.
