This document discusses the foundations and future of connected cities. It focuses on areas like licensed and unlicensed wireless networks, and the building blocks needed for connectivity. The adoption of digital infrastructure is happening 5 times faster than electricity and telephony, with 50 billion "smart objects" predicted by 2020. Future trends discussed include cities taking a holistic approach to smart apps, new wireless technologies, battery life of over 10 years for devices, and using urban infrastructure like benches and trash bins as wireless access points. The document presents a vision of different constituents like transportation leveraging a common wireless platform managed through a city data lake and IoT platform.

1. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1
Cisco Confidential
WBA “Connected India”
The Foundations and Future of
Connected Cities
Ron Malenfant
Global SP IoE Architect
Cisco
rmalenfa@twitter.com

2. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2
Focus areas for discussion
• Licensed and Unlicensed – Friend or Foe
• Building Blocks

3. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

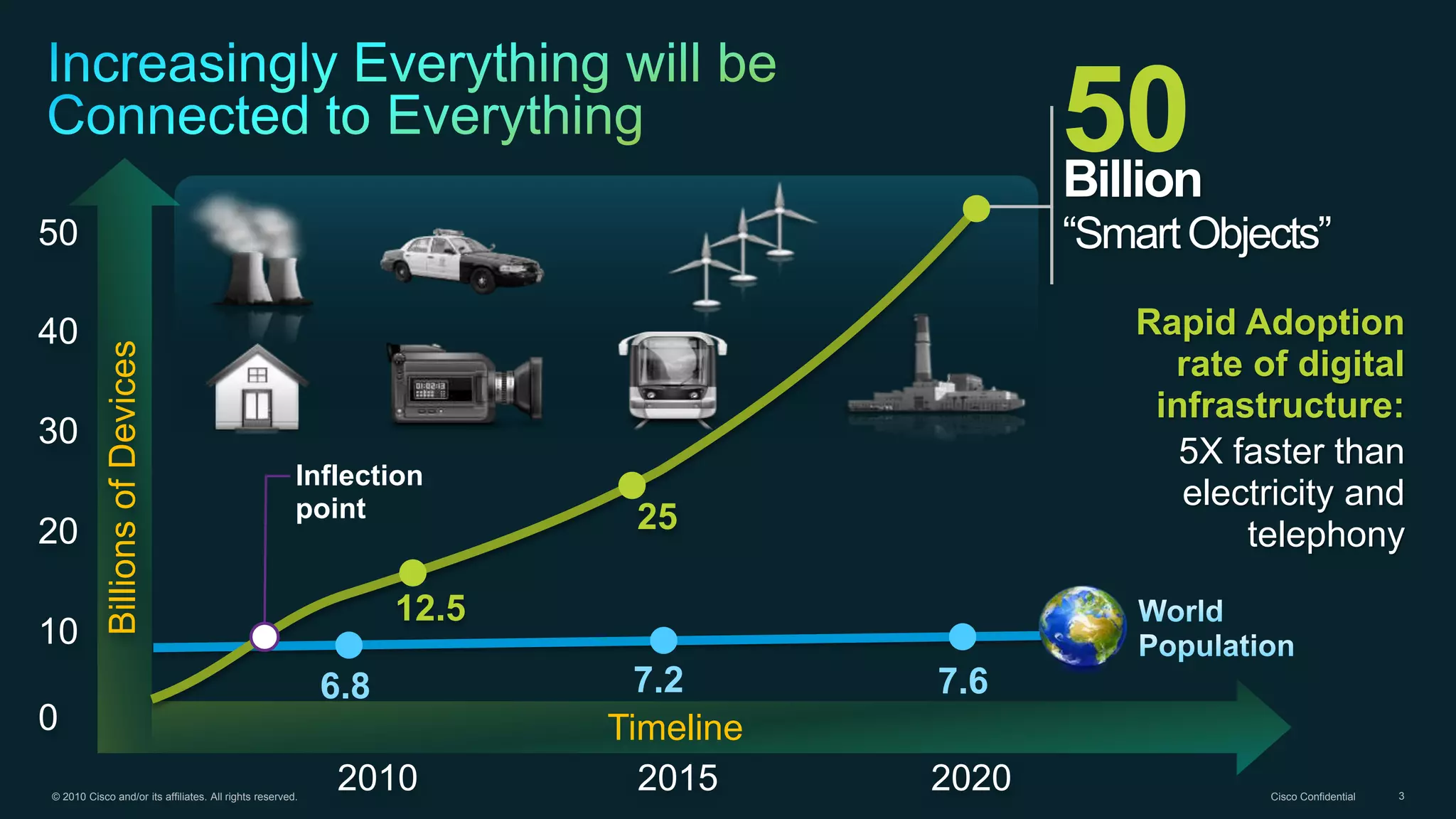

7.26.8 7.6
Rapid Adoption
rate of digital
infrastructure:
5X faster than
electricity and
telephony
50Billion
“SmartObjects”50
2010 2015 2020
0
40
30
20
10
BillionsofDevices
25
12.5
Inflection
point
Timeline

4. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

5. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

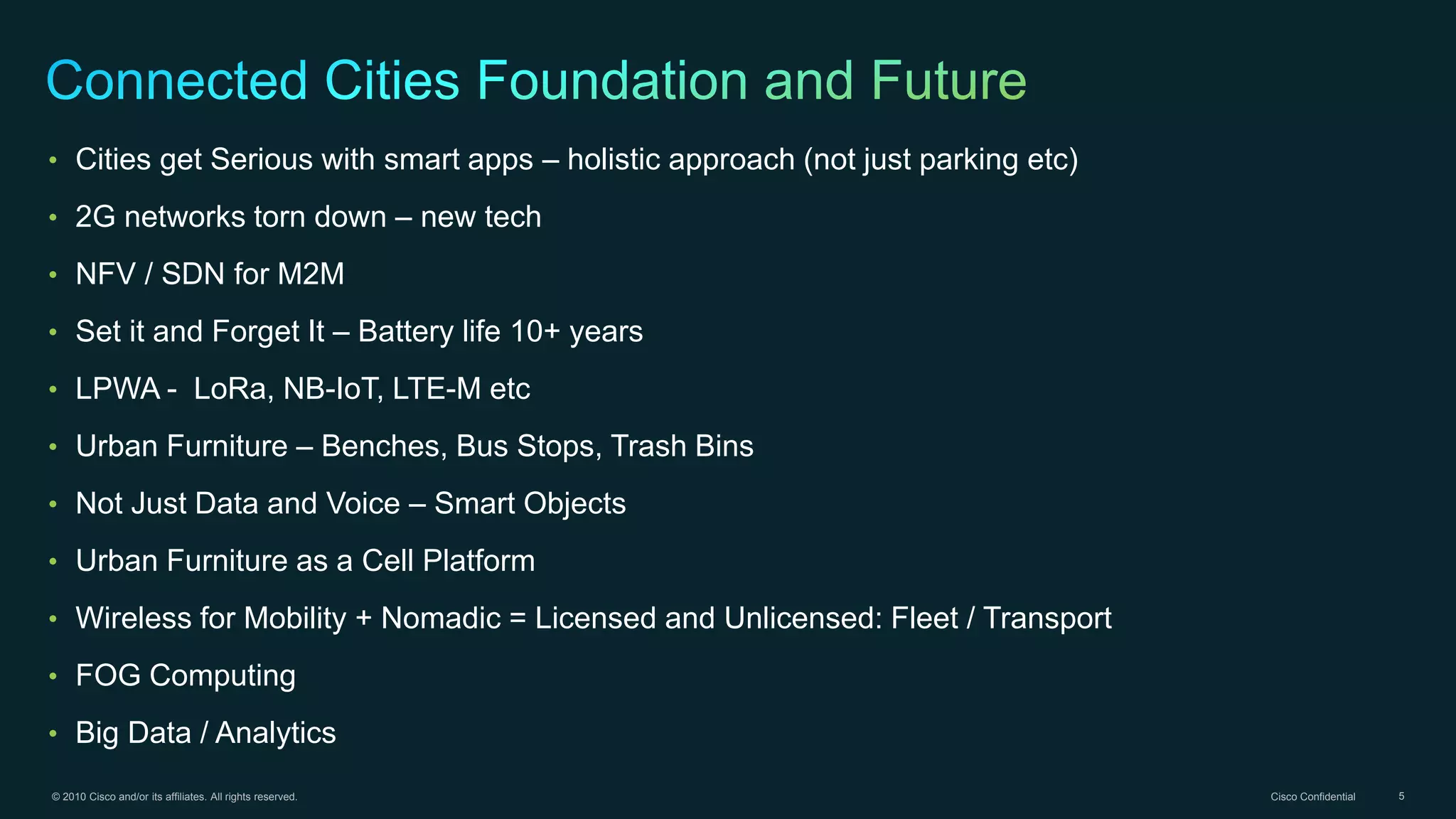

• Cities get Serious with smart apps – holistic approach (not just parking etc)
• 2G networks torn down – new tech
• NFV / SDN for M2M
• Set it and Forget It – Battery life 10+ years
• LPWA - LoRa, NB-IoT, LTE-M etc
• Urban Furniture – Benches, Bus Stops, Trash Bins
• Not Just Data and Voice – Smart Objects
• Urban Furniture as a Cell Platform
• Wireless for Mobility + Nomadic = Licensed and Unlicensed: Fleet / Transport
• FOG Computing
• Big Data / Analytics

6. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6
All constituents leverage common wireless platform for data and services
INFRASTRUCTURE
SERVICES
(Transportation, Utilities,
Public Safety, Environment)
FOUNDATIONAL Wi-Fi NETWORK
BUSINESS
SERVICES
(Local Commerce)
CITY
SERVICES
(City Information, Planning)
CITIZEN
SERVICES
(Access, Participation)

7. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

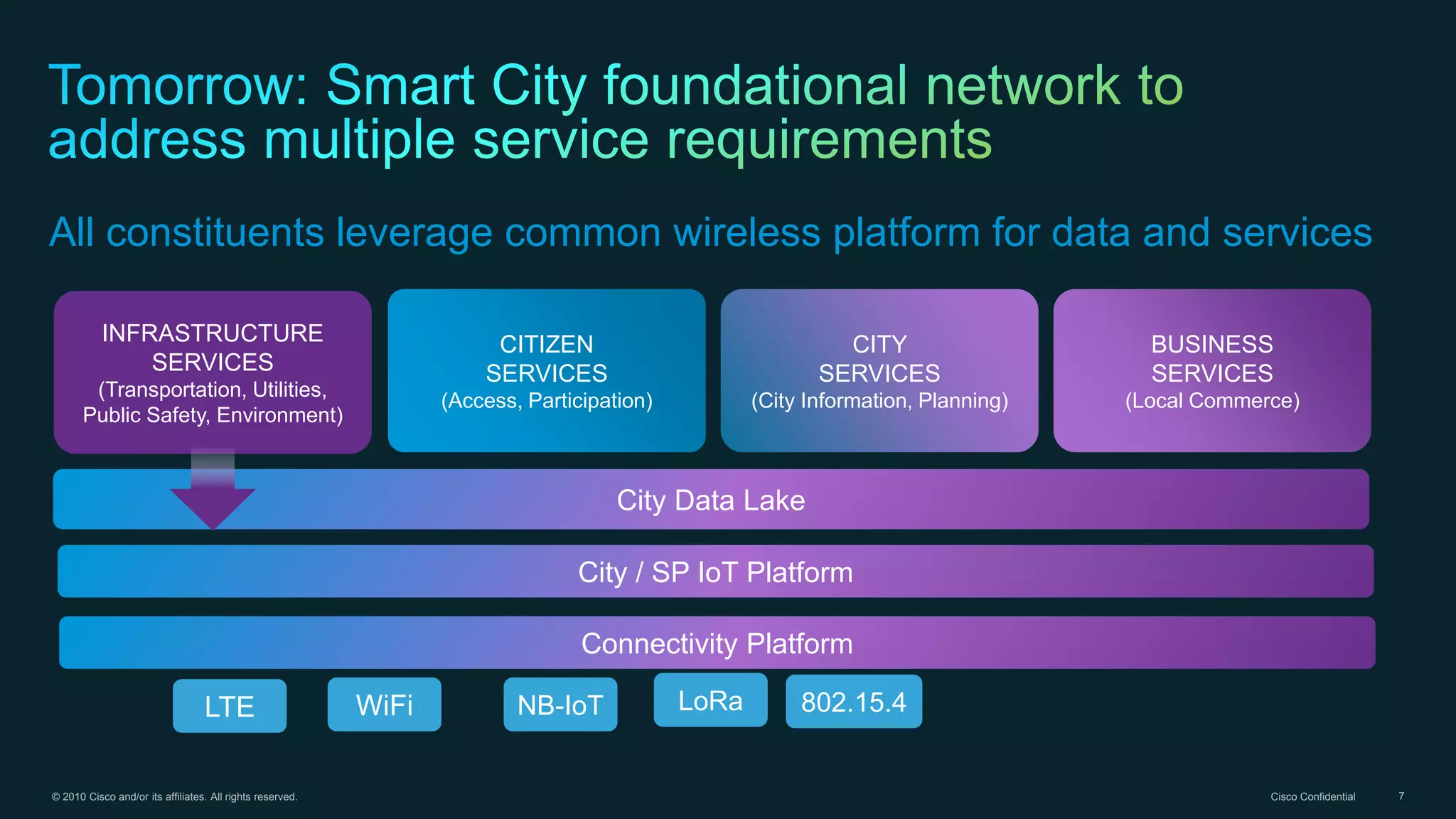

All constituents leverage common wireless platform for data and services
INFRASTRUCTURE
SERVICES
(Transportation, Utilities,
Public Safety, Environment)
City Data Lake
BUSINESS
SERVICES
(Local Commerce)
CITY
SERVICES
(City Information, Planning)
CITIZEN
SERVICES
(Access, Participation)
City / SP IoT Platform
Connectivity Platform
LTE WiFi NB-IoT LoRa 802.15.4

8. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8
Cities leveraging their
assets as platforms

9. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9
4 billion high-
wattage lights
globally

10. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10
A New Generation
of Lights That Are
SMART
Like Tiny
Computers.
With SENSORS.

11. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

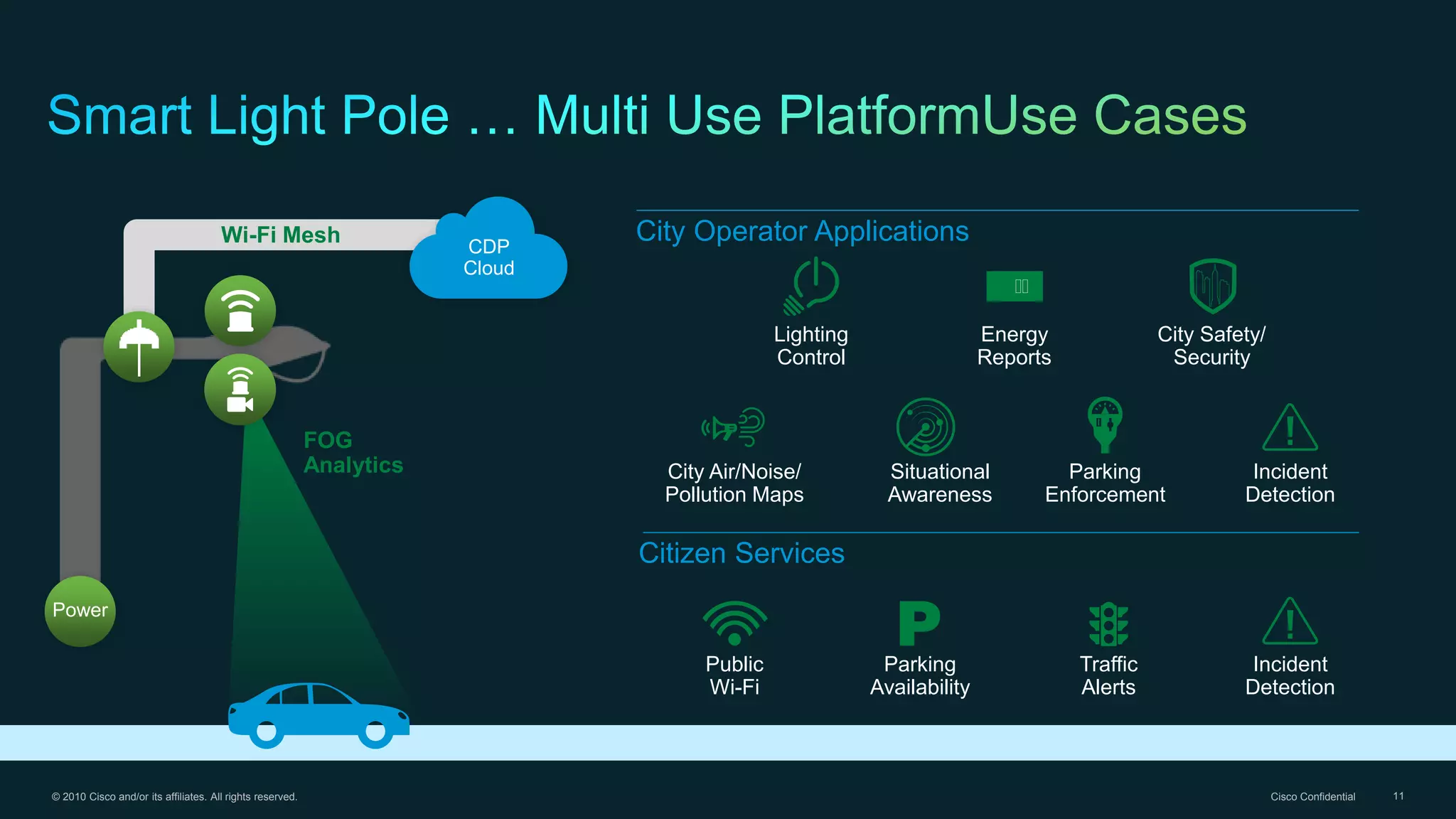

Power
Wi-Fi Mesh
FOG
Analytics
CDP
Cloud
City Operator Applications
Citizen Services
Lighting
Control
Energy
Reports
City Safety/
Security
Situational
Awareness
City Air/Noise/
Pollution Maps
Parking
Enforcement
Incident
Detection
Parking
Availability
Public
Wi-Fi
Traffic
Alerts
Incident
Detection

12. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12
Thank you.
