This document discusses different operations on linked lists such as insertion, deletion, and traversal. It begins with an introduction to linked lists explaining that each node contains a data field and pointer to the next node. It then covers implementing a basic node structure and various functions like creating a new node, adding a node to the beginning or end of the list, and deleting a node from the beginning, end, or a given position. Traversal and keeping track of previous nodes is important for operations like deletion from within the list. The document provides pseudocode to demonstrate common linked list operations.

1. Linked List
Amar Jukuntla, Assistant Professor,
Department of CSE, VFSTR University
1

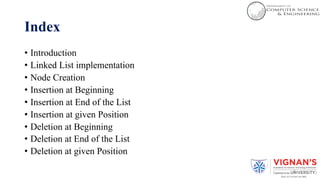

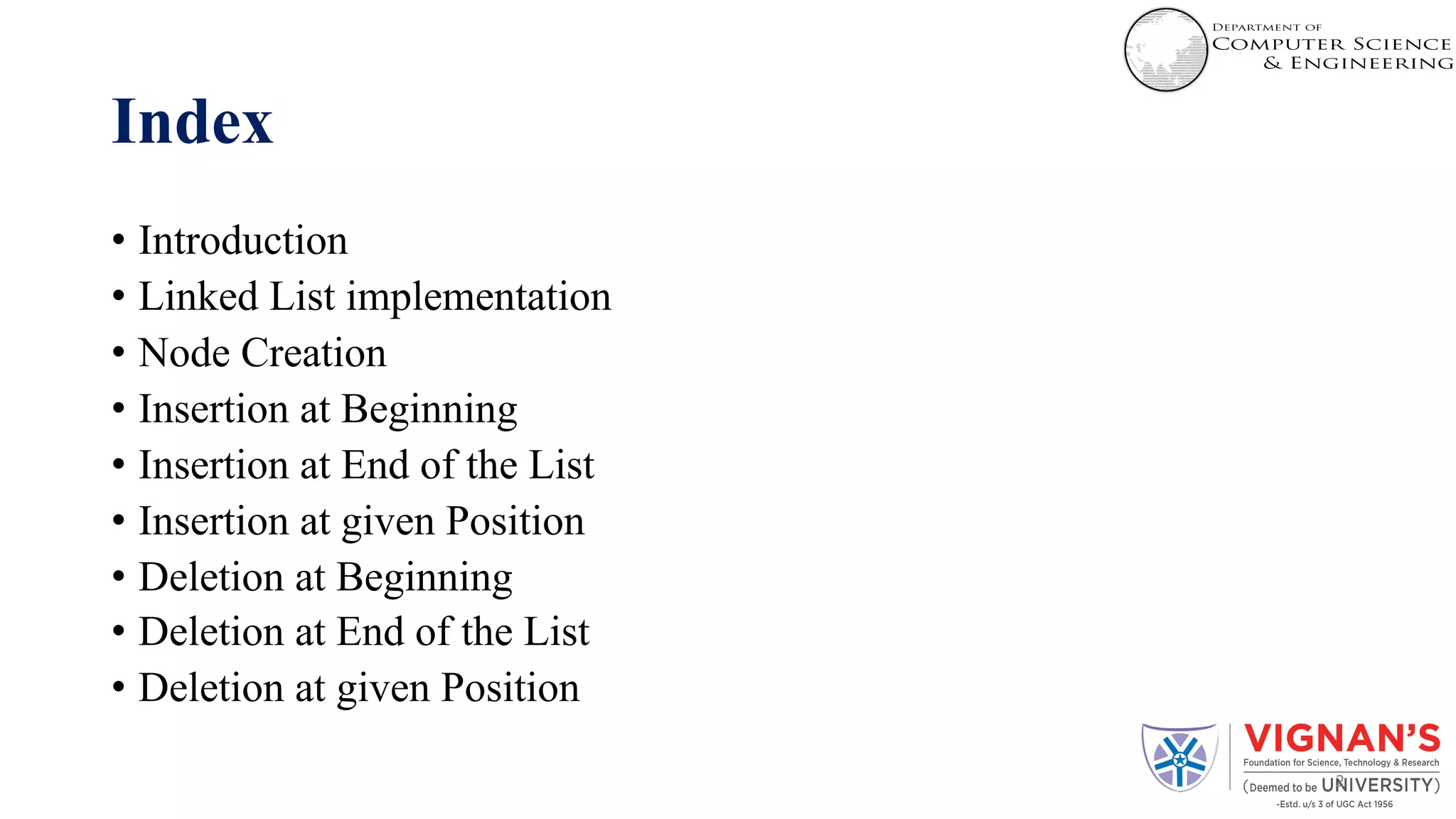

2. Index
• Introduction
• Linked List implementation
• Node Creation
• Insertion at Beginning
• Insertion at End of the List
• Insertion at given Position
• Deletion at Beginning
• Deletion at End of the List
• Deletion at given Position
2

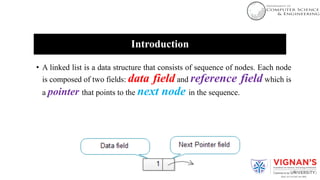

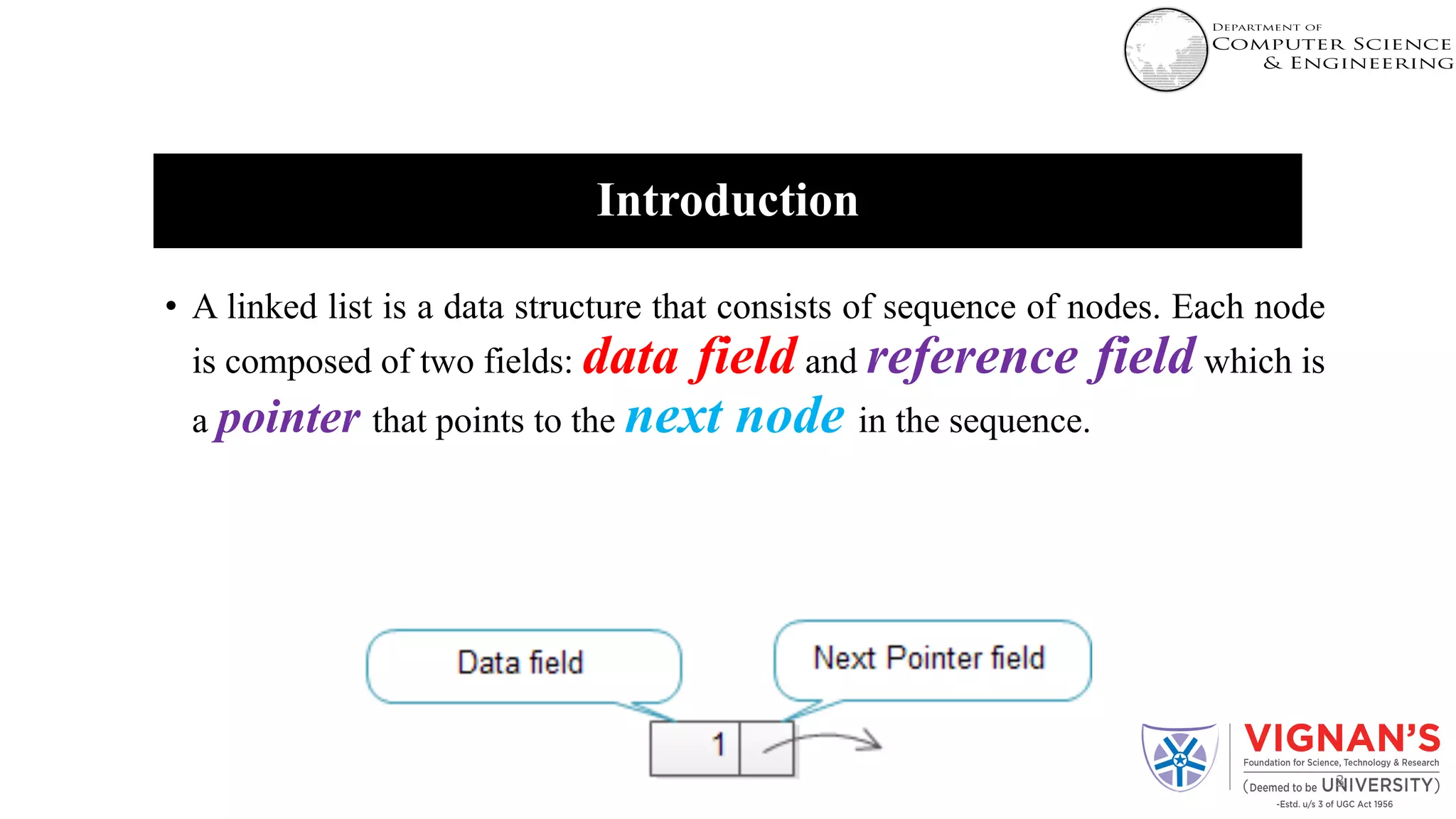

3. Introduction
• A linked list is a data structure that consists of sequence of nodes. Each node
is composed of two fields: data field and reference field which is
a pointer that points to the next node in the sequence.
3

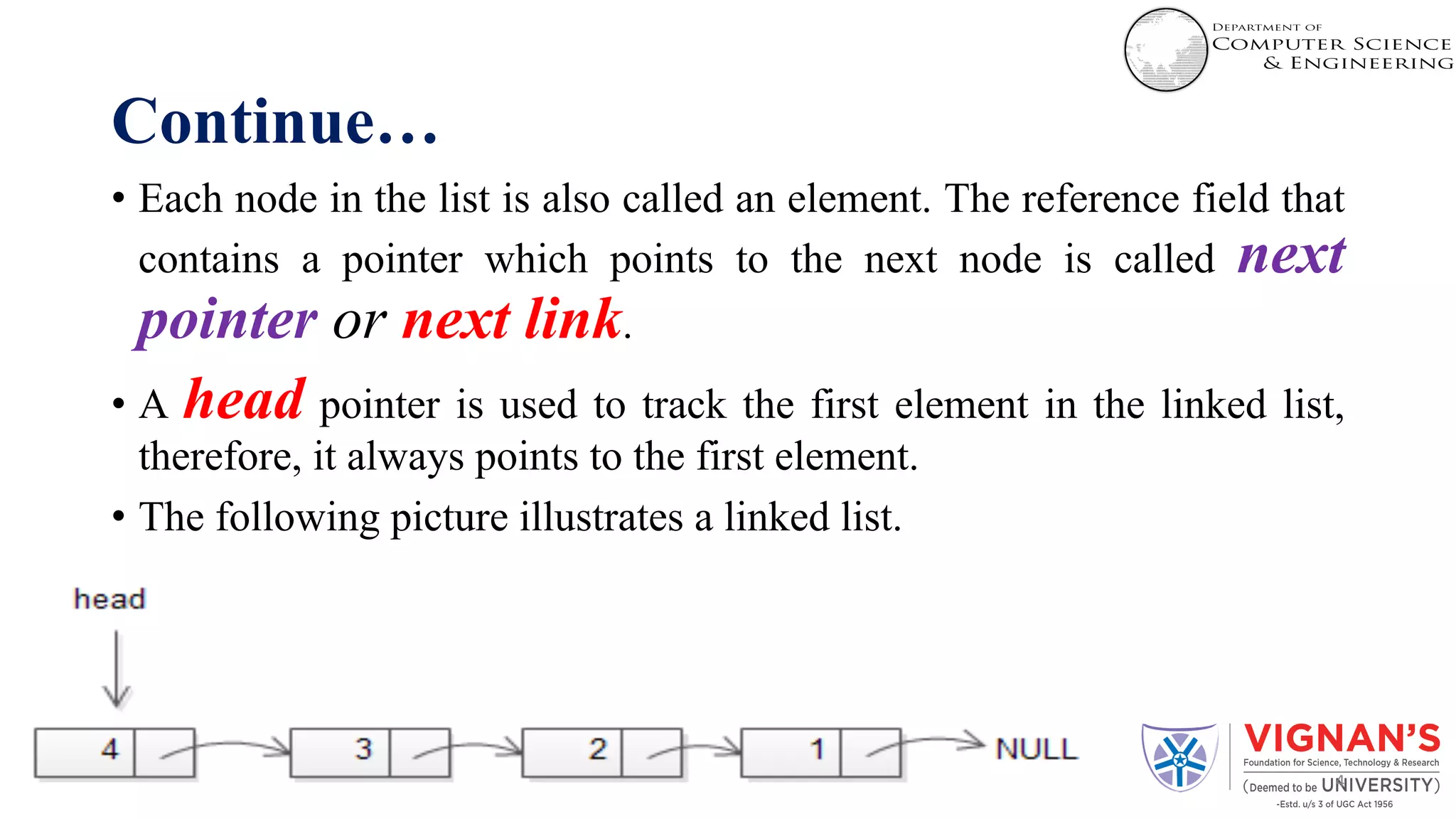

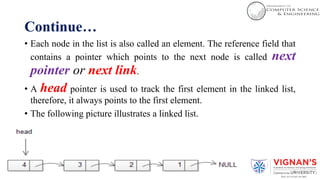

4. Continue…
• Each node in the list is also called an element. The reference field that
contains a pointer which points to the next node is called next
pointer or next link.
• A head pointer is used to track the first element in the linked list,
therefore, it always points to the first element.
• The following picture illustrates a linked list.
4

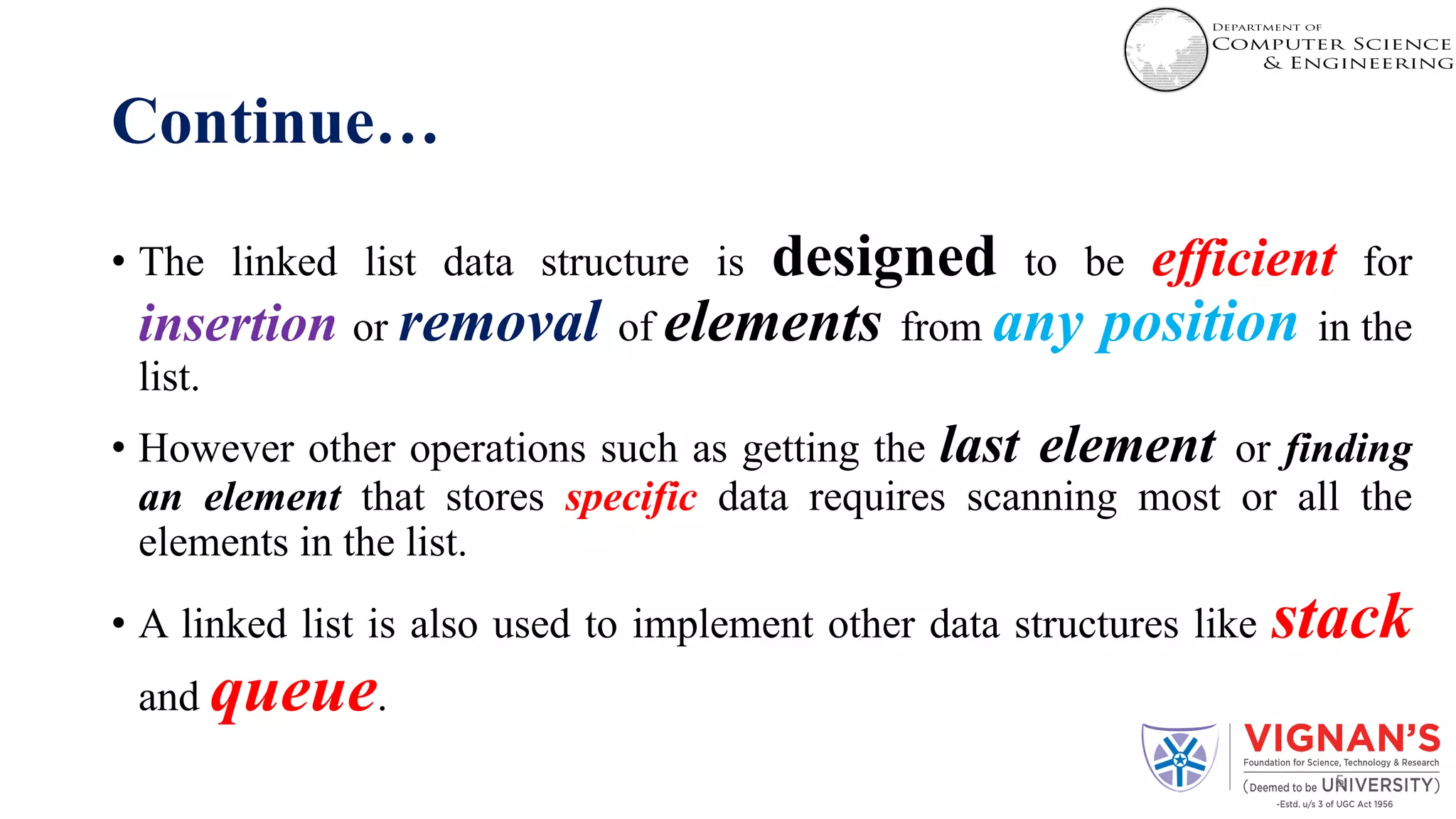

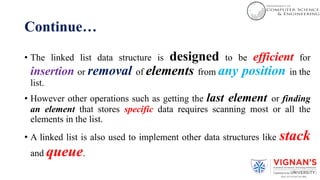

5. Continue…
• The linked list data structure is designed to be efficient for
insertion or removal of elements from any position in the
list.
• However other operations such as getting the last element or finding
an element that stores specific data requires scanning most or all the
elements in the list.
• A linked list is also used to implement other data structures like stack
and queue.
5

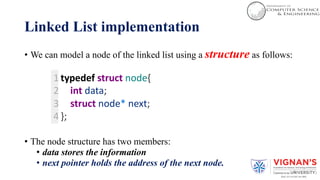

6. Linked List implementation
• We can model a node of the linked list using a structure as follows:
• The node structure has two members:
• data stores the information
• next pointer holds the address of the next node.
1
2
3
4
typedef struct node{
int data;
struct node* next;
};
6

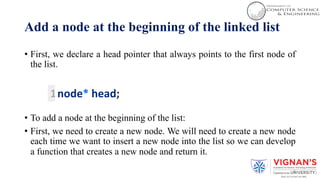

7. Add a node at the beginning of the linked list
• First, we declare a head pointer that always points to the first node of
the list.
• To add a node at the beginning of the list:
• First, we need to create a new node. We will need to create a new node
each time we want to insert a new node into the list so we can develop
a function that creates a new node and return it.
1node* head;
7

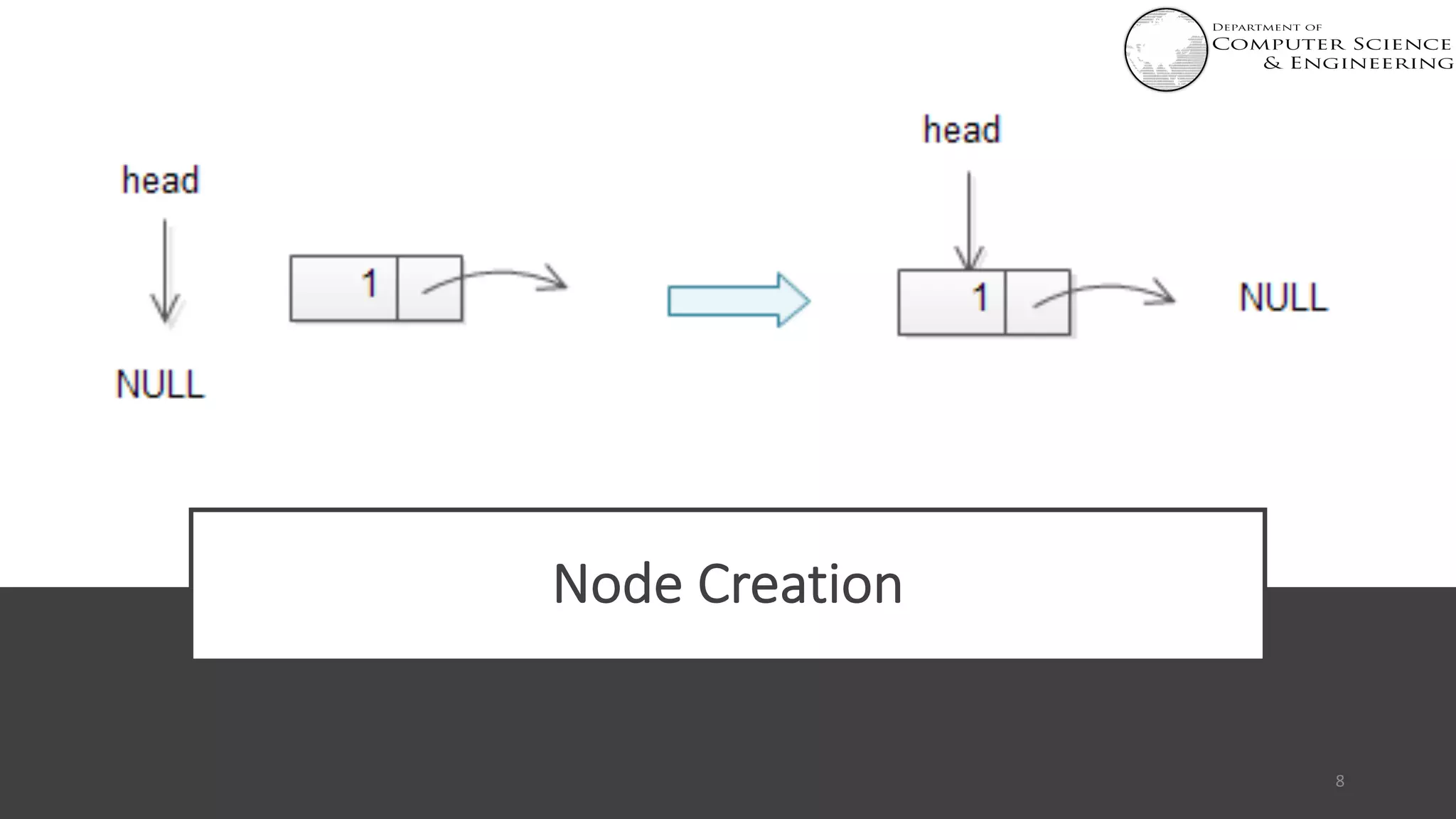

8. Node Creation
8

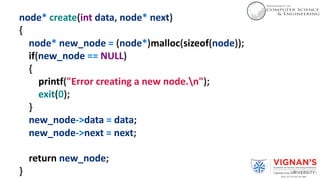

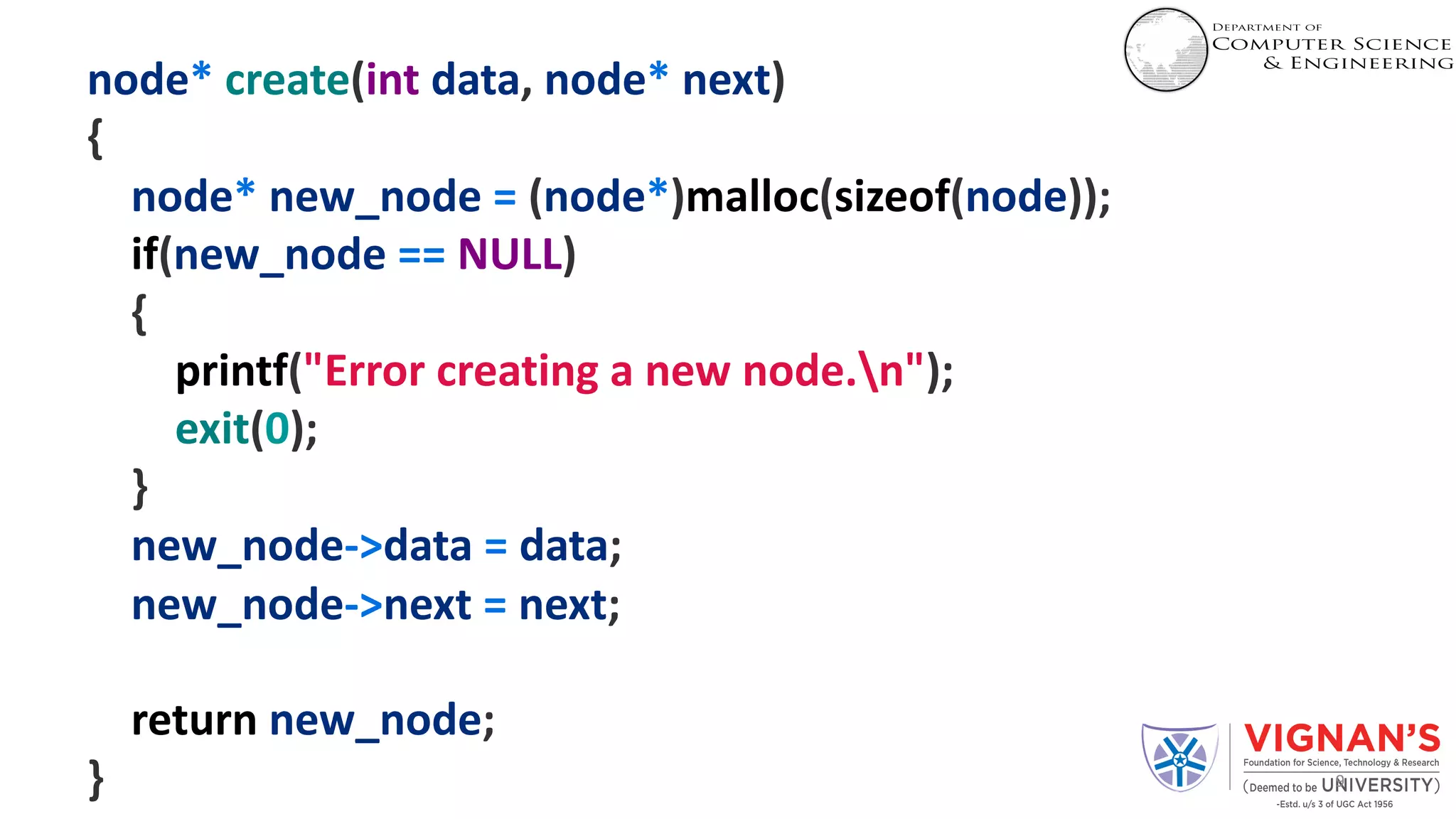

9. node* create(int data, node* next)
{
node* new_node = (node*)malloc(sizeof(node));
if(new_node == NULL)
{
printf("Error creating a new node.n");
exit(0);
}
new_node->data = data;
new_node->next = next;
return new_node;
} 9

10. Adding a node at beginning
10

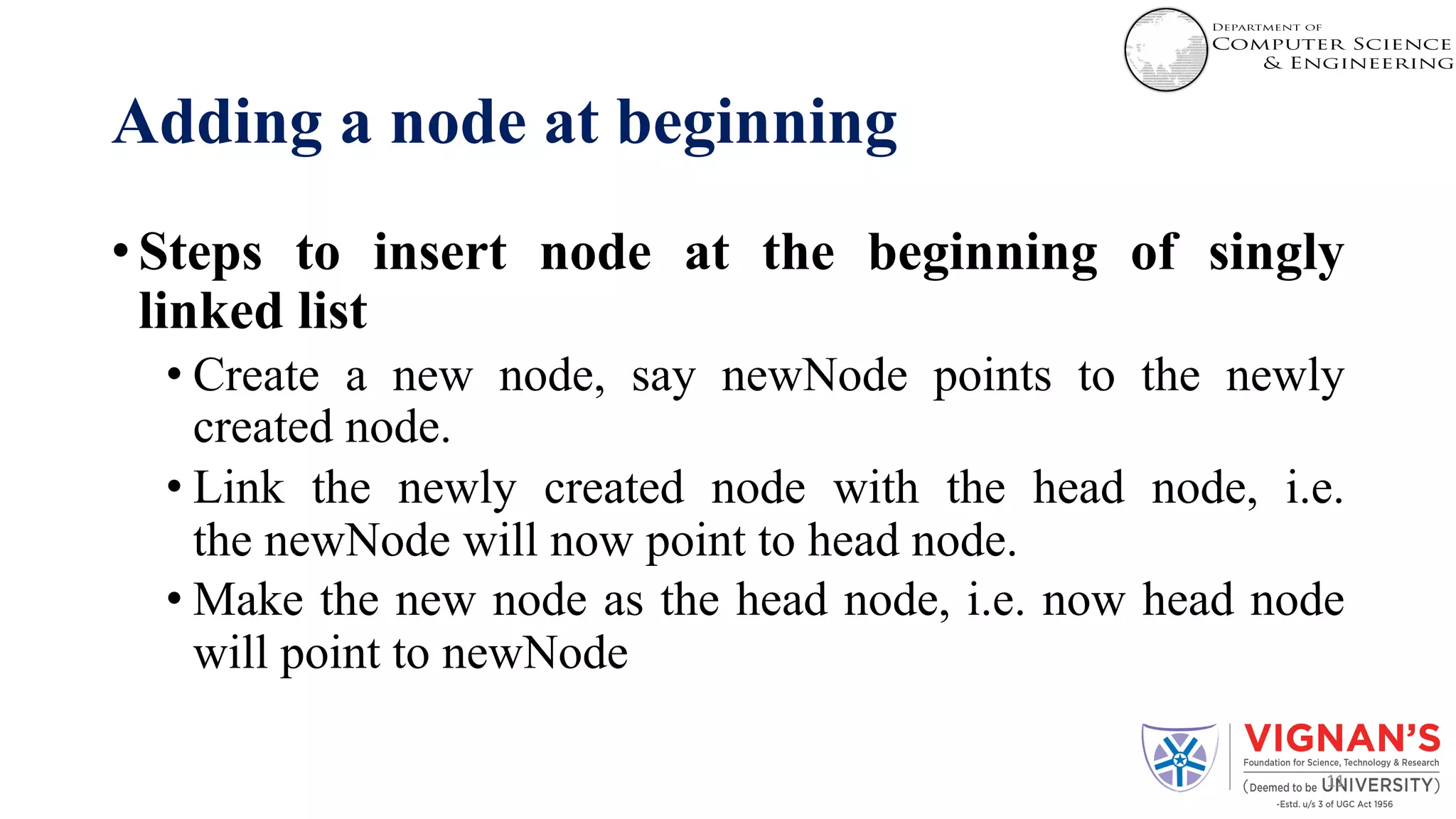

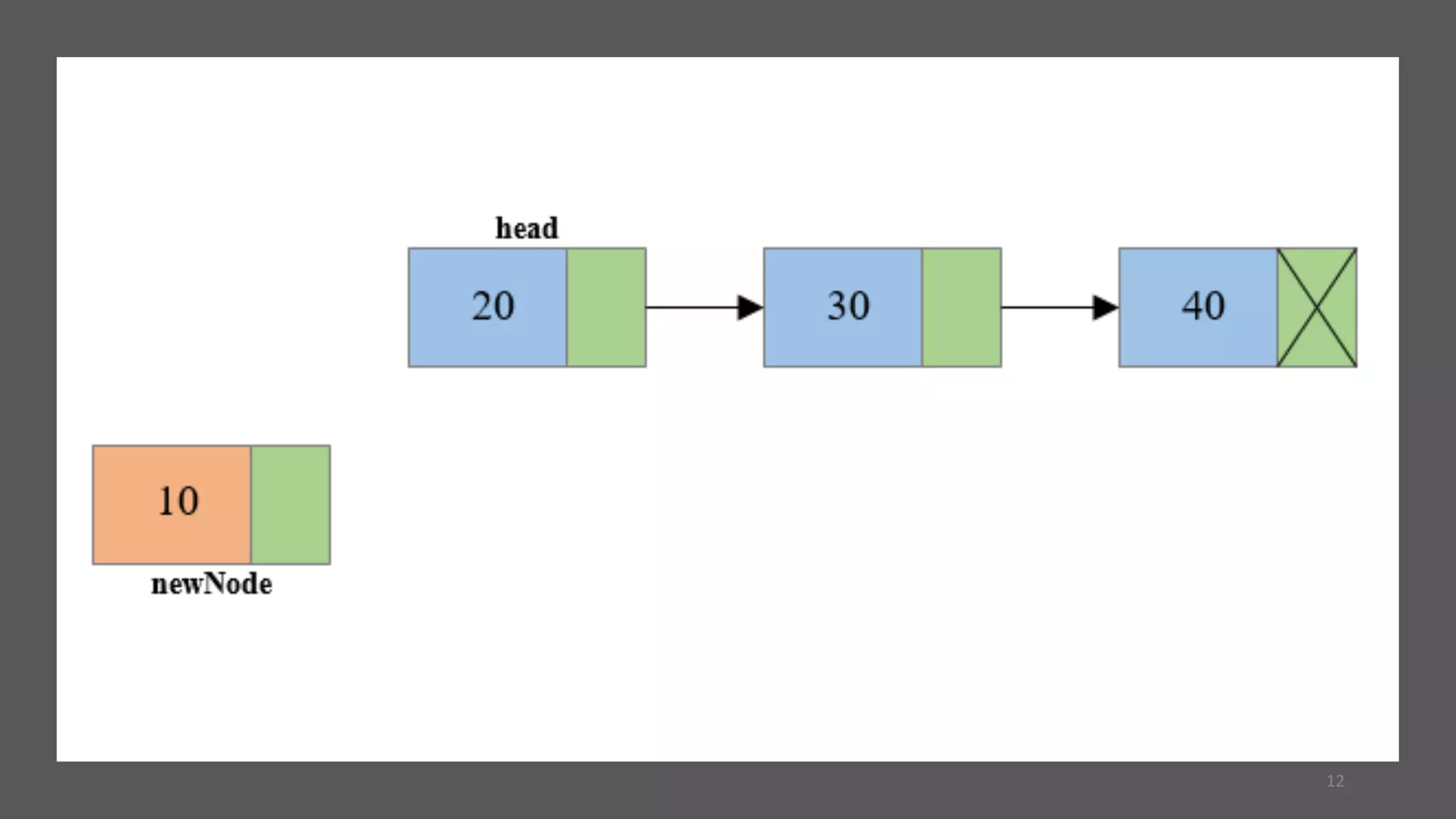

11. Adding a node at beginning
•Steps to insert node at the beginning of singly
linked list
• Create a new node, say newNode points to the newly
created node.
• Link the newly created node with the head node, i.e.
the newNode will now point to head node.
• Make the new node as the head node, i.e. now head node
will point to newNode
11

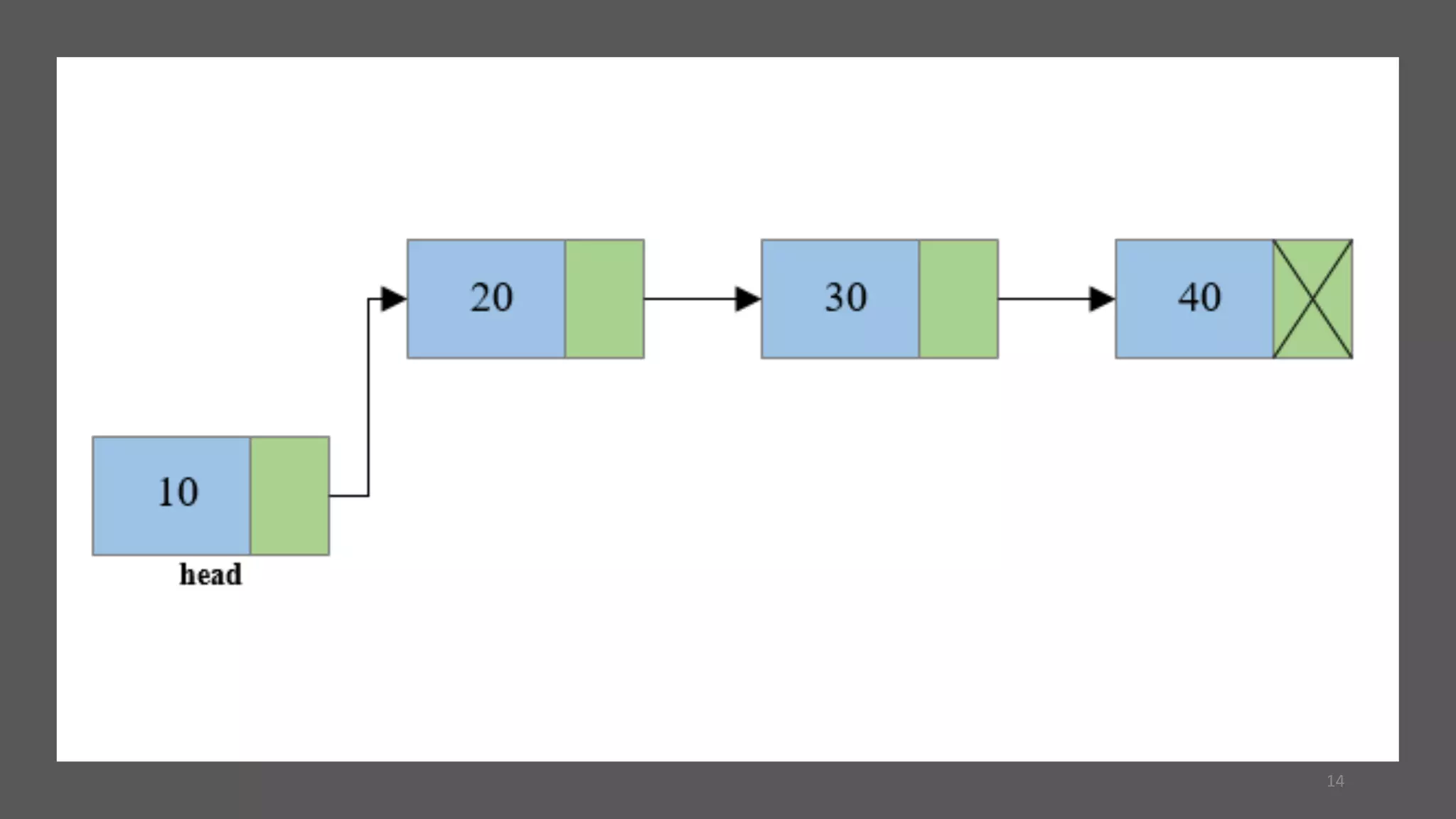

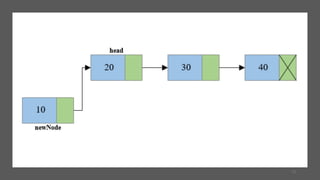

12. 12

13. 13

14. 14

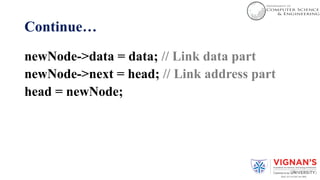

15. Continue…
newNode->data = data; // Link data part
newNode->next = head; // Link address part
head = newNode;
15

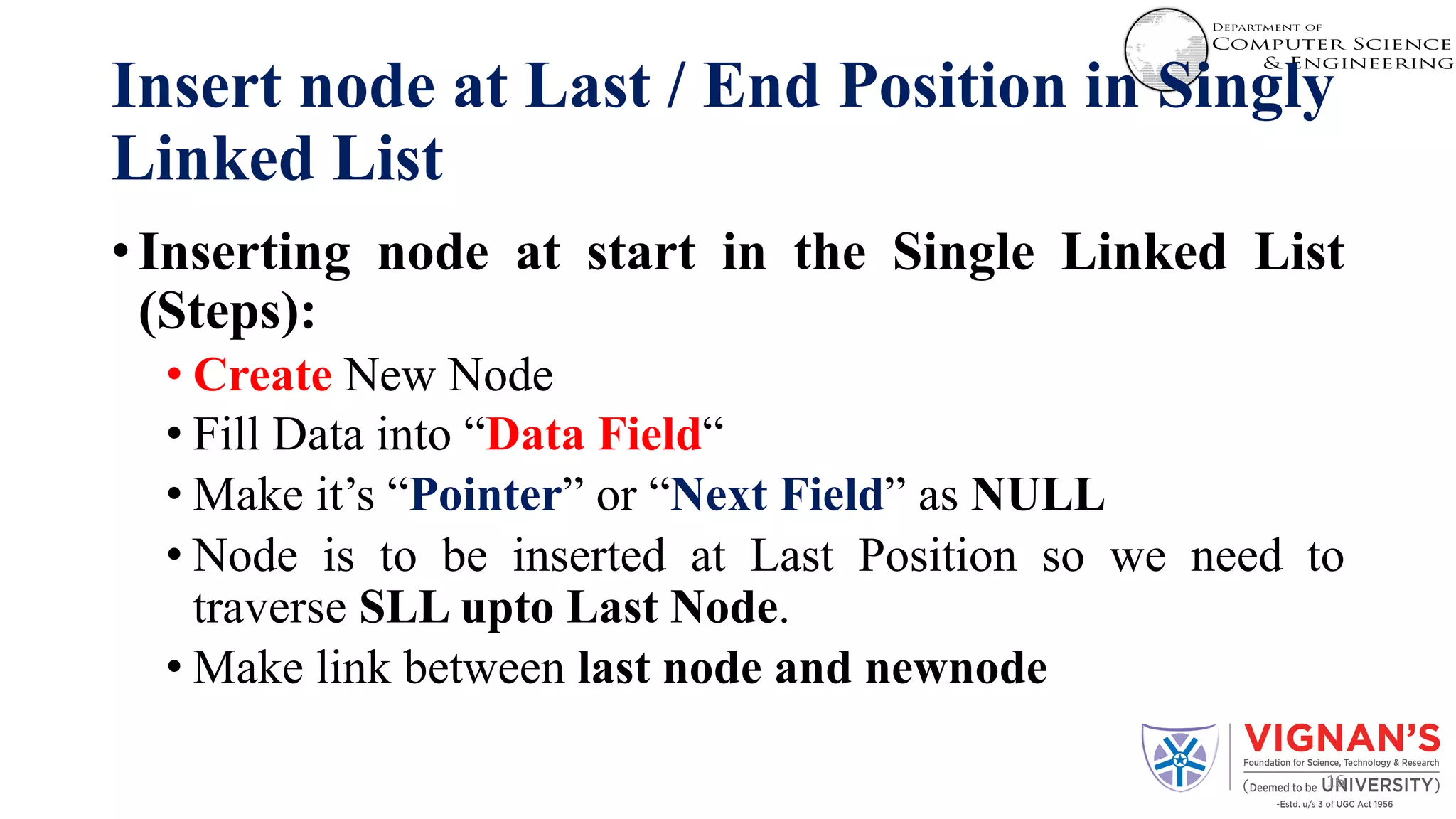

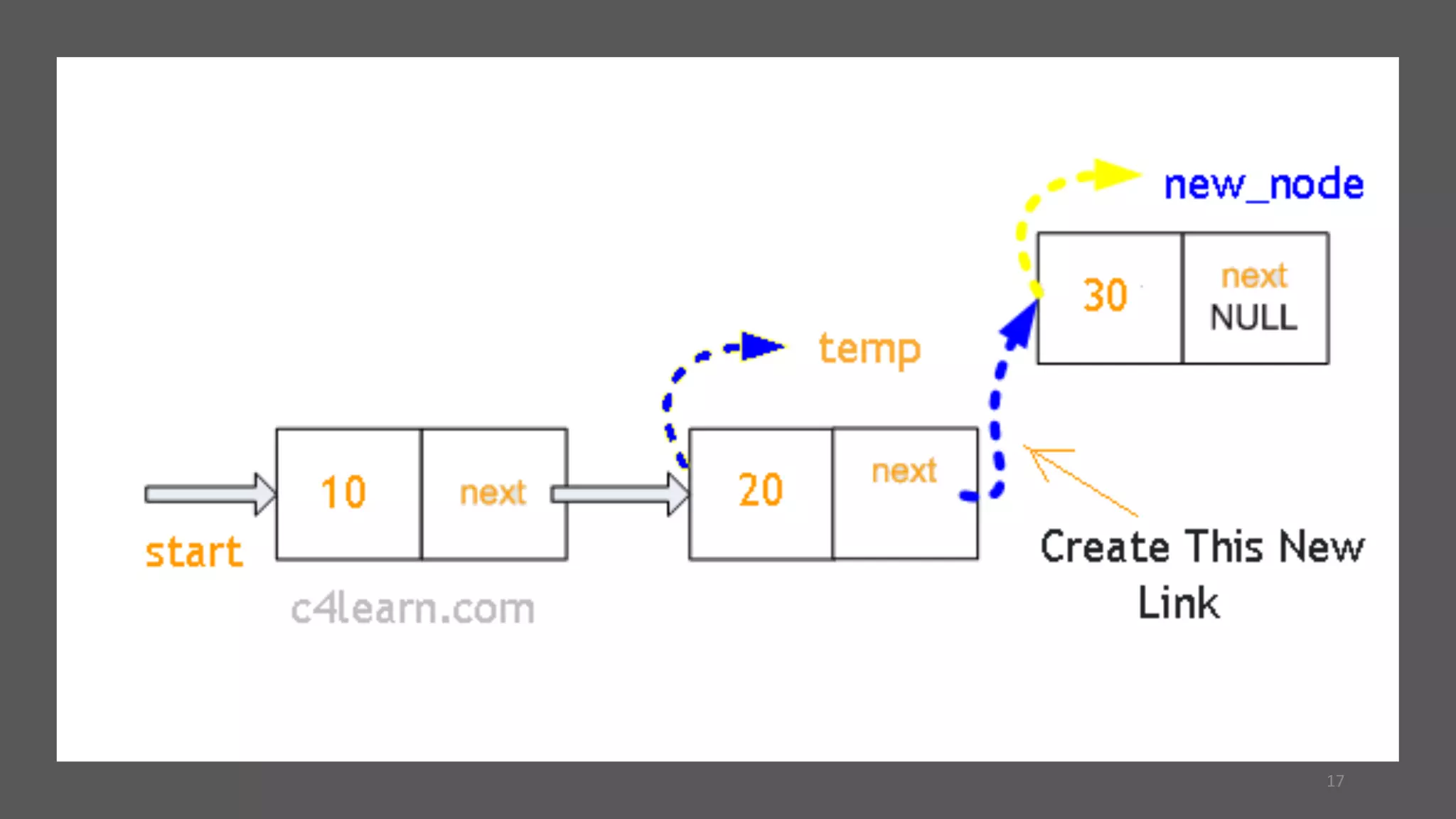

16. Insert node at Last / End Position in Singly
Linked List
•Inserting node at start in the Single Linked List
(Steps):
• Create New Node
• Fill Data into “Data Field“
• Make it’s “Pointer” or “Next Field” as NULL
• Node is to be inserted at Last Position so we need to
traverse SLL upto Last Node.
• Make link between last node and newnode
16

17. 17

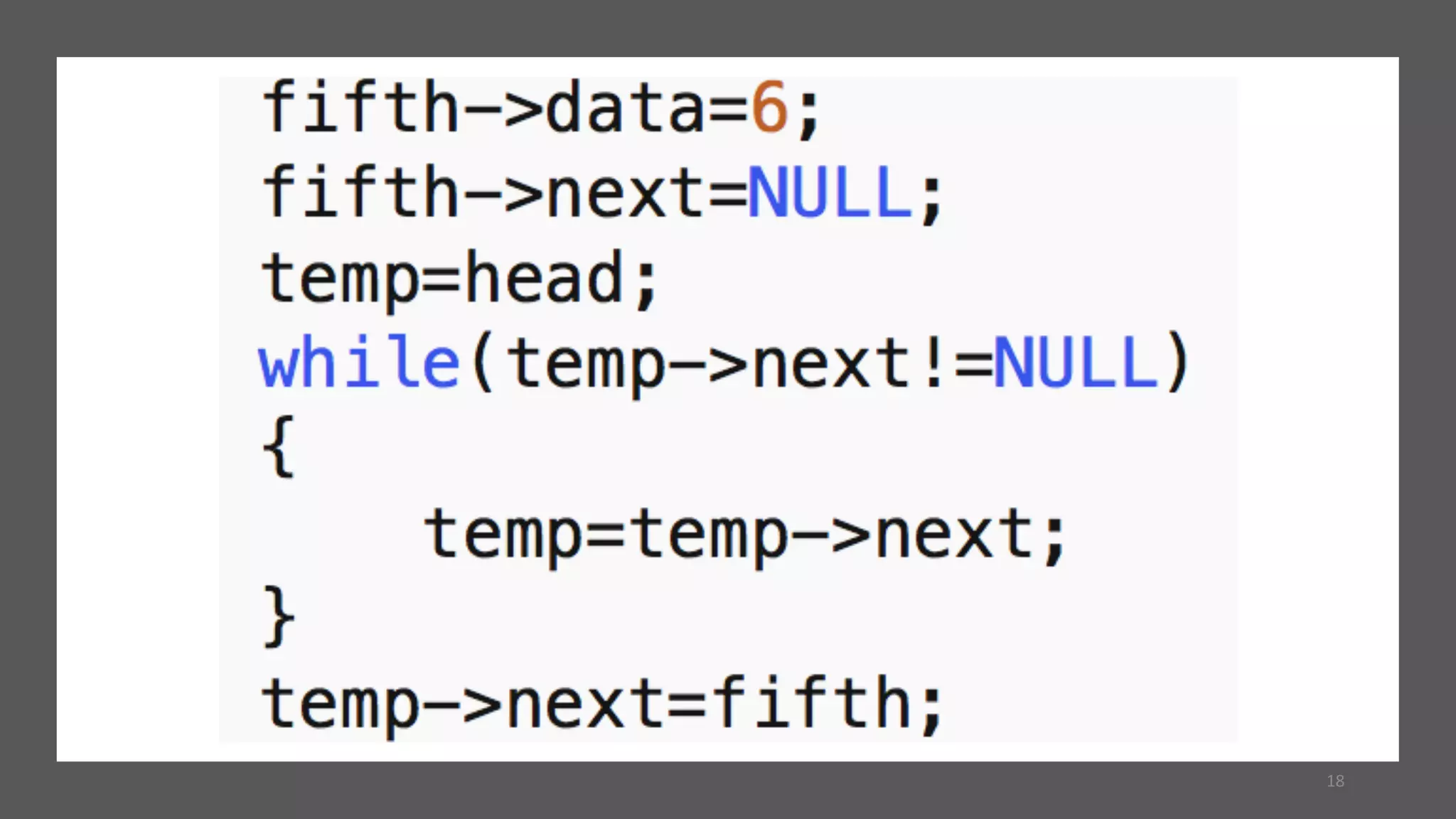

18. 18

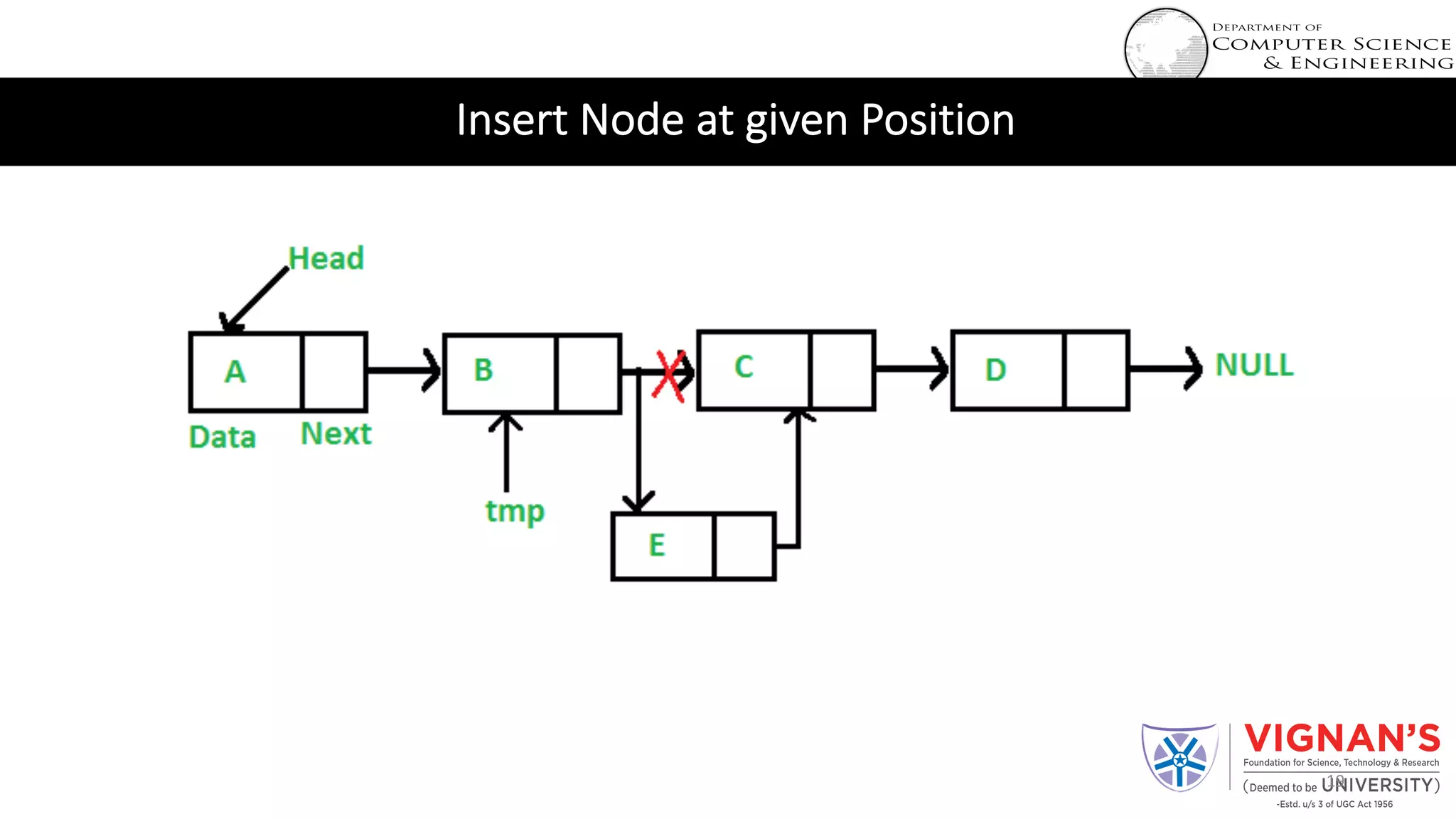

19. Insert Node at given Position
19

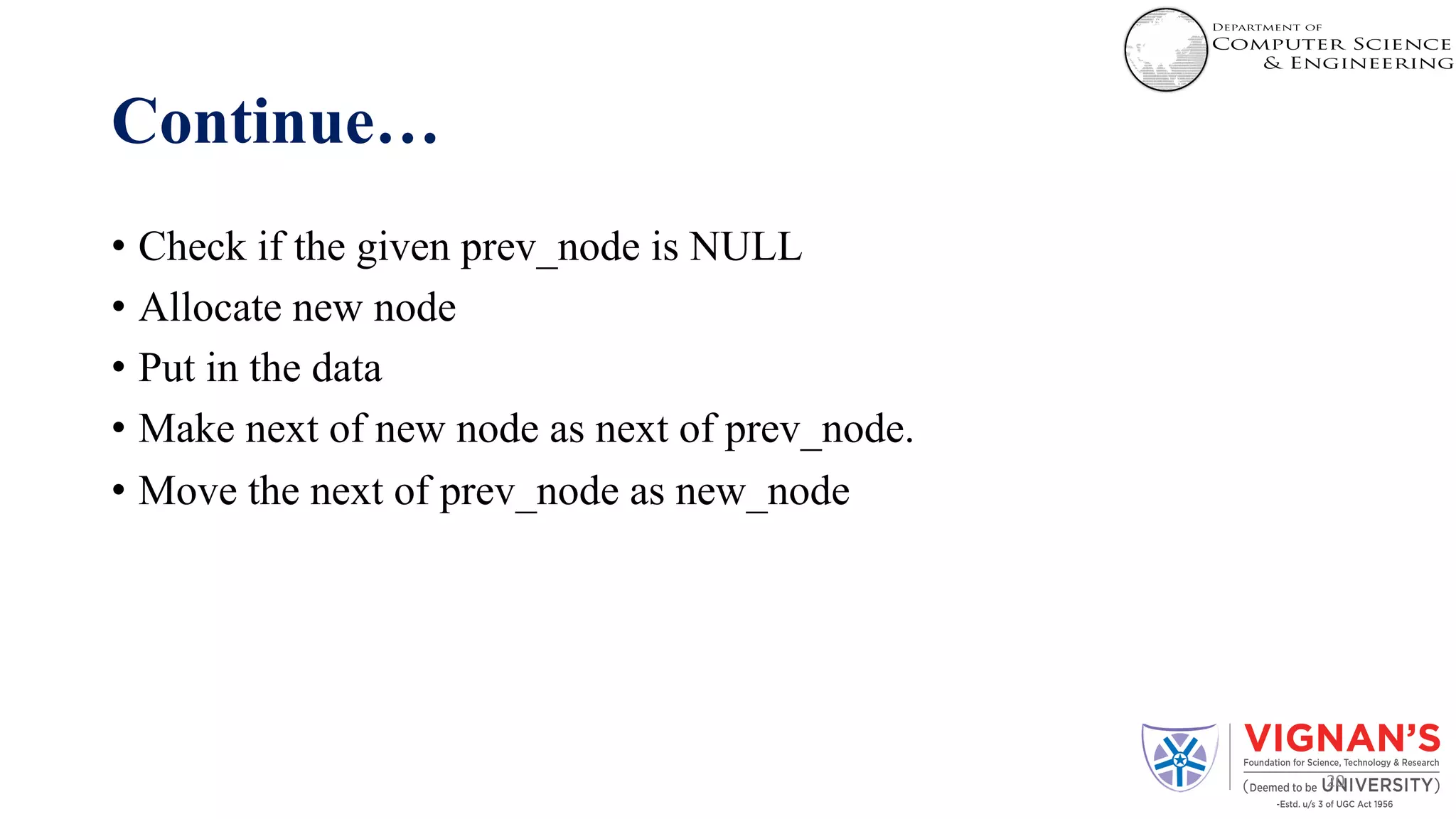

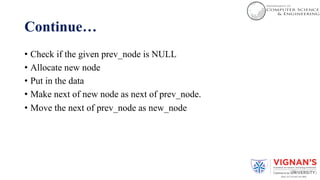

20. Continue…
• Check if the given prev_node is NULL
• Allocate new node
• Put in the data
• Make next of new node as next of prev_node.
• Move the next of prev_node as new_node
20

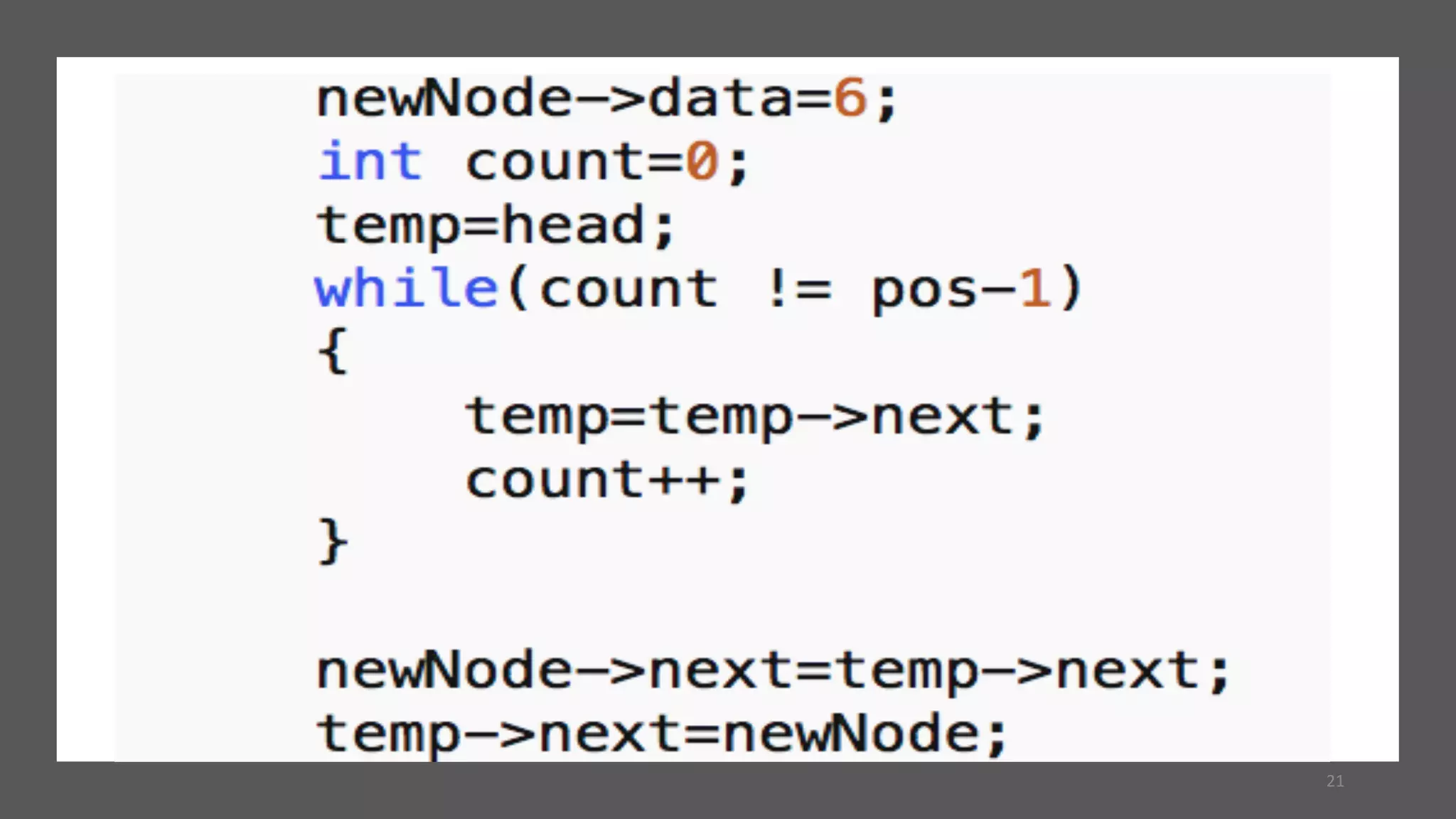

21. 21

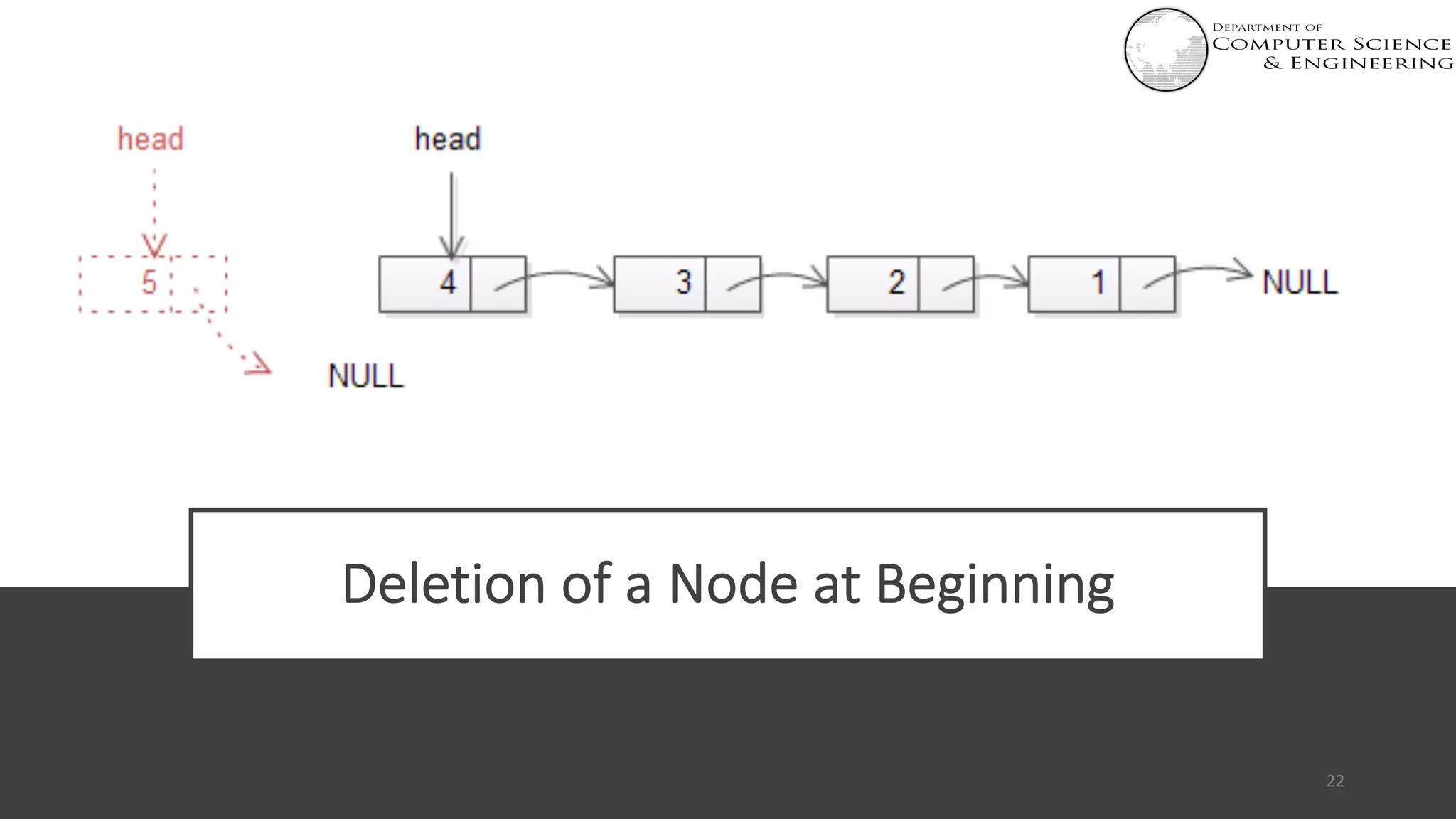

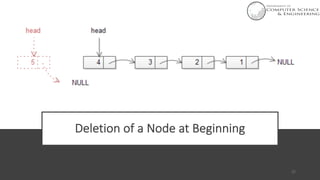

22. Deletion of a Node at Beginning
22

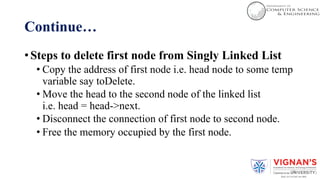

23. Continue…
•Steps to delete first node from Singly Linked List
• Copy the address of first node i.e. head node to some temp
variable say toDelete.
• Move the head to the second node of the linked list
i.e. head = head->next.
• Disconnect the connection of first node to second node.
• Free the memory occupied by the first node.
23

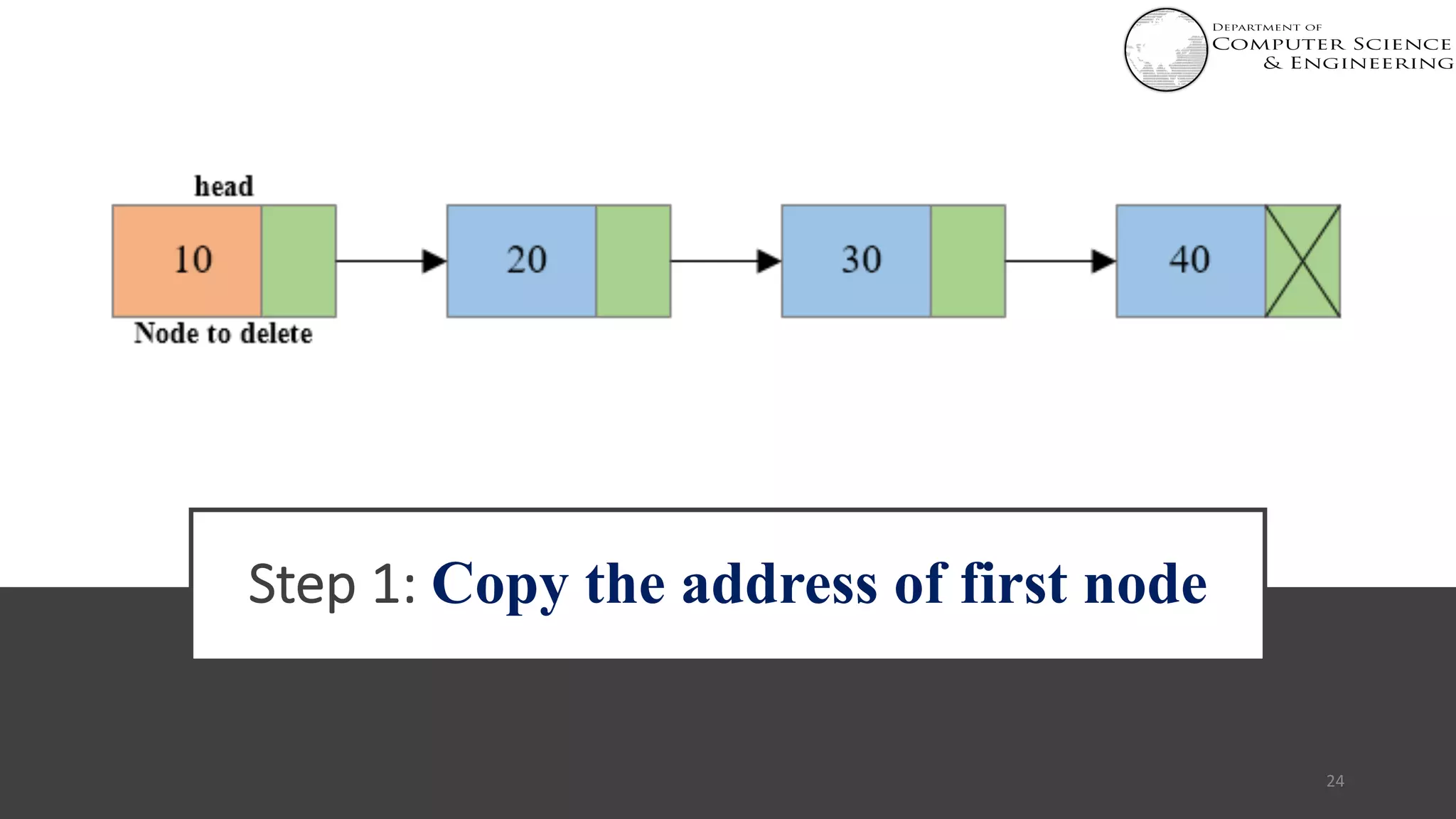

24. Step 1: Copy the address of first node
24

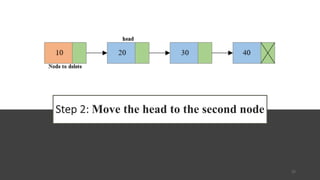

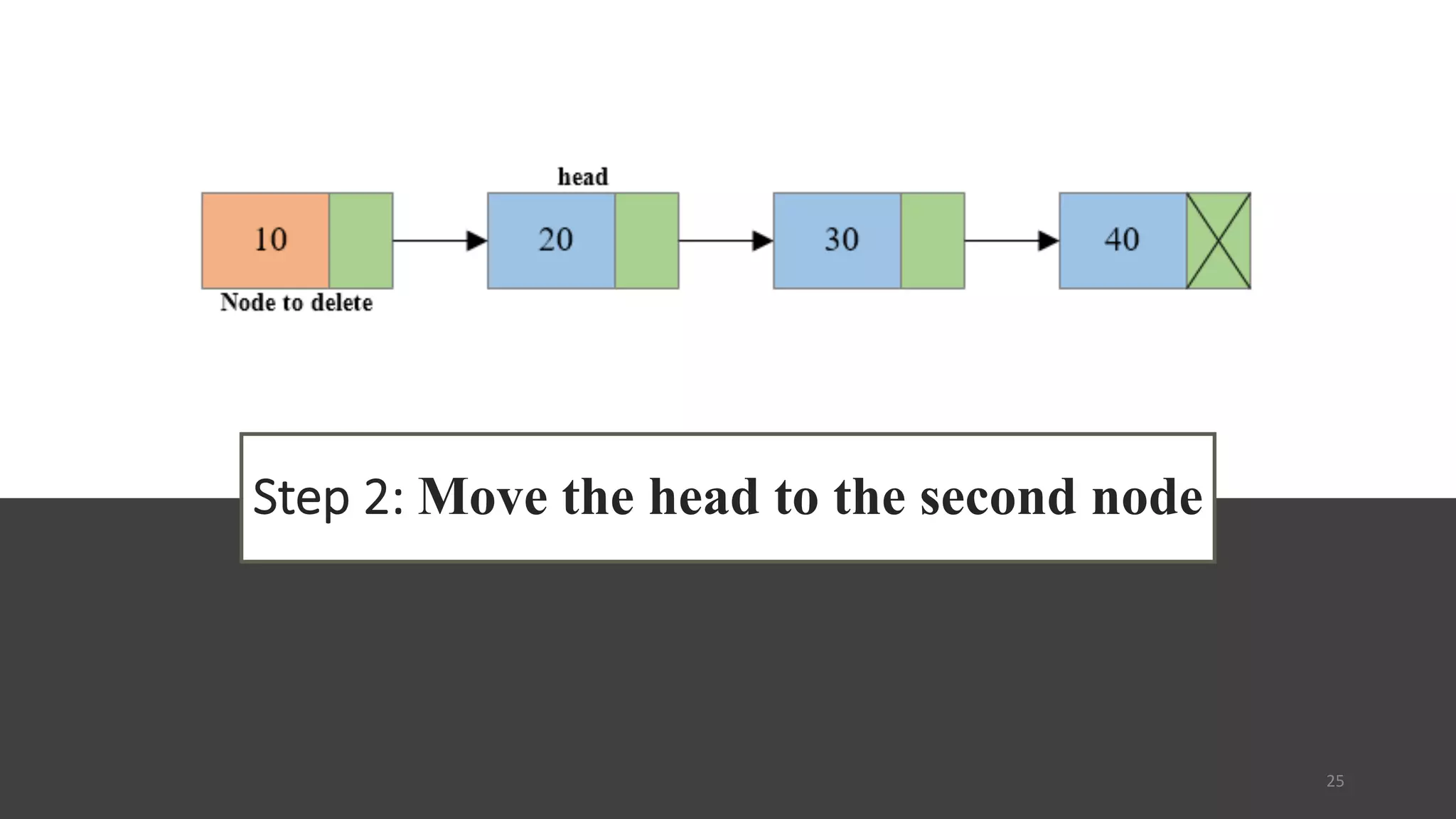

25. Step 2: Move the head to the second node
25

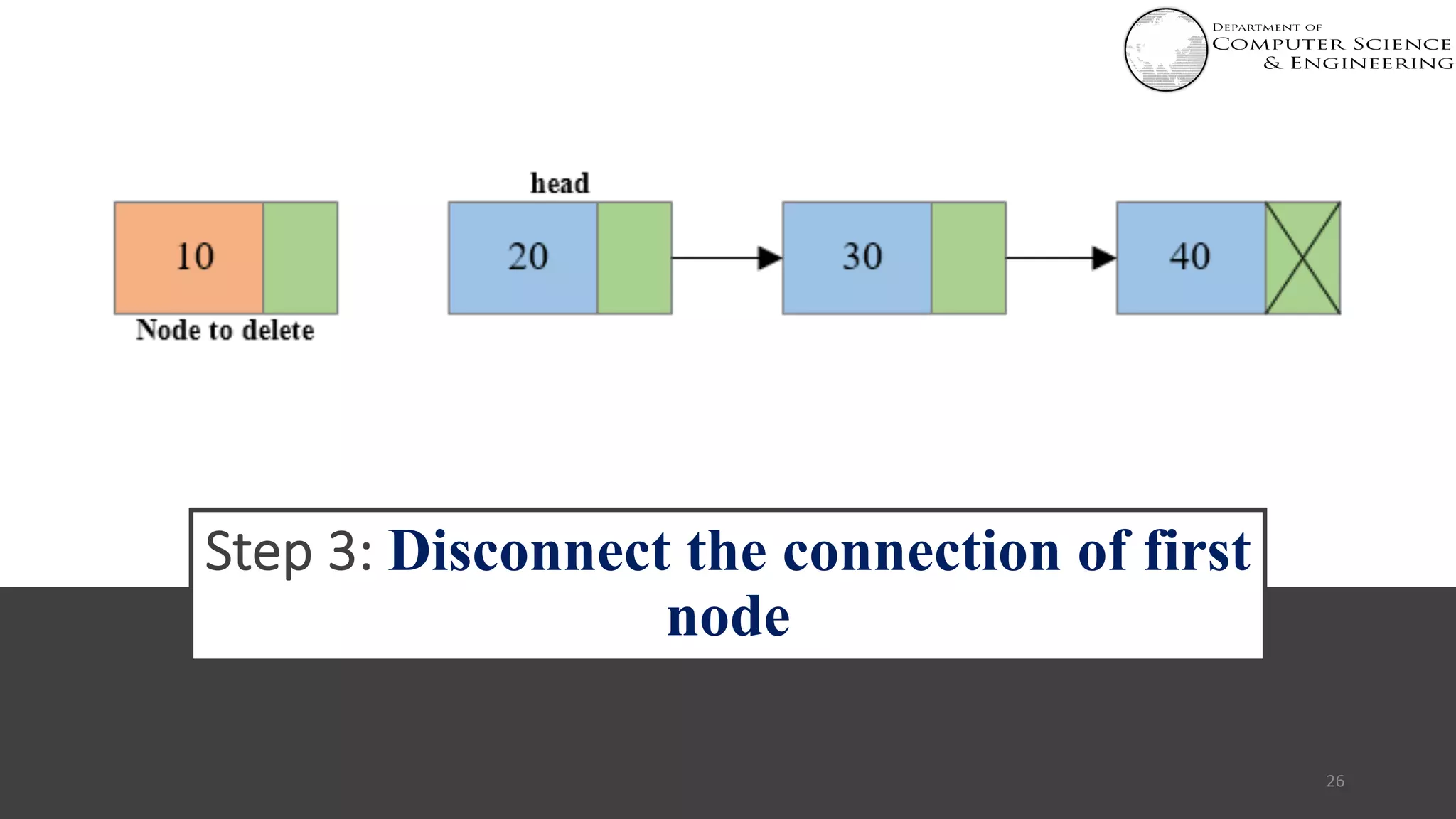

26. Step 3: Disconnect the connection of first
node
26

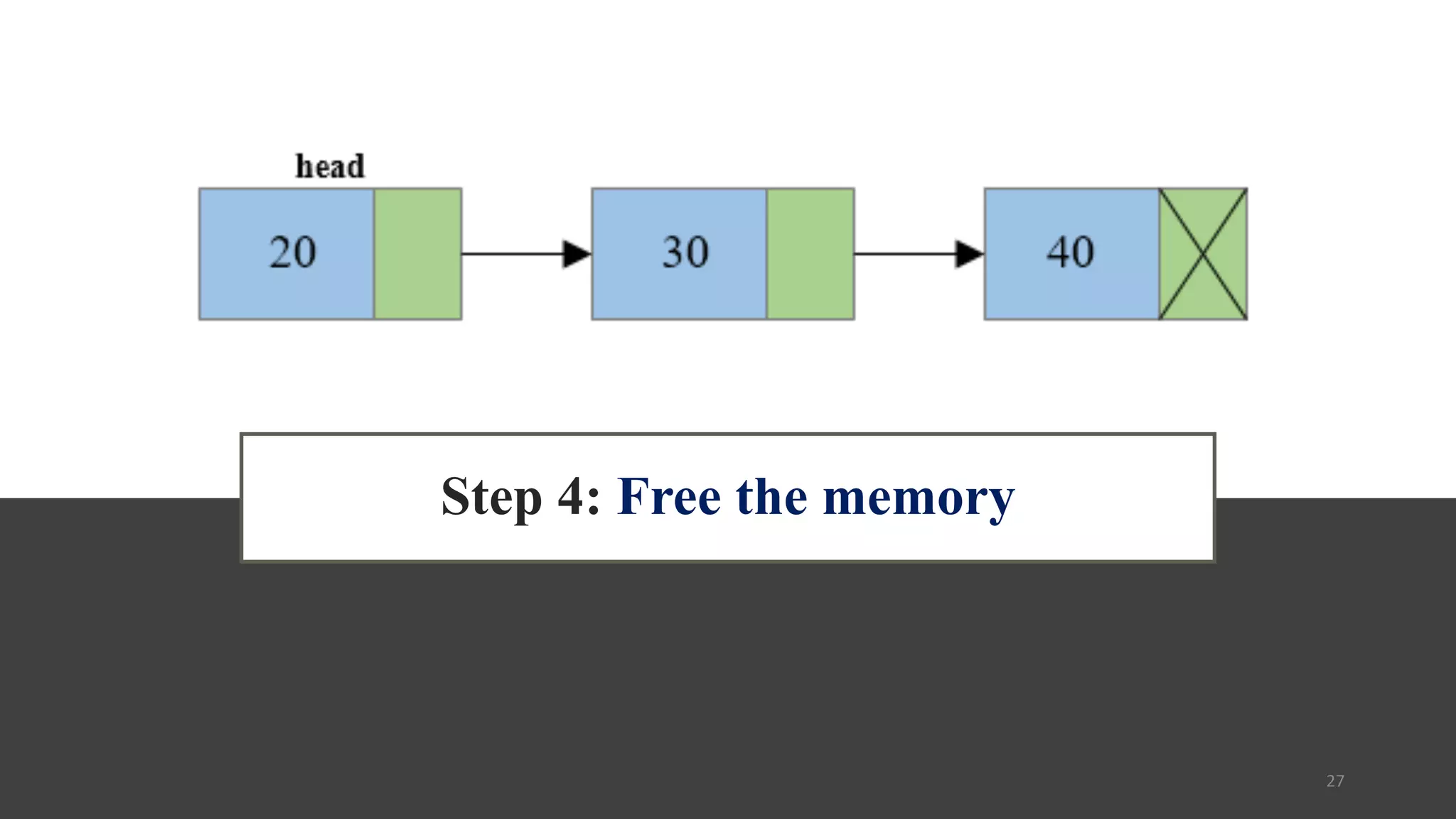

27. Step 4: Free the memory
27

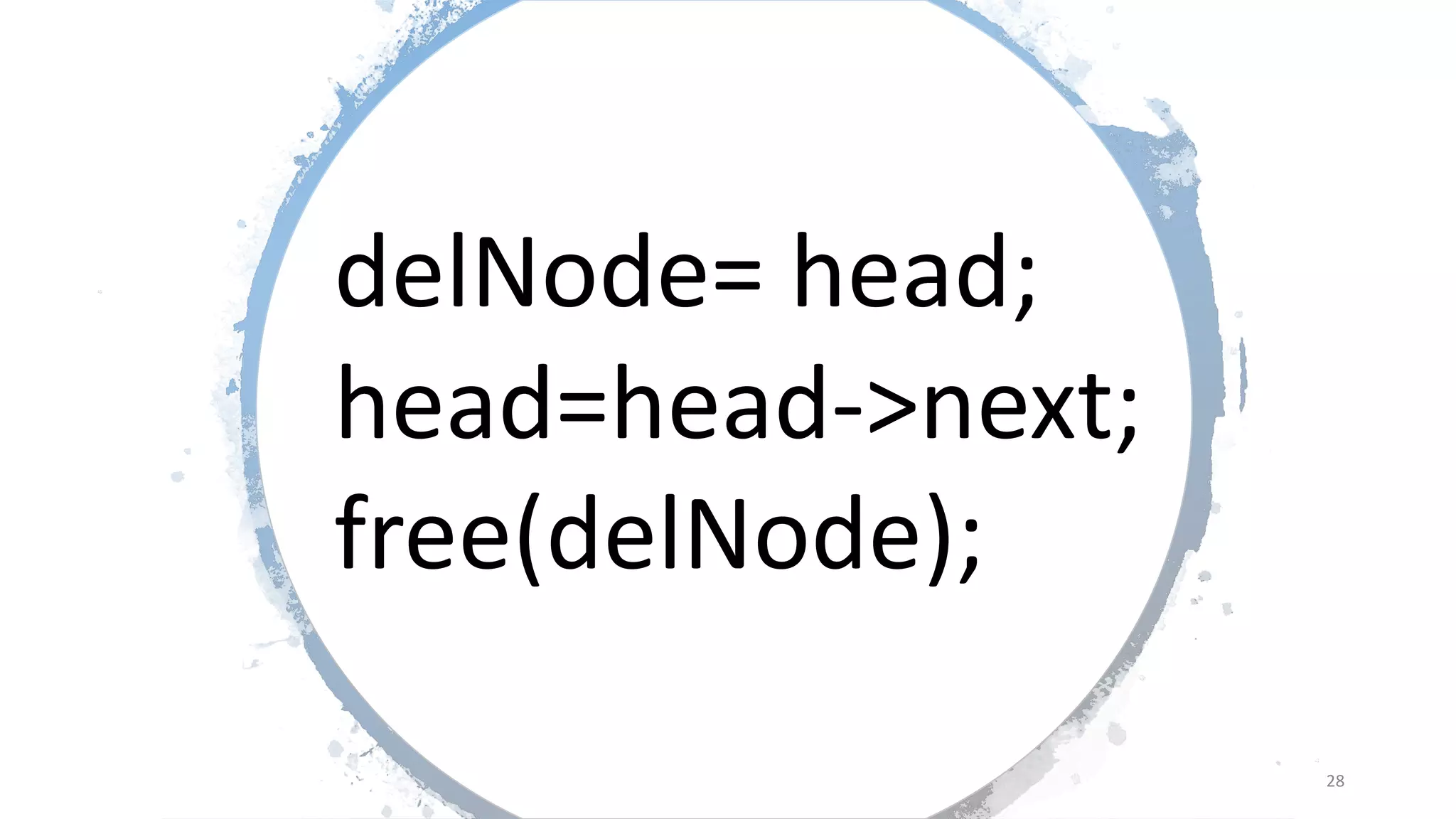

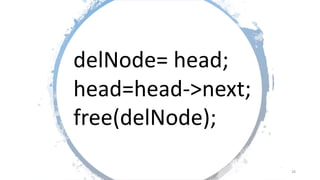

28. 28
delNode= head;
head=head->next;
free(delNode);

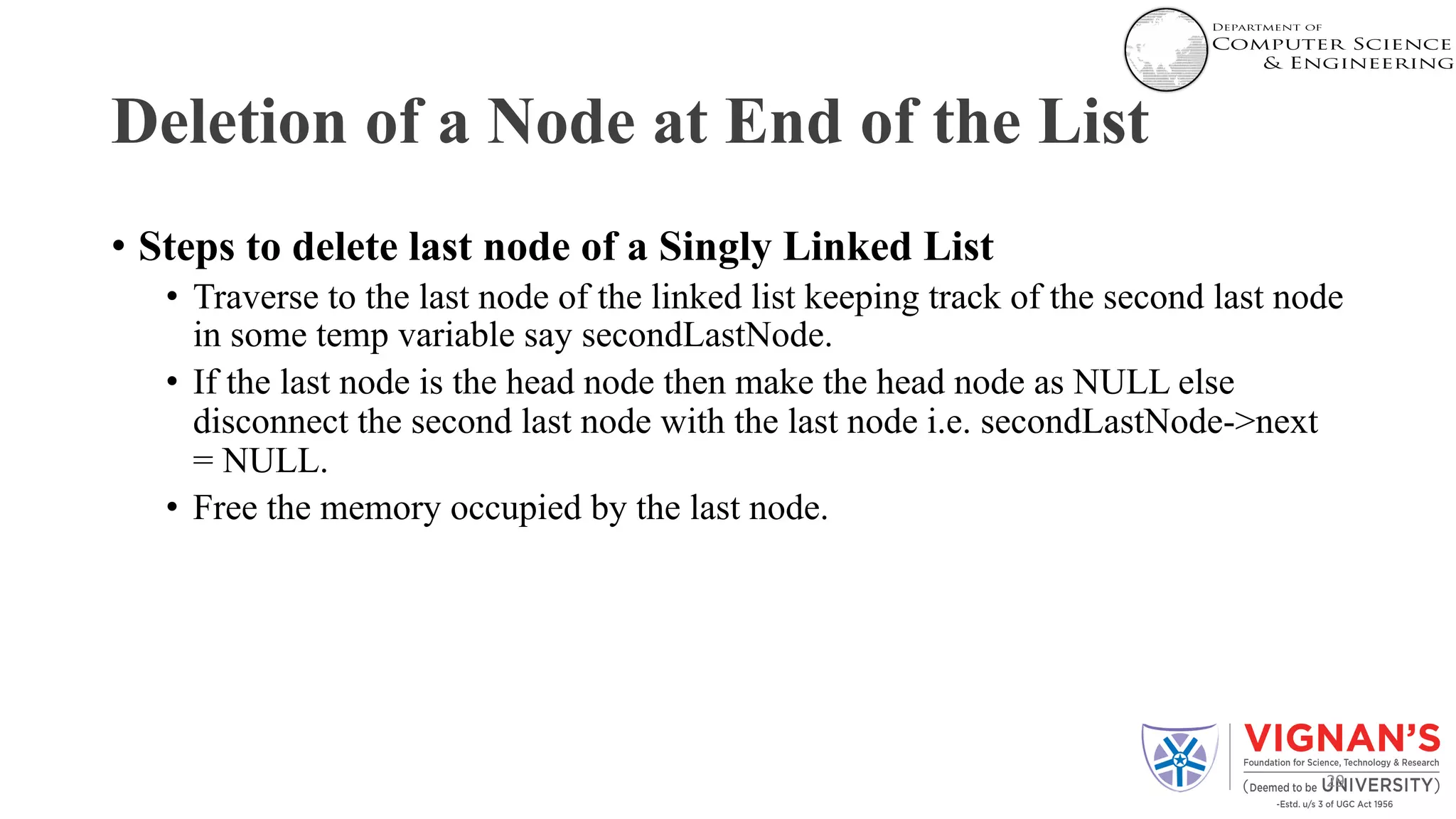

29. Deletion of a Node at End of the List
• Steps to delete last node of a Singly Linked List
• Traverse to the last node of the linked list keeping track of the second last node
in some temp variable say secondLastNode.
• If the last node is the head node then make the head node as NULL else
disconnect the second last node with the last node i.e. secondLastNode->next
= NULL.
• Free the memory occupied by the last node.
29

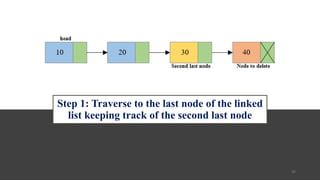

30. Step 1: Traverse to the last node of the linked
list keeping track of the second last node
30

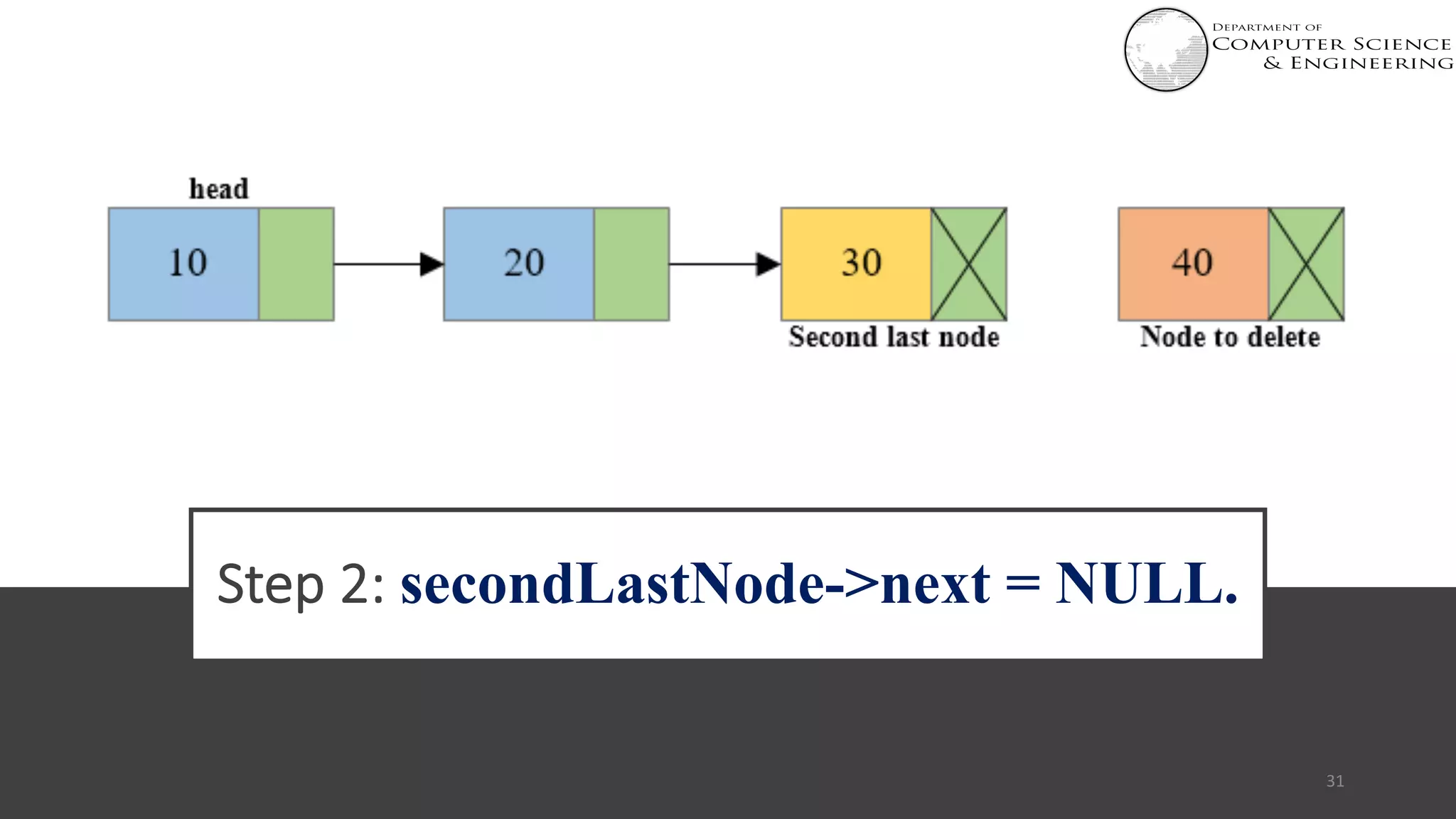

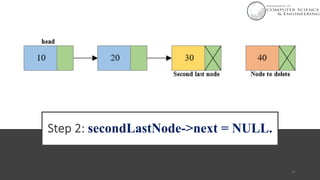

31. Step 2: secondLastNode->next = NULL.
31

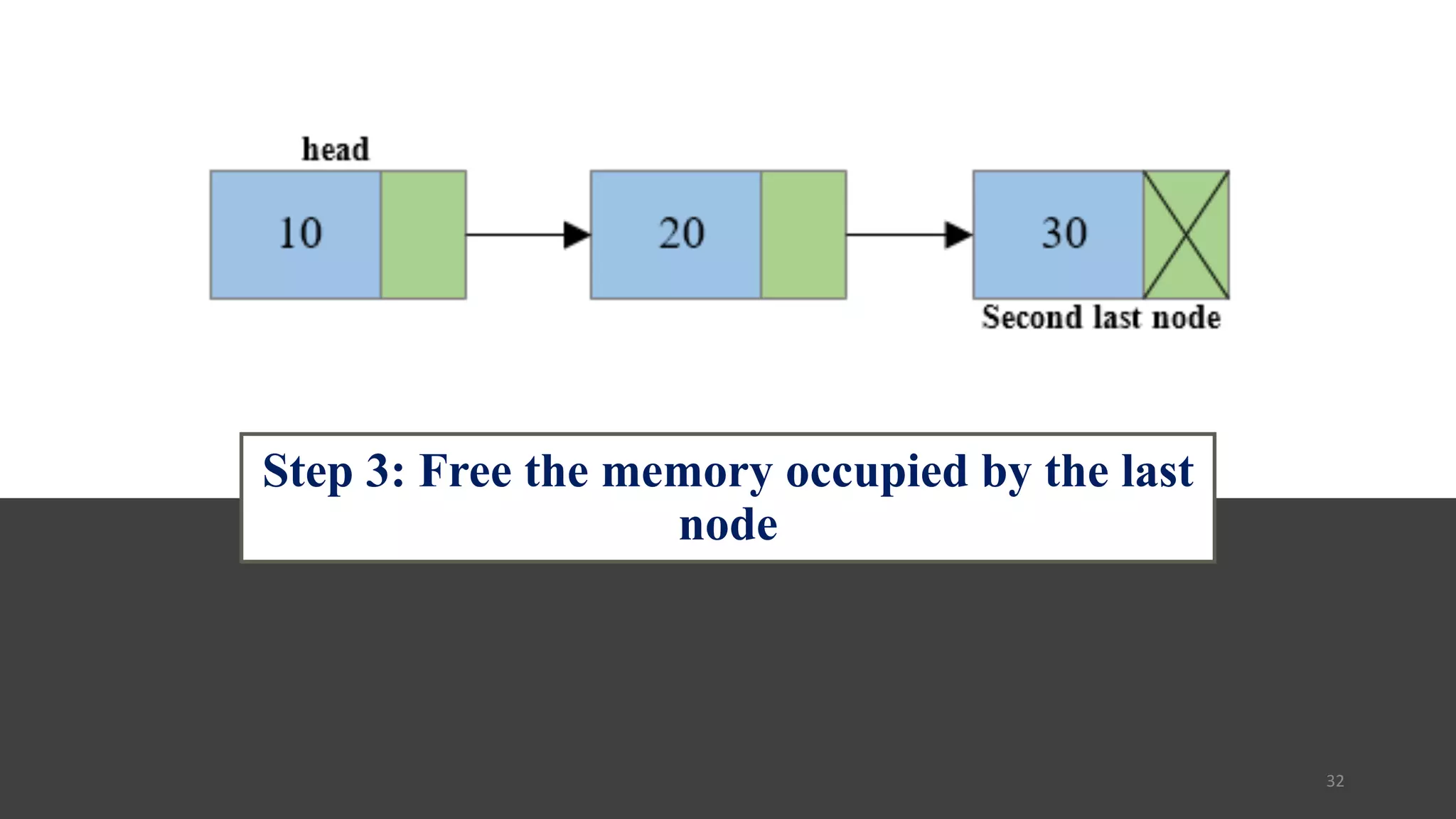

32. Step 3: Free the memory occupied by the last
node
32

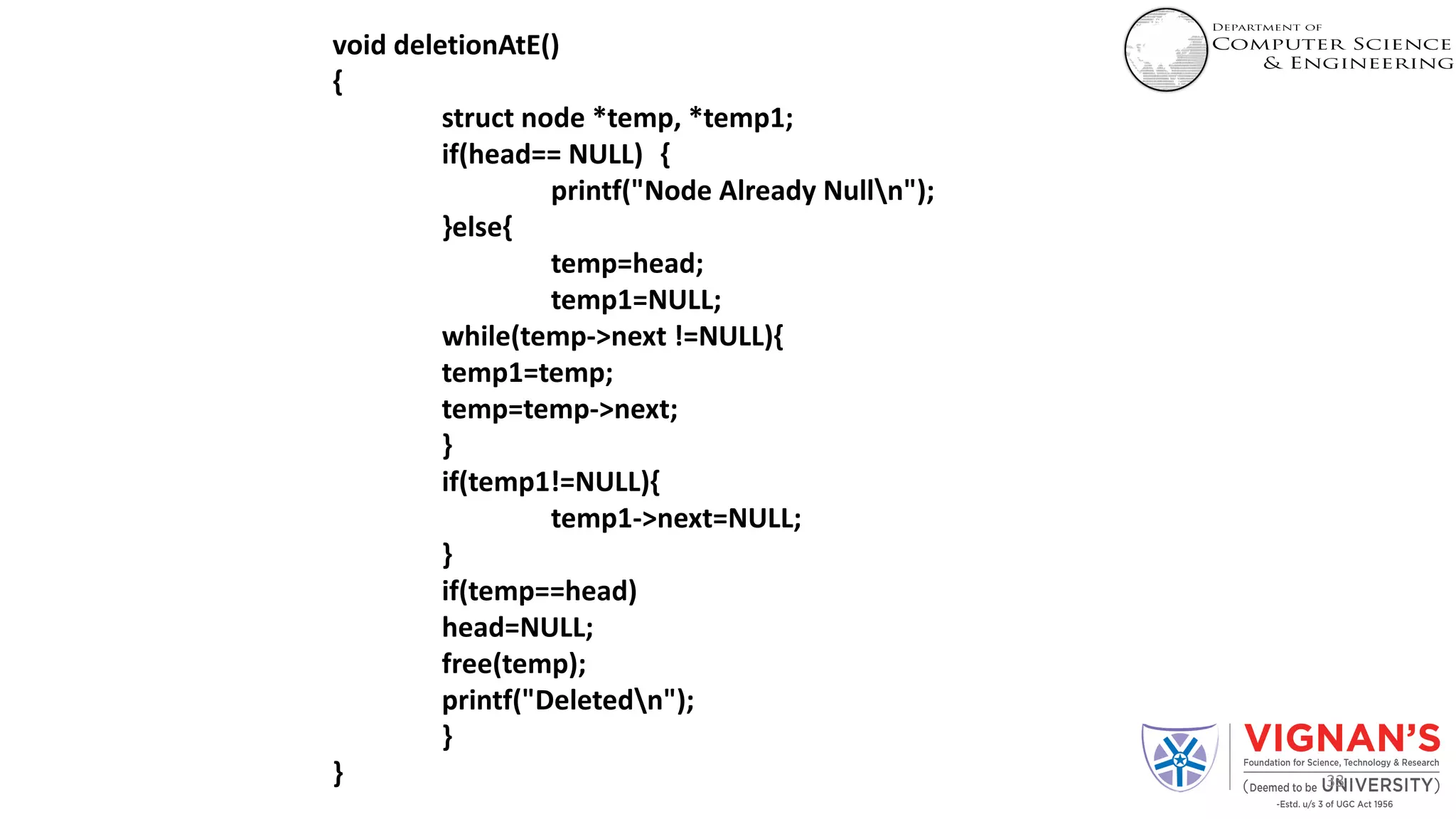

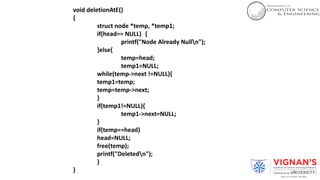

33. 33
void deletionAtE()
{
struct node *temp, *temp1;
if(head== NULL) {
printf("Node Already Nulln");
}else{
temp=head;
temp1=NULL;
while(temp->next !=NULL){
temp1=temp;
temp=temp->next;
}
if(temp1!=NULL){
temp1->next=NULL;
}
if(temp==head)
head=NULL;
free(temp);
printf("Deletedn");
}
}

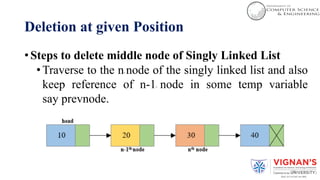

34. Deletion at given Position
•Steps to delete middle node of Singly Linked List
•Traverse to the nth node of the singly linked list and also
keep reference of n-1th node in some temp variable
say prevnode.
34

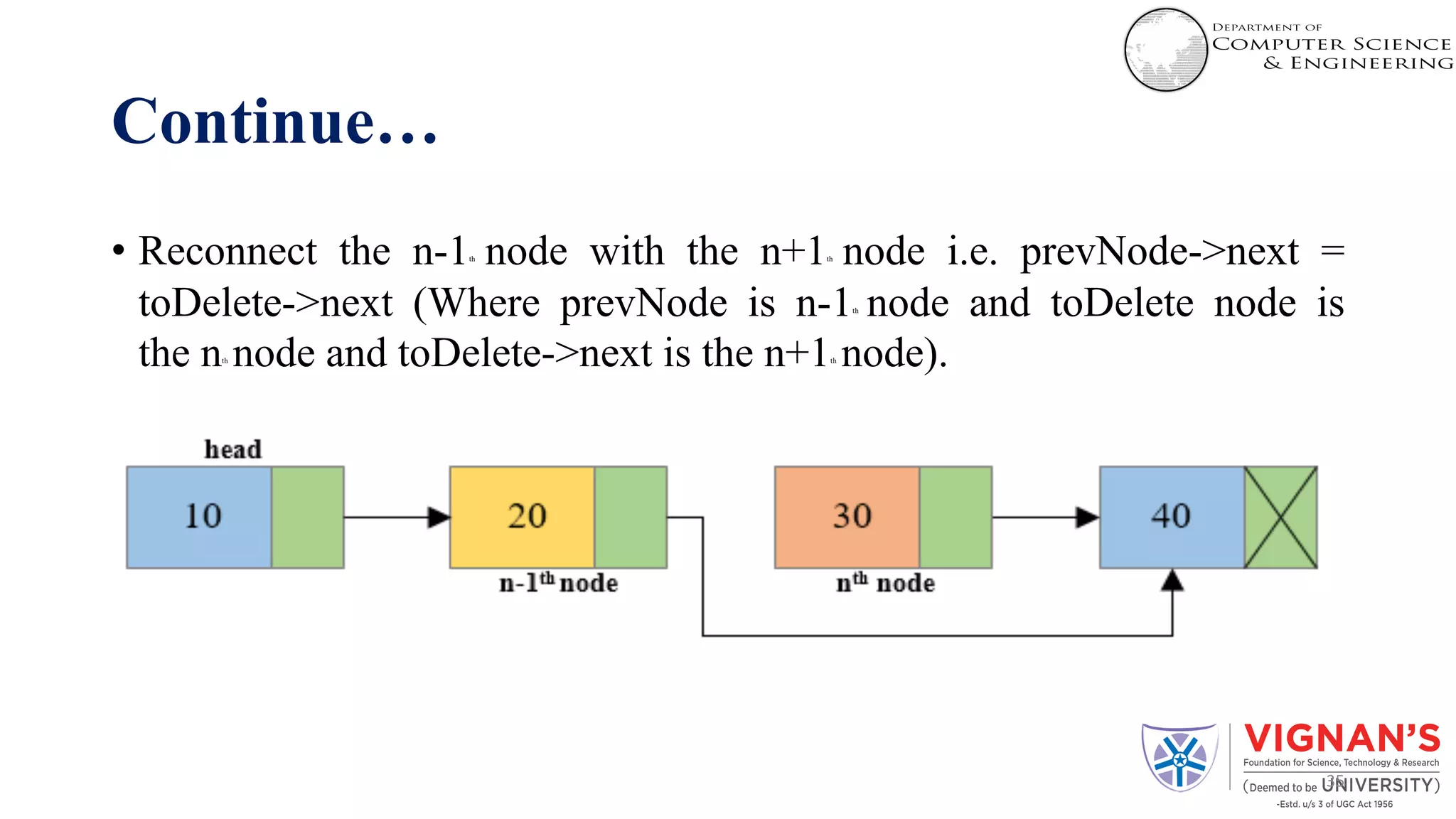

35. Continue…
• Reconnect the n-1th node with the n+1th node i.e. prevNode->next =
toDelete->next (Where prevNode is n-1th node and toDelete node is
the nth node and toDelete->next is the n+1th node).
35

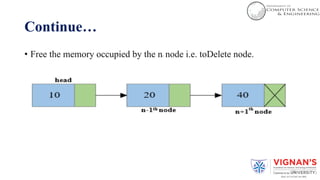

36. Continue…
• Free the memory occupied by the nth node i.e. toDelete node.
36

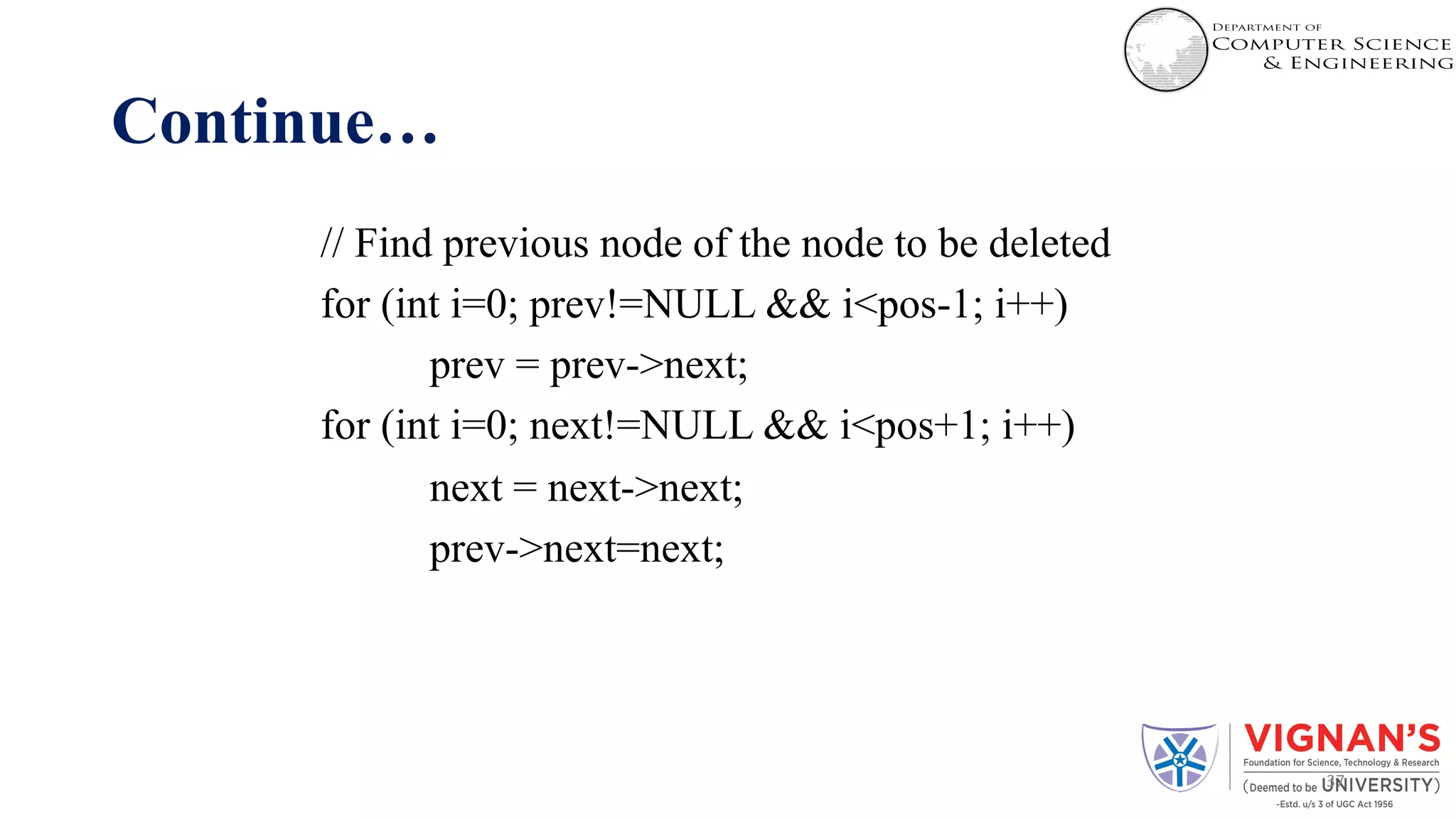

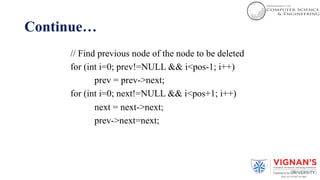

37. Continue…
// Find previous node of the node to be deleted
for (int i=0; prev!=NULL && i<pos-1; i++)
prev = prev->next;
for (int i=0; next!=NULL && i<pos+1; i++)
next = next->next;
prev->next=next;
37

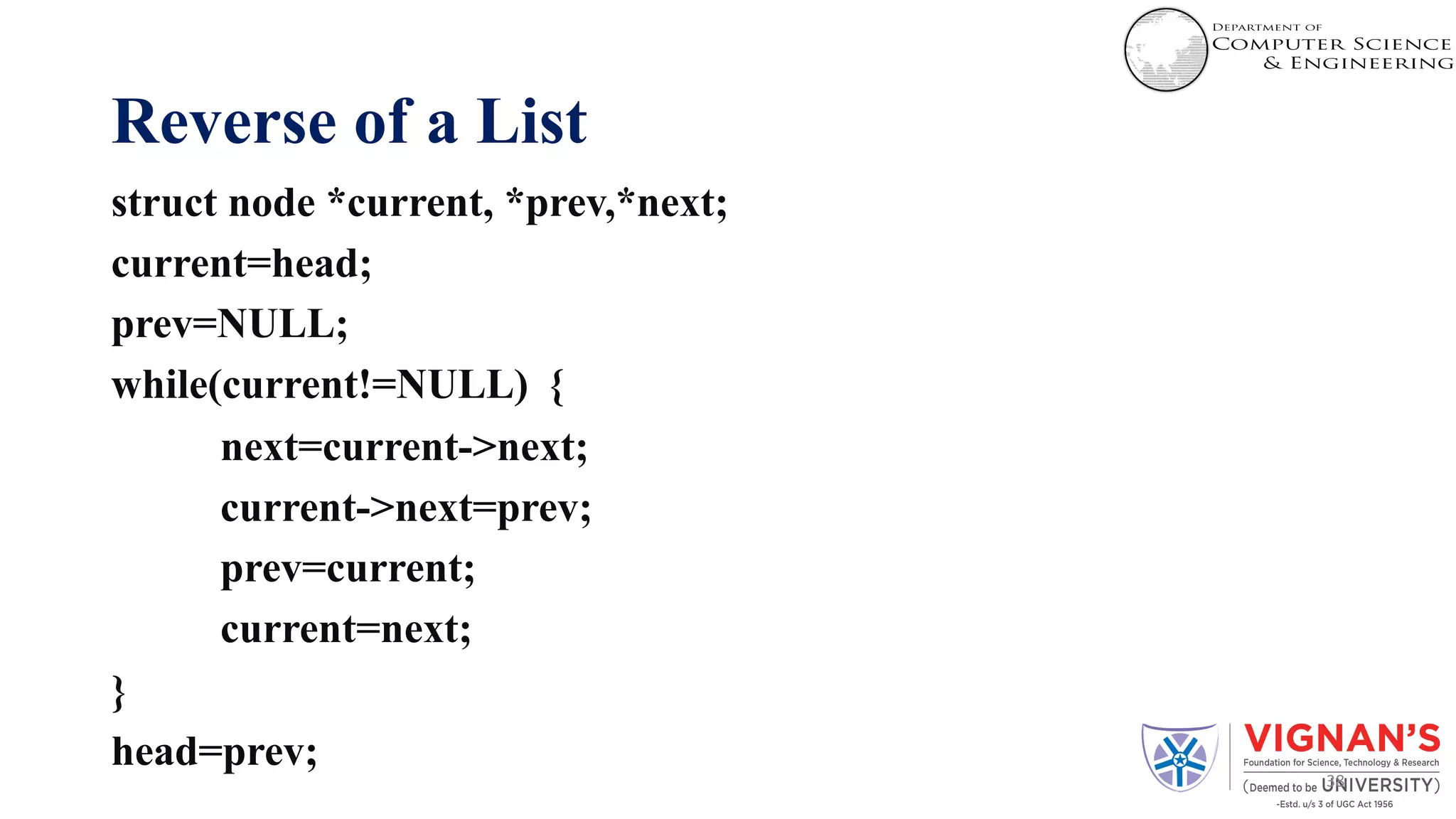

38. Reverse of a List
struct node *current, *prev,*next;
current=head;
prev=NULL;
while(current!=NULL) {
next=current->next;
current->next=prev;
prev=current;
current=next;
}
head=prev;
38

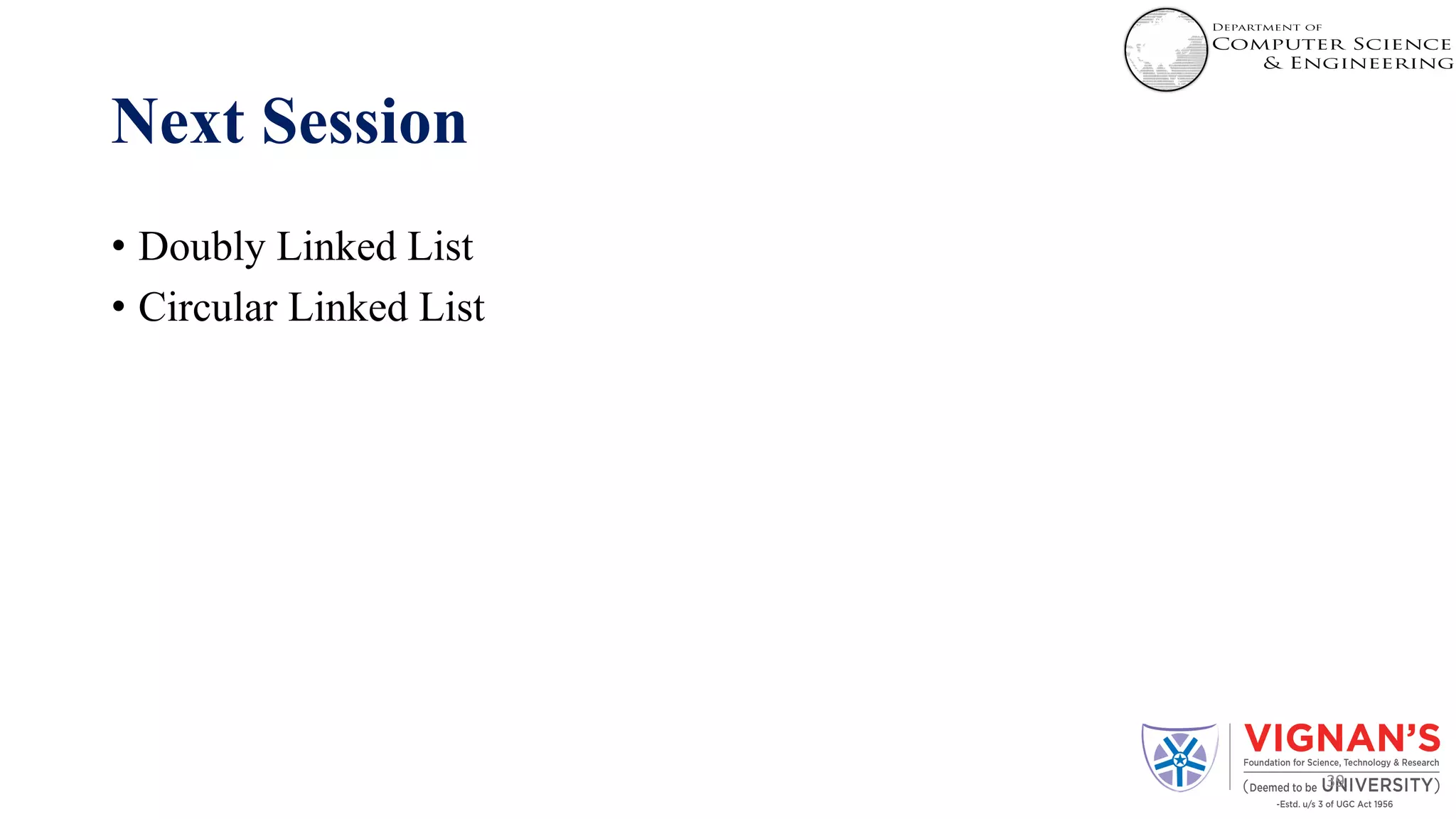

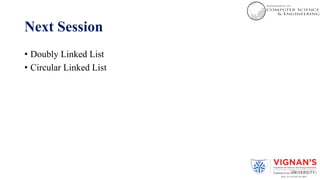

39. Next Session
• Doubly Linked List
• Circular Linked List
39
