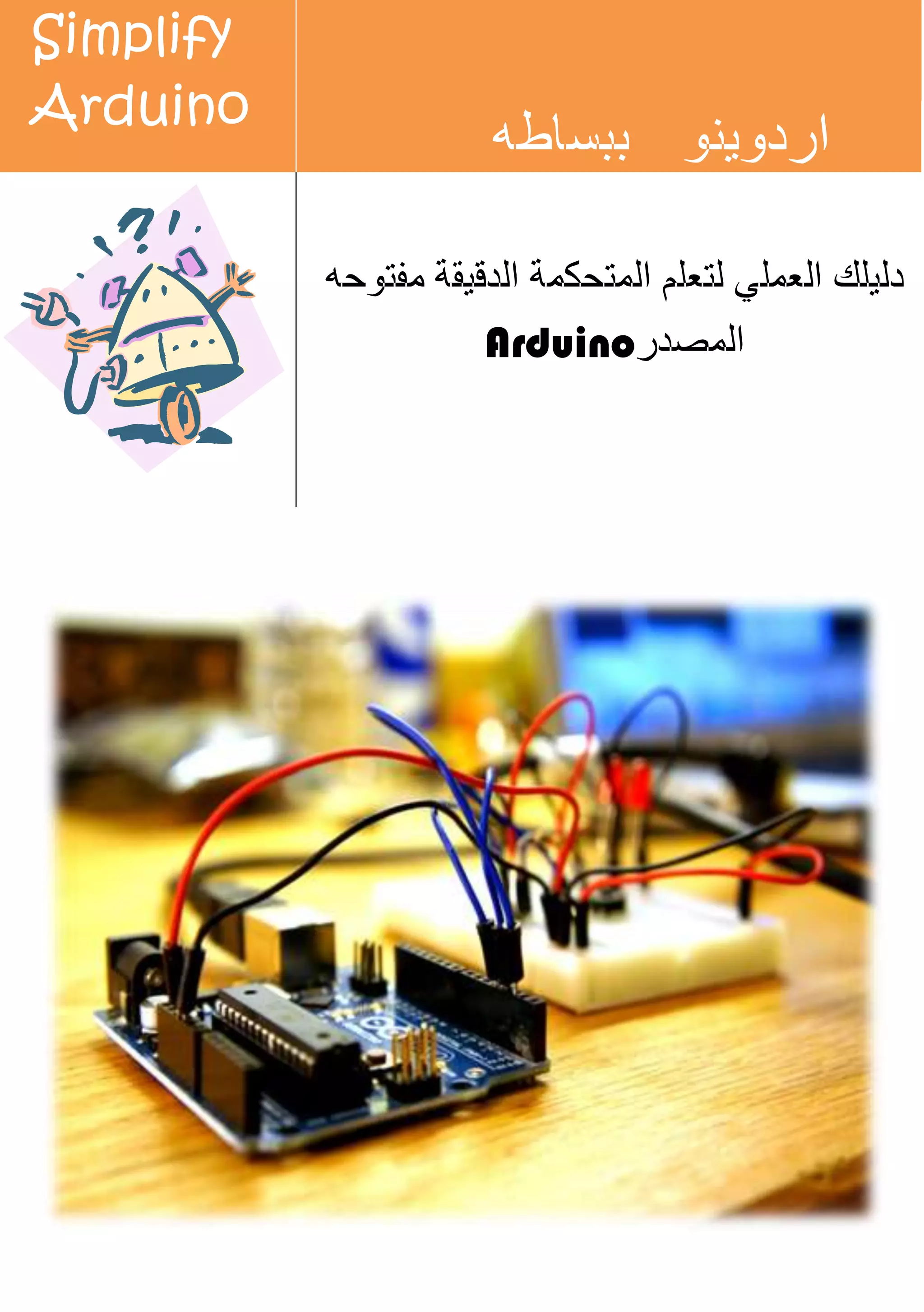

Simply arduino
This document provides an introduction to Arduino and microcontrollers over 31 slides. It discusses integrated circuits and microcontrollers, the Arduino board and IDE software, different Arduino boards, input/output pins on the Arduino Uno, the microprocessor on the Arduino Uno, analog and digital pins, hardware and software needed to get started, examples of blinking an LED and using buttons, analog sensors and reading analog values, computer interfacing, and Arduino shields. The document serves as a tutorial to teach basic concepts and get started with the Arduino platform.
Simply arduino
- 1.
- 2.
- 3.
- 4.
- 5.

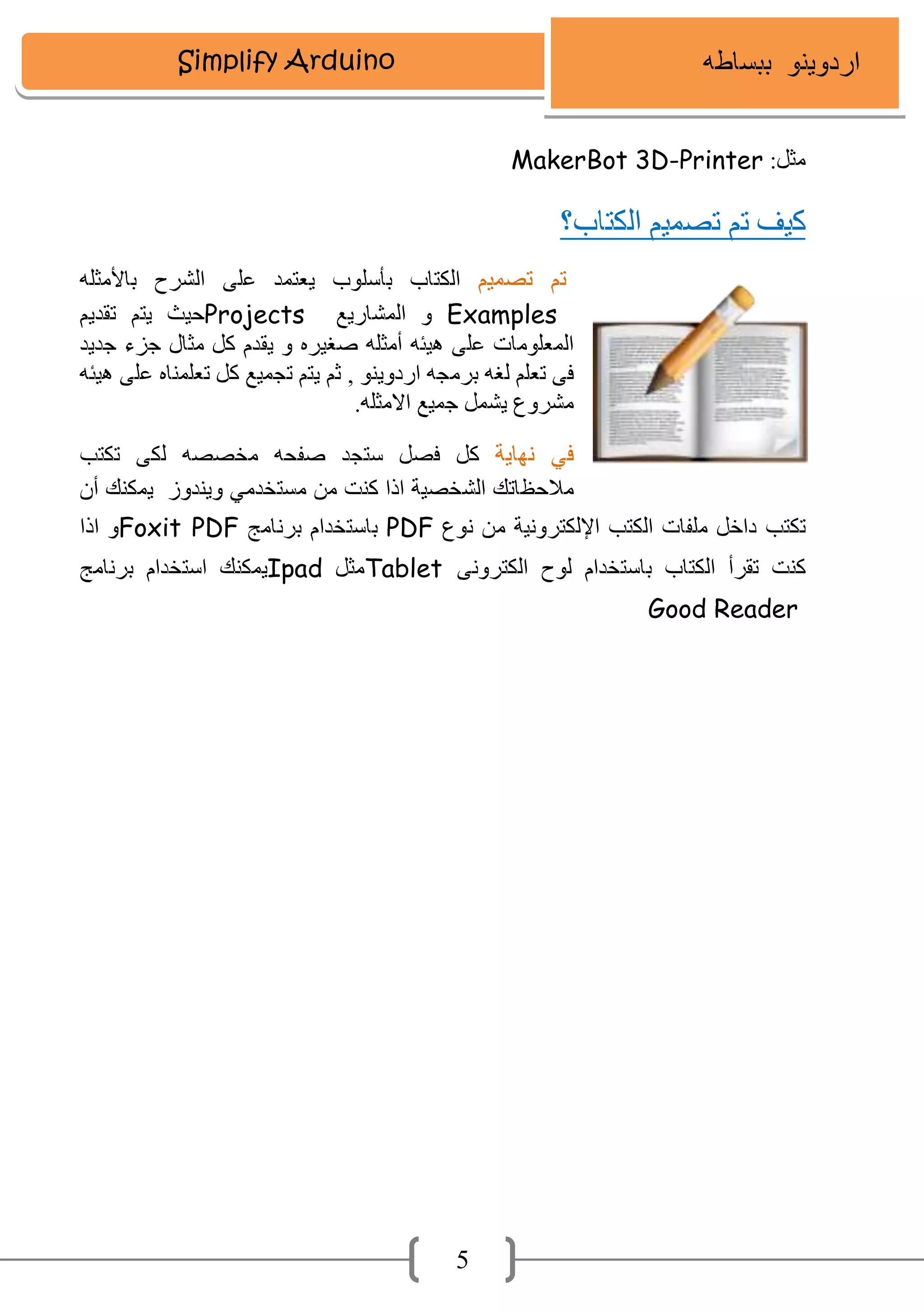

- 6. Simplify Arduino 5 MakerBot 3D-Printer ExamplesProjects PDFFoxitPDF TabletIpad Good Reader

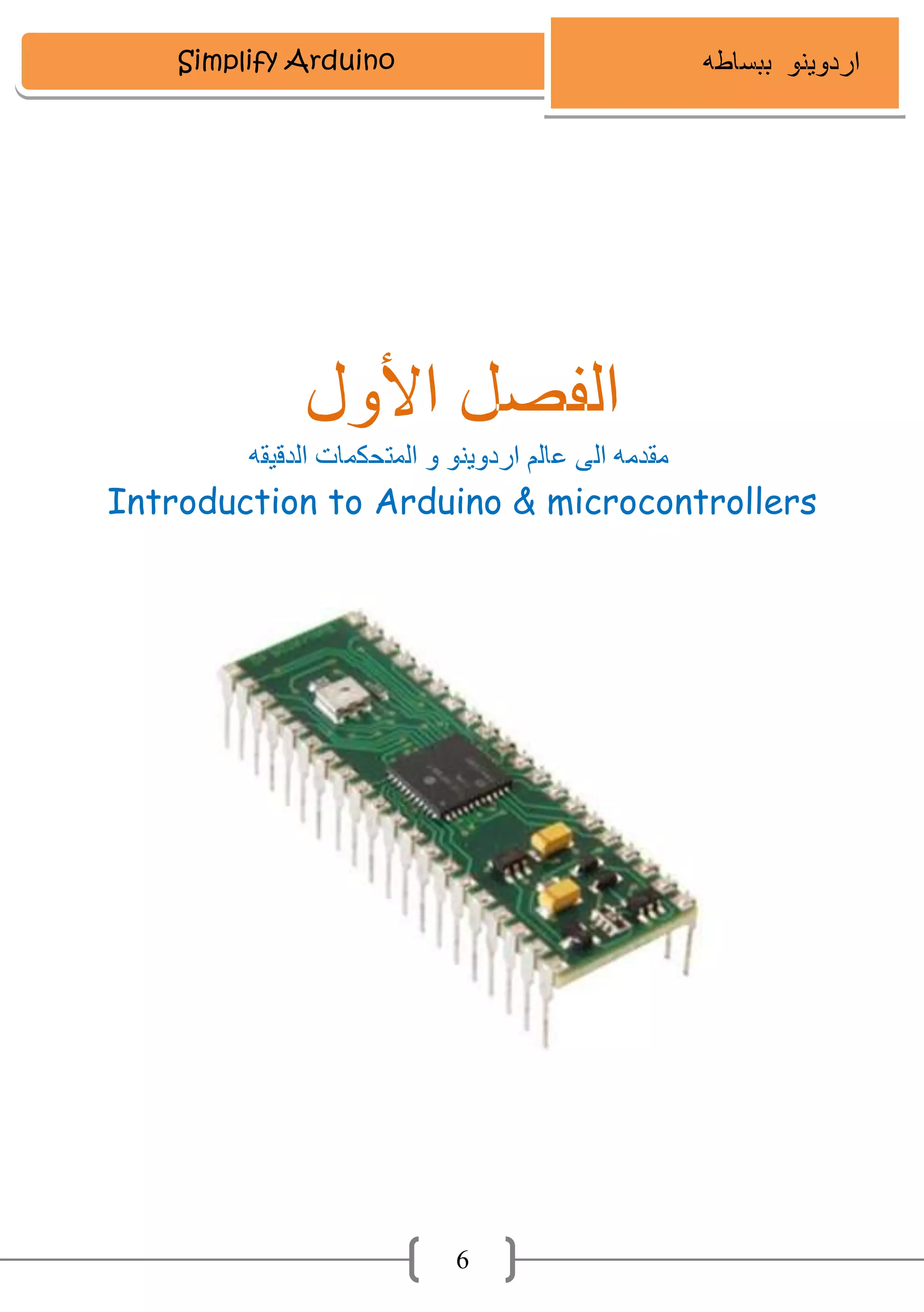

- 7. Simplify Arduino 6 Introduction toArduino & microcontrollers

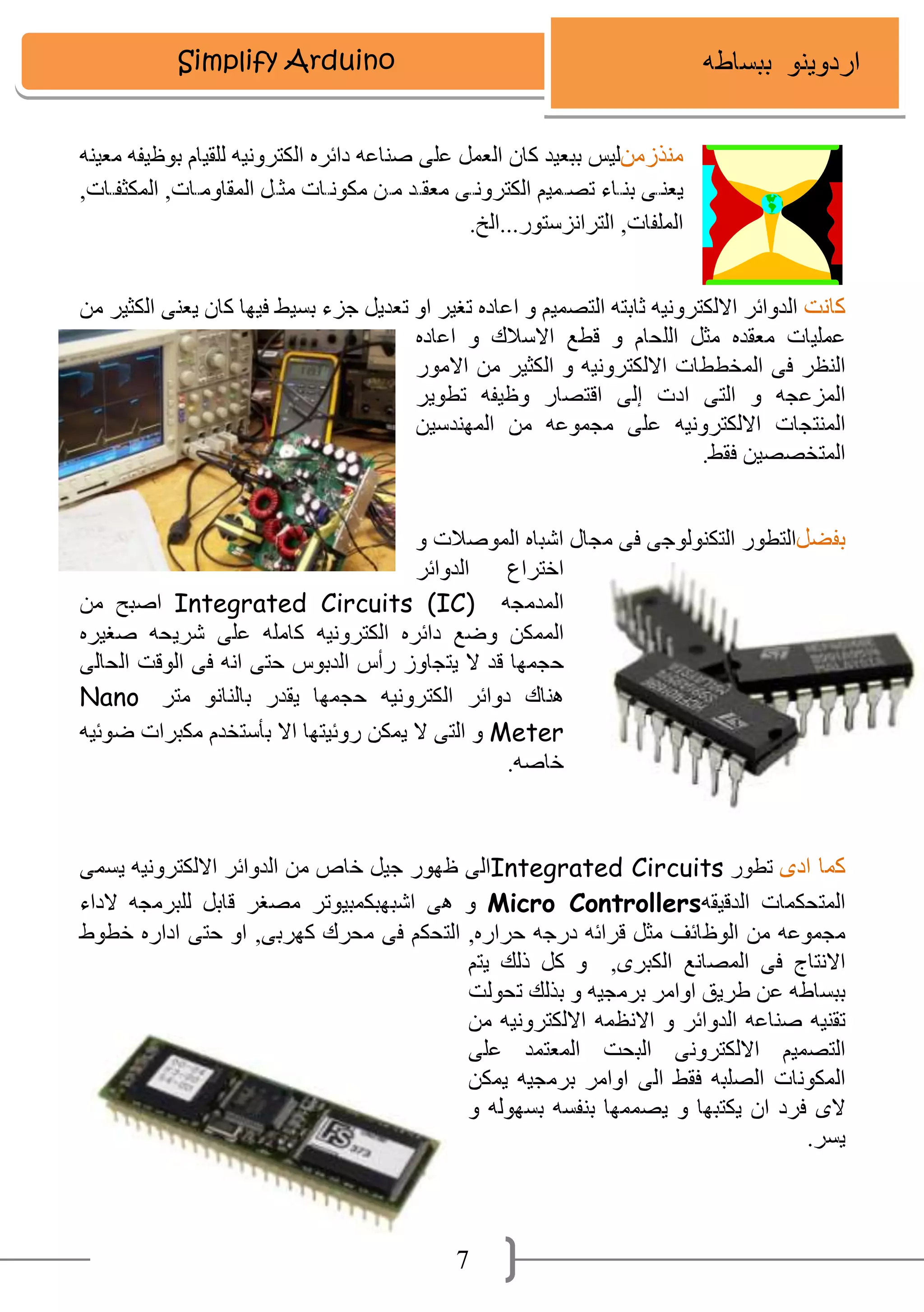

- 8. Simplify Arduino 7 Integrated Circuits(IC) Nano Meter Integrated Circuits Micro Controllers

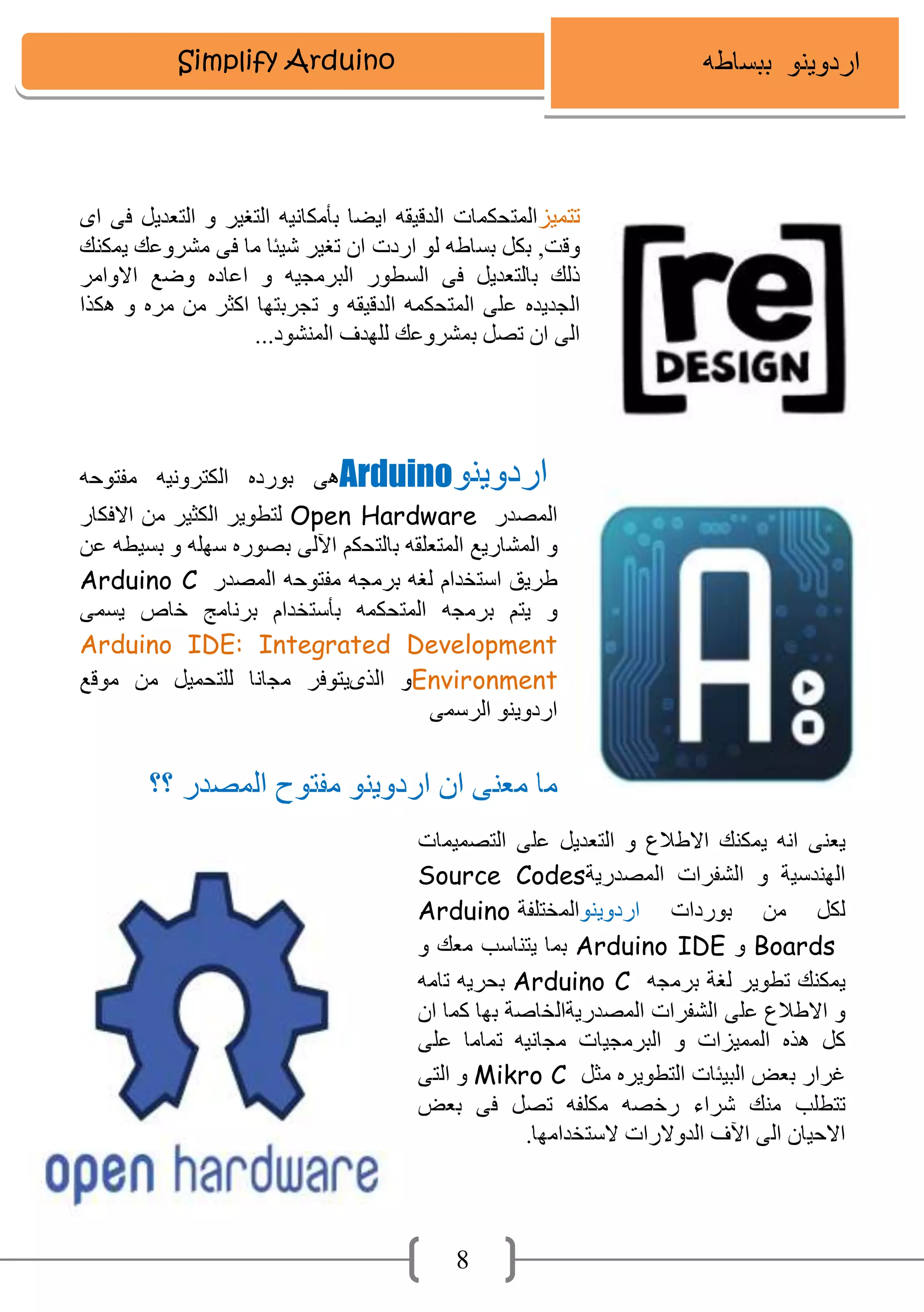

- 9. Simplify Arduino 8 Arduino Open Hardware ArduinoC Arduino IDE: Integrated Development Environment Source Codes Arduino BoardsArduino IDE Arduino C Mikro C

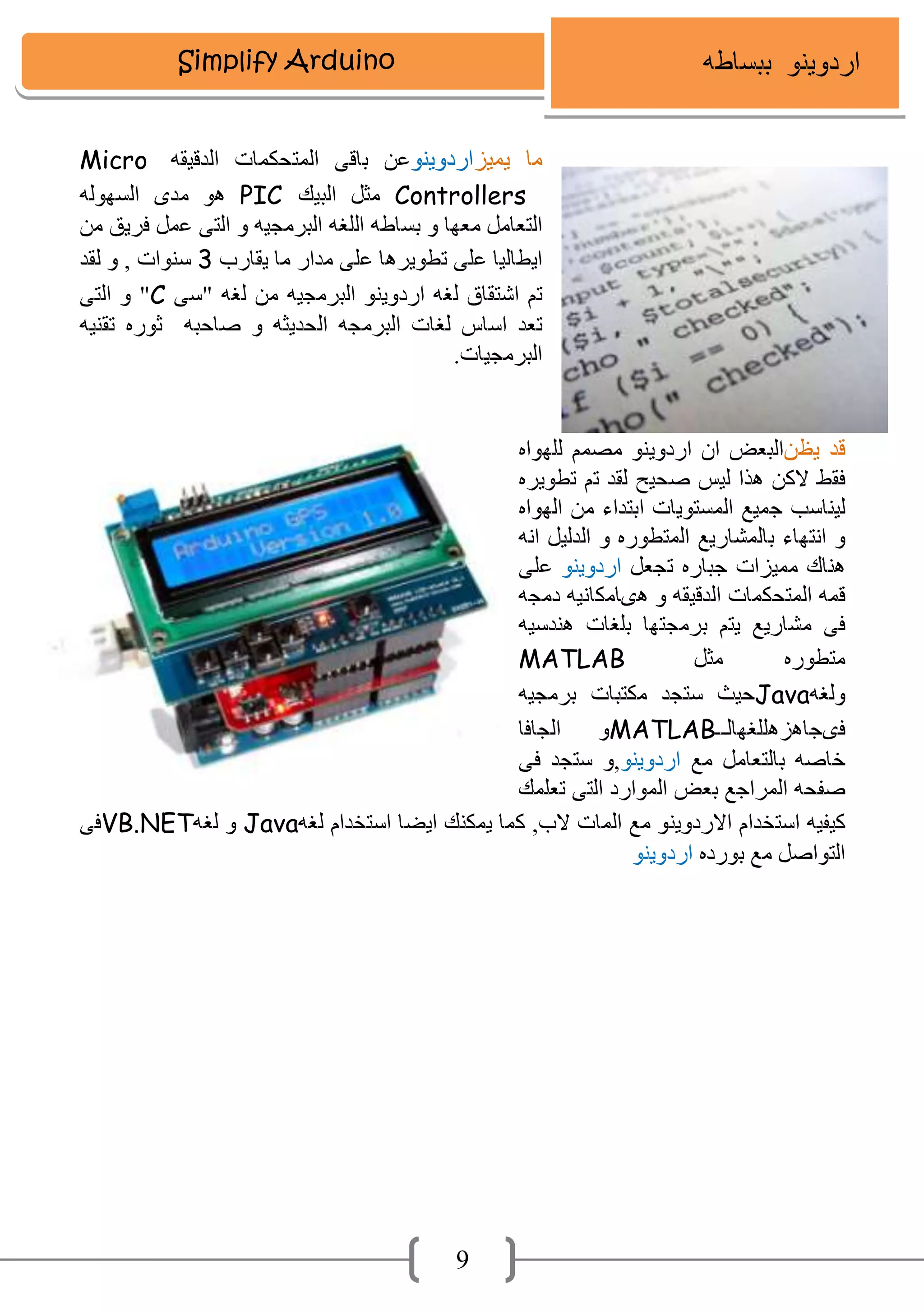

- 10.

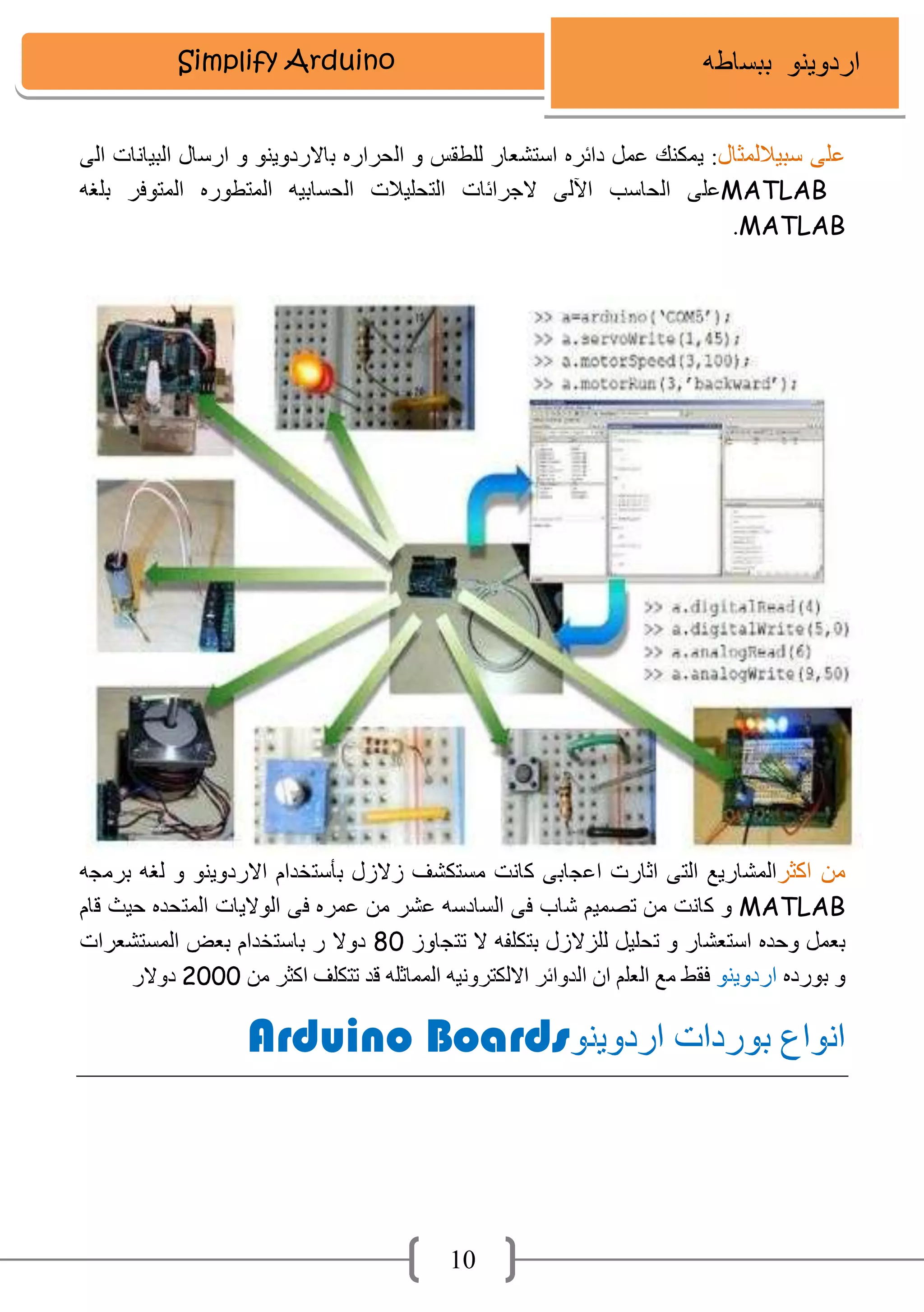

- 11.

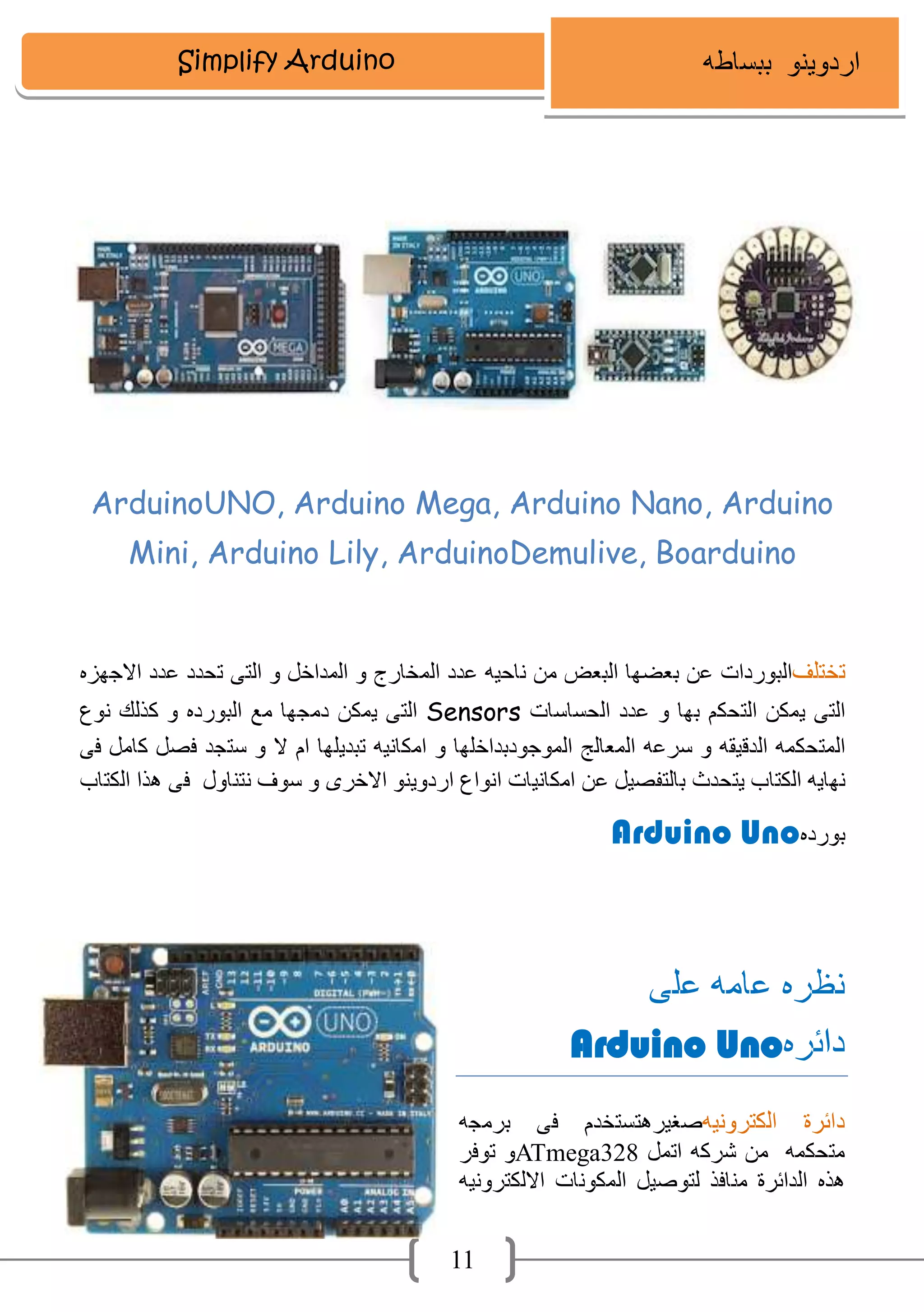

- 12. Simplify Arduino 11 ArduinoUNO, ArduinoMega, Arduino Nano, Arduino Mini, Arduino Lily, ArduinoDemulive, Boarduino Sensors Arduino Uno Arduino Uno ATmega328

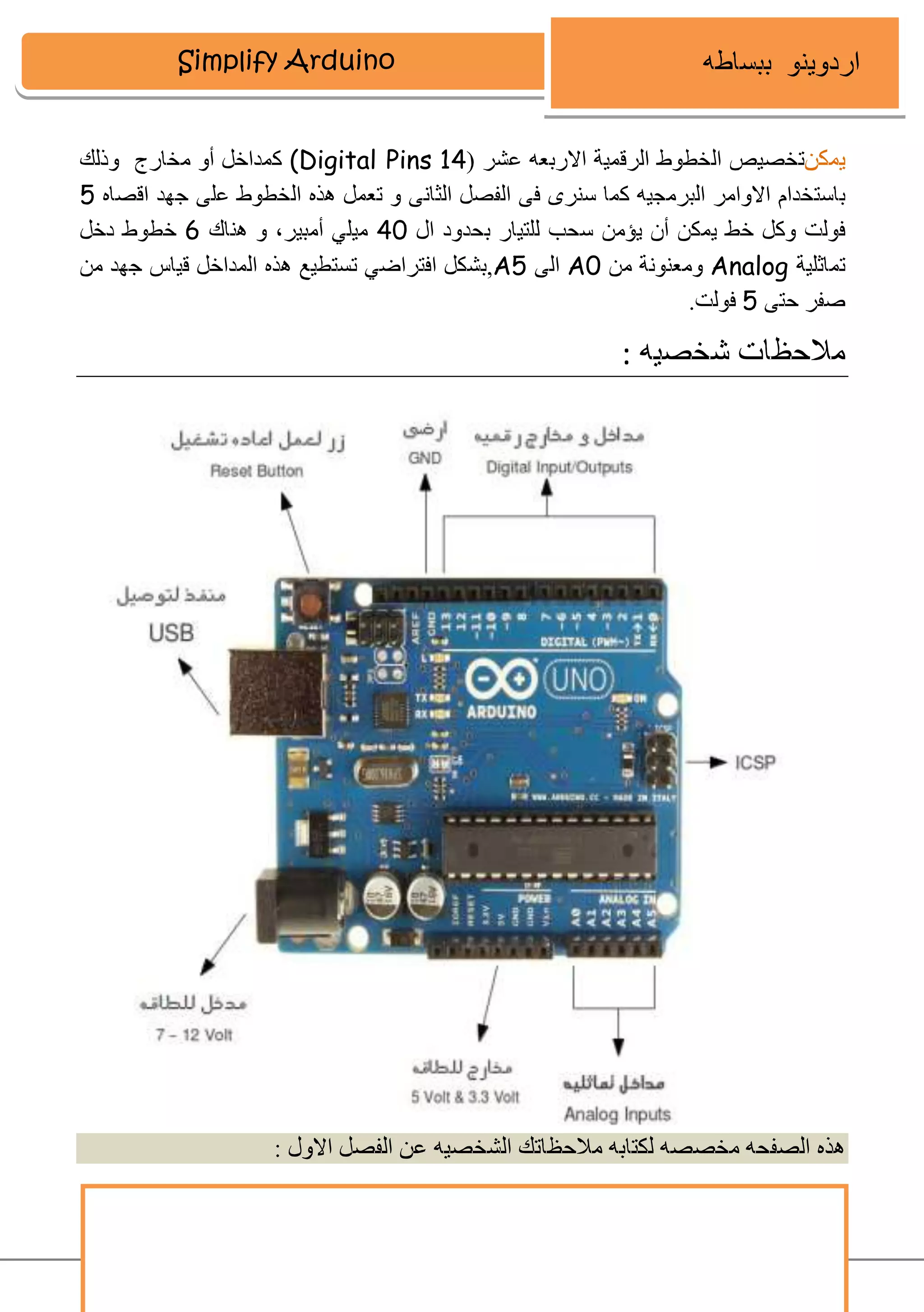

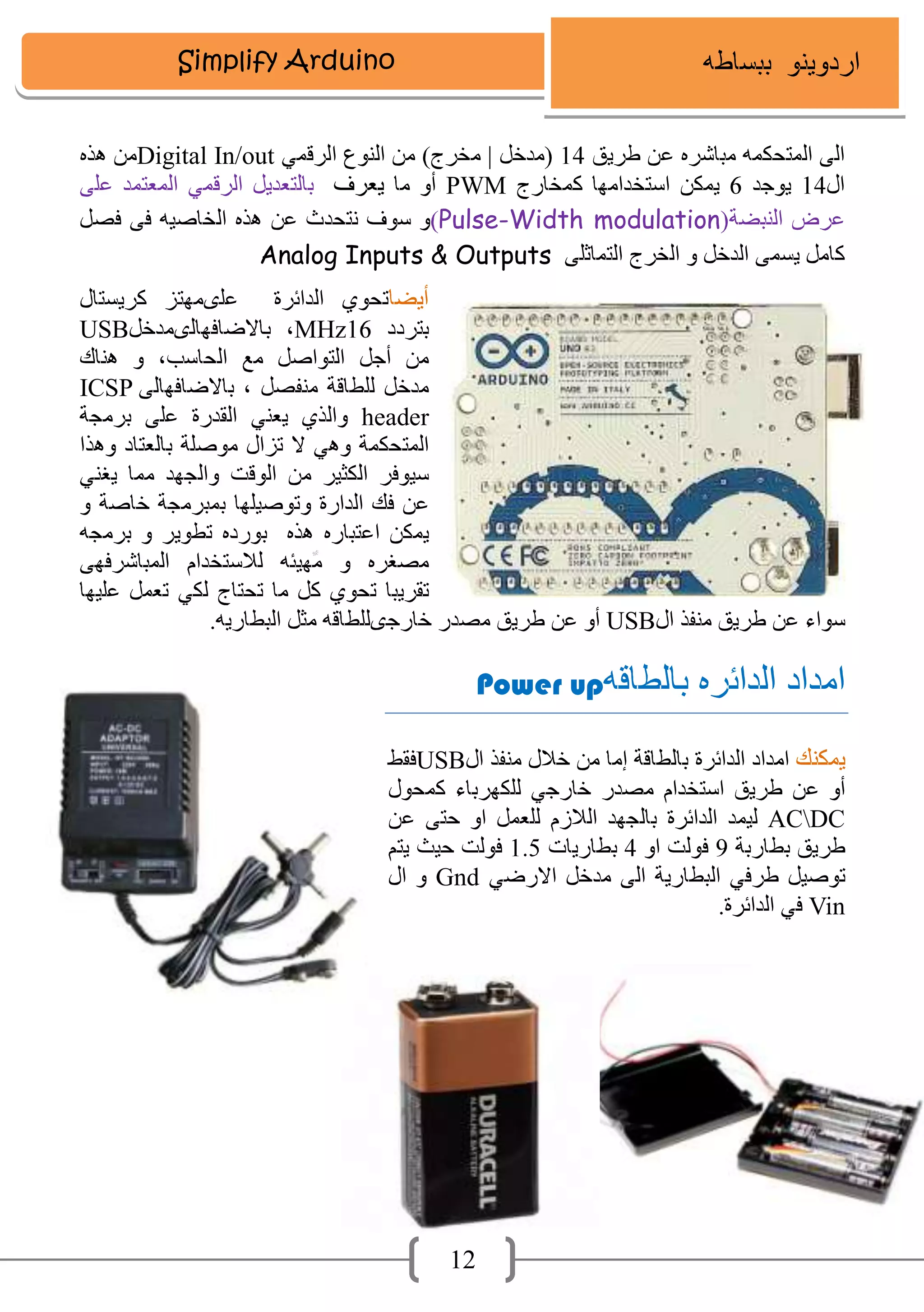

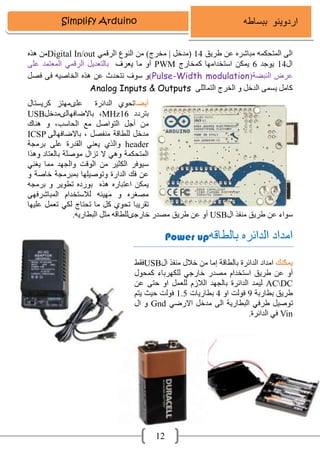

- 13. Simplify Arduino 12 Digital In/out PWM Pulse-Widthmodulation Analog Inputs & Outputs MHzUSB ICSP header USB Power up USB ACDC Gnd Vin

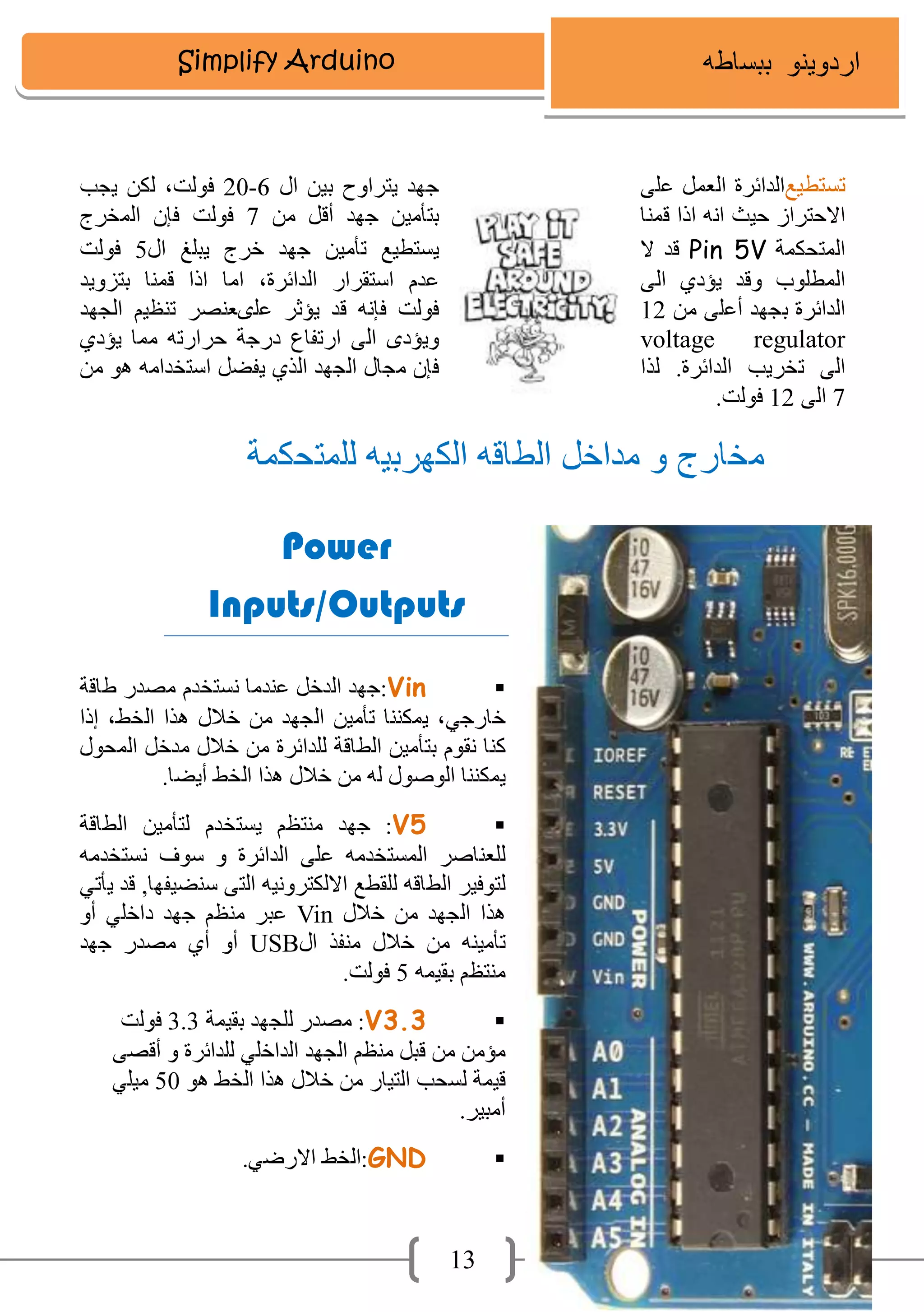

- 14. Simplify Arduino 13 - Pin 5V voltageregulator Power Inputs/Outputs Vin V Vin USB V GND

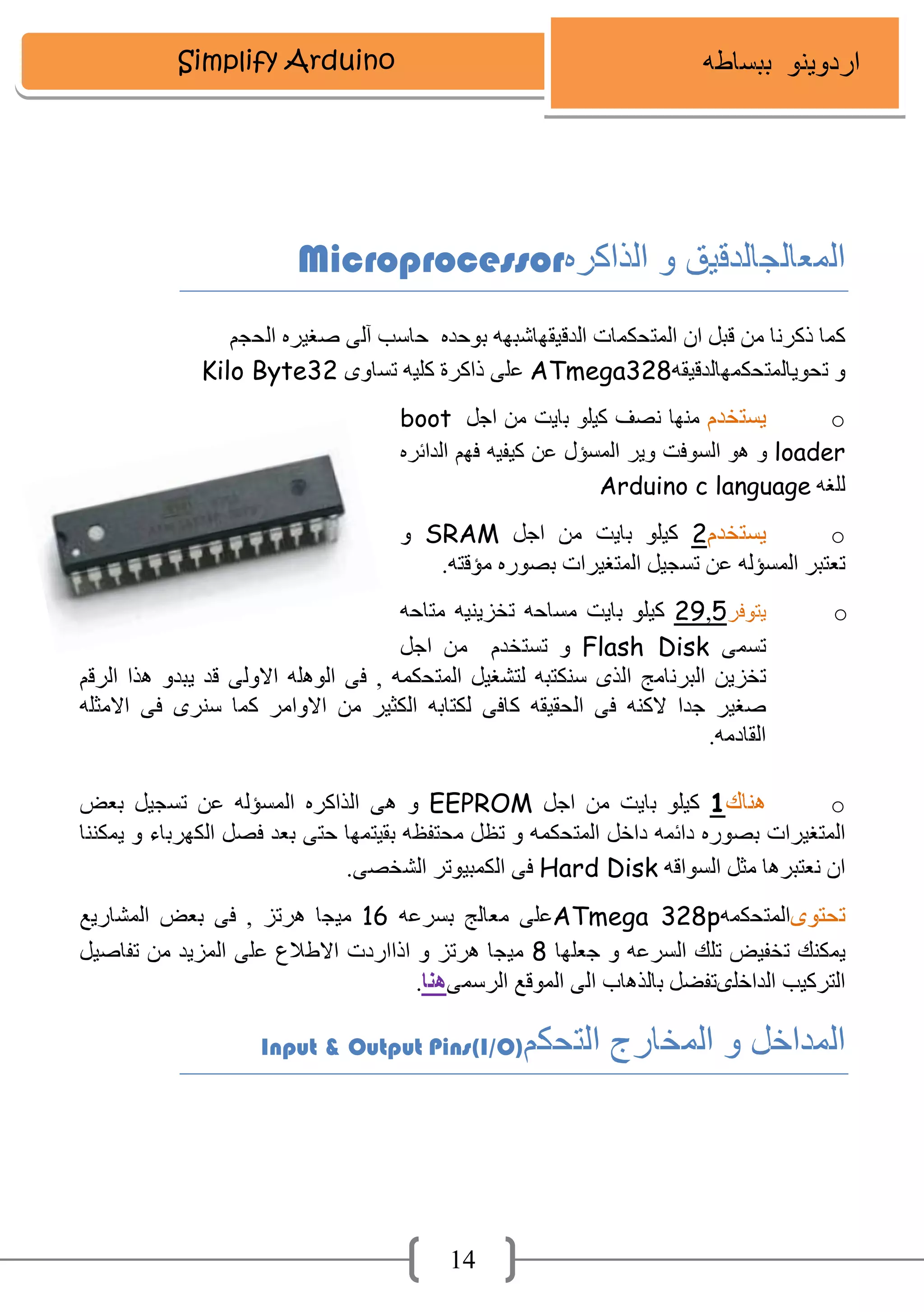

- 15. Simplify Arduino 14 Microprocessor ATmega328Kilo Byte oboot loader Arduinoc language oSRAM o Flash Disk oEEPROM Hard Disk ATmega 328p Input & Output Pins(I/O)
- 16.
- 17.
- 18.
- 19.

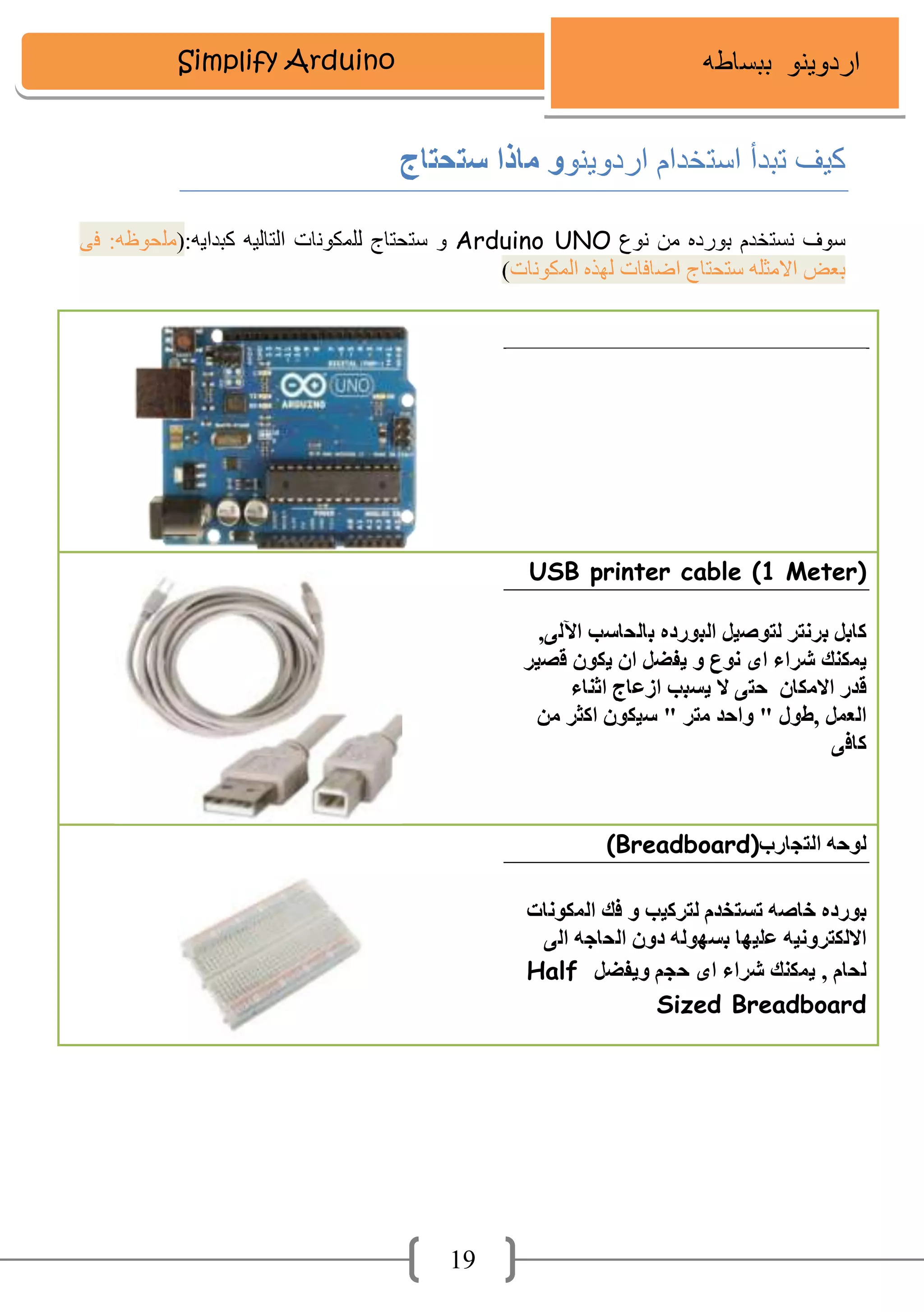

- 20. Simplify Arduino 19 Arduino UNO ArduinoUno V.3 ATmega328 USB printer cable (1 Meter) (Breadboard) Half Sized Breadboard

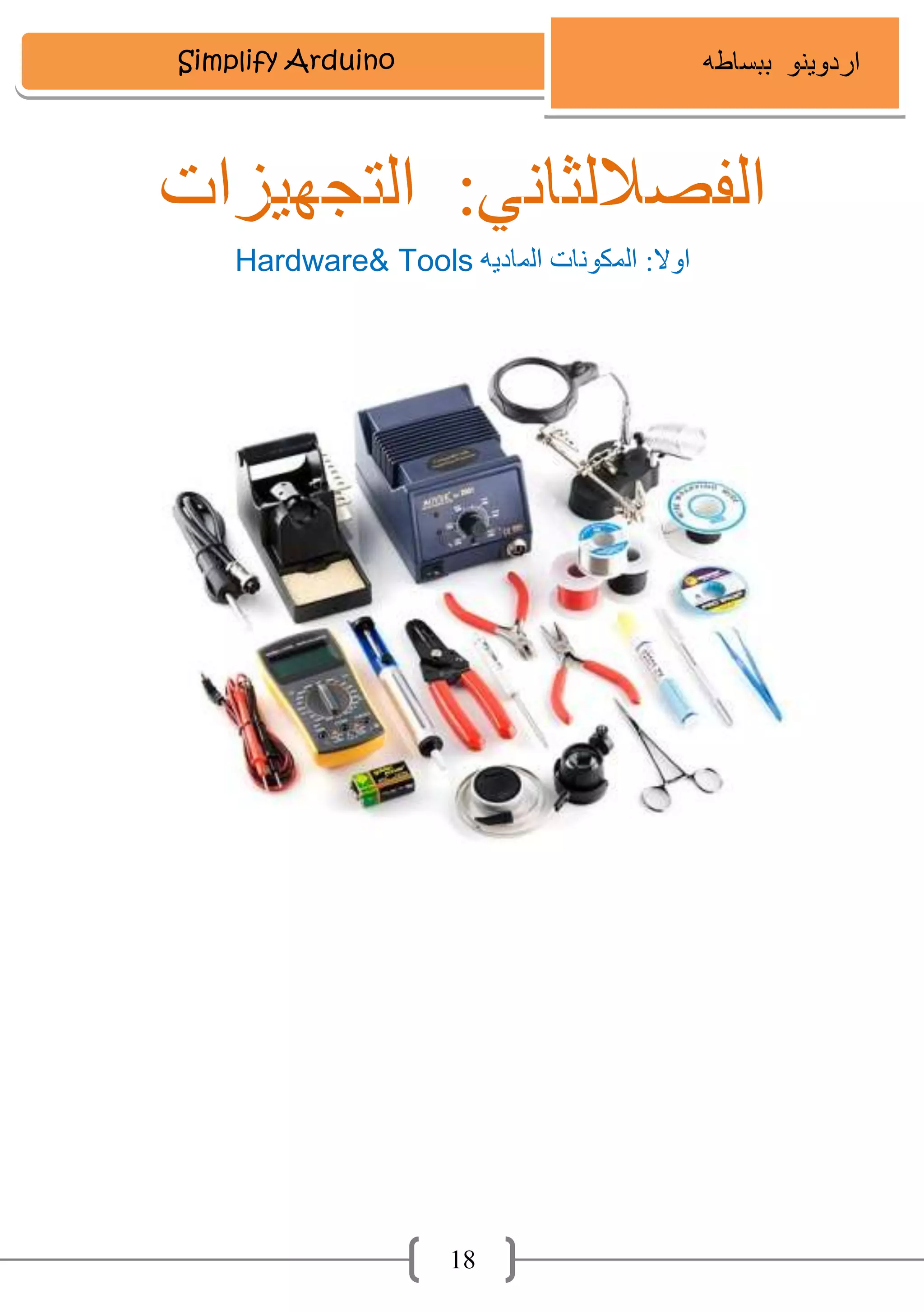

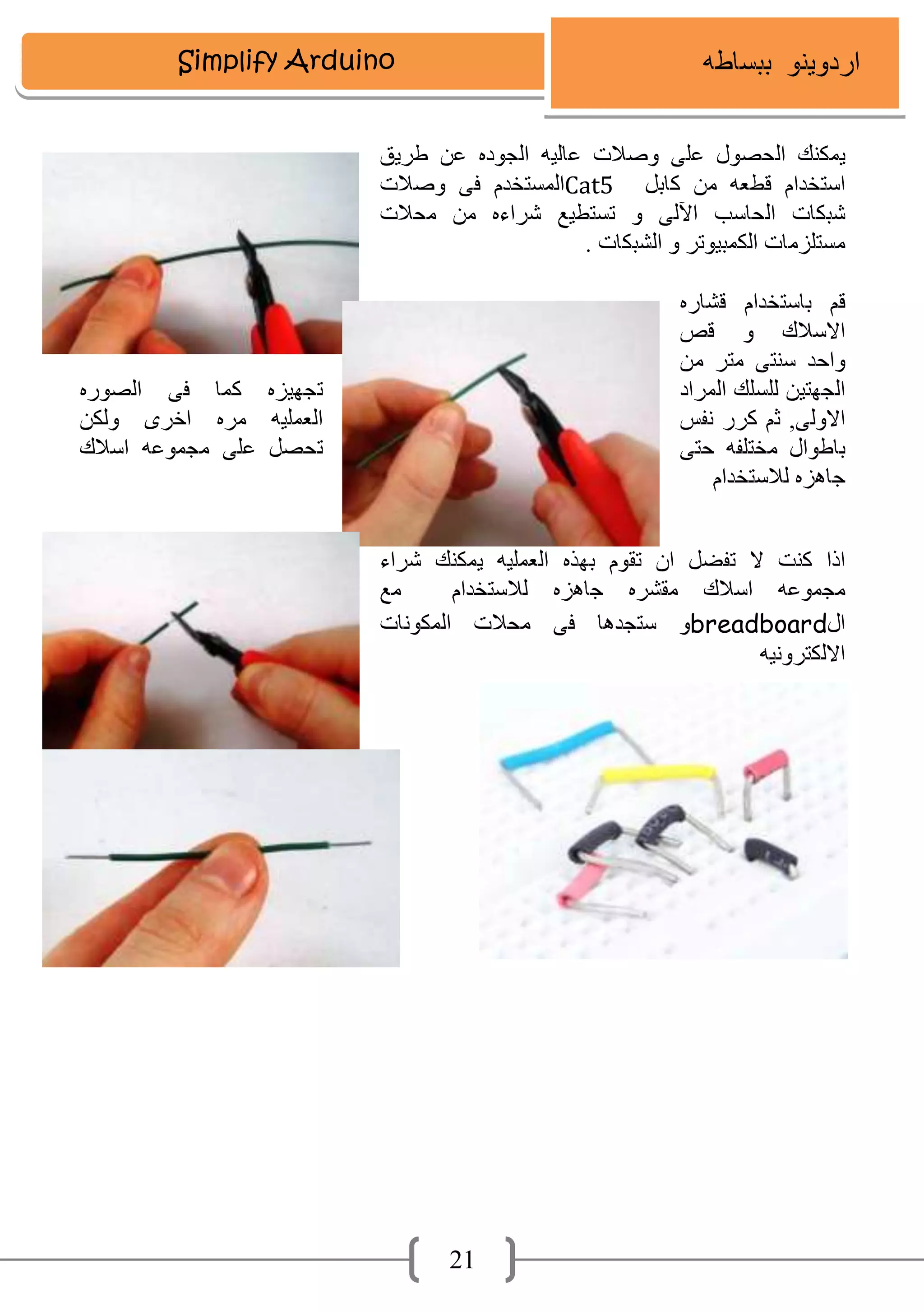

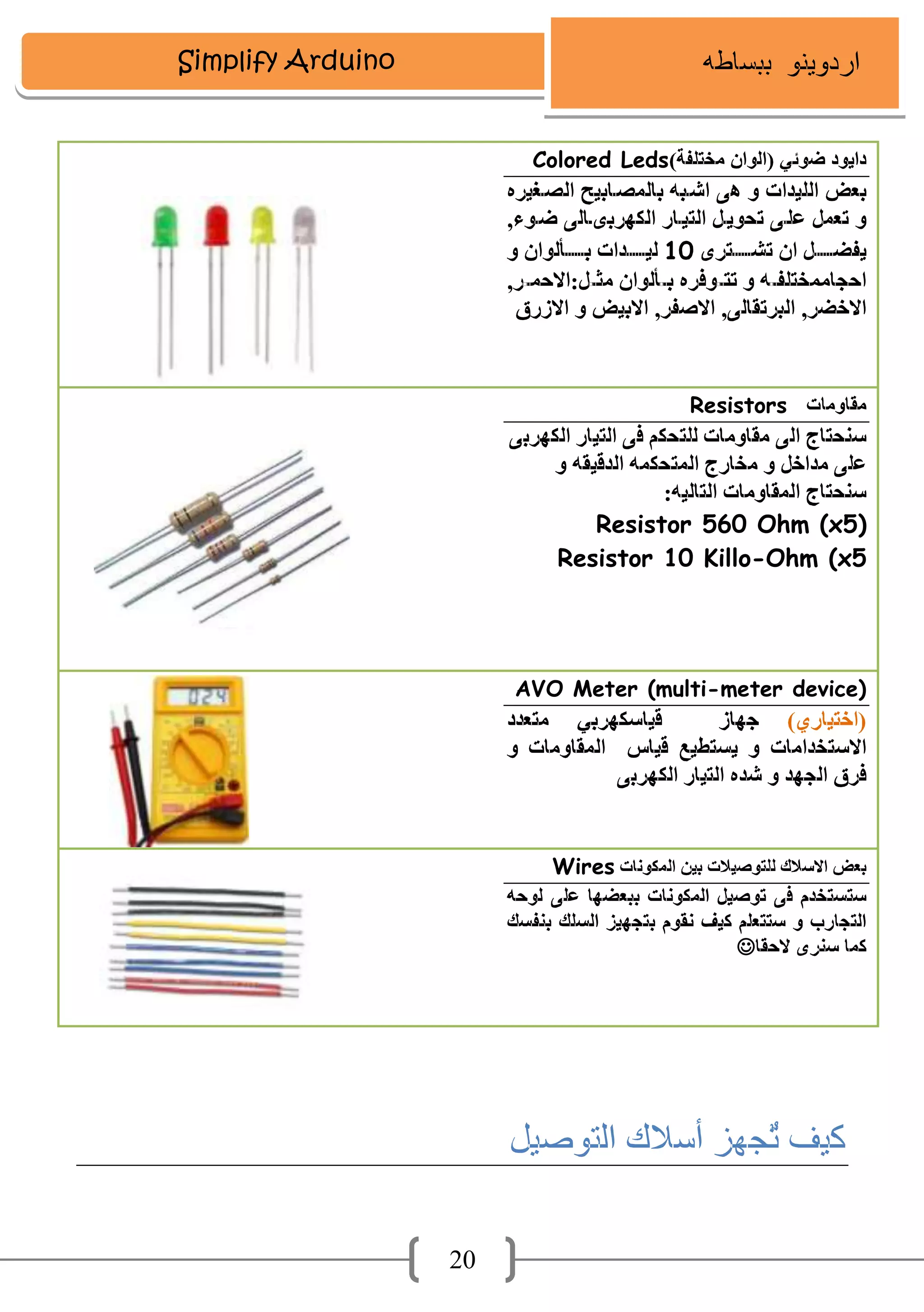

- 21. Simplify Arduino 20 Colored Leds Resistors Resistor560 Ohm (x5) Resistor 10 Killo-Ohm (x5 AVO Meter (multi-meter device) Wires
- 22.
- 23.
- 24.
- 25.

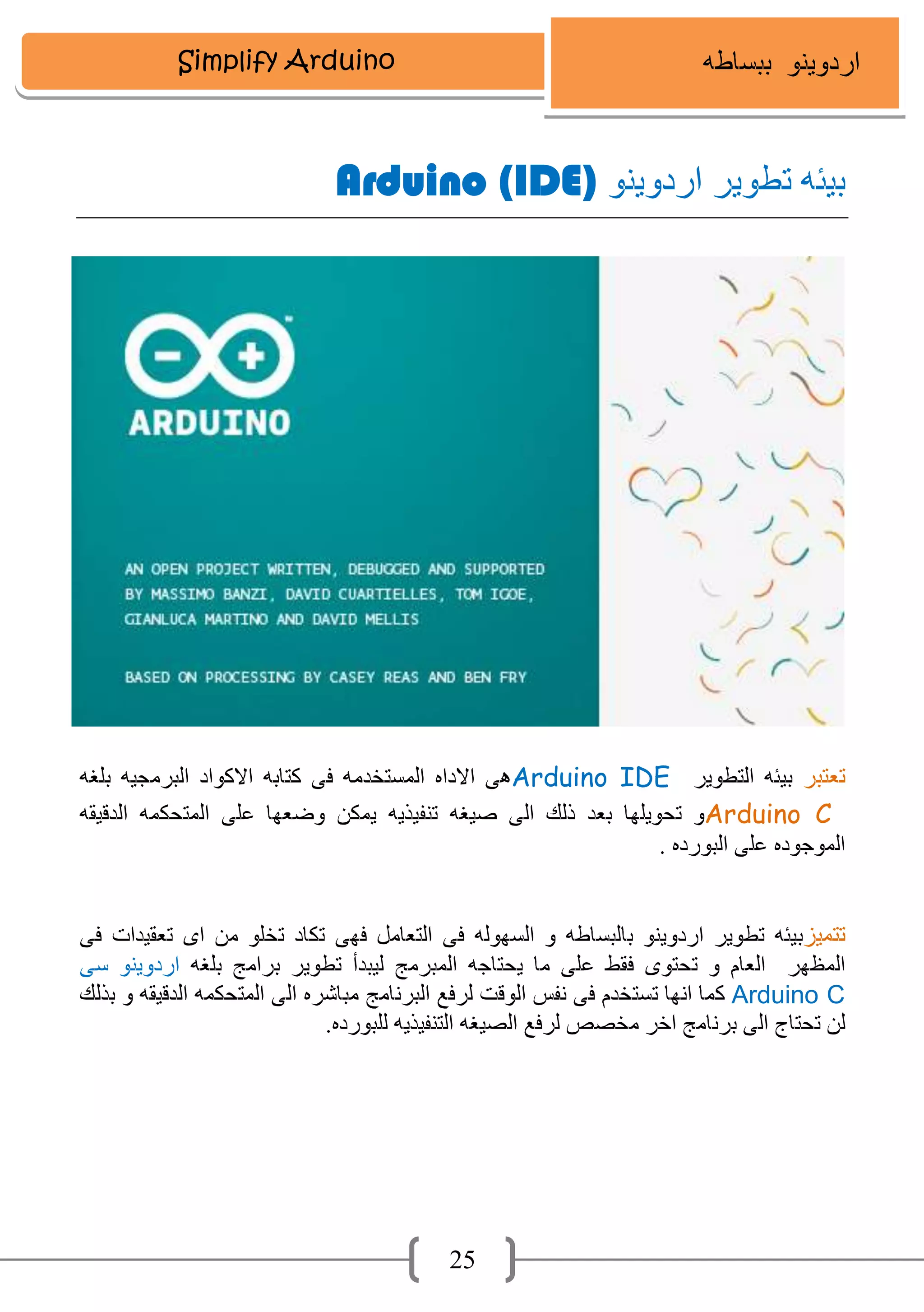

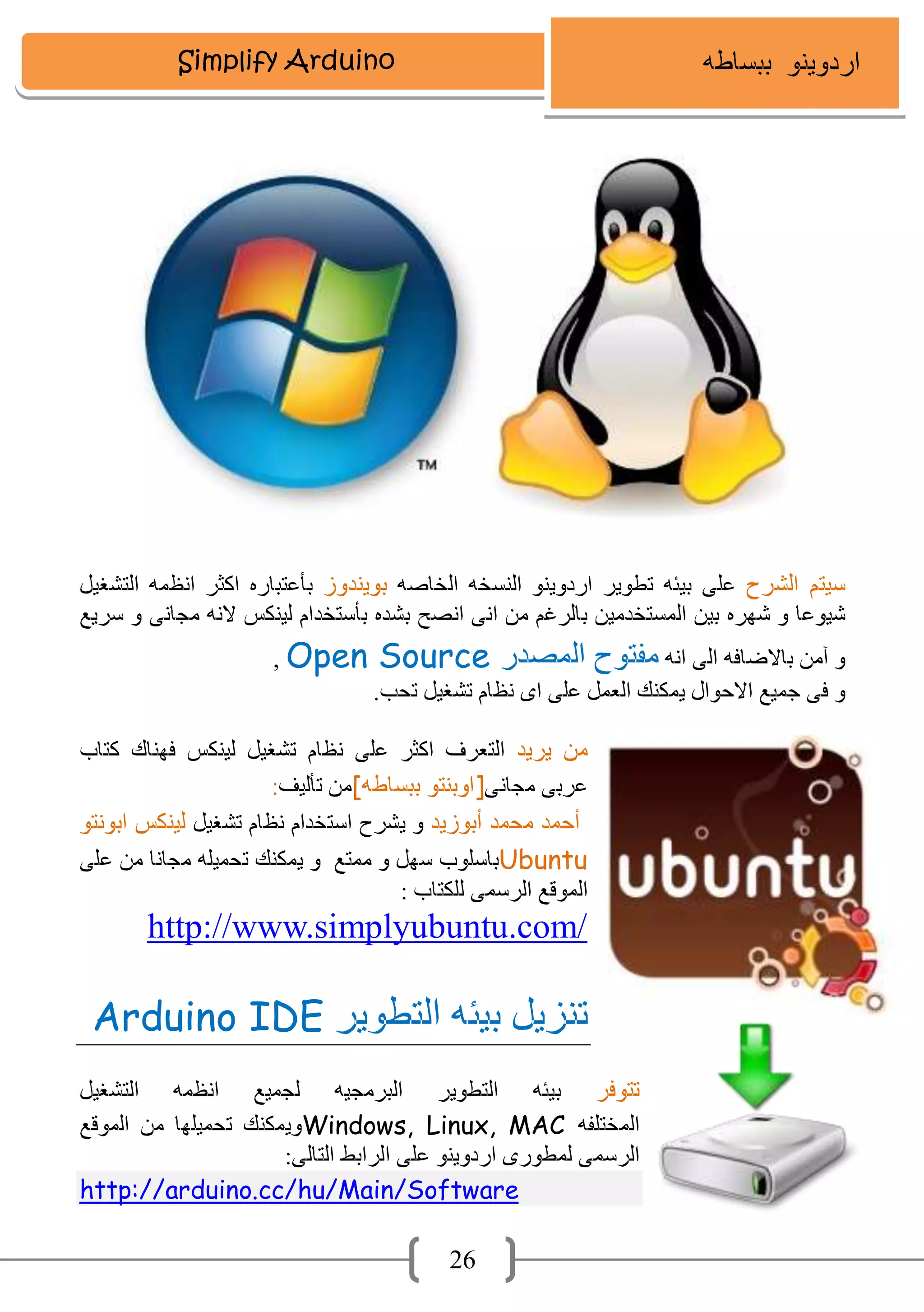

- 26. Simplify Arduino 25 Arduino (IDE) ArduinoIDE Arduino C Arduino C
- 27. Simplify Arduino 26 Open Source ][ Ubuntu http://www.simplyubuntu.com/ ArduinoIDE Windows, Linux, MAC http://arduino.cc/hu/Main/Software

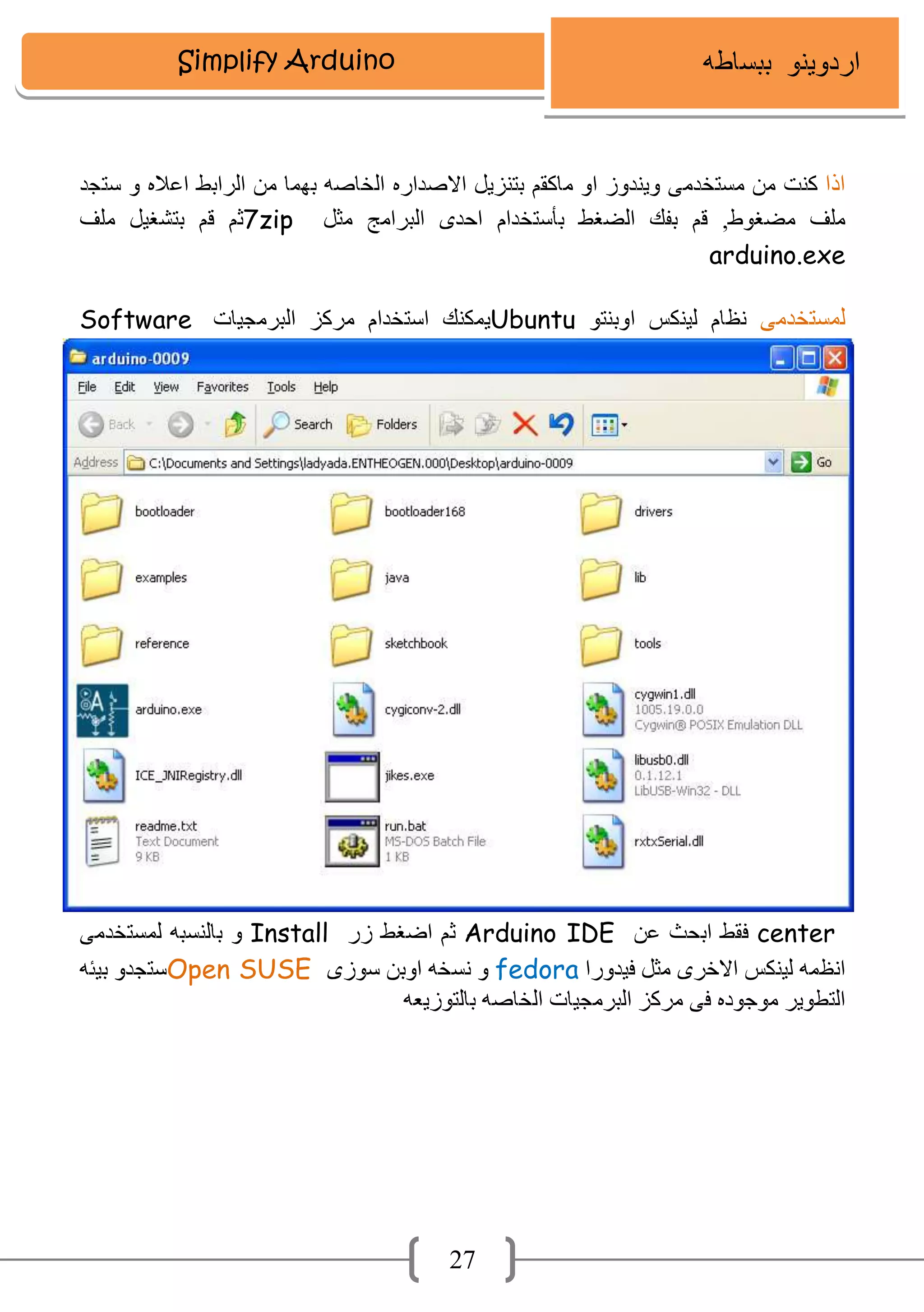

- 28.

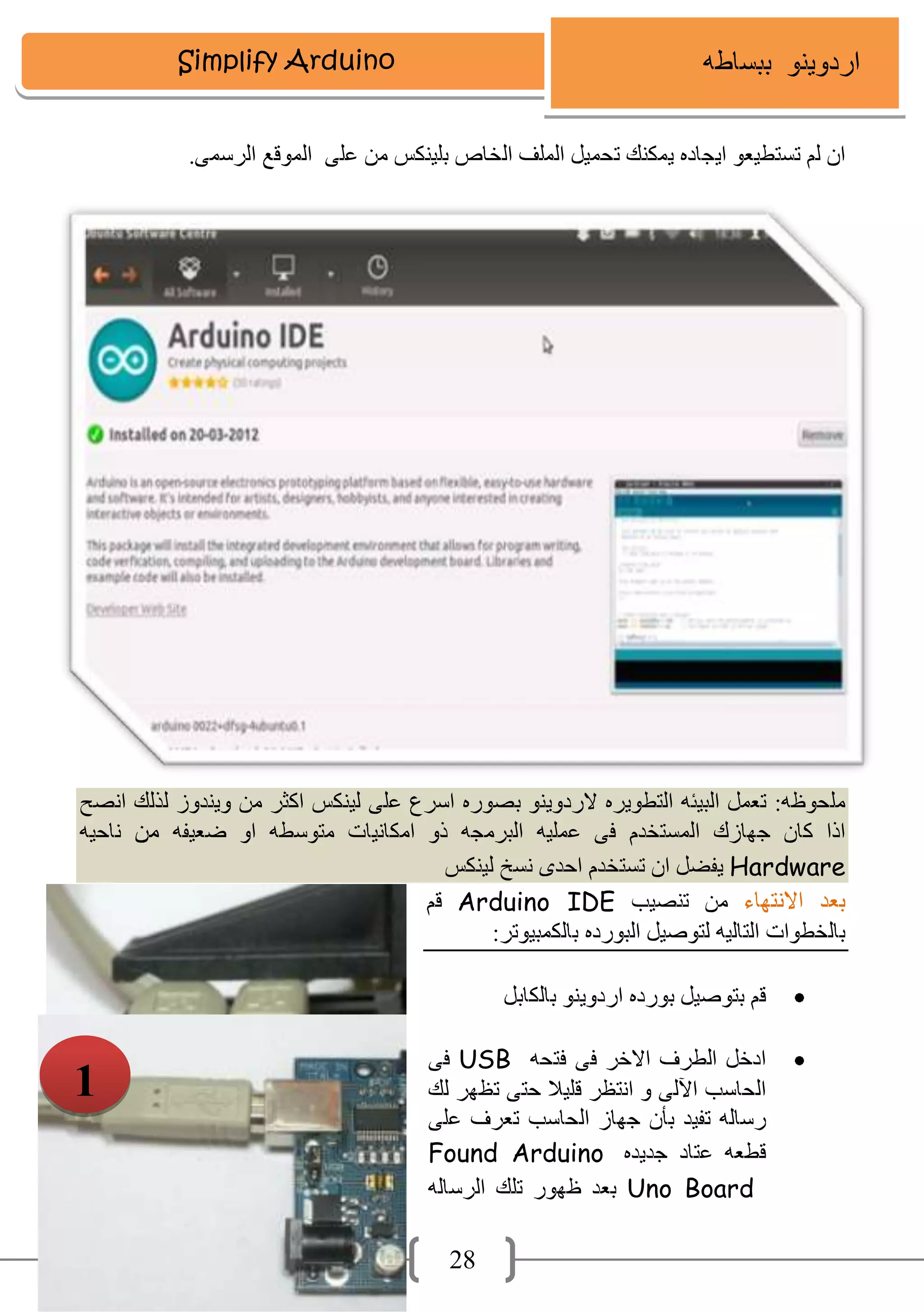

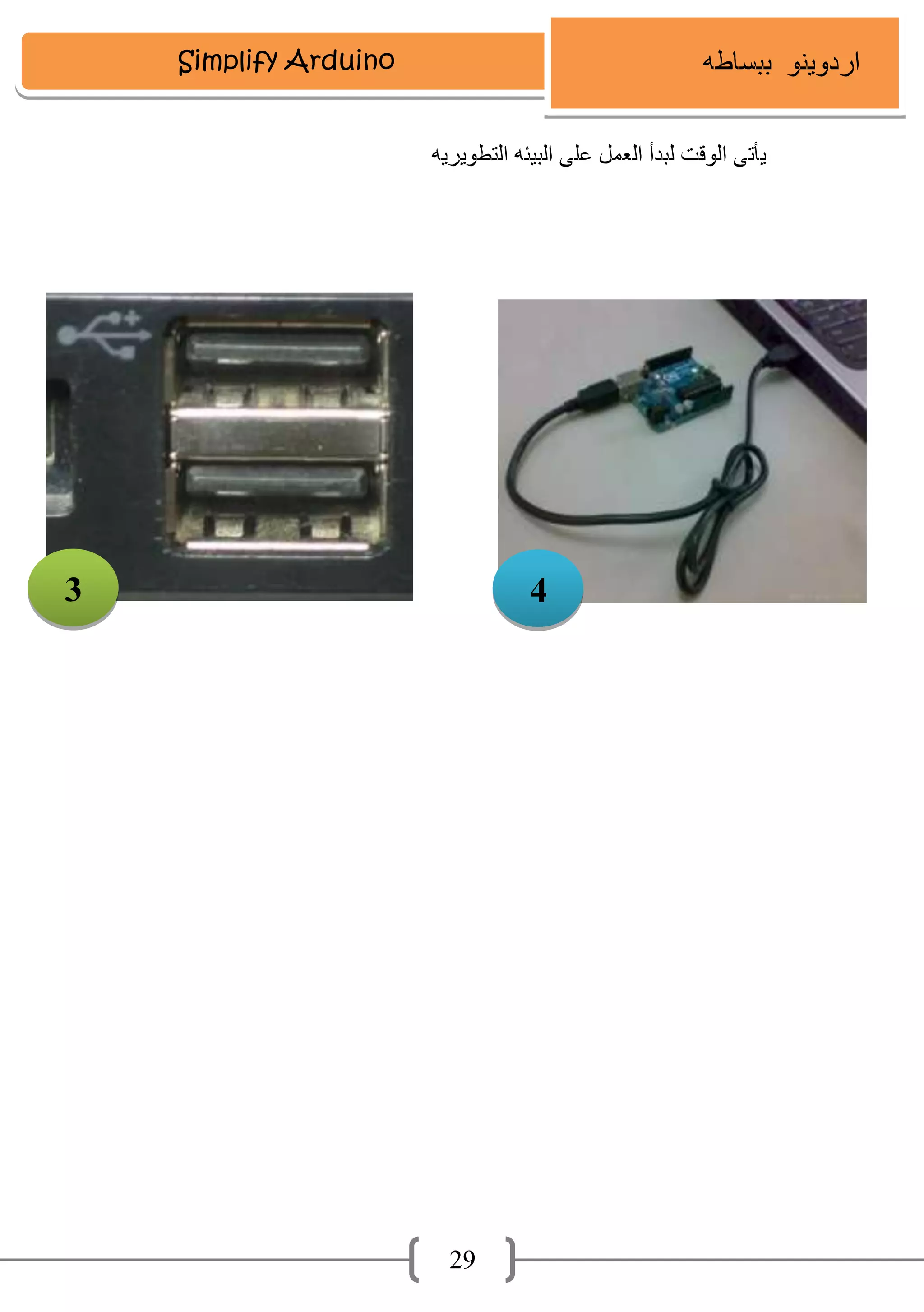

- 29. Simplify Arduino 28 Hardware Arduino IDE USB FoundArduino Uno Board
- 30.

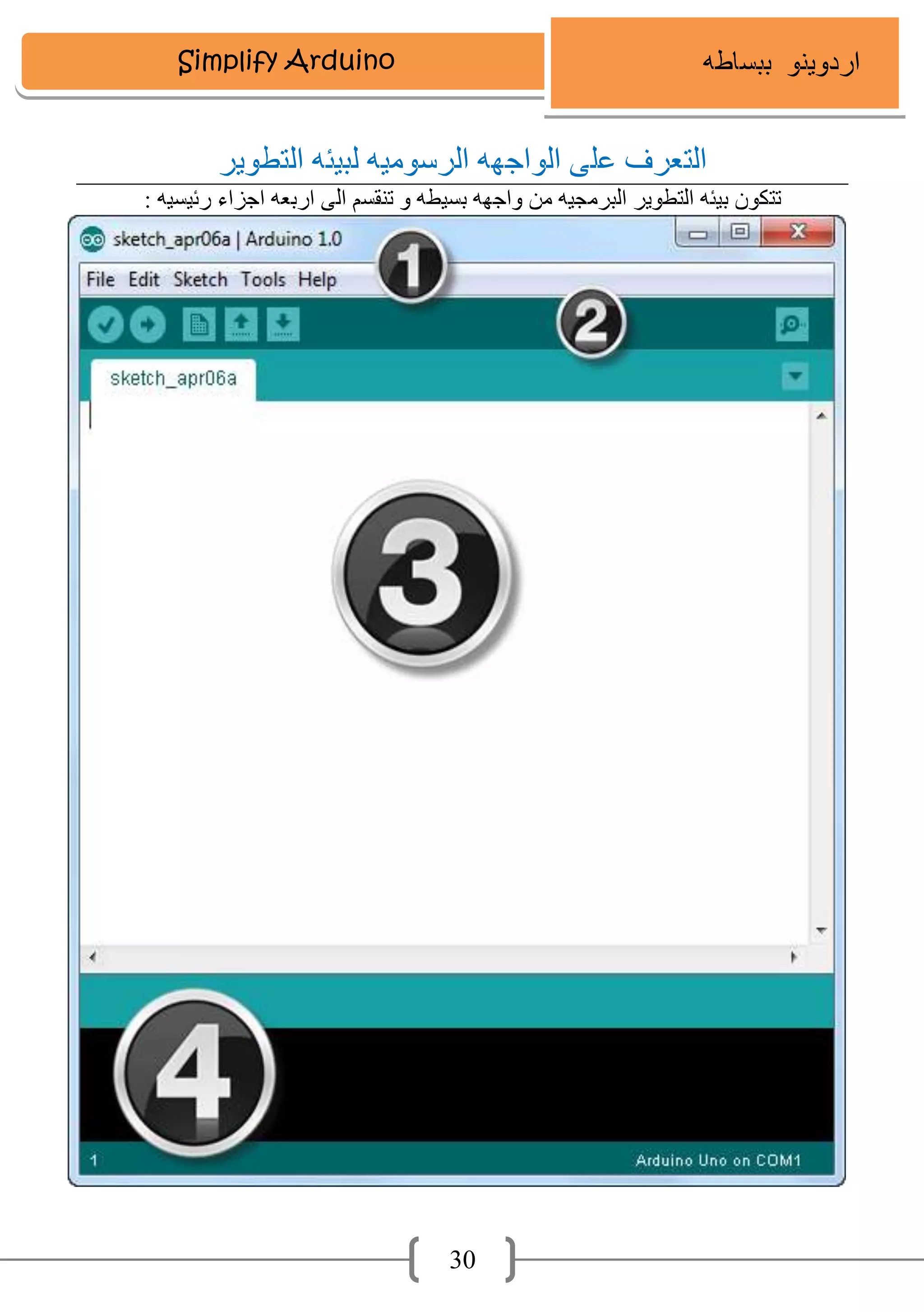

- 31.

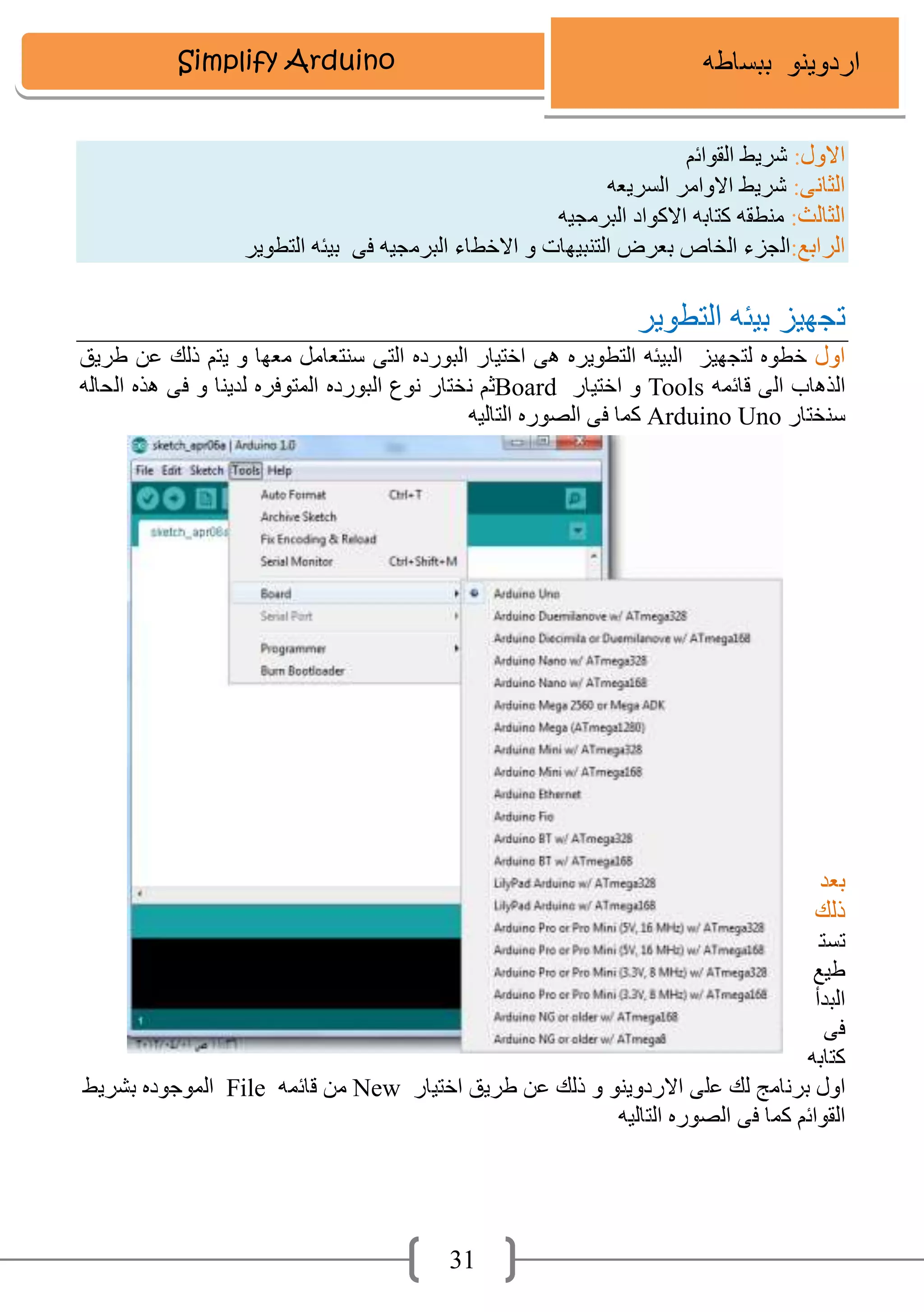

- 32.

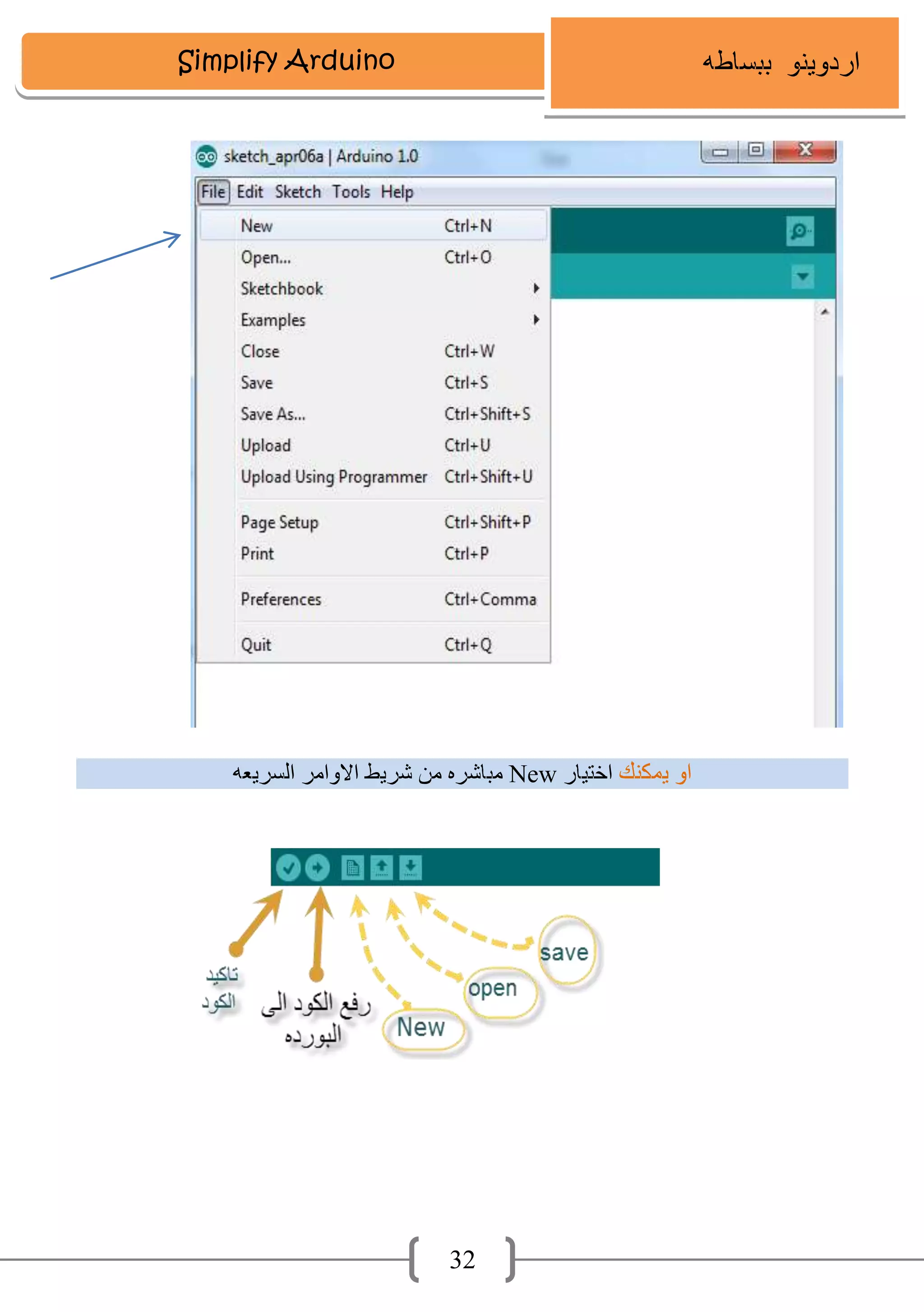

- 33.
- 34.
- 35.

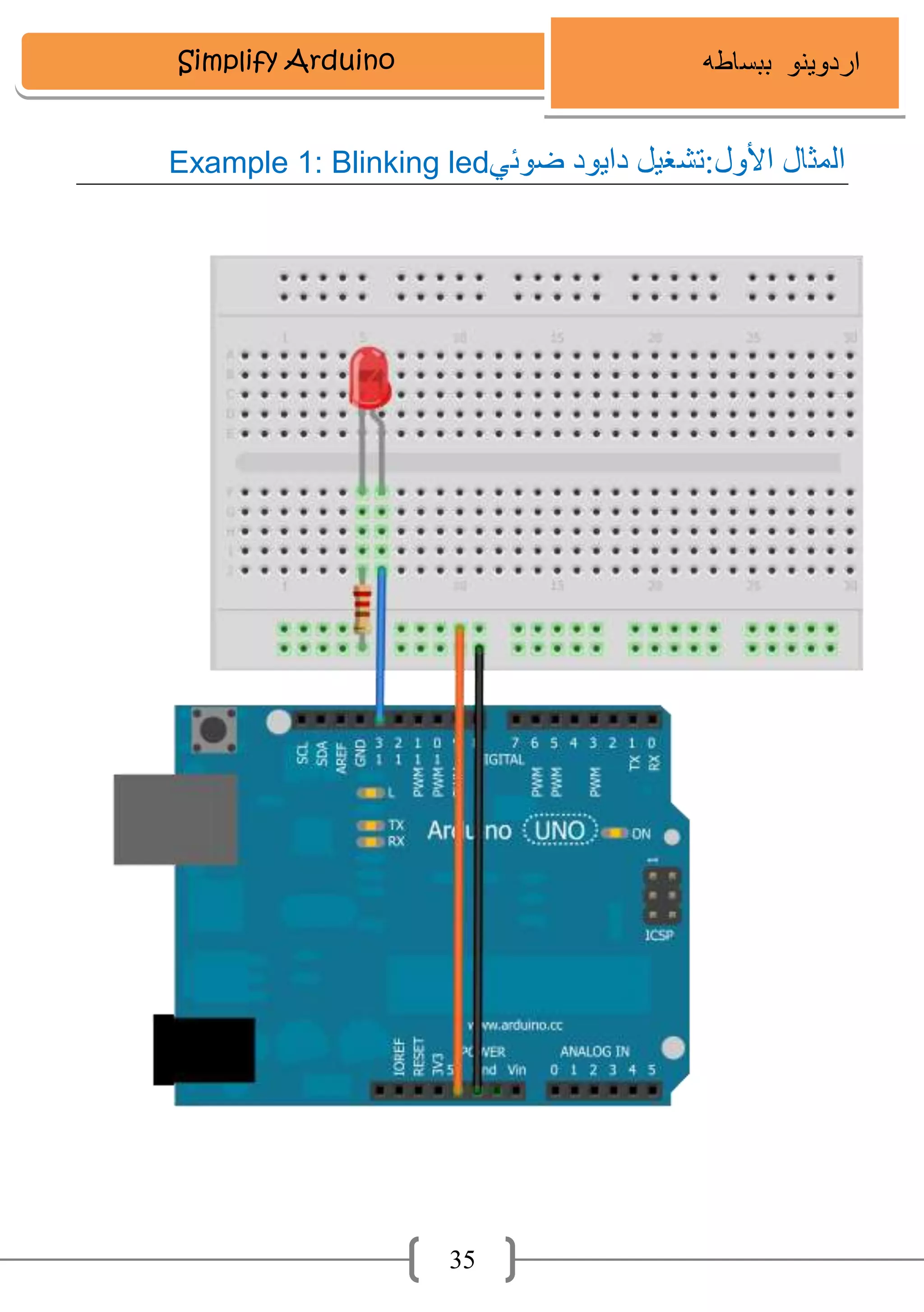

- 36. Simplify Arduino 35 Example 1:Blinking led

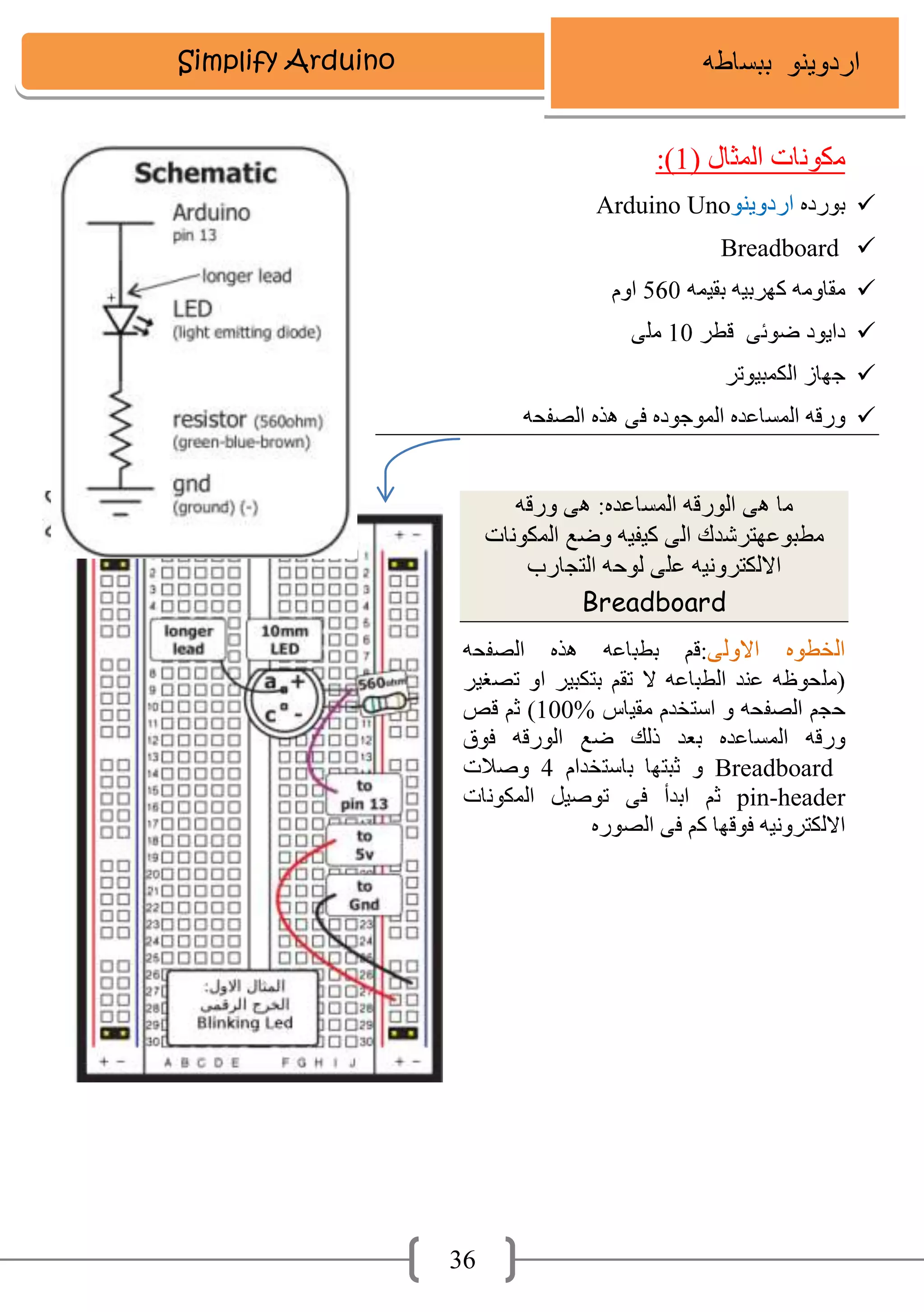

- 37.

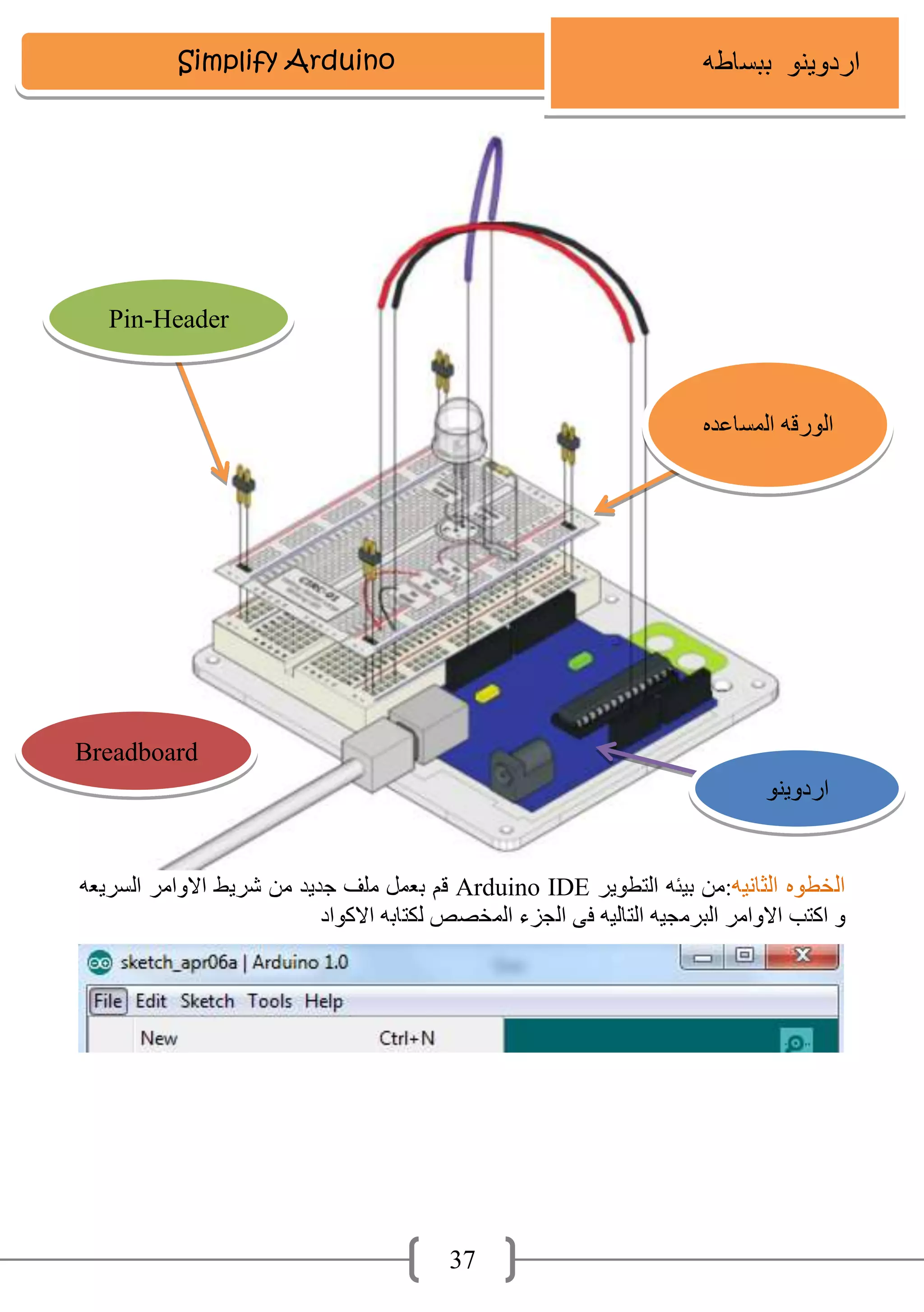

- 38.

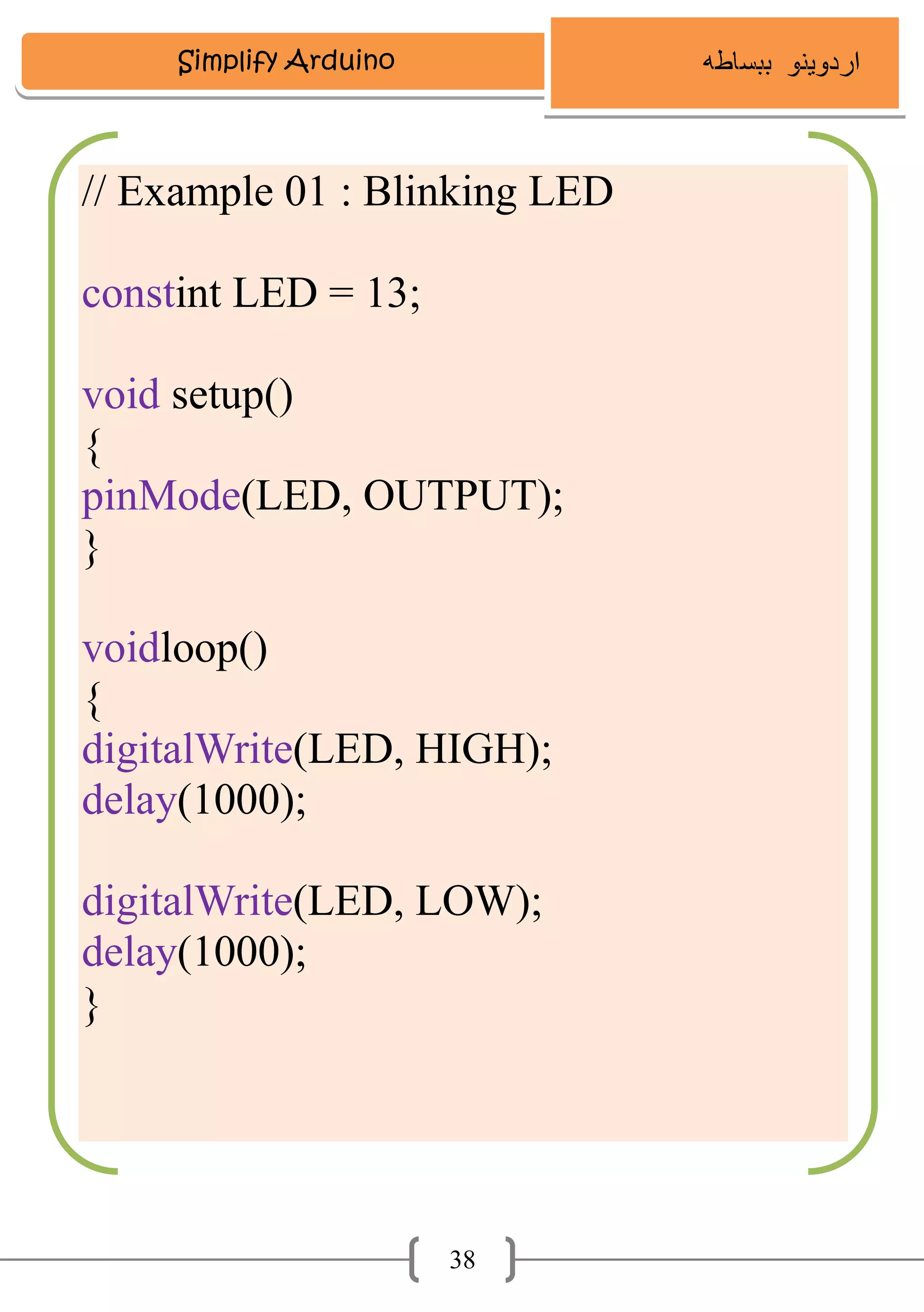

- 39. Simplify Arduino 38 // Example01 : Blinking LED constint LED = 13; void setup() { pinMode(LED, OUTPUT); } voidloop() { digitalWrite(LED, HIGH); delay(1000); digitalWrite(LED, LOW); delay(1000); }

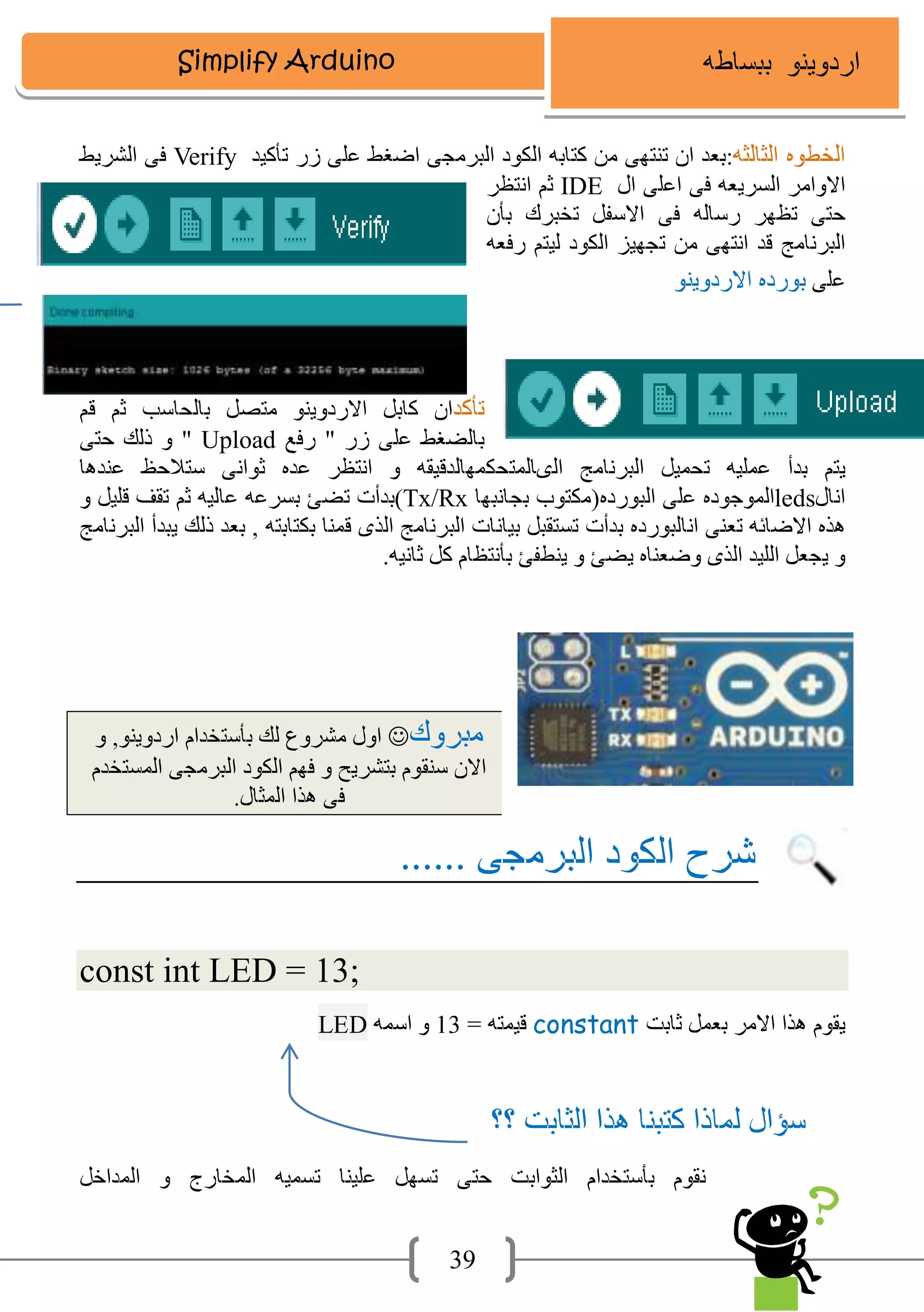

- 40. Simplify Arduino 39 Verify IDE Upload ledsTx/Rx const intLED = 13; constantLED

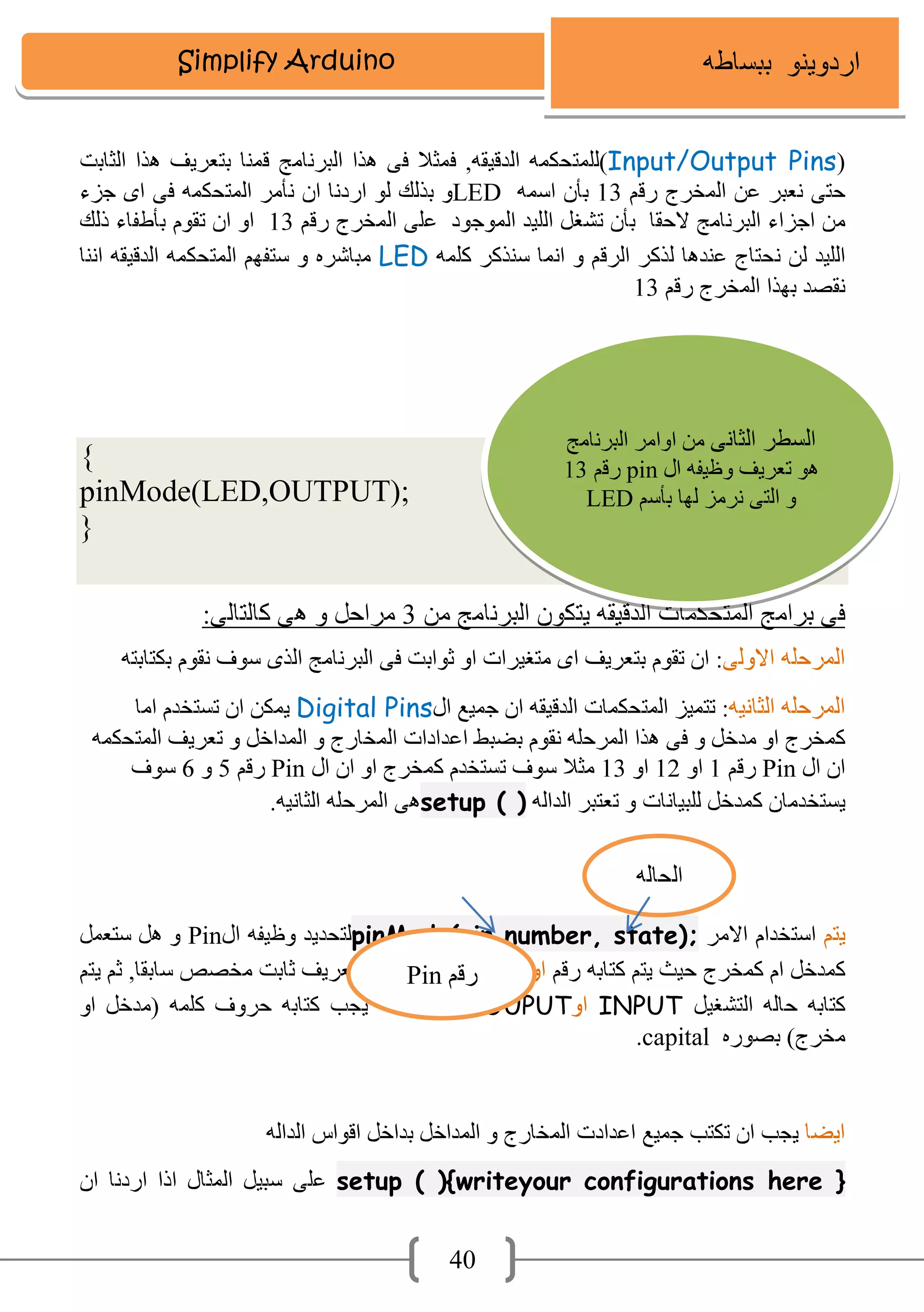

- 41. Simplify Arduino 40 (Input/Output Pins) LED LED Voidsetup ( ) { pinMode(LED,OUTPUT); } Digital Pins PinPin setup ( ) ;pinMode(pin number, state)Pin Pin INPUTOUPUT capital }writeyour configurations here{( )setup pin LED Pin

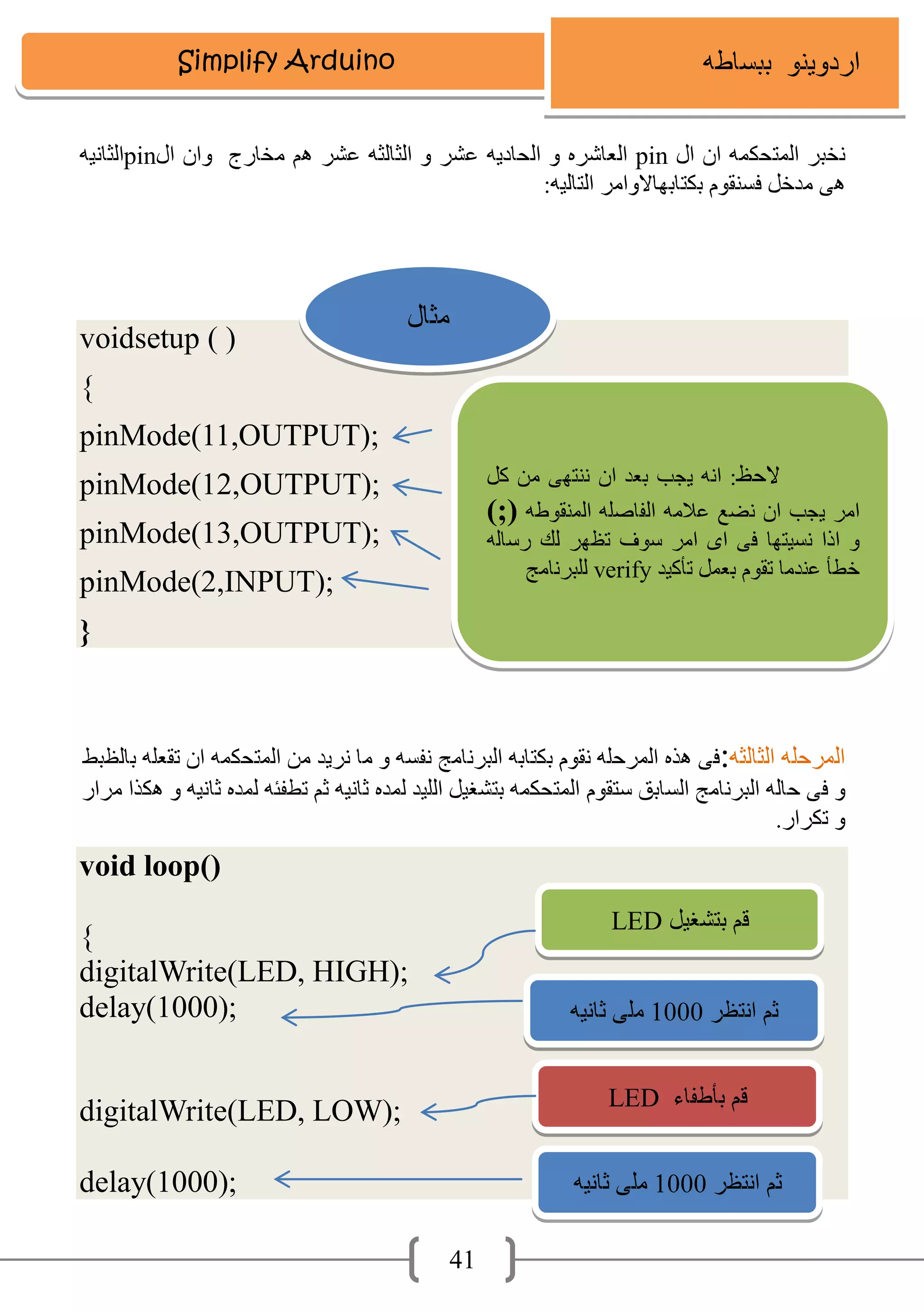

- 42. Simplify Arduino 41 pinpin voidsetup () { pinMode(11,OUTPUT); pinMode(12,OUTPUT); pinMode(13,OUTPUT); pinMode(2,INPUT); } void loop() { digitalWrite(LED, HIGH); delay(1000); digitalWrite(LED, LOW); delay(1000); (;) verify LED LED

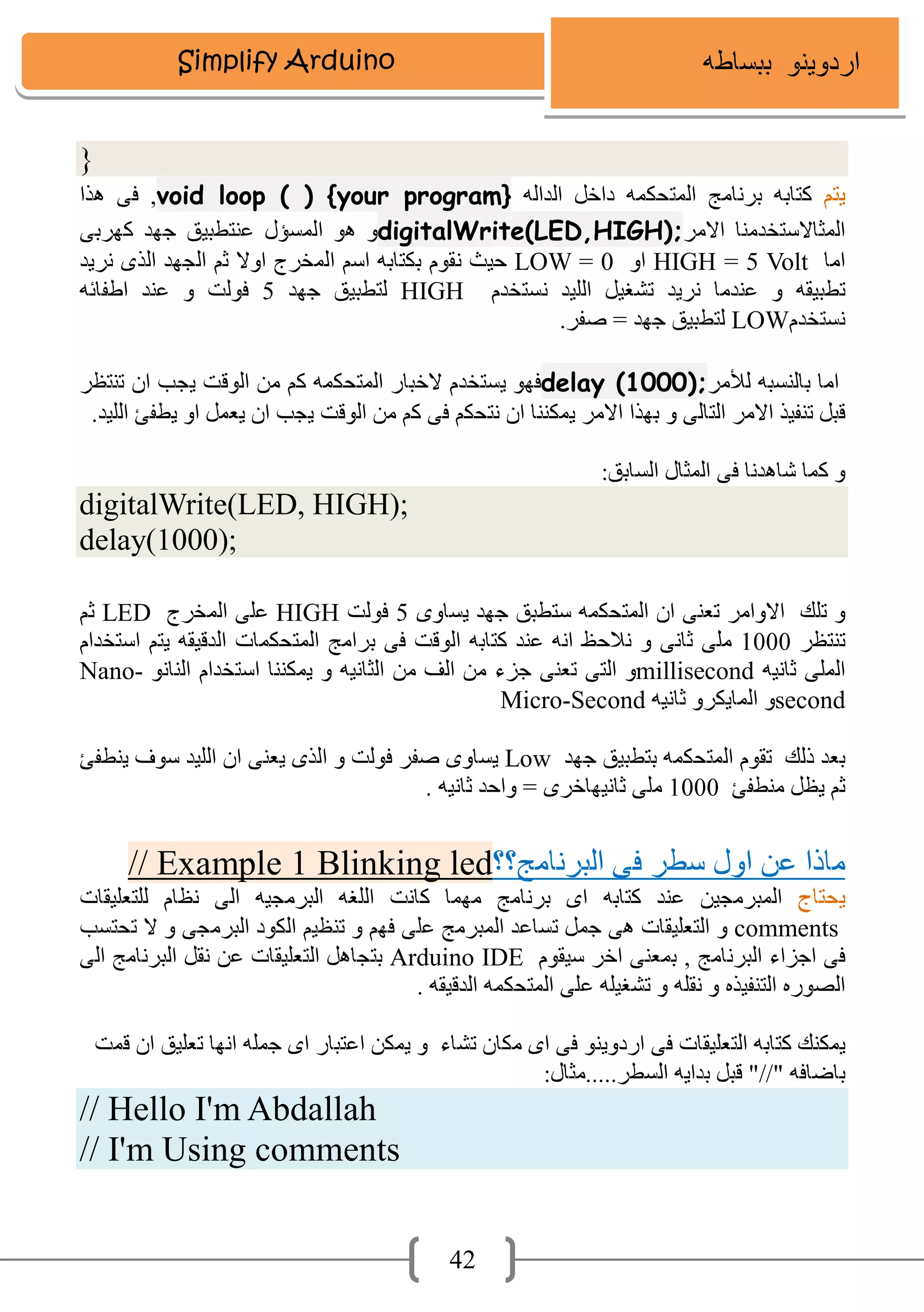

- 43. Simplify Arduino 42 } {your program}loop( )void ;digitalWrite(LED,HIGH) HIGH = 5 VoltLOW = 0 HIGH LOW delay (1000); digitalWrite(LED, HIGH); delay(1000); HIGHLED millisecondNano- secondMicro-Second Low ing led// Example 1 Blink comments Arduino IDE "//" // Hello I'm Abdallah // I'm Using comments

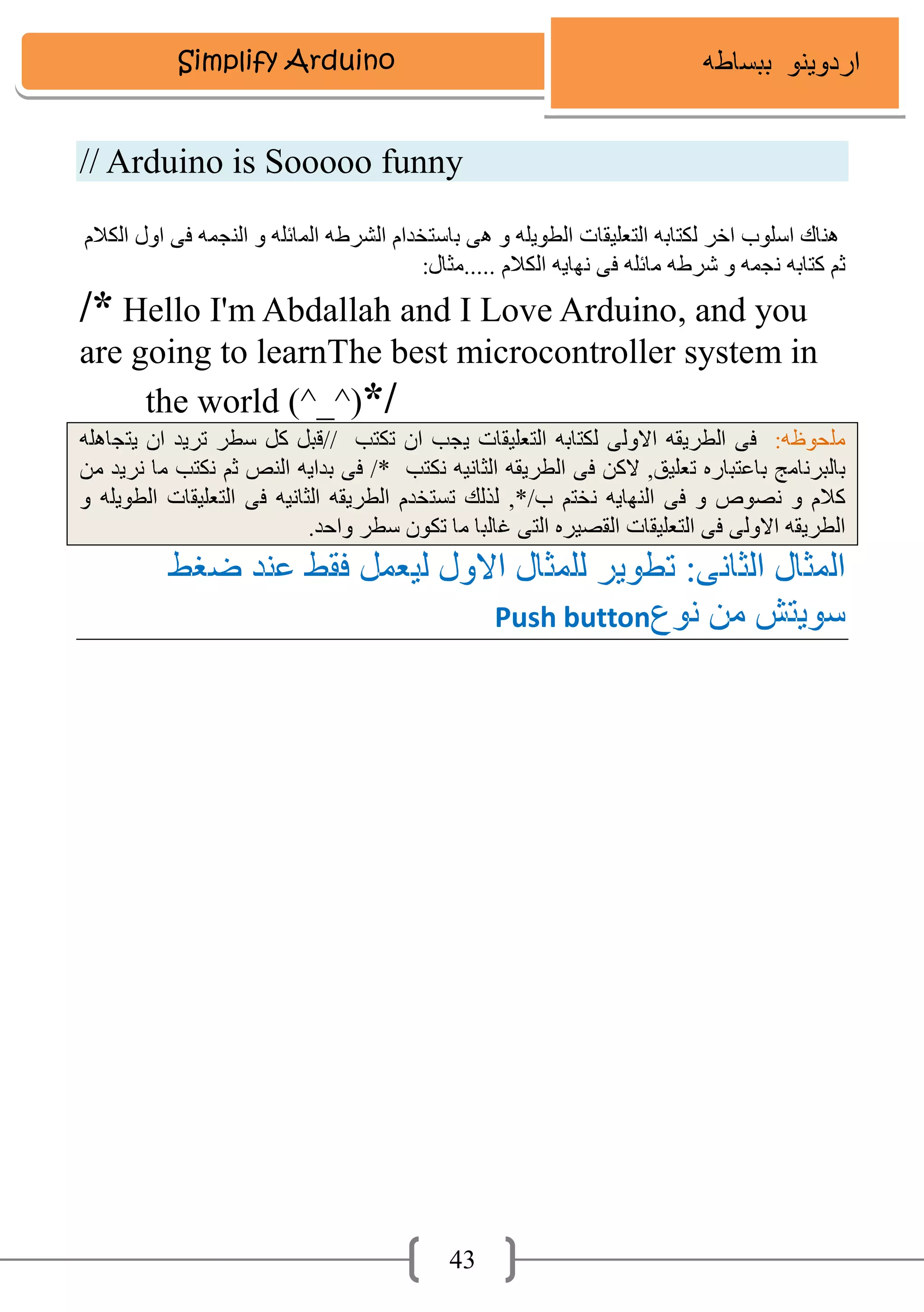

- 44. Simplify Arduino 43 // Arduinois Sooooo funny /* Hello I'm Abdallah and I Love Arduino, and you are going to learnThe best microcontroller system in the world (^_^)*/ // /* */ Push button

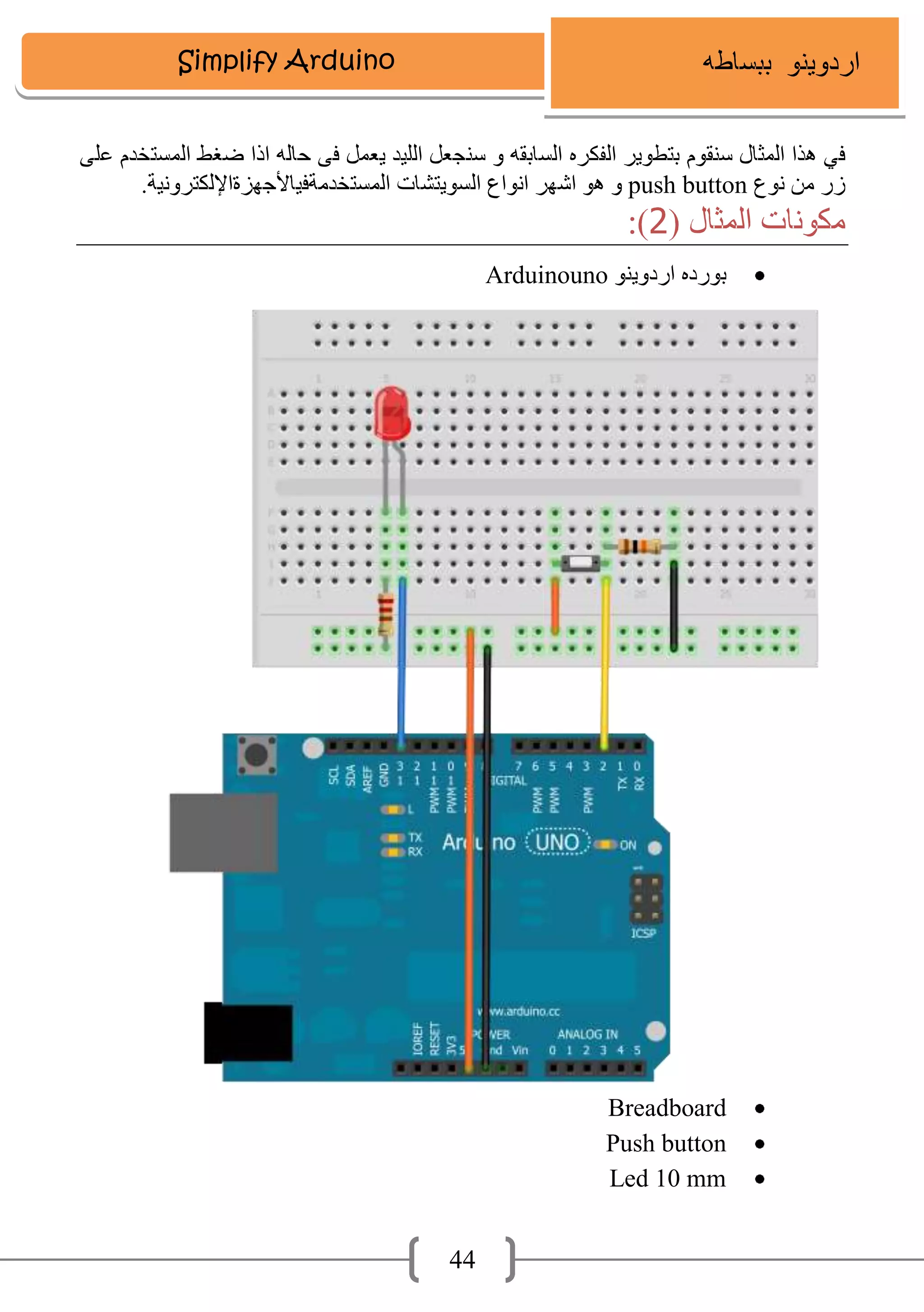

- 45. Simplify Arduino 44 push button Arduinouno Breadboard Pushbutton Led 10 mm

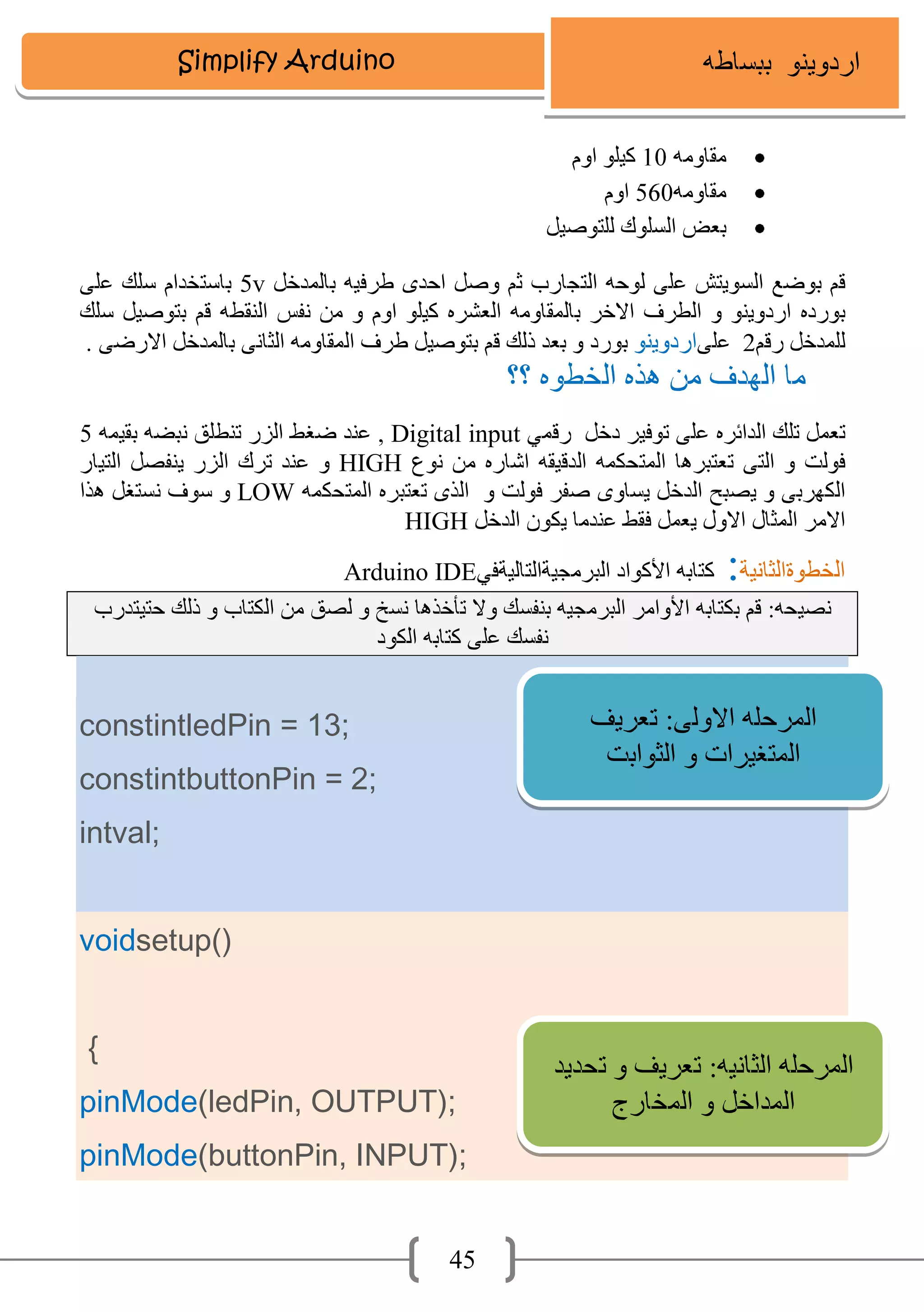

- 46. Simplify Arduino 45 5v Digital input HIGH LOW HIGH ArduinoIDE constintledPin = 13; constintbuttonPin = ; intval; voidsetup() { pinMode(ledPin, OUTPUT); pinMode(buttonPin, INPUT);

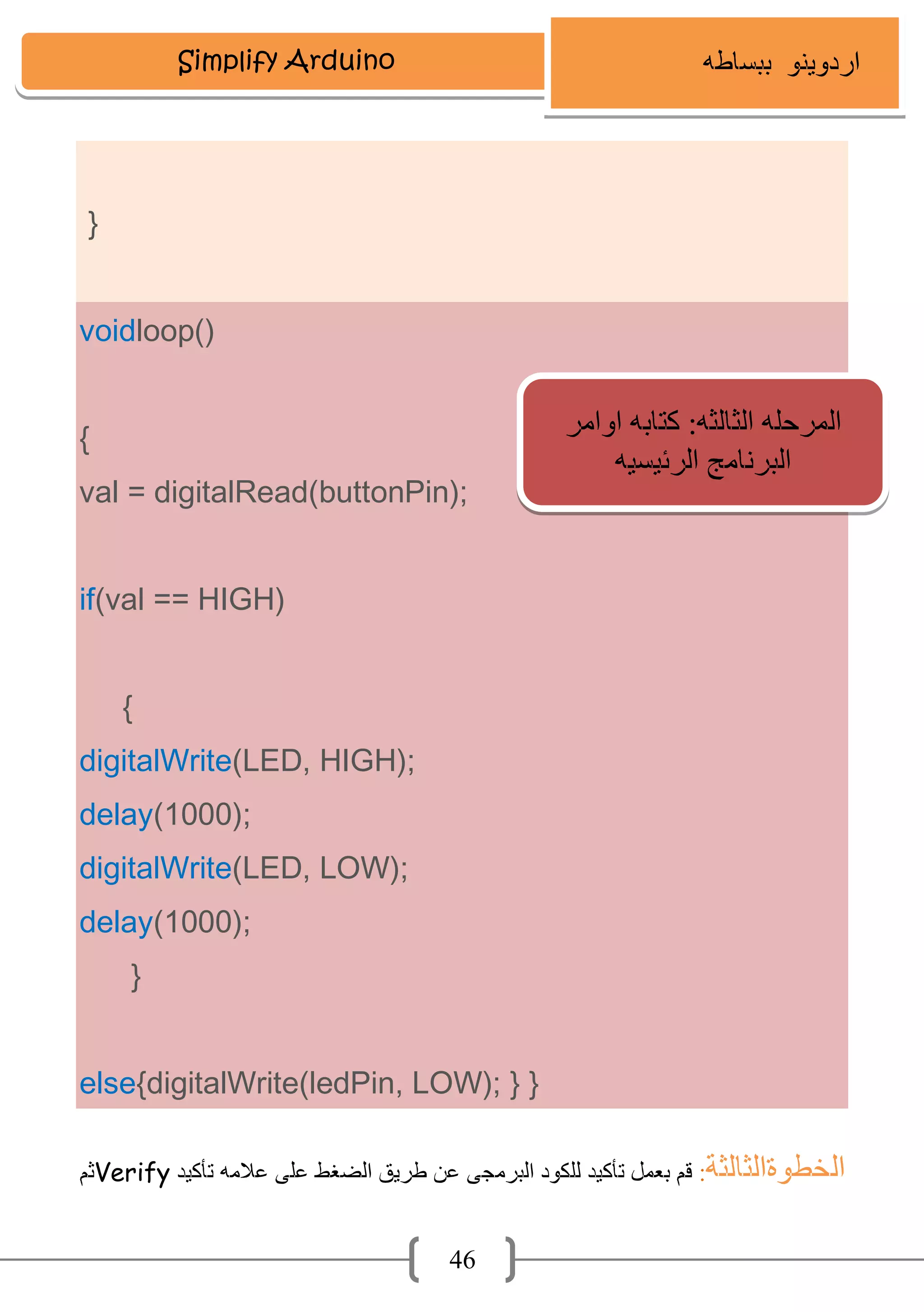

- 47. Simplify Arduino 46 } voidloop() { val =digitalRead(buttonPin); if(val == HIGH) { digitalWrite(LED, HIGH); delay(1000); digitalWrite(LED, LOW); delay(1000); } else{digitalWrite(ledPin, LOW); } } Verify

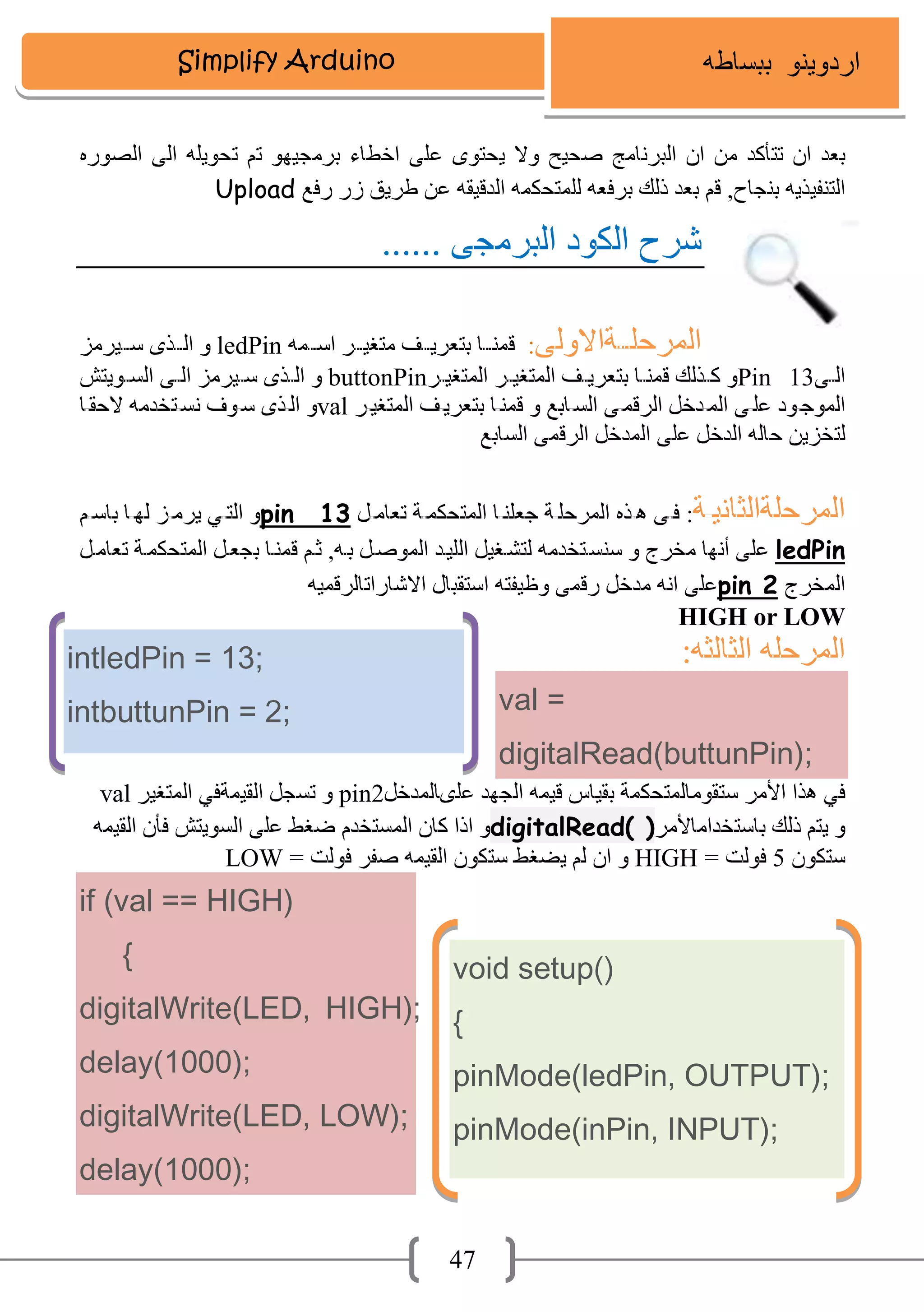

- 48. Simplify Arduino 47 Upload ledPin Pin 13buttonPin val pin13 ledPin 2pin HIGH or LOW val = digitalRead(buttunPin); pin2val digitalRead( ) HIGHLOW if (val == HIGH) { digitalWrite(LED, HIGH); delay(1000); digitalWrite(LED, LOW); delay(1000); intledPin = 13; intbuttunPin = ; intval = 0; void setup { pinMode(ledPin, OUTPUT); pinMode(inPin, INPUT); }

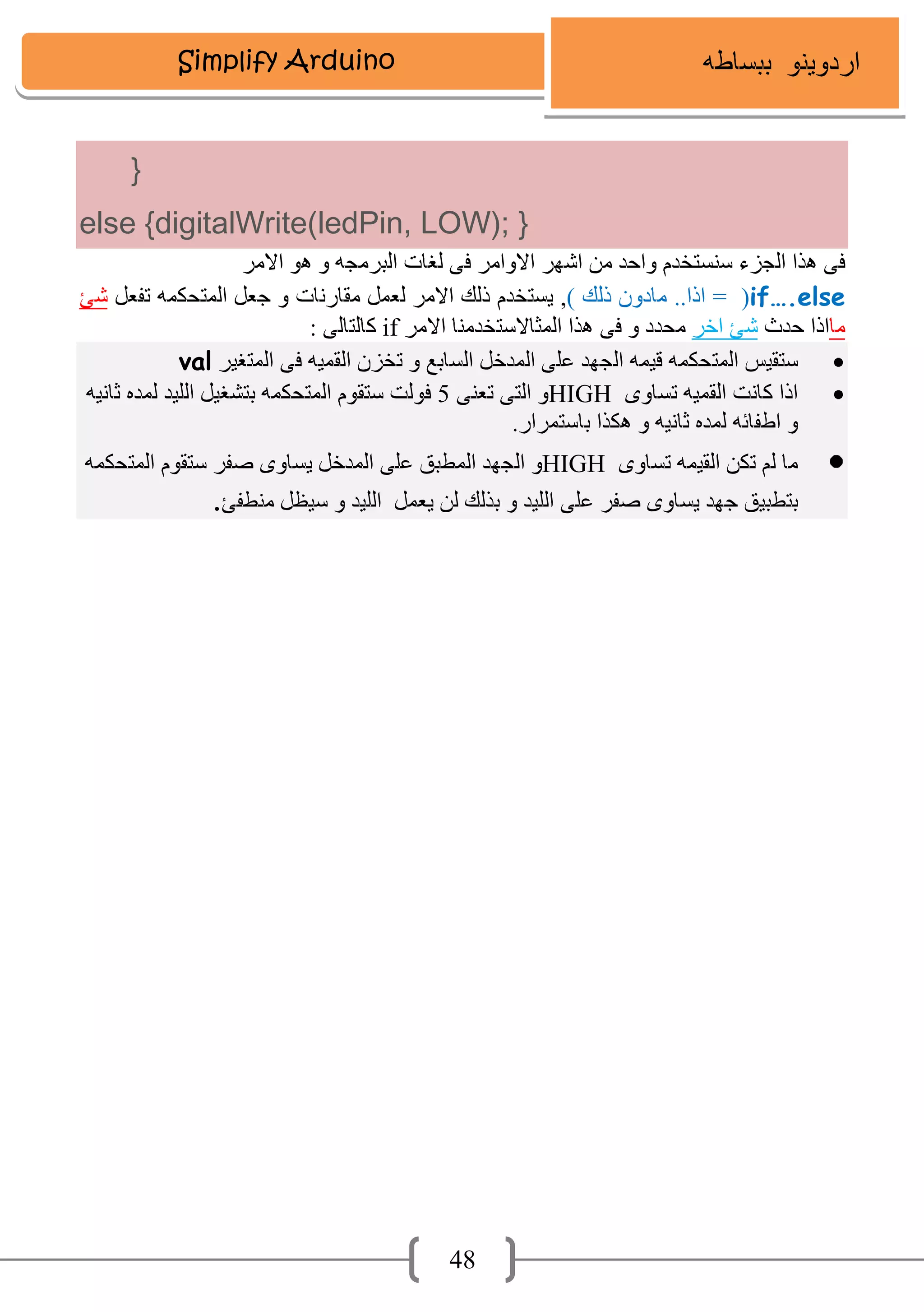

- 49. Simplify Arduino 48 } else {digitalWrite(ledPin,LOW); } )if….else( if val HIGH HIGH

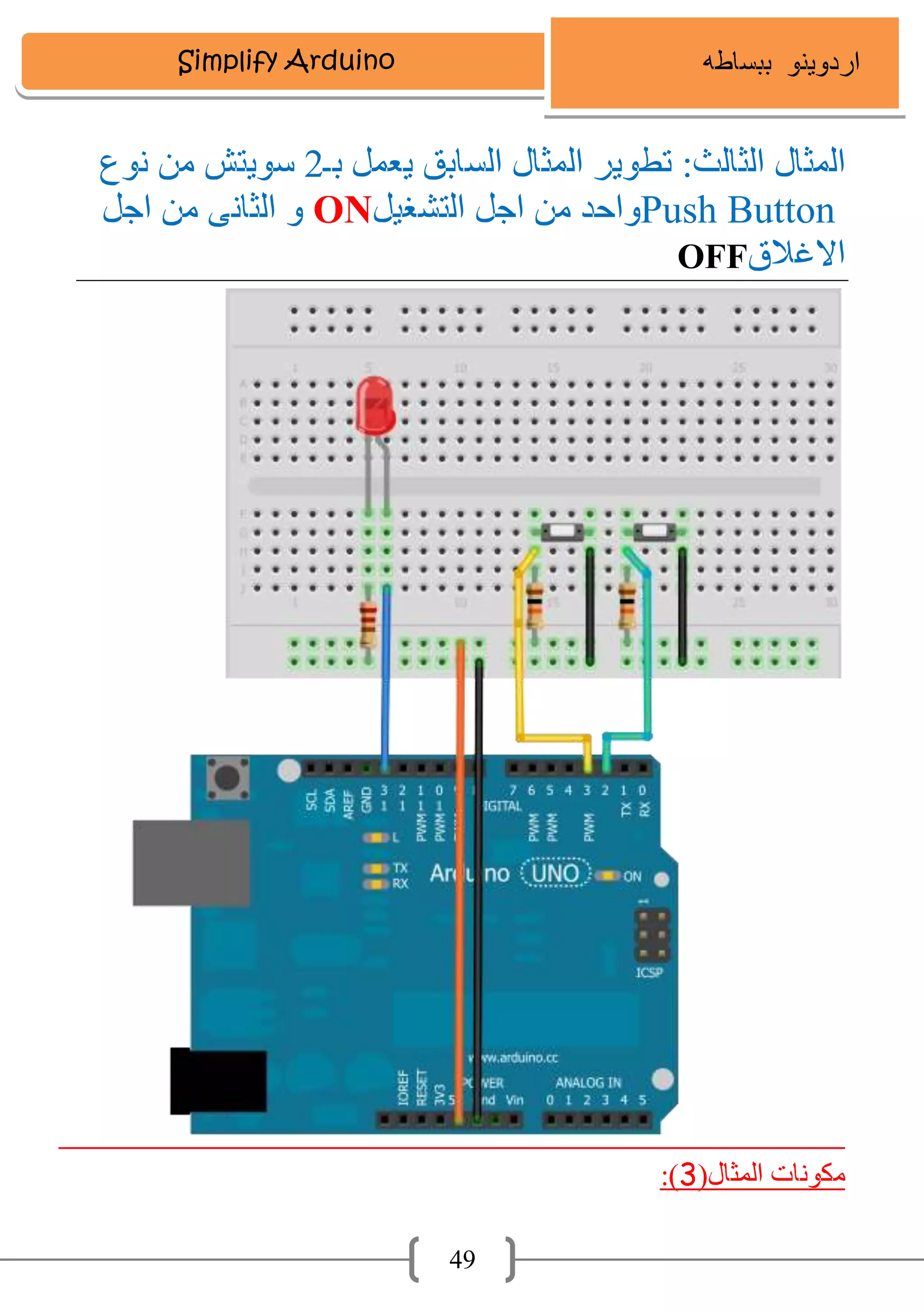

- 50.

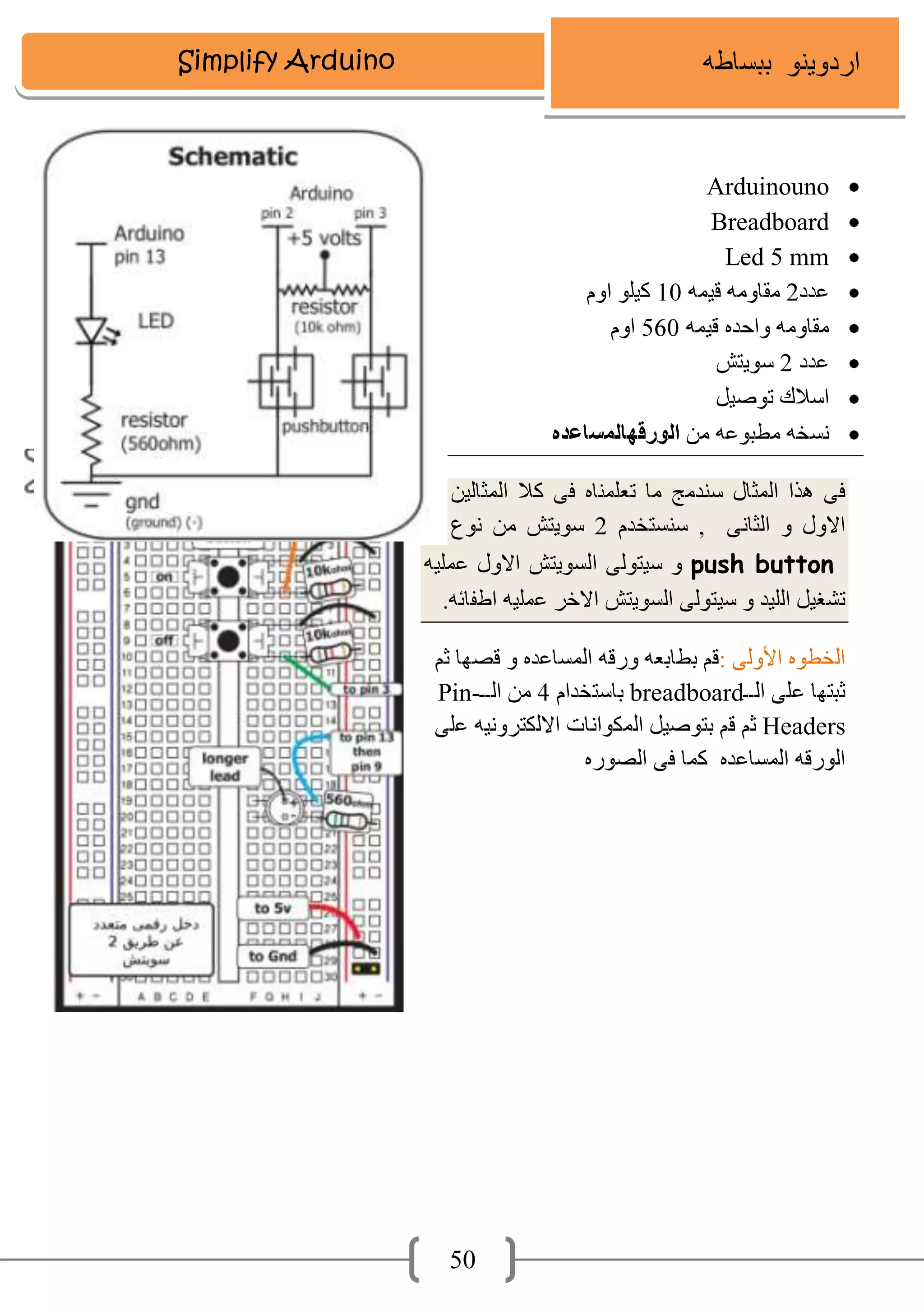

- 51. Simplify Arduino 50 Arduinouno Breadboard Led 5mm push button breadboardPin- Headers

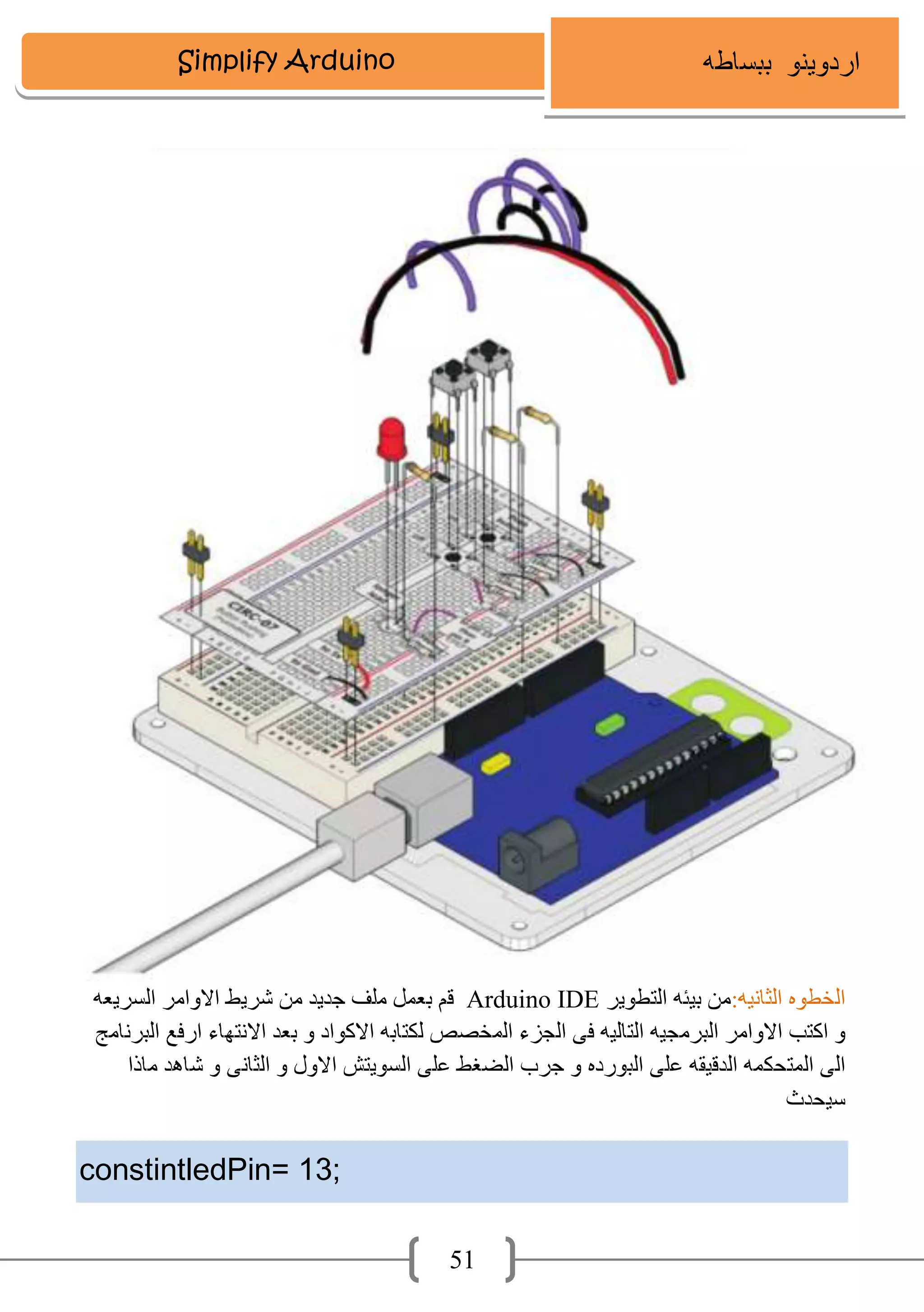

- 52.

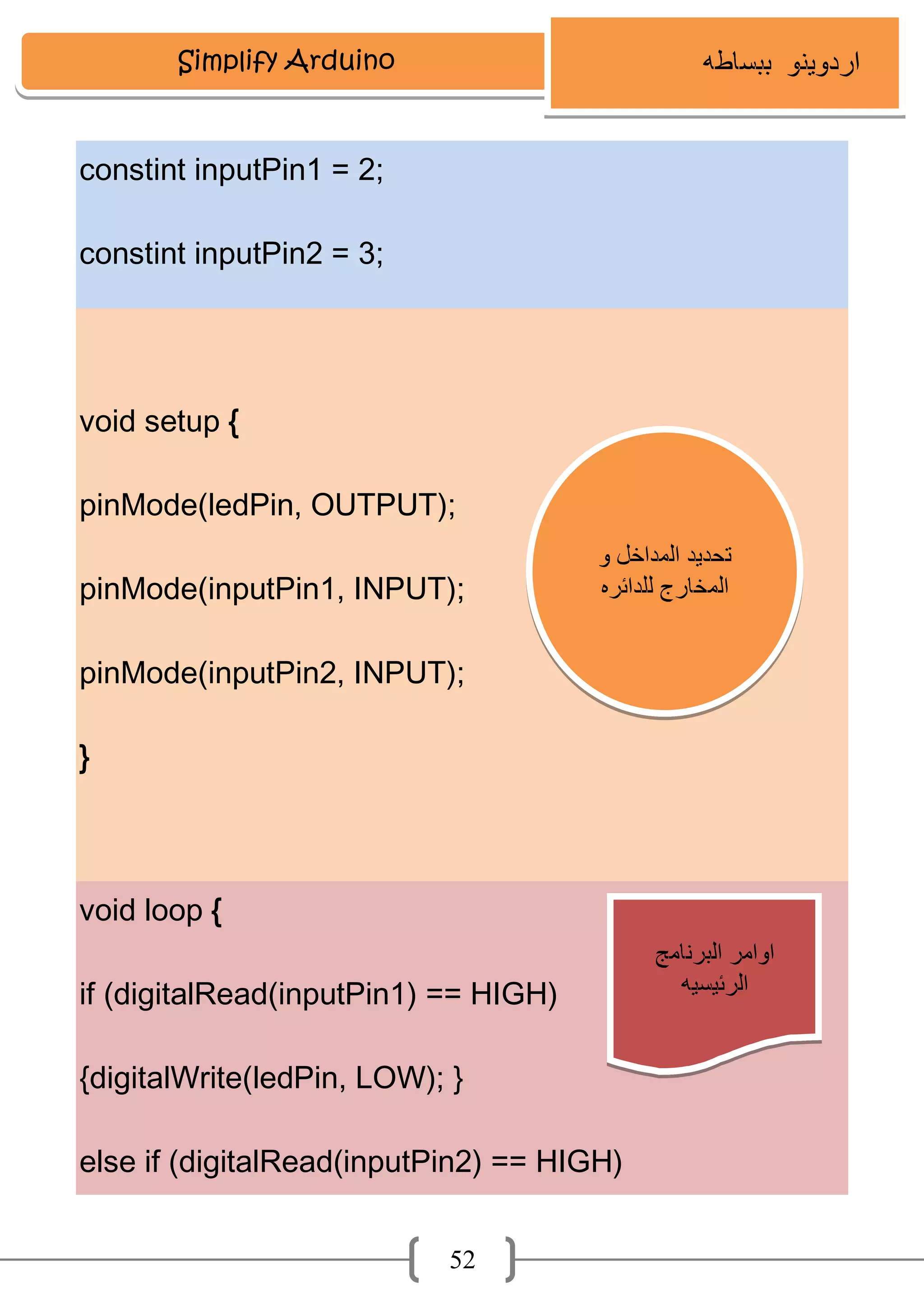

- 53. Simplify Arduino 52 constint inputPin1= 2; constint inputPin2 = 3; void setup { pinMode(ledPin, OUTPUT); pinMode(inputPin1, INPUT); pinMode(inputPin2, INPUT); } void loop { if (digitalRead(inputPin1) == HIGH) {digitalWrite(ledPin, LOW); } else if (digitalRead(inputPin2) == HIGH)

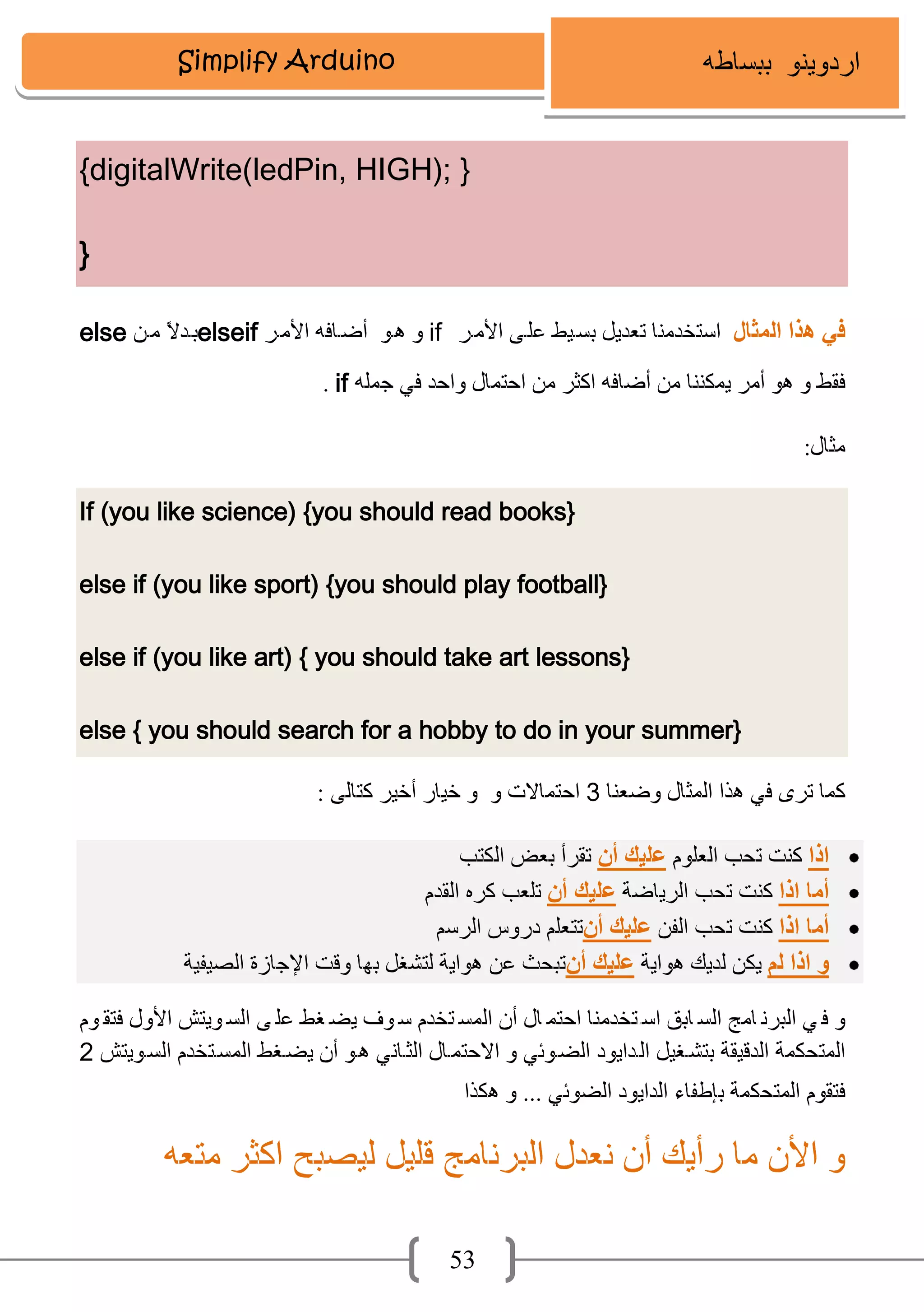

- 54. Simplify Arduino 53 {digitalWrite(ledPin, HIGH);} } ifelseifelse if If (you like science) {you should read books} else if (you like sport) {you should play football} else if (you like art) { you should take art lessons} else { you should search for a hobby to do in your summer}

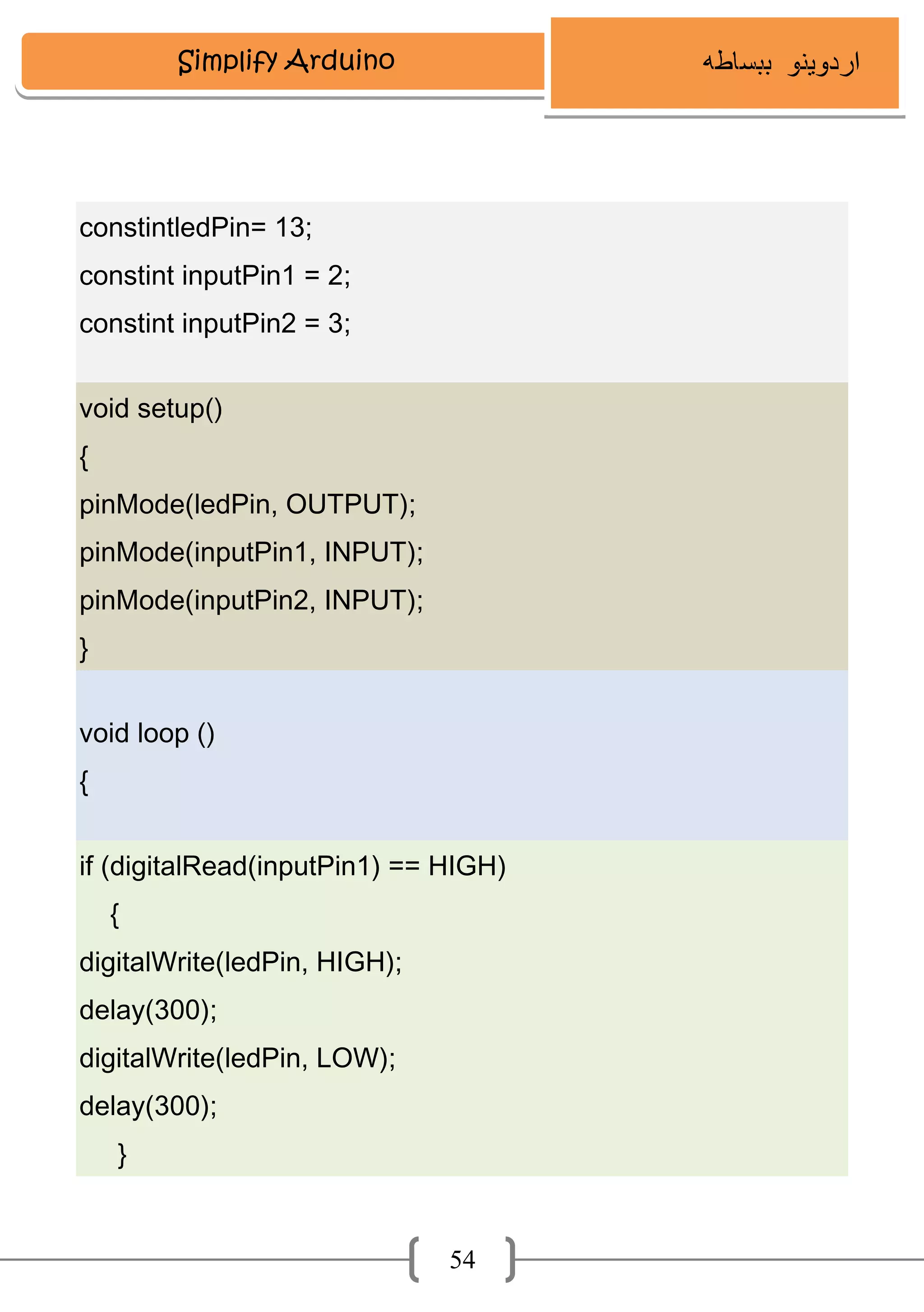

- 55. Simplify Arduino 54 constintledPin= 13; constintinputPin1 = 2; constint inputPin2 = 3; void setup { pinMode(ledPin, OUTPUT); pinMode(inputPin1, INPUT); pinMode(inputPin2, INPUT); } void loop { if (digitalRead(inputPin1) == HIGH) { digitalWrite(ledPin, HIGH); delay(300); digitalWrite(ledPin, LOW); delay(300); }

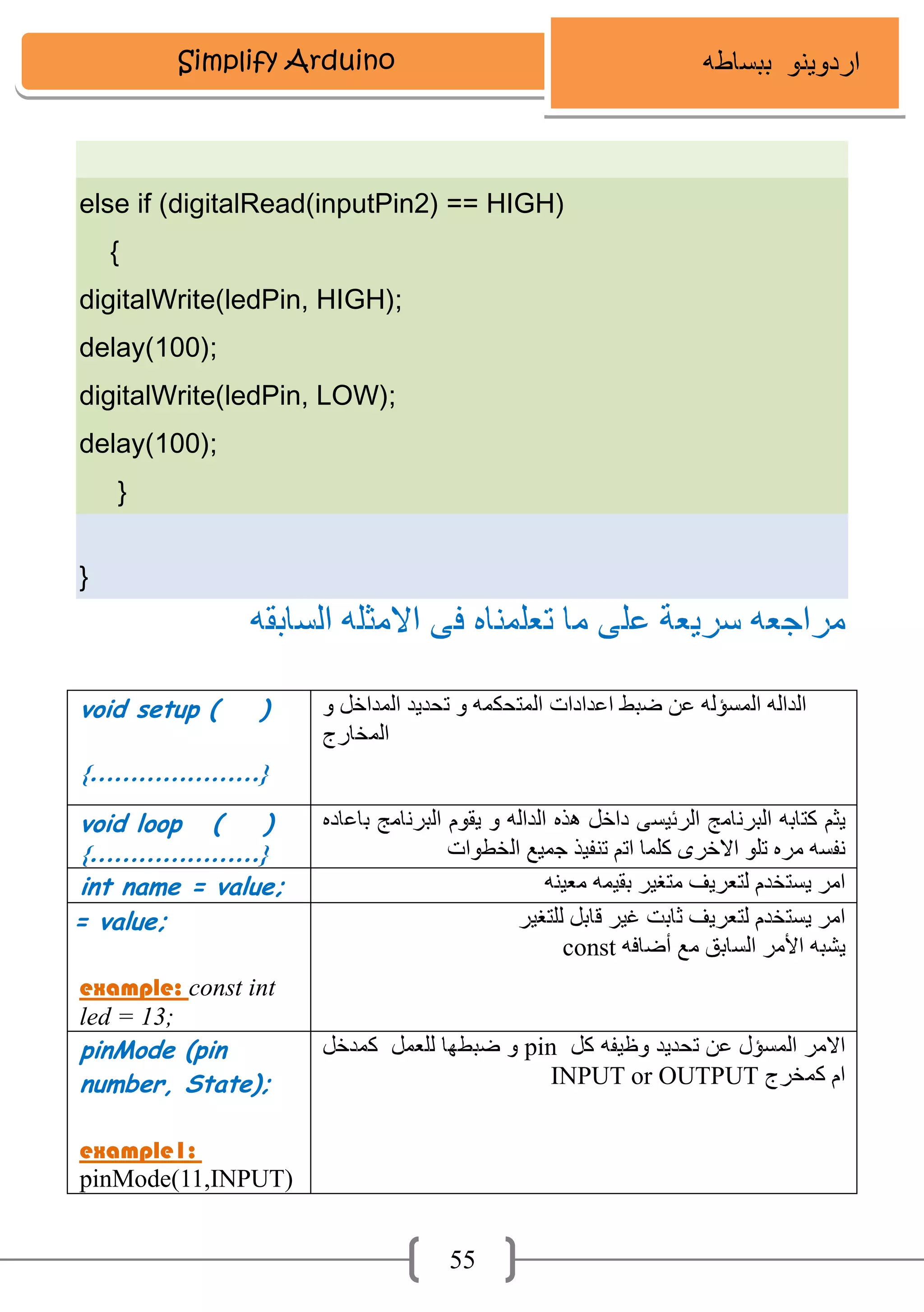

- 56. Simplify Arduino 55 else if(digitalRead(inputPin2) == HIGH { digitalWrite(ledPin, HIGH); delay(100); digitalWrite(ledPin, LOW); delay(100); } } void setup ( ) void loop ( ) int name = value; const name = value; const intexample: led = 13; pin INPUT or OUTPUT pinMode (pin number, State); example1: pinMode(11,INPUT)

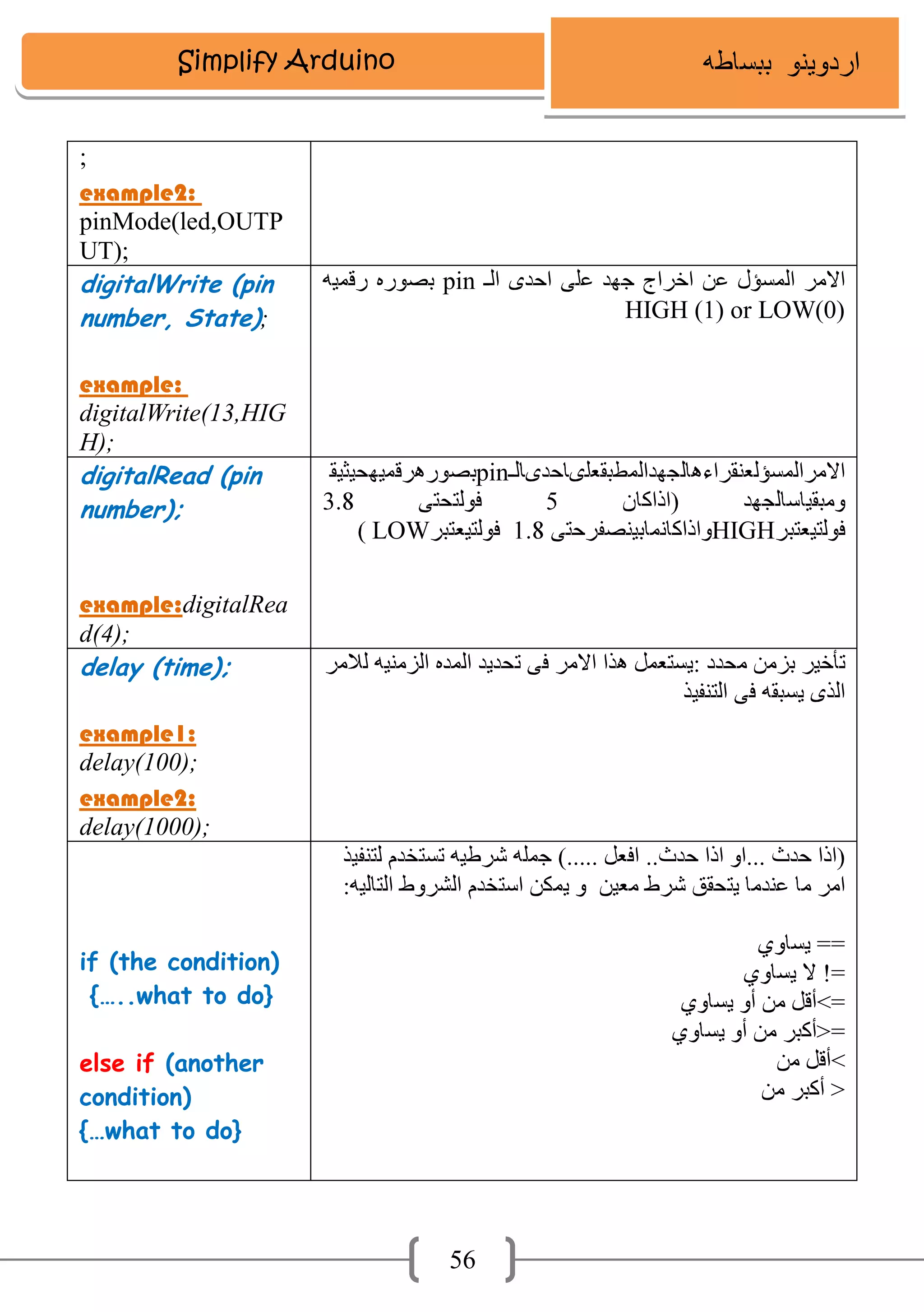

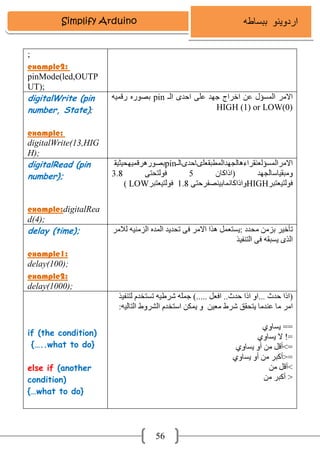

- 57. Simplify Arduino 56 ; example2: pinMode(led,OUTP UT); pin HIGH (1)or LOW(0) digitalWrite (pin number, State); example: digitalWrite(13,HIG H); pin HIGHLOW digitalRead (pin number); digitalReaexample: d(4); delay (time); example1: delay(100); example2: delay(1000); if (the condition) {…..what to do} else if (another condition) {…what to do}

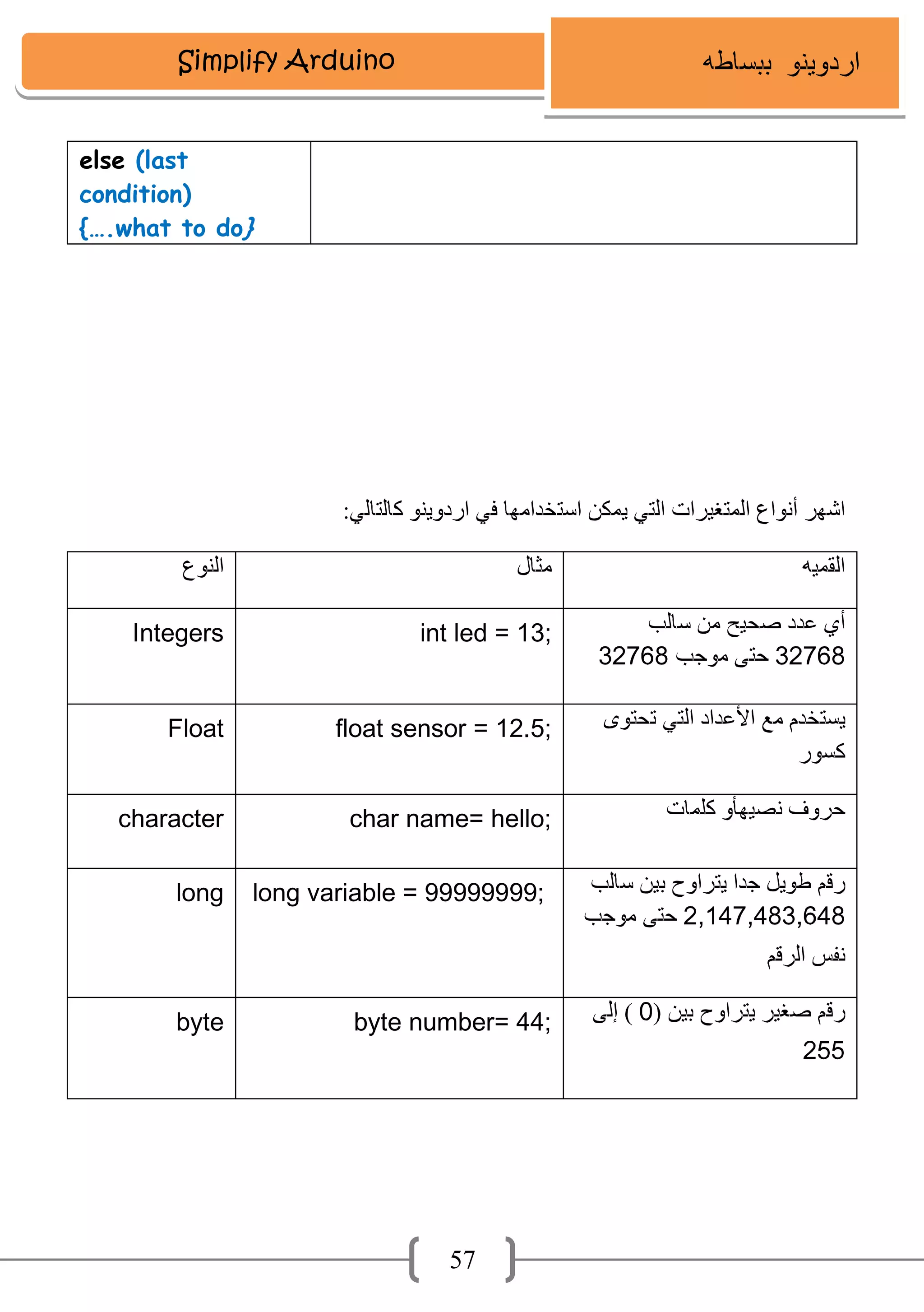

- 58. Simplify Arduino 57 else (last condition) {….whatto do} int led = 13;Integers float sensor = 12.5;Float char name= hello;character long variable = 99999999;long byte number= 44;byte
- 59.

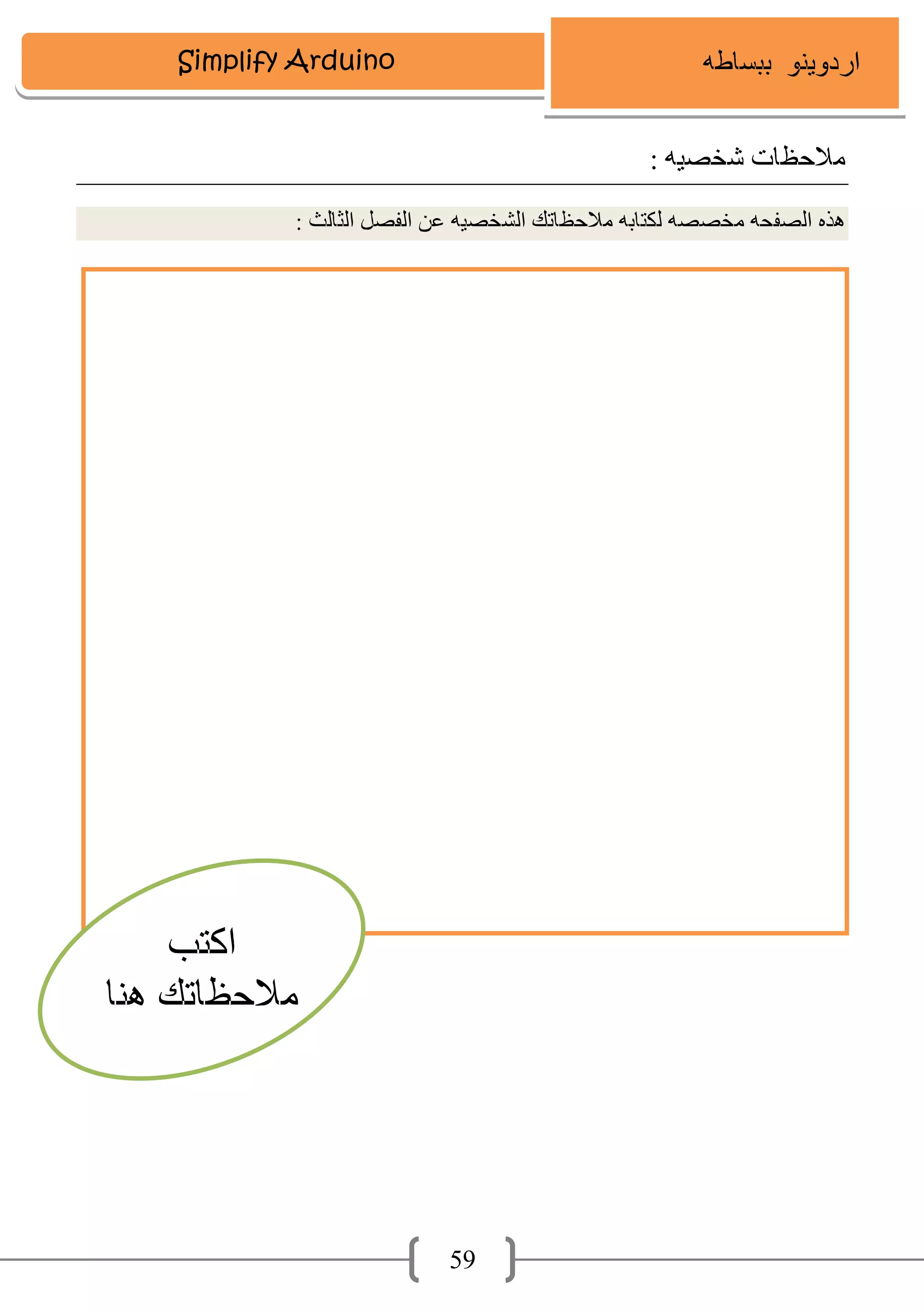

- 60.
- 61.

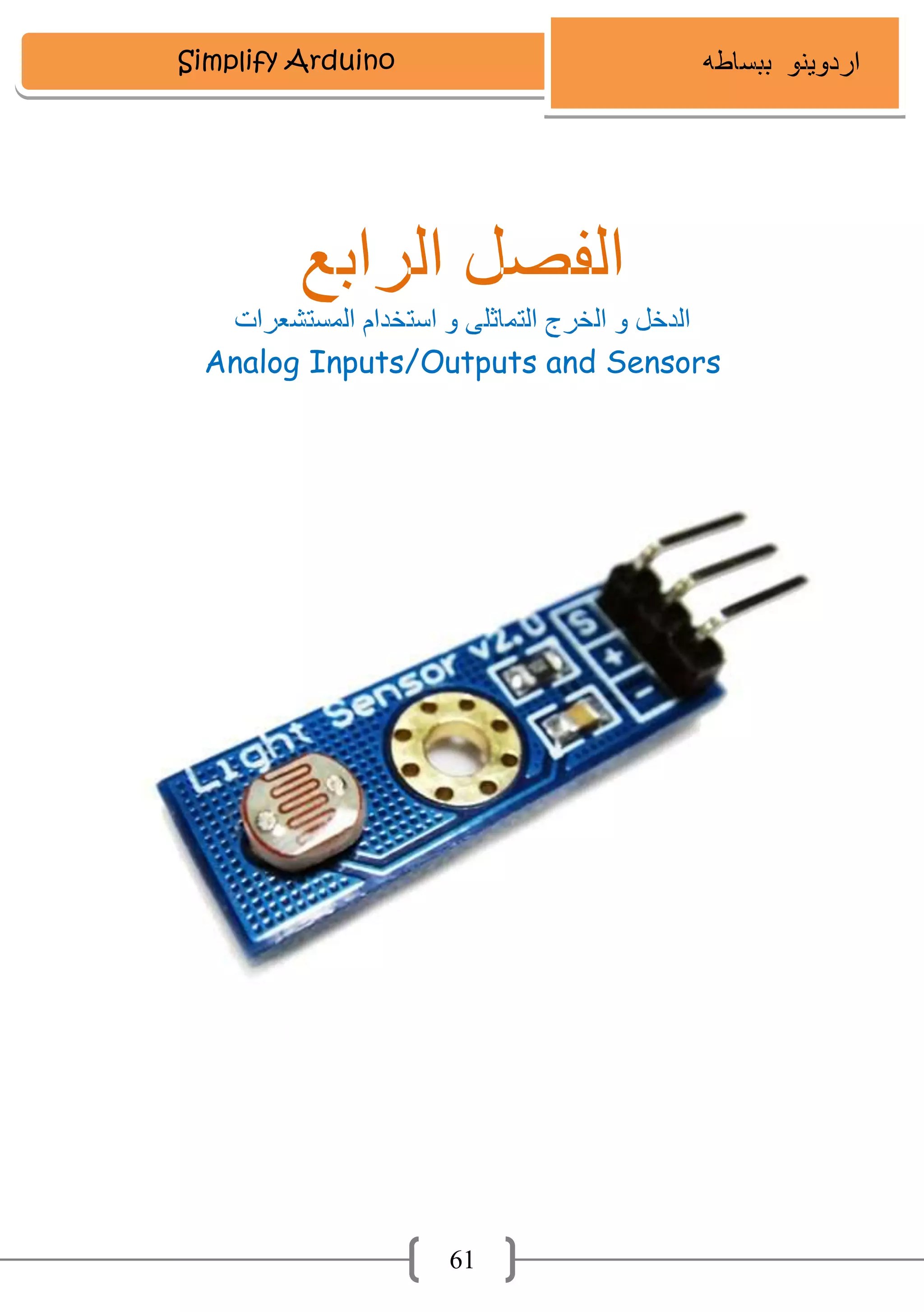

- 62. Simplify Arduino 61 Analog Inputs/Outputsand Sensors

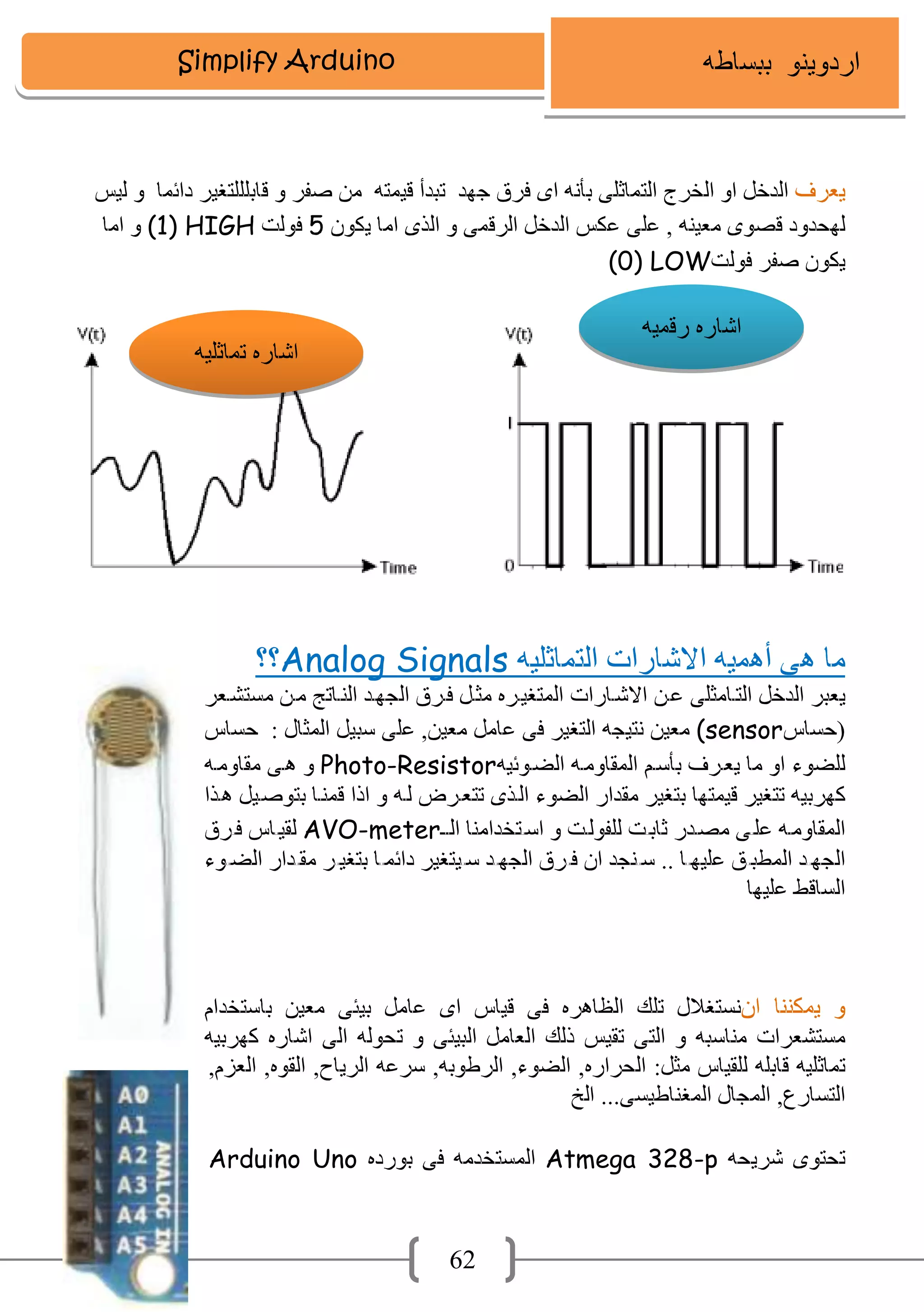

- 63. Simplify Arduino 62 (1) HIGH (0)LOW Analog Signals (sensor Photo-Resistor AVO-meter Atmega 328-pArduino Uno
- 64.

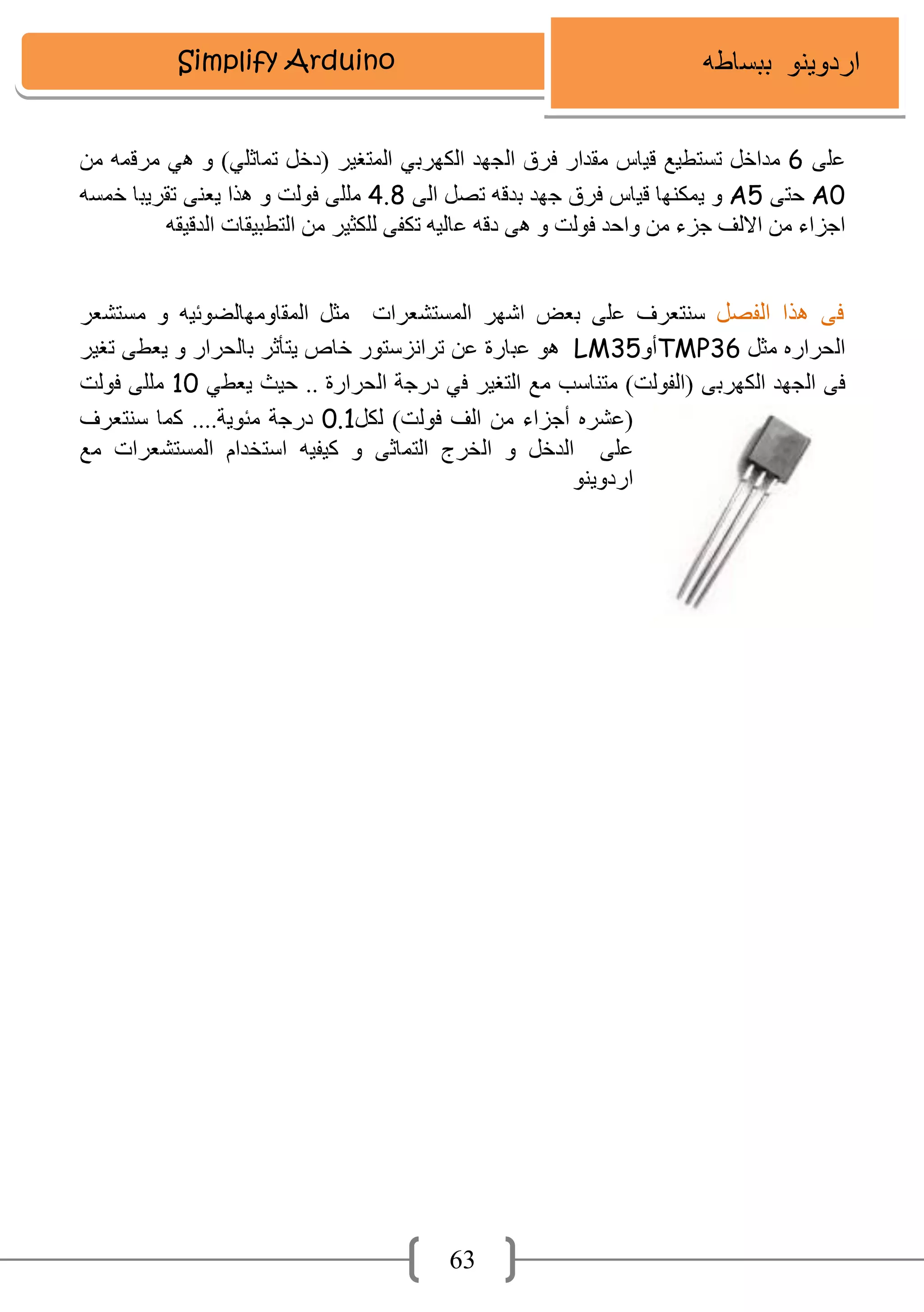

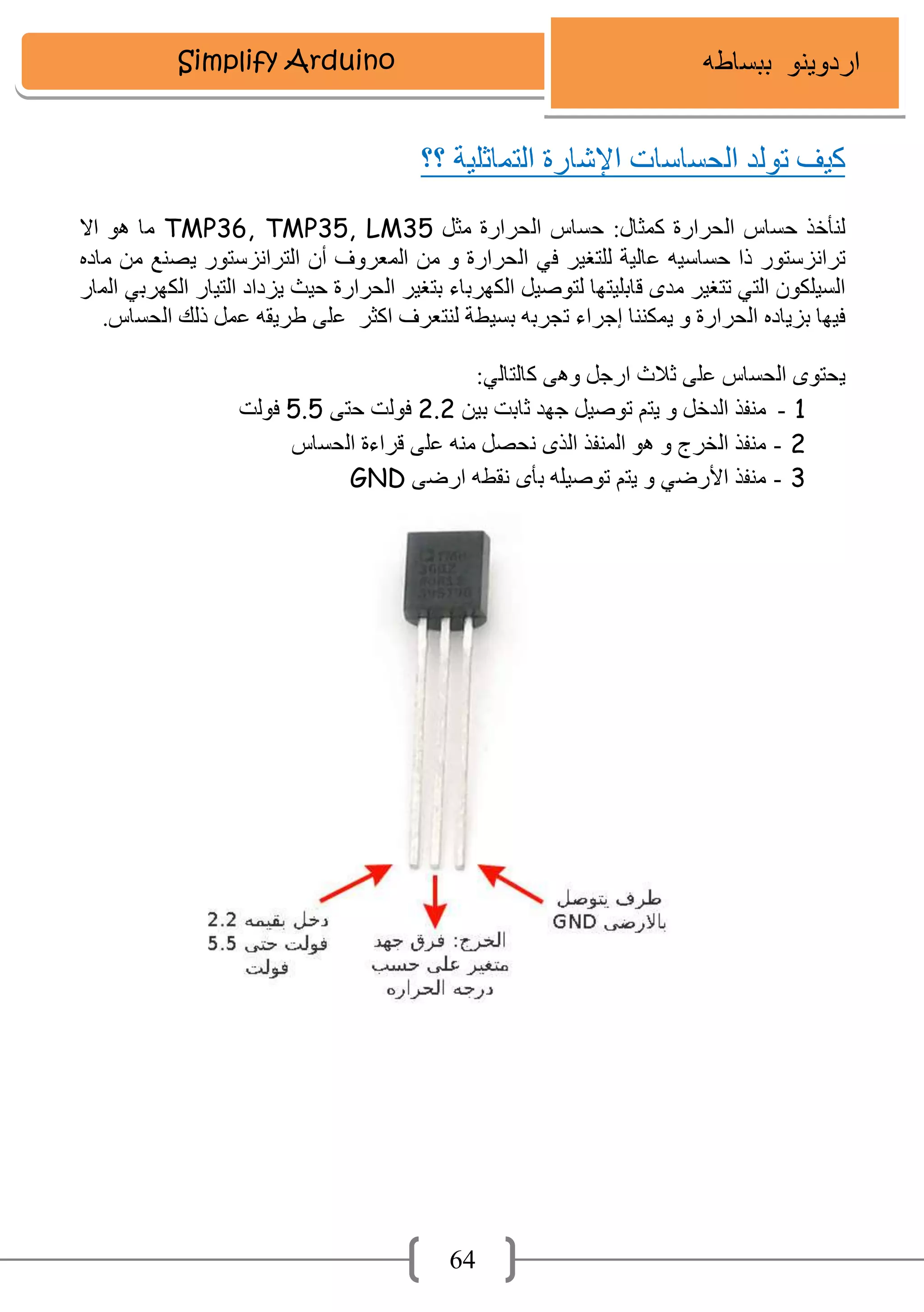

- 65. Simplify Arduino 64 TMP36, TMP35,LM35 - - -GND

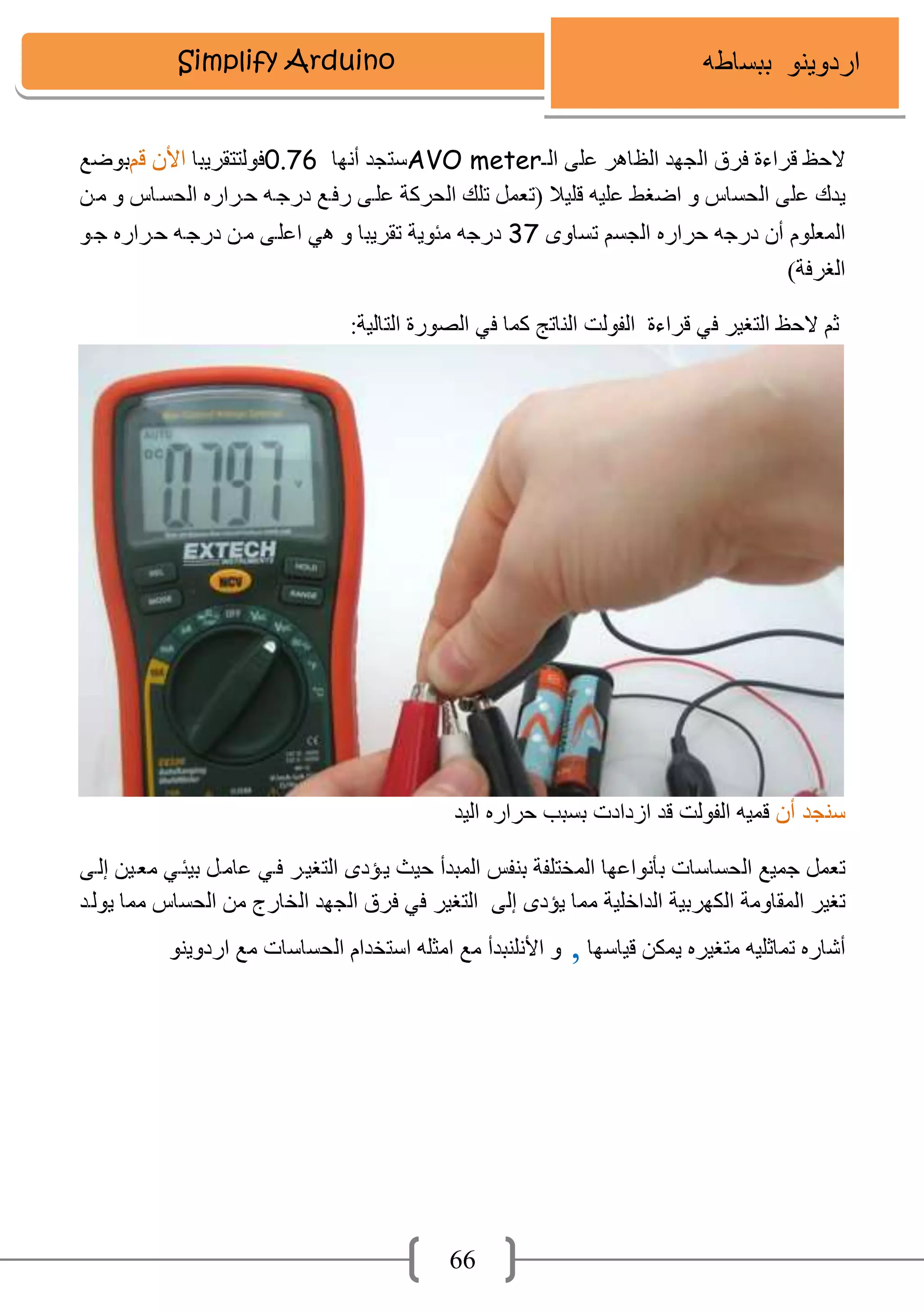

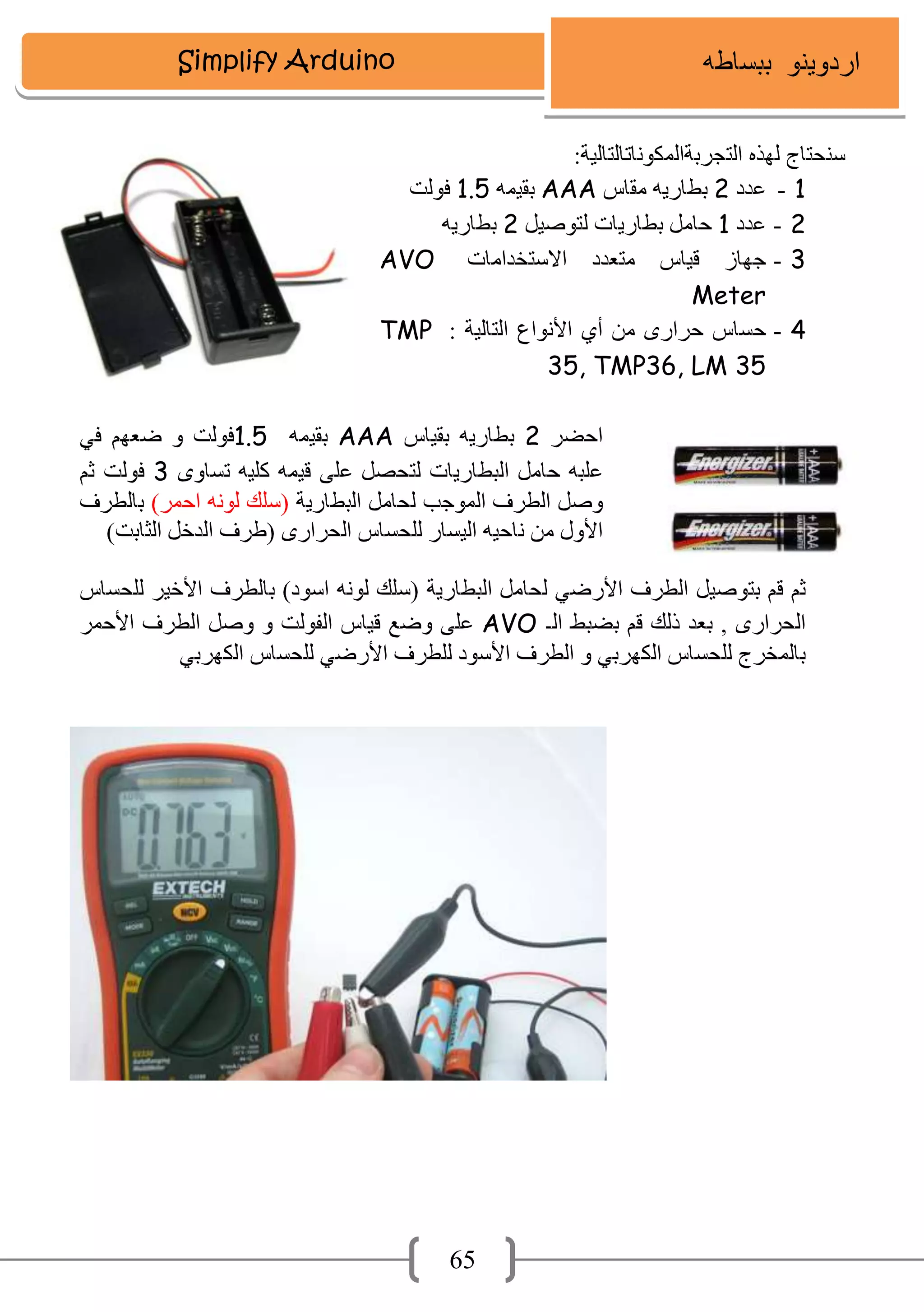

- 66. Simplify Arduino 65 -AAA - -AVO Meter -TMP 35, TMP36,LM 35 AAA1.5 AVO
- 67.

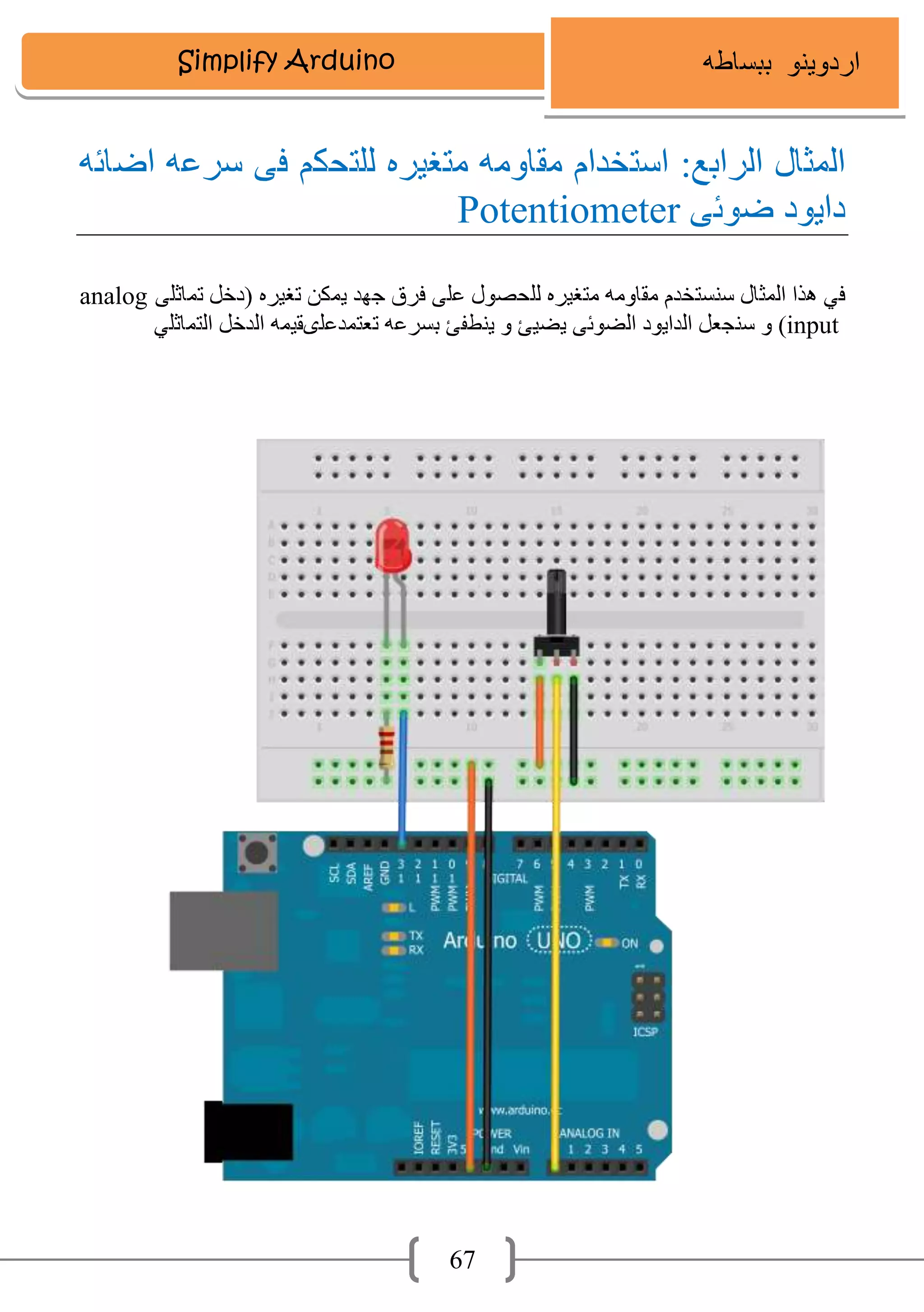

- 68.

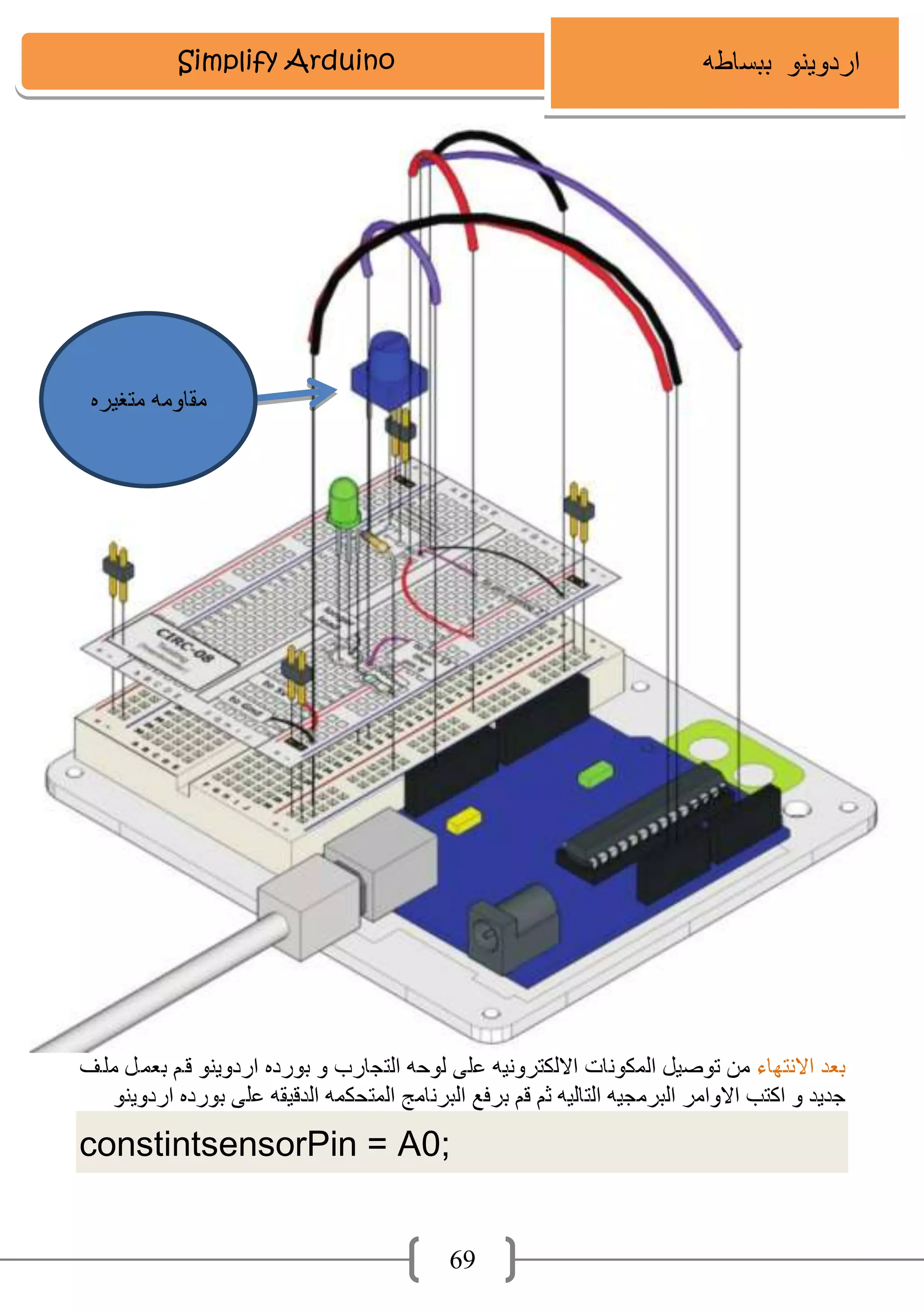

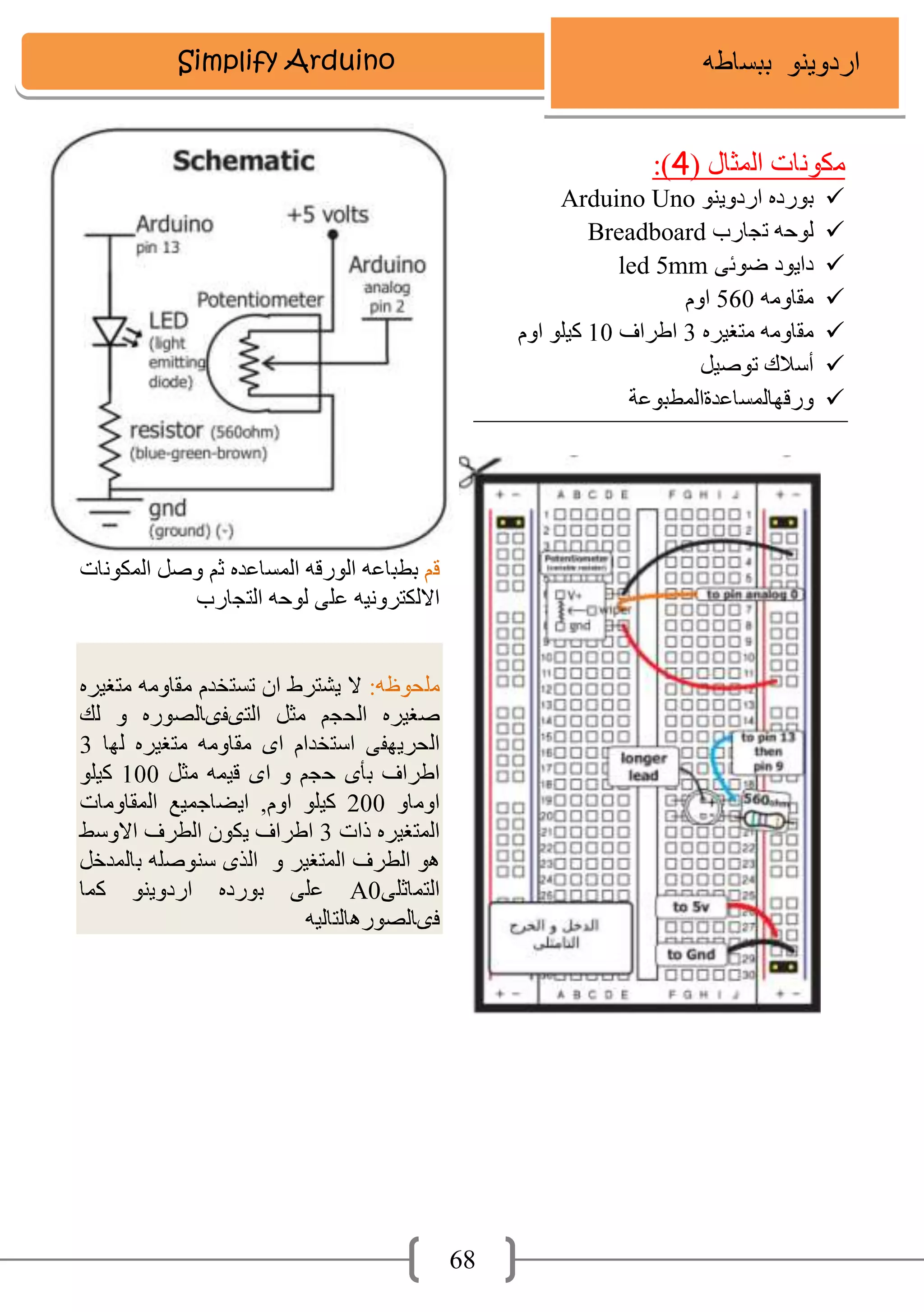

- 69. Simplify Arduino 68 Arduino Uno Breadboard led5mm A0
- 70.

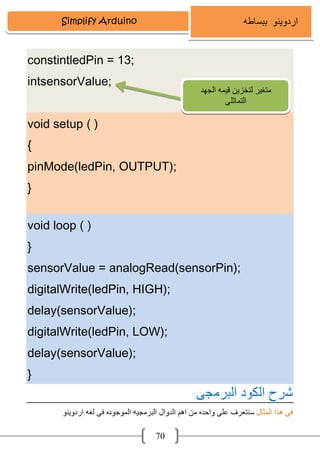

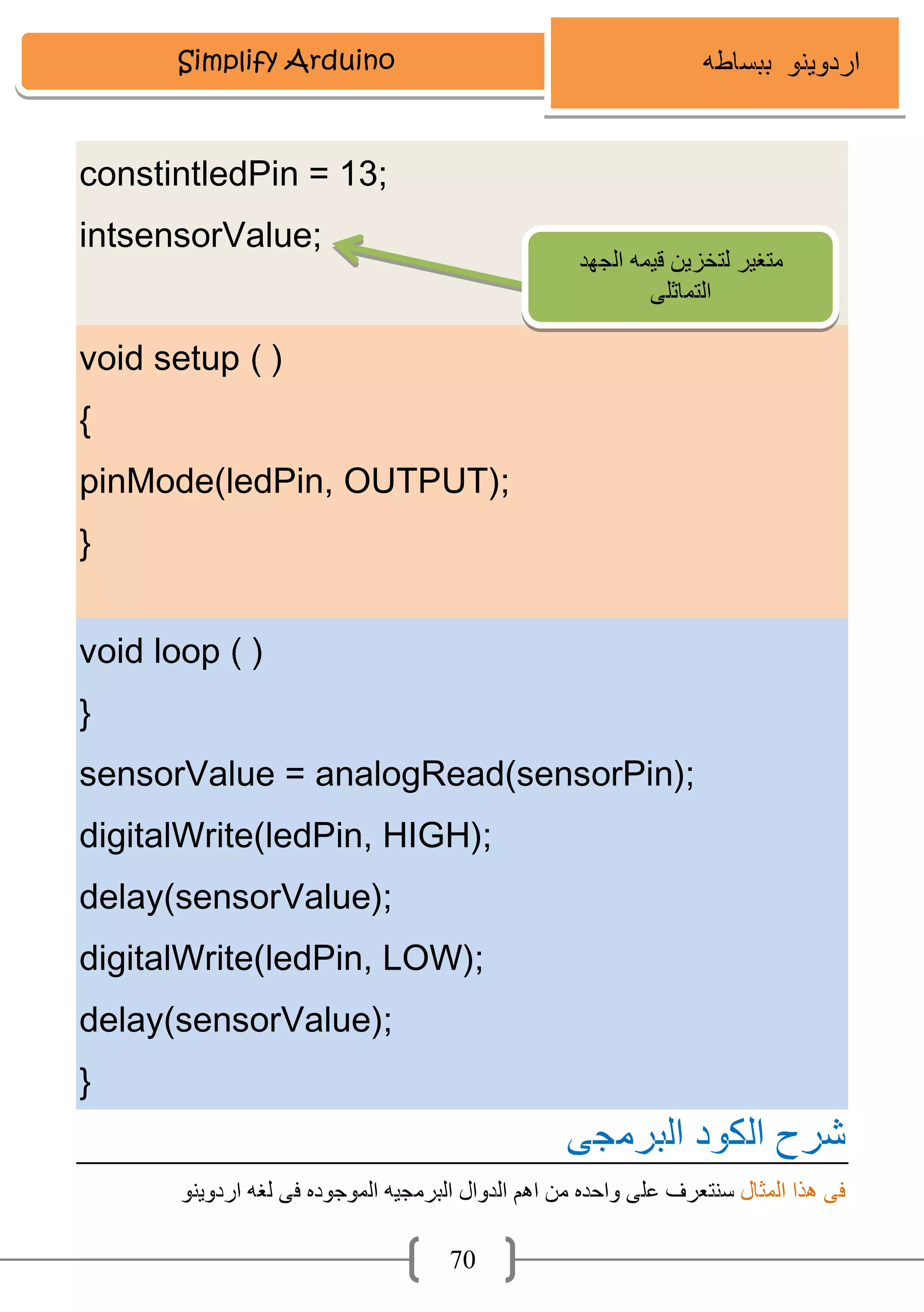

- 71. Simplify Arduino 70 constintledPin =13; intsensorValue; void setup { pinMode(ledPin, OUTPUT); } void loop } sensorValue = analogRead(sensorPin); digitalWrite(ledPin, HIGH); delay(sensorValue); digitalWrite(ledPin, LOW); delay(sensorValue); }

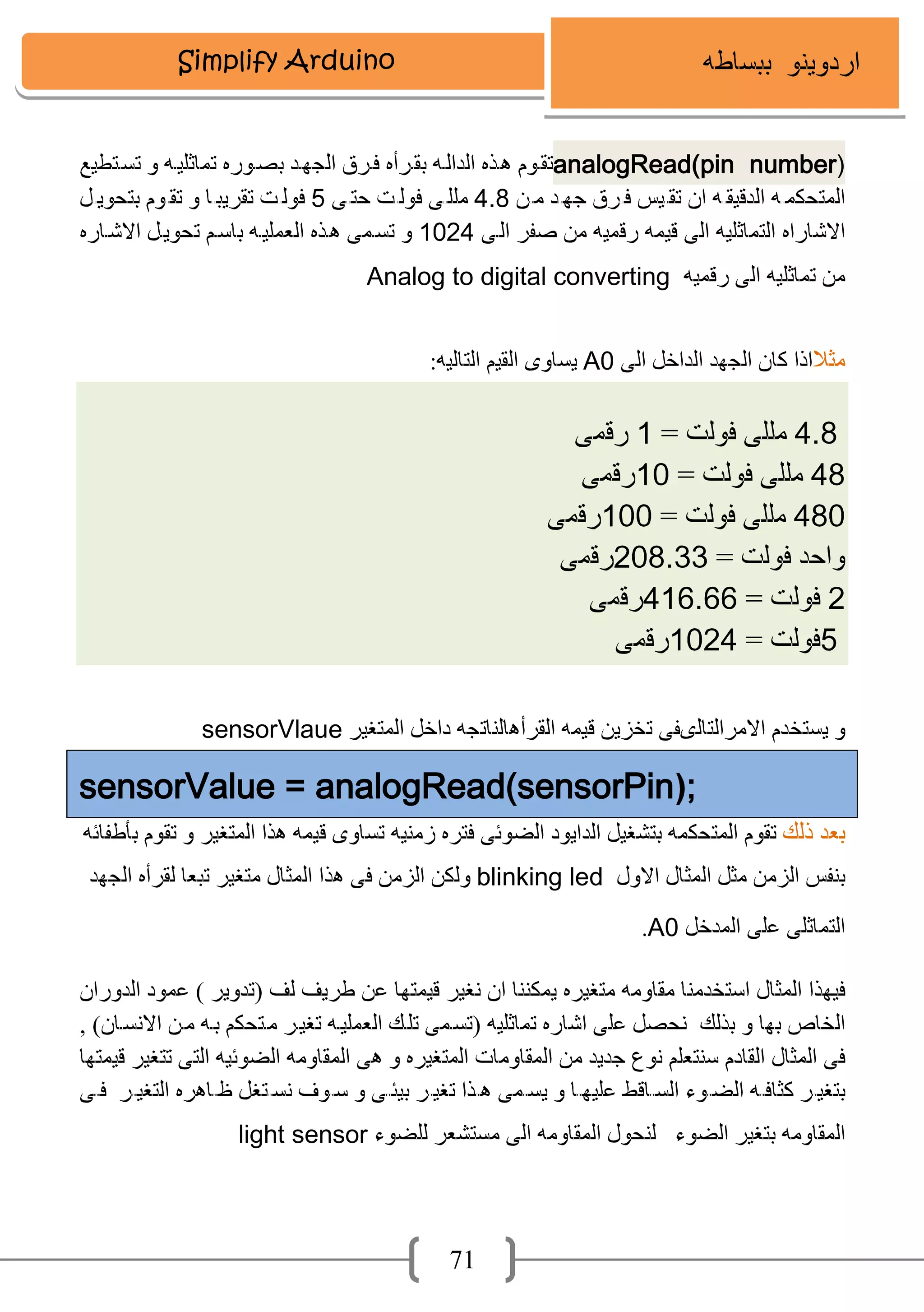

- 72. Simplify Arduino 71 )analogRead(pin number Analogto digital converting A0 sensorVlaue sensorValue = analogRead(sensorPin ; blinking led A0 light sensor

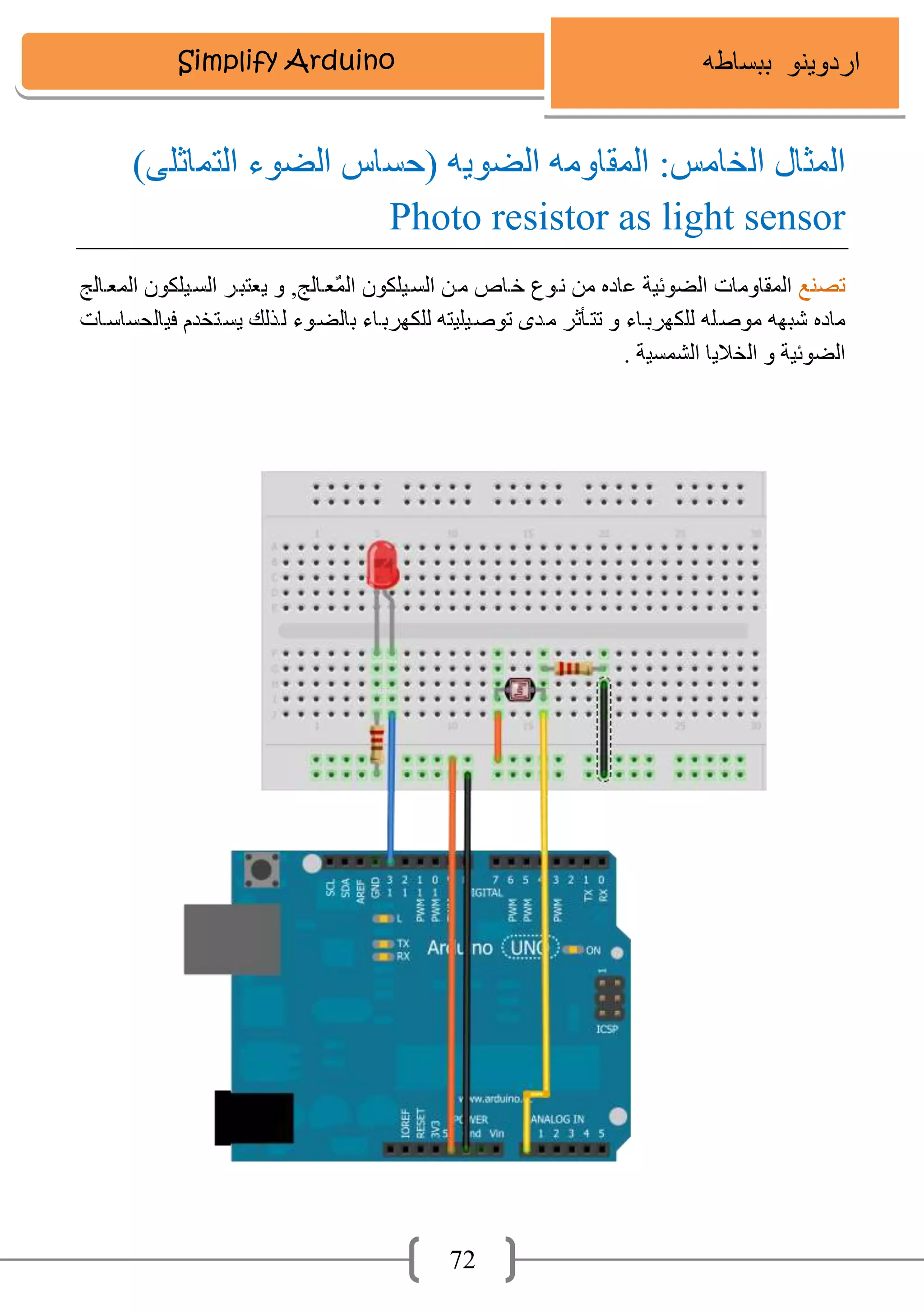

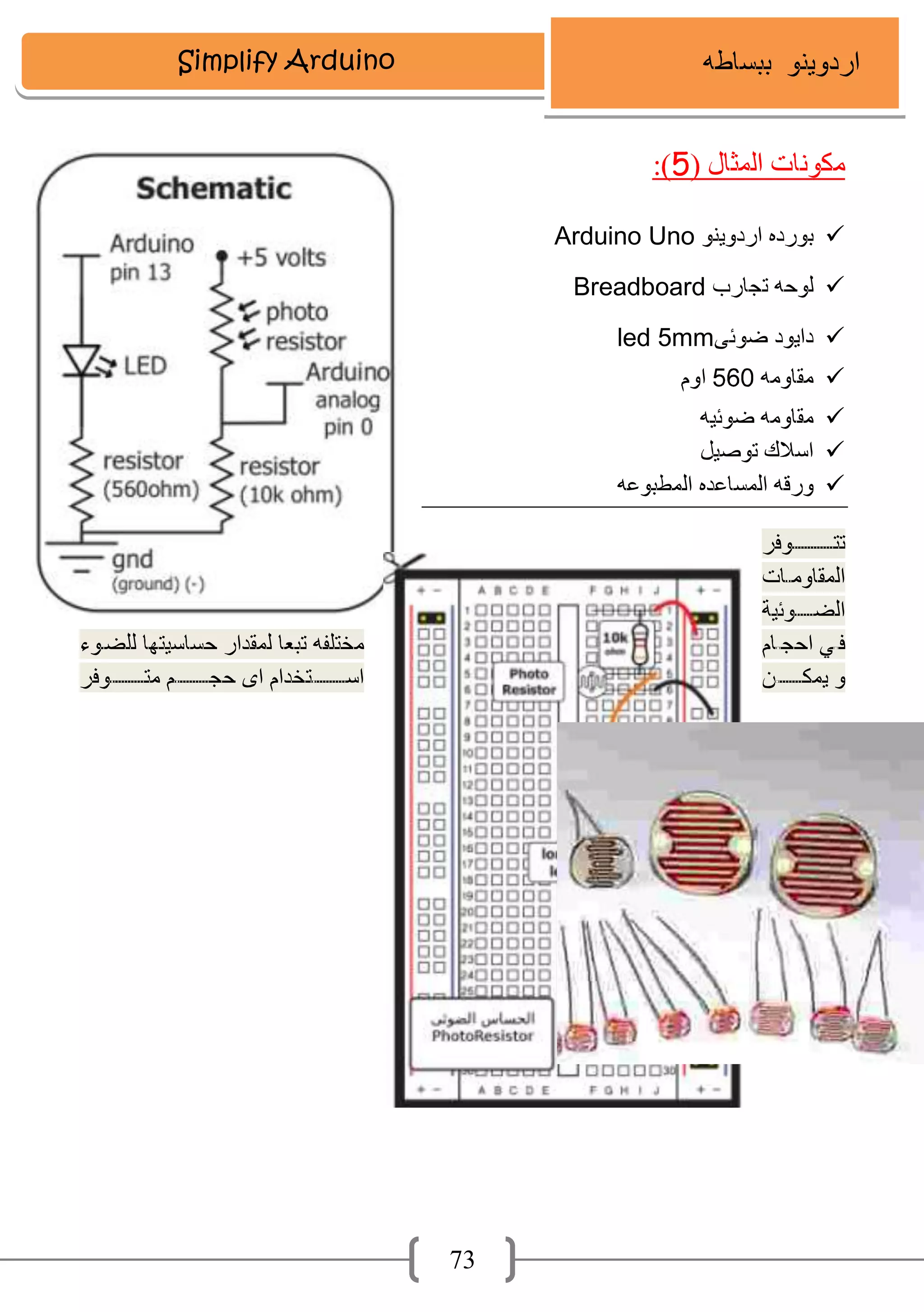

- 73. Simplify Arduino 72 Photo resistoras light sensor
- 74.

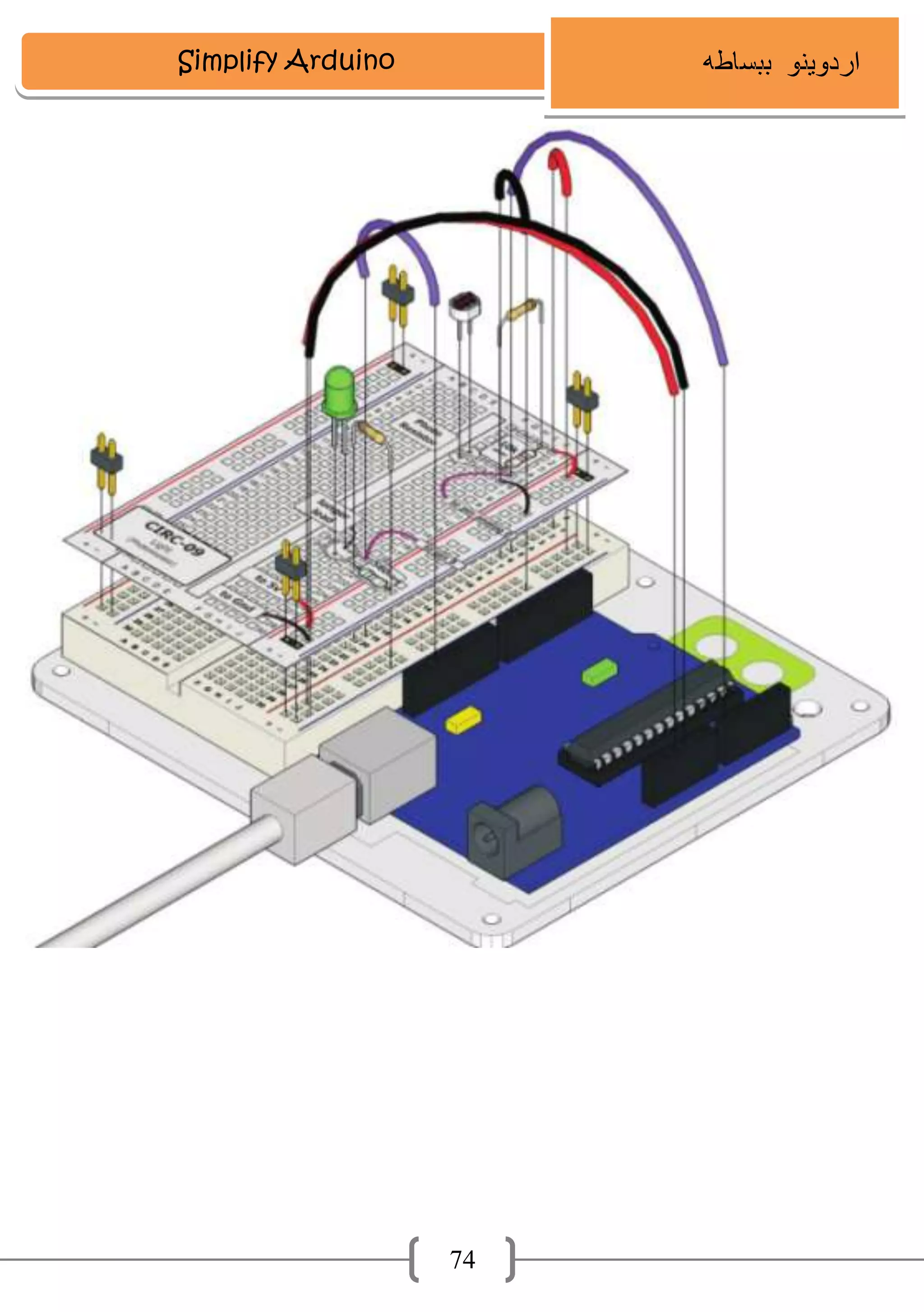

- 75.

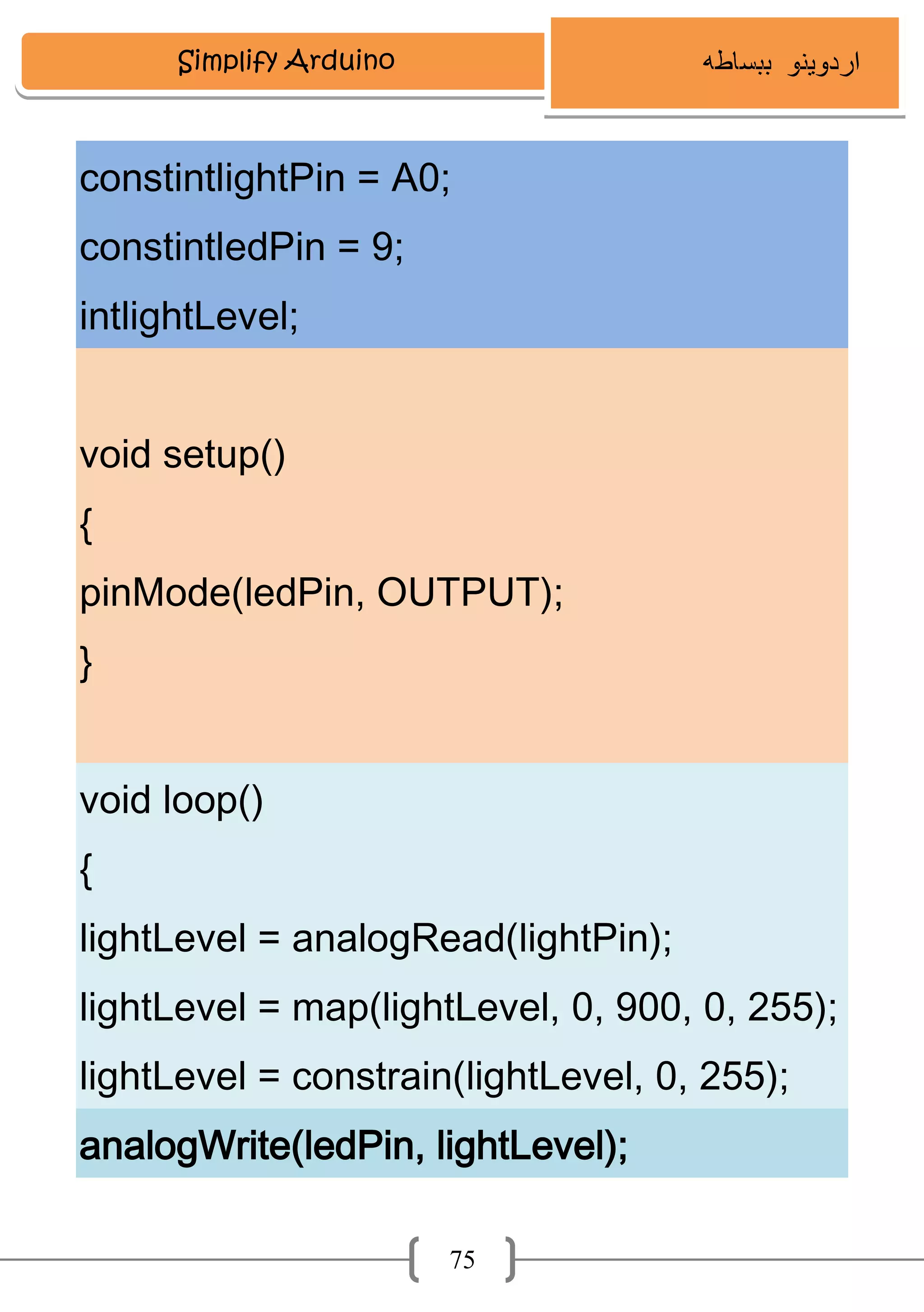

- 76. Simplify Arduino 75 constintlightPin =A0; constintledPin = 9; intlightLevel; void setup() { pinMode(ledPin, OUTPUT); } void loop() { lightLevel = analogRead(lightPin); lightLevel = map(lightLevel, 0, 900, 0, 255); lightLevel = constrain(lightLevel, 0, 255); analogWrite(ledPin, lightLevel);

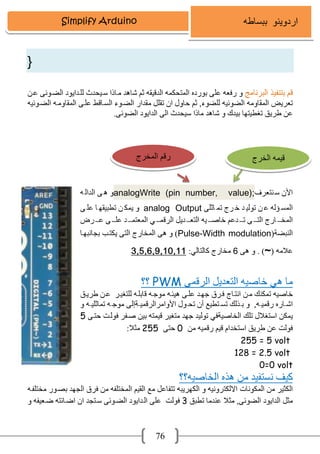

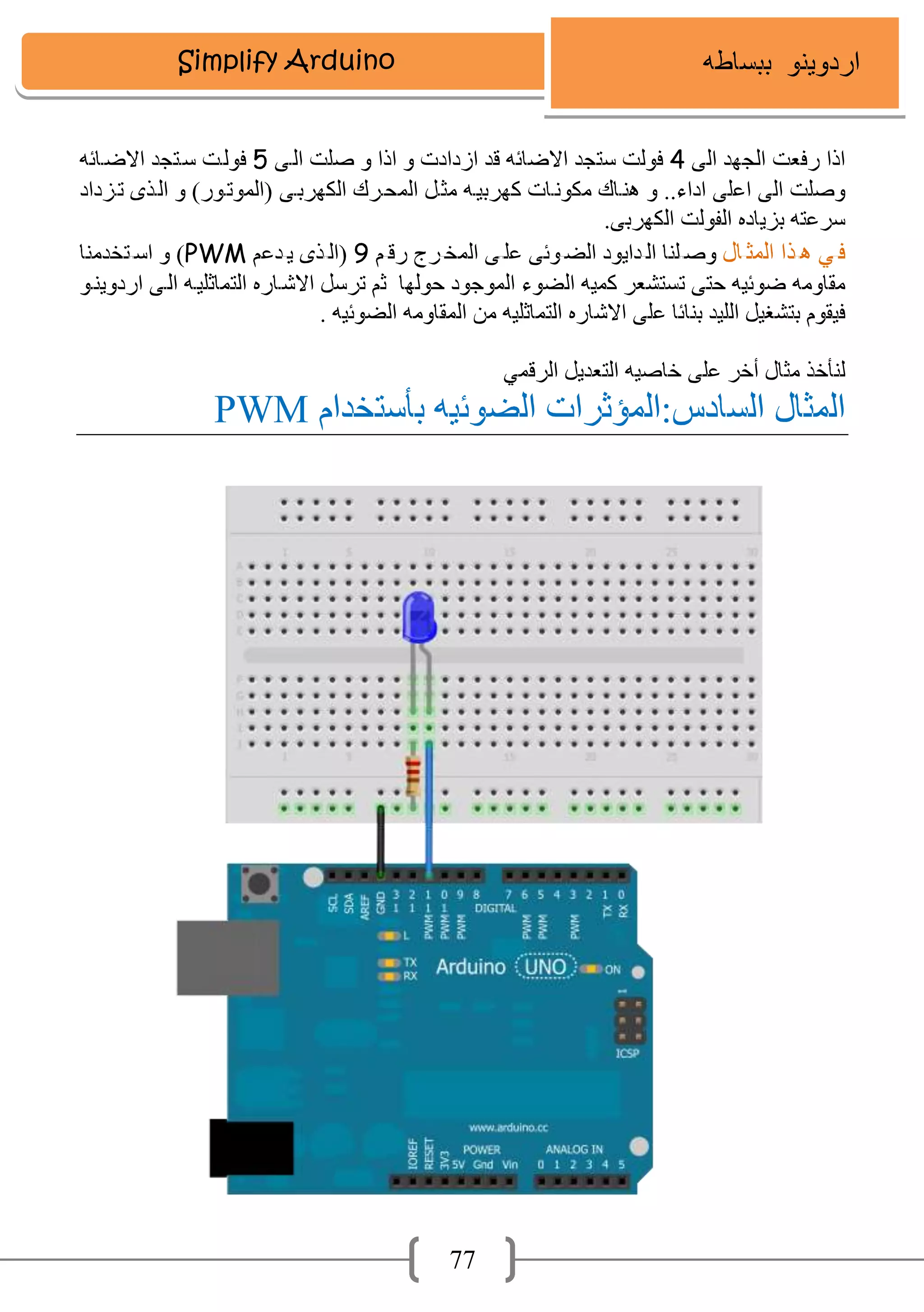

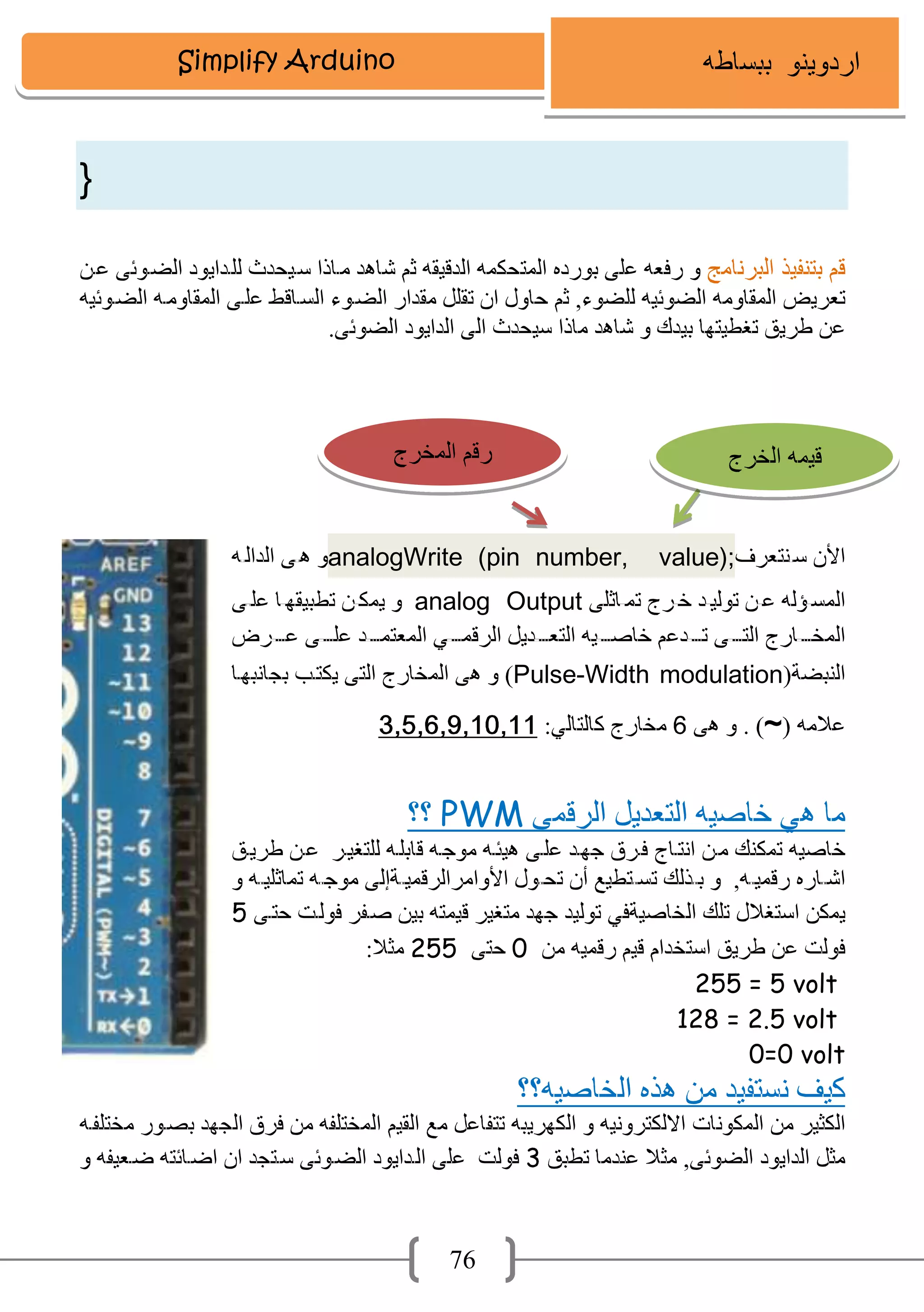

- 77. Simplify Arduino 76 } analogWrite (pinnumber, value); analog Output Pulse-Width modulation ~ PWM 0255 255 = 5 volt 128 = 2.5 volt 0=0 volt
- 78.

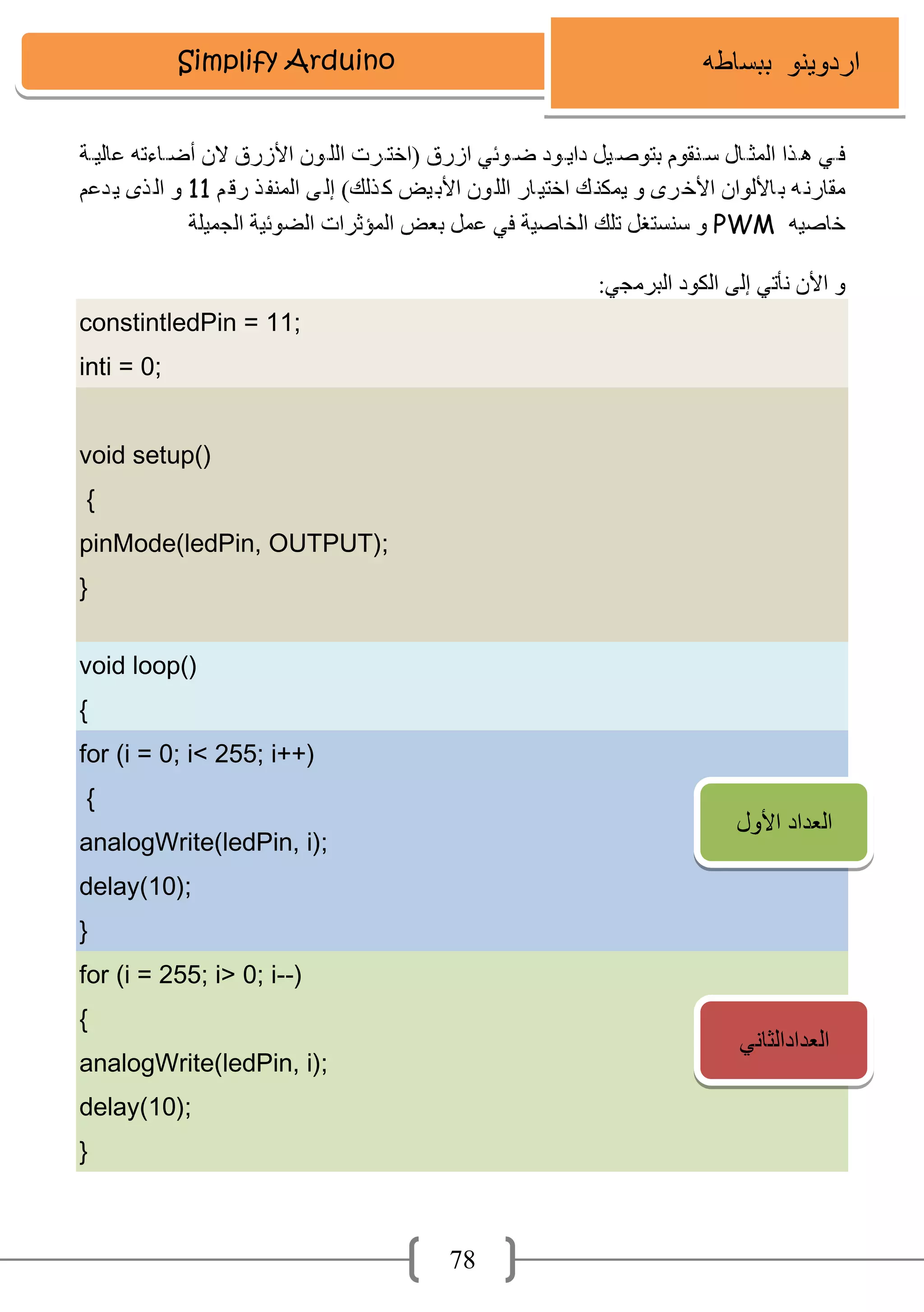

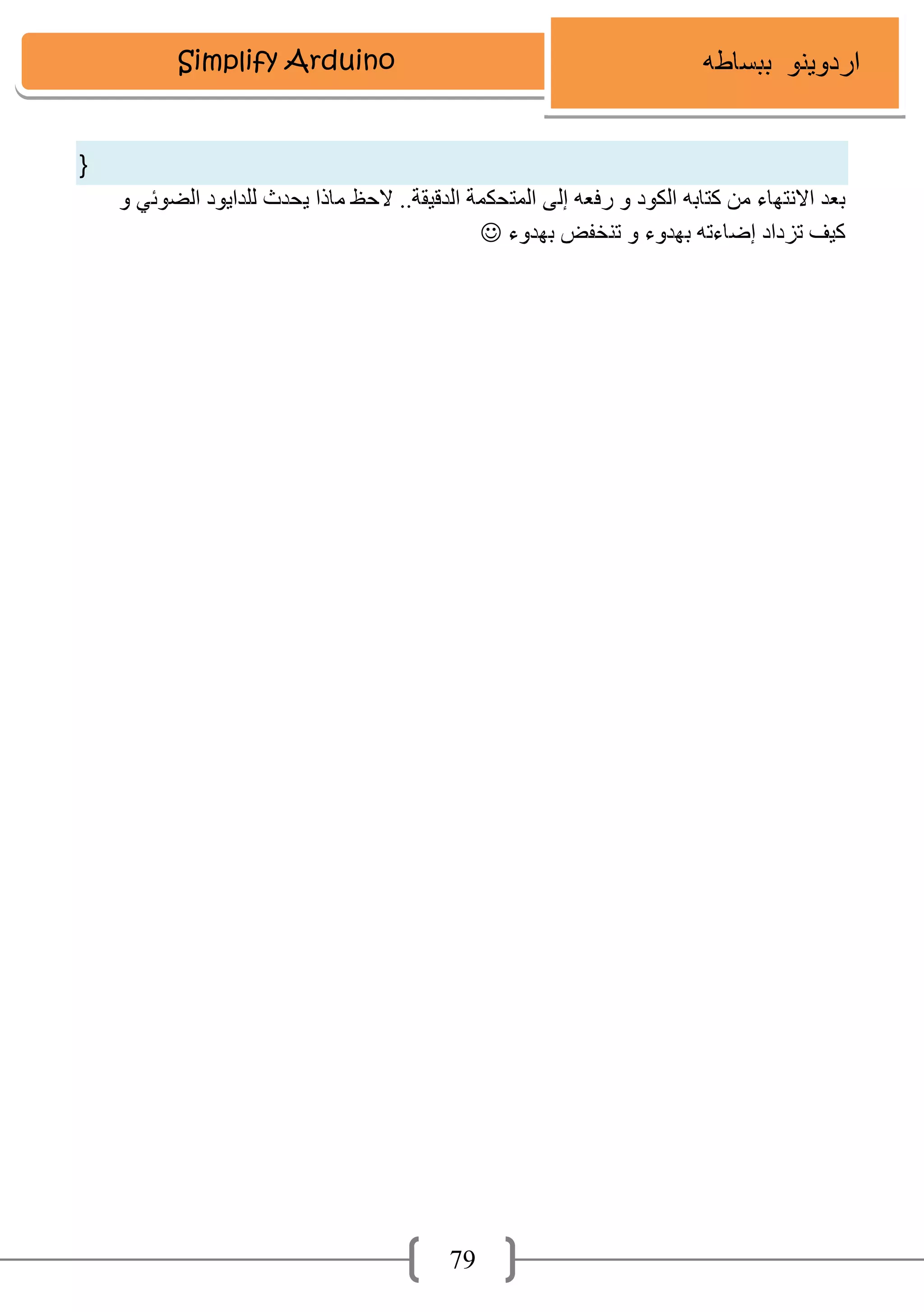

- 79. Simplify Arduino 78 PWM constintledPin =11; inti = 0; void setup() { pinMode(ledPin, OUTPUT); } void loop() { for (i = 0; i< 255; i++) { analogWrite(ledPin, i); delay(10); } for (i = 255; i> 0; i--) { analogWrite(ledPin, i); delay(10); }
- 80.

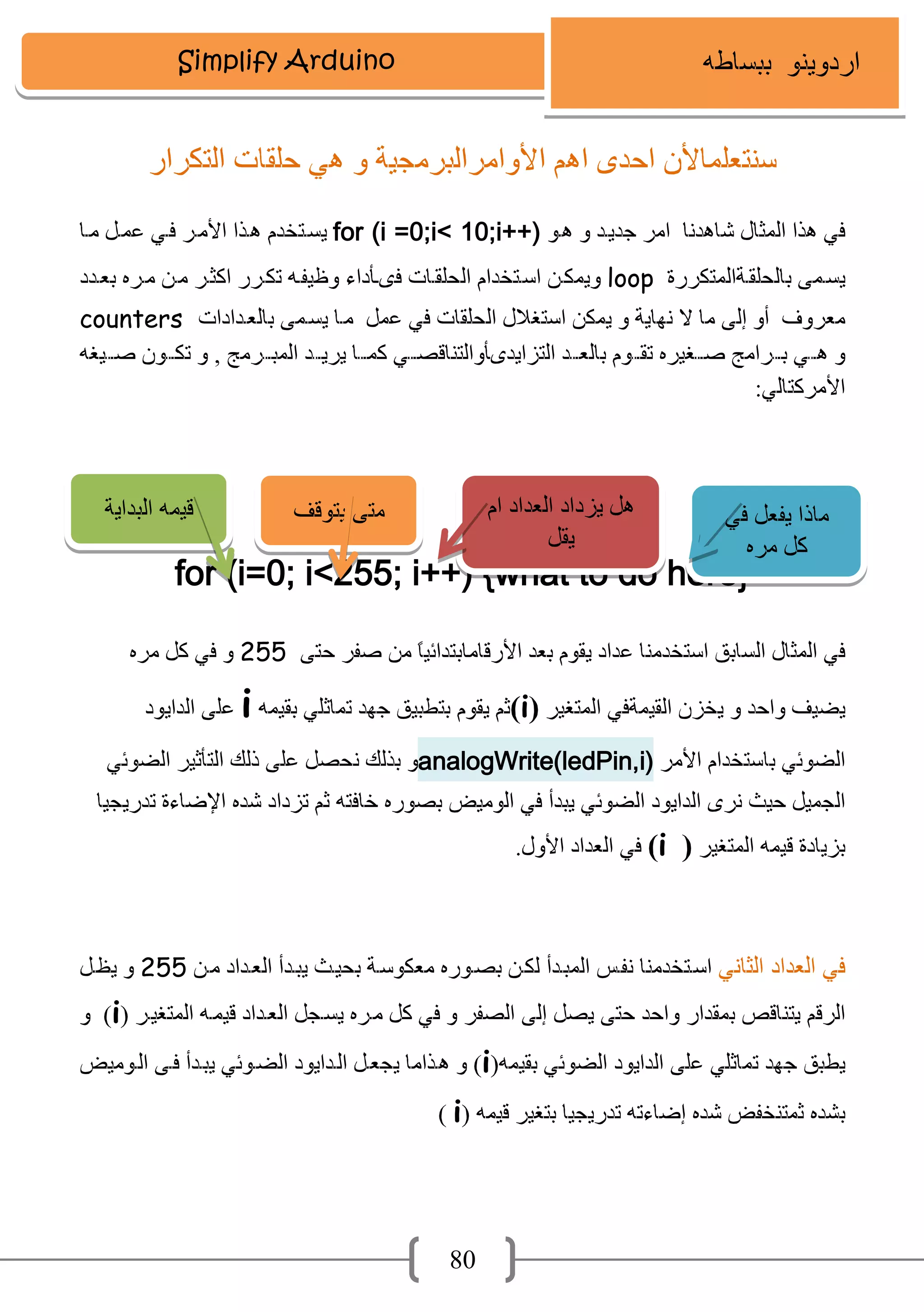

- 81. Simplify Arduino 80 for (i=0;i< 10;i++) loop counters for (i=0; i<255; i++) {what to do here} 255 ii analogWrite(ledPin,i) i 255 i i i

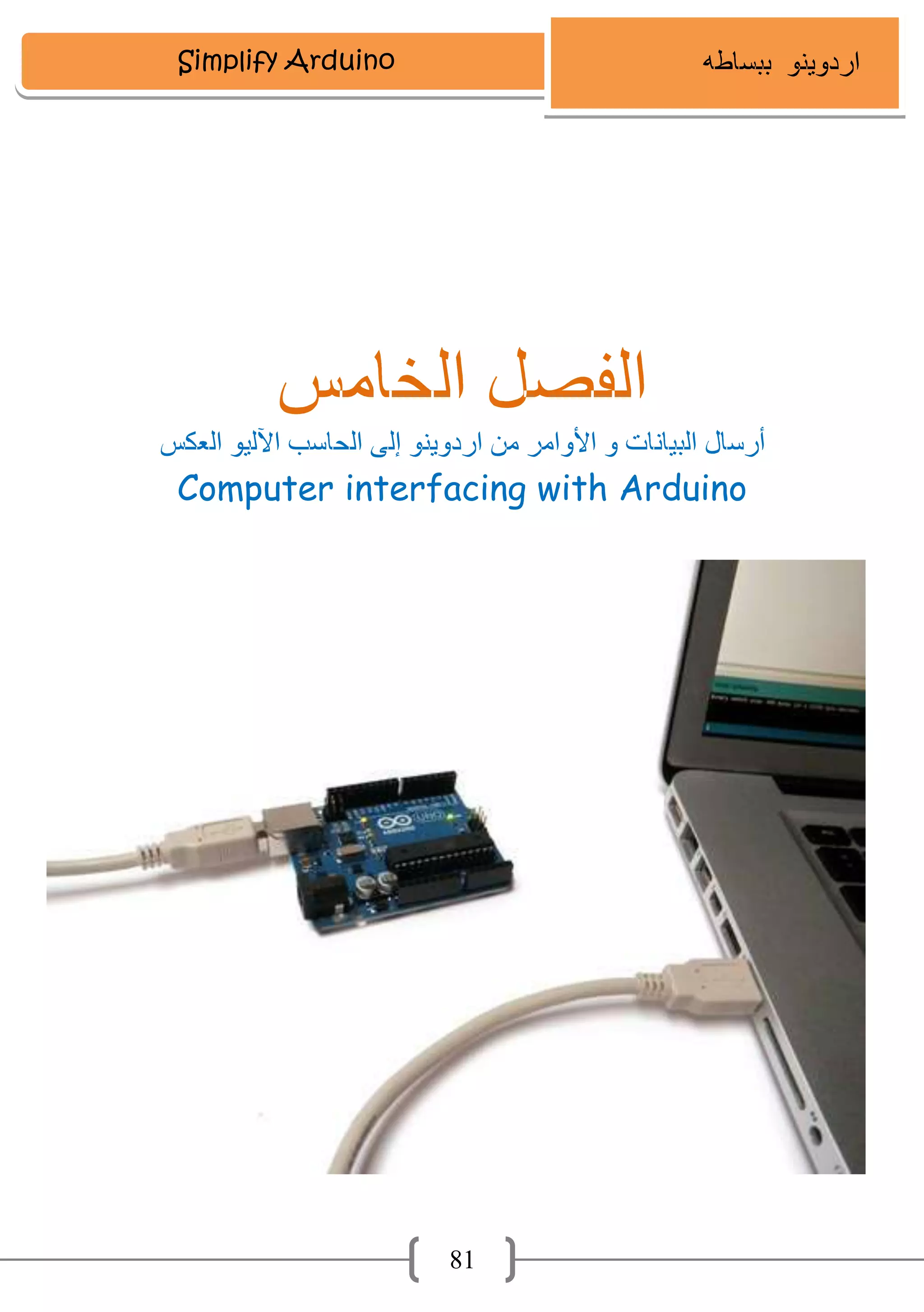

- 82. Simplify Arduino 81 Computer interfacingwith Arduino

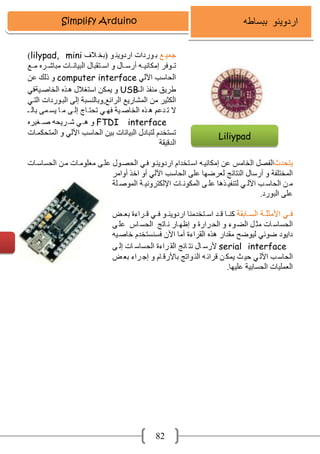

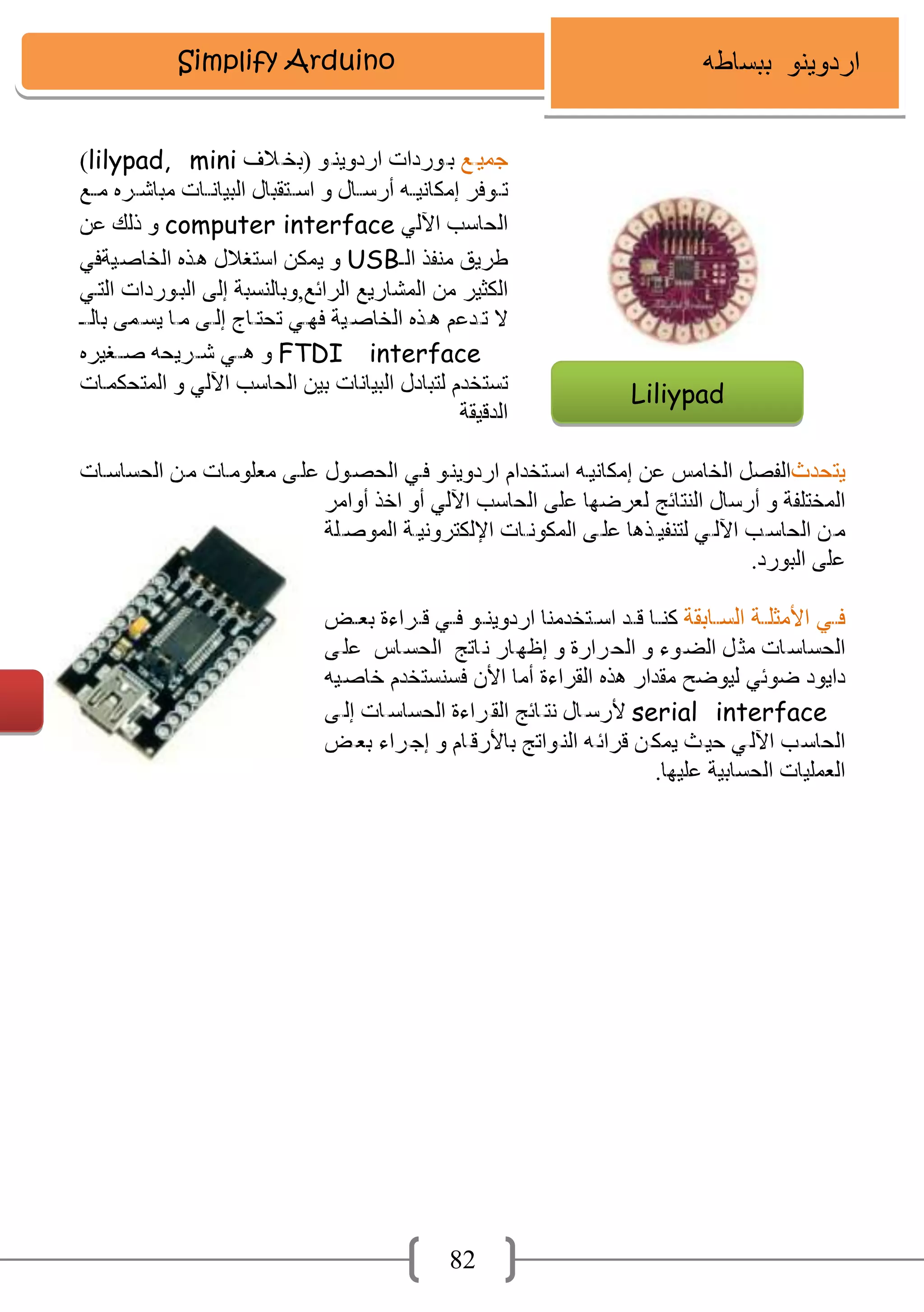

- 83. Simplify Arduino 82 lilypad, mini computerinterface USB FTDI interface serial interface Liliypad
- 84.

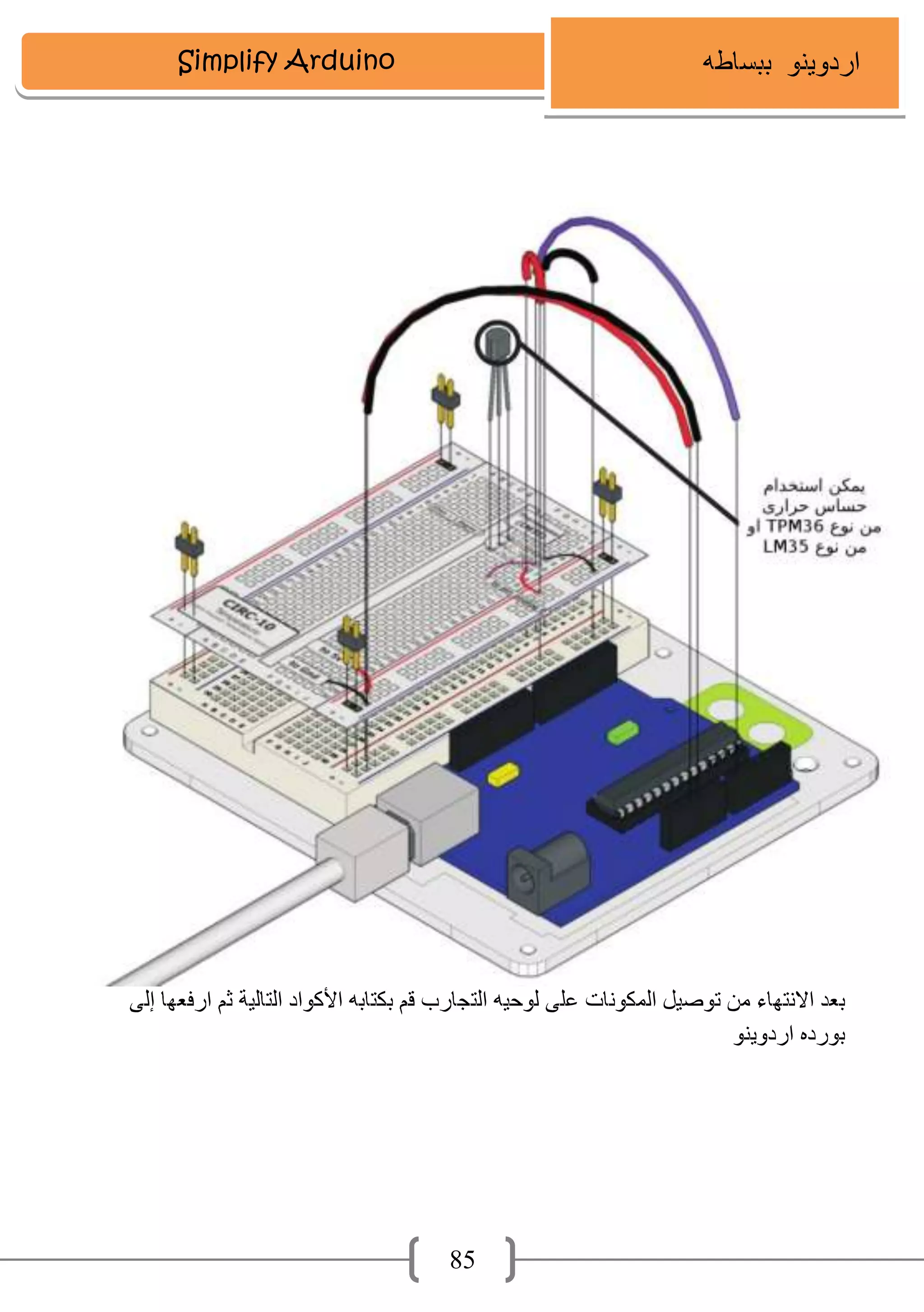

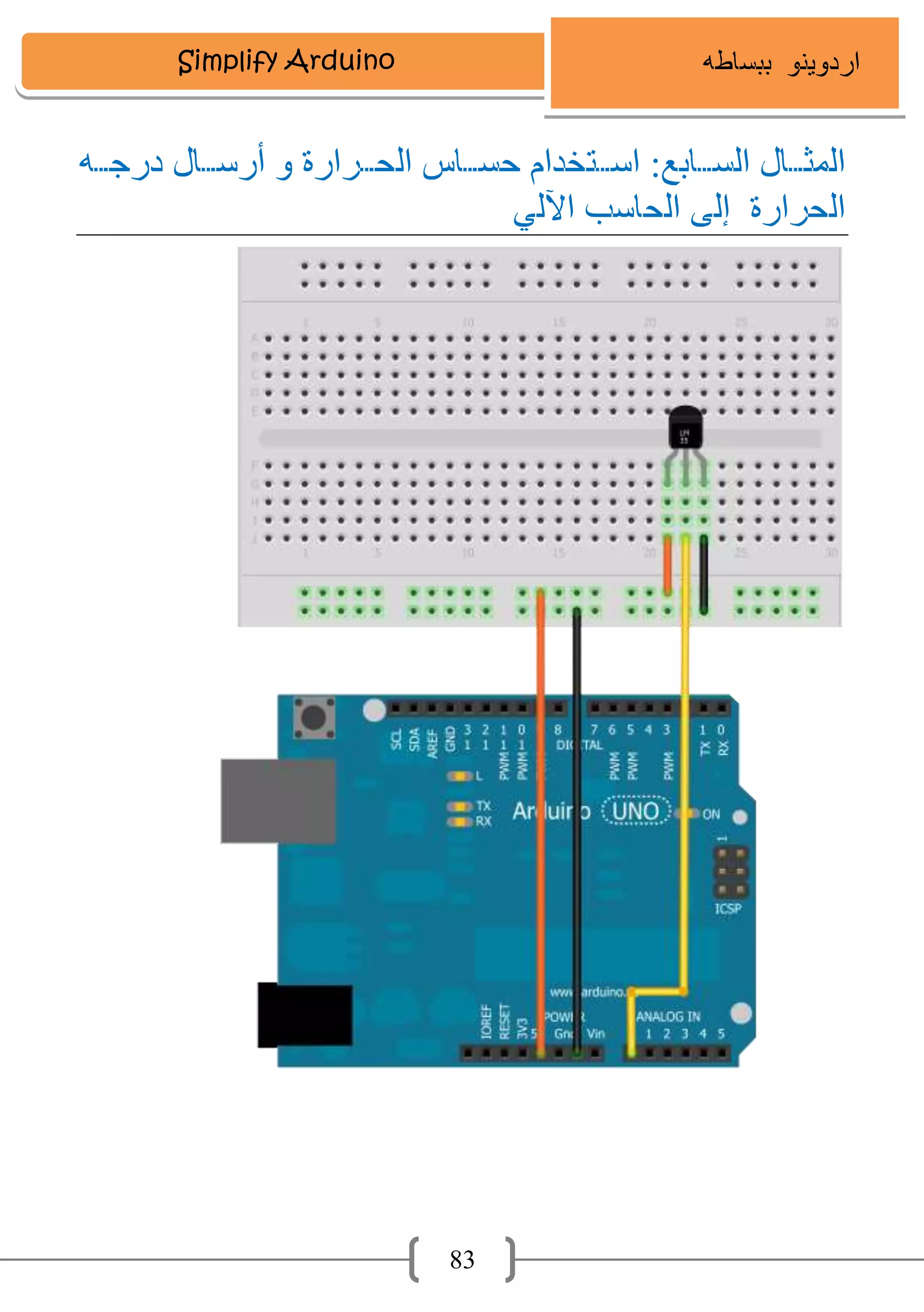

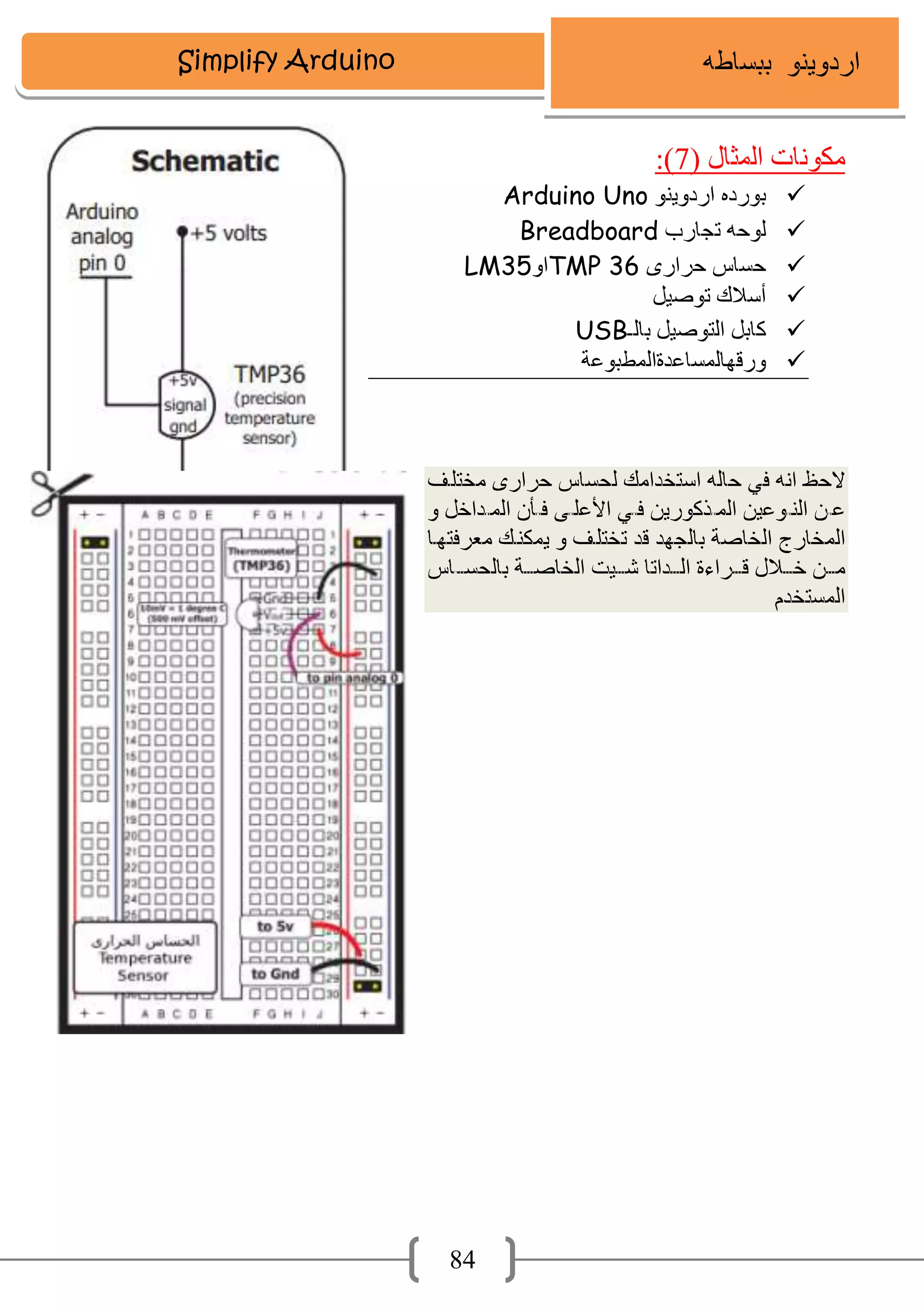

- 85. Simplify Arduino 84 Arduino Uno Breadboard TMP36LM35 USB
- 86.

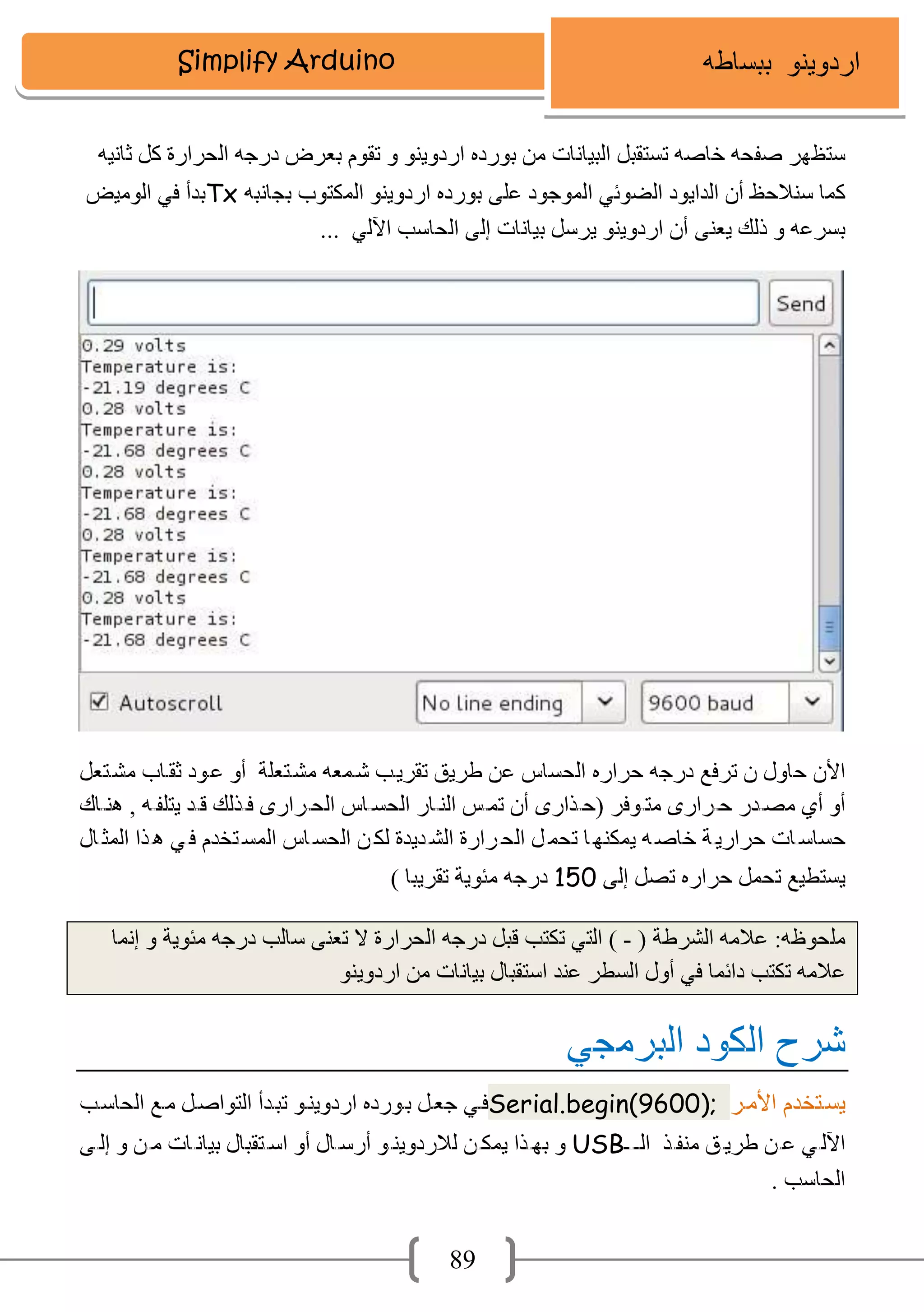

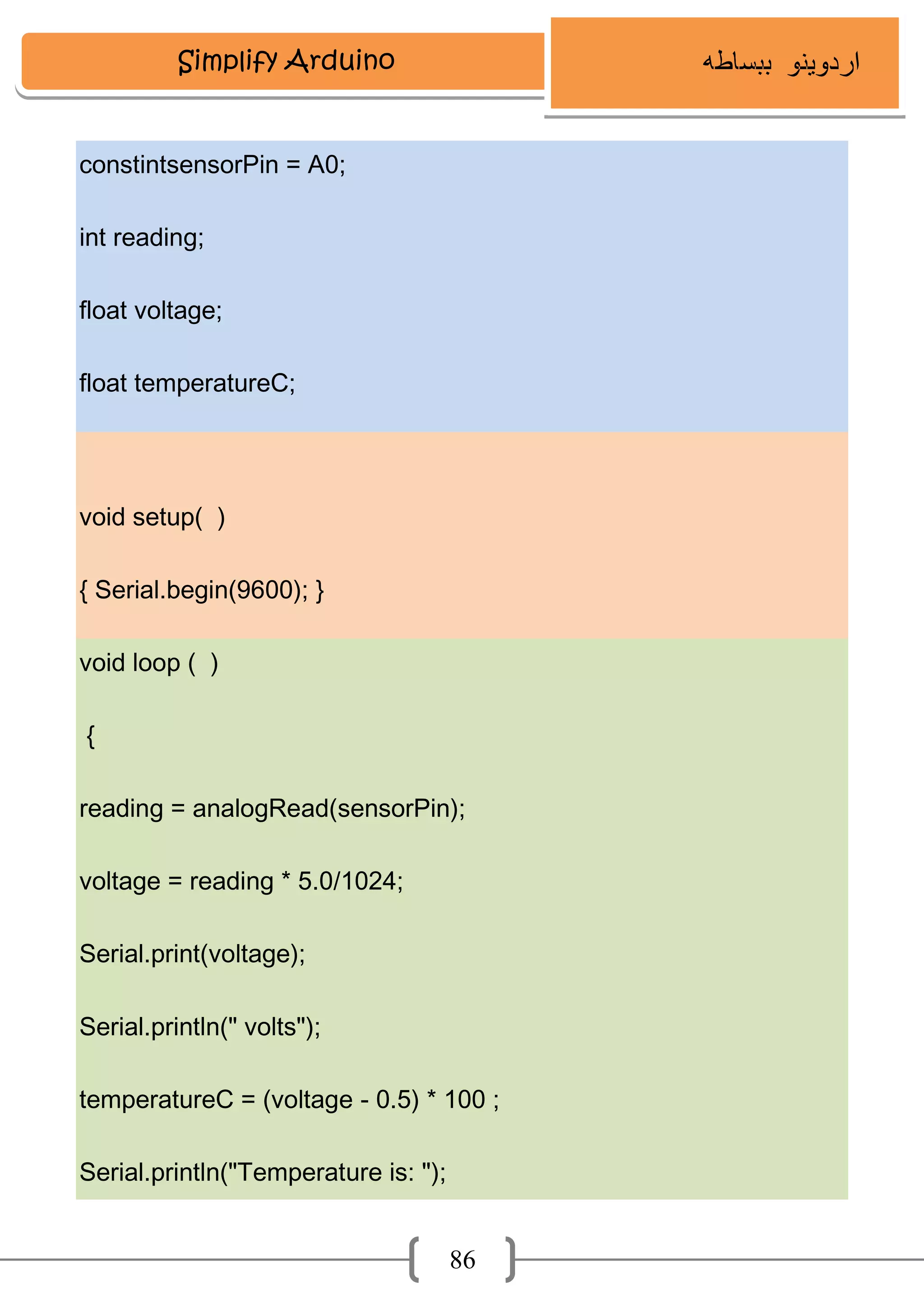

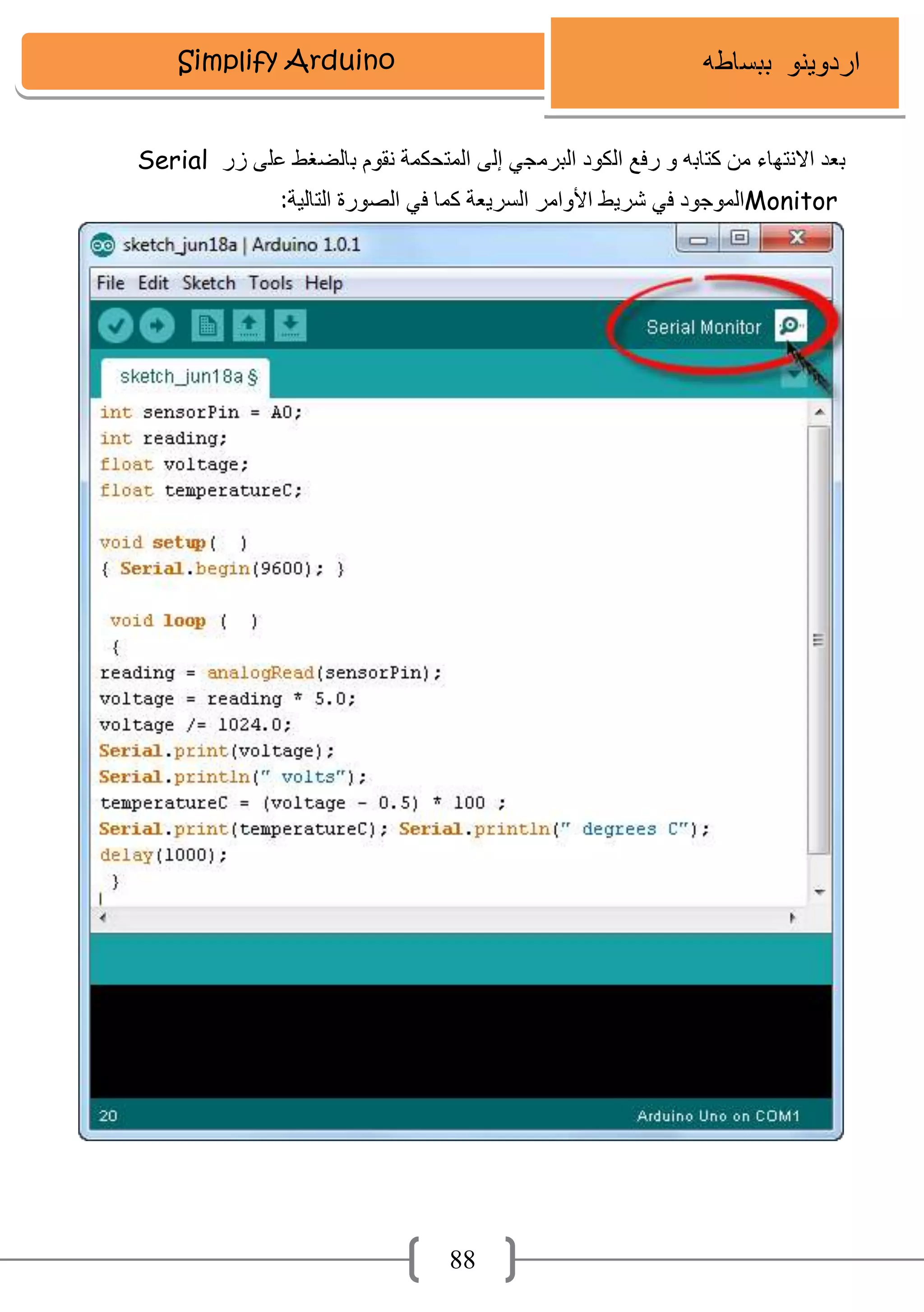

- 87. Simplify Arduino 86 constintsensorPin =A0; int reading; float voltage; float temperatureC; void setup( ) { Serial.begin(9600); } void loop ( ) { reading = analogRead(sensorPin); voltage = reading * 5.0/1024; Serial.print(voltage); Serial.println(" volts"); temperatureC = (voltage - 0.5) * 100 ; Serial.println("Temperature is: ");

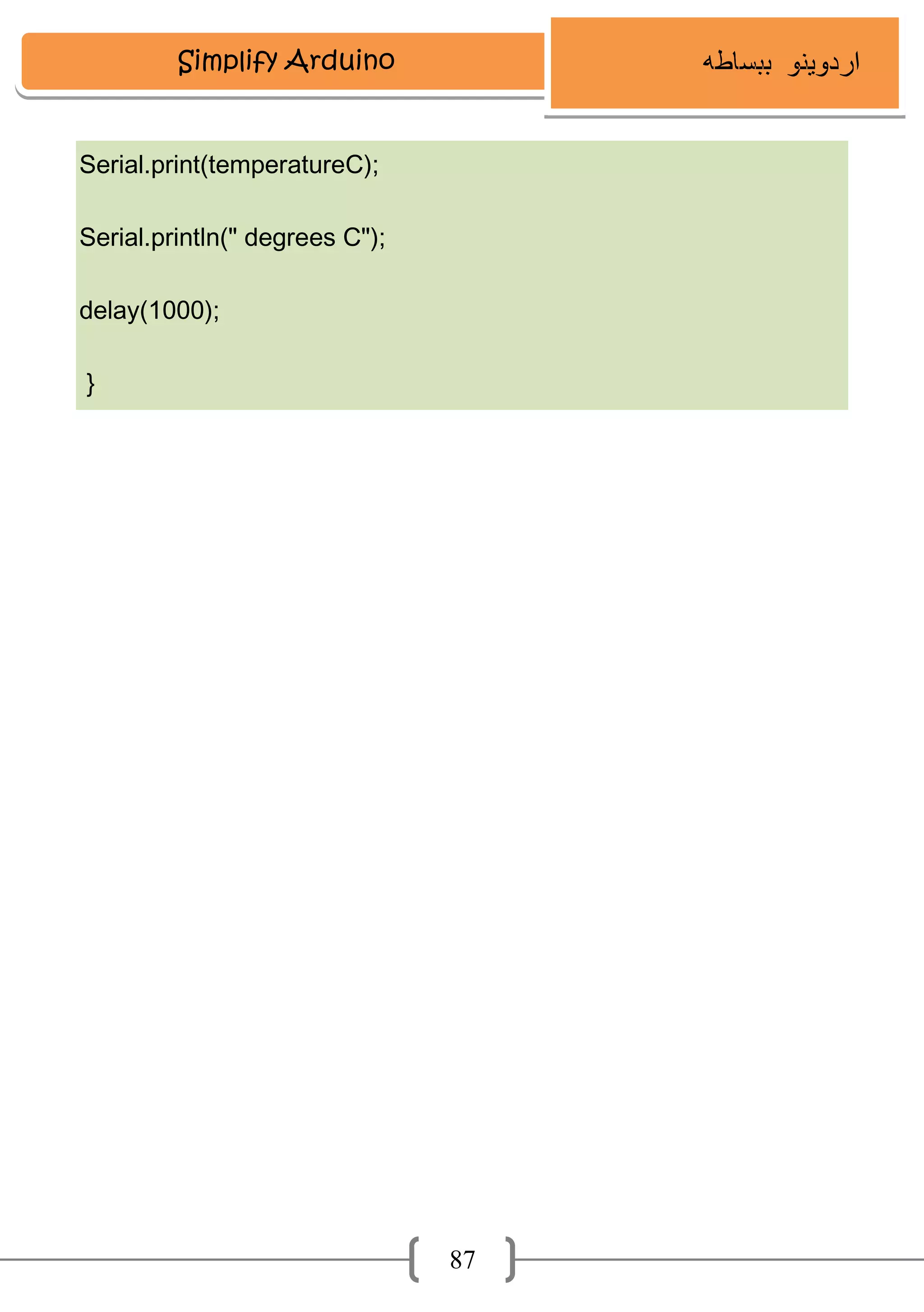

- 88. Simplify Arduino 87 Serial.print(temperatureC); Serial.println(" degreesC"); delay(1000); }
- 89.
- 90.

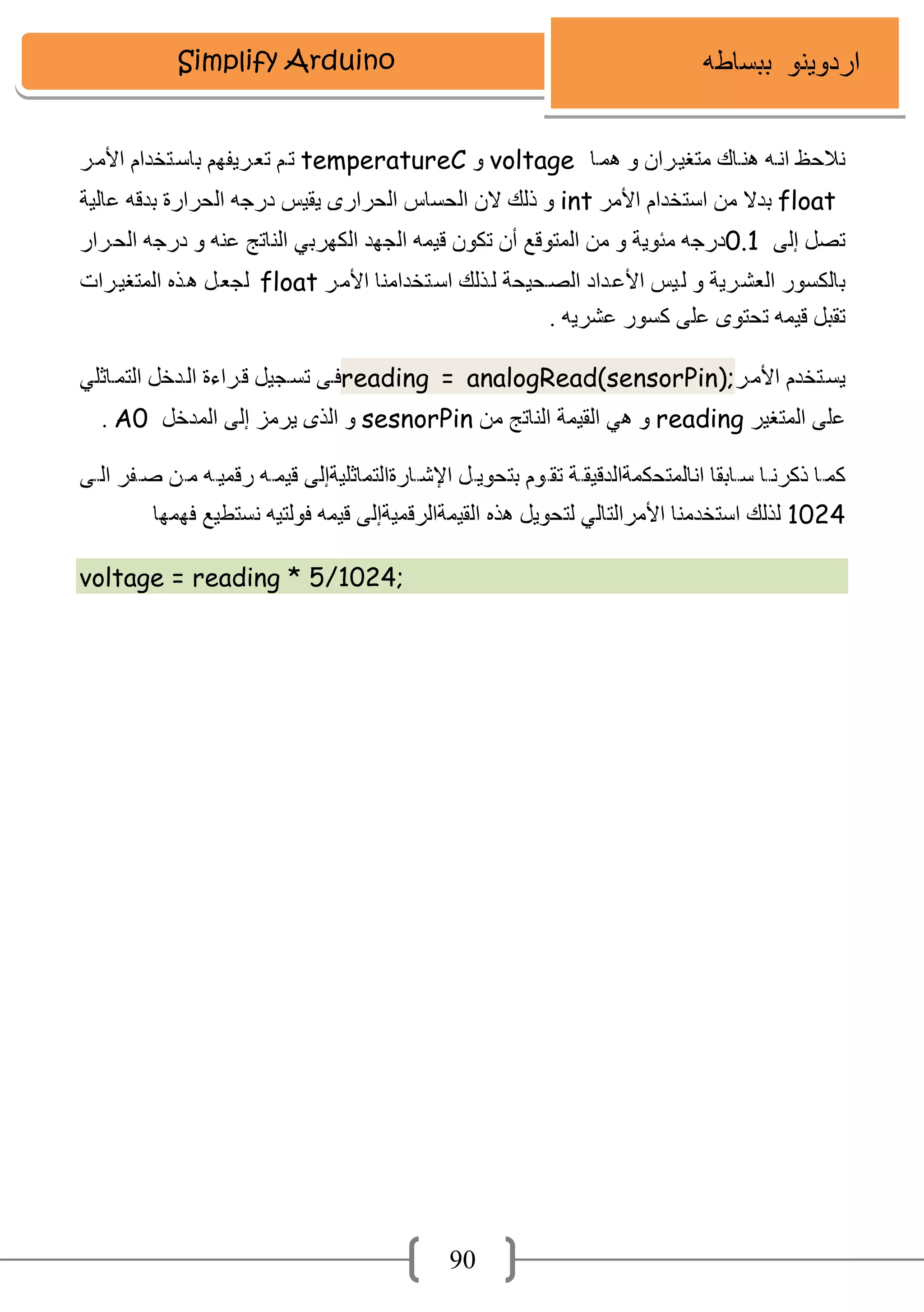

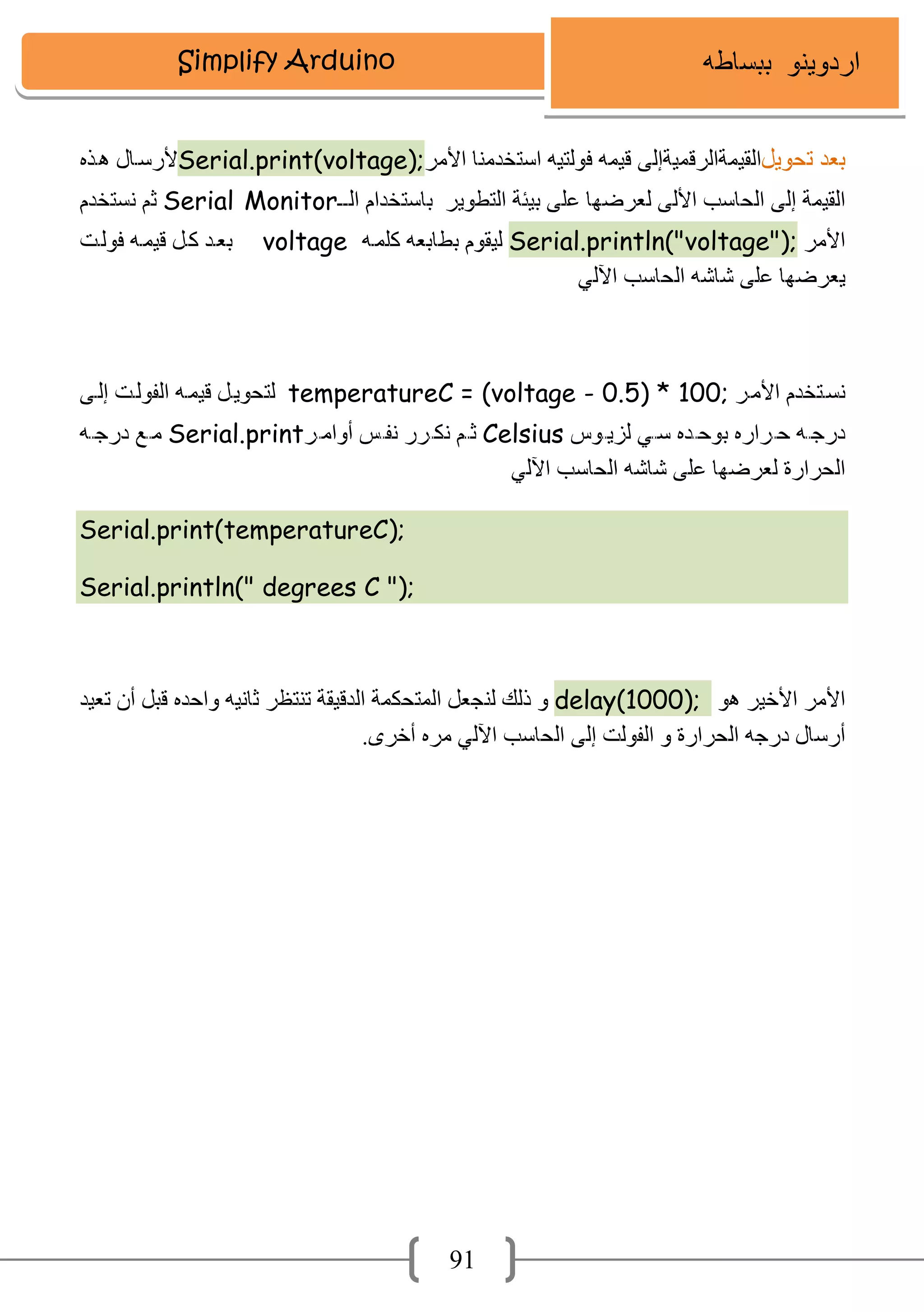

- 91. Simplify Arduino 90 voltagetemperatureC floatint 0.1 float reading =analogRead(sensorPin); readingsesnorPinA0 voltage = reading * 5/1024;
- 92. Simplify Arduino 91 Serial.print(voltage); Serial Monitor ("voltage");lnSerial.printvoltage temperatureC= (voltage - 0.5) * 100; CelsiusSerial.print Serial.print(temperatureC); Serial.println(" degrees C "); delay(1000);

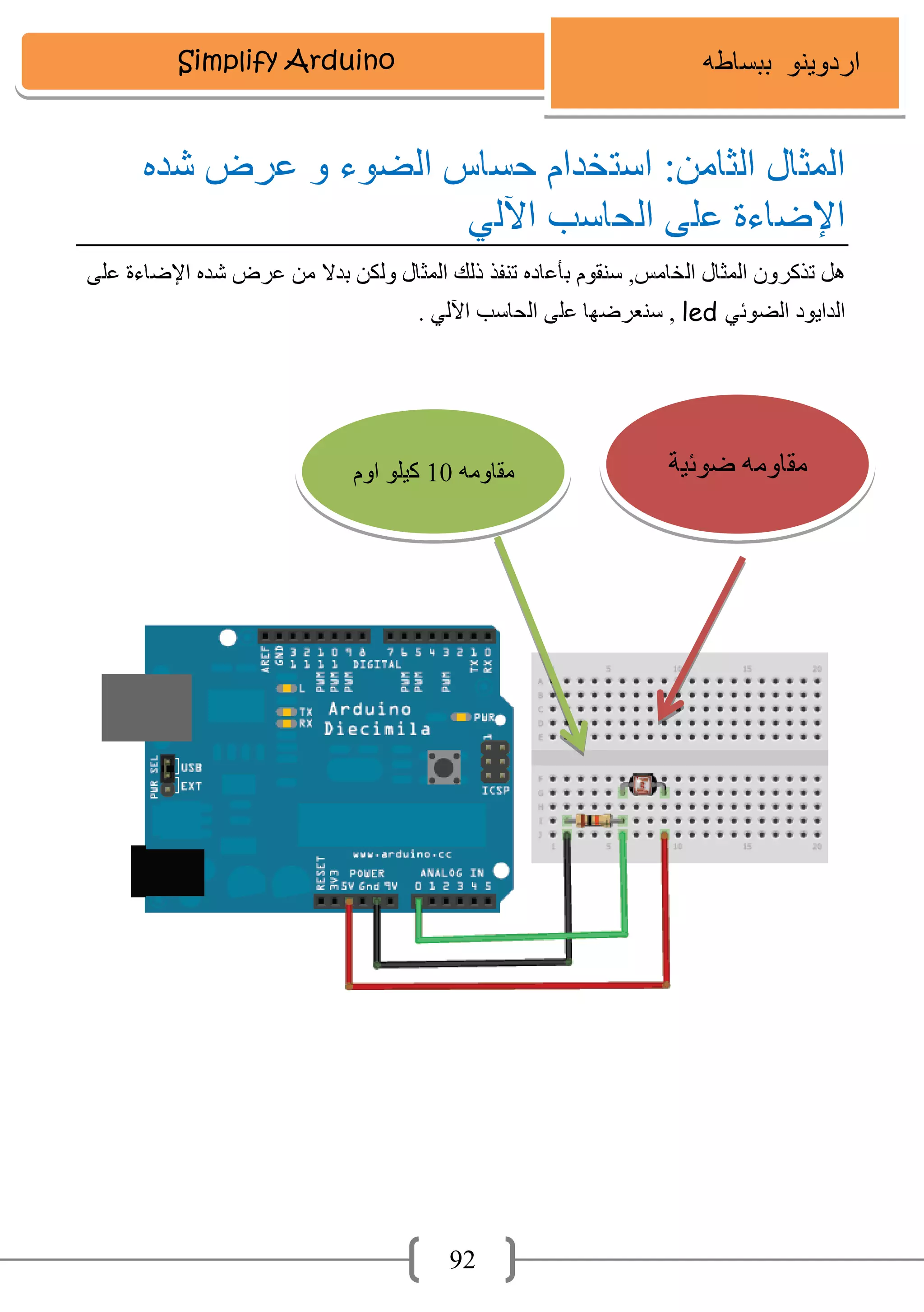

- 93.

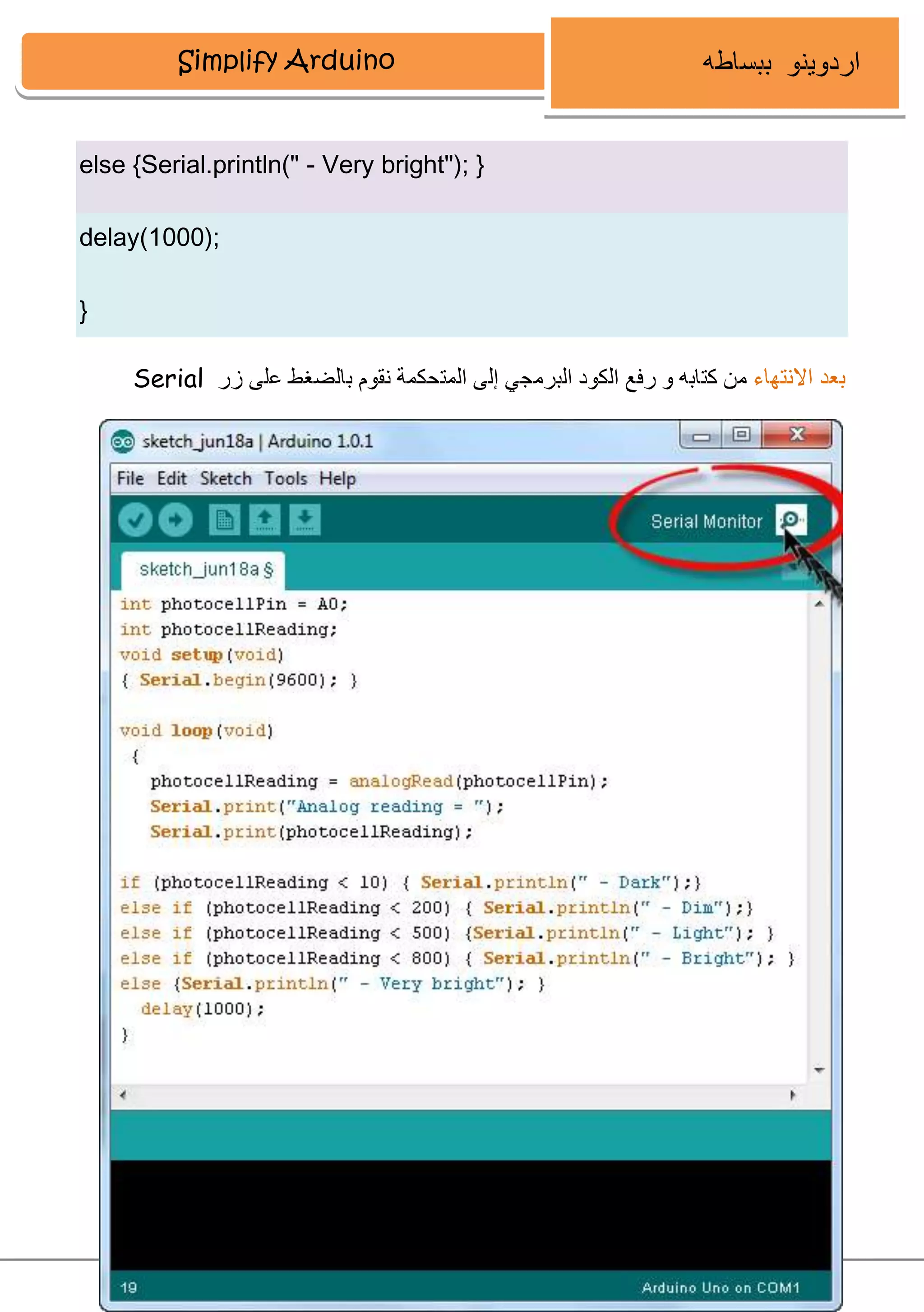

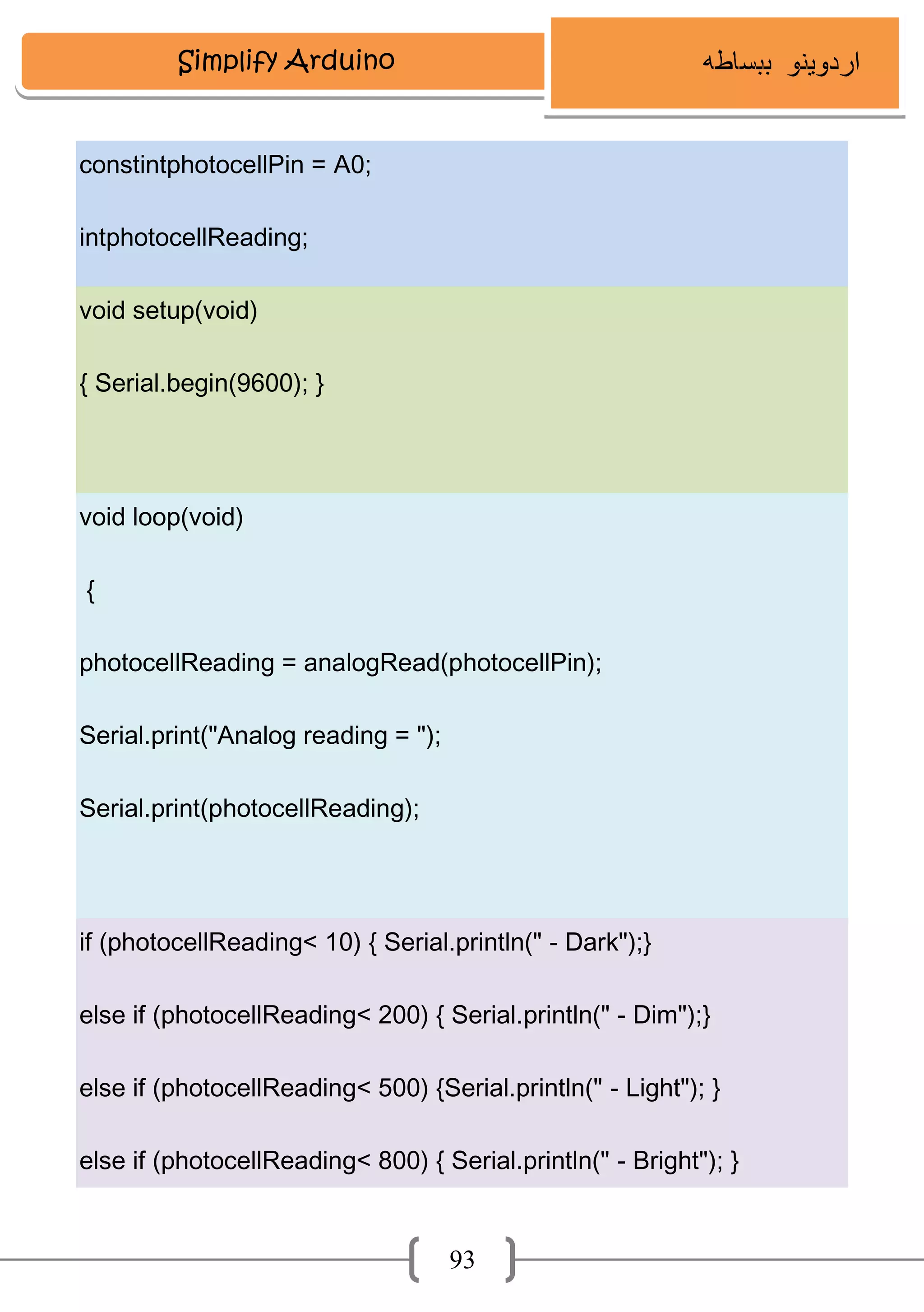

- 94. Simplify Arduino 93 constintphotocellPin =A0; intphotocellReading; void setup(void) { Serial.begin(9600); } void loop(void) { photocellReading = analogRead(photocellPin); Serial.print("Analog reading = "); Serial.print(photocellReading); if (photocellReading< 10) { Serial.println(" - Dark");} else if (photocellReading< 200) { Serial.println(" - Dim");} else if (photocellReading< 500) {Serial.println(" - Light"); } else if (photocellReading< 800) { Serial.println(" - Bright"); }
- 95. Simplify Arduino 94 else {Serial.println("- Very bright"); } delay(1000); } Serial
- 96.

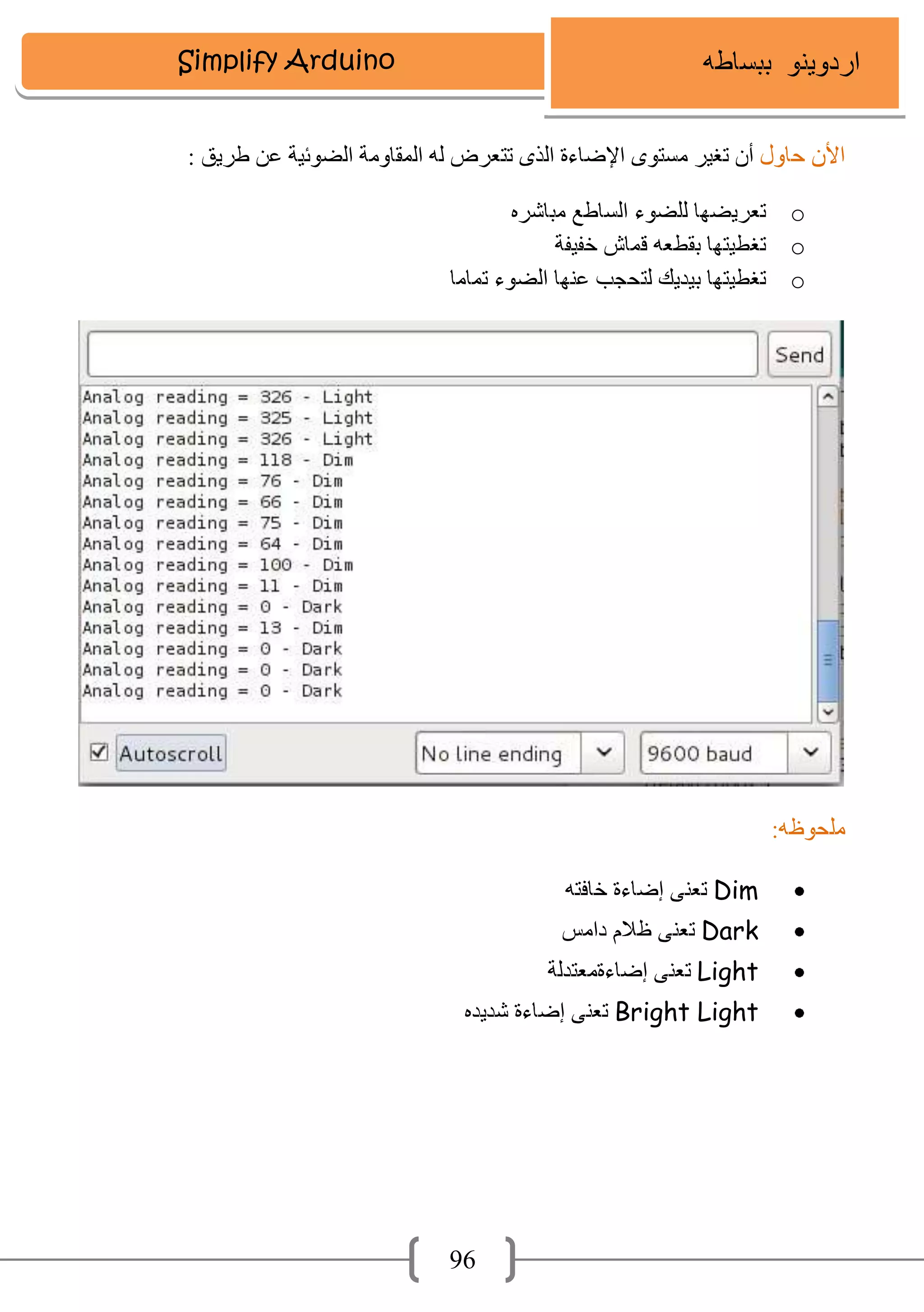

- 97.
- 98.

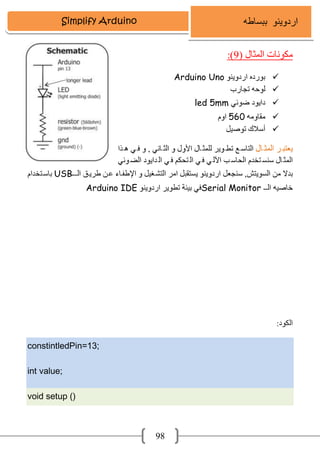

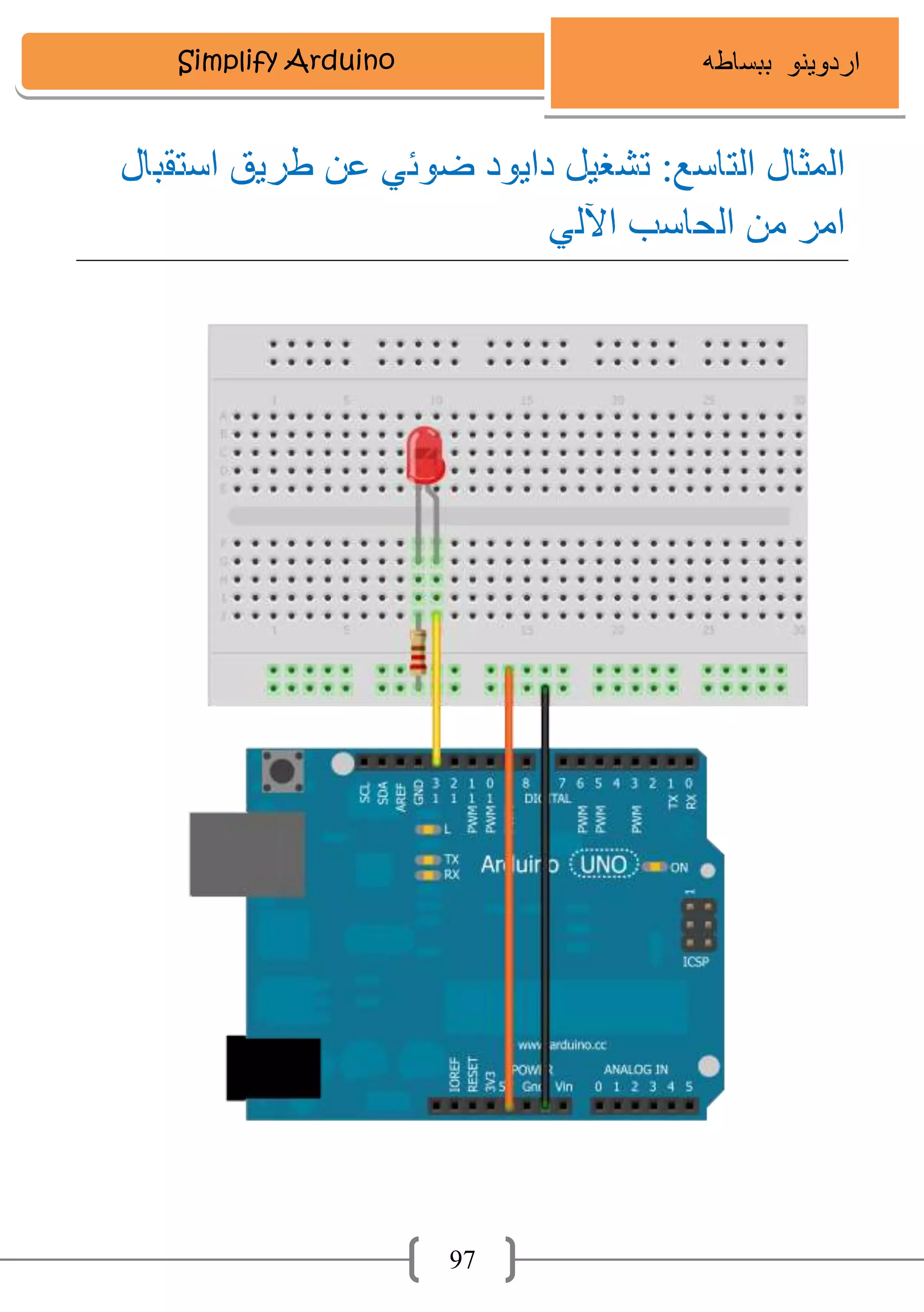

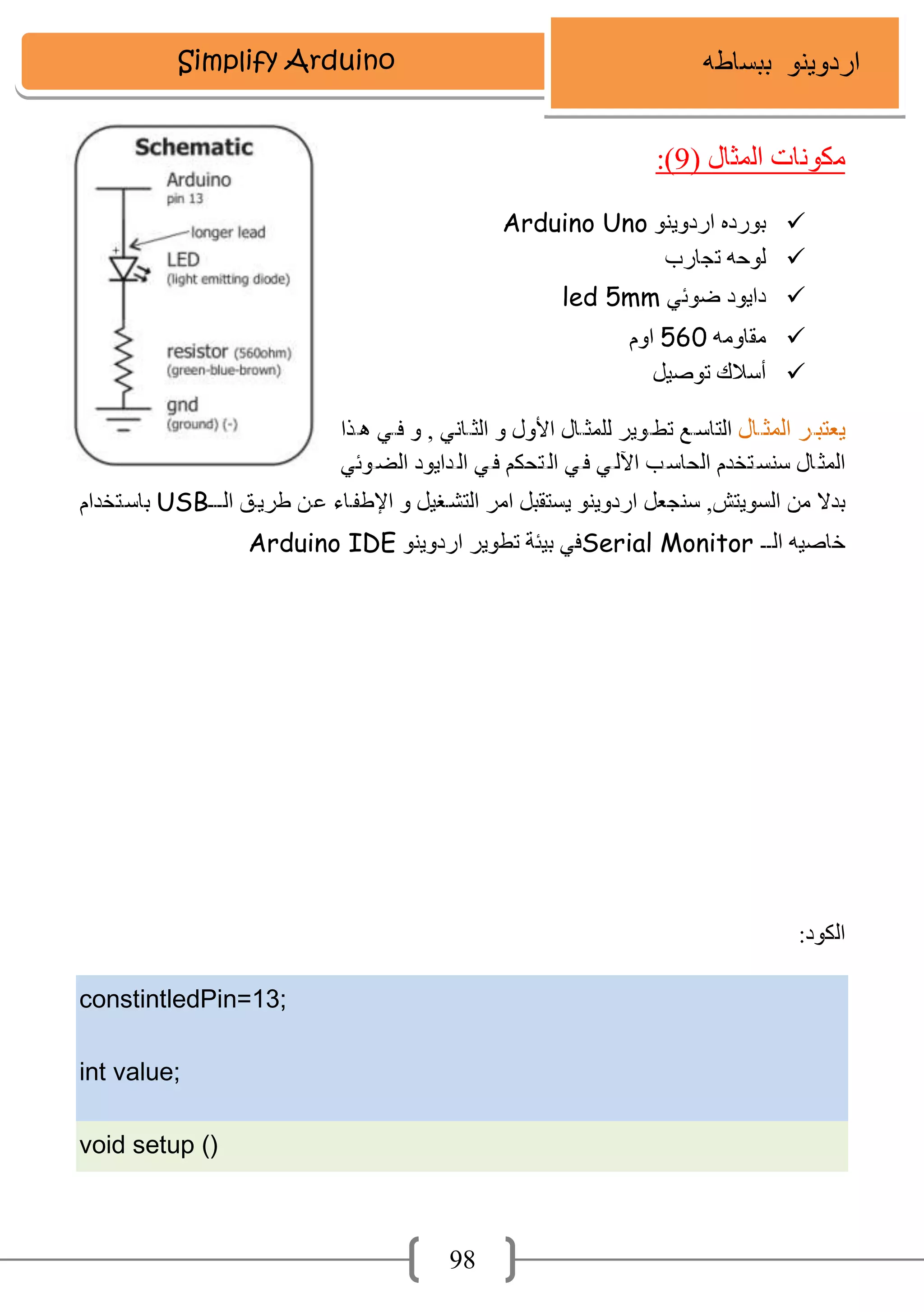

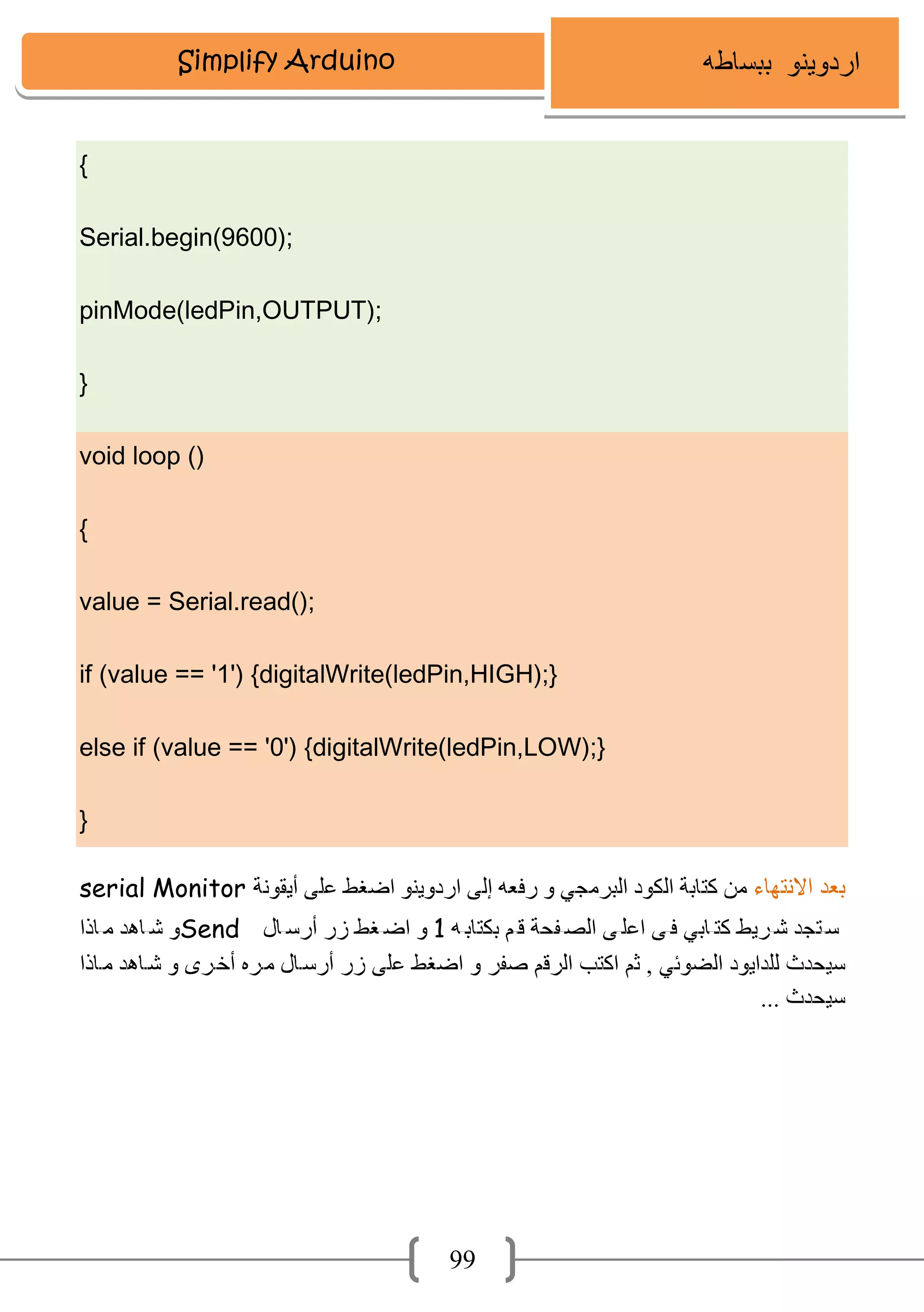

- 99. Simplify Arduino 98 Arduino Uno led5mm USB Serial MonitorArduino IDE constintledPin=13; int value; void setup ()

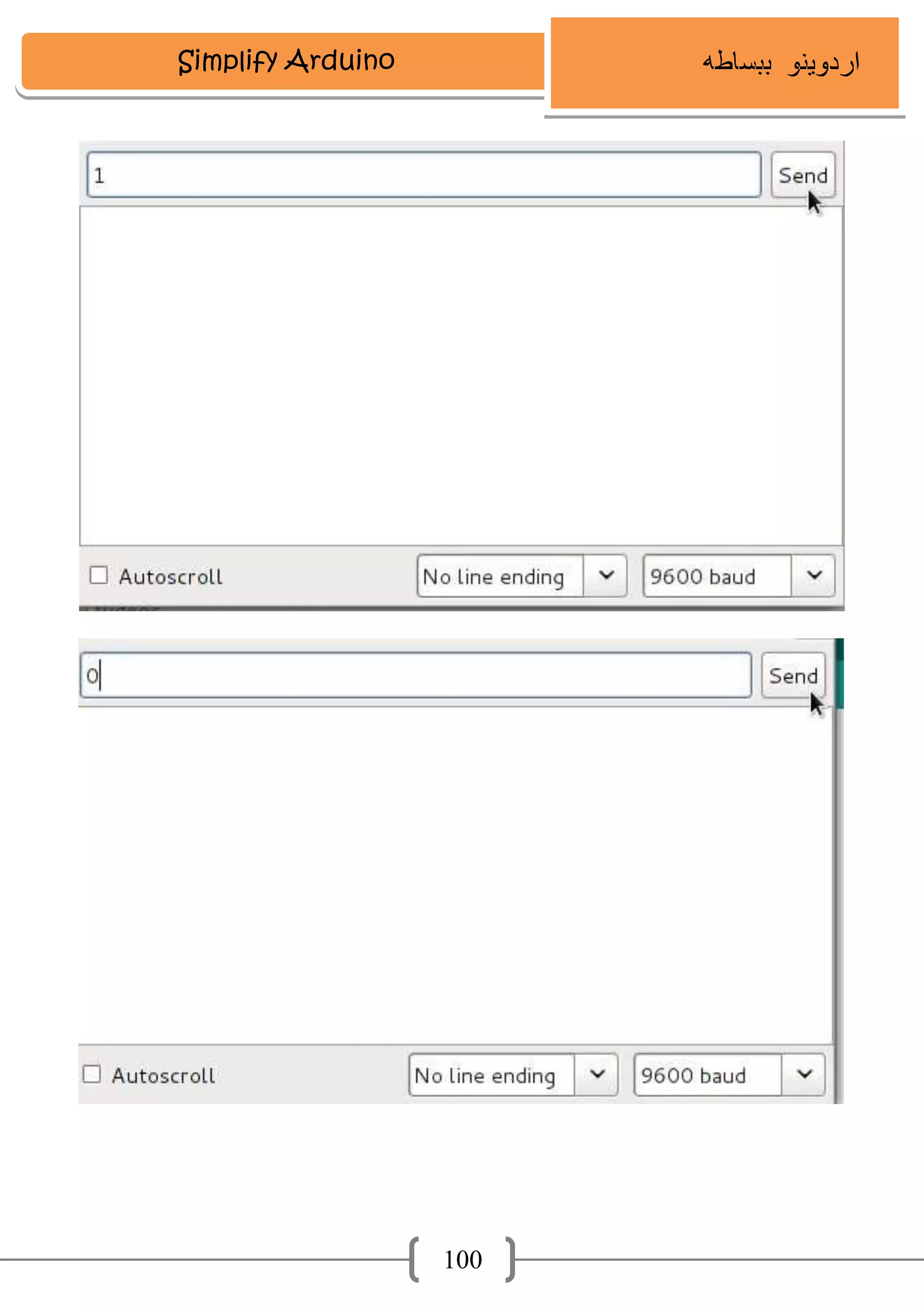

- 100. Simplify Arduino 99 { Serial.begin(9600); pinMode(ledPin,OUTPUT); } void loop() { value = Serial.read(); if (value == '1') {digitalWrite(ledPin,HIGH);} else if (value == '0') {digitalWrite(ledPin,LOW);} } serial Monitor 1Send
- 101.

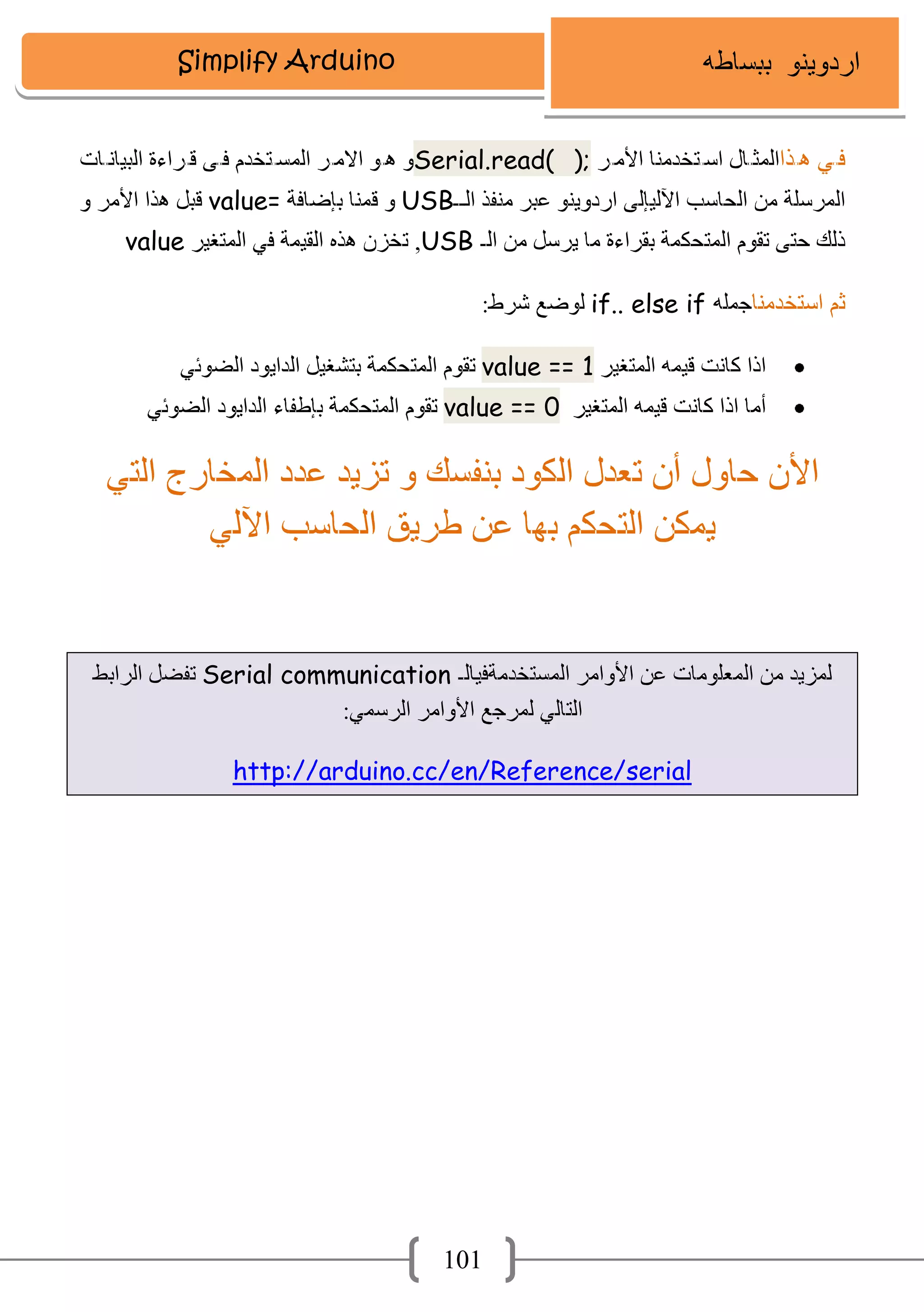

- 102. Simplify Arduino 101 Serial.read( ); USBvalue= USBvalue if..else if value == 1 value == 0 Serial communication http://arduino.cc/en/Reference/serial

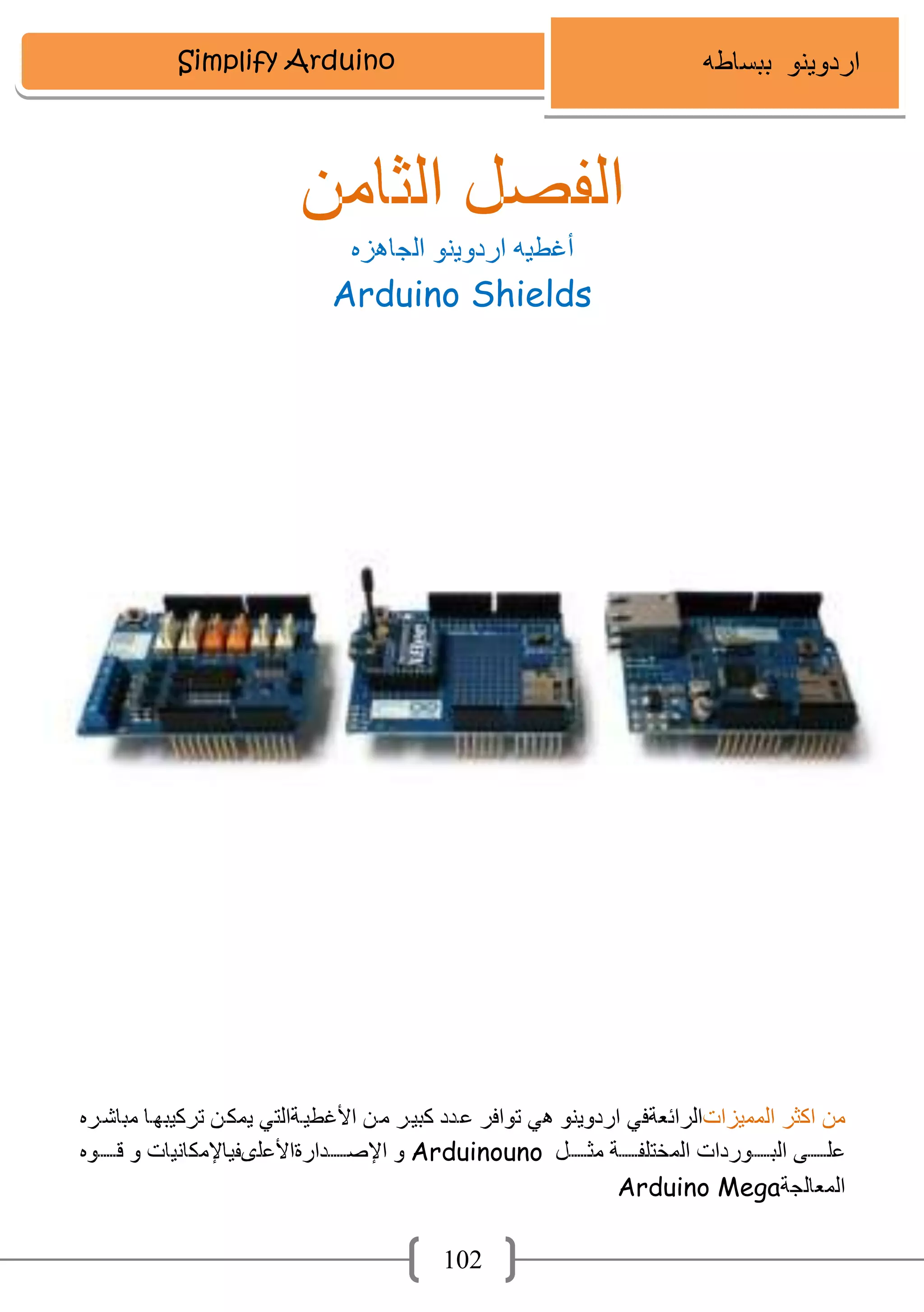

- 103.

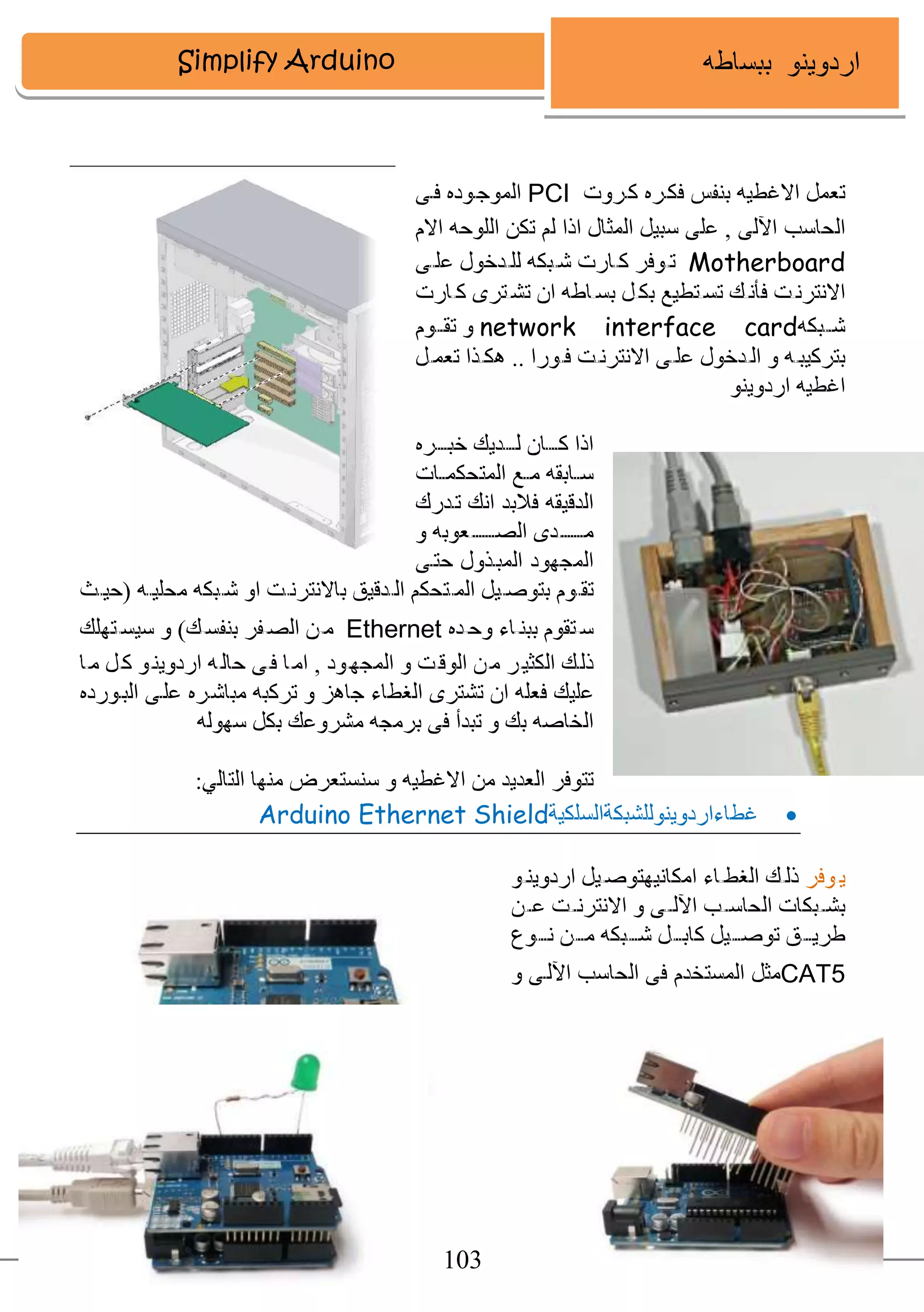

- 104. Simplify Arduino 103 PCI Motherboard network interfacecard Ethernet Arduino Ethernet Shield CAT5
- 105.

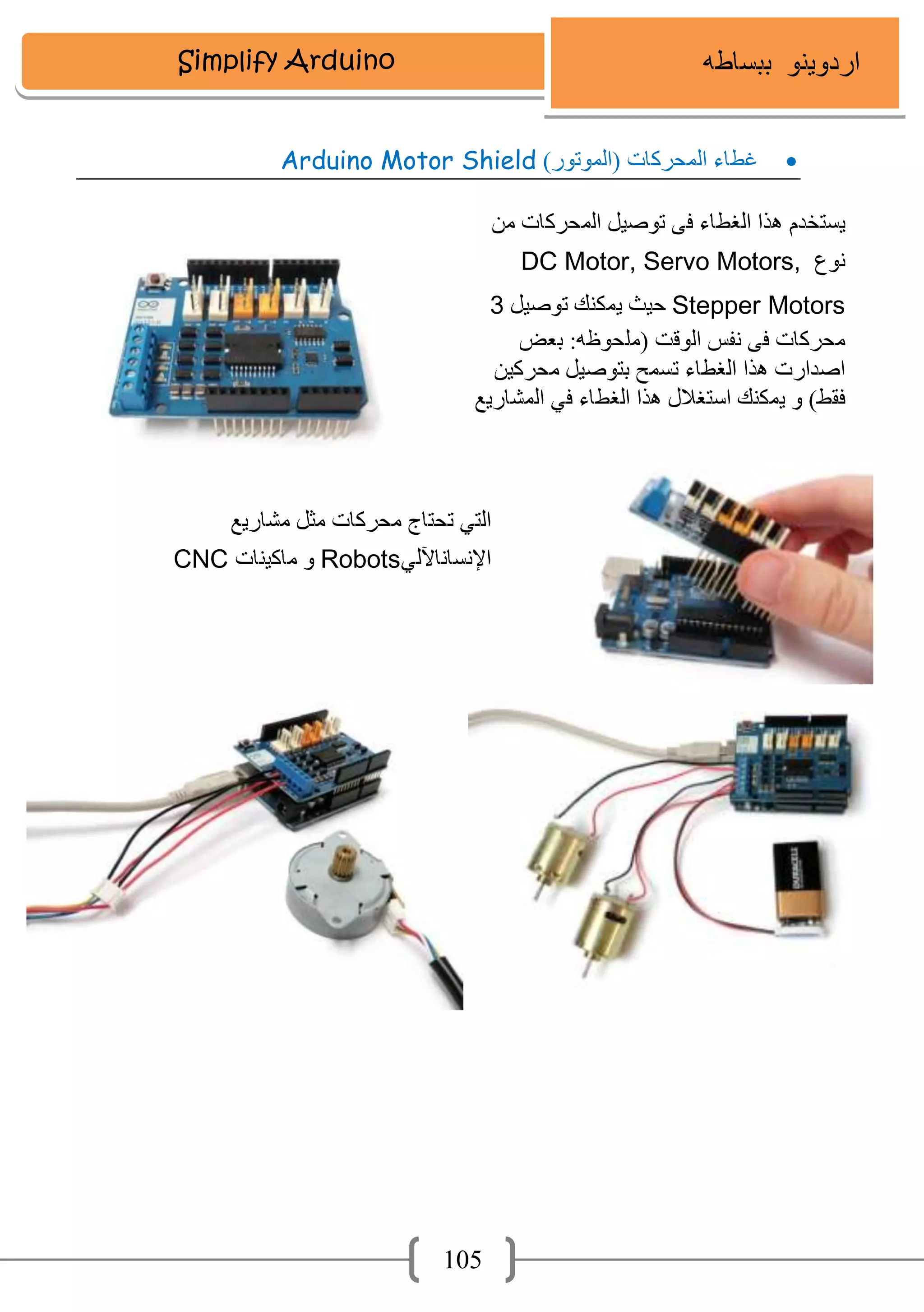

- 106. Simplify Arduino 105 Arduino MotorShield DC Motor, Servo Motors, Stepper Motors RobotsCNC

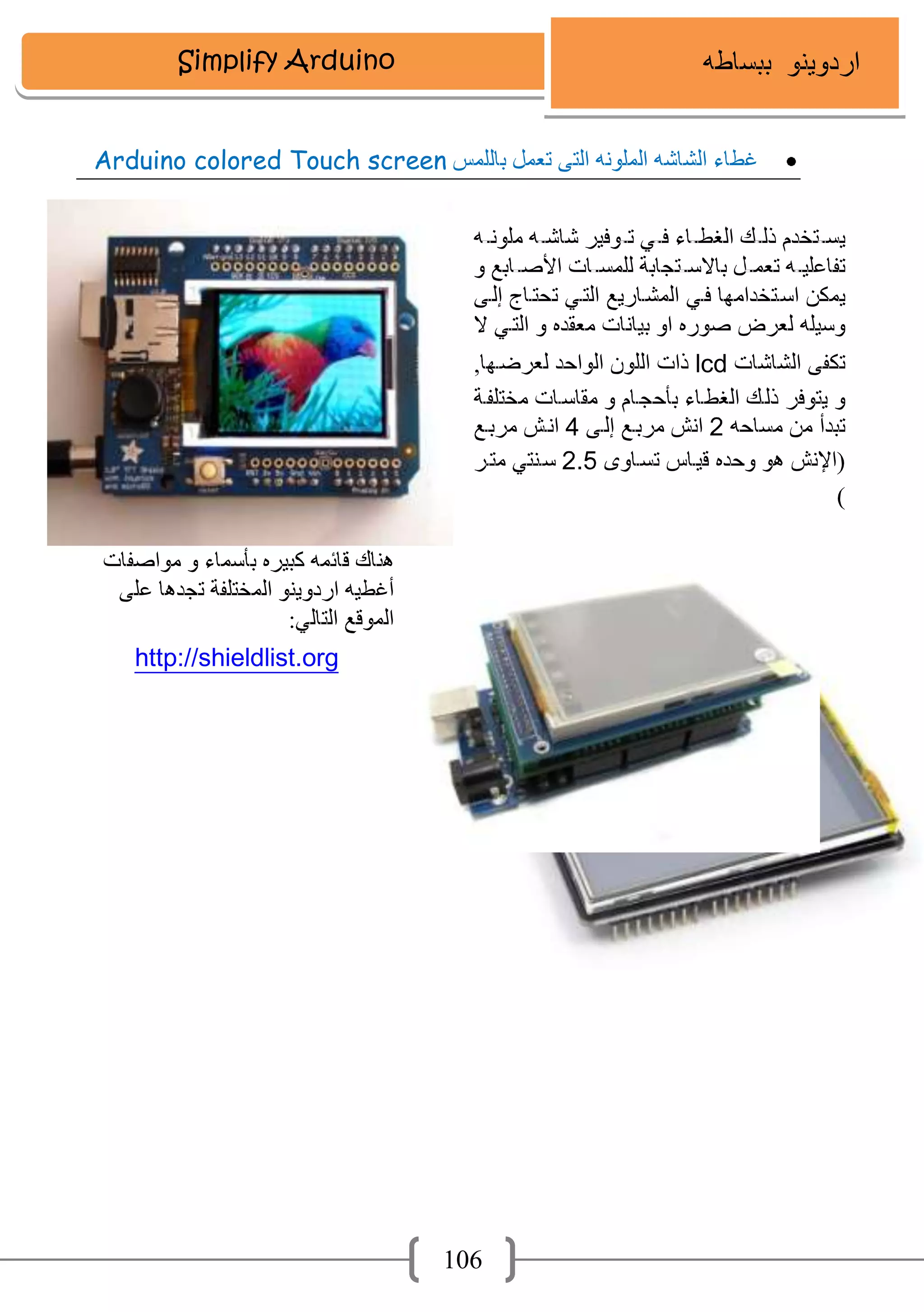

- 107. Simplify Arduino 106 Arduino coloredTouch screen lcd http://shieldlist.org
