SignalR is an ASP.NET library that allows adding real-time web functionality to applications by enabling server code to push content to clients instantly as it becomes available rather than waiting for a client to request new data. It can be used to create a chat hub that allows clients connected via SignalR to send and receive messages in real-time. The example shows setting up a chat hub class and client that uses SignalR to add new chat messages as they are received from the server.

1. SignalR
Jason 2015/08/07

2. SignalR
● ASP.NET SignalR is a library for ASP.NET developers that simplifies the
process of adding real-time web functionality to applications.
● Real-time web functionality is the ability to have server code push content to
connected clients instantly as it becomes available, rather than having the
server wait for a client to request new data.
● Any time a user refreshes a web page to see new data, or the page
implements long polling to retrieve new data, it is a candidate for using
SignalR

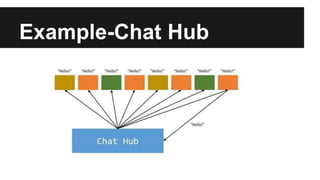

4. Example-Chat Hub

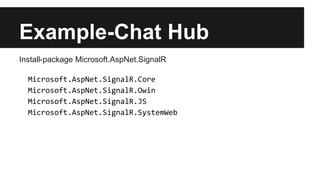

5. Example-Chat Hub
Install-package Microsoft.AspNet.SignalR
Microsoft.AspNet.SignalR.Core
Microsoft.AspNet.SignalR.Owin
Microsoft.AspNet.SignalR.JS
Microsoft.AspNet.SignalR.SystemWeb

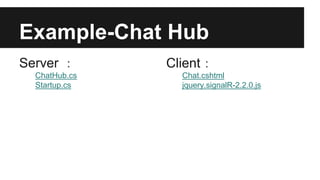

6. Example-Chat Hub
Server ：
ChatHub.cs
Startup.cs
Client：
Chat.cshtml
jquery.signalR-2.2.0.js

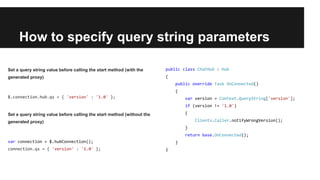

7. How to specify query string parameters
public class ChatHub : Hub
{
public override Task OnConnected()
{
var version = Context.QueryString['version'];
if (version != '1.0')
{
Clients.Caller.notifyWrongVersion();
}
return base.OnConnected();
}
}
Set a query string value before calling the start method (with the
generated proxy)
$.connection.hub.qs = { 'version' : '1.0' };
Set a query string value before calling the start method (without the
generated proxy)
var connection = $.hubConnection();
connection.qs = { 'version' : '1.0' };

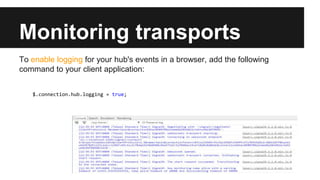

8. Monitoring transports
To enable logging for your hub's events in a browser, add the following
command to your client application:
$.connection.hub.logging = true;

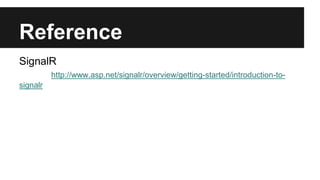

9. Reference
SignalR
http://www.asp.net/signalr/overview/getting-started/introduction-to-
signalr

10. Startup.cs
using Owin;
using Microsoft.Owin;
[assembly: OwinStartup(typeof(SignalRChat.Startup))]
namespace SignalRChat
{
public class Startup
{
public void Configuration(IAppBuilder app)
{
app.MapSignalR();
}
}
}
Back

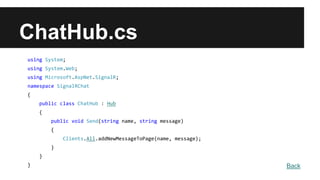

11. using System;
using System.Web;
using Microsoft.AspNet.SignalR;
namespace SignalRChat
{
public class ChatHub : Hub
{
public void Send(string name, string message)
{
Clients.All.addNewMessageToPage(name, message);
}
}
}
ChatHub.cs
Back

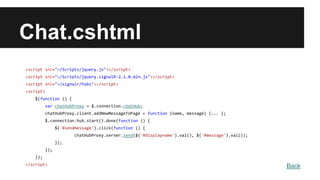

12. Chat.cshtml
<script src="~/Scripts/jquery.js"></script>
<script src="~/Scripts/jquery.signalR-2.1.0.min.js"></script>
<script src="~/signalr/hubs"></script>
<script>
$(function () {
var chatHubProxy = $.connection.chatHub;
chatHubProxy.client.addNewMessageToPage = function (name, message) {... };
$.connection.hub.start().done(function () {
$('#sendmessage').click(function () {
chatHubProxy.server.send($('#displayname').val(), $('#message').val());
});
});
});
</script> Back

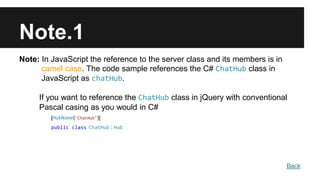

13. Note.1
Note: In JavaScript the reference to the server class and its members is in
camel case. The code sample references the C# ChatHub class in
JavaScript as chatHub.
If you want to reference the ChatHub class in jQuery with conventional
Pascal casing as you would in C#
[HubName("ChatHub")]
public class ChatHub : Hub
Back

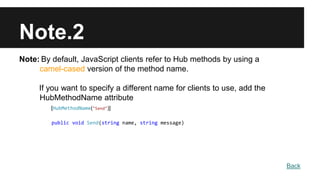

14. Note.2
Note: By default, JavaScript clients refer to Hub methods by using a
camel-cased version of the method name.
If you want to specify a different name for clients to use, add the
HubMethodName attribute
[HubMethodName("Send")]
public void Send(string name, string message)
Back

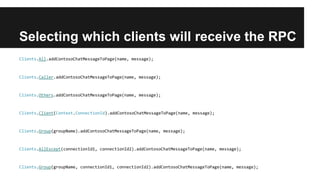

15. Selecting which clients will receive the RPC
Clients.All.addContosoChatMessageToPage(name, message);
Clients.Caller.addContosoChatMessageToPage(name, message);
Clients.Others.addContosoChatMessageToPage(name, message);
Clients.Client(Context.ConnectionId).addContosoChatMessageToPage(name, message);
Clients.Group(groupName).addContosoChatMessageToPage(name, message);
Clients.AllExcept(connectionId1, connectionId2).addContosoChatMessageToPage(name, message);
Clients.Group(groupName, connectionId1, connectionId2).addContosoChatMessageToPage(name, message);

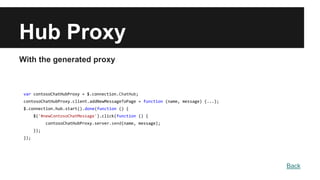

16. Hub Proxy
With the generated proxy
var contosoChatHubProxy = $.connection.ChatHub;
contosoChatHubProxy.client.addNewMessageToPage = function (name, message) {...};
$.connection.hub.start().done(function () {
$('#newContosoChatMessage').click(function () {
contosoChatHubProxy.server.send(name, message);
});
});
Back

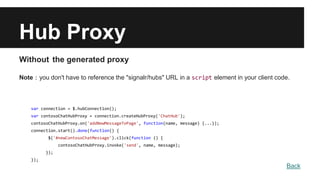

17. Hub Proxy
Without the generated proxy
Note：you don't have to reference the "signalr/hubs" URL in a script element in your client code.
var connection = $.hubConnection();
var contosoChatHubProxy = connection.createHubProxy('ChatHub');
contosoChatHubProxy.on('addNewMessageToPage', function(name, message) {...});
connection.start().done(function() {
$('#newContosoChatMessage').click(function () {
contosoChatHubProxy.invoke('send', name, message);
});
});
Back
