This document contains lecture notes on navigation from an Information Architecture course. It discusses key topics around navigation design, including structure vs navigation, global vs contextual links, orientation, common navigation patterns, and tests to evaluate navigation usability. It emphasizes that good structure and navigation design are interdependent and both are needed for effective navigation. Supplementary navigation methods like indexes, guides and personalization are also covered.

1. 2/20/2013
Navigation
SI 658
Information Architecture
Marti Gukeisen

2. Navigation
Related Readings
Information Architecture for the World Wide Web 3
rd
Edition (The Polar Bear Book)
Peter Morville & Louis Rosenfeld
ISBN 978-0-596-52734-1
 Ch 7 Navigation Systems
1/23/2013
2 SI658 Information Architecture

3. Navigation,
Orientation,
Way-Finding
2/20/2013
where am I, how did I get here, what else is there?
3 SI658 Information Architecture

4. Navigation
navigation = doors & windows
2/20/2013
 Structure and organization are about building
rooms.
 Navigation design is about adding doors and
windows.
4 SI658 Information Architecture

5. Navigation
effective navigation depends on
 structure
 organization
 labeling
 browsing systems
 searching systems
2/20/2013
5 SI658 Information Architecture

6. Navigation
standard navigation layout
2/20/2013
6 SI658 Information Architecture

7. Navigation
2/20/2013
Navigation Design vs Structure
 structure (undeniably IA) is the map of how things
are related
 navigation design (definitely UX, but not so cleanly
IA) involves the actual display that conveys the
underlying structure to users
7 SI658 Information Architecture

8. Navigation
choosing things like
 location
 color conventions
 format (drop menus, flyouts)
 orientation cues
2/20/2013
8 SI658 Information Architecture

9. Navigation
Good + Bad = Bad
 structure and navigation design are
INTERDEPENDANT
2/20/2013
 bad structure can’t be fixed by good interface
 bad interface will obscure and negate good
structure
9 SI658 Information Architecture

10. Navigation
2/20/2013
navigation design: who gets to decide?
visual
design strategy
IA
UX
usability
IxD
navigation
10 SI658 Information Architecture

11. Navigation
protect and serve good UX
2/20/2013
11 SI658 Information Architecture

12. Navigation
2/20/2013

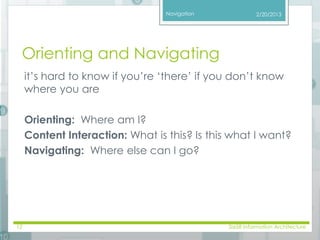

Orienting and Navigating
it’s hard to know if you’re ‘there’ if you don’t know
where you are
Orienting: Where am I?
Content Interaction: What is this? Is this what I want?
Navigating: Where else can I go?
12 SI658 Information Architecture

13. Navigation
why does orientation matter?
2/20/2013
13 SI658 Information Architecture

14. Navigation
2/20/2013
if there was a 4th edition, this could be
an inception reference
14 SI658 Information Architecture

15. Navigation
Orientation Test
People starts in the middle most of the time, usually
from google or a random link someone posted
somewhere. So do that. Now:
1. What site are you on?
2. What page are you on?
3. What section are you in?
4. What’s nearby?
5. Can you tell exactly where in the site you are?
6. Could you navigate back to this page tomorrow
from the site’s homepage?
2/20/2013
15 SI658 Information Architecture

16. Navigation
2/20/2013
Navigation Stress Test by Keith Instone
1. Ignore the home page and jump directly into the
middle of the site.
2. For each random page, can you figure out
where you are in relation to the rest of the site?
What major section are you in? What is the
parent page?
3. Can you tell where the page will lead you next?
Are the links descriptive enough to give you a
clue what each is about? Are the links different
enough to help you choose one over another,
depending on what you want to do?
16 SI658 Information Architecture

17. Navigation

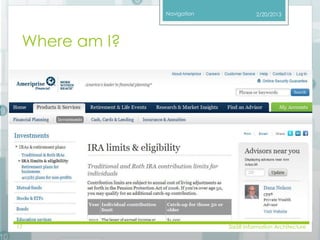

Where am I?
2/20/2013
17 SI658 Information Architecture

18. Navigation
Where am I?
2/20/2013
18 SI658 Information Architecture

19. Navigation 2/20/2013
19 SI658 Information Architecture

20. Navigation
too much of a good thing
2/20/2013
 too many navigation aids can bury the hierarchy
and overwhelm the user.
20 SI658 Information Architecture

21. Navigation 2/20/2013
21 SI658 Information Architecture

22. Navigation
don’t break the back button
2/20/2013
22 SI658 Information Architecture

23. Navigation
Global Navigation
2/20/2013
= navigation present on
every page of the site
Usually this means:
 primary nav in header
 secondary header
elements
 footer
23 SI658 Information Architecture

24. Navigation
2/20/2013
subsites (and subsites of subsites)
24 SI658 Information Architecture

25. Navigation
Contextual Links
= the other links that aren’t part of the regular
navigation system
 body links (in sentences)
 some other stuff we thought you’d like
these vary based on the context
2/20/2013
25 SI658 Information Architecture

26. Navigation
good accessibility is good usability
 sufficient contrast & text size
 text scalability (em not px)
 don’t break browser scaling/zooming
 efficient tab order/behavior
 descriptive alt tags for images
 text labels for buttons
(or at least appropriate alt messaging)
 link size / spacing
(poor vision / big finger compatibility)
2/20/2013
26 SI658 Information Architecture

27. Navigation
conventions may be boring,
but they are super useful
 any time you introduce a NEW paradigm,
you INCREASE the learning curve
2/20/2013
 seconds are valuable in our A.D.D. world,
so you better make it WORTH it, or users will not be
pleased.
 It’s only worth it if the new paradigm is MUCH
BETTER, or sometimes, MUCH COOLER will let you
get by, but that’s risky.
27 SI658 Information Architecture

28. Navigation
rollover menus
 too much is still to much:
the mega menu is often mega bad
2/20/2013
28 SI658 Information Architecture

29. Navigation
good mega menu
2/20/2013
29 SI658 Information Architecture

30. Navigation
frames are dead, all hail Dorothy
 killed because they broke the browser
 unpredictable back button behavior
 bookmarking confused
 created annoying layers of scroll bars
2/20/2013
30 SI658 Information Architecture

31. Navigation
Backups are good
taxonomy and navigation
2/20/2013
will always fail
for a significant % of users and tasks
so don’t be a hater, include alternatives like:
indexes | guides | search | sitemap
31 SI658 Information Architecture

32. Navigation
sitemaps are a last resort
 don’t abandon your down-trodden
2/20/2013
 if you are working with a CMS, avoid an out-of-date
sitemap through automation
 good for SEO, so there’s that
 valuable check on site structure—if you can’t
create a reasonable site map, you’re probably
doing it wrong
32 SI658 Information Architecture

33. Navigation
indexes
2/20/2013
 alphabetical list of
topics
 okay to list things
multiple times under
alt terms
 usually alphabetized
by TOPIC
 may want to use:
• term permutation
• permutation of terms
33 SI658 Information Architecture

34. Navigation
Peter’s rule for guides
1. short
2. able to exit at any point
3. navigation in the same spot on every page
(Previous, Home, Next)
4. answer questions
5. use good, detailed screenshots
6. guide may need its own TOC
2/20/2013
34 SI658 Information Architecture

35. Navigation
Marti’s notes on guides
 tend to be video now
 short = less than 2 min
 usually introduce a product/service and what you
can DO on the site
 if your GUIDE needs a TOC, it’s probably a bad sign
 12% of people will ever look at this
 4% of those guys will view the whole thing
2/20/2013
35 SI658 Information Architecture

36. Navigation
configurators (wizard is so passé)
2/20/2013
36 SI658 Information Architecture

37. Navigation
2/20/2013

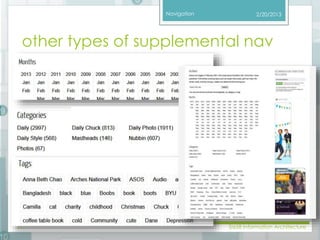

other types of supplemental nav
37 SI658 Information Architecture

38. Navigation
personalization
 works best when a site knows a lot about you
 gmail – personalized ads based on email content
 amazon – online purchase history since the 90s
 mint – all my finances
 netflix – everything you’ve watched (on netflix), and
maybe how you rated it
 facebook – everything about you
2/20/2013
38 SI658 Information Architecture

39. Navigation
customization
2/20/2013
 everybody’s got it, (almost) nobody’s doing it
 probably LOVE it where you use it
 probably don’t use it 95% of the time when it’s
available
 not usually a UX drawback, but not easy to justify
the ROI
39 SI658 Information Architecture

40. 2/20/2013
Project Time
the part where you collaborate and teach each other
40 SI658 Information Architecture

41. Navigation
Get in your groups
2/20/2013
41 SI658 Information Architecture

42. Navigation
group assignment due TODAY
 Have 1 person email it to me.
2/20/2013
 Includes your group name and the names of all
your group members.
42 SI658 Information Architecture

43. Navigation
new group assignment
 the user experience assessment
 this assignment is a hybrid of:
 the PACE model - watch JJ at UX week 09
 Abby’s IA Heuristics - see the slides
 Spider approach from Rubinoff - read the article
 template linked to from ctools
 excel doc for spider chart linked to from ctools
 due Mar 13
2/20/2013
43 SI658 Information Architecture

44. Presentation
Time
the part where you teach
2/20/2013
44 SI658 Information Architecture

45. Wrap Up
More stuff for you to do.
2/20/2013
45 SI658 Information Architecture

46. Navigation
For next week
Due TUES Feb 26th at 11 pm.
50-300 words responding to the following:
2/20/2013
PERVASIVE IA
Ch 1 From Multi-Channel to Cross Channel
Ch 3 Heuristics for a Pervasive IA
other book!
46 SI658 Information Architecture

47. 2/20/2013
Laters
Questions?
47 SI658 Information Architecture
