1. Behind OOD
// domain modelling in a post-OO world
Ruslan Shevchenko
Lynx Capital Partners
https://github.com/rssh
@rssh1

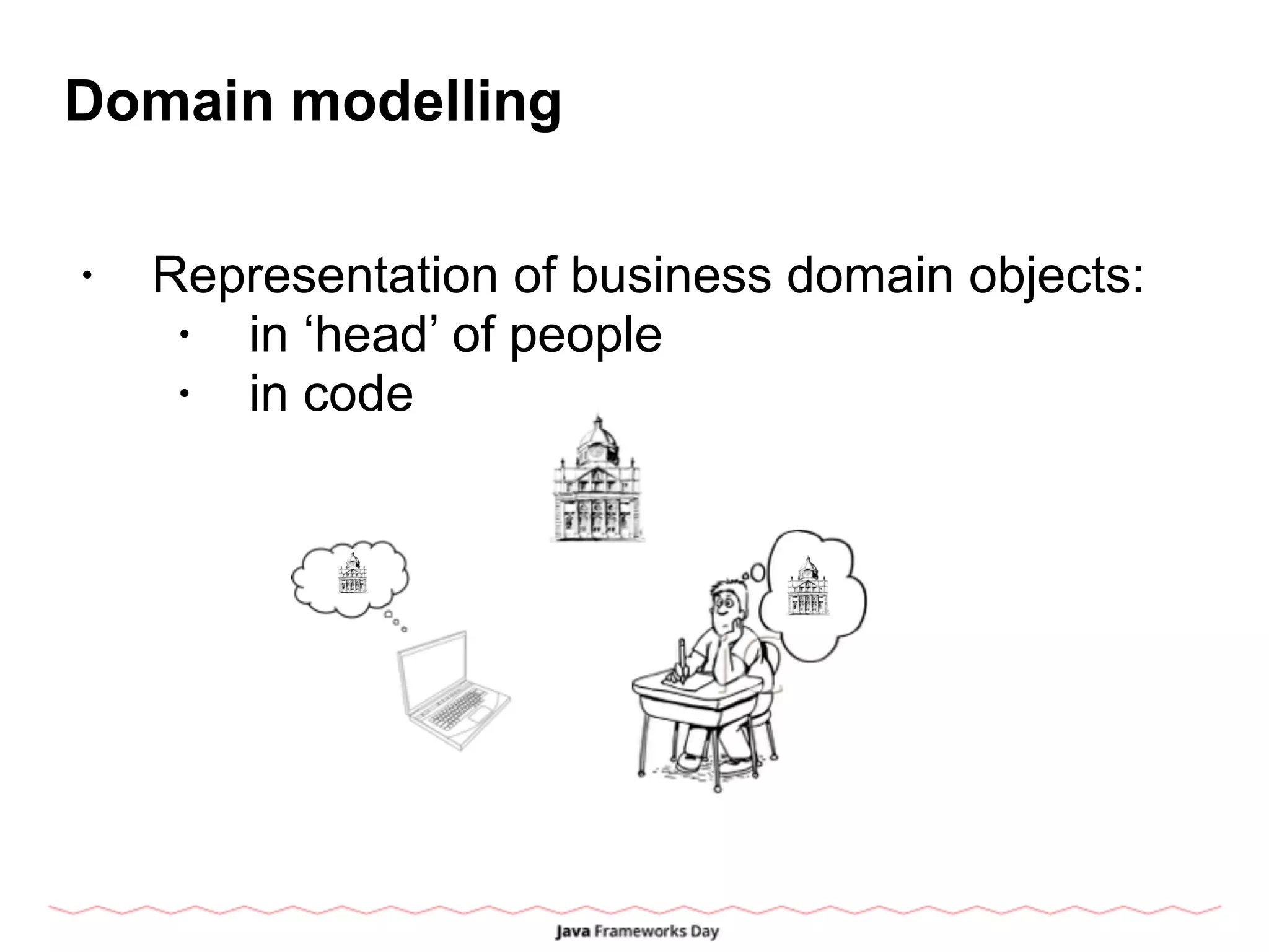

2. Domain modelling
• Representation of business domain objects:
• in ‘head’ of people
• in code

3. Domain modelling
• Traditional OO way: have layer of classes,
which corresponds to domain objects.
• Extensibility via inheritance in some
consistent Universal Ontology
• Intensional Equality [identity != attribute]
• Object instance <=> Entity in real world

4. Traditional OO WAY
• Human is an upright, featherless biped with
broad, flat nails.

5. Traditional OO WAY
• Human is an upright, featherless biped with
broad, flat nails.
Open for extensions close for modifications

6. Traditional OO WAY
• Intensional Equality [ mutability ]
// same identity thought lifecycle

7. Traditional OO WAY
• Object in code <=> Object in real world
class Person {
int getId();
String getName();
int getAge();
Set<Person> getChilds()
}
— thread-safe ?
— persistent updates ?

8. Domain modelling
• Traditional OO way: have layer of classes,
which corresponds to domain objects.
• Extensibility via inheritance in some
consistent Universal Ontology
• Intensional Equality [identity != attribute]
• Object instance <=> Entity in real world

9. Domain modelling
• Traditional OO way: similar to early
philosophy
• Very general
• Idealistic
• Fit to concrete cases may be undefined

10. Domain modelling
• Post OO way: describe limited system of
relationship and provide implementation
• Algebra instead Ontology
• Existential equality [identity == same
attributes]
• Elements/Services instead Objects.

11. Domain modelling
• Post OO way: describe limited system of
relationship and provide implementation
• Algebra instead Ontology
• Existential equality [identity == same
attributes]
• Elements/Services instead Objects.

12. Domain modelling: where to start.
• Example: description of small billing system
Subscriber
Billing System
Service PaymentPlanuse
in accordance
with
Service is Internet | Telephony
PaymentPlan is Monthly Fee for Quantity Limit and
Overhead cost per Unit
Unit Internet is Gbin
Telephony is Minute
and Bandwidth

13. TariffPlan: Use limit and quantity from service.
sealed trait Service
{
type Limits
def quantity(l:Limits): BigDecimal
}
case object Internet extends Service
{
case class Limits(gb:Int,bandwidth:Int)
def quantity(l:Limits) = l.gb
}
case object Telephony extends Service
{
type Limits = Int
def quantity(l) = l

14. TariffPlan: Price per limit and charge
case class TariffPlan[Limits](
monthlyFee: BigDecimal,
monthlyLimits: Limits,
excessCharge: BigDecimal
)

15. Subscriber ? Service ?
case class Subscriber( id, name, … )
trait BillingService
{
def checkServiceAccess(u:Subscriber,s:Service):Boolean
def rateServiceUsage(u:Subscriber,r:ServiceUsage):Subscriber
def ratePeriod(u:Subscriber, date: DateTime)
}
// Aggregate
// let’s add to Subscriber all fields, what needed.

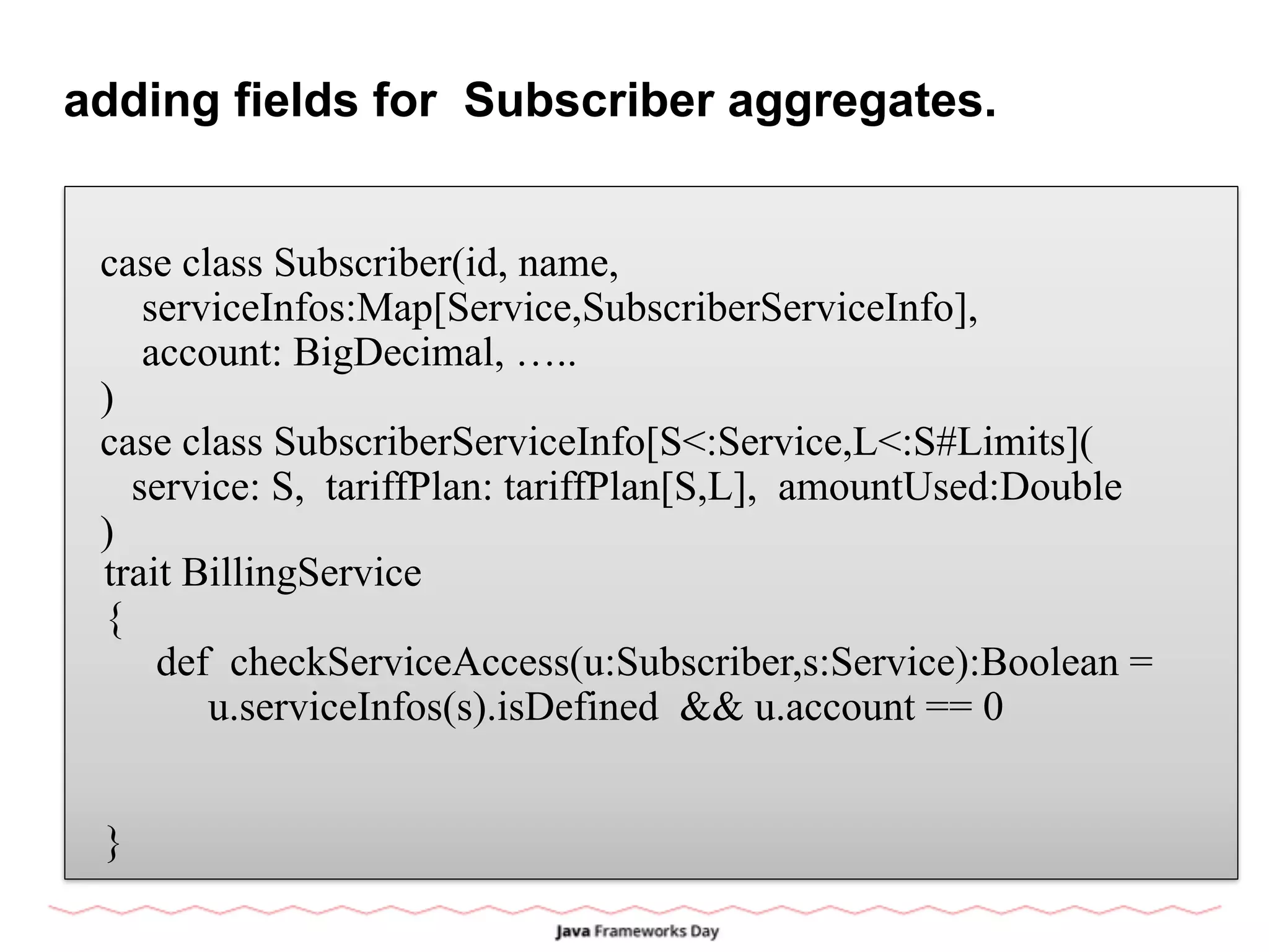

16. adding fields for Subscriber aggregates.
case class Subscriber(id, name,
serviceInfos:Map[Service,SubscriberServiceInfo],
account: BigDecimal, …..
)
case class SubscriberServiceInfo[S<:Service,L<:S#Limits](
service: S, tariffPlan: tariffPlan[S,L], amountUsed:Double
)
trait BillingService
{
def checkServiceAccess(u:Subscriber,s:Service):Boolean =
u.serviceInfos(s).isDefined && u.account == 0
}

17. adding fields for Subscriber aggregates.
case class Subscriber(id, name,
serviceInfos:Map[Service,SubscriberServiceInfo[_,_]],
account: BigDecimal, …..
)
case class ServiceUsage(service, amount, when)
trait BillingService
{
def rateServiceUsage(u:Subscriber,r:ServiceUsage):Subscriber =
serviceInfo(r.service) match {
case Some(SubscriberServiceInfo(service,plan,amount)) =>
val price = ….
u.copy(account = u.account - price,
serviceInfo = serviceInfo.updated(s,
}

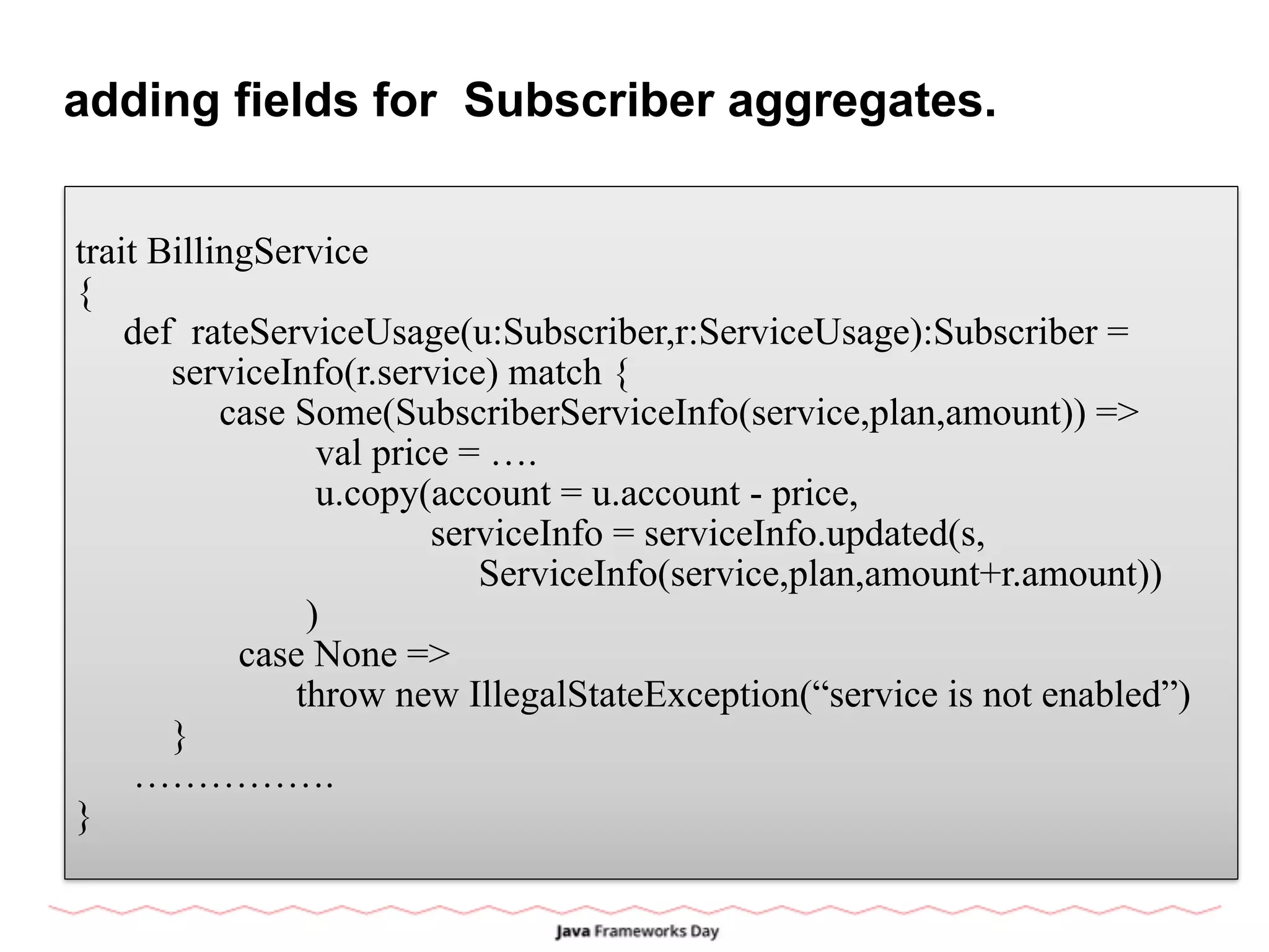

18. adding fields for Subscriber aggregates.
trait BillingService
{
def rateServiceUsage(u:Subscriber,r:ServiceUsage):Subscriber =
serviceInfo(r.service) match {
case Some(SubscriberServiceInfo(service,plan,amount)) =>
val price = ….
u.copy(account = u.account - price,
serviceInfo = serviceInfo.updated(s,
ServiceInfo(service,plan,amount+r.amount))
)
case None =>
throw new IllegalStateException(“service is not enabled”)
}
…………….
}

19. adding fields for Subscriber aggregates.
trait BillingService
{
def rateServiceUsage(u:Subscriber,r:ServiceUsage):Subscriber =
serviceInfo(r.service) match {
case Some(SubscriberServiceInfo(service,plan,amount)) =>
val price = ….
u.copy(account = u.account - price,
serviceInfo = serviceInfo.updated(s,
ServiceInfo(service,plan,amount+r.amount))
)
case None =>
throw new IllegalStateException(“service is not enabled”)
}
…………….
}

20. Subscriber aggregates [rate: lastPayedDate]
case class Subscriber(id, name,
serviceInfos:Map[Service,SubscriberServiceInfo[_,_]],
account: BigDecimal,
lastPayedDate: DateTime
)
trait BillingService
{
def ratePeriod(u:Subscriber,date:DateTime):Subscriber =
if (date < u.lastPayedDate) u
else {
val price = …..
subscriber.copy(account = u.account - price,
lastPayedDate = date+1.month)
}
}

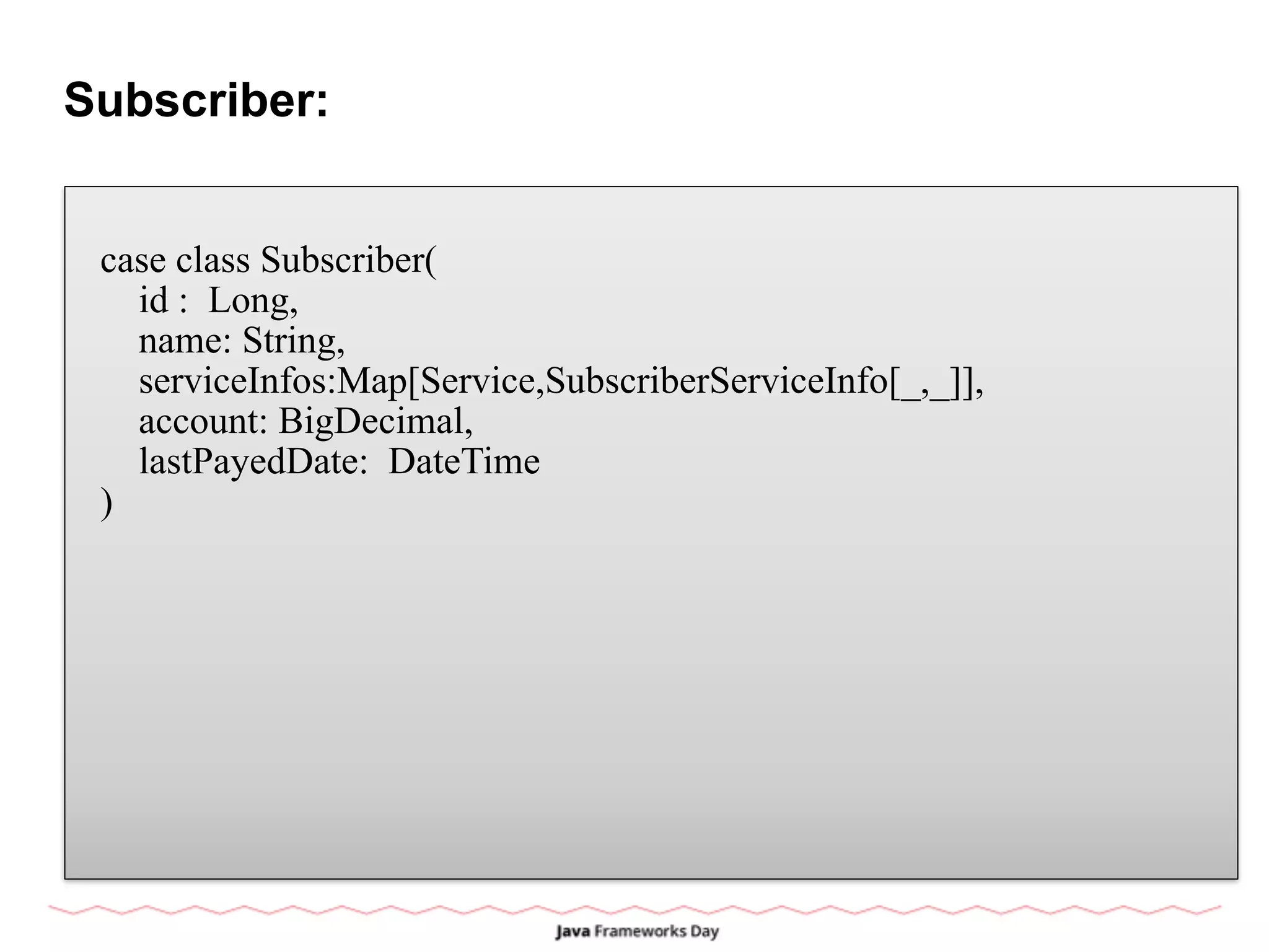

21. Subscriber:
case class Subscriber(
id : Long,
name: String,
serviceInfos:Map[Service,SubscriberServiceInfo[_,_]],
account: BigDecimal,
lastPayedDate: DateTime
)

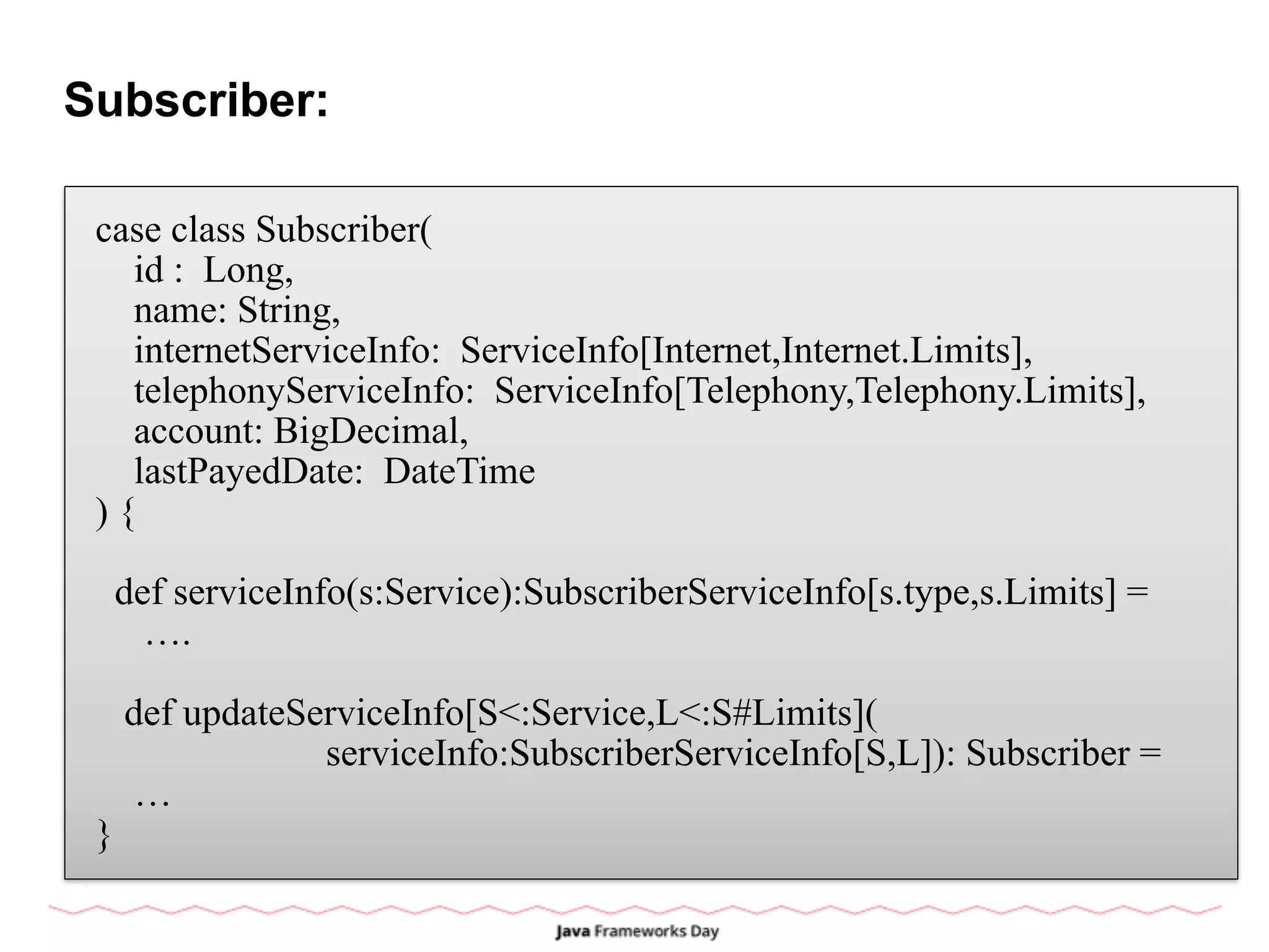

22. Subscriber:
case class Subscriber(
id : Long,
name: String,
internetServiceInfo: ServiceInfo[Internet,Internet.Limits],
telephonyServiceInfo: ServiceInfo[Telephony,Telephony.Limits],
account: BigDecimal,
lastPayedDate: DateTime
) {
def serviceInfo(s:Service):SubscriberServiceInfo[s.type,s.Limits] =
….
def updateServiceInfo[S<:Service,L<:S#Limits](
serviceInfo:SubscriberServiceInfo[S,L]): Subscriber =
…
}

23. From domain model to implementation. [S1]
Subscriber
Service TariffPlan
Domain Data/ Aggregates Services
SubscriberOperations
TariffPlanOperations
….
Repository
DD — contains only essential data
Services — only functionality
Testable.
No mess with implementation.
Service calls — domain events

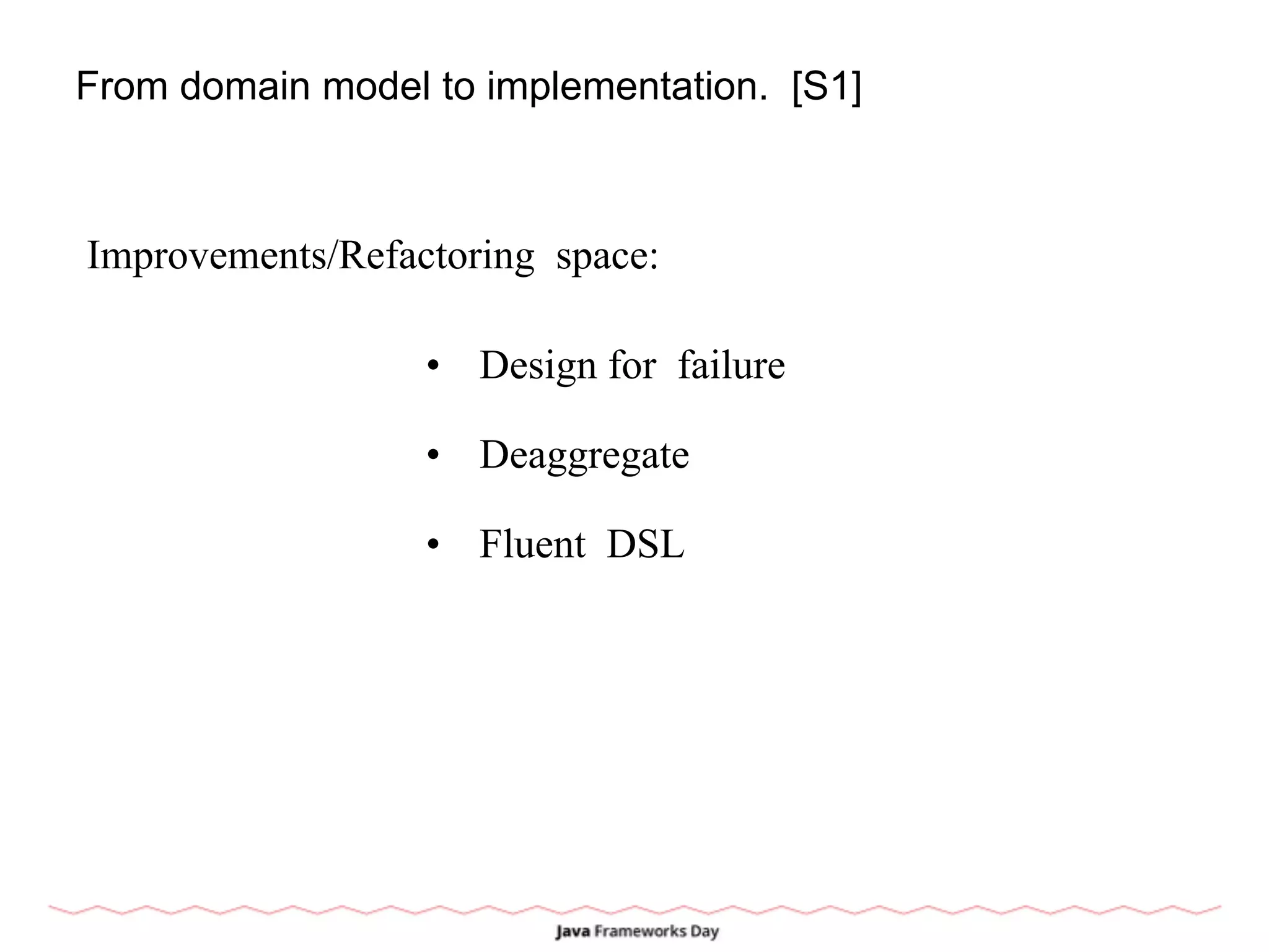

24. From domain model to implementation. [S1]
Improvements/Refactoring space:
• Design for failure
• Deaggregate
• Fluent DSL

25. Design for failure:
trait BillingService
{
def checkServiceAccess(u:Subscriber,s:Service):Boolean
def rateServiceUsage(u:Subscriber,r:ServiceUsage):Subscriber
def ratePeriod(u:Subscriber, date: DateTime): Subscriber
def acceptPayment(u:Subscriber, payment:Payment):Subscriber
}

26. Design for failure:
trait BillingService
{
def checkServiceAccess(u:Subscriber,s:Service): Boolean
def rateServiceUsage(u:Subscriber,r:ServiceUsage):Try[Subscriber]
def ratePeriod(u:Subscriber, date: DateTime): Try[Subscriber]
def acceptPayment(u:Subscriber, payment:Payment): Subscriber
}

27. Design for failure:
sealed trait Try[+X]
case class Success[X](v:X) extends Try[X]
case class Failure(ex:Throwable) extends Try[Nothing]
when use Try / traditional exception handling?
Try — error recovery is a part of business layers.
(i.e. errors is domain-related)
Exception handling — error recovery is a part of infrastructure layer.
(i. e. errors is system-related)

28. Deaggregation:
trait Repository
{
def create[T](): T
def find[T](id: Id[T]): Try[T]
def save[T](obj: T): Try[Boolean]
}

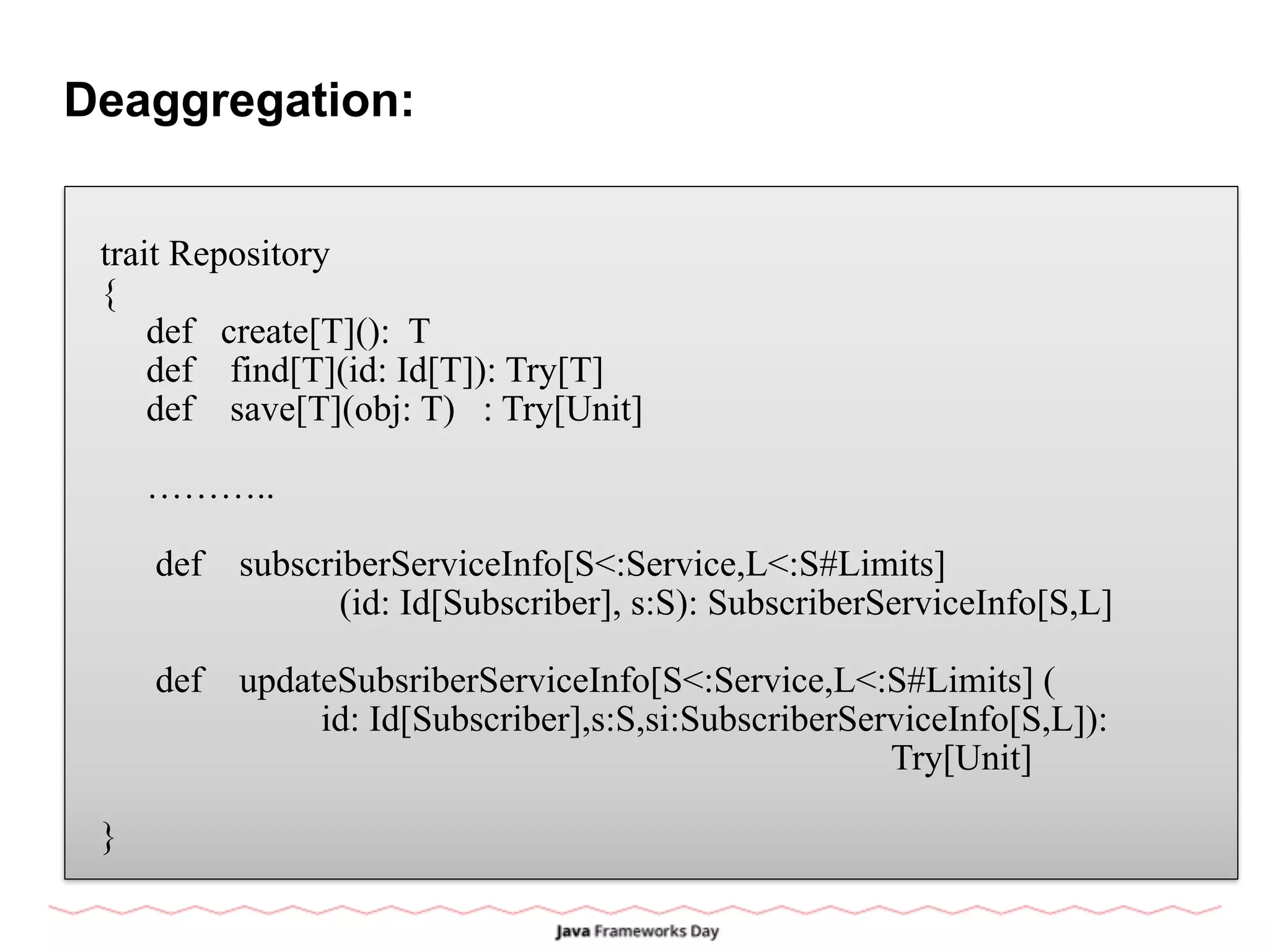

29. Deaggregation:
trait Repository
{
def create[T](): T
def find[T](id: Id[T]): Try[T]
def save[T](obj: T) : Try[Unit]
………..
def subscriberServiceInfo[S<:Service,L<:S#Limits]
(id: Id[Subscriber], s:S): SubscriberServiceInfo[S,L]
def updateSubsriberServiceInfo[S<:Service,L<:S#Limits] (
id: Id[Subscriber],s:S,si:SubscriberServiceInfo[S,L]):
Try[Unit]
}

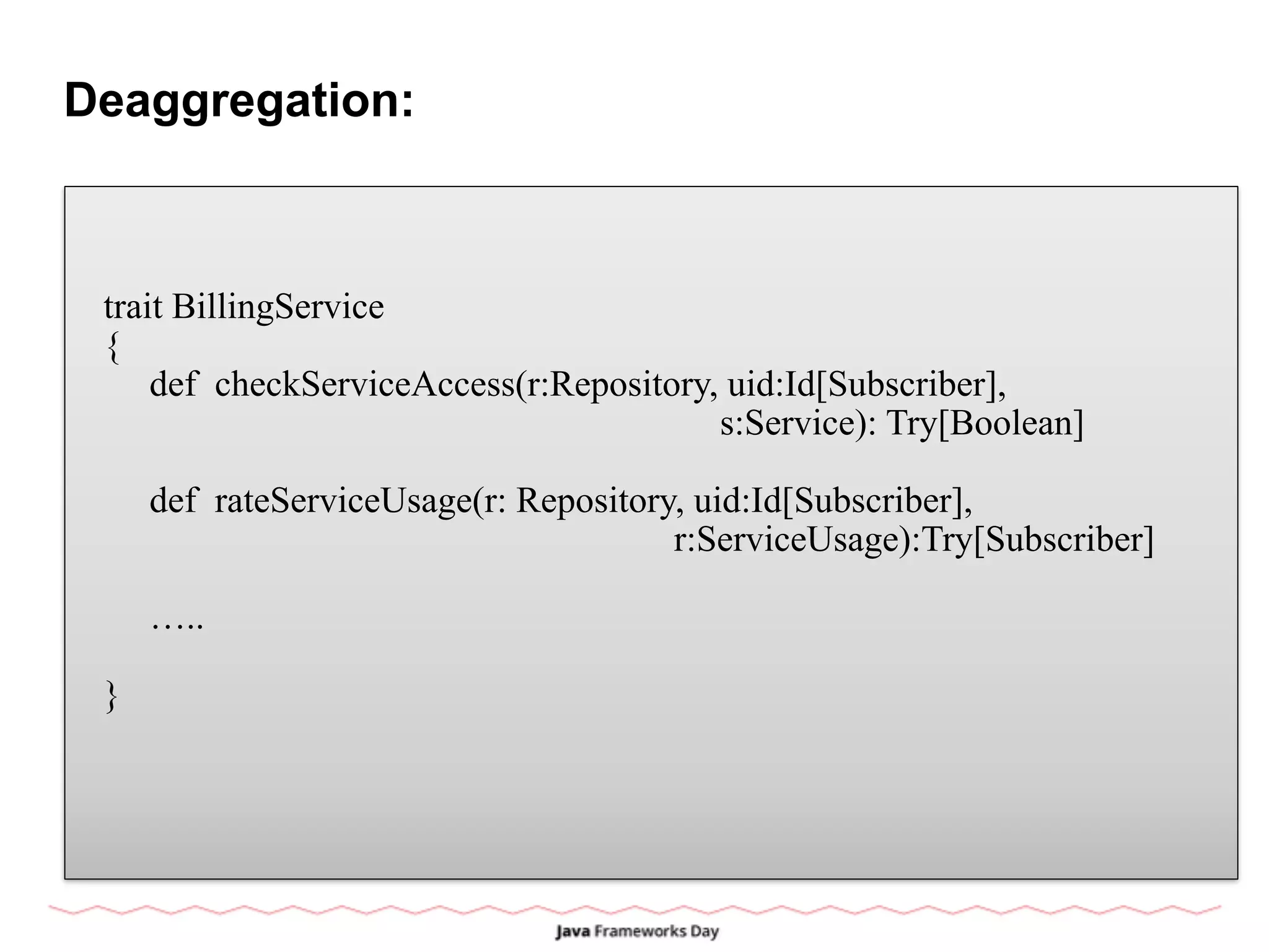

30. Deaggregation:
trait BillingService
{
def checkServiceAccess(r:Repository, uid:Id[Subscriber],
s:Service): Try[Boolean]
def rateServiceUsage(r: Repository, uid:Id[Subscriber],
r:ServiceUsage):Try[Subscriber]
…..
}

31. Deaggregation:
trait BillingService
{
val repository: Repository
def checkServiceAccess(uid:Id[Subscriber], s:Service): Try[Boolean]
def rateServiceUsage(uid:Id[Subscriber], r:ServiceUsage):Try[Subscriber]
…..
}
// BillingService operations interpret repository

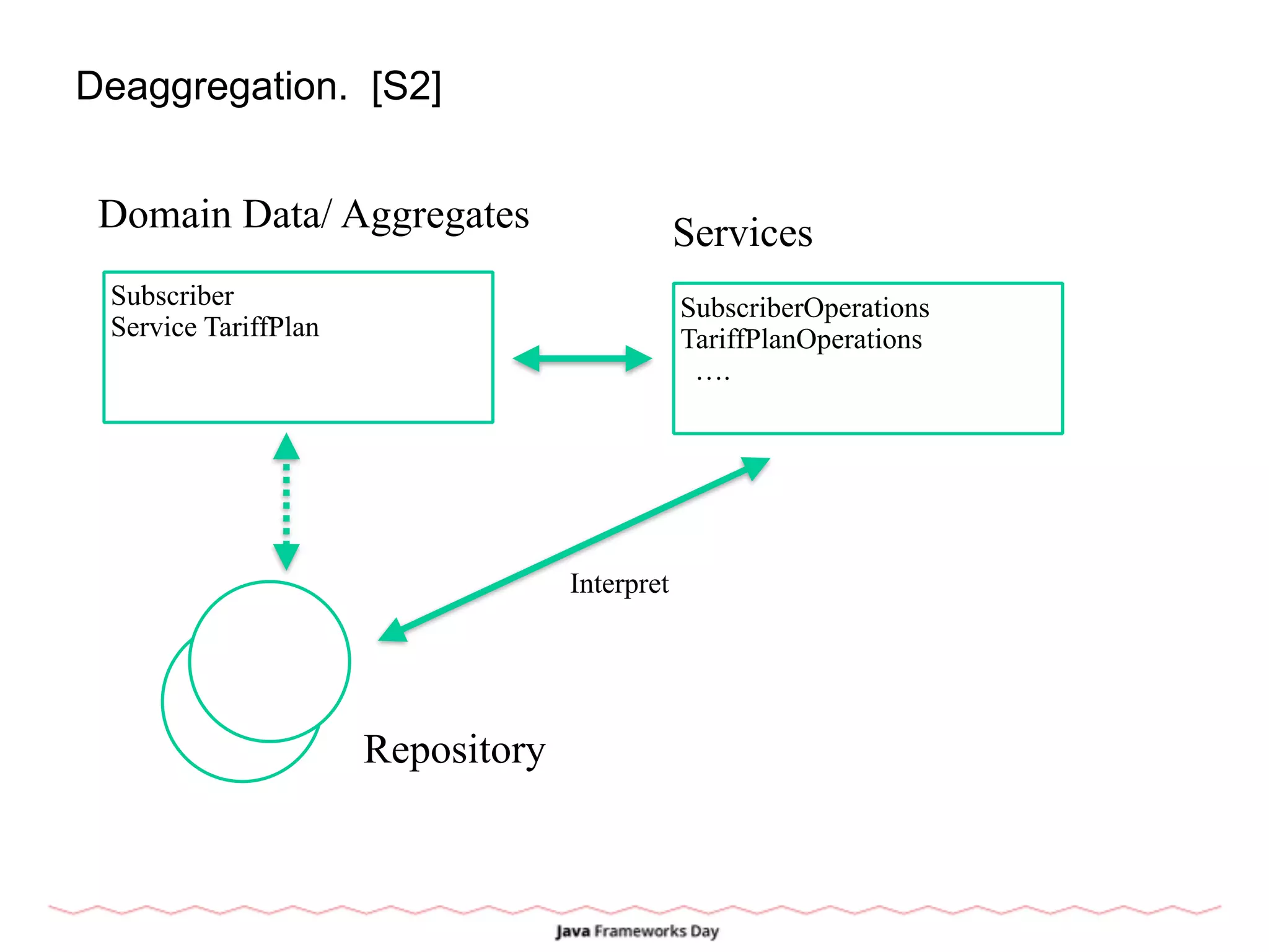

32. Deaggregation. [S2]
Subscriber
Service TariffPlan
Domain Data/ Aggregates Services
SubscriberOperations
TariffPlanOperations
….
Repository
Interpret

33. TariffPlan: DSL
case class TariffPlan[Limits](
monthlyFee: BigDecimal,
monthlyLimits: Limits,
excessCharge: BigDecimal
)
TariffPlan(100,Limits(1,100),2)
TariffPlan(montlyFee=100,
Internet.Limits(gb=1,bandwidth=100),
2)
100 hrn montly (1 gb) speed 100 excess 2 per 1 gb
// let’s build

34. TariffPlan: DSL
(100 hrn) montly (1 gb) speed 100 excess (2 hrn) per (1 gb)
trait TariffPlanDSL[S <: Service, L <: S#Limits] {
implicit class ToHrn(v: Int)
{
def hrn = this
def monthly(x: LimitExpression) =
TariffPlan(v, x.limit, 0)
def per(x: QuantityExpression)
}
1 hrn = 1.hrn =
new ToHrn(1).hrn
trait LimitExpression{
def limit: L
}
type QuantityExpression
{
def quantity: Int
}

35. TariffPlan: DSL
(100 hrn) montly (1 gb) speed 100 excess (2 hrn) per (1 gb)
object InternetTariffPlanDSL extends TariffPlanDSL[Internet.type, Internet.Limits]
implicit class Gb(v: Int) extends LimitExpression with QuantityExpression{
def gb = this
def limit = Internet.Limits(v,100)
def quantity = x
}

36. TariffPlan: DSL
(100 hrn) montly (1 gb) speed 100 excess ((2 hrn) per (1 gb))
trait TariffPlanDSL[S,L]
case class PerExpression(money: ToHrn, quantity: QuantityExpression)
trait RichTariffPlan(p: TariffPlan[L]) {
def excess(x: PerExpression) = p.copy(excessCost=x.v)
}

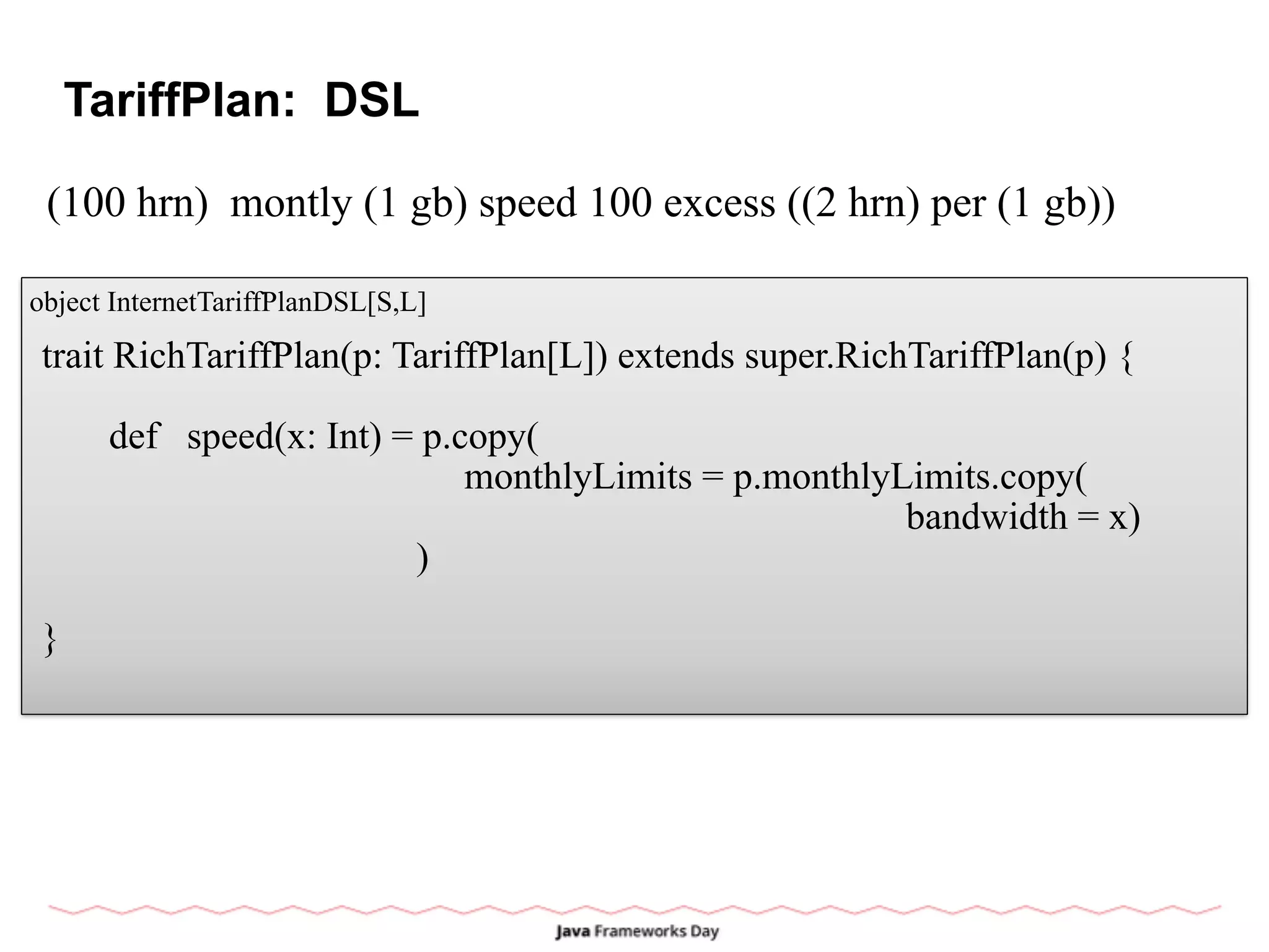

37. TariffPlan: DSL
(100 hrn) montly (1 gb) speed 100 excess ((2 hrn) per (1 gb))
object InternetTariffPlanDSL[S,L]
trait RichTariffPlan(p: TariffPlan[L]) extends super.RichTariffPlan(p) {
def speed(x: Int) = p.copy(
monthlyLimits = p.monthlyLimits.copy(
bandwidth = x)
)
}

38. DSL
Internal
External
Need some boilerplate code.
Useful when developers need fluent business
domain object notation.
Internally - combination of builder and interpreter patterns
Useful when external users (non-developers) want to describe
domain objects.
Internally - language-mini-interpreter.
// [scala default library include parser combinators]

39. Post-OOD domain modelling
Immutable Data Objects
‘OO’ Objects with behavior
• Closed world.
• Different lifecycle can be described by
different types
• Composition over inheritance
Domain Services
• Open world.
• No data, only functionality. Calls can be replayed.
• Traditional inheritance
Infrastructure Services
• Interpreters of ‘domain services’ functions
// phantom types.

40. Thanks for attention.
Fully - implemented ‘tiny’ domain model and DSL:
https://github.com/rssh/scala-training-materials/tree/master/fwdays2015-examples/
