1. Closing the Loop in Extended
Reality with Kafka Streams and
Machine Learning
Rob Drysdale | Senior Principal | robert.drysdale@accenture.com
Sarah Healy | Software Engineer | s.healy@accenture.com

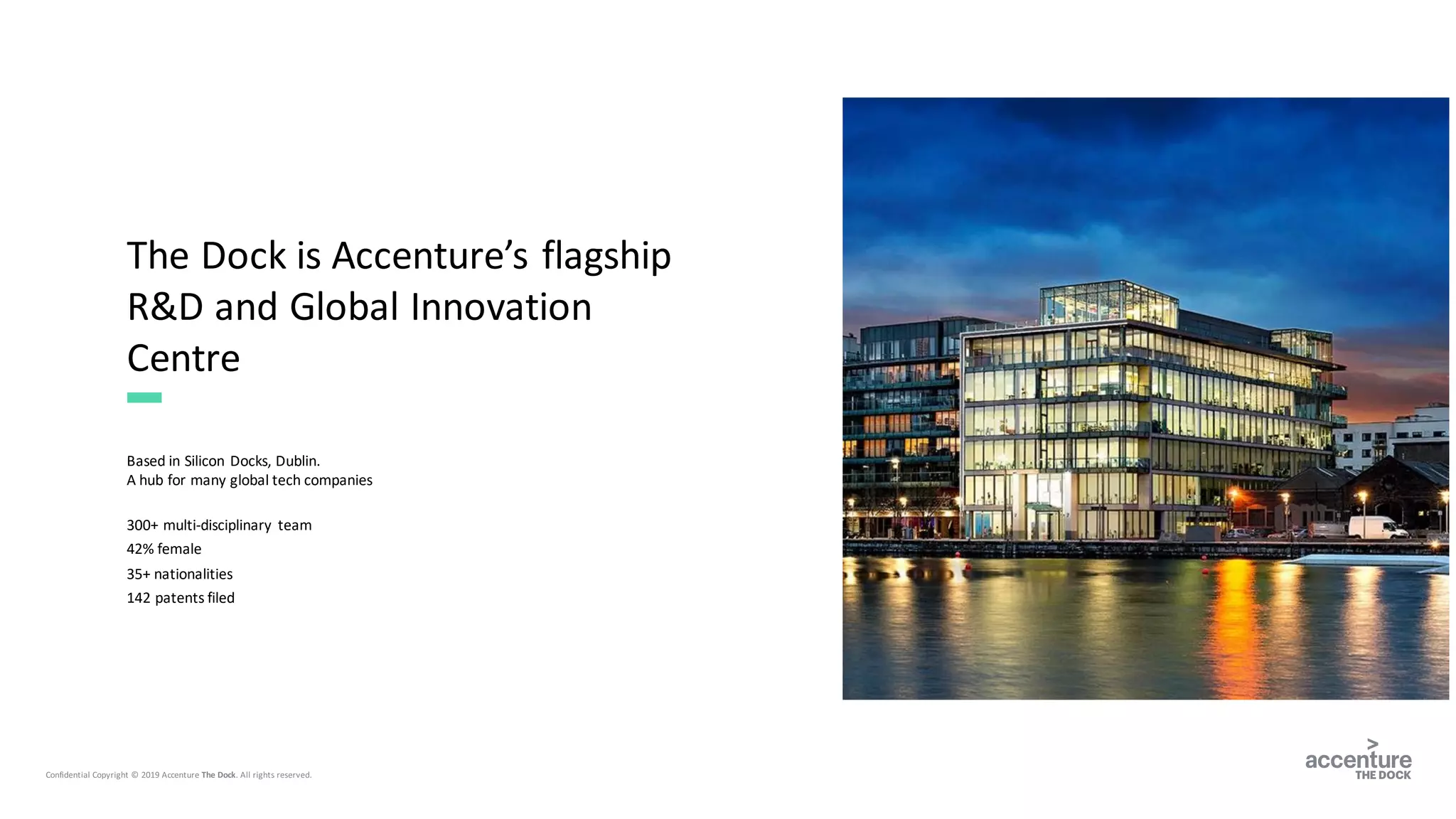

2. The Dock is Accenture’s flagship
R&D and Global Innovation
Centre
300+ multi-disciplinary team
42% female
35+ nationalities
142 patents filed
Based in Silicon Docks, Dublin.
A hub for many global tech companies

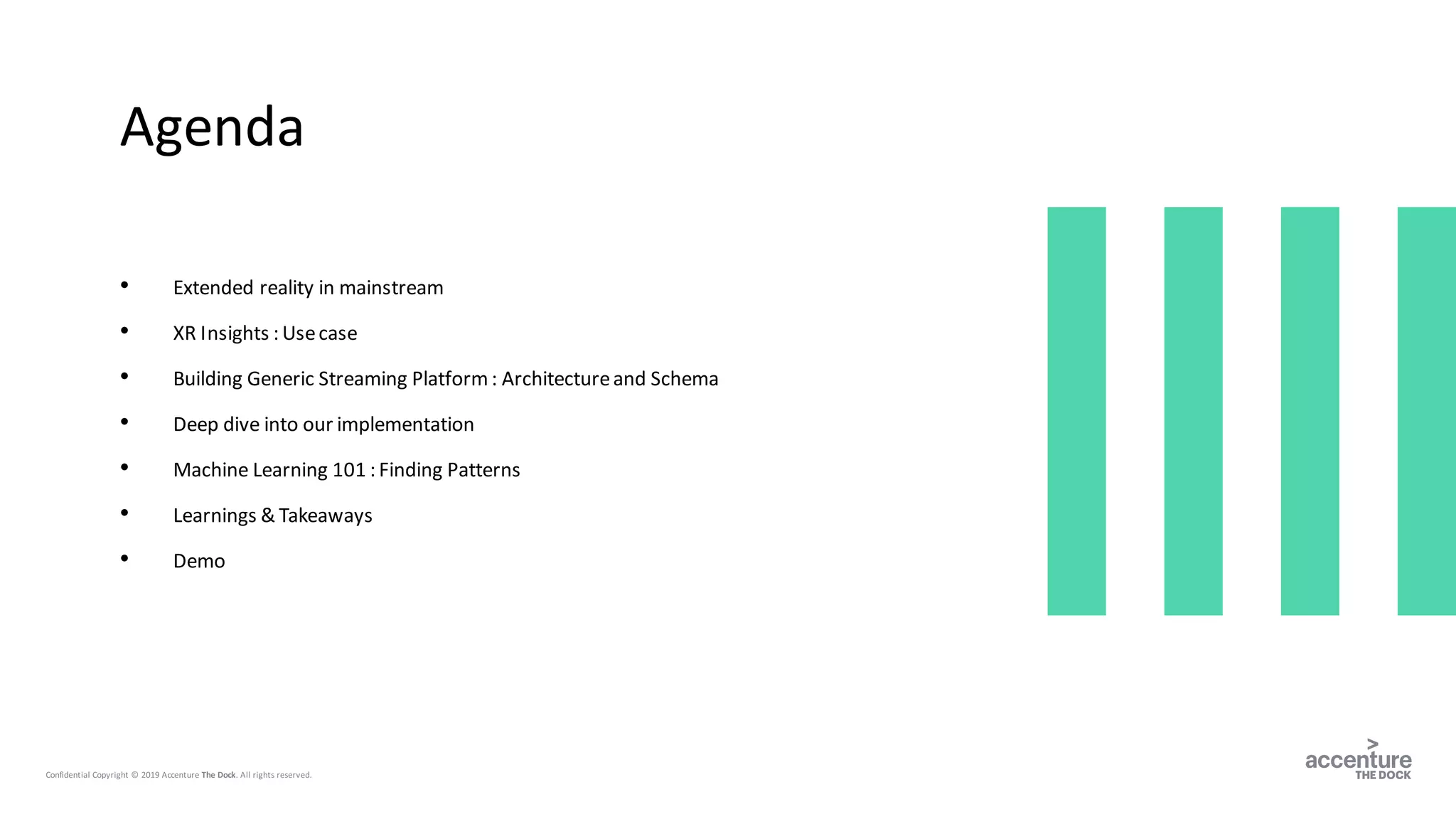

3. • Extended reality in mainstream
• XR Insights : Usecase
• Building Generic Streaming Platform: Architectureand Schema
• Deep dive into our implementation
• Machine Learning 101 : Finding Patterns
• Learnings & Takeaways
• Demo
Agenda

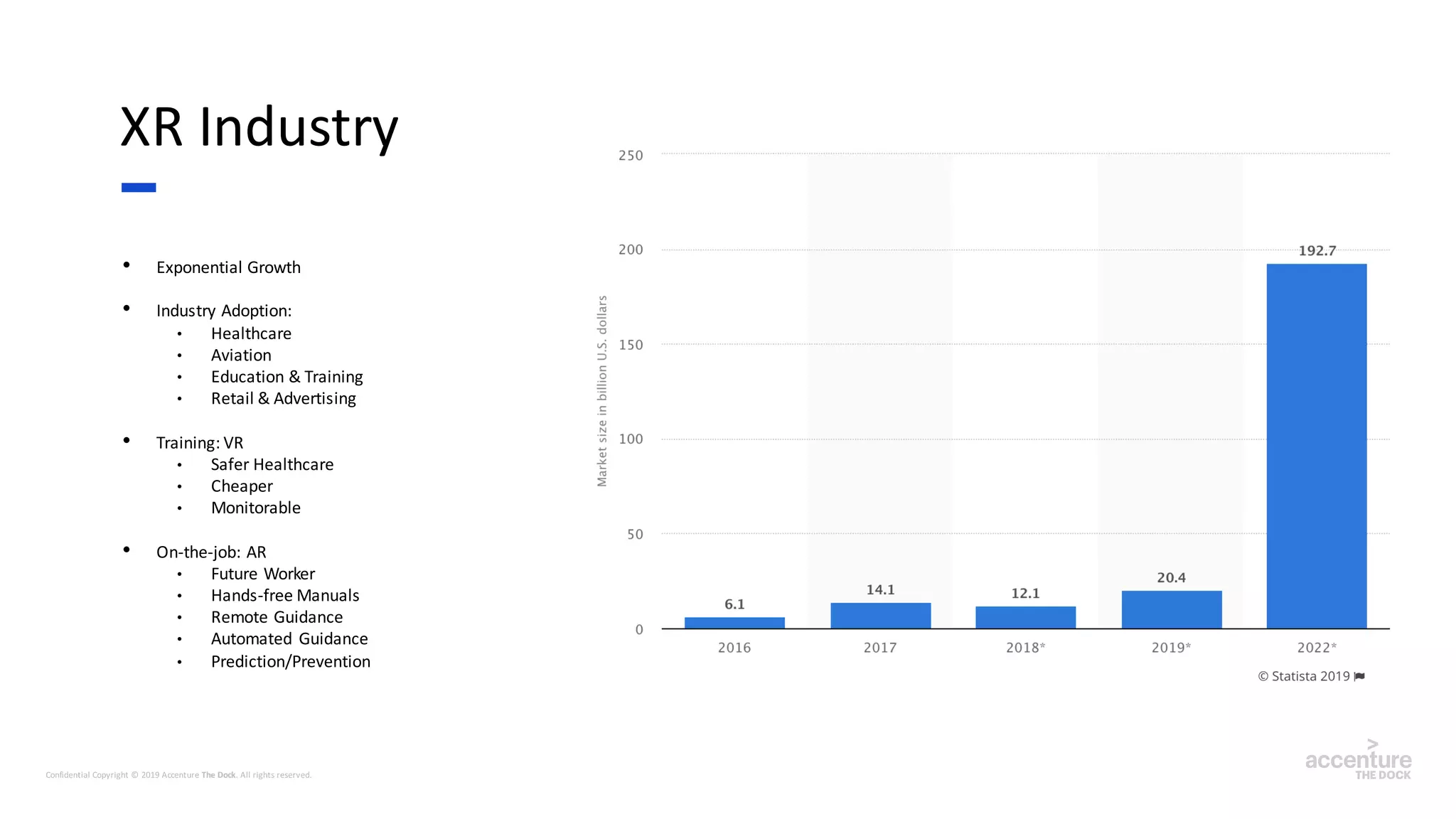

4. XR Industry
• Exponential Growth
• Industry Adoption:
• Healthcare
• Aviation
• Education & Training
• Retail & Advertising
• Training: VR
• Safer Healthcare
• Cheaper
• Monitorable
• On-the-job: AR
• Future Worker
• Hands-free Manuals
• Remote Guidance
• Automated Guidance
• Prediction/Prevention

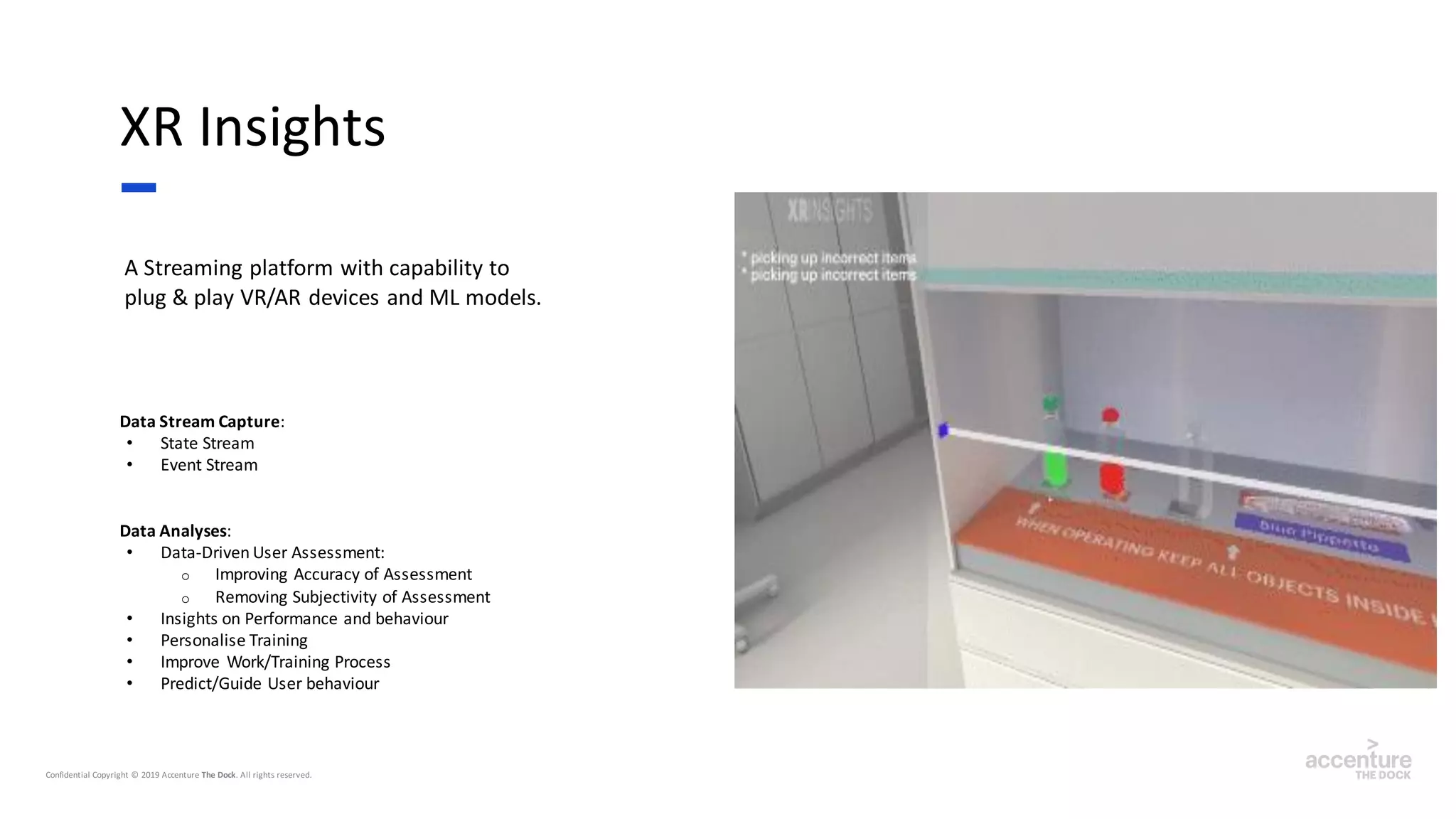

5. A Streaming platform with capability to
plug & play VR/AR devices and ML models.
XR Insights
Data Stream Capture:
• State Stream
• Event Stream
Data Analyses:
• Data-Driven User Assessment:
o Improving Accuracy of Assessment
o Removing Subjectivity of Assessment
• Insights on Performance and behaviour
• Personalise Training
• Improve Work/Training Process
• Predict/Guide User behaviour

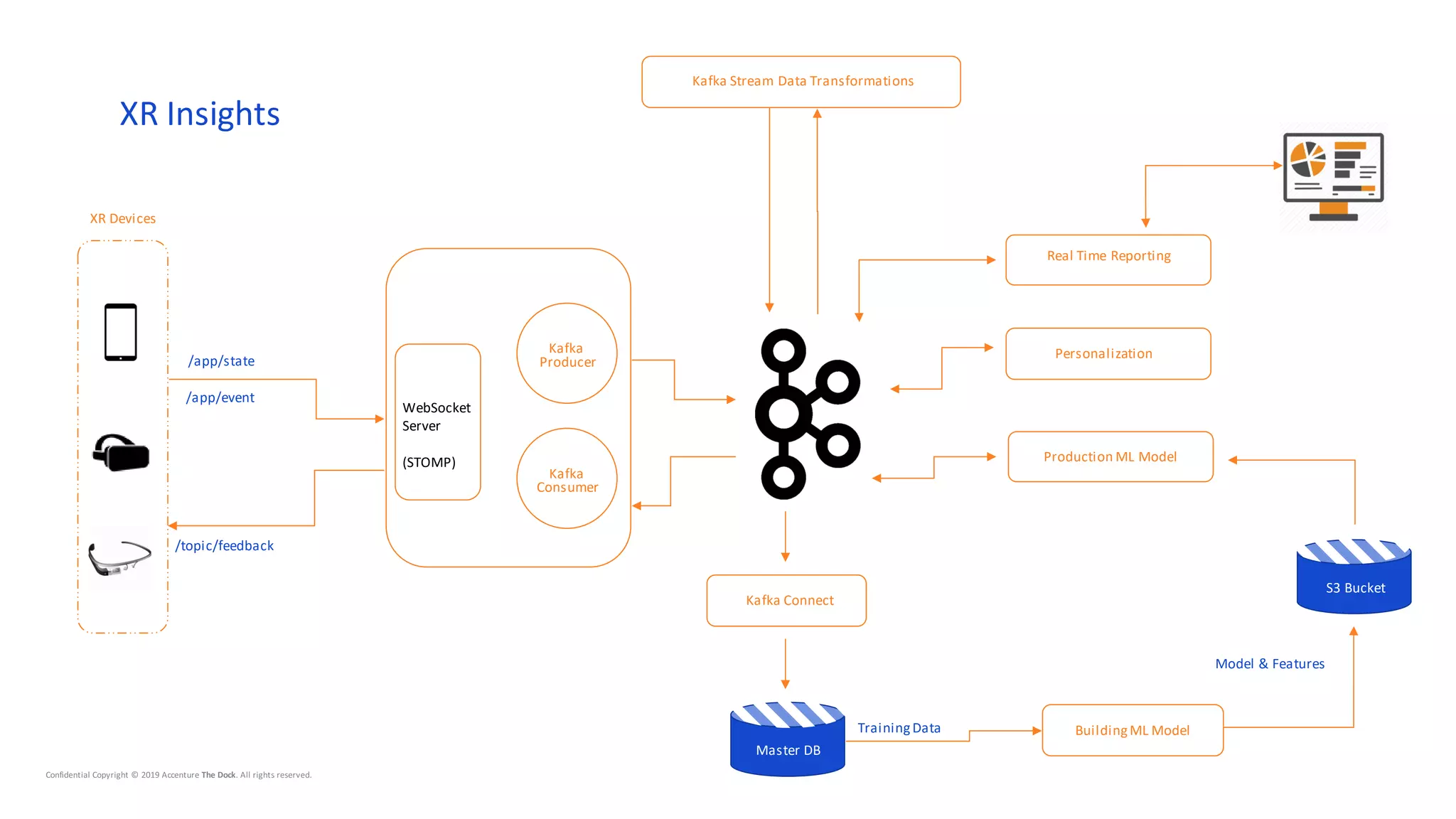

6. TrainingData
WebSocket
Server
(STOMP)
/topic/feedback
XR Insights
/app/state
/app/event
Kafka
Producer
Kafka
Consumer
Kafka Stream Data Transformations
Kafka Connect
Master DB
BuildingML Model
Model & Features
S3 Bucket
Production ML Model
Personalization
Real Time Reporting
XR Devices

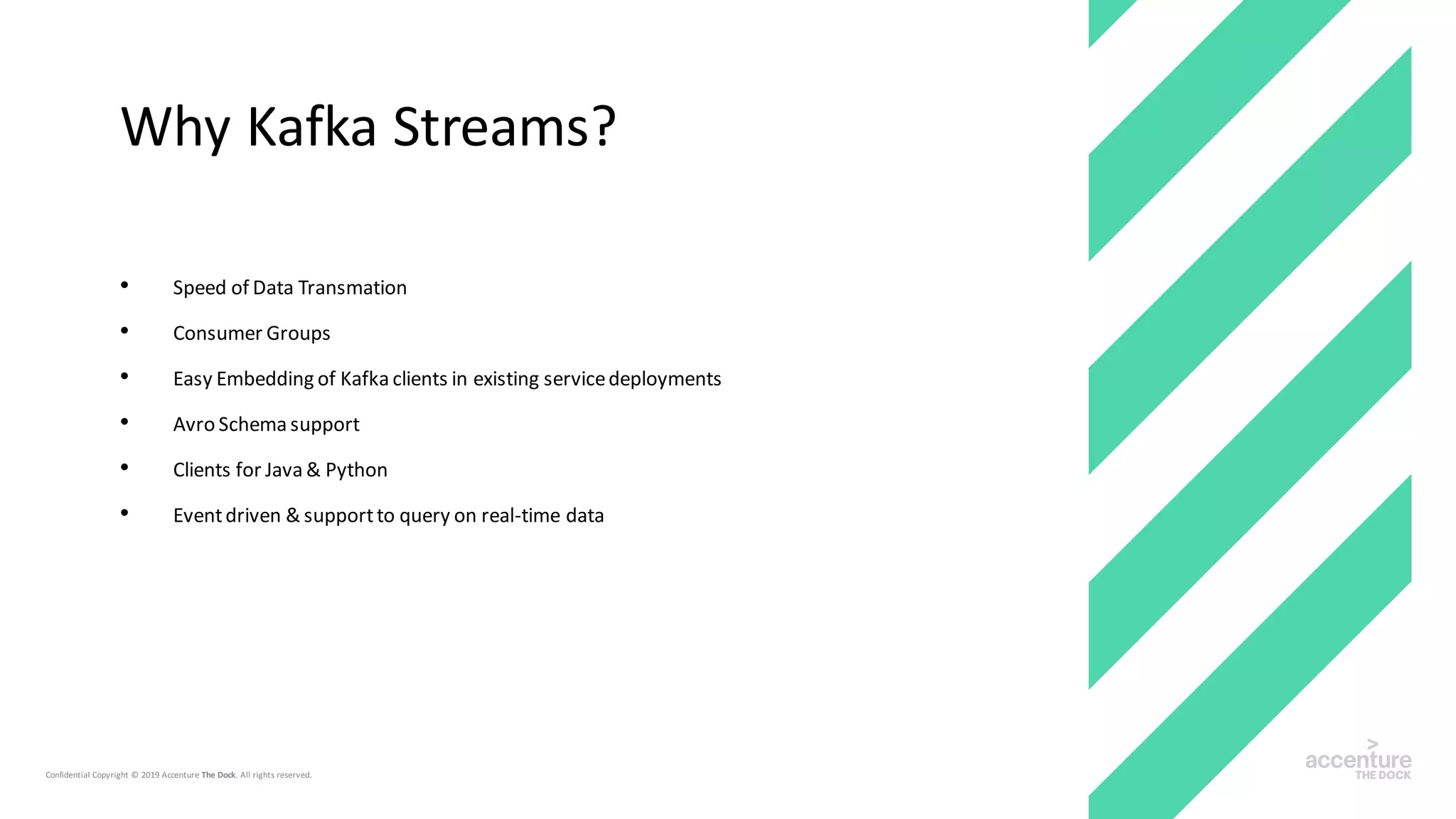

7. • Speed of Data Transmation
• Consumer Groups
• Easy Embedding of Kafka clients in existing servicedeployments
• Avro Schema support
• Clients for Java & Python
• Eventdriven & supportto query on real-time data
Why Kafka Streams?

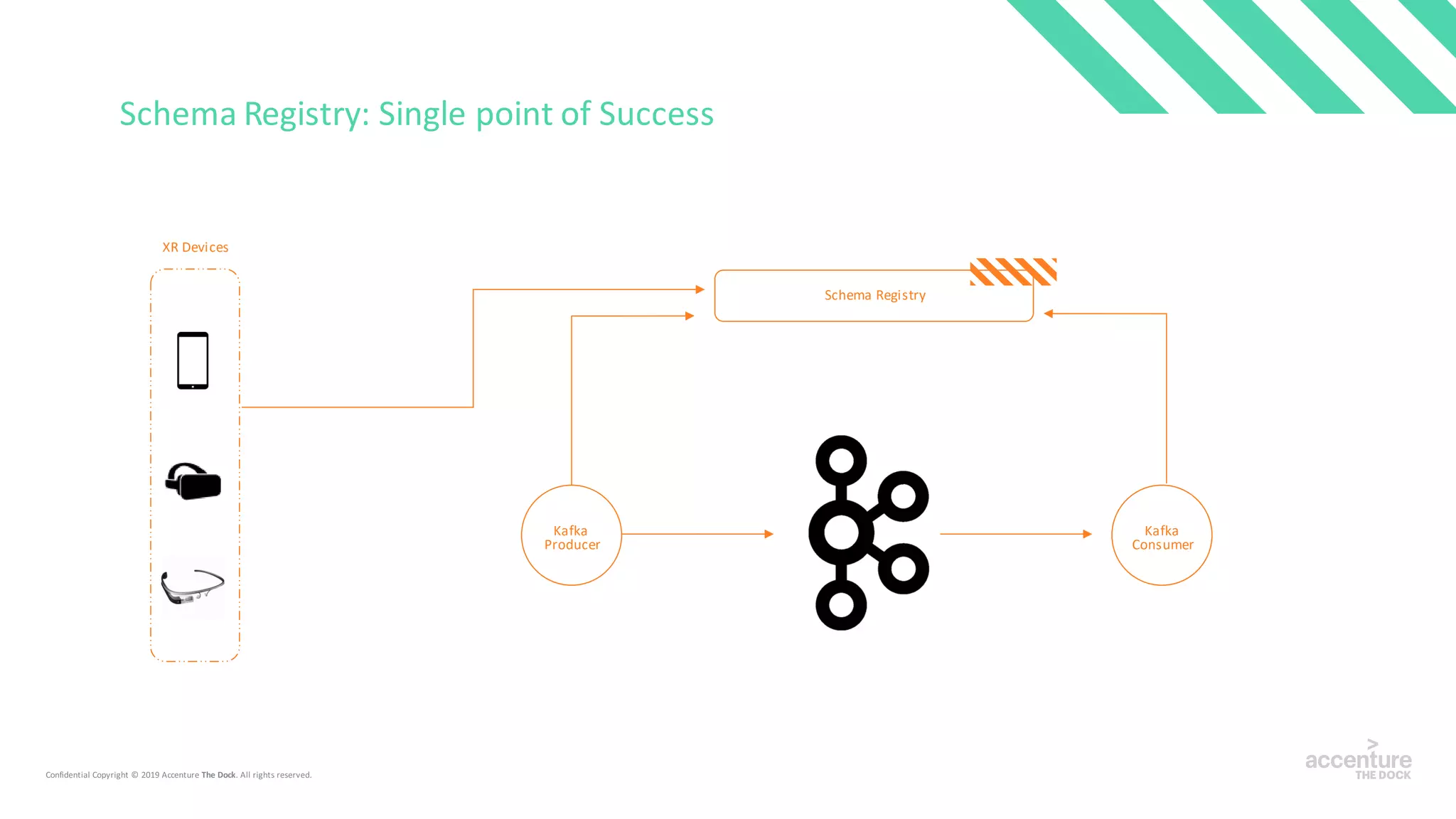

8. Kafka
Producer
Kafka
Consumer
Schema Registry
XR Devices
Schema Registry: Single point of Success

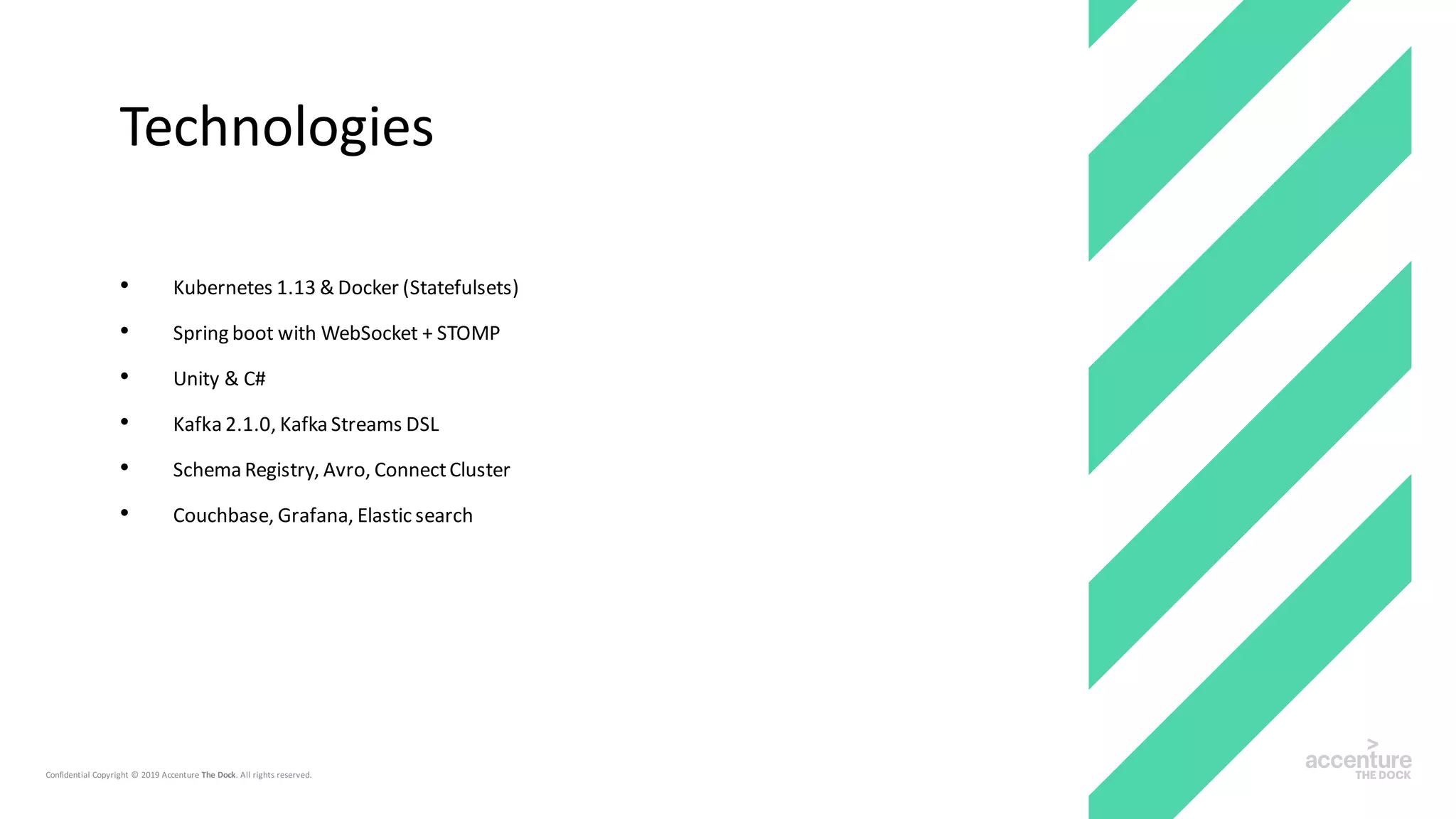

9. • Kubernetes 1.13 & Docker (Statefulsets)
• Spring boot with WebSocket + STOMP
• Unity & C#
• Kafka 2.1.0, Kafka Streams DSL
• Schema Registry, Avro, ConnectCluster
• Couchbase, Grafana, Elastic search
Technologies

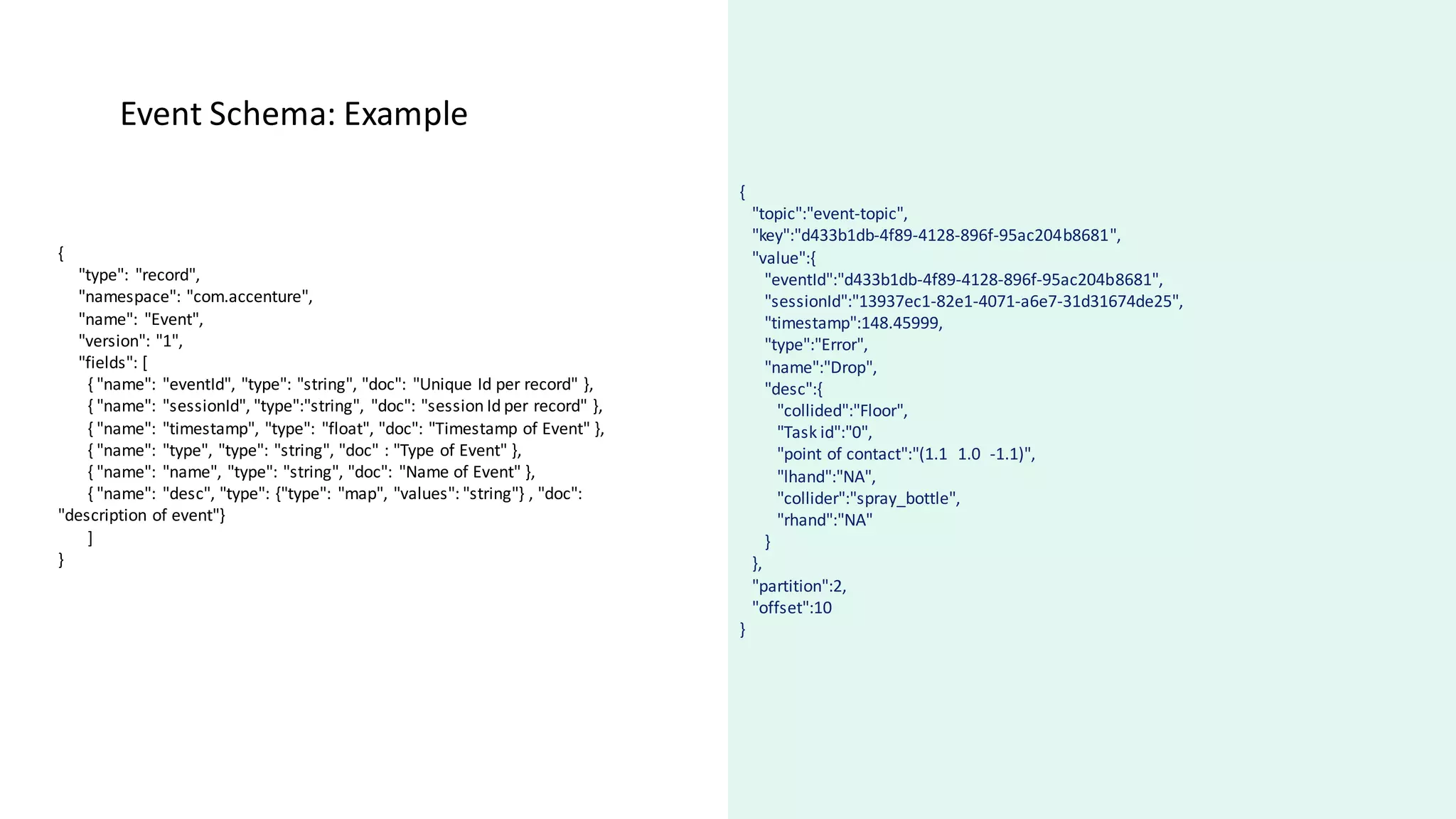

10. {
"type": "record",
"namespace": "com.accenture",
"name": "Event",
"version": "1",
"fields": [
{ "name": "eventId", "type": "string", "doc": "Unique Id per record" },
{ "name": "sessionId", "type":"string", "doc": "session Id per record" },
{ "name": "timestamp", "type": "float", "doc": "Timestamp of Event" },
{ "name": "type", "type": "string", "doc" : "Type of Event" },
{ "name": "name", "type": "string", "doc": "Name of Event" },
{ "name": "desc", "type": {"type": "map", "values": "string"} , "doc":
"description of event"}
]
}
{
"topic":"event-topic",
"key":"d433b1db-4f89-4128-896f-95ac204b8681",
"value":{
"eventId":"d433b1db-4f89-4128-896f-95ac204b8681",
"sessionId":"13937ec1-82e1-4071-a6e7-31d31674de25",
"timestamp":148.45999,
"type":"Error",
"name":"Drop",
"desc":{
"collided":"Floor",
"Task id":"0",
"point of contact":"(1.1 1.0 -1.1)",
"lhand":"NA",
"collider":"spray_bottle",
"rhand":"NA"
}
},
"partition":2,
"offset":10
}
Event Schema: Example

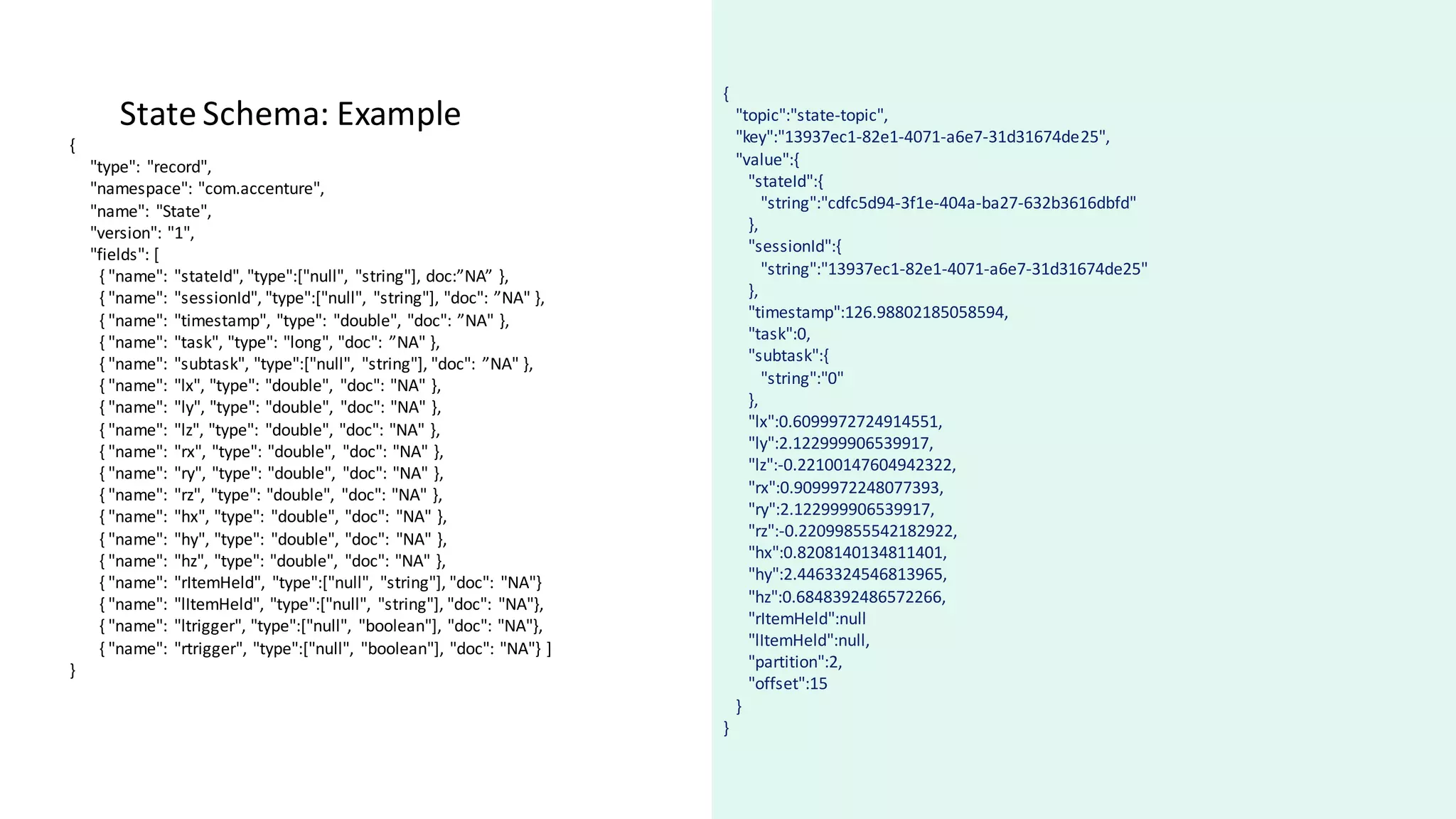

11. {
"type": "record",
"namespace": "com.accenture",
"name": "State",
"version": "1",
"fields": [
{ "name": "stateId", "type":["null", "string"], doc:”NA” },
{ "name": "sessionId", "type":["null", "string"], "doc": ”NA" },
{ "name": "timestamp", "type": "double", "doc": ”NA" },
{ "name": "task", "type": "long", "doc": ”NA" },
{ "name": "subtask", "type":["null", "string"], "doc": ”NA" },
{ "name": "lx", "type": "double", "doc": "NA" },
{ "name": "ly", "type": "double", "doc": "NA" },
{ "name": "lz", "type": "double", "doc": "NA" },
{ "name": "rx", "type": "double", "doc": "NA" },
{ "name": "ry", "type": "double", "doc": "NA" },
{ "name": "rz", "type": "double", "doc": "NA" },
{ "name": "hx", "type": "double", "doc": "NA" },
{ "name": "hy", "type": "double", "doc": "NA" },
{ "name": "hz", "type": "double", "doc": "NA" },
{ "name": "rItemHeld", "type":["null", "string"], "doc": "NA"}
{ "name": "lItemHeld", "type":["null", "string"], "doc": "NA"},
{ "name": "ltrigger", "type":["null", "boolean"], "doc": "NA"},
{ "name": "rtrigger", "type":["null", "boolean"], "doc": "NA"} ]
}
{
"topic":"state-topic",
"key":"13937ec1-82e1-4071-a6e7-31d31674de25",
"value":{
"stateId":{
"string":"cdfc5d94-3f1e-404a-ba27-632b3616dbfd"
},
"sessionId":{
"string":"13937ec1-82e1-4071-a6e7-31d31674de25"
},
"timestamp":126.98802185058594,
"task":0,
"subtask":{
"string":"0"
},
"lx":0.6099972724914551,
"ly":2.122999906539917,
"lz":-0.22100147604942322,
"rx":0.9099972248077393,
"ry":2.122999906539917,
"rz":-0.22099855542182922,
"hx":0.8208140134811401,
"hy":2.4463324546813965,
"hz":0.6848392486572266,
"rItemHeld":null
"lItemHeld":null,
"partition":2,
"offset":15
}
}
State Schema: Example

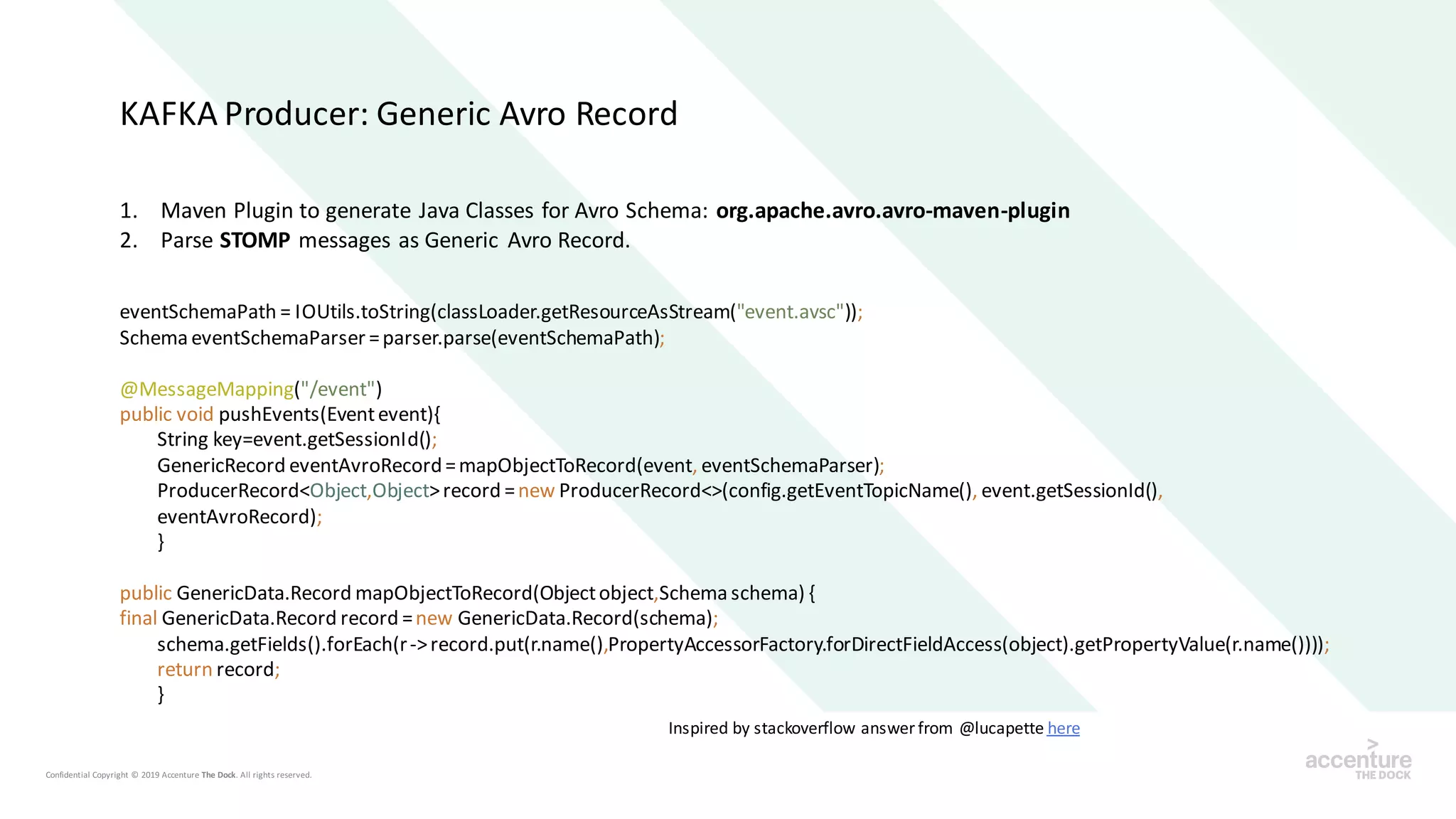

12. 1. Maven Plugin to generate Java Classes for Avro Schema: org.apache.avro.avro-maven-plugin
2. Parse STOMP messages as Generic Avro Record.
Inspired by stackoverflow answer from @lucapette here
eventSchemaPath = IOUtils.toString(classLoader.getResourceAsStream("event.avsc"));
Schema eventSchemaParser =parser.parse(eventSchemaPath);
@MessageMapping("/event")
public void pushEvents(Eventevent){
String key=event.getSessionId();
GenericRecord eventAvroRecord=mapObjectToRecord(event, eventSchemaParser);
ProducerRecord<Object,Object>record =new ProducerRecord<>(config.getEventTopicName(), event.getSessionId(),
eventAvroRecord);
}
public GenericData.Record mapObjectToRecord(Objectobject,Schema schema) {
final GenericData.Record record =new GenericData.Record(schema);
schema.getFields().forEach(r->record.put(r.name(),PropertyAccessorFactory.forDirectFieldAccess(object).getPropertyValue(r.name())));
return record;
}
KAFKA Producer: Generic Avro Record

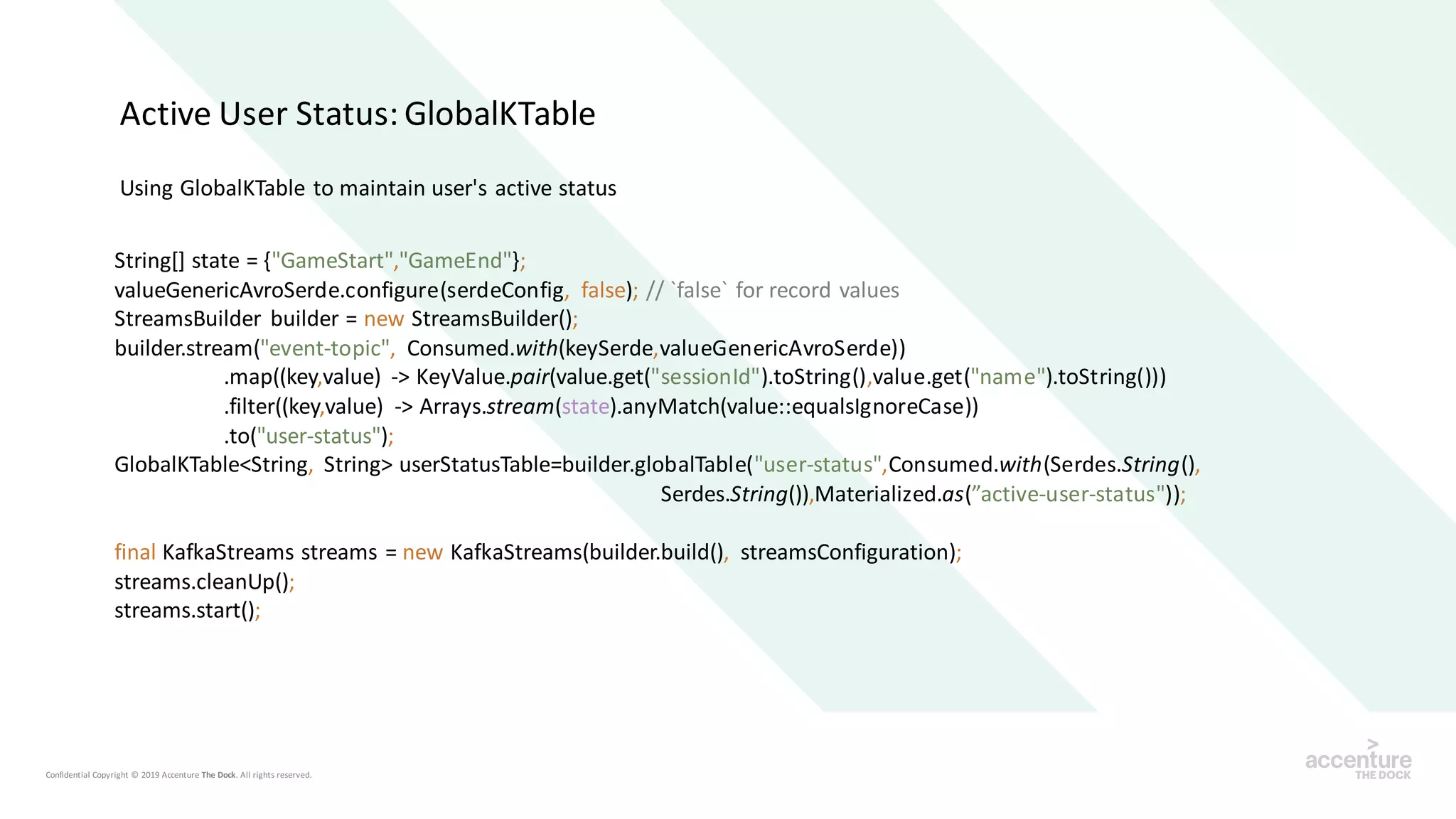

13. Using GlobalKTable to maintain user's active status
String[] state = {"GameStart","GameEnd"};
valueGenericAvroSerde.configure(serdeConfig, false); // `false` for record values
StreamsBuilder builder = new StreamsBuilder();
builder.stream("event-topic", Consumed.with(keySerde,valueGenericAvroSerde))
.map((key,value) -> KeyValue.pair(value.get("sessionId").toString(),value.get("name").toString()))
.filter((key,value) -> Arrays.stream(state).anyMatch(value::equalsIgnoreCase))
.to("user-status");
GlobalKTable<String, String> userStatusTable=builder.globalTable("user-status",Consumed.with(Serdes.String(),
Serdes.String()),Materialized.as(”active-user-status"));
final KafkaStreams streams = new KafkaStreams(builder.build(), streamsConfiguration);
streams.cleanUp();
streams.start();
Active User Status: GlobalKTable

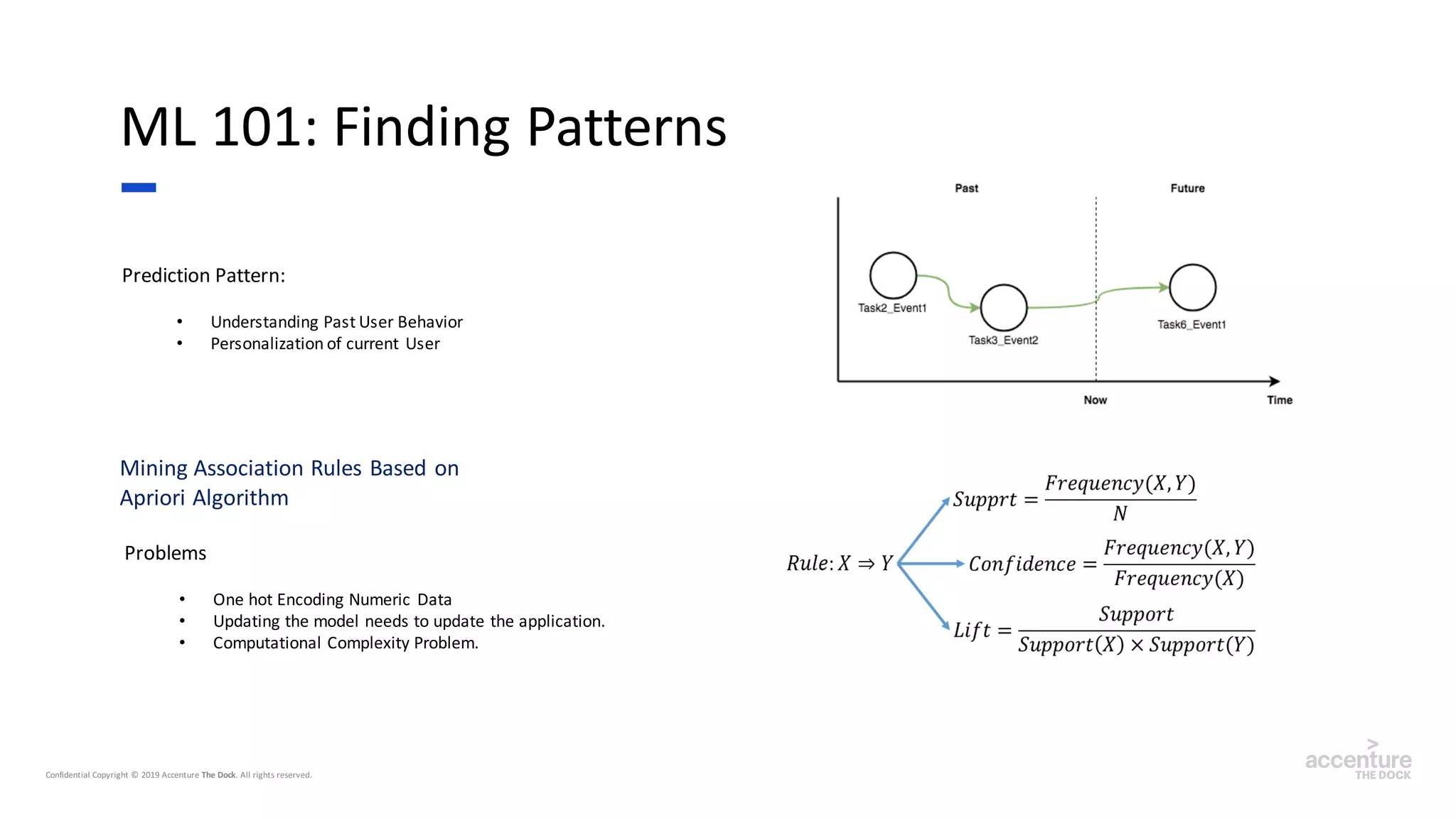

14. ML 101: Finding Patterns
Mining Association Rules Based on
Apriori Algorithm
Problems
• One hot Encoding Numeric Data
• Updating the model needs to update the application.
• Computational Complexity Problem.
Prediction Pattern:
• Understanding Past User Behavior
• Personalization of current User

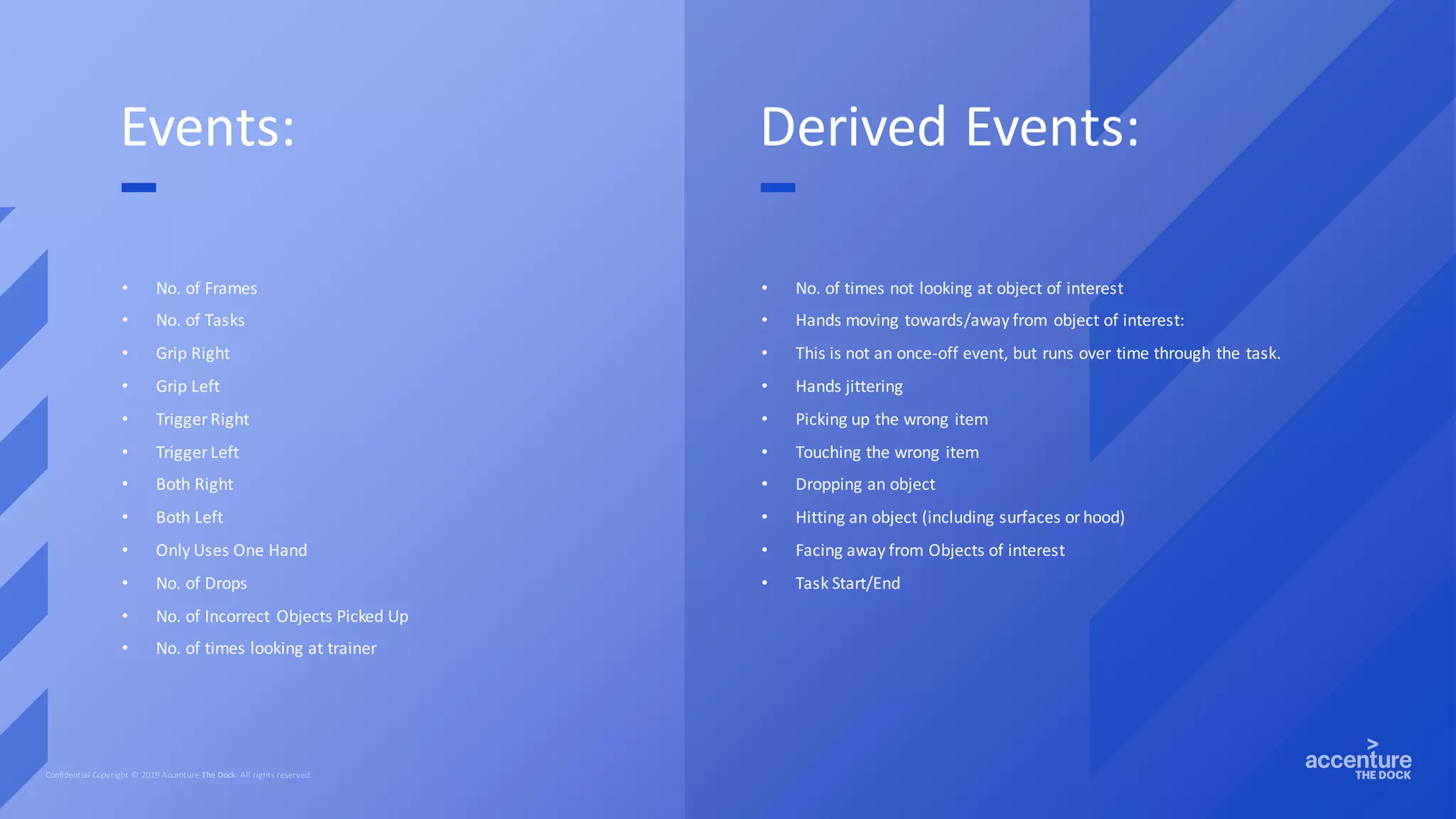

15. Events:
• No. of Frames
• No. of Tasks
• Grip Right
• Grip Left
• Trigger Right
• Trigger Left
• Both Right
• Both Left
• Only Uses One Hand
• No. of Drops
• No. of Incorrect Objects Picked Up
• No. of times looking at trainer
Derived Events:
• No. of times not looking at object of interest
• Hands moving towards/away from object of interest:
• This is not an once-off event, but runs over time through the task.
• Hands jittering
• Picking up the wrong item
• Touching the wrong item
• Dropping an object
• Hitting an object (including surfaces or hood)
• Facing away from Objects of interest
• Task Start/End

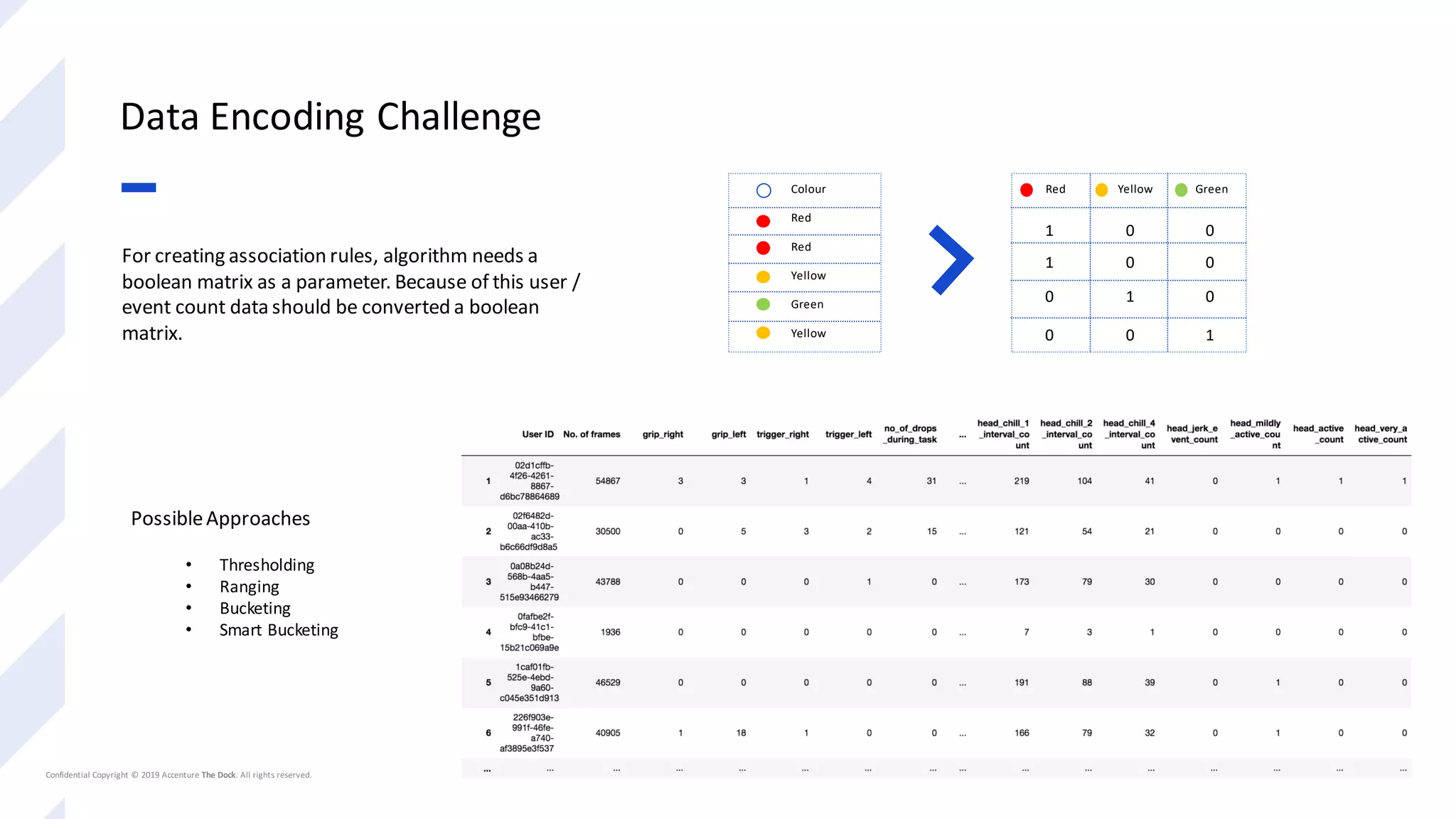

16. For creating association rules, algorithm needs a
boolean matrix as a parameter. Because of this user /
event count data should be converted a boolean
matrix.
Data Encoding Challenge
PossibleApproaches
• Thresholding
• Ranging
• Bucketing
• Smart Bucketing
Colour Red Yellow Green
Red
Red
Yellow
Yellow
Green
1 0 0
1 0 0
0 1 0
0 0 1

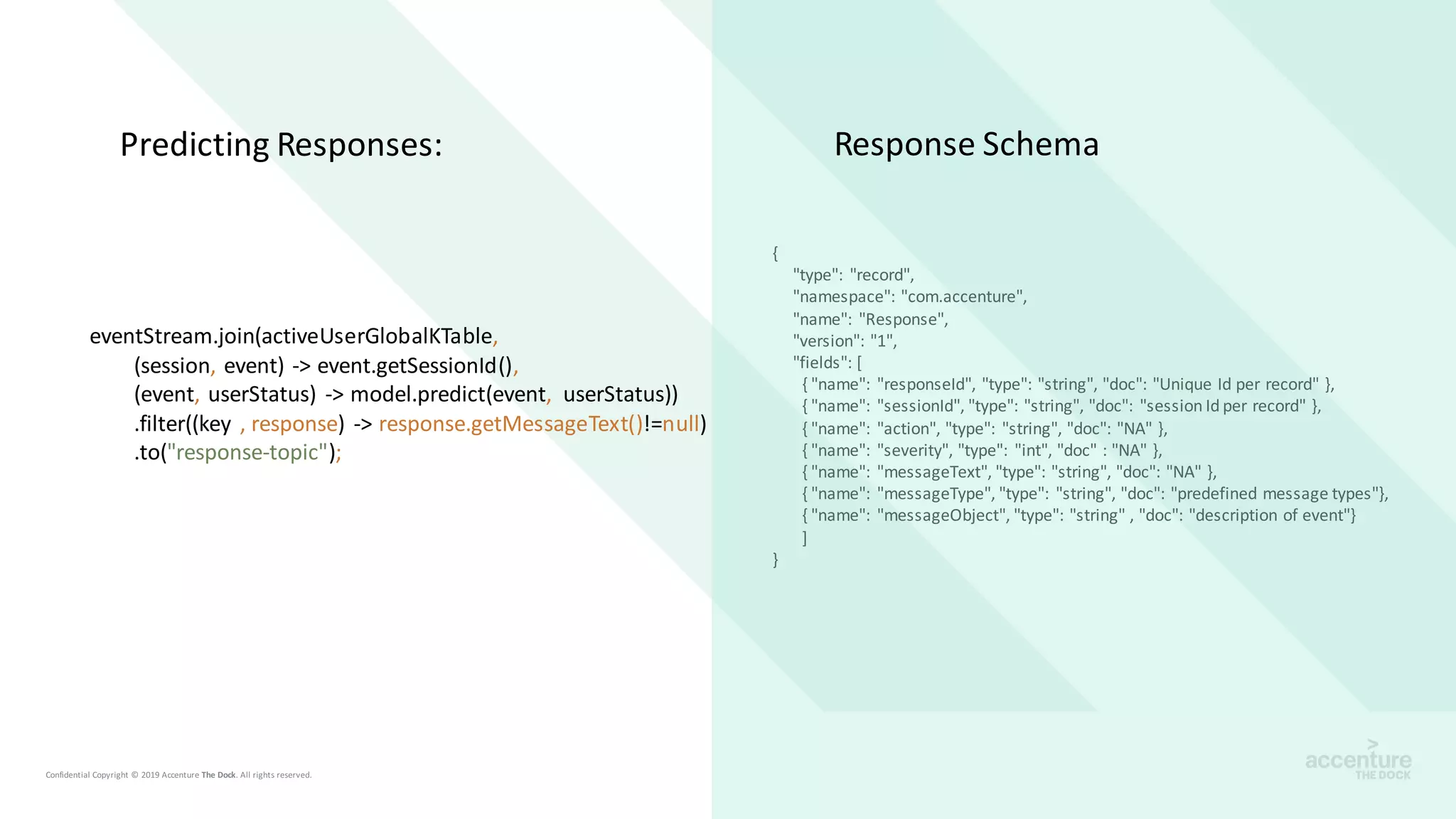

17. Predicting Responses:
eventStream.join(activeUserGlobalKTable,
(session, event) -> event.getSessionId(),
(event, userStatus) -> model.predict(event, userStatus))
.filter((key , response) -> response.getMessageText()!=null)
.to("response-topic");
{
"type": "record",
"namespace": "com.accenture",
"name": "Response",
"version": "1",
"fields": [
{ "name": "responseId", "type": "string", "doc": "Unique Id per record" },
{ "name": "sessionId", "type": "string", "doc": "session Id per record" },
{ "name": "action", "type": "string", "doc": "NA" },
{ "name": "severity", "type": "int", "doc" : "NA" },
{ "name": "messageText", "type": "string", "doc": "NA" },
{ "name": "messageType", "type": "string", "doc": "predefined message types"},
{ "name": "messageObject", "type": "string" , "doc": "description of event"}
]
}
Response Schema

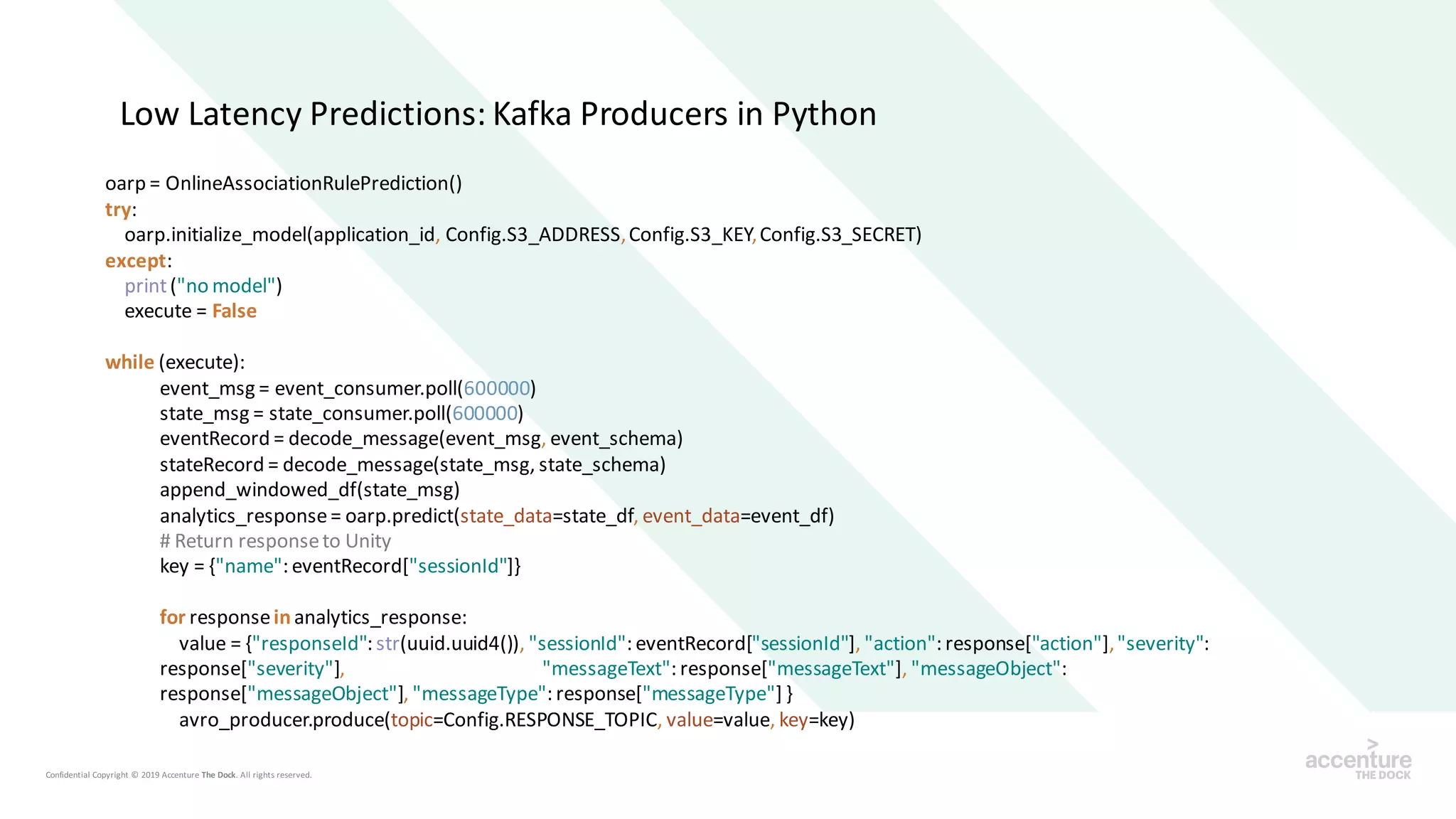

18. Low Latency Predictions: Kafka Producers in Python
oarp = OnlineAssociationRulePrediction()
try:
oarp.initialize_model(application_id, Config.S3_ADDRESS,Config.S3_KEY,Config.S3_SECRET)
except:
print("no model")
execute = False
while (execute):
event_msg = event_consumer.poll(600000)
state_msg = state_consumer.poll(600000)
eventRecord = decode_message(event_msg, event_schema)
stateRecord = decode_message(state_msg, state_schema)
append_windowed_df(state_msg)
analytics_response= oarp.predict(state_data=state_df, event_data=event_df)
# Return responseto Unity
key = {"name": eventRecord["sessionId"]}
for responseinanalytics_response:
value = {"responseId": str(uuid.uuid4()), "sessionId": eventRecord["sessionId"], "action": response["action"],"severity":
response["severity"], "messageText": response["messageText"], "messageObject":
response["messageObject"], "messageType": response["messageType"] }
avro_producer.produce(topic=Config.RESPONSE_TOPIC, value=value, key=key)

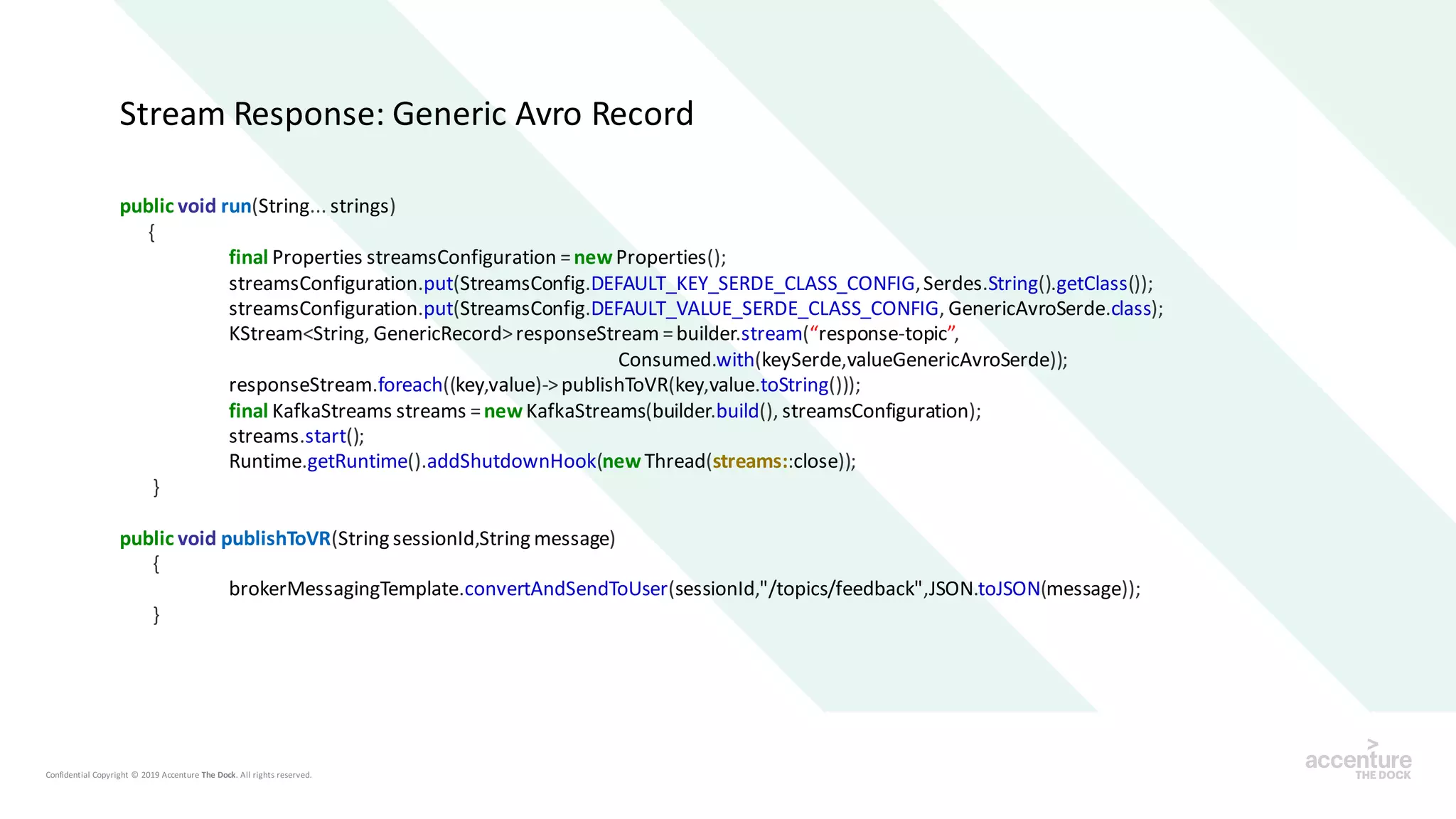

19. public void run(String... strings)
{
final Properties streamsConfiguration =newProperties();
streamsConfiguration.put(StreamsConfig.DEFAULT_KEY_SERDE_CLASS_CONFIG,Serdes.String().getClass());
streamsConfiguration.put(StreamsConfig.DEFAULT_VALUE_SERDE_CLASS_CONFIG, GenericAvroSerde.class);
KStream<String, GenericRecord>responseStream =builder.stream(“response-topic”,
Consumed.with(keySerde,valueGenericAvroSerde));
responseStream.foreach((key,value)->publishToVR(key,value.toString()));
final KafkaStreams streams =newKafkaStreams(builder.build(), streamsConfiguration);
streams.start();
Runtime.getRuntime().addShutdownHook(new Thread(streams::close));
}
public void publishToVR(String sessionId,String message)
{
brokerMessagingTemplate.convertAndSendToUser(sessionId,"/topics/feedback",JSON.toJSON(message));
}
Stream Response: Generic Avro Record

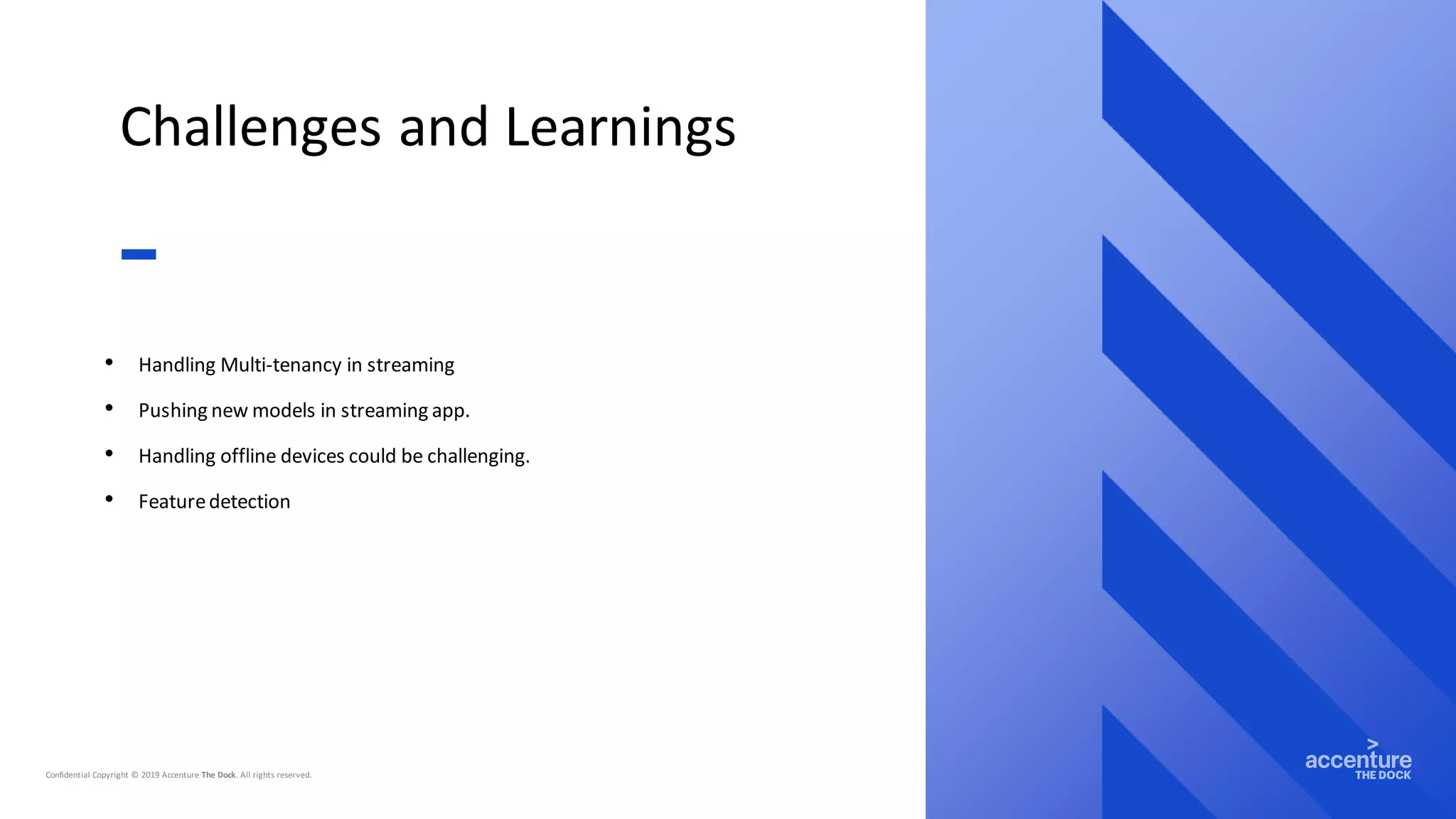

20. Challenges and Learnings
• Handling Multi-tenancy in streaming
• Pushing new models in streaming app.
• Handling offline devices could be challenging.
• Featuredetection

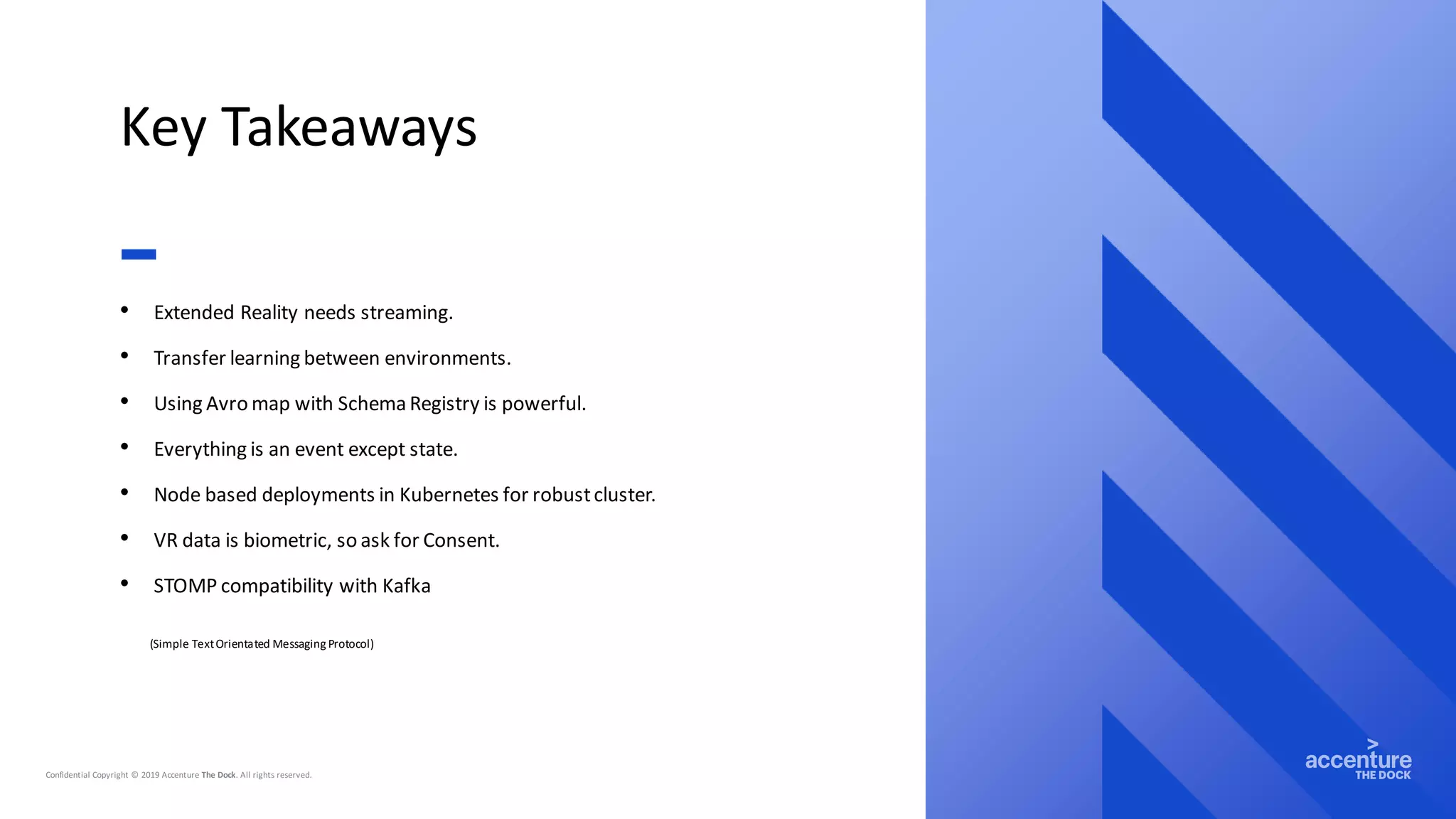

21. Key Takeaways
• Extended Reality needs streaming.
• Transfer learning between environments.
• Using Avro map with Schema Registry is powerful.
• Everything is an event except state.
• Node based deployments in Kubernetes for robustcluster.
• VR data is biometric, so ask for Consent.
• STOMP compatibility with Kafka
(Simple TextOrientated Messaging Protocol)

22. XR Insights Demo

23. Thank You
accenture.com/thedock
Navdeep Sharma | Data & AI Engineer
navdeep.a.sharma@accenture.com
/showcase/accenture-the-dock @AccentureDock
