OpenStack is an open-source cloud computing platform that consists of interrelated projects that provide software for building and managing public and private clouds. The projects include Nova (compute), Swift (object storage), Glance (image repository), Keystone (identity), Quantum (networking), Cinder (block storage), and Horizon (dashboard). OpenStack aims to produce a cloud computing platform that is simple to implement, massively scalable, and feature-rich. It has a large global community of developers and is used by many large companies and organizations.

1. OpenStack Overview
JU L Y ’ 2014
Sharad Aggarwal|FUTURE READY

2. Agenda
o Virtualization
o IAAS
o Openstack – 5 min Overview
o Structure & Components
o Demo
o Getting Started

3. How does Virtualization Work ?
Decouples Software from Hardware
Enterprise App
Operating System
Operating System
Virtualization

4. How does Virtualization Work ?

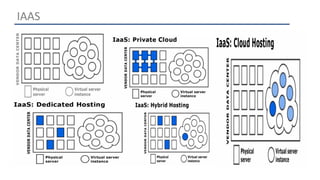

5. IAAS
•Software as a Service (SaaS)
•Hardware as a Service (HaaS)
•Telepresence
•Surveillance
•Email management
& administration
•Storage backup
•Disaster Recovery
Services
•Security
•Printer management
•Professional Services
•Remote Monitoring Automation
•Digital Signage

6. Cloud Controller
Web Interface
Storage
Web Interface Hypervisor
API Server
Storage
Hyperviso
r
Storage Controller
Object Storage
Storage
Authentication Server Block Storage
Hypervisor
IAAS – The Big Picture

7. Openstack - Overview
Producing
open source cloud computing
platform for public and private clouds.
Global collaboration of
developers and cloud computing
technologists.
simple to implement, massively
scalable, and feature rich
Interrelated
projects
Aims
Consists

8. Openstack – Who is behind it ?
8 Platinum
Members
24 Gold Members
Corporate Sponsors Supporting Organisations
~17K Ind
Members
140 countries
850 Organisations
Founded by Rackspace
Hosting and NASA

9. Openstack – Why it matters ?
Encourages Anybody can run it, build on it,
submit changes
Freely available under the
Apache 2.0 license
open development model,
Removes the fear of proprietary
Fosters
Compatibility lock-in
Control And Flexibility, Industry Standard, Proven Software,
Compatible And Connected Python API, Hypervisor Agnostic

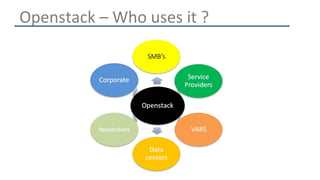

10. Openstack – Who uses it ?

11. Openstack Distributions
Rackspace Alamo
Piston Cloud
StackOps
CloudScaling
Red Hat OpenStack
Nebula rPath
Canonical
SUSE
SwiftStack

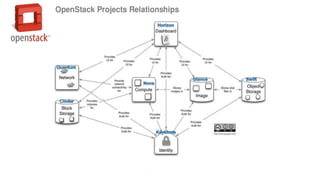

12. swift Glance nova horizon keystone quantum cinder
Storage
Interface
Repository of
Virtual Disk
Images
Provide
virtual
servers on
demand
Provides
Web Based
Interface
provides
authentication and
authorization for
all the Open Stack
services.
provides
"network
connectivity
as a service"
between
interface
devices
provides
persistent
block storage
to guest
VMs.
Components Of Openstack

14. What is Horizon ?
 Horizon is a web-based interface to OpenStack.
 The OpenStack dashboard provides administrators and users a
graphical interface to access, provision and automate cloud-based
resources.
 The extensible design makes it easy to plug in and expose third
party products and services, such as billing, monitoring and
additional management tools

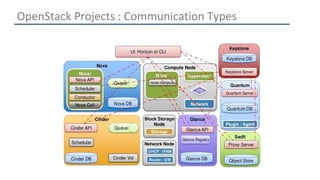

15. OpenStack Projects : Communication Types

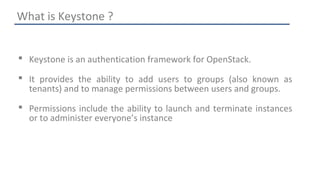

16. What is Keystone ?
 Keystone is an authentication framework for OpenStack.
 It provides the ability to add users to groups (also known as
tenants) and to manage permissions between users and groups.
 Permissions include the ability to launch and terminate instances
or to administer everyone’s instance

17. Keystone Architecture

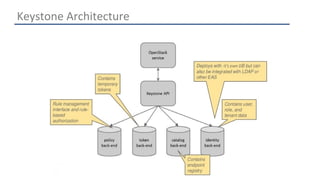

18. What is Nova Compute ?

19. Start VM Provisioning

20. What is Quantum ?
 Quantum is an OpenStack project to provide "network
connectivity as a service" between interface devices (e.g.,
vNICs) managed by other OpenStack services (e.g., nova).

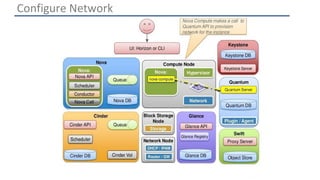

21. Configure Network

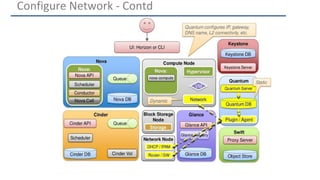

22. Configure Network - Contd

23. Cinder

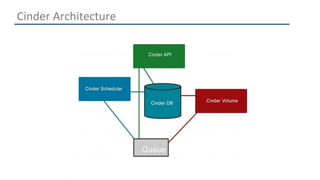

24. Cinder Architecture

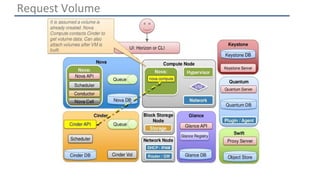

25. Request Volume

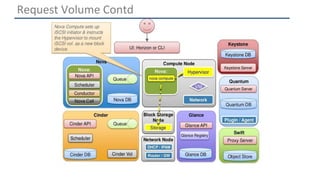

26. Request Volume Contd

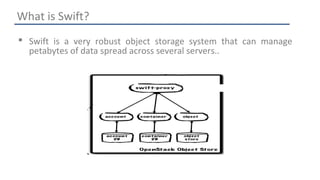

27. What is Swift?
 Swift is a very robust object storage system that can manage
petabytes of data spread across several servers..

28. What is Glance ?
 Glance provides a catalogue of images. “Images” in this case can
be thought of as a virtual machine template.
 When launching an instance in OpenStack, you choose a
template from Glance, such as Ubuntu 12.04 or Centos 5.8, and
then OpenStack creates your instance based on that template

29. Glance Image Formats

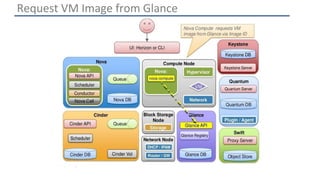

30. Request VM Image from Glance

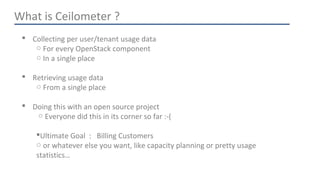

31. What is Ceilometer ?
 Collecting per user/tenant usage data
○ For every OpenStack component
○ In a single place
 Retrieving usage data
○ From a single place
 Doing this with an open source project
○ Everyone did this in its corner so far :-(
Ultimate Goal : Billing Customers
○ or whatever else you want, like capacity planning or pretty usage
statistics…

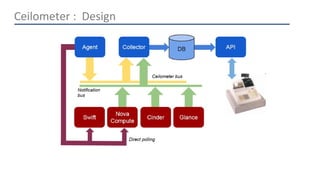

32. Ceilometer : Design

33. Summary

34. DEMO
