This document discusses using OpenStack and OpenShift for IoT and edge computing. It proposes a three-tier IoT architecture with devices, intelligent gateways for real-time processing at the edge, and data centers. OpenShift allows for scalable microservices deployment across this architecture. OpenStack provides the virtualization infrastructure for NFV edge computing with the intelligent gateways. The combination provides a platform for applications like NB-IoT from the edge to the cloud.

1. OPENSTACK | NFV edge computing and
Intelligent gateway for IoT microservice
OpenStackDays.IN - 2016
Telco Strategies session
Hyde SUGIYAMA
Senior Principal Technologist - NFV | SDN | ICT
Red Hat APAC Office of Technology

2. Senior Principal Technologist
Red Hat APAC Office of Technology
Driving NFV/SDN technology partnership at Red Hat APAC as a member of Red Hat
NFV Initiative Leading team
28 years experience in the Information Communications Technology industry
Prior to Red Hat
Director of R&D support at Juniper Networks APAC
Facilitated technology partner development in JUNOS ecosystems
Hyde SUGIYAMA
WHO AM I ?

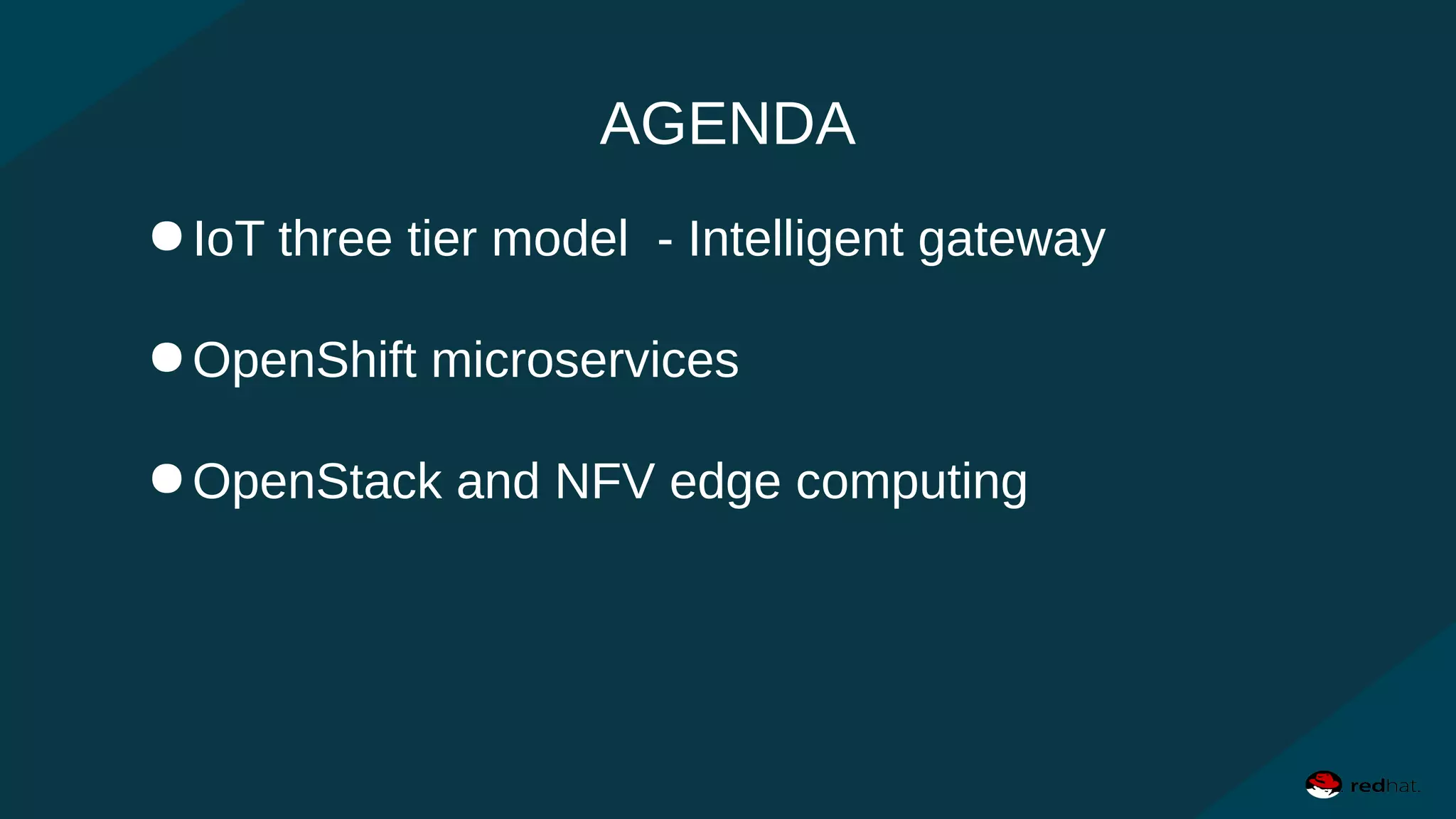

3. AGENDA
●IoT three tier model - Intelligent gateway
●OpenShift microservices
●OpenStack and NFV edge computing

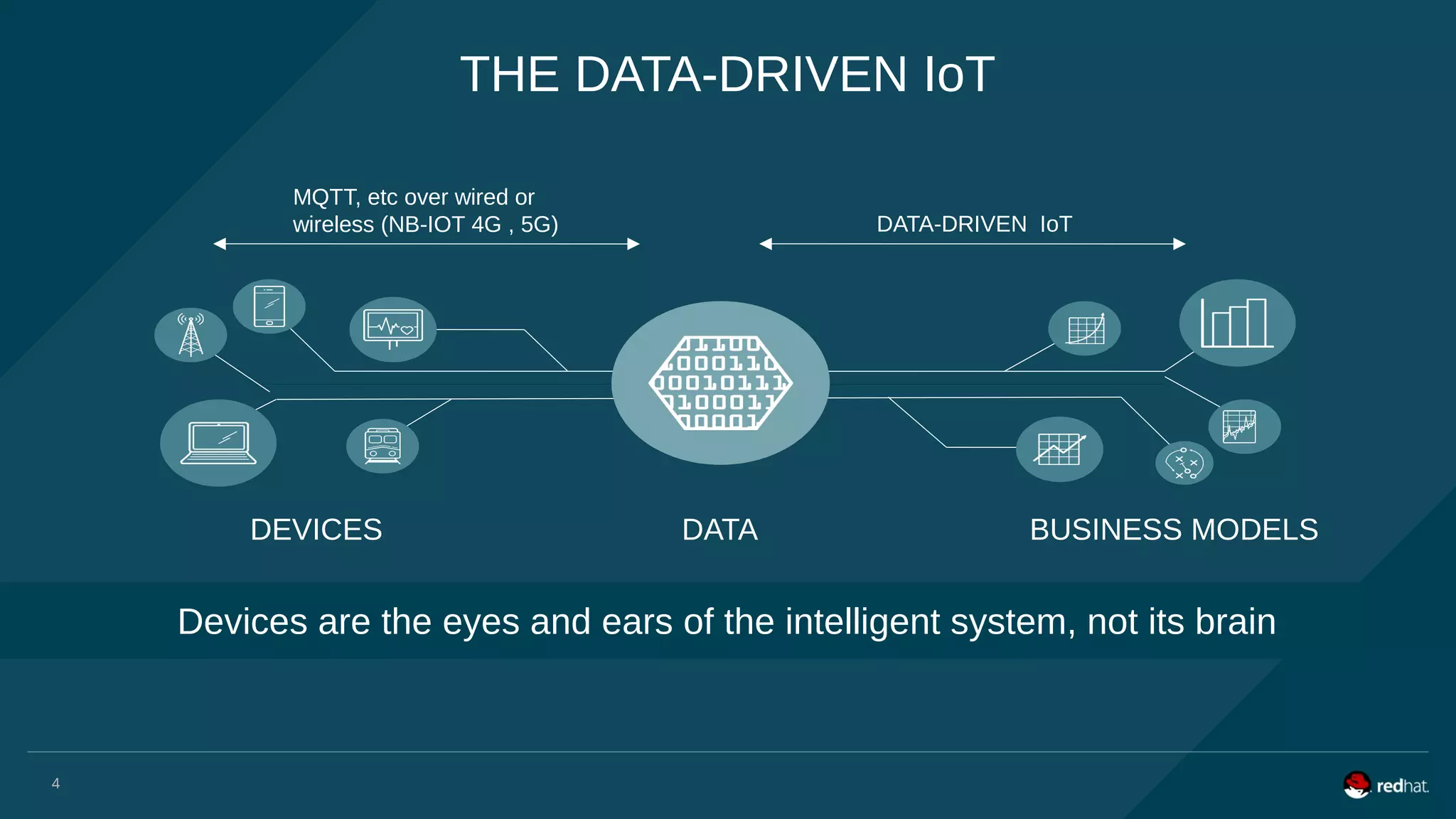

4. 4
Devices are the eyes and ears of the intelligent system, not its brain
THE DATA-DRIVEN IoT
DEVICES DATA BUSINESS MODELS
MQTT, etc over wired or
wireless (NB-IOT 4G , 5G) DATA-DRIVEN IoT

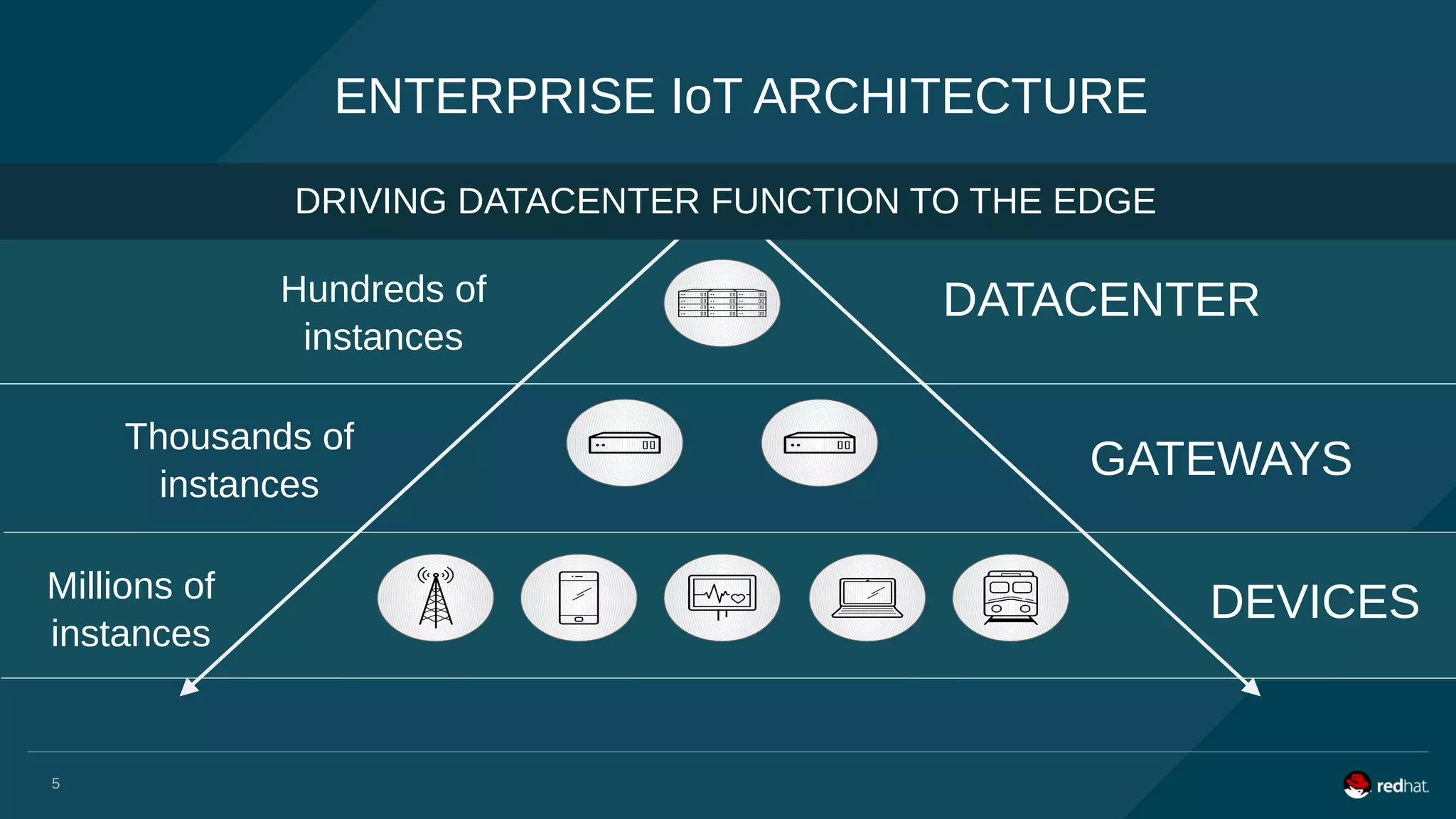

5. ENTERPRISE IoT ARCHITECTURE
DEVICES
GATEWAYS
DATACENTER
DRIVING DATACENTER FUNCTION TO THE EDGE
5
Millions of
instances
Thousands of
instances
Hundreds of
instances

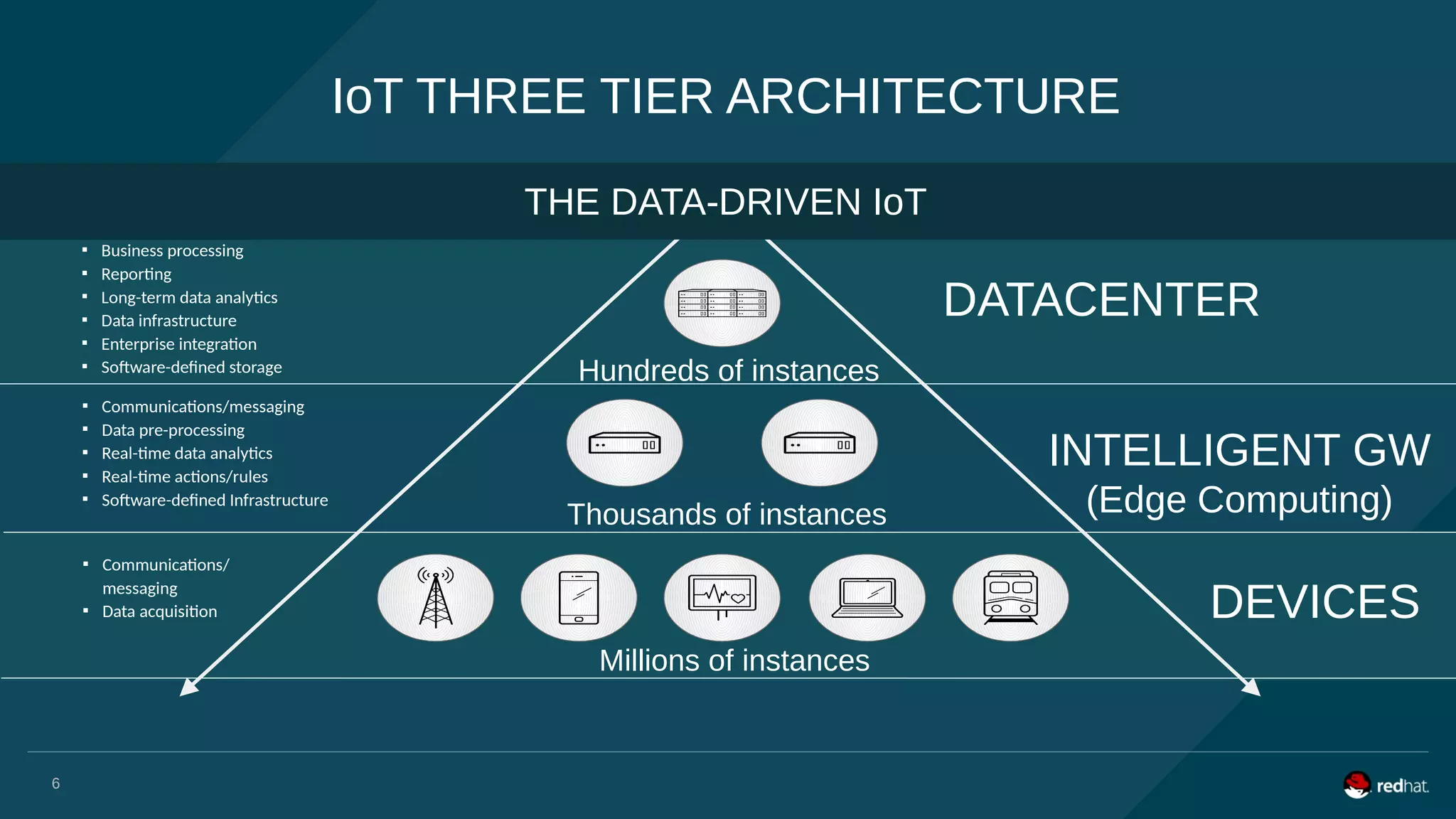

6. IoT THREE TIER ARCHITECTURE
DEVICES
DATACENTER

Business processing

Reporting

Long-term data analytics

Data infrastructure

Enterprise integration

Software-defined storage

Communications/messaging

Data pre-processing

Real-time data analytics

Real-time actions/rules

Software-defined Infrastructure

Communications/
messaging

Data acquisition
THE DATA-DRIVEN IoT
6
Millions of instances
Thousands of instances
Hundreds of instances
INTELLIGENT GW
(Edge Computing)

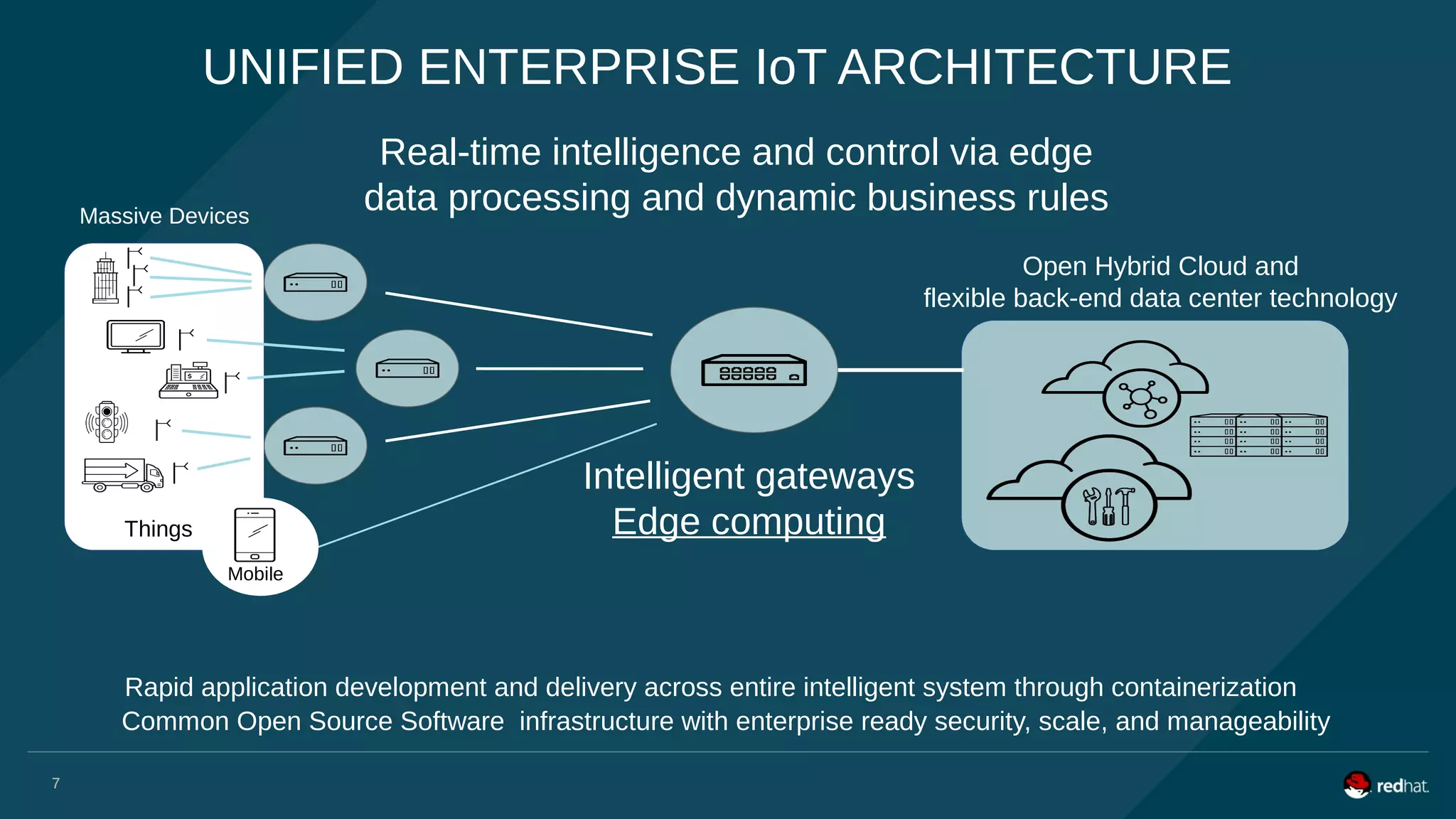

7. 7
UNIFIED ENTERPRISE IoT ARCHITECTURE
Open Hybrid Cloud and
flexible back-end data center technology
Real-time intelligence and control via edge
data processing and dynamic business rules
Rapid application development and delivery across entire intelligent system through containerization
Common Open Source Software infrastructure with enterprise ready security, scale, and manageability
Mobile
Things
Intelligent gateways
Edge computing
7
Massive Devices

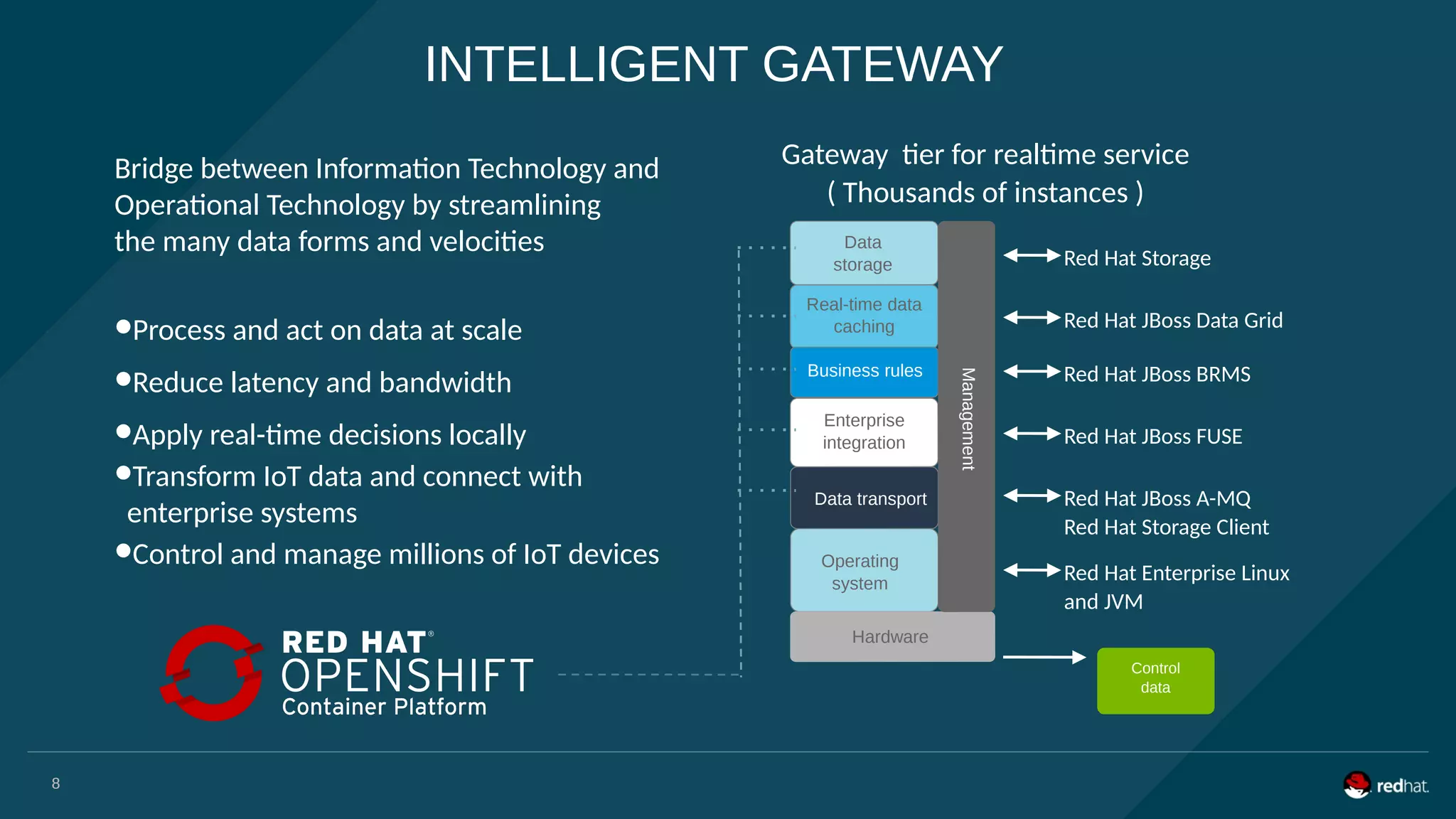

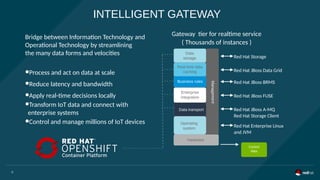

8. 8
INTELLIGENT GATEWAY
Bridge between Information Technology and
Operational Technology by streamlining
the many data forms and velocities
●Process and act on data at scale
●Reduce latency and bandwidth
●Apply real-time decisions locally
●Transform IoT data and connect with
enterprise systems
●Control and manage millions of IoT devices
Data
storage
Real-time data
caching
Business rules
Enterprise
integration
Data transport
Operating
system
Hardware
Management
Red Hat Storage
Red Hat JBoss Data Grid
Red Hat JBoss BRMS
Red Hat JBoss FUSE
Red Hat JBoss A-MQ
Red Hat Storage Client
Red Hat Enterprise Linux
and JVM
Control
data
Gateway tier for realtime service
( Thousands of instances )
8

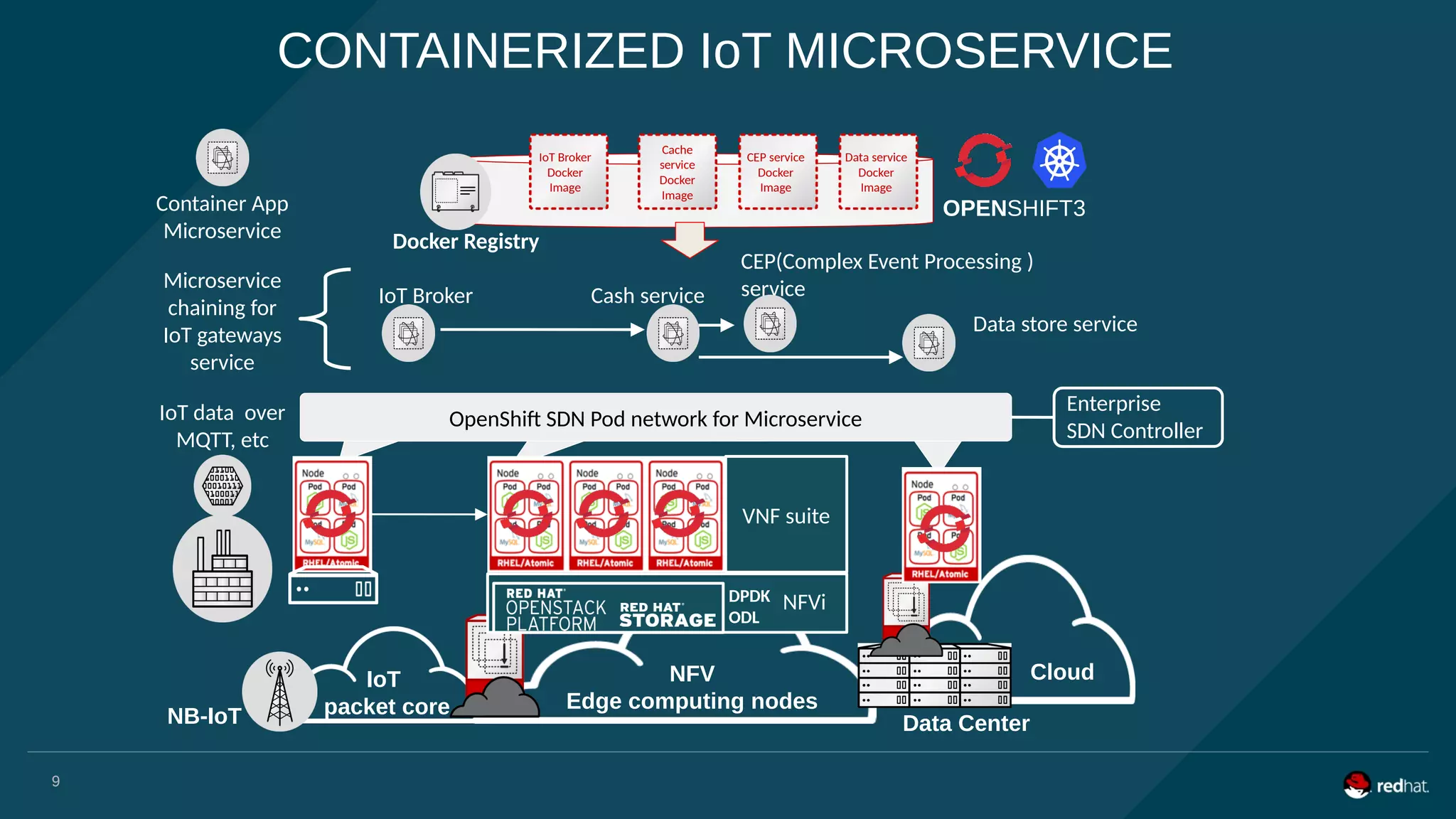

9. CONTAINERIZED IoT MICROSERVICE
9
VNF suite
IoT data over
MQTT, etc
Data Center
Cloud
DPDK
ODL
NFVi
IoT Broker Cash service
Data store service
Docker Registry
CEP(Complex Event Processing )
service
OPENSHIFT3
IoT Broker
Docker
Cache
service
Docker
CEP service
Docker
Data service
Docker
OpenShift SDN Pod network for Microservice
Enterprise
SDN Controller
Container App
Microservice
Microservice
chaining for
IoT gateways
service
NFV
Edge computing nodes
IoT
packet coreNB-IoT

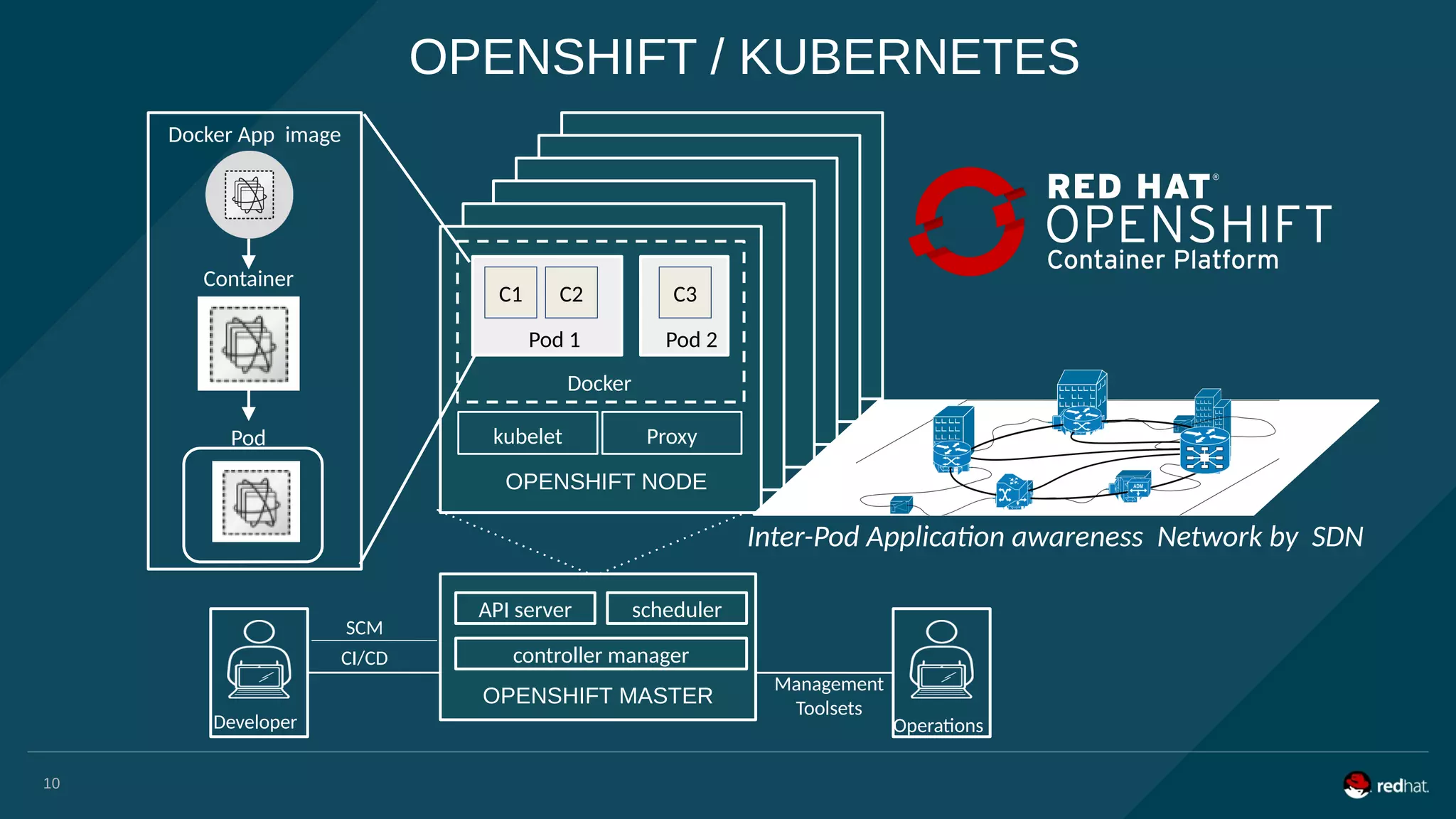

10. OPENSHIFT / KUBERNETES
Docker App image
Container
Pod
Inter-Pod Application awareness Network by SDN
Pod 2
C3
Docker
kubelet Proxy
OPENSHIFT NODE
API server scheduler
controller manager
OPENSHIFT MASTER
10
C1 C2
Pod 1
Developer Operations
Management
Toolsets
CI/CD
SCM

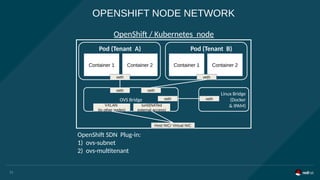

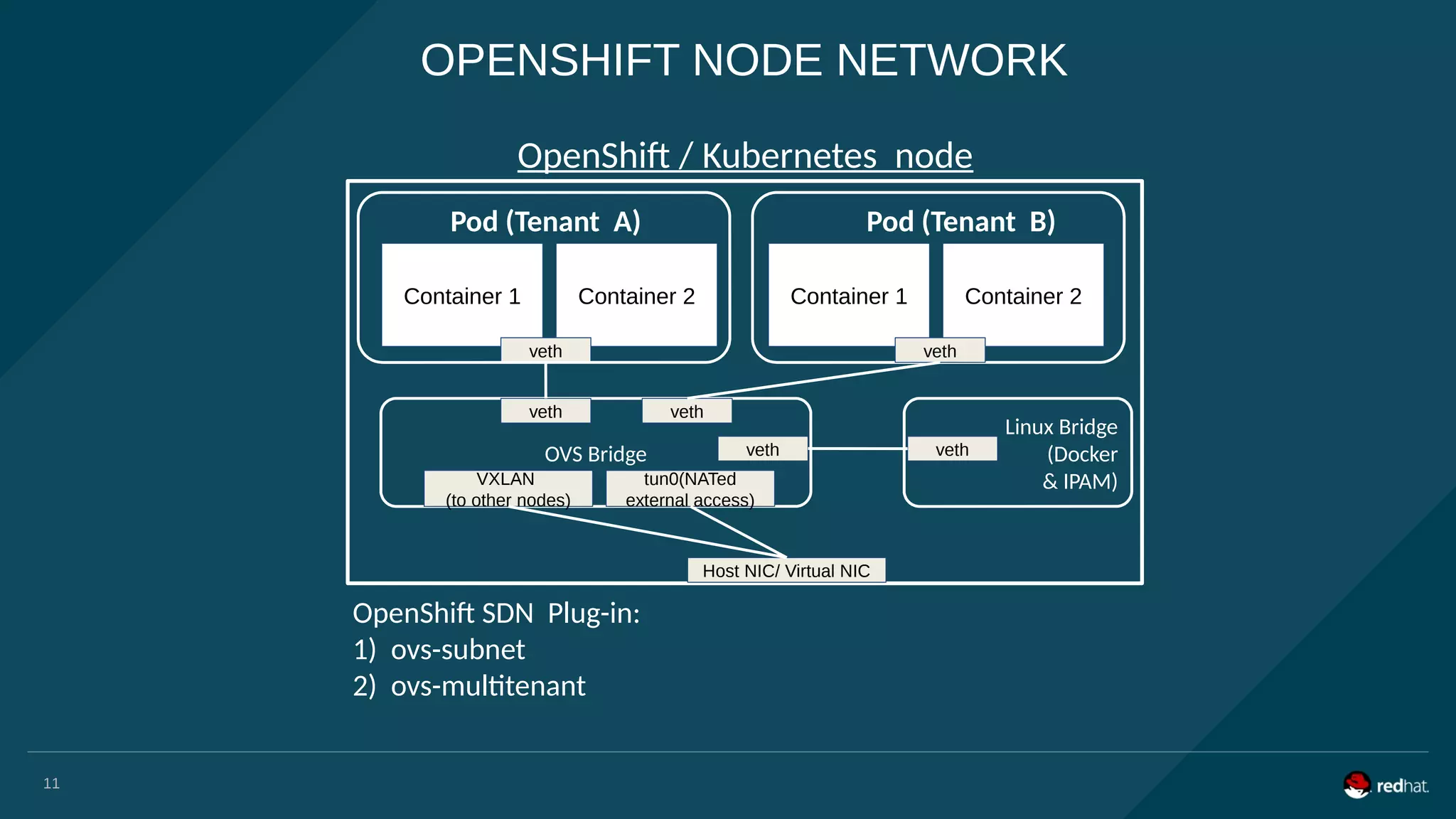

11. OVS Bridge
OPENSHIFT NODE NETWORK
Container 1 Container 2
veth
Pod (Tenant A)
Container 1 Container 2
Pod (Tenant B)
veth
veth
veth
veth
tun0(NATed
external access)
VXLAN
(to other nodes)
Linux Bridge
(Docker
& IPAM)
veth
Host NIC/ Virtual NIC
OpenShift / Kubernetes node
OpenShift SDN Plug-in:
1) ovs-subnet
2) ovs-multitenant
11

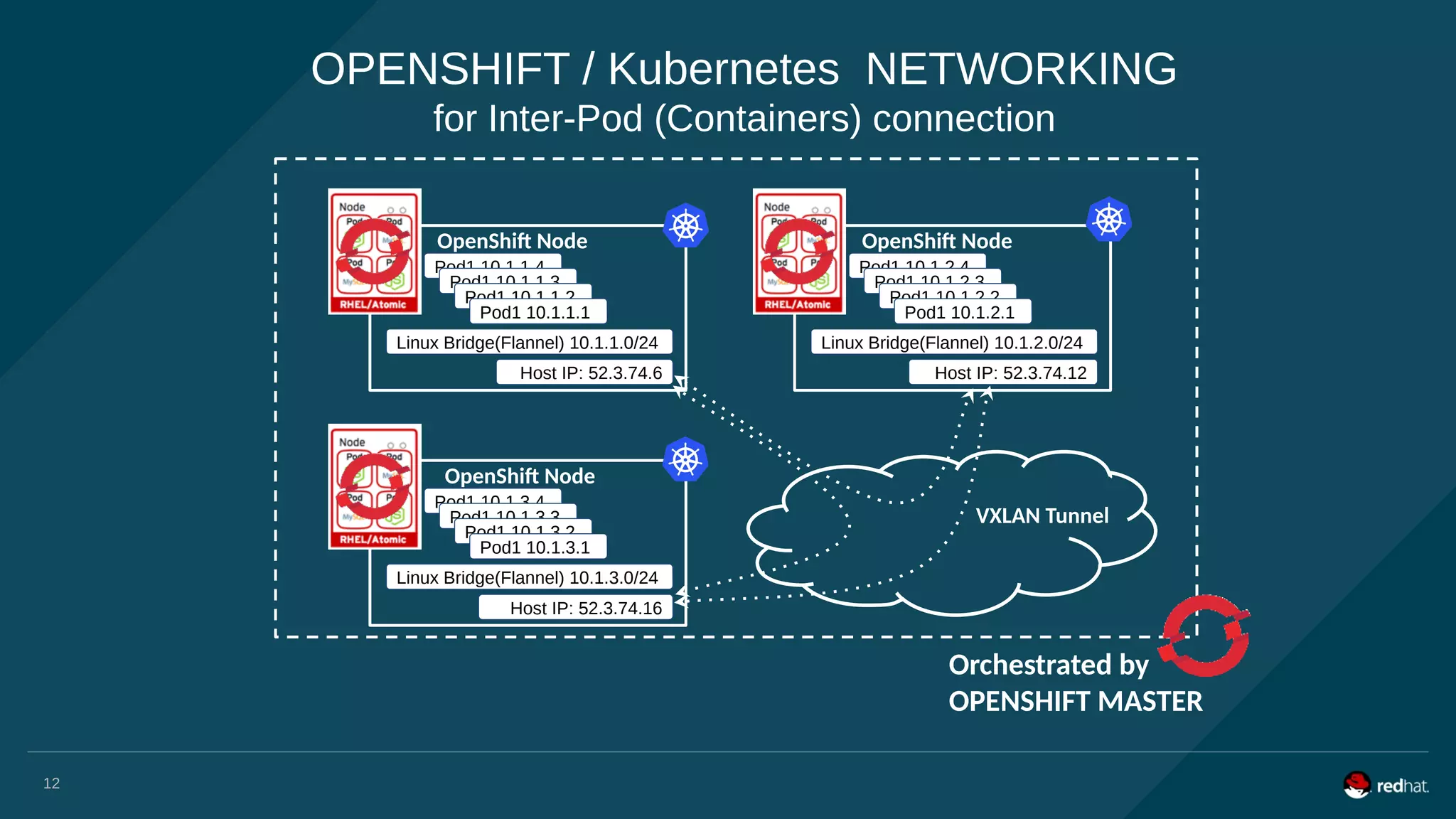

12. OPENSHIFT / Kubernetes NETWORKING
for Inter-Pod (Containers) connection
Pod1 10.1.1.4
Pod1 10.1.1.3
Pod1 10.1.1.2
Pod1 10.1.1.1
Linux Bridge(Flannel) 10.1.1.0/24
Host IP: 52.3.74.6
OpenShift Node
Pod1 10.1.3.4
Pod1 10.1.3.3
Pod1 10.1.3.2
Pod1 10.1.3.1
Linux Bridge(Flannel) 10.1.3.0/24
Host IP: 52.3.74.16
OpenShift Node
Pod1 10.1.2.4
Pod1 10.1.2.3
Pod1 10.1.2.2
Pod1 10.1.2.1
Linux Bridge(Flannel) 10.1.2.0/24
Host IP: 52.3.74.12
OpenShift Node
VXLAN Tunnel
Orchestrated by
OPENSHIFT MASTER
12

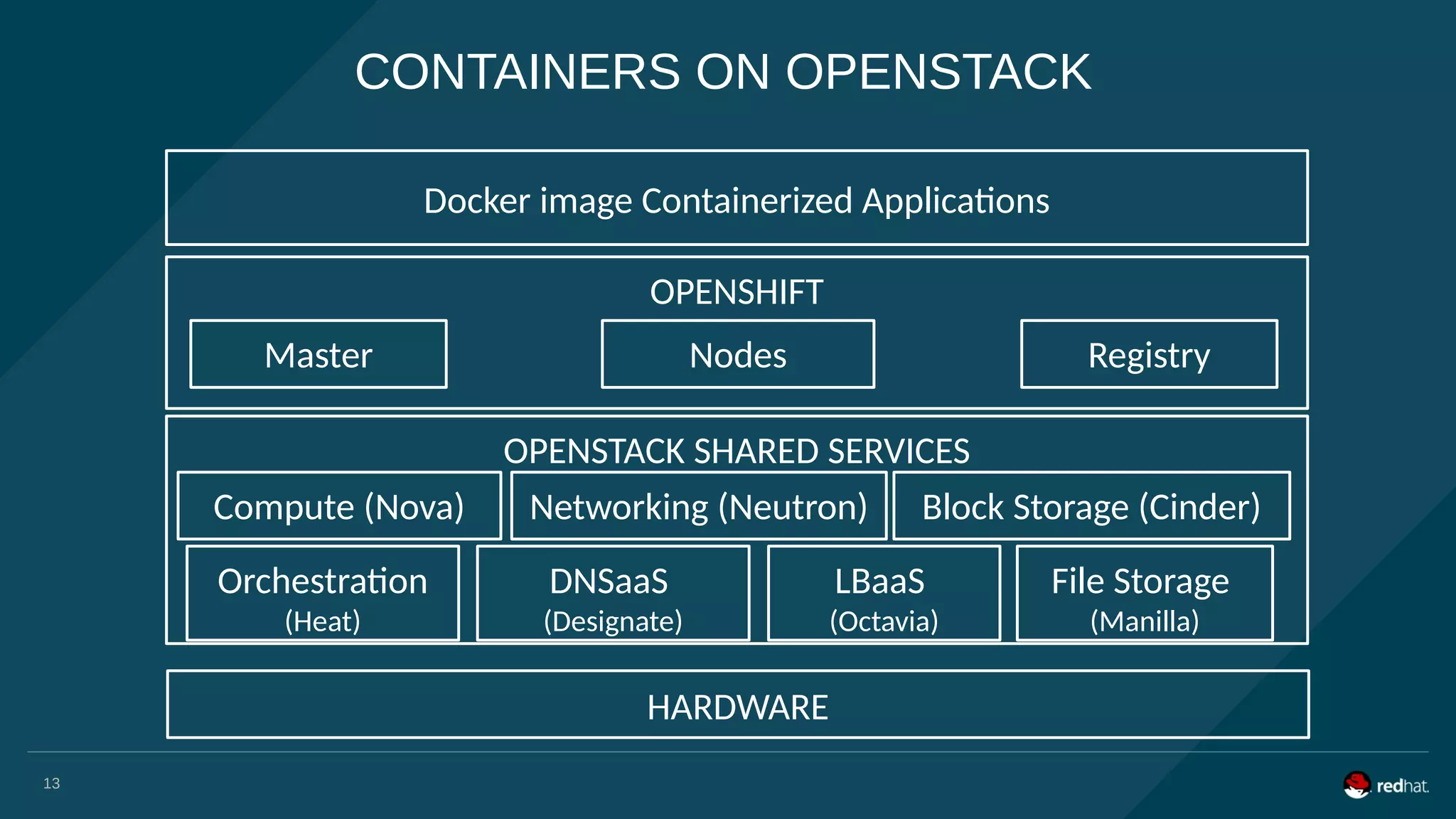

13. CONTAINERS ON OPENSTACK
Docker image Containerized Applications
OPENSHIFT
Master Nodes Registry
OPENSTACK SHARED SERVICES
LBaaS
(Octavia)
DNSaaS
(Designate)
Orchestration
(Heat)
Compute (Nova) Networking (Neutron) Block Storage (Cinder)
File Storage
(Manilla)
HARDWARE
13

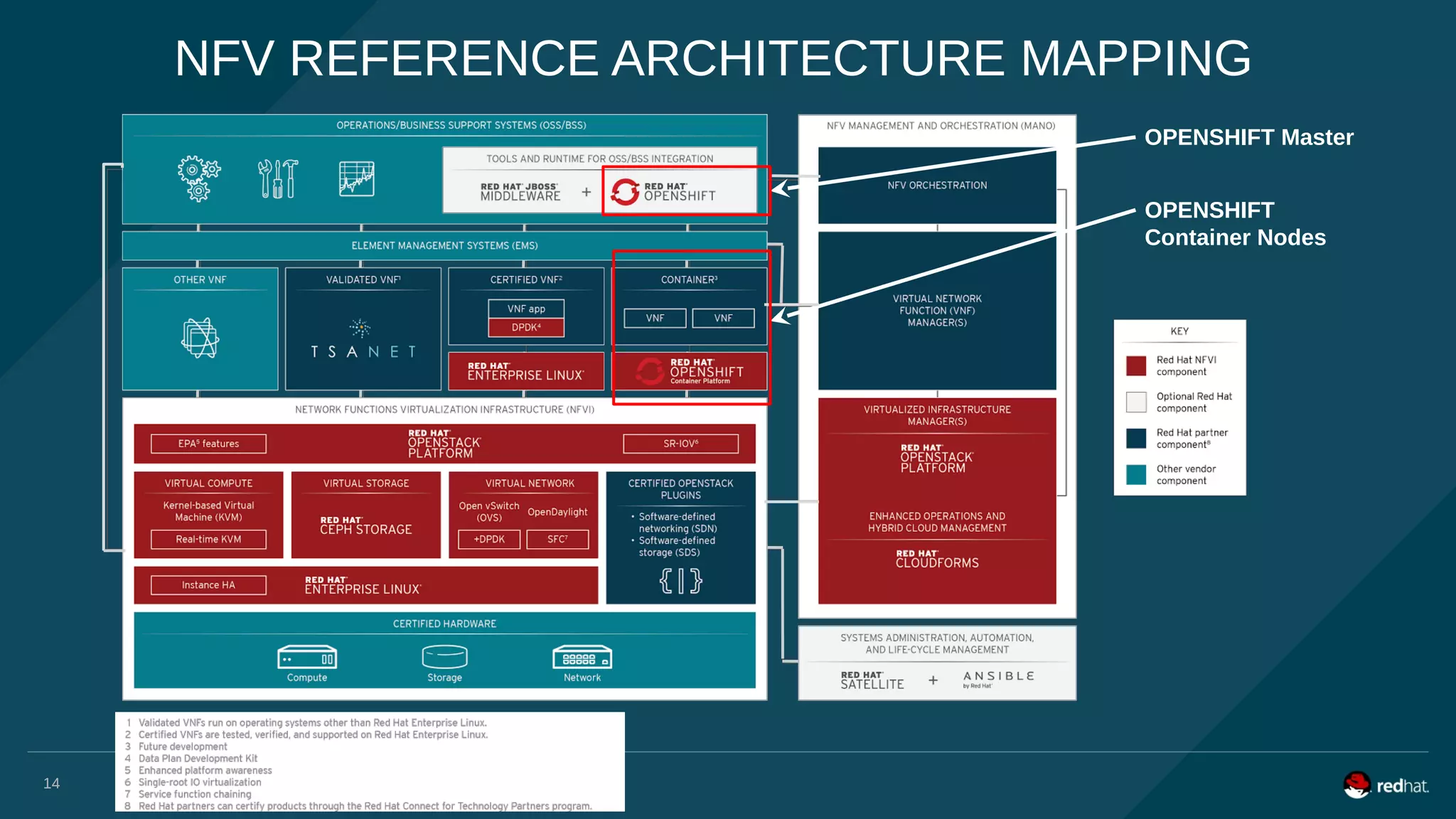

14. NFV REFERENCE ARCHITECTURE MAPPING
OPENSHIFT Master
OPENSHIFT
Container Nodes
14

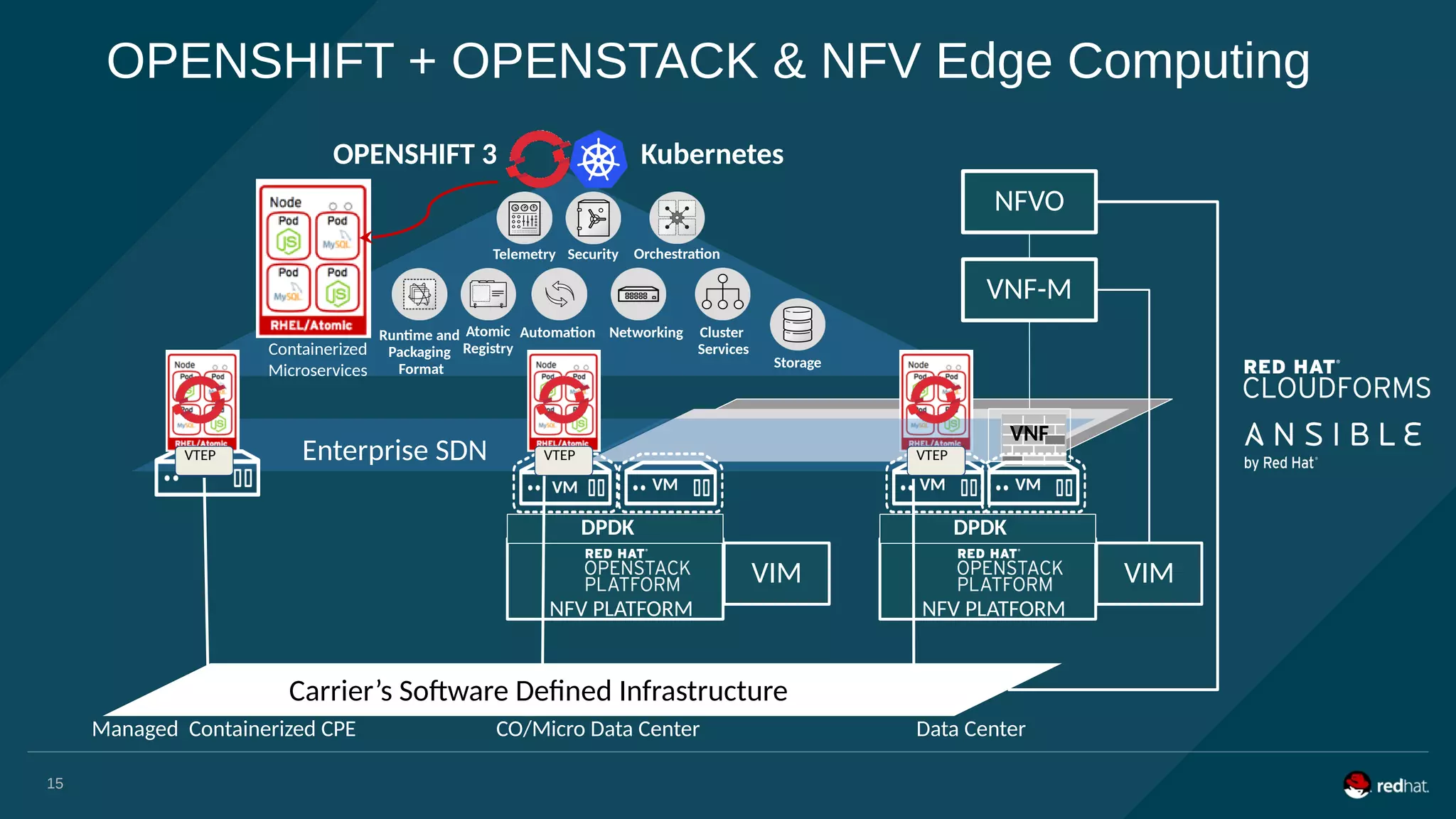

15. OPENSHIFT + OPENSTACK & NFV Edge Computing
VM
VNF
Runtime and
Packaging
Format
Orchestration
Cluster
Services
Telemetry
Networking
Security
AutomationAtomic
Registry
Storage
Enterprise SDN
DPDK DPDK
KubernetesOPENSHIFT 3
Managed Containerized CPE CO/Micro Data Center Data Center
VXLAN tunneling
VTEP
VMVMVM
Carrier’s Software Defined Infrastructure
NFV PLATFORM
VIM
NFV PLATFORM
VTEP
VIM
VTEP
NFVO
15
Containerized
Microservices
VNF-M

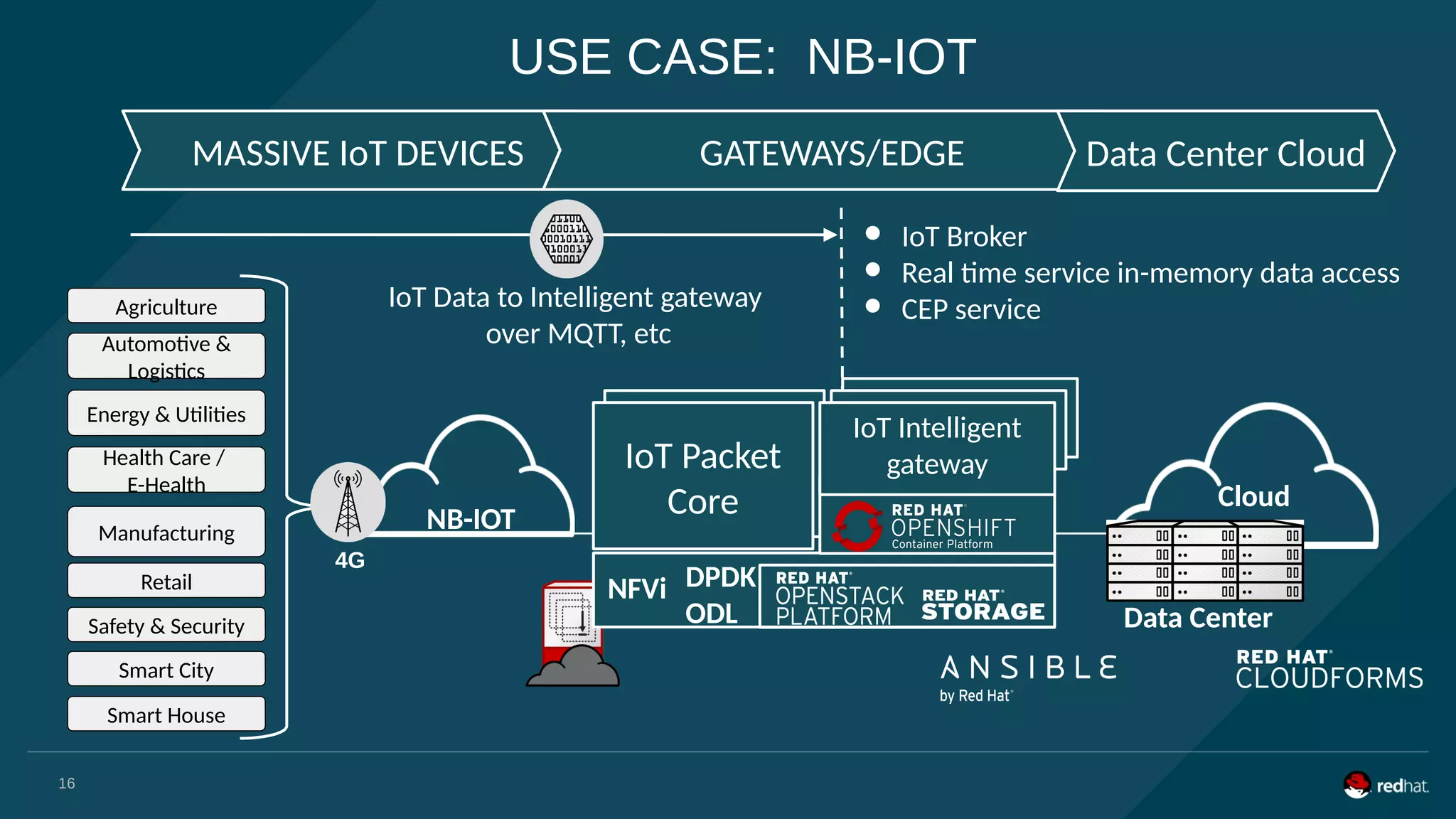

16. USE CASE: NB-IOT
Data Center
DPDK
ODL
NFVi
NB-IOT
IoT Intelligent gateway
IoT Intelligent gateway
IoT Packet Core
Cloud
4G
IoT Packet
Core
MASSIVE IoT DEVICES GATEWAYS/EDGE Data Center Cloud
IoT Data to Intelligent gateway
over MQTT, etc
IoT Intelligent
gateway
● IoT Broker
● Real time service in-memory data access
● CEP service
16
Agriculture
Automotive &
Logistics
Energy & Utilities
Health Care /
E-Health
Manufacturing
Retail
Safety & Security
Smart City
Smart House

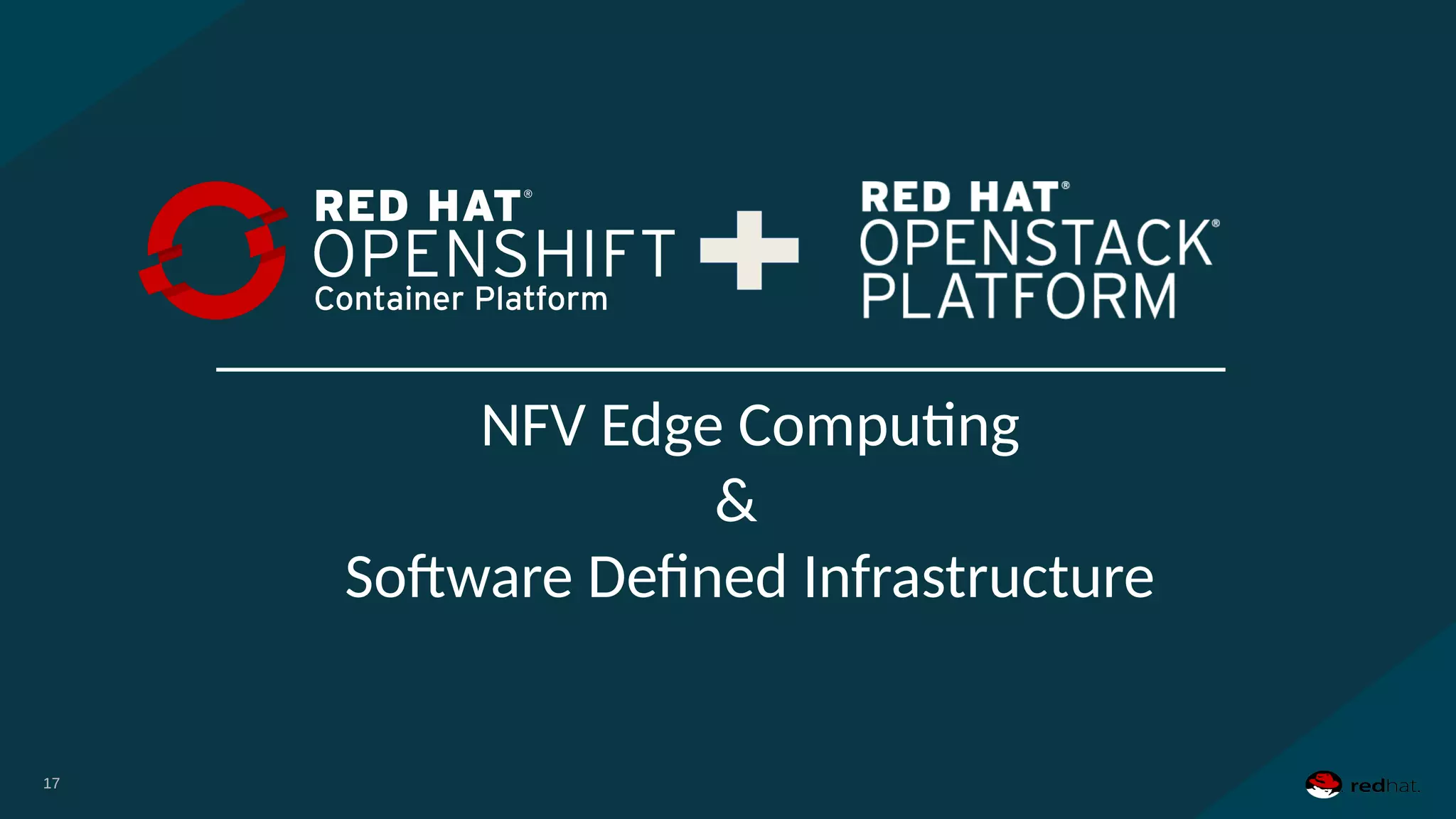

17. 1717
NFV Edge Computing
&
Software Defined Infrastructure
17

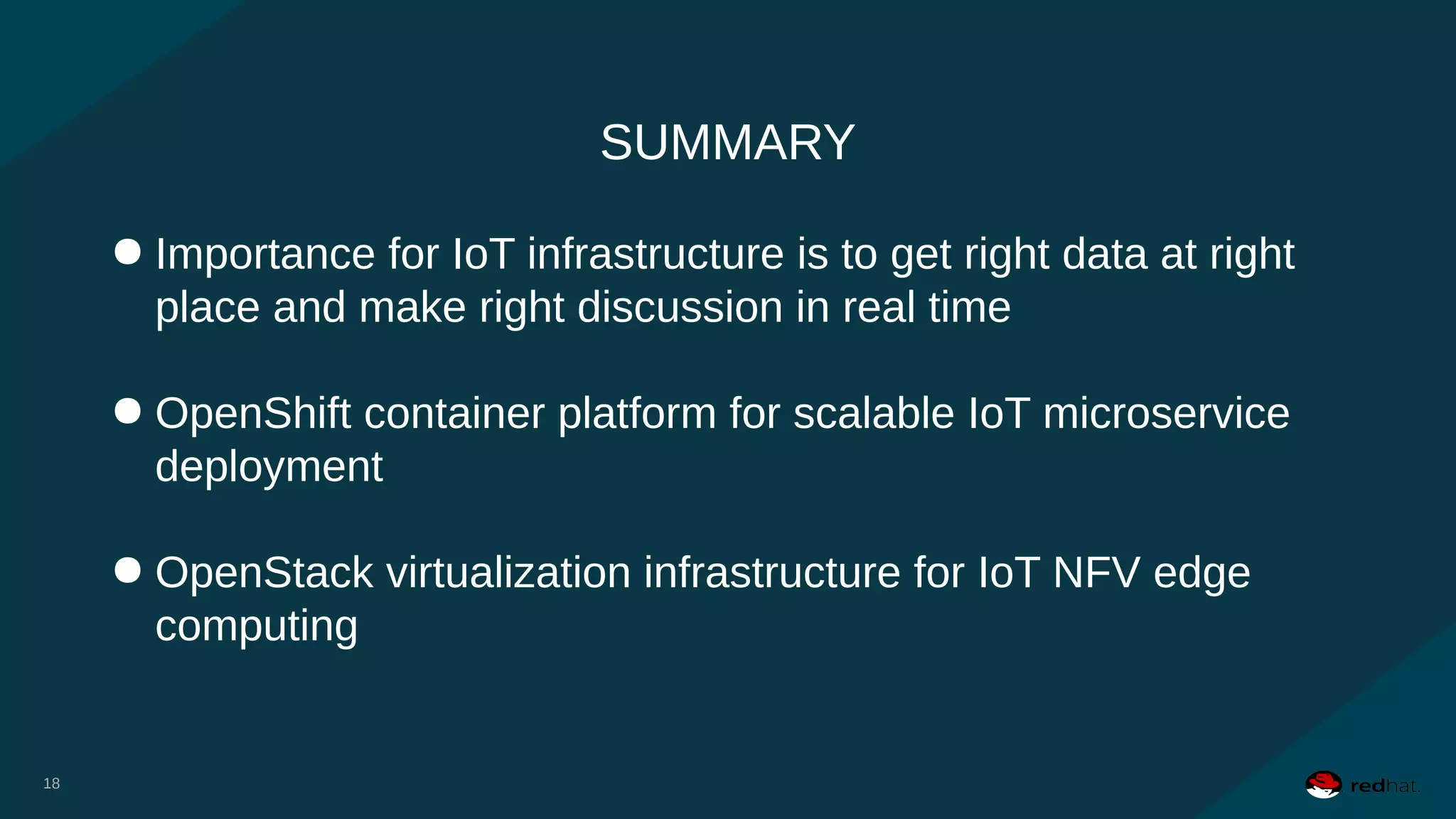

18. SUMMARY
18
● Importance for IoT infrastructure is to get right data at right
place and make right discussion in real time
● OpenShift container platform for scalable IoT microservice
deployment
● OpenStack virtualization infrastructure for IoT NFV edge
computing
18

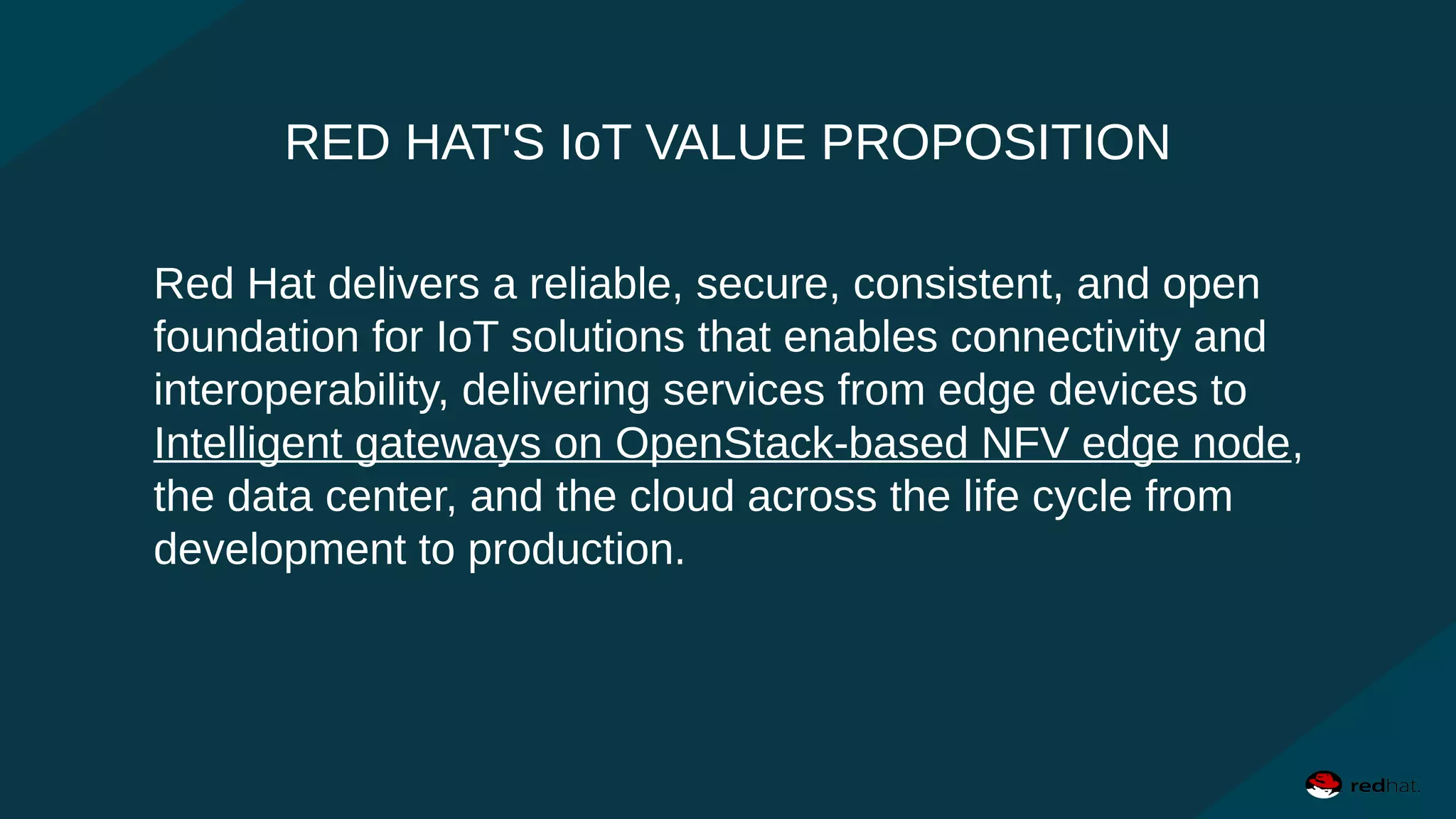

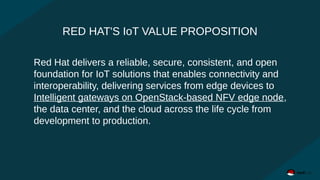

19. RED HAT'S IoT VALUE PROPOSITION
Red Hat delivers a reliable, secure, consistent, and open
foundation for IoT solutions that enables connectivity and
interoperability, delivering services from edge devices to
Intelligent gateways on OpenStack-based NFV edge node,
the data center, and the cloud across the life cycle from
development to production.

20. THANK YOU!
Hyde SUGIYAMA
Senior Principal Technologist - NFV | SDN | ICT
Red Hat APAC Office of Technology
