1. Enabling Grids for E-sciencE
Grid Security
Emidio Giorgio
INFN Catania
emidio.giorgio "at" ct.infn.it
With thanks for some slides to EGEE and Globus, UNICORE
colleagues
www.eu-egee.org
INFSO-RI-508833
lunedì 6 luglio 2009 1

2. What is Grid security?
Enabling Grids for E-sciencE
• Why security is needed on Grids ?
The Grid problem is to enable
“coordinated resource sharing
and problem solving in dynamic,
multi-institutional virtual
organizations.”
From ”The Anatomy of the Grid” by Ian Foster at. al
• Grid intrinsically enables VO concept
• What is needed in terms of security for
a VO ?
INFSO-RI-508833 2
lunedì 6 luglio 2009 2

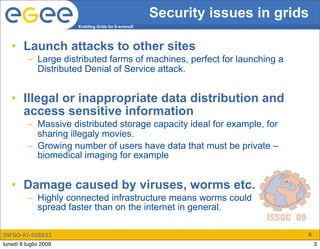

3. Security issues in grids
Enabling Grids for E-sciencE
• Launch attacks to other sites
– Large distributed farms of machines, perfect for launching a
Distributed Denial of Service attack.
• Illegal or inappropriate data distribution and
access sensitive information
– Massive distributed storage capacity ideal for example, for
sharing illegaly movies.
– Growing number of users have data that must be private –
biomedical imaging for example
• Damage caused by viruses, worms etc.
– Highly connected infrastructure means worms could
spread faster than on the internet in general.
INFSO-RI-508833 6
lunedì 6 luglio 2009 3

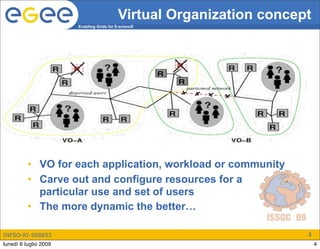

4. Virtual Organization concept
Enabling Grids for E-sciencE
• VO for each application, workload or community
• Carve out and configure resources for a
particular use and set of users
• The more dynamic the better…
INFSO-RI-508833 3
lunedì 6 luglio 2009 4

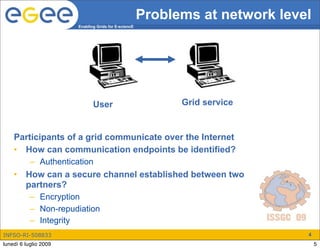

5. Problems at network level
Enabling Grids for E-sciencE
User Grid service
Participants of a grid communicate over the Internet
• How can communication endpoints be identified?
– Authentication
• How can a secure channel established between two
partners?
– Encryption
– Non-repudiation
– Integrity
INFSO-RI-508833 4
lunedì 6 luglio 2009 5

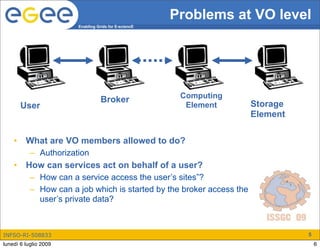

6. Problems at VO level
Enabling Grids for E-sciencE
Computing
Broker
User Element Storage
Element
• What are VO members allowed to do?
– Authorization
• How can services act on behalf of a user?
– How can a service access the user’s sites”?
– How can a job which is started by the broker access the
user’s private data?
INFSO-RI-508833 5
lunedì 6 luglio 2009 6

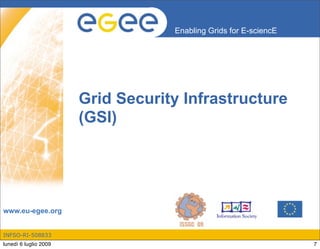

7. Enabling Grids for E-sciencE
Grid Security Infrastructure
(GSI)
www.eu-egee.org
INFSO-RI-508833
lunedì 6 luglio 2009 7

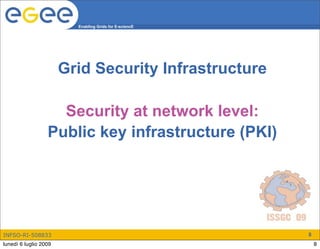

8. Enabling Grids for E-sciencE
Grid Security Infrastructure
Security at network level:
Public key infrastructure (PKI)
INFSO-RI-508833 8
lunedì 6 luglio 2009 8

9. Basis of security & authentication
Enabling Grids for E-sciencE
• Asymmetric encryption…
Clear text Encrypted Clear text
message text message
Private Key Public Key
• …. and Digital signatures …
– A hash derived from the message and encrypted with the signer’s
private key
– Signature is checked by decrypting with the signer’s public key
• Are used to build trust
– That a user / site is who they say they are
– And can be trusted to act in accord with agreed
policies
INFSO-RI-508833 9
lunedì 6 luglio 2009 9

10. Basis of Public Key Infrastructure
Enabling Grids for E-sciencE
• Every networked entity (user/
machine/software) is assigned
with two keys: one private key
and one public key
Paul’s keys
– it is impossible to derive the
private key from the public one
– a message encrypted by one
key can be decrypted only by
the other one. public private
• Concept (simplified version): John Paul
– Public keys are exchanged
ciao 3$r 3$r ciao
– The sender encrypts using
receiver’s public key
John Paul
– The receiver decrypts using
his/her private key; bye %i4 %i4 bye
INFSO-RI-508833 10
lunedì 6 luglio 2009 10

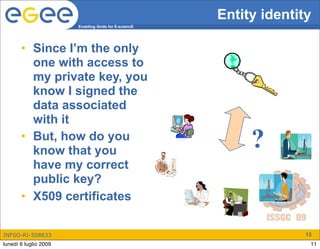

11. Entity identity
Enabling Grids for E-sciencE
• Since I’m the only
one with access to
my private key, you
know I signed the
data associated
with it
• But, how do you
know that you
?
have my correct
public key?
• X509 certificates
INFSO-RI-508833 13
lunedì 6 luglio 2009 11

12. Public and private keys
Enabling Grids for E-sciencE
• Public key is wrapped into a • Private key is stored in
“certificate file” encrypted file – protected by a
• Certificate files are created by passphrase
trusted third parties: Grid • Private key is created by the
Certification Authorities (CA) grid user
Certificate
Public key
Subject:/C=IT/O=INFN/OU=Personal
Certificate/L=Catania/CN=Emidio
Giorgio 1. Hash of Public key & metadata,
Issuer: C=IT, O=INFN, OU=Catania,
2. Encript hash with CA’s private
CN=INFN CA key
Expiration date: Mar 05 08:08:10 2008
GMT
Serial number: 9504 (0x2520)
Optional Extensions
CA Digital signature
INFSO-RI-508833 14
lunedì 6 luglio 2009 12

13. Certification Authorities
Enabling Grids for E-sciencE
INFSO-RI-508833 16
lunedì 6 luglio 2009 13

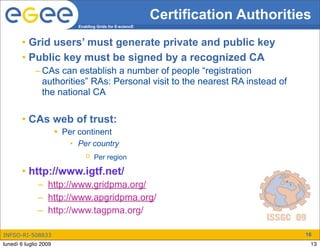

14. Certification Authorities
Enabling Grids for E-sciencE
• Grid users’ must generate private and public key
• Public key must be signed by a recognized CA
– CAs can establish a number of people “registration
authorities” RAs: Personal visit to the nearest RA instead of
the national CA
• CAs web of trust:
 Per continent
• Per country
o Per region
• http://www.igtf.net/
– http://www.gridpma.org/
– http://www.apgridpma.org/
– http://www.tagpma.org/
INFSO-RI-508833 16
lunedì 6 luglio 2009 13

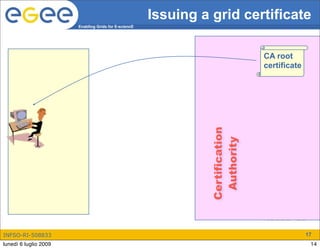

15. Issuing a grid certificate
Enabling Grids for E-sciencE
CA root
certificate
Certification
INFSO-RI-508833 Authority 17
lunedì 6 luglio 2009 14

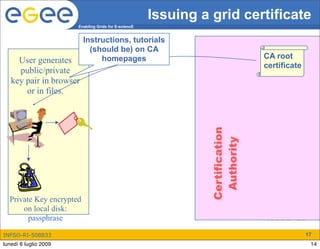

16. Issuing a grid certificate
Enabling Grids for E-sciencE
Instructions, tutorials
(should be) on CA
homepages CA root
User generates
certificate
public/private
key pair in browser
or in files.
Certification
Authority
Private Key encrypted
on local disk:
passphrase
INFSO-RI-508833 17
lunedì 6 luglio 2009 14

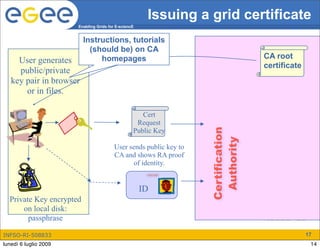

17. Issuing a grid certificate
Enabling Grids for E-sciencE
Instructions, tutorials
(should be) on CA
homepages CA root
User generates
certificate
public/private
key pair in browser
or in files.
Cert
Request
Public Key
Certification
Authority
User sends public key to
CA and shows RA proof
of identity.
State of Illinois
ID
Private Key encrypted
on local disk:
passphrase
INFSO-RI-508833 17
lunedì 6 luglio 2009 14

18. Issuing a grid certificate
Enabling Grids for E-sciencE
Instructions, tutorials
(should be) on CA
homepages CA root
User generates
certificate
public/private
key pair in browser
or in files. CA signature links
identity and public key in
certificate.
Cert
Request
CA informs user.
Public Key
Certification
Authority
User sends public key to
CA and shows RA proof
of identity.
State of Illinois
ID
Private Key encrypted
on local disk:
passphrase
INFSO-RI-508833 17
lunedì 6 luglio 2009 14

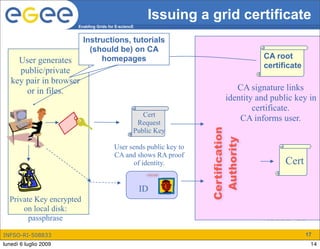

19. Issuing a grid certificate
Enabling Grids for E-sciencE
Instructions, tutorials
(should be) on CA
homepages CA root
User generates
certificate
public/private
key pair in browser
or in files. CA signature links
identity and public key in
certificate.
Cert
Request
CA informs user.
Public Key
Certification
Authority
User sends public key to
CA and shows RA proof
of identity. Cert
State of Illinois
ID
Private Key encrypted
on local disk:
passphrase
INFSO-RI-508833 17
lunedì 6 luglio 2009 14

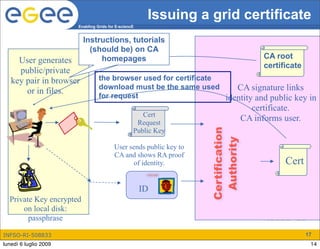

20. Issuing a grid certificate
Enabling Grids for E-sciencE
Instructions, tutorials
(should be) on CA
homepages CA root
User generates
certificate
public/private
key pair in browser the browser used for certificate
or in files. download must be the same used CA signature links
for request identity and public key in
certificate.
Cert
Request
CA informs user.
Public Key
Certification
Authority
User sends public key to
CA and shows RA proof
of identity. Cert
State of Illinois
ID
Private Key encrypted
on local disk:
passphrase
INFSO-RI-508833 17
lunedì 6 luglio 2009 14

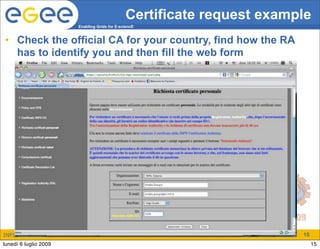

21. Certificate request example
Enabling Grids for E-sciencE
• Check the official CA for your country, find how the RA
has to identify you and then fill the web form
INFSO-RI-508833 15
lunedì 6 luglio 2009 15

22. Certificate request example/2
Enabling Grids for E-sciencE
After a couple of
working days, an
email is sent to
the user with the
URL where to
download the
certificate
The browser
used for the
certificate
download must
be the same used
for request
INFSO-RI-508833 16
lunedì 6 luglio 2009 16

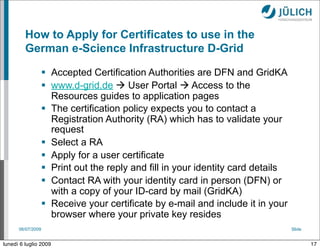

23. How to Apply for Certificates to use in the
German e-Science Infrastructure D-Grid
 Accepted Certification Authorities are DFN and GridKA
 www.d-grid.de  User Portal  Access to the
Resources guides to application pages
 The certification policy expects you to contact a
Registration Authority (RA) which has to validate your
request
 Select a RA
 Apply for a user certificate
 Print out the reply and fill in your identity card details
 Contact RA with your identity card in person (DFN) or
with a copy of your ID-card by mail (GridKA)
 Receive your certificate by e-mail and include it in your
browser where your private key resides
06/07/2009 Slide
lunedì 6 luglio 2009 17

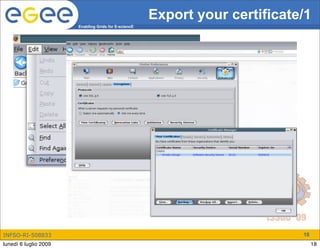

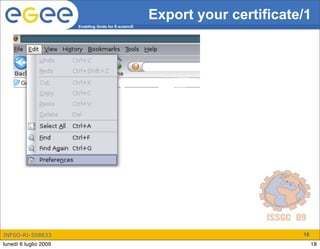

24. Export your certificate/1
Enabling Grids for E-sciencE
INFSO-RI-508833 18
lunedì 6 luglio 2009 18

25. Export your certificate/1
Enabling Grids for E-sciencE
INFSO-RI-508833 18
lunedì 6 luglio 2009 18

26. Export your certificate/1
Enabling Grids for E-sciencE
INFSO-RI-508833 18
lunedì 6 luglio 2009 18

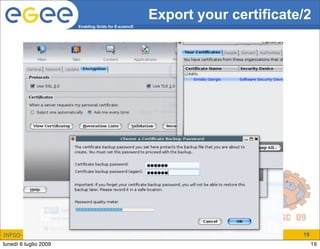

27. Export your certificate/2
Enabling Grids for E-sciencE
INFSO-RI-508833 19
lunedì 6 luglio 2009 19

28. Export on different formats
Enabling Grids for E-sciencE
• Certificate is released in PKCS12 format, but other
middleware may need a different one
griduser@gridx:~/.globus$ openssl pkcs12 -nocerts -in cert.p12 -
out userkey.pem
Enter Import Password: (insert your certificate password)
MAC verified OK
Enter PEM pass phrase: (insert your Enter PEM pass phrase)
Verifying - Enter PEM pass phrase: (reinsert your Enter PEM pass
phrase)
griduser@gridx:~/.globus$ openssl pkcs12 -clcerts -nokeys -in
cert.p12 -out usercert.pem
Enter Import Password: (insert your certificate password)
MAC verified OK
griduser@gridx:~/.globus$
griduser@gridx:~/.globus$ chmod 400 userkey.pem
griduser@gridx:~/.globus$ chmod 644 usercert.pem
INFSO-RI-508833 20
lunedì 6 luglio 2009 20

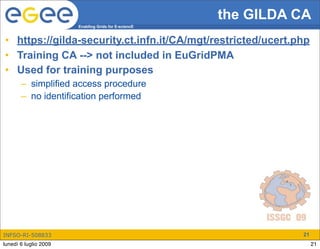

29. the GILDA CA
Enabling Grids for E-sciencE
• https://gilda-security.ct.infn.it/CA/mgt/restricted/ucert.php
• Training CA --> not included in EuGridPMA
• Used for training purposes
– simplified access procedure
– no identification performed
INFSO-RI-508833 21
lunedì 6 luglio 2009 21

30. the GILDA CA
Enabling Grids for E-sciencE
• https://gilda-security.ct.infn.it/CA/mgt/restricted/ucert.php
• Training CA --> not included in EuGridPMA
• Used for training purposes
– simplified access procedure
– no identification performed
INFSO-RI-508833 21
lunedì 6 luglio 2009 21

31. User’s private key and certificate
Enabling Grids for E-sciencE
• Keep your private key secure
– if possible on a USB drive only
• Do not loan your certificate to anyone
• Report to your CA if your certificate has been compromised.
• Private key and certificate can:
– Stored in your browser
– Stored in files using different file format (PEM, P12, …)
• Typical situation on Globus, gLite, ARC middleware based grids:
$ ls -l .globus
total 24
-rw-r--r-- 1 giorgio users 1806 Mar 3 2008 usercert.pem
-r-------- 1 giorgio users 1910 Mar 3 2008 userkey.pem
INFSO-RI-508833 18
lunedì 6 luglio 2009 22

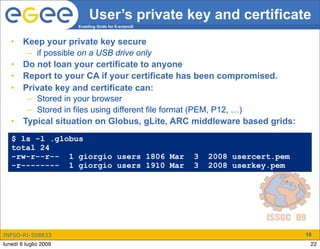

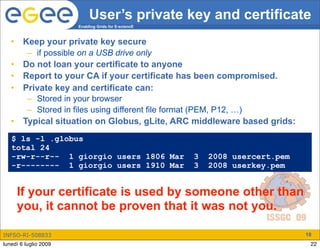

32. User’s private key and certificate
Enabling Grids for E-sciencE
• Keep your private key secure
– if possible on a USB drive only
• Do not loan your certificate to anyone
• Report to your CA if your certificate has been compromised.
• Private key and certificate can:
– Stored in your browser
– Stored in files using different file format (PEM, P12, …)
• Typical situation on Globus, gLite, ARC middleware based grids:
$ ls -l .globus
total 24
-rw-r--r-- 1 giorgio users 1806 Mar 3 2008 usercert.pem
-r-------- 1 giorgio users 1910 Mar 3 2008 userkey.pem
If your certificate is used by someone other than
you, it cannot be proven that it was not you.
INFSO-RI-508833 18
lunedì 6 luglio 2009 22

33. Problems at network level
Enabling Grids for E-sciencE
User Grid service
Members of a VO communicate over the Internet
• How can communication endpoints be identified?
– Authentication
• How can a secure channel established between two

partners?
– Encryption 
– Non-repudiation 
– Integrity

INFSO-RI-508833 19
lunedì 6 luglio 2009 23

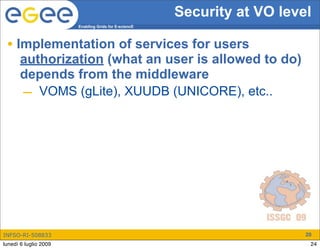

34. Security at VO level
Enabling Grids for E-sciencE
• Implementation of services for users
authorization (what an user is allowed to do)
depends from the middleware
– VOMS (gLite), XUUDB (UNICORE), etc..
INFSO-RI-508833 20
lunedì 6 luglio 2009 24

35. Enabling Grids for E-sciencE
Thank you!
Questions?
www.eu-egee.org
INFSO-RI-508833
lunedì 6 luglio 2009 25
