1. GridSAM Introduction & Practical
Steve Crouch, OMII-UK
s.crouch@omii.ac.uk
14/07/09
Web: www.omii.ac.uk Email: info@omii.ac.uk

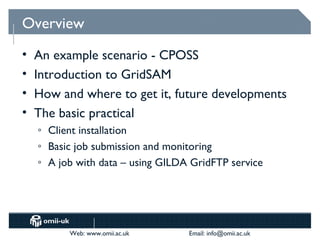

2. Overview
• An example scenario - CPOSS
• Introduction to GridSAM
• How and where to get it, future developments
• The basic practical
o Client installation
o Basic job submission and monitoring
o A job with data – using GILDA GridFTP service
Web: www.omii.ac.uk Email: info@omii.ac.uk

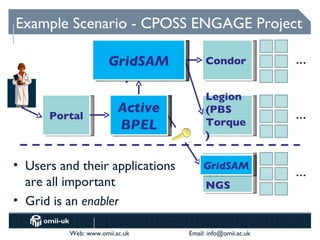

3. Example Scenario - CPOSS ENGAGE Project
Job
GridSAM
Management Condor …
System
Legion
Portal
Active
Workflo (PBS
…
w
BPEL Torque
)
• Users and their applications GridSAM
UK …
are all important NGS
• Grid is an enabler
Web: www.omii.ac.uk Email: info@omii.ac.uk

4. GridSAM Overview
• What is GridSAM to the resource owners?
o A Web Service to expose heterogeneous execution resources
uniformly
• Single machine through Forking or SSH
• Condor
• Portable Batch Scheduler (PBS)
• Platform Load Sharing Facility (LSF)
• Sun GridEngine
• Globus
o Acts as a client to these resources
• What is GridSAM to end-users?
o A set of end-user command-line tools and client-side APIs to
interact with GridSAM Web Services
• Submit, monitor and terminate compute jobs
• Cross-protocol file transfer (gsiftp, ftp, sftp, WebDav, http, https, soon SRB,
iRODS) via Commons-VFS (http://sourceforge.net/projects/commonsvfsgrid)
Web: www.omii.ac.uk Email: info@omii.ac.uk

5. GridSAM and OGF Open Standards
• Two key standards for two key elements:
o The Basic Execution Service interface (OGSA-BES)
• Handles basic job lifecycle management
• Defines simple (but extendable) job state model
– Pending, running, cancelled, failed or finished
o The Job Submission Description Language (JSDL)
• Specify job executable, data staging and resource requirements
• Partial support for (across some DRMs):
o HPC File Staging Profile – fine-grained security for data
staging
o JSDL Single Process Multiple Data (SPMD) Application
Extension
Web: www.omii.ac.uk Email: info@omii.ac.uk

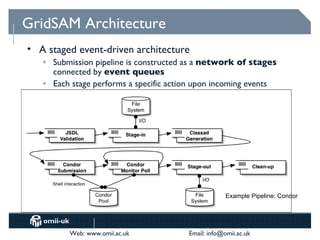

6. GridSAM Architecture
• A staged event-driven architecture
o Submission pipeline is constructed as a network of stages
connected by event queues
o Each stage performs a specific action upon incoming events
Example Pipeline: Condor
Web: www.omii.ac.uk Email: info@omii.ac.uk

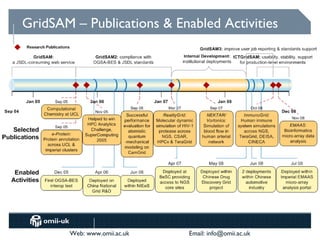

7. GridSAM – Publications & Enabled Activities
Web: www.omii.ac.uk Email: info@omii.ac.uk

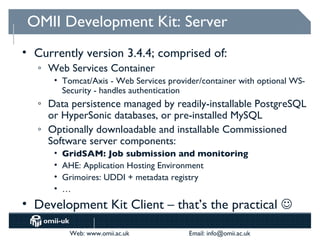

8. OMII Development Kit: Server
• Currently version 3.4.4; comprised of:
o Web Services Container
• Tomcat/Axis - Web Services provider/container with optional WS-
Security - handles authentication
o Data persistence managed by readily-installable PostgreSQL
or HyperSonic databases, or pre-installed MySQL
o Optionally downloadable and installable Commissioned
Software server components:
• GridSAM: Job submission and monitoring
• AHE: Application Hosting Environment
• Grimoires: UDDI + metadata registry
• …
• Development Kit Client – that’s the practical 
Web: www.omii.ac.uk Email: info@omii.ac.uk

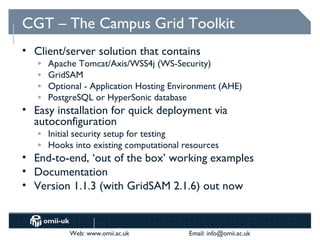

9. CGT – The Campus Grid Toolkit
• Client/server solution that contains
o Apache Tomcat/Axis/WSS4j (WS-Security)
o GridSAM
o Optional - Application Hosting Environment (AHE)
o PostgreSQL or HyperSonic database
• Easy installation for quick deployment via
autoconfiguration
o Initial security setup for testing
o Hooks into existing computational resources
• End-to-end, ‘out of the box’ working examples
• Documentation
• Version 1.1.3 (with GridSAM 2.1.6) out now
Web: www.omii.ac.uk Email: info@omii.ac.uk

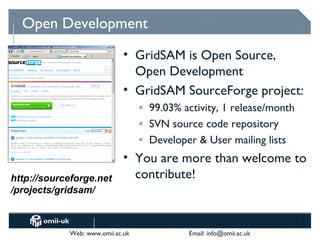

10. Open Development
• GridSAM is Open Source,
Open Development
• GridSAM SourceForge project:
o 99.03% activity, 1 release/month
o SVN source code repository
o Developer & User mailing lists
• You are more than welcome to
http://sourceforge.net contribute!
/projects/gridsam/
Web: www.omii.ac.uk Email: info@omii.ac.uk

11. Future Developments
• Consolidation, extensive testing towards public
2.2.0 release end-Q3 2009
o Stress testing, improvement of support for standards
• Deployable as a standalone, vanilla web service
• PBS-based deployment on NGS
• JSDL Parameter Sweep Extension
o Single job submission that parameterises inputs
• Policy-based brokering to other GridSAM instances
• Publication of roadmap by end-July for comment
and feedback
• ...what our users want!
Web: www.omii.ac.uk Email: info@omii.ac.uk

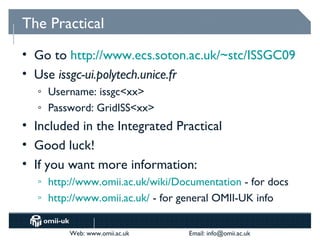

12. The Practical
• Go to http://www.ecs.soton.ac.uk/~stc/ISSGC09
• Use issgc-ui.polytech.unice.fr
o Username: issgc<xx>
o Password: GridISS<xx>
• Included in the Integrated Practical
• Good luck!
• If you want more information:
o http://www.omii.ac.uk/wiki/Documentation - for docs
o http://www.omii.ac.uk/ - for general OMII-UK info
Web: www.omii.ac.uk Email: info@omii.ac.uk
