This document provides an overview of views in ASP.NET MVC, including how views are used to display data to users, how Razor syntax is used in views, and how HTML helpers can generate HTML form elements in views. It discusses view basics, passing models to views, Razor code expressions and blocks, scaffolding to generate views, and specific HTML helpers like LabelFor, DropDownListFor, TextBoxFor and TextAreaFor.

2. AW
Prepared and presented by :
Muhammad Hesham & Mustafa Saeed
Aspiration Webbers
Session 6 (ASP.Net)
VIEW

3. •The purpose of views
•Understanding view basics
•What is Razor?
Objectives

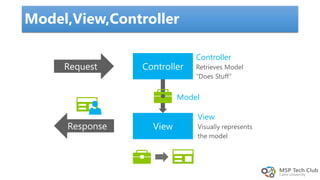

4. Model,View,Controller
Controller
View
Model

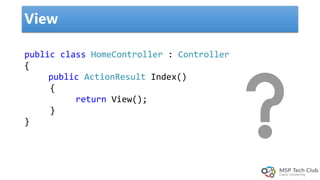

5. View
public class HomeController : Controller
{
public ActionResult Index()
{
return View();
}
}

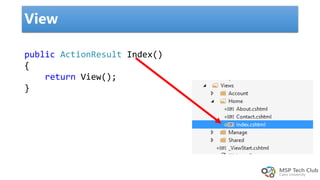

6. View
public ActionResult Index()
{
return View();
}

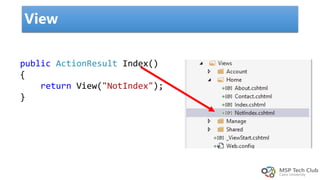

7. View
public ActionResult Index()
{
return View("NotIndex");
}

8. public ActionResult Index()
{
return View("~/Views/Example/Index.cshtml");
}
View

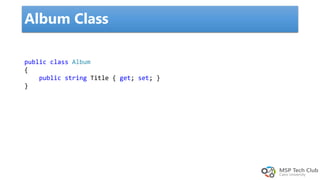

9. public class Album
{
public string Title { get; set; }
}
Album Class

10. public ActionResult List()
{
var albums = new List<Album>();
for (int i = 0; i < 10; i++)
{
albums.Add(new Album { Title = "Title " + i });
}
return View(albums);
}
Album Controller

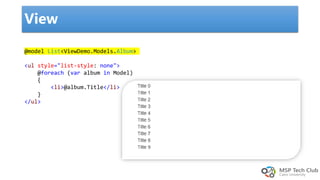

11. View
@model List<ViewDemo.Models.Album>
<ul style="list-style: none">
@foreach (var album in Model)
{
<li>@album.Title</li>
}
</ul>

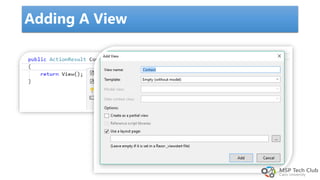

12. Adding A View

13. Adding A View

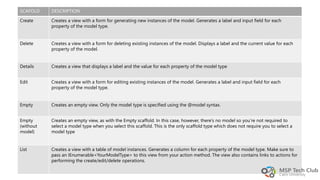

14. SCAFOLD DESCRIPTION
Create Creates a view with a form for generating new instances of the model. Generates a label and input field for each
property of the model type.
Delete Creates a view with a form for deleting existing instances of the model. Displays a label and the current value for each
property of the model.
Details Creates a view that displays a label and the value for each property of the model type
Edit Creates a view with a form for editing existing instances of the model. Generates a label and input field for each
property of the model type.
Empty Creates an empty view. Only the model type is specified using the @model syntax.
Empty
(without
model)
Creates an empty view, as with the Empty scaffold. In this case, however, there’s no model so you’re not required to
select a model type when you select this scaffold. This is the only scaffold type which does not require you to select a
model type
List Creates a view with a table of model instances. Generates a column for each property of the model type. Make sure to
pass an IEnumerable<YourModelType> to this view from your action method. The view also contains links to actions for
performing the create/edit/delete operations.

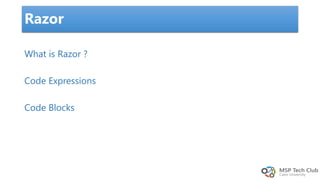

15. What is Razor ?
Code Expressions
Code Blocks
Razor

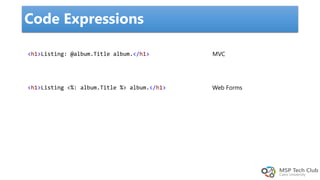

16. Code Expressions
<h1>Listing: @album.Title album.</h1>
<h1>Listing <%: album.Title %> album.</h1>
MVC
Web Forms

17. <span>MyApp.Models</span>
Code Expressions
@{
string rootNamespace = "MyApp";
}
<span>@rootNamespace.Models</span>
<span>@(rootNamespace).Models</span>

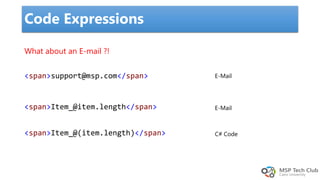

18. Code Expressions
What about an E-mail ?!
<span>support@msp.com</span>
<span>Item_@item.length</span>
<span>Item_@(item.length)</span>
E-Mail
E-Mail
C# Code

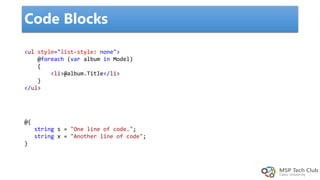

19. Code Blocks
<ul style="list-style: none">
@foreach (var album in Model)
{
<li>@album.Title</li>
}
</ul>
@{
string s = "One line of code.";
string x = "Another line of code";
}

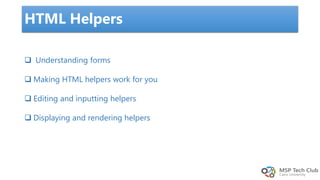

20. HTML Helpers
 Understanding forms
 Making HTML helpers work for you
 Editing and inputting helpers
 Displaying and rendering helpers

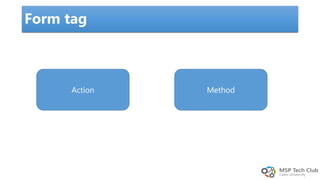

21. Form tag
Action Method

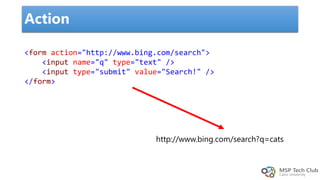

22. Action
<form action="http://www.bing.com/search">
<input name="q" type="text" />
<input type="submit" value="Search!" />
</form>
http://www.bing.com/search?q=cats

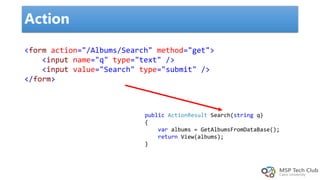

23. Action
<form action="/Albums/Search" method="get">
<input name="q" type="text" />
<input value="Search" type="submit" />
</form>
public ActionResult Search(string q)
{
var albums = GetAlbumsFromDataBase();
return View(albums);
}

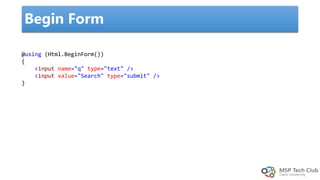

24. Begin Form
@using (Html.BeginForm())
{
<input name="q" type="text" />
<input value="Search" type="submit" />
}

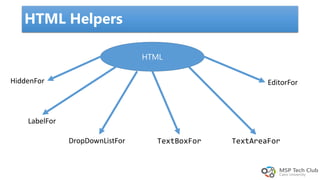

25. HTML Helpers
HTML
HiddenFor
LabelFor
DropDownListFor
EditorFor
TextAreaForTextBoxFor

26. LabelFor
@Html.LabelFor(m => m.Title)
<label for="Title">Title</label>

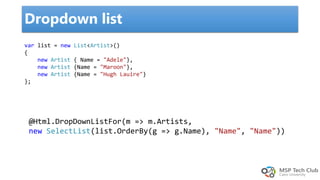

27. Dropdown list
@Html.DropDownListFor(m => m.Artists,
new SelectList(list.OrderBy(g => g.Name), "Name", "Name"))
var list = new List<Artist>()
{
new Artist { Name = "Adele"},
new Artist {Name = "Maroon"},
new Artist {Name = "Hugh Lauire"}
};

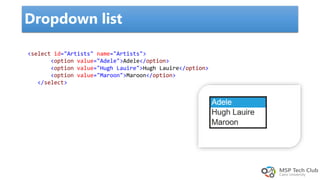

28. Dropdown list
<select id="Artists" name="Artists">
<option value="Adele">Adele</option>
<option value="Hugh Lauire">Hugh Lauire</option>
<option value="Maroon">Maroon</option>
</select>

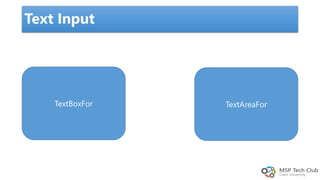

29. Text Input
TextBoxFor TextAreaFor

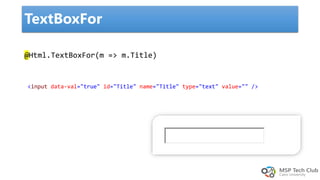

30. TextBoxFor
@Html.TextBoxFor(m => m.Title)
<input data-val="true" id="Title" name="Title" type="text" value="" />

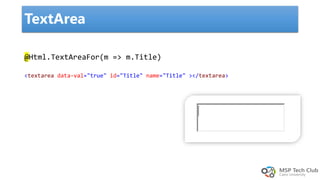

31. TextArea
@Html.TextAreaFor(m => m.Title)
<textarea data-val="true" id="Title" name="Title" ></textarea>

32. Demo
