Best Packaging Films
of 2015
YourYour Packaging MattersPackaging Matters
People!People!
Plastic films are used to wrap food related items
like, candy, snacks, nutritional bars & powders.
Packaging films start off as plastic pellets. There are many
different types of plastic films.
LDPE: low-density polyethylene
LLDPE linear low-density polyethylene
PE: polyethylene
PET: polyethylene terephthalate
PP: polypropylene
PVC: poly vinyl chloride
PS: polystyrene
Most plastics can be recycled for a greener tomorrow
Most plastic packaging films are
blown films. Plastic pellets are fed
into an extruder where they are
melted and ejected through a circular
blown film die. The melted plastic
forms a continuous tube which is
inflated and cooled.
The tube is then collapsed between
rollers and wound onto a reel.
How are plastic packaging
films produced?
Plastic film rolls can be printed
& laminated to optimize
graphics, create superior
barrier properties and
excellent sealing
characteristics.
Film rolls or converted bags can be
placed on different types of
packaging machinery in order to
maximize productivity.
HFFS VFFS Shrink Wrappers Baggers
Horizontal Form Fill & Seal Machines
Vertical Form Fill & Seal Machines
Shrink Wrapping Machines
Bagging Machines
Packaging Films: Terms & Definitions
(OTR): Oxygen transmission rate. Varies considerably with humidity, therefore it needs to be specified. Standard conditions of
testing are 0, 60 or 100% relative humidity. Units are cc./100 square inches/24 hours, (or cc/square meter/24 Hrs.) (cc = cubic
centimeters)
Aluminum Foil: A thin gauge (.285-1.0 mil) aluminum foil laminated to plastic films to provide oxygen, aroma and water vapor
barrier properties
Anilox Roll: Engraved ink metering roll used in flexo presses to provide a controlled film of ink to the printing plates which print
onto the substrate
Barrier: In packaging, this term is most commonly used to describe the ability of a material to stop or retard the passage of
atmospheric gases, water vapor, and volatile flavor and aroma ingredients. A barrier material is one that is designed to prevent, to
a specified degree, the penetrations of water, oils, water vapor, or certain gases, as desired. Barrier materials may serve to
exclude or retain such elements without or within a package.
Base Film: The original form in which a film exists before coating or laminating.
Biaxial orientation: Orientation of plastic films in both machine and cross machine (transverse) directions by stretching. Biaxial
stretched films are generally well balanced in both directions and much stronger in terms of tear strength.
Bleed: Image or color that extends beyond the trim edge of the finished printed piece.
Burst Strength: A measure of the ability of a sheet to resist rupture when pressure is applied to one of its sides by a specified
instrument under specified conditions.
Butt: (a) To join with overlap or space between. (b) Butt register is where two or more colors meet with no significant overlap or
space between.
Cast Film: Plastic film produced from synthetic resins (such as polyethylene) by the cast process. In this process, the molten resin
is extruded through a slot die onto an internally cooled chill roll.
Chemical Compatibility Testing: Any procedure that exposes a material to chemicals or mixtures of chemicals to determine
whether such exposure has a negative effect on the material being evaluated.
Chemical Resistance: Ability of a material to retain utility and appearance following contact with chemical agents. Chemical
resistance implies that there is no significant chemical activity between the contacting materials.
Co-Extrusion (COEX): Simultaneous extrusion of two or more different thermoplastic resins into a sandwich-like film with clearly
distinguishable individual layers.
Coating: Any fluid material applied as a thick layer to a substrate material or object.
Cold-Seal: This packaging adheres itself when pressure is applied. No heat is required to seal the film.
COF (coefficient of friction): Coefficient of friction, a measurement of “slipperiness” of plastic films and laminates. Measurements
are usually done film surface to film surface.
Color Management: The process of translating specific color information from the computer screen image, through prepress,
plate-making, printing presses and finally to a substrate in such a manner that color accuracy is maintained at acceptable levels
throughout.
Color Value: The lightness or darkness of a color. A color may be classified as equivalent to some member of a series of shades
ranging from black to white. The other two fundamental characterizers of color are hue and saturation.
Compatibility: The ability of a container or material to resist chemical degradation or physical change caused by the product, or
where a container or material does not chemically degrade or physically change the contained product.
Corona Treatment: A treatment to alter the surface of plastics and other materials to make them more receptive to printing
inks.
Cutoff: ln web-fed processing, the cut or print length corresponding to the circumference of the plate cylinder.
Deck: A term used mostly in flexographic printing to describe a single print station with plate, impression cylinders, and inking
rolls.
Degradation: A change or break-down in a material's chemical structure.
Delamination: Separation or splitting of laminate layers caused by lack of or inadequate adhesion, or by mechanical disruption
such as peeling or shearing forces.
Dot Gain: A physical and/or optical measurement and theoretical calculation of the apparent increase in dot area from one
medium to another. Normally expressed as the difference between a midtone (nominal 50%) dot area on a film negative and the
printed dot area; for example, a 50% film dot area which prints as a 78% dot has 28% dot gain. Dot gain (and loss) are normal
and must be controlled throughout the press and printing process.
Draw: ln flexible packaging laminates, the distance that a web travels between supporting rolls.
Drawdown: A swatch of color or coating made by spreading a small amount of ink or varnish across a sheet of material. Made
for visual comparison to a standard color swatch or chip.
Ethylene-Vinyl Acetate (EVA) A polar copolymer of ethylene and vinyl acetate, retaining some of the properties of polyethylene but
with increased flexibility, elongation, and impact resistance. EVA is frequently specified as the extrusion coating on polypropylene,
aluminum foil and poly(ethylene terephthalate), to provide good heat-seals at high converting rates, or as the adhesion layer in
some laminates.
Ethylene-Vinyl Alcohol (EVOH): Can be regarded as a copolymer of polyethylene in which varying amounts of the -OH functional
group have been incorporated. A typical packaging EVOH is about 20 to 35% ethylene. EVOH is one of the best polymeric oxygen
barriers available to packagers. However, its susceptible to water requires that for most applications it be laminated or co-extruded
into a protective sandwich with materials that will keep the EVOH layer away from water.
Extrusion: The process of forming a thermoplastic film, container, or profile by forcing the polymer melt through a shaped orifice.
Extrusion Coating: A process where a film of molten polymeric material is extruded onto the surface of a substrate material and
cooled to form a continuous coating.
Extrusion Lamination: A laminating process in which individual layers of multi-layer packaging materials are laminated to each
other by extruding a thin layer of molten synthetic resin (such as polyethylene) between the layers
Eye Mark Register: A printed rectangular mark most often found along the edge of webstock that can be identified by an electric
eye. The mark identifies a point on the web where an individual package is to be cut.
Film: Generally used to describe a thin plastic material usually not more than 75 micrometres (0.003 inch) thick.
Finishing: Any final operation done to packaging before shipping.
Fitment: A device attached to the container finish to provide a performance function' For example, a pour-out fitment is plastic
component for a glass, plastic or metal package, designed to improve the dispensing action of liquid products.
Flexible Packaging: A package or container made of flexible or easily yielding materials that, when filled and closed, can be
readily changed in shape. A term normally applied to bags, pouches, or wraps made of materials ranging in thickness from 13 to
75 micrometres (0.0b0á to 0.003 inch) such as paper, plastic film, foil, or combinations of these.
Flexographic Printing: A method of printing using flexible rubber or photopolymer printing plates in which the image to be
printed stands out in relief. Fluid ink metered by an engraved roll is applied to the raised portions of the printing plate and then
transferred to the substrate.
Form-Fill-Seal (FFS): A packaging machine that forms, fills, closes and seals a package in one continuous or intermittent-
motion operation. Flexible packaging stock fed from a roll is folded to the desired package shape and stabilized by heat sealing.
The product is placed into the formed package, and the remaining opening is sealed. Machines can be configured so that the
stock travels horizontally through the machine (horizontal form-fill-seal) or vertically through the machine (vertical form-fill seal).
Four-Color Process: Printing with cyan, yellow, magenta, and black ink (CMYK) using halftone screens to create a full color
reproduction.
Four-Side-Seal Pouch: A pouch with seals along all four edges. Four-side-seal pouches can be made from a single stock or
the front and back can be different stocks. The pouches are most commonly made on multilane pouch-forming machines where
16 or more pouches can be placed across the width of the web. gas chromatography An instrumental method of accurately
determining the composition of volatile solvents and oils, and their residual presence in materials such as laminates or plastics.
Gas Transmission Rate (GTR): The quantity of a given gas passing through a unit area of the parallel surfaces of a film, sheet,
or laminate in a given time under the test conditions. Test conditions may vary and must always be stated.
Gauge: Thickness. In North America, film thickness, measured in mils, is usually given in gauges. A 100 gauge shrink film is
one mil, or 1/1000 of an inch, thick. In Europe, the film thickness metric is the micron. A quick equivalency equation is: 1 mil =
25.4 microns.
Gauge Band: A thickness irregularity found in rolls of film. A thicker area in the machine direction at some location across the
width of a flat film will produce a raised ring in a finished roll. Gauge bands can cause winding problems and when unwound,
the material tends not to be perfectly flat.
Good Manufacturing Practice (GMP): Good manufacturing practice implies that the entire manufacturing procedure has
been designed in such a way as to produce a quality product that presents a minimum risk to the consumer. GMP will vary
from industry to industry depending on the nature of the product being packaged. Many GMPs have been formalized and are
required by law for critical industries such as food and pharmaceutical packaging. Typically these GMPs describe the kind of
equipment to be used, its validation, manufacturing procedures, inspection types and frequencies, record keeping, container
types and approvals, and registration of company and product.
Gravure Printing: Gravure is abbreviated from the term rotogravure. During gravure printing an image is etched on the
surface of a metal cylinder and chrome plated for hardness. The ink fills the cells and is transferred onto the printing substrate.
Gusset: The fold in the side or bottom of the pouch, allowing it to expand when contents are inserted
HDPE: High density, (0.95-0.965) polyethylene. Has much higher stiffness, higher temperature resistance and much better
water vapor barrier properties than LDPE, but it is considerably hazier.
Heat-Seal Coating: An adhesive coating applied to a packaging material that is capable of being activated by heat and
pressure to form a bond.
Heat-Seal Layer: A heat sealable innermost layer in plastic packaging films and laminates. Can be either adhesive laminated
or extrusion coated onto a non-sealable film (or foil).
Heat-Seal Strength: Strength of heat-seal measured after the seal is cooled, (not to be confused with “hot tack”, see next
item).
Hermetic Seal: Airtight or impervious to gases or fluids under normal conditions of handling and storage.
High Barrier: Describes a material or package that has very low gas permeability characteristics; that is, it offers a great deal of
resistance to the passage of a gas through its volume.
Hot Tack: Strength of heat seal measured before the seal is cooled, which is very important for high-speed packaging operations.
Impulse Sealer: Also known as a heat sealer. These units use an electrical current passed through a Ni-Chrome wire heating
element to seal bags & tubing. Can be used on many plastic materials to create strong permanent welds.
Laminate: (a) noun A product made by bonding together two or more layers of material. (b) verb To unite layers of material to
produce a multilayer material.
Laminated Film: An adhered combination of two or more films or sheets made to improve overall characteristics. Also multilayer
film.
Lap Seal: A seal made with two layers of film overlapping one another. Because lap seals require less material than fin seals,
packagers are converting to lap seals in the name of sustainability, lean operations and economics.
Laser Scoring: Use of high-energy narrow light beam to partially cut through a material in a straight line or shaped patterns. This
process is used to provide an easy-opening feature to various types of flexible packaging materials.
LDPE: Low density, (0.92-0.934) polyethylene. Used mainly for heat-seal ability and bulk in packaging.
Lidding, Lidstock: Material or stock used to form a lid. For example, material that can be heat-sealed over the open ends of
pharmaceutical tablet blister cards.
Light Resistance: The ability of material to withstand exposure to light (usually sunlight or the ultraviolet part of the light
spectrum) without change of color or loss of physical and/or chemical properties.
LLDPE: Linear low density polyethylene. Tougher than LDPE and has better heat-seal strength, but has higher haze.
Machinability: The ability of a film to run on packaging equipment.
Machine Direction (MD): The direction that film moves through the packaging equipment.
Manufacturing Tolerance: Permissible variations from rated or marked capacities or dimensions established by standards or
specifications for those.
MET-OPP: Metalized OPP film. It has all the good properties of OPP film, plus much improved oxygen and water vapor barrier
properties, (but not as good as MET-PET).
MET-PET: Metalized PET film. It has all the good properties of PET film, plus much improved oxygen and water vapor barrier
properties. However, it is not transparent. see also VMPET.
Metallize: Appying a thin coating of metal to a nommetallic surface by chemical deposition or by exposing the surface to
vaporized metal in a vacuum chamber.
Moisture Vapor Transmission Rate (MVTR): A depreciated term, usually measured at 100% relative humidity, expressed in
grams/100 square inches/24 hours, (or grams/square meter/24 Hrs.) See WVTR.
Mylar™: Mylar is a registered trademark of the DuPont-Teijin Corporation. Is the industrial brand name for that corporation’s
polyester (PET) film. Polyester film is a staple of multi-layer packaging for a wide variety of applications.
Nylon: Polyamide resins, with very high melting points, excellent clarity and stiffness. Two types are used for films - nylon-6 and
nylon-66. The latter has much higher melt temperature, thus better temperature resistance, but the former is easier to process,
and it is cheaper. Both have good oxygen and aroma barrier properties, but they are poor barriers to water vapor.
Off-Cut: Trim that is not utilized. In flexible packaging, a narrow roll of material left over when an material order does not call for
the full roll width. Sometimes called a butt roll.
OPP: Oriented PP (polypropylene) film. A stiff, high clarity film, but not heat sealable. Usually combined with other films, (such
as LDPE) for heatsealability. Can be coated with PVDC (polyvinylidene chloride), or metalized for much improved barrier
properties.
Optics: The visual properties of a film, such as clarity, gloss, haze, opacity, etc.
Orientation: The process of mechanically stretching plastic film or parts in order to produce a straightening and alignment of
the molecules in the stretch direction. If done in one direction, the material is said to be uniaxial or monoaxially oriented. if done
in two directions, the film is biaxially oriented.
Pass: One trip of a material through a production machine or manufacturing step
Pillow Pouch: A bag or pouch in the form of a tube that is sealed at both ends. Pillow type pouches are most commonly
produced on vertical-form-fill-seal (VFFS) machines and are characterized by seals across the top and bottom, and a
longitudinal seal going down the center of one of the faces.
Plate Break: Non-print area where the two ends of flexo plate butt together after being wrapped around the plate cylinder on
the printing press.

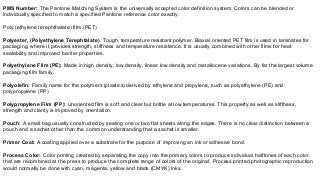

PMS Number: The Pantone Matching System is the universally accepted color definition system. Colors can be blended or
individually specified to match a specified Pantone reference color exactly.
Poly (ethylene terephthalate) film (PET)
Polyester, (Polyethylene Terephtalate). Tough, temperature resistant polymer. Biaxial oriented PET film is used in laminates for
packaging, where it provides strength, stiffness and temperature resistance. It is usually combined with other films for heat
sealability and improved barrier properties.
Polyethylene Film (PE): Made in high density, low density, linear low density and metallocene variations. By far the largest volume
packaging film family.
Polyolefin: Family name for the polymers (plastics) derived by ethylene and propylene, such as polyethylene (PE) and
polypropylene (PP)
Polypropylene Film (PP): Unoriented film is soft and clear but brittle at low temperatures. This property as well as stiffness,
strength and clarity is improved by orientation.
Pouch: A small bag usually constructed by sealing one or two flat sheets along the edges. There is no clear distinction between a
pouch and a sachet other than the common understanding that a sachet is smaller.
Primer Coat: A coating applied over a substrate for the purpose of improving an ink or adhesive bond.
Process Color: Color printing created by separating the copy into the primary colors to produce individual halftones of each color,
that are recombined at the press to produce the complete range of colors of the original. Process printed photographic reproduction
would normally be done with cyan, magenta, yellow and black (CMYK) inks.
PVDC: Polyvinylidene Chloride. A very good oxygen and water vapor barrier, but not extricable, therefore it is found primarily as a
coating to improve barrier properties of other plastic films, (such as OPP and PET) for packaging. PVDC coated and ’saran‘ coated
are the same.
Register: Exact alignment of one part or operation with another part or operation.
Release Coating: A coating applied to the non-sealing side of cold-sealable packaging films and laminates supplied in a roll form
that will allow the packer to unwind these films or laminates on packaging machines.
Retort: The thermal processing or cooking packaged food or other products in a pressurized vessel for purposes of sterilizing the
contents to maintain freshness for extended storage times. Retort pouches are manufactured with materials suitable for the higher
temperatures of the retort process, generally around 121° C.
Reverse Printing: Printing wrong-reading on the underside of transparent film. In this case, the outermost layer is printed on the
backside and laminated to the rest of the multi-layer structure. While not mandatory in all industries, it is the preferred method for the
food industry as it guarantees there will be no ink contact with the food product. The majority of all products are reverse printed.
Roll Stock: Said of any flexible packaging material that is in a roll form.
Slip: The ability of film to move easily over hard plastic, metal, or ceramic platforms or against another piece of film.
Slitting: The conversion of a given width of a film or sheet material into narrower widths. Web stock is unrolled past a series of
knives set to the correct widths, and the slit web is rewound back into roll form. ^ top
Splice: Joining two pieces of web material to form a continuous web.
Spot Color: Solid colors not created by using screens. Usually a Pantone Matching System (PMS) color.
Stand-Up Pouch: A flexible pouch design where the bottom portion has been gusseted in such a way that that it provides a wide
enough base to provide support so the pouch is able to be stood up for display or use.
Stick Pack: A narrow flexible packaging pouch commonly used to package single-serve powder beverage mixes such as fruit
drinks, instant coffee and tea and sugar and creamer products.
Stickyback: Double-faced adhesive-coated material used for mounting elastomeric printing plates to the plate cylinder.
Surface Print: The process whereby the ink is deposited directly onto the outermost surface of the packaging film or material. The
process is most commonly used in short run printing. A UV (ultraviolet) coating may be added to provide a hard exterior finish that
prevents the ink from flaking or chipping.
Tear Resistance: The ability of a film to resist the propagation of a tear.
Tensile Strength: The amount of pull a film can withstand without tearing apart or stretching.
Thermoforming: A method of forming plastics where a plastic sheet is heated to a point where it is soft and formable.
Threading: The placing of a web material through the various rolls and stations of any web-fed press such as a printer or laminator
in preparation for production.
Side-Seal Pouch: A pouch that is formed by folding the web material into a U-shape and then sealing the three open sides. The
pouch may be made with a gusseted bottom. Three-side-seal pouches are typically made on horizontal form-fill-seal machines.
Tie Layer: A material that bonds two incompatible layers in a coextrusion.
.
Transverse Direction (TD): The direction perpendicular to the machine direction.
Trapping: In printing, inks may be overlapped slightly by increasing the image size to ensure that no substrate shows through
within the register variations of the printing press.
Water Vapor Transmission Rate (WVTR): A measure of the rate of water vapor transmission through a material. Usually
measured at 100% relative humidity, expressed in grams/100 square inches/24 hours, (or grams/square meter/24 Hrs.) See
MVTR.
Web: A continuous length of paper film, foil, or other flexible material as it is unwound from a roll and passed through a
machine.
Zipper Pouch: A flexible plastic pouch with a molded-in-place sealing device wherein a projecting rib or fin is inserted into a
mating channel to effect a closure. A zipper seal can be repeatedly opened and closed.
26
Established in 1968 & headquartered
in Northbrook, IL, Pyramid Packaging
is a ISO 9001:2008 compliant supplier
of flexible packaging equipment,
materials & services.
We can warehouse and manage the
inventory of your packaging supplies.
Supplies delivered
when you need
them.
Service
Our packaging sales engineers can help you
select the best film design and construction
for your packaging application.
Pyramid Packaging Inc.
2901 Shermer Road Northbrook, IL 60062
800-547-5130 info@pyramidpackaging.com

More Related Content

What's hot

Flexible packaging laminates for the food sector 2013
Flexible packaging laminates for the food sector 2013Flexible packaging laminates for the food sector 2013
Flexible packaging laminates for the food sector 2013
Jose Giraldez

Paper used in food packaging
Paper used in food packagingPaper used in food packaging
Paper used in food packaging
AsifUzzaman8

Corrugated fiberboard
Corrugated fiberboardCorrugated fiberboard
Corrugated fiberboard
Anil Pethe

Plastic packaging material
Plastic packaging materialPlastic packaging material
Plastic packaging material
Anil Pethe

Retort Packaging
Retort PackagingRetort Packaging
Retort Packaging
KRITI GUPTA

barrier film.pptx
barrier film.pptxbarrier film.pptx
Shrink Labels and Films with TOPAS
Shrink Labels and Films with TOPASShrink Labels and Films with TOPAS
Shrink Labels and Films with TOPAS
TopasAdvancedPolymers

Food Packaging Films 101
Food Packaging Films 101Food Packaging Films 101
Food Packaging Films 101
Pyramid Packaging Inc.

Corrugated box
Corrugated boxCorrugated box
Corrugated box
sneha chavan

Barrier Properties Of Films 03 12
Barrier Properties Of Films 03 12Barrier Properties Of Films 03 12
Barrier Properties Of Films 03 12
Henky Wibawa

FOOD PACKAGING
FOOD PACKAGINGFOOD PACKAGING
FOOD PACKAGING
Sisubalan Selvan

Package Testing for Food Factory
Package Testing for Food FactoryPackage Testing for Food Factory
Package Testing for Food Factory
Rohit Chawla

Developments in clear high barrier packaging
Developments in clear high barrier packagingDevelopments in clear high barrier packaging
Developments in clear high barrier packaging
nattapol76

Bopp films
Bopp filmsBopp films
Presentation1packaging of food product in food industry
Presentation1packaging of food product in food industryPresentation1packaging of food product in food industry
Presentation1packaging of food product in food industry
Gyanshu Dubey

Printing for packages
Printing for packagesPrinting for packages
Printing for packages
Ashfak Kagzi

Manufacturing of laminates
Manufacturing of laminatesManufacturing of laminates
Manufacturing of laminates
ak14032020

Polymeric Food Packaging Material's
Polymeric Food Packaging Material'sPolymeric Food Packaging Material's
Polymeric Food Packaging Material's
IIT Kharagpur

02.multi layer composite films
02.multi layer composite films02.multi layer composite films
02.multi layer composite films
SHRIKANT ATHAVALE

Food Packaging Testing Equipment
Food Packaging Testing EquipmentFood Packaging Testing Equipment
Food Packaging Testing Equipment
Rohit Chawla


What's hot (20)

Flexible packaging laminates for the food sector 2013
Flexible packaging laminates for the food sector 2013Flexible packaging laminates for the food sector 2013
Flexible packaging laminates for the food sector 2013

Paper used in food packaging
Paper used in food packagingPaper used in food packaging
Paper used in food packaging

Corrugated fiberboard
Corrugated fiberboardCorrugated fiberboard
Corrugated fiberboard

Plastic packaging material
Plastic packaging materialPlastic packaging material
Plastic packaging material

Retort Packaging
Retort PackagingRetort Packaging
Retort Packaging

barrier film.pptx
barrier film.pptxbarrier film.pptx
barrier film.pptx

Shrink Labels and Films with TOPAS
Shrink Labels and Films with TOPASShrink Labels and Films with TOPAS
Shrink Labels and Films with TOPAS

Food Packaging Films 101
Food Packaging Films 101Food Packaging Films 101
Food Packaging Films 101

Corrugated box
Corrugated boxCorrugated box
Corrugated box

Barrier Properties Of Films 03 12
Barrier Properties Of Films 03 12Barrier Properties Of Films 03 12
Barrier Properties Of Films 03 12

FOOD PACKAGING
FOOD PACKAGINGFOOD PACKAGING
FOOD PACKAGING

Package Testing for Food Factory
Package Testing for Food FactoryPackage Testing for Food Factory
Package Testing for Food Factory

Developments in clear high barrier packaging
Developments in clear high barrier packagingDevelopments in clear high barrier packaging
Developments in clear high barrier packaging

Bopp films
Bopp filmsBopp films
Bopp films

Presentation1packaging of food product in food industry
Presentation1packaging of food product in food industryPresentation1packaging of food product in food industry
Presentation1packaging of food product in food industry

Printing for packages
Printing for packagesPrinting for packages
Printing for packages

Manufacturing of laminates
Manufacturing of laminatesManufacturing of laminates
Manufacturing of laminates

Polymeric Food Packaging Material's
Polymeric Food Packaging Material'sPolymeric Food Packaging Material's
Polymeric Food Packaging Material's

02.multi layer composite films
02.multi layer composite films02.multi layer composite films
02.multi layer composite films

Food Packaging Testing Equipment
Food Packaging Testing EquipmentFood Packaging Testing Equipment
Food Packaging Testing Equipment


Similar to Best in Packaging Films

Flock printing
Flock printingFlock printing
Flock printing
Azmir Latif Beg

What is flexographic printing
What is flexographic printingWhat is flexographic printing
What is flexographic printing
Usman Ali

Fundamentals of cast film extrusion technology
Fundamentals of cast film extrusion technologyFundamentals of cast film extrusion technology
Fundamentals of cast film extrusion technology
Almir De Souza Machado

Textile coating
Textile coatingTextile coating
Textile coating
Omkar S Parmaj

Macro-mechanism of polyvinyl chloride shrink sleeves
Macro-mechanism of polyvinyl chloride shrink sleevesMacro-mechanism of polyvinyl chloride shrink sleeves
Macro-mechanism of polyvinyl chloride shrink sleeves
Jia Chen

advanced materials.docx
advanced materials.docxadvanced materials.docx
advanced materials.docx
Jyothireddy Inturi

Lec 4
Lec 4Lec 4
metalurgy
metalurgymetalurgy
metalurgy
hassanzain10

Lec 4
Lec 4Lec 4
Bi-axially oriented Poly polypropylene films
Bi-axially oriented Poly polypropylene films Bi-axially oriented Poly polypropylene films
Bi-axially oriented Poly polypropylene films
JayaVerma28

Industrial Plastics - Glossary of Terms
Industrial Plastics  - Glossary of TermsIndustrial Plastics  - Glossary of Terms
Industrial Plastics - Glossary of Terms
Purpose Advertising

Unit –iii manufac of adv comp
Unit –iii manufac of adv compUnit –iii manufac of adv comp
Unit –iii manufac of adv comp
Sathees Kumar

010.sealing tapes
010.sealing tapes010.sealing tapes
010.sealing tapes
SHRIKANT ATHAVALE

Tablet coating power point
Tablet coating power pointTablet coating power point
Tablet coating power point
Dr Rakesh Kumar Sharma

Tablet coating.pptx
Tablet coating.pptxTablet coating.pptx
Tablet coating.pptx
vedanshu malviya

Introduction to food packaging sir ppt)
Introduction to food packaging sir ppt)Introduction to food packaging sir ppt)
Introduction to food packaging sir ppt)
Priyankashukla27dec

Thermoforming
ThermoformingThermoforming
Thermoforming
Fahad jee

Plastic processes
Plastic processesPlastic processes
Plastic processes
MecaText

Manufacture of composites
Manufacture  of  compositesManufacture  of  composites
Manufacture of composites
AERONAUTICAL ENGINEERING at RTU

Manufacture of composites
Manufacture  of  compositesManufacture  of  composites
Manufacture of composites
AERONAUTICAL ENGINEERING at RTU


Similar to Best in Packaging Films (20)

Flock printing
Flock printingFlock printing
Flock printing

What is flexographic printing
What is flexographic printingWhat is flexographic printing
What is flexographic printing

Fundamentals of cast film extrusion technology
Fundamentals of cast film extrusion technologyFundamentals of cast film extrusion technology
Fundamentals of cast film extrusion technology

Textile coating
Textile coatingTextile coating
Textile coating

Macro-mechanism of polyvinyl chloride shrink sleeves
Macro-mechanism of polyvinyl chloride shrink sleevesMacro-mechanism of polyvinyl chloride shrink sleeves
Macro-mechanism of polyvinyl chloride shrink sleeves

advanced materials.docx
advanced materials.docxadvanced materials.docx
advanced materials.docx

Lec 4
Lec 4Lec 4
Lec 4

metalurgy
metalurgymetalurgy
metalurgy

Lec 4
Lec 4Lec 4
Lec 4

Bi-axially oriented Poly polypropylene films
Bi-axially oriented Poly polypropylene films Bi-axially oriented Poly polypropylene films
Bi-axially oriented Poly polypropylene films

Industrial Plastics - Glossary of Terms
Industrial Plastics  - Glossary of TermsIndustrial Plastics  - Glossary of Terms
Industrial Plastics - Glossary of Terms

Unit –iii manufac of adv comp
Unit –iii manufac of adv compUnit –iii manufac of adv comp
Unit –iii manufac of adv comp

010.sealing tapes
010.sealing tapes010.sealing tapes
010.sealing tapes

Tablet coating power point
Tablet coating power pointTablet coating power point
Tablet coating power point

Tablet coating.pptx
Tablet coating.pptxTablet coating.pptx
Tablet coating.pptx

Introduction to food packaging sir ppt)
Introduction to food packaging sir ppt)Introduction to food packaging sir ppt)
Introduction to food packaging sir ppt)

Thermoforming
ThermoformingThermoforming
Thermoforming

Plastic processes
Plastic processesPlastic processes
Plastic processes

Manufacture of composites
Manufacture  of  compositesManufacture  of  composites
Manufacture of composites

Manufacture of composites
Manufacture  of  compositesManufacture  of  composites
Manufacture of composites


More from Pyramid Packaging Inc.

Metal Detection Brochure Loma Systems
Metal Detection Brochure Loma SystemsMetal Detection Brochure Loma Systems
Metal Detection Brochure Loma Systems
Pyramid Packaging Inc.

The Pyramid Anniversary Story
The Pyramid Anniversary StoryThe Pyramid Anniversary Story
The Pyramid Anniversary Story
Pyramid Packaging Inc.

REM Recycled-Mailer-Film
REM Recycled-Mailer-FilmREM Recycled-Mailer-Film
REM Recycled-Mailer-Film
Pyramid Packaging Inc.

BM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-HardwareBM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-Hardware
Pyramid Packaging Inc.

Shipping Solutions Brochure Autobag
Shipping Solutions Brochure AutobagShipping Solutions Brochure Autobag
Shipping Solutions Brochure Autobag
Pyramid Packaging Inc.

BM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-HardwareBM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-Hardware
Pyramid Packaging Inc.

High Barrier,-Coextruded-Packaging-Films
High Barrier,-Coextruded-Packaging-FilmsHigh Barrier,-Coextruded-Packaging-Films
High Barrier,-Coextruded-Packaging-Films
Pyramid Packaging Inc.

Anti Fog Film
Anti Fog FilmAnti Fog Film
Anti Fog Film
Pyramid Packaging Inc.

Auto Bag Testimonial
Auto Bag TestimonialAuto Bag Testimonial
Auto Bag Testimonial
Pyramid Packaging Inc.

Autobag Systems Advantage
Autobag Systems AdvantageAutobag Systems Advantage
Autobag Systems Advantage
Pyramid Packaging Inc.

Starview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machines
Starview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machinesStarview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machines
Starview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machines
Pyramid Packaging Inc.

Autobag Data Count U-162
Autobag Data Count U-162 Autobag Data Count U-162
Autobag Data Count U-162
Pyramid Packaging Inc.

LoveShaw LD3 SBF with 60 Series Cartridge Manual
LoveShaw LD3 SBF with 60 Series Cartridge Manual LoveShaw LD3 SBF with 60 Series Cartridge Manual
LoveShaw LD3 SBF with 60 Series Cartridge Manual
Pyramid Packaging Inc.

LoveShaw CF25 tManual
LoveShaw CF25  tManualLoveShaw CF25  tManual
LoveShaw CF25 tManual
Pyramid Packaging Inc.

LoveShaw CF5 E Owners Manual
LoveShaw CF5 E Owners ManualLoveShaw CF5 E Owners Manual
LoveShaw CF5 E Owners Manual
Pyramid Packaging Inc.

Loma Guide to Metal Detection
Loma Guide to Metal DetectionLoma Guide to Metal Detection
Loma Guide to Metal Detection
Pyramid Packaging Inc.

Fantom Stretch Wrapper Robot
Fantom Stretch Wrapper Robot Fantom Stretch Wrapper Robot
Fantom Stretch Wrapper Robot
Pyramid Packaging Inc.

Autobag 550 Data Sheet
Autobag 550 Data SheetAutobag 550 Data Sheet
Autobag 550 Data Sheet
Pyramid Packaging Inc.

Autobag 500 Bagger
Autobag 500 BaggerAutobag 500 Bagger
Autobag 500 Bagger
Pyramid Packaging Inc.

Shrink Films & Equipment
Shrink Films & EquipmentShrink Films & Equipment
Shrink Films & Equipment
Pyramid Packaging Inc.


More from Pyramid Packaging Inc. (20)

Metal Detection Brochure Loma Systems
Metal Detection Brochure Loma SystemsMetal Detection Brochure Loma Systems
Metal Detection Brochure Loma Systems

The Pyramid Anniversary Story
The Pyramid Anniversary StoryThe Pyramid Anniversary Story
The Pyramid Anniversary Story

REM Recycled-Mailer-Film
REM Recycled-Mailer-FilmREM Recycled-Mailer-Film
REM Recycled-Mailer-Film

BM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-HardwareBM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-Hardware

Shipping Solutions Brochure Autobag
Shipping Solutions Brochure AutobagShipping Solutions Brochure Autobag
Shipping Solutions Brochure Autobag

BM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-HardwareBM Catalysts-Automotive-Hardware
BM Catalysts-Automotive-Hardware

High Barrier,-Coextruded-Packaging-Films
High Barrier,-Coextruded-Packaging-FilmsHigh Barrier,-Coextruded-Packaging-Films
High Barrier,-Coextruded-Packaging-Films

Anti Fog Film
Anti Fog FilmAnti Fog Film
Anti Fog Film

Auto Bag Testimonial
Auto Bag TestimonialAuto Bag Testimonial
Auto Bag Testimonial

Autobag Systems Advantage
Autobag Systems AdvantageAutobag Systems Advantage
Autobag Systems Advantage

Starview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machines
Starview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machinesStarview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machines
Starview Food-Packaging-automatic-inline-film-to-tray-food-packaging-machines

Autobag Data Count U-162
Autobag Data Count U-162 Autobag Data Count U-162
Autobag Data Count U-162

LoveShaw LD3 SBF with 60 Series Cartridge Manual
LoveShaw LD3 SBF with 60 Series Cartridge Manual LoveShaw LD3 SBF with 60 Series Cartridge Manual
LoveShaw LD3 SBF with 60 Series Cartridge Manual

LoveShaw CF25 tManual
LoveShaw CF25  tManualLoveShaw CF25  tManual
LoveShaw CF25 tManual

LoveShaw CF5 E Owners Manual
LoveShaw CF5 E Owners ManualLoveShaw CF5 E Owners Manual
LoveShaw CF5 E Owners Manual

Loma Guide to Metal Detection
Loma Guide to Metal DetectionLoma Guide to Metal Detection
Loma Guide to Metal Detection

Fantom Stretch Wrapper Robot
Fantom Stretch Wrapper Robot Fantom Stretch Wrapper Robot
Fantom Stretch Wrapper Robot

Autobag 550 Data Sheet
Autobag 550 Data SheetAutobag 550 Data Sheet
Autobag 550 Data Sheet

Autobag 500 Bagger
Autobag 500 BaggerAutobag 500 Bagger
Autobag 500 Bagger

Shrink Films & Equipment
Shrink Films & EquipmentShrink Films & Equipment
Shrink Films & Equipment


Recently uploaded

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
National Information Standards Organization (NISO)

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT
simonomuemu

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method
Celine George

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

MARY JANE WILSON, A “BOA MÃE” .
MARY JANE WILSON, A “BOA MÃE”           .MARY JANE WILSON, A “BOA MÃE”           .
MARY JANE WILSON, A “BOA MÃE” .
Colégio Santa Teresinha

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling
Excellence Foundation for South Sudan

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024
ak6969907

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training
Katrina Pritchard

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student
NgcHiNguyn25

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share
taiba qazi

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx
adhitya5119

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...
RitikBhardwaj56

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)
Academy of Science of South Africa

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Dr. Vinod Kumar Kanvaria

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro


Recently uploaded (20)

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...

Smart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICTSmart-Money for SMC traders good time and ICT
Smart-Money for SMC traders good time and ICT

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

MARY JANE WILSON, A “BOA MÃE” .
MARY JANE WILSON, A “BOA MÃE”           .MARY JANE WILSON, A “BOA MÃE”           .
MARY JANE WILSON, A “BOA MÃE” .

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024World environment day ppt For 5 June 2024
World environment day ppt For 5 June 2024

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...The simplified electron and muon model, Oscillating Spacetime: The Foundation...
The simplified electron and muon model, Oscillating Spacetime: The Foundation...

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx


Best in Packaging Films

  • 1. Best Packaging Films of 2015 YourYour Packaging MattersPackaging Matters People!People!
  • 2. Plastic films are used to wrap food related items like, candy, snacks, nutritional bars & powders.
  • 3. Packaging films start off as plastic pellets. There are many different types of plastic films. LDPE: low-density polyethylene LLDPE linear low-density polyethylene PE: polyethylene PET: polyethylene terephthalate PP: polypropylene PVC: poly vinyl chloride PS: polystyrene
  • 4. Most plastics can be recycled for a greener tomorrow
  • 5. Most plastic packaging films are blown films. Plastic pellets are fed into an extruder where they are melted and ejected through a circular blown film die. The melted plastic forms a continuous tube which is inflated and cooled. The tube is then collapsed between rollers and wound onto a reel. How are plastic packaging films produced?
  • 6. Plastic film rolls can be printed & laminated to optimize graphics, create superior barrier properties and excellent sealing characteristics.
  • 7. Film rolls or converted bags can be placed on different types of packaging machinery in order to maximize productivity. HFFS VFFS Shrink Wrappers Baggers
  • 8. Horizontal Form Fill & Seal Machines
  • 9. Vertical Form Fill & Seal Machines
  • 12. Packaging Films: Terms & Definitions
  • 13. (OTR): Oxygen transmission rate. Varies considerably with humidity, therefore it needs to be specified. Standard conditions of testing are 0, 60 or 100% relative humidity. Units are cc./100 square inches/24 hours, (or cc/square meter/24 Hrs.) (cc = cubic centimeters) Aluminum Foil: A thin gauge (.285-1.0 mil) aluminum foil laminated to plastic films to provide oxygen, aroma and water vapor barrier properties Anilox Roll: Engraved ink metering roll used in flexo presses to provide a controlled film of ink to the printing plates which print onto the substrate Barrier: In packaging, this term is most commonly used to describe the ability of a material to stop or retard the passage of atmospheric gases, water vapor, and volatile flavor and aroma ingredients. A barrier material is one that is designed to prevent, to a specified degree, the penetrations of water, oils, water vapor, or certain gases, as desired. Barrier materials may serve to exclude or retain such elements without or within a package. Base Film: The original form in which a film exists before coating or laminating. Biaxial orientation: Orientation of plastic films in both machine and cross machine (transverse) directions by stretching. Biaxial stretched films are generally well balanced in both directions and much stronger in terms of tear strength. Bleed: Image or color that extends beyond the trim edge of the finished printed piece. Burst Strength: A measure of the ability of a sheet to resist rupture when pressure is applied to one of its sides by a specified instrument under specified conditions.
  • 14. Butt: (a) To join with overlap or space between. (b) Butt register is where two or more colors meet with no significant overlap or space between. Cast Film: Plastic film produced from synthetic resins (such as polyethylene) by the cast process. In this process, the molten resin is extruded through a slot die onto an internally cooled chill roll. Chemical Compatibility Testing: Any procedure that exposes a material to chemicals or mixtures of chemicals to determine whether such exposure has a negative effect on the material being evaluated. Chemical Resistance: Ability of a material to retain utility and appearance following contact with chemical agents. Chemical resistance implies that there is no significant chemical activity between the contacting materials. Co-Extrusion (COEX): Simultaneous extrusion of two or more different thermoplastic resins into a sandwich-like film with clearly distinguishable individual layers. Coating: Any fluid material applied as a thick layer to a substrate material or object. Cold-Seal: This packaging adheres itself when pressure is applied. No heat is required to seal the film. COF (coefficient of friction): Coefficient of friction, a measurement of “slipperiness” of plastic films and laminates. Measurements are usually done film surface to film surface. Color Management: The process of translating specific color information from the computer screen image, through prepress, plate-making, printing presses and finally to a substrate in such a manner that color accuracy is maintained at acceptable levels throughout. Color Value: The lightness or darkness of a color. A color may be classified as equivalent to some member of a series of shades ranging from black to white. The other two fundamental characterizers of color are hue and saturation.
  • 15. Compatibility: The ability of a container or material to resist chemical degradation or physical change caused by the product, or where a container or material does not chemically degrade or physically change the contained product. Corona Treatment: A treatment to alter the surface of plastics and other materials to make them more receptive to printing inks. Cutoff: ln web-fed processing, the cut or print length corresponding to the circumference of the plate cylinder. Deck: A term used mostly in flexographic printing to describe a single print station with plate, impression cylinders, and inking rolls. Degradation: A change or break-down in a material's chemical structure. Delamination: Separation or splitting of laminate layers caused by lack of or inadequate adhesion, or by mechanical disruption such as peeling or shearing forces. Dot Gain: A physical and/or optical measurement and theoretical calculation of the apparent increase in dot area from one medium to another. Normally expressed as the difference between a midtone (nominal 50%) dot area on a film negative and the printed dot area; for example, a 50% film dot area which prints as a 78% dot has 28% dot gain. Dot gain (and loss) are normal and must be controlled throughout the press and printing process. Draw: ln flexible packaging laminates, the distance that a web travels between supporting rolls. Drawdown: A swatch of color or coating made by spreading a small amount of ink or varnish across a sheet of material. Made for visual comparison to a standard color swatch or chip.
  • 16. Ethylene-Vinyl Acetate (EVA) A polar copolymer of ethylene and vinyl acetate, retaining some of the properties of polyethylene but with increased flexibility, elongation, and impact resistance. EVA is frequently specified as the extrusion coating on polypropylene, aluminum foil and poly(ethylene terephthalate), to provide good heat-seals at high converting rates, or as the adhesion layer in some laminates. Ethylene-Vinyl Alcohol (EVOH): Can be regarded as a copolymer of polyethylene in which varying amounts of the -OH functional group have been incorporated. A typical packaging EVOH is about 20 to 35% ethylene. EVOH is one of the best polymeric oxygen barriers available to packagers. However, its susceptible to water requires that for most applications it be laminated or co-extruded into a protective sandwich with materials that will keep the EVOH layer away from water. Extrusion: The process of forming a thermoplastic film, container, or profile by forcing the polymer melt through a shaped orifice. Extrusion Coating: A process where a film of molten polymeric material is extruded onto the surface of a substrate material and cooled to form a continuous coating. Extrusion Lamination: A laminating process in which individual layers of multi-layer packaging materials are laminated to each other by extruding a thin layer of molten synthetic resin (such as polyethylene) between the layers Eye Mark Register: A printed rectangular mark most often found along the edge of webstock that can be identified by an electric eye. The mark identifies a point on the web where an individual package is to be cut. Film: Generally used to describe a thin plastic material usually not more than 75 micrometres (0.003 inch) thick. Finishing: Any final operation done to packaging before shipping. Fitment: A device attached to the container finish to provide a performance function' For example, a pour-out fitment is plastic component for a glass, plastic or metal package, designed to improve the dispensing action of liquid products.
  • 17. Flexible Packaging: A package or container made of flexible or easily yielding materials that, when filled and closed, can be readily changed in shape. A term normally applied to bags, pouches, or wraps made of materials ranging in thickness from 13 to 75 micrometres (0.0b0á to 0.003 inch) such as paper, plastic film, foil, or combinations of these. Flexographic Printing: A method of printing using flexible rubber or photopolymer printing plates in which the image to be printed stands out in relief. Fluid ink metered by an engraved roll is applied to the raised portions of the printing plate and then transferred to the substrate. Form-Fill-Seal (FFS): A packaging machine that forms, fills, closes and seals a package in one continuous or intermittent- motion operation. Flexible packaging stock fed from a roll is folded to the desired package shape and stabilized by heat sealing. The product is placed into the formed package, and the remaining opening is sealed. Machines can be configured so that the stock travels horizontally through the machine (horizontal form-fill-seal) or vertically through the machine (vertical form-fill seal). Four-Color Process: Printing with cyan, yellow, magenta, and black ink (CMYK) using halftone screens to create a full color reproduction. Four-Side-Seal Pouch: A pouch with seals along all four edges. Four-side-seal pouches can be made from a single stock or the front and back can be different stocks. The pouches are most commonly made on multilane pouch-forming machines where 16 or more pouches can be placed across the width of the web. gas chromatography An instrumental method of accurately determining the composition of volatile solvents and oils, and their residual presence in materials such as laminates or plastics. Gas Transmission Rate (GTR): The quantity of a given gas passing through a unit area of the parallel surfaces of a film, sheet, or laminate in a given time under the test conditions. Test conditions may vary and must always be stated. Gauge: Thickness. In North America, film thickness, measured in mils, is usually given in gauges. A 100 gauge shrink film is one mil, or 1/1000 of an inch, thick. In Europe, the film thickness metric is the micron. A quick equivalency equation is: 1 mil = 25.4 microns.
  • 18. Gauge Band: A thickness irregularity found in rolls of film. A thicker area in the machine direction at some location across the width of a flat film will produce a raised ring in a finished roll. Gauge bands can cause winding problems and when unwound, the material tends not to be perfectly flat. Good Manufacturing Practice (GMP): Good manufacturing practice implies that the entire manufacturing procedure has been designed in such a way as to produce a quality product that presents a minimum risk to the consumer. GMP will vary from industry to industry depending on the nature of the product being packaged. Many GMPs have been formalized and are required by law for critical industries such as food and pharmaceutical packaging. Typically these GMPs describe the kind of equipment to be used, its validation, manufacturing procedures, inspection types and frequencies, record keeping, container types and approvals, and registration of company and product. Gravure Printing: Gravure is abbreviated from the term rotogravure. During gravure printing an image is etched on the surface of a metal cylinder and chrome plated for hardness. The ink fills the cells and is transferred onto the printing substrate. Gusset: The fold in the side or bottom of the pouch, allowing it to expand when contents are inserted HDPE: High density, (0.95-0.965) polyethylene. Has much higher stiffness, higher temperature resistance and much better water vapor barrier properties than LDPE, but it is considerably hazier. Heat-Seal Coating: An adhesive coating applied to a packaging material that is capable of being activated by heat and pressure to form a bond. Heat-Seal Layer: A heat sealable innermost layer in plastic packaging films and laminates. Can be either adhesive laminated or extrusion coated onto a non-sealable film (or foil). Heat-Seal Strength: Strength of heat-seal measured after the seal is cooled, (not to be confused with “hot tack”, see next item).
  • 19. Hermetic Seal: Airtight or impervious to gases or fluids under normal conditions of handling and storage. High Barrier: Describes a material or package that has very low gas permeability characteristics; that is, it offers a great deal of resistance to the passage of a gas through its volume. Hot Tack: Strength of heat seal measured before the seal is cooled, which is very important for high-speed packaging operations. Impulse Sealer: Also known as a heat sealer. These units use an electrical current passed through a Ni-Chrome wire heating element to seal bags & tubing. Can be used on many plastic materials to create strong permanent welds. Laminate: (a) noun A product made by bonding together two or more layers of material. (b) verb To unite layers of material to produce a multilayer material. Laminated Film: An adhered combination of two or more films or sheets made to improve overall characteristics. Also multilayer film. Lap Seal: A seal made with two layers of film overlapping one another. Because lap seals require less material than fin seals, packagers are converting to lap seals in the name of sustainability, lean operations and economics. Laser Scoring: Use of high-energy narrow light beam to partially cut through a material in a straight line or shaped patterns. This process is used to provide an easy-opening feature to various types of flexible packaging materials. LDPE: Low density, (0.92-0.934) polyethylene. Used mainly for heat-seal ability and bulk in packaging. Lidding, Lidstock: Material or stock used to form a lid. For example, material that can be heat-sealed over the open ends of pharmaceutical tablet blister cards.
  • 20. Light Resistance: The ability of material to withstand exposure to light (usually sunlight or the ultraviolet part of the light spectrum) without change of color or loss of physical and/or chemical properties. LLDPE: Linear low density polyethylene. Tougher than LDPE and has better heat-seal strength, but has higher haze. Machinability: The ability of a film to run on packaging equipment. Machine Direction (MD): The direction that film moves through the packaging equipment. Manufacturing Tolerance: Permissible variations from rated or marked capacities or dimensions established by standards or specifications for those. MET-OPP: Metalized OPP film. It has all the good properties of OPP film, plus much improved oxygen and water vapor barrier properties, (but not as good as MET-PET). MET-PET: Metalized PET film. It has all the good properties of PET film, plus much improved oxygen and water vapor barrier properties. However, it is not transparent. see also VMPET. Metallize: Appying a thin coating of metal to a nommetallic surface by chemical deposition or by exposing the surface to vaporized metal in a vacuum chamber. Moisture Vapor Transmission Rate (MVTR): A depreciated term, usually measured at 100% relative humidity, expressed in grams/100 square inches/24 hours, (or grams/square meter/24 Hrs.) See WVTR. Mylar™: Mylar is a registered trademark of the DuPont-Teijin Corporation. Is the industrial brand name for that corporation’s polyester (PET) film. Polyester film is a staple of multi-layer packaging for a wide variety of applications.
  • 21. Nylon: Polyamide resins, with very high melting points, excellent clarity and stiffness. Two types are used for films - nylon-6 and nylon-66. The latter has much higher melt temperature, thus better temperature resistance, but the former is easier to process, and it is cheaper. Both have good oxygen and aroma barrier properties, but they are poor barriers to water vapor. Off-Cut: Trim that is not utilized. In flexible packaging, a narrow roll of material left over when an material order does not call for the full roll width. Sometimes called a butt roll. OPP: Oriented PP (polypropylene) film. A stiff, high clarity film, but not heat sealable. Usually combined with other films, (such as LDPE) for heatsealability. Can be coated with PVDC (polyvinylidene chloride), or metalized for much improved barrier properties. Optics: The visual properties of a film, such as clarity, gloss, haze, opacity, etc. Orientation: The process of mechanically stretching plastic film or parts in order to produce a straightening and alignment of the molecules in the stretch direction. If done in one direction, the material is said to be uniaxial or monoaxially oriented. if done in two directions, the film is biaxially oriented. Pass: One trip of a material through a production machine or manufacturing step Pillow Pouch: A bag or pouch in the form of a tube that is sealed at both ends. Pillow type pouches are most commonly produced on vertical-form-fill-seal (VFFS) machines and are characterized by seals across the top and bottom, and a longitudinal seal going down the center of one of the faces. Plate Break: Non-print area where the two ends of flexo plate butt together after being wrapped around the plate cylinder on the printing press.
  • 22. PMS Number: The Pantone Matching System is the universally accepted color definition system. Colors can be blended or individually specified to match a specified Pantone reference color exactly. Poly (ethylene terephthalate) film (PET) Polyester, (Polyethylene Terephtalate). Tough, temperature resistant polymer. Biaxial oriented PET film is used in laminates for packaging, where it provides strength, stiffness and temperature resistance. It is usually combined with other films for heat sealability and improved barrier properties. Polyethylene Film (PE): Made in high density, low density, linear low density and metallocene variations. By far the largest volume packaging film family. Polyolefin: Family name for the polymers (plastics) derived by ethylene and propylene, such as polyethylene (PE) and polypropylene (PP) Polypropylene Film (PP): Unoriented film is soft and clear but brittle at low temperatures. This property as well as stiffness, strength and clarity is improved by orientation. Pouch: A small bag usually constructed by sealing one or two flat sheets along the edges. There is no clear distinction between a pouch and a sachet other than the common understanding that a sachet is smaller. Primer Coat: A coating applied over a substrate for the purpose of improving an ink or adhesive bond. Process Color: Color printing created by separating the copy into the primary colors to produce individual halftones of each color, that are recombined at the press to produce the complete range of colors of the original. Process printed photographic reproduction would normally be done with cyan, magenta, yellow and black (CMYK) inks.
  • 23. PVDC: Polyvinylidene Chloride. A very good oxygen and water vapor barrier, but not extricable, therefore it is found primarily as a coating to improve barrier properties of other plastic films, (such as OPP and PET) for packaging. PVDC coated and ’saran‘ coated are the same. Register: Exact alignment of one part or operation with another part or operation. Release Coating: A coating applied to the non-sealing side of cold-sealable packaging films and laminates supplied in a roll form that will allow the packer to unwind these films or laminates on packaging machines. Retort: The thermal processing or cooking packaged food or other products in a pressurized vessel for purposes of sterilizing the contents to maintain freshness for extended storage times. Retort pouches are manufactured with materials suitable for the higher temperatures of the retort process, generally around 121° C. Reverse Printing: Printing wrong-reading on the underside of transparent film. In this case, the outermost layer is printed on the backside and laminated to the rest of the multi-layer structure. While not mandatory in all industries, it is the preferred method for the food industry as it guarantees there will be no ink contact with the food product. The majority of all products are reverse printed. Roll Stock: Said of any flexible packaging material that is in a roll form. Slip: The ability of film to move easily over hard plastic, metal, or ceramic platforms or against another piece of film. Slitting: The conversion of a given width of a film or sheet material into narrower widths. Web stock is unrolled past a series of knives set to the correct widths, and the slit web is rewound back into roll form. ^ top Splice: Joining two pieces of web material to form a continuous web. Spot Color: Solid colors not created by using screens. Usually a Pantone Matching System (PMS) color.
  • 24. Stand-Up Pouch: A flexible pouch design where the bottom portion has been gusseted in such a way that that it provides a wide enough base to provide support so the pouch is able to be stood up for display or use. Stick Pack: A narrow flexible packaging pouch commonly used to package single-serve powder beverage mixes such as fruit drinks, instant coffee and tea and sugar and creamer products. Stickyback: Double-faced adhesive-coated material used for mounting elastomeric printing plates to the plate cylinder. Surface Print: The process whereby the ink is deposited directly onto the outermost surface of the packaging film or material. The process is most commonly used in short run printing. A UV (ultraviolet) coating may be added to provide a hard exterior finish that prevents the ink from flaking or chipping. Tear Resistance: The ability of a film to resist the propagation of a tear. Tensile Strength: The amount of pull a film can withstand without tearing apart or stretching. Thermoforming: A method of forming plastics where a plastic sheet is heated to a point where it is soft and formable. Threading: The placing of a web material through the various rolls and stations of any web-fed press such as a printer or laminator in preparation for production. Side-Seal Pouch: A pouch that is formed by folding the web material into a U-shape and then sealing the three open sides. The pouch may be made with a gusseted bottom. Three-side-seal pouches are typically made on horizontal form-fill-seal machines. Tie Layer: A material that bonds two incompatible layers in a coextrusion. .
  • 25. Transverse Direction (TD): The direction perpendicular to the machine direction. Trapping: In printing, inks may be overlapped slightly by increasing the image size to ensure that no substrate shows through within the register variations of the printing press. Water Vapor Transmission Rate (WVTR): A measure of the rate of water vapor transmission through a material. Usually measured at 100% relative humidity, expressed in grams/100 square inches/24 hours, (or grams/square meter/24 Hrs.) See MVTR. Web: A continuous length of paper film, foil, or other flexible material as it is unwound from a roll and passed through a machine. Zipper Pouch: A flexible plastic pouch with a molded-in-place sealing device wherein a projecting rib or fin is inserted into a mating channel to effect a closure. A zipper seal can be repeatedly opened and closed.
  • 26. 26 Established in 1968 & headquartered in Northbrook, IL, Pyramid Packaging is a ISO 9001:2008 compliant supplier of flexible packaging equipment, materials & services.
  • 27. We can warehouse and manage the inventory of your packaging supplies.
  • 29. Service Our packaging sales engineers can help you select the best film design and construction for your packaging application.
  • 30. Pyramid Packaging Inc. 2901 Shermer Road Northbrook, IL 60062 800-547-5130 info@pyramidpackaging.com
