1. SECURICO CCTV
Innovation.Passion.Commitment

2. What is CCTV
• CCTV- Closed Circuit Television is the
technology behind capturing images from
an object at one end and transmitting it
through some type of transmission media
to a receiving display unit on another end
for the purpose of security and
monitoring activities.

3. Applications Of CCTV Video Surveillance
 Industrial Processes:
In several industries, CCTV supervision is required to monitor the stages involved in various
processes. Sometimes the law orders compulsory CCTV monitoring in these industries. Special
CCTV cameras, which measure the temperature of the processes, are used for such purposes.

4. Applications Of CCTV Video Surveillance
 Reining In Crime:
CCTV is a very efficient tool to rein in crime because the recorded footage is substantial
evidence against the criminal. A recent survey reports 51% depreciation in crime in parking lots
and a 23% decrease in crime on roads where CCTV Video Surveillance was used.

5. Applications Of CCTV Video Surveillance
 In Retail Industry:
Retail industry has many advantages of CCTV surveillance. CCTV in retail facilitates monitoring
financial transactions, products on display, any incident of theft and many more such things
that require to be maintained record of.

6. Applications Of CCTV Video Surveillance
 Traffic Monitoring:
Many cities monitor daily traffic through CCTV surveillance. This enables the authority to keep a check on traffic
jams, accidents, etc.

7. Classification of CCTV
CCTV
Analog
Normal
Analog
It is Out of
Market
HD
HDTVI
IR Indoor
Dome
Camera
IR Outdoor
Camera
PTZ Camera
HDCVI AHD
IP

8. What is HDTVI
• HDTVI (High Definition Transport Video Interface) is the HD Video
transmission Interface. HDTVI technology can be implemented in
existing simulation on a transmission line reliable kop HD video signal
transmission.

9. Common feature of HDCVI, HDTVI & AHD
Common feature of HDCVI, HDTVI, AHD
 Video Transmission 300-500m coax cable distance.
 Resolution 720p up 1080p up to 25 fps.
 PTZ control signals transmitted over coaxial.
 No transmission delay.

10. Components of CCTV SYSTEM
 Analog System
 Camera
DVR
Hard disk
Wiring-RG58,RG11,RG6 OR 3+1
Power supply
Connector- BNC,DC
Monitor
 IP System
 Camera
NVR
Hard disk for Recording
Wiring –CAT5, CAT6 etc..
Power supply not required if Poe Switch use
 Switch/ Poe switch in case of PoE used
Connector- RJ 45
Monitor

11. Environment
&
Requirement
Camera selection
Network Tropology
Storage
Recording System
System consideration

12. Camera Selection
Lens
Outdoor
Or
Indoor
Analog
Wireless
DOME
MP
Bullet
Camera
IP

13. CAMERAs

14. Resolution
• Resolution is the size of the Image,
the bigger the size more detail is
captured.
• We can zoom in digitally to see more
details without much pixilation.
• In Network video surveillance we get
videos in higher resolutions like HD
Ready (720p) , Full HD (1080p) , etc.

15. Resolutions

17. Facts to know about Surveillance Camera
• BOARD LENS
• This is a fixed lens mounted on a circuit board of camera.
These lenses are often used in mini cameras, dome
cameras and hidden cameras.
• C-Mount
• This type lens is the original standard one. Its back
interface diameter is 25mm, sensor format includes 2/3
inch,1/2 inch. Especially, the lens and camera contact
surface to the surface of sensor is the standard value
17.5mm.
• CS-Mount
• This type lens is the upgraded one from C-Mount lens.
Except the distance from contact surface to sensor
surface, it has the same feature as the C-Mount. The
distance is 12.5mm.

18. Cameras
 CCTV camera has three main components
• Lens
• A transparent optical device used to converge or diverge
transmitted light and to form images.
 Image Sensor
o An image sensor is a device that converts an optical image to an electric
signal. An image sensor is typically a charge-coupled device (CCD) or a
complementary metal–oxide–semiconductor (CMOS) active-pixel sensor
 A basic electronic circuitry or an advanced DSP
Video Out

19. Focal length

20. Lens Type
Fixed
A fixed focus lens has one set focal length with a specific field of view which
cannot be changed.
Vari -focal
A lens that can be manually adjusted for the desired magnification and field of
view
ZOOM LENS
A lens with the ability to change the focal length manually or with a controller, to
cover a variety of needs.
ZOOM RATIO
The ratio between a lens maximum and minimum focal length, e.g. a 12 to 240mm
lens has a zoom ratio of 20 times (240/12 = 20).

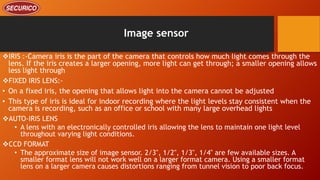

21. Image sensor
IRIS :-Camera iris is the part of the camera that controls how much light comes through the
lens. If the iris creates a larger opening, more light can get through; a smaller opening allows
less light through
FIXED IRIS LENS:-
• On a fixed iris, the opening that allows light into the camera cannot be adjusted
• This type of iris is ideal for indoor recording where the light levels stay consistent when the
camera is recording, such as an office or school with many large overhead lights
AUTO-IRIS LENS
• A lens with an electronically controlled iris allowing the lens to maintain one light level
throughout varying light conditions.
CCD FORMAT
• The approximate size of image sensor. 2/3", 1/2", 1/3", 1/4" are few available sizes. A
smaller format lens will not work well on a larger format camera. Using a smaller format
lens on a larger camera causes distortions ranging from tunnel vision to poor back focus.

22. Camera Image Sensor
 CCD Image Sensor
A CCD is an analog device. The incident light is held as a
small electrical charge in each photo sensor and converted
to voltage
 CMOS Image Sensor
A CMOS chip is a type of active pixel sensor made
using the CMOS semiconductor process.

23. Camera-DSP
• DSP (Digital Signal Processor)
Similar to computer microchip or chip sets which have replaced the conventional
integrated circuits in the camera. This enables feature-rich products, more
consistent picture quality, AES, BLC, motion detection, OSD menu etc.

24. Camera
• AUTO-IRIS LENS
A lens with an electronically controlled iris allowing the lens to maintain one light level throughout
varying light conditions.
• LUX
The international unit of illumination in which the meter is the unit of length. It is equal to the
illumination of a surface one meter away from a single candle. One lux equals one lumen per square
meter. 10 lux equals 1 foot-candle.
• Auto electronic shutter (AES)
Used in cameras where the iris remains fixed allowing the shutter speed to change in response to the
amount of perceived light to keep the signal output at the best possible level.

25. Camera Exposure
Exposure
exposure is the quantity of light reaching a photographic film, as determined by shutter speed and lens
aperture.

26. Camera
SNR
Signal to noise ratio is an electrical engineering measurement, a measurement of the noise level in a signal
expressed in dB (decibels). In a video signal values from 45 dB to 60 dB produce an acceptable picture. Less
than 40 dB is likely to produce a 'noisy' picture
Automatic White Balance (AWB)
This features lets the camera to automatically adjust the color settings to achieve the most correct and
accurate colors

27. BLC- Back Light Compensation
• BLC (Backlight Compensation)
The adjustment of exposure to prevent the backlit subject from turning
out too dark

28. WDR- Wide Dynamic Range
• WDR (Wide Dynamic Range)
• The Wide Dynamic Range (WDR) function of a camera is intended to provide clear images
even under back light circumstances where intensity of illumination can vary excessively
• WDR enables the capture and display of both bright areas and dark areas in the same frame,
in a way that there are details in both areas, i.e. bright areas are not saturated, and dark
areas are not too dark

29. WDR
Regular WDR

30. High Light Compensation
• It detects bright highlights and masks them out in order to reveal detail which would
otherwise be obscured by the flare effect from a strong light source, such as torch light or
car headlights.

31. Type of Camera and Their Use

32. DOME Camera
 DOME Camera
Dome camera typically /are best choices whenever possible
 When the camera is within someone’s reach can not be easily manipulated
or vandalized.
 Domes installs easy in drop ceilings- usually 2 screws.
 Dome are not always weather proof camera so these are not suited for outside
peripherals.
 As the dome camera themselves are typically small the lens size are limited.
although some dome cameras with vari-focal lens but the size are limited.

33. Dome Camera 20 mtr
Model No:- SEC-CHDME IR20,SEC-CFHDME IR20,SEC-
CHDPE IR20, SEC-CFHDPE IR20
Sensor:- CMOS Sensor.
Lens:- :- 3.6mm
Effective pixels:- 1280*720(1MP),1920*1080(2MP).
IR LED:- micro LED.
AWB:- AUTO.
ICR Auto,
Power Supply:- 12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable.

34. Dome Camera 20 mtr
Model No:- SEC-CHDME IRA20,SEC-CFHDME IRA20
Sensor:- CMOS Sensor.
Lens:- :- 3.6mm
Effective pixels:- 1280*720(1MP),1920*1080(2MP).
IR Type:- Smart IR
AWB:- AUTO.
ICR Auto, DNR.
IP Rating :- IP66
Power Supply:- 12v,2 Amp.
Transmission Distance:- 500m via 75.3 coaxial cable.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).

35. Dome Camera 40 mtr
Model No:- SEC CHDPE IRA40,SEC CFHDME IRA40
Sensor:- CMOS Sensor.
Lens:- :- 6 mm
Effective pixels:- 1280*720,1920*1080.
IR :- Smart IR(40)
BLC/AWB:- AUTO.
ICR Auto, DNR.
IP Rating:- IP66
Power Supply:- 12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable.

36. Dome Camera with Vari-Focal
Model No:- SEC-CHDM IRVF, SEC-CFHDM IRVF
Sensor:- CMOS Sensor.
Lens:- :- 2.8~12mm .
Effective pixels:- 1280*720P(1MP),1920*1080P(2MP).
IR Type:- LEDs
IR Range:- 40 mtr.
BLC/AWB:- AUTO.
Ingress Protection: -IP66
Power Supply:- 12v,2 Amp.
Min. Illumination: - 0.1Lux
Transmission Distance:- 500m via 75.3 coaxial cable.

37. Bullet Camera
 Bullet camera are to be considered when
 when the light are extremely low pitch dark.
 when the camera are not within someone reach.
 These camera have an advantage of in build IP 66 rated and
comes with stand.

38. BULLET CAMERA 20mtr
Model No:- SEC CHBPE IR20,SEC CFHBME IR20
Sensor:- CMOS Sensor.
Lens:- :- 3.6 mm
Effective pixels:- 1280*720,1920*1080.
IR LED:- LED(20m)
AWB:- AUTO.
ICR Auto, DNR
IP Rating :- IP66
Power Supply:-12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable.

39. BULLET CAMERA 20mtr
Model No:- SEC CHBPE IRA20,SEC CFHBME IRA20
Sensor:- CMOS Sensor.
Lens:- :- 3.6 mm
Effective pixels:- 1280*720,1920*1080.
IR LED:- LED(20m)
AWB:- AUTO.
IR:- Smart IR
ICR Auto ,DNR
IP Rating :- IP66
Power Supply:- 12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable.

40. Bullet Camera 40m
Model No:- SEC CHBPE IRA40,SEC CHBME IRA40
Sensor:- CMOS Sensor.
Lens:- :- 6 mm
Effective pixels:- 1280*720,1920*1080.
IR :- Smart IR
AWB:- AUTO.
ICR Auto, DNR.
IP Rating:- IP66
Power Supply:- 12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable

41. Bullet Camera 80m
Model No:- SEC CHBPE IRA80,SEC CHBME IRA80
Sensor:- CMOS Sensor.
Lens:- :- 8 mm
Effective pixels:- 1280*720,1920*1080.
IR :- Smart IR
AWB:- AUTO.
ICR Auto, DNR.
IR Range 80mtr
IP Rating:- IP66
Power Supply:- 12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable

42. Bullet Camera Vari-focal
Model No:- SEC CHBME IRVF,SEC CFHBME IRVF
Sensor:- CMOS Sensor.
Lens:- :- 2.6~12mm
Effective pixels:- 1280*720,1920*1080.
IR :- LES
IR Range:- 40 mtr
AWB:- AUTO.
ICR Auto, DNR.
IP Rating :- IP66
Power Supply:- 12v,2 Amp.
Working with selected Video formats (TVI/AHD/CVI/ CVBS).
Transmission Distance:- 500m via 75.3 coaxial cable.

43. How to Install a CCTV Analog Camera System -
Security Cameras

44. DVR’S
“A digital video recorder (DVR) is an electronic device that
records video in a digital format to a disk drive, SD memory
card, SSD or other local or networked mass storage device.”

45. Standalone Digital Video Recorder
DVR
GH7
Series
1080 lite
FH5
Series
1080P

46. DVR
DVR Support HDTVI, Analog+IP
DVR GH7 5+1 DVR
FH5 3+1 DVR
• DVR Support HDTVI+ AHD+ Analog+
HDCVI & IP
•SEC-N04 GH7
•SEC-N08 GH7
•SEC-N16 GH7
•SEC-N04 FH5
•SEC-N08 FH5
•SEC-N16 FH5

47. DVRs
FH5-Series
• FH5 Series Support all resolution like
1MP,1.3MP, 2MP, 3MP,& 4MP.
• Support IP Camera inputs up to 2MP.
• FH-5 Series has 4Ch, 8Ch and 16Ch DVR.
• Recording Resolution is 4MPp.
• DVR Support HDD quota and group
management.
• All DVR support Analog, AHD, CVI & TVI
and IP Camera
• All DVR carry two year warranty where as
1 year replacement warranty
GH7-Series
• All DVRs are with Metal body.
• GH-7 Series Support all resolution like
1MP,1.3MP & 2MP.
• Support IP Camera inputs up to 960P.
• GH-7 Series have 4Ch, 8Ch and 16Ch DVR.
• Recording Resolution is 1080p(2MP).
• All DVR support Analog, AHD and IP
Camera
• All DVR support VCA(Video Contents
Analysis) functions.

48. IP Solutions

49. IP
 IP CAMERA
 SEC-CIDP1 IR10
SEC-CIFHDP1 IR10
SEC-CIHBP IR30
SEC-CIFHBP IR30
NVR
SEC-MO4 FH7
SEC-M08 FH7
SEC-M16 FH7

50. IP CAMERA

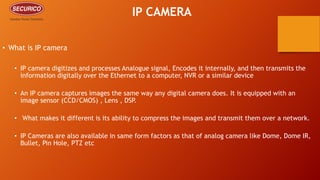

51. IP CAMERA
• What is IP camera
• IP camera digitizes and processes Analogue signal, Encodes it internally, and then transmits the
information digitally over the Ethernet to a computer, NVR or a similar device
• An IP camera captures images the same way any digital camera does. It is equipped with an
image sensor (CCD/CMOS) , Lens , DSP.
• What makes it different is its ability to compress the images and transmit them over a network.
• IP Cameras are also available in same form factors as that of analog camera like Dome, Dome IR,
Bullet, Pin Hole, PTZ etc

52. IP Camera
• IP cameras are embedded with webservers and can be accessed & controlled over an IP network
such WAN/LAN/Intranet/Internet etc.
• By utilizing a standard web browser or a client software, users can view an IP cameras video
output from any local or remote location.

53. IP Dome IR Camera
 Model No:- SEC-CIDP1 IR10, SEC-CFIDP1 IR10
 Compression:- H.264
 ICR Supported
 Sensor :- HD CMOS Sensor.
 Lens:- :- 4 mm
 Effective pixels:- 1280*720(1MP),1920*1080(2MP).
 IR LED:- Smart IR 10 mtr
 AWB:- AUTO.
 Digital wide Dynamic Range, BLC, ROI
 3D DNR (Digital Noise Reduction)
 Onvif Supported
 Power Supply:- 12v,2Am, PoE
ACCESS Camera from anywhere with SECURICO Mobile app.

54. IP Bullet Camera
 Model No:- SEC-CIBP1 IR30, SEC-CFIBP1 IR30
 Compression:- H.264
 ICR Supported
 Sensor :- HD CMOS Sensor.
 Lens:- :- 4 mm
 Effective pixels:- 1280*720(1MP),1920*1080(2MP).
 IR LED:- Smart IR 30 mtr
 AWB:- AUTO.
 Digital wide Dynamic Range,BLC,ROI
 3D DNR (Digital Noise Reduction)
 IP Rating :- IP 67
 Onvif Supported
 Power Supply:- 12v,2Amp, Poe
 ACCESS Camera from anywhere with SECURICO Mobile app.

55. NVR(Network Video Recorder)
• A network video recorder (NVR) is a software program that records video in a digital
format to a disk drive, USB flash drive, SD memory card or other mass storage
device. An NVR contains no dedicated video capture hardware. ...
• An NVR is typically deployed in an IP video surveillance system.

56. NVRs
SEC-MO4 FH7
SEC-M08 FH7
SEC-M16 FH7

57. SEC-MO4 FH7(4-Ch NVR)
• 4 Channel NVR, Supported up to 6 MP IP Camera.
• Onvif Compliant
• Supports H.264 & H.264+ Compression
• Recording Resolution up to 6 MP For all Channels.
• HDMI & VGA video Output Interface on 1920*1080P resolution.
• One SATA Interface up to 4TB.
• 4 Channel Synchronous playbacks.
• Support Video Content Analytics.
• 10/100 Ethernet Interface.

58. SEC-M08 FH7(8-Ch NVR)
• 8 Channel NVR, Supported 4K resolution.
• ONVIF Compliant supported third party IP Camera
• Supports H.264, H.264+ & H.265 Compression
• Recording Resolution 4K.
• VGA video Output Interface on 1920*1080P resolution.
• HDMI Video output interface on 4K(3840*2160) resolution.
• One SATA Interface up to 6TB.
• 8 Channel Synchronous playbacks.
• Support Video Content Analytics.

59. SEC-M16 FH7(16Ch NVR)
• 16 Channel NVR, Supported 4K resolution.
• ONVIF Compliant supported third party IP Camera
• Supports H.265+/H.264/H.265 Compression
• Recording Resolution 4K.
• VGA video Output Interface on 1920*1080P resolution.
• HDMI Video output interface on 4K (3840*2160) resolution.
• One SATA Interface up to 6TB.
• 1-Ch@4K/4-Ch@1080P Synchronous playback
• Support Video Content Analytics.
• 10/100/1000 Ethernet Interface.

60. Vehicle Tracking System
• Cellphone surveillance, also known as cellphone spying, may involve the tracking,
bugging, monitoring, interception and recording of conversations and text messages
on mobile phones. It also encompasses the monitoring of people's movements,
which can be tracked using mobile phone signals when phones are turned on.
• Take advantage of our untethered surveillance solutions wherever there is cellular
data network coverage. Enhance exiting mobile DVRs with live video. Centralized
access to one or thousands of mobile or stationary surveillance cameras
simultaneously.
Full access to Managed Video Hosting and Real-Time Surveillance services. Access
video from any Internet enabled mobile device in real time.

61. Application of Mobile NVR

62. OVERVIEW ON NETWORKING
FUNDAMENTALS

63. Networking Fundamentals
Important points/facts to know about networking of CCTV Network devices:
 IP ADDRESS: It’s a unique identity of any network devices over the network. An Internet Protocol (IP) address is
a numerical label that is assigned to devices participating in a network. IP Address is of two types:
 Public IP: A public IP address is any valid address, or number, that can be accessed over the Internet.
 Private IP: A private IP address is any number or address assigned to a device on a private TCP/IP Local Area
Network that is accessible only within the Local Area Network.

64. IP Address Classes

65.  IP Address Assignment: IP address assignment can occur in one of the following ways:
• Static : Static is a manual assigned IP address where you assign the IP for the TCP.
• Dynamic : Dynamic IP address is an addressed that is leased by a DHCP server
 Subnet Mask: An IP address has two components, the network address and the host address. A subnet mask
separates the IP address into the network and host addresses
 Gateway: A gateway is a network point that acts as an entrance to another network
 DHCP: Dynamic Host Configuration Protocol (DHCP) is a network protocol that enables a server to
automatically assign an IP address to a network device from a defined range of numbers (i.e., a scope)
configured for a given network

66.  DNS: Short for Domain Name System (or Service or Server), an Internet service that translates domain names
into IP addresses.
 DDNS : Dynamic DNS allows a fully qualified domain name (FQDN) that never changes to be associated with a
dynamically assigned IP address that can change quite often without the need for human intervention.
 Protocol : protocol is a standard used to define a method of exchanging data over a network.
 Port Number: A port is associated with an IP address of the host, as well as the type of protocol used for
communication

67. • To access DVR on network connect it with existing LAN, example as given
below:
Network Switch
DVR Client 1 Client 2 Client 3 Client 4

68.  TCP : is responsible for verifying the correct delivery of data from client to server. Data can be lost in the
intermediate network. TCP adds support to detect errors or lost data and to trigger retransmission until the
data is correctly and completely received.
 UDP: it’s connectionless & doesn't acknowledge that the packets being sent have been received. For this
reason, the UDP protocol is typically used for streaming media.
 HTTP: Communications protocol used to connect to Web servers on the Internet or on a local network
(intranet).
 UPnP: It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol hence
no need to do manual port forwarding on router. To work with this just enable UPnP on DVR/NVR and enable
it on router also. .
 IP Filter: It Filter the traffic to access or deny for a network range or host.

69. Nomenclature of Camera and DVR Model Number

70. Nomenclature of Camera
S E C- C H B P E IR20
S E C- C H B M E IR20
S E C- C H D P E IR20
SEC:- SECURICO
C:-CAMERA
H:-HD (720 P)
B:-BULLET CAMERA
P:-IN PLASTIC BODY
E:-ECONOMY RANGE
IR 20:- INFRARED RANGE IS 20 METER
M:- METAL BODY
D:- DOME CAMERA

71. Nomenclature of Camera
SEC – C H D M E IRA40
Everything would be same as pervious slide apart from IRA40
IRA40:- Infrared array type IR LED that will support up to 40 meter range.

72. Nomenclature of Camera
SEC – C H B M U IRVF
Every thing would be same as pervious slide apart from IRVF.
VF-Very focal length the camera will support very focal lances

73. Nomenclature of Camera
SEC – C FH B M E IR20
Every thing would be same as pervious slide apart from FH.
Now we are going to discuss FH.
FH:- Full HD(1080 P)
That camera will support 2 megapixel resolution.

74. Nomenclature of DVR
SEC-N04 GH7
SEC-N08 GH7
SEC-N16 GH7
• SEC:- SECURICO
• N :- NEPTUNE Series
• 04/08/16:- No of Camera can connect.
• GH:-
• 7 :- Version of Series

75. Nomenclature of NVR
SEC-M04 FH7
SEC-M08 FH7
SEC-M16 FH7
• SEC:- SECURICO
• N :- NEPTUNE Series
• 04/08/16:- No of Camera can connect.
• FH:-
• 7 :- Version of Series

76. Nomenclature of NVR
SEC-M04 FH7
SEC-M08 FH7
SEC-M16 FH7
• SEC:- SECURICO
• N :- MERCURY Series
• 04/08/16:- No of Camera can connect.
• FH:-
• 7 :- Version of Series

77. SEC-N04 GH7

78. Thank you!!
Do you have Any Questions
Saurabh Tripathi
Sr. Engineer
SECURICO ELECTRONICS INDIA LIMITED
Securico House Plot No. 4, 14/3 Delhi - Mathura Road Faridabad,
Haryana - 121003 India..
Contect No:- +91-9953683825,9718102738
Email ID :- saurabh.tripathi@securicoelectronics.in,saurabhtripathicctv@gmail.com
